For Sharp Carousel
®
Built-in Kit
Models RK56S27F or RK56S30F
S = STAINLESS
THIS KIT IS UL APPROVED TO ALLOW CERTAIN MICROWAVE
OVENS TO BE INSTALLED ABOVE ANY ELECTRIC WALL OVEN.
PLEASE SEE THE OPERATION MANUAL REGARDING APPROVED
BUILT-IN APPLICATIONS.
IMPORTANT:
This Built-in Kit is designed for and approved only for those
Sharp Microwave Ovens specifying Built-In Kit RK56S27F or
RK56S30F. Refer to operation manual for approved models.
IMPORTANT NOTES TO THE INSTALLER
• PLEASE READ THESE INSTRUCTIONS THOROUGHLY
BEFORE BEGINNING INSTALLATION.
• Observe all governing codes, ordinances, and safety
instructions.
• Be sure to leave these instructions with the consumer.
• Be sure to DISCONNECT THE PLUG of the microwave
oven from the electrical outlet before installing the Built-in
Kit. Remove the Carousel turntable from the oven cavity.
• Because the kit includes metal parts, due caution should
be used in handling and installation to avoid the possibil-
ity of injury.
ITEM PART NAME QTY
A
FRONT FRAME
RK56S27F: FDECAB252MRK0
RK56S30F: FDECAB253MRK0
1
B
BACK FRAME
RK56S27F: FDECAB255MRK0
RK56S30F: FDECAB255MRK0
1
C
EXHAUST DUCT ASSEMBLY
PDUC-B188MRP0
1
D SCREW D: XTSS740P20000 2

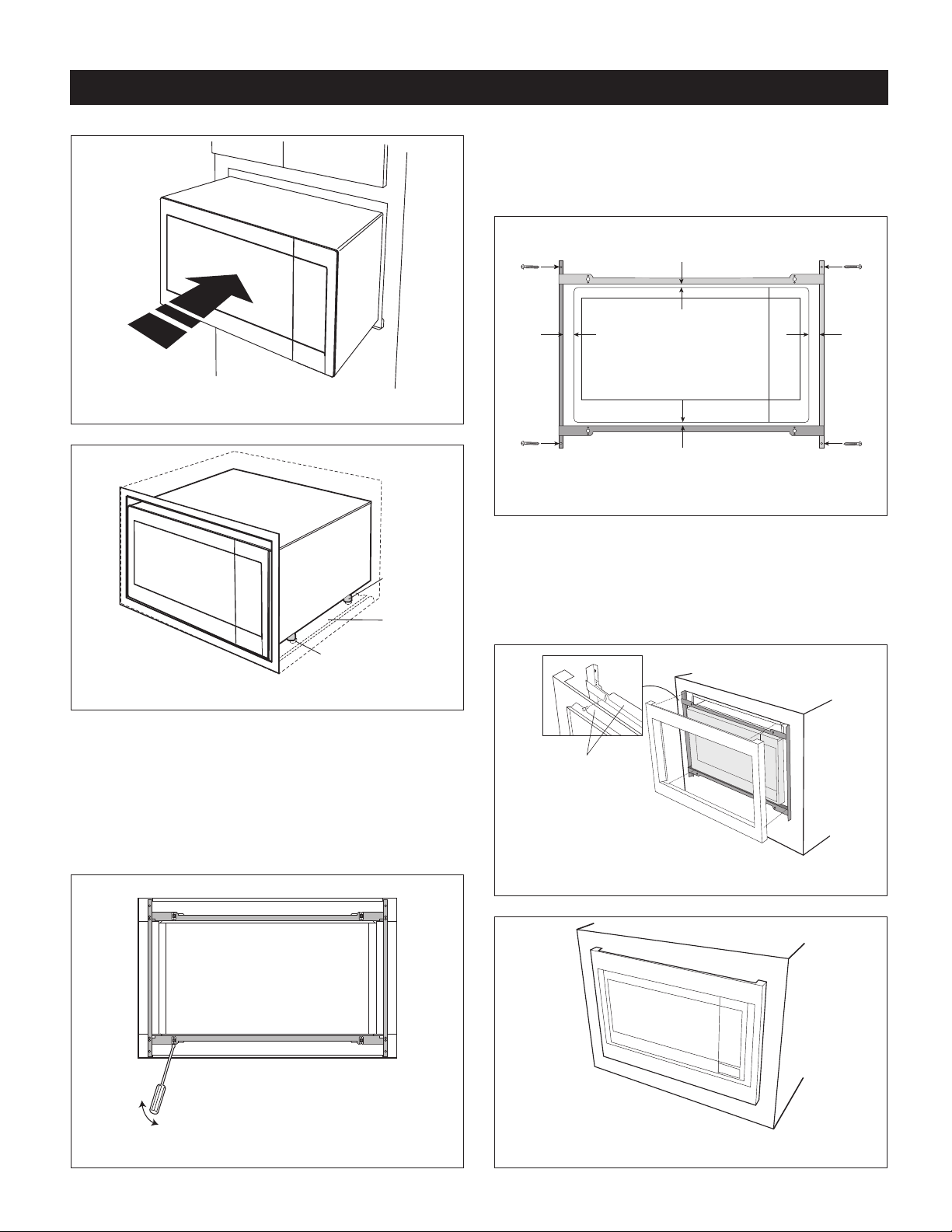

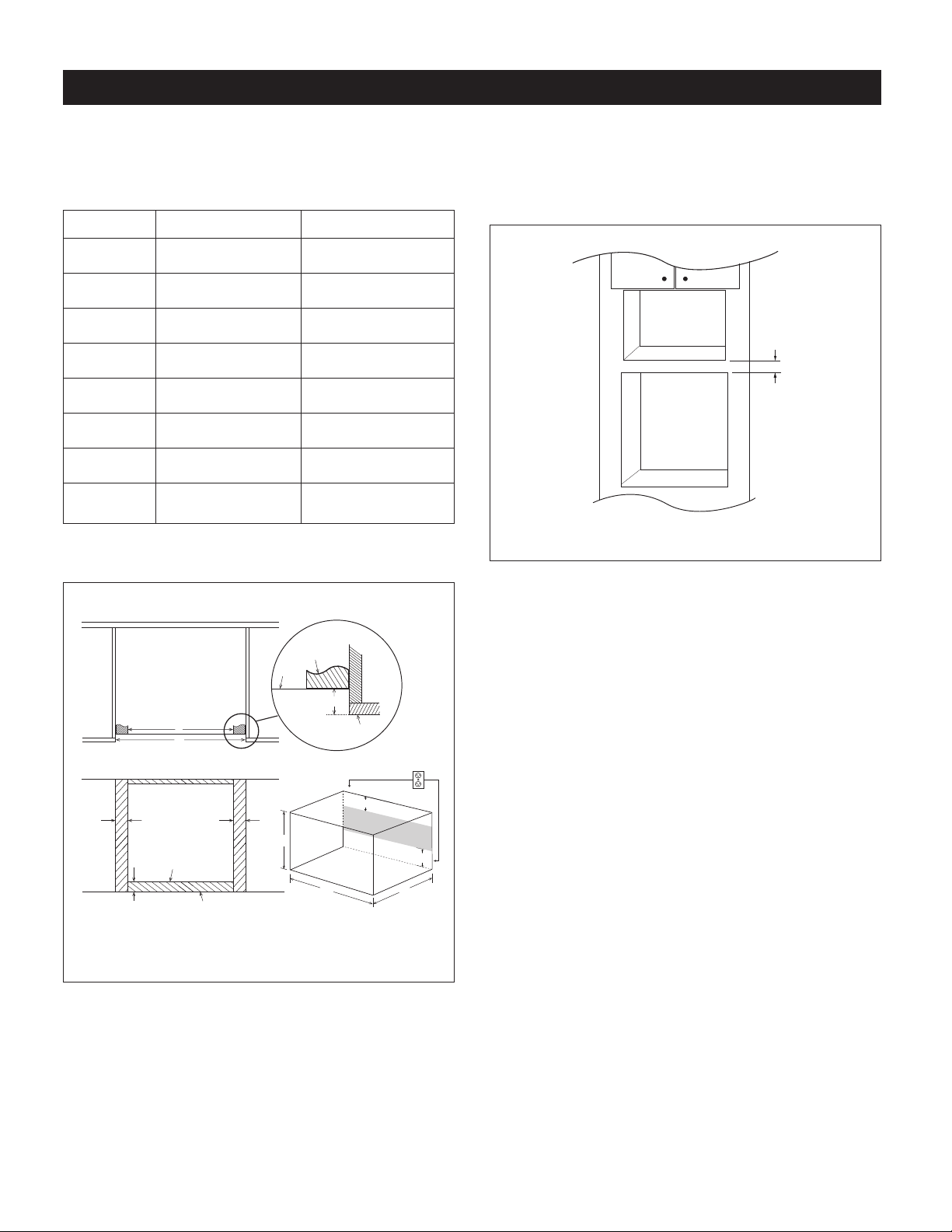

INSTALLATION INSTRUCTIONS
A B
D
F
C
E
V-cut
indicates
center of
duct
C
L
ITEM PART NAME QTY
E SCREW E: XOPS740P16000 8
F
AIR DEFLECTOR:
RK56S27F: PREF-B038MRP0
RK56S30F: PREF-B039MRP0
2
