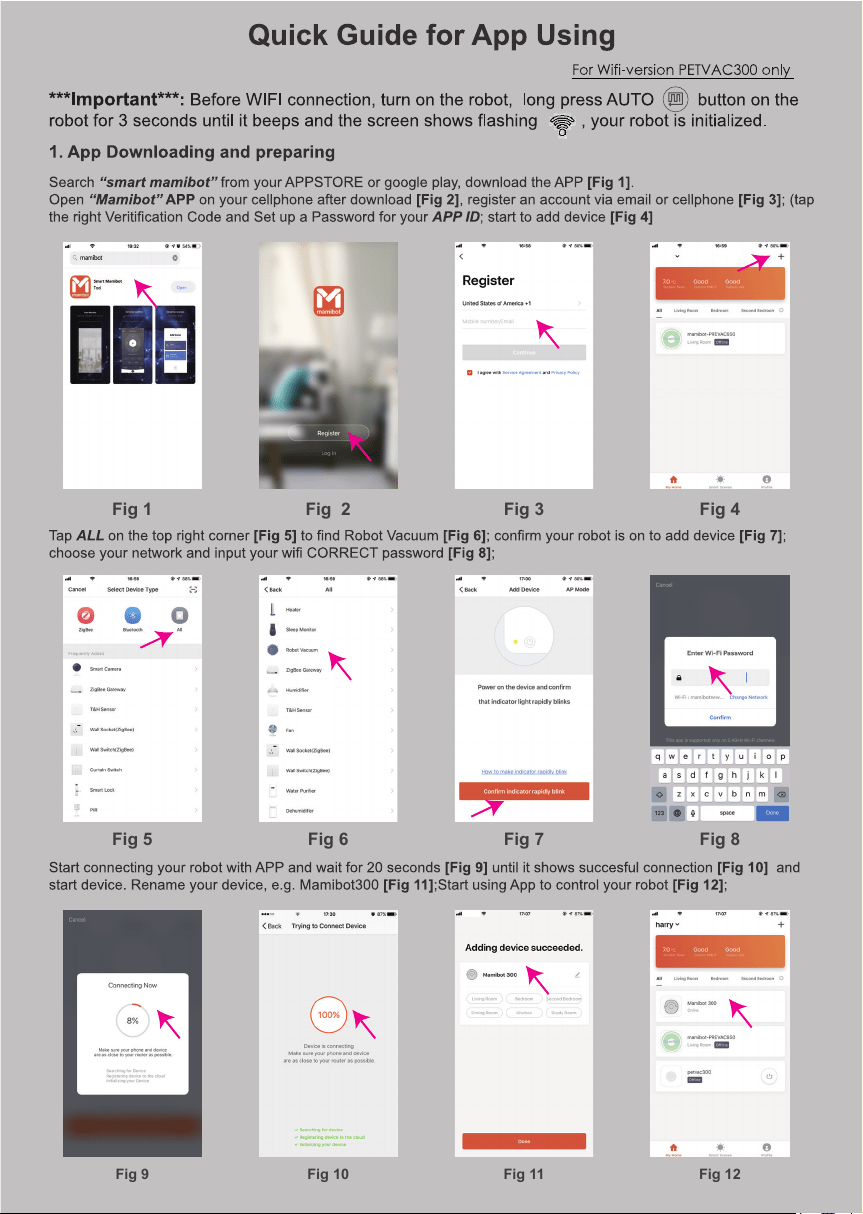

Fig 2
Fig 3
Fig 4
Fig 1
Fig 5
Fig 6
Fig 7
Fig 8
Fig 12
Fig 11
Fig 10
Fig 9
TABLE OF CONTENTS

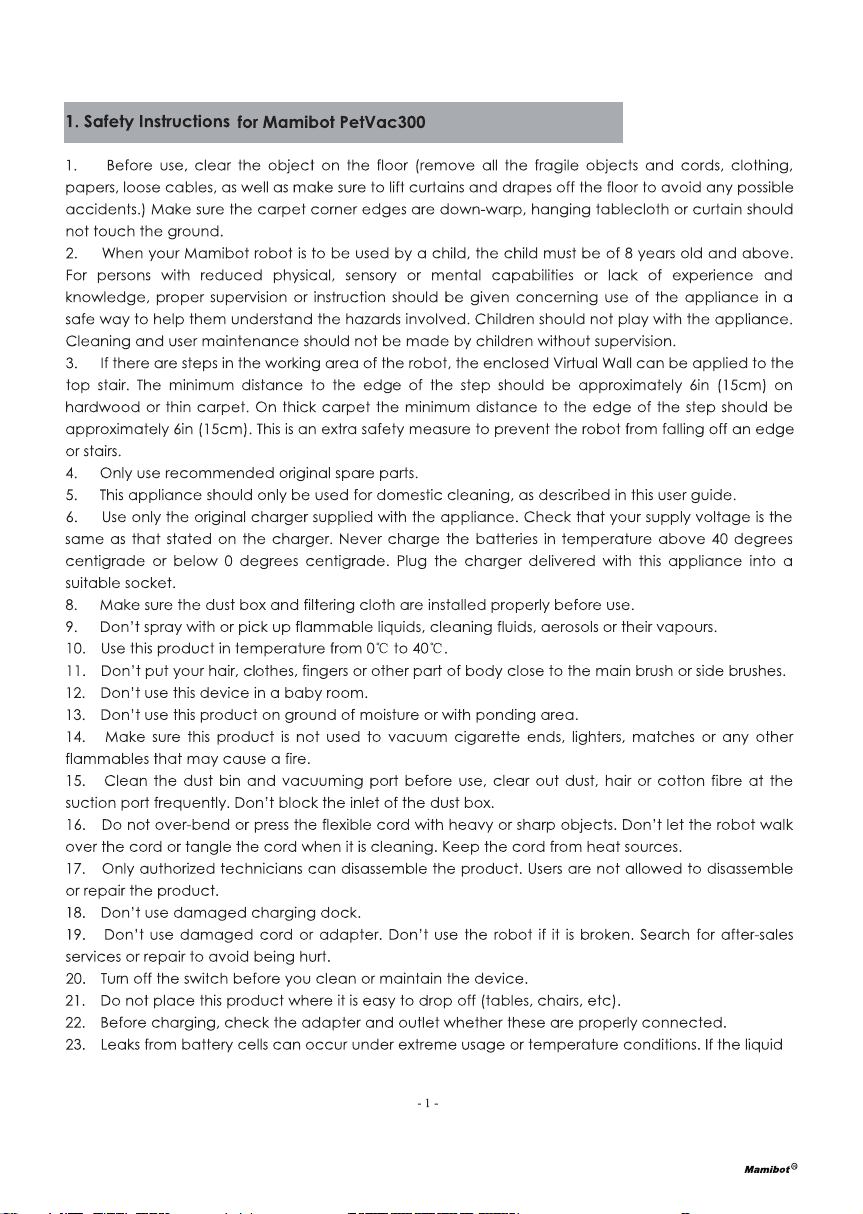

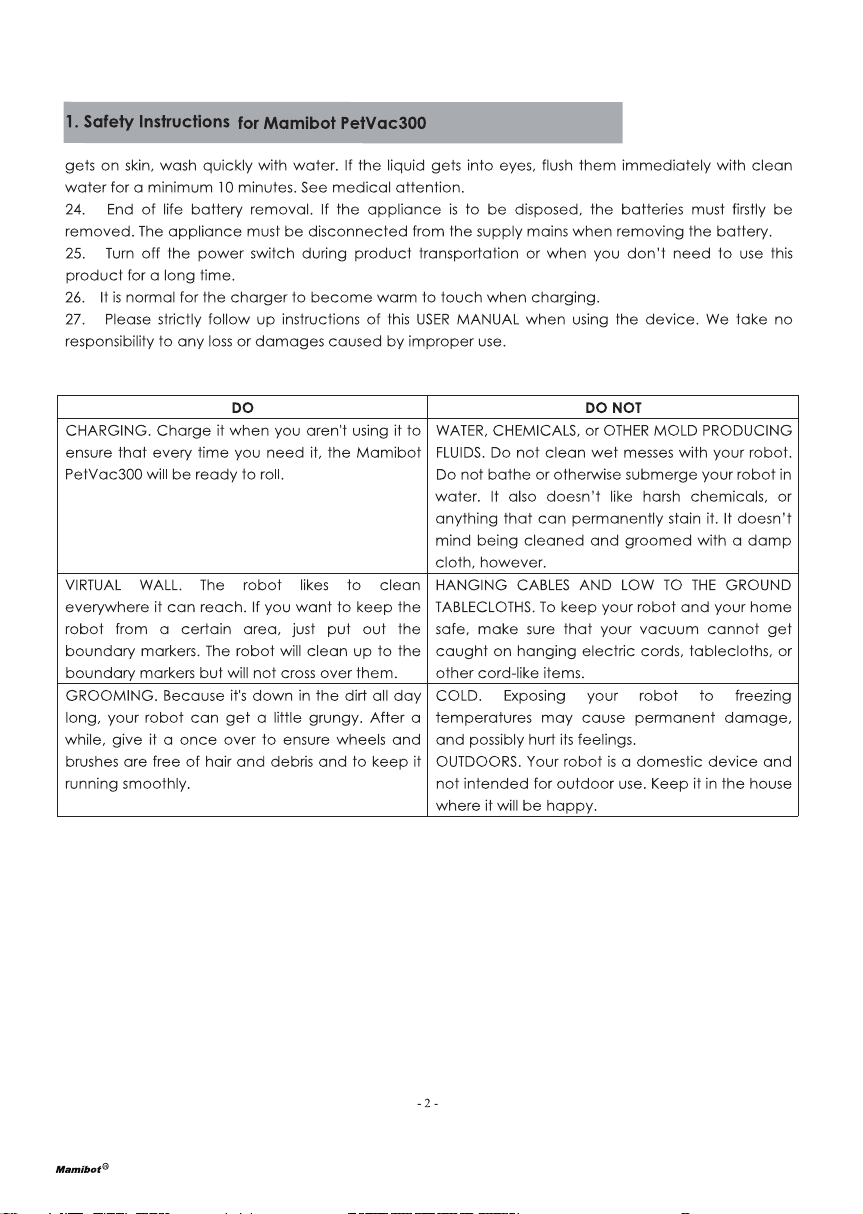

1. Safety Instructions......……….………………………………………….....................................1
2. Getting to Know Your Robot Cleaner……………………………………..............................3

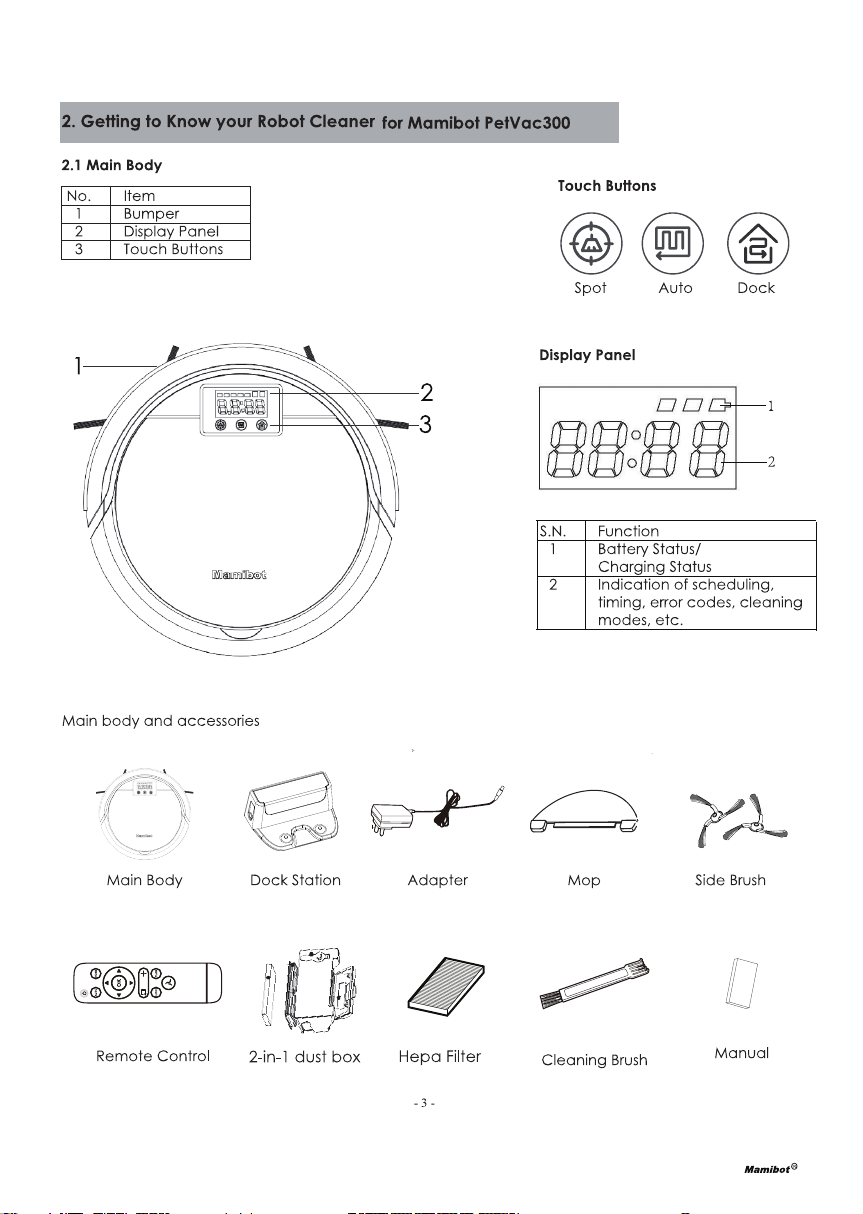

2.1 Main Body………………………………………………….……………………....................................……...3

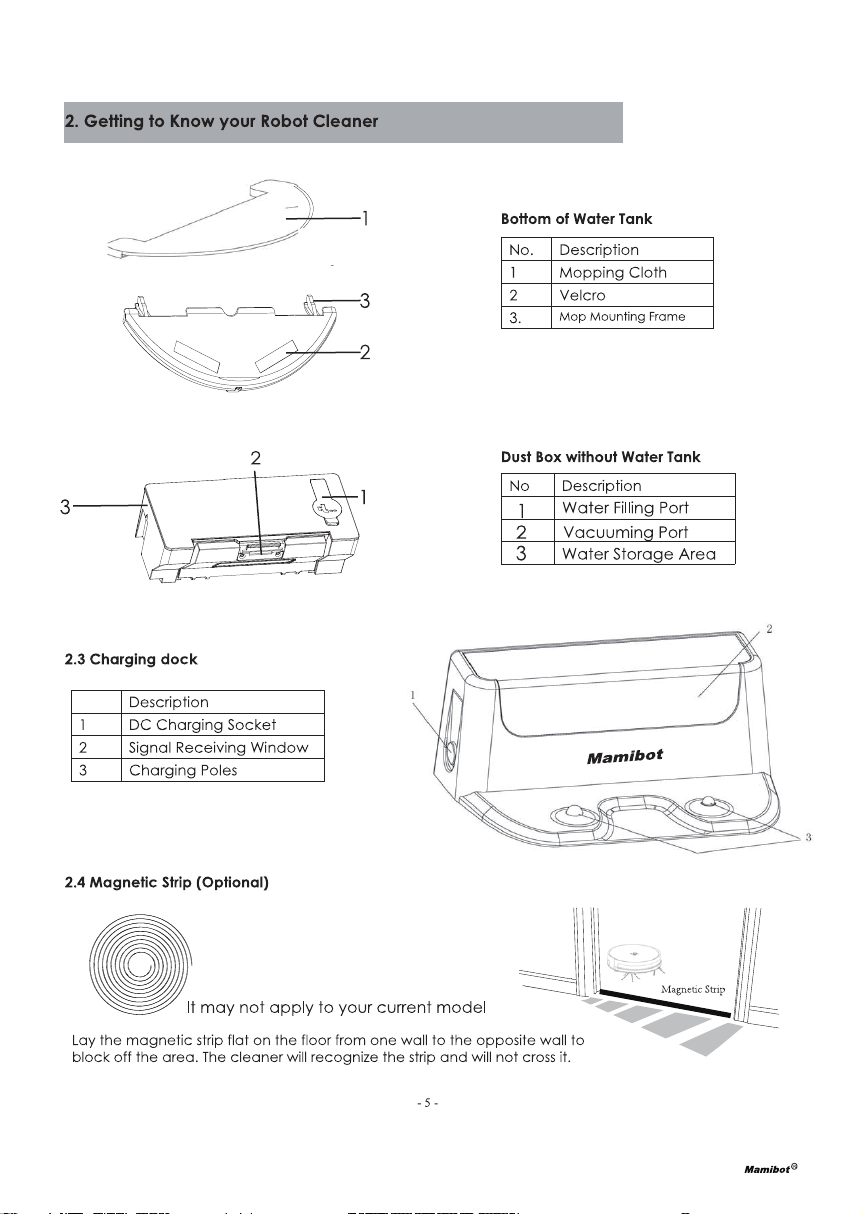

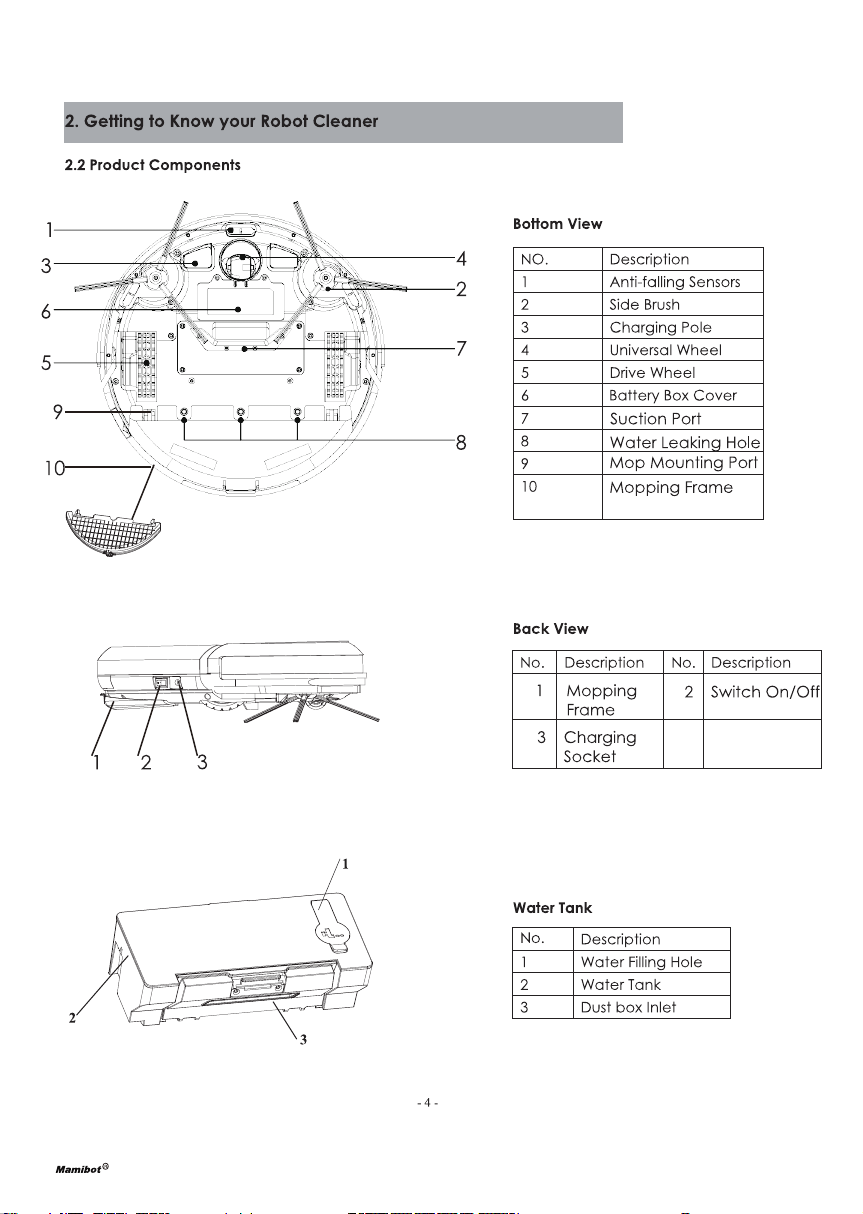

2.2 Product Components…………………………………….……………………................................………...4
2.3 Charging Dock…………………………………………….………………….......................................…..….5
2.4 Magnetic Strip (Optional).……………………………….…………...................................………......….…5

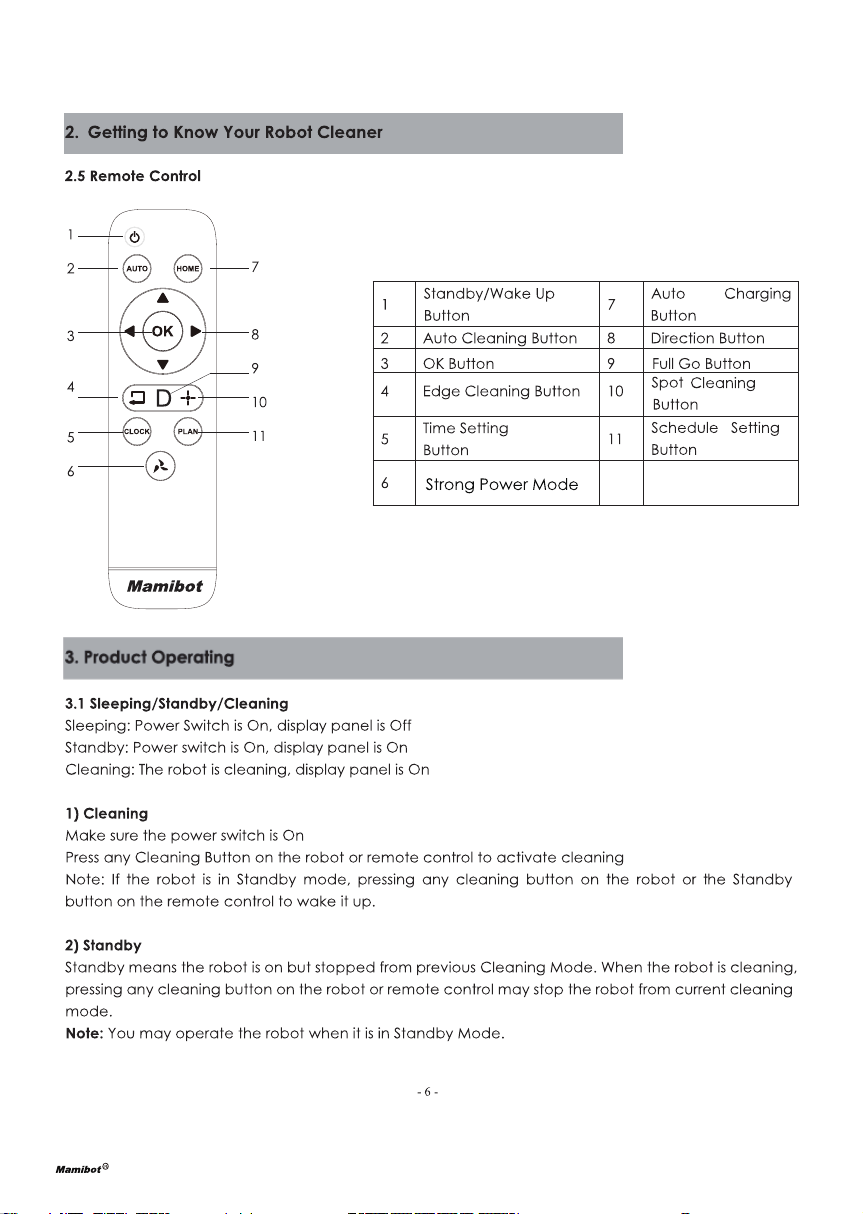

2.5 Remote Control..................……………………………….…………...................................…………..….…6
3.Product
Operation for PetVac300..………………………………….….…............................6
3.1 Cleaning/Standby/Sleeping……………………………………………………….......................................6

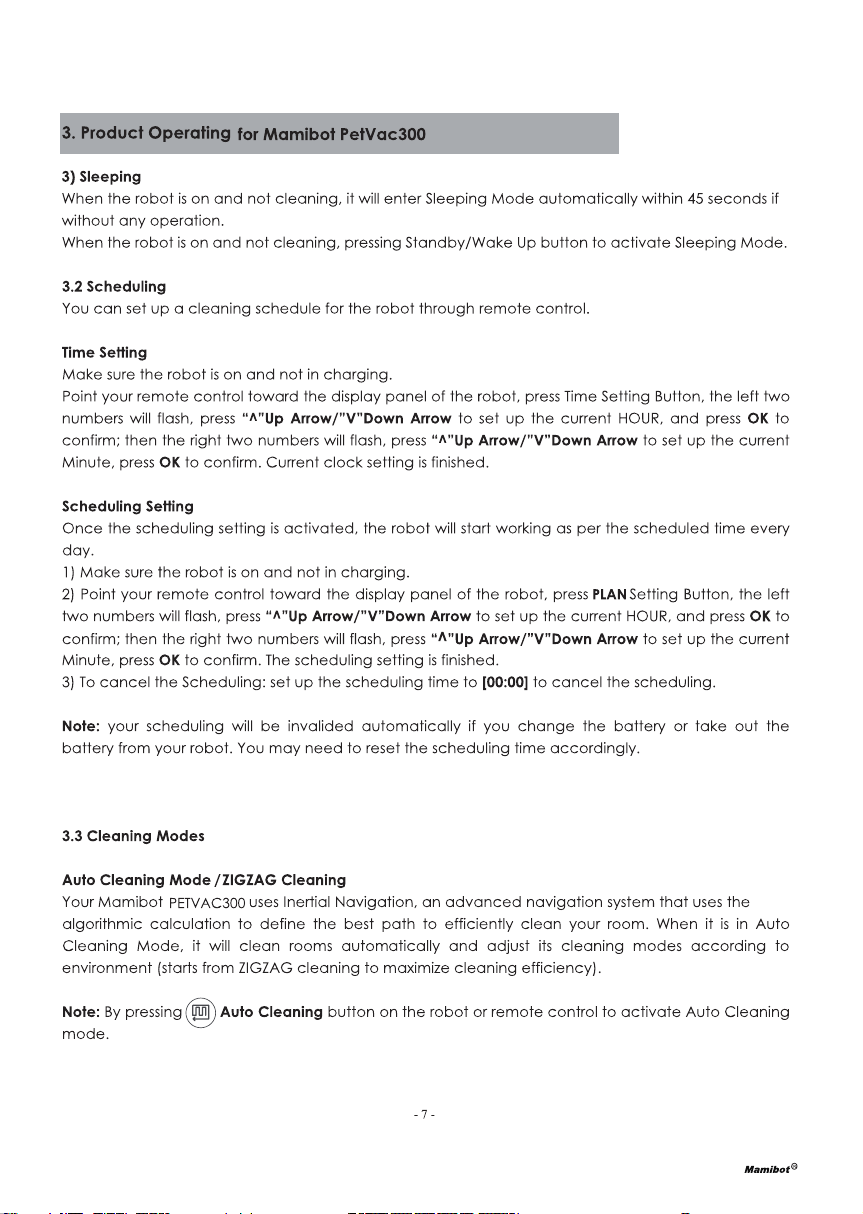

3.2 Scheduling………………………………………………………………………………....................................7

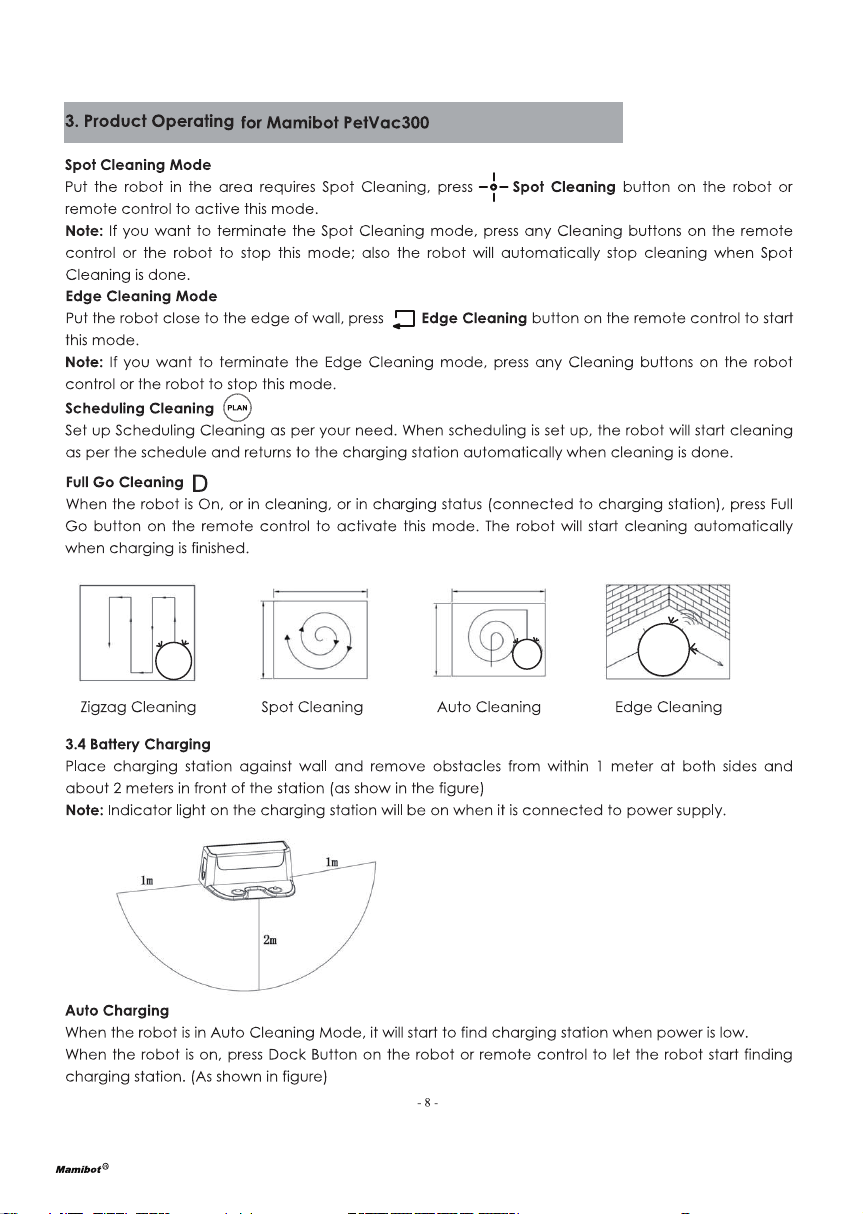

3.3 Cleaning Modes…………………………………………………………………......................................…...7

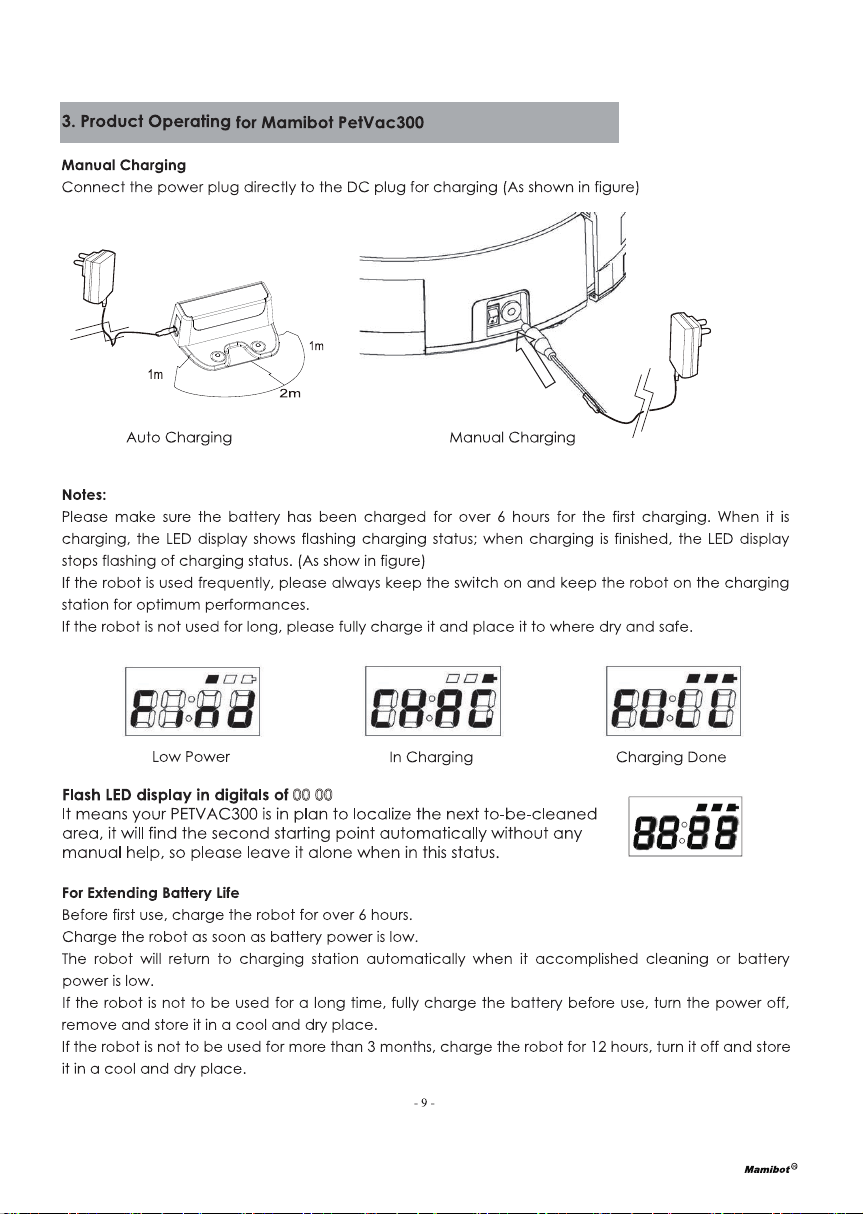

3.4 Battery Charging…………………………………………………………………............................................8

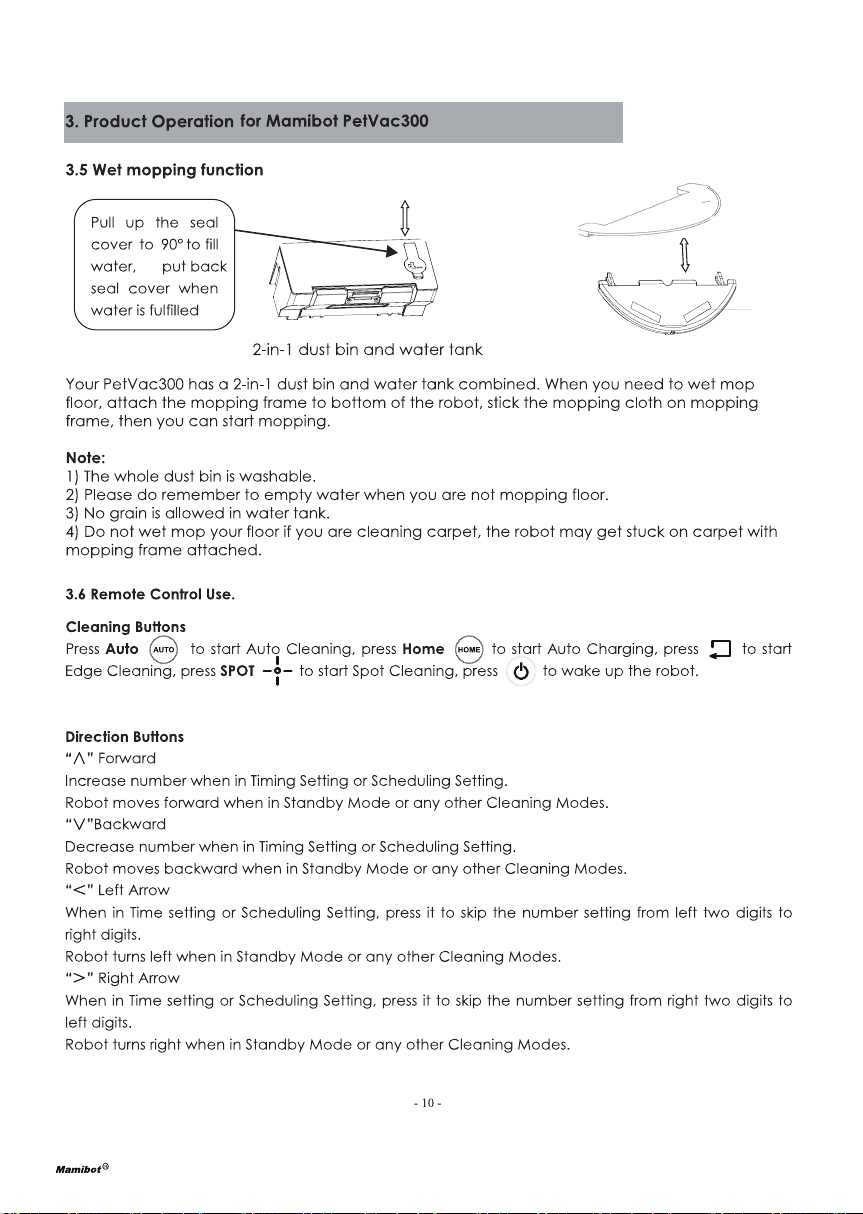

3.5 Wet Mopping function………......................................................................................................……...10

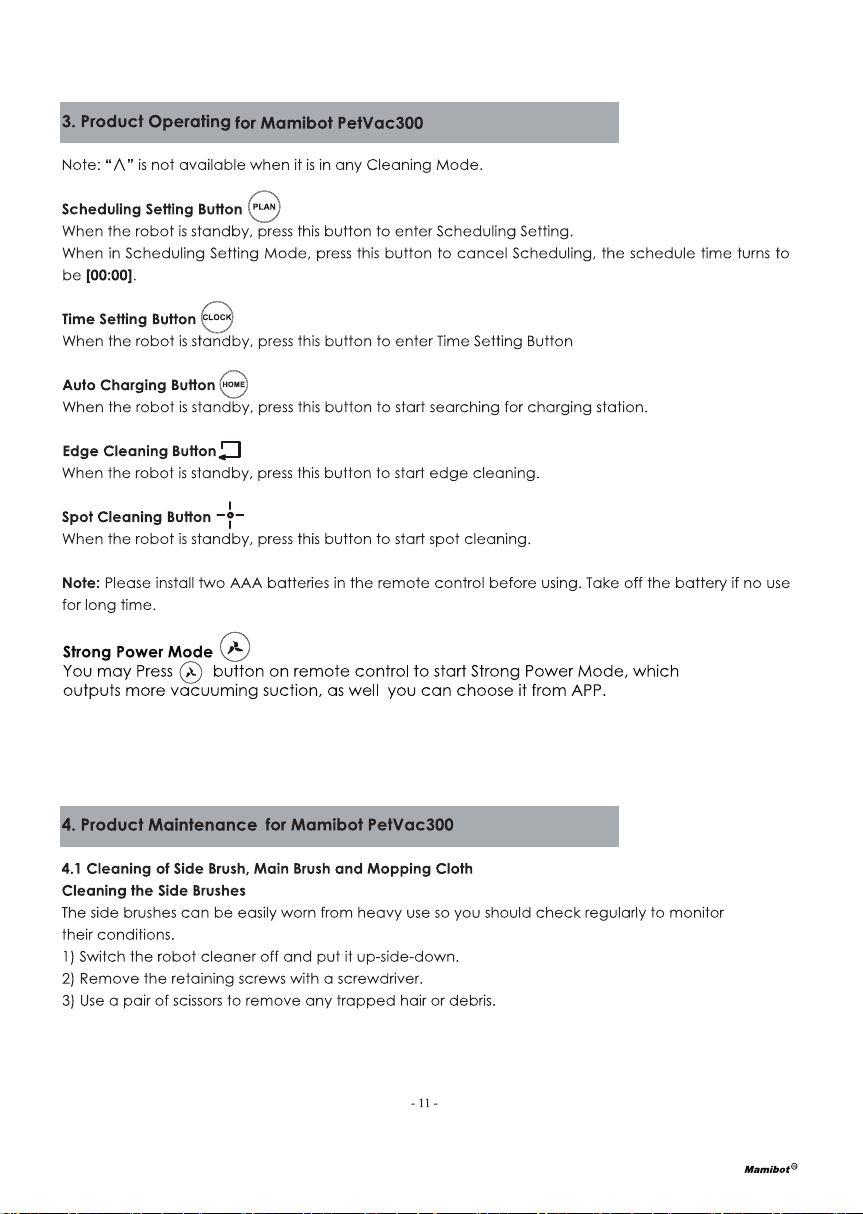

3.6 Remote Control Use………………………………………………………………......................................…10
4. Production Maintenance……………………………………………………….........................11

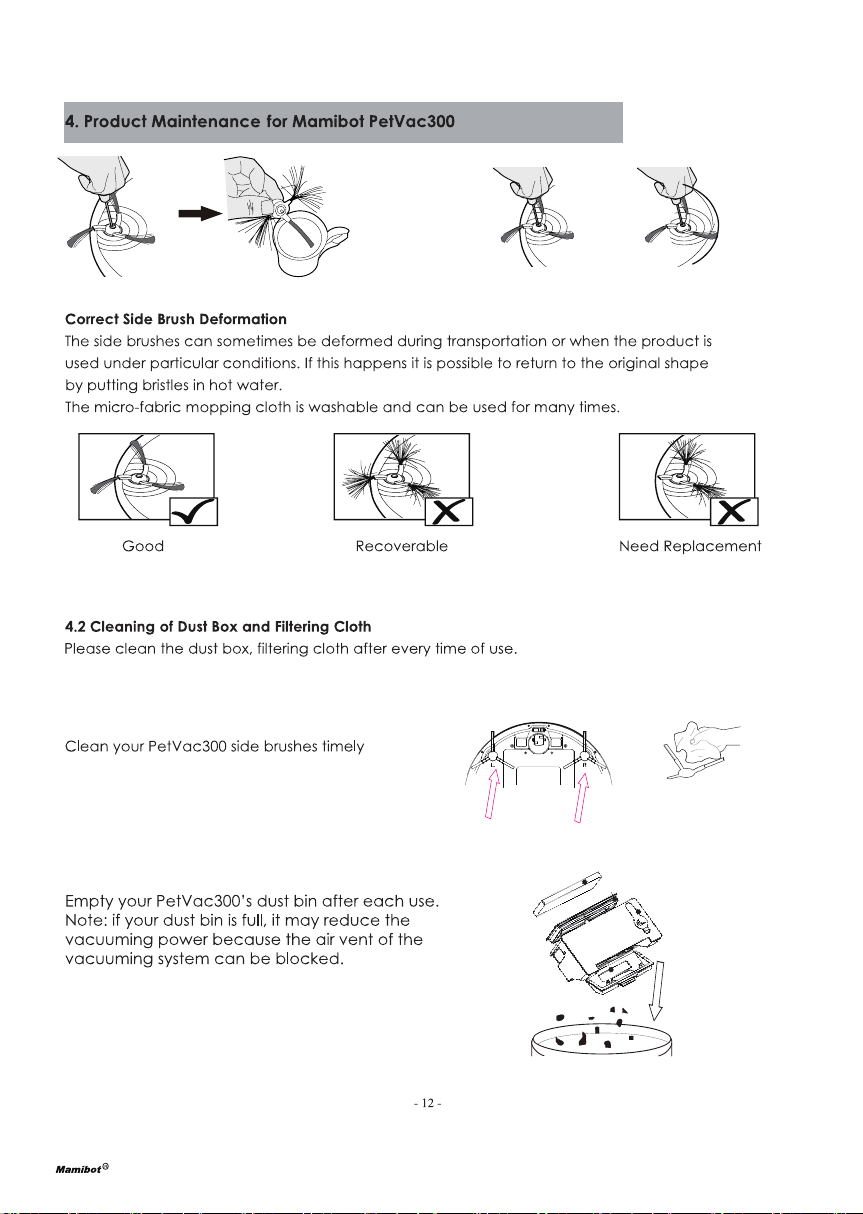

4.1 Cleaning Side Brushes, Dust Box, and Cloth…………………….........…………................................….11
4.2 Cleaning Dust Box and Filter……………………………………….………………................................…..12
4.3 Cleaning Sensors and Charging Poles…………………………………………….....................................13
5. Troubleshooting…………………………..…………………………...................................……14
5.1 Error Codes and Solutions…………………….....………………………………...................................……14
6.Parameters…………………………………….……………………......................................……15
00:00
03
ER01
No dust bin
detected
Place the dust
bin on the robot
Wheel off the
ground or
Anti-falliing s
ensor fault
Clean the anti-falling
sensors or put the
robot on solid ground
Left Side Brush
Fault/Stuck
Clean the left
side brush
ER04
Beater brush
fault/Stuck
Clean the beater
brush
ER05
Left Wheel Fault/Stuck
Vacuum Motot
Fault/Stuck
Right Wheel Fault/Stuck
Right Side Brush
Fault/Stuck
Clean the left wheel
Clean the right side brush
Clean the right wheel
ER06
ER07
ER08
Clean the dustbox and put
it on the robot again.
Manufacturer:
Mamibot Manufacturing (Shanghai) Co.,Ltd.
21st FL, No 1st, LN1040 Caoyang Rd, Shanghai, 200063. P.R.C.
Mamibot Manufacturing USA Inc.
One Commerce Center, 1201 Orange St, Wilmington, DE 19899 USA
Tel: 001 302-428-9888 [email protected] www.mamibot.com
Supervised by
