Mamibot
Cordless Stick Vacuum Cleaner
V4
User Manual
Please read this manual carefully before use and keep this manual for future use.
1
Table of Contents
2-4 Important Safety Instructions and Warnings
5-7 Product Description
7-9 ASSEMBLING
10-11 Operation
12 Trouble Shooting
13 Name and Content of Hazardous Substances
14 Recycling of V4
2
Important Safety Instructions and Warnings
Read all documents before using
The appliance is not to be used by children. Persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge may only
use this appliance if they are supervised or have been given instruction about
how to use it safely and understand what risks are involved. Children should be
supervised to ensure they do not play with the device.
Storage
● Please take it gently and carefully to avoid breaking the device.
● Please don’t use it close to fire source or in any location of high temperature.
● Don’t use or keep the cleaner in extreme climate conditions, e.g. cooling
rooms, high temperature environment, suggested temperature of using and
storage is 0-40
℃
of indoor areas;
● Please charge your cleaner at least every three months if you are not using it
regularly.
Before Use
● Check the adapter cable and confirm it is in good condition.
● Fully charge the cleaner before using if it’s not used for long time.
● Please make sure the Hepa and pre-filter are installed properly.
In Use
● Do not use outdoors or on wet surfaces.
● Do not allow to be used as a toy. Close attention is necessary when used by
or near children.
● Use only as described in this manual. Use only manufacturer’s recommended
attachments.
● Do not use vacuum if it has been dropped, damaged, left outdoors, or
dropped in water. Return it to an authorized service center.
● Do not handle plug or appliance with wet hands.
● Do not put any object into openings. Do not use with any opening blocked;
keep free of dust, lint, hair and anything that may reduce air flow.
● Keep hair, loose clothing, fingers, and all parts of body away from openings
and moving parts.
● Do not pick up anything that is burning or smoking, such as cigarettes,
matches, or got ashes.
● Use extra care when cleaning on stairs.
● Do not use to pick up flammable or combustible liquids such as gasoline or
3
use in areas where they may be present.
● Look on your vacuum and follow all label and marking instructions.
● Keep end of hose, wands and other openings away from your face and
body.
● Do not use the vacuum cleaner without dust box filter in place.
● Always unplug this appliance before connecting or disconnecting vacuum
hose.
● Store the vacuum indoors. Put the vacuum away after cleaning to prevent
tripping accidents.
● Use the incorrect battery will damage motor and users. Please use the
recommended batteries.
● Use only on dry, indoor surfaces.
● Do not use for any purpose other than described in this user’s guide.
● If the supply cord is damaged, it must be replaced by the manufacturer its
service agent or similarly qualified persons in order to avoid a hazard.
● Don’t use the cleaner in or near flammable or explosive conditions.
● Don’t use your cleaner to suck glass particles, needle, dirty water, ashes, or
any other liquid.
● Don’t use your cleaner to suck cement, land plaster, wall plaster or toys,
which may cause defects to the device.
● Don’t block your suction inlet or tube, clear the suction inlet and tube in time
to retain good performance of cleaning and avoid motor defects.
● If the cleaner can’t start working even when the battery is full, please go to
service agent or Mamibot distributors for inspection, don’t disassemble it on
your own.
● Don’t use the cleaner if dust box is not in position.
In Maintenance
● Dry cloth is suggested to clean the cleaner, no gas/alcohol or other
chemical solution is allowed to clean the device.
● Turn off the cleaner first before proceeding with any cleaning task or
maintenance.
● Please clean the dust box, suction inlet and tube in time to avoid air channel
being blocked, air channel blockage would reduce suction power and
cause motor heating.
● Hepa filter is suggested to be replaced in three month, or even in shorter
period if the device is frequently used.
Application of Power Adapter and Batteries
● Use only the power adapter supplied with this device. Use of other type of
power adapter will result in malfunction and/or danger.
● Please use the proper electric outlet and make sure no heavy objects are
4
placed on the power adapter or power cord.
● Allow adequate ventilation around the adapter when using it to operate the
device. Do not cover the power adapter with objects that will reduce
cooling.
● Do not use the adapter in a high moisture environment. Never handle the
adapter with wet hands.
● Connect the adapter to a proper power source. The voltage requirements
are found on the adapter.
● Do not use broken adapter, power cord or plug. The plug must be removed
from the receptacle before cleaning or maintaining the appliance. Do not
unplug the power adapter by pulling on the power cord.
● Do not attempt to service the adapter. There are no service parts inside.
Replace the whole unit if it is damaged or exposed to high moisture. Consult
your Mamibot dealer for help and maintenance.
● The battery used in this device may present a risk of fire or chemical burn if
mistreated. Do not disassemble, short circuit, heat above 60
℃
(140
℉
), or
incinerate.
● If you have to dispose of this old equipment, please take it to the local
recycling center for recycling electrical and electronic parts.
● Retain the safety and operating instructions for future reference.
● Do not expose your device to rain or excess humidity, and keep it away from
liquids (such as beverages, faucets, and so on).
● Avoid exposing your device to direct sunlight or intense light source, and
keep it away from heat source (such as radiators, space heaters, stoves, and
so on).
● On waxed floors the movement of the cleaner head may create an uneven
lustre. If this happens, wipe with a damp cloth, polish the area with wax, and
wait for it to dry.
● The Appliance must be disconnected from the receptacle before removing
the battery for disposal of the Appliance.
● The Appliance must be used in accordance with the directions in this
Instruction Manual.
● Product manufacturer cannot be held liable or responsible for any damages
or injuries caused by improper use.
5
1. Product Description
View

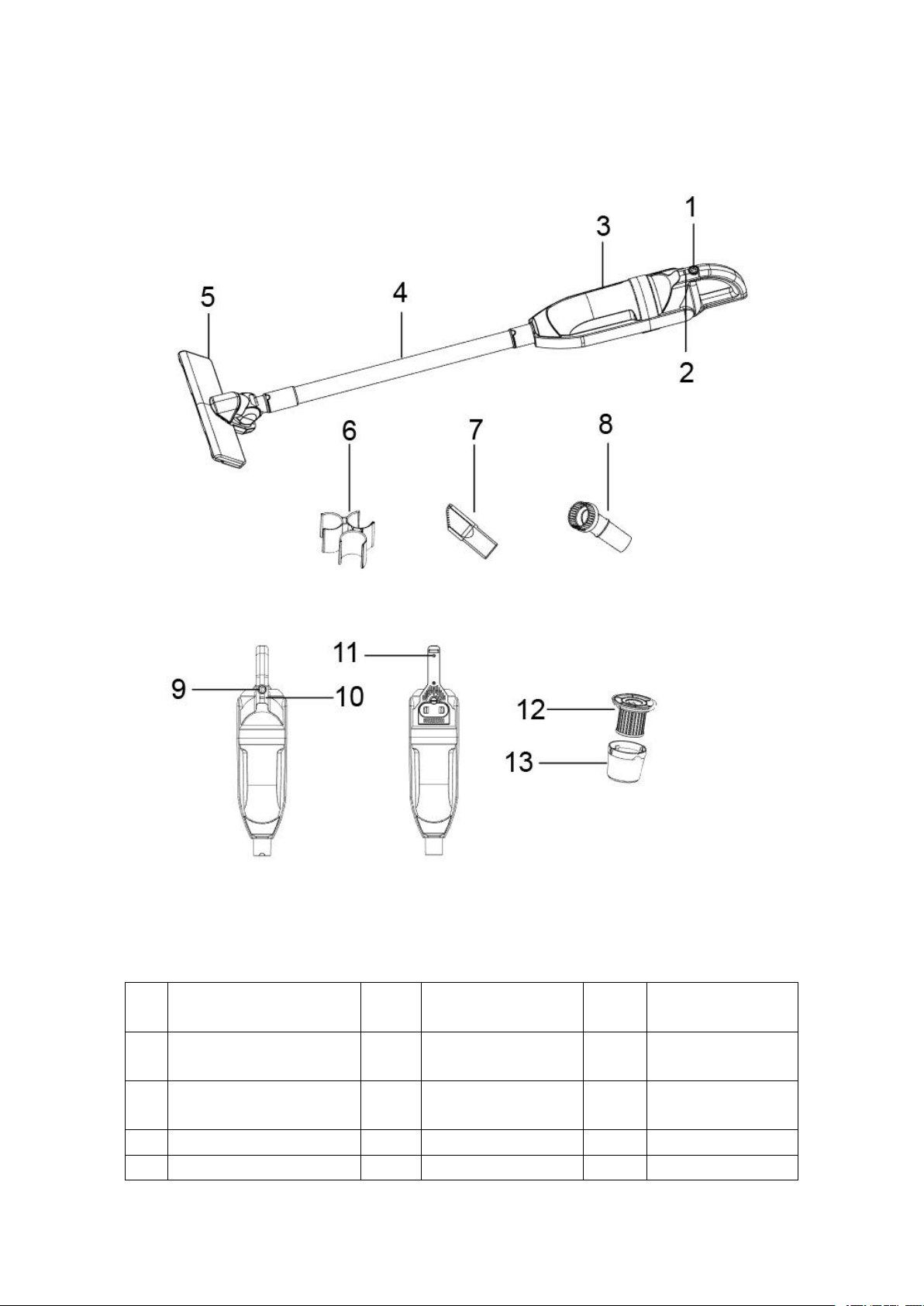

1.1 Product diagram：
1
Power Switch
Button
2
Indicator Light
3
Dust Box
4
Extension Tube
5
Floor Brush
6
Accessory
Rack
7
Crevice Brush
8
Round Brush
9
Power Switch
Button
10
Indicator Light
11
DC Power Jack
12
Hepa
13
Pre-Filter
6

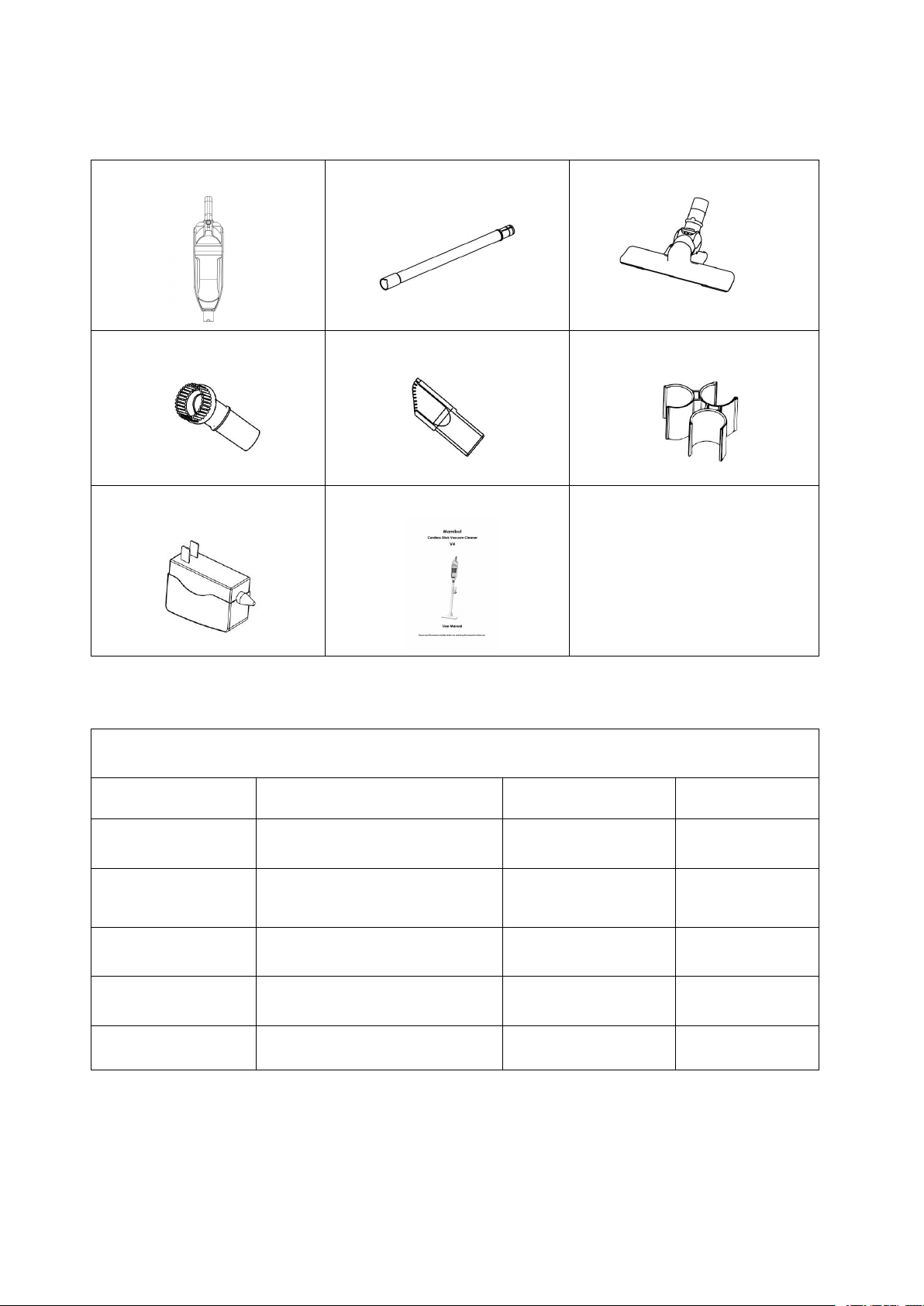

1.2 What’s in the package?
Main Body
Extension Tube
Floor Brush
Round Brush
Crevice Brush
Accessory Rack
Adapter
User Manual
1.3 Specification
Mamibot V4 Cordless Vacuum Cleaner
Model No.:
V4
Rated Power:
70W
Rated Voltage:
11.1VDC
Battery
Capacity:
2200mAh
Vacuum
Power(kPa):
Standard: ＞4kPa
Max:＞5.5kPa
Dust Box(L):
0.4
Working Time:
Standard: about 30mins
Max:about 18mins
Charging Time:
4-5Hrs
Noise Level(dB):
＜80
Dimension(mm):
With Tube
1002x255x158
Adapter Output:
15VDC 0.8A
The data come from the lab of Mamibot Manufacturing USA Inc. It might slightly
be different with the users data due to different working environment and usage,
please subject to the final products.
7
1.4 PRECAUTIONARY MEASURES
If just start to vacuum, the brush or extension tubes are blocked, you should
switch off the vacuum cleaner at once.Clean the blocked substance up firstly
before you attempt to start the vacuum cleaner again.
1.5 CAUTION:
● Do not operate the vacuum cleaner too close to heaters and like radiators,
cigarette butts etc.
● Before using the vacuum cleaner, please remove large or sharp objects from
the floor in order to avoid damaged filter. Do not use the vacuum to clean
anything that is easy to burning, such as gas and cigarettes.
2. ASSEMBLING

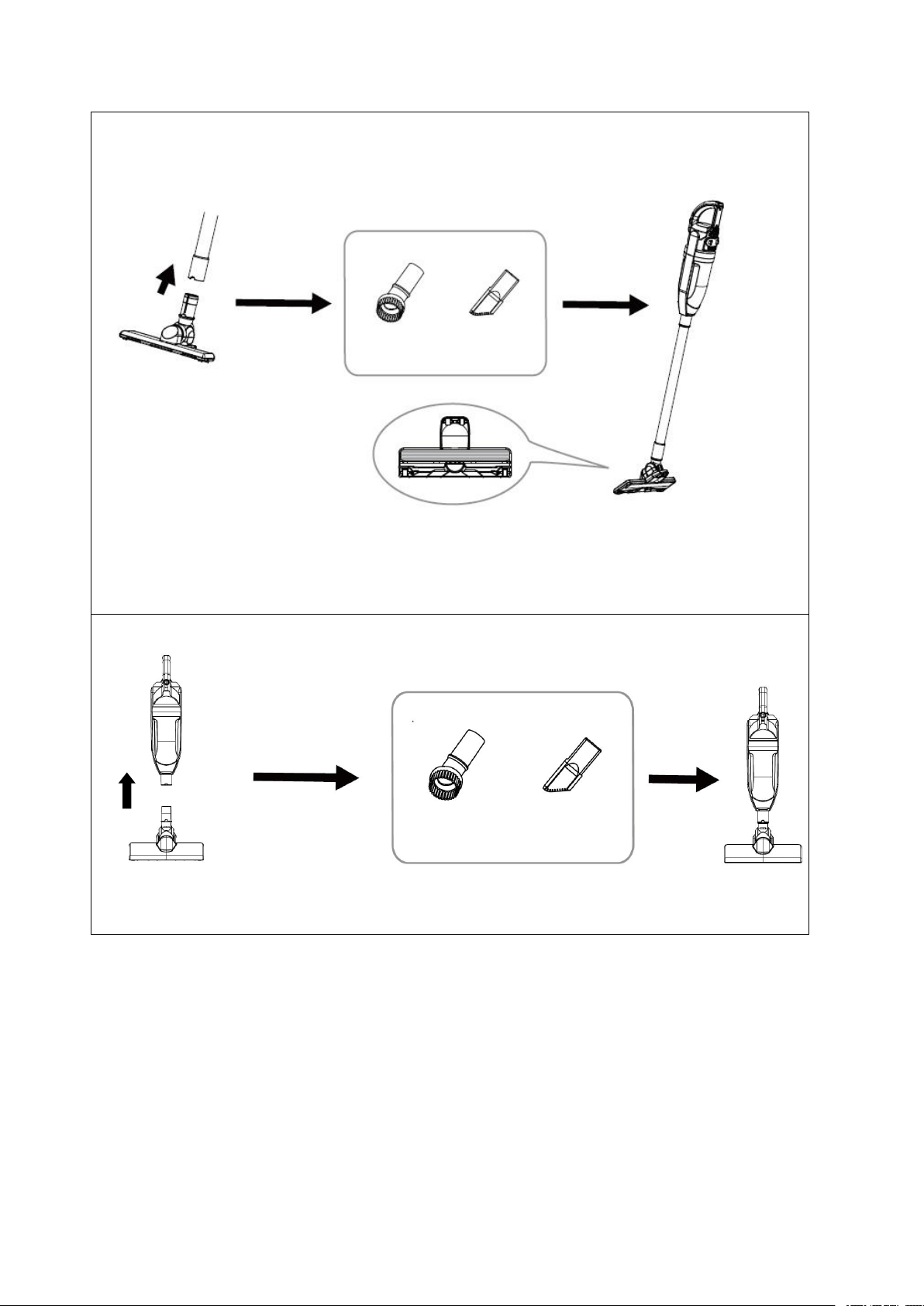

2.1 Connecting the Brushes
①When users are going to vacuum the floors, such as tiles, marbles, wooden
floors, it would be better to install the floor brush on the cleaner.
The extension tube can be installed as a choice depends on usage.
②When users are going to vacuum the hard-to-reach areas like windowsill,
sofa gaps, book shelves, inside closet or inside computer cases, crevice brush
would be a better choice for cleaning.
The extension tube can be installed as a choice depends on usage.
③When users are going to clean the higher places, such as ceiling, curtains,
connecting the extension tube and the crevice brush or round brush to clean
is practical and easy.
Attention:
Please make sure the joints among the main body, the extension tube and the
brushes connect well when assembling.
8
With Extension Tube
Without Extension Tube
9

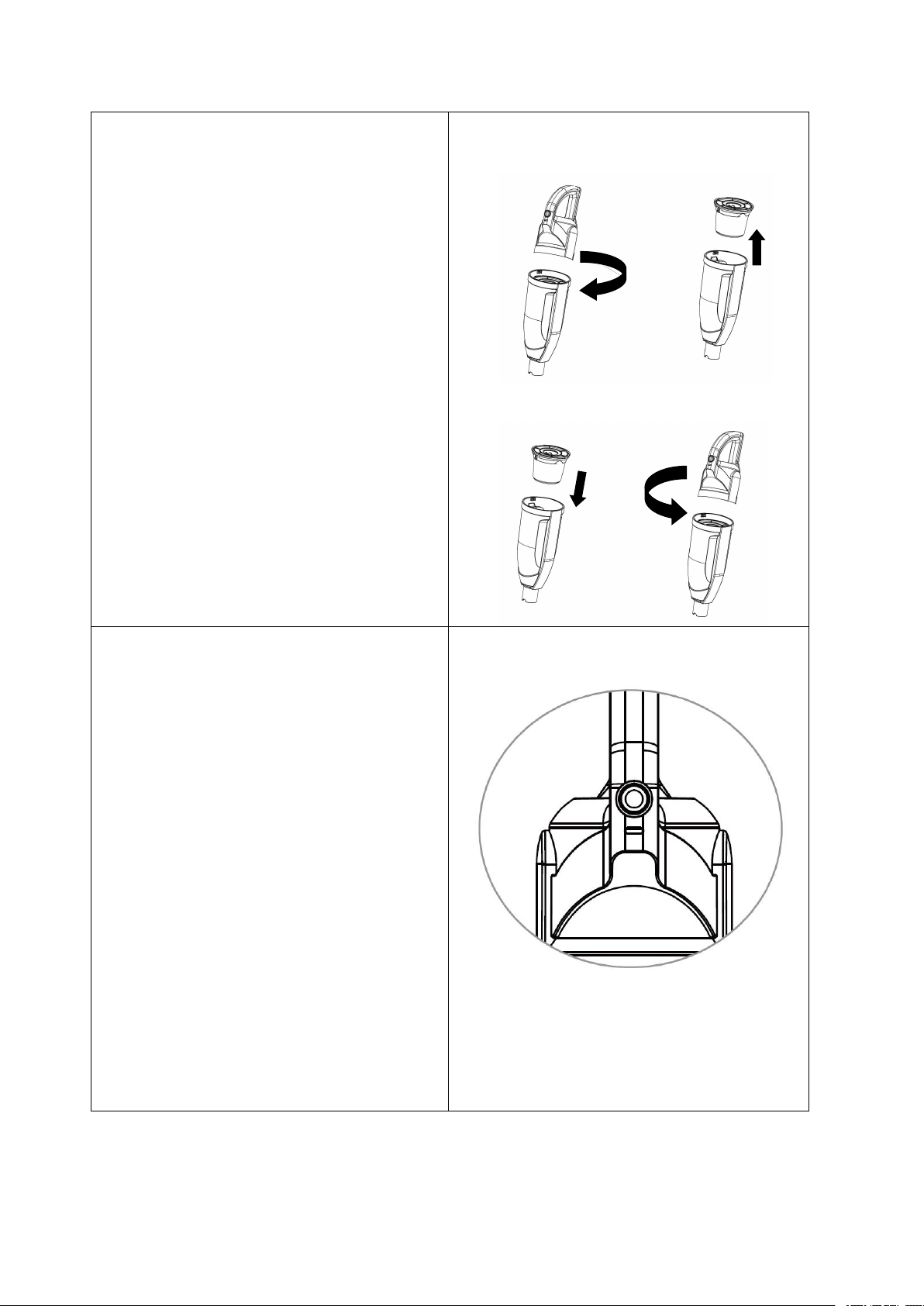

2.2 Remove or install the dust
box and filter set
Remove dust box and filter set
from the cleaner head:
Rotating the main body clockwise
and remove the dust box from the
main body(Fig. A), then take out the
Hepa and pre-filter.
Install dust box and filter set on
body:
Put the Hepa and pre-filter on dust
box (please pay attention to the
fitting position and direction),then
rotate the main body
counterclockwise until we hear the
voice of “click”(Fig.B).
Fig.A
Fig.B
2.3 Charging Indicator
Charging Status:
● The indicator will flash blue color
when charging.
● The indicator will keep on when
charging finished.
Working Status:
● The indicator will keep on weaker
glow when working in standard
mode.
● The indicator will keep on brighter
glow when working in max mode.
The indicator will be off with the
consumption of battery power.
● The indicator will be off when
press and hold the power switch
for 2 seconds in any mode.
10
3. Operation
3.1 Switch on/off
Press the power switch button once to switch on V4, and enter Standard Mode.
Press the power switch button again in Standard Mode, then enter Max Mode.
Press the power switch button again in Max Mode, the cleaner will be
switched off.
Press and hold the power switch button for 2 seconds in any mode, the cleaner
will be switched off.
3.2 Charging
● Please fully charge V4 when using
it for the first time.
● Connecting the adapter with the
power supply and device, the
battery indicator will flash blue.
Battery is fully charged if the
indicator is illuminated without
flashing.

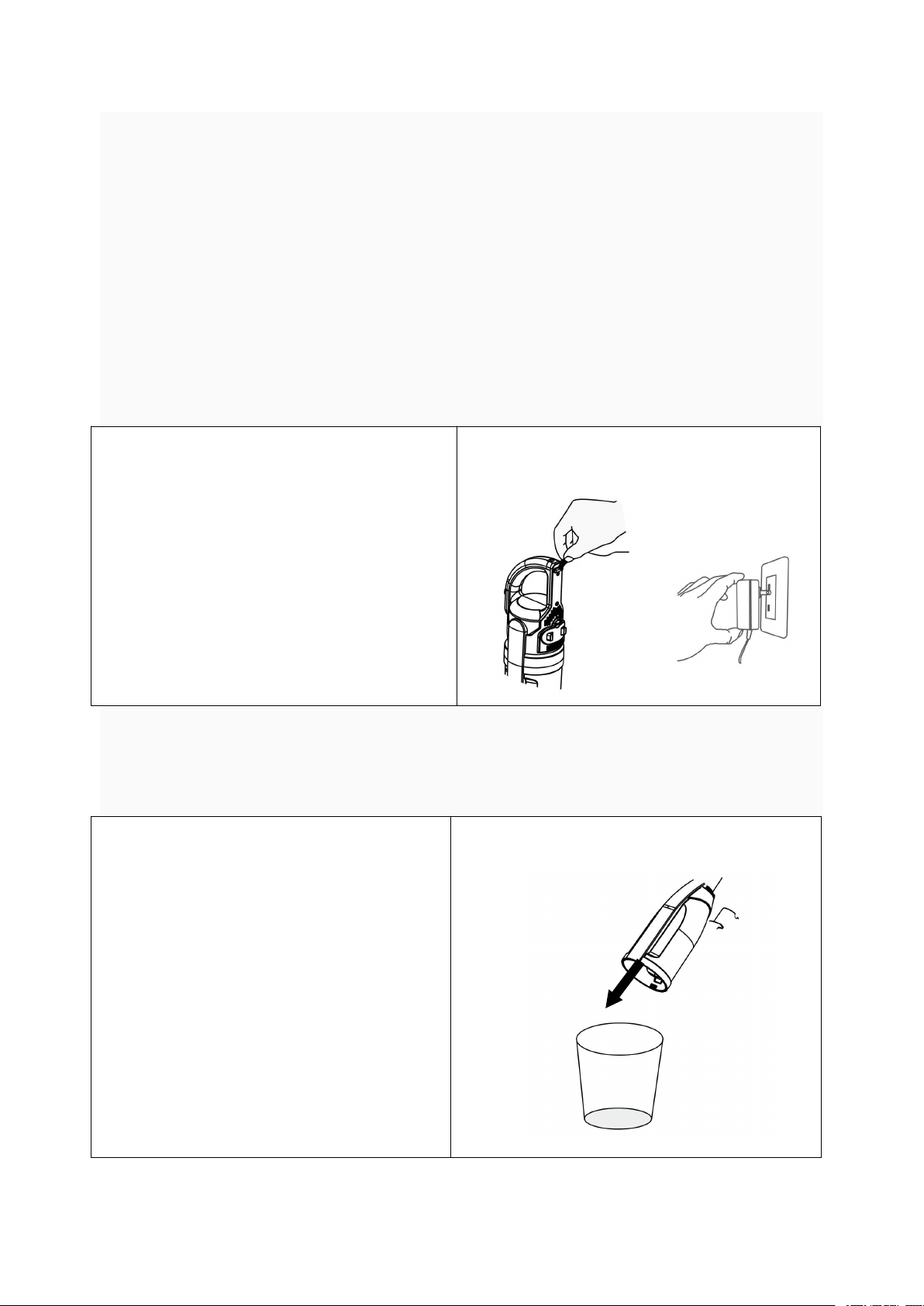

3.3 Maintenance and Clean
3.3.1 Dust Box Cleaning
1). Remove the dust box from main
body, take out the Hepa and
pre-filter.
2). Dump all dust and contents of the
dust box into the trash can(Fig.A).
3). If the dust box is too dirty, please
clean it with soft brush or cloth or
wash them with water. You should dry
them completely before use again.
Fig.A
11

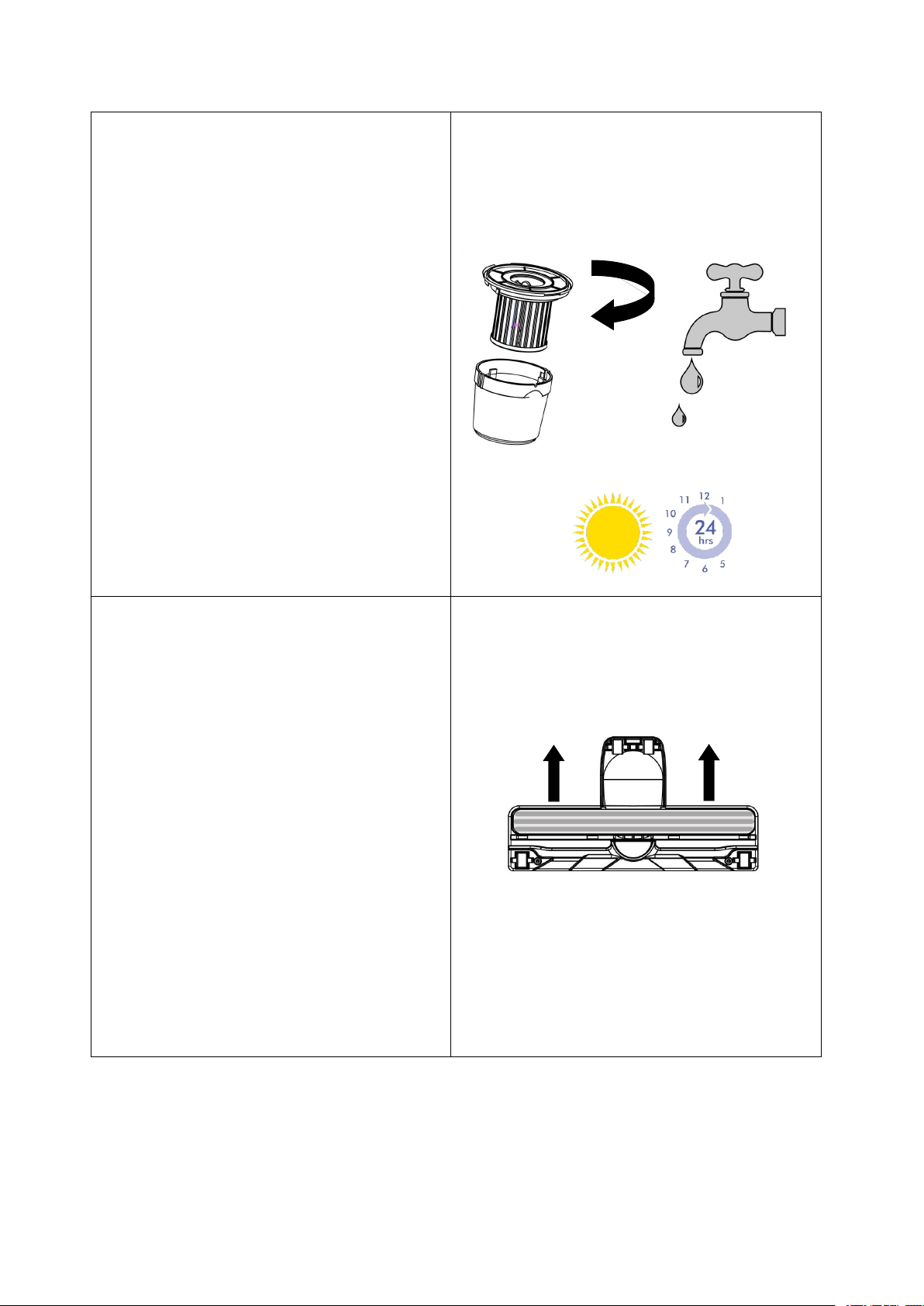

3.3.2 Hepa and Pre-filter Cleaning
1). Take out the Hepa set from the
dust box.
2). Hold the Hepa and pre-filter and
rotate the Hepa clockwise from
“close” to “open”, separate the
HEPA and pre-filter(Fig. B).
3). Cleaning the Hepa and pre-filter
by soft brush or rinse it in warm water
and dry them completely before use
again(we recommend you to clean
the filters when feeling the suction
power becoming weak.)
Note: The above filters should be
equipped in correct places.
Fig.B
3.3.3 Floor Brush Cleaning
1). Pull the floor brush set out from
the cleaner, take out the mopping
cloth from the brush.
2). Clean dust, hair, fabric particles on
the floor brush with your cleaning tool,
cut hair with knife or scissor if the floor
brush is tangled.
3). Wash the mopping cloth with
warm water.
4). Dry the brush sets before the
second use.
Users can replace the floor brush with
round brush or crevice brush to clean
the sofa, curtains, corners depends on
actual situation.
Hepa and Pre-Filter
12
4. TROUBLESHOOTING
If there is any failure of V4 cordless vacuum cleaner, please follow below
solutions to check and solve the problems. If none of the solution is workable,
please contact the authorized agent for inspection and further solutions.
PROBLEM
POSSIBLE REASON
POSSIBLE SOLUTION
Machine does not
work.
The battery power is low.
Check the battery power
and recharge it.
The machine can not
suck ash or suction is
very weak.
● The dust box may be
full.
● Lack of battery
power.
● The HEPA or Pre-filter
are blocked.
● Non-dried filters after
washing.
● Air channel is
blocked.
● Empty dust box.
● Charge the cleaner.
● Clean the HEPA or
Pre-filter.
● Dry the filters after
washing.
● Check the air channel
and take out the
blocked debris.
Dust escaping from
vacuum.
● Dust box is full.
● The HEPA or Pre-filter
may not be installed.
● Empty dust box.
● Check to see if the HEPA
or Pre-filter are installed.
Failure of floor brush.
The brush is tangled by
cables, hair or other
trashes.
Check and clean the brush.
Short running time.
● Aged battery pack.
● Non-fully charged
battery pack.
● Over heated or over
cooled battery pack.
● Replace the battery
pack
● Recharge the battery
pack
● Cool down and restart
No LED indicator or
flashing when
charging.
Adapter is not plugged in
properly.
Check the connection of
the adapter, the power
supply and the charging
port, make sure they are in
position.
13
5. Name and Content of Hazardous Substances
Component
Content of Hazardous Substances
Plastic
Shell
PCB
Cables
Metal
Parts
Adapter
Electronic
Component
s
Rubber
Components
Cadmium(Cd)
o
o
o
o
o
o
o
Lead(Pb)
o
o
o
×
o
o
o
Mercury(Hg)
o
o
o
o
o
o
o
Hexavalent
Chromium(CrVI)
o
o
o
o
o
o
o
Polybrominated
Biphenyls(PBB)
o
o
o
o
o
o
o
Polybrominated
Diphenyl
Ethers(PBDE)
o
o
o
o
o
o
o
Bis(2-ethylhexyl)
Phthalte(DEHP)
o
o
o
o
o
o
o
Butyl Benzyl
Phthalate(BBP)
o
o
o
o
o
o
o
Dibutyl
Phthalate(DBP)
o
o
o
o
o
o
o
Diisobutyl
Phthalate(DIBP)
o
o
o
o
o
o
o
The time of the components for environment protection concern is 10 years.
The time is valid under the use conditions of this manual.
O: It indicates that the content of the hazardous substances in all
homogeneous materials of the components is in compliance with the council
RoHS 2 Directive (EU) 2015/863 and (EU) 2017/2102 amending Annex II to
Directive 2011/65/EU.
X: It indicates that the content of the hazardous substances in all
homogeneous materials of the components is the exempt item according to
the council RoHS 2 Directive (EU) 2015/863 and (EU) 2017/2102 amending
Annex II to Directive 2011/65/EU.
14
6. Recycling of V4
We reserve the right to changes in text, design and technical specifications
which are subject to change without prior notice.
Mamibot Manufacturing (Shanghai) Co.,Ltd.
North 21th, No.1 Building, LN1040 Caoyang Rd, Shanghai, P.R.C.
Mamibot Manufacturing USA Inc.
Orange St. #600, Wilmington, New Castle, 19899, Delaware, USA
The symbol on the product or on its packaging indicates that
this product may not be treated as household waste. Instead it
should be taken to the appropriate collection point for the
recycling of electrical and electronic equipment. By ensuring
this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and
human health, which could otherwise be caused by
in-appropriate waste handling of this product. For more
detailed information about recycling of this product, please
contact your local council, your household waste disposal
service or the shop where you purchased the product.
The product meets the necessary requirements of the EU
directives applicable to the specific product.
15
