Mamibot CORDLESSER V8 Stick Vacuum Cleaner

User Manual - Transcript

• Page 1: Mamibot Cordless Stick Vacuum Cleaner V8 User Manual 20201230 Ver Please read this manual carefully before use and keep this manual for future use
• Page 2 - English - : Table of Contents 24 Important Safety Instructions and Warnings 57 Product Description 810 Assembling 1013 Operation 1415 Trouble Shooting 16 Name and Content of Hazardous Substances 17 Recycling of V8
• Page 3 - English - : Important Safety Instructions and Warnings Read all documents before using The appliance is not to be used by children Persons with reduced physical sensory or mental capabilities or lack of experience and knowledge may only use this appliance if they are supervised or have been given instruction about how to use it safely and understand what risks are involved Children should be supervised to ensure they do not play with the device Storage Please take it gently and carefully to avoid breaking the device Please dont use it close to fire source or in any location of high temperature Dont use or keep the cleaner in extreme climate conditions eg cooling rooms high temperature environment suggested temperature of using and storage is 040 of indoor areas Please charge your cleaner at least every three months if you are not using it regularly Before Use Check the adapter cable and confirm it is in good condition Fully charge the cleaner before using if its not used for long time Please make sure the Hepa filter and sponge filter are installed properly In Use Do not use outdoors or on wet surfaces Do not allow to be used as a toy Close attention is necessary when used by or near children Use only as described in this manual Use only manufacturers recommended attachments Do not use vacuum if it has been dropped damaged left outdoors or dropped in water Return it to an authorized service center Do not handle plug or appliance with wet hands Do not put any object into openings Do not use with any opening blocked keep free of dust lint hair and anything that may reduce air flow Keep hair loose clothing fingers and all parts of body away from openings and moving parts
• Page 4 - English - : Do not pick up anything that is burning or smoking such as cigarettes matches or got ashes Use extra care when cleaning on stairs Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where they may be present Look on your vacuum and follow all label and marking instructions Keep end of hose wands and other openings away from your face and body Do not use the vacuum cleaner without dust cup filter in place Always unplug this appliance before connecting or disconnecting vacuum hose Store the vacuum indoors Put the vacuum away after us to prevent tripping accidents Use the incorrect battery will damage motor and users Please use the recommended batteries Use only on dry indoor surfaces Do not use for any purpose other than described in this users guide If the supply cord is damaged it must be replaced by the manufacturer its service agent or similarly qualified persons in order to avoid a hazard Dont use the cleaner in or near flammable or explosive conditions Dont use your cleaner to suck glass particles needle dirty water ashes or any other liquid Dont use your cleaner to suck cement land plaster wall plaster or toys which may cause defects to the device Dont block your suction inlet or tube clear the suction inlet and tube in time to retain good performance of cleaning and avoid motor defects If the cleaner cant start working even when the battery is full please go to service agent or Mamibot distributors for inspection dont disassemble it on your own Dont use the cleaner if dust bin is not in position In Maintenance Dry cloth is suggested to clean the cleaner no gasalcohol or other chemical solution is allowed to clean the device Turn off the cleaner first before proceeding with any cleaning task or maintenance Please clean the dust box suction inlet and tube in time to avoid air channel being blocked air channel blockage would reduce suction power and cause motor heating Hepa filter is suggested to be replaced in three month or even in shorter period if the device is frequently used
• Page 5 - English - : Application of Power Adapter and Batteries Use only the power adapter supplied with this device Use of other type of power adapter will result in malfunction andor danger Please use the proper electric outlet and make sure no heavy objects are placed on the power adapter or power cord Allow adequate ventilation around the adapter when using it to operate the device Do not cover the power adapter with objects that will reduce cooling Do not use the adapter in a high moisture environment Never handle the adapter with wet hands Connect the adapter to a proper power source The voltage requirements are found on the adapter Do not use broken adapter power cord or plug The plug must be removed from the receptacle before cleaning or maintaining the Appliance Do not unplug the Power Adapter by pulling on the power cord Do not attempt to service the adapter There are no service parts inside Replace the whole unit if it is damaged or exposed to high moisture Consult your Mamibot dealer for help and maintenance The battery used in this device may present a risk of fire or chemical burn if mistreated Do not disassemble short contact heat above 140 or incinerate If you have to dispose of this old equipment please take it to the local recycling center for recycling electrical and electronic parts Retain the safety and operating instructions for future reference Do not expose your device to rain or excess humidity and keep it away from liquids such as beverages faucets and so on Avoid exposing your device to direct sunlight or intense light source and keep it away from heat source such as radiators space heaters stoves and so on On waxed floors the movement of the cleaner head may create an uneven lustre If this happens wipe with a damp cloth polish the area with wax and wait for it to dry The Appliance must be disconnected from the receptacle before removing the battery for disposal of the Appliance The Appliance must be used in accordance with the directions in this Instruction Manual Product manufacturer cannot be held liable or responsible for any damages or injuries caused by improper use
• Page 6: 1 Product Description Main View Dust Box View
• Page 7 - English - : 11 Product diagram Main Brush Set Aluminum Tube Tube Release Button Indicator Light Body Release Button Power Switch Button Dust Box Dust Box Upper Part Release Button Dust Box Bottom Release Button Battery Pack Conversion Joint Crevice Brush Roller Brush For hard floor or carpet Adapter Body Release Button Dust Box Cover HEPA Filter Sponge Filter Dust Box Air Exhaust Cover Centering Filter System Dust Box Dust Box Bottom 2325 Cradle A Or B Lock Button 12 Specification Mamibot V8 Cordless Vacuum Cleaner Model No V8 Rated Power 350W Rated Voltage 222VDC Battery Capacity 2200mAh Vacuum PowerkPa Standard 9kPa Max27kPa Dust BoxL Working Time Standard 3540mins Maxabout 10mins Charging Time About 5Hrs Noise LeveldB Dimensionmm With Tube 1130x240x225 Adapter Output 26VDC 045A The data come from the lab of Mamibot Manufacturing USA Inc It might slightly be different with the users data due to different working environment and usage please subject to the final products 13 PRECAUTIONARY MEASURES If just start to vacuum the brush or extension tubes are blocked you
• Page 8 - English - : should switch off the vacuum cleaner at once First clear the blocked substance before you attempt to start the vacuum cleaner again 14 CAUTION Do not operate the vacuum cleaner too close to heaters and like radiators cigarette butts etc Before using the vacuum cleaner please remove large or sharp objects from the floor in order to avoid damaged filter Do not use the vacuum to clean anything that is easy to burning such as gas and cigarettes 2 ASSEMBLING 21 Connecting the Crevice Brush ① When users are going to vacuum hardtoreach areas like windowsill sofa gaps book shelves inside closet or inside computer cases crevice brush would be a better choice for cleaning Connecting the conversion joint first then fix the crevice brush on the joint ② When users are going to clean the higher places such as ceiling curtains connecting the aluminum tube and the crevice brush to clean is practical and easy ① ②
• Page 9 - English - : 22 Connecting the Main Brush With the main brush users can set to clean hard floors like marble wooden floors tiles short rugs Connecting the aluminum tube with the cleaner head until we hear the voice of click Connecting the aluminum tube with the main brush set until we hear the voice of click 23 Remove or install the dust box Remove dust box from the cleaner head Push the body release button then take out the dust box from body Fig A Install dust box on body Put the handle on dust box hookplease pay attention to the fitting position and directionthen press them until we hear the voice of clickFigB 2move 1push here FigA FigB
• Page 10 - English - : 24 Install and remove the battery pack a Remove the battery pack Push the button at the bottom of the battery and then pull the battery pack along the battery slot and remove it from the bodyFig A b Install the battery pack Place the battery pack on the battery slot and push it upward until we hear the voice of crackFig B 2move 1push here FigA FigB move 25 Charging Indicator Charging Status The indicators will flash blue color when charging the four indicators will keep on after fully charged Working Status The indicators will keep on when working and the indicators will be off one by one with the consumption of battery power When there is only one indicator onthe battery power is lower than 25 the indicator will flash blue and alerts users to charge the cleaner Battery power is lower than 25 Battery power is 75100
• Page 11 - English - : 3 Operation 31 Switch onoff Press the power switch button once to switch on V8 and enter Standard Mode Press the power switch button again at Standard Mode then enter Max Mode Press the power switch button again at Max Mode the cleaner will be switched off 32 Charging Connecting the adapter with the power adapter and device the battery indicators will flash blue from low to high Battery is fully charged if all the indicator lights are illuminated without flashing 33 Maintenance and Clean 331 Dust Box Cleaning 1 Remove the dust box from cleaner head 2 Press the dust box bottom release button then the dust will fall down automatically usually you may only do like this to drop the dust figA 3 If the centering filter system is too dirty please take out the dust box cover the Hepa the sponge filter and dust box air exhaust cover then you can clean them with soft brush or wash them with water You should dry them completely before use againfigB FigA FigB

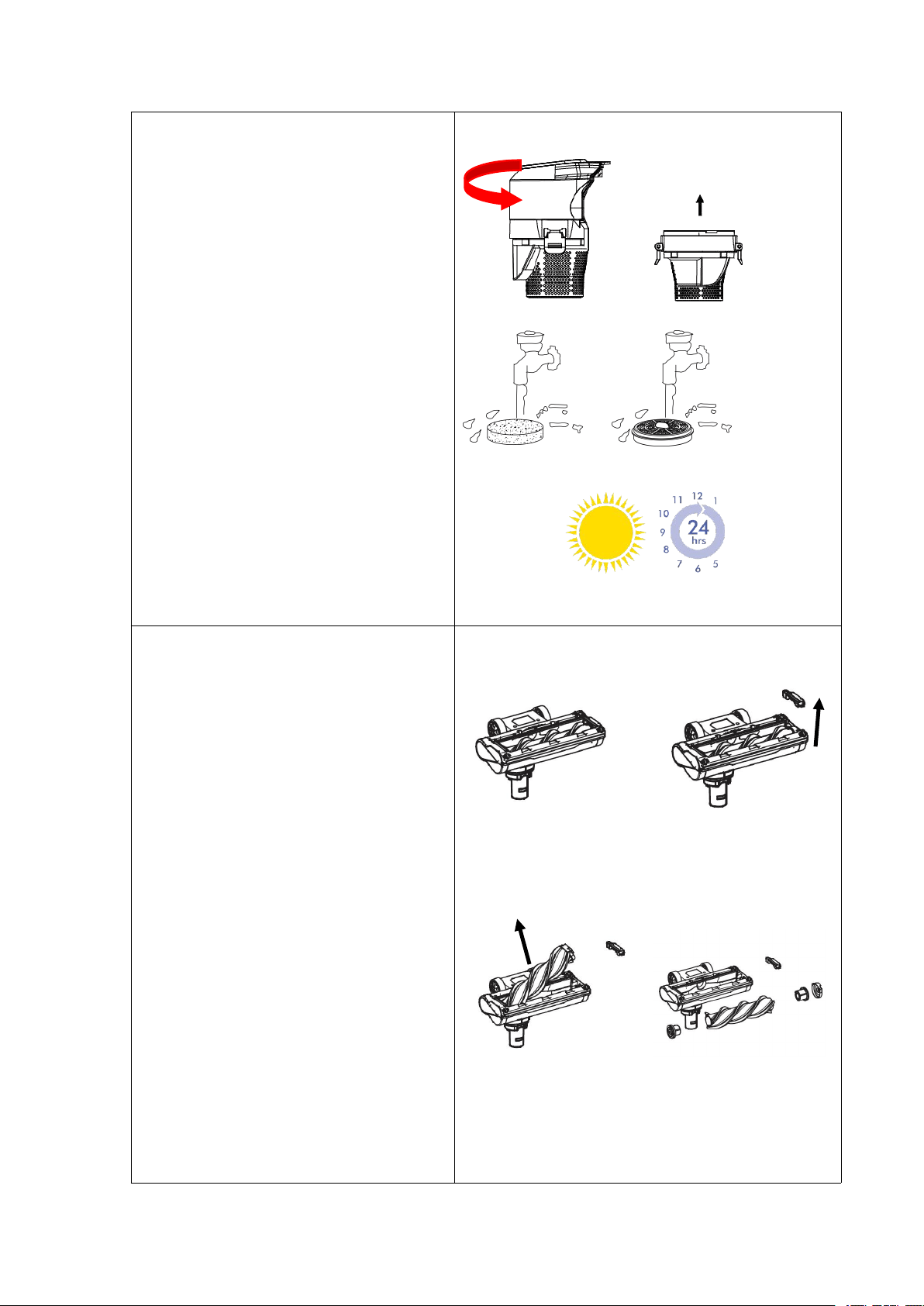

• Page 12 - English - : 332 Hepa and Sponge Filter Cleaning 1 Remove the dust box from body 2 Rotate the dust box cover anticlockwise from close to open take out the dust box cover take out the sponge and HEPA filter setfig A 3 Cleaning the Sponge and HEPA filter by soft brush or rinse it in warm water and dry them completely before use again All the filters are washable we recommend you to clean the filters when feeling the suction power becoming weakfigB Note The above filters should be equipped in correct places FigA FigB 334 Roller Brush Cleaning 1 Pull the lock button on the brush set out and take out the brushthe hard floor brush or the carpet brush then get out the screws on the brushsee the steps in the figures on the right 2 Clean dust hair fabric particles on the brush bar with your cleaning tool cut hair with knife or scissor if the brush bar is tangled 3 Dry the brush sets before the second use Users can replace the brush bar to clean the floor or clean the short rugs depends on actual situation ① ② ③ ④ Sponge and HEPA Filtet

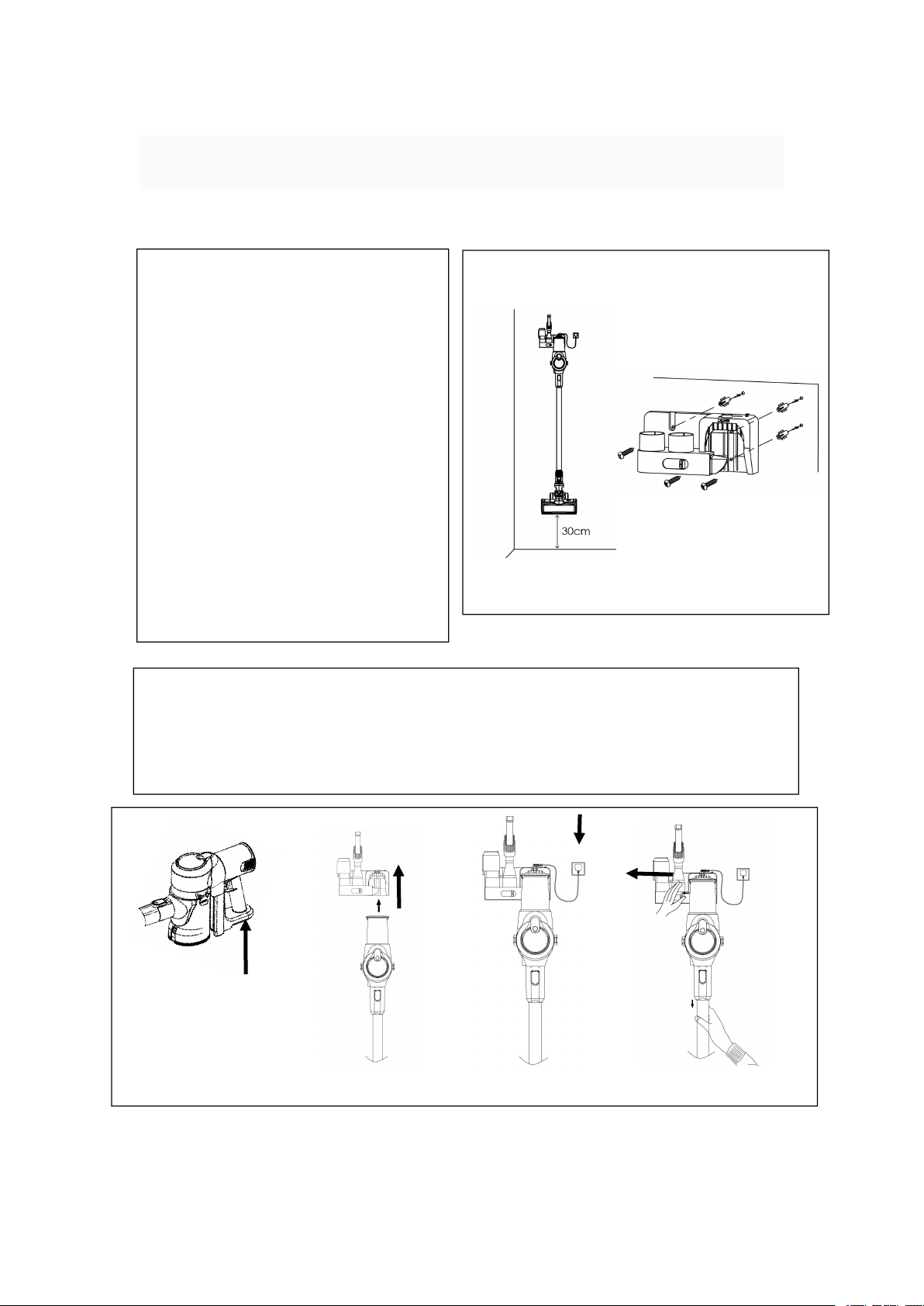

• Page 13 - English - : A 34 Cradle Installation There are two kinds of Crade installation A OR B please assemble the cradles according to the actual products in your hand A It is suggested that the height between the vacuum cleaners brush set and the floor surface should be about 30cm Please refer to the figure 1 1 Fix the cradle on the wall with provided screws and expansion pipes 2 2 Hold the cleaner and push the hand along the lock slot of cradle until we hear a crack 4 3 Plug in and charging 5 4 Plug out the adapter pull the lock button toward the left with hand then take off the cleaner 6

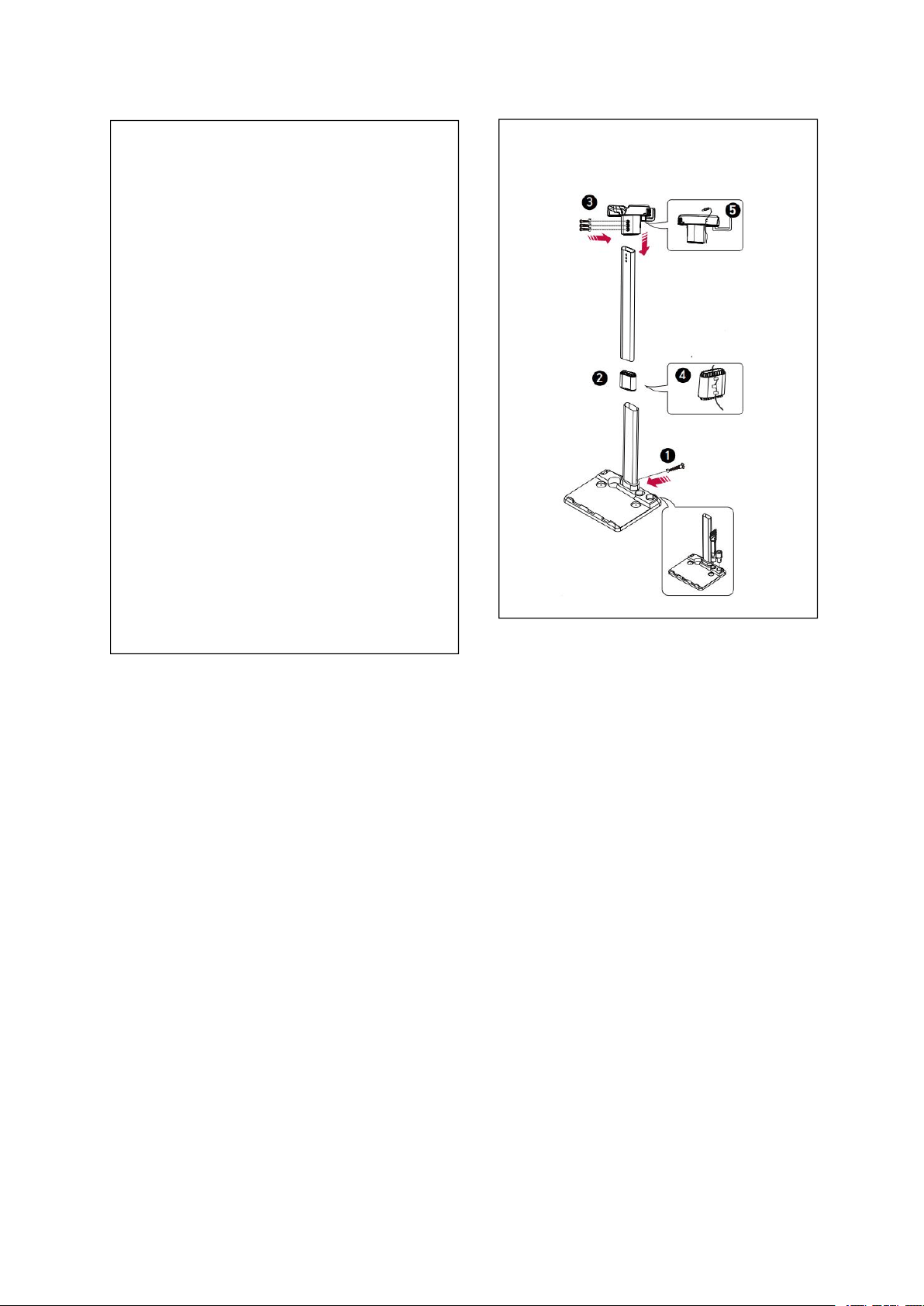

• Page 14 - English - : B 1 Put the stand base on the flat floor steadily 2 Fix the tube on the stand base by using the screw Please refer to the figure 3 Connecting the 2 aluminum tubes with the joint Please refer to the figure 4 Fix the tube on the stand head with 3 screws Please refer to the figure 5 Plug the adapter in and out Please refer to the figure B
• Page 15 - English - : 4 TROUBLESHOOTING If there is any failure of V8 cordless vacuum cleaner please follow below solutions to check and solve the problems If none of the solution is workable please contact the authorized agent for inspection and further solutions PROBLEM POSSIBLE REASON POSSIBLE SOLUTION Machine does not work The battery power is low Check the battery power and recharge it The machine can not suck ash or suction is very weak The dust box may be full Lack of battery power The HEPA or sponge filters are blocked Nondried filters after washing Air channel is blocked Empty dust box Charge the cleaner Clean the HEPA or sponge filter Dry the filters after washing Check the air channel and take out the blocked debris Dust escaping from vacuum Dust box is full The HEPA or sponge files may not be installed Empty dust box Check to see if the HEPA or sponge filter are installed Failure of main brush The brush is tangled by cables hair or other trashes Check and clean the brush Short running time Aged battery pack Nonfully charged battery pack Over heated or over cooled battery pack Replace the battery pack Recharge the battery pack Cool down and restart
• Page 16 - English - : No LED indicator or flashing when charging Adapter is not plugged in properly Check the connection of the adapter the power supply and the charging port make sure they are in position Battery leakage Battery reaches life time or in no use for long time Replace the battery in time
• Page 17 - English - : 5 Name and Content of Hazardous Substances Component Content of Hazardous Substances Plastic Shell PCB Cables Metal Parts Adapter Electronic Component s Rubber Components CadmiumCd o o o o o o o LeadPb o o o o o o MercuryHg o o o o o o o Hexavalent ChromiumCrVI o o o o o o o Polybrominated BiphenylsPBB o o o o o o o Polybrominated Diphenyl EthersPBDE o o o o o o o Bis2ethylhexyl PhthalteDEHP o o o o o o o Butyl Benzyl PhthalateBBP o o o o o o o Dibutyl PhthalateDBP o o o o o o o Diisobutyl PhthalateDIBP o o o o o o o The time of the components for environment protection concern is 10 years The time is valid under the use conditions of this manual O It indicates that the content of the hazardous substances in all homogeneous materials of the components is in compliance with the council RoHS 2 Directive EU 2015863 and EU 20172102 amending Annex II to Directive 201165EU X It indicates that the content of the hazardous substances in all homogeneous materials of the components is the exempt item according to the council RoHS 2 Directive EU 2015863 and EU 20172102 amending Annex II to Directive 201165EU
• Page 18 - English - : 6 Recycling of V8 We reserve the right to changes in text design and technical specifications which are subject to change without prior notice The symbol on the product or on its packaging indicates that this product may not be treated as household waste Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment By ensuring this product is disposed of correctly you will help prevent potential negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of this product For more detailed information about recycling of this product please contact your local council your household waste disposal service or the shop where you purchased the product The product meets the necessary requirements of the EU directives applicable to the specific product
• Page 19 - English - : Mamibot Manufacturing Shanghai CoLtd North 21th No1 Building LN1040 Caoyang Rd Shanghai PRC Mamibot Manufacturing USA Inc Orange St 600 Wilmington New Castle 19899 Delaware USA Tel 001 3024289888 salesmamibotcom wwwmamibotcom
