OWNER’S MANUAL
FAN HEATER
MODEL: PH-17P
PLEASE READ AND SAVE THESE
INSTRUCTIONS
1
IMPORTANT INSTRUCTIONS
PLEASE READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances,basic precautions should
always be
followed to reduce the risk of fire,electric shock,and
injury to persons, including the following:
1. Read all instructions before using heater.
2. This heater is hot when in use. To avoid burns, do not let
bare skin touch hot surface. If provided, always use
handles when moving this heater. Keep combustible
materials such as furniture, pillows, bedding, papers,
clothes and curtains at least 3 feet (0.9m) from the front of
the heater and keep them away from the sides and rear.
3. Extreme caution is necessary when any heater is
used by or near children or invalids and whenever the
heater is left operating and unattended.
4. Always unplug the heater when not in use.
5. Do not operate any heater with a damaged cord or plug
or after the heater malfunctions, has been dropped or
damaged in any manner. Discard heater or return
heater to authorized service facility for examination,
electrical or mechanical adjustment, or repair.
6. Do not use the heater outdoors.
7. This heater is not intended for use in bathroom,
laundry areas and similar moist indoor locations.
Never locate heater where it may fall into a bathtub or
other water container.
8. Do not run cord under carpeting. Do not cover cord with
throw rugs, runners, or similar coverings. Do not route
cord under furniture or appliances. Arrange cord away
from traffic area and where it will not be tripped over.
9. CAUTION: This appliance has a polarized plug (one
blade is wider than the other). To reduce the risk of
shock, this plug is intended to fit only one way in a
2
polarized outlet. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified
electrician. DO NOT attempt to defeat this safety feature.
To do so
3
could result in an electric shock hazard.
10. This heater draws 12.5 amps during operation. To
prevent overloading a circuit, do not plug the heater into a
circuit that already has other appliances working.
11. CAUTION: It is normal for the plug to feel warm to the
touch; however, a loose fit between the AC outlet
(receptacle) and plug may cause overheating and
distortion of the plug. Contact a qualified electrician to
replace loose or worn outlet.
12. To disconnect the heater, first turn controls to off,
then remove plug from outlet. Never pull by the cord.
13. Do not insert or allow foreign objects to enter any
ventilation or exhaust opening as this may cause
an electric shock or fire, or damage the heater.
14. To prevent a possible fire, do not block air intakes or
exhaust in any manner. Do not use on soft surface, like
a bed, where openings may become blocked.
15. A heater has hot and arcing or sparking parts inside.
Do not use it in the areas where gasoline, paint, or
flammable liquids are used or stored.
16. Use this heater only as described in this manual. Any
other use not recommended by the manufacturer may
cause fire, electric shock, or injury to persons.
17. CAUTION: Always plug heaters directly into a wall
outlet/receptacle. Never use with an extension cord or
reloadable power tap (outlet/power strip).
18. The output of this heater may vary and its
temperature may become intense enough to burn
exposed skin. Use of this heater is not recommended
for persons with reduced sensitivity to heat or an
inability to react to avoid burns.
19. “SAVE THESE INSTRUCTIONS”
4
OPERATING INSTRUCTIONS
Safty grill
Temperature
control knob
Power selection knob
Pilot light
●
Check before turning on the machine
1.
Check if the power wire is under good condition.
2.
The product adopts 120V AC power supply, before use, please confirm if
the rated current of the power socket meets the local requirements with safe
grounding device, otherwise, please replace it with the qualified socket.
●
Put the machine on the flat place
Uneven place may possibly cause the turnover switch at abnormal position,
then the heater can’t work after turning on, therefore, please put the heater on
the flat place, at least the surface below the base of the heater must be flat.
●
Temperature Control Knob
Insert the plug into the power socket, then turn the Temperature Control knob
clockwise, when hearing the “poop” sound (it means the temperature controller
is on), adjust the Temperature Control knob to the desired temperature level.
●
Power Switch Knob
Turn the Power selection knob to select between 3 functions: Fan only,Low 750W
(LOW), High 1500W(HIGH).
●
Turn off the Heater
A.
Turn the Power Switch Knob to OFF position.
B.
Turn the Temperature Control knob anticlockwise to the initial position.
C.
Remove the power plug, store the heater after the entire machine has become
cool.
●
Safety Protection
1. Overheat protection: When the temperature in the heater is too high due to
abnormality in the use environment or improper use, the thermostat device can
automatically cut off the power and the heater stops working. After the whole
heater is cooling, the heater can return to the normal use after removing the
abnormality.
2. Inversion protection: When the whole heater is inverted, the safety system will
automatically cut off the power, and return to the work state before inversion after
the body is placed upright.
5
ADDITIONAL FEATURES
This heater has additional features:
Convenient Carry Handle – allows for easy transport from room to room.
TROUBLESHOOTING
If your heater fails to operate, please follow these instructions:
Ensure that your circuit breaker or fuse is working properly.
Be sure the heater is plugged in and that the electrical outlet is working
properly.
Check for any obstruction. If you find any obstruction, turn the heater
“OFF”
. Unplug the heater and wait a few minutes for it to cool down.
Carefully remove the obstruction. Plug the heater in and turn it on
again by referring to the
OPERATING INSTRUCTIONS
.

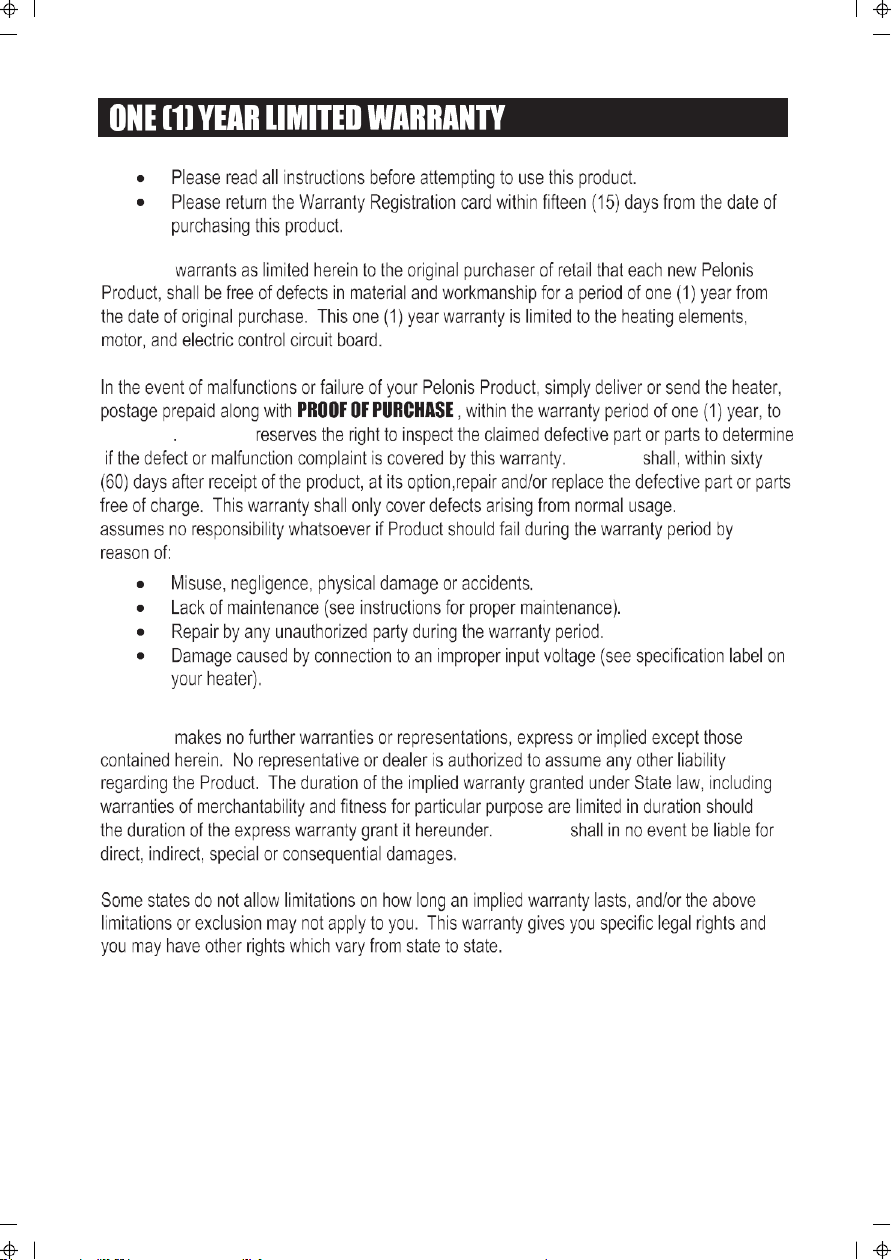

NOTE: IF YOU EXPERIENCE A PROBLEM WITH YOUR HEATER, PLEASE SEE THE WARRANTY
INFORMATION FOR INSTRUCTIONS. PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE
HEATER YOURSELF. DOING SO MAY VOID THE WARRANTY AND COULD CAUSE DAMAGE OR
PERSONAL INJURY. IF THE PROBLEM STILL PERSISTS, PLEASE CONTACT US BY REFERRING TO
THE SERVICE & SUPPORT INFORMATION ON THE FOLLOWING PAGE.
CLEANING AND STORAGE
It is recommended that the heater be cleaned at least one time during the
operating season in order to provide the optimum level of performance.
ALWAYS TURN THE POWER SWITCH OFF AND UNPLUG THE HEATER BEFORE CLEANING
. Be
sure to save the box for off-season storage.
Turn the heater
“OFF”
, unplug it and wait for the heater to cool down.
Use a dry cloth to clean only external surfaces of the heater.
Do not use any cleaning agents or detergents.
Never immerse the heater in water.
Pack the heater in the original carton and store it in a cool and dry place.
SPECIFICATIONS
Model No.: PH-17P
Voltage: 120V, 60Hz
Current: Maximum continuous draw: 12.5
Amps. Output: 5200 BTUs
Power: LO = 750 Watts, HI = 1500 Watts
Tolerances on all specifications: Not exceeded than 105%.
5
In the event of a warranty claim or if service is required for this heater, please contact us at the
following:
TollFree: 1.866.646-4332
Email: customersupp[email protected]
For questions or comments, please write to:
Midea America Corporation
Customer Care Center
11411 NW 107th Street,
Suite 12
Miami, FL 33178
For your records, staple your sales receipt to this manual and record the following:
DâTEOFPU@GHâSE:
‹srsr‹fss‹fsnfcfirTxfnf›
EOTE: FR00F0FFUECEASEISRE$UIEEB F0RAL£
