The device is only suitable for well insulated spaces or occasional use.
MODEL: PHT20A2ABGUK
16 Inch PTC Ceramic Heater

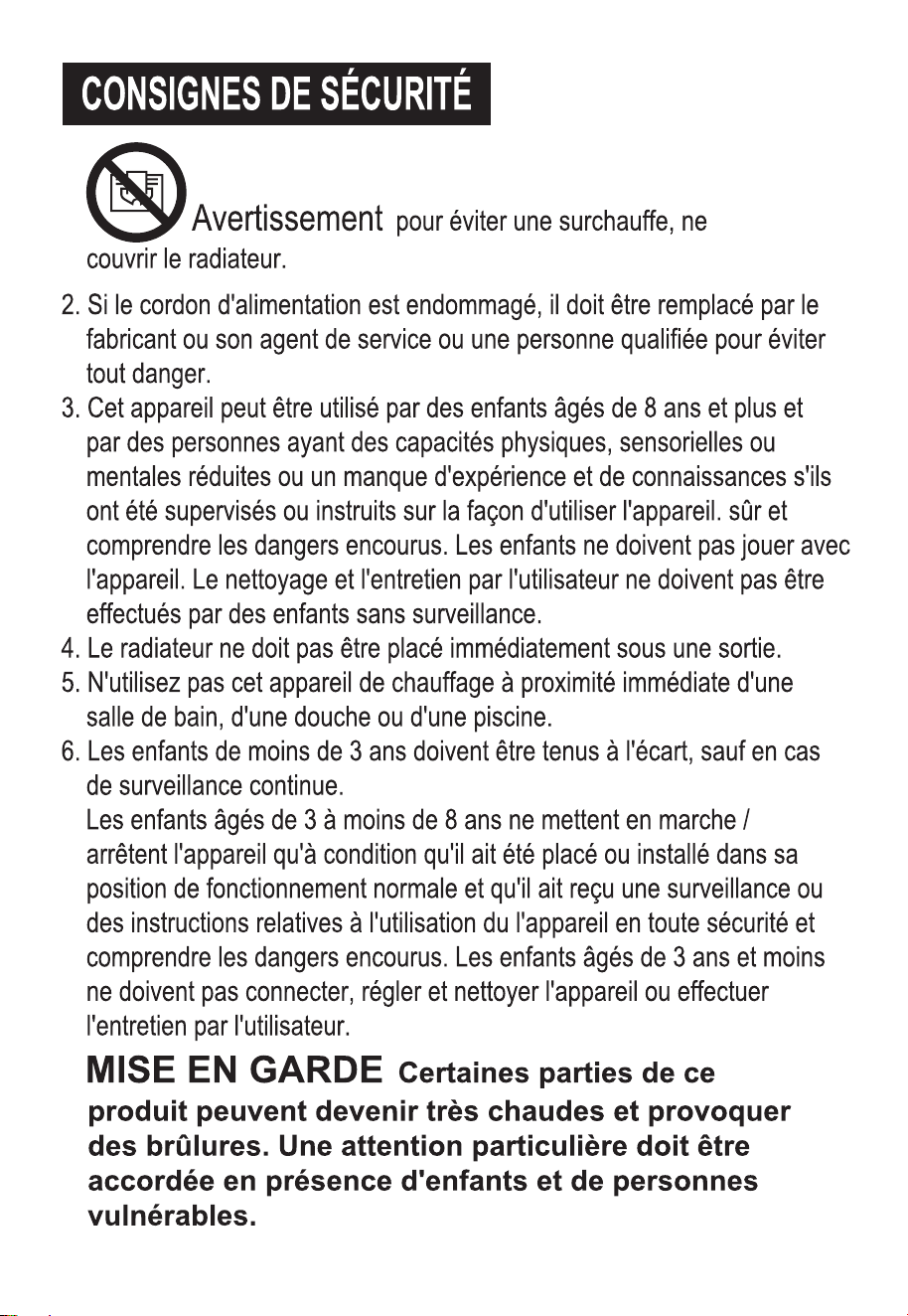

SAFETY INSTRUCTION
1. Warning: In order to avoid overheating, do not cover the
heater.
2. If the supply cord is damaged, it must be replaced by the manufacturer
or its service agent or a similarly qualified person in order to avoid a
hazard.
3. This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
4. The heater must not be located immediately below a socket-outlet.
5. Do not use this heater in the immediate surroundings of a bath, a
shower or a swimming pool.
6. Children of less than 3 years should be kept away unless continuously
supervised.
Children aged from 3 years and less than 8 years shall only switch
on/off the appliance provided that it has been placed or installed in its
intended normal operating position and they have been given supervi-
sion or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children aged from 3 years and
less than 8 years shall not plug in, regulate and clean the appliance or
perform user maintenance.

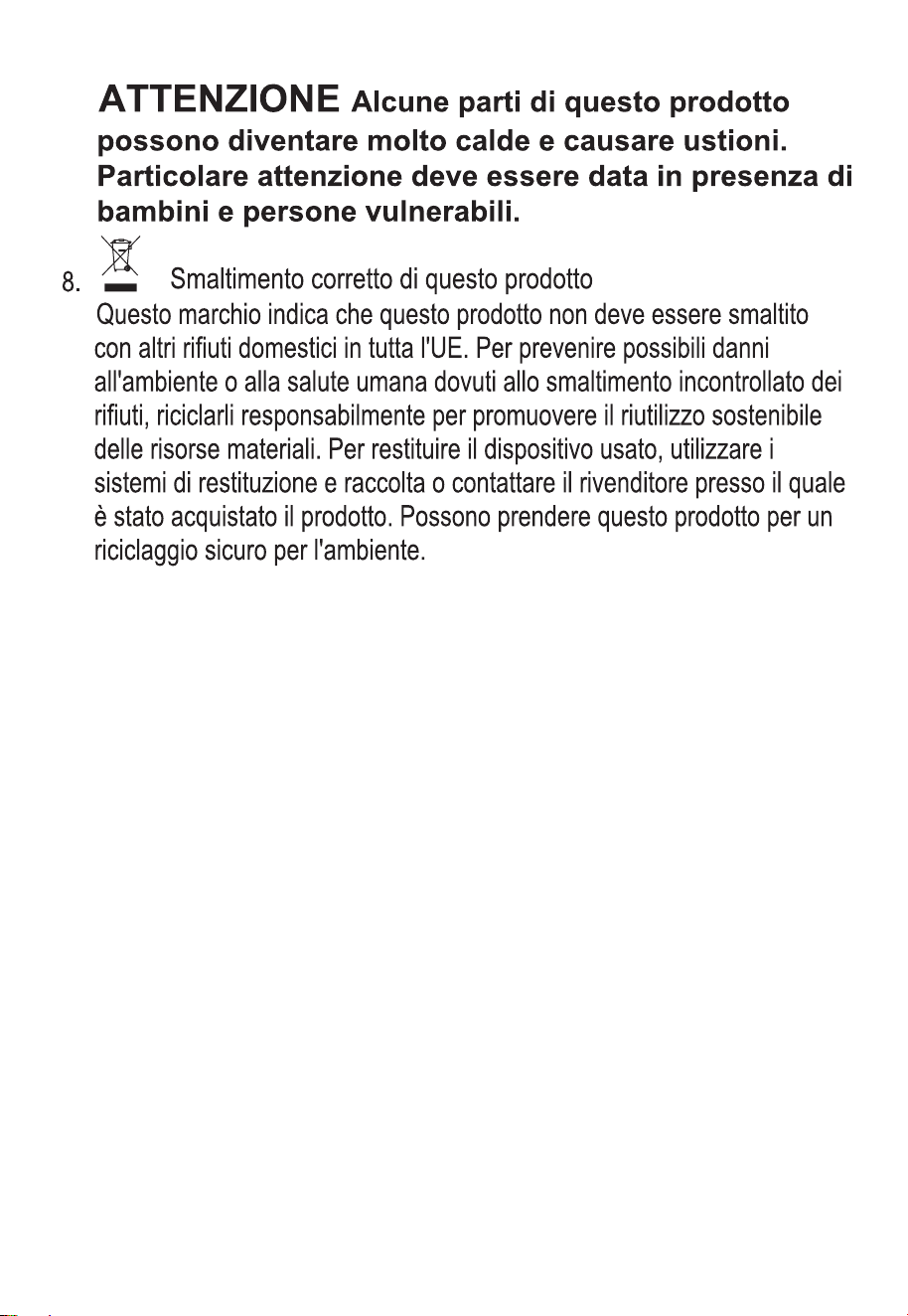

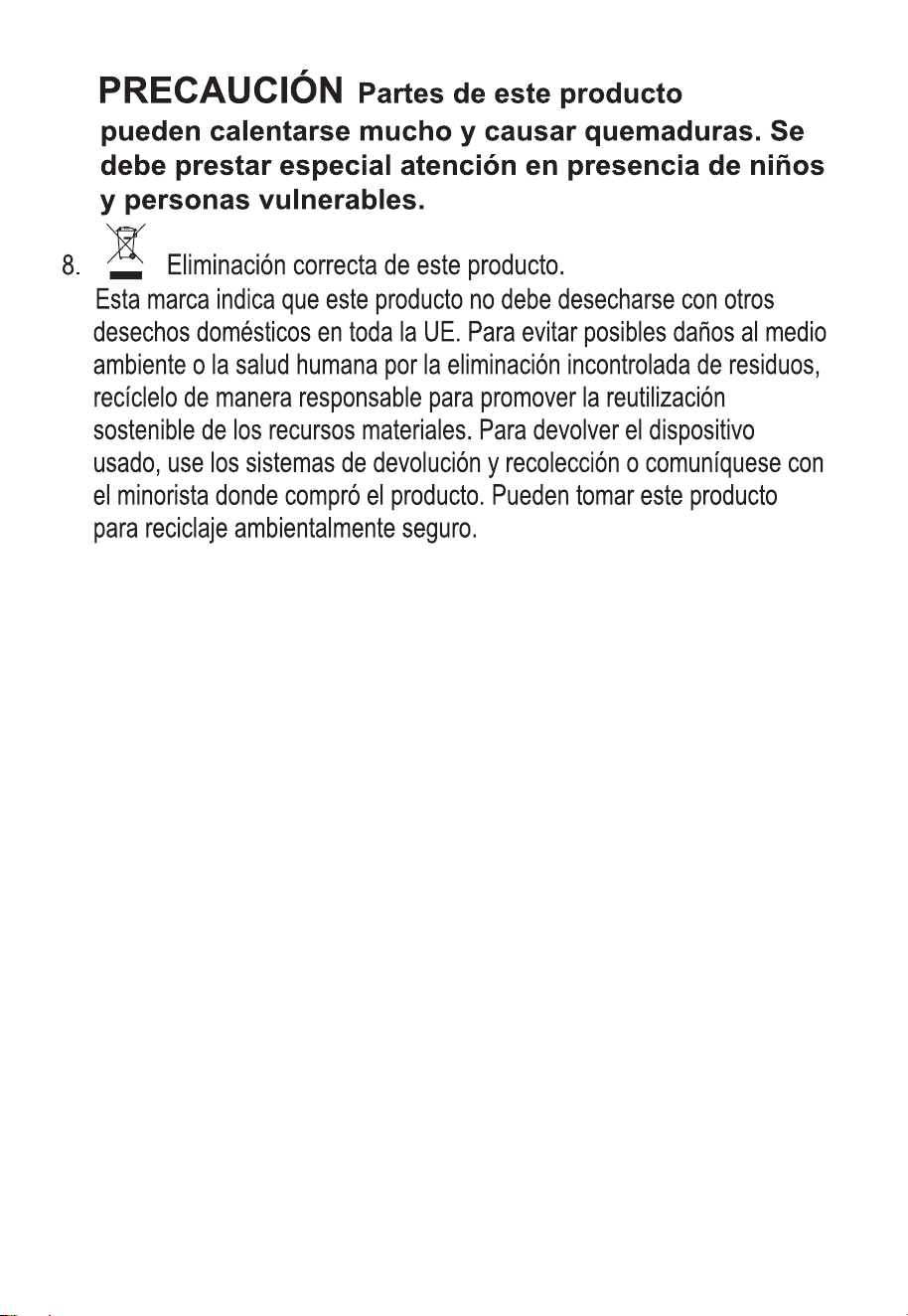

7. CAUTION — Some parts of this product can
become very hot and cause burns. Particular atten-
tion has to be given where children and vulnerable
people are present.
1

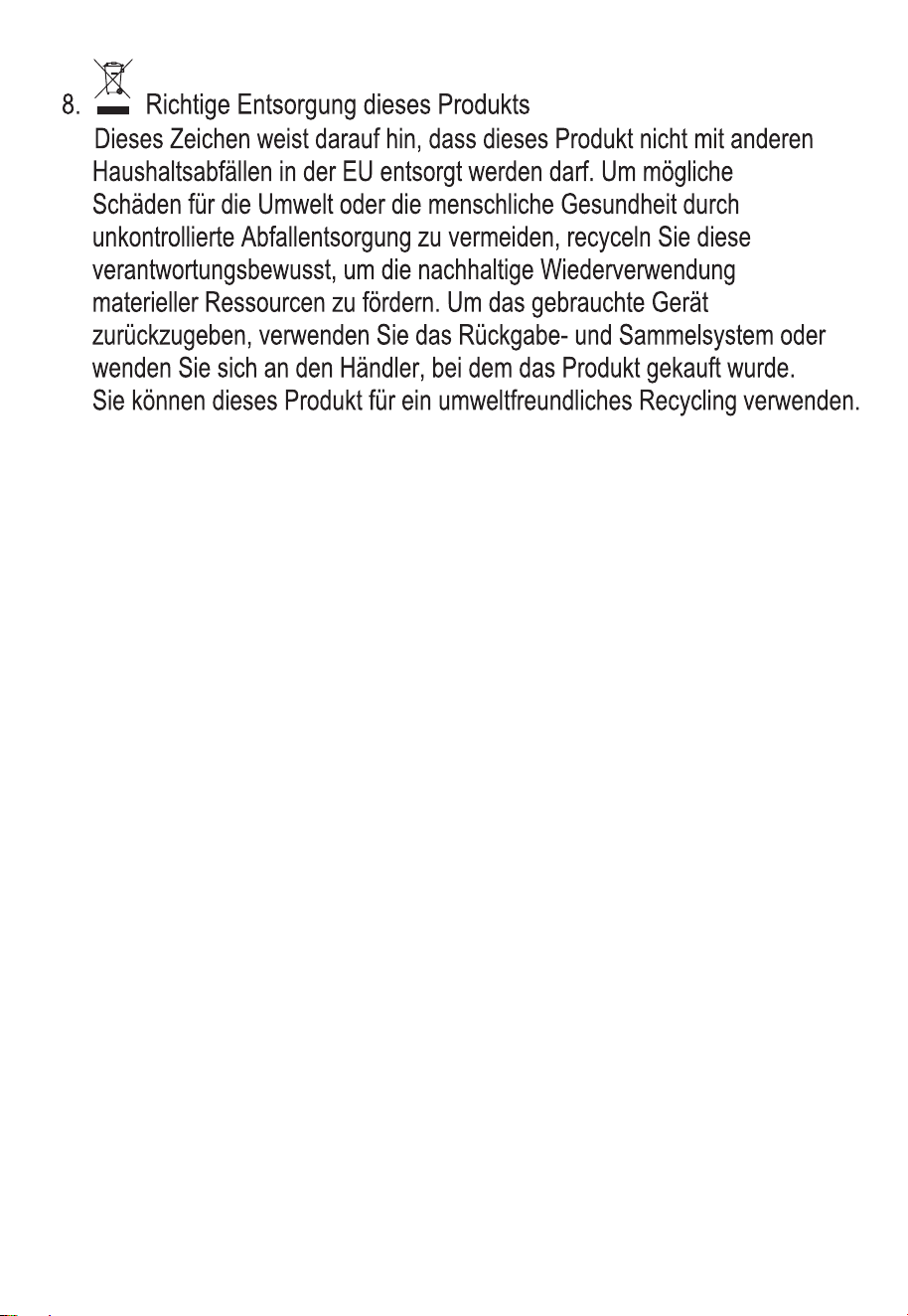

8. Correct Disposal of this product
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and collec-
tion systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
9. Do not use this heater if it has been dropped.
10. Do not use if there are visible signs of damage to the heater.
11. Use this heater on a horizontal and stable surface.
12. WARNING: Do not use this heater in small rooms when they are
occupied by persons not capable of leaving the room on their own,
unless constant supervision is provided.
13. WARNING: To reduce the risk of fire, keep textiles, curtains, or any
other flammable material a minimum distance of 1 m from the air
outlet.
14. Details concerning precautions during user maintenance.
15. Consider all the information, including the information contained in
the "CLEANING AND MAINTENANCE INSTRUCTION" chapter.
2

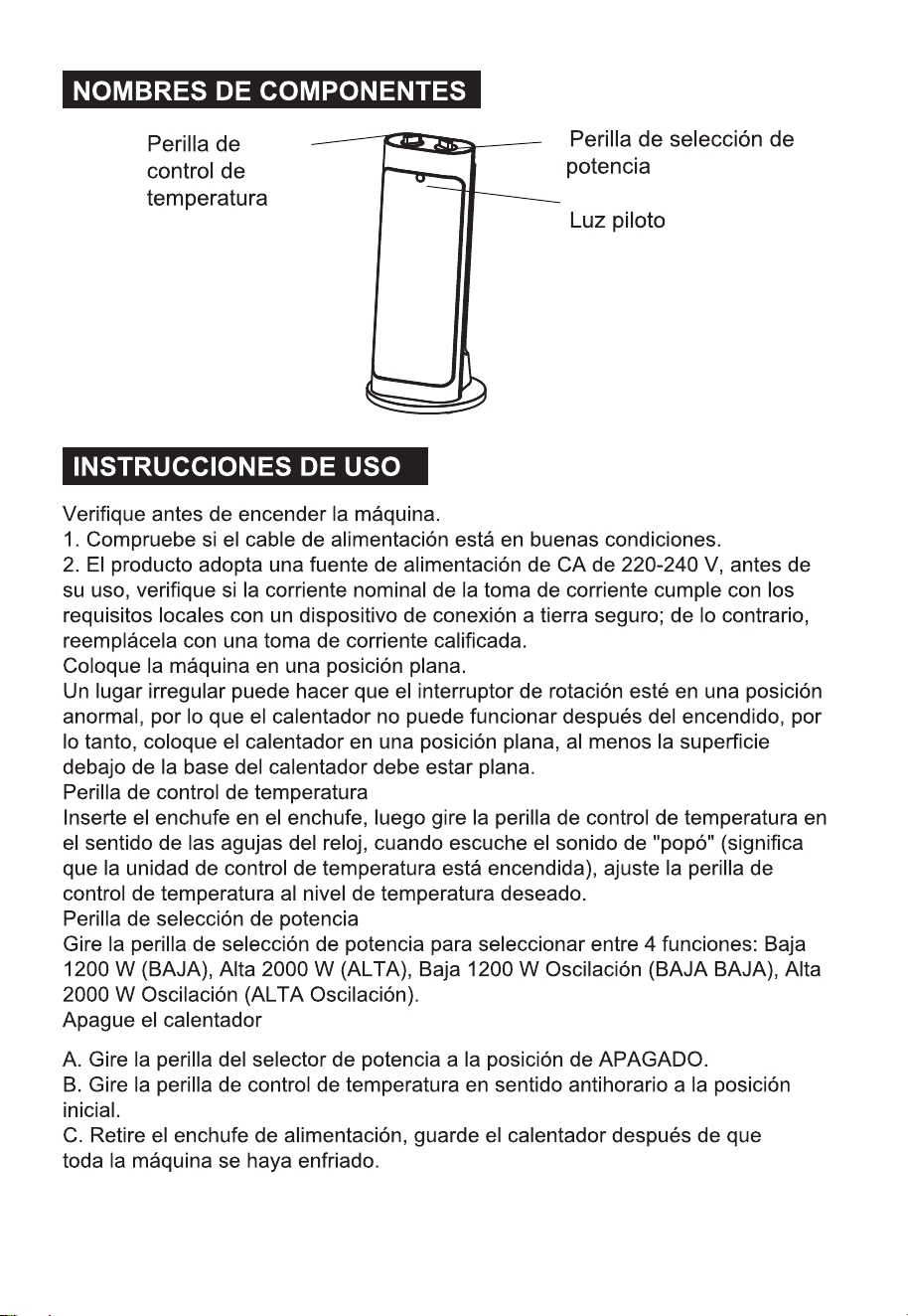

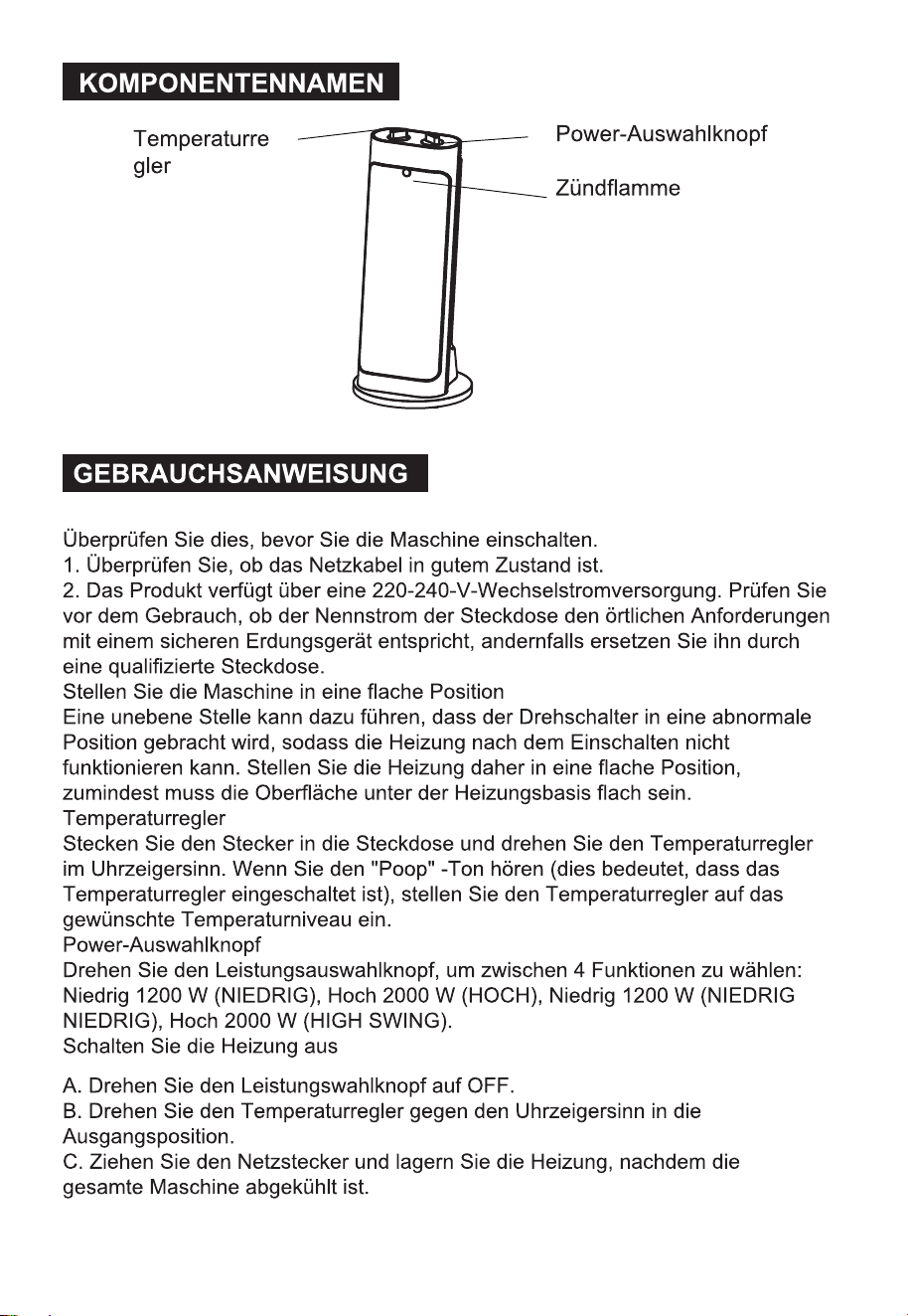

PART FIGURE
Temperature
control knob
Pilot light
Power selection knob
16. Household use only.
OPERATING INSTRUCTION
Check before turning on the machine
1. Check if the power wire is under good condition.
2. The product adopts 220-240V AC power supply, before use, please confirm if
the rated current of the power socket meets the local requirements with safe
grounding device, otherwise, please replace it with the qualified socket.
Put the machine on the flat place
Uneven place may possibly cause the turnover switch at abnormal position, then
the heater can’t work after turning on, therefore, please put the heater on the flat
place, at least the surface below the base of the heater must be flat.
Temperature Control Knob
Insert the plug into the power socket, then turn the Temperature Control knob
clockwise, when hearing the “poop” sound (it means the temperature controller is
on), adjust the Temperature Control knob to the desired temperature level.
Power Selection Knob
Turn the Power selection knob to select between 4 functions: Low 1200W(LOW),
High 2000W(HIGH), Low 1200W Swing (LOW SWING), High 2000W Swing (HIGH
SWING).
Turn off the Heater
A. Turn the Power selection knob to OFF position.
B. Turn the Temperature Control knob anticlockwise to the initial position.
C. Remove the power plug, store the heater after the entire machine has become
cool.

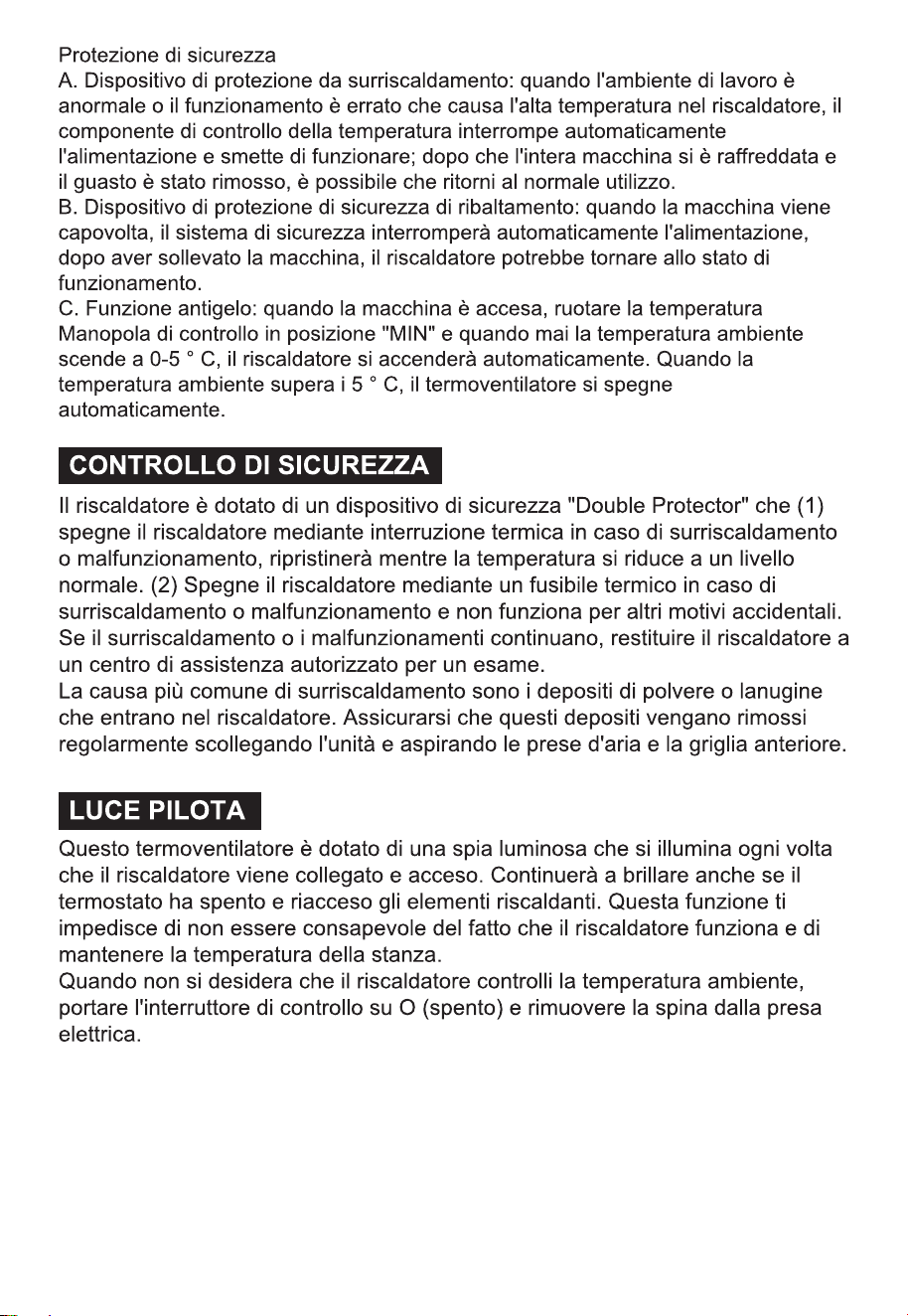

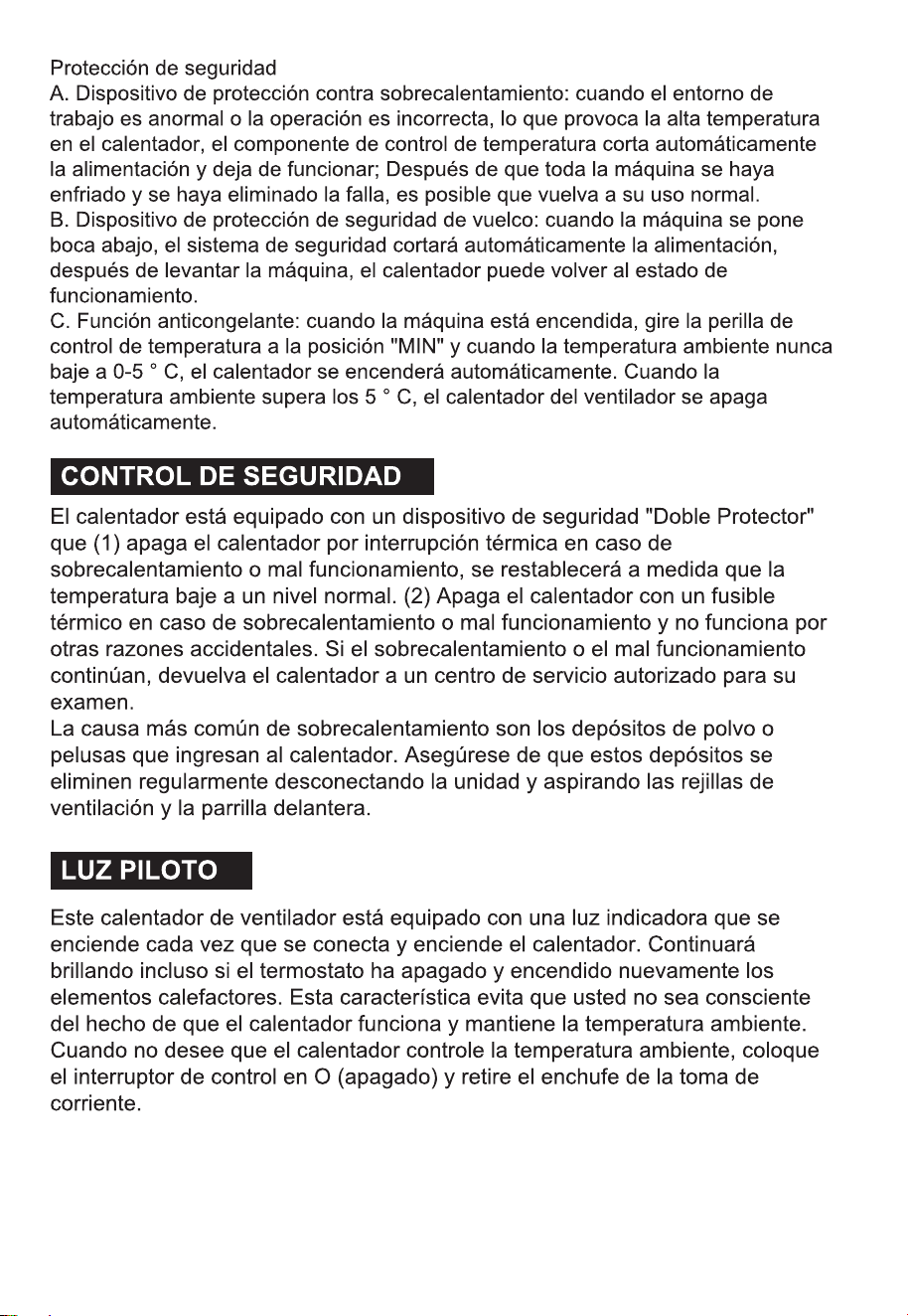

Safety Protection
A. Overheating protection device: when the working environment is abnormal or
the operation is incorrect which cause high temperature in the heater, the
temperature control component will automatically cut off power supply and stop
working; after the entire machine has become cool and the fault has been removed,
it may recover to normal use.
B. Tip-over safety protection device: When the machine is turned over, the safety
system will automatically cut off the power supply, after uprear the machine, the
heater may recover to the working status.
C.Anti-frost function: When the machine is on, turn the Temperature
Control knob to the “MIN” position, and when ever the room temperature drops to
0-5ºC, the heater will automatically turn on. When the room temperature is over
5ºC, the fan heater will automatically turn off.
3
Your heater is fitted with a safety device "Double Protector" that (1) switches off
the heater by thermal cut-off in the event of overheating or malfunction, It will
reset while the temperature reduce to a normal level. (2) Shuts off the heater by
thermal fuse in the event of overheating or malfunction and not operates by some
other accidental reason.
If overheating or malfunctions continue, return the heater to an Approved Service
Agent for examination.
The most common cause of overheating is deposits of dust or fluff entering the
heater, Ensure these deposits are removed regularly by unplugging the unit and
vacuum cleaning air vents and front grille.
SAFETY CONTROL
This fan heater is equipped with a pilot light that glows whenever the heater is
plugged in and turned on. It will continue to glow even if the thermostat has cycled
the heating elements off. This feature is to prevent you from being unaware that
the heater is operating and maintaining the temperature of the room.
When you do not wish the heater to control the room temperature, turn the control
switch to O (off) and remove the plug from the electrical outlet.
PILOT LIGHT
4
1,084
Lifestyle Orchestra Co. Pte. Ltd.
158 CECIL STREET#07-01/02 SINGAPORE (069545)
PHT20A2ABGUK
5

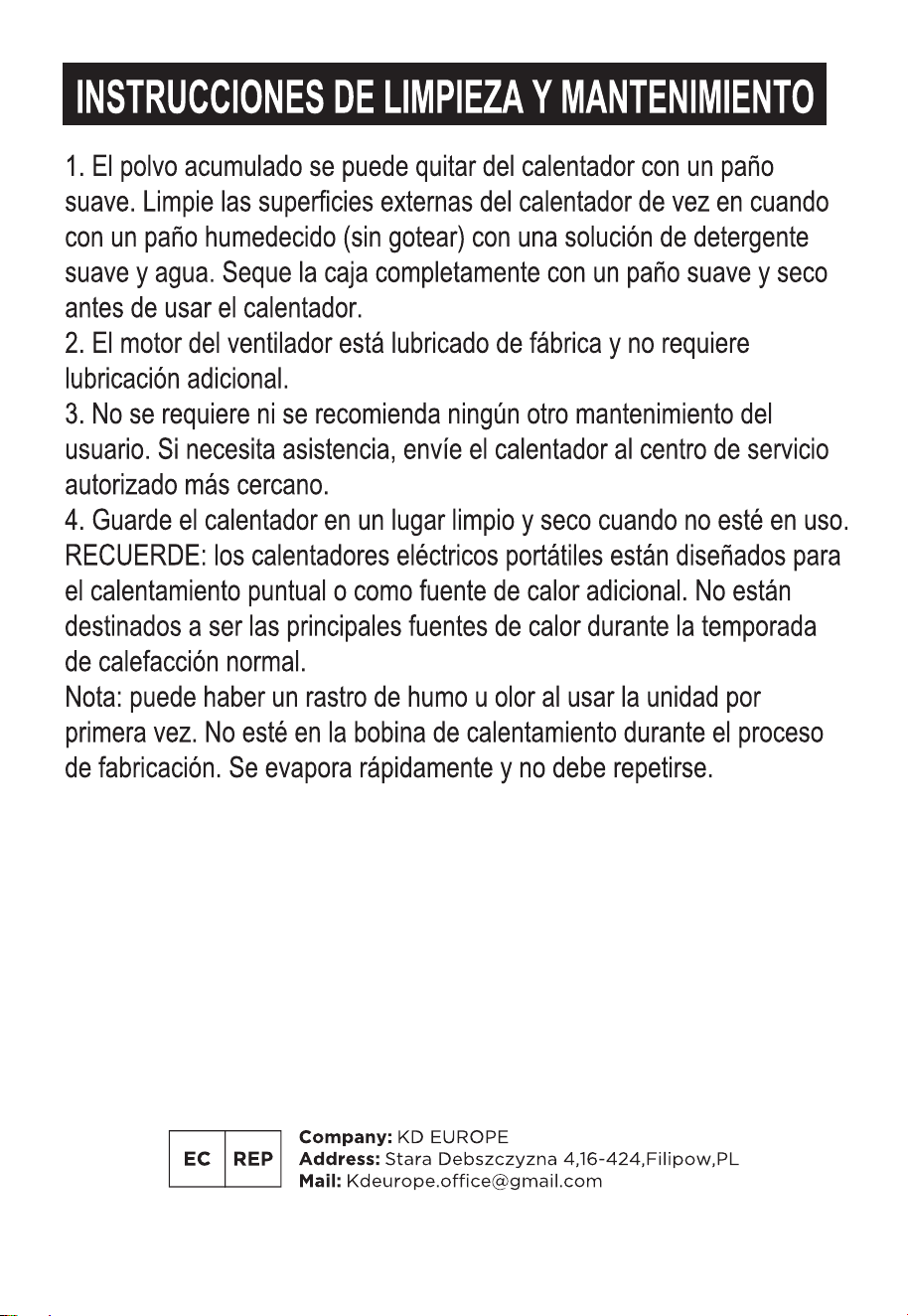

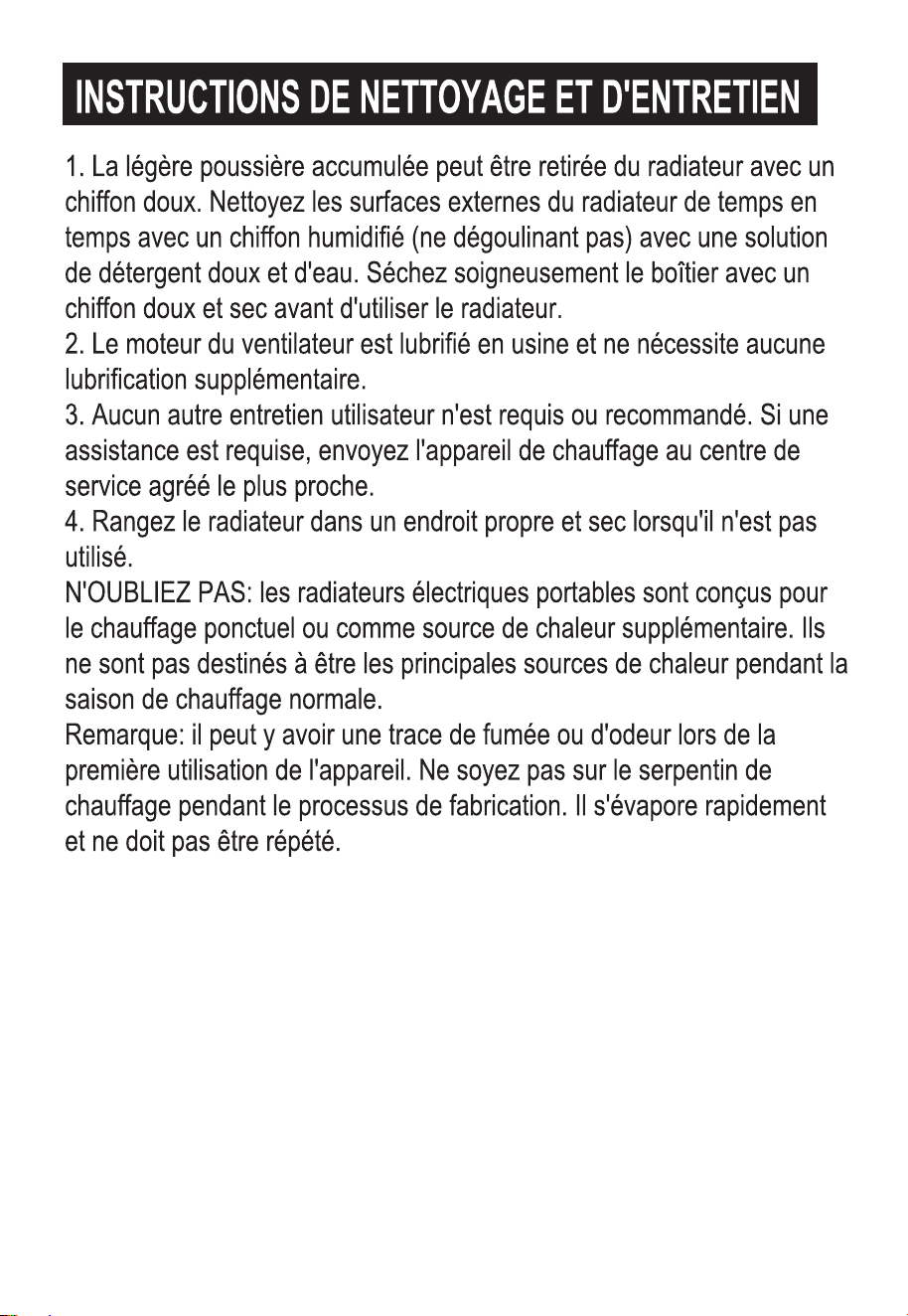

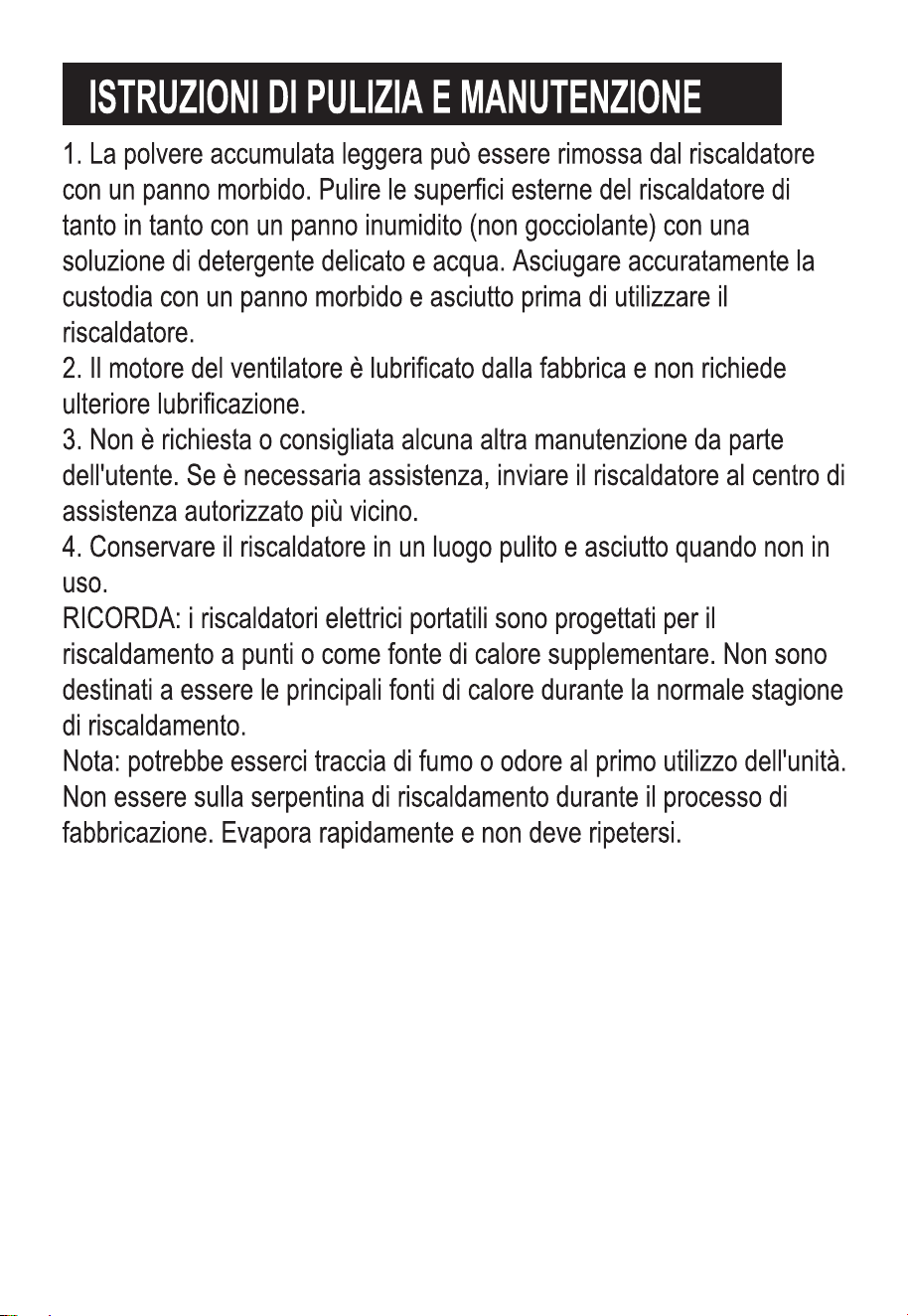

1. Light accumulated dust may be removed from the heater with a soft
cloth. Wipe the exterior surfaces of the heater occasionally with a
cloth moistened (not dripping wet) with a solution of mild detergent
and water. Dry the case thoroughly with a soft dry cloth before operat-
ing the heater.
2. The fan motor is lubricated by the factory, and will require no further
lubrication.
3. No other user maintenance is required orrecommended. If service is
required, send your heater to the nearest authorized servicedepot.
4. Store heater in a clean and dry place whennot in use.
REMEMBER - portable electric heaters are designed for spot heating,
or as a supplementary heat source. They are not intended to be main
sources of heat during the normal heating season.
Note: There may be trace of smoke or odour when unit is first operat-
ed. Do not be on the heating coil during the manufacturing process. It
will quickly evaporate, and should not re-occur.
CLEANING AND MAINTENANCE INSTRUCTION
6
E-mail：[email protected]
Company TC Kangbridge Ltd
Address:
TC Lumionous house,300South row,Milton keynes,MK9 2FR
Tel/Mobile:
+44(0)7908917780
E-mail:
UK REP
1.
7.
7

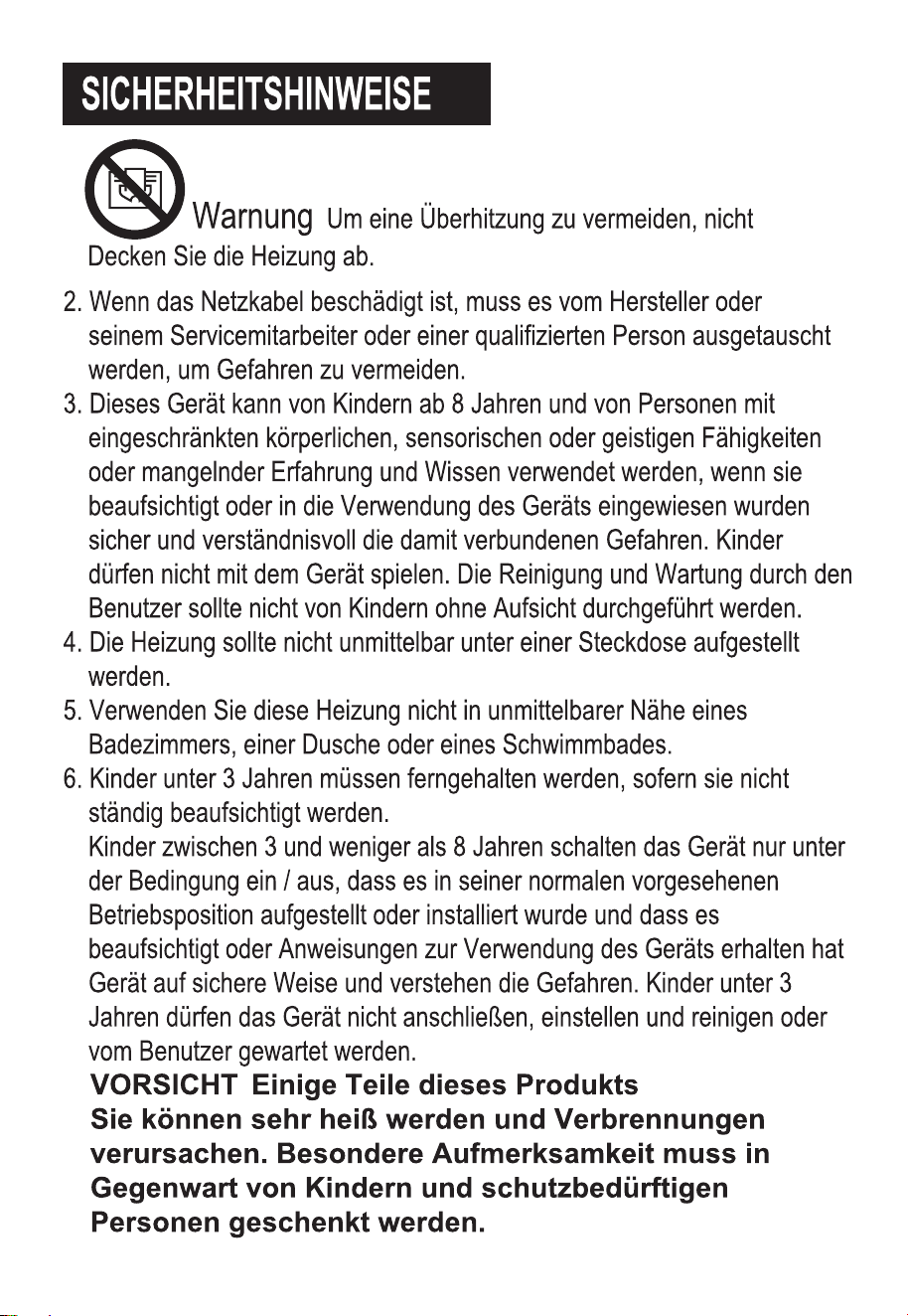

9. Verwenden Sie die Heizung nicht, falls diese heruntergefallen ist.
10. Verwenden Sie die Heizung nicht, falls diese offensichtlich
beschädigt ist.
11. Verwenden Sie diese Heizung auf einem horizontalen, stabilen
Untergrund.
12. WARNUNG: Verwenden Sie diese Heizung nicht in kleinen
Räumen, wenn sich dort Personen aufhalten, die nicht in der Lage
sind, den Raum eigenständig zu verlassen, es sei denn sie werden
kontinuierlich beaufsichtigt.
13. WARNUNG: Um die Gefahr von Feuern zu reduzieren, halten Sie
zwischen Stoffen, Gardinen oder anderen brennbaren Materialien
und dem Luftaustritt einen Abstand von mindestens 1m ein.
14. Detaillierte Vorsichtsmaßnahmen während der Wartung.
15. Beachten Sie alle Informationen, einschließlich der Informationen
im Kapitel "REINIGUNG UND WARTUNG".
8
16.Nur für den Hausgebrauch
9
10
1,084
PHT20A2ABGUK
Lifestyle Orchestra Co. Pte. Ltd.
158 CECIL STREET#07-01/02 SINGAPORE (069545)
11
1.
7.
13
9. Ne pas utiliser ce radiateur s’il est tombé.
10. Ne pas utiliser ce radiateur s’il présente des signes visibles de
dommages.
11. Utiliser ce radiateur sur une surface stable et horizontale.
12. AVERTISSEMENT: Ne pas utiliser cet appareil dans des petites
pièces lorsqu'elles sont occupées par des personnes qui ne sont
pas capables de quitter la pièce par elles-mêmes, à moins qu'une
surveillance constante ne soit assurée.
13. AVERTISSEMENT: Afin de réduire le risque d'incendie, maintenir
les textiles, les rideaux ou tout autre matériau inflammable à une
distance minimale de 1 m de la sortie d'air.
14. Détails concernant les précautions à prendre lors de l'entretien par
l'utilisateur.
15. Prendre en compte toutes les informations, y compris celles
indiquées dans le chapitre "NETTOYAGE ET D'ENTRETIEN".
14
16.Usage domestique uniquement.
15
16
1,084
: PHT20A2ABGUK
Lifestyle Orchestra Co. Pte. Ltd.
158 CECIL STREET#07-01/02 SINGAPORE (069545)
17
18
1.
19
7.

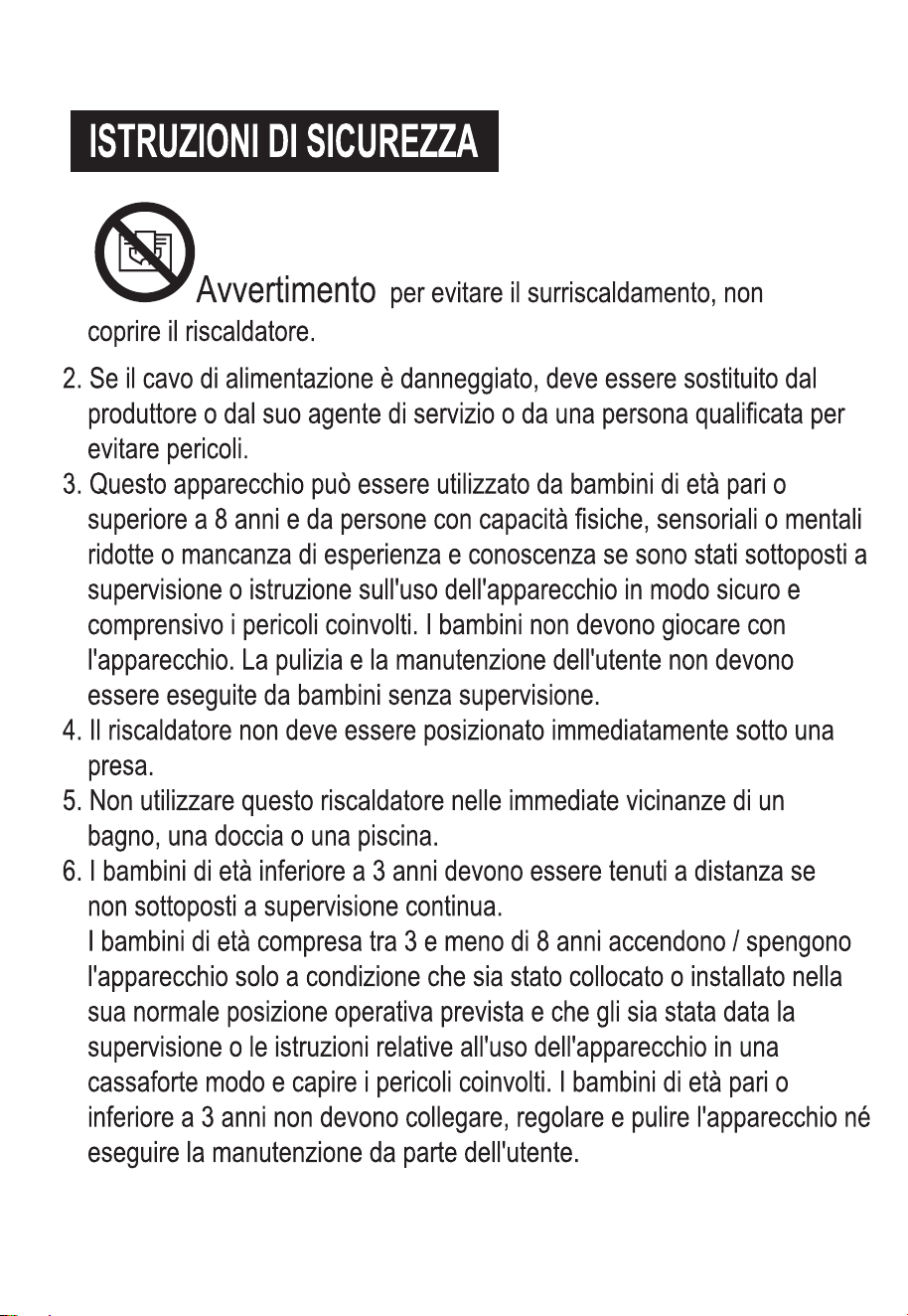

9. Non usare questo riscaldatore se è stato fatto cadere.
10. Non usare se ci sono segni visibili di danni al riscaldatore.
11. Usare questo riscaldatore su una superficie orizzontale e stabile.
12. ATTENZIONE: Non usare questo riscaldatore in stanze piccole
quando sono occupate da persone non in grado di lasciare la
stanza da sole, a meno che non sia fornita una supervisione
costante.
13. ATTENZIONE: Per ridurre il rischio di incendio, tenere tessuti,
tende o qualsiasi altro materiale infiammabile a una distanza
minima di 1 m dall'uscita dell'aria.
14. Rispettare le indicazioni di precauzione durante la manutenzione
da parte dell'utente.
15. Tenere presente tutte le informazioni, comprese quelle contenute
nel capitolo "PULIZIA E MANUTENZIONE".
20
16. Solo per uso domestico.
21
22
1,084
Tabella per i requisiti informativi per gli apparecchi per il riscaldamento d'ambiente locale elettrici
Modello: PHT20A2ABGUK
Consumo elettrico ausiliario
Alla potenza termica
nominale
Alla potenza termica
minima
In modalità standby
Potenza termica assistita da ventilatore
Potenza termica
Potenza termica
nominale
Potenza termica
minima (indicativa)
Potenza termica
continua massima
Tipo di ingresso di calore, solo per gli apparecchi per il riscaldamen-
to d'ambiente locale elettrici (selezionarne uno)
Controllo manuale della carica termica con
termostato integrato
Controllo elettronico della carica termica con
feedback della temperatura ambiente e / o
esterna
Controllo manuale della carica termica con
feedback della temperatura ambiente e / o
esterna
Tipo di potenza termica / controllo della temperatura
ambiente (selezionarne uno)
Potenza termica a stadio singolo e nessun
controllo della temperatura ambiente
Due o più fasi manuali, nessun controllo
della temperatura ambiente
Con termostato meccanico controllo della
temperatura ambiente
Con controllo elettronico della temperatura
ambiente
Controllo elettronico della temperatura
ambiente più timer settimanale
Controllo della temperatura ambiente, con
rilevamento della presenza
Controllo della temperatura ambiente, con
rilevazione finestra aperta
Controllo elettronico della temperatura
ambiente più timer giornaliero
Altre opzioni di controllo (possibili selezioni multiple)
Con opzione di controllo della distanza
Con controllo di avvio adattivo
Con limitazione dell'orario di lavoro
Nota:
Per gli apparecchi per il riscaldamento d'ambiente locale elettrici, l'efficienza energetica stagionale
misurata del riscaldamento d'ambiente non può essere peggiore del valore delcaricato alla
potenza termica nominale dell'unità.
L'efficienza energetica stagionale del riscaldamento d'ambiente di tutti gli
apparecchi per il riscaldamento d'ambiente locale ad eccezione degli apparecchi
per il riscaldamento d'ambiente locale commerciali
Con sensore a bulbo nero
Dettagli del
contatto:
Oggetto Oggetto
Simbolo Valore Unità Unità
Lifestyle Orchestra Co. Pte. Ltd.
158 CECIL STREET#07-01/02 SINGAPORE (069545)
23
24
1.
25
7.

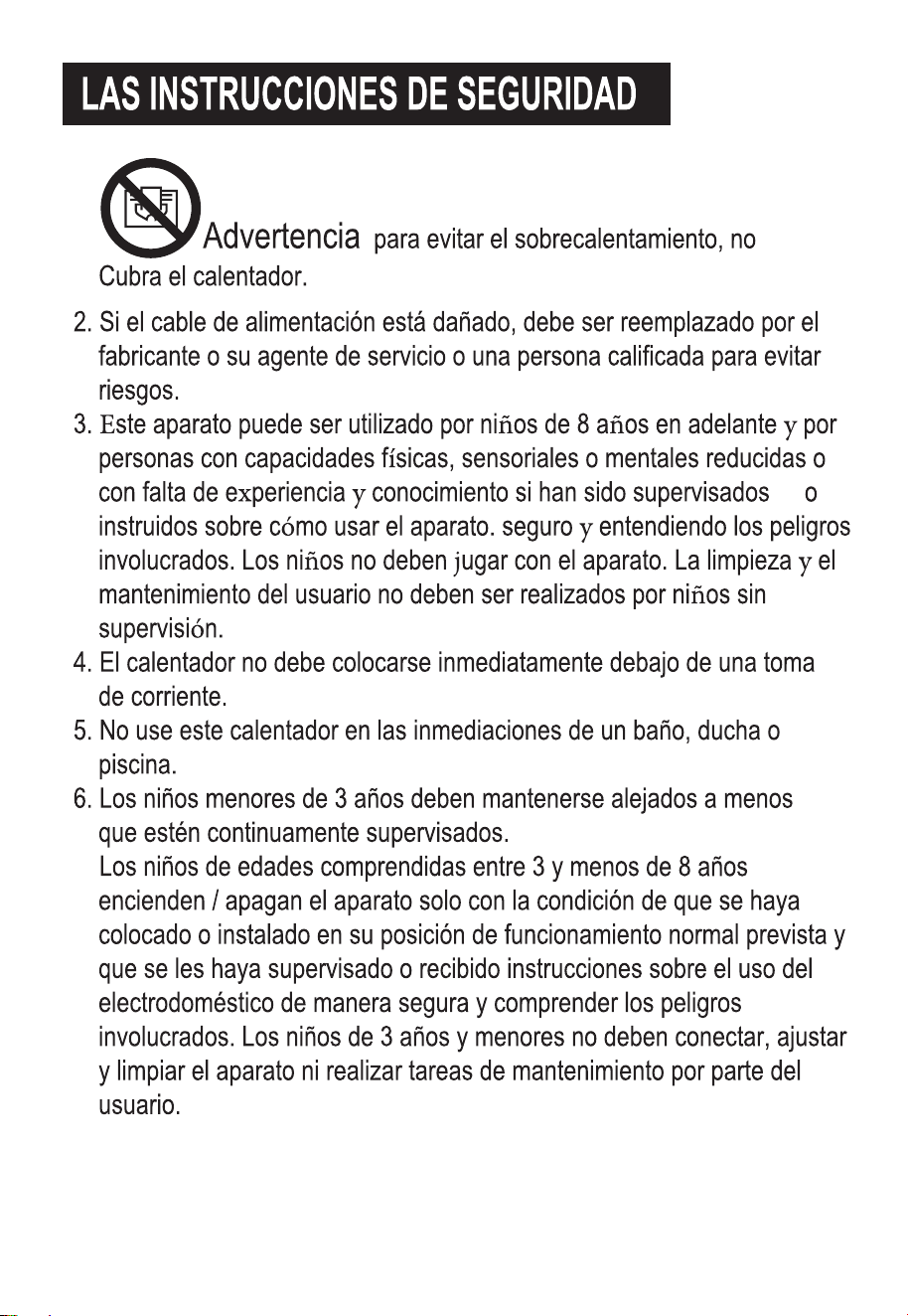

9. No utilice este calefactor si se ha caído.
10. No lo utilice si hay signos visibles de daños en el calentador.
11. Utilice este calefactor en una superficie horizontal y estable.
12. ADVERTENCIA: No utilice este calefactor en habitaciones
pequeñas cuando estén ocupadas por personas que no sean
capaces de salir de la habitación por sí mismas a menos que se
proporcione una supervisión constante.
13. ADVERTENCIA: Para reducir el riesgo de incendio, mantenga
telas, cortinas o cualquier otro material inflamable a una distancia
mínima de 1 m de la salida de aire.
14. Detalles relativos a las precauciones durante el mantenimiento del
usuario.
15. Tenga en cuenta toda la información, incluida la contenida en el
capítulo "INSTRUCCIONES DE LIMPIEZA Y MANTENIMIENTO".
26
16. Solo uso doméstico.
27
28
1,084
: PHT20A2ABGUK
Lifestyle Orchestra Co. Pte. Ltd.
158 CECIL STREET#07-01/02 SINGAPORE (069545)
29
30
