SERVICE PARTS LIST
BULLETIN NO.
July 2019
STARTING
SERIAL NO.
WIRING INSTRUCTION
DATEREVISED BULLETIN
54-04-1000
MX FUEL™ CHARGER
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
MXFC
CATALOG NO.
K22A
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

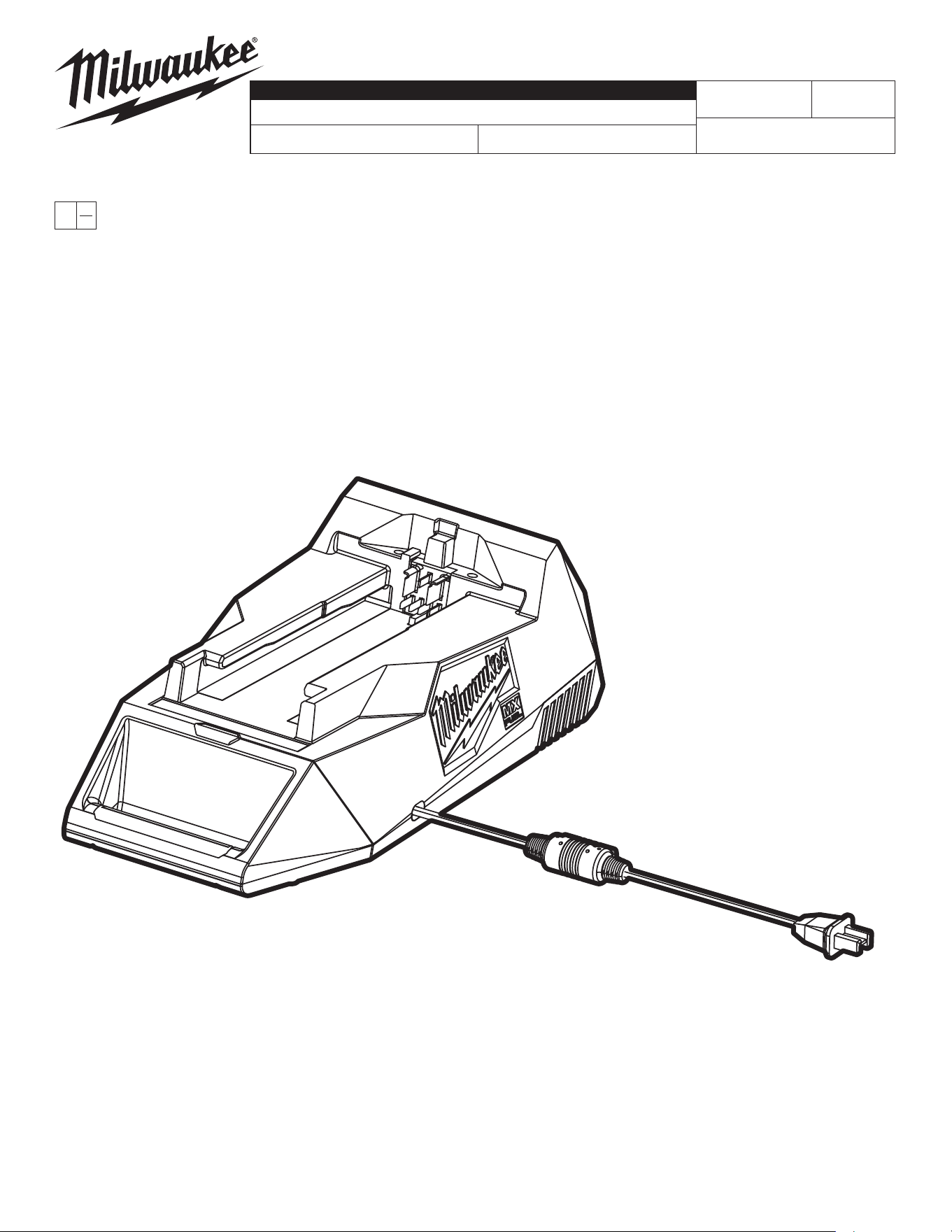

Drwg. 1
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 12-20-0202 Service Nameplate (Not Shown) (1)
2 10-20-1773 Icon Label (Not Shown) (1)
FIG. NOTES
1,2 A clean, dry surface is essential for proper performance
for any adhesive system. The area intended for application
of any adhesive label or nameplate must be prepared by
cleaning with isopropyl alcohol. The solvent is to be applied
with a clean, lint free applicator and the surface allowed to
dry before applying the label or nameplate.
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
