MILWAUKEE TOOL l www.milwaukeetool.com
13135 W. Lisbon Road, Brookeld, WI 53005
Drwg. 1
BULLETIN NO.
54-04-1100
SERVICE PARTS LIST
CATALOG NO. MXFSC
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
MX FUEL™ Super Charger
STARTING
SERIAL NO.
DATE
June 2024

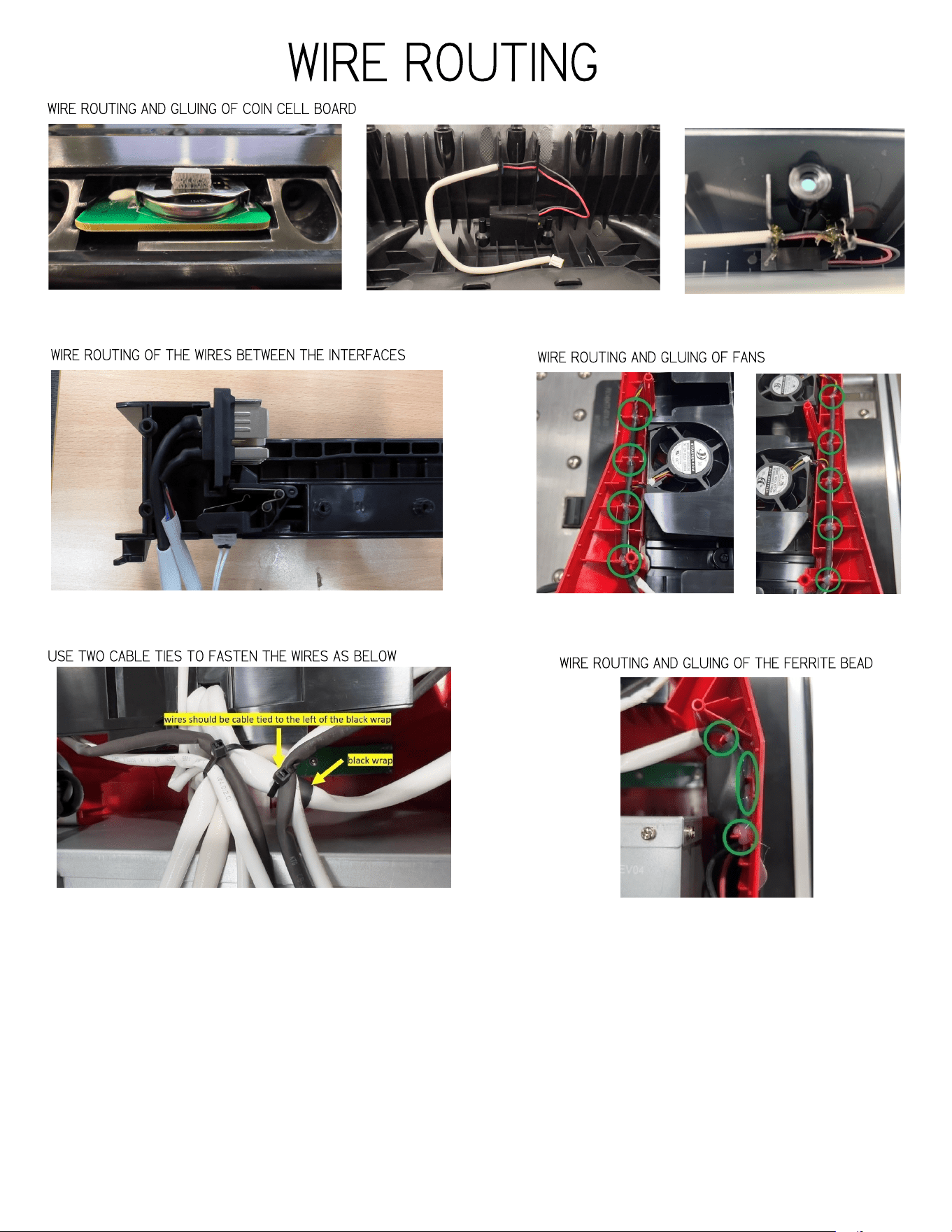

WIRING INSTRUCTION
M75A
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
See Page 3

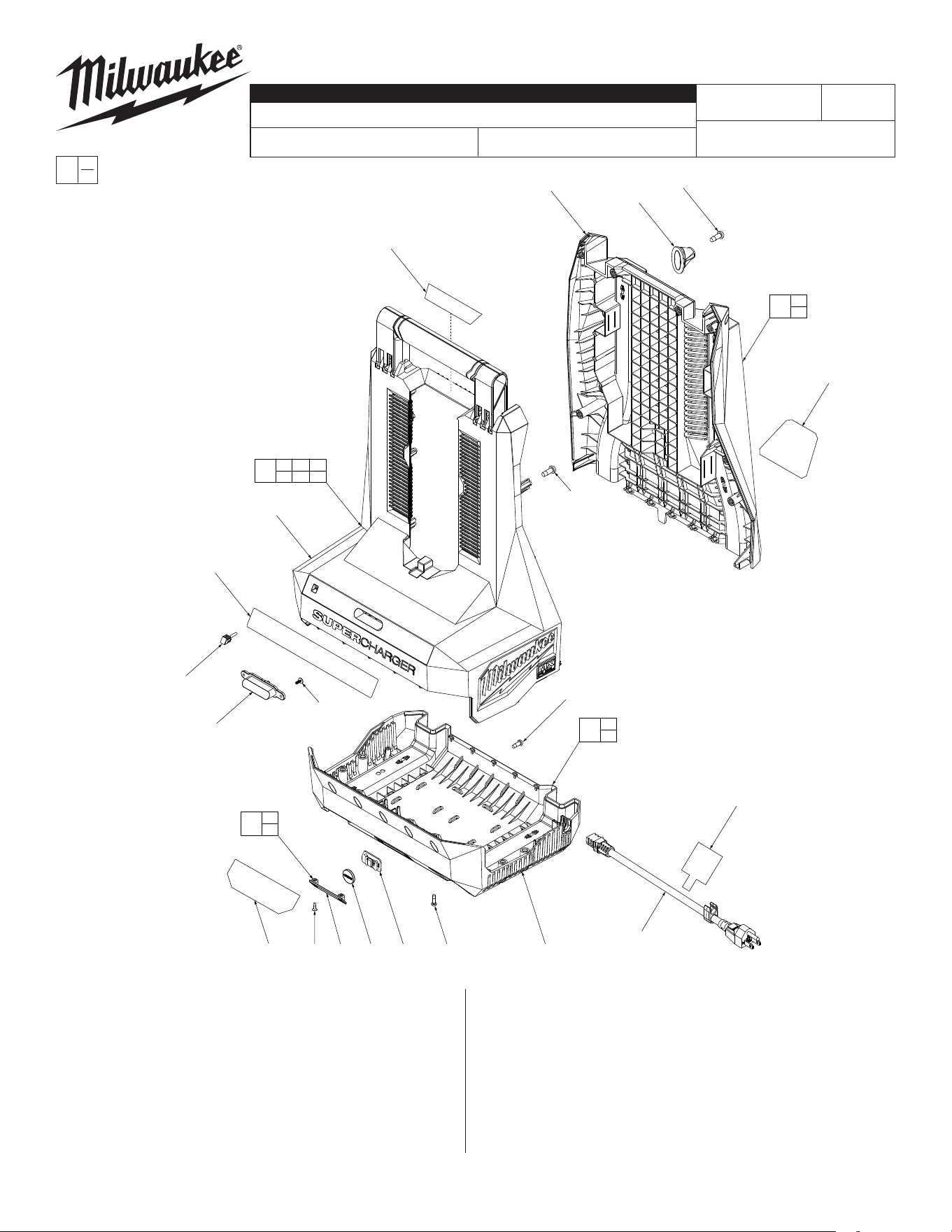

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
3 05-88-5375 M4 x 13.5mm Pan Head T-20 Screw (25)
4 43-86-6235 Rubber Isolator (4)
5 --------------- M3 x 10mm Flat Head Phillips Screw (2)
6 --------------- Coin Cell Door (1)
7 22-09-1870 Coin Cell PCBA (1)
7a --------------- Coin Cell Battery (CR32) See local hardware store (1)
8 --------------- Bottom Housing (1)
13 05-88-0030 M3 x 8.5mm Pan Head T-10 Screw (2)
15 44-06-2180 Charging LED Lens (1)
16 44-06-2160 Bluetooth LED Lens (1)
17 --------------- Top Housing (1)
30 22-64-6575 Power Cord (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
31 --------------- Rear Housing (1)
37 12-20-9867 Service Nameplate (1)
38 10-20-9985 Warning Label (1)
39 10-20-8114 UI Label (1)
40 05-71-0017 M4 x 10mm Pan Head T-20 Screw (5)
41 10-20-5639 Cool Cycle Label (1)
42 10-20-9730 Cord Tag (1)
43 43-76-7035 Front Housing Assembly (1)
44 43-76-7025 Bottom Housing Assembly (1)
45 43-76-7030 Rear Housing Assembly (1)
46 22-09-6565 Coin Cell Door Kit (1)
16
15
13
(2x)
17
43
13 15 16
17 39 41
3
(6x)
41
39
7a 7 3
(9x)
8
30
38 65
(2x)
42
31
4
(4x)
3
(10x)
40
(5x)
37
45
31
37
44
8
38
46
5
6

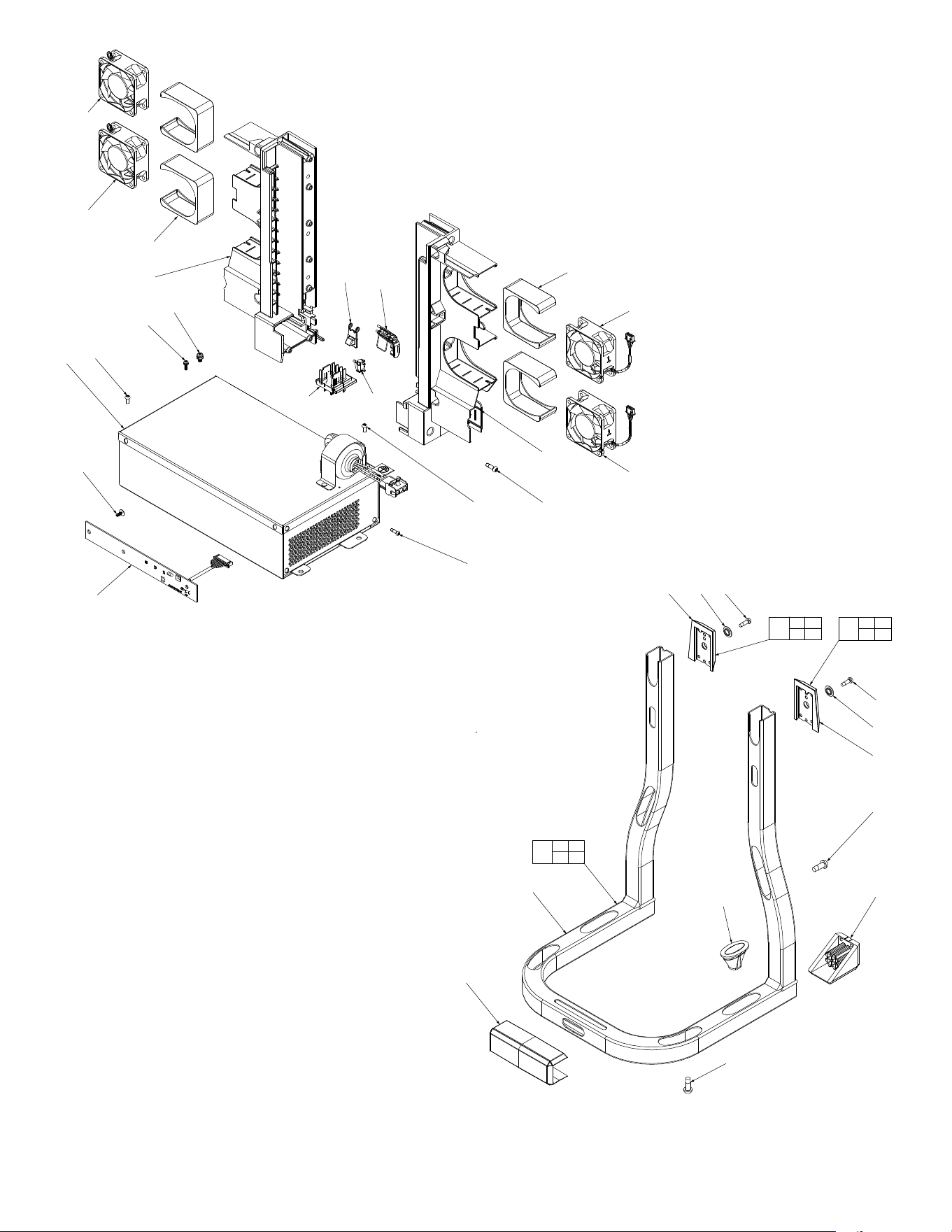

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 06-82-0247 M6 x 16mm Pan Head T-30 Screw (6)
2 --------------- Metal Frame (1)
2a 44-85-0325 Metal Frame Bottom Foot (1)
2b 44-85-0320 Metal Frame Corner Foot (2)
3 05-88-5375 M4 x 13.5mm Pan Head T-20 Screw (7)
4 43-86-6235 Rubber Isolator (4)
9 14-20-9215 Charger PCBA (1)
9a 05-89-0750 Metal Housing Screw (14)
10 06-82-5004 PCBA Metal Housing Screw (4)
11 05-74-7090 M3 x 10mm Pan Head Cross Recess
Screw with Plain and Spring Washers (1)
12 05-74-7085 M4 x 8mm Pan Head Cross Recess
Screw with Plain and Spring Washers (1)
13 05-88-0030 M3 x 8.5mm Pan Head T-10 Screw (3)
14 14-20-9205 Bluetooth PCBA (1)
20 22-08-0250 Upper Fan Wire Assembly (2)
21 22-08-0240 Lower Fan Wire Assembly (2)
21a 45-12-3010 Fan Wire Rubber Boot (4)
22 31-06-2145 Right Interface (1)
23 23-74-2485 Terminal Block Wire Assembly (1)
24 23-66-6545 Switch Holder (1)
25 23-66-6540 Switch Lever (1)
27 14-20-9210 Switch Wire Assembly (1)
28 31-06-2140 Left Interface (1)
32 --------------- Right Rubber Foot (1)
33 --------------- Left Rubber Foot (1)
34 --------------- Washer (2)
47 43-40-1005 Metal Frame Assembly (1)
48 42-38-9050 Right Rubber Foot Kit (1)
49 42-38-9045 Left Rubber Foot Kit (1)
2a
2
2b
(2x)
1
(2x)
33
34
1
9a
(14x)
4
(4x)
1
(2x)
14
13
(3x)
10
(2x)
9
10
(2x)
12
11
21
20
3
(7x)
28
22
21a
(2x)
21
20
23
27
24
25
49
1 33
34
32 34 1
48
1 32
34
47
2 2a
2b
21a
(2x)
