TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS 3
PRODUCT DIAGRAM 5
INSTALLATION INSTRUCTIONS 6
Before Using Your Wine Cooler 6
To Install Stain less Steel Handle 6
To Install Your Wine Cooler 7
OPERATION IN STRUCTIONS 9
Controls 9
Recommended Temperature Settings 10
Storage 10
Shelves 11
CARE & MAINTENANCE 11
Cleaning Your Wine Cooler 11
Power Failure 12
Vacation Time 12
Moving Your Wine Cooler 12
Energy Saving Tips 12
Charcoal Filtration System 13
TROUBLESHOOTING GUIDE 14-15
3
IMPORTANT SAFETY INSTRUCTIONS
Your safety and the safety of others are very important.
This wine cooler complies with the applicable safety requirements and is safe for daily use.
However, basic safety precautions should always be followed when using an electrical appliance,
to reduce the risk of fire, electric shock, and personal injury.
Plug into its own individual electrical outlet with a voltage rating that matches the rating
label on the cooler (115/120V AC only, 60Hz, 10A). Use receptacles that cannot be
turned off by a switch or pull chain. Be sure that the plug is fully inserted into the
receptacle.
Plug into a grounded 3-prong outlet. Do not under any circumstances cut or remove the
third ground prong from the power cord supplied.
To protect against electric shock, do not immerse the wine cooler, plug or cord in water
or other liquids.
Never unplug the cooler by pulling the power cord. To disconnect the wine cooler, always
grip the plug firmly and pull straight out from the wall outlet.
Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length or at
either end.
Do not connect or disconnect the electric plug when your hands are wet. Do not operate
the cooler with wet hands, while standing on a wet surface or while standing in water.
Unplug the wine cooler or disconnect power before cleaning or servicing. Failure to do so
can result in electrical shock or death.
When moving the wine cooler, be careful not to roll over or damage the power cord.
Never clean wine cooler parts with flammable fluids. These fumes can create a fire
hazard or explosion. And do not store or use gasoline or other flammable vapor and
liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard
or explosion.
Do not attempt to repair or replace any part of your wine cooler unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified
technician.
An empty wine cooler can be dangerous to children. Remove any latches, lids, locks,
and/or doors from unused or discarded wine coolers to prevent child entrapment and
suffocation. Never allow children to operate, play with or crawl inside this wine cooler.
4
Do not use this wine cooler for other than its intended purpose. For indoor, household
use only.
Move this wine cooler by 2 people. Failure to do so can result in injury.
Place this wine cooler in a well-ventilated area with temperatures above 15°C (60°F) and
below 32°C (90°F).
To ensure proper ventilation for your wine cooler, the front of the cooler must be
completely unobstructed.
This wine cooler must be installed in an area away from wind, rain, water spray or drips.
The wine cooler should not be located next to ovens, grills or other sources of high heat.
Do not kink or pinch the power supply cord of wine cooler.
It is important for the wine cooler to be leveled in order to work properly. You may need
to make several adjustments to level it.
This wine cooler is designed for storing and cooling wines. Do not store perishable food
or medical products inside the cooler.
When disposing of refrigeration wine coolers, special handling is often required. It is the
consumer’s responsibility to comply with federal and local regulations when disposing of
this product.
WARNING: Risk of child entrapment and suffocation. Before you throw away this or an
old cooler, remove the door. Leave the shelves in place, so that children may not easily
climb inside.
FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant
tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained
service personnel. DO NOT puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner’s
guide before attempting to service this product. All safety precautions must be followed.
CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local
regulations. Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling
instructions carefully. Flammable refrigerant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the
vicinity of the cooler.
5

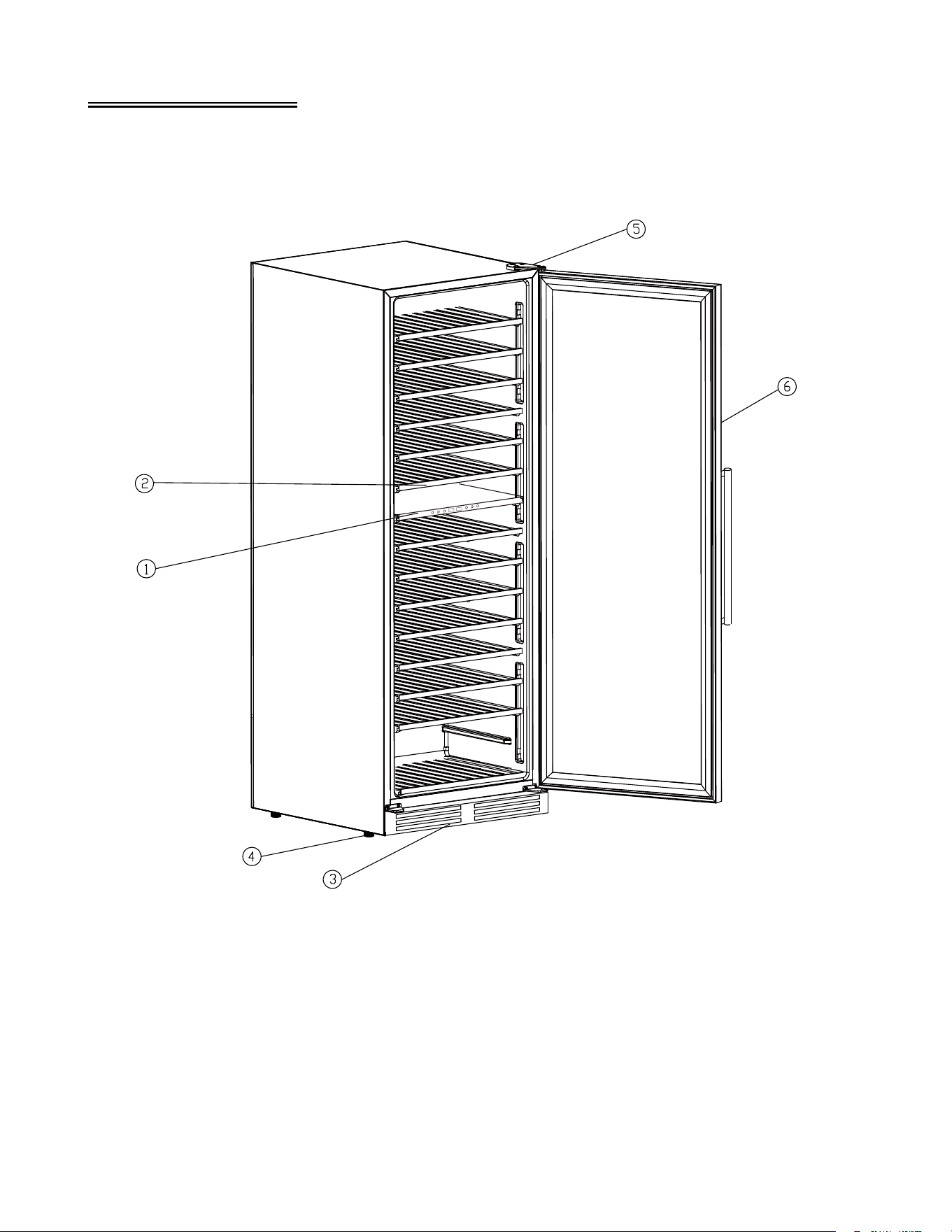

PRODUCT DIAGRAM
1 Control Panel
5 Top Hinge
2 Shelves
6 Glass Door with Handle
3 Exhaust Window
4 Leveling Legs
6
INSTALLATION INSTRUCTIONS
Before Using Your Wine Cooler
Remove the exterior and i nterior packaging.
Check to be sure you have all o f the following parts:
o
14 Shelves
o
Stainless Steel Handle
o
Instruction Manual
o
2 Extra Screws for Installing Handle
IMPORTANT: Before connecting this wine cooler to a powe r source, le t it stand upright for
approximately 24 hours. This will reduce the possibility of a malfunction in the cooling
system from handling during transportation.
Clean the inter ior surface with lukewarm water usi
ng a sof
t cloth.
Install the handle on the lef t side of the door.
To Install Stainle ss Steel Handle
1) Pull away the door gasket in the area where the handle is to be installed , as Illustration #1.
The gasket is easily removed by hand, no tools are necess ary.
2) Align the handle with the pre-installed screws on the door frame. Tighten the screws with a
screwdriver until the handles secure tightly against the door frame, as Illustration #2. (Do NOT
over tighten as this will cause dam
age to t
he handle assembly).
3) Replace the door gasket to its original position.
Note: T hi s wine cooler i ncludes stainless steel handles that are not required to operate this wine
cooler. If you choose not to use the handle supplied, simply follow step 1 to access the
pre-installed screws and remove them and then place 2 decorative plugs (NOT included) i nto the
two holes separately. Continue on to step 3 to replace the door gaske t to its original position.
-
-
-
-
-
7
Illustration #1 Illustration #2
To Install Your Wine Co oler
This wine cool e r i s designed for free standing or built-in (fully rec e ssed) installation .
Place your wine cooler on a solid and level floor that is strong enough to support it when it is
fully l oaded. This will ensure a vibration-free and noise-free operat ion. Adjust the leveling
legs in and out to stabilize the cooler horizontally. If the legs are not prop e rly adjusted, the
cooler may be unstable and result in excess noise or vibration.
Locate the wine cooler away from direc
t sunlight and sources of heat (stove, heater, radiator,
etc.). Direct sunli ght may affect the acrylic coating and heat sources may increase electrical
consumption. Extremely cold ambient temperatures may also cause the coole r not to perform
properly.
It is not advisable to install this cooler in moist areas or directly adjacent to a kitchen sink, as
moisture could cause premature corrosion to the components of your new cooler.
It is recommended you install the wine cool
er in a place with temper atures above 60°F
(15°C) and below 90°F (32°C), and humidity is under 60%. If the ambie nt temperature is
above or below recommended temperatures, the performance of the cool e r may be affected.
Placing your cooler in extremely cold or hot conditions may cause interior temperatures to

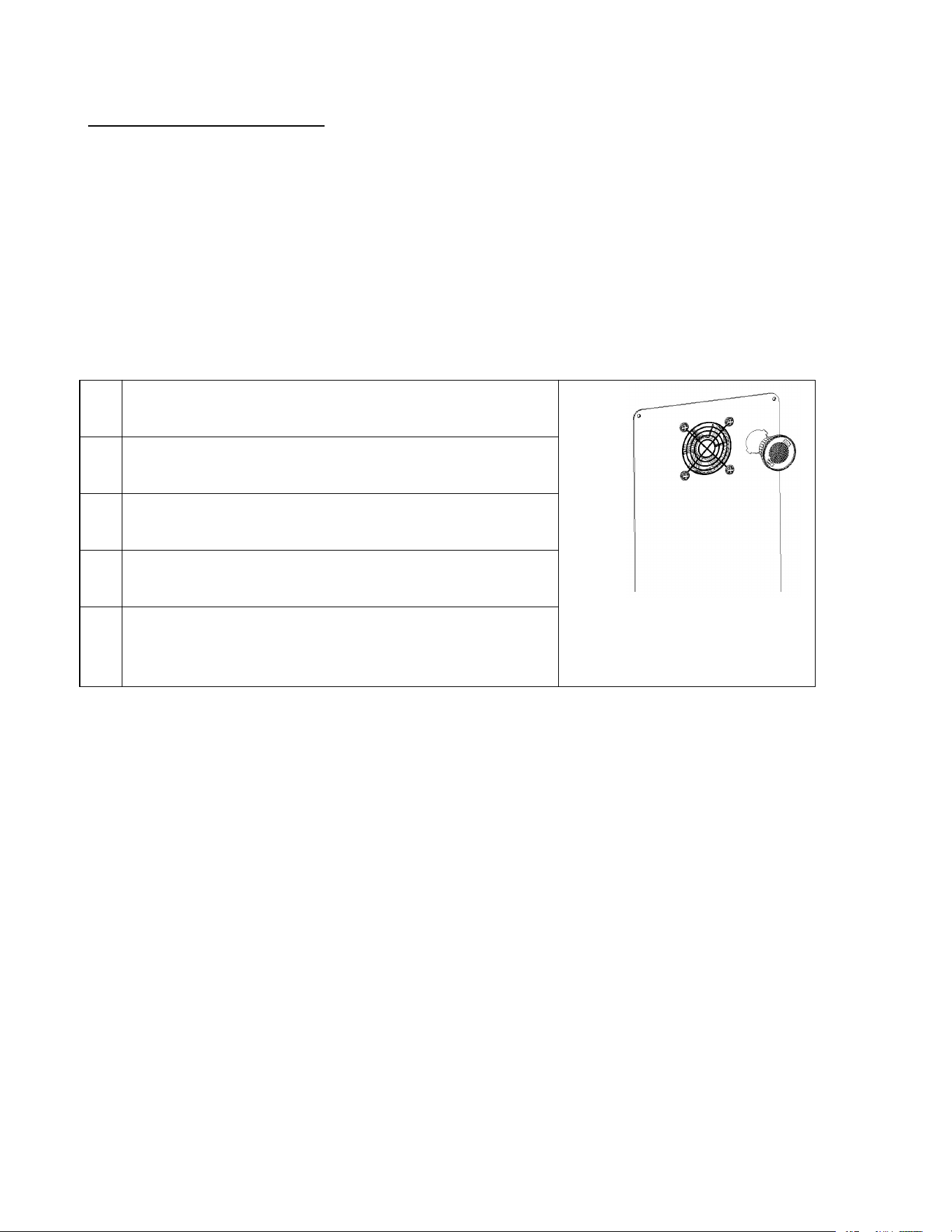

1 Gasket
2 Screw
3 Screw Driver
4 Handle
8
fluctuate, and the temperature range of 5ºC-18ºC (40ºF-65ºF) may not be reached.
Connect the w ine cooler to an e xc lusive, properly grounded, standard electrical supply (115
V AC only, 60 Hz), in accordance with the Na tional Electrical Code and local codes and
ordinances. Any question s concerning power and/or grounding should be directed toward a
certified electrician or an authorized products servic e center.
Warning: Imprope r use of the grounded plug can result in the risk of electrical shock. If the
power cord is damaged, have it replaced by an authorized service center.
.
The wine cooler should always be plugged into i ts own individual electrical outlet which
has a voltage rating that matches the rating label on the wine cooler . This provides the
best performance and also prevents overloading house wiring circuits that could cause a
fire hazard from overheated.
.
Do not under any circumstances cut or remove the third ground prong from the power
cord supplied.
.
Do not use an extensio n cord or adapter plug. However, if you must use an e xtension
cord, it is absolutely necessary that it be a UL-listed, 3-wire ground ing type wine cooler
extension cord having a grounding type plug and outlet and that the el e ctr ical rating o f
the cord i s 10 amperes (minimum) and 120 volts.
.
Do not use a cord that shows cracks or abrasion dam age along its length or at either end.
.
If the wine cooler is going to be used in an area that is prone to power surges/outages,
it is suggested that you use a power surge protector. The surge protector that you select
must have a surge block hi gh enough to prote ct the wine cooler it is connected to.
Damages due to power surges are not considered a manufacturer covere d defe ct and
will void your product warranty.
9
OPERATION INSTRUCTIONS

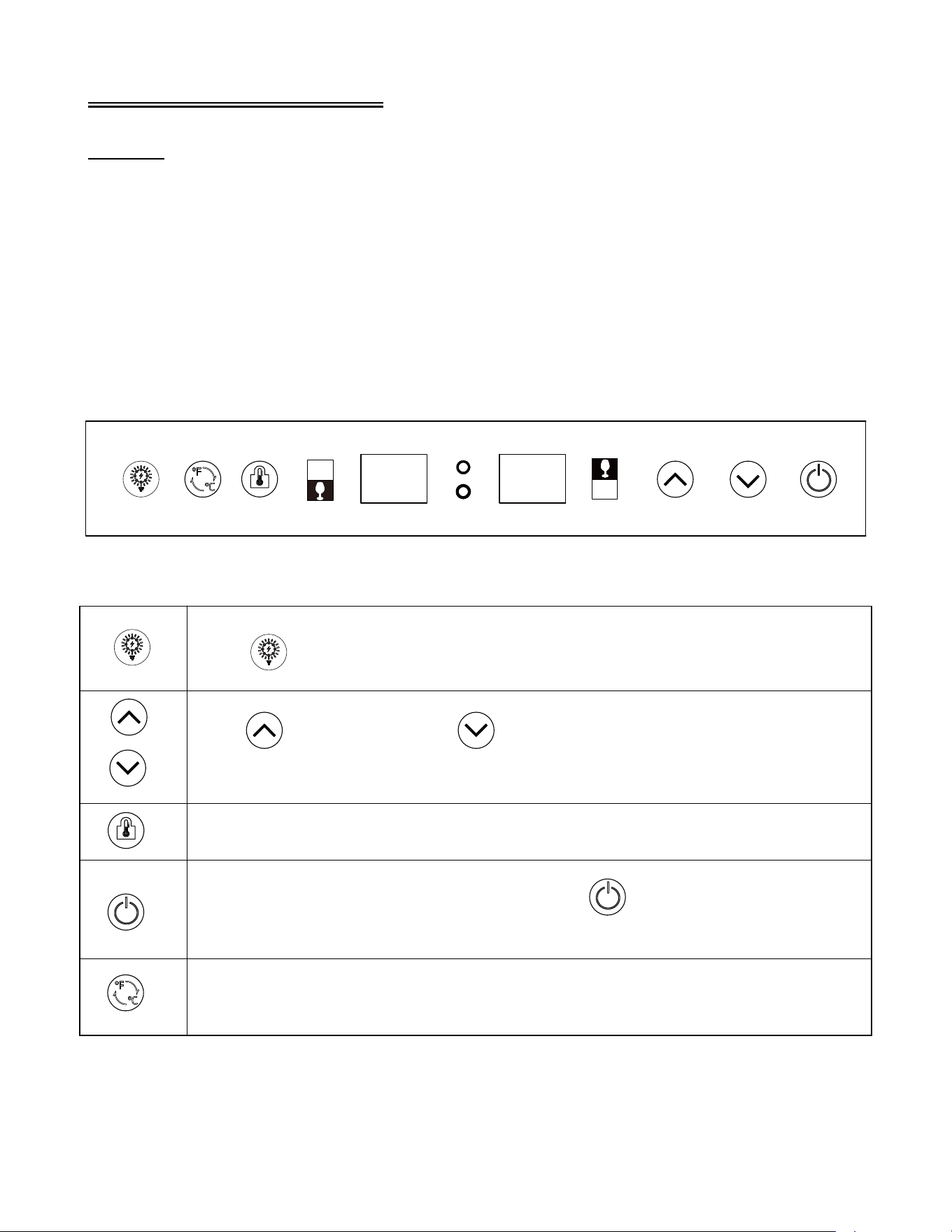

Controls
After plugging the wine cooler into a wall outlet, the cooler would turn on automatically and the
LCD screen would show the temperature inside of the cooler.
After setting your desired serving temperature, allow the cooler to cool down for 3 to 4 hours
before placing wine bottles in the wine cooler.
Press once to turn the interior light ON or OFF.
Press to increase or press to dec rease the temperature in 1 degree
Press once to turn ON the cooler. Press and ho l d about 3 seconds to turn OF
increments between
Upper zone：5-13℃(41-56℉) Lower zone：12-18℃(54-65℉).
Press to begin adjusting the temperature for upper or lower zone.
F
the cooler.
Toggles the temperature display bet ween Celsius and Fahrenheit.
C
F
°
°
C
F
°
°
10
Light Control
The light will automatical turns off 10 mins later for energy saving.
Note: To keep the light staying on always, please press the light ing mark until you hear 2 “beep”
Recommended Temperature Settings
Storing wines at the proper temperature is important. To preserve them as long as possible,
wine needs to be stored at approximately 55° Fahrenheit. Howeve r, the chart below suggests
the optimal drinking temperature for the different varietal of wine.
Wine Var ietal °F °C
Rose and Sparkli ng Wines 41°F-46ºF 5°C-8ºC
Dry/White Wines 48°F-53ºF 9°C-12ºC
Red Wines 59°F-65ºF 14°C-18ºC
Storage
This wine cooler is designed to store standard Bordea ux 750 ml wine bottles. Many bottles differ
in size and dimensions. As such, the actual number of bottles y ou may be able to store may vary.
Storing large and/or oddly shaped bottles (including champagne and sparkling wine bottles) will
decrease the capacity of your wine cooler.
11
Shelves

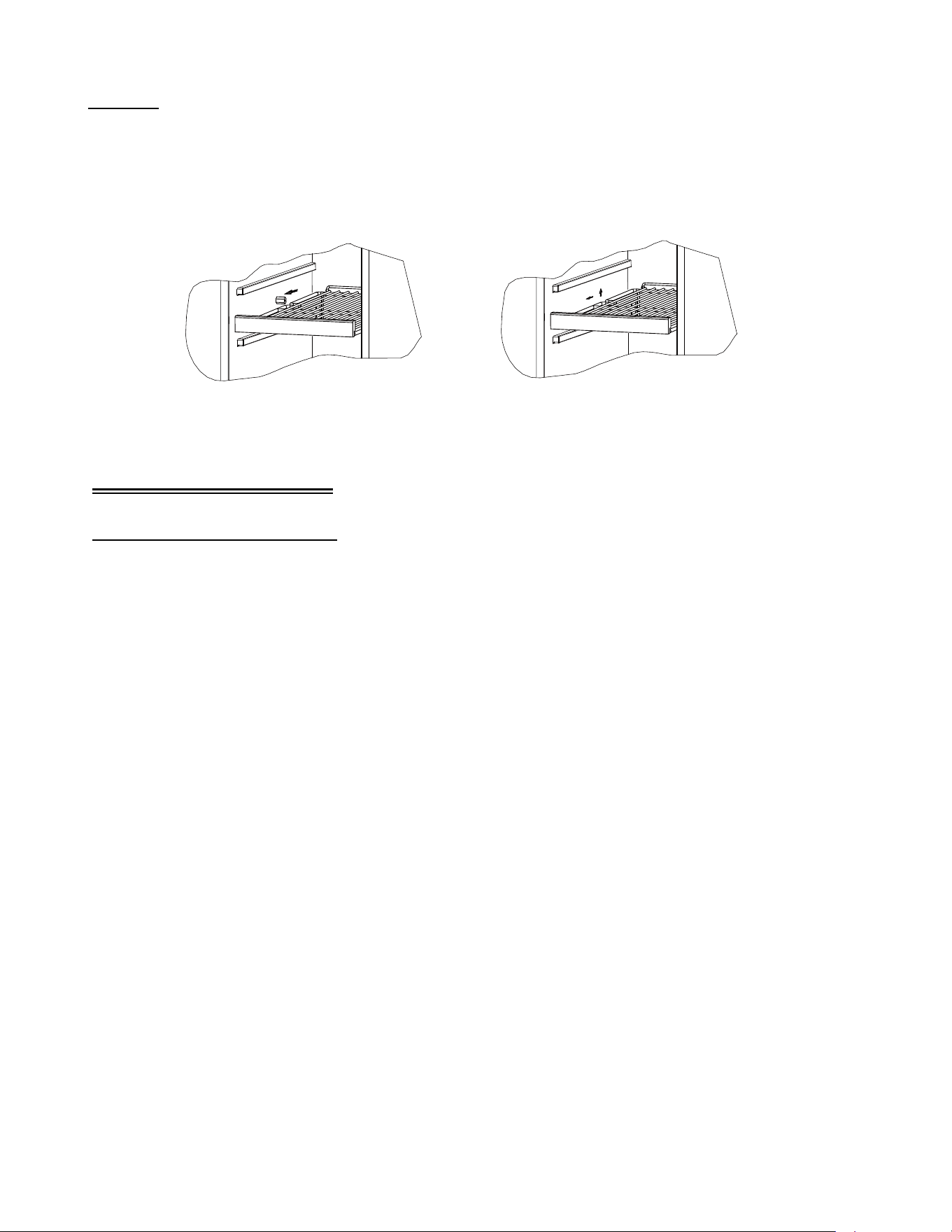

Figure A Figure B
To remove the shelves from the track, pull each shelf out to the shelf post,as shown infigure A.
Lift it up again, then slowly pull the shelf out, as shown in figure B.
CARE & M AINTENANCE
Cleaning Your Wine Cooler
IMPORTANT: Always unplug the cooler befo re cleaning or performing maintenance. Never use
harsh cleansers or scouring pads to clean any part of the cooler.
Turn off the power, unplug the wine cool e r, and rem ove all items including shelves.
Wash the inside surfac e s with warm water and baking soda solution. The solution shoul d
be about 2 tablespoons of baking soda to a quart of water.
Wash the shelves with a mild detergent solution.
Wring excess water out of the sponge or cloth w
hen cleaning the area near the controls ,
or any electrical parts.
Wash the outside cabinet with warm water and a mild liquid detergent. Rinse well and
wipe dry with a clean soft cloth. Do not use steel wool or steel brush to rub the stainless
steel, which will contaminate the stainless steel with steel particles and rusting may
occur.
.
.
.
.
.
12
Power failure
Most power failures are corrected within a few hours and should not affe ct the temperature of
your wine cooler. If the power is off for an extende d period of time, proper steps should be taken
to protect your contents.
Vacation Time
Leave the wine cooler operating during vacations of less than three weeks. For periods longer
than this, turn the wine cooler off and leav e the door slightly ajar to prevent odor from building
inside the wine cooler.
Moving Your Wine Cooler
Remove all items (bottles) from the cooler;
Securely tape down any loose items, such as shelves, inside the cooler.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Ensure that the wine coole r stays securely in the upright position during transportation.
Protect the outside of the wine cooler with a blanket or a similar item.
Energy saving tips
- The cooler should be located in the coolest area of the room away from heat sources or direct
-
-
-
-
-
sunlight.
- Ensure that the cooler is adequately ventilated. Never cover air vents.
- Only open the cooler door for as long as necessary. Frequent opening of the door will affect
internal temperature.
13
Charcoal filtration system
Your wine is a living object that breathes throu gh the cork of its bottle . In order to preserve the
quality and taste of your fine wines, they must be sto red at the ideal temperature and ambient
conditions. Your wine cooler is equipped with an active cha rcoal f iltration system to ensure air
purity, cooling efficiency, and to maintain an odor free cabinet for the storage of your fine wines.
To replace the filter
1
Remove the bottles of wine stored on the two (2)
shelves in front of t
he filter.
Turn Left to remov e filter.
2
Remove the shelves and set aside to be replaced
once you have changed the filter
3
Hold the filter and turn it at 45 degre e s in the
counter-clockwise direction and then pull it out.
4
Remove the existing filter and repla ce with a new
one.
5
Put the new fil ter into the hole and then turn the
filter at 45 degrees in clockwise direction.
14
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
The wine cooler
does not run.
The wine cooler may not be plugged
in, or plug may be l oose.
Ensure the wine coole r has been
plugged in properly.
The wine cooler is turned o ff.
Press to turn on the cooler.
House fuse blown or tr i pped circuit
breaker.
Check/replace fuse. Reset circuit
breaker.
The wine cooler
is not cold
enough.
External environment may require a
higher setting.
Set a colder settin g. Allow several hours
for the temperature to stabi
lize.
The wine cooler has recently been
disconnected for a period o f time.
It takes 3-4 hours fo r the Wine Cooler to
cool down completely.
Prolonged or frequent door
openings.
Open the door less often.
The door is not clo se d completely. Close the door pro perly.
The door gasket does not se a l
properly.
Check the door gasket. Clean or change
gasket if necessary.
The compressor
turns on and off
frequently.
The room temperature is ho tter than
normal.
It’s normal for the wine cooler
to work
harder under these conditions.
A large amount of contents has been
added to the cooler.
A large amount of contents cause the
wine cooler to run more until the
desired temperature is reached.
Prolonged or frequent door
openings.
Open the door less often.
The temperature has not been set
correctly.
Press either or to check
the set temperature, and set the
temperature properly.
The door is not clo se d completely. Close the door pro perly.
The door gasket does not se a l
prope
rly.
Check the door gasket. Clean or change
gasket if necessary.
16
PROBLEM POSSIBLE CAUSE SOLUTION
The light does n ot
work.
Not plugged in. Plug the cooler in.
The circuit breaker tripped
or a blown fuse.
Check the breaker and/or fuses.
The light button is “OFF”.
Press to t urn the light ON.
Vibrations.
The cooler is not levele d. Check to assure that the cooler is level.
The bottles are vibrating.
Make sure the bottles don
’
t touch each
others.
There is an object under the
cooler.
Remove the object unde r the cooler.
The cooler seems t o
make too muc
h
noise.
The cooler is not level. Level the cooler.
Normal noise from the flow
of the refrigerant
The rattling noise may come from the flow
of the refrigerant, which is normal. As each
cycle ends, you may he a r gurgling sounds
caused by the flow of refrigerant in your
cooler. Contraction an d expansion of the
inside walls may cause popping and
crackling noises.
The door will n ot
close properly.
The cooler is not level. Level the cooler.
The door was reversed and
not properly instal
led.
Re-install the door p r operly.
The gasket is dirty. Clean the door gasket.
The shelves are out o f
position.
Place the shelves properly.
Moisture build up on
interior or
exterior of the wine
cooler.
This is normal d uring high
humidity periods.
Lower the room humidity.
This is normal in high
temperature environment.
Move the cooler to a cooler place, and avoid
heat and sunlight.
Prolonged or frequent door
openings.
Open the door l ess often.
The door does not se a l
completel
y.
Check door gaskets for proper sea l .
Error Code:
E1-E2-E3-E4-E7-E8
A sensor has faile d. Contact the customer service
16
Warranty Terms
Warranty Period
1. Customers are entitled to replacement or free repair service in case of quality defect(s) found
in the product within 15 days upon receipt of the product.
2. Customers are entitled to free repair service from
TIT
TLA
for any product proven defective in
material or workmanship that results in product failure during normal consumer usage and
conditions within the valid warranty period, which is 12 months counting from the date of selling.
However
, warra
nty period varies by product component and country of purchase. Please contact
our after-sales service team via support@tittla.com for detailed warranty information.
Warranty Exclusions
1. Products subjected to unauthorized repair, misuse, collision, neglect, mishandling, soaking,
accident, and unauthorized alteration.
2. Products subjected to improper use or whose labels or security tags have been torn off or
altered.
3. Products whose warranty has expired
.
4. Products damaged du
e to force majeure, such as fire, flood, lightening, etc.
Warranty Claim Procedure
1. If failure or any problem occurs to your product after purchase, please contact us on 1(510)
228-4672 , or you can always contact TITTLA ’s customer service through email at support@
tittla .com or website at www.tittla.com.
2.
TIT
TLA
’s customer service will guide you through the whole service procedure regarding any
product issue or problem you have encountered.
TIT
TLA
reserves the right to reexamine dam
aged or returned products.
Con
tact Card
Web: www.
tittla.com
Phone: 1(510)228-4672
