Instruction Manual
ICE MAKER
Phone number: +1(510)228-4672
It is important that you read these instructions carefully and keep them for future
reference.
1
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be followed to reduce the riskof
fire,electricshockandinjurytopersonsorproperty.Read all instructions before operating the machine
for the first time.
CAUTION: ICE SHOULD NOT BE STORED IN THE ICE BIN DURING NIGHT TIME, AS IT IS
NOT A FRIDGE. ICE WILL MELT INTO WATER AND DRIP OUT OF THE MACHINE.
1. If connected to a water supply, CAUTION: it must be connected to a potable water supply;
2. The machine is intended to be used in household and similar applications such as:
-staff kitchen areas in shops,offices and other working environments;
-farm houses
-by clients in hotels,motels and other residential type environments;
-Catering industry and similar non-retail industry.
3. The machine should be used in a household setting, without obstacles surrounding it, and in a
well-ventilated place. There must be at least 15 cm of space between each side of the machine
and the wall.
4. When using electrical appliances,basic safety precautions should be followed to reduce the risk
of fire,electric shock and injury to persons or property.Read all instructions before using any
appliance.
5. Do not operate this or any other appliance with a damaged cord.
6. Connect to properly polarized outlets only. No other appliance should be plugged into the same
outlet. Be sure that the plug is fully inserted into the socket.
7. Don’t place the machine and power cord near flammable material.Do not cover the cord.Do not
submerge it in water.
8. We do not recommend using an extension cord, as it may overheat and pose a risk of fire.
Unplug the ice maker before cleaning or making any repairs or servicing.
9. Exercise caution and supervision when appliance is used near children.
10.Don’t use your ice maker outdoors.Avoid direct sunlight and make sure that there is at least 5
inches of space between the back and sides of your unit and the wall.
Don’t use any liquid other than water in the unit to make the ice.
11.Do not clean your ice maker with flammable detergents.The fumes can create a fire hazard or
explosion.
12.Do not tip the machine over.
13.If the ice maker is brought indoors from outdoors during the winter, allow it a few hours to warm
up to room temperature before plugging it into the power source.
14.This unit should be properly grounded for your safety.The power cord is equipped with a three-
prong plug which mated with standard three prong wall outlets to minimize the possibility of
electric shock.
15.Plug your appliance into a dedicated, properly installed, and grounded wall outlet. Do not
attempt to power or ground the unit yourself; this should be directed toward a certified
electrician.
18.The foaming materials inside is combustible which must be kept away from fire.
2
19.It is forbidden to pull the cable to unplug the plug; you must pull the plug itself.
IMPORTANCE: To avoid hazard due to instability,unit must be placed on an even and flat surface.
WARNING: This appliance must be grounded.
1)The fuse on the PCB must be >10A,if change,must be operated by a technician.
2)voltage fluctuation can’t be exceed ±10% than rated voltage,or a Voltage stabilizer is needed.
IMPORTANCE:To avoid hazard due to instability,unitmustbeplacedon aneven and flat
surface.
Package Contents
Warm Tips：
1.Check whether all below accessories are there.
2.Install the machine according to the manual.
3.Allow the machine to stand 24hours after you get it.

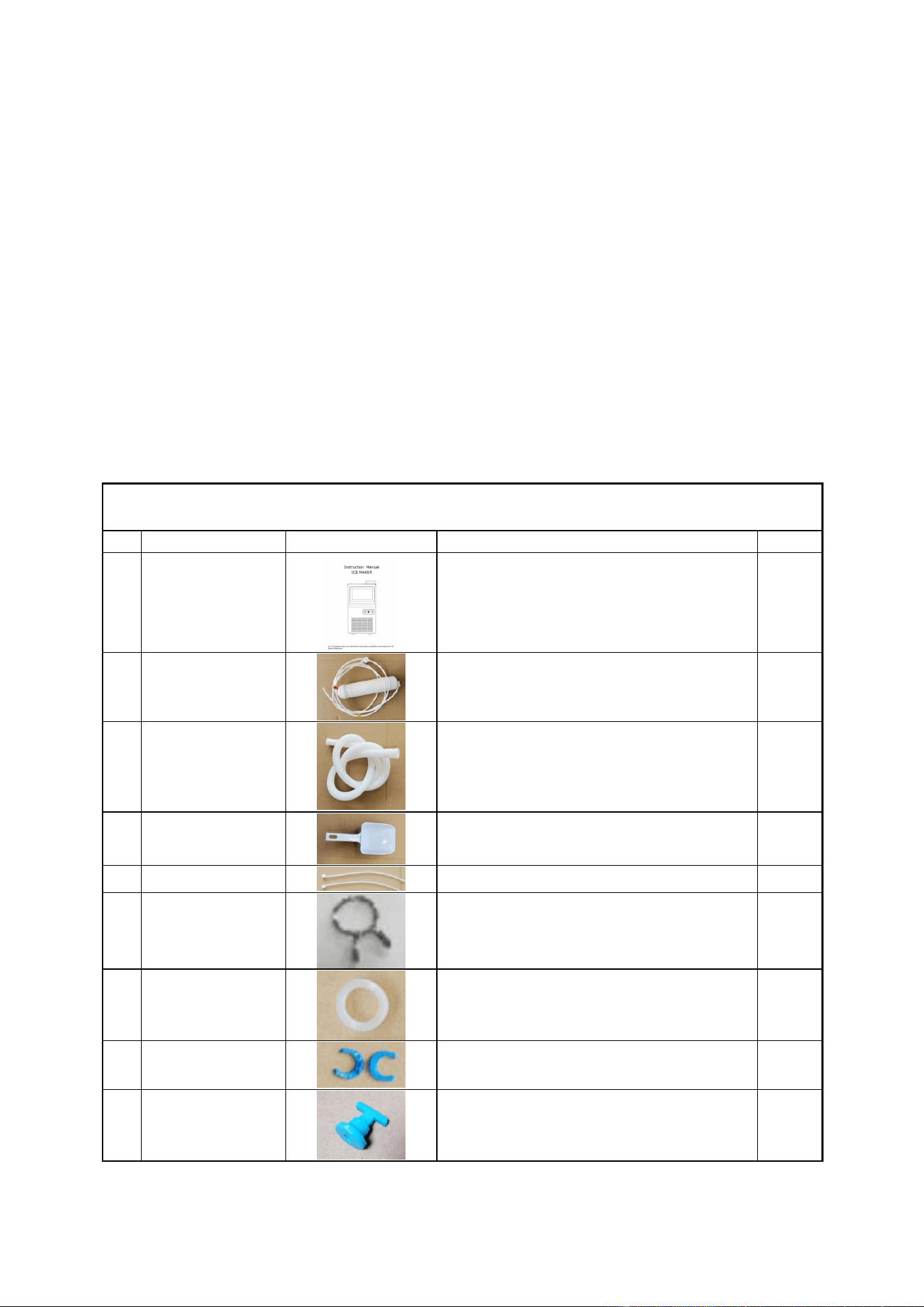

Accessories list
NO
Description
Usage
QTY
1
Manual
Operation manual
1PC
2
Filter
Filter water
1PC
3
Drainage pipe
Drain
1PC
4
Ice spoon
Take ice cubes
1PC
5
nylon cable ties
Fix pipe if needed
2PCS
6
Hoop
fasten the outlet and the drainage pipe
together if needed
1PC
7
Seal ring
Do put it in the faucet of the intake pipe.
1PC
8
Spare blue clip
Spare blue clip if needed.
2PCS
9
Spare plug
Spare plug which plug the tank if
needed.
1PC
3
OPERATING PROCEDURES
UNPACKING YOUR ICE MAKER
1.
Remove all exterior and interior packaging materials. Check that the ice scoop, outlet tube,
filter, and user manual are included. If any parts are missing, please contact our customer
service. After you unpack the machine, we recommend you to leaving it for 24 hours before
turning it on.
2.
Clean the interior with lukewarm water and a soft cloth or clean the unit using the Self-Clean
function.
3.
Find a location for your ice maker where it’s protected from direct sunlight and other sources of
heat (i.e. stove, furnace, radiator). Place the ice maker on a level surface. Make sure that there
is at least 5 inches of space between the back and sides of your ice maker and the wall.
4.
Allow one hour for the refrigerant to settle before plugging the unit for initial use.
5.
The appliance must be positioned where the plug is accessible.
CONNECTING YOUR ICE MAKER WTTH OTHER PARTS

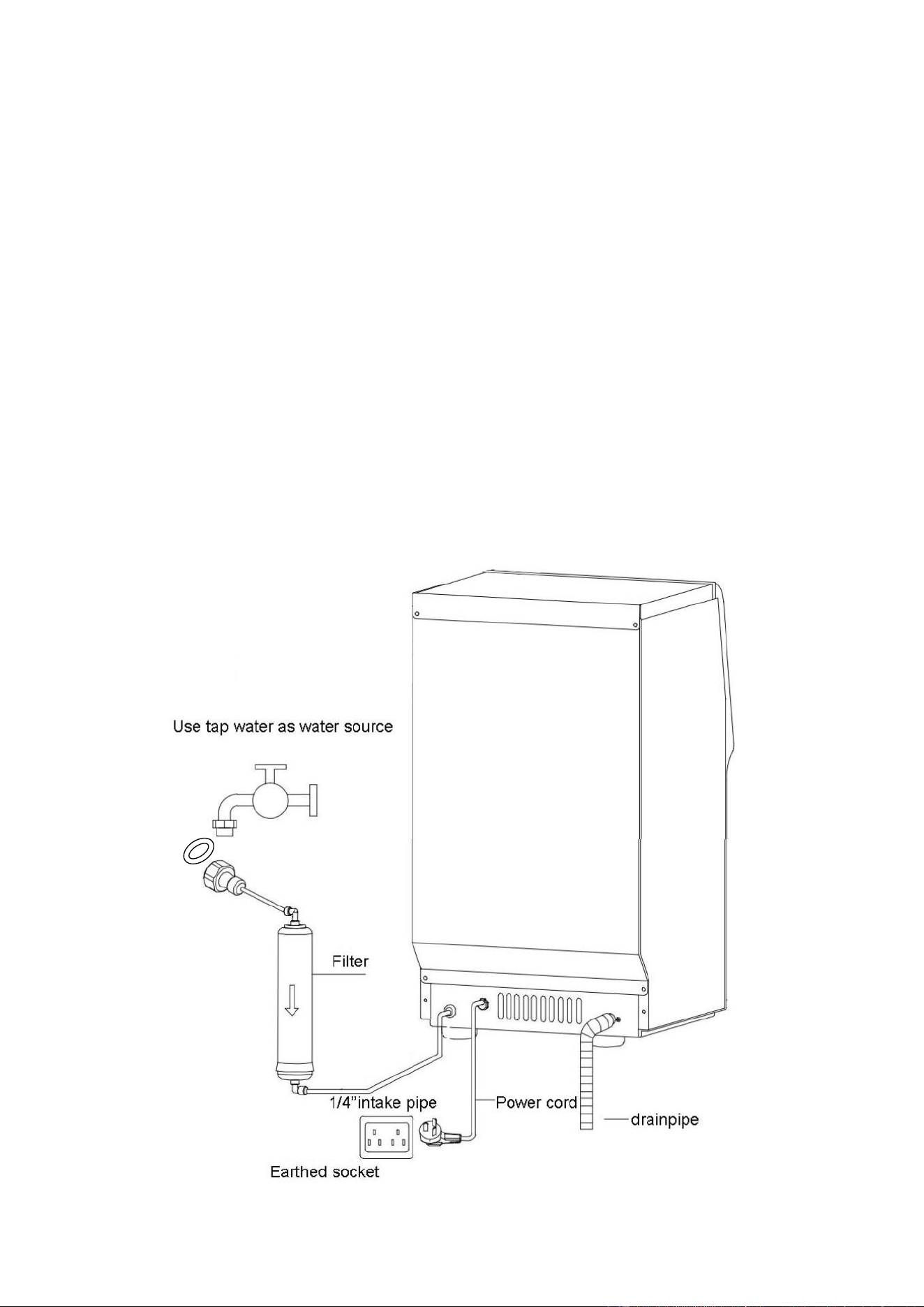

Please connect your ice maker with other parts by referring the diagram below.
4
Connect drainage pipe and water intake pipe
Warning:1)The machine can only connect with drinking water sources,and must meet local drinking
water standards
2)The water pressure must be in 0.1-0.8Mpa,if exceed 0.8Mpa,a pressure reducing valve
must be connected.
3) Drainage:The outlet of the drainage pipe must be lower than the outlet on the machine
USING BARRELED WATER AS WATER SOURCE
You can use barreled water as water source. Please remember to replenish water regularly.
Besides, please insert the plug back into the water inlet.
1. If you use a water faucet as a water source, please ensure that the faucet is open for
continuous water supply. If the water runs out, the “add water” indicator will light up.
2. If you use barreled water as water source. Please remember to replenish water regularly or the
“stoppage” indicator will light on.

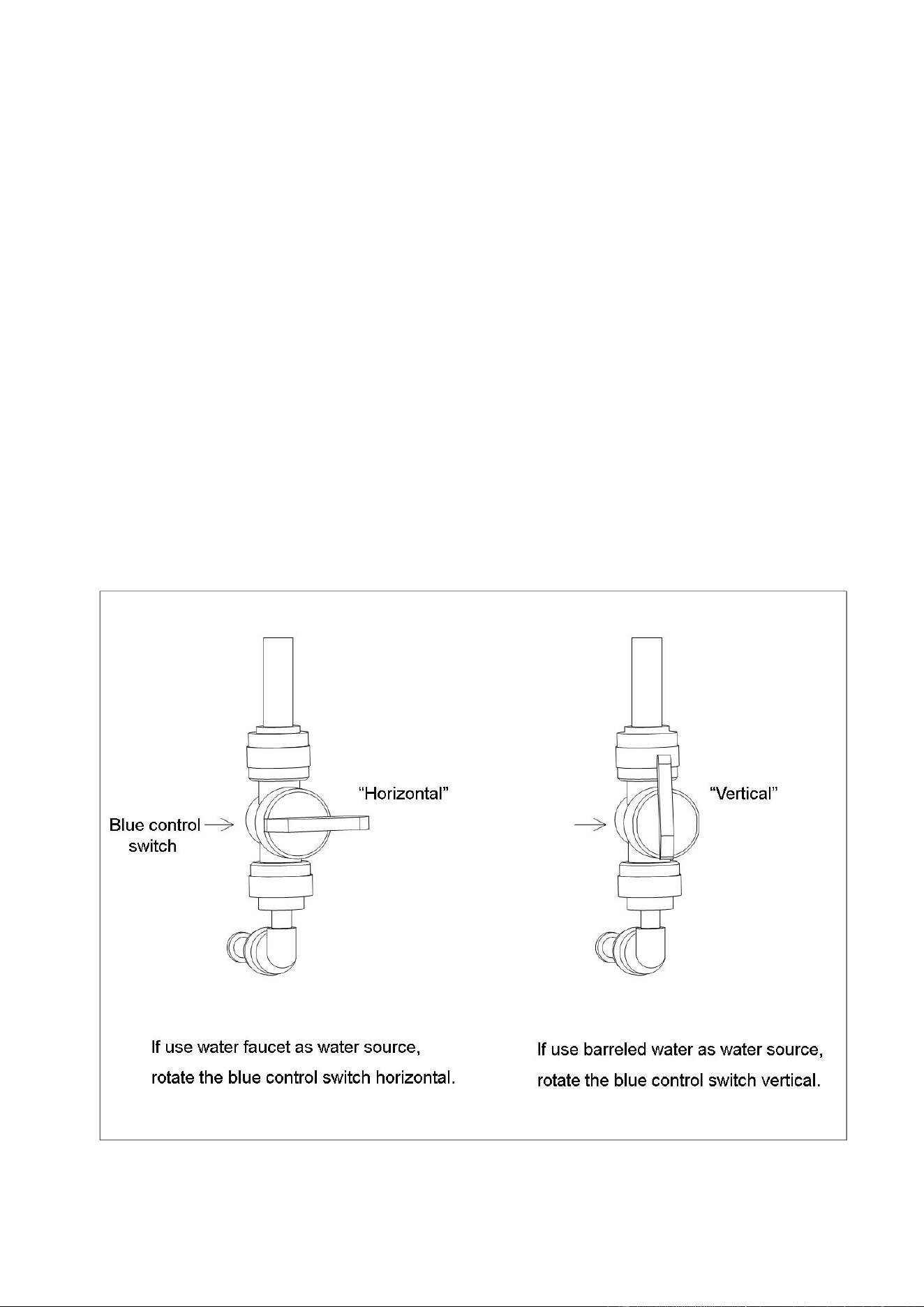

3. When you use water faucet as water source, please rotate the plastic knob in the machine
horizontal. On the other hand, if you use barreled water as water source, please rotate the
plastic knob vertical. Please refer to the two pictures below.
5
MACHINE OPERATIONS

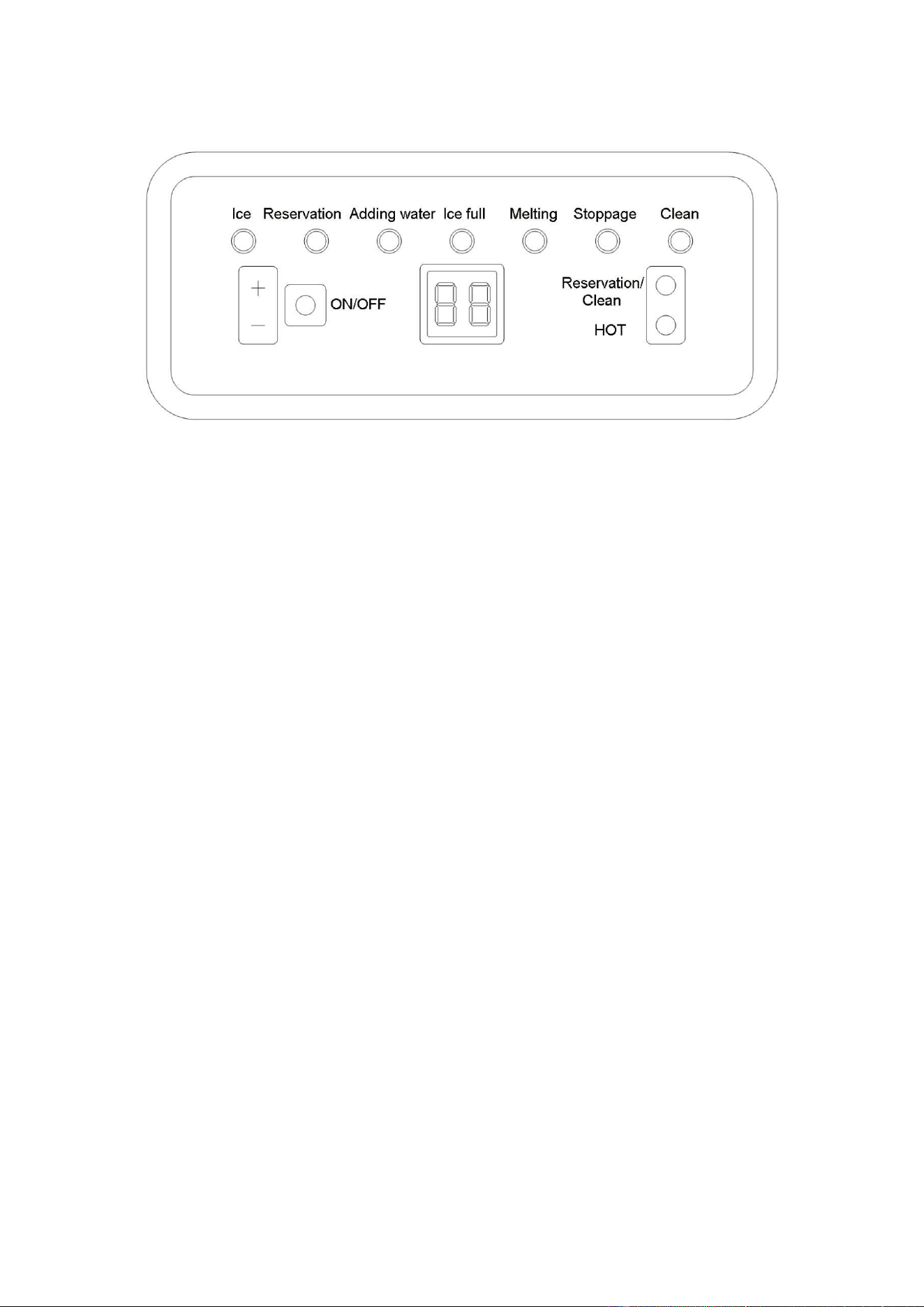

Operation Panel
Ice making operation:
1.
Connectthemachinetothepowerandpressthe“ON/OFF”button.The“icemaking” indicator will
lighton.
2.
Press the “+”/“-” button to set the countdown time for the ice making procedure (The time range
is from 5 minutes to 50 minutes). The machine will enter the ice making procedure.
3.
When the countdown of time is finished, the “melting” indicator will light on. The ice cubes will
come off the freezing panel later.
4.
After the ice cubes come off. The machine will enter another loop of ice making automatically.
Auto Turning On/Off:
1.
When the machine is turned off while connected to the power, press the
“Reservation/Clean” button and the “+”/“-” button to set the auto-turning-on time (in hours).
Themachine will automatically turns on after the countdown is finished.
2.
When the machine is at the middle of ice making, press the “Reservation/Clean” buttonand
the “+”/“-” button to setthe auto-turning-off time (in hours). The machine will automatically turns
off after the countdown is finished.
Self-cleaning:
1. When the machine is turned off while connected to the power, press the “Reservation/
Clean” button and hold it for a while. The machine will automatically enter self-clean program.
Notes:
(1)If you change the countdown time during the middle of the ice making procedure, it will take
effect at the next loop. You can long press the “HOT” button during the ice making to unload
the ice cubes ahead of time.
(2)The surrounding environmental temperature will influence the time needed for ice making.
6
CLEANING & MAINTENANCE
Please thoroughly clean your ice maker before initial use.
Exterior: the outside of the ice maker should be cleaned regularly with a mild detergent and
warm water. Always use a soft cloth to avoid scratching or damaging the housing.
INTERIOR: please use the following Self-Clean function:
1.Add water and vinegar or lemon juice mix (1:1 ratio)
2.Plug in unit,press and hold the CLEAN button for approximately 6-7 seconds,then release.The
unit will automatically enter Self-clean program. This process takes about 5-6 minutes.When the
Self-Clean program is finished,unit will automatically power off.
3.The fan blade will rotate. This process rinses the inside parts several times./
4.After the Self-Clean program is completed,unplug the power cord and drain out the water by
unplugging the drain cap on the side.Replace drain cap.
5.Add fresh water to the water reservoir,up to the water level mark.
6.Plug the unit and repeat the Self-Clean process by repeating steps 3 to 5. This will rinse out the
vinegar/lemon residue.
7.After draining the water,replace and tighten drain cap.
8.Dry the interior and exterior with a clean,soft cloth.
NOTE: It is strongly recommended to clean the unit before initial use or if the unit has not been in
use for a long period of time.
NOTE

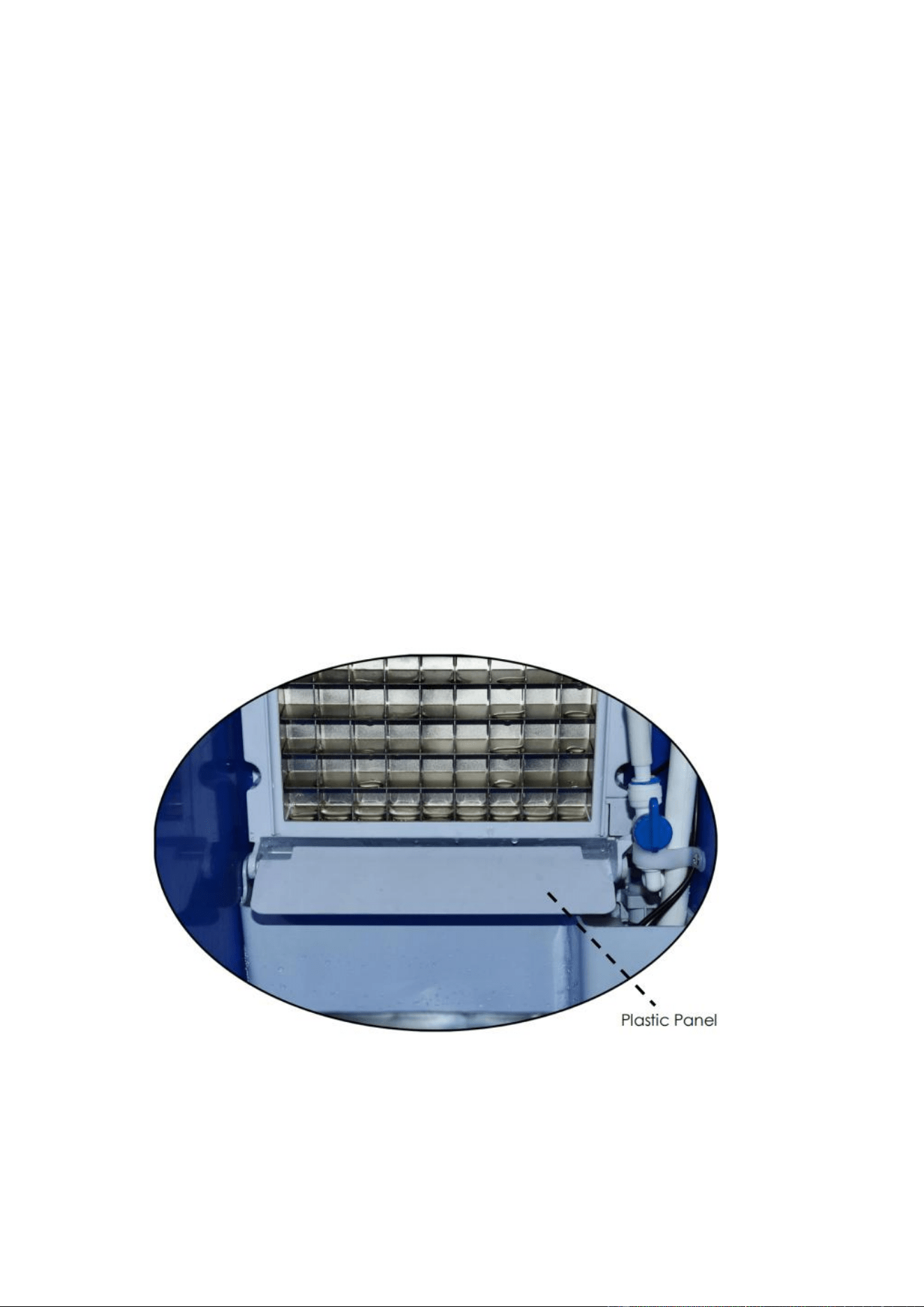

1. As the production of ice cubes increases, the plastic panel inside the machine (shown above)
might be pressed down by the ice cubes. When the plastic panel is pressed down, the machine
will stop producing ice cubes automatically and the “stoppage” indicator will light on. Please
clean out the ice cubes regularly for continuation of ice making.
7
Common malfunction analysis
E1
Ice full indicator
is on,and
proximity switch
didn't react
Evaporator connector didn't assemble
well
Re-install the connector
Proximity switch is not sensitive
Replace the switch
The connector didn't return to original
position
Take away the ice to make the
connector return to original position
E2
Normal to make
ice
Stop every 4 cycles,and the process
of ice drop continued for 5 min
Proximity switch is not
sensitive,replace it
No water in the
tank
The water tank is not plugged
Put the plug back
Use barreled water as water source
The blue tap didn't rotate to vertical
Use barreled water as water source，
but no water flow down
The water pipe was jammed,
disconnect and clean it.
Use tap water as water source
Check the water supply
Water slopped
over the tank
Use barreled water as water source
Check whether the water pipe was
inserted well or not
Use tap water as water source
The blue tap didn't rotate to
horizontal
Use tap water as water source
Water pressure is too high,water float
can't work.Adjust the water pressure
or replace by a new one.
Water in the tank
No water or low flow
Pump is badly clogged up,replace or
clean it
The spray pipe is clogged up,clean it
Water flow and
water get cool
Thin ice on the evaporator
Increase the making time through "+"
very solid ice on the evaporator
Reduce the making time through "-"
Some water sprayed to ice storage
tank
Adjust the spray pipe
The water leak from the back of water
tank
The tank need to be adjusted.
Water flow down
but water is not
cool
The main board didn't supply
electricity to compressor
Replace by a new main board
Compressor didn't work
Check the starter,replace by a new
one if needed
Compressor is very hot
Replace
Compressor work but the connected
copper pipe didn't get cool
The compressor leak
E3
The fan is not
work
The condenser prob is not sensitive
Unplug the prob or replace by a new
one
The fan is jammed
Adjust the fan
Fan is broken
Replace by a new fan
E4
Ice full
The connector didn't return to original
position
Take away the ice to make the
connector return to original position
