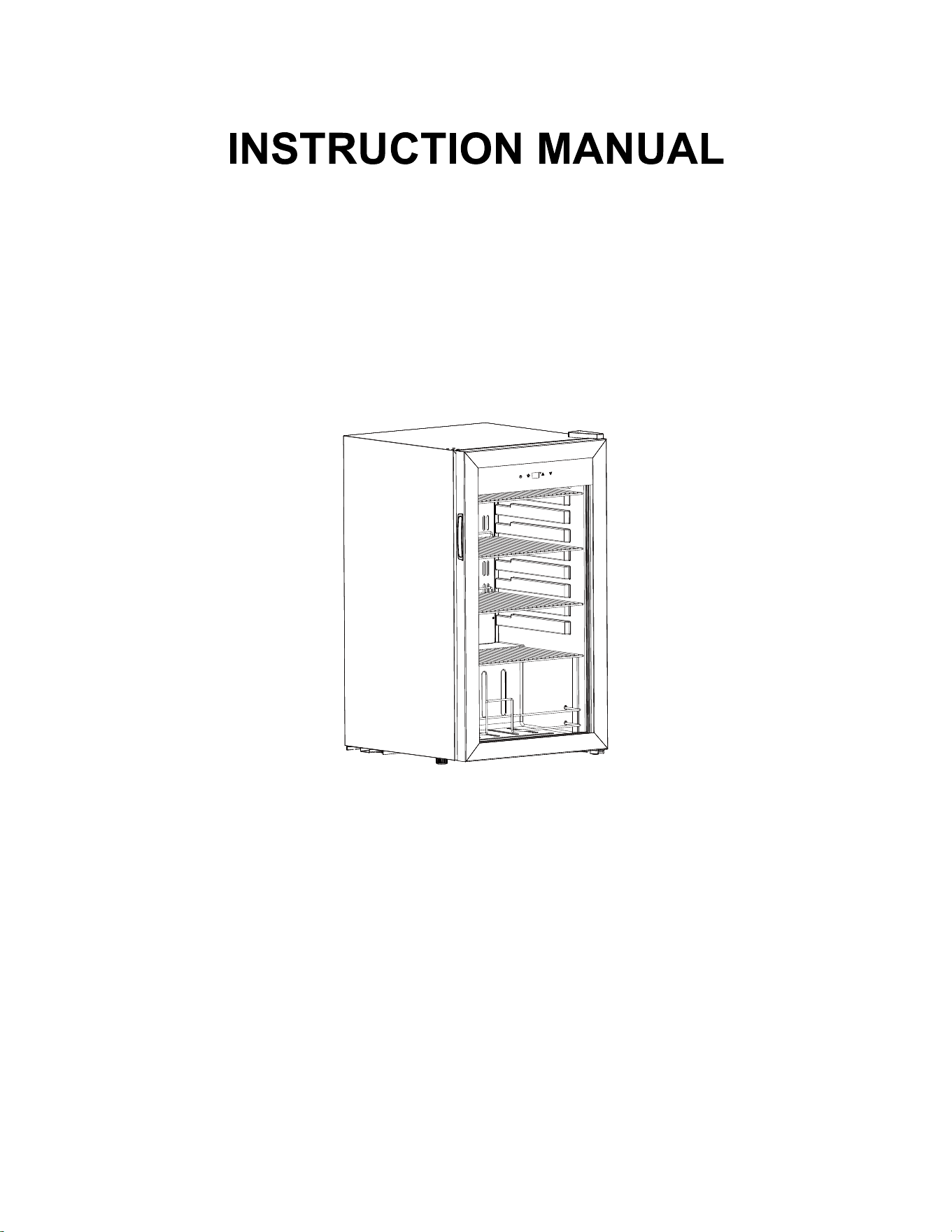

MODEL:STA100SI
BEVERAGE COOLER
Read this manual and follow all safety rules and operating instructions before first use of this
Beverage cooler.
E-mail：[email protected]
Phone：1(510)228-4672
TABLE OF CONTENTS
BEVERAGE COOLER SAFETY 3
IMPORTANT SAFE-GUIDES 4
REFRIGERANT GAS WARNINGS 6
PARTS BREAKDOWN
8IMPORTANT SAFETY INSTRUCTIONS
8
INSTALLATION INSTRUCTIONS 9
Before using your beverage cooler 9
Installation of your beverage cooler 9
Electrical connection 9
Extension cord 10
Power bar with surge protector 10
1 OPERATING YOUR BEVERAGE COOLER 0
Temperature settings 11
Storage 11
1 Cleaning your beverage cooler 1
Shelves 11
Power failure 12
1 Moving your beverage cooler 2
Energy sa
ving tips 12
Recycl
ing and disposal 12
TROUBLESHOOTING GUIDE 13-14
3
Your safety and the safety of others are very important
BEVERAGE COOLER SAFETY
.
We have provided many im portant s afety messages in this manual and on your appliance. Always read and obey
all safety mes sages.
T
his is the Saf ety Alert Symbol. This symbol alerts you to potential haza rds that can kill or
injure you and others. All safety messages will follow the Safety Alert Symbol and either the
words “DANGER”, “WARNING” or “CAUTION”.
D
anger means that failure to heed this
safety statement may result in severe
personal injury or death.
W
arning means that failure to heed this
safety statement may result in extensive
product damage, serious personal injury, or
death.
C
aution means that failure to heed this
safety statement may result in minor or
moderate personal injury, or property or
equipm ent damage.
All safety messages will alert you do what the potential hazard is, tell you how to reduce the chance of injur y, and
let you know what c an happen if the instructions are not followed.
4
IMPORTANT SAFEGUIDES
B
efore the appliance is used, it must be properly positioned and installed as described in this
manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when
using the applia nce, follow basic precaution, including the following:
P
lug into a grounded 3-prong outlet, do not remove grounding prong, do not use an adapter, and do not
use an extension cord.
R
eplace all panels before operating.
N
ever clean appliance parts with flamm able fluids. These fumes can create a fire hazard or explosion.
And do not store or use gasoline or other flammable vapour and liquids in the vicinity of this or any other
appliance. The fumes can create a fire hazard or explosion.
B
efore proceeding with clean ing and maintenance o
perations, make sure the power line of the unit is
disconnected.
D
o not connect or disconnect the electric plug when your hands are wet.
U
nplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in
electrical shock or death.
D
o not attempt to repair or replace any part of your appliance unless it is specifically recommended in
this material. All other servicing should be referred to a qualified technician.
T
he symbol is a warning symbol for risk of fire/flammable material.
W
ARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
W
ARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the
appliance.
.
.
.
.
.
.
.
5
U
se two or more people to move and install appliance. Failure to do so can result in back or other
injury.
T
o ensure proper ventilation for your appliance, the front of the unit must be completely unobstruc ted.
Choose a well- ventilated area with temperatures above 16°C (60°F) and below 32°C (90°F). This unit
must be installed in an area protected from the element, such as wind, rain, water spray or drips.
T
he appliance should not be located nex t to ovens, grills or other sources of high heat.
T
he appliance must be installed with all electrical, water and drain connections in accordance with state
and local codes. A standard electrical supply (115V/60Hz), properly grounded in accordance with the
National Electrical Code and local codes and ordinances is required.
D
o not kink or pinch the power supply cord of appliance.
T
he fuse (or circuit breaker) size should be 13 amper es.
I
t is important for the appliance to be leveled in order to work properly
. You may need to make s everal
adjustments to level it.
N
ever allow children to operate, play with or crawl inside the appliance.
D
o not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage or
discolour the inte rior.
D
o not use this apparatus for other than its intended purpose.
.
.
.
.
.
.
.
.
.
.
6
FLAMMABLE REFRIGERANT GAS
DANGER - Risk of fire or explosion. Flammable refrigerant used.
DO NOT use mechanical devices to defrost refrigerator. DO NOT puncture refrigerant tubing.
DANGER - Risk of fire or explosion . Flammable refrigerant used. To be repaired only by trained service
personnel. DO NO T puncture refrigerant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. C onsult repair manual / owner’s guide
before attempting to service this product. All safety pr ecauti
ons must be followed.
CAUTION - Risk of fire or explosion. Dispose of property in accordance with federal or local regulations.
Flammable refrigerant used.
CAUTION - Risk of fire or ex plosion due to puncture of refrigerant tubing. Follow handling instructions
carefully. Flammable refrigerant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the vicinity of
the cooler.
7
1.This appliance is not intended for use by persons (including children) with reduced physical , sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. This appliance can be used by children aged from 8 years and above and pers ons with reduced ph
ysical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not
play w ith the appliance. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cor d is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a
hazard.
5. To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.
6. When pos iti oning the appliance, ensure the supply c ord is not trapped or damaged.
7. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appli ance.
8. Keep ventil ation openings, in the appliance enclosure or in the built-in structure,clear of obstruction.
9. Do not use mechanical devices or other means to ac cele
rate the defrosting process,other than those
recommended by the manufacturer.
10. Do not damage the refrigerant circuit.
11. Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of
the type recommended by the manufacturer.
12. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
13. T his applianc e is intended to be used in household and similar app lications such as
– sta
ff kitchen areas in shops, offices and othe r working environments;
– far m houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type env ironments;
– catering and similar non-retail applications.
14. T o avoid contamination of drink, please res pect the following instructions:
– Opening the door for long periods can cause a significant increase of the
temperatur e in the com partments of the appliance.
– Clean regularly surfa
ces that can come in contact with drink and accessible drainage systems.
– Clean water tanks if they have not been used for 48 h, flush the wate r system connected to a water supply if
water has not been draw n for 5 days.
– If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door
open to prevent mould developing within the appliance.
WARNING:Risk of fire / flammable materials
The coolant circuit of this unit contains the refrigerant lsobutane (R600a),a natural gas that-is
flammable and of high environmental compatibility. Make sure no parts of the coolant circuit
get damaged-during transport and installation of the appliance.
8
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electrical shock, or injury when using your
DANGER or WARNING: Risk of child entrapment.
children may not easily climb inside.
Never allow children to operate, play with, or crawl inside the appliance.
Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or explosion.
Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any othe
Child entrapment and suffocation are not prob
lems of the past. Junked or abandoned appliances are still
dangerous.
r
appliance. The fumes can create a fire hazard or explosion.
-Save these instructions-
appliance, follow these basic precautions:
.
R ead all instructions before using the beverage cooler.
.
that
.
.
Before you throw away your old beverage cooler, take off the door but leave the shelves in place so
.
.
.
PARTS BREAKDOWN
1. Top Hinge
2. Control Panel
3. Shelves
4. Glass Door
5. Handle
1
2
4
3
6
5
6. Leveling Legs
9
INSTALLATION INSTRUCTIONS
Before using your beverage cooler
Clean the interior surface with lukewarm water using a soft cloth.
Installation of your beverage cooler
circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power
and/or grounding should be directed toward a certified electrician or an authorized Products service center
sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme
cold ambient temperatures may also cause the unit not to perform properly.
Avoid locating the unit in moist areas.
This appliance is designed to be for f
ree standing installation or flush-in.
Direct
.
Electrical connection
Warning
: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is
damaged, have it replaced by an authorized service center.
This appliance should be properly grounded for your safety. The power cord of this appliance is equipped with a
three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.
Do not under any circumstances cut or remove the third ground prong from the powe
r cord supplied. For personal
safety, this appliance must be properly grounded.
This appliance requires a standard 115V/60Hz electrical ground outlet with three-prong. Have the wall outlet and
circuit checked by a qualified electrician to make sure the outlet is properly grounded. When a standard 2-prong
wall outlet is encountered, it is your responsibility and obligation to have it replaced with a properly grounded
3-prong wall outlet. The cord should be secured behi
nd the appliance and not left exposed or dangling to prevent
accidental injury.
-
-
-
-
-
-
Place your beverage cooler on a floor that is strong enough to support it when it is fully loaded.
To level your
-
Locate the beverage cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
-
beverage cooler, adjust the front leveling legs at the bottom of the beverage cooler
-
Plug the beverage cooler into an exclusive, properly installed-grounded wall outlet. Do not under any
.
Remove the exterior and interior packing.
Check to be sure you have all of the following parts:
o shelves
o Instruction Manual
Before connecting the beverage cooler to the power source, let it stand upright for approximately 2 hours. This
will reduce the possibility of a malfunction in the cooling system from handling during transportation.
10
The appliance should always be plugged into its own individual electrical outlet which has a voltage rating that
matches the rating label on the appliance. This provides the best performance and also prevent overloading
house wiring circuits that could cause a fire hazard from overheated. Never unplug the appliance by pulling the
power cord. Always grip the plug firmly and pull straight out from the receptacle. Repair or replace immediately
all power cords that have be
come frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion
damage along its length or at either end. When moving the appliance, be careful not to damage the power cord.
Extension cord
Because of potential safety hazards under certain conditions, it is strongly recommended that you do not use an
extension cord with this appliance. However, if you must use an extension cord it is absolutely necessary that it
be a 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the
electrical rating of the cord be 115 volts and at least 13 amperes.
Power bar with surge protection
Most electrical appliances use a series of electric control boards to operate. These boards are very susceptible
to power surges and could be damaged or destroyed.
If the appliance is going to be used in an area or if your city / country is prone to power surges / outages; it is
suggested that you use a power surge protector for all electrical devices / appliances you use. The surge
protector that you select must have a surge block high enough to protect the appliance it is connecte
d to. If you
have any questions regarding the type and size of surge protector needed contact a licensed electrician in your
area.
Damages due to power surges are not considered a manufacturer covered defect and will void your product
warranty.
OPERATING YOUR BEVERAGE COOLER
It is recommended you install the beverage cooler in a place where the ambient temperature is between 19º
C
-24ºC (66ºF-75ºF), and humidity is under 60%.
If the ambient temperature is above or below recommendedtemperatures,
the performance of the unit may be affected. For example, placing your unit in extreme cold or
hot conditions may cause interior temperatures to fluctuate.
11
Temperature settings
Temperature setting range: (
37-64
)
Storage
This beverage cooler is designed to store beverages. Many bottles come in different sizes and dimensions.
Therefore, the actual number of bottles you can store may vary.
Storing large or oddly shaped bottles can reduce the capacity of your beverage cooler.
Touch the power button to turn o n the appli ance.
Press power button for 3 seconds to turn off the appliance.
Touch the button to turn ON/OFF the interior LED lighting.
Touch the button to increase or decrease the temperature of the selec ted zone.
F
°
Cleaning your beverage cooler
Turn off the power, unplug the appliance, and remove all items including shelves. Wash the inside surfaces with a
warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to 1 cup of
water.
Wash the shelves with a mild detergent solution. Wring excess water out of the sponge or cloth when cleaning
area of the controls, or any electrical parts.
Wash the outside cabinet with warm water and mild liquid detergent. Rinse well and wipe dry with a cl
ean soft
cloth. Do not use steel wool or steel brush on the stainless steel. These will contaminate the stainless steel with
steel particles and rusting may occur .
Shelves
To remove the shelves from the track, as shown in figure.
F
°
12
Power failure
Most power failures are corrected within a few hours and should not affect the temperature of your appliance i
f
you minimize the number of times the door is opened. If the power is going to be off for a longer period of time ,
you need to take the proper steps to protect your contents.
Energy saving tips
Recycling and disposa
The beverage cooler should be located in the coolest area of the room,
away from heat producing appliances,and out of the direct sunlight.
l
Waste electrical products (WEEE) should not be disposed of with household waste.Please recycle where facilities
exist. Check with your local governmental authority, domestic waste disposal services or the retailer where the
product was bought for recycling advice.The wheelie bin symbol on the product or its packaging indicates that this
product cannot be treated as normal household waste. This product must be handed over to an electric and
electronic equipment coll
ection point for recycling. On ensuring that this product is disposed
of correctly, you will help to avoid possible negative consequences for the environment
andpublic health, which could occur if this product is not handled correctly.
Remove all items (bottles)
Tape down securely all loose items (shelves) inside your appliance.
Turn the adjustable leg up to the base to avoid damage.
Tape the door shut.
Be sure the appliance stays secure in the upright position during transportation. If you absolutely need to
transport the cooler horizontally, transport the cooler on its back (door on top).
Also protect outside of
appliance with a blanket, or similar item.
Moving your beverage cooler
-
-
-
-
-
13
TROUBLESHOOTING GUIDE
PROBLE
You can solve many common beverage cooler problems easily, saving you the cost of a possible service call
.Try the suggestions below to see if you can solve the problem before calling the servicer.
M POSSIBLE CAUSE SOLUTION
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown
fuse
cooler does no
t
operate.
.
Plug the unit.
Press to turn on the unit.
Check the breaker and/or fuses.
External environment may require a
higher setting.
The door is opened too
often.
The door is not closed completely.
The door gasket does not seal properly
cooler is not col
d
enough.
.
Check the temperature control setting.
Close the door properly.
Check the door gasket.
The compressor turns
on and off frequently.
C
lose the door properly.
Check the door gasket
The room temperature is hotter than
normal.
A large amount of contents has been
added to the cooler.
The door is opened too often.
The door is not closed completely.
The temperature control is not set
correctly.
The door gasket
does not seal properly.
.
The fans turn on and off
frequently.
In order to circulate the air and maintain the set temperature inside the cabinet the
fans must cycle on and off even when the compressor is off. The fans will cycle ON
and OFF while the compressor is off approximately every 10 seconds, this is called
“Semi-speed status”. This cycle is normal and meant both to circulate the air as
well as ensure the continued operational status of the fans. If the fan stops
completely and doe
s not complete this cycle the fan is non-operational.
The light does not work.
Not plugged in.
The circuit breaker tripped or a blown
fuse.
The light button is “OFF”.
Plug the unit.
Check the breaker and/or fuses.
14
Vibrations.
Check to assure that the cooler is level.
Make sure the bottles don’t touch each
others.
The cooler is not leveled
The bottles are vibrating.
There is an object under the cooler.
Remove the object.
The door will not close
properly
The cooler
The cooler seems to
make too much noise.
is not level.
Level the cooler.
The rattling noise may come from the
flow of the refrigerant, which is normal.
As each cycle ends, you may hear
gurgling sounds caused by the flow of
refrigerant in your cooler.
Contraction
and expansion of the inside walls may
cause popping and crackling noises.
.
The cooler is not level.
The door was reversed and not properly
installed.
The gasket is dirty.
The shelves are out of position.
Error Code:
E1
Level the cooler.
Close the door properly.
Clean the door gasket.
Place the shelves properly.
Temperature sensor failure. Contact us for a service call.
