INSTRUCTION MANUAL
It is important that you read these instructions carefully and keep it for future
reference. The picture is for reference only. Please be subject to the actual
products.
Support email: support@tittla.com
Phone number: +1(510)228-4672
READ ALL INSTRUCTIONS BEFORE USING
SAFETY INFORMATION ............................................................... 1
Quick introduction: ............................................................................3
Installation and setup .........................................................................4
Installation requirements ................................................................... 4
Prepare for use ...................................................................................6
Connect to water and drain pipe ........................................................6
Understanding the display ................................................................. 6
Clean and care ................................................................................... 8
Common malfunction analysis
：
...................................................... 9
1
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING
SAFETY INFORMATION
This is the safety alert symbol.This symbol alerts you to potential hazards
that can kill or hurt you and others.All safety messages will follow the
safety alert symbol and the word “WARNING” or “CAUTION”. These
words are defined as:
Indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
ICE CAN’T BE STORED IN THE ICE BIN DURING NIGHT
TIME,IT'S NOT FRIDGE,ICE WILL BE MELTED
INTOWATER AND FLOW OUT OF THE MACHINE.
To reduce the risk of fire,explosion,electric shock,exposure to
UV radiation,or injury when using your ice maker,follow these
basic safety precautions:
● This product must be properly installed and located in accordance with the
Installation instructions before it is used.
● When using electrical appliances,basic safety precautions should be followed to
reduce the risk of fire, electric shock and injury to persons or property. Read all
instructions before using any appliance.
● High humidity environment will increase the risk of short circuit or electric
shock. If in doubt, please cut off the power supply of the ice maker.
● Do not exceed power outlet ratings.It is recommended that the ice maker is
connected to its own circuit. Use only standard electrical supply that is properly
grounded in accordance with the National Electric Code and local codes and
ordinances.
● If the ice maker is brought indoors from outdoors during the wintertime, give it
a few hours to warm up to room temperature before plugging to power source.
● Do not store explosives, such as combustion-supporting sprays in the appliance.
● The machine is intended to be used in household and similar applications such
as:
-kitchen areas in shops,offices and other working environments;
-farm houses
-by clients in hotels,motels and other residential type environments;
-Catering industry and similar non-retail industry.
● Children and disabled people must be supervised to use this machine
● Avoid direct sunlight and make sure that The machine should be used in the
2
household and without obstacles surrounded, good ventilation place. There is
must be 50cm at least between the four sides of the machine with the wall.
● Do not tip the machine over.
● We do not recommend the use of an extension cord, as it may overheat and
become a risk of fire.
● Don't use any liquid other than water in the unit to make the ice.
● Do not store or use flammable vapors or liquids near this product.
● Do not allow children to climb, stand or hang on the ice maker. They could
seriously injure themselves.
● Do not use with water that is micro biologically unsafe or of unknown quality.
● To avoid risk of injury, place power cord in such a way it cannot be pulled on
by children or cause a tripping hazard.
● Place power cord in such a way that it is not in contact with hot surfaces.
● Do not operate if any component, including the cord or plug, is damaged.
● Unplug the product before cleaning or repairing,and when not in use. (Note:If
the machine needs repair, it is strongly recommended that it be operated by
professionals.)
● Do not immerse any part of the product in water.
● Do not plug or unplug product with wet hands.
● Do not place the power cord on carpet or other heat sources
● Do not attempt to disassemble, repair, modify, or replace any part of your
product.
● Use this product only for its intended purpose as described in this user manual.
● If the power cord is damaged,it must be replaced by the manufacturer or similar
professionals in order to avoid danger.
● Do not use any accessories not recommended by the manufacturer.
● The foaming materials inside is combustible which must be kept away from
fire.
● It's forbidden to pull the cable to unplug. You should pull the plug directly.
● Except for the method recommended by the manufacturer, no mechanical tools
or other methods shall be used to accelerate the defrosting process. Do not
damage the refrigeration circuit.
● There are high-pressure, flammable and explosive refrigerants in the
compressor. Do not damage the refrigeration system. Care or repair should be
carried out by professionals. Be especially careful when installing and
transporting.
● There are heat insulation materials in the ice maker, which are combustible
materials, and must be kept away from fire sources. Repairs must be carried out
by the manufacturer or professionals. Scrap must be disposed of by the
designated recycling department.
3

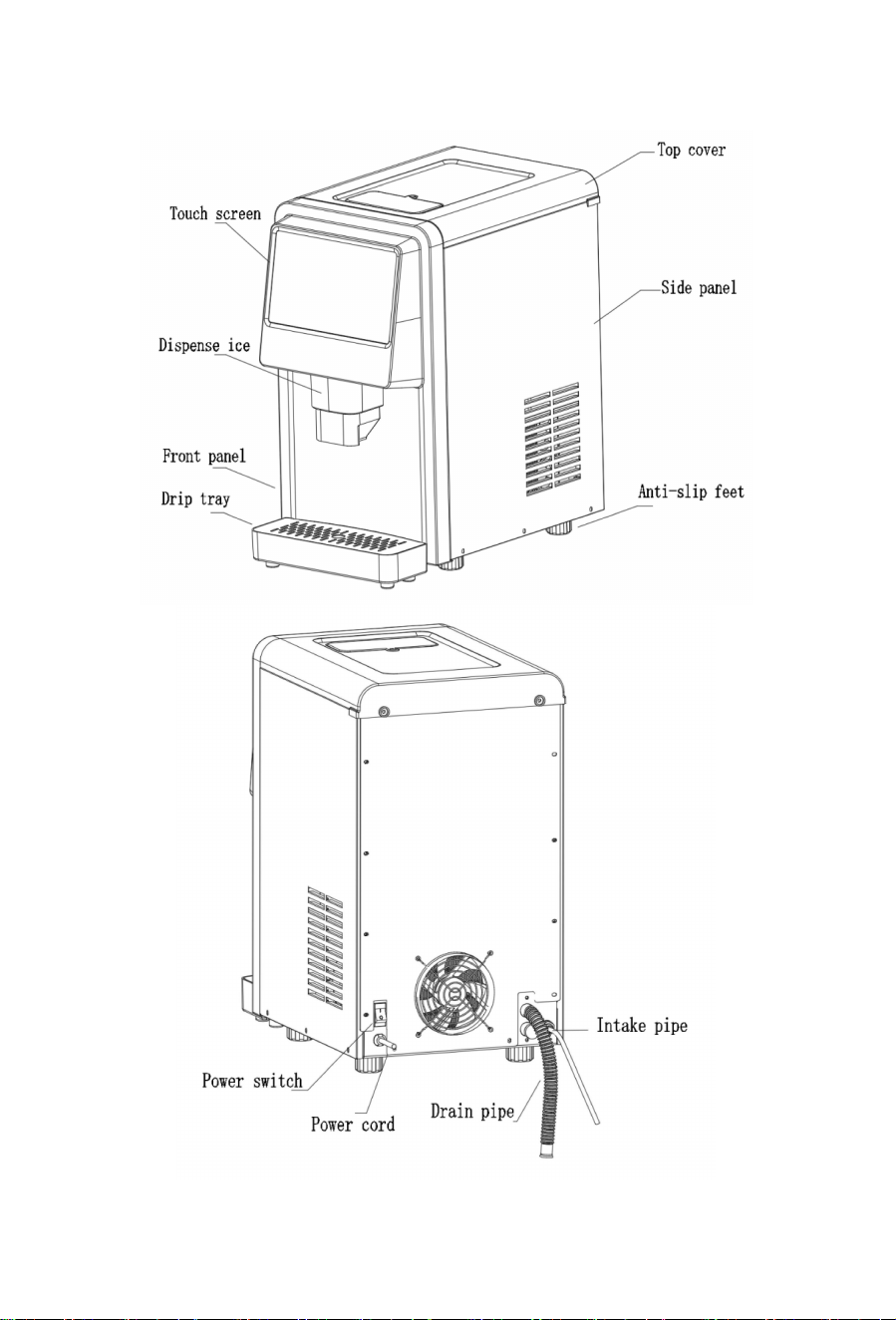

Quick introduction:
4
Installation and setup
Caution: Installation must be installed by professionals.
Warning:
The drain of inner tank must be always connected to a floor drain.
The drain of internal water tank (Only connect to a floor drain after cleaning,or it
must be plugged)
Installation requirements
Lifting Hazard:It is recommended to have two people move and
install the ice maker in order to prevent injury.
● Product is designed to be installed indoors.Do not use your ice maker outdoors.
● Product must be installed upright on a flat,level surface that is able to support
the total weight when full of water.
● Ensure a minimum of 50cm clearance around the side and back walls of the ice
maker for proper air circulation.
● Install the product in a well-ventilated area with an ambient temperature
between 3℃ and 40℃.
● Do not place the product near heat sources such as ovens or cook tops.
5
● Do not place the product in direct sunlight or rain.
● Do not place any stuff on the top of the machine.
6

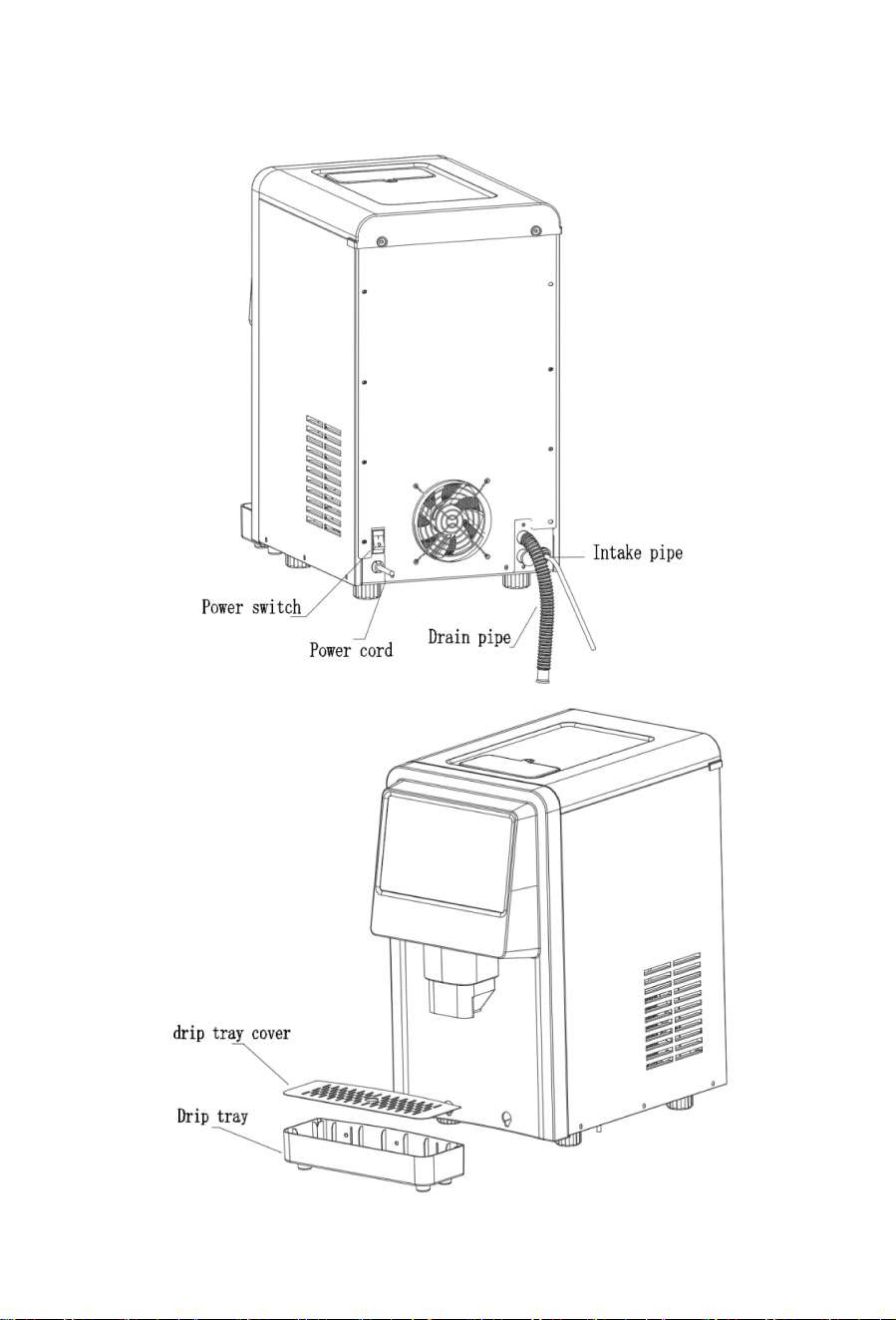

Prepare for use
1. Carefully remove packing material.Do not use sharp tools that can damage the
ice maker.
2. Ensure all components are present.
(An assembled filter,1 drainage pipe and 2 silica plug,drip tray and drip tray
cover are a standard on the machine.)
3. Place the ice maker upright on a flat,level surface and plug it in.
4. Clean the ice maker before first use.

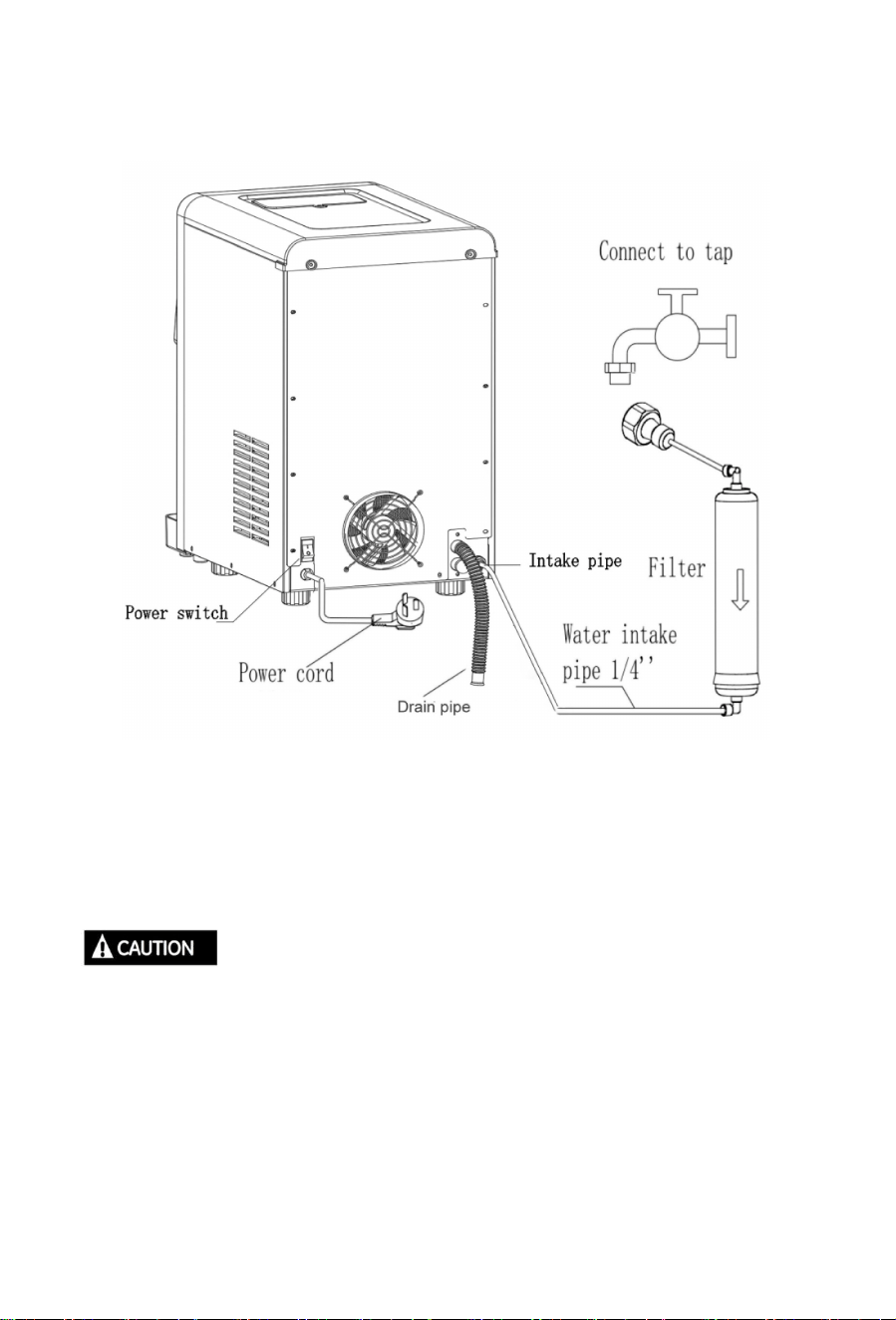

Connect to water and drain pipe
It must be connected connected to tap water.If there is a problem caused by the
tap water without a filter,our company will not bear the cost of repairing.
The water supply pressure should be 0.1-0.4MPa;if the pressure
is greater than 0.4MPa,a pressure reducing valve is required.
(1)Use tap water as water source
The filter you received is assembled,plug the water intake pipe firmly into the
connector at the back of the machine until you can't insert it anymore,and the
other side connects to the water tap.
(2)Drain
The drain of the inner tank must be always hooked it up to a floor drain or
a container,or the water will leak to floor!
The drain of internal water tank only connect to a floor drain after
cleaning,or it must be plugged.
Understanding the display
1.Please make sure:
(1)The water tap is turned on.
(2)The drain pipe was inserted into sink or bucket
(3)The machine is power on.
2.Touch screen:
7
Control board
(1)Standby: Plug the power cord into the socket will make the machine enter
standby mode.
(2)Touch “ making ice ” ,"dispense ice ” ,"clean"icon under standby mode,the
selected indicator will blink.
(3)Making ice: Touch “Making ice”icon under standby mode or“clean”mode to
make the machine start to make ice;Long touch this icon for 2 seconds during“
Making ice”mode to make the machine enter standby mode.

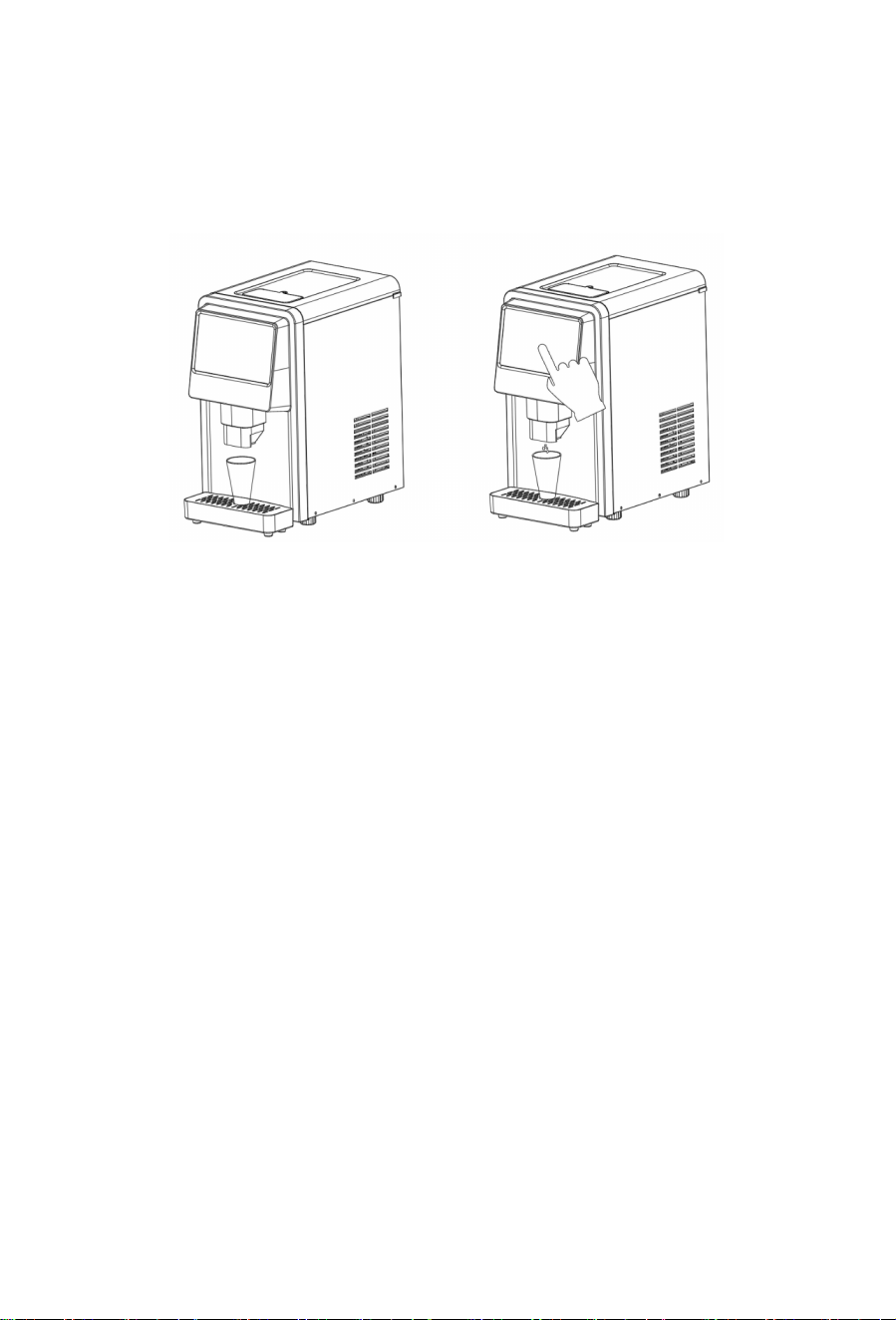

(4)Dispense ice:Touch this icon under standby or “making ice”mode will make
the machine to dispense ice,touch again to stop dispensing.If no ice is
dispensed within 30s,it will stop dispensing automatically.If the outlet is
jammed,long press this icon for 5s,ice cubes will be dispensed automatically
after 25s.
(5)Large/Clean: Touch this icon during “ making ice ” mode will make the
machine to dispense ice continuously for 5min,touch again will make the
machine stop dispensing ahead of time.
Long touch the icon for 3s under standby mode to start the self-cleaning progress,
touch again to stop the self-cleaning progress. After cleaning,unplug the outlet to
drain.Make sure the drain pipe is connected before starting the machine.
NOTE:
1.Clean mode and ice making mode can't be operated at the same time.
2.The two outlets of the machine must be hook up to a floor drain after
cleaning.Observe the water flow to avoid overflow.
3.After that,the outlet of the internal water tank must be plugged.
(1)Ice full:As infrared rays detected no ice fall over 2 min,the machine will stop
and the “ ice full ” indicator will be on,the machine will restart to work as you
take some ice out or after the ice melt.
8
(2)Fault: If no ice fall over 15min for the first cycle,the machine will stop and
FAULT indicator will be on.After that,if there is no ice fall over 3min,the
machine will stop working and the FAULT indicator will be on.
Warning: The ice machine is used to make and store ice,wash your hands before
taking ice.
Clean and care
1.For long time storage
a)Power off the machine and pull the plug.
b)Turn off the faucet and remove the inlet pipe
c)Take out all the ice,drain the water inside
d)Dry the ice bin and interior.
2.Daily cleaning
During the working time,more and more scales will precipitate in the water tank.If
it is not cleaned in time,it will cause malfunctions.Generally,it needs to be cleaned
once a week.Take all nugget ice out,add 10%edible citric acid to the water tank
during cleaning,touch the clean icon,it will take about 5min to finish the clean
procedure,and then repeatedly rinse with fresh water before using. Observe the
water flow at any time during the cleaning mode to avoid overflow,if the water is
too swift which lead to overflow,turn down the tap.
3.Clean interior
NOTE: Pull the plug before cleaning or maintaining
To make the machine work normally,check and clean condenser annually.
Don't use alcohol to clean the in-wall of the machine,it will break the plastic
materials.
4.Clean exterior
Clean the exterior with detergent weekly
9
Common malfunction analysis
：
Issues
Check items
Possible causes
Solutions
The
machine
doesn't work
Power cord
The plug didn't plug into socket
Plug into socket
The fuse of PCB
The fuse is broken
Replace the fuse
PCB
Broken
Replace the PCB
Ice full
Ice full
Take out some ice
Proximity switch
Proximity switch is broken
Replace the proximity switch
Power supply
No power or lower voltage
Contact power supply bureau
Water supply
No water or water pressure is
low
Check water source and its
pressure
Inlet valve
Inlet valve is broken
Replace the inlet valve
Compressor
didn't work or
stop
working
suddenly
Power supply
No power or lower voltage
Contact power supply bureau
Air inlet is
congested
Ensure that the machine's
surrounding space of at least 50
cm of clear of any objects
Air inlet is congested
Condenser
Too much dust covered
Clean the condenser
Refrigerant
Refrigerant leaked
Contact after sales service
compressor
Connection wire is broken off
Contact after sales service
No water in the
water tank
Water supply
No water or water pressure is
low
Check water source and its
pressure
Inlet valve
Inlet valve is broken
Replace the inlet valve
Water
leakage
Water inlet
Water inlet is loosened
Re-tightened the water pipe
Drain pipe
Didn't connect to drain pipe or
sewer
Connect to drain pipe or sewer
Float
Jammed or broken
Adjust or replace
Stoppage
indicator is on
No ice during
15min
Refrigeration system
Contact after sales service
There are ice fall
into the ice basket
Infrared ray is broken
Contact after sales service
Take too long
to
make ice
Water pressure
Lower water pressure
Check the water source
Water temperature
Water temperature is high
Change to a water source of
lower temperature
Ambient
temperature
Ambient temperature is too
high or too low
Change to a place of lower
temperature
Refrigerant
Refrigerant leakage
Contact the after sales
Productions of
iice cubes is
low and the cube
ice is too thin
Condenser
Too much dust covered causes
bad ventilation„ will take too
long to make ice
Clean the condenser
Water pump
Water pump broken
Replace a water pump
Ambient
temperature
Ambient temperature is relative
high
Change to a place of lower
temperature
Air inlet
Air inlet is congested
Ensure that the machine's
surrounding space of at least
50cm is clear of any objects
Add water
indicator is on
Water tank
No water inside
Check the water supply
Water in the tank
Check the float
Noise
Condenser
The sound of the fan scrapes
against condenser
Contact the after sales
Valve
It worked too long for single
time
Restart the machine after the
solenoid valve cool off
Evaporator
In the beginning of making ice
Normal
If you have any questions,please contact us:
Support email:[email protected]m
phone number:+1(510)228-4672
