USER MANUAL
MINI BOX HUB
Model No. HWG023WBRF
Welcome to the RAINPOINT family! Please read the manual before use to
learn about the features and functions.
Contents
1. Box Contents
2. Introduction
2.1 Product Oveiew
2.2 Button and Light Introduction
2.3 Specication
3. Connection and Installation
3.1 Download app
3.2 Sma WiFi Connection
3.3 AP Connection
3.4 app Oveiew
4. Troubleshooting
5. Precautions
6. Warranty Policy
7. FCC Statement
8. Customer Suppo
01
02
02
02
03
04
04
06
10
13
17
18
18
19
20
-01-
1. Box Contents
43
2
HWG023WBRF Mini Box Hub
USB Cable
Warranty Card
User Manual
1.
2.
3.
4.
EN
1
-02-
2.2 Button and Light Introduction
Operation Button
Press and hold the operation button for about 5 seconds to activate WiFi
connection mode.
2. Introduction
2.1 Product Oveiew
EN
Power Indicator
Power Po
Operation
Button
WiFi
Connecting
Indicator
Foldable
Antenna
Indicator Meaning Table
2.3 Specication
Range Between WiFi Hub and Router:
853ft (260m) in the open area without inteerence
Temperature Operating Range: 3℃-40℃ (37.4°F-104°F)
WiFi Frequency Band: 2.4GHz Only
Input: DC 5V 1A
For Indoor Use Only
Powered onPower Indicator Turn Solid Blue
WiFi Connection ModeConnecting Indicator Blink Quickly
AP Connection ModeConnecting Indicator Blink Slowly
Connected with WiFi SuccessfullyConnecting Indicator Turn Solid Blue
-03-
EN
a.
3. Connection and Installation
3.1 Download app
3.1.1 Download
-04-
Search and download RainPoint Home app on App Store or Google
Play:
OR scan the QR code below to download the app
Android
iOS
EN

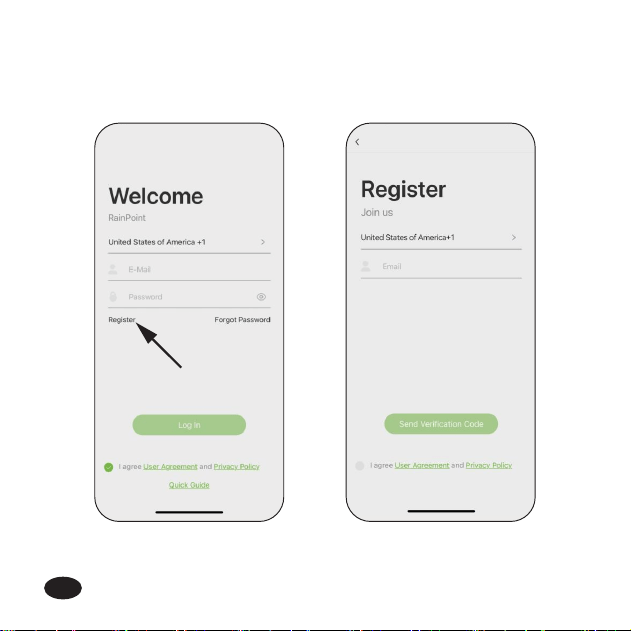

Create an account and log in:
Follow in-app instructions to sign up for your account or log in with
your existing account and sta adding device.
-05-
b.
EN
3.2 Sma WiFi Connection
3.2.1 Before Connection
To assure your hub connect to Wi-Fi, it will need to meet the following
requirements:
Please make sure your mobile device is connecting with 2.4GHz Wi-Fi
before using RainPoint Home app. The hub has to keep staying under
2.4GHz Wi-Fi to work normally.
iOS Requirements: Mobile device with iOS 11.0 (or higher) with cellular
or Wi-Fi seice.
Android Requirements: Mobile device with Android OS 6.0 (or higher)
with cellular or Wi-Fi seice.
Please do not use public Wi-Fi networks.
The hub and your mobile device are better to be within 10 feet (3m)
during pairing.
If you need to change the working Wi-Fi network, press and hold the
operation button on the hub to reset your hub and reconnect.
-06-
EN
-07-

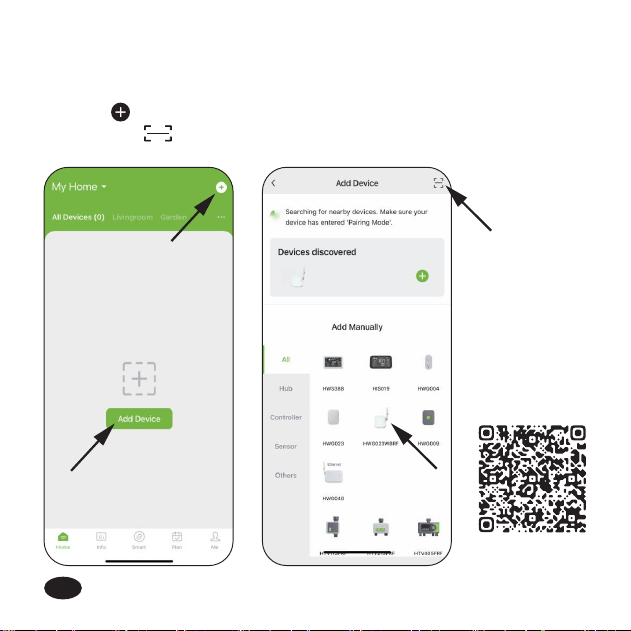

Tap or "Add Device" on the Home page, and select HWG023WBRF.
Or press scan QR code and move onto next step.
a.
3.2.2 WiFi Connection
Plug in the hub near the router and follow the steps below to connect:
EN
0210023002
-08-

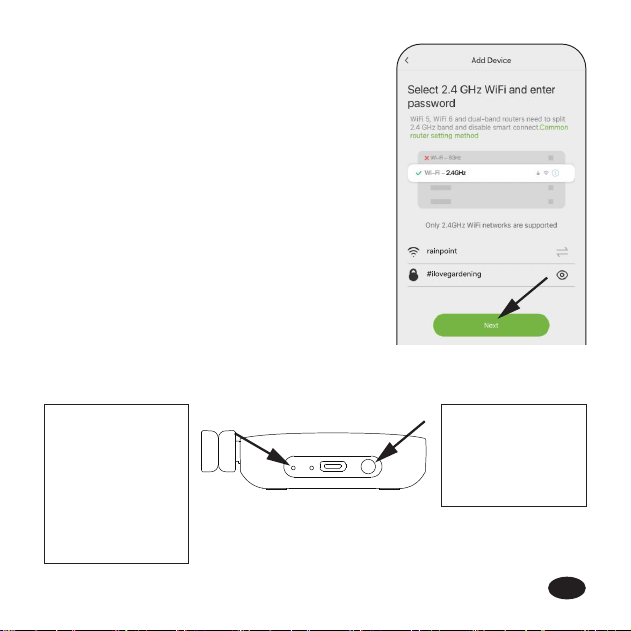

Log into Wi-Fi and tap Next.b.
Follow in-app instructions to complete the connection.
Press and hold
the button for
about 5 seconds
to activate WiFi
connection mode.
c.
The indicator will
ash blue rapidly
when in WiFi
connection mode
and turn solid
blue when
connected
successfully.
EN
Tips: If failed to connect through the sma WiFi connection mode, please
t AP connection mode or contact the customer suppo team.
Email: suppo@rainpointonline.com
-09-
Congratulations!
Now the hub has been successfully connected with WiFi network and
added on your app. You can add up to 39 devices controlled by this
hub by click "
+ Add Device" icon.
d.
EN
3.3 AP (Access Point) Connection

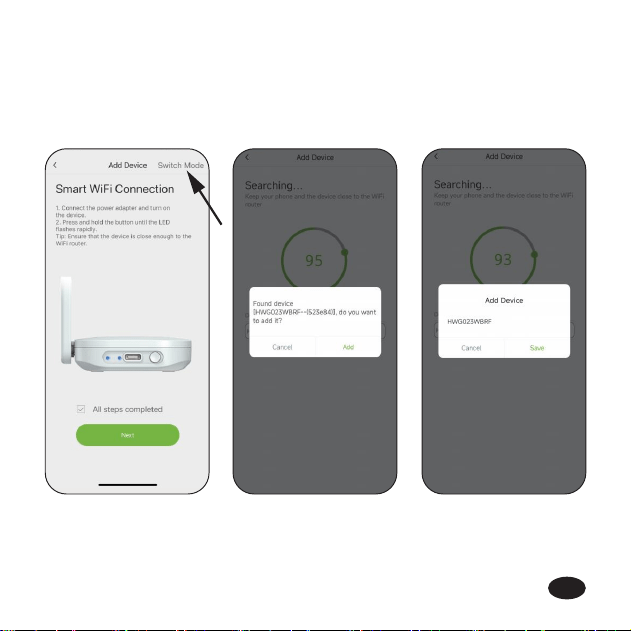

You can access to AP Connection Mode by click "Switch Mode" on
Sma WiFi Connection page and follow in-app instructions.
-10-
a.
EN

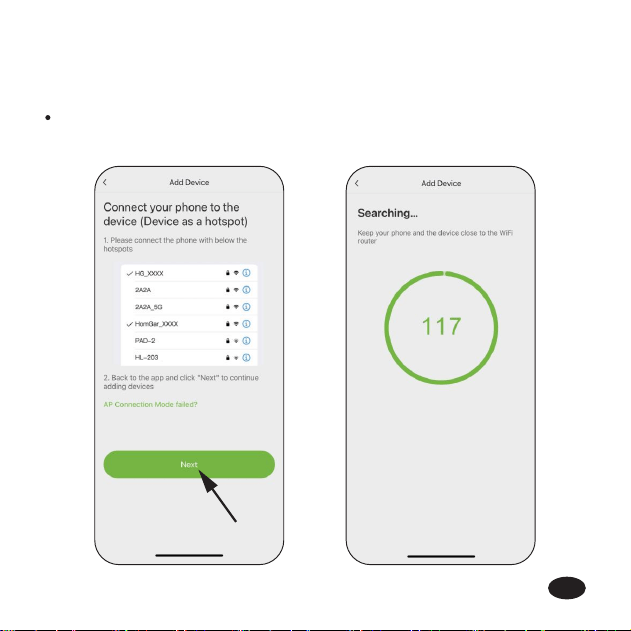

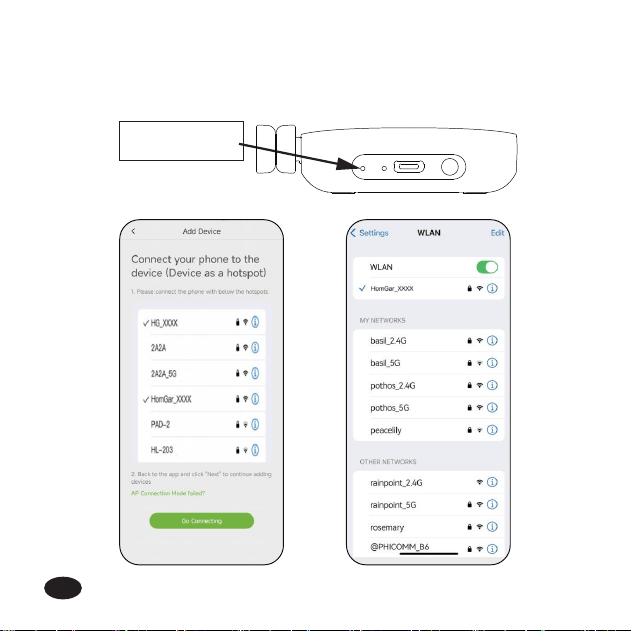

When Wi connecting indicator ashes slowly, tick the checkbox on the
app, click "Next", then follow the wizard and click "Go Connecting" to
connect your phone to the hotspot ( HomGar_xxxx or HG_xxxx).
-11-
EN
ash slowly
Note: If the mobile device pops up that there is no signal and needs to
switch WiFi, please do not switch. Please keep the selected hotspot
(HomGar_xxxx or HG_xxxx). to connect.
Back to the app and click "Next" to continue adding devices
automatically.
-12-
EN
3.4 app Oveiew
3.4.1 app Home page
Home Management: Set home name, location and other information
to manage your home environment monitoring system more
intelligent and accurate.
All Devices: All added devices will be displayed here.
Room Management: Related devices list of each room will be
displayed here.
Add Devices: To add devices under your monitor and management.
Home: The app home page.
Plan Page: List all of your irrigation plans that set on water
timers/pumps. You can manually turn on or o the plan by the button
on the right. There is also a manual Rain Delay button in each plan. It
is available to check and edit the plans on the specic device plan
page.
Info: Check weather information and list of optional devices.
Me and Basic Settings: Manage your account, home, basic settings,
and other options. You can also nd unit format and notication
button in these settings.
Sma: You can dene various scenarios to manage the devices as per
your desire.
-13-
EN
Home
Management
All Devices
Info
Me
Plan
Add Decives
Sma
Home
Room System
Management
Notes: After the hub and devices are connected, the list of the devices will be
displayed on both app’s home page and the hub’s device page. You can click
the device icons in the "All Devices" list to enter the device page, or nd them
on hub’s device page.
-14-
EN
3.4.2 Device Page
Device Setting
Add device
controlled by
the hub
-15-
EN
3.4.3 Device Settings
On device settings page, you can nd basic information of the device and
some default settings.
Tips: Timing setting ONLY works for
precision clock product to calibrate time.
-16-
EN
WiFi hub gets
disconnected or
oine.
Devices get
disconnected.
The operation
button on the
WiFi hub doesn’t
work.
Problems
Solution
-17-
4. Troubleshooting
Please check if the router works normally.
If there is a power shut down and then recover,
and the router is back to work again, please
reconnect the WiFi hub following the connection
pa of this manual.
Please check if the WiFi signal is unstable.
If the distance between the hub and the router is
too far, please move the hub closer to make the
connection more stable.
Please check the stability of Wi-Fi signal.
If there are any strong signal sources in between
hub and devices, please move the devices to
another place to avoid inteerence.
Please contact our customer seice for more
suppo and suggestions.
EN
Please make sure to use 2.4GHz band WiFi to connect to this product.
Do not block the vent, inse ngers, or any objects, as this may cause
equipment failure or other conditions.
Do not use the product near gas, heaters, microwave ovens, and other
positions that may cause inteerence.
5. Precautions
RainPoint provides a 1-year limited warranty on this product against
manufacturing defects in materials and workmanship. You can get an extra
two years of extended warranty by registering your product on our website
www.rainpointonline.com
6. Warranty Policy
-18-
Made in China
EN
7. FCC Statement (2AWDBHWG023)
This device complies with Pa 15 of the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful inteerence.
2. This device must accept any inteerence received, including
inteerence that may cause undesired operation.
FCC Warning: Any changes or modications not expressly approved by
the pay responsible for compliance could void the user’s authority to
operate this equipment.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Pa 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
inteerence in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy, if not installed and used in
accordance with the instructions, may cause harmful inteerence to radio
communications. However, there is no guarantee that inteerence will not
occur in a paicular installation. If this equipment does cause harmful
inteerence to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to t to correct
the inteerence by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit dierent from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
-19-
EN
Please subscribe to our channel:
Rainpoint on YouTube for tutorial videos.
Or scan the QR code to visit RainPoint channel on
YouTube.
Note: The manufacturer is not responsible for any radio or TV inteerence
caused by unauthorized modications to this equipment. Such
modications could void the user’s authority to operate the equipment.
-20-
8. Customer Suppo
EN
Need Help ?
or Email：
suppo@rainpointonline.com
Scan the QR code for more help.
V1
