USER
MANUAL
X E N O
1 . 5

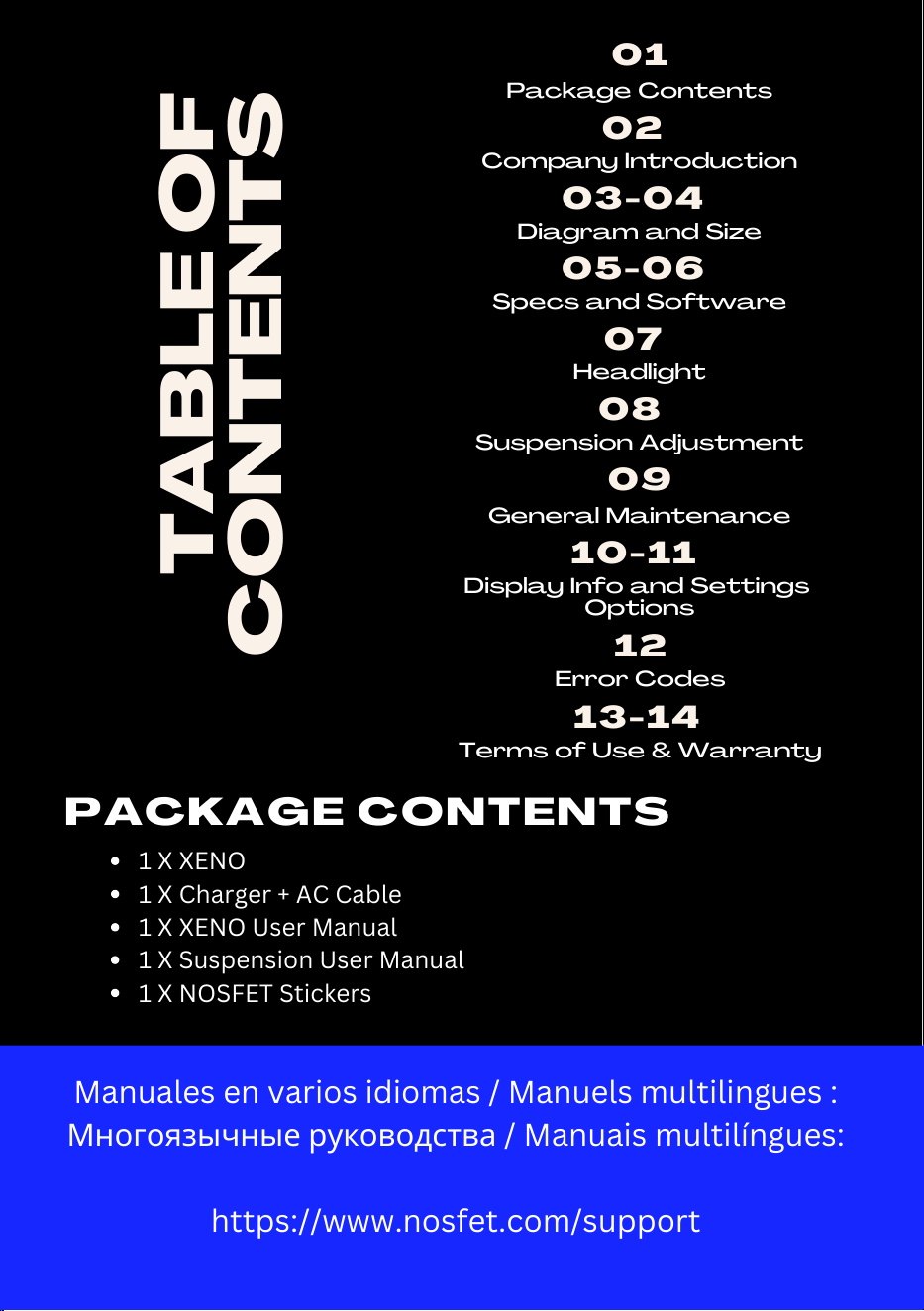

TABLE OF
CONTENTS
02
Company Introduction
03-04
Diagram and Size
08
Suspension Adjustment
05 -06
Specs and Software
01
Package Contents
07
Headlight
09
General Maintenance
10 -11
Display Info and Settings
Options
12
Error Codes
13 -14
Terms of Use & Warranty
PACKAGE CONTENTS
1 X XENO
1 X Charger + AC Cable
1 X XENO User Manual
1 X Suspension User Manual
1 X NOSFET Stickers
Manuales en varios idiomas / Manuels multilingues :
Многоязычные руководства / Manuais multilíngues:
https://www.nosfet.com/support

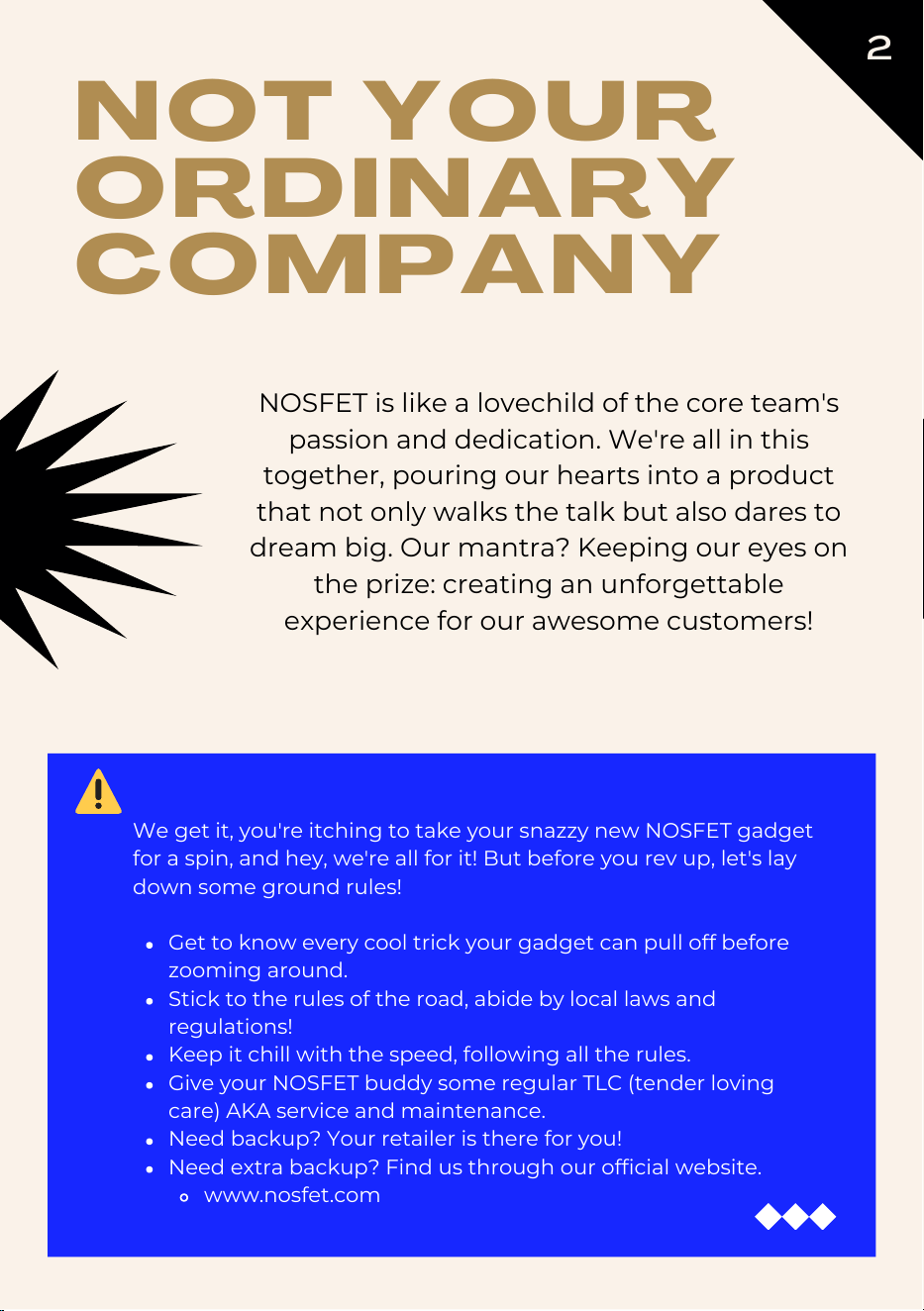

NOSFET is like a lovechild of the core team's
passion and dedication. We're all in this
together, pouring our hearts into a product
that not only walks the talk but also dares to
dream big. Our mantra? Keeping our eyes on
the prize: creating an unforgettable
experience for our awesome customers!
We get it, you're itching to take your snazzy new NOSFET gadget
for a spin, and hey, we're all for it! But before you rev up, let's lay
down some ground rules!
Get to know every cool trick your gadget can pull off before
zooming around.
Stick to the rules of the road, abide by local laws and
regulations!
Keep it chill with the speed, following all the rules.
Give your NOSFET buddy some regular TLC (tender loving
care) AKA service and maintenance.
Need backup? Your retailer is there for you!
Need extra backup? Find us through our official website.
www.nosfet.com
NOT YOUR
ORDINARY
COMPANY
2

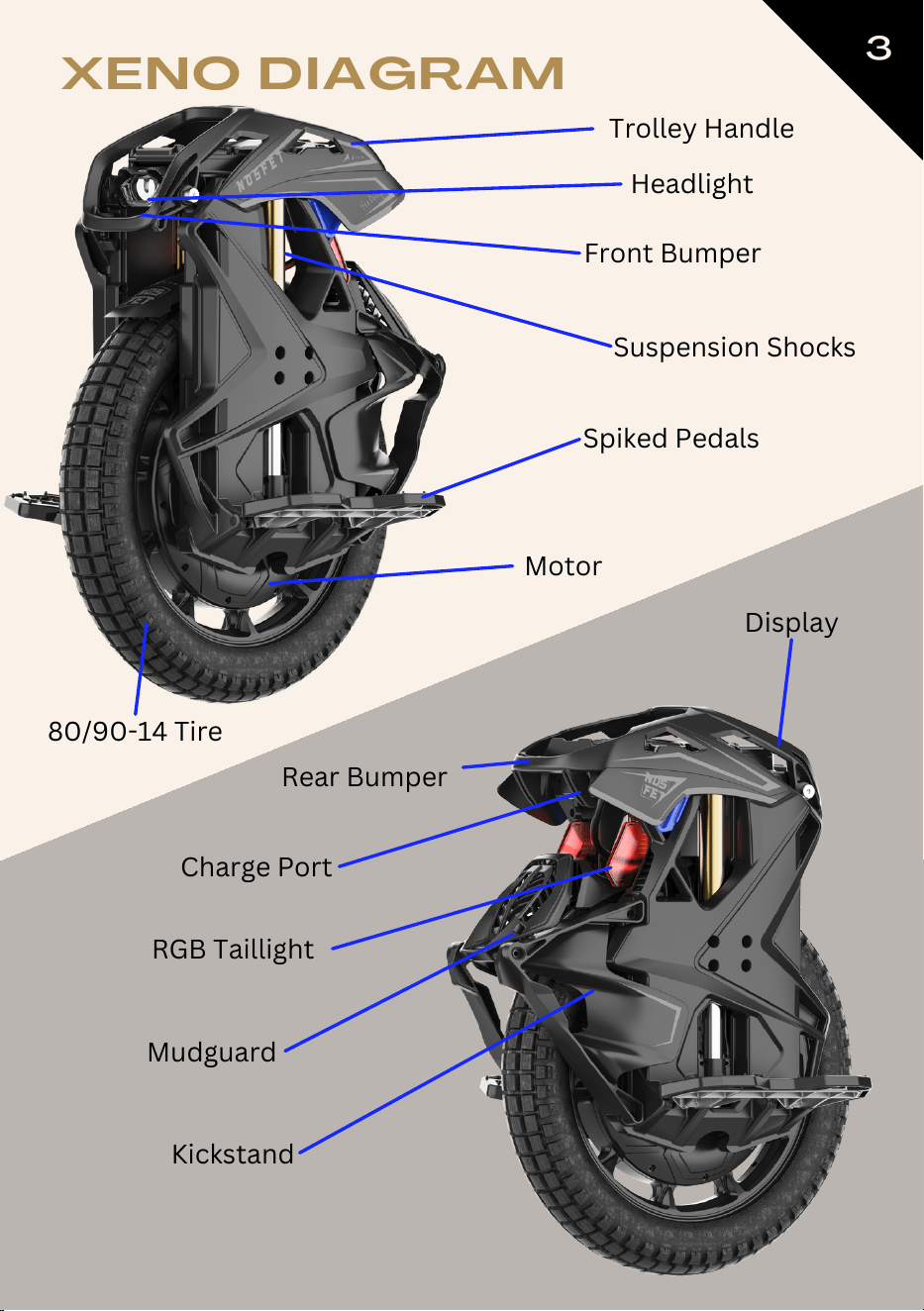

Kickstand
Mudguard
Charge Port
RGB Taillight
Headlight
80/90-14 Tire
Motor
Spiked Pedals
Front Bumper
Trolley Handle
Rear Bumper
Display
Suspension Shocks
3
XENO DIAGRAM

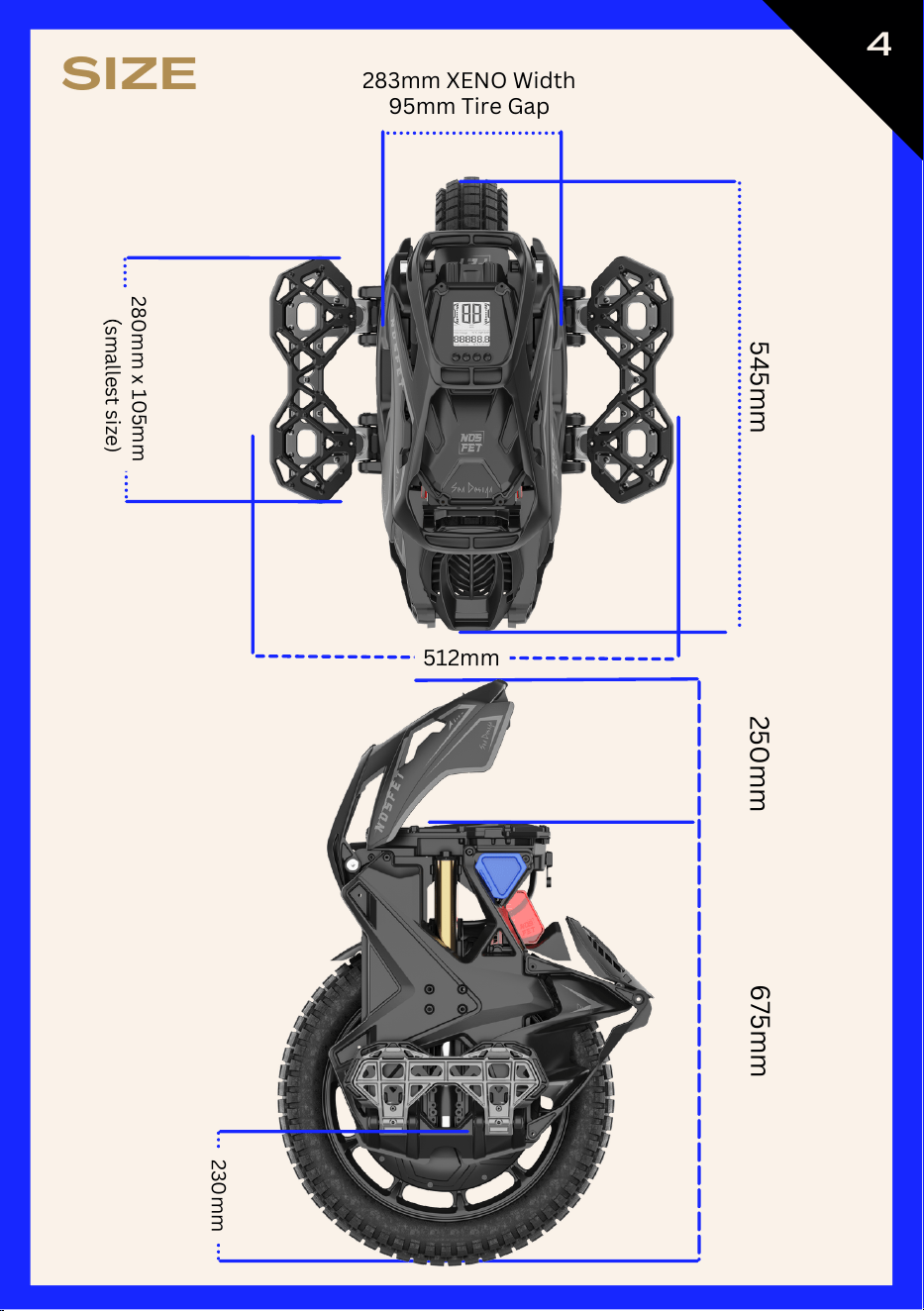

3.5
512mm
280mm x 105mm
（
smallest size)
230mm
4
SIZE
95mm Tire Gap
545mm
283mm XENO Width
675mm
250mm

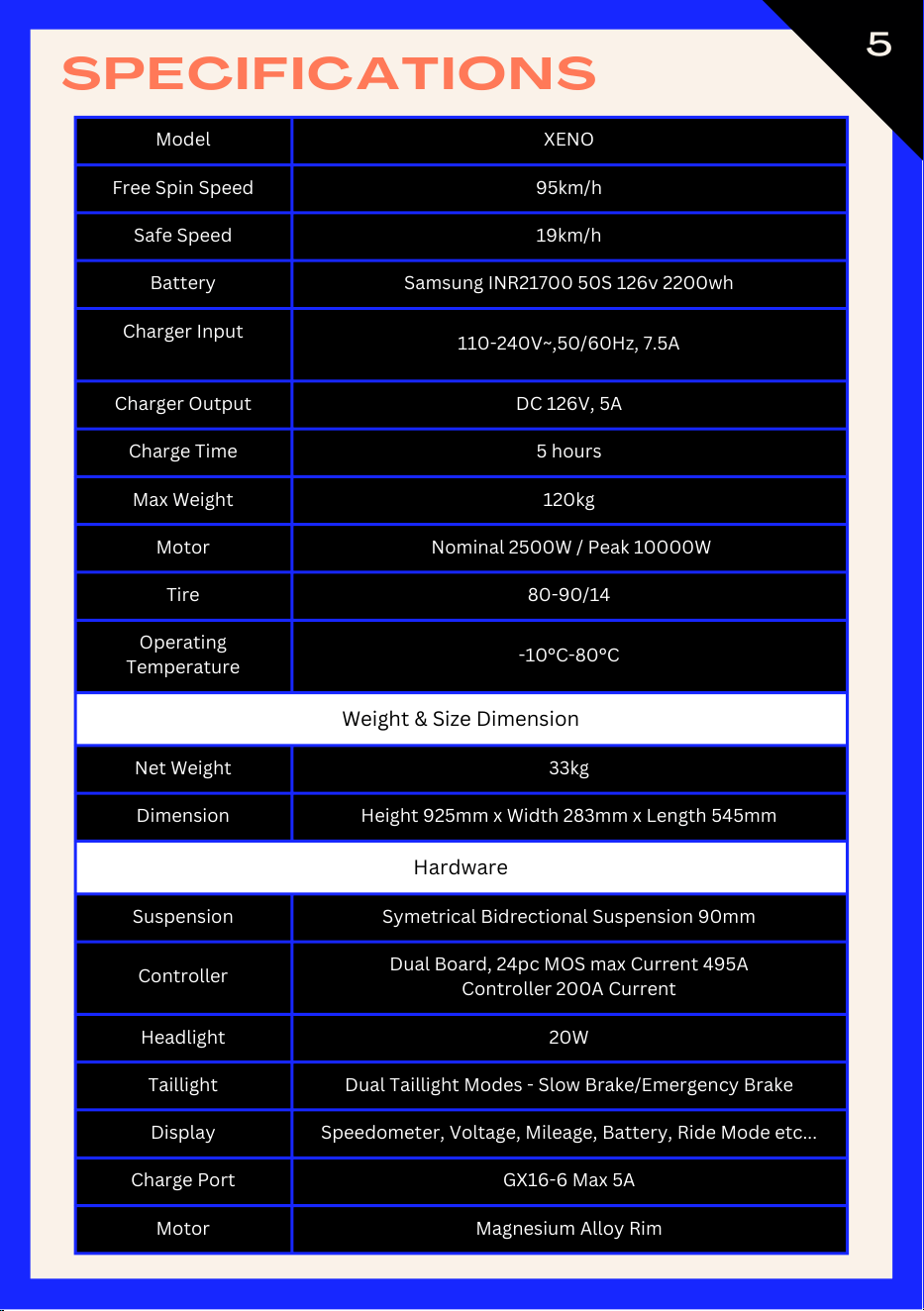

Model
XENO
Free Spin Speed
95km/h
Safe Speed
19km/h
Battery
Samsung INR21700 50S 126v 2200wh
Charger Input
110-240V~,50/60Hz, 7.5A
Charger Output
DC 126V, 5A
Charge Time
5 hours
Max Weight
120kg
Motor
Nominal 2500W / Peak 10000W
Tire
80-90/14
Operating
Temperature
-10°C-80°C
Weight & Size Dimension
Net Weight
33kg
Dimension
Height 925mm x Width 283mm x Length 545mm
Hardware
Suspension
Symetrical Bidrectional Suspension 90mm
Controller
Dual Board, 24pc MOS max Current 495A
Controller 200A Current
Headlight
20W
Taillight
Dual Taillight Modes - Slow Brake/Emergency Brake
Display
Speedometer, Voltage, Mileage, Battery, Ride Mode etc...
Charge Port
GX16-6 Max 5A
Motor
Magnesium Alloy Rim
5
SPECIFICATIONS

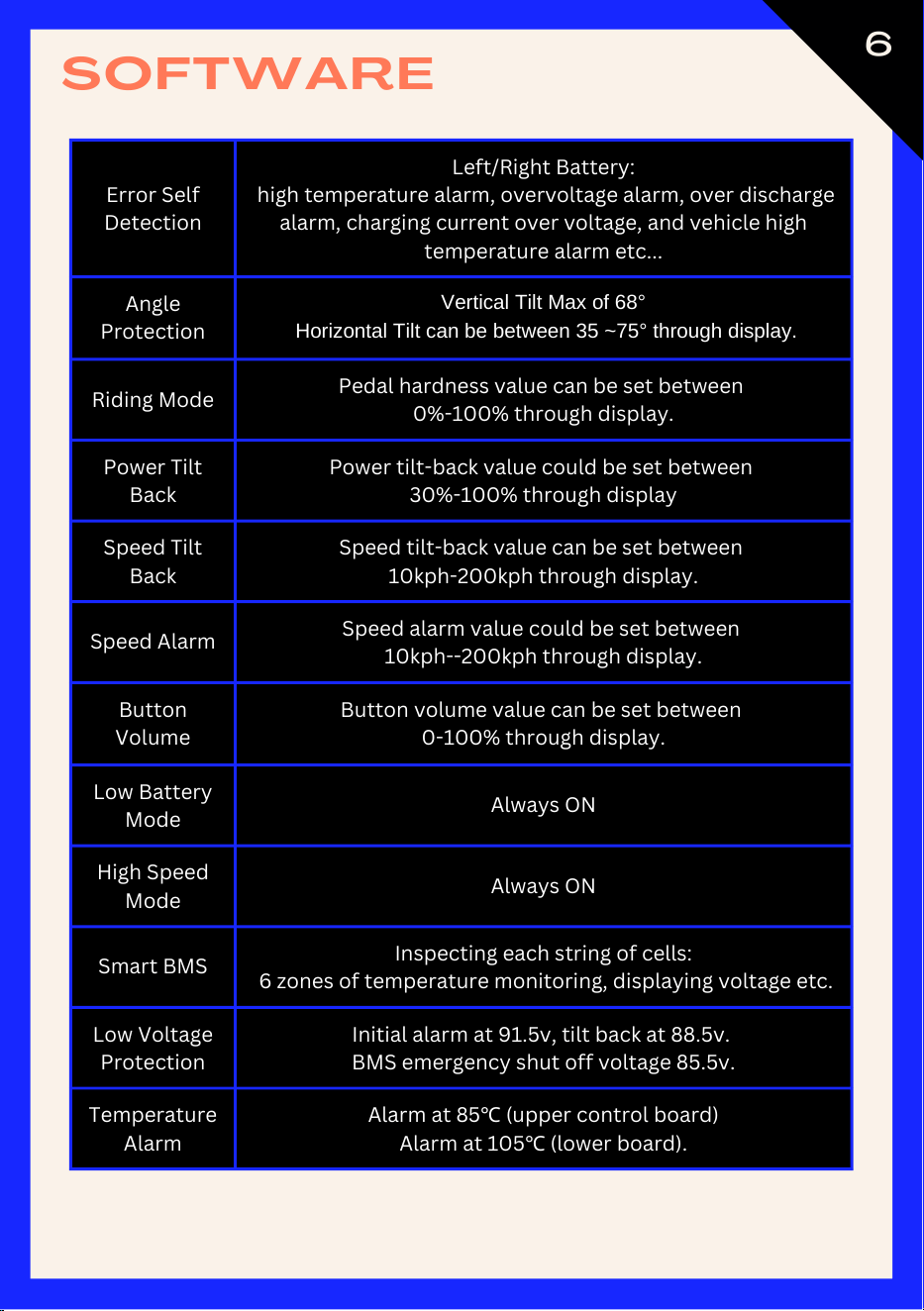

Error Self
Detection
Left/Right Battery:
high temperature alarm, overvoltage alarm, over discharge
alarm, charging current over voltage, and vehicle high
temperature alarm etc...
Angle
Protection
Vertical Tilt Max of 68°
Horizontal Tilt can be between 35 ~75° through display.
Riding Mode
Pedal hardness value can be set between
0%-100% through display.
Power Tilt
Back
Power tilt-back value could be set between
30%-100% through display
Speed Tilt
Back
Speed tilt-back value can be set between
10kph-200kph through display.
Speed Alarm
Speed alarm value could be set between
10kph--200kph through display.
Button
Volume
Button volume value can be set between
0-100% through display.
Low Battery
Mode
Always ON
High Speed
Mode
Always ON
Smart BMS
Inspecting each string of cells:
6 zones of temperature monitoring, displaying voltage etc.
Low Voltage
Protection
Initial alarm at 91.5v, tilt back at 88.5v.
BMS emergency shut off voltage 85.5v.
Temperature
Alarm
Alarm at 85℃ (upper control board)
Alarm at 105℃ (lower board).
6
SOFTWARE

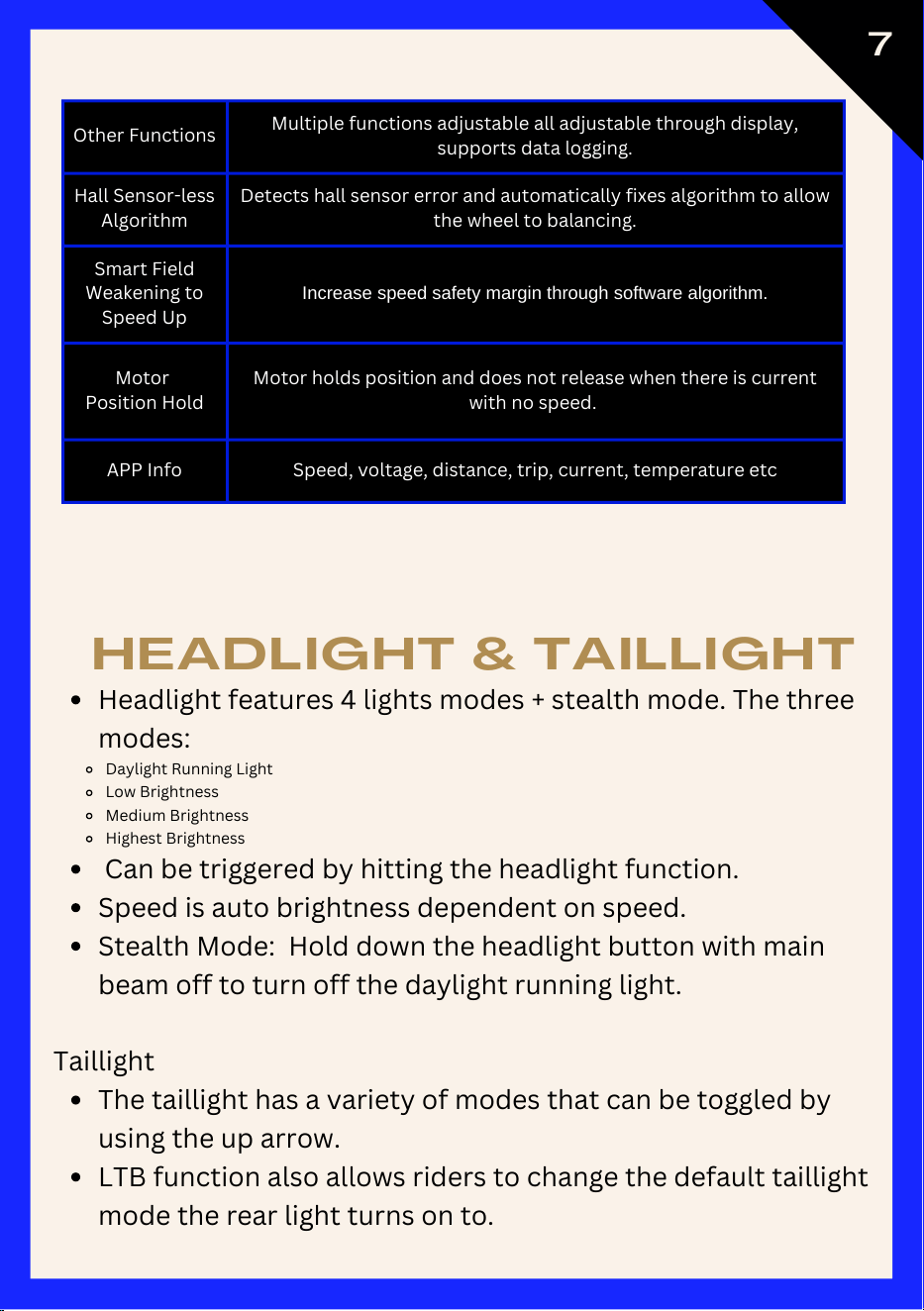

Other Functions
Multiple functions adjustable all adjustable through display,
supports data logging.
Hall Sensor-less
Algorithm
Detects hall sensor error and automatically fixes algorithm to allow
the wheel to balancing.
Smart Field
Weakening to
Speed Up
Increase speed safety margin through software algorithm.
Motor
Position Hold
Motor holds position and does not release when there is current
with no speed.
APP Info
Speed, voltage, distance, trip, current, temperature etc
7
Headlight features 4 lights modes + stealth mode. The three
modes:
Daylight Running Light
Low Brightness
Medium Brightness
Highest Brightness
Can be triggered by hitting the headlight function.
Speed is auto brightness dependent on speed.
Stealth Mode: Hold down the headlight button with main
beam off to turn off the daylight running light.
Taillight
The taillight has a variety of modes that can be toggled by
using the up arrow.
LTB function also allows riders to change the default taillight
mode the rear light turns on to.
HEADLIGHT & TAILLIGHT

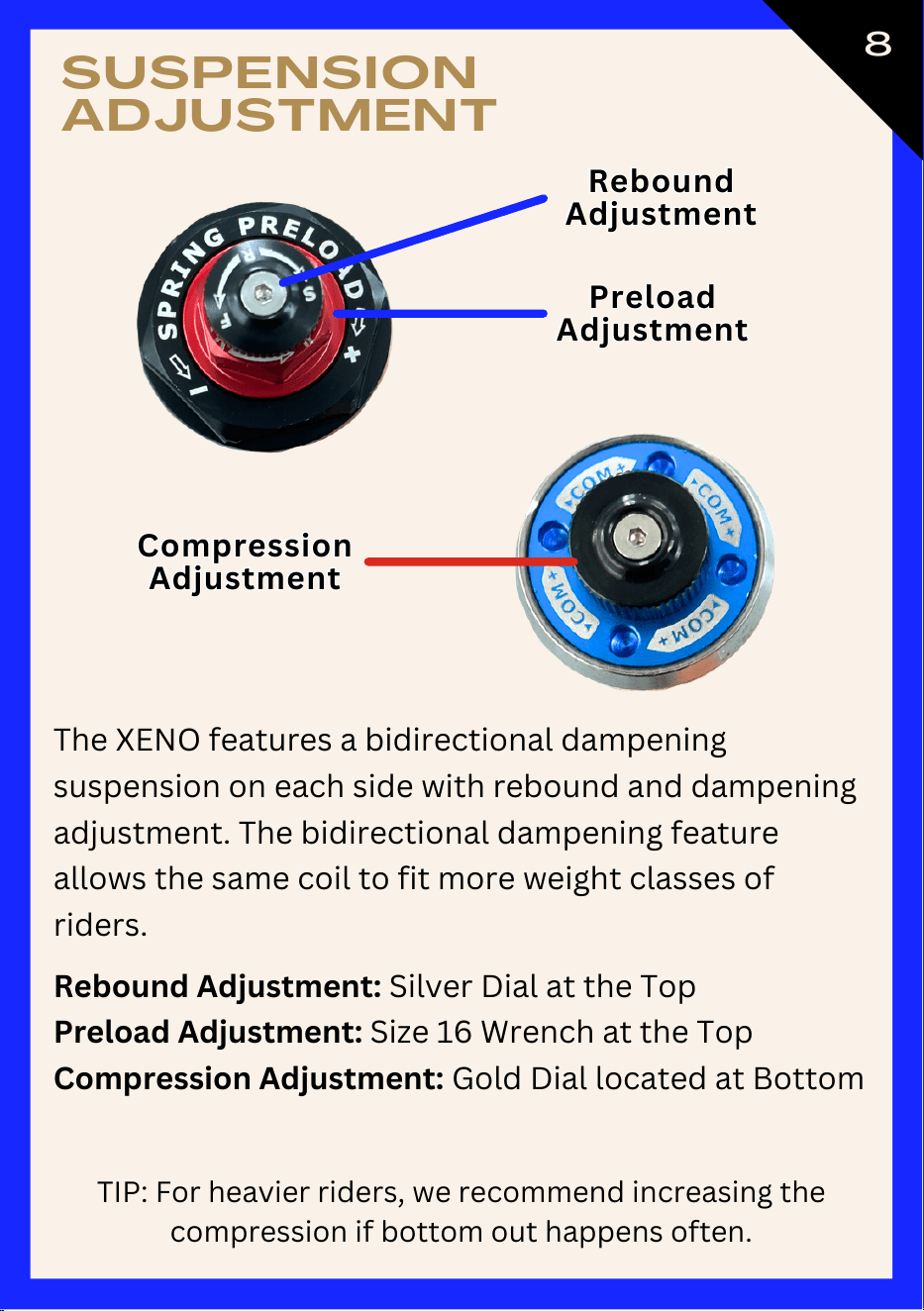

Rebound
Rebound
Adjustment
Adjustment
Rebound
Adjustment
Compression
Compression
Adjustment
Adjustment
Compression
Adjustment
Preload
Preload
Adjustment
Adjustment
Preload
Adjustment
The XENO features a bidirectional dampening
suspension on each side with rebound and dampening
adjustment. The bidirectional dampening feature
allows the same coil to fit more weight classes of
riders.
Rebound Adjustment: Silver Dial at the Top
Preload Adjustment: Size 16 Wrench at the Top
Compression Adjustment: Gold Dial located at Bottom
8
TIP: For heavier riders, we recommend increasing the
compression if bottom out happens often.
SUSPENSION
ADJUSTMENT

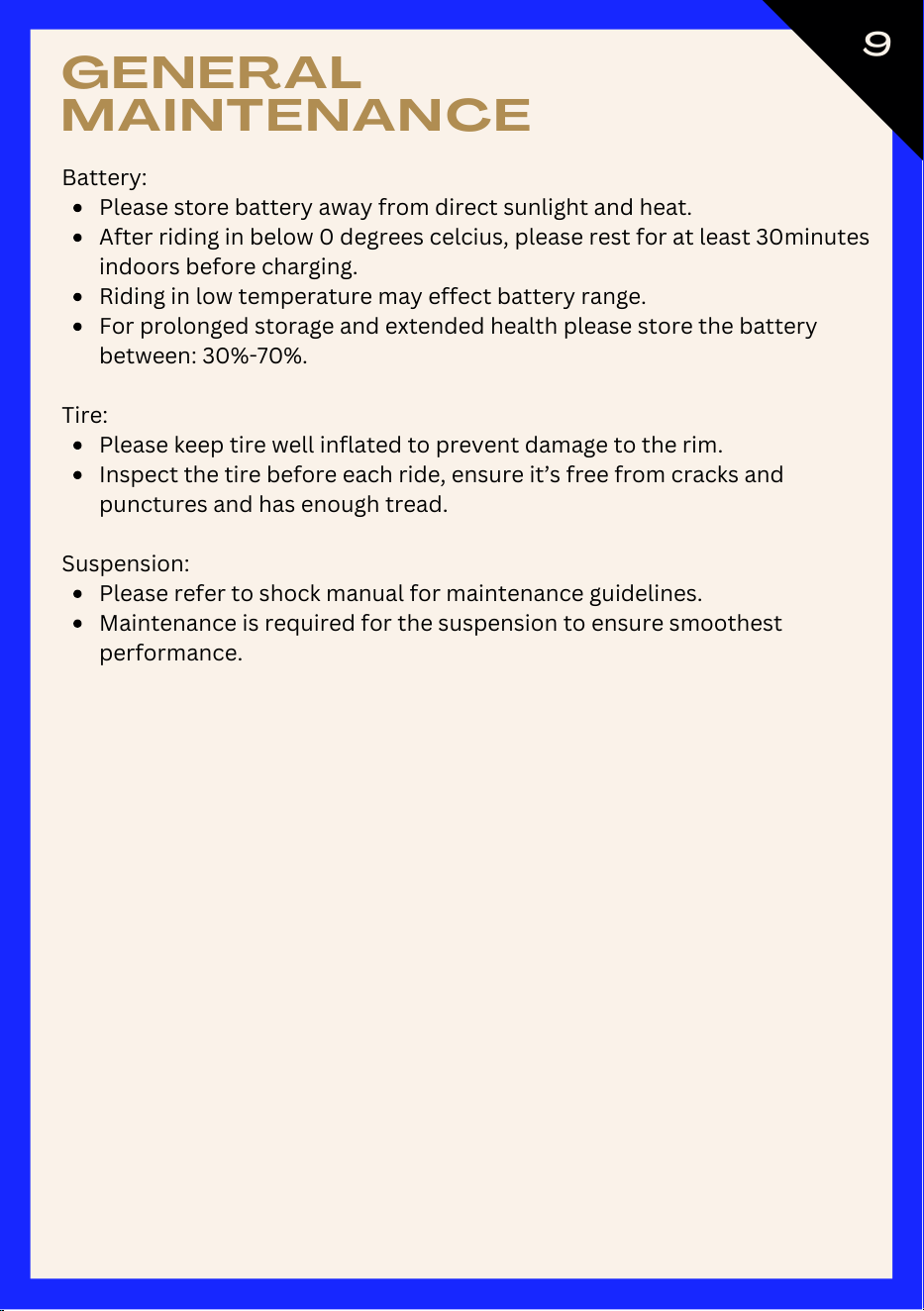

Battery:
Please store battery away from direct sunlight and heat.
After riding in below 0 degrees celcius, please rest for at least 30minutes
indoors before charging.
Riding in low temperature may effect battery range.
For prolonged storage and extended health please store the battery
between: 30%-70%.
Tire:
Please keep tire well inflated to prevent damage to the rim.
Inspect the tire before each ride, ensure it’s free from cracks and
punctures and has enough tread.
Suspension:
Please refer to shock manual for maintenance guidelines.
Maintenance is required for the suspension to ensure smoothest
performance.
9
GENERAL
MAINTENANCE

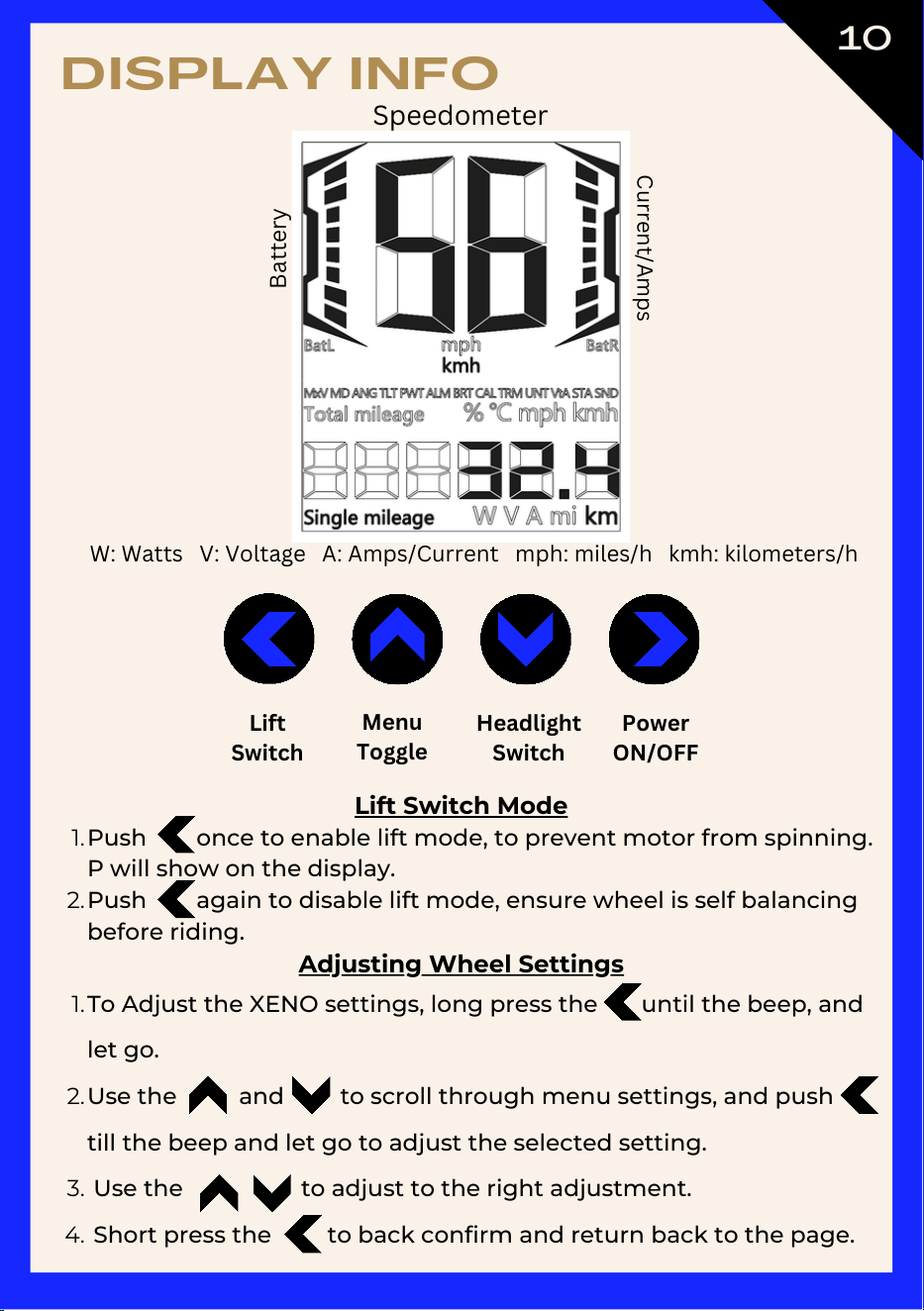

W: Watts V: Voltage A: Amps/Current mph: miles/h kmh: kilometers/h
Lift Switch Mode
1. Push once to enable lift mode, to prevent motor from spinning.
P will show on the display.
2. Push again to disable lift mode, ensure wheel is self balancing
before riding.
Adjusting Wheel Settings
1. To Adjust the XENO settings, long press the until the beep, and
let go.
2. Use the and to scroll through menu settings, and push
till the beep and let go to adjust the selected setting.
3. Use the to adjust to the right adjustment.
4. Short press the to back confirm and return back to the page.
Battery
Current/Amps
Speedometer
10
DISPLAY INFO
Lift
Switch
Menu
Toggle
Headlight
Switch
Power
ON/OFF
11

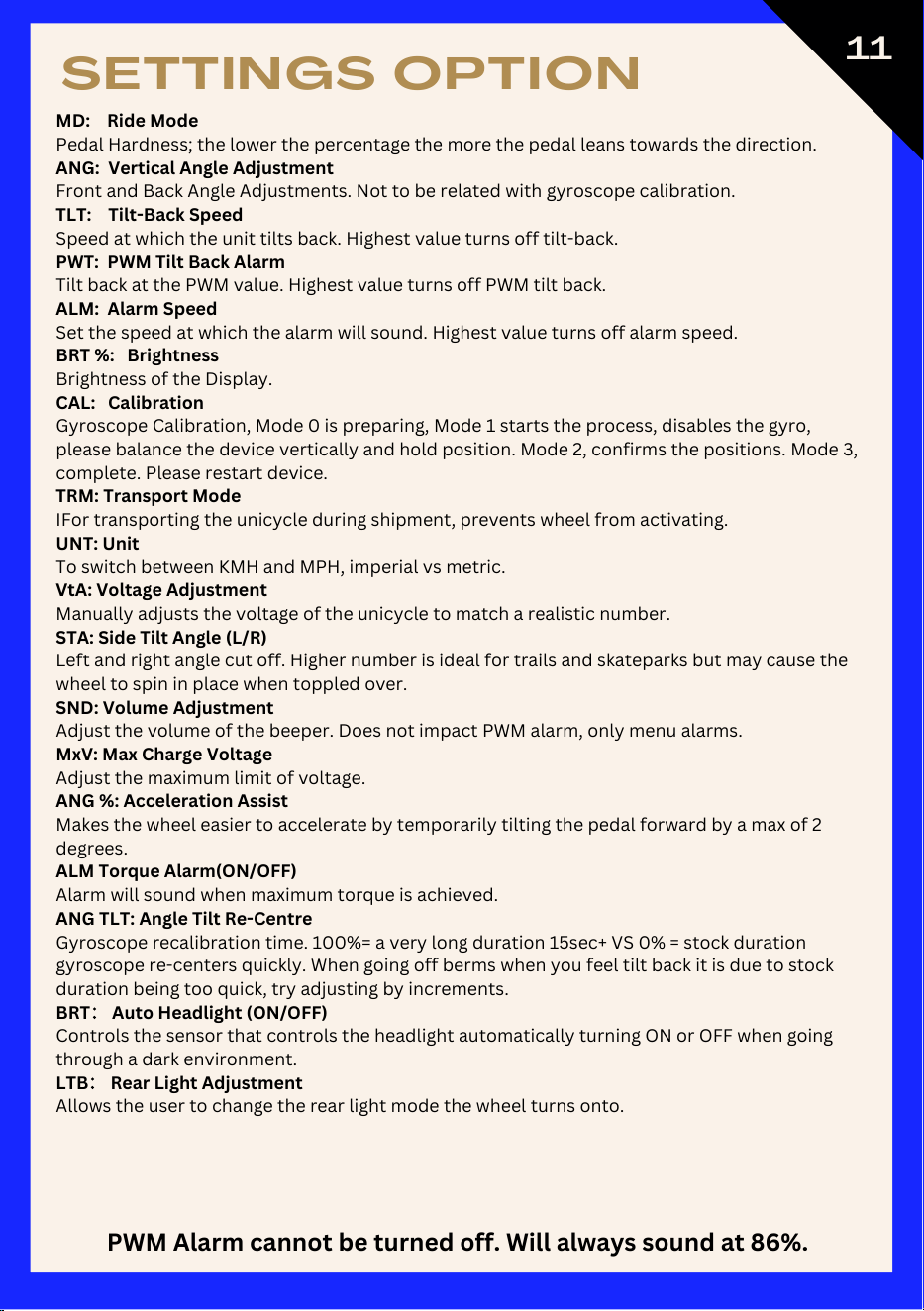

MD: Ride Mode
Pedal Hardness; the lower the percentage the more the pedal leans towards the direction.
ANG: Vertical Angle Adjustment
Front and Back Angle Adjustments. Not to be related with gyroscope calibration.
TLT: Tilt-Back Speed
Speed at which the unit tilts back. Highest value turns off tilt-back.
PWT: PWM Tilt Back Alarm
Tilt back at the PWM value. Highest value turns off PWM tilt back.
ALM: Alarm Speed
Set the speed at which the alarm will sound. Highest value turns off alarm speed.
BRT %: Brightness
Brightness of the Display.
CAL: Calibration
Gyroscope Calibration, Mode 0 is preparing, Mode 1 starts the process, disables the gyro,
please balance the device vertically and hold position. Mode 2, confirms the positions. Mode 3,
complete. Please restart device.
TRM: Transport Mode
IFor transporting the unicycle during shipment, prevents wheel from activating.
UNT: Unit
To switch between KMH and MPH, imperial vs metric.
VtA: Voltage Adjustment
Manually adjusts the voltage of the unicycle to match a realistic number.
STA: Side Tilt Angle (L/R)
Left and right angle cut off. Higher number is ideal for trails and skateparks but may cause the
wheel to spin in place when toppled over.
SND: Volume Adjustment
Adjust the volume of the beeper. Does not impact PWM alarm, only menu alarms.
MxV: Max Charge Voltage
Adjust the maximum limit of voltage.
ANG %: Acceleration Assist
Makes the wheel easier to accelerate by temporarily tilting the pedal forward by a max of 2
degrees.
ALM Torque Alarm(ON/OFF)
Alarm will sound when maximum torque is achieved.
ANG TLT: Angle Tilt Re-Centre
Gyroscope recalibration time. 100%= a very long duration 15sec+ VS 0% = stock duration
gyroscope re-centers quickly. When going off berms when you feel tilt back it is due to stock
duration being too quick, try adjusting by increments.
BRT
：
Auto Headlight (ON/OFF)
Controls the sensor that controls the headlight automatically turning ON or OFF when going
through a dark environment.
LTB
：
Rear Light Adjustment
Allows the user to change the rear light mode the wheel turns onto.
SETTINGS OPTION
PWM Alarm cannot be turned off. Will always sound at 86%.

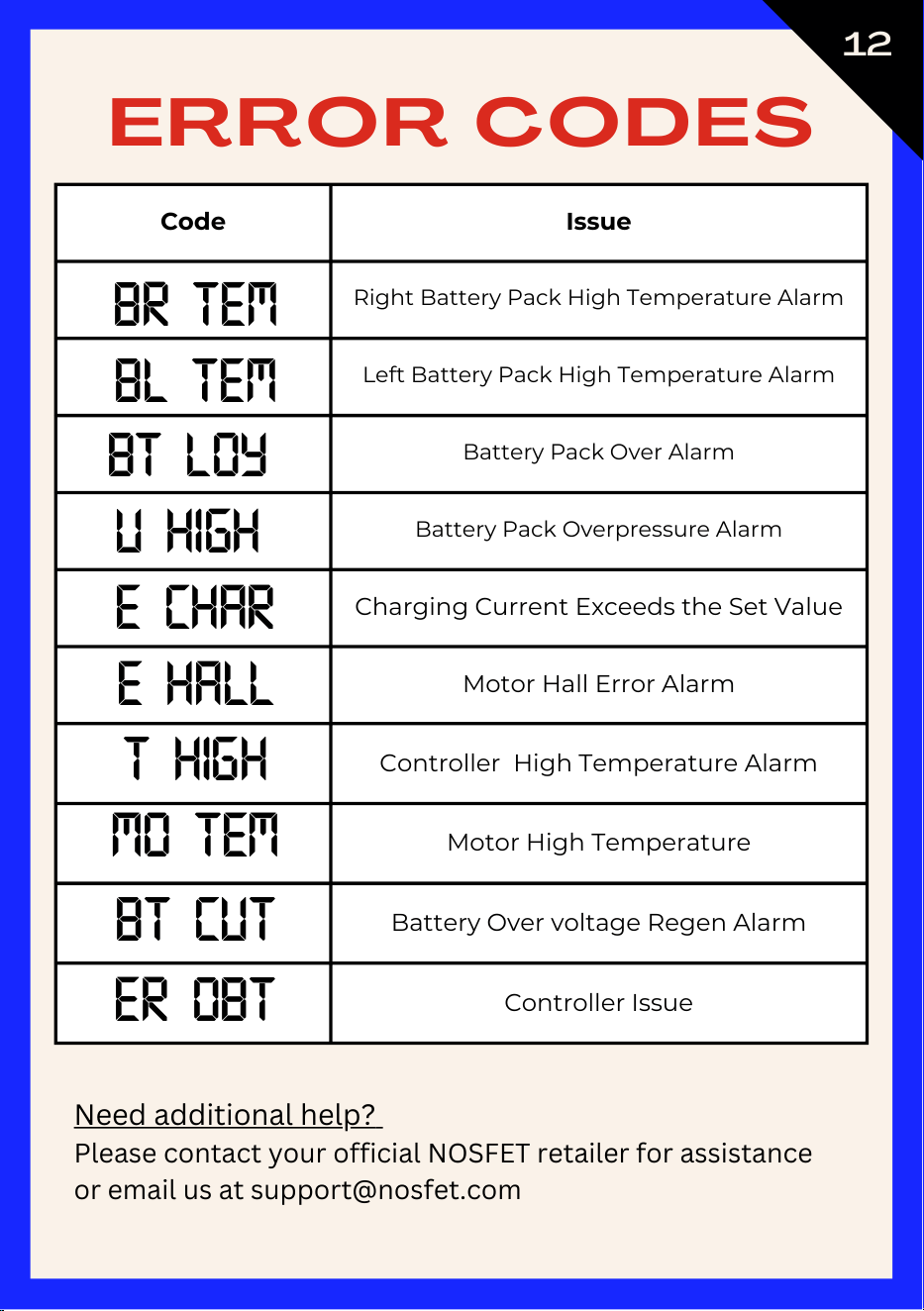

ERROR CODES
Code
Issue
Right Battery Pack High Temperature Alarm
Left Battery Pack High Temperature Alarm
Battery Pack Over Alarm
Battery Pack Overpressure Alarm
Charging Current Exceeds the Set Value
Motor Hall Error Alarm
Controller High Temperature Alarm
Motor High Temperature
Battery Over voltage Regen Alarm
Controller Issue
12
Need additional help?
Please contact your official NOSFET retailer for assistance
t high
E HALL
E CHAR
u HIGH
bt loy
bl tem
bR tem
MO TEM
bt cut
ER obt
13

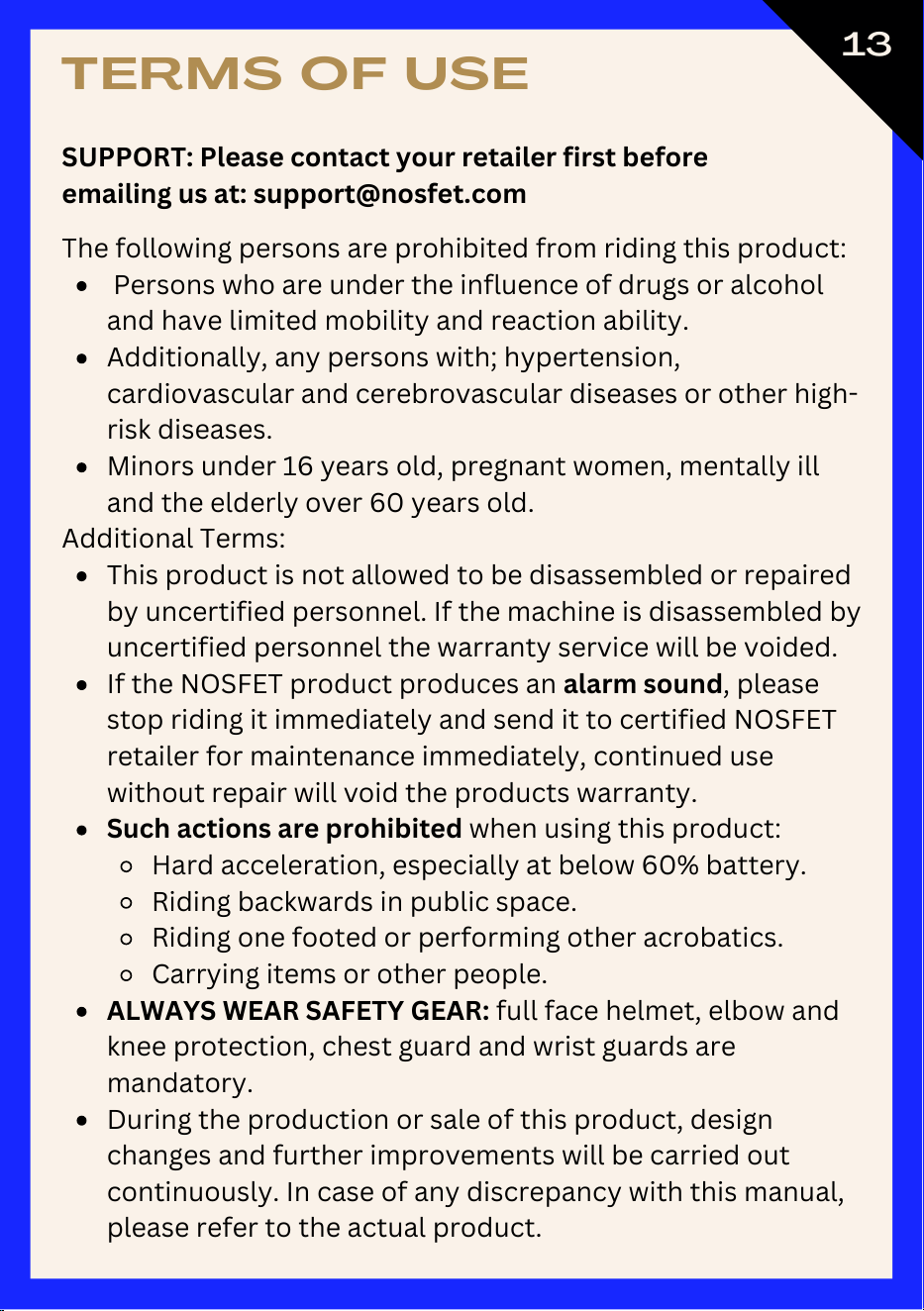

The following persons are prohibited from riding this product:
Persons who are under the influence of drugs or alcohol
and have limited mobility and reaction ability.
Additionally, any persons with; hypertension,
cardiovascular and cerebrovascular diseases or other high-
risk diseases.
Minors under 16 years old, pregnant women, mentally ill
and the elderly over 60 years old.
Additional Terms:
This product is not allowed to be disassembled or repaired
by uncertified personnel. If the machine is disassembled by
uncertified personnel the warranty service will be voided.
If the NOSFET product produces an alarm sound, please
stop riding it immediately and send it to certified NOSFET
retailer for maintenance immediately, continued use
without repair will void the products warranty.
Such actions are prohibited when using this product:
Hard acceleration, especially at below 60% battery.
Riding backwards in public space.
Riding one footed or performing other acrobatics.
Carrying items or other people.
ALWAYS WEAR SAFETY GEAR: full face helmet, elbow and
knee protection, chest guard and wrist guards are
mandatory.
During the production or sale of this product, design
changes and further improvements will be carried out
continuously. In case of any discrepancy with this manual,
please refer to the actual product.
SUPPORT: Please contact your retailer first before
TERMS OF USE
14

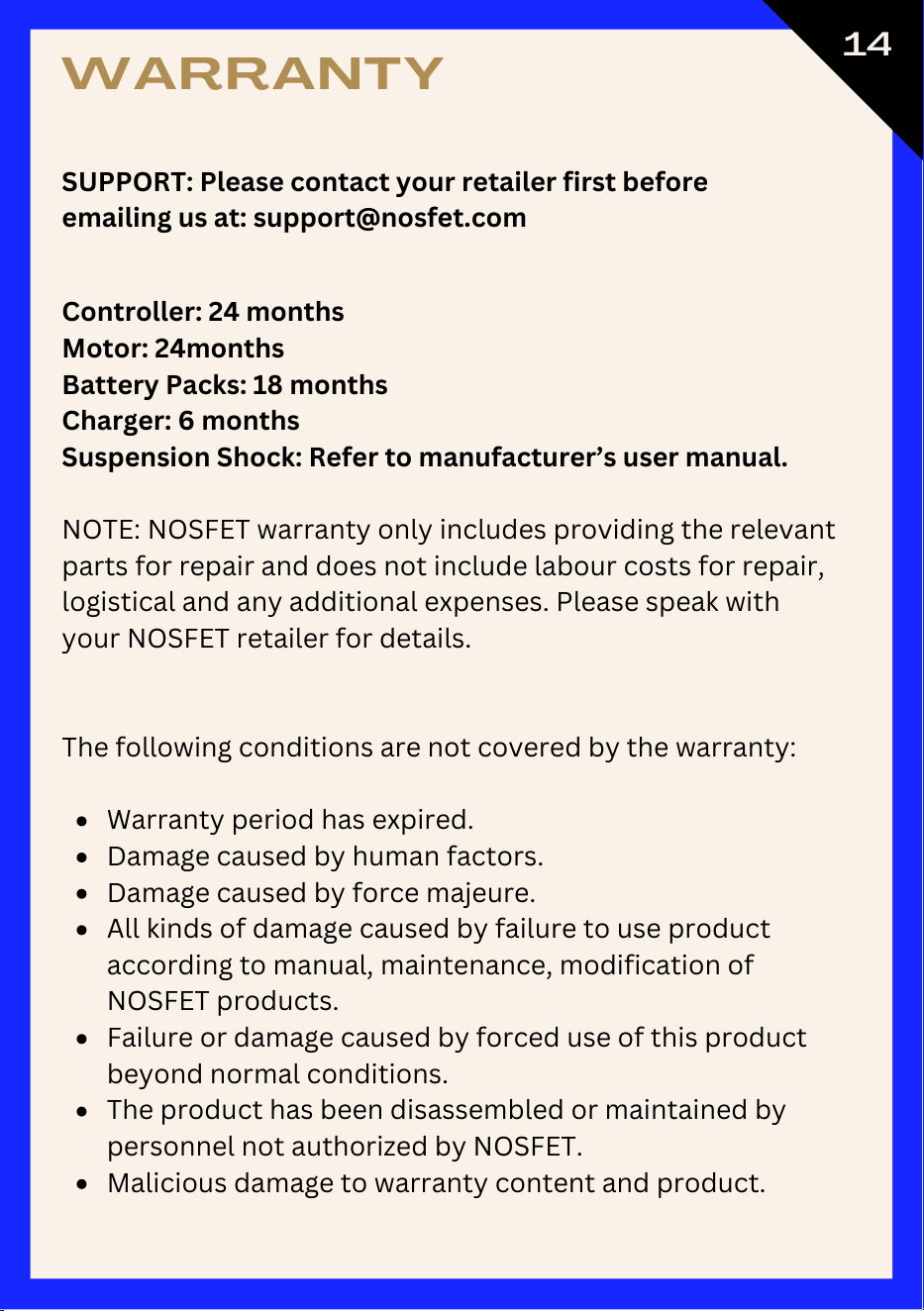

WARRANTY
Controller: 24 months
Motor: 24months
Battery Packs: 18 months
Charger: 6 months
Suspension Shock: Refer to manufacturer’s user manual.
NOTE: NOSFET warranty only includes providing the relevant
parts for repair and does not include labour costs for repair,
logistical and any additional expenses. Please speak with
your NOSFET retailer for details.
The following conditions are not covered by the warranty:
Warranty period has expired.
Damage caused by human factors.
Damage caused by force majeure.
All kinds of damage caused by failure to use product
according to manual, maintenance, modification of
NOSFET products.
Failure or damage caused by forced use of this product
beyond normal conditions.
The product has been disassembled or maintained by
personnel not authorized by NOSFET.
Malicious damage to warranty content and product.
SUPPORT: Please contact your retailer first before
THANK YOU
WWW.NOSFET.COM
FOLLOW US ON SOCIALS.
TAG US IN YOUR CONTENT!
RIDE SAFE.
FCC Warnning:
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio
frequency
energy
and,
if
not
installed
and
used
in
accordance
with
the
instructions,
may cause
harmful
interference
to
radio
communications.
However,
there
is
no
guarantee
that interference
will
not
occur
in
a
particular
installation.
If
this
equipment
does
cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off
and
on,
the
user
is
encouraged
to
try
to
correct
the interference
by
one
or
more
of
the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution:
Any
changes
or
modifications
to
this
device
not
explicitly
approved
by
manufacturer
could void your authority to operate this equipment.
This
device
complies
with
part
15
of
the
FCC
Rules.
Operation
is
subject
to
the
following
two
conditions:
(1)This
device
may
not
cause
harmful
interference,
and
(2)
this
device
must
accept
any
interference received, including interference that may cause undesired operation.
This
equipment
complies
with
FCC
radiation
exposure
limits
set
forth
for
an
uncontrolled
environment.
This
equipment
should
be
installed
and
operated
with
minimum
distance
0cm
between the radiator and your body.
