FLOOR JACK
MODEL: VL-80020
VEVOR Support Center
MODEL:VL-80020
- 1 -
MODEL:VL-80020
This is the original instruction, please read all manual instructions carefully
before operating. VEVOR reserves a clear interpretation of our user
manual. The appearance of the product shall be subject to the product you
received. Please forgive us that we won't inform you again if there are any
technology or software updates on our product.
Warning-To reduce the risk of injury, user must read
instructions manual carefully.
FLOOR JACK
- 2 -
DESCRIPTION OF THE SYMBOLS
WARNING: The jack must be used only on hard level surfaces and be free
to roll during lifting and lowering. Do not get under a vehicle that is supported only
by a trolley jack-use support stands.
CAUTION: Carefully read instructions and procedures for safe operations.
INSPECTIONS
1. Before Each Use
Visual inspection should be made before each use of the garage jack for
abnormal conditions such as cracked welds, leaks and damaged, loose, or
missing parts.
2. After Each Use
The garage jack should be inspected immediately if the lift is believed to have
been subjected to an abnormal load or shock. It is recommended that inspection
be made by manufacturer's or supplier's authorised repair facility.
RECOMMENDATION FOR SAFE USAGE OF THE JACK
1. The jack should be used on a hard level surface and be free to roll during
lifting and lowering.
2. The unlifted wheels of the vehicle should be chocked.
3. The load should be centrally located on the head cap.
4. No person should remain in a vehicle that is being lifted.
5. The jack should be used for lifting and lowering only. The raised vehicle should
be supported on vehicle support stands.
6. No person should get their body under a vehicle that is supported only by a
hydraulic trolley jack.
7. The vehicle manufacturer owner's manual should be consulted prior to lifting
the vehicle.
8. Make sure that the lift point is stable and properly centered on the head cap.
9. Do not move or dolly the vehicle while on the jack.
- 3 -
CAUTION BEFORE USING
Due to shipment and/or handling air can be trapped in the hydraulic system, which
can interfere with the jacks' lifting. To release air from the hydraulic system:
1. Open release valve by turning the jack handle counterclockwise.
2. Remove the oil filler plug from the cylinder.
3. Rapidly pump jack handle through several full strokes.
4. Replace the oil filler plug in the cylinder.
WARNING
1. The unlifted wheels of the vehicle should be chocked.
2. The load should be centrally located on the head cap.
3. No person should remain in a vehicle that is being lifted.
4. The vehicle manufacturer owner's manual should be consulted prior to lifting
the vehicle.
5. The hydraulic trolley jack should be used for lifting and lowering only. And it
can not be used as a support tool.
SET UP - BEFORE USE
WARNING: Read the ENTIRE IMPORTANT SAFETY INFORMATION
section at the beginning of this manual including all text under
subheadings therein before setting up or using this product.

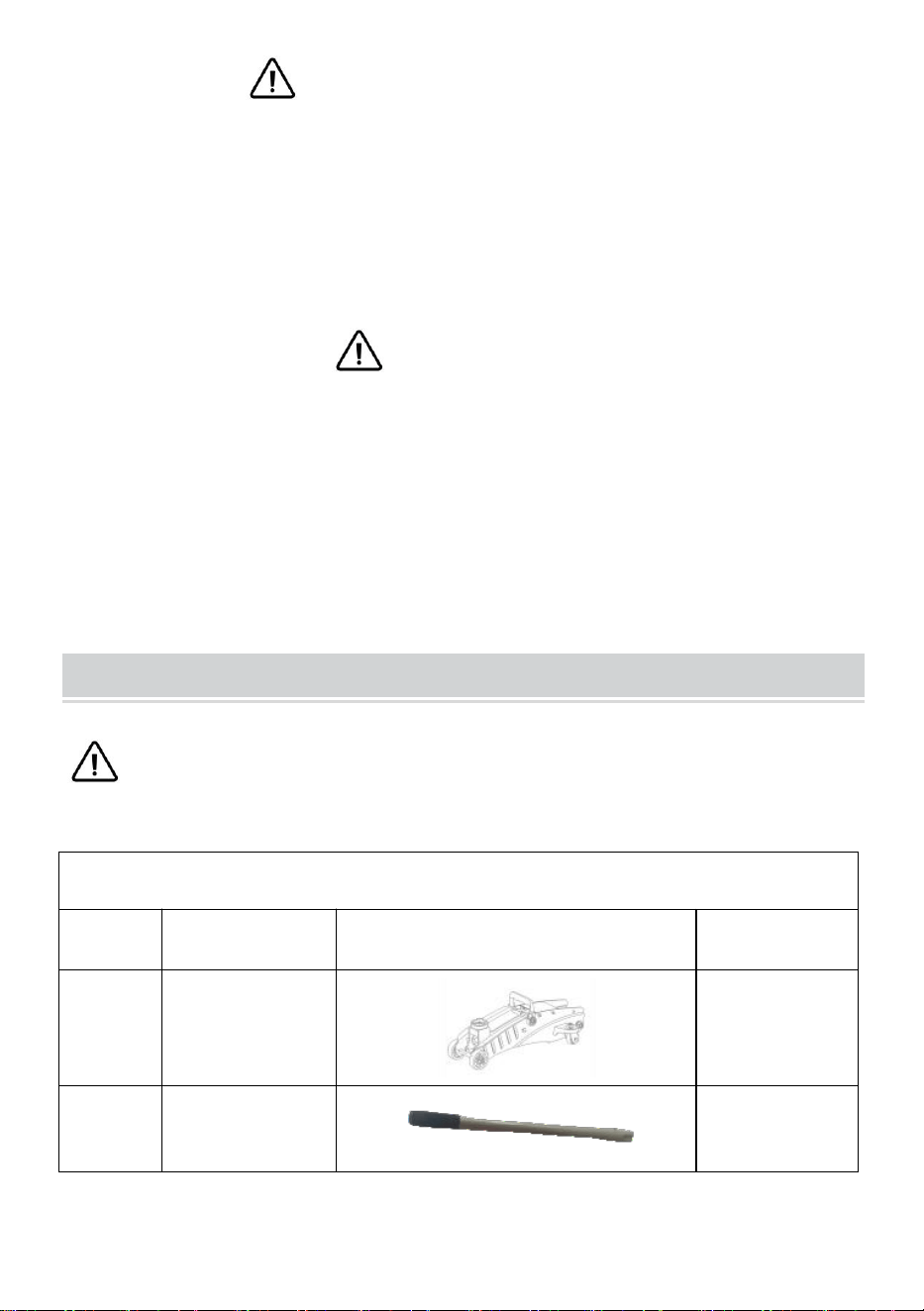

Part List
No.
Name
QTY.
1
Jack
1
2
Handle
1
- 4 -
3
Jack Stand
2
4
Rack
2
5
Hand Shank
1

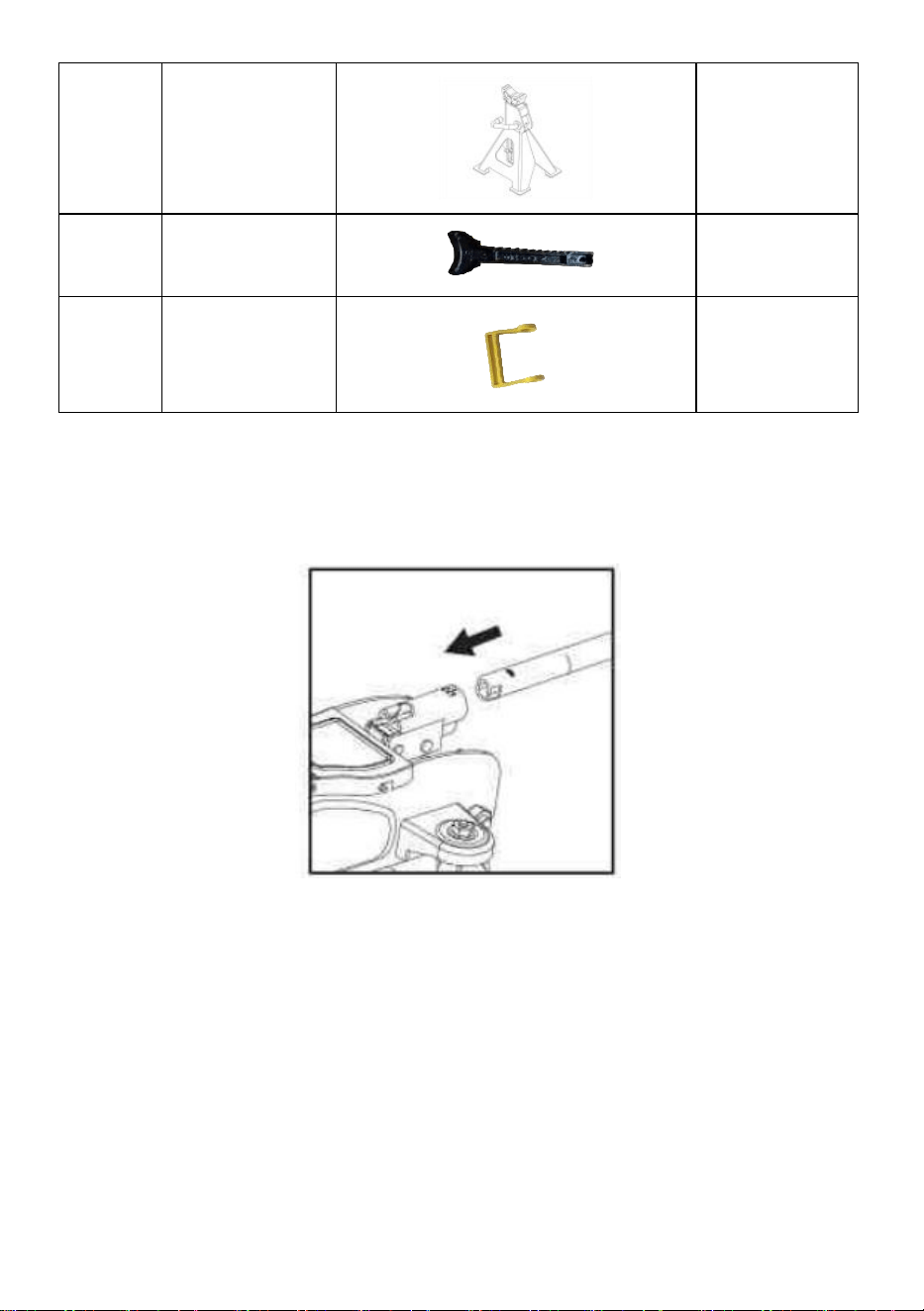

ATTACHING THE HANDLE
1. Insert the Assembled Handle into the Handle Socket. The pin on the lower end
of the Handle fits into the Handle Socket Slot.

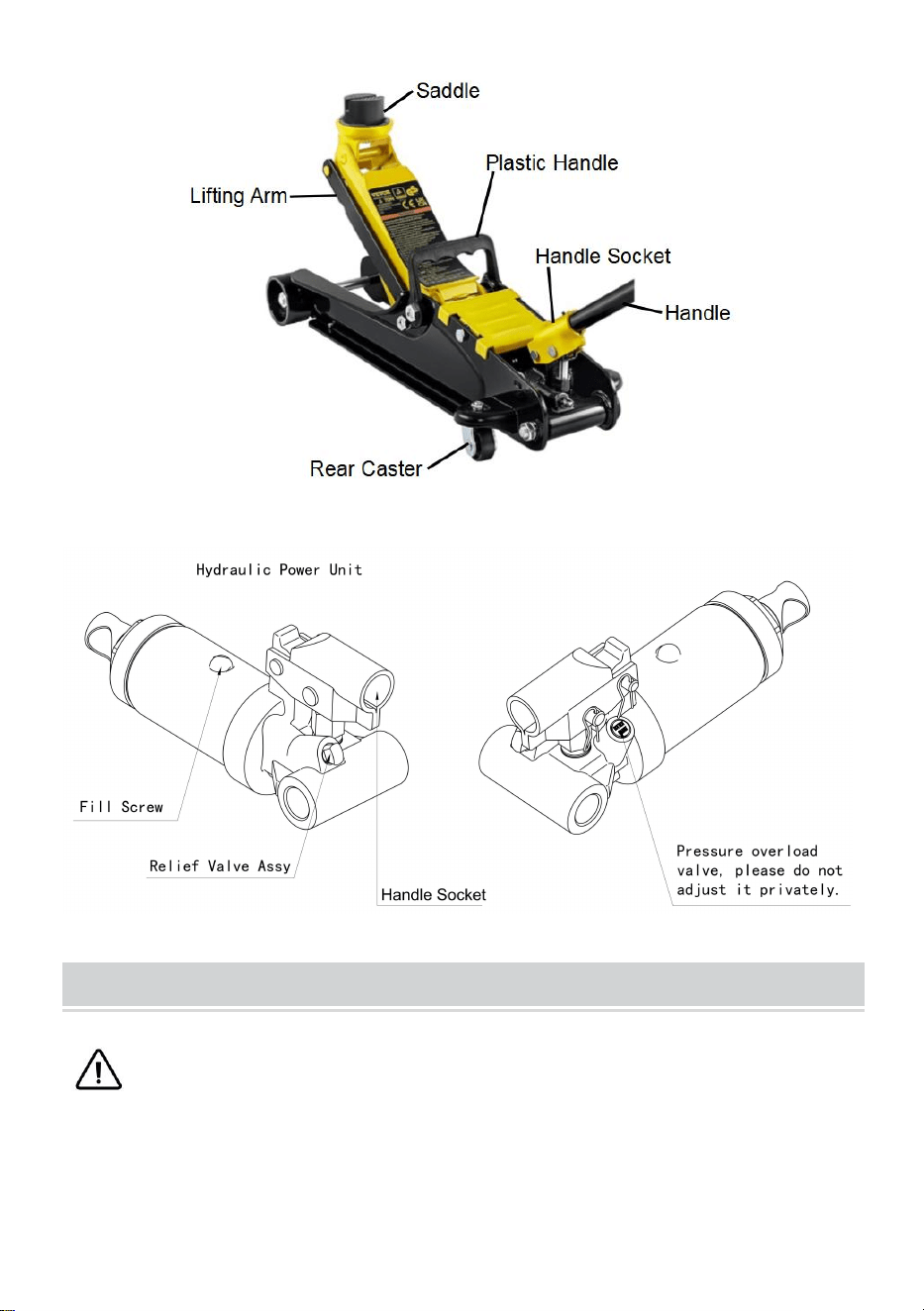

FUNCTIONS
- 5 -
OPERATING INSTRUCTIONS
WARNING: Read the ENTIRE IMPORTANT SAFETY INFORMATION
section at the beginning of this manual including all text under subheadings
therein before setting up or using this product.
- 6 -
AIR REMOVAL
BEFORE EACH USE OR IF JACK'S PERFORMANCE DECREASES
Check for excessive air and proper hydraulic fluid level in Jack. If Jack appears
not to be working properly, it may be necessary to purge its hydraulic system of
excessive air as follows:
1. Loosen the Fill Screw.
2. Check fluid level and, if necessary, top off by adding Hydraulic Fluid.
3. Twist the Handle clockwise to the tightest position to close the Valve, then
pump the Handle several times quickly.
4. IMPORTANT: After the air is removed, test the Jack for proper operation prior
to its actual use.
6. If the air is removed and the Jack does not appear to be working properly, do
not use it until it is repaired by a qualified service technician.
ADDING HYDRAULIC FLUID
1. Remove the Fill Screw. Do not remove or loosen Safety Valve Cover Screws.
2. Add high grade hydraulic fluid (sold separately) slowly until the fluid reaches
1/4" below the top of the Fill Port.
Note: Do not touch the handle when adding hydraulic fluid.
3. Tighten the Fill Screw.
LIFTING
WARNING: Park vehicle on a flat, level, solid, surface safely away from
oncoming traffic. Turn off the vehicle's engine. Place the vehicle's transmission in
"PARK" (if automatic) or in its lowest gear (if manual). Set the vehicle's emergency
brake. Then chock the wheels that are not being lifted.
1. Slowly twist the Handle counterclockwise to lower the Jack. Once the Jack is
fully lowered, twist the Handle clockwise to the tightest position to close the Valve.
2. Carefully position the Jack's Saddle under the vehicle manufacturer's
recommended lifting point.
(See the vehicle manufacturer's owner's manual for the location of the frame
lifting point.)
- 7 -
3. Pump the Handle until the top of the Saddle has nearly reached the vehicle's
lifting point. Position the Saddle directly under the vehicle's lifting point.
4. To lift the vehicle, pump the Handle. Use smooth, full strokes.
5. Select matching jack stands (sold separately) of appropriate capacity. Set the
jack stands to the same height according to the manufacturer's instructions,
making sure they lock securely into position.
6. Position the jack stands' saddles under the vehicle manufacturer's
recommended support points.
WARNING! Ensure that the vehicle support points are fully seated in the saddles
of both jack stands. Use a matched pair of jack stands per vehicle to support one
end only.
7. Slowly twist the Handle counterclockwise to lower the vehicle onto the jack
stands' saddles.
8. Once the vehicle is fully seated on the jack stands, continue slowly lowering
the Jack until it is completely lowered.
9. Remove the Jack and store it safely out of the way.
LOWERING
1. Carefully remove all tools, parts, etc., from under the vehicle.
2. Position the Jack's Saddle under the lifting point. Turn the Handle firmly
clockwise and raise the vehicle high enough to clear the jack stands.
3. Carefully remove the jack stands.
4. Slowly turn the Handle counterclockwise to lower the vehicle onto the ground.
5. Lower the Jack completely. Store the Jack indoors out of children's reach.
MAINTENANCE AND SERVICING
WARNING: Procedures not specifically explained in this manual must be
performed only by a qualified technician.
WARNING: TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do
not use damaged equipment. If abnormal noise or vibration occurs, have the
problem corrected before further use.
- 8 -
CLEANING, MAINTENANCE AND LUBRICATION
1. BEFORE EACH USE, inspect the general condition of the Jack. Check for:
Loose hardware
Misalignment or binding of moving parts
Cracked or broken parts
Any condition that may affect its safe operation
2. BEFORE EACH USE, thoroughly test the Jack for proper operation prior to its
actual use.If the Jack appears not to be working properly, follow AIR REMOVAL
instructions.
3. AT LEAST ONCE EVERY THREE YEARS, change the hydraulic fluid:
With the Jack fully lowered, remove the Fill Screw.
Tip the Jack over to allow the old hydraulic fluid to drain out completely.
Dispose of the old hydraulic fluid in accordance with local regulations.
With the Jack upright, completely fill the Hydraulic Unit with high grade
hydraulic fluid until the fluid is 1/4" below the top of the Fill Port.
Turn the Handle counterclockwise to open the Release Valve.
Pump the Handle up and down quickly several times to purge air from the
system.
Recheck fluid level and refill as needed.
Replace the Fill Screw.
4. AFTER EACH USE, wipe with a clean cloth. Store the Jack indoors out of
children's reach.
TROUBLE SHOOTING
WARNING
TO PREVENT SERIOUS INJURY:
Use caution when troubleshooting a malfunctioning jack. Stay well clear of the
supported load. Completely resolve all problems before use. If the solutions
presented in the Troubleshooting guide do not solve the problem, have a qualified
technician inspect and repair the jack before use.
- 9 -
After the jack is repaired:
Test it carefully without a load by raising and lowering it fully, checking for proper
operation, BEFORE RETURNING THE JACK TO OPERATION.
DO NOT USE A DAMAGED OR MALFUNCTIONING JACK
POSSIBLE SYMPTOMS
PROBABLE SOLUTION
(Make certain that the Jack
is not supporting a load
while attempting a
solution.)
Jack will
not lift at
its
weight
capacity
Saddle
lowers
under
load
Pump
stroke
feels
spongy
Saddle
will not
lift all the
way
Handle
moves
up
when
jack is
under
load
Fluid
leakin
g from
the fill
plug
X
X
Check that the Release
Valve is fully closed.
The jack needs to expel air.
X
X
X
Valves may be blocked and
may not close fully. To flush
the valves:
1. Lower the saddle and
securely close the release
valve.
2. Manually lift the saddle
several inches.
3. Open the release valve
by turning the Handle
counterclockwise. And
force the saddle down as
quickly as possible.
- 10 -
X
X
X
Jack may be low on
hydraulic fluid. Check fluid
level and refill if needed.
The jack needs to expel air.
X
The unit may have too
much hydraulic fluid inside.
Check fluid level and adjust
if needed.
PLEASE READ THE FOLLOWING CAREFULLY
The manufacturer and/or distributor has provided the parts list and assembly
diagram in this manual as a reference tool only. Neither the manufacturer nor
distributor makes any representation or warranty of any kind to the buyer that he
or she is qualified to make any repairs to the product or that he or she is qualified
to replace any parts of the product. In fact, the manufacturer and/or distributor
expressly states that all repairs and parts replacements should be undertaken by
certified and licensed technicians and not by the buyer. The buyer assumes all
risk and liability arising out of his or her repairs to the original product or
replacement parts thereto or arising out of his or her installation of replacement
parts thereto.
NOTE: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts.

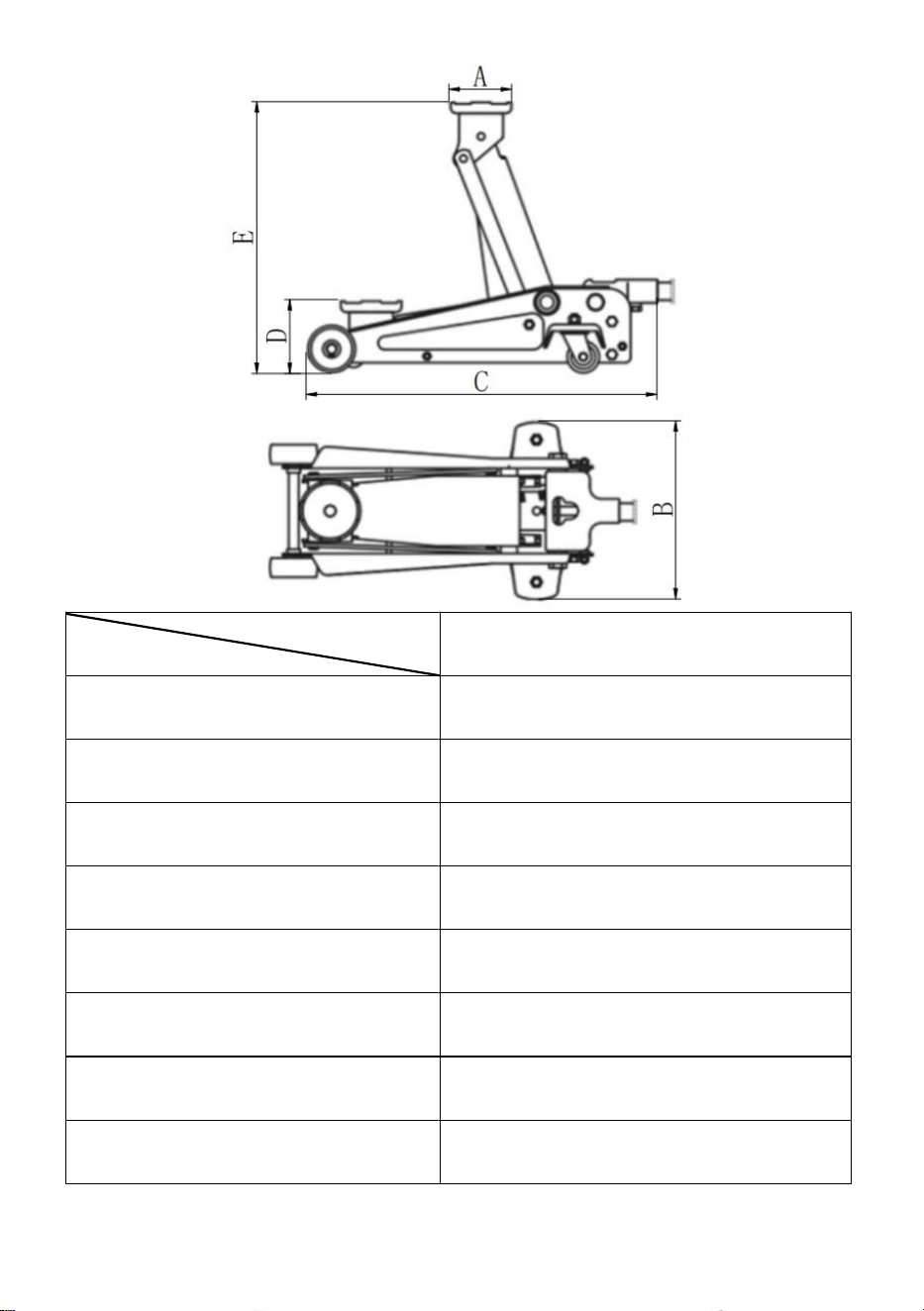

TECHNICAL SPECIFICATION
- 11 -
VL-80020
Lift Weight Capacity
2.0 Tons
Load Bearing Method
Hydraulic Single Cylinder
Tray Diameter A(mm)
48mm
Width B(mm)
200mm
Length C(mm)
440mm
Min Height D(mm)
130mm
Max Height E(mm)
325mm
Material
Steel
Model
Parameter
- 12 -

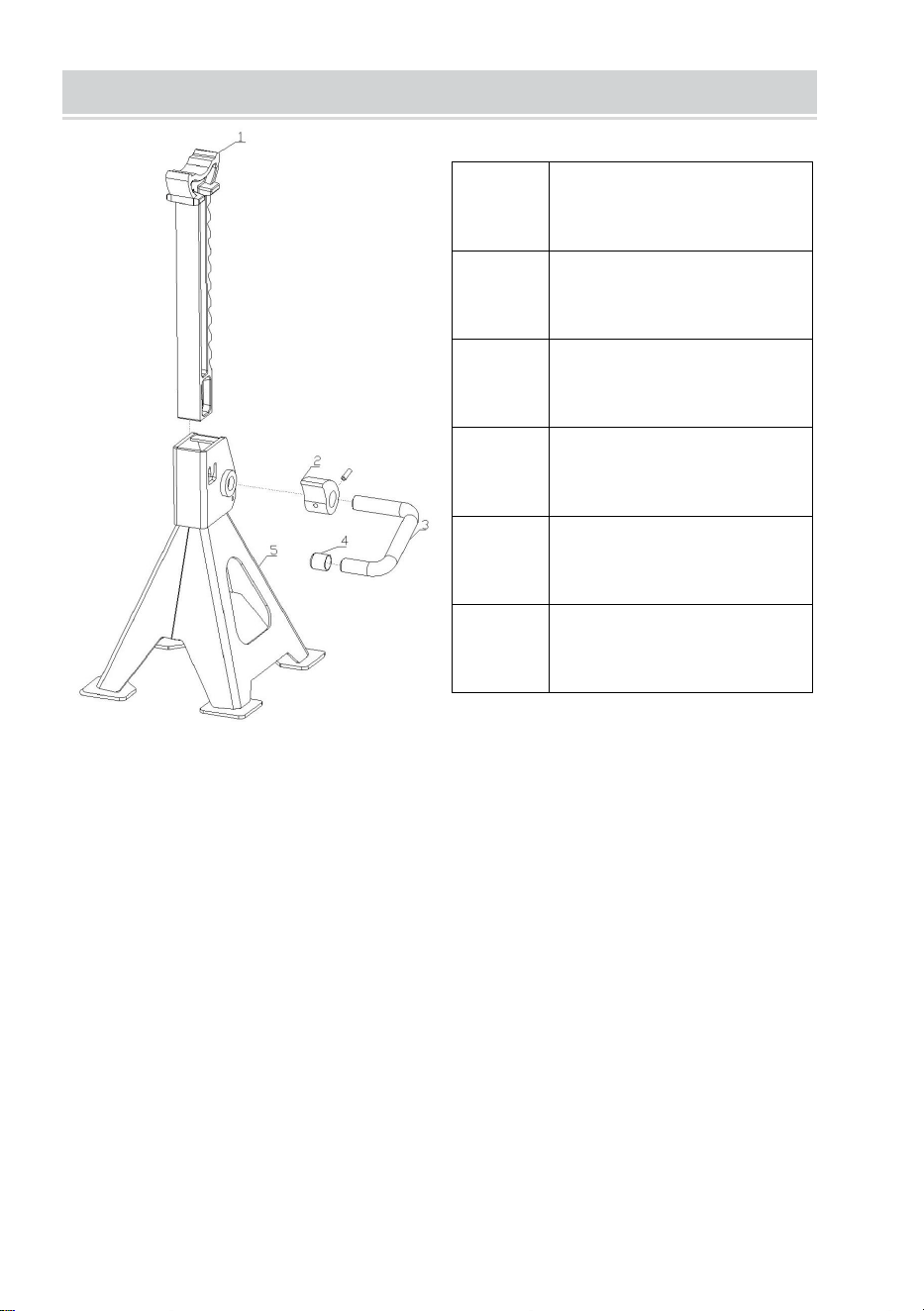

TECHNICAL SPECIFICATION
NO.
Name
1
Rack
2
Limit Block
3
Handles
4
Handgrip Cover
5
Support Frame Set
- 13 -
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu,
shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD
NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim
Place, Rancho Cucamonga, CA 91730
