Dreame L40S ULTRA Robot Vacuums User Manual

The illustrations in this manual are for reference only. Please refer to the actual product.

L40s Ultra

Robot Vacuum and Mop with

Auto-Empty and Mop Self-Cleaning

User Manual

Contents

User Manual

Kullanıcı Kılavuzu

ướ

ng D

ẫ

n S

ử

ụ

คู่มือการใช้งาน

Panduan Pengguna

129

Usage Restrictions

Safety Information

This product should not be used by children younger than 8 years old nor

persons with physical, sensory, intellectual deficiencies, or limited experience

or knowledge without the supervision of a parent or guardian to ensure safe

operation and to avoid any risks. Cleaning and maintenance shall not be

performed by children without supervision.

The appliance is only to be used with the power supply unit provided with the

appliance.

This appliance contains batteries that are only replaceable by skilled persons.

Clear the area to be cleaned. Children shall not play with the appliance.

Ensure children and pets are kept at a safe distance from the robot while it is

operating.

Do not install, charge or use the appliance in the bathrooms or around the

pools.

This product is for floor cleaning in a home environment only. Do not use it

outdoors, on non-floor surfaces, or in a commercial or industrial setting.

Ensure that the appliance operates correctly in a proper environment.

Otherwise, do not use the appliance.

If the power cord is damaged, it must be replaced by a special cord or

assembly available from the manufacturer or its service agent.

Do not use the robot in an area suspended above ground level without a

protective barrier.

To avoid electric shock, re or injury caused by improper use of the appliance, please read the user manual carefully before

using the appliance and keep it for future reference.

Usage Restrictions

Safety Information

Do not place the robot upside down. Do not use the LDS cover, robot cover, or

bumper as a handle for the robot.

Use the robot in environments with an ambient temperature above 0°C and

below 40°C. Make sure there is no liquid or sticky substance on the floor.

To prevent damage or harm from dragging, clear any loose objects from the

floor, and remove cables or power cords on the cleaning path before operating

the appliance.

Remove fragile or small items from the floor to prevent the robot from bumping

into and damaging them.

Keep hair, fingers, and other body parts away from the suction opening of the

robot.

Keep the cleaning tool out of reach of children.

Do not operate the appliance in a room where an infant or child is sleeping.

Do not place children, pets, or any item on top of the robot regardless of

whether it is stationary or moving.

Only clean water and the officially-approved cleaning solution can be added

to the clean water tank. Do not add any other liquid such as alcohol or

disinfectant. The ratio of the cleaning solution to clean water can be checked

on the cleaning solution bottle. Keep the cleaning solution out of reach of

children.

Do not use the robot to clean any burning objects. Do not use the robot to pick

up flammable or combustible liquids, corrosive gases, or undiluted acids or

solvents.

Safety Information

Batteries and

Charging

Do not use any third-party battery or base station. The robot can only be used

with the model RCLE0305 base station.

Do not attempt to disassemble, repair, or modify the battery or the base station

on your own.

Do not place the base station near a heat source.

Do not use a wet cloth or wet hands to wipe or clean the base station's

charging contacts.

Do not improperly dispose of old batteries. Unneeded batteries should be

discarded at an appropriate recycling facility.

If the power cord becomes damaged or broken, stop using it immediately and

contact after-sales service.

Usage Restrictions

Do not vacuum hard or sharp objects. Do not use the appliance to pick up

objects such as stones, large pieces of paper or any item that may clog the

appliance.

Plug must be removed from the socket-outlet before cleaning or maintaining

the appliance.

Do not wipe the robot or the base station with a wet cloth or rinse them with

any liquid. After cleaning washable parts, fully dry the parts before reinstalling

and using them.

Please use this product in accordance with the instructions in the User Manual.

Users are responsible for any loss or damage that arise from improper use of

this product.

The laser sensor in this product meets the IEC 60825-1:2014/EN 60825-1:2014/

A11:2021 Standard for Class 1 laser products. Please avoid direct eye contact

with it during use.

CLASS 1 LASER PRODUCT

CONSUMER LASER PRODUCT

EN 50689:2021

Batteries and

Charging

Laser Safety

Information

Safety Information

Hereby, Dreame Trading (Tianjin) Co., Ltd. declares that the radio equipment type RLL22SE is in compliance with Directive 2014/53/EU. The

full text of the EU declaration of conformity is available at the following internet address: https://global.dreametech.com

For detailed e-manual, please go to https://global.dreametech.com/pages/user-manuals-and-faqs

For indoor use only

Read operator's manual

Make sure the robot is turned off when being transported and kept in its

original packaging if possible.

If the robot will not be used for an extended period of time, fully charge it, then

turn it off and store it in a cool, dry place. Recharge the robot at least once

every 3 months to avoid over-discharging the battery.

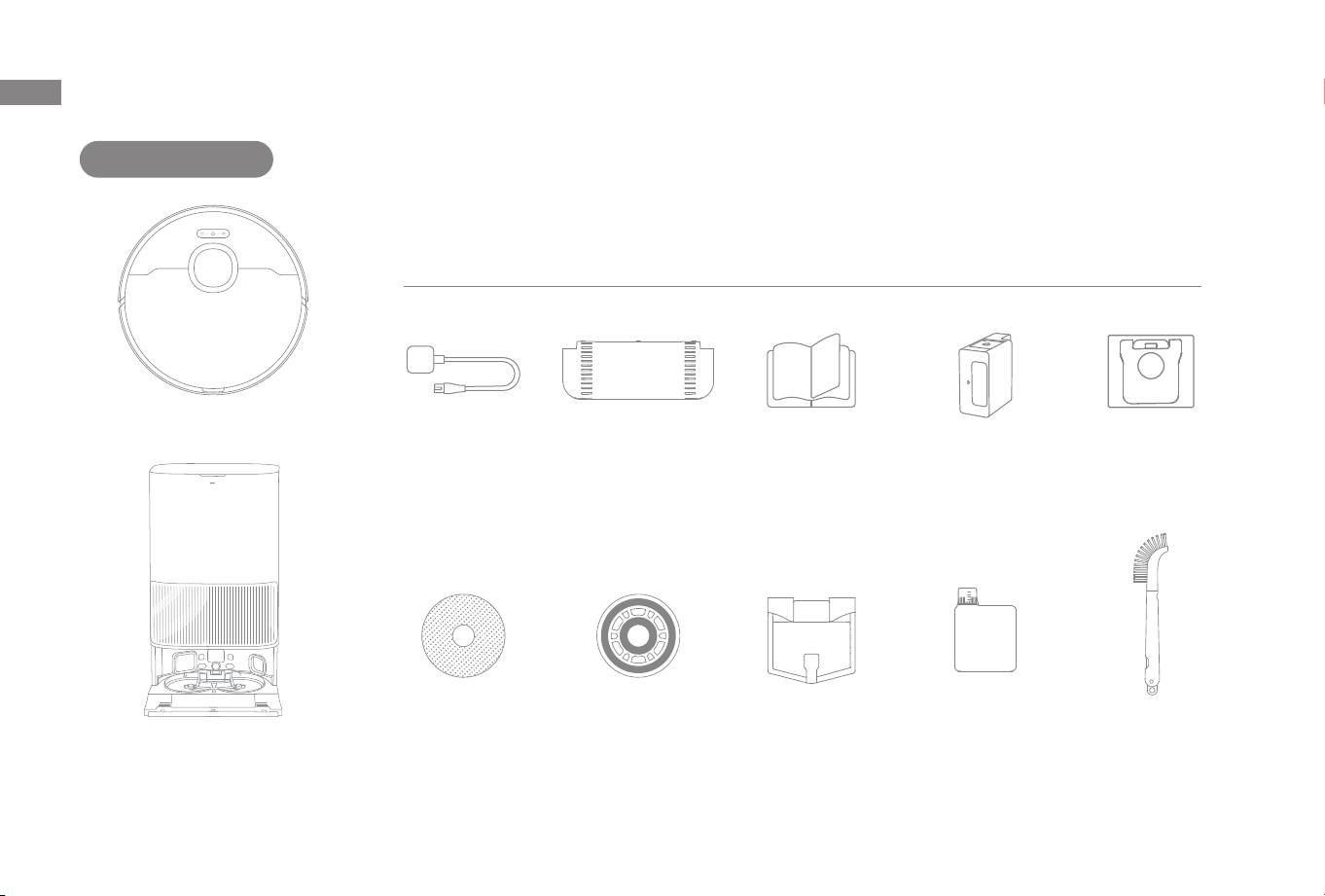

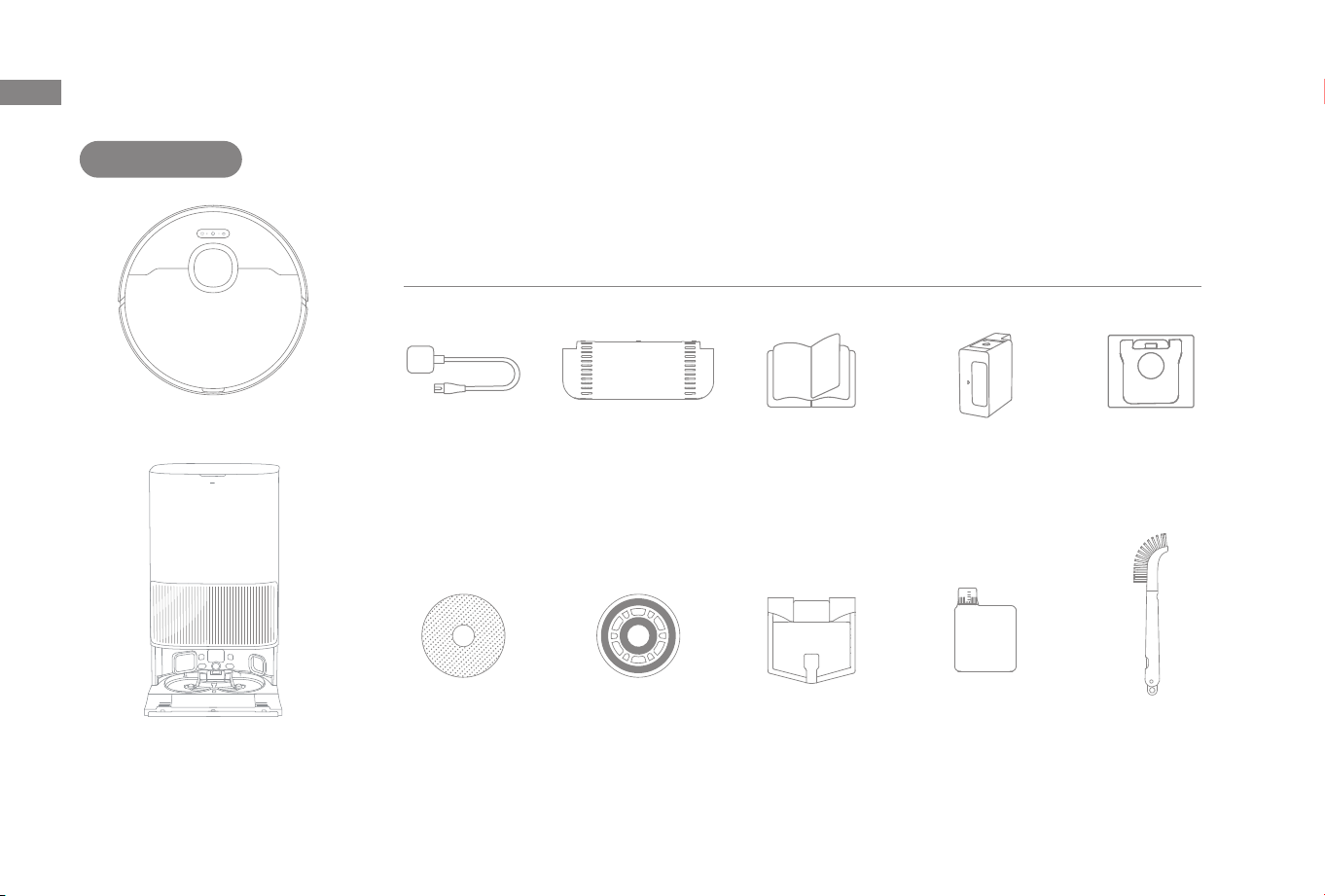

Other Accessories

Product Overview

Mop Pad × 2

(pre-installed)

Robot

Base Station

Mop Pad

Holder × 2

Power Cord

Cleaning Tool

Dust Bag × 2

(1 pre-installed)

Base Station Ramp

Extension Plate

User Manual

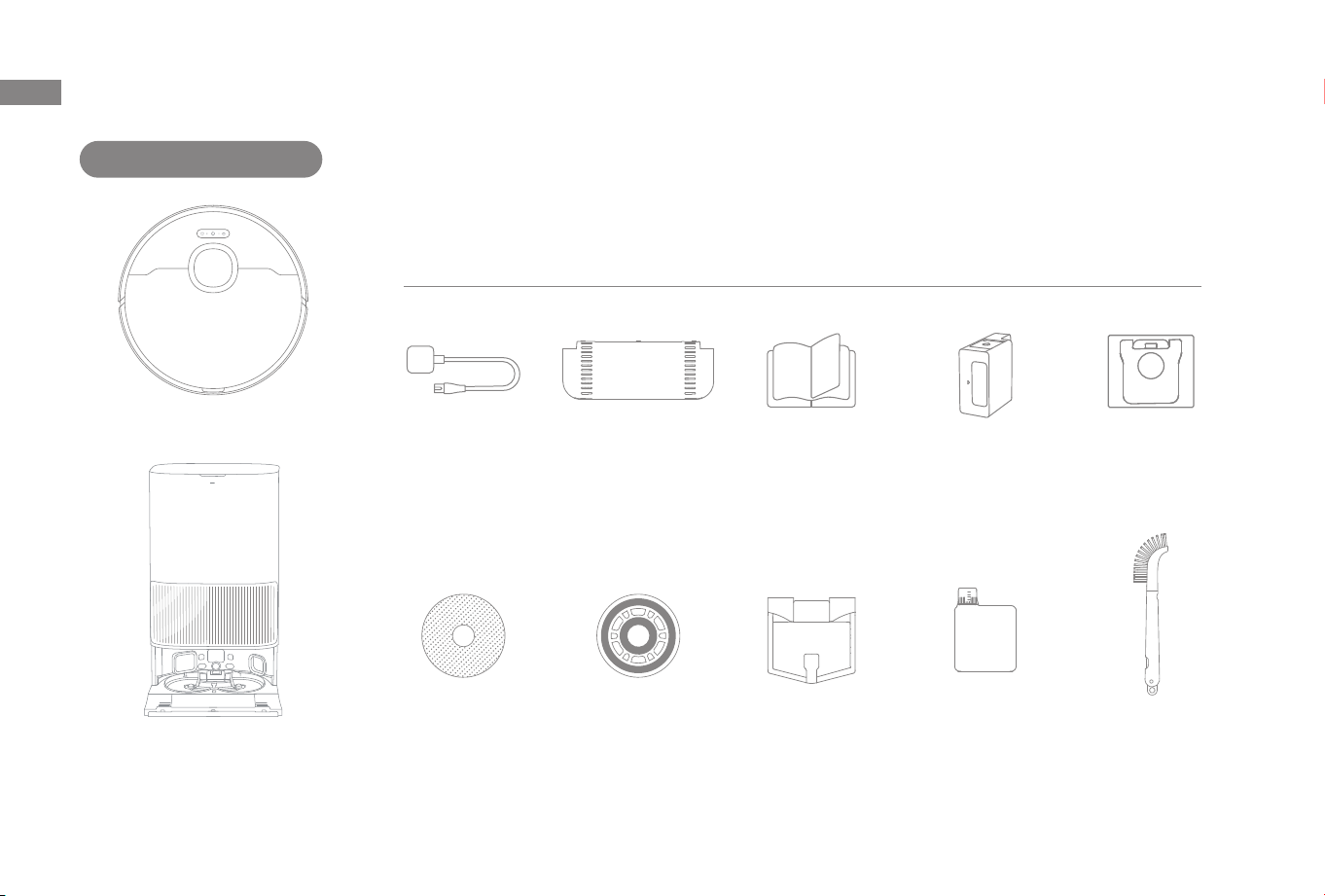

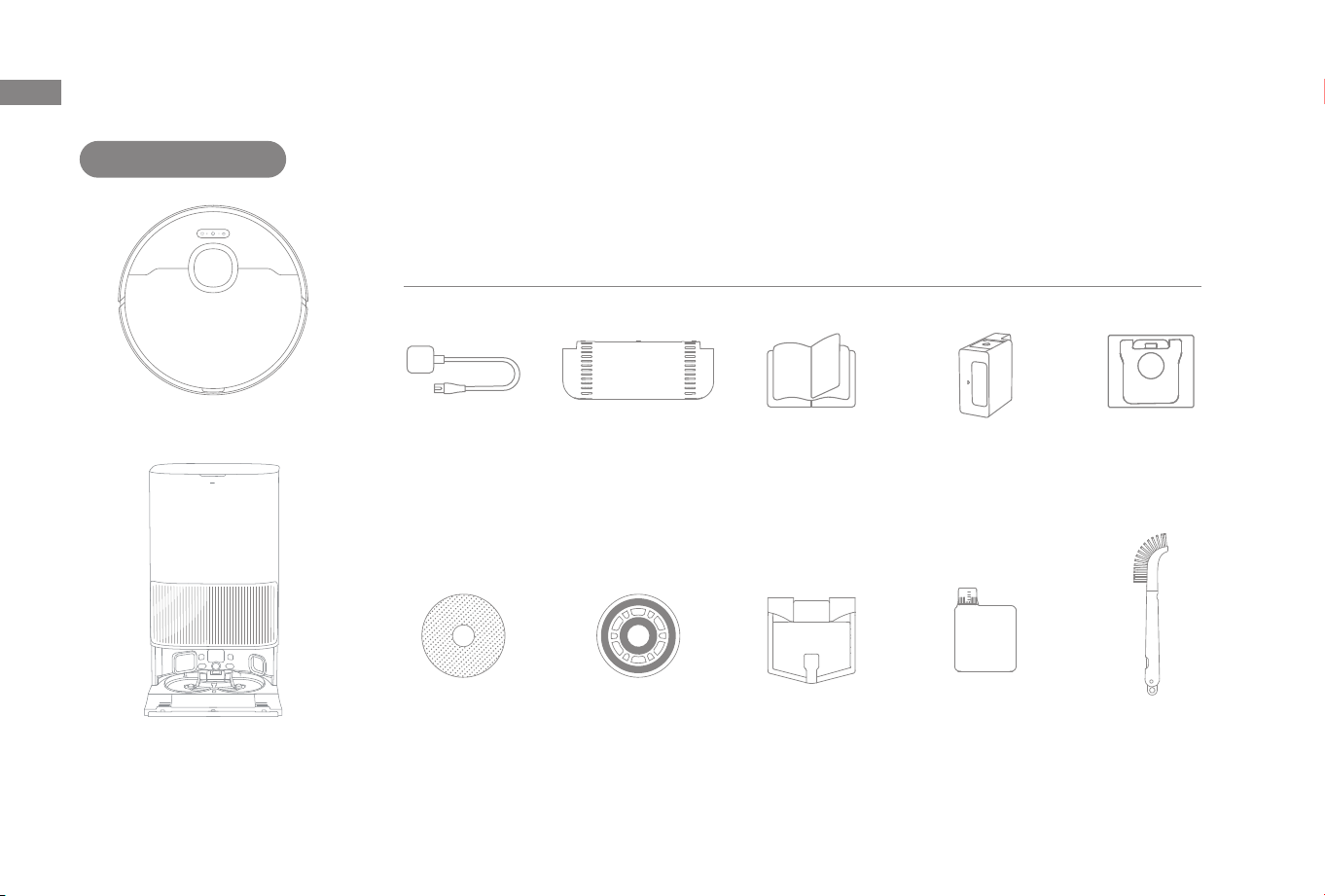

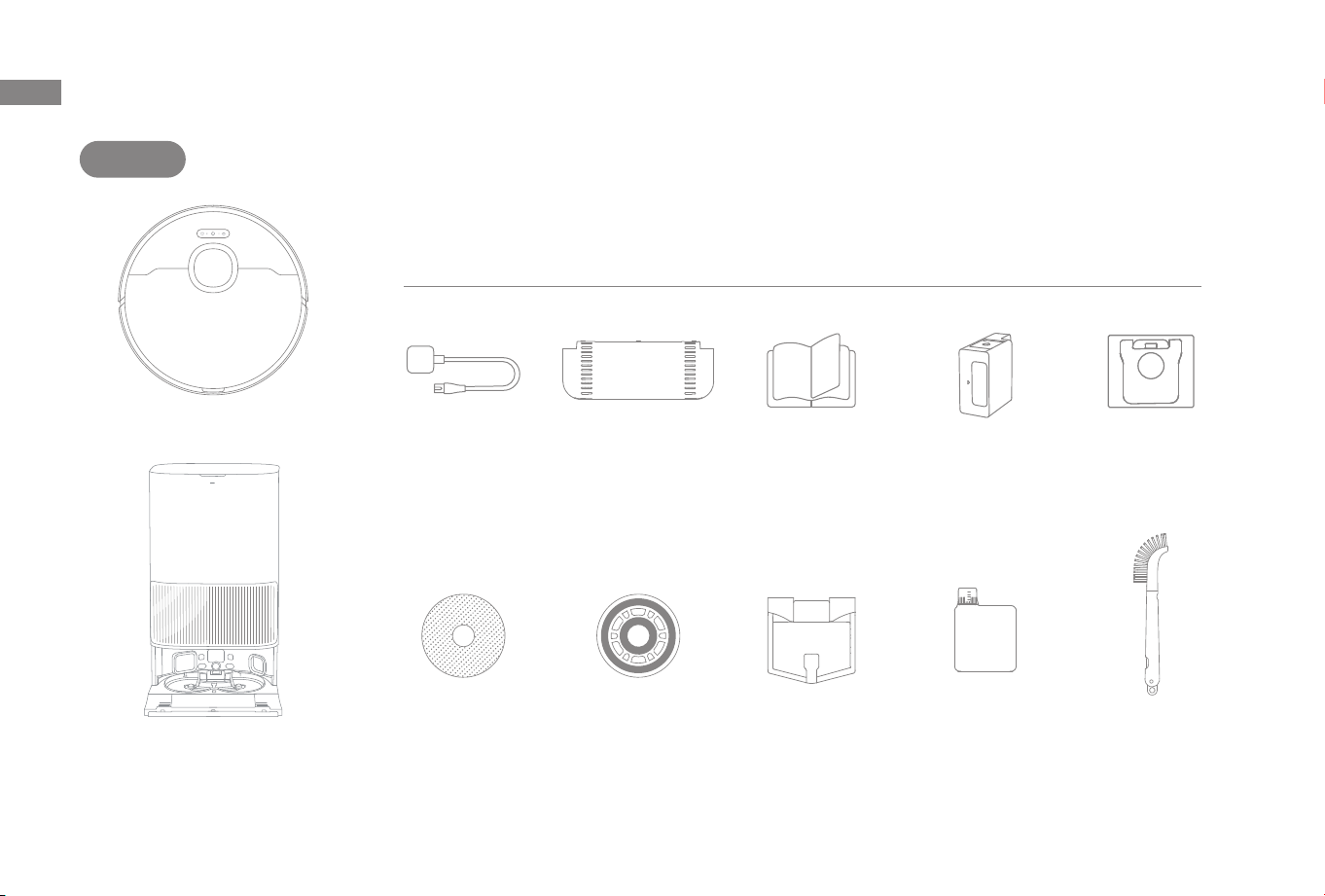

Package Contents

Washboard Filter

(pre-installed)

Cleaning Solution

Auto-Detergent

Compartment

(pre-installed)

5ml

10ml

15ml

20ml

Product Overview

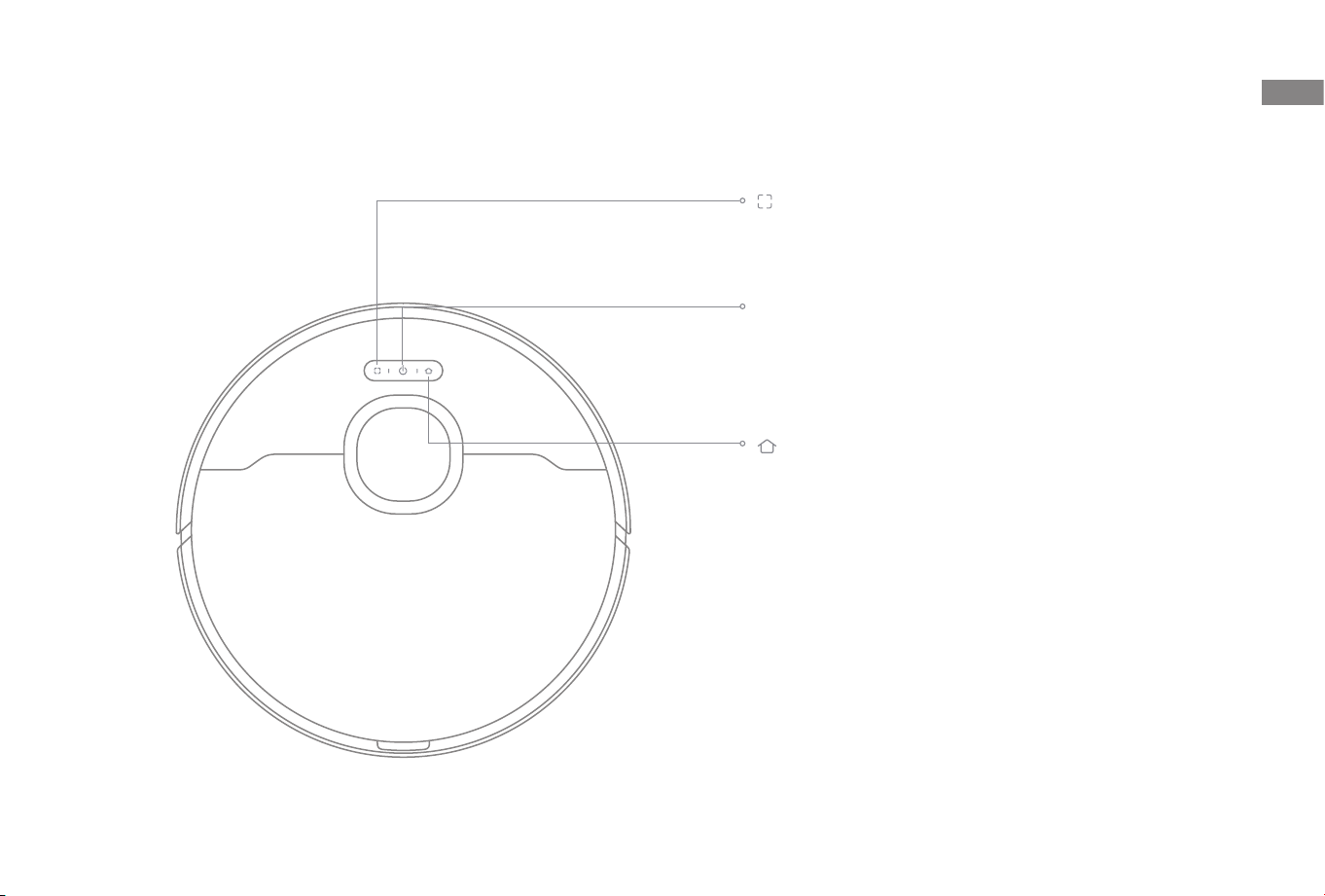

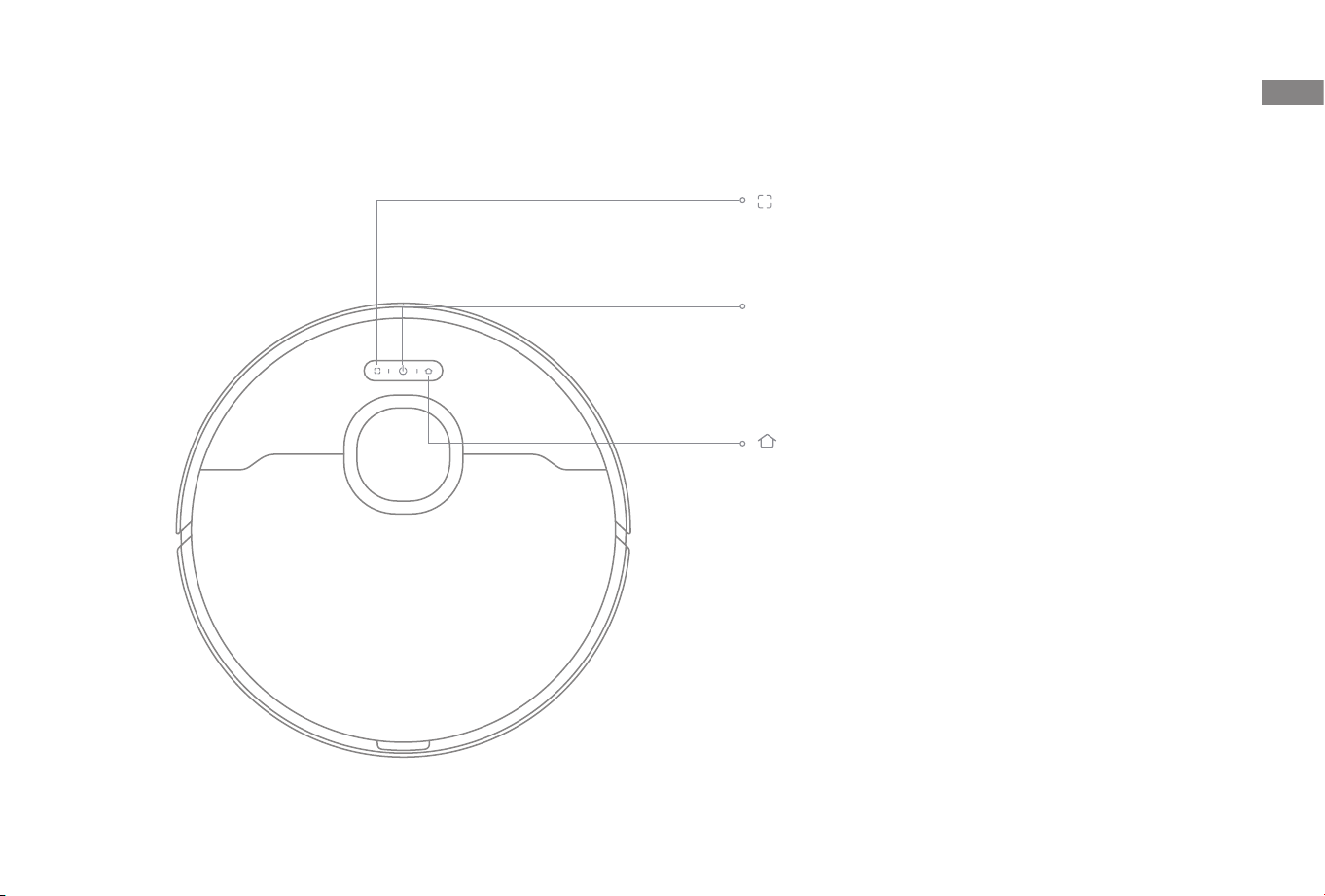

Robot

Spot Cleaning Button

· Press to start spot cleaning

Power / Clean Button

· Press and hold for 3 seconds to turn on or off

· Press to start cleaning after the robot is turned on

Dock Button

· Press to send the robot back to the base station

· Press and hold for 3 seconds to disable Child Lock

Status Indicator

· Solid White: Cleaning or cleanup completed

· Breathing White: Charging (not low battery)

· Solid Orange: Solid Orange: Awaiting at low battery or paused at

low battery

· Breathing Orange: Charging (low battery)

· Blinking Orange: Error

Note:

· Press any button on the robot to pause while the robot is cleaning

or returning to charge.

· Child Lock can be enabled/disabled through the Dreamehome

App.

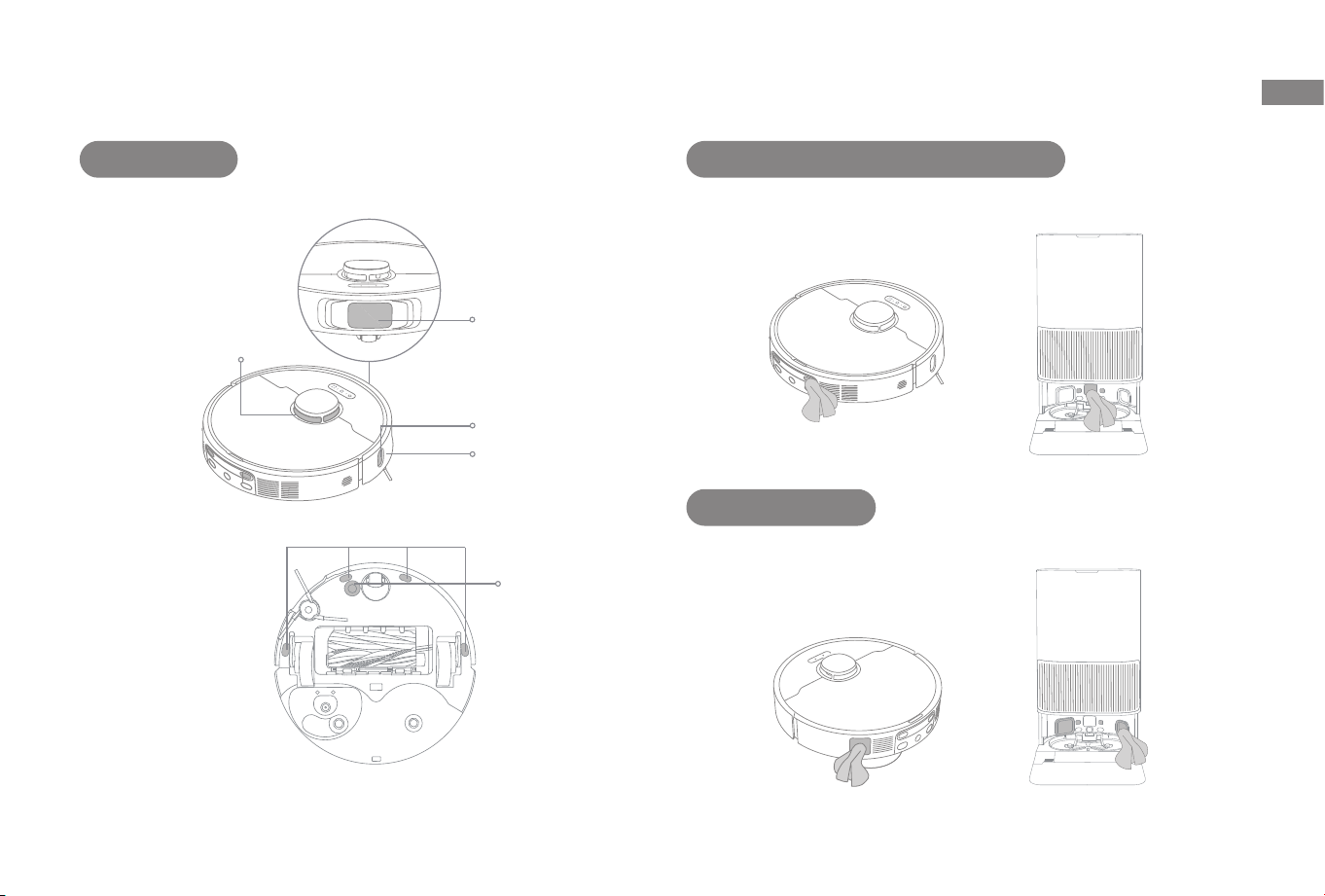

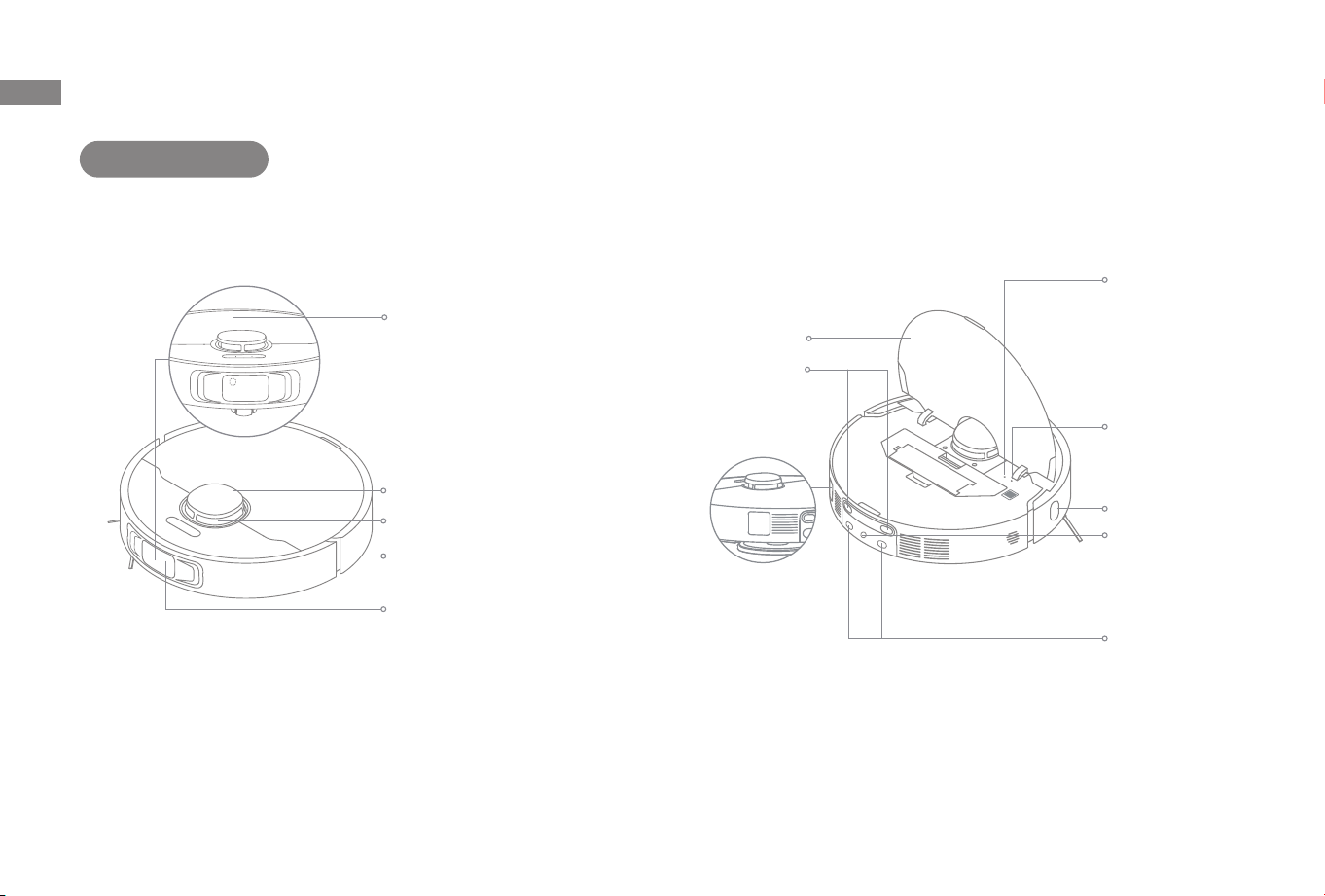

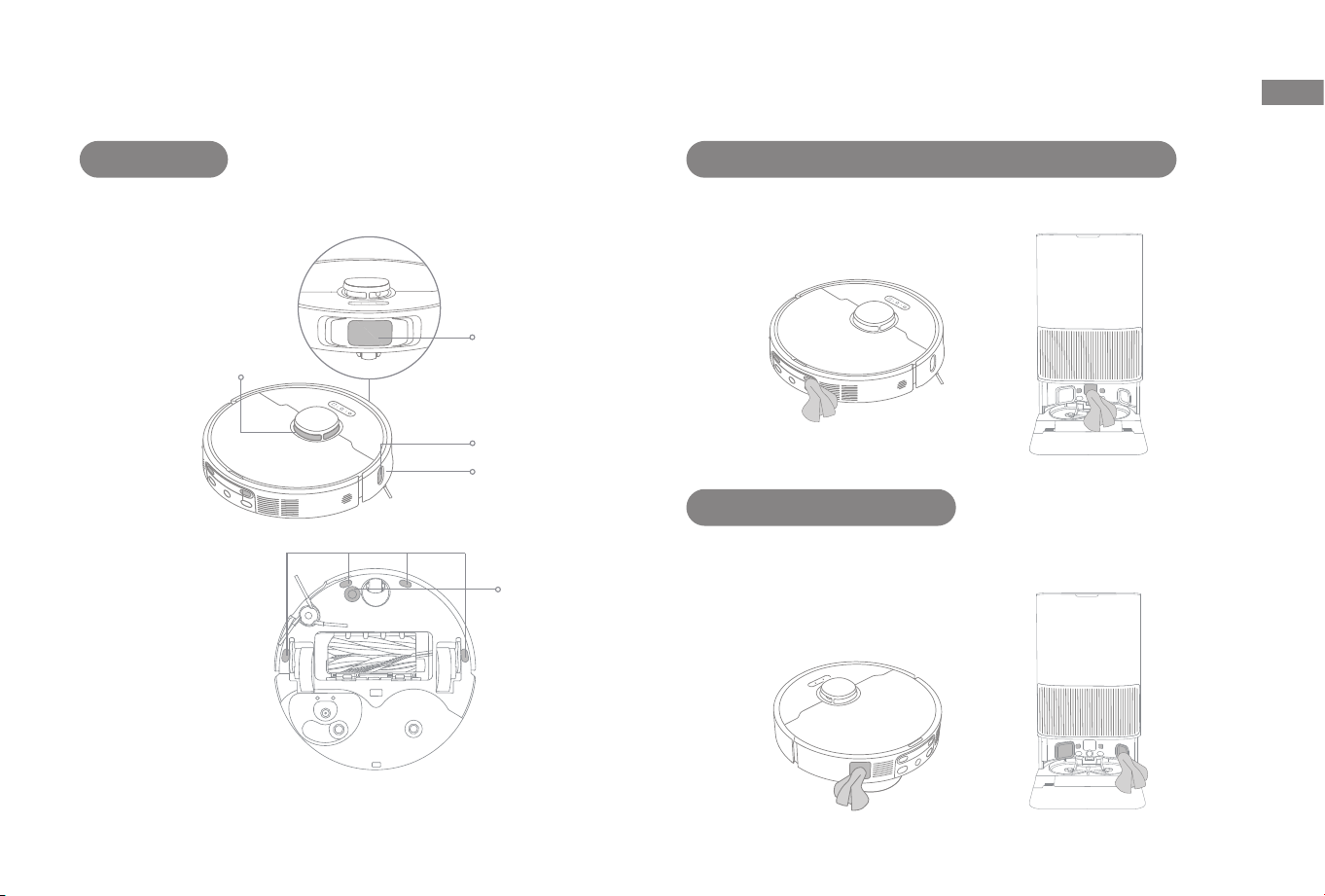

Robot and Sensors

LDS Cover

Laser Distance Sensor (LDS)

Bumper Window

Bumper

Connectors

3D Line Laser Sensor

Product Overview

Cover

Charging

Contacts

Auto-empty Vent

Automatic

Water

Relling Inlet

Reset Button

· Press and hold

for 3 seconds to

restore to factory

settings

Wi-Fi Indicator

Edge Sensor

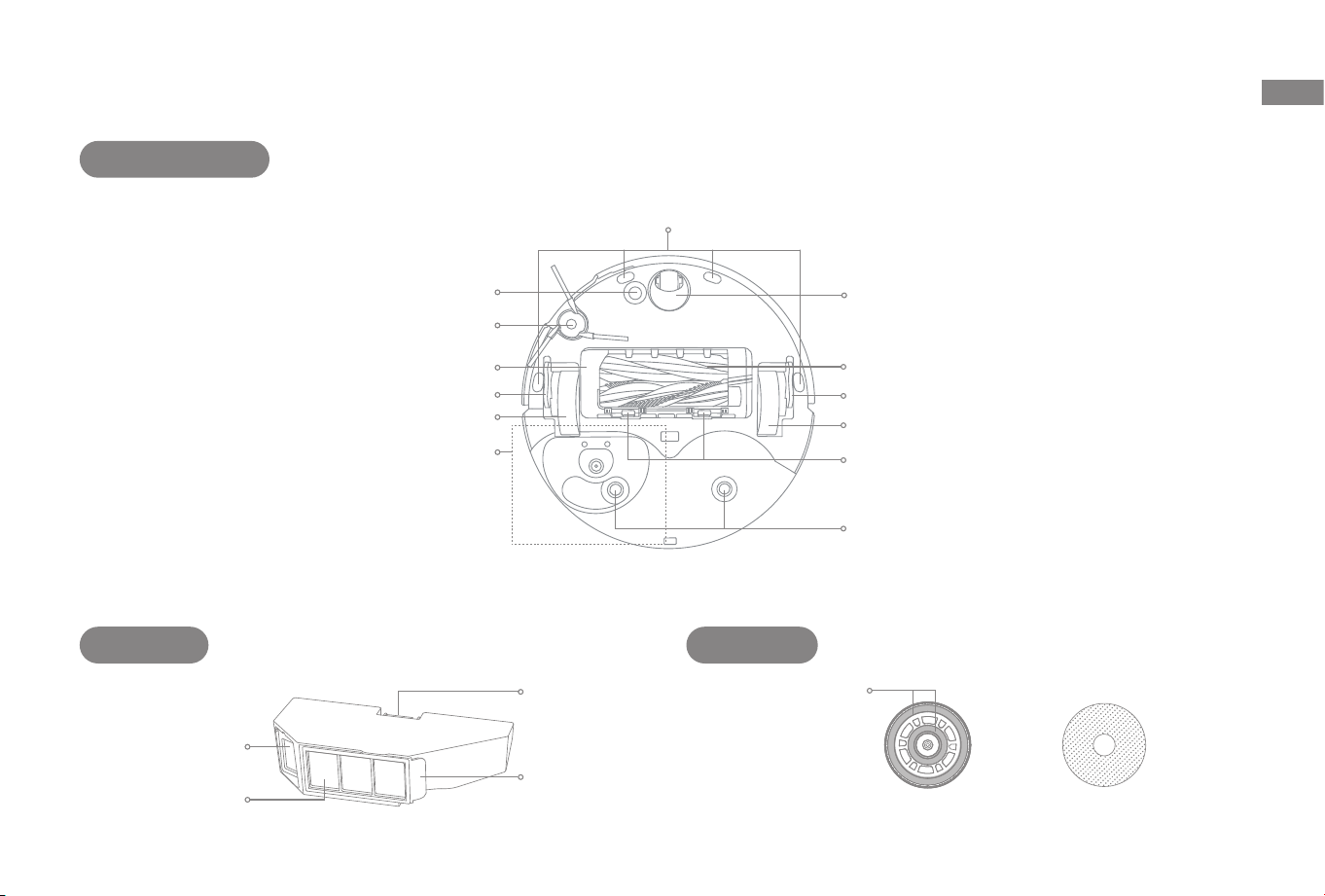

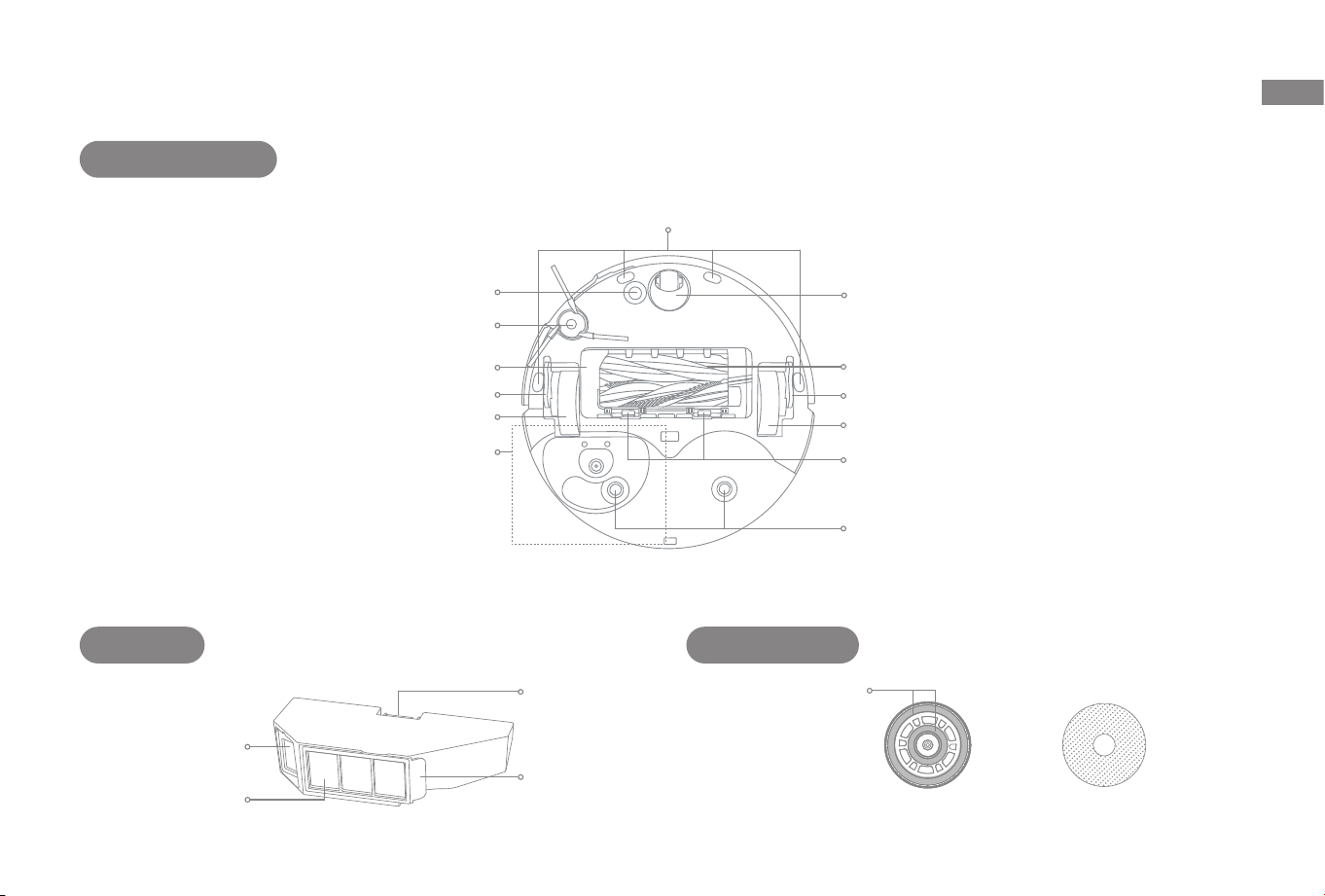

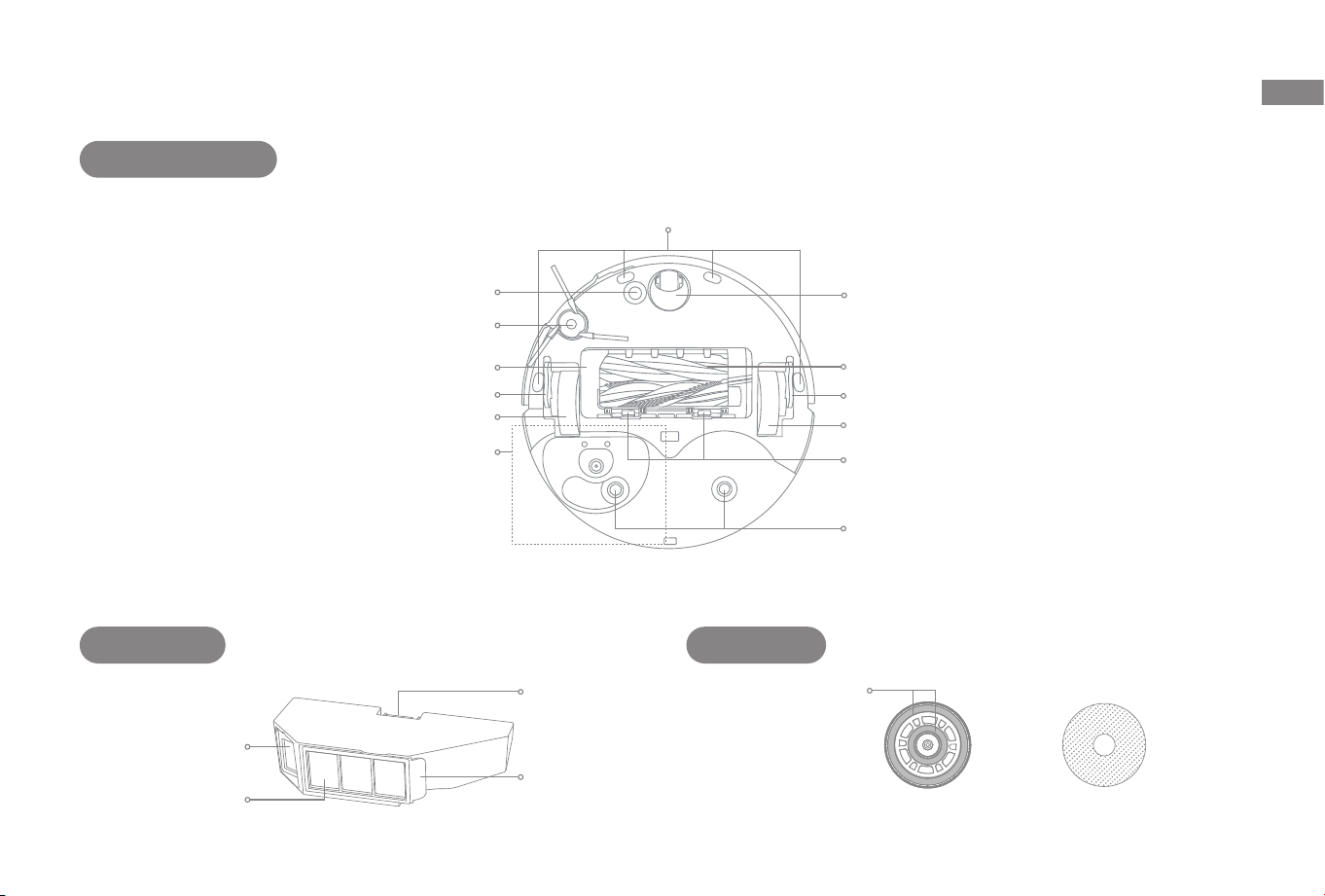

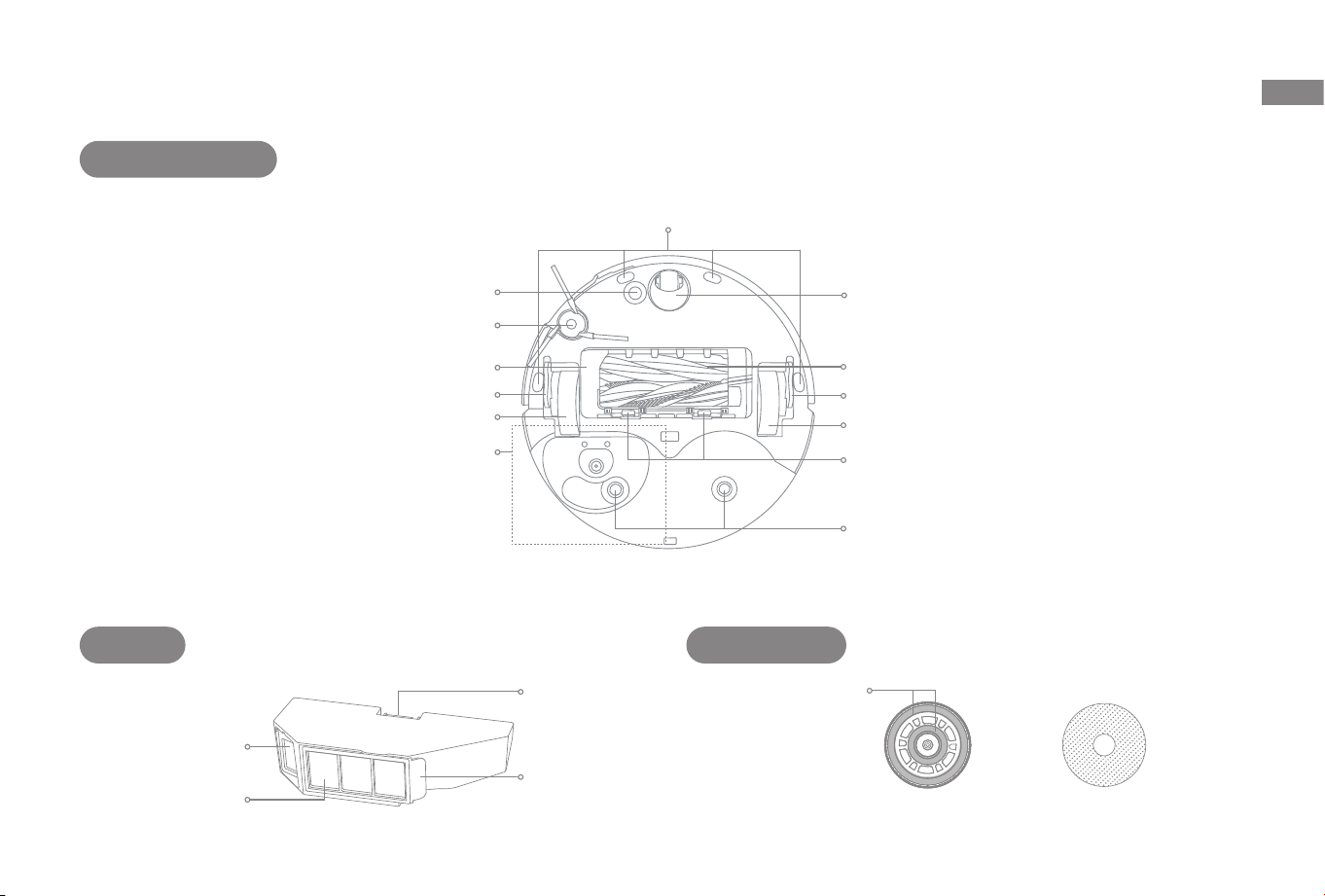

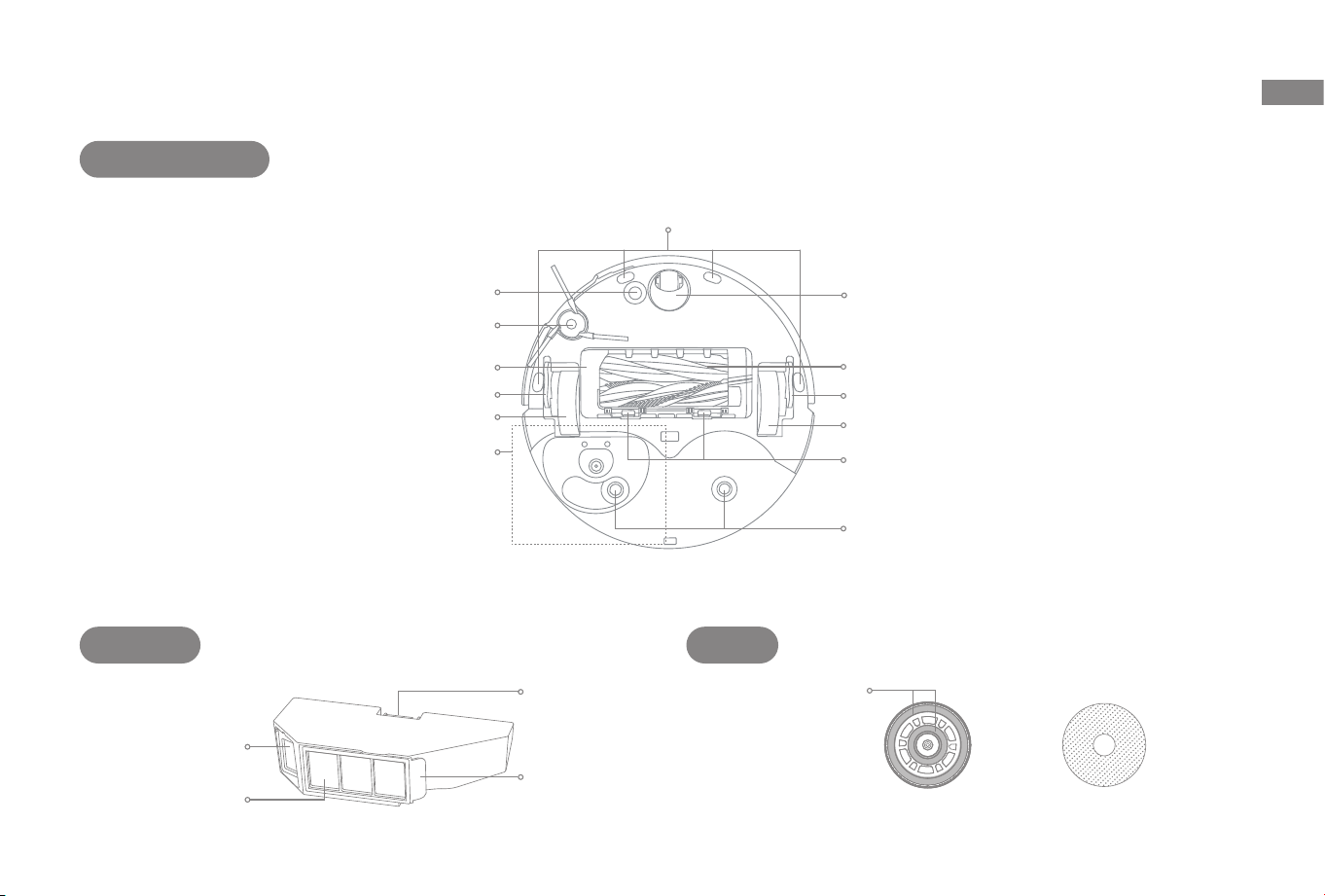

Robot and Sensors

Cli Sensors

Main Wheel

Auxiliary Climbing Wheel

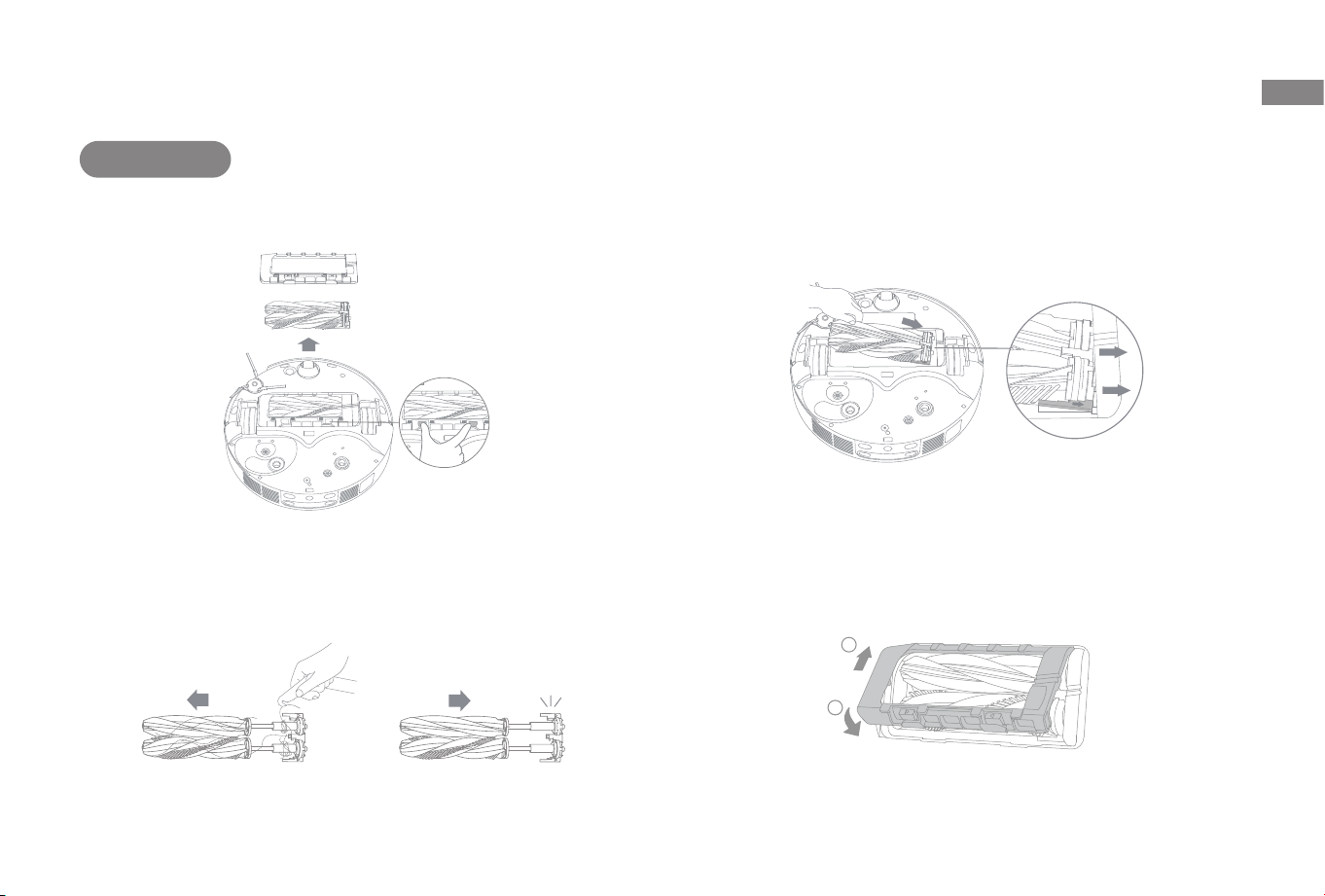

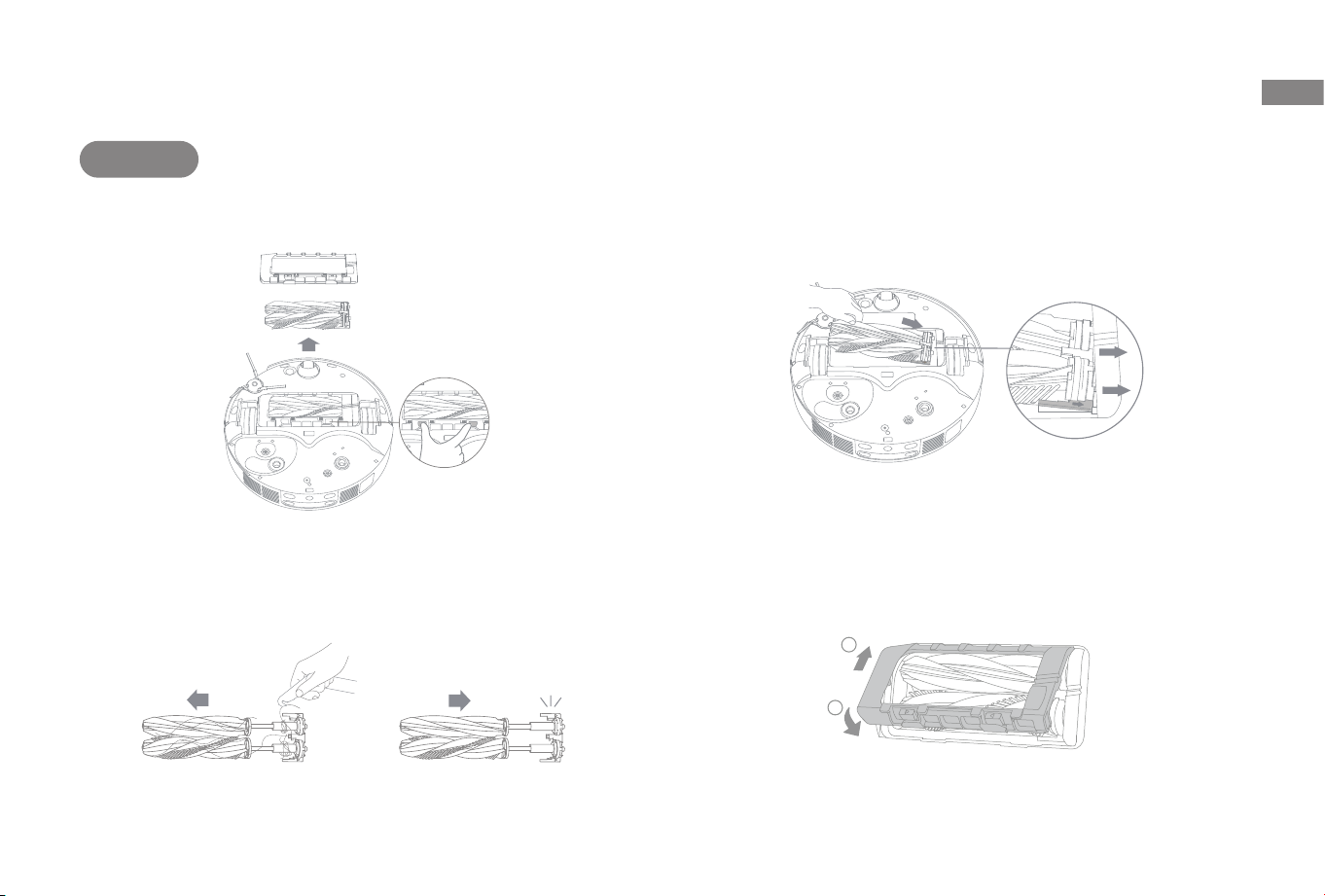

Main Brushes

Omnidirectional Wheel

Brush Guard

Main Wheel

Auxiliary Climbing Wheel

Mop Pad Holder Mounting Holes

Side Brush Extension Assembly

Carpet Sensor

Mop Assembly

Mop Pad

Attachment Area

Mop Pad Holder Mop Pad

MopExtend Assembly

Brush Guard Clip

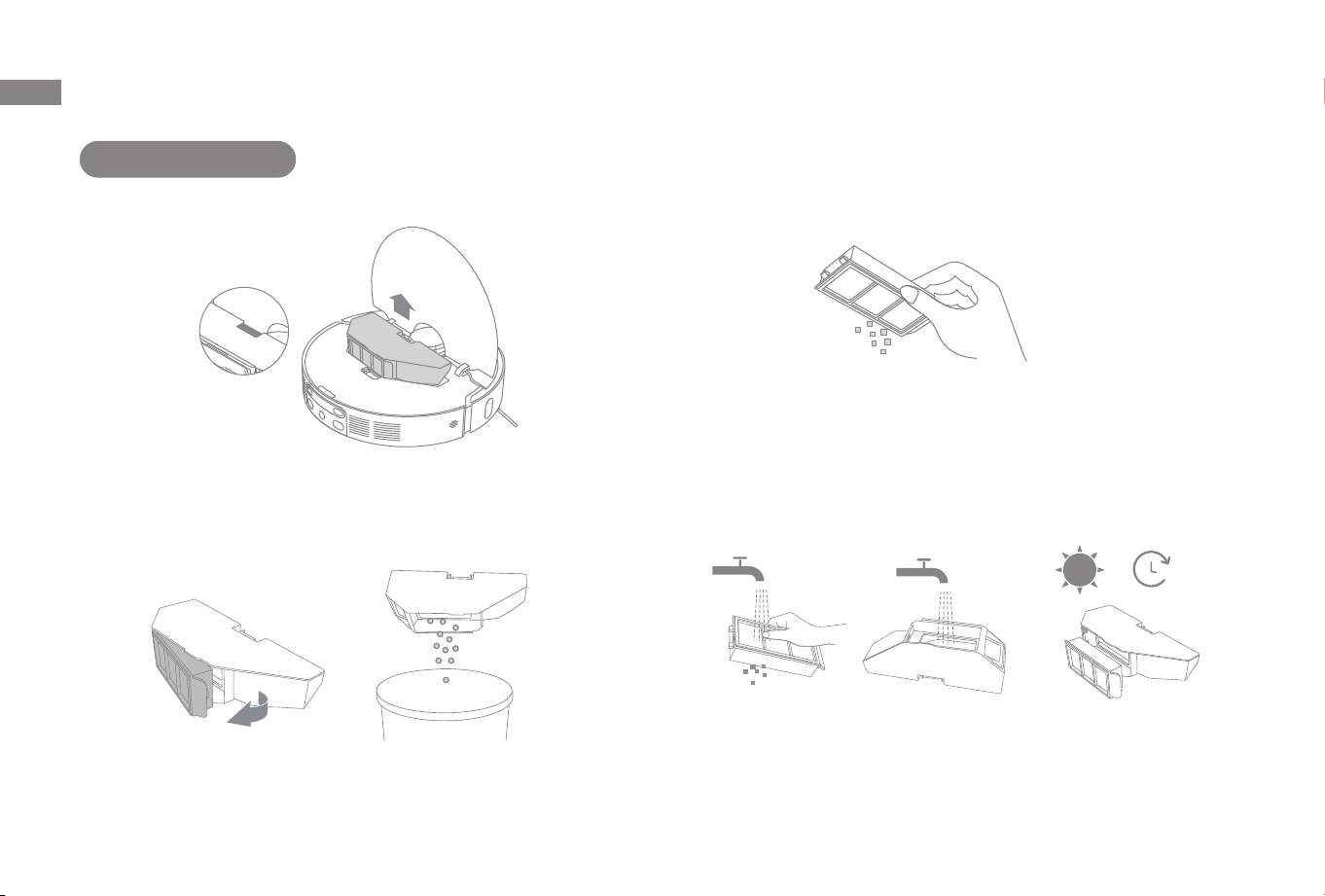

Dust Box

Filter

Auto-Empty Vent

Dust Box Clip

Filter Clip

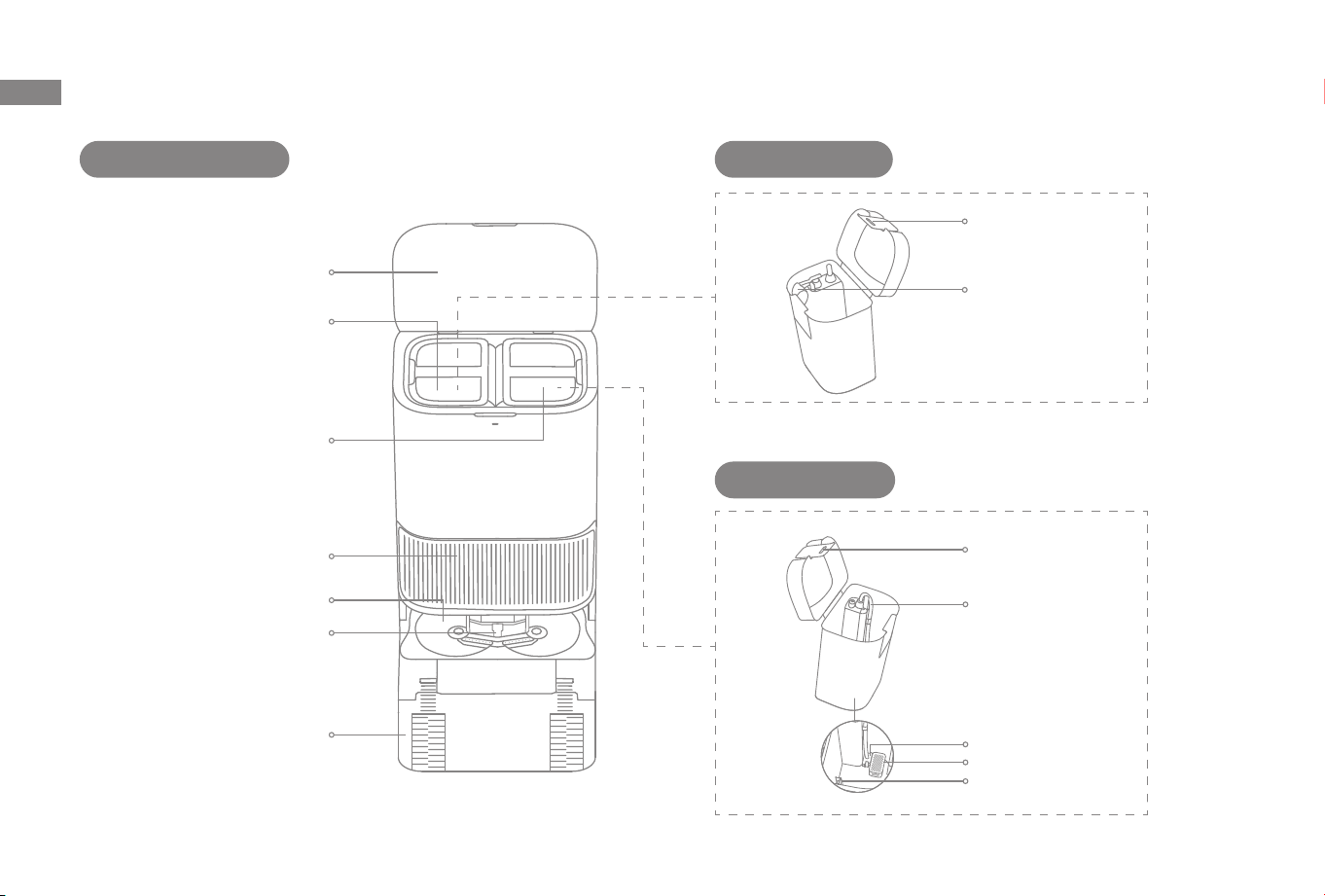

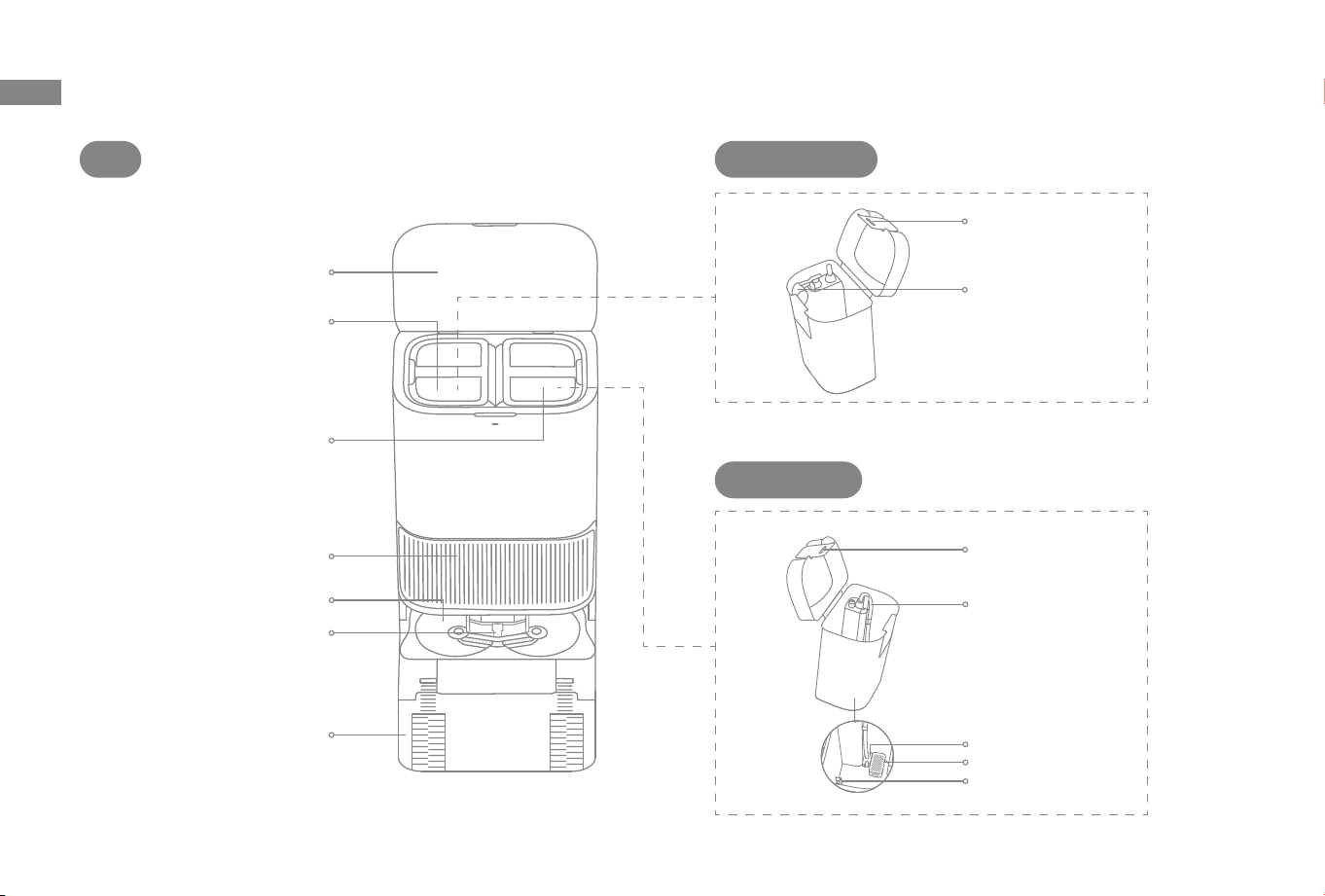

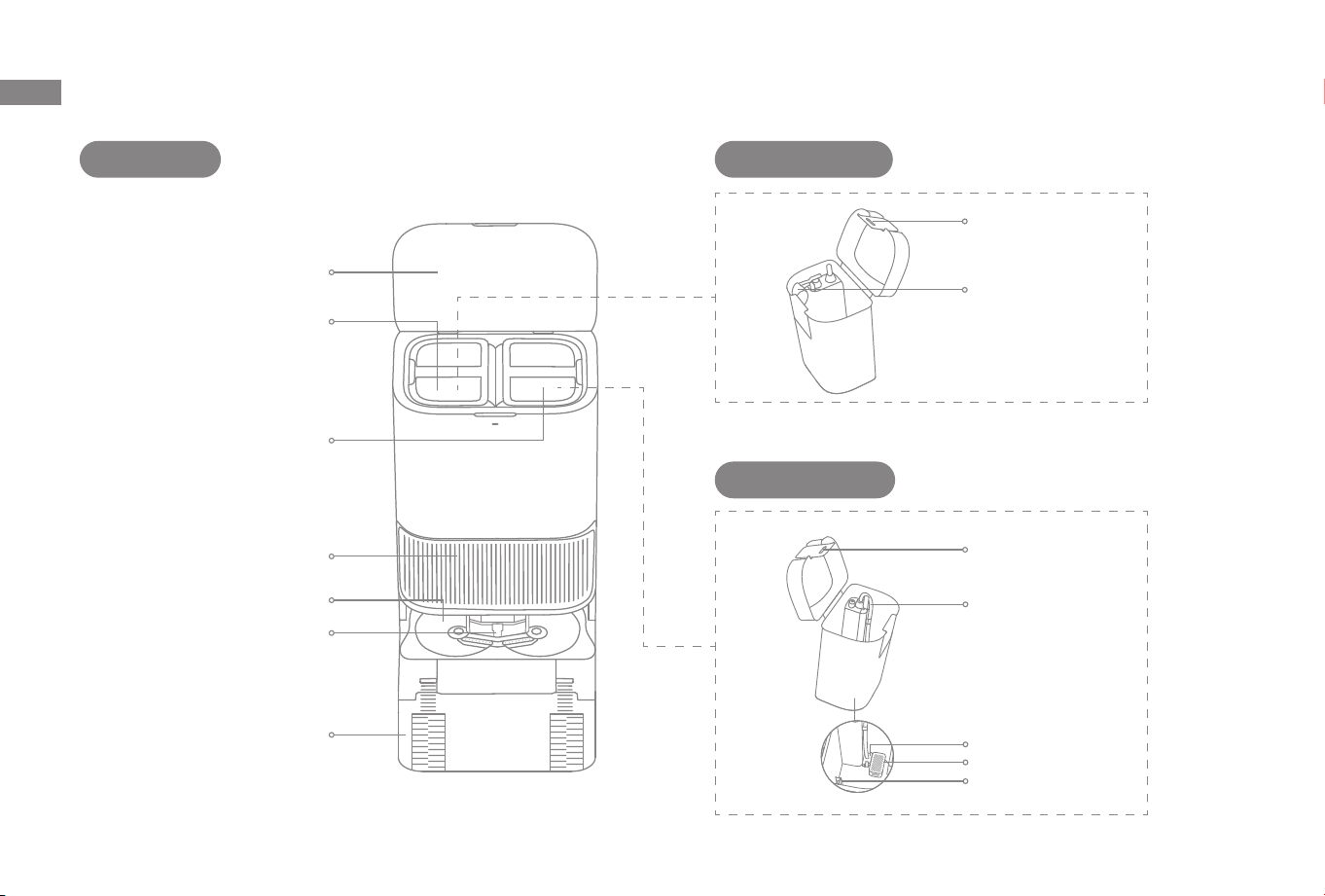

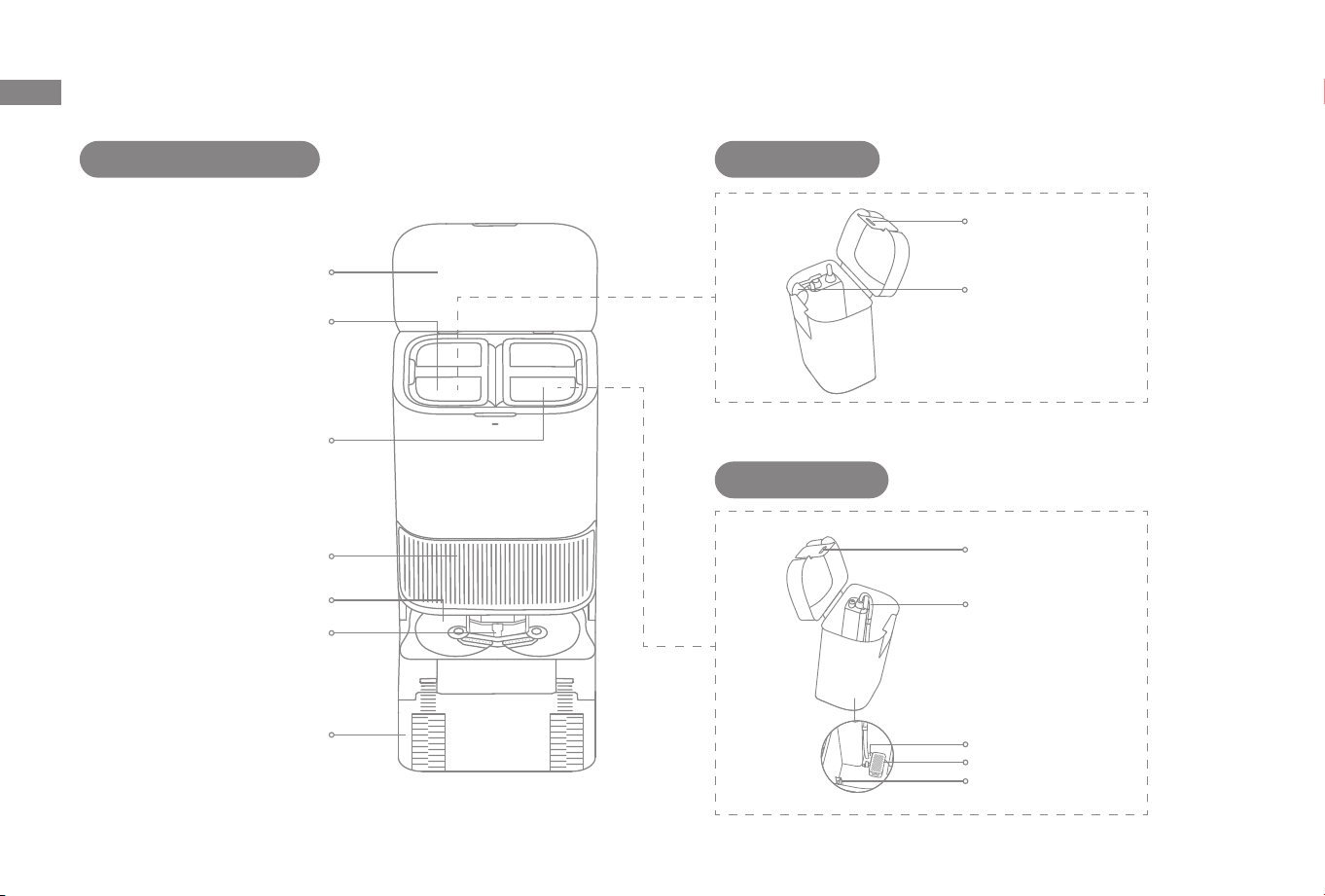

Product Overview

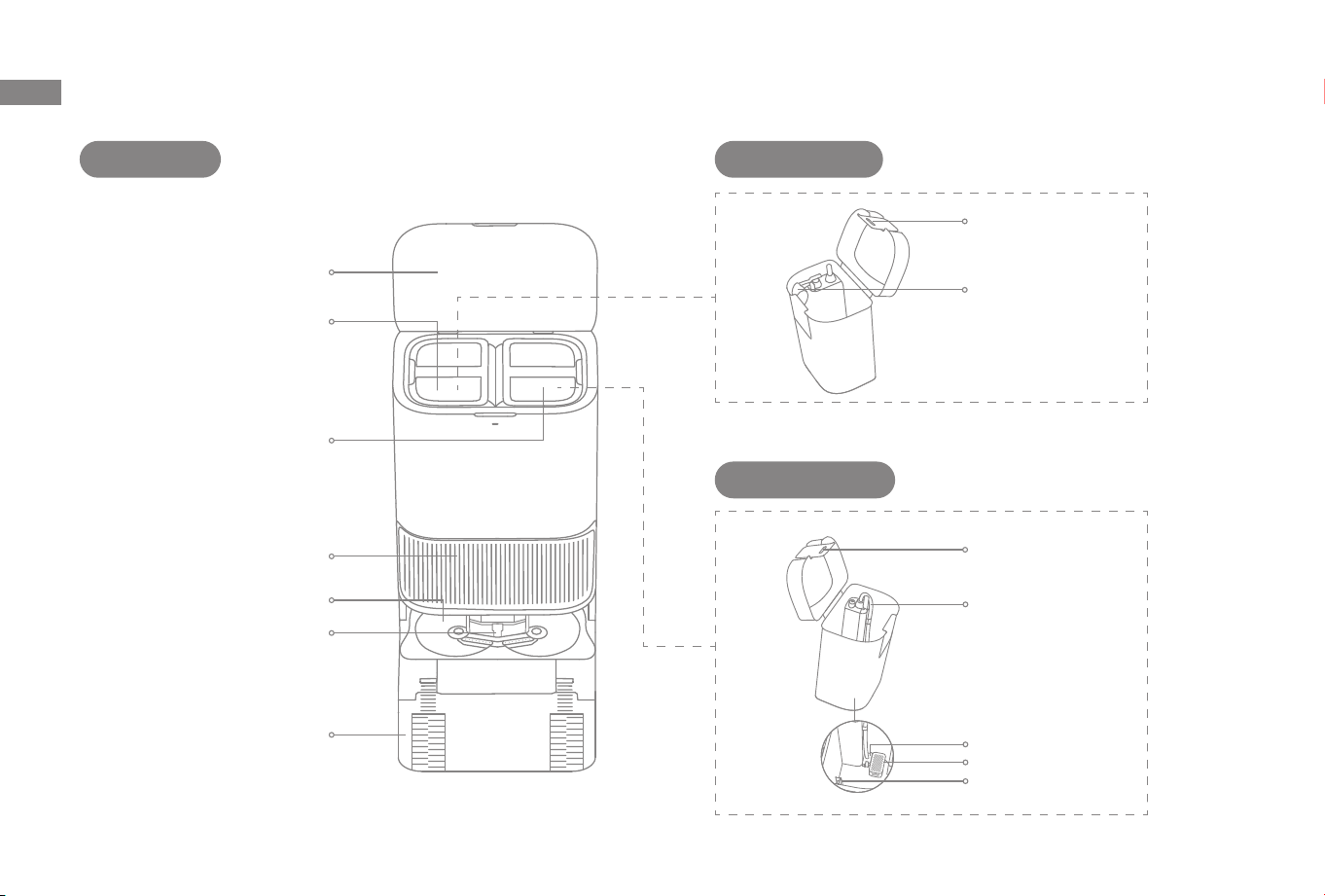

Filter

Washboard

Washboard Filter

Ramp Extension Plate

Cover

Used Water Tank

Clean Water Tank

Water Tank Clip

Float Ball

Water Pipe

Dust Tank Cover

Scale Inhibitor

Floater

Base Station Used Water Tank

Clean Water Tank

Product Overview

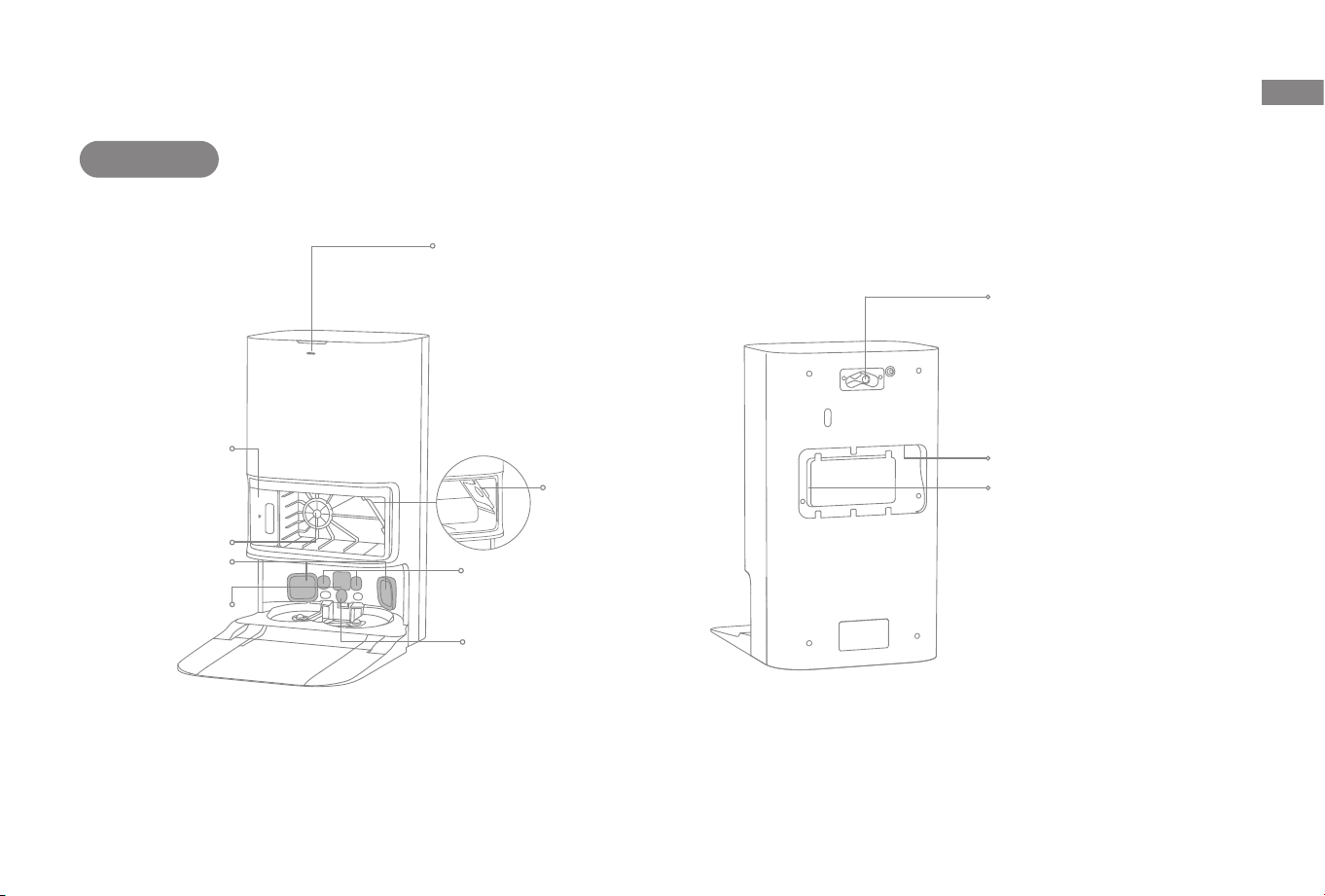

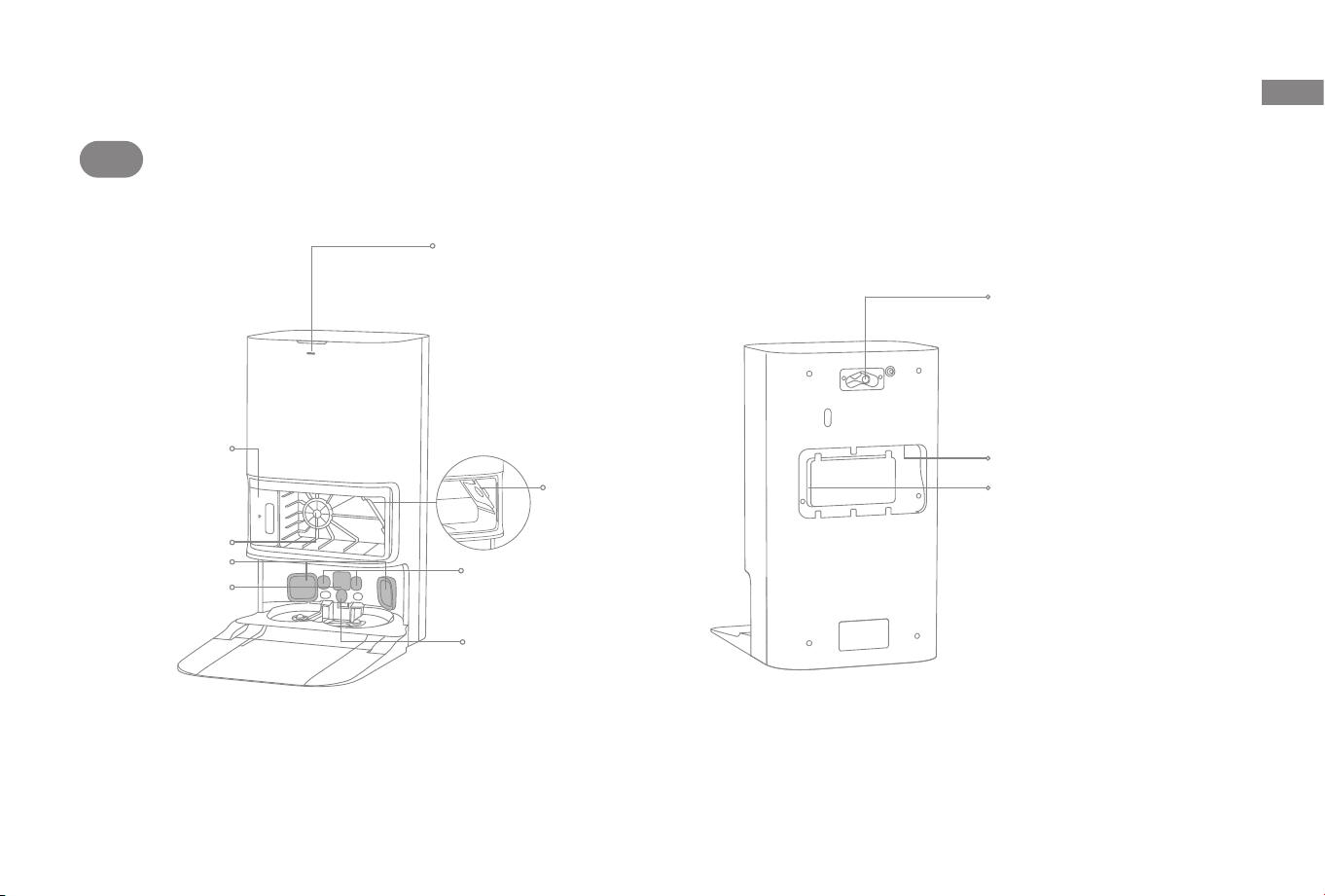

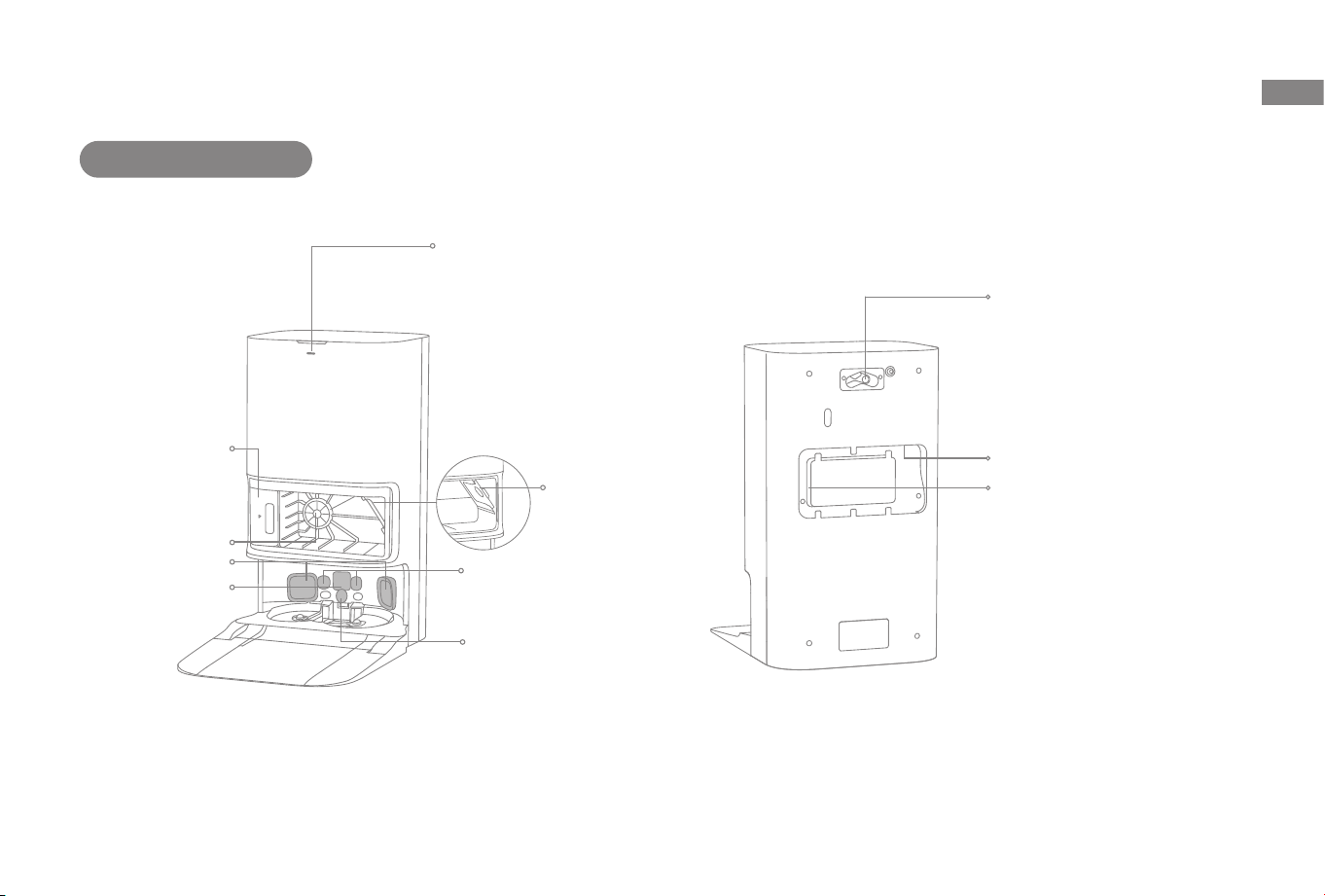

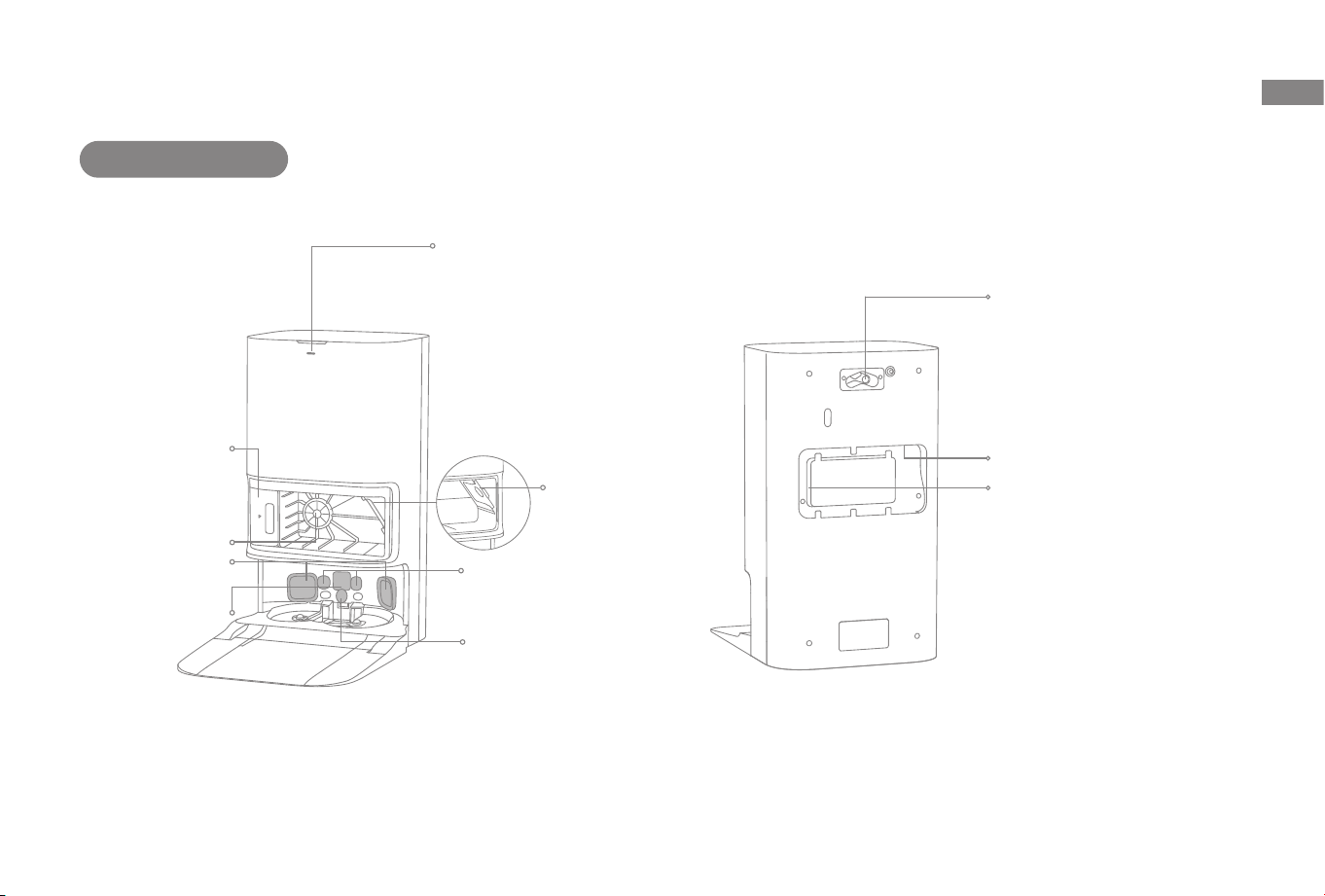

Base Station

Reserved Slot for Connecting

the Water Hookup Kit for Auto

Relling and Draining

Power Cord Storage Slot

Power Port

Note: The water hookup kit for auto refilling and draining needs to be

purchased separately. (Only available in specific regions)

Status Indicator

Solid White: The base station

is connected to power

Solid Orange: The base

station has an error

Product Overview

Filter

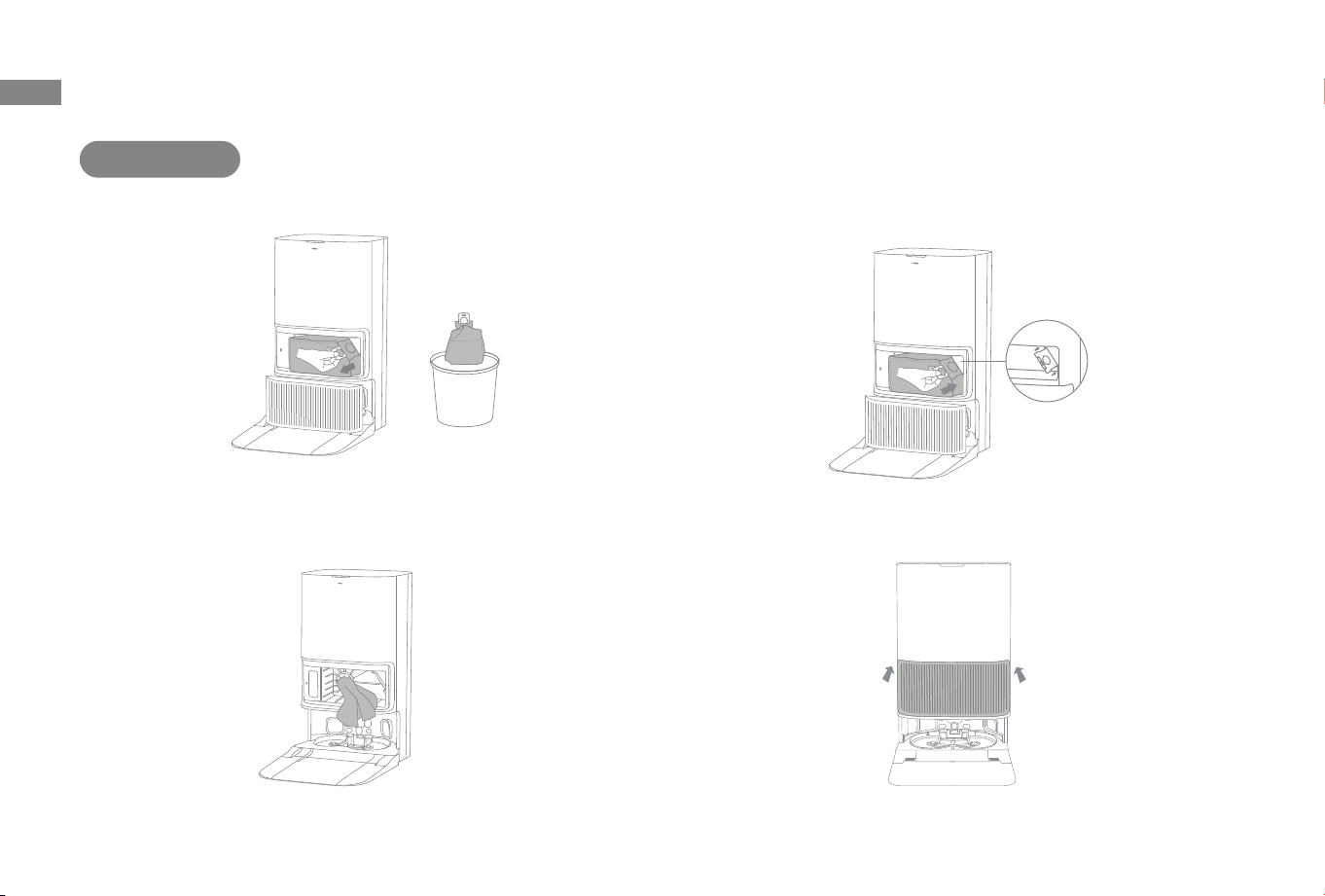

Dust Bag Slot

Auto-Empty Vents

Signaling Area

Auto-Detergent

Compartment

Charging Contacts

Automatic Water

Adding Outlet

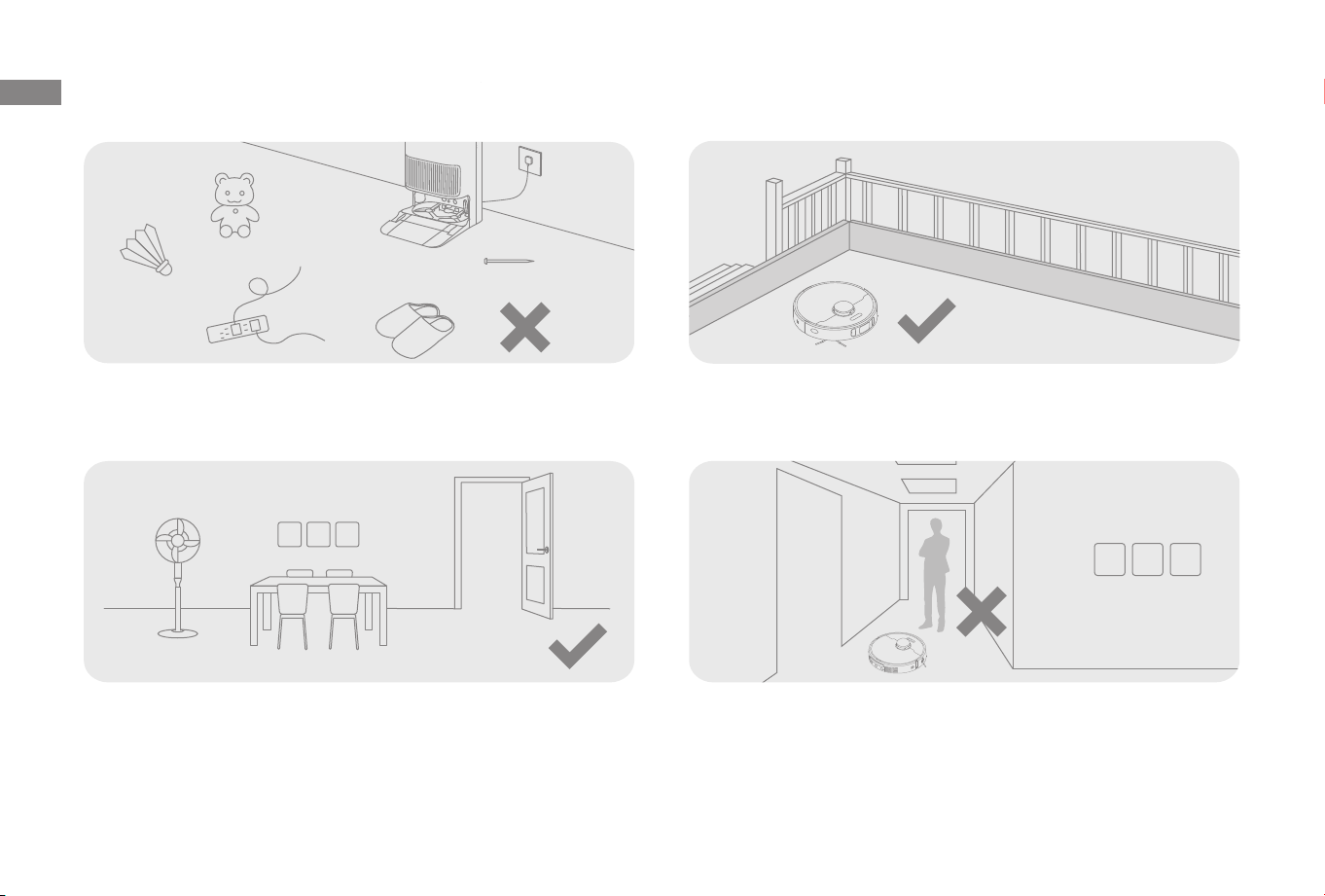

Preparing Your Home

Before cleaning, please move away unstable, fragile, valuable or dangerous

items, and clean up cables, cloths, toys, hard objects and sharp objects on

the ground to avoid being entangled, scratched or knocked over by the robot

and causing losses.

Open the door of the room to be cleaned, and put the furniture in its proper

place to leave more space.

To prevent the robot from missing areas that need to be cleaned, do not

stand in front of the robot, threshold, hallway, or narrow places.

Before cleaning, place a physical barrier at the edge of the stairs to ensure

the secure and smooth operations of the robot.

Note:

When operating the robot for the first time, follow it around while cleaning to remove any potential obstacles in time.

Do not vacuum hard objects like stones, steel balls and toy parts, or sharp objects like construction waste, broken glass and nails, otherwise the ground may be

scratched.

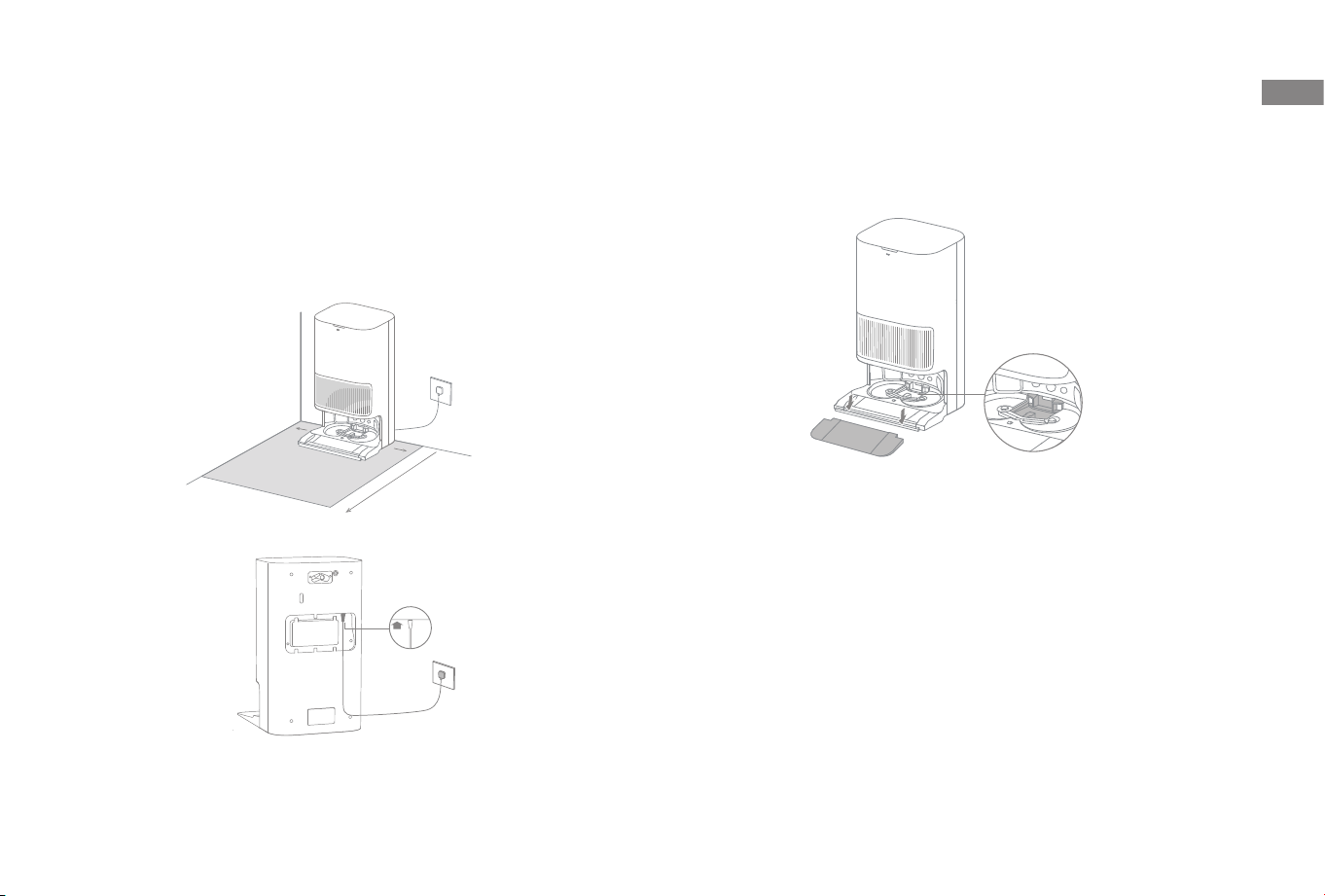

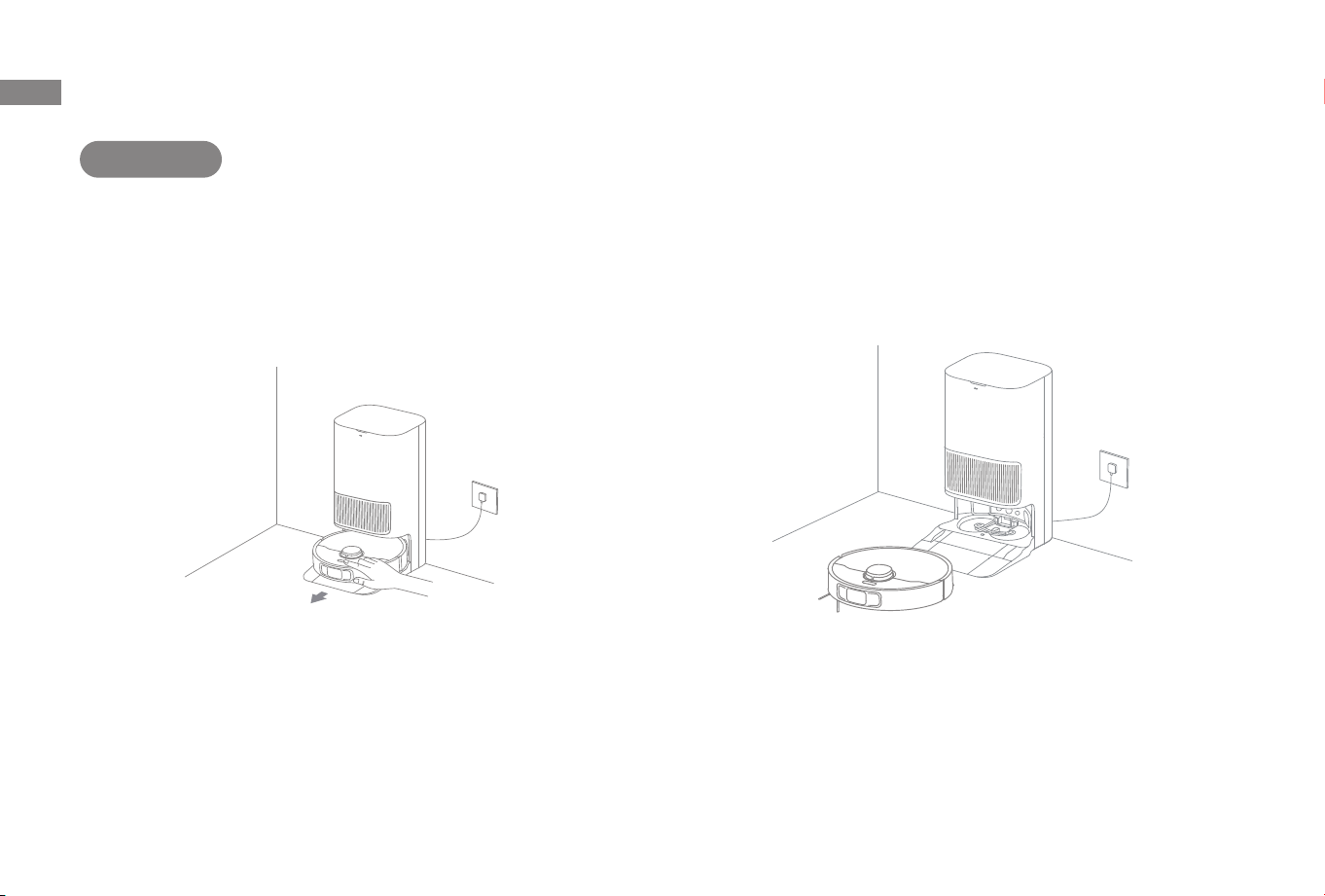

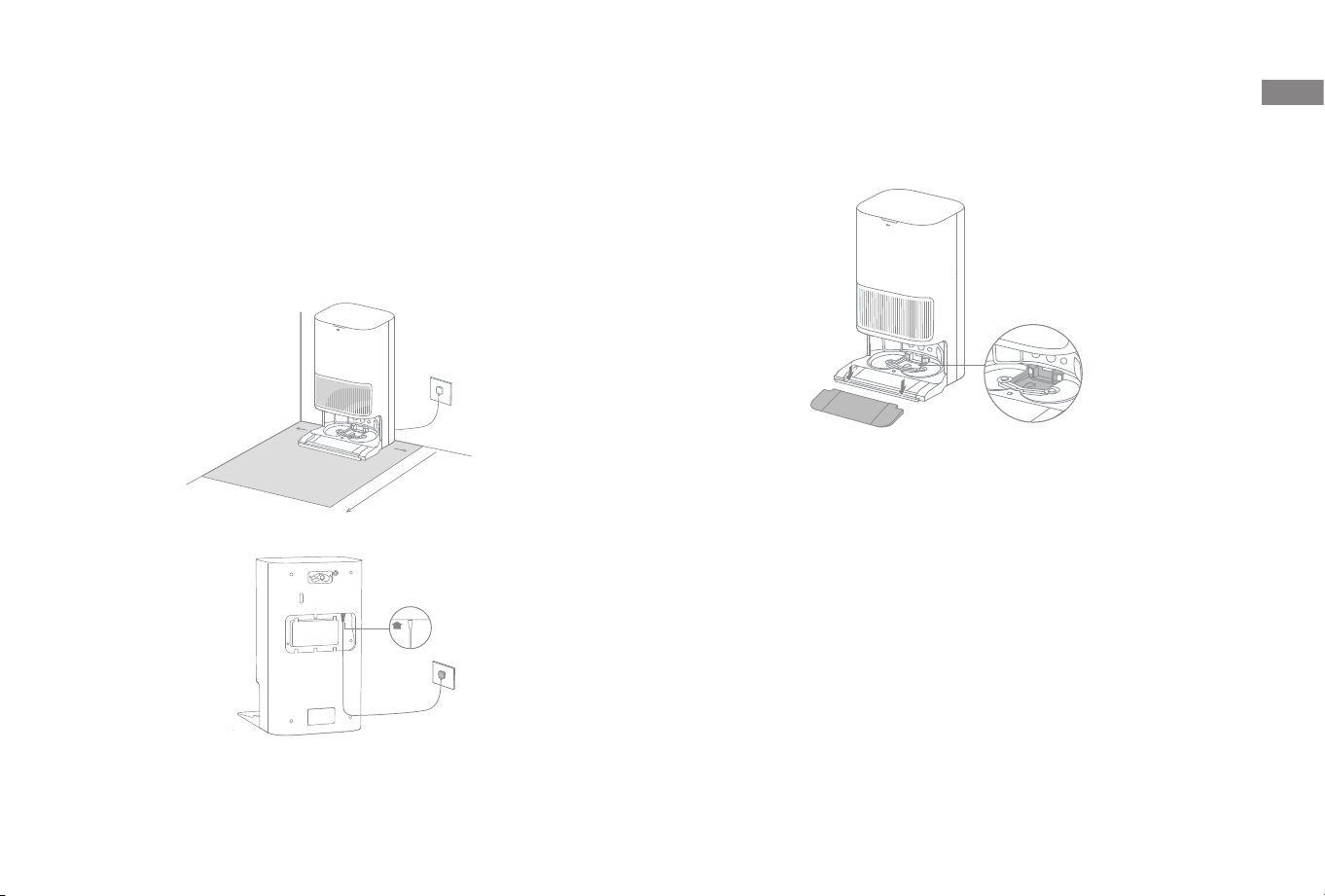

1. Place the Base Station and Connect to an Electrical Outlet

Place the base station in a location that is as open as possible with

a good Wi-Fi signal. Leave enough space as shown in the gure and

remove any objects in the shaded area. Insert the power cord into the

base station and plug it into the socket.

Before Use

Note:

Make sure that no objects might block the signaling area.

To prevent water stains from wetting wood floors or carpets, placing the

base station on tile floors or marble floors is recommended.

Firmly insert the power cord

upwards until the indicator

turns on.

＞1 m

＞5 cm

Washboard Filter

2. Install the Ramp Extension Plate

Note: Ensure the washboard filter is installed into place.

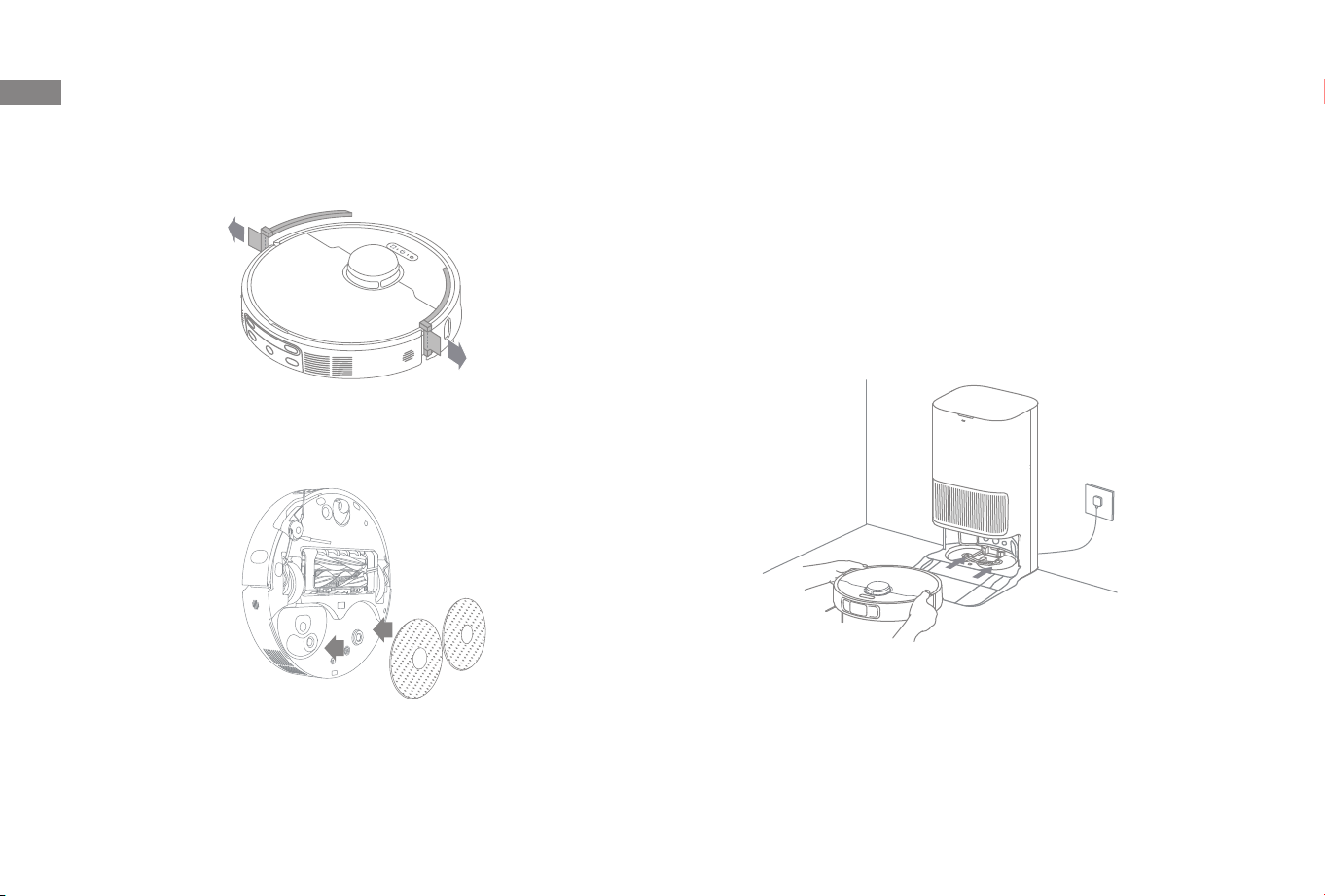

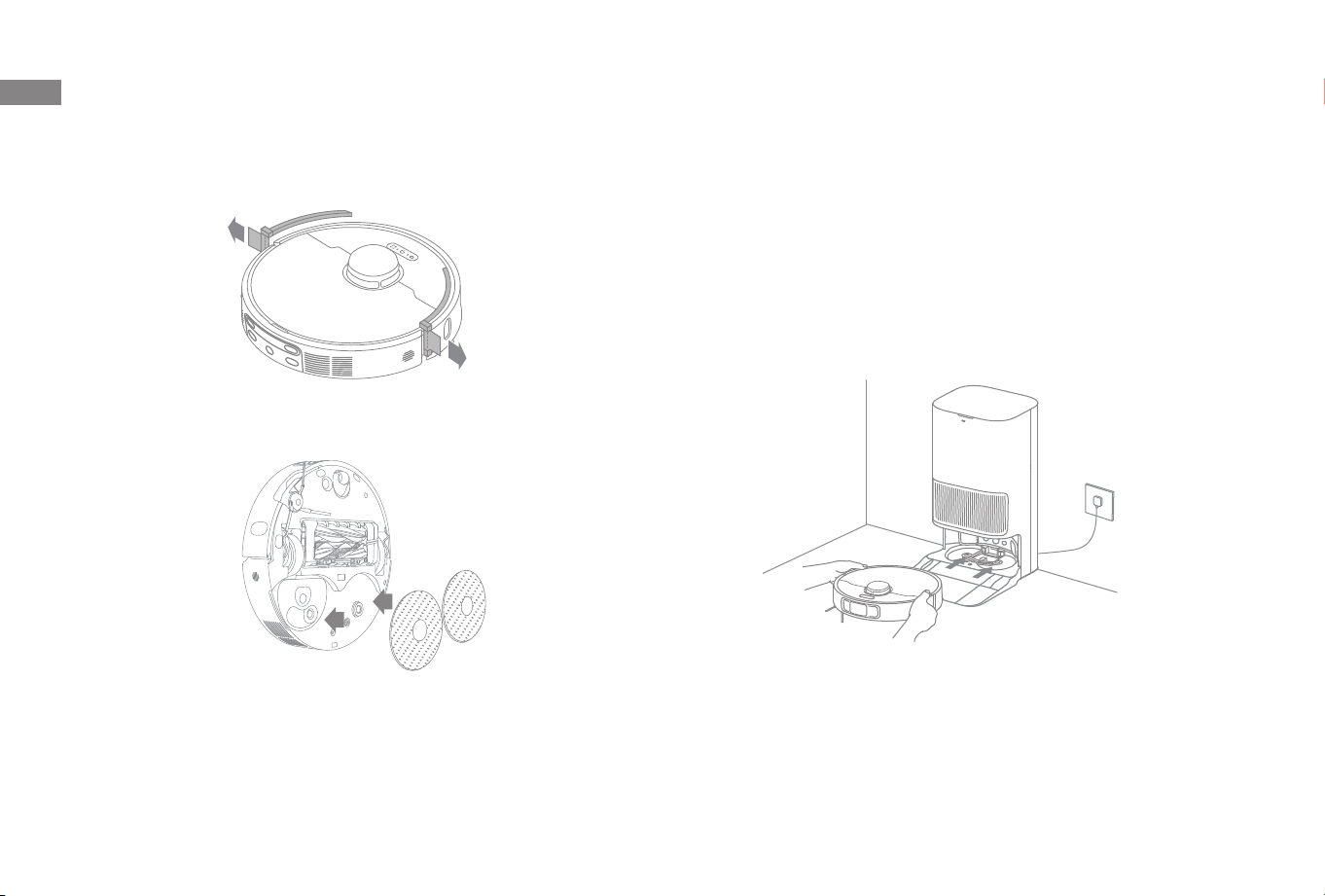

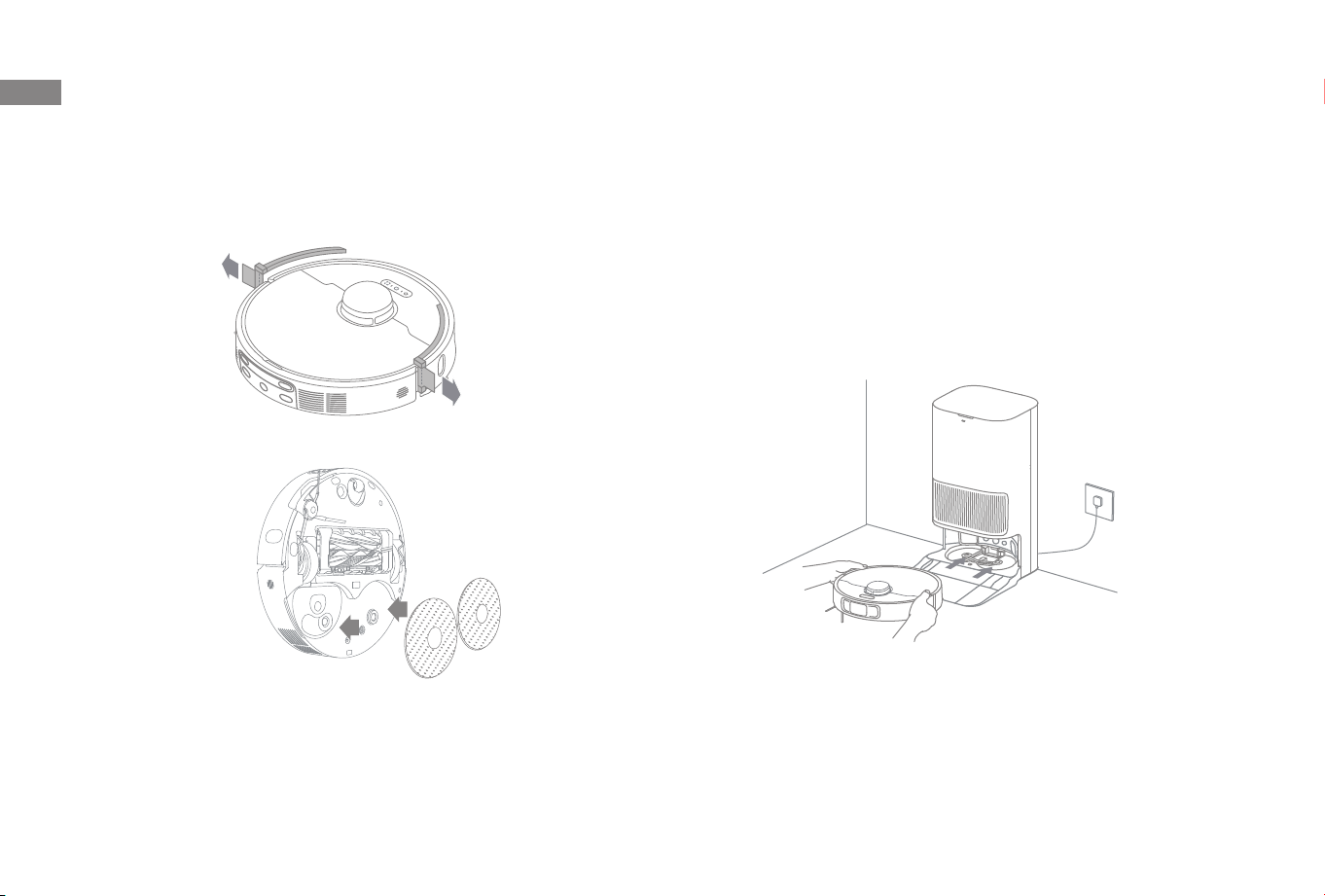

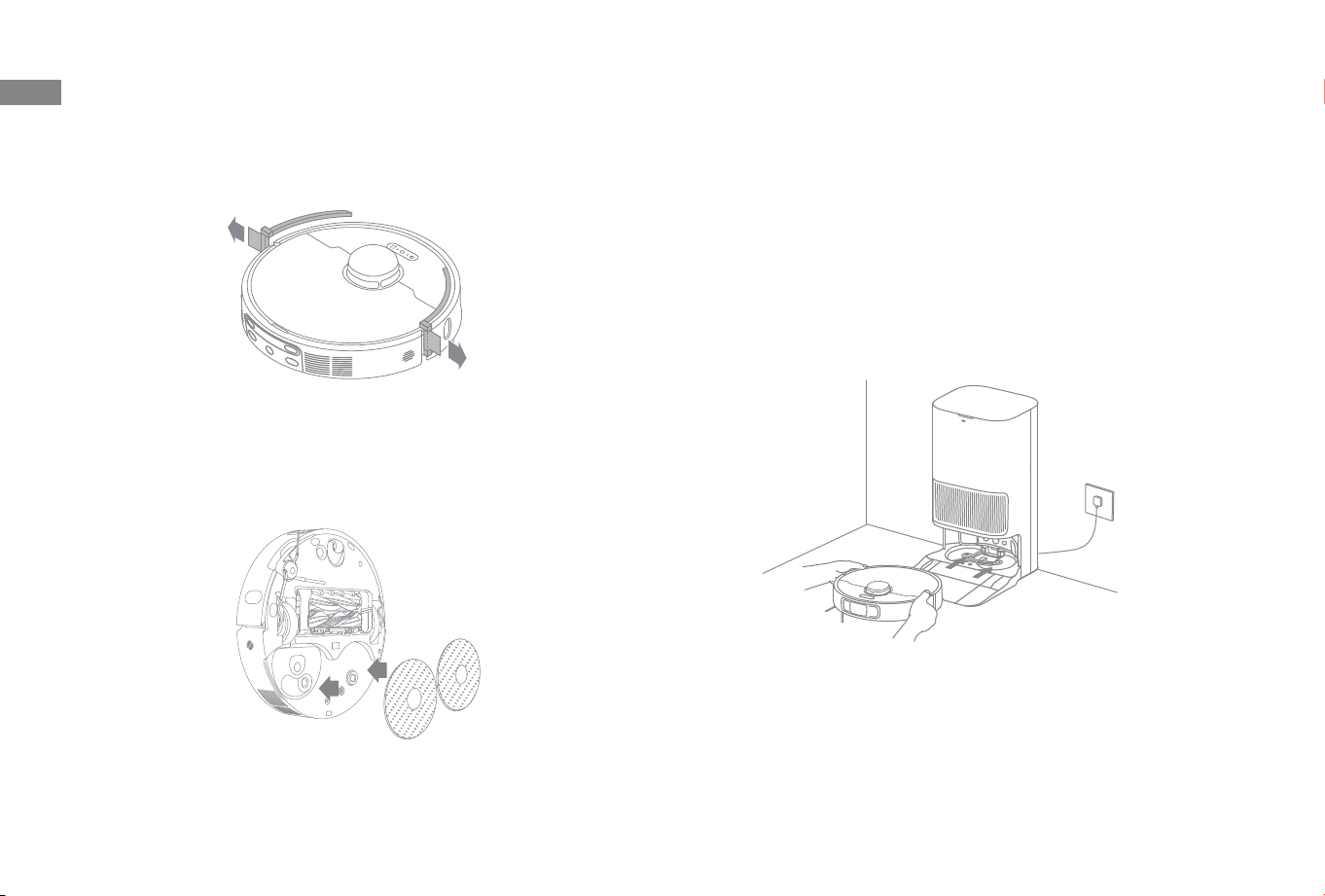

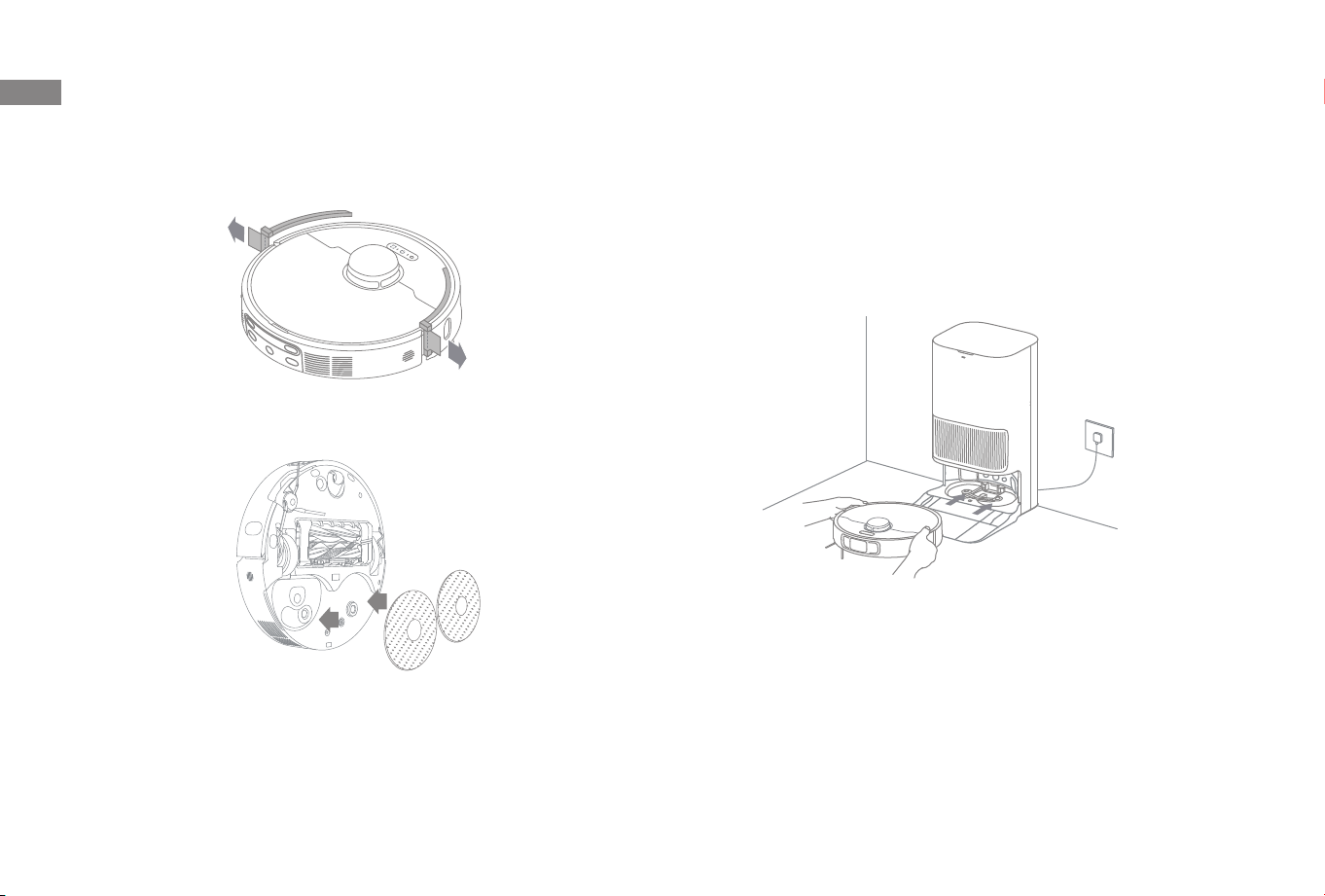

3. Remove Robot Protections and Install the Mop Assembly 4. Connect the Robot to the Base Station

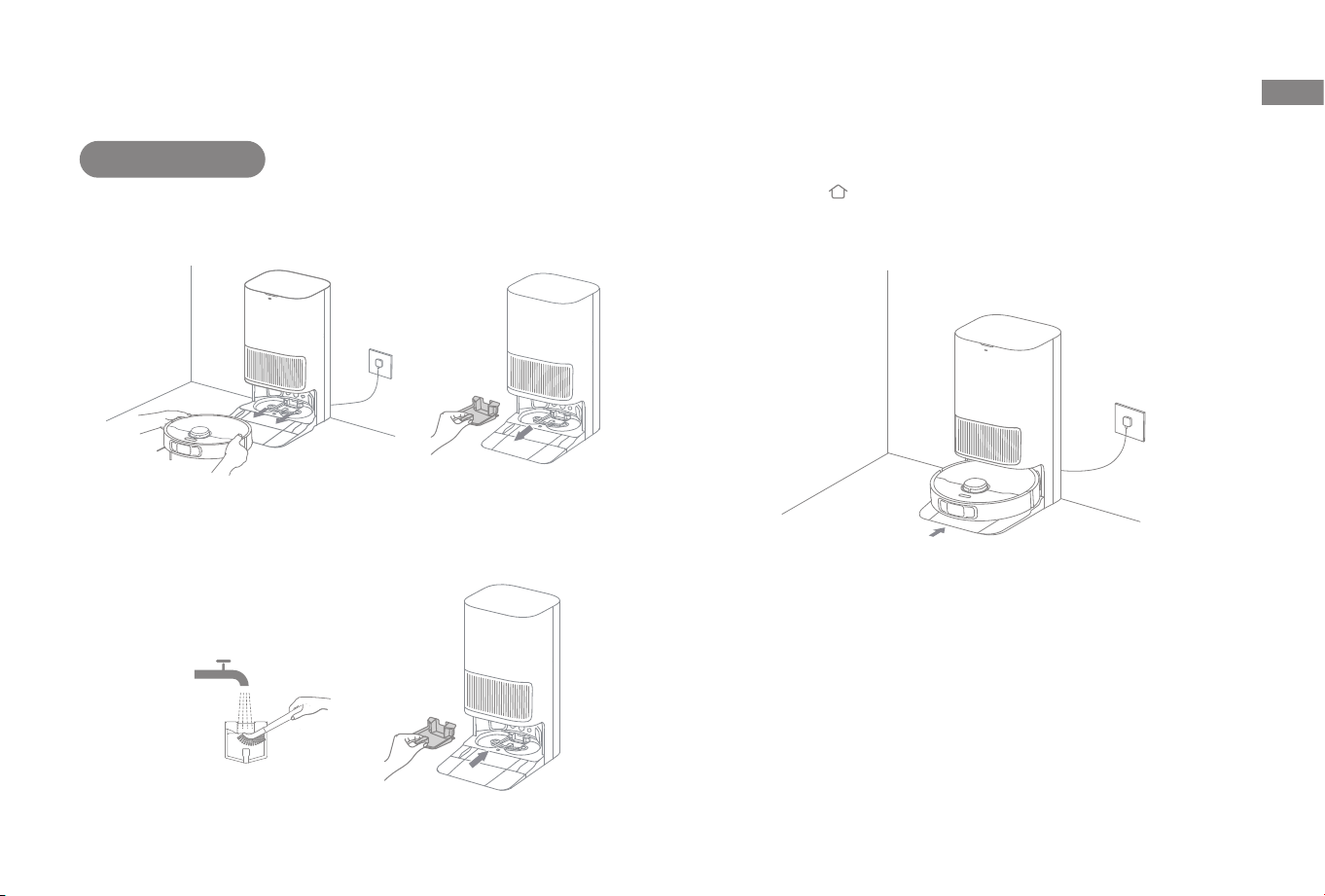

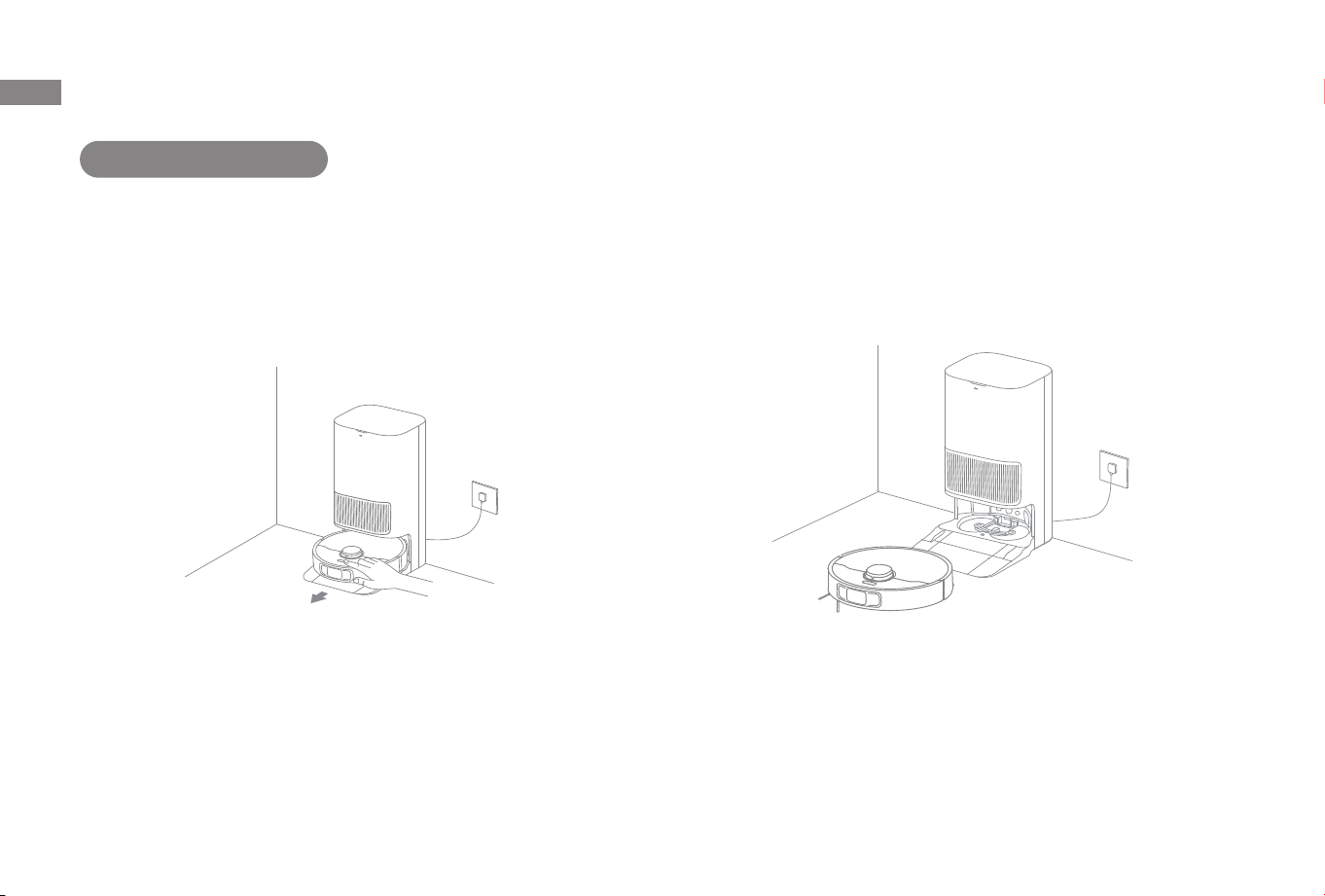

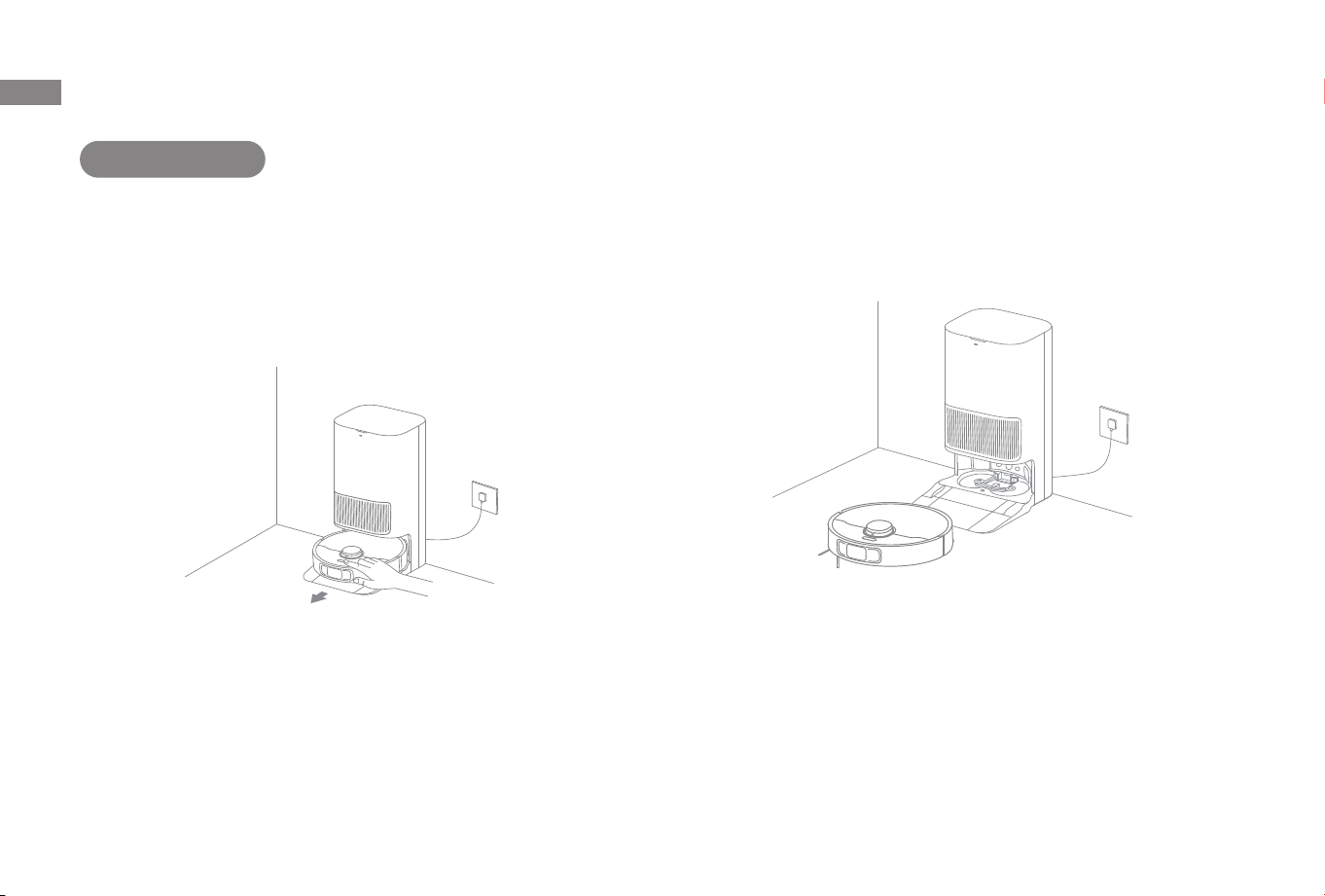

Press and hold the power button on the robot for 3 seconds to

turn it on. Place the robot onto the base station with the mop

assembly facing toward the washboard. Then you will hear a voice

notication when the robot successfully connects to the base

station. After the robot is fully charged, the status indicators on the

robot and the base station will remain lit for 10 minutes and then

dim.

Before Use

Note: It is recommended to fully charge the robot before its first use. When

the robot cannot be turned on after the battery is depleted, manually connect

the robot with the station to charge it.

②

①

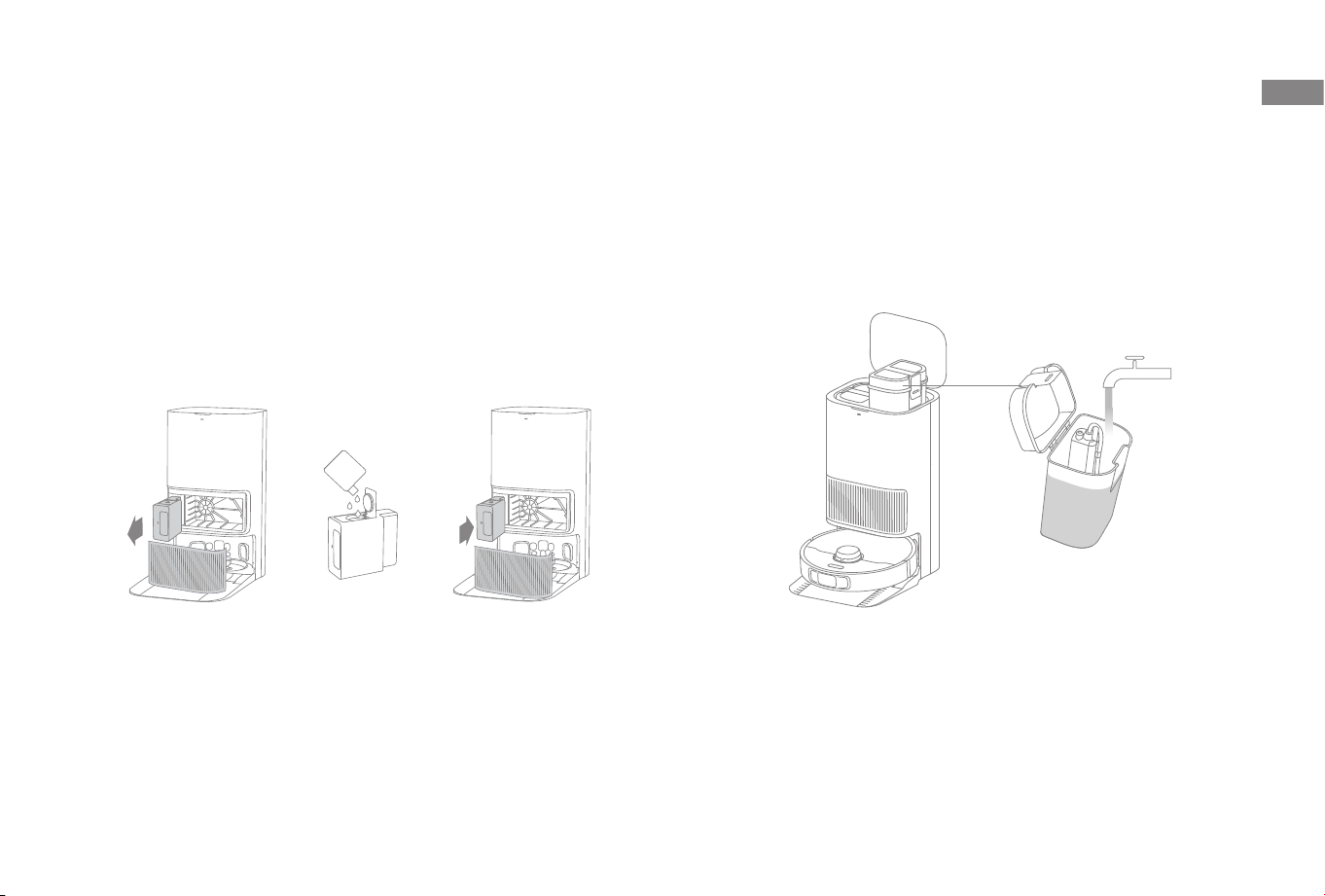

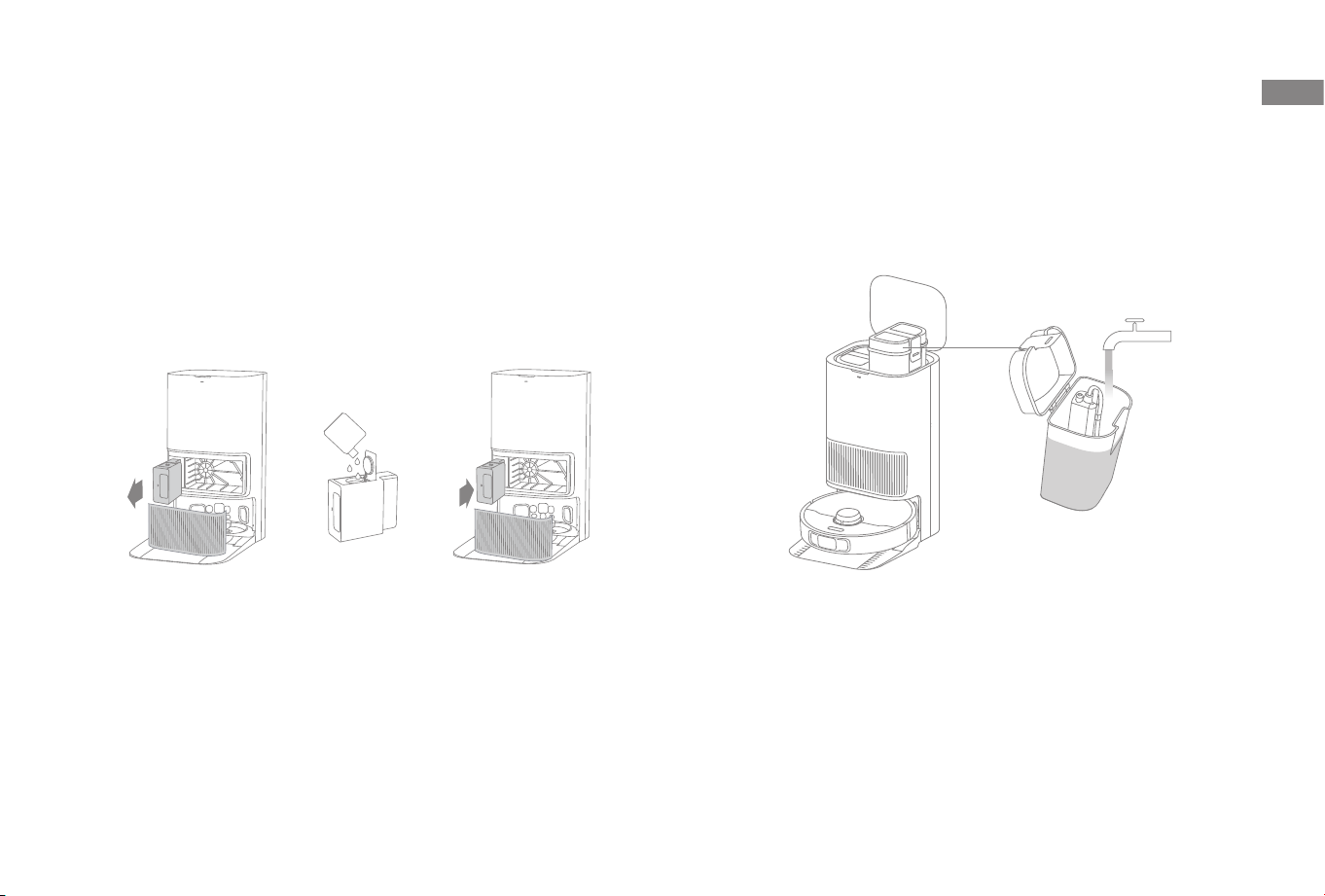

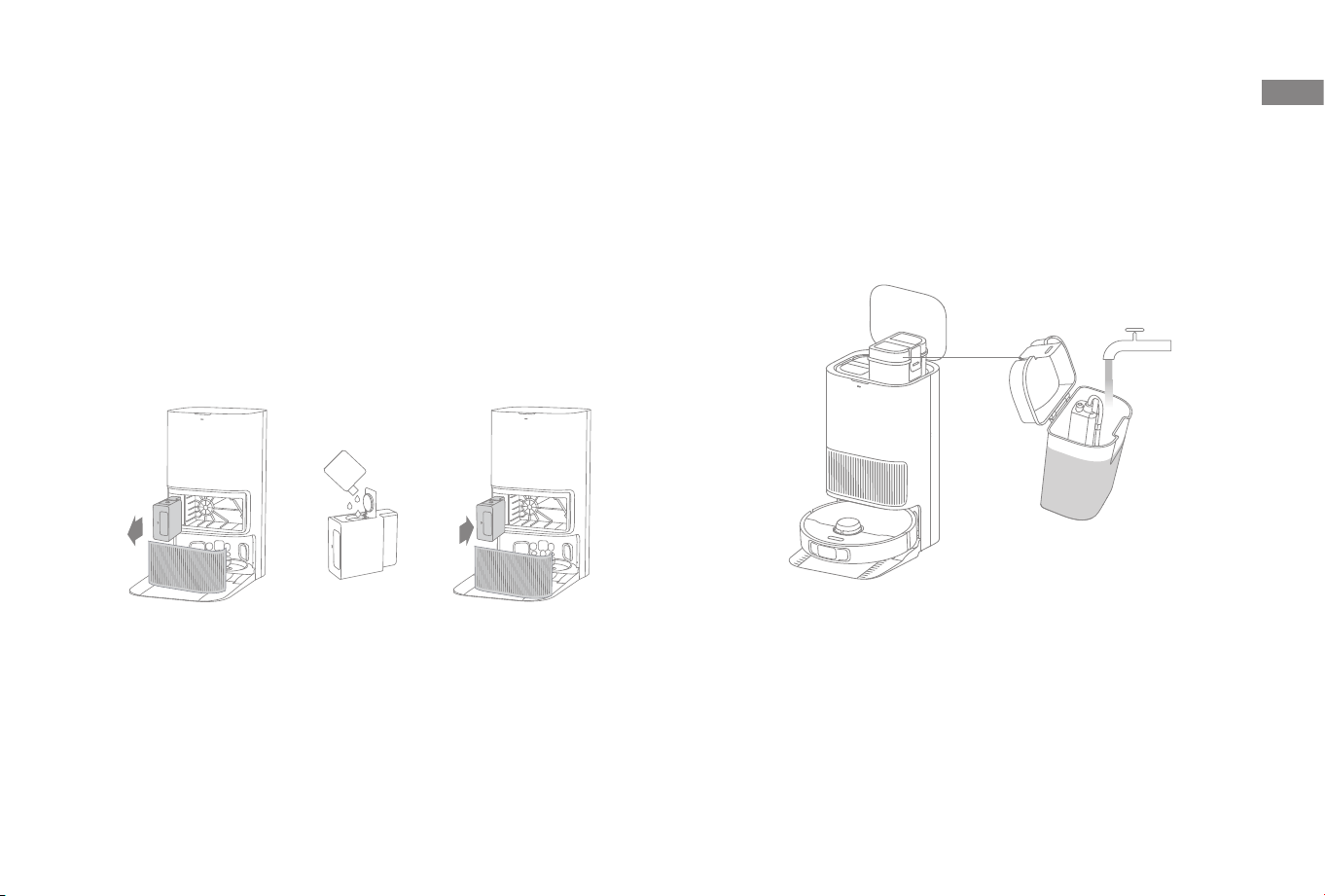

6. Add Water to the Clean Water Tank

Take out the clean water tank from the base station and ll up the

tank with clean water. Then install it back into the base station.

Note: Do not add hot water into the water tank, as this may cause the tank to

become deformed.

Before Use

5. Add the Cleaning Solution

（1）Remove the dust tank cover and pull out the auto-detergent

compartment.

（2）Open the upper lid of the compartment and add the cleaning

solution.

（3）Close the lid of the compartment, put it back into the base

station, and then reinstall the dust tank cover. The cleaning solution

will be added automatically while working.

Note:

The auto-detergent compartment can be filled up with cleaning solution

for use. Do not add any liquid other than the officially-approved cleaning

solution to help prevent malfunction.

Install the auto-detergent compartment until it clicks into place.

①

②

①

②

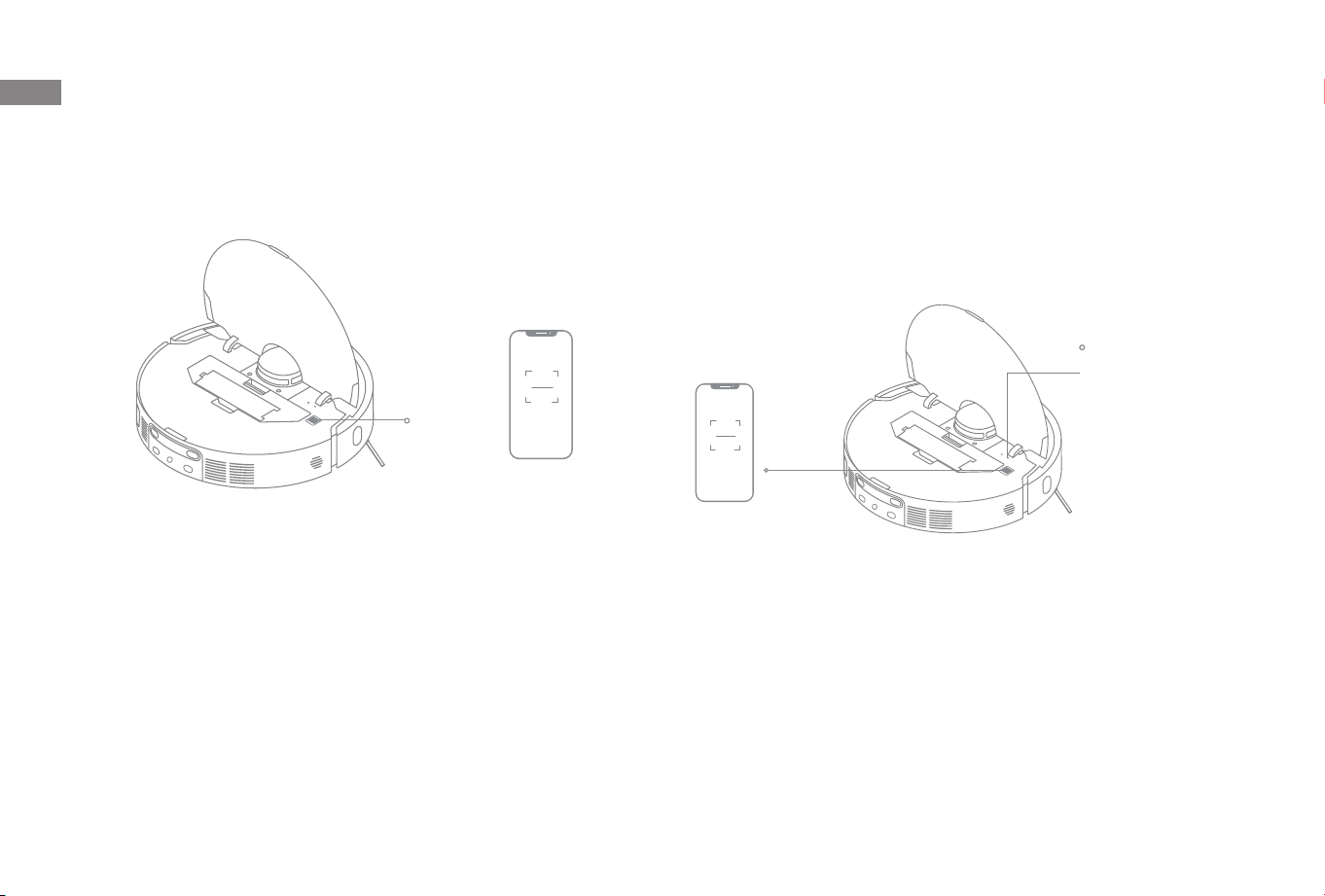

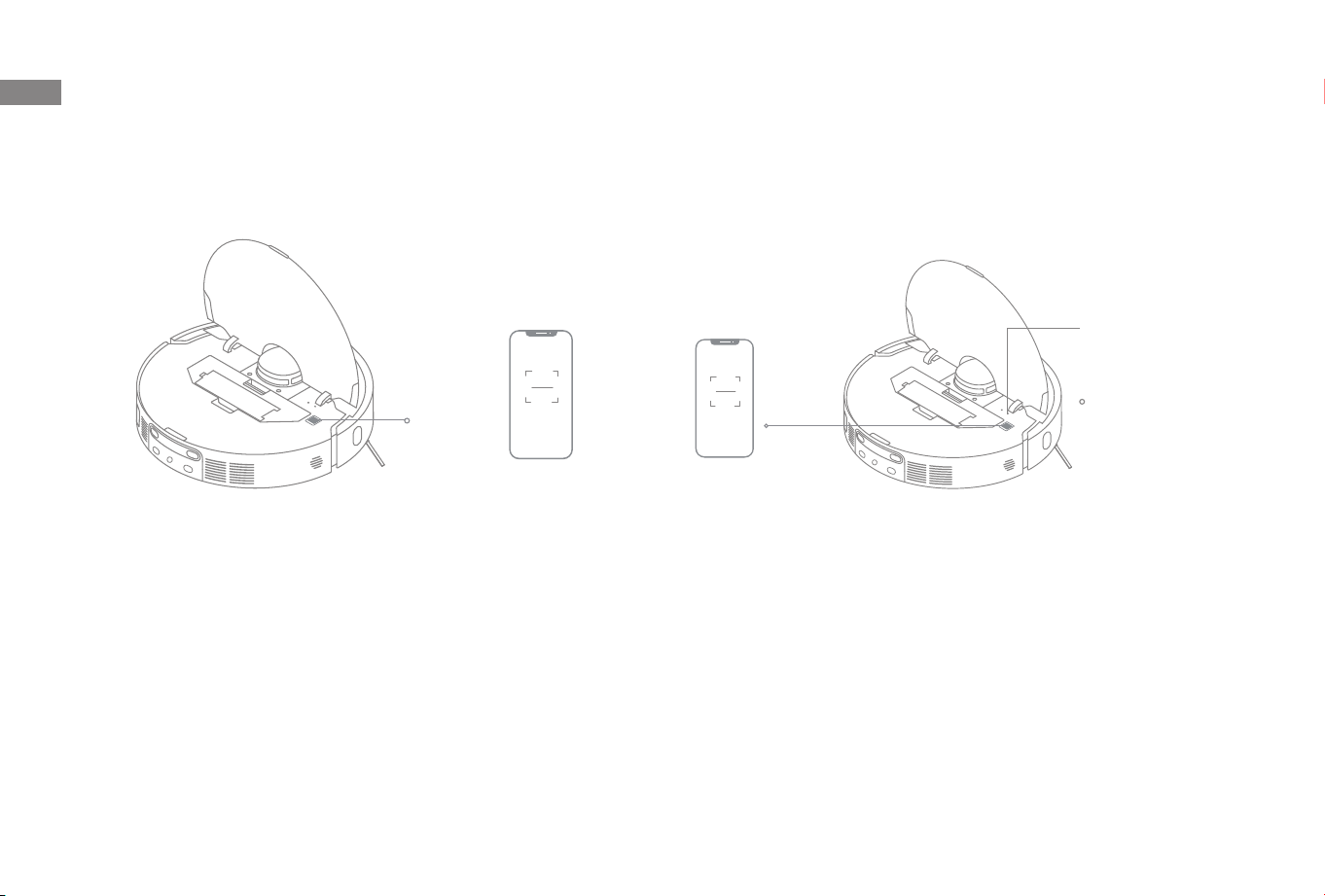

2. Add Device

Connecting with the Dreamehome App

1. Download the Dreamehome App

Wi-Fi Indicator

Blinking slowly:

To be connected

Blinking quickly:

Connecting

On: Connected

Note:

Only 2.4 GHz Wi-Fi is supported.

Due to upgrades in the app software, the actual operations may differ

from the directions in this manual. Please follow the instructions based on

the current app version.

Scan the QR code on the robot, or search "Dreamehome" in the app

store to download and install the app.

Open the Dreamehome app, tap "Scan QR code to connect", and scan

the same QR code on the robot again to add the device. Please follow

the prompts to nish the Wi-Fi connection.

QR Code

Note:

To reset Wi-Fi, repeat step 2 and then follow the prompts to finish the Wi-Fi

connection.

To disconnect the device from Wi-Fi network, press and hold the Reset

button on the robot for 3 seconds.

How to Use

If the battery is too low, the robot will automatically return to the

base station to charge. After charging to the appropriate battery

level, it will resume unnished cleaning tasks.

Note:To use this function, please enable it in the app.

Turn On/O

Fast Mapping

Do Not Disturb (DND) Mode

Spot Cleaning

Robot Restarting

Auto Resume Cleaning

Pause/Sleep

Press and hold the power button for 3 seconds to turn on the robot.

The power indicator will remain lit. Or, place the robot onto the base

station by aligning the charging contacts of the robot with those of

the base station, and then the robot will turn on automatically and

begin charging. To turn o the robot, move the robot away from the

base station and press and hold the power button for 3 seconds.

When the robot is set to the Do Not Disturb (DND) mode, the robot

will be prevented from resuming cleaning. The DND mode is

disabled by default at the factory. You can use the app to enable

the DND mode or modify the DND period. The DND period is 22:00-

8:00 by default.

Note:

The scheduled cleaning tasks will be performed as usual during the DND

period.

The robot will resume cleanup where it left off after the DND period expires.

When the robot is awaiting, press briefly the button to enable

the spot cleaning mode. In this mode, the robot cleans a square-

shaped area of 1.5 x 1.5 meters around it and returns to its starting

point once the spot cleaning is completed.

If the robot stops responding or cannot be turned off, press and

hold the power button for 10 seconds to forcefully turn it o. Then,

press and hold the power button for 3 seconds to turn the robot on.

After conguring the network for the rst time, follow the

instructions in the app to quickly create a map. The robot will start

mapping without cleaning. When the robot returns to the base

station, the mapping process has been completed and the map will

be saved automatically.

When the robot is running, press any button to pause it.

If the robot is paused for more than 10 minutes, it automatically

enters sleep mode. All indicators on the robot will turn off. Press

any button on the robot, or use the app to wake up the robot.

Note: If the robot is paused and placed onto the base station, the current

cleaning process will end.

Note:

To ensure the robot easily returns to the base station after cleaning, it is

recommended to make the robot start from the base station.

The mop pads will be cleaned before the robot starts mopping, please wait

patiently.

Do not move the base station, the clean water tank, the used water tank, or

the washboard filter during operation.

Hot water cleaning can be enabled in the app for mop pad cleaning, which

applies to all modes. To prevent scalding, do not touch the water outlet

when the function is on.

How to Use

Note: When using the mop assembly for the rst time, the robot performs the

"Vacuum and Mop" task by default.

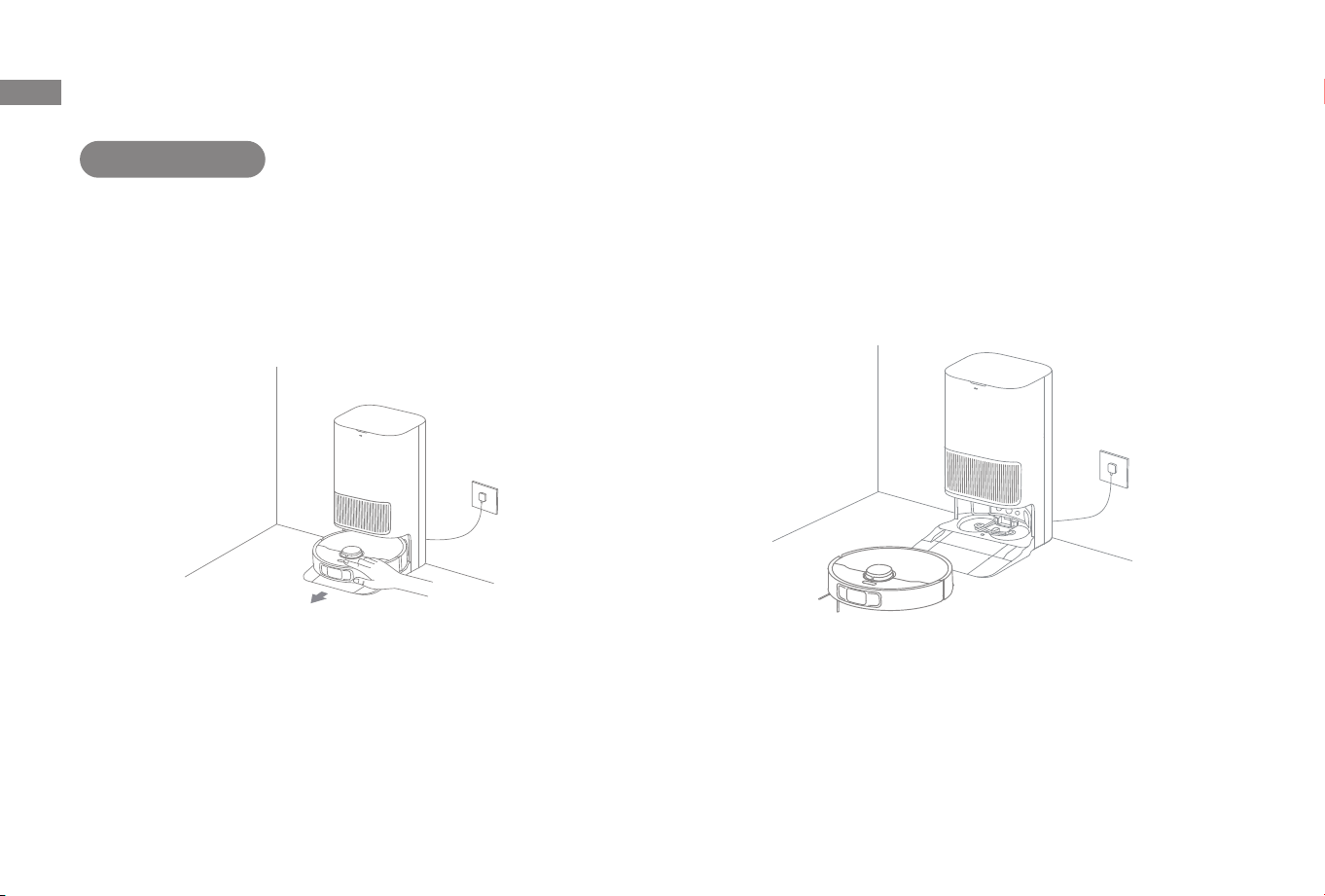

1. Start cleaning

Press the power button on the robot, or use the app to make the

robot start from the base station. Then the robot will plan the

optimal cleaning route and perform the cleaning task based on the

created map.

2. Auto mop washing

When cleaning, the robot will automatically return to the base

station to wash mop pads based on the mop pad cleaning

frequency specied in the app. The base station will automatically

rell the robot's water tank and the robot will resume cleanup.

Vacuum and Mop

How to Use

4. Clean the used water tank

After the robot has completed its task, please clean the used water

tank to prevent any odor.

Note:

If the auto-empty function is turned off in the app, the base station will not

automatically empty the dust box.

The base station will empty the dust box according to the setting in the app.

Enable the vacuuming function in the app, and the robot will

automatically remove the mop assembly on the base station and

start vacuuming.

Enable the mopping after vacuuming function in the app, and the

robot will automatically remove the mop assembly on the base

station to vacuum the oor. After vacuuming is completed, the

robot will return to the base station to install the mop assembly

and the base station will automatically empty the dust box. And

then, the robot will start mopping after the side brush is raised.

Enable the mopping function in the app, and the robot will

automatically check if the mop assembly is installed on the base

station. If not, the robot will install the mop assembly and start

mopping after the side brush is raised.

Vacuum Only

Mop after Vacuuming

Mop Only

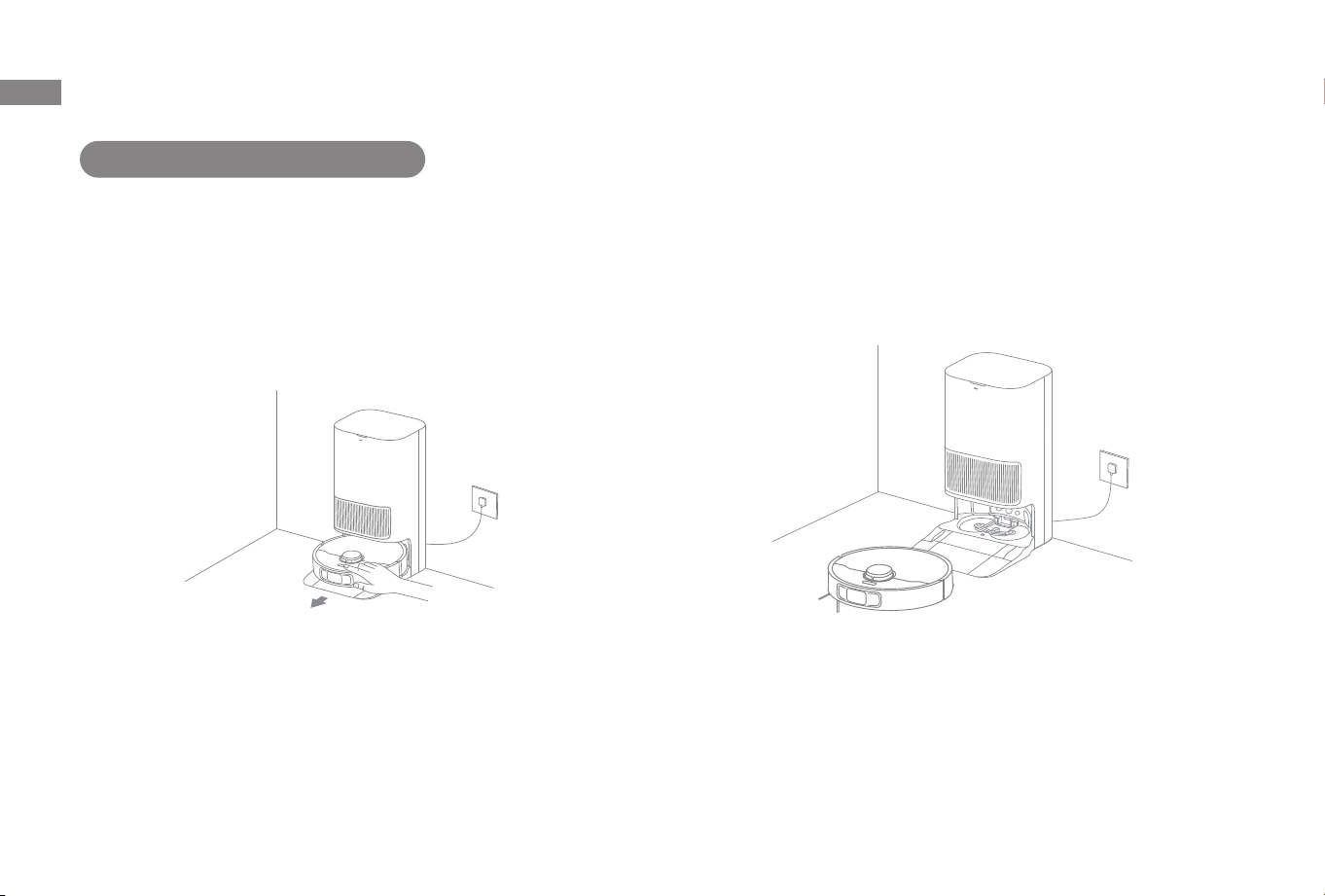

3. Automatically empty the dust box and wash and dry the

mop pads

After the robot finishes a cleaning task and returns to the base

station to charge, the base station will automatically empty the dust

box and then wash and dry the mop pads.

Routine Maintenance

Parts

Part Maintenance Frequency Replacement Period

Used water tank After each use

Clean water tank

Once every 2 weeks

Main brushes Every 6 to 12 months

Dust box's lter

Every 3 to 6 months

Side brush

Mop pad holders /

Washboard lter Once every 1 to 2 months

Base station's

signaling area

Once every month

Charging contacts

Auto-empty vents

Omnidirectional wheel

Edge sensor

Laser Distance Sensor

(LDS)

3D Line Laser Sensor

Carpet sensor

Cli sensors

Part Maintenance Frequency Replacement Period

Bumper window

Once every month

Bumper

Robot's automatic

water relling inlet

Bottom of the robot

Dust box

Clean it as neededMain wheels

Auxiliary climbing

wheels

Dust bag

Every 2 to 4 months

Mop pads Every 1 to 3 months

Scale inhibitor Every 18 to 36 months

Note: The frequency of maintenance and replacement depends on actual

usage. If an exception occurs due to special circumstances, prompt

maintenance or replacement is recommended.

To keep the robot in good condition, it is recommended to refer to the accessory usage in the app or the following table for routine

maintenance.

Part Maintenance Frequency Replacement Period

Bumper window

Once every month

Bumper

Robot's automatic

water relling inlet

Bottom of the robot

Dust box

Clean it as neededMain wheels

Auxiliary climbing

wheels

Dust bag

Every 2 to 4 months

Mop pads Every 1 to 3 months

Scale inhibitor Every 18 to 36 months

Routine Maintenance

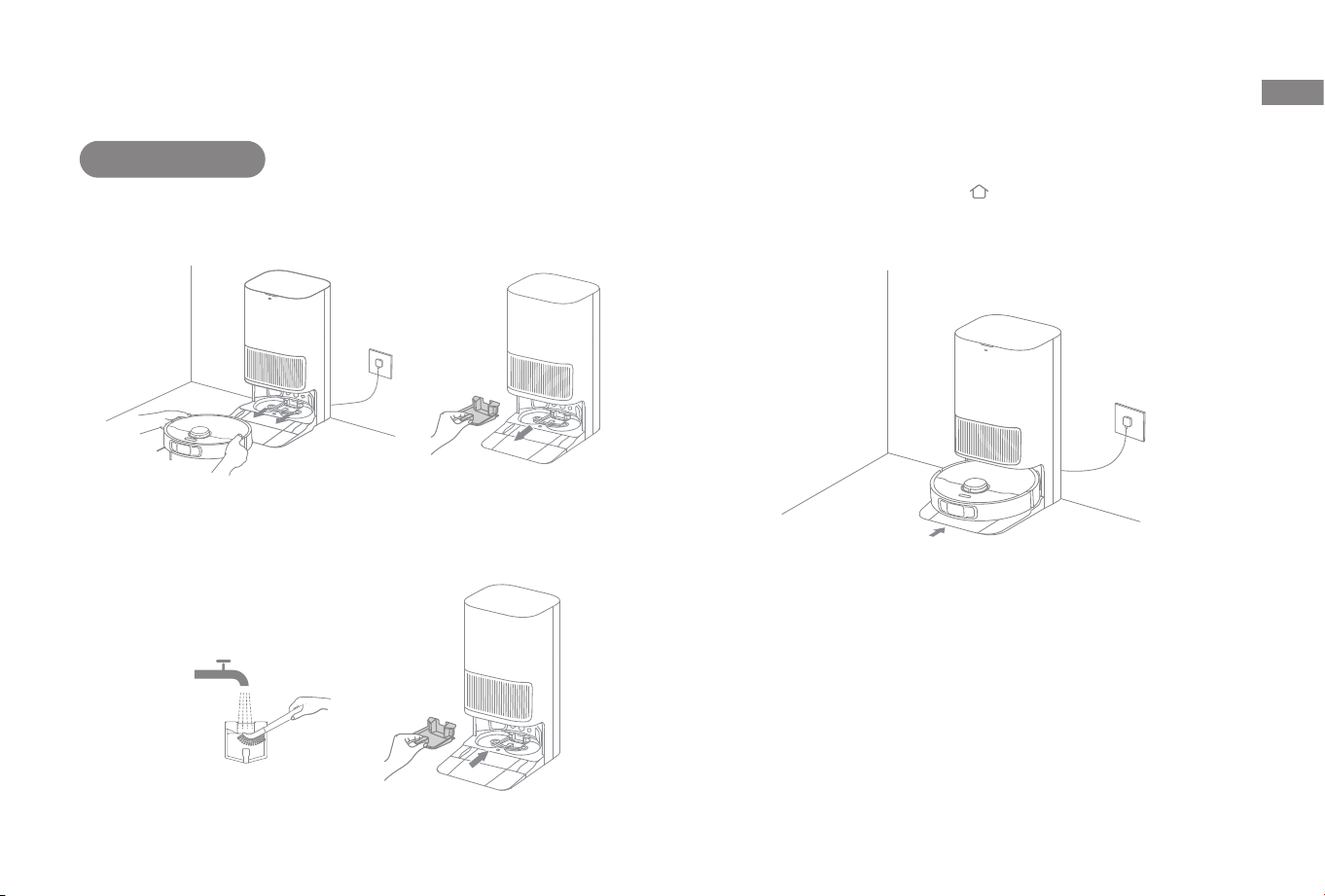

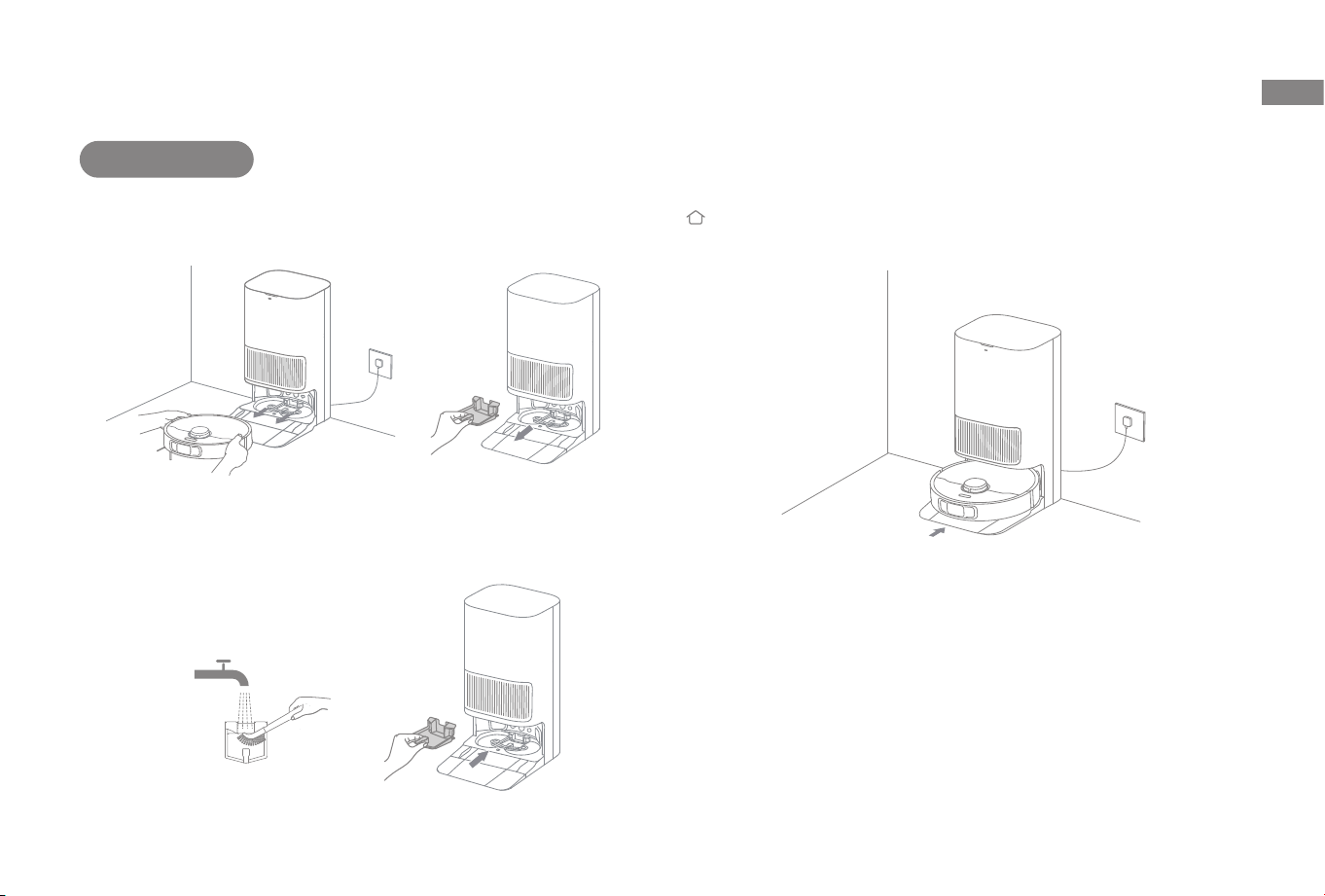

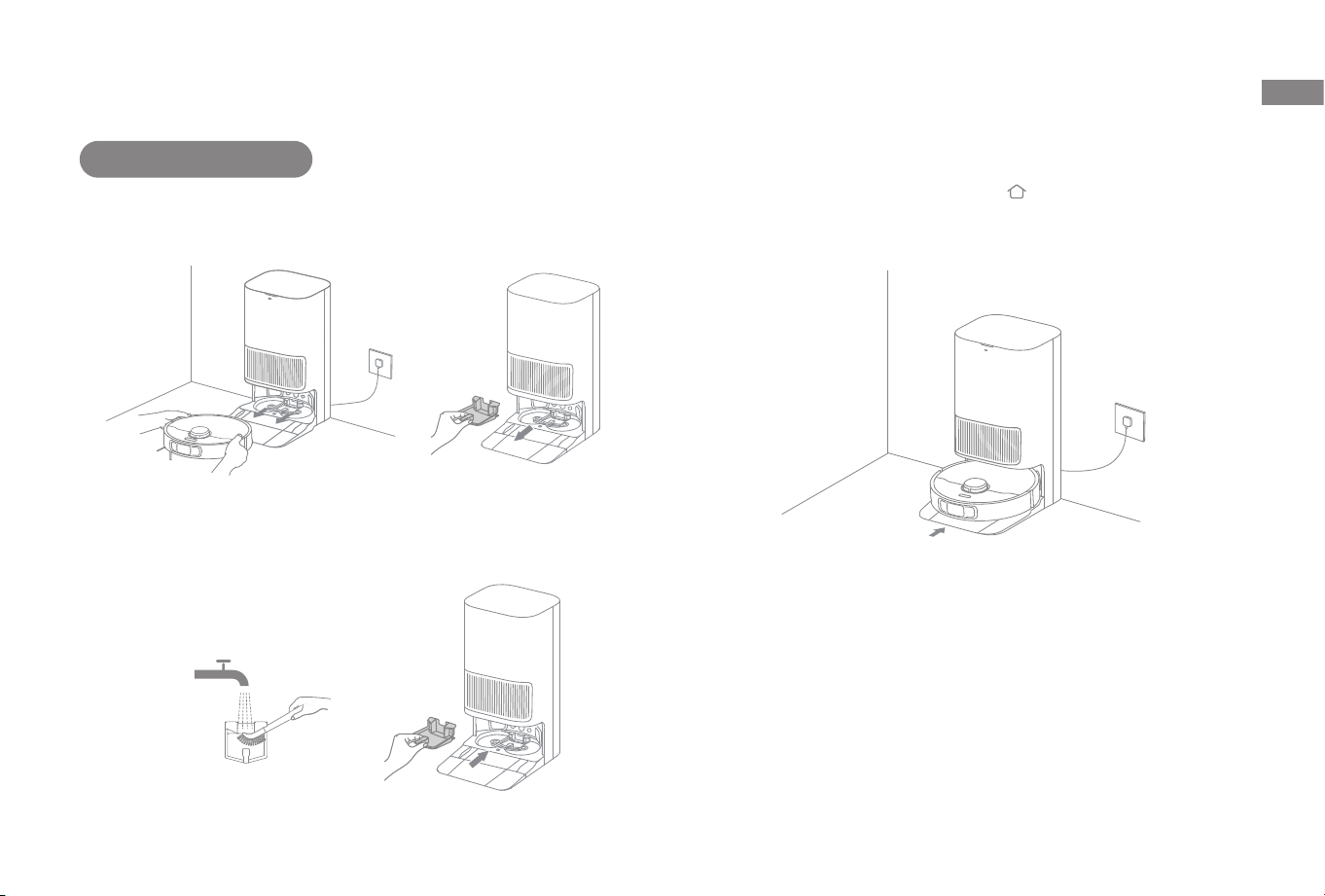

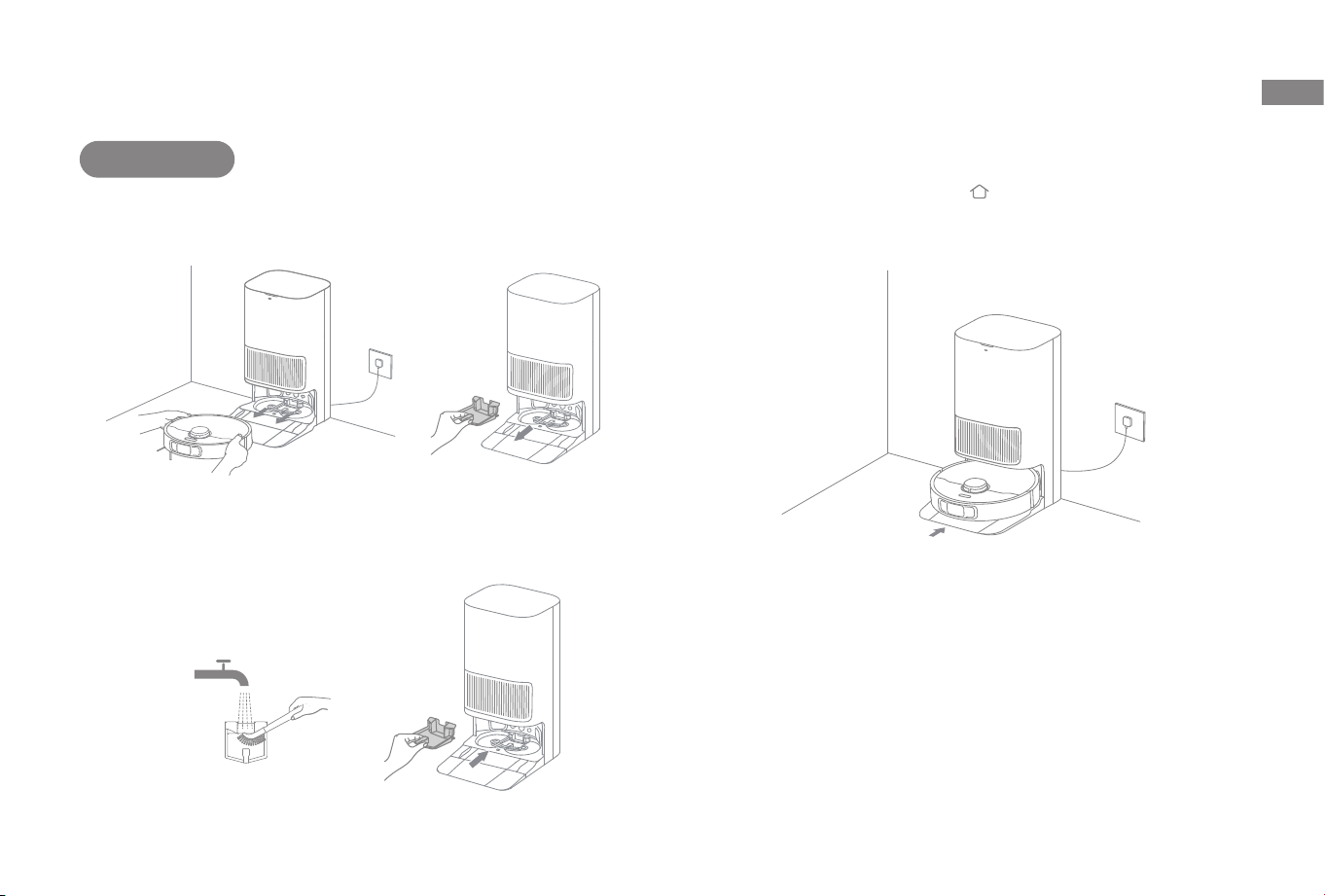

Washboard Filter

1. Take out the robot and remove the washboard lter after the mop

pad cleaning is complete.

2. Rinse the washboard filter with clean water, wipe it clean, and

then reinstall it in the washboard.

3. Use the app or press the button to return the robot to the base

station, or manually put the robot back.

Routine Maintenance

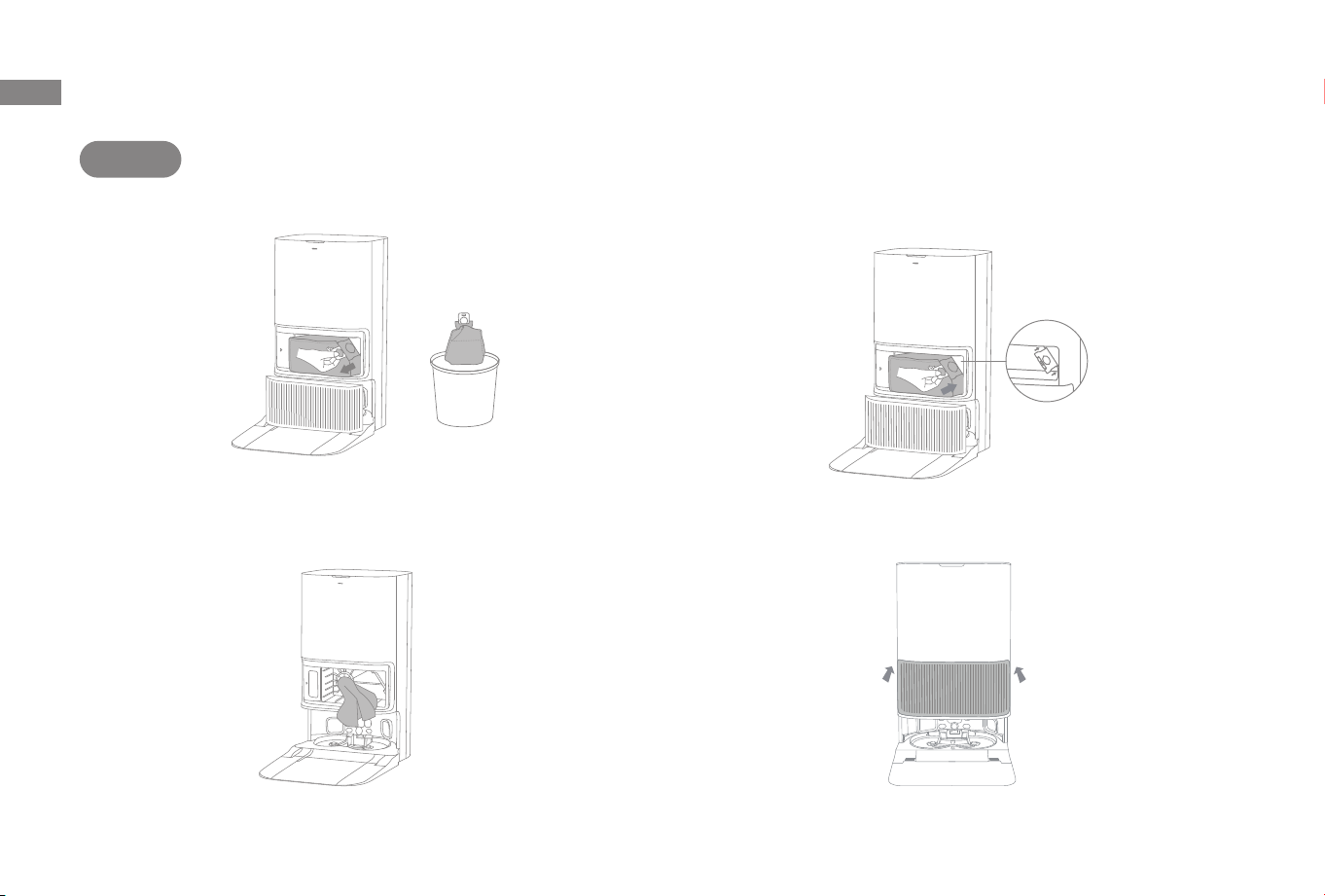

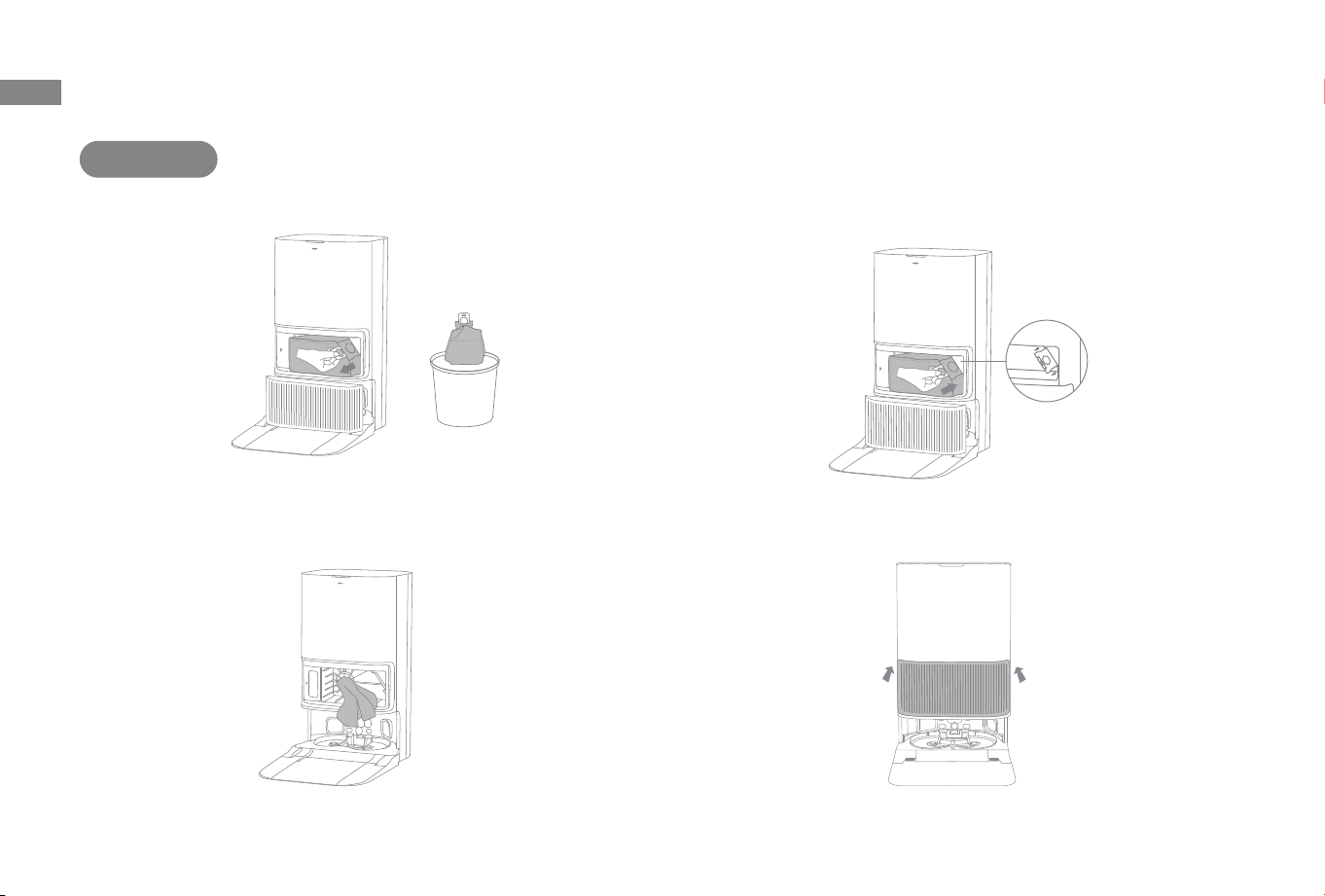

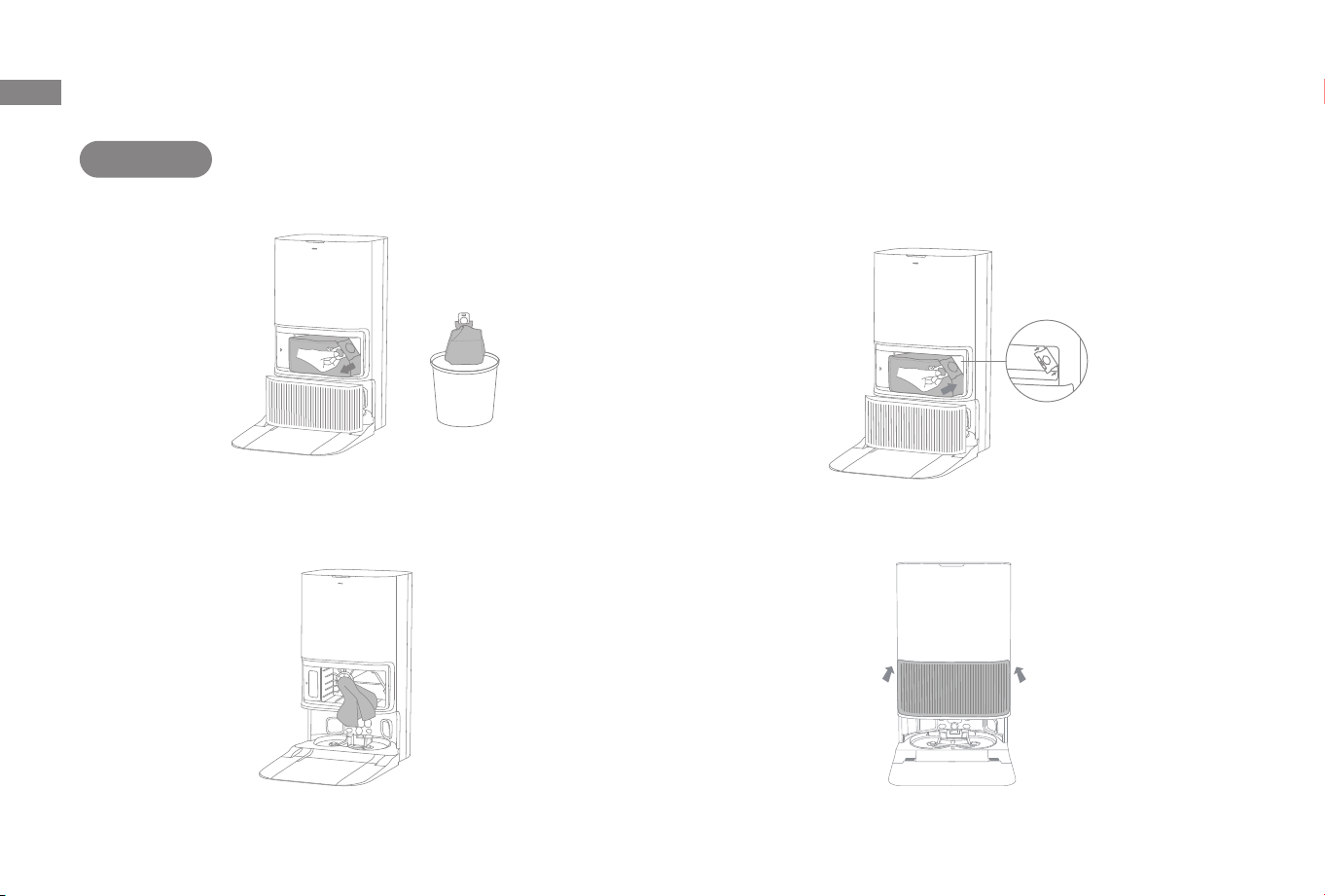

Dust Bag

1. Remove the dust tank cover and discard the dust bag. 3. Install a new dust bag.

4. Reinstall the dust tank cover.2. Remove the dust and debris from the lter with a dry cloth.

Note: Pulling upwards on the handle will seal the bag to prevent the dust

and debris from accidentally falling out.

3. With the screen-printed arrows facing upwards, insert the main

brush holder into the slots downwards in an inclined way.

4. Align the front end of the brush guard with the slot, insert it

downwards in an inclined way, and then press it into place.

Routine Maintenance

Click

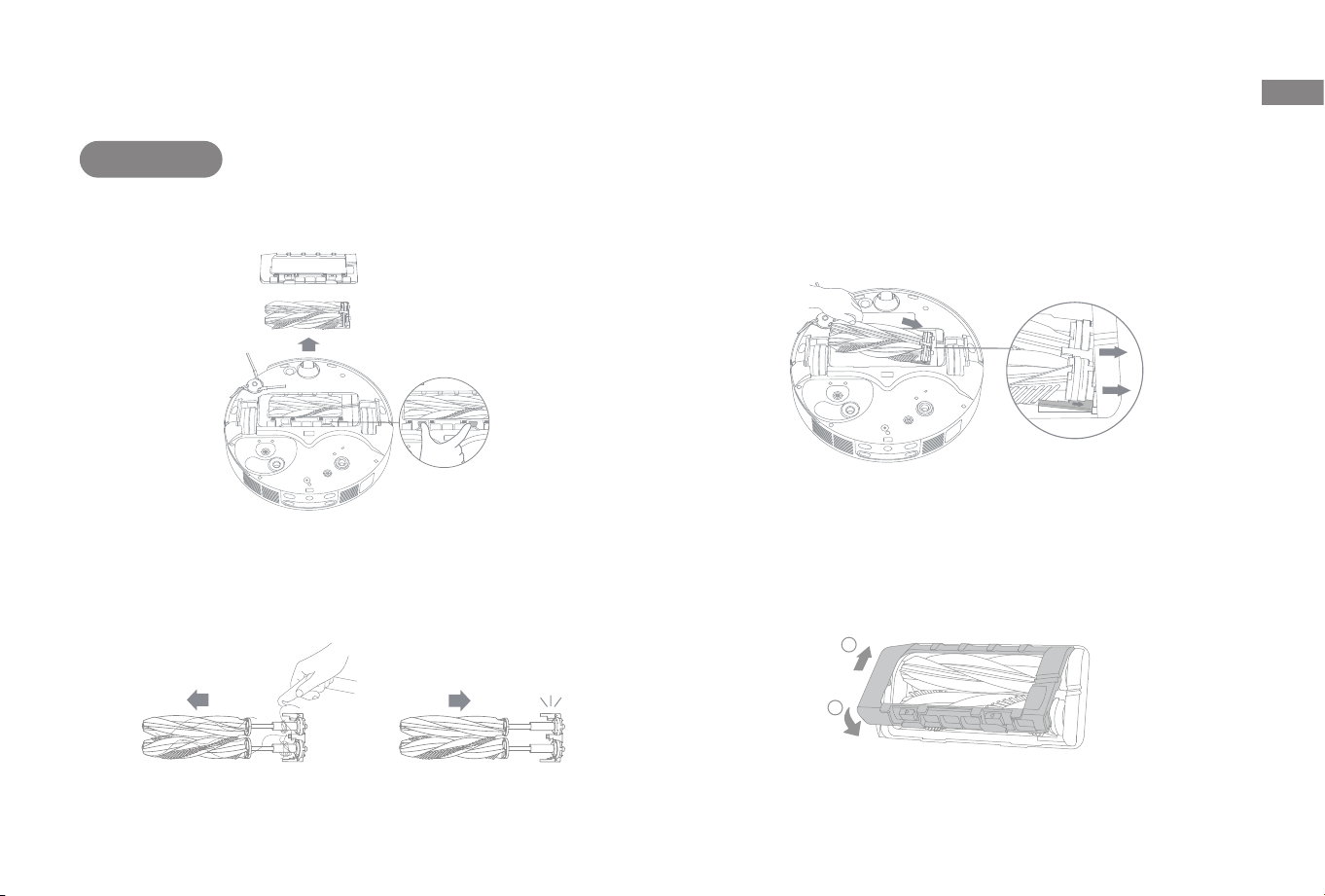

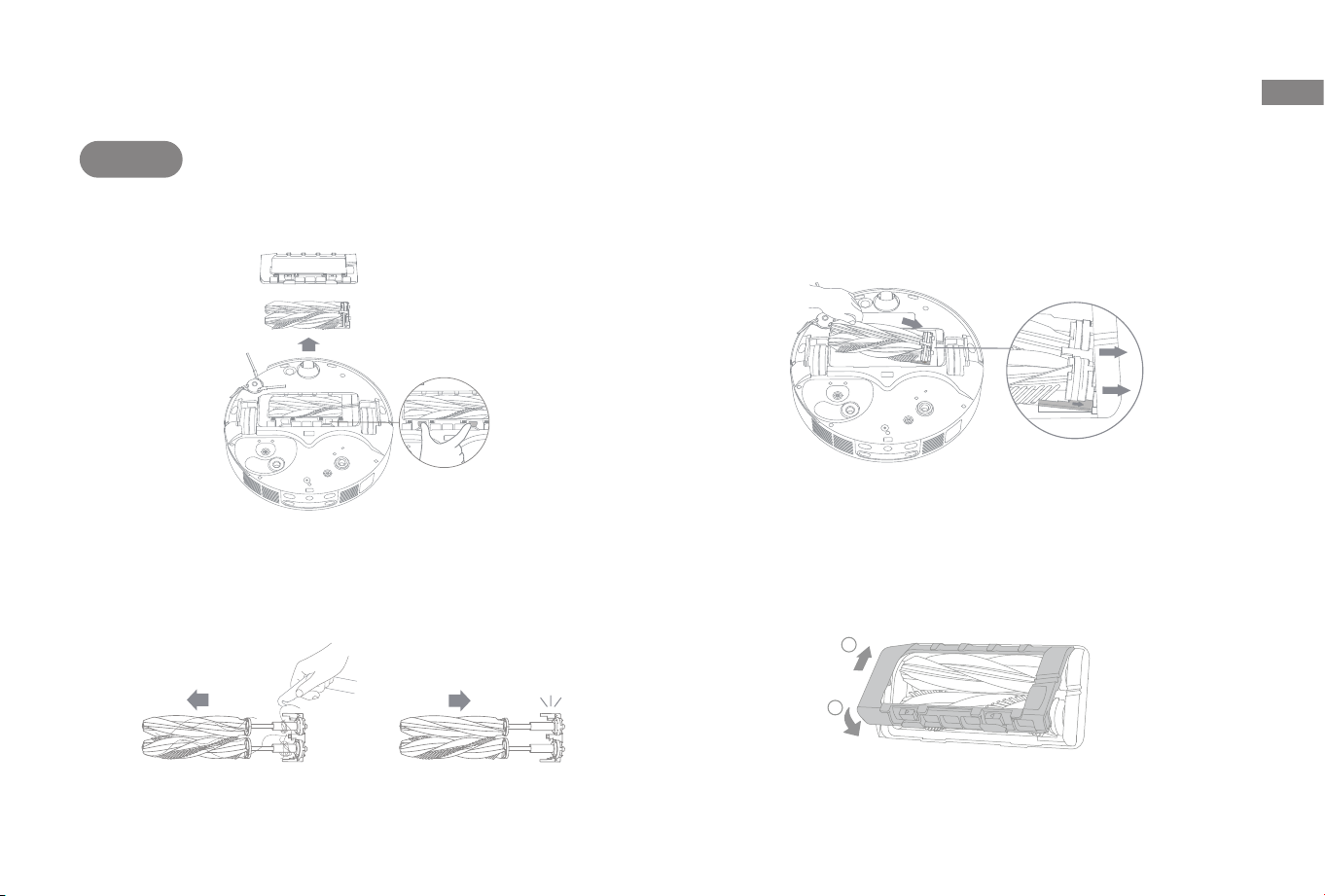

Main Brushes

2. Pull out the brushes as shown in the gure. Use the provided

cleaning tool to remove any hair tangled in the brushes. After

cleaning, push the brushes rmly into the main brush holder until

they click into place.

1. Press the brush guard clips inwards to remove the brush guard,

and then lift the brushes out of the robot.

Note:Be careful while pulling out the main brushes to prevent injury.

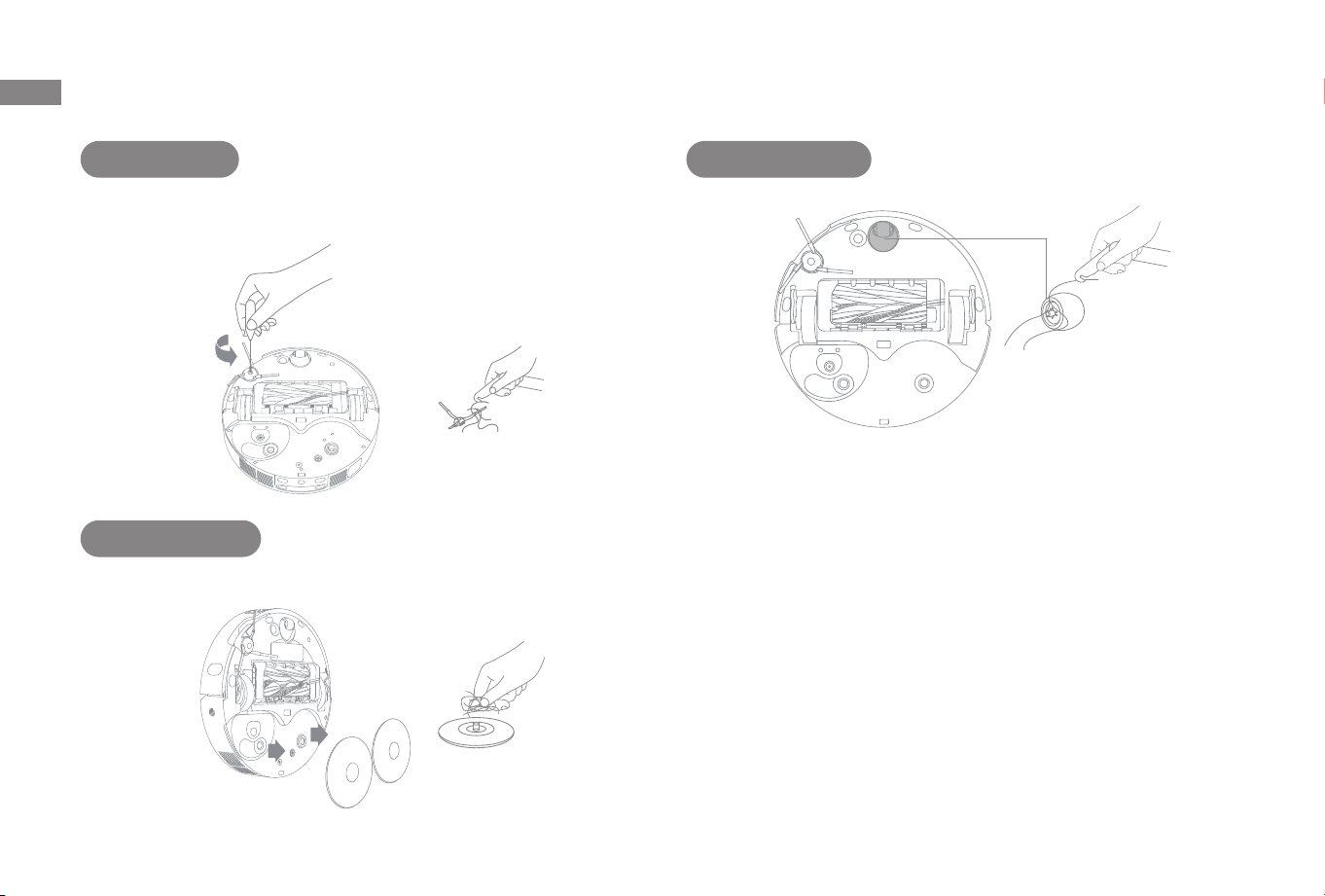

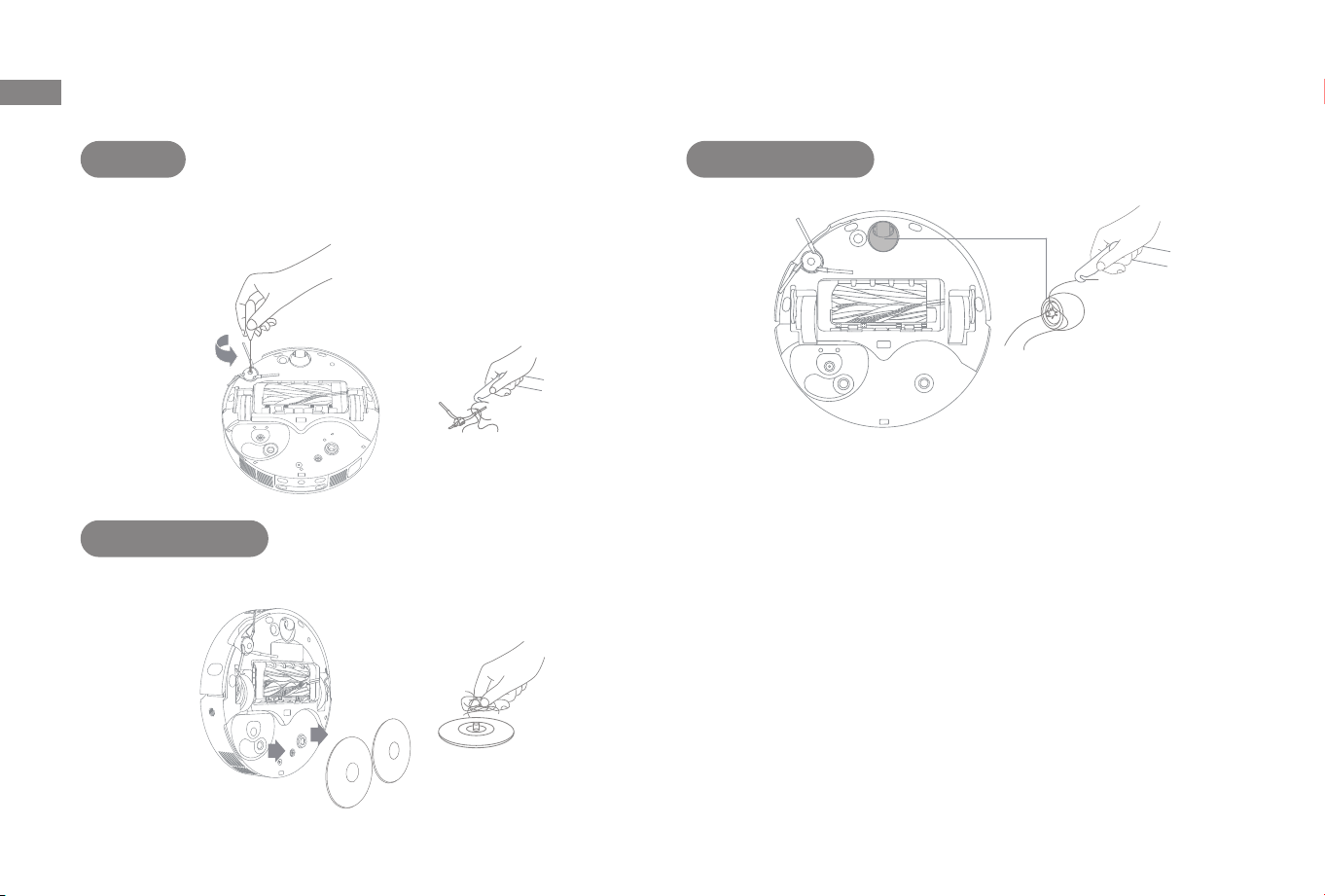

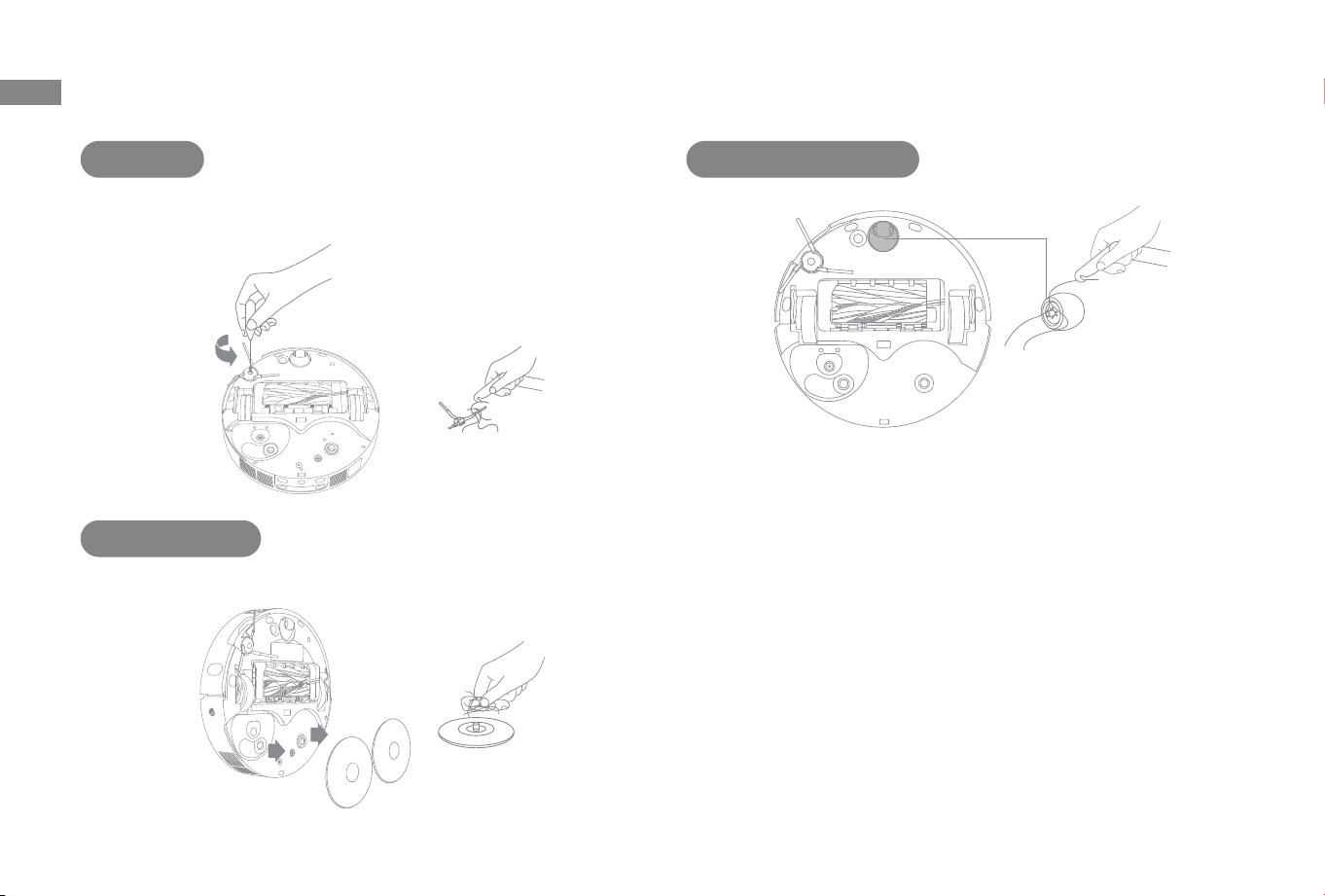

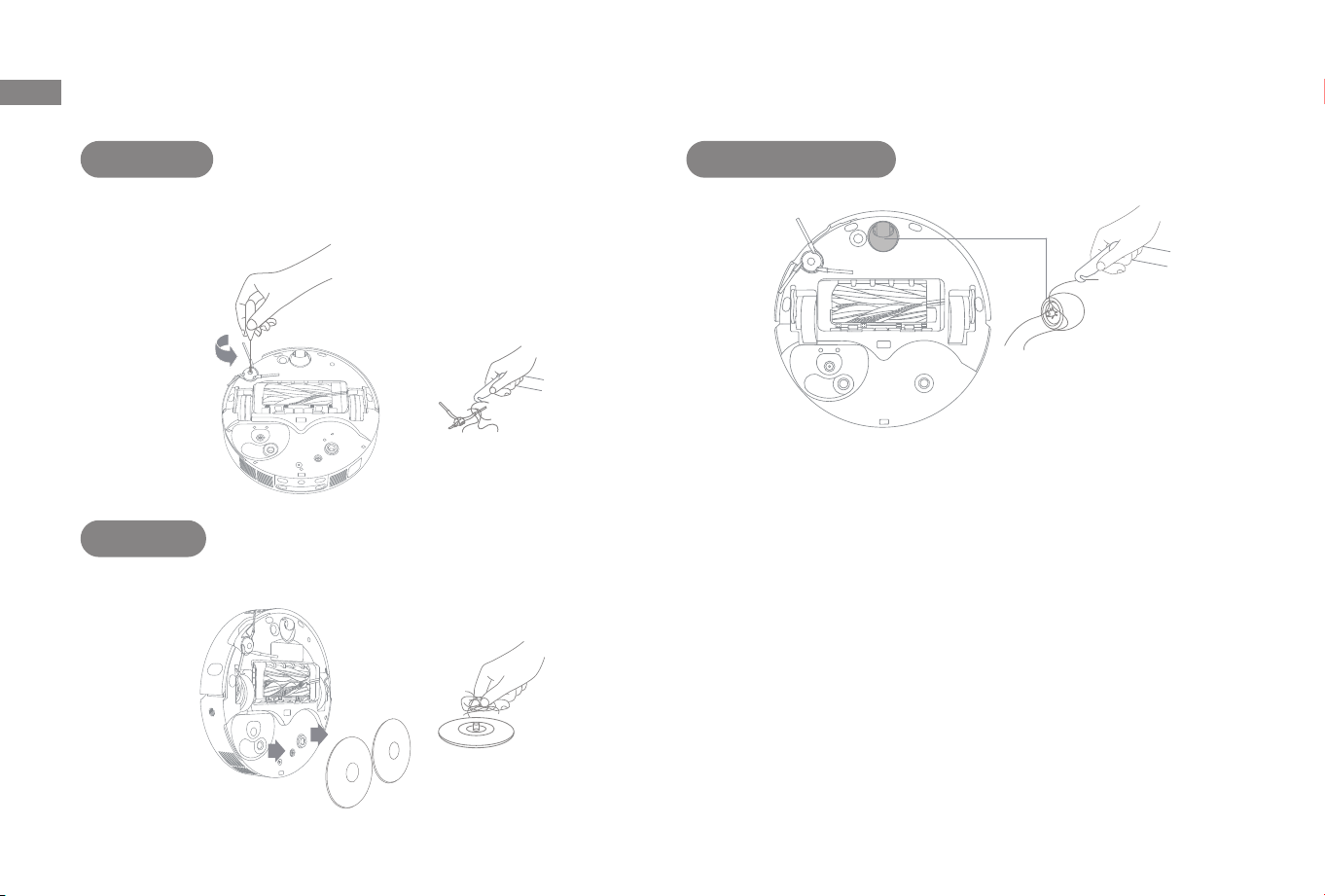

Side Brush

Unscrew the side brush with a screwdriver, clean the hair from the

brush, and then screw it back on.

Omnidirectional Wheel

Note:

Use a tool such as a small screwdriver to separate the axle and tire of the

omnidirectional wheel. Do not use excessive force.

Rinse the omnidirectional wheel under the running water and put it back

after drying it completely.

Mop Pad Holders

Remove and clean the mop pad holders.

Routine Maintenance

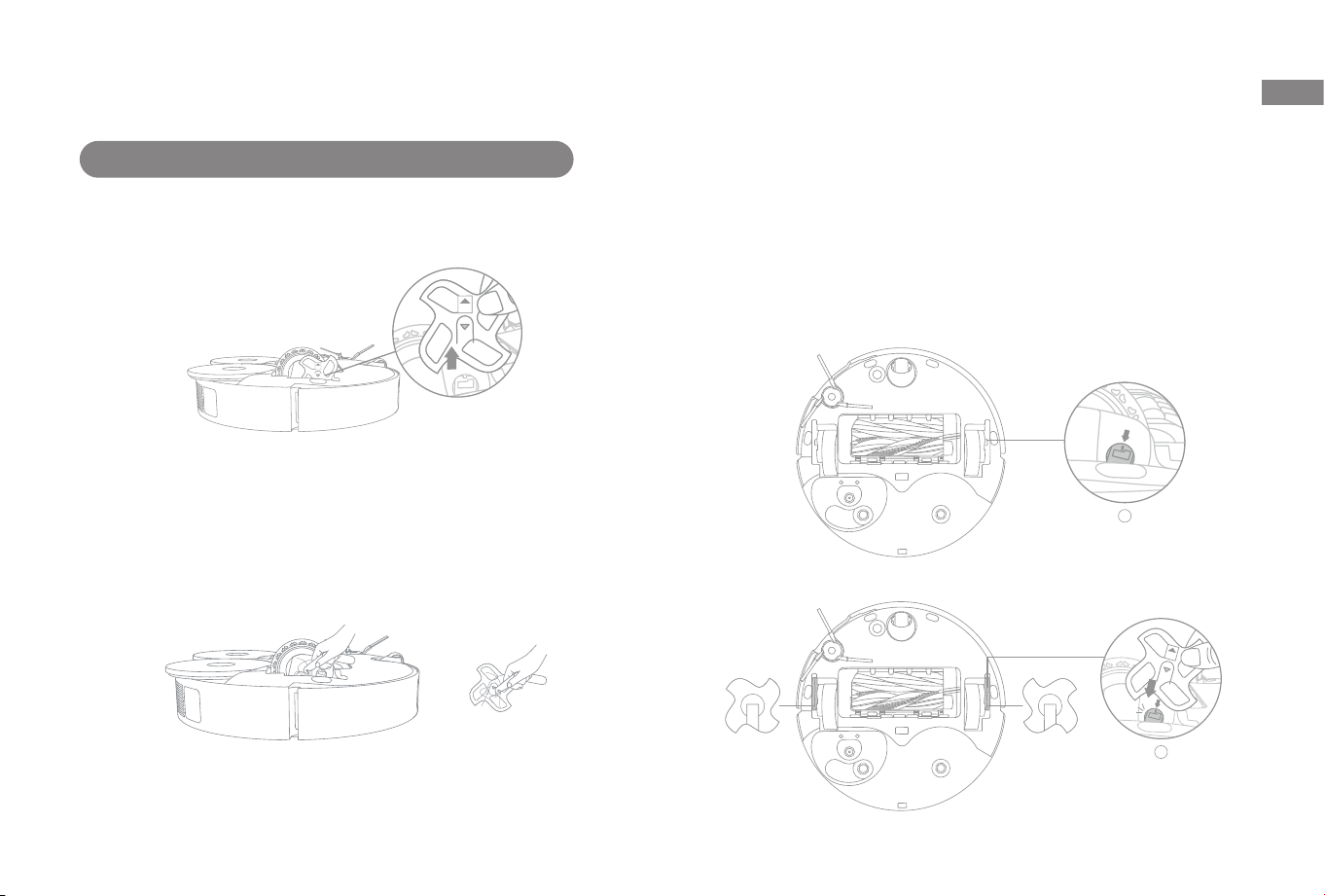

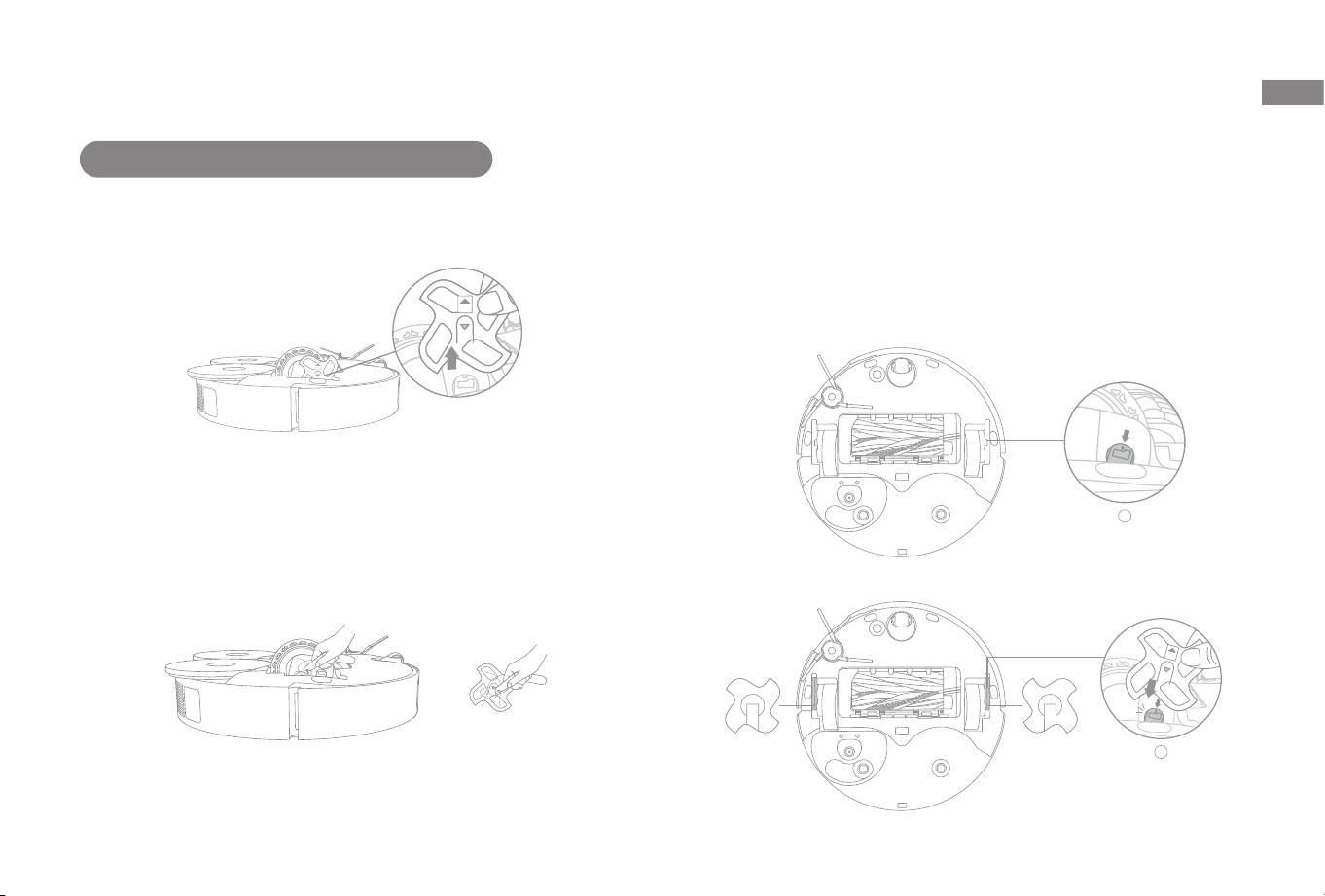

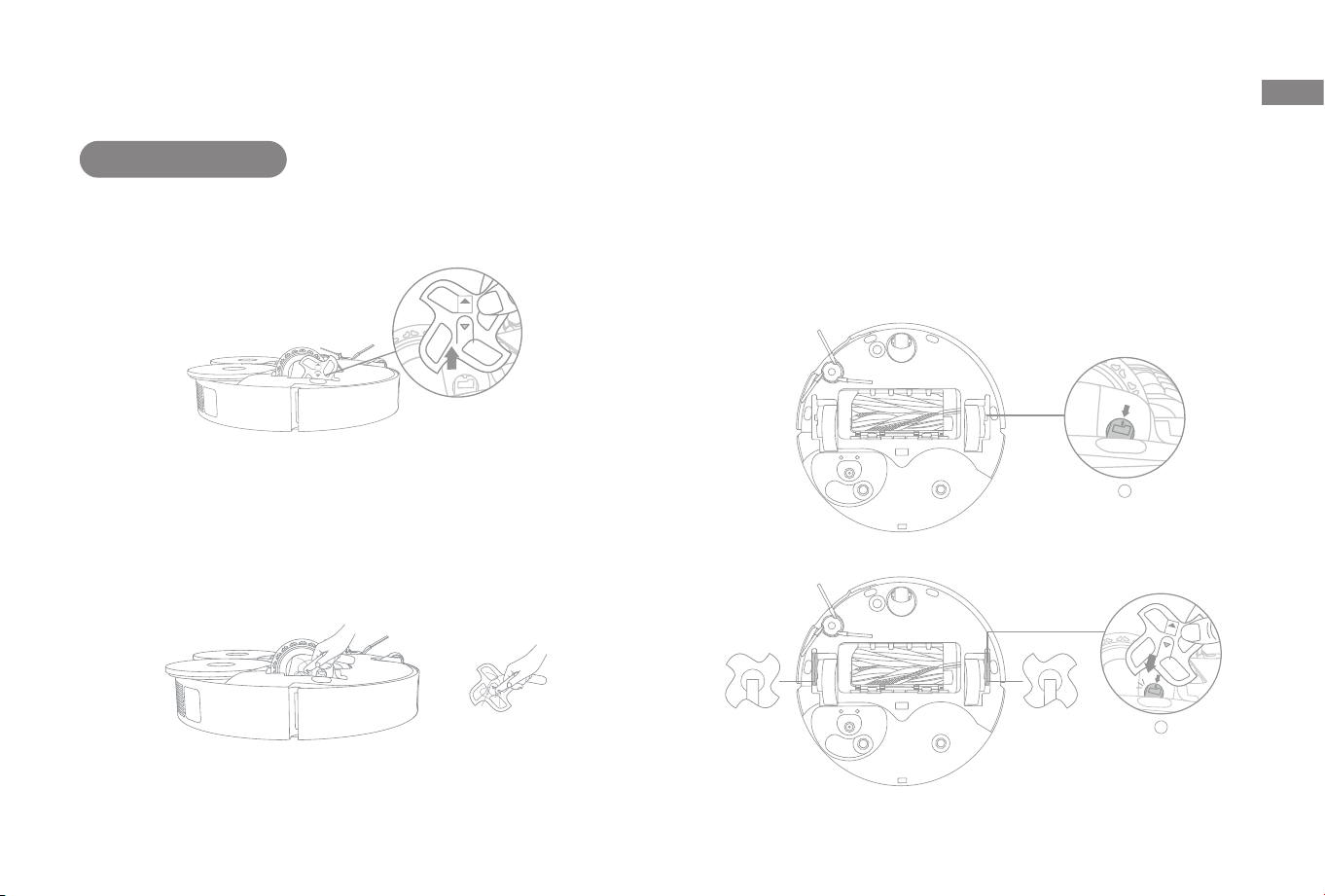

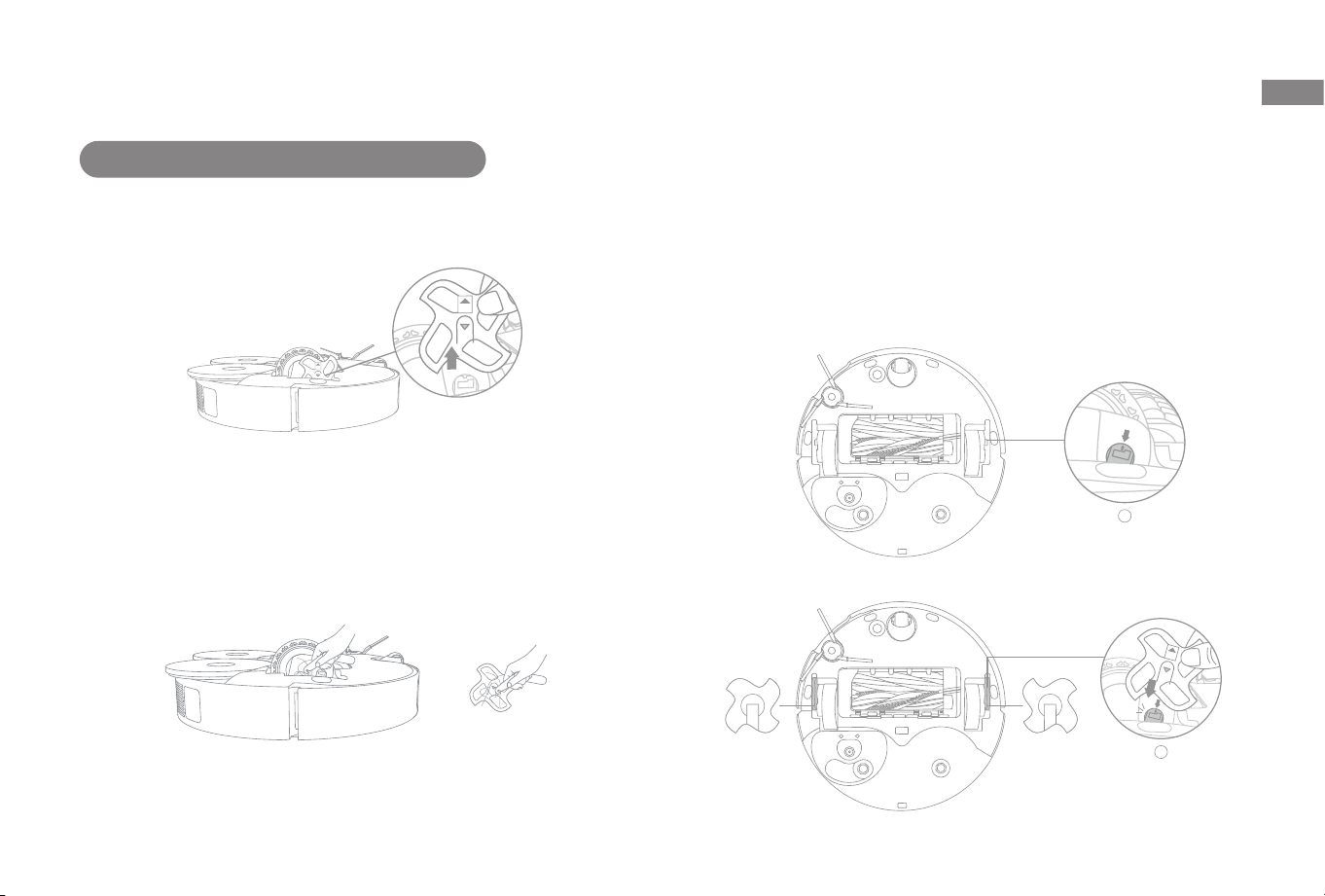

1. Rotate the auxiliary climbing wheel until the "OUT" arrow is

facing upward, and then pull out the wheel.

3. After cleaning, rotate the main wheel to align the two arrows (see

Figure ① ). Then, with the "IN" arrow facing downward, insert the

left and right auxiliary climbing wheels accordingly until they click

into place. (see Figure ② ).

2. Use a proper tool to clean the hair tangled in the main wheel and

auxiliary climbing wheel.

Auxiliary Climbing Wheels and Main Wheels

OUT

R L

OUT

Click

Routine Maintenance

3. Gently tap the basket of the lter to remove the dirt.

4. Rinse the dust box and lter with water and dry them completely

before reinstalling.

Note: Do not attempt to clean the filter with a brush, a finger or sharp objects

to prevent damage.

24h

Note:

·Rinse the dust box and filter with clean water only. Do not use any detergent.

·Use the dust box and filter only when they are completely dry.

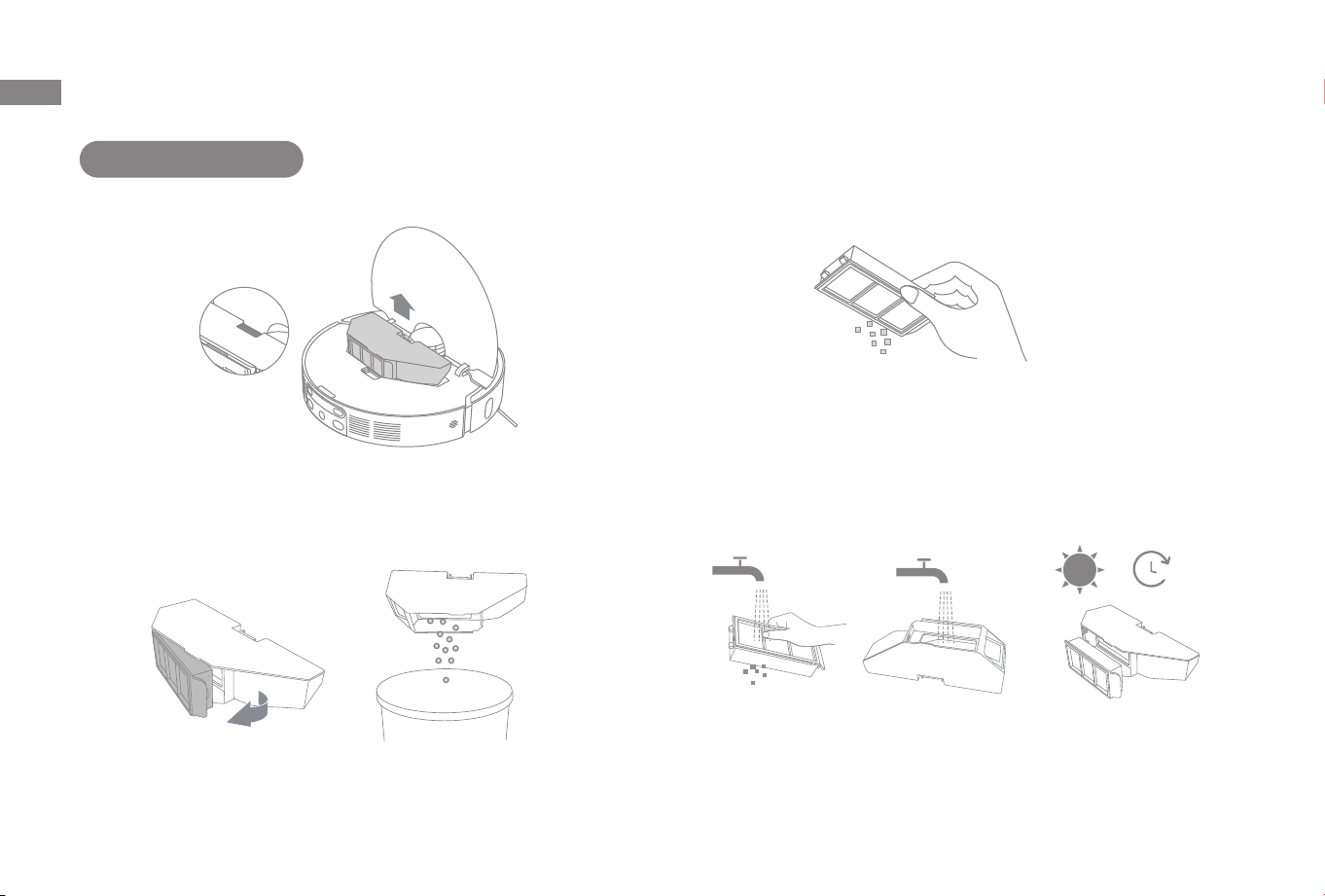

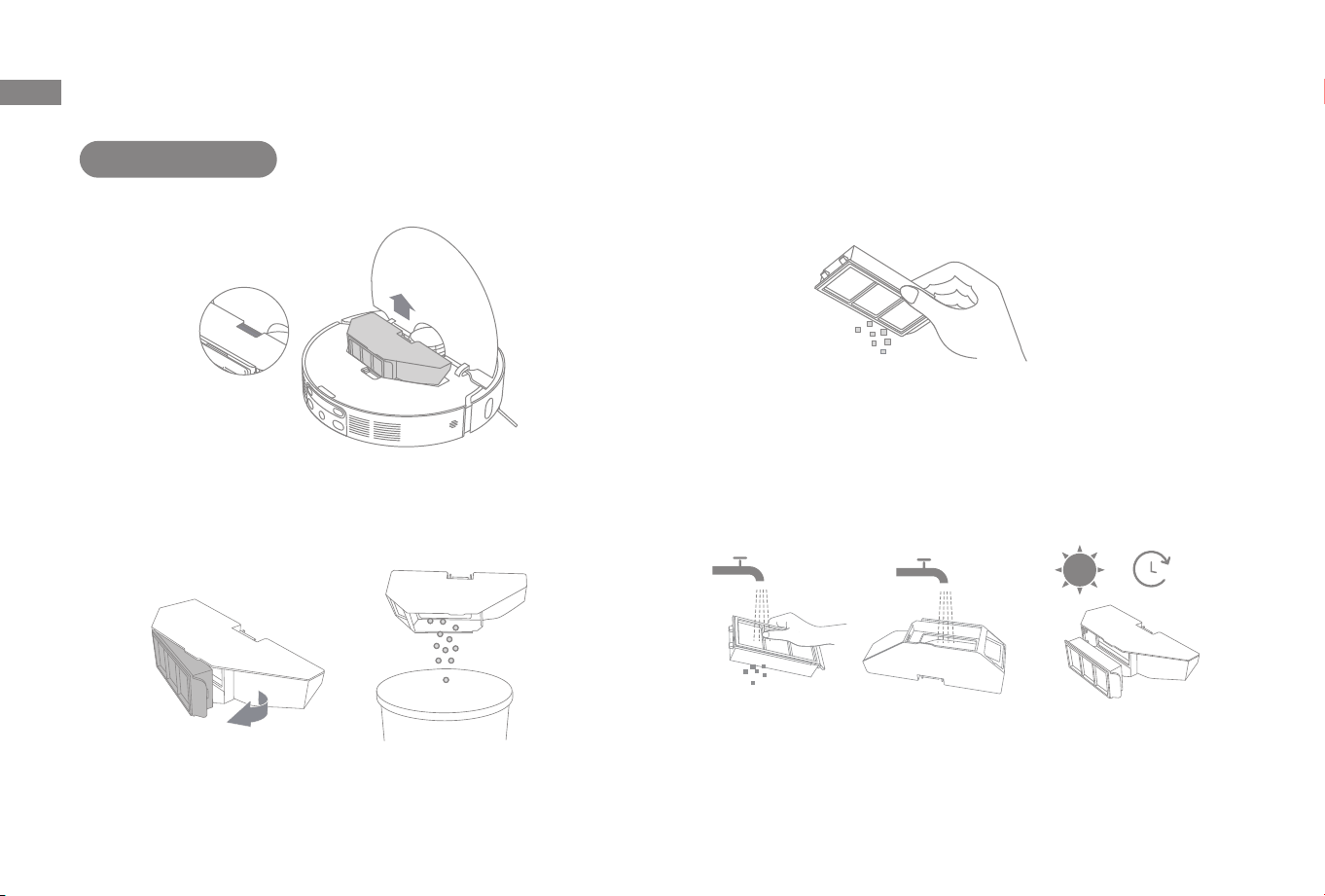

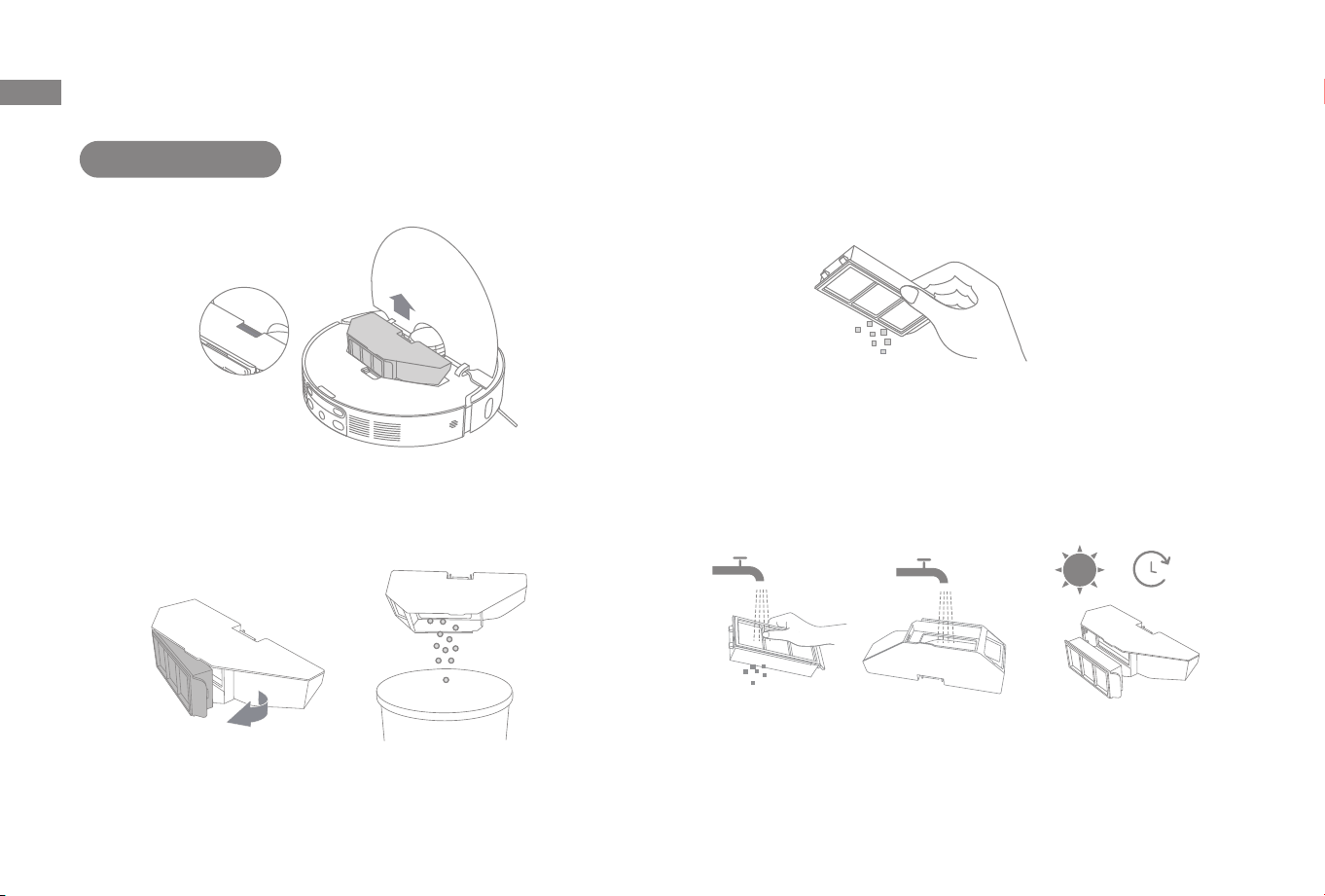

Dust Box and Filter

1. Open the robot cover and press the dust box clip to remove the

dust box.

2. Remove the dust box lter, and then empty the dust box.

Routine Maintenance

Charging Contacts and Signaling Area

Clean the charging contacts and the signaling area with a soft and

dry cloth.

Note: A wet cloth can damage sensitive elements within the robot and the

base station. Please use a dry cloth for cleaning.

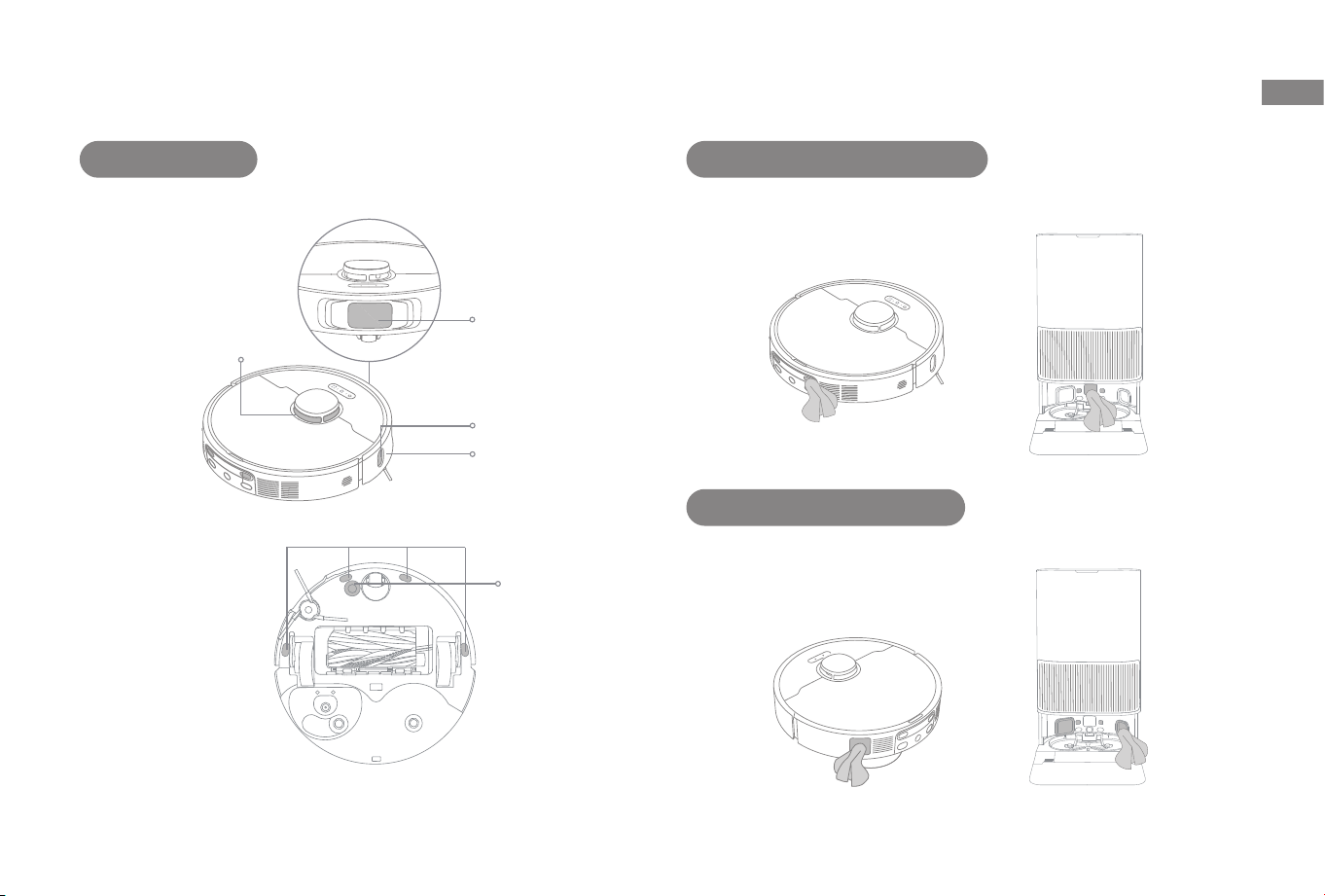

Carpet Sensor

Cli Sensors

Edge Sensor

Bumper Window

Bumper

Laser Distance

Sensor (LDS)

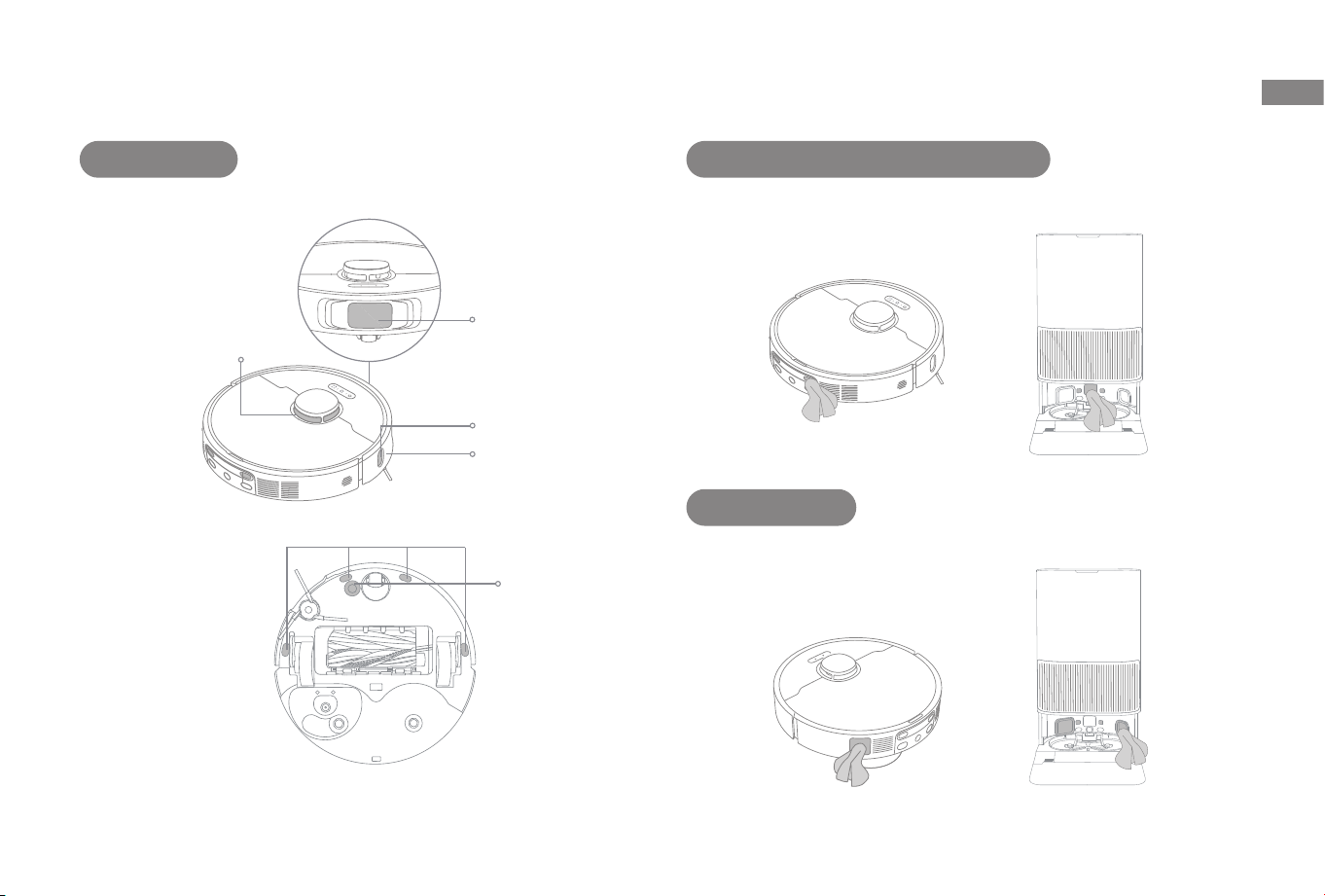

Robot Sensors

Wipe the robot sensors by using a soft and dry cloth, as shown in

the below gure:

Routine Maintenance

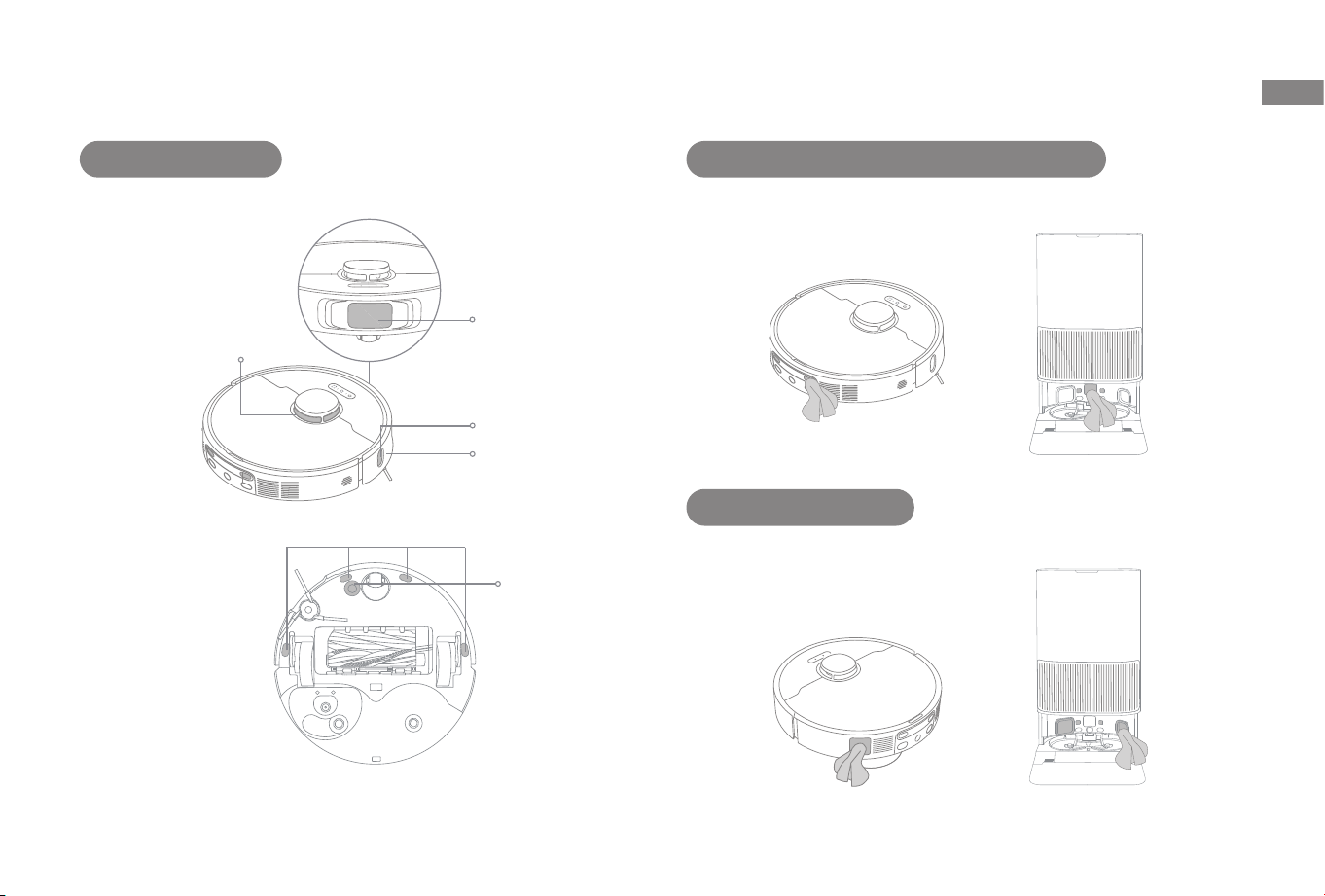

Clean the auto-empty vents of the robot and the base station with a

soft and dry cloth.

Auto-Empty Vents

Mop Pads

Remove the mop pads from the mop pad holders to replace them.

The robot contains a high-performance lithium-ion battery pack.

Make sure that the battery remains well-charged for daily use to

maintain optimal battery performance. If the robot is not used for

an extended period of time, turn it o and put it away. To prevent

damage from over-discharging, charge the robot at least once

every three months.

Battery

Routine Maintenance

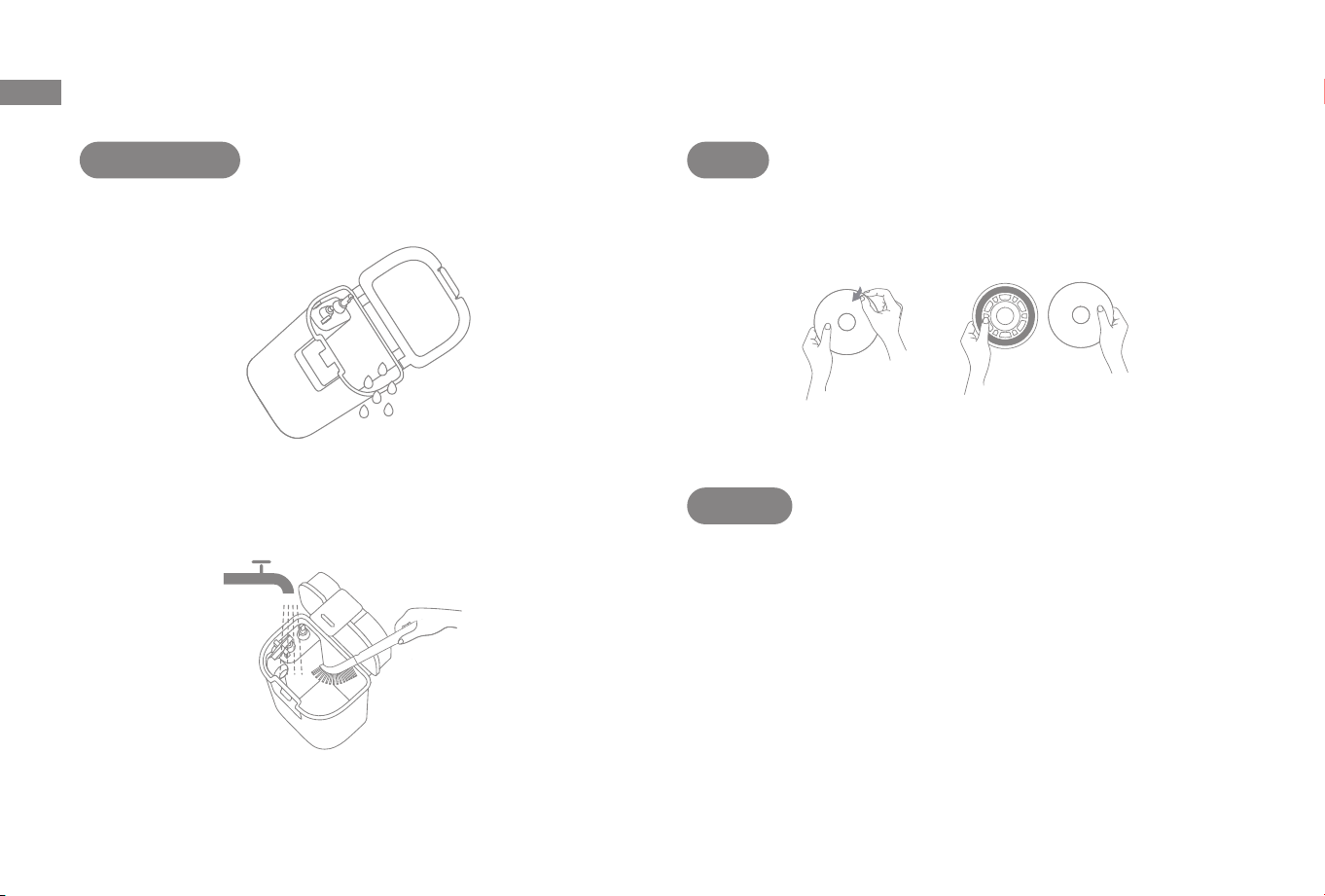

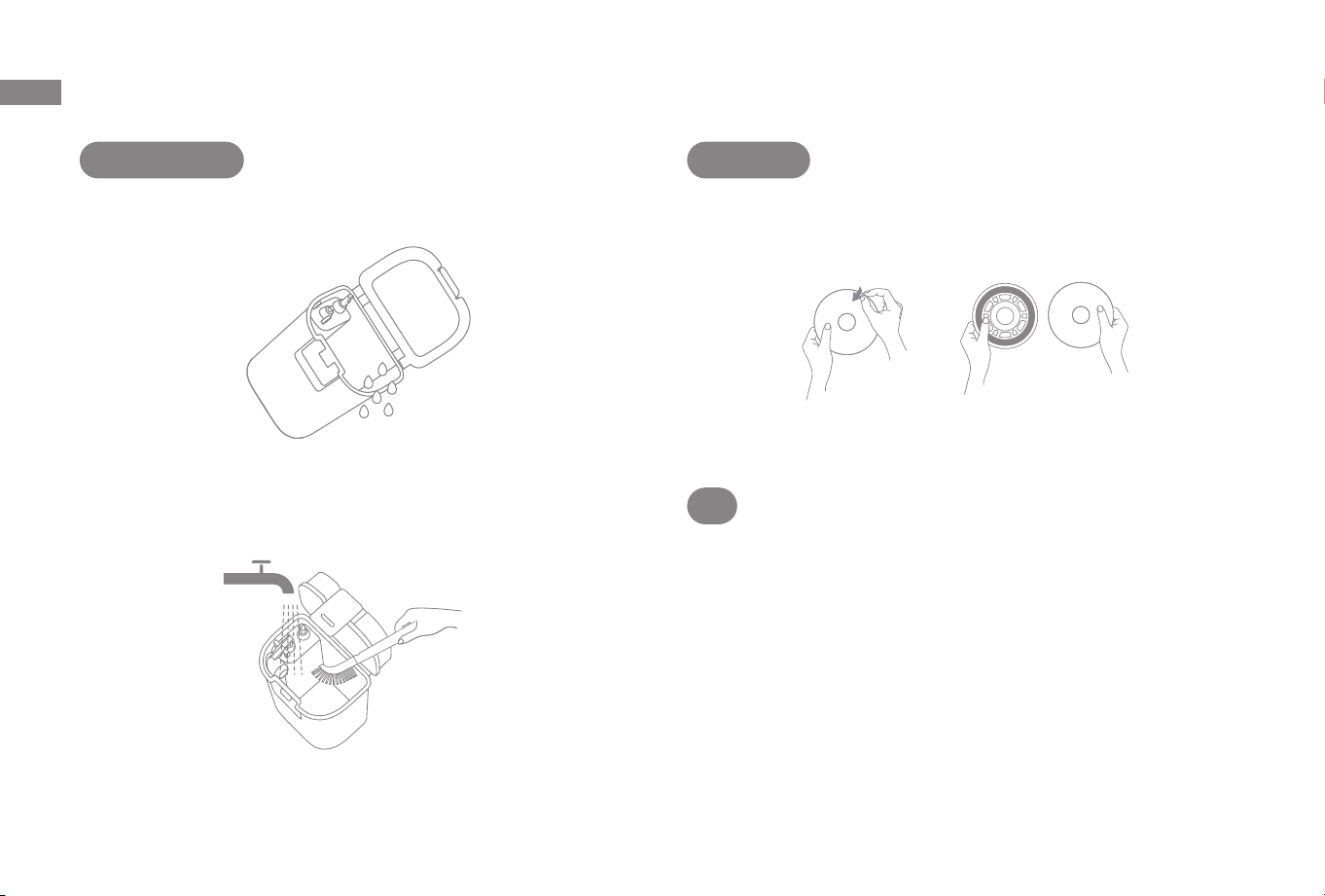

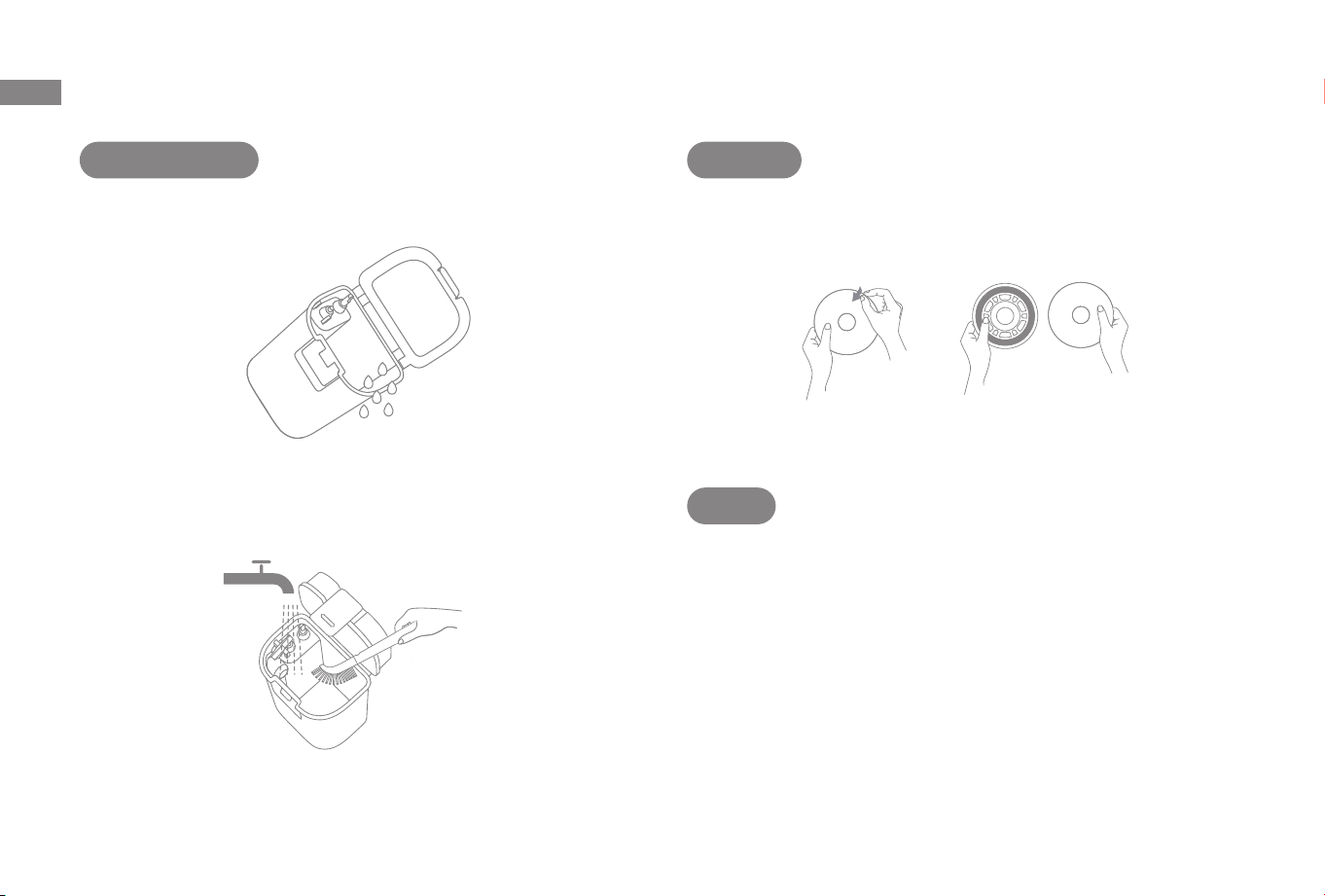

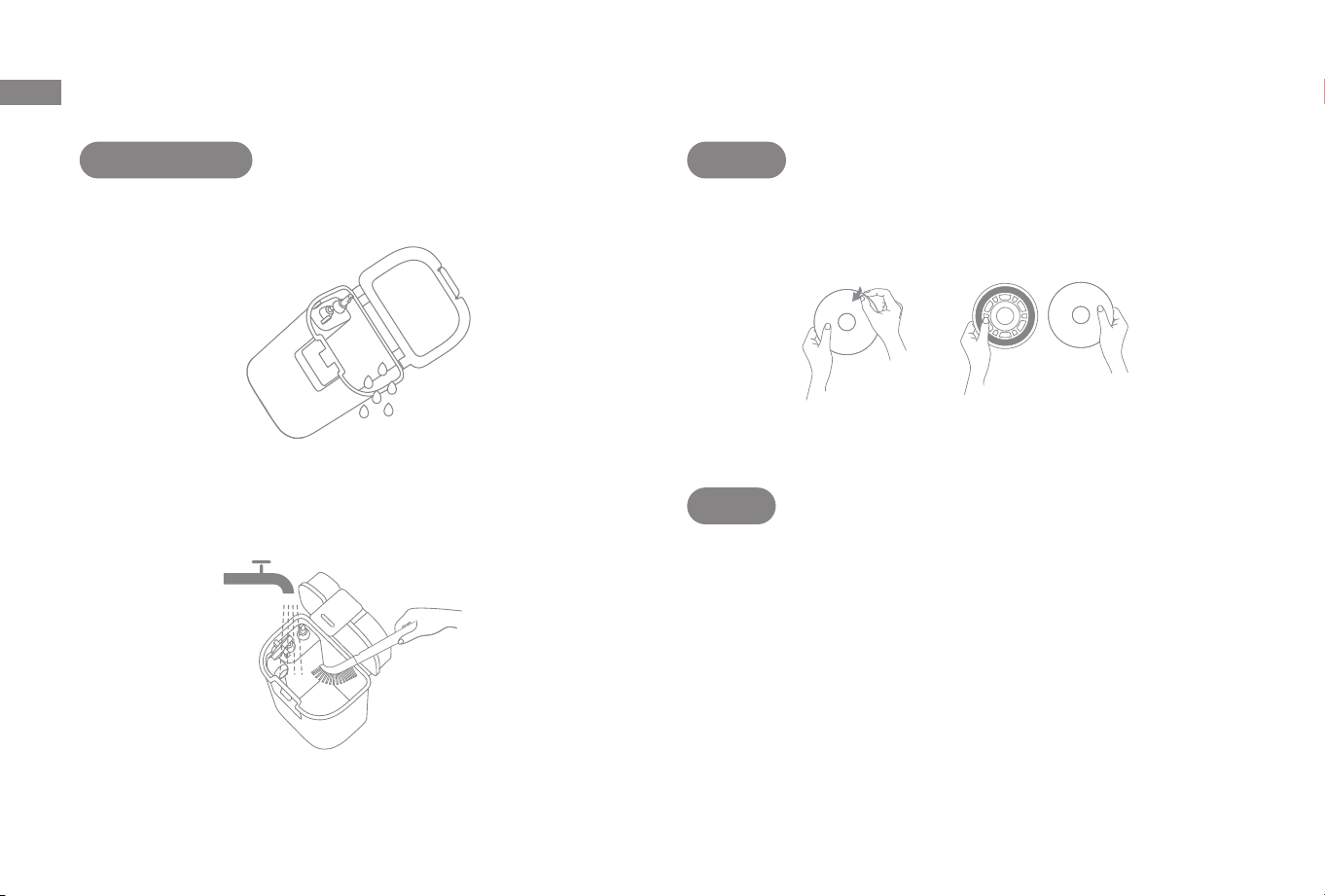

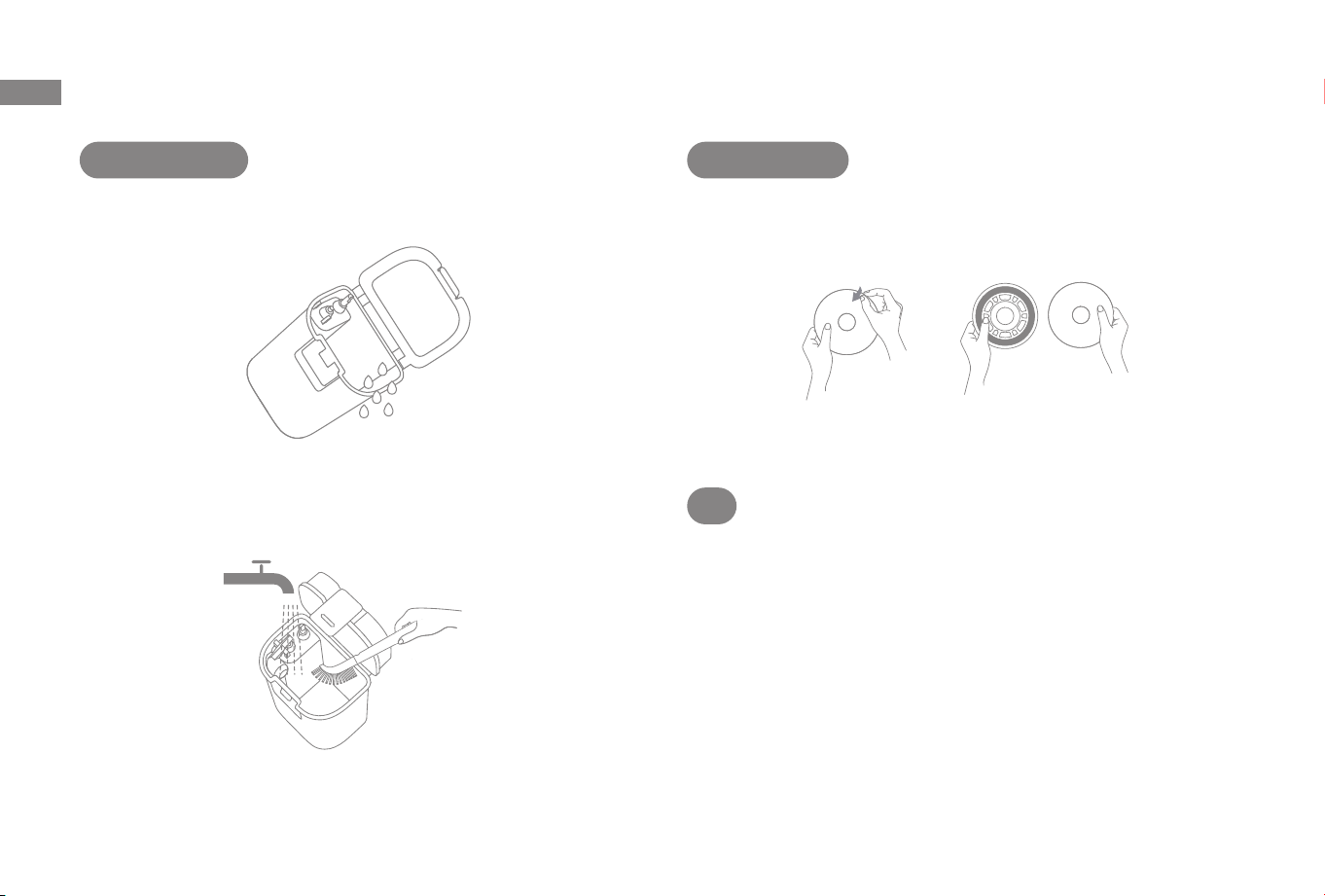

Used Water Tank

1. Remove the used water tank, open its cover and pour out the

used water.

2. Rinse the used water tank with clean water, and use the provided

cleaning tool to clean the inner wall of the used water tank.

Note:

The oat ball in the used water tank is a movable part. Do not apply

too much force when cleaning it to avoid damaging it.

Problem Solution

The robot will not

turn on.

The battery is low. Recharge the robot on the base and try again.

The temperature of the battery is too low or too high. It is recommended to operate the appliance at a

temperature between 0℃ (32℉ ) and 40℃ (104℉ ).

The robot will not

charge.

The base station is not connected to power, please make sure both ends of its power cord are correctly

plugged in.

The contact between the charging contacts on the base station and the robot is poor, please clean the

charging contacts.

Check whether there is any foreign object at the connectors of the robot and remove the foreign object if

any.

The robot fails to

connect to Wi-Fi.

The Wi-Fi network password is incorrect. Make sure the password used to connect to your Wi-Fi network

is correct.

The robot does not support a 5 GHz Wi-Fi connection. Make sure the robot is connected to a 2.4 GHz Wi-Fi

connection.

The Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.

The robot may not be ready to be congured. Please exit and re-enter the app, and then try again as

instructed.

The robot cannot

nd and return to

the base station.

The base station is disconnected from power or moved when the robot is not on it. Please connect the

base station to the power supply or place the robot onto the base station to charge.

There are too many obstructions around the base station. Place the base station in a more open area.

Moving the robot may cause it to re-position itself, and it will recreate a map if re-positioning fails. If the

robot is too far from the base station, it might not be able to automatically return on its own, in which

case you will need to manually place the robot onto the base station.

Wipe the signaling area on the base station to remove dust or debris.

Troubleshooting

Problem Solution

The robot gets stuck in

front of the base station

and cannot return to it.

Check whether there is enough space on both sides or in front of the base station to prevent the robot from

being blocked.

The route for returning to charge is blocked, e.g. the door is closed.

The robot may slip if the oor in front of the base station is overly wet. If so, clean the excess water before

trying again.

It is recommended to move the base station to a dierent place and try again.

Make sure the ramp extension plate is installed properly.

The robot will not turn

o.

The robot cannot be turned o when it is charging. It is recommended to move the robot from the base

station, and then press and hold the power button for 3 seconds to turn it o.

If the robot cannot be turned o by performing step 1, press and hold the power button for 10 seconds to

forcibly turn o the robot. If the problem persists, please contact after-sales service.

The charging speed is

slow.

It takes about 3.5 hours to fully charge the robot when its battery is low.

If you operate the robot at temperatures outside of the specied range, the charging speed will

automatically slow down to extend the battery life.

The charging contacts on both the robot and the base station may be dirty, please wipe them with a dry

cloth.

The noise increases

while the robot is

operating.

Check whether the dust box lter is clogged. If so, clean it or replace it.

A hard object may be caught in the main brushes or the dust box. Check and remove any hard object.

The main brushes or the side brush may become tangled. Check and remove any foreign objects.

Switch the suction mode to Standard or Quiet.

The robot moves

without following the

set route.

Objects such as power cords and slippers should be organized before using the robot.

Working on wet slippery surfaces causes the main wheel to slip. It is recommended to dry the wet places

before using the robot.

Wipe the bumper window on the robot with a clean, soft cloth to keep them clean and unobstructed.

Problem Solution

The robot misses the

rooms to be cleaned.

Make sure that the doors of the rooms to be cleaned are open.

The place in front of the room to be cleaned may be wet and slippery, causing the robot to slip and work

abnormally. Please try drying the oor before using the robot.

The robot will not

resume cleaning after

charging.

Make sure that the robot is not set to the Do Not Disturb (DND) mode, which will prevent it from resuming

cleaning.

The robot will not resume cleaning after you manually place the robot on the base station or send the

robot to charge via the app or the button .

The station cannot

automatically empty

the dust box.

Check whether the dust bag in the dust tank is full.

If the dust bag is not full, check whether there is any obstruction at the auto-empty vents of the robot, the

base station, or the dust box. If any, clean the blocked part in time.

The water level in

the washboard is

abnormal.

Check whether the seal on the used water tank is loose or not correctly installed, and manually reset it if

so. If the problem persists, please contact the after-sales service team.

Gently press down on the used water tank to make sure it is installed correctly.

Remove the washboard lter and check whether the sewage drain outlet is blocked and clean it.

Check the cleaning solution. Do not add any liquid other than the ocially-approved cleaning solution.

The mop pad holder

is raised abnormally.

Please remove the mop pad holder to check if there is any foreign object stuck in it, and try to restart the

robot. If the problem persists, please contact the after-sales service team.

There is water under

the clean water tank

or around the seal.

When taking out the clean water tank, some water in the pipe may be left under the tank or around the

seal. This is normal. Please wipe with a dry cloth.

For more support, contact us via https://global.dreametech.com

Troubleshooting

Model RCLE0305

Rated Input 220-240 V 50-60 Hz

Rated Output 20 V 2 A

Rated Power (during dust emptying) 700 W

Rated Power (during hot water

cleaning)

1160 W

Rated Power (during charging and

drying)

87 W

Specications

Robot

Base Station/Charging Dock

Base Station

Model RLL22SE

Charging Time Approx. 3.5 hours

Rated Voltage 14.4 V

Rated Power 75 W

Operation Frequency 2400-2483.5 MHz

Maximum Output Power ＜ 20 dBm

Model R2412-4S2P-MMBK/R2412-4S2P-KLYEV

Nominal Voltage 14.4 V

Rated Capacity 4.8Ah

Typical Capacity 5.2Ah 74.88Wh

Note:

Rated Power (during hot water cleaning) is determined by the

power value during the representative period (water temperature

25℃).

Rated Power (during charging and drying) is determined by the

power value during full load period.

Under normal use of condition, this equipment should be kept a

separation distance of at least 20 cm between the antenna and the

body of the user.

Power consumption in standby mode: ≤ 0.5W (within 15 minutes

after the robot leaves the base station/charging dock)

The equipment does not have a standby mode or other equivalent

states in terms of standby requirements, power management

function, or the ability to deactivate wireless network connections

due to battery maintenance needs. The power consumption of

the equipment is likely to be higher than other equipment models

meeting these functional requirements.

Rechargeable Lithium-ion Battery Pack

Robot&Base Station/Charging Dock

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should

not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing

over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment,

appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative

consequences to the environment and human health. Please contact the installer or local authorities for more information

about the location as well as terms and conditions of such collection points.

WEEE Information

Battery Disposal and Removal

CAUTION:

Removal Guide:

The built-in lithium-ion battery contains substances that are hazardous to the environment. Before disposing of the battery, make sure the

battery is removed by qualied technicians and discarded at an appropriate recycling facility.

– the battery must be removed from the appliance before it is scrapped;

– the appliance must be disconnected from the supply mains when removing the battery;

– the battery is to be disposed of safely.

Before removing the battery, disconnect the power and run out the battery as much as possible.

Unneeded batteries should be discarded at an appropriate recycling facility.

Do not expose to high temperature environment to avoid risks of explosion.

Under abusive conditions, liquid may be ejected from the battery. If contact occurs, ush with water and seek medical help.

1. Turn over the robot, use a proper tool to remove the screws on the back of the robot, and then remove the cover.

2. Unplug the terminals between the battery and PCB board to remove the battery.

Kullanım

Sınırlamaları

Güvenlik Bilgisi

Bu ürün, güvenli kullanımı sağlamak ve risklerden kaçınmak üzere, 8 yaşından

küçük çocuklar ve fiziksel, duyusal, zihinsel engelli kişiler veya sınırlı deneyime

veya bilgiye sahip kişiler tarafından bir ebeveyn veya vasinin gözetimi olmadan

kullanılmamalıdır. Temizlik ve bakım, gözetim olmaksızın çocuklar tarafından

yapılmamalıdır.

Cihaz, yalnızca cihazla birlikte verilen güç kaynağı ünitesi ile kullanılmalıdır.

Bu cihaz, yalnızca yetkin kişiler tarafından değiştirilebilecek piller içerir.

Temizlenecek alanı toplayın. Çocuklar cihazla oynamamalıdır. Robot çalışırken

çocukların ve evcil hayvanların robotla aralarında güvenli bir mesafe

bulunduğundan emin olun.

Cihazı banyoya veya havuz etrafına kurmayın, buralarda şarj etmeyin veya

kullanmayın.

Bu ürün yalnızca ev ortamındaki zemin temizliği içindir. Dış mekânlarda, zemin

harici yüzeylerde veya ticari ya da endüstriyel ortamlarda kullanmayın.

Cihazın düzgün bir ortamda doğru bir şekilde çalıştığından emin olun. Aksi

halde, cihazı kullanmayın.

Güç kablosu hasar gördüğü takdirde, üreticiden veya yetkili servisten temin

edilebilecek özel bir kablo veya teçhizatla değiştirilmelidir.

Robotu, koruyucu bariyeri olmayan zemin üzeri asma alanlarda kullanmayın.

Cihazın uygunsuz kullanımının yol açtığı elektrik çarpması, yangın veya yaralanmadan kaçınmak için cihazı kullanmadan

önce kullanım kılavuzunu dikkatlice okuyun ve ileride başvurmak üzere saklayın.

Kullanım

Sınırlamaları

Güvenlik Bilgisi

Robotu baş aşağı çevirip koymayın. LMS kapağını, robot kapağını veya

tamponu robot tutup taşımak için kullanmayın.

Robotu, ortam sıcaklığının 0°C'nin üzerinde ve 40°C'nin altında olduğu

ortamlarda kullanın. Zeminde sıvı veya yapışkan madde olmadığından emin

olun.

Bir nesneye takılıp sürüklenmenin verebileceği zarardan kaçınmak için cihazı

çalıştırmadan önce bir yere sabit olmayan nesneleri yerden kaldırın ve temizlik

güzergahı üzerindeki kabloları veya elektrik kablolarını toplayın.

Robotun çarparak zarar vermesini önlemek için kırılgan ve küçük nesneleri

yerden kaldırın.

Saç, parmak ve diğer vücut bölgelerini robotun emici ağzından uzak tutun.

Temizlik gerecini çocukların erişemeyeceği bir yerde saklayın.

Cihazı bir bebeğin ya da çocuğun uyuduğu bir ortamda çalıştırmayın.

Gerek durduğu, gerek hareket ettiği sırada çocukları, evcil hayvanları ve diğer

nesneleri robotun üzerine bindirmeyin/koymayın.

Temiz su haznesine yalnızca su ve resmi olarak onaylanmış temizlik solüsyonu

eklenebilir. Alkol veya dezenfektan gibi başka sıvılar eklemeyin. Temizlik

solüsyonu ile temiz su oranına temizlik solüsyonu şişesi üzerinden bakılabilir.

Temizlik solüsyonunu çocukların erişemeyeceği bir yerde saklayın.

Robotu yanan nesneleri temizlemek için kullanmayın. Robotu yanıcı veya kolay

tutuşabilen sıvıları, aşındırıcı gazları veya seyreltilmemiş asit ya da çözücü

maddeleri toplamak için kullanmayın.

Güvenlik Bilgisi

Piller ve Şarj

Üçüncü taraflara ait herhangi bir pil veya ana istasyon kullanmayın. Robot

sadece RCLE0305 model ana istasyon ile kullanılabilir.

Pili veya ana istasyonu kendi başınıza sökmeye, onarmaya veya bunlar

üzerinde değişiklik yapmaya çalışmayın.

Ana istasyonu bir ısı kaynağının yakınına koymayın.

Ana istasyonun şarj kontaklarını silmek veya temizlemek için ıslak bez veya

ıslak ellerinizi kullanmayın.

Kullanılmış pilleri uygun olmayan bir şekilde imha etmeyin. İhtiyaç fazlası piller

uygun bir geri dönüşüm tesisinde imha edilmelidir.

Güç kablosu zarar görür veya koparsa kabloyu kullanmayı derhal bırakın ve

satış sonrası servisle iletişime geçin.

Kullanım

Sınırlamaları

Sert veya keskin nesneleri süpürmeyin. Cihazı taş, büyük kâğıt parçaları

veya cihazı tıkayabilecek diğer malzemeler gibi nesneleri toplamak için

kullanmayın.

Temizlik veya bakım işlemi yapılmadan önce cihazın fişi prizden çıkarılmalıdır.

Robotu veya ana istasyonu ıslak bir bezle silmeyin veya herhangi bir sıvı ile

durulamayın. Yıkanabilir parçaları temizledikten sonra, yerlerine takmadan ve

kullanmadan önce iyice kurutun.

Lütfen bu ürünü Kullanıcı Kılavuzundaki talimatlara uygun bir şekilde kullanın.

Bu ürünün uygunsuz kullanımından kaynaklanan kayıp veya zararlardan

kullanıcılar sorumludur.

Bu üründeki lazer sensörü, Sınıf 1 lazer ürünleri için IEC 60825-1:2014/EN

60825-1:2014/A11:2021 Standardına uyar. Kullanım sırasında lütfen doğrudan

gözle temasından kaçının.

SINIF 1 LAZER ÜRÜNÜ

TÜKETİCİ LAZER ÜRÜNÜ

EN 50689:2021

Piller ve Şarj

Lazer Güvenlik

Bilgileri

Güvenlik Bilgisi

Bu belgeyle, Dreame Trading (Tianjin) Co., Ltd. RLL22SE telsiz ekipman türünün 2014/53/EU sayılı Direktif ile uyumlu olduğunu beyan eder. AB

uygunluk beyanının tam metnini şu internet adresinde bulabilirsiniz: https://global.dreametech.com

Ayrıntılı e-kılavuz için lütfen tıklayınız: https://global.dreametech.com/pages/user-manuals-and-faqs

Yalnızca iç mekânlarda kullanım içindir

Kullanıcı kılavuzunu okuyun

Robot nakledilirken kapalı olduğundan ve mümkünse orijinal paketinde

tutulduğundan emin olun.

Robot uzun süre kullanılmayacaksa tamamen şarj edin, ardından kapatın ve

serin, kuru bir yerde saklayın. Pilin aşırı derecede boşalmasını önlemek için

robotu en az her 3 ayda bir tekrar şarj edin.

Diğer Aksesuarlar

Ürün Genel Bilgileri

2 adet Paspas

Pedi

(Yerleşik)

Robot

Ana İstasyon

Paspas Pedi

Tutucusu, 2

adet

Güç Kablosu

Temizlik Aracı

2 adet Toz

Torbası

(1 adet Yerleşik)

Ana İstasyon Rampa

Uzatma Plakası

Kullanıcı

Kılavuzu

Paket İçerikleri

Su Siperi Filtresi

(Yerleşik)

Temizlik Solüsyonu

Otomatik Deterjan

Bölmesi

(Yerleşik)

5ml

10ml

15ml

20ml

Ürün Genel Bilgileri

Robot

Nokta Temizliği Düğmesi

· Nokta temizliği başlatmak için basın

Güç/Temizleme Düğmesi

· Açmak veya kapatmak için düğmesini 3 saniye basılı tutun

· Robot açıldıktan sonra temizliğe başlamak için basın

Yanaşma Düğmesi

· Robotu ana istasyona geri göndermek için basın

· Çocuk Kilidini devre dışı bırakmak için düğmesini 3 saniye basılı

tutun

Durum Göstergesi

· Sürekli Yanan Beyaz: Temizlik tamamlandı

· Yavaş Yanıp Sönen Beyaz: Şarj oluyor (düşük pil değil)

· Sabit Turuncu: Düşük pil seviyesinde bekleme veya düşük pil

seviyesinde duraklama

· Yavaş Yanıp Sönen Turuncu: Şarj oluyor (düşük pil)

· Yanıp Sönen Turuncu: Hata

Not:

· Robot temizlik yaparken veya şarj olmak üzere geri

dönerken, üzerindeki herhangi bir düğmeye basarak robotu

duraklatabilirsiniz.

· Çocuk Kilidi Dreamehome Uygulaması aracılığıyla

etkinleştirilebilir/devre dışı bırakılabilir.

Robot ve Sensörler

LMS Kapağı

Lazer Mesafe Sensörü (LMS)

Tampon Penceresi

Tampon

Konnektörler

3 Boyutlu Hat Lazer Sensörü

Ürün Genel Bilgileri

Kapak

Şarj Kontakları

Otomatik Boşaltma

Ağzı

Otomatik Su

Doldurma

Girişi

Sıfırlama Düğmesi

· Fabrika ayarlarını

geri yüklemek

için düğmesini 3

saniye basılı tutun

Kablosuz İnternet

Göstergesi

Kenar Sensörü

Robot ve Sensörler

Uçurum Sensörleri

Ana Tekerlek

Yardımcı Tırmanma Tekerleği

Ana Fırçalar

Çok Yönlü Tekerlek

Fırça Muhafazası

Ana Tekerlek

Yardımcı Tırmanma Tekerleği

Paspas Bezi Tutucusu Montaj Delikleri

Yan Fırça Uzatma Tertibatı

Halı Sensörü

Paspas Tertibatı

Paspas Pedi

Eklenti Alanı

Paspas Pedi Tutucu Paspas Pedi

MopExtend Ekipmanları

Fırça Koruyucusu Klipsi

Toz Kutusu

Filtre

Otomatik

Boşaltma Ağzı

Toz Kutusu

Klipsi

Filtre Klipsi

Ürün Genel Bilgileri

Sıfırlama Düğmesi

Filtre

Su Siperi

Su Siperi Filtresi

Rampa Uzatma Plakası

Kapak

Kirli Su Haznesi

Temiz Su Haznesi

Su Haznesi Klipsi

Şamandıra

Su Borusu

Toz Haznesi Kapağı

Kireç Önleyici

Flatör

Ana İstasyon Kirli Su Haznesi

Temiz Su Haznesi

Ürün Genel Bilgileri

Ana İstasyon

Otomatik Yeniden Doldurma ve

Tahliye Amaçlı Su Bağlantı Takımı

için Ayrılmış Yuva

Güç Kablosu Saklama Yuvası

Güç Bağlantı Noktası

Not: Otomatik yeniden doldurma ve tahliye amaçlı su bağlantı takımı ayrıca

satın alınmalıdır. (Yalnızca belirli bölgelerde mevcuttur)

Durum Göstergesi

Sürekli Yanan Beyaz: Ana

istasyon güç kaynağına

bağlı

Sabit Turuncu: Ana

istasyonda bir hata var

Ürün Genel Bilgileri

Filtre

Toz Torbası Yuvası

Otomatik Boşaltma

Ağızları

Sinyalizasyon Alanı

Otomatik

Deterjan Bölmesi

Şarj Kontakları

Otomatik Su

Ekleme Çıkışı

Evinizin Hazırlanması

Temizliğe başlamadan önce lütfen sabit durmayan, kırılabilir, değerli veya

tehlikeli eşyaları ortadan kaldırın, robotun takılarak, çizerek veya vurarak

hasar vermemesi için yerdeki kabloları, giysileri, oyuncakları, sert nesneleri

veya keskin nesneleri kaldırın/düzenleyin.

Temizlenecek odanın kapısını açın ve mobilyaları kendi yerlerine koyarak

daha fazla alan açın.

Robotun temizlenmesi gereken alanları kaçırmasının önüne geçmek için

robotun önünde, bir eşikte, koridorda veya dar yerlerde durmayın.

Temizliğe başlamadan önce, robotun güvenli ve sorunsuz bir şekilde

çalışması için merdivenlerin kenarlarına ziksel bir engel koyun.

Not:

Robotu ilk kez çalıştırdığınızda engel çıkarabilecek şeyleri zamanında kaldırmak için temizlik yaparken robotu takip edin.

Taş, çelik bilye ve oyuncak parçaları gibi sert nesneleri veya inşaat atığı, cam kırığı veya çivi gibi keskin nesneleri süpürmeyin, aksi takdirde zemin çizilebilir.

1. Ana İstasyonu Yerleştirin ve bir Elektrik Prizine Bağlayın

Ana istasyonu etrafı mümkün olduğunca açık ve Kablosuz İnternet

sinyalini iyi çeken bir yere yerleştirin. Şekilde gösterildiği gibi yeterli

alan bırakın ve taralı alandaki nesneleri kaldırın. Güç kablosunu ana

istasyona bağlayıp prize takın.

Kullanmadan Önce

Not:

Sinyal alanını engelleyebilecek bir nesne bulunmadığından emin olun.

Su lekelerinin ahşap zeminleri veya halıları ıslatmasını engellemek için ana

istasyonun seramik veya mermer zeminlere yerleştirilmesi önerilir.

Güç kablosunu yukarı yönde

sıkıca takarak göstergenin

açıldığını kontrol edin.

＞1 m

＞5 cm

Washboard Filter

2. Rampa Uzatma Plakasını Takın

Not: Su siperi filtresinin yerine takılı olduğundan emin olun.

Su Siperi Filtresi

3. Robot Korumalarını Çıkarın ve Paspas Tertibatını Takın 4. Robotu Ana İstasyona Bağlayın

Robotu açmak için robot üzerindeki güç düğmesini 3 saniye süreyle

basılı tutun. Robotu, paspas tertibatı su siperine doğru bakacak

şekilde ana istasyona yerleştirin. Ardından, robot ana istasyona

başarılı bir şekilde bağlandığında sesli bir bildirim duyacaksınız.

Robot tamamen şarj olduktan sonra, robot ve ana istasyon

üzerindeki durum göstergeleri 10 saniye süreyle yanar ve ardından

söner.

Kullanmadan Önce

Not: Robotu ilk kez kullanmadan önce tamamen şarj etmeniz önerilir. Pil

tükendiği için robot açılamadığı takdirde robotu şarj etmek üzere istasyona

kendiniz bağlayın.

②

①

6. Temiz Su Haznesine Su Ekleyin

Temiz su haznesini ana istasyondan çıkarın ve hazneyi temiz suyla

doldurun. Ardından ana istasyona geri takın.

Not: Haznenin deforme olmasına neden olabileceğinden su haznesine sıcak

su koymayın.

Kullanmadan Önce

5. Temizlik Solüsyonunu Ekleyin

(1) Toz haznesi kapağını çıkarın ve otomatik deterjan bölmesini dışa

doğru çekin.

(2) Bölmenin üst kapağını açın ve temizlik solüsyonunu ekleyin.

(3) Bölmenin kapağını kapatın, ana istasyona geri yerleştirin ve

ardından toz haznesi kapağını yerine takın. Temizlik solüsyonu,

çalışma sırasında otomatik olarak eklenecektir.

Not:

Otomatik deterjan bölmesi, kullanılacak temizlik solüsyonu ile

doldurulabilir. Arızaları önlemeye yardımcı olmak için resmi olarak onaylı

temizlik solüsyonundan başka bir sıvı kullanmayın.

Otomatik deterjan bölmesini klik sesini duyacak şekilde yerine oturtun.

①

②

①

②

2. Cihazı ekleyin

Dreamehome Uygulaması ile Bağlantı

1. Dreamehome Uygulamasını İndirin

Kablosuz İnternet

Göstergesi

Yavaş yanıp

sönme:

Bağlanabilir

Hızlı yanıp

sönme:

Bağlanıyor

Açık: Bağlandı

Not:

Yalnızca 2.4 GHz kablosuz internet desteklenir.

Uygulama yazılımındaki güncellemeler nedeniyle, gerçek işlemler

kılavuzdaki yönergelerden farklı olabilir. Lütfen güncel uygulama

sürümüne dayalı olarak talimatları izleyin.

Uygulamayı indirmek ve yüklemek için robot üzerindeki QR kodunu

taratın veya uygulama mağazasında "Dreamehome" u arayın.

Dreamehome uygulamasını açın, "Bağlanmak için QR kodunu tara"

ya dokunun ve cihazı eklemek için aynı QR kodunu robotta tekrar

tarayın. Kablosuz internet bağlantısını tamamlamak için lütfen

talimatları izleyin.

QR Kodu

Not:

Kablosuz interneti sıfırlamak için 2. adımı tekrarlayın ve ardından kablosuz

internet bağlantısını tamamlamak için ekrandaki talimatları izleyin.

Cihazı kablosuz internet ağından ayırmak için robot süpürgenin üzerindeki

Sıfırlama Düğmesini 3 saniye basılı tutun.

Kullanım

Pil çok azaldığı takdirde robot şarj olmak için otomatik olarak ana

istasyona döner. Uygun pil seviyesine kadar şarj olduktan sonra,

henüz tamamlanmamış olan temizlik görevlerine kaldığı yerden

devam eder.

Not:Bu işlevi kullanmak için lütfen uygulama içinde etkinleştirin.

Aç / Kapat

Hızlı Harita Çıkarma

Rahatsız Etmeyin (DND) Modu

Nokta Temizliği

Robotu Tekrar Başlatmak

Temizliğe Otomatik Olarak Devam Etme

Duraklatma/Uyku

Robotu açmak için güç düğmesini 3 saniye süreyle basılı tutun.

Güç göstergesi yanar durumda kalır. Robotun şarj kontaklarını

ana istasyonunkilerle hizalayarak robotu ana istasyona da

yerleştirebilirsiniz; robot otomatik olarak açılır ve şarj olmaya

başlar. Robotu kapatmak için robotu ana istasyondan uzaklaştırın

ve güç düğmesini 3 saniye süreyle basılı tutun.

Robot Rahatsız Etmeyin (DND) moduna ayarlandığında robotun

temizliğe kaldığı yerden devam etmesi engellenir. DND modu,

fabrika ayarlarında varsayılan olarak devre dışıdır. Uygulama

üzerinden DND modunu etkinleştirebilir veya DND süresini

değiştirebilirsiniz. DND süresi, varsayılan olarak 22:00-8:00 olarak

ayarlanmıştır.

Not:

Programlanmış temizlik görevleri DND süresi boyunca normal bir şekilde

yerine getirilir.

DND süresi sona erdikten sonra robot temizliğe kaldığı yerden devam eder.

Robot bekleme durumundayken düğmesine kısa süre basarak

nokta temizliği modunu etkinleştirebilirsiniz. Bu modda, robot

etrafındaki 1,5 × 1,5 metrekarelik alanı temizler ve nokta temizliği

tamamlandığında başlangıç noktasına geri döner.

Robot yanıt vermeyi durdurursa veya kapatılamazsa cihazı zorla

kapatmak için güç düğmesini 10 saniye basılı tutun. Ardından

robotu açmak için güç düğmesini 3 saniye basılı tutun.

Ağı ilk kez yapılandırdıktan sonra, hızlı bir şekilde bir harita

oluşturmak için uygulamadaki talimatları izleyin. Robot, temizliğe

başlamadan harita çıkarmaya başlayacaktır. Robot ana istasyona

döndüğünde, haritalandırma işlemi tamamlanmış olup harita

otomatik olarak kaydedilir.

Robot çalışırken herhangi bir düğmeye basarak robotu

duraklatabilirsiniz.

Robotun duraklama süresi 10 dakikayı aştığı takdirde otomatik

olarak uyku moduna geçer. Robot üzerindeki tüm göstergeler

kapanır. Robot üzerindeki herhangi bir düğmeye basarak ya da

uygulamayı kullanarak robotu uyandırabilirsiniz.

Not: Robot duraklatılıp ana istasyona yerleştirildiği takdirde

geçerli temizlik

işlemi sona erer.

Not:

Robotun temizlikten sonra ana istasyona kolayca dönebilmesi için robotun

ana istasyondan başlatılması önerilir.

Robot paspaslamaya başlamadan önce paspas pedleri temizlenecektir,

lütfen biraz bekleyin.

Çalışma sürdüğü sırada ana istasyonu, temiz su haznesini, kirli su haznesini

veya su siperi filtresini yerinden oynatmayın.

Paspas pedi temizleme için sıcak suyla temizlik uygulama üzerinden

etkinleştirilebilir ve tüm modlarda geçerlidir. Yanmamak için fonksiyon

açıkken su çıkışına dokunmayın.

Kullanım

Not: Paspas tertibatını ilk kez kullanıyorsanız, robot varsayılan olarak

Süpürme ve Paspaslama

görevini yerine getirir.

1. Temizliğe başlama

Robot üzerindeki güç düğmesine basarak veya uygulamayı

kullanarak robotu ana istasyondan başlatın. Robot en uygun

temizlik rotasını planlayacak ve oluşturulan haritaya göre temizlik

görevini uygulayacaktır.

2. Otomatik paspas yıkama

Temizlik sırasında, robot uygulamada belirlenen paspas pedi

temizleme sıklığına göre paspas pedlerini yıkamak için otomatik

olarak ana istasyona döner. Ana istasyon robotun su haznesini

otomatik olarak yeniden doldurur ve robot temizliğe kaldığı yerden

devam eder.

Süpürme ve Paspaslama

Kullanım

4. Kirli su haznesini temizleme

Robot görevini tamamladıktan sonra, herhangi bir koku oluşmasını

önlemek için lütfen kirli su haznesini temizleyin.

Not:

Otomatik boşaltma işlevi uygulamada kapalı olduğu takdirde ana istasyon

toz kutusunu otomatik olarak boşaltmaz.

Ana istasyon, toz kutusunu uygulamadaki ayara göre boşaltır.

Uygulamada süpürme fonksiyonunu etkinleştirin. Robot, ana

istasyondaki paspas tertibatını otomatik olarak çıkarır ve süpürme

işlemine başlar.

Uygulamada süpürdükten sonra paspaslama fonksiyonunu

etkinleştirin. Robot, yerleri süpürmek için paspas tertibatını otomatik

olarak ana istasyonda çıkarır. Süpürme işlemi tamamlandıktan

sonra, robot ana istasyona dönerek paspas tertibatını takar ve ana

istasyon da otomatik olarak toz kutusunu boşaltır. Ardından yan

fırça kalktıktan sonra robot paspaslama işlemine başlar.

Uygulamada paspaslama fonksiyonunu etkinleştirin. Robot paspas

tertibatının ana istasyonda takılı olup olmadığını otomatik olarak

kontrol eder. Takılı değilse robot paspas tertibatını takar ve yan fırça

kalktıktan sonra paspaslamaya başlar.

Yalnızca Süpür

Süpürdükten sonra Paspasla

Yalnızca Paspasla

3. Toz kutusunun otomatik olarak boşaltılması ve paspas

pedlerinin yıkanıp kurutulması

Robot bir temizlik görevini tamamladıktan ve şarj olmak için ana

istasyona döndükten sonra, ana istasyon otomatik olarak toz

kutusunu boşaltır. Ardından paspas pedlerini yıkayıp kurutur.

Rutin Bakım

Parçalar

Parça Bakım Sıklığı Değiştirme Süresi

Kirli su haznesi Her kullanımdan sonra

Temiz su haznesi

2 haftada bir

Ana fırçalar Her 6-12 ayda bir

Toz kutusu ltresi

Her 3-6 ayda bir

Yan fırça

Paspas pedi tutucuları /

Su siperi ltresi Her 1 ila 2 ayda bir

Ana istasyon sinyal

alanı

Ayda bir kez

Şarj kontakları

Otomatik Boşaltma

Ağızları

Çok yönlü tekerlek

Kenar sensörü

Lazer Mesafe Sensörü

(LMS)

3 Boyutlu Hat Lazer

Sensörü

Halı sensörü

Uçurum sensörleri

Parça Bakım Sıklığı Değiştirme Süresi

Tampon Penceresi

Ayda bir kez

Tampon

Robot otomatik su

doldurma girişi

Robotun alt kısmı

Toz kutusu

Gereken sıklıkta temizleyinAna tekerlekler

Yardımcı tırmanma

tekerlekleri

Toz torbası

Her 2-4 ayda bir

Paspas pedleri Her 1-3 ayda bir

Kireç önleyici Her 18-36 ayda bir

Not: Bakım ve değiştirme sıklığı gerçek kullanıma bağlıdır. Özel koşullar

nedeniyle istisnai bir durum meydana geldiği takdirde derhal bakım veya

değiştirme önerilir.

Robotun düzgün çalışmaya devam etmesi amacıyla rutin bakım için uygulamadaki aksesuar kullanımı bölümüne veya aşağıdaki tabloya

bakılması önerilir.

Rutin Bakım

Su Siperi Filtresi

1. Paspas pedi temizleme işlemi tamamlandığında robotu alın ve su

siperi ltresini çıkarın.

2. Su siperi ltresini temiz suyla yıkayın, silip temizleyin ve su

siperine geri takın.

3. Robotu ana istasyona döndürmek için uygulamayı kullanın veya

düğmesine basın ya da robotu manuel olarak ana istasyona

yerleştirin.

Rutin Bakım

Toz Torbası

1. Toz haznesi kapağını çıkarın ve toz torbasını çıkarıp atın. 3. Yeni bir toz torbası takın.

4. Toz haznesi kapağını yerine takın.2. Filtredeki toz ve kalıntıları kuru bir bezle temizleyin.

Not: Tutma Yeri yukarı doğru çektiğinizde torba kapanarak toz ve artıkların

kazara dökülmesini önler.

3. Gösterilen oklar yukarı bakacak şekilde, ana fırça tutucusunu

aşağıya doğru eğik bir şekilde yuvalara yerleştirin.

4. Fırça muhafazasının ön ucunu yuva ile hizalayın, aşağıya doğru

eğik bir şekilde yerleştirin ve ardından bastırın yerine oturtun.

Rutin Bakım

Click

Ana Fırçalar

2. Fırçaları şekilde gösterildiği çekip çıkarın. Fırçalara dolaşmış

saçları çıkarmak için verilen temizlik aracını kullanın. Fırçaları

temizledikten sonra sağlam bir şekilde ana fırça tutucusuna takın ve

yerlerine oturtun.

Klik

1. Fırça muhafazası klipslerini içe doğru bastırarak fırça

muhafazasını çıkarın ve fırçaları kaldırarak robottan çıkarın.

Not: Yaralanmayı önlemek için ana fırçaları çekip çıkarırken dikkatli olun.

Yan Fırça

Yan fırçanın vidalarını bir tornavidayla sökün, fırçadaki saçları

temizleyin ve fırçayı geri takın.

Çok Yönlü Tekerlek

Not:

Ufak tornavida gibi bir aletle çok yönlü tekerleğin aksını ve lastiğini ayırın.

Aşırı güç kullanmayın.

Çok yönlü tekerleği akan suyun altında yıkayıp tamamen kuruduktan sonra

geri takın.

Paspas pedi tutucuları

Paspas pedi tutucuları çıkarın ve temizleyin.

Rutin Bakım

1. Yardımcı tırmanma tekerleğini "OUT" oku yukarıya bakar konuma

gelinceye kadar döndürün ve tekerleği çekip çıkarın.

3. Temizledikten sonra, ana tekerleği döndürerek iki oku hizalayın

(bkz. Şekil ① ). Ardından, "IN" oku aşağı bakar şekilde, sol ve sağ

yardımcı tırmanma tekerleklerini takıp yerlerine oturtun. (bkz. Şekil

② ).

2. Ana tekerleğe ve yardımcı tırmanma tekerleğine dolaşmış olan

saçları/tüyleri uygun bir temizlik aracıyla temizleyin.

Yardımcı Tırmanma Tekerlekleri ve Ana Tekerlekler

OUT

R L

OUT

Click

Rutin Bakım

3. Kirleri çıkarmak için ltrenin sepetine hafçe vurun.

4. Toz kutusunu ve ltreyi yerlerine takmadan önce suyla yıkayın ve

tamamen kurutun.

Not: Hasar görmemesi için, filtreyi bir fırçayla, parmakla veya keskin

nesnelerle temizlemeye çalışmayın.

24h

Not:

·Toz kutusunu ve filtreyi yalnızca temiz suyla yıkayın. Deterjan kullanmayın.

·Toz kutusunu ve filtreyi tamamen kuruduktan sonra kullanın.

Toz Kutusu ve Filtre

1. Robot kapağını açın ve toz kutusu klipsine basarak toz kutusunu

çıkarın.

2. Toz kutusu ltresini çıkarın ve toz kutusunu boşaltın.

Rutin Bakım

Şarj Kontakları ve Sinyal Alanı

Şarj kontaklarını ve sinyal alanını yumuşak ve kuru bir bezle

temizleyin.

Not: Nemli bez, robot içindeki ve ana istasyondaki hassas parçalara zarar

verebilir. Temizlik sırasında lütfen kuru bir bez kullanın.

Halı Sensörü

Uçurum Sensörleri

Kenar Sensörü

Tampon Penceresi

Tampon

Lazer Mesafe

Sensörü (LMS)

Robot Sensörleri

Robot sensörlerini, aşağıdaki şekilde gösterildiği gibi yumuşak ve

kuru bir bezle silin.

Rutin Bakım

Robotun ve ana istasyonun otomatik boşaltma ağızlarını yumuşak

ve kuru bir bezle temizleyin.

Otomatik Boşaltma Ağızları

Paspas Pedleri

Paspas pedlerini değiştirmek için paspas pedi tutuculardan çıkarın.

Robot, yüksek performanslı lityum iyon pil takımı içerir. En uygun

pil performansını muhafaza etmek üzere lütfen günlük kullanım

için şarjın yeterli olduğundan emin olun. Robot uzun süre

kullanılmayacaksa kapatın ve kaldırın. Şarjın aşırı boşalmasından

kaynaklanacak zararı önlemek için robotu en az her üç ayda bir

yeniden şarj edin.

Pil

Rutin Bakım

Kirli Su Haznesi

1. Kirli su haznesini çıkarın, kapağını açın ve kirli suyu dökün.

2. Kirli su haznesini temiz suyla durulayın ve ürünle birlikte verilen

temizlik aracını kullanarak kirli su haznesini iç duvarını temizleyin.

Not:

Kirli su haznesindeki küresel şamandıra hareketli bir parçadır. Zarar

vermemek için temizlerken çok fazla kuvvet kullanmayın.

Sorun Çözüm

Robot açılmıyor.

Pil azalmış. Robotu istasyonda yeniden şarj edip tekrar deneyin.

Pilin sıcaklığı çok düşük veya çok yüksek. Cihazın 0℃ (32 ℉ ) ile 40℃ (104 ℉ ) arasındaki bir sıcaklıkta

çalıştırılması tavsiye edilir.

Robot şarj olmuyor.

Ana istasyon güce bağlı olmayabilir, lütfen güç kablosunun her iki ucunun da doğru şekilde takılı

olduğundan emin olun.

Ana istasyon üzerindeki şarj kontakları ve robot arasındaki temas zayıf olabilir, lütfen şarj kontaklarını

temizleyin.

Robotun konnektörlerinde yabancı cisim olup olmadığını kontrol edin ve varsa yabancı cismi çıkarın.

Robot kablosuz

internete

bağlanamıyor.

Kablosuz internet ağ şifresi yanlış olabilir. Kablosuz internet ağınıza bağlanmak için kullanılan şifrenin

doğru olduğunu kontrol edin.

Robot 5 GHz Kablosuz İnternet bağlantısını desteklemiyor. Robotun 2.4 GHz Kablosuz İnternet bağlantısına

bağlı olduğundan emin olun.

Kablosuz internet sinyali zayıf. Robotun, kablosuz internet kapsamı iyi olan bir alanda olduğundan emin

olun.

Robot yapılandırılmaya hazır olmayabilir. Lütfen uygulamadan çıkıp yeniden giriş yapın ve talimatları

takip ederek tekrar deneyin.

Robot ana istasyonu

bulamıyor ve geri

dönemiyor.

Ana istasyonun güç bağlantısı kesilmiş veya istasyon robot orada değilken yerinden oynatılmış olabilir.

Lütfen ana istasyonu güç kaynağına bağlayın veya robotu şarj olması için ana istasyonunun üzerine

yerleştirin.

Ana istasyonun etrafında çok sayıda engel var. Ana istasyonu daha açık bir alana yerleştirin.

Robotu yerinden oynatmak kendini yeniden konumlandırmasına neden olabilir, yeniden konumlandırma

başarısız olursa tekrar bir harita oluşturacaktır. Robot ana istasyondan çok uzaktaysa kendi başına

otomatik olarak geri dönemeyebilir, bu durumda robotu ana istasyona manuel olarak yerleştirmeniz

gerekmektedir.

Ana istasyonun sinyal alanını silerek toz veya kalıntıları giderin.

Sorun giderme

Sorun Çözüm

Robot ana

istasyonun önünde

takılı kalıyor ve

istasyona geri

dönemiyor.

Robotun takılmasını önlemek için ana istasyonun her iki tarafında veya önünde yeterli alan olup

olmadığını kontrol edin.

Şarj olmak için döndüğü yolda engel olabilir, örneğin kapı kapalı olabilir.

Ana istasyonun önündeki zemin aşırı ıslak ise robot kayabilir. Aşırı ıslaksa tekrar denemeden önce fazla

suyu temizleyin.

Ana istasyonun farklı bir yere taşınması ve tekrar denenmesi önerilir.

Rampa uzatma plakasının doğru takıldığından emin olun.

Robot kapanmıyor.

Robot şarj olurken kapatılamaz. Robotu ana istasyondan uzaklaştırmanız ve ardından kapatmak için güç

düğmesini 3 saniye basılı tutmanız önerilir.

Robot 1. adım uygulanarak kapatılamadığı takdirde robotu zorla kapatmak için güç düğmesini 10 saniye

basılı tutun. Sorun devam ederse lütfen satış sonrası servis ile iletişime geçin.

Şarj hızı düşük.

Pil azaldığında robotun tamamen şarj olması yaklaşık 3,5 saat sürer.

Robotu belirtilen aralığın dışındaki sıcaklıklarda çalıştırırsanız şarj hızı otomatik olarak yavaşlayarak pil

ömrünü uzatır.

Hem robotun hem de istasyonun şarj kontakları kirli olabilir, lütfen kuru bir bezle silin.

Robot çalışırken

gürültü artıyor.

Toz kutusu ltresinin tıkalı olup olmadığını kontrol edin. Tıkalıysa temizleyin veya değiştirin.

Ana fırçalara veya toz kutusuna sert bir nesne sıkışmış olabilir. Sert nesne olup olmadığını kontrol edin ve

varsa çıkarın.

Ana fırçalar veya yan fırça birbirine dolanabilir. Yabancı nesne olup olmadığını kontrol edin ve varsa

çıkarın.

Emme modunu Standart veya Sessiz’e getirin.

Robot, belirlenen

rotayı takip etmeden

hareket ediyor.

Robot kullanılmadan önce güç kabloları ve terlikler gibi nesneler düzenlenmelidir.

Islak kaygan yüzeylerde çalışma ana tekerleğin kaymasına yol açar. Robotu kullanmadan önce ıslak

yerlerin kurutulması önerilir.

Robot üzerindeki tampon penceresini temiz ve görüş alanlarını açık tutmak için temiz, yumuşak bir bezle

silin.

Sorun Çözüm

Robot, temizlenmesi

gereken odaları

atlıyor.

Temizlenecek odaların kapılarının açık olduğunu kontrol edin.

Temizlenecek odanın önündeki alan ıslak veya kaygan olup robotun kaymasına ve anormal çalışmasına

neden olabilir. Lütfen robotu kullanmadan önce yeri kurutmaya çalışın.

Robot şarj olduktan

sonra temizliğe

kaldığı yerden

devam etmiyor.

Robotun Rahatsız Etmeyin (DND) moduna ayarlanmadığından emin olun, bu, temizliğin kaldığı yerden

başlatılmasını engeller.

Siz robotu manuel olarak ana istasyona yerleştirdikten veya uygulama ya da düğmesi üzerinden

robotu şarj olmaya gönderdikten sonra robot temizliğe kaldığı yerden devam etmez.

İstasyon toz

kutusunu otomatik

olarak boşaltamıyor.

Toz haznesindeki toz torbasının dolu olup olmadığını kontrol edin.

Toz torbası dolu değilse robotun, ana istasyonun veya toz kutusunun otomatik boşaltma ağızlarında

herhangi bir tıkanıklık olup olmadığını kontrol edin. Tıkanıklık varsa gecikmeden temizleyin.

Su siperindeki su

anormal seviyede.

Kirli su haznesi üzerindeki contanın gevşek veya yanlış takılmış olup olmadığını kontrol edin ve yanlışlık

varsa kendiniz düzeltin. Sorun devam ederse lütfen satış sonrası servis ekibiyle iletişime geçin.

Kirli su haznesine nazikçe bastırarak doğru takılı olduğundan emin olun.

Su siperi ltresini çıkarıp atık su drenajı çıkışının tıkanmış olup olmadığını kontrol edin ve tıkanmışsa

temizleyin.

Temizlik solüsyonunu kontrol edin. Resmi olarak onaylı temizlik solüsyonundan başka bir sıvı kullanmayın.

Paspas pedi tutucusu

anormal bir şekilde

kalkmış.

Lütfen paspas pedi tutucusunu çıkarıp içine herhangi bir yabancı nesnenin takılı olup olmadığını kontrol

edin ve robotu yeniden başlatmayı deneyin. Sorun devam ederse lütfen satış sonrası servis ekibiyle

iletişime geçin.

Temiz su tankının

altında veya

sızdırmazlık

elemanının etrafında

su var.

Temiz su haznesini çıkarırken tankın altındaki veya sızdırmazlık elemanının etrafındaki boruda bir miktar

su kalmış olabilir. Bu normaldir. Lütfen kuru bir bezle silin.

Daha fazla destek için bizimle https://global.dreametech.com üzerinden iletişime geçebilirsiniz

Sorun giderme

Model RCLE0305

Nominal Giriş 220-240 V 50-60 Hz

Nominal Çıkış 20 V 2 A

Nominal Güç (toz boşaltma

sırasında)

700 W

Nominal Güç (sıcak suyla temizlik

sırasında)

1160 W

Nominal Güç (şarj etme ve kurutma

sırasında)

87 W

Teknik özellikler

Robot Ana İstasyon

Model RLL22SE

Şarj Süresi Yaklaşık 3,5 saat

Nominal Voltaj 14,4 V

Nominal Güç 75 W

Çalışma Frekansı 2400-2483,5 MHz

Maksimum Çıkış Gücü ＜ 20 dBm

Not:

Nominal Güç (sıcak suyla temizleme sırasında), temsili süre (su

sıcaklığı 25 ℃) sırasındaki güç değeriyle belirlenir.

Nominal Güç (şarj etme ve kurutma sırasında), tam yük

süresindeki güç değerine göre belirlenir.

Bu ekipmanda, normal kullanım koşulları altında anten ile

kullanıcının vücudu arasında en az 20 cm’lik mesafe olmalıdır.

Bekleme modunda güç tüketimi: ≤ 0,5 W (robot süpürge ana

istasyondan/şarj yanaşma noktasından ayrıldıktan sonra 15 dakika

içinde)

Ekipmanın, bekleme gereksinimleri, güç yönetimi işlevi veya

pil bakım ihtiyaçları nedeniyle kablosuz ağ bağlantılarını devre

dışı bırakma özelliği açısından bir bekleme modu veya diğer

eşdeğer bir durumu yoktur. Ekipmanın güç tüketiminin, bu işlevsel

gereksinimleri karşılayan diğer ekipman modellerinden daha

yüksek olması muhtemeldir.

Ana İstasyon/Şarj Yanaşma Noktası

Robot Süpürge ve Ana İstasyon/Şarj Yanaşma Noktası

Model R2412-4S2P-MMBK/R2412-4S2P-KLYEV

Nominal Gerilim 14,4 V

Märkkapicitet 4,8Ah

Standart Kapasite 5,2Ah 74,88Wh

Şarj Edilebilir Lityum İyon Pil Takımı

Bu sembolü taşıyan tüm ürünler elektrikli ve elektronik cihaz atığı (2012/19/AB sayılı direktifteki anlamıyla WEEE) kapsamında

olup sınıandırılmamış ev atıklarıyla karıştırılmamalıdır. Bunun yerine, atık cihazınızı, atık elektrikli ve elektronik cihazların

geri dönüştürülmesi için hükümet veya yerel yetkililer tarafından belirlenmiş olan toplama noktasına teslim ederek insan

sağlığını ve çevreyi korumalısınız. Doğru imha ve geri dönüşüm, çevre ve insan sağlığı üzerindeki olası olumsuz sonuçların

engellenmesine yardımcı olacaktır. Bu tür toplama noktalarının konumu, şartları ve koşulları hakkında daha fazla bilgi almak

için lütfen montaj yetkilisiyle veya yerel yetkililerle iletişime geçin.

WEEE Bilgileri

Pillerin Çıkarılması ve İmhası

DİKKAT:

Çıkarma Kılavuzu:

Üründeki lityum-iyon pil, çevreye zararlı maddeler içerir. Pili atmadan önce, yetkin teknisyenler tarafından çıkarılmasını sağlayın ve uygun

bir geri dönüşüm tesisinde imha edileceğinden emin olun.

– cihaz ıskartaya çıkarılmadan önce pilleri çıkarılmalıdır;

– piller çıkarılırken cihaz şebeke elektriğinden ayrılmış olmalıdır;

– pil, güvenli bir şekilde imha edilmelidir.

Pili çıkarmadan önce, güç kablosunu ayırın ve pili olabildiğince fazla tüketin.

İhtiyaç fazlası piller uygun bir geri dönüşüm tesisinde imha edilmelidir.

Patlama risklerinin önüne geçmek için yüksek sıcaklıklı ortamlara maruz bırakmayın.

Kötü koşullar altında, pilden sıvı sızabilir. Temas meydana gelirse ilgili bölgeyi suyla yıkayın ve tıbbi yardım alın.

1. Robotu ters çevirin, uygun bir aletle robotun arkasındaki vidaları sökün ve ardından kapağı çıkarın.

2. Pili çıkarmak için pil ile PCB kartı arasındaki bağlantı uçlarını çıkarın.

Hạn Chế Sử Dụng

Thông tin an toàn

Không để trẻ em dưới 8 tuổi cũng như những người có khiếm khuyết về thể chất,

giác quan, trí tuệ hoặc hạn chế về kinh nghiệm hoặc kiến thức sử dụng sản phẩm

này mà không có sự giám sát của cha mẹ hoặc người giám hộ để đảm bảo vận

hành an toàn và tránh mọi rủi ro. Không để trẻ em thực hiện công việc vệ sinh và

bảo trì mà không có sự giám sát.

Chỉ sử dụng thiết bị với bộ nguồn đi kèm với thiết bị.

Chỉ người có chuyên môn mới được thay thế pin trong thiết bị này.

Dọn dẹp khu vực cần làm sạch. Không để trẻ em nghịch thiết bị. Giữ khoảng cách

an toàn giữa trẻ em và vật nuôi với rô-bốt trong quá trình rô-bốt hoạt động.

Không lắp đặt, sạc hoặc sử dụng thiết bị trong phòng tắm hoặc xung quanh hồ bơi.

Sản phẩm này chỉ dùng để lau sàn trong môi trường gia đình. Không sử dụng sản

phẩm này ngoài trời, trên các bề mặt không phải sàn hoặc trong môi trường thương

mại hoặc công nghiệp.

Đảm bảo thiết bị hoạt động bình thường trong môi trường thích hợp. Nếu không,

không được sử dụng thiết bị.

Nếu dây nguồn bị hỏng thì phải thay thế bằng dây hoặc bộ phận lắp ráp đặc biệt do

nhà sản xuất hoặc đại lý dịch vụ của nhà sản xuất cung cấp.

Không sử dụng rô-bốt ở khu vực cao hơn mặt đất mà không có hàng rào bảo vệ.

Không đặt rô-bốt ở tư thế lộn ngược. Không sử dụng vỏ bọc LDS, vỏ bọc rô-bốt

hoặc bộ giảm chấn làm tay cầm cho rô-bốt.

Để tránh bị điện giật, hỏa hoạn hoặc thương tích do sử dụng thiết bị sai quy cách, vui lòng đọc kỹ hướng dẫn sử dụng trước khi sử

dụng thiết bị và giữ lại để tham khảo sau này.

Hạn Chế Sử Dụng

Thông tin an toàn

Sử dụng rô-bốt trong môi trường có nhiệt độ xung quanh từ trên 0°C đến dưới 40°C.

Đảm bảo không có chất lỏng hoặc chất dính trên sàn.

Để tránh bị kéo lê làm hư hỏng hoặc tổn hại, hãy dọn sạch mọi vật không cố định

khỏi sàn và tháo dây cáp hoặc dây nguồn nằm trong lộ trình lau dọn trước khi vận

hành thiết bị.

Loại bỏ các vật dụng nhỏ hoặc dễ vỡ khỏi sàn nhà để rô-bốt không va vào và làm

hỏng các vật dụng đó.

Không để tóc, ngón tay và các bộ phận cơ thể gần lỗ hút của rô-bốt.

Để dụng cụ vệ sinh ngoài tầm với của trẻ em.

Không vận hành thiết bị trong phòng có trẻ sơ sinh hoặc trẻ em đang ngủ.

Không đặt trẻ em, vật nuôi hoặc bất kỳ vật dụng nào lên trên rô-bốt bất kể rô-bốt

đang đứng yên hay di chuyển.

Chỉ được đổ nước sạch và dung dịch vệ sinh được phê duyệt chính thức vào ngăn

chứa nước sạch. Không thêm bất kỳ dung dịch nào như cồn hoặc chất khử trùng.

Có thể kiểm tra tỉ lệ nước lau sàn và nước sạch trên vỏ chai nước lau sàn. Để nước

lau sàn cách xa tầm tay trẻ em.

Không sử dụng rô-bốt để vệ sinh bất kỳ đồ vật đang cháy nào. Không sử dụng rô-

bốt để hút chất lỏng dễ cháy hoặc dễ bắt lửa, khí ăn mòn hoặc axit hoặc dung môi

chưa pha loãng.

Không sử dụng thiết bị để hút các vật cứng hoặc sắc nhọn. Không sử dụng thiết bị

để hút các vật như đá, mảnh giấy lớn hoặc bất kỳ vật dụng nào có thể làm tắc máy.

Phải rút phích cắm ra khỏi ổ điện trước khi vệ sinh hoặc bảo trì thiết bị.

Thông tin an toàn

Pin và Sạc

Không sử dụng bất kỳ trạm sạc đa chức năng hoặc pin nào của bên thứ ba. Rô-bốt

chỉ có thể sử dụng với trạm sạc đa chức năng mô hình RCLE0305.

Không tự ý tháo rời, sửa chữa hoặc thay đổi pin hoặc trạm sạc đa chức năng.

Không đặt trạm sạc đa chức năng gần nguồn nhiệt.

Không sử dụng khăn ướt hoặc tay ướt để lau hoặc vệ sinh các điểm tiếp xúc sạc

của trạm sạc đa chức năng.

Không thải bỏ pin cũ sai cách. Pin không dùng phải được loại bỏ tại một cơ sở tái

chế thích hợp.

Nếu dây nguồn bị hỏng hoặc đứt, hãy ngừng sử dụng ngay lập tức và liên hệ với bộ

phận dịch vụ hậu mãi.

Đảm bảo tắt rô-bốt khi vận chuyển và để trong bao bì đóng gói ban đầu nếu còn.

Nếu không sử dụng rô-bốt trong một thời gian dài, hãy sạc đầy pin, sau đó tắt và cất

ở nơi khô ráo, thoáng mát. Sạc lại rô-bốt ít nhất một lần mỗi 3 tháng để tránh việc xả

pin quá mức.

Hạn Chế Sử Dụng

Không lau rô-bốt hoặc trạm sạc đa chức năng bằng khăn ướt hoặc rửa bằng bất kỳ

dung dịch gì. Sau khi vệ sinh các bộ phận có thể rửa được, hãy làm khô hoàn toàn

trước khi lắp lại và sử dụng.

Vui lòng sử dụng sản phẩm này theo hướng dẫn trong Hướng dẫn sử dụng. Người

dùng tự chịu trách nhiệm nếu có bất kỳ tổn thất hoặc hư hỏng nào phát sinh do sử

dụng sản phẩm sai cách.

Cảm biến laser trong sản phẩm này đáp ứng Tiêu chuẩn IEC 60825-1:2014/EN

60825-1:2014/A11:2021 dành cho sản phẩm laser Loại 1. Vui lòng tránh tiếp xúc

trực tiếp bằng mắt với cảm biến trong quá trình sử dụng.

SẢN PHẨM LASER LOẠI 1

SẢN PHẨM LASER DÀNH CHO NGƯỜI TIÊU DÙNG

Tiêu chuẩn EN 50689:2021

Thông tin an toàn

laser

Thông tin an toàn

Bằng văn bản này, Dreame Trading (Tianjin) Co., Ltd. tuyên bố loại thiết bị vô tuyến RLL22SE tuân thủ Chỉ thị 2014/53/EU. Xem toàn văn tuyên bố tuân

thủ EU theo địa chỉ: https://global.dreametech.com

Để biết hướng dẫn sử dụng điện tử chi tiết, vui lòng truy cập https://global.dreametech.com/pages/user-manuals-and-faqs

Chỉ sử dụng trong nhà

Đọc hướng dẫn sử dụng

Các phụ kiện khác

Tổng Quan Về Sản Phẩm

Giẻ lau × 2

(được lắp sẵn)

Rô-bốt

Trạm sạc đa chức

năng

Giá đỡ giẻ lau

sàn × 2

Dây Nguồn

Dụng cụ vệ

sinh

Túi đựng bụi × 2

(1 được lắp sẵn)

Tấm tạo dốc cho trạm

sạc đa chức năng

Hướng dẫn sử

dụng

Thành phần trong bao bì

Bộ lọc khay giặt

(được lắp sẵn)

Nước lau sàn

Ngăn chứa chất tẩy

rửa tự động

(được lắp sẵn)

5ml

10ml

15ml

20ml

Tổng Quan Về Sản Phẩm

Rô-bốt

Nút lau dọn tập trung

Nhấn để bắt đầu lau dọn theo điểm

Nút Nguồn / Lau dọn

Nhấn giữ trong 3 giây để bật hoặc tắt

Nhấn để bắt đầu lau dọn sau khi bật rô-bốt

Nút Trạm sạc

Nhấn để gửi rô-bốt trở lại trạm sạc

Nhấn giữ trong 3 giây để tắt Khóa trẻ em

Đèn báo trạng thái

Màu trắng: Đã vệ sinh hoặc dọn dẹp xong

Màu trắng nháy chậm: Đang sạc (không phải pin yếu)

Màu cam sáng đều: Trạng thái đợi khi pin yếu hoặc tạm dừng khi pin

yếu

Màu cam nháy chậm: Đang sạc (pin yếu)

Màu cam nhấp nháy: Lỗi

Lưu ý:

Nhấn bất kỳ nút nào trên rô-bốt để tạm dừng khi rô-bốt đang lau dọn

hoặc quay lại để sạc.

Có thể bật/tắt Khóa trẻ em trên Ứng dụng Dreamehome.

Rô-bốt và Cảm biến

Nắp LDS

Cảm biến khoảng cách laser (LDS)

Cửa sổ bộ giảm chấn

Bộ giảm chấn

Đầu nối

Cảm biến laser vạch 3D

Tổng Quan Về Sản Phẩm

Nắp

Điểm Tiếp Xúc

Sạc

Lỗ thông hơi tự

thu bụi

Đầu nạp nước

tự động

Nút đặt lại

· Nhấn giữ trong 3

giây để khôi phục

cài đặt gốc

Đèn báo Wi-Fi

Cảm biến cạnh bên

Rô-bốt và Cảm biến

Cảm biến chống rơi

Bánh xe chính

Bánh xe Leo trèo Phụ trợ

Chổi chính

Bánh xe đa hướng

Khung bảo vệ chổi

Bánh xe chính

Bánh xe Leo trèo Phụ trợ

Lỗ gắn giá đỡ giẻ lau sàn

Cụm nối chổi bên

Cảm biến nhận diện thảm

Cụm lau nhà

Mặt gắn giẻ lau

Giá đỡ giẻ lau sàn Giẻ lau

Cụm nối giẻ lau

Chốt khoá khay bảo vệ chổi

Hộp chứa bụi

Bộ lọc

Lỗ thông hơi tự thu

bụi

Chốt gắn hộp

chứa bụi

Chốt bộ lọc

Tổng Quan Về Sản Phẩm

Bộ lọc

Khay giặt giẻ

Bộ lọc khay giặt

Tấm tạo dốc

Nắp

Khay Nước Bẩn

Khay Nước Sạch

Chốt ngăn chứa

nước

Chốt ngăn chứa

nước

Phao nổi

Ống nước

Nắp ngăn chứa bụi

Chất ức chế cặn

Phao

Trạm sạc đa chức năng Khay Nước Bẩn

Khay Nước Sạch

Tổng Quan Về Sản Phẩm

Trạm sạc đa chức năng

Khe cắm dành riêng để nối bộ dây

dẫn của bộ bơm xả nước tự động

Khe trữ dây nguồn

Cổng nguồn

Lưu ý: Cần mua riêng bộ dây dẫn nước để tự động nạp và xả nước. (Chỉ cung cấp

sẵn ở một số khu vực cụ thể)

Đèn báo trạng thái

Màu trắng: Trạm sạc đa chức

năng đã được cắm điện

Màu cam sáng đều: Trạm sạc

đa chức năng bị lỗi

Tổng Quan Về Sản Phẩm

Bộ lọc

Khe gắn túi đựng

bụi

Lỗ thông hơi tự thu bụi

Khu vực truyền tín hiệu

Ngăn chứa chất tẩy

rửa tự động

Điểm Tiếp Xúc Sạc

Đầu xả nước tự

động

Thu dọn nhà cửa

Trước khi lau sàn, vui lòng cất những món đồ rải rác trên sàn, hàng dễ vỡ, đồ vật

giá trị hoặc có khả năng gây nguy hiểm. Đồng thời thu dọn dây cáp, đồ chơi, vật

cứng và các vật sắc nhọn ra khỏi mặt đất để tránh làm vướng rô-bốt hoặc bị va

chạm gây trầy xước, va đập, hư hỏng sản phẩm.

Mở cửa phòng cần lau dọn và xếp đồ đạc vào đúng chỗ để có nhiều không gian

hơn.

Không đứng phía trước rô-bốt, bậc cửa, hành lang hoặc những nơi chật hẹp để

tránh việc rô-bốt không nhận diện được khu vực cần lau dọn.

Trước khi lau dọn, hãy đặt rào chắn vật lý ở mép cầu thang để đảm bảo rô-bốt vận

hành an toàn và trơn tru.

Lưu ý:

Khi vận hành rô-bốt lần đầu tiên, hãy đi theo khi rô-bốt làm sạch để kịp thời loại bỏ mọi chướng ngại vật.

Không để rô-bốt hút các vật cứng như đá, bi thép, các mảnh đồ chơi hoặc các vật sắc nhọn như phế thải xây dựng, mảnh kính vỡ và đinh, nếu không có thể làm trầy xước

sàn nhà.

1. Đặt trạm sạc đa chức năng và Kết nối với ổ cắm điện

Đặt trạm sạc đa chức năng ở vị trí thoáng nhất và có tín hiệu Wi-Fi tốt.

Chừa đủ khoảng trống như trong hình và loại bỏ mọi vật dụng trong

vùng tô bóng. Cắm dây nguồn vào trạm sạc đa chức năng và cắm vào ổ

điện.

Trước khi sử dụng

Lưu ý:

Đảm bảo không để vật cản ở khu vực truyền tín hiệu.

Đặt trạm sạc đa chức năng trên sàn gạch hoặc sàn đá cẩm thạch để tránh vết

nước làm ướt sàn gỗ hoặc thảm.

Cắm chặt dây nguồn lên phía

trên đến khi thấy đèn báo sáng.

＞1 m

＞5 cm

Washboard Filter

2. Lắp Tấm tạo dốc

Lưu ý: Đảm bảo bộ lọc khay giặt đã được lắp đúng vị trí.

Bộ lọc khaygiặt

3. Tháo vỏ bọc rô-bốt và lắp Cụm lau nhà 4. Kết nối rô-bốt với trạm sạc đa chức năng

Nhấn và giữ nút nguồn trên rô-bốt trong 3 giây để bật máy. Đặt rô-bốt

lên trạm sạc đa chức năng sao cho cụm lau nhà hướng về phía khay

giặt. Sau đó, bạn sẽ nghe thấy thông báo bằng giọng nói khi rô-bốt kết

nối thành công với trạm sạc. Sau khi rô-bốt đã sạc đầy pin, đèn báo

trạng thái trên rô-bốt và trạm sạc sẽ sáng trong 10 phút rồi mờ dần.

Trước khi sử dụng

Lưu ý: Bạn nên sạc đầy rô-bốt ở lần đầu sử dụng. Khi không thể bật rô-bốt sau khi

hết pin, hãy tự kết nối rô-bốt với trạm sạc.

②

①

6. Thêm nước vào Ngăn chứa nước sạch

Lấy ngăn chứa nước sạch ra khỏi trạm sạc đa chức năng và đổ đầy

bằng nước sạch. Sau đó lắp lại vào trạm sạc đa chức năng.

Lưu ý: Không thêm nước nóng vào ngăn chứa nước vì có thể làm ngăn chứa

nước bị biến dạng.

Trước khi sử dụng

5. Thêm Nước lau sàn

(1) Tháo nắp ngăn chứa bụi và kéo ngăn chứa chất tẩy rửa tự động ra.

(2) Mở nắp trên của ngăn chứa và thêm dung dịch vệ sinh.

(3) Đóng nắp ngăn lại, đặt lại vào trạm sạc đa chức năng, sau đó lắp lại

nắp ngăn chứa bụi. nước lau sàn sẽ được tự động thêm khi máy hoạt

động.

Lưu ý:

Ngăn chứa chất tẩy rửa tự động có thể được đổ đầy nước lau sàn để sử dụng.

Không đổ bất kỳ chất lỏng nào khác ngoài nước lau sàn đã được phê duyệt

chính thức để ngăn ngừa sự cố.

Lắp ngăn chứa chất tẩy rửa tự động vào vị trí cho đến khi nghe thấy tiếng "tách".

①

②

①

②

2. Thêm thiết bị

Kết nối với ứng dụng Dreamehome

1. Tải ứng dụng Dreamehome

Đèn báo Wi-Fi

Nhấp nháy chậm:

Sắp được kết nối

Nhấp nháy

nhanh: Đang kết

nối

Bật: Đã kết nối

Lưu ý:

Chỉ hỗ trợ Wi-Fi 2,4 GHz.

Do phần mềm ứng dụng có các bản nâng cấp nên hoạt động thực tế có thể

khác với hướng dẫn trong hướng dẫn sử dụng này. Vui lòng làm theo hướng

dẫn theo phiên bản ứng dụng hiện tại.

Quét mã QR trên rô-bốt hoặc tìm kiếm "Dreamehome" trong cửa hàng

ứng dụng để tải và cài đặt ứng dụng.

Mở ứng dụng Dreamehome, chọn "Quét mã QR để kết nối" và quét lại

mã QR đó trên rô-bốt để thêm thiết bị. Vui lòng làm theo lời nhắc để

hoàn tất kết nối Wi-Fi.

Mã QR

Lưu ý:

Để đặt lại Wi-Fi, hãy lặp lại bước 2 rồi làm theo lời nhắc để hoàn tất kết nối Wi-Fi.

Để ngắt kết nối thiết bị khỏi mạng Wi-Fi, nhấn và giữ nút Reset trên rô-bốt trong 3

giây.

Cách Sử Dụng

Nếu pin quá yếu, rô-bốt sẽ tự động quay trở lại trạm sạc đa chức năng

để sạc. Sau khi sạc đến mức pin thích hợp, rô-bốt sẽ tiếp tục các công

việc lau dọn dang dở.

Lưu ý: Để sử dụng chức năng này, vui lòng cho phép trong ứng dụng.

Bật/Tắt

Lập bản đồ nhanh

Chế độ Không làm phiền (DND)

Lau dọn theo điểm

Khởi động lại Rô-bốt

Tự động tiếp tục lau dọn

Tạm dừng/Ngủ

Nhấn và giữ nút nguồn trong 3 giây để bật rô-bốt. Đèn báo nguồn vẫn sẽ

sáng. Hoặc đặt rô-bốt lên trạm nguồn bằng cách căn chỉnh điểm tiếp xúc

sạc của rô-bốt phù hợp với điểm tiếp xúc sạc của trạm sạc, sau đó rô-

bốt sẽ tự động bật và bắt đầu sạc. Để tắt rô-bốt, hãy đưa rô-bốt ra khỏi

trạm sạc đa chức năng rồi nhấn và giữ nút nguồn trong 3 giây.

Khi rô-bốt vào chế độ Không làm phiền (DND), rô-bốt sẽ ngừng quá trình

tiếp tục dọn dẹp. Chế độ DND bị tắt theo mặc định. Bạn có thể sử dụng

ứng dụng để bật chế độ DND hoặc chỉnh sửa khung giờ DND. Khung

giờ DND mặc định từ 22:00 giờ đêm-8:00 giờ sáng.

Lưu ý:

Các nhiệm vụ dọn dẹp đã lên lịch vẫn sẽ được thực hiện như thường trong

khung giờ bật chế độ DND.

Rô-bốt sẽ tiếp tục lau dọn từ vị trí đã dừng lại sau khi kết thúc chế độ DND.

Khi rô-bốt đang ở trạng thái đợi, hãy nhấn nhanh nút để kích hoạt

chế độ làm sạch theo điểm. Ở chế độ này, rô-bốt làm sạch khu vực hình

vuông xung quanh có diện tích 1,5 x 1,5 mét và quay trở lại điểm xuất

phát sau khi hoàn tất tiến trình làm sạch theo điểm.

Nếu rô-bốt ngừng phản hồi hoặc không thể tắt, nhấn và giữ nút nguồn

trong 10 giây để buộc rô-bốt phải tắt. Sau đó, nhấn và giữ nút nguồn

trong 3 giây để bật rô-bốt.

Sau khi định cấu hình mạng lần đầu tiên, hãy làm theo hướng dẫn trên

ứng dụng để nhanh chóng thiết lập bản đồ. Rô-bốt sẽ bắt đầu lập bản

đồ mà không lau dọn. Khi rô-bốt quay trở lại trạm sạc đa chức năng, quá

trình lập bản đồ đã hoàn tất và bản đồ sẽ được lưu tự động.

Khi rô-bốt đang chạy, nhấn nút bất kỳ để tạm dừng.

Nếu rô-bốt bị tạm dừng hơn 10 phút sẽ tự động chuyển sang chế độ

ngủ. Tất cả đèn báo trên rô-bốt sẽ tắt. Nhấn nút bất kỳ trên rô-bốt hoặc

sử dụng ứng dụng để đánh thức rô-bốt.

Lưu ý: Nếu rô-bốt đang tạm dừng, khi đưa về trạm sạc đa chức năng, thì tiến trình

lau dọn gần nhất sẽ kết thúc.

Lưu ý:

Để đảm bảo rô-bốt dễ dàng quay trở lại trạm sạc đa chức năng sau khi lau dọn,

bạn nên để rô-bốt khởi động từ trạm sạc đa chức năng.

Các giẻ lau sẽ được vệ sinh trước khi rô-bốt bắt đầu lau, vui lòng kiên nhẫn chờ

đợi.

Không di chuyển trạm sạc, khay nước sạch, khay nước bẩn hoặc bộ lọc khay

giặt khi rô-bốt đang hoạt động.

Có thể bật tính năng làm sạch bằng nước nóng trong ứng dụng đối với các tác

vụ giặt giẻ lau, áp dụng cho tất cả các chế độ. Để tránh bị bỏng, không chạm

vào lỗ thoát nước khi đang bật chức năng này.

Cách Sử Dụng

Lưu ý: Khi lần đầu tiên sử dụng cụm lau nhà, rô-bốt sẽ thực hiện nhiệm vụ “Quét

và Lau nhà” theo mặc định.

1. Bắt Đầu Làm Sạch

Nhấn nút nguồn trên rô-bốt hoặc sử dụng ứng dụng để rô-bốt khởi động

từ trạm sạc đa chức năng. Sau đó, rô-bốt sẽ lập lộ trình lau dọn tối ưu

và thực hiện nhiệm vụ vệ sinh theo bản đồ đã tạo.

2. Tự động giặt giẻ lau

Khi lau dọn, rô-bốt sẽ tự động quay trở lại trạm sạc đa chức năng để giặt

giẻ lau theo tần suất làm sạch được cài đặt trên ứng dụng. Trạm sạc đa

chức năng sẽ tự động đổ đầy ngăn chứa nước và tiếp tục lau dọn.

Hút bụi và Lau sàn

Cách Sử Dụng

4. Vệ sinh ngăn chứa nước bẩn

Sau khi rô-bốt hoàn thành nhiệm vụ, vui lòng vệ sinh ngăn chứa nước

bẩn để tránh gây mùi hôi.

Lưu ý:

Nếu tắt chức năng tự động đổ bụi trong ứng dụng, trạm sạc đa chức năng sẽ

không tự động đổ bụi trong hộp chứa bụi.

Trạm sạc đa chức năng sẽ đổ bụi trong hộp chứa bụi theo cài đặt trong ứng

dụng.

Bật chức năng "Hút bụi" trong ứng dụng và rô-bốt sẽ tự động tháo cụm

lau nhà để lại trạm sạc đa chức năng và bắt đầu hút bụi.

Bật chức năng "Lau sau khi hút bụi" trong ứng dụng và rô-bốt sẽ tự động

tháo cụm lau nhà trên trạm sạc đa chức năng để hút bụi sàn. Sau khi hút

bụi xong, rô-bốt sẽ quay trở lại trạm sạc để lắp giẻ lau nhà và trạm sạc

sẽ tự động đổ bụi trong hộp chứa bụi. Sau đó, rô-bốt sẽ bắt đầu lau sau

khi nâng chổi bên lên.

Bật chức năng "Lau nhà" trong ứng dụng và rô-bốt sẽ tự động kiểm tra

xem cụm lau nhà đã được lắp trên trạm sạc đa chức năng chưa. Nếu

chưa lắp, rô-bốt sẽ lắp cụm lau nhà và bắt đầu lau sau khi nâng chổi bên

lên.

Chỉ hút bụi

Lau sàn sau khi Hút bụi

Chỉ lau nhà

3. Tự động đổ hộp chứa bụi, sau đó giặt và sấy khô giẻ lau nhà

Sau khi rô-bốt hoàn thành nhiệm vụ lau dọn và quay trở lại trạm để sạc,

trạm sạc sẽ bắt tự động làm sạch hộp chứa bụi, sau đó giặt và sấy khô

giẻ lau nhà.

Bảo dưỡng định kỳ

Các bộ phận

Bộ phận Tần suất bảo trì Thời gian thay thế

Khay nước bẩn Sau mỗi lần sử dụng

Khay nước sạch

2 tuần một lần

Chổi chính

6 đến 12 tháng một

lần

Bộ lọc hộp chứa bụi

3 đến 6 tháng một lần

Chổi bên

Giá đỡ giẻ lau sàn /

Bộ lọc khay giặt 1 đến 2 tháng một lần

Khu vực truyền tín hiệu

trên trạm sạc đa chức

năng

Mỗi tháng một lần

Điểm tiếp xúc sạc

Lỗ thông hơi tự thu bụi

Bánh xe đa hướng

Cảm biến cạnh bên

Cảm biến khoảng cách

laser (LDS)

Cảm biến laser vạch 3D

Cảm biến nhận diện

thảm

Cảm biến chống rơi

Bộ phận Tần suất bảo trì Thời gian thay thế

Cửa sổ bộ giảm chấn

Mỗi tháng một lần

Bộ giảm chấn

Đầu nạp nước tự động

của rô-bốt

Mặt bên dưới của rô-

bốt

Hộp chứa bụi

Vệ sinh khi cần thiếtBánh xe chính

Bánh xe leo trèo phụ

trợ

Túi đựng bụi

2 đến 4 tháng một lần

Giẻ lau sàn 1 đến 3 tháng một lần

Chất ức chế cặn

18 đến 36 tháng một

lần

Lưu ý: Tần suất bảo trì và thay thế sẽ phụ thuộc vào mức độ sử dụng thực tế.

Nếu xảy ra trường hợp ngoại lệ do hoàn cảnh đặc biệt thì bạn nên thay thế các bộ

phận.

Để đảm bảo rô-bốt luôn ở tình trạng tốt, bạn nên tham khảo cách sử dụng phụ kiện trong ứng dụng hoặc bảng sau để bảo dưỡng định kỳ.

Bảo dưỡng định kỳ

Bộ lọc khay giặt

1. Lấy rô-bốt ra ngoài và tháo bộ lọc khay giặt sau khi hoàn tất vệ sinh

giẻ lau nhà.

2. Rửa bộ lọc khay giặt với nước sạch, lau sạch rồi lắp lại vào khay giặt.

3. Sử dụng ứng dụng hoặc nhấn nút để đưa rô-bốt trở lại trạm sạc

đa chức năng hoặc tự tay đưa rô-bốt trở lại.

Bảo dưỡng định kỳ

Túi đựng bụi

1. Tháo nắp ngăn chứa bụi và loại bỏ túi đựng tụi. 3. Lắp túi đựng bụi mới.

4. Lắp lại nắp ngăn chứa bụi.2. Loại bỏ bụi và mảnh vụn ra khỏi bộ lọc bằng vải khô.

Lưu ý: Kéo tay cầm lên trên để buộc kín túi nhằm ngăn bụi và mảnh vụn vô tình

rơi ra ngoài.

3. Theo các mũi tên in hướng lên trên, lắp giá đỡ chổi chính vào các khe

theo hướng nghiêng xuống dưới.

4. Căn chỉnh phía trước của khung bảo vệ chổi phù hợp với khay, lắp

theo hướng nghiêng xuống dưới ròi nhấn khung vào đúng vị trí.

Bảo dưỡng định kỳ

Click

Chổi chính

2. Lấy các chổi ra như trong hình. Sử dụng dụng cụ vệ sinh đi kèm để

gỡ tất cả tóc rối dính vào chổi. Sau khi làm sạch, nhấn các chổi chắc

chắn vào giá đỡ chổi chính tới khi chúng vào đúng vị trí.

Tách

1. Nhấn chốt khoá khay bảo vệ chổi vào trong để tháo khay bảo vệ chổi

rồi nhấc chổi ra khỏi rô-bốt.

Lưu ý:Cẩn thận khi lấy các chổi chính ra để tránh bị thương.

Chổi bên

Tháo chổi bên bằng tuốc nơ vít, dọn sạch tóc khỏi chổi rồi vặn lại.

Bánh xe đa hướng

Lưu ý:

Dùng dụng cụ như tuốc nơ vít nhỏ để tách trục và lốp của bánh xe đa hướng.

Không dùng lực quá mạnh.

Vệ sinh bánh xe đa hướng dưới vòi nước chảy và lắp lại sau khi khô hoàn toàn.

Giá đỡ giẻ lau sàn

Tháo và vệ sinh Giá đỡ giẻ lau sàn.

Bảo dưỡng định kỳ

1. Xoay bánh xe leo phụ cho đến khi mũi tên "OUT" hướng lên trên, sau

đó kéo bánh xe ra.

3. Sau khi làm sạch, xoay bánh xe chính để căn chỉnh hai mũi tên (xem

Hình

①

). Sau đó, với mũi tên "IN" hướng xuống dưới, lắp bánh xe leo

phụ bên trái và bên phải cho đến khi chúng khớp vào đúng vị trí. (xem

Hình

②

2. Sử dụng một công cụ thích hợp để làm sạch tóc rối trong bánh xe

chính và bánh xe leo trèo phụ trợ.

Bánh xe Leo trèo Phụ trợ và Bánh xe chính

OUT

R L

OUT

Click

Bảo dưỡng định kỳ

3. Gõ nhẹ vào phần hộc chứa bụi của bộ lọc để loại bỏ bụi bẩn.

4. Rửa hộp chứa bụi và bộ lọc bằng nước rồi để khô hoàn toàn trước khi

lắp lại.

Lưu ý: Không cố làm sạch bộ lọc bằng bàn chải, ngón tay hoặc vật sắc nhọn để

tránh hư hỏng.

24h

Lưu ý:

Chỉ rửa hộp chứa bụi và bộ lọc bằng nước sạch. Không sử dụng bất kỳ chất tẩy

rửa gì.

Chỉ sử dụng hộp chứa bụi và bộ lọc khi đã khô hoàn toàn.

Hộp chứa bụi và bộ lọc

1. Mở nắp rô-bốt và nhấn chốt để tháo hộp chứa bụi.

2. Tháo bộ lọc hộp chứa bụi rồi đổ bụi trong hộp chứa bụi.

Bảo dưỡng định kỳ

Điểm tiếp xúc sạc và Khu vực truyền tín hiệu

Làm sạch các điểm tiếp xúc sạc và khu vực truyền tín hiệu bằng vải khô

mềm.

Lưu ý: Vải ướt có thể làm hỏng các bộ phận nhạy cảm bên trong rô-bốt và trạm

sạc đa chức năng. Vui lòng sử dụng vải khô để vệ sinh.

Cảm biến nhận

diện thảm

Cảm biến chống rơi

Cảm biến cạnh bên

Cửa sổ bộ giảm chấn

Bộ giảm chấn

Cảm biến khoảng

cách laser (LDS)

Cảm biến của rô-bốt

Lau cảm biến của rô-bốt bằng vải mềm và khô như trong hình dưới đây:

Bảo dưỡng định kỳ

Làm sạch lỗ thông hơi tự thu bụi của rô-bốt và trạm sạc đa chức năng

bằng vải khô mềm.

Lỗ thông hơi tự thu bụi

Giẻ lau sàn

Tháo giẻ lau ra khỏi khay giữ để thay mới.

Rô-bốt sử dụng bộ pin lithium-ion hiệu suất cao. Đảm bảo sạc đầy pin

để sử dụng hàng ngày nhằm duy trì hiệu suất tối ưu của pin. Nếu không

sử dụng trong thời gian dài, hãy tắt nguồn và cất rô-bốt ở nơi thoáng

mát. Để tránh gây hư hỏng do hết pin quá lâu, hãy sạc rô-bốt ít nhất ba

tháng một lần.

Bảo dưỡng định kỳ

Khay Nước Bẩn

1. Tháo ngăn chứa nước bẩn, mở nắp và đổ nước bẩn ra ngoài.

2. Rửa ngăn chứa nước bẩn bằng nước sạch và dùng dụng cụ vệ sinh

đi kèm để vệ sinh thành trong của ngăn chứa nước bẩn.

Lưu ý: Phao nổi trong ngăn chứa nước bẩn là bộ phận có thể tháo rời được.

Không dùng lực quá mạnh khi vệ sinh máy để tránh hư hỏng.

Vấn đề Biện Pháp Xử Lý

Không bật được

rô-bốt.

Pin yếu. Sạc pin cho rô-bốt trên đế và thử lại.

Nhiệt độ pin quá thấp hoặc quá cao. Khuyến nghị vận hành thiết bị ở nhiệt độ từ 0℃ (32℉) đến 40℃ (104℉).

Sạc rô-bốt không vào.

Trạm sạc đa chức năng chưa được cắm điện, vui lòng đảm bảo cắm cả hai đầu dây nguồn của trạm sạc đa chức

năng đúng cách.

Nếu tiếp xúc giữa các điểm tiếp xúc sạc trên trạm sạc đa chức năng và rô-bốt kém, vui lòng vệ sinh các điểm tiếp

xúc sạc.

Kiểm tra dị vật trên đầu nối rô-bốt và loại bỏ nếu có.

Rô-bốt không kết nối

được với Wi-Fi.

Mật khẩu mạng Wi-Fi không chính xác. Đảm bảo nhập đúng mật khẩu sử dụng để kết nối với mạng Wi-Fi.

Rô-bốt không hỗ trợ kết nối Wi-Fi 5 GHz. Đảm bảo đã kết nối rô-bốt với mạng Wi-Fi 2,4 GHz.

Tín hiệu Wi-Fi yếu. Đảm bảo rô-bốt đang ở trong khu vực có vùng phủ sóng Wi-Fi tốt.

Rô-bốt có thể chưa sẵn sàng để thiết lập cấu hình. Vui lòng thoát ra và vào lại ứng dụng, sau đó thử lại theo

hướng dẫn.

Rô-bốt không xác định

được vị trí và quay lại

trạm sạc đa chức năng.

Trạm sạc đa chức năng bị ngắt điện hoặc bị di chuyển khi rô-bốt không có ở đó. Vui lòng kết nối trạm sạc đa chức

năng với nguồn điện hoặc đặt rô-bốt lên trạm sạc đa chức năng để sạc.

Có quá nhiều chướng ngại vật xung quanh trạm sạc đa chức năng. Đặt trạm sạc đa chức năng ở khu vực thoáng

hơn.

Di chuyển rô-bốt có thể khiến rô-bốt phải tự định vị lại và tạo lại bản đồ nếu định vị không thành công. Rô-bốt có thể

không tự động quay lại nếu ở quá xa trạm sạc đa chức năng, trong trường hợp đó, bạn sẽ cần tự đặt rô-bốt trở lại.

Lau khu vực truyền tín hiệu trên trạm sạc đa chức năng để loại bỏ bụi hoặc mảnh vụn.

Rô-bốt bị kẹt trước trạm

sạc đa chức năng và

không quay lại được

trạm sạc đa chức năng.

Kiểm tra xem có đủ không gian ở hai bên và đằng trước trạm sạc không để tránh rô-bốt bị chặn.

Lối đi quay lại để sạc bị chặn, ví dụ: cửa đóng.

Rô-bốt có thể bị trượt nếu khu vực sàn phía trước trạm sạc đa chức năng quá ẩm ướt. Nếu vậy, hãy làm sạch

nước thừa trước khi thử lại.

Bạn nên di chuyển trạm sạc đa chức năng đến một nơi khác và thử lại.

Đảm bảo tấm tạo dốc được lắp đặt đúng cách.

Xử Lý Sự Cố

Vấn đề Biện Pháp Xử Lý

Không tắt được rô-bốt.

Không thể tắt rô-bốt khi đang sạc. Bạn nên di chuyển rô-bốt ra khỏi trạm sạc đa chức năng, sau đó nhấn và giữ

nút nguồn trong 3 giây để tắt rô-bốt.

Nếu không thể tắt rô-bốt bằng cách thực hiện bước 1, nhấn và giữ nút nguồn trong 10 giây để buộc rô-bốt phải tắt.

Nếu vẫn không tắt được, vui lòng liên hệ với dịch vụ hỗ trợ sau bán hàng.

Tốc độ sạc chậm.

Mất khoảng 3,5 giờ để sạc đầy rô-bốt khi pin yếu.

Nếu vận hành rô-bốt ở khoảng nhiệt độ ngoài mức quy định, tốc độ sạc sẽ tự động chậm lại để kéo dài tuổi thọ

của pin.

Các điểm tiếp xúc sạc trên cả rô-bốt và đế trạm gốc có thể bị bẩn, vui lòng lau bằng vải khô.

Rô-bốt ngày một ồn khi

đang hoạt động.

Kiểm tra xem bộ lọc hộp chứa bụi có bị tắc không. Nếu có, hãy vệ sinh hoặc thay bộ lọc.

Vật cứng có thể mắc vào chổi chính hoặc hộp chứa bụi. Kiểm tra và loại bỏ mọi vật cứng.

Chổi chính hoặc chổi bên có thể bị rối. Kiểm tra và loại bỏ mọi vật lạ.

Chuyển chế độ hút sang Tiêu chuẩn hoặc Yên tĩnh.

Rô-bốt di chuyển không

theo lộ trình đã định.

Nên thu dọn các đồ vật như dây nguồn và dép đi trong nhà trước khi sử dụng rô-bốt.

Bề mặt trơn ướt khiến bánh xe chính bị trơn trượt. Nên làm khô những nơi ẩm ướt trước khi sử dụng rô-bốt.

Lau cửa sổ bộ giảm chấn trên rô-bốt bằng vải mềm sạch và khô để chúng luôn sạch sẽ và không bị cản trở.

Rô-bốt bỏ qua các

phòng cần lau dọn.

Hãy đảm bảo mở cửa các phòng cần lau dọn.

Vị trí trước cửa phòng cần vệ sinh có thể ẩm ướt, trơn trượt khiến rô-bốt trượt bánh và hoạt động không bình

thường. Vui lòng làm khô sàn nhà trước khi sử dụng rô-bốt.

Rô-bốt không tiếp tục

dọn dẹp sau khi sạc.

Đảm bảo không đặt rô-bốt ở chế độ Không làm phiền (DND) để tránh rô-bốt không thể tiếp tục lau dọn.

Rô-bốt sẽ không tiếp tục lau dọn sau khi bạn đặt rô-bốt lên trạm sạc đa chức năng hoặc sạc qua ứng dụng hoặc

nút bấm .

Vấn đề Biện Pháp Xử Lý

Trạm không tự động

làm sạch hộp chứa bụi.

Kiểm tra xem túi đựng bụi trong ngăn chứa bụi đã đầy chưa.

Nếu túi đựng bụi chưa đầy, hãy kiểm tra xem có vật cản nào trên lỗ thông hơi tự động đổ bụi của rô-bốt, trạm sạc

đa chức năng hoặc hộp chứa bụi hay không. Nếu có, nhanh chóng vệ sinh phần bị kẹt.

Mực nước trong khay

giặt giẻ không bình

thường.

Kiểm tra xem nắp bịt trên ngăn chứa nước bẩn có bị lỏng hoặc bị lắp sai hay không và lắp lại cho đúng. Nếu vẫn

bị lỗi, vui lòng liên hệ với đội ngũ hỗ trợ sau bán hàng.

Ấn nhẹ ngăn chứa nước bẩn xuống để đảm bảo lắp đúng vị trí.

Tháo bộ lọc khay giặt và kiểm tra xem lỗ thoát nước thải có bị tắc hay không và vệ sinh.

Kiểm tra nước lau sàn. Không thêm bất kỳ dung dịch nào khác ngoài nước lau sàn được nhà sản xuất cho phép.

Lỗ gắn Giá đỡ giẻ lau

sàn bị nhô lên một cách

không bình thường.

Vui lòng tháo lỗ gắn Giá đỡ giẻ lau sàn để kiểm tra xem liệu có bất kỳ vật thể bên ngoài bị kẹt trong đó hay không,

và thử khởi động lại rô-bốt. Nếu vẫn bị lỗi, vui lòng liên hệ với đội ngũ hỗ trợ sau bán hàng.

Có nước bên dưới

ngăn chứa nước

sạch hoặc xung

quanh phần nắp.

Khi lấy ngăn chứa nước sạch, có thể sẽ còn một ít nước trong phần ống còn đọng lại dưới ngăn chứa hoặc

quanh phần nắp. Đây là điều bình thường. Vui lòng lau bằng vải khô.

Để được hỗ trợ thêm, hãy liên hệ với chúng tôi qua https://global.dreametech.com

Xử Lý Sự Cố

Kiểu máy RCLE0305

Đầu Vào Định Mức 220-240 V 50-60 Hz

Công suất đầu ra định mức 20 V 2 A

Công suất định mức (trong quá trình hút

bụi)

700 W

Công suất định mức (trong quá trình làm

sạch bằng nước nóng)

1160 W

Công suất định mức (trong quá trình sạc

và sấy khô)

87 W

Thông Số Kỹ Thuật

Rô-bốt

Trạm sạc đa chức năng/đế sạc

Rô-bốt và trạm sạc đa chức năng/đế sạc

Trạm sạc đa chức năng

Kiểu máy RLL22SE

Thời Gian Sạc Xấp xỉ 3,5 giờ đồng hồ

Điện Áp Định Mức 14,4 V

Công Suất Định Mức 75 W

Tần suất hoạt động 2400–2483,5 MHz

Công suất đầu ra tối đa < 20 dBm

Lưu ý:

Công suất định mức (trong quá trình lau dọn bằng nước nóng) được

xác định theo giá trị công suất trong khoảng thời gian đại diện (nhiệt độ

nước 25℃).

Công suất định mức (trong quá trình sạc và sấy) được xác định bởi giá

trị công suất trong quá trình hoạt động tối đa.

Trong điều kiện sử dụng bình thường, cần để thiết bị này cách ăng-ten

và cơ thể người dùng ít nhất 20 cm.

Tiêu thụ điện năng ở chế độ chờ: ≤ 0,5 W (trong vòng 15 phút sau khi

rô-bốt rời trạm sạc đa chức năng/đế sạc)

Do nhu cầu bảo trì pin, thiết bị không có chế độ chờ hoặc trạng thái

tương đương khác từ góc độ các yêu cầu chờ, chức năng quản lý điện

năng hoặc khả năng hủy kích hoạt chế độ kết nối mạng không dây. Mức

tiêu thụ điện năng của thiết bị có thể cao hơn các mẫu thiết bị khác đáp

ứng các yêu cầu chức năng này.

Kiểu máy

R2412-4S2P-MMBK/R2412-4S2P-KLYEV

Điện áp danh định

4 V

Dung lượng định mức

8Ah

Công suất điển hình

2Ah 74

88Wh

Bộ pin lithium-ion có thể sạc lại

Tất cả các sản phẩm mang biểu tượng này đều là chất thải thiết bị điện và điện tử (WEEE theo chỉ thị 2012/19/EU) không nên trộn lẫn với

rác thải sinh hoạt chưa được phân loại. Thay vào đó, bạn nên bảo vệ sức khỏe con người và môi trường bằng cách giao thiết bị thải bỏ

của mình cho điểm thu gom được chỉ định để tái chế chất thải thiết bị điện và điện tử, được chỉ định bởi chính phủ hoặc chính quyền địa

phương. Việc thải bỏ và tái chế đúng cách sẽ giúp ngăn ngừa các hậu quả tiêu cực tiềm ẩn đối với môi trường và sức khỏe con người. Vui

lòng liên hệ với đơn vị lắp đặt hoặc chính quyền địa phương để biết thêm thông tin về địa điểm cũng như các điều khoản và điều kiện của

các điểm thu gom này.

Thông Tin Rác Thải Thiết Bị Điện Và Điện Tử (WEEE)

Tháo Bỏ và Xử Lý Pin

THẬN TRỌNG:

Hướng dẫn tháo:

Pin lithium-ion tích hợp có chứa các chất nguy hiểm cho môi trường. Trước khi thải bỏ pin, hãy đảm bảo việc tháo pin do các kỹ thuật viên có trình

độ thực hiện và thải bỏ tại một cơ sở tái chế thích hợp.

– Bạn cần tháo pin ra khỏi thiết bị trước khi vứt bỏ;

– Thiết bị phải được ngắt khỏi nguồn điện chính khi tháo pin;

– Pin phải được xử lý an toàn.

Trước khi tháo pin, hãy ngắt nguồn điện và sử dụng càng nhiều pin càng tốt.

Pin không dùng phải được loại bỏ tại một cơ sở tái chế thích hợp.

Không để pin tiếp xúc với môi trường nhiệt độ cao để tránh nguy cơ cháy nổ.

Nếu quá lạm dụng, chất lỏng có thể bị rò ra khỏi pin. Nếu không may tiếp xúc, xả dưới nước và điều trị y tế.

1. Lật ngược rô-bốt, dùng dụng cụ thích hợp để tháo các vít ở mặt sau của rô-bốt rồi tháo nắp.

2. Rút phích cắm các cực giữa pin và bo mạch PCB để tháo pin.

ข้อจำ�กัดในก�รใช้ง�น

ข้อมูลด้�นคว�มปลอดภัย

เด็กอายุตากว่า8ปีหร ือบุคคลที่มีความบกพร่องทางร่างกายประสาทสัมผัสสติปัญญา

หร ือประสบการณ์หร ือความรู้จำากัดไม่ควรใช้ผลิตภัณฑ์นี้โดยไม่ได้รับการดูแลจากพ่อแม่หร ือ

ผู้ปกครองเพื่อให้แน่ใจว่าการทำางานปลอดภัยและเพื่อหลีกเลี่ยงความเสี่ยงใดๆที่อาจเกิดขึ้น

ห้ามเด็กทำาความสะอาดและบำารุงรักษาโดยไม่มีผู้ดูแล

เคร ื่องนี้ใช้กับเคร ื่องจ่ายไฟที่ให้มาพร้อมกับเคร ื่องเท่านั

้

น

หุ่นยนต์นี้มีแบตเตอร ี่ที่ต้องเปลี่ยนโดยผู้ที่มีความชำานาญเท่านั

้

น

เคลียร์พื้นที่ที่จะทำาความสะอาดห้ามเด็กเล่นกับผลิตภัณฑ์นี้ตรวจสอบให้แน่ใจว่าเด็กและสัตว์เลี้ยง

อยู่ห่างจากหุ่นยนต์ในระยะที่ปลอดภัยในขณะที่หุ่นยนต์กำาลังทำางาน

ห้ามติดตั

้

งชาร์จหร ือใช้เคร ื่องในห้องนาหร ือรอบๆสระว่ายนา

ผลิตภัณฑ์นี้ใช้สำาหรับการทำาความสะอาดพื้นในบ้านเท่านั

้

นห้ามใช้งานกลางแจ้งบนพื้นผิวที่

ไม่ใช่พื้นหร ือในเชิงพาณิชย์หร ืออุตสาหกรรม

ตรวจสอบให้แน่ใจว่าหุ่นยนต์ทำางานได้อย่างถูกต้องในสภาพแวดล้อมที่เหมาะสมมิฉะนั

้

นจะไม่

สามารถใช้งานหุ่นยนต์นี้ได้

หากสายไฟเสียหายต้องเปลี่ยนด้วยสายไฟพิเศษหร ือชุดประกอบที่มีจำาหน่ายจากผู้ผลิต

หร ือตัวแทนบร ิการ

ห้ามใช้หุ่นยนต์ในบร ิเวณที่อยู่เหนือระดับพื้นดินโดยไม่มีสิ

่

งกีดขวางป้องกันเอาไว้

เพื่อหลีกเลี่ยงก�รเกิดไฟฟ้�ช็อต ไฟไหม้ หร ือก�รบ�ดเจ็บที่เกิดจ�กก�รใช้เคร ื่องอย่�งไม่เหม�ะสม โปรดอ่�นคู่มือก�รใช้ง�นอย่�งละเอียดก่อนใช้เคร ื่อง

และเก็บไว้เพื่อใช้ดูในอน�คต

ข้อจำ�กัดในก�รใช้ง�น

ข้อมูลด้�นคว�มปลอดภัย

ห้ามวางหุ่นยนต์กลับด้านห้ามใช้ฝาครอบLDSฝาปิดหุ่นยนต์หร ือกันชนเป็นที่จับสำาหรับหุ่นยนต์

ใช้หุ่นยนต์ในสภาพแวดล้อมที่มีอุณหภูมิแวดล้อมสูงกว่า0°Cและตากว่า40°Cตรวจสอบให้แน่ใจ

ว่าไม่มีของเหลวหร ือสารเหนียวบนพื้น

เพื่อป้องกันความเสียหายหร ืออันตรายจากการลากให้นำาสิ

่

งกีดขวางออกจากพื้นและถอดสาย

เคเบิลหร ือสายไฟบนพื้นที่ทำาความสะอาดก่อนเปิดใช้งาน

นำาสิ

่

งของที่เปราะบางหร ือมีขนาดเล็กออกจากพื้นเพื่อป้องกันไม่ให้หุ่นยนต์ชนและสร้างความ

เสียหาย

เก็บเส้นผมนิ

้

วมือและส่วนอื่นๆของร่างกายให้ห่างจากช่องดูดของหุ่นยนต์

เก็บแปรงปัดฝุ่นให้พ้นมือเด็ก

ห้ามใช้งานหุ่นยนต์ในห้องที่มีทารกหร ือเด็กนอนหลับอยู่

ห้ามวางเด็กสัตว์เลี้ยงหร ือสิ

่

งของใดๆไว้บนหุ่นยนต์ไม่ว่าหุ่นยนต์จะอยู่นิ

่

งหร ือเคลื่อนที่ก็ตาม

สามารถเติมได้เฉพาะนาสะอาดและนายาทำาความสะอาดที่ได้รับการรับรองอย่างเป็นทางการลง

ในถังเก็บนาสะอาดเท่าน้

ั

นห้ามเติมของเหลวอื่นใดเช่นแอลกอฮอล์หร ือนายาฆ่าเชื้อ

สามารถตรวจสอบอัตราส่วนของนายาทำาความสะอาดต่อนาสะอาดได้จากขวดนายาทำาความ

สะอาดเก็บนายาทำาความสะอาดให้พ้นมือเด็ก

ห้ามใช้หุ่นยนต์ทำาความสะอาดวัตถุที่กำาลังไหม้ห้ามใช้หุ่นยนต์หยิบของเหลวที่ไวไฟหร ือวัตถุที่

ติดไฟได้ก๊าซที่มีฤทธิ

์

กัดกร่อนหร ือกรดหร ือตัวทำาละลายที่ไม่มีการเจือปน

ห้ามดูดวัตถุแข็งหร ือมีคมห้ามใช้อุปกรณ์ในการเก็บวัตถุเช่นก้อนหินกระดาษชิ

้

นใหญ่หร ือ

สิ

่

งของใดๆที่อาจทำาให้อุปกรณ์อุดตัน

ต้องถอดปลั

๊

กออกจากเต้ารับก่อนทำาความสะอาดหร ือบำารุงรักษาเคร ื่อง

ข้อมูลด้�นคว�มปลอดภัย

แบตเตอร ี่และก�รช�ร์จ

ห้ามใช้แบตเตอร ี่หร ือแท่นของบร ิษัทอื่นหุ่นยนต์สามารถใช้ได้กับแท่นรุ่นRCLE0305เท่านั

้

น

ห้ามแยกชิ

้

นส่วนซ่อมแซมหร ือดัดแปลงแบตเตอร ี่หร ือแท่นด้วยตัวคุณเอง

ห้ามวางแท่นใกล้กับแหล่งความร้อน

ห้ามใช้ผ้าเปียกหร ือมือเปียกเช็ดหร ือทำาความสะอาดหน้าสัมผัสการชาร์จของแท่น

ห้ามทิ

้

งแบตเตอร ี่เก่าอย่างไม่เหมาะสมควรทิ

้

งแบตเตอร ี่ที่ไม่ต้องการที่โรงงานร ีไซเคิลที่เหมาะสม

หากสายไฟเสียหายหร ือขาดให้หยุดใช้งานทันทีและติดต่อฝ่ายบร ิการหลังการขาย

ตรวจสอบให้แน่ใจว่าหุ่นยนต์ปิดอยู่ในขณะที่ทำาการขนส่งและหากเป็นไปได้เก็บไว้ในบรรจุภัณฑ์

เดิม

หากไม่ได้ใช้งานหุ่นยนต์เป็นระยะเวลานานให้ชาร์จแบตเตอร ี่ให้เต็มจากนั

้

นปิดเคร ื่องและเก็บ

ในที่แห้งและเย็นชาร์จหุ่นยนต์อย่างน้อยทุกๆ3

เดือนเพื่อหลีกเลี่ยงการคายประจุแบตเตอร ี่มากเกินไป

ข้อจำ�กัดในก�รใช้ง�น

อย่าเช็ดหุ่นยนต์หร ือแท่นด้วยผ้าเปียกหร ือล้างด้วยของเหลวใดก็ตามหลังจากหลังจากล้างทำา

ความสะอาดชิ

้

นส่วนแล้วให้เช็ดชิ

้

นส่วนให้แห้งก่อนติดตั

้

งใหม่และใช้งาน

โปรดใช้ผลิตภัณฑ์นี้ตามคำาแนะนำาในคู่มือการใช้งานผู้ใช้ต้องรับผิดชอบต่อความสูญเสียหร ือ

ความเสียหายใดๆที่เกิดขึ้นจากการใช้ผลิตภัณฑ์นี้อย่างไม่เหมาะสม

100

เซ็นเซอร์เลเซอร์ในผลิตภัณฑ์นี้ตรงตามมาตรฐานIEC

60825-1:2014/EN60825-1:2014/A11:2021

สำาหรับผลิตภัณฑ์เลเซอร์คลาส1โปรดหลีกเลี่ยงการสัมผัสกับดวงตาโดยตรงระหว่างการใช้งาน

ผลิตภัณฑ์เลเซอร์คลาส1

ผลิตภัณฑ์เลเซอร์สำาหรับผู้บร ิโภค

EN50689:2021

ข้อมูลคว�มปลอดภัย

ของเลเซอร์

ข้อมูลด้�นคว�มปลอดภัย

ด้วยเหตุนี้ Dreame Trading (Tianjin) Co., Ltd. ขอประกาศว่าอุปกรณ์วิทยุประเภท RLL22SE เป็นไปตามข้อบังคับที่ 2014/53/EU

ข้อความฉบับสมบูรณ์ของประกาศความสอดคล้องของสหภาพยุโรปมีอยู่ตามที่อยู่อินเทอร์เน็ตต่อไปนี้: https://global.dreametech.com

สำาหรับรายละเอียดเพิ

่

มเติมของคู่มืออิเล็กทรอนิกส์ โปรดไปที่ https://global.dreametech.com/pages/user-manuals-and-faqs

สำาหรับใช้ในที่ร่มเท่านั

้

น

อ่านคู่มือการใช้งาน

101

อุปกรณ์เสร ิมอื่นๆ

ภ�พรวมผลิตภัณฑ์

ผ้าถูพื้น×2

(ติดตั

้

งไว้ล่วงหน้า)

หุ่นยนต์

แท่น

ที่ยึดผ้าถูพื้น×2ชิ

้

น

สายไฟ

แปรงปัดฝุ่น

ถุงเก็บฝุ่น×2

(ติดตั

้

งไว้ล่วงหน้า1ชิ

้

น)

แผ่นทางลาดของแท่น คู่มือการใช้งาน

สิ

่

งที่บรรจุอยู่ในแพ็กเกจ

ตัวกรองกระดานล้าง

(ติดตั

้

งไว้ล่วงหน้า)

นายาทำาความสะอาด

ช่องเติมนายาทำา

ความสะอาดอัตโนมัติ

(ติดตั

้

งไว้ล่วงหน้า)

5ml

10ml

15ml

20ml

102

ภ�พรวมผลิตภัณฑ์

หุ่นยนต์

ปุ่มทำ�คว�มสะอ�ดเฉพ�ะจุด

·กดเพื่อเร ิ

่

มการทำาความสะอาดเฉพาะจุด

ปุ่มเปิด/ปิด / ทำ�คว�มสะอ�ด

·กดค้างไว้3วินาทีเพื่อเปิดหร ือปิด

·กดเพื่อเร ิ

่

มทำาความสะอาดหลังจากเปิดหุ่นยนต์

ปุ่มกลับไปที่แท่น

·กดเพื่อส่งหุ่นยนต์กลับไปยังแท่น

·กดค้างไว้3วินาทีเพื่อปิดฟังก์ชันล็อกป้องกันเด็ก

ไฟแสดงสถ�นะ

·สีขาวสว่างค้าง:การทำาความสะอาดหร ือการทำางานเสร ็จสิ

้

นแล้ว

·สีขาวกะพร ิบเป็นจังหวะ:สถานะชาร์จแบตเตอร ี่(ไม่มีแบตเตอร ี่ตา)

·สีส้มสว่างค้าง:กำาลังรอ

เมื่อแบตเตอร ี่เหลือน้อยหร ือหยุดชั

่

วคราวเมื่อแบตเตอร ี่เหลือน้อย

·สีส้มกะพร ิบเป็นจังหวะ:สถานะชาร์จแบตเตอร ี่(แบตเตอร ี่ตา)

·สีส้มกะพร ิบ:เกิดข้อผิดพลาด

หม�ยเหตุ:

·กดปุ่มใดก็ได้บนหุ่นยนต์เพื่อหยุดชั

่

วคราวในขณะที่หุ่นยนต์กำาาลังทำาความสะอาด

หร ือกลับไปชาร์จ

·ระบบล็อกป้องกันเด็กสามารถเปิดและปิดผ่านทางแอปDreamehomeได้

103

หุ่นยนต์และเซ็นเซอร์

ฝาครอบLDS

เซ็นเซอร์เลเซอร์วัดระยะ(LDS)

หน้าต่างกันชน

กันชน

ตัวเชื่อมต่อ

เซ็นเซอร์เลเซอร์แบบเส้นสามมิติ

ภ�พรวมผลิตภัณฑ์

ฝาปิด

หน้าสัมผัสการชาร์จ

ช่องทิ

้

งฝุ่นอัตโนมัติ

ท่อเติมนาเข้าอัตโนมัติ

ปุ่มร ีเซ็ต

·กดค้างไว้3

วินาทีเพื่อคืนค่า

เป็นการตั

้

งค่า

จากโรงงาน

ไฟแสดงสถานะWi-Fi

เซ็นเซอร์ตรวจจับขอบ

104

หุ่นยนต์และเซ็นเซอร์

เซ็นเซอร์ป้องกันการตกหล่น

ล้อหลัก

ล้อปีนเสร ิม

แปรงหลัก

ล้อแบบหมุนรอบทิศทาง

ที่ครอบแปรงหลัก

ล้อหลัก

ล้อปีนเสร ิม

รูยึดผ้าถูพื้น

ชุดประกอบส่วนเสร ิมแปรงด้านข้าง

เซ็นเซอร์ตรวจจับพรม

ชุดถูพื้น

พื้นที่ติดผ้าถูพื้น

ที่ยึดผ้าถูพื้น ผ้าถูพื้น

ชุดประกอบMopExtend

คลิปตัวป้องกันแปรง

กล่องเก็บฝุ่น

ตัวกรอง

ช่องทิ

้

งฝุ่นอัตโนมัติ

ตัวล็อกกล่องเก็บฝุ่น

คลิปตัวกรอง

ภ�พรวมผลิตภัณฑ์

105

ตัวกรอง

กระดานล้าง

ตัวกรองกระดานล้าง

แผ่นทางลาด

ฝาปิด

ถังเก็บนาที่ใช้แล้ว

ถังเก็บนาสะอาด

คลิปถังเก็บนา

ลูกลอย

ท่อนา

ฝาปิดถังเก็บฝุ่น

สารป้องกันตะกรัน

ถุงตาข่ายกรอง

แท่น ถังเก็บน�ที่ใช้แล้ว

ถังเก็บน�สะอ�ด

ภ�พรวมผลิตภัณฑ์

106

แท่น

ช่องสำารองสำาหรับเชื่อมต่อชุดเชื่อมต่อ

นาสำาหรับการเติมและระบายนา

อัตโนมัติ

ช่องเก็บสายไฟ

พอร์ตชาร์จ

หม�ยเหตุ:

ต้องซื้อชุดท่อต่อแยกต่างหากสำาหรับชุดเชื่อมต่อนาสำาหรับการเติมและระบายนาอัตโนมัติ

(มีเฉพาะในบางภูมิภาค)

ไฟแสดงสถานะ

สีขาวสว่างค้าง:

ต่อแท่นเข้ากับไฟฟ้าแล้ว

สีส้มสว่างค้าง:แท่นเกิดข้อผิดพลาด

ภ�พรวมผลิตภัณฑ์

ตัวกรอง

ช่องถุงเก็บฝุ่น

ช่องทิ

้

งฝุ่นอัตโนมัติ

พื้นที่รับส่งสัญญาณ

ช่องเติมนายา

ทำาความสะอาด

อัตโนมัติ

หน้าสัมผัสการชาร์จ

ช่องระบายนาอัตโนมัติ

107

ก�รจัดเตร ียมบ้�นของคุณ

ก่อนทำาความสะอาด โปรดย้ายสิ

่

งของที่ไม่มั

่

นคง เปราะบาง มีมูลค่า หร ือเป็นอันตรายออก และ

ทำาความสะอาดสายเคเบิล ผ้า ของเล่น วัตถุของแข็ง และของมีคมบนพื้นเพื่อหลีกเลี่ยงการพันกัน

ขีดข่วน หร ือกระแทกโดยหุ่นยนต์และทำาให้เกิดการสูญเสีย

เปิดประตูห้องที่จะทำาความสะอาดและวางเฟอร์นิเจอร์ให้เข้าที่เพื่อให้มีพื้นที่ว่างมากขึ้น เพื่อป้องกันไม่ให้หุ่นยนต์สับสนพื้นที่ที่ต้องทำาความสะอาดอย่ายืนขวางหน้าหุ่นยนต์ธรณีประตู

โถงทางเดินหร ือที่แคบๆ

ก่อนการทำาความสะอาดให้วางแผงกั

้

นที่ขอบบันไดเพื่อให้หุ่นยนต์ทำางานได้อย่าง

ปลอดภัยและราบร ื่น

หม�ยเหตุ:

เมื่อใช้งานหุ่นยนต์เป็นครั

้

งแรกให้เดินตามหุ่นยนต์ไปรอบๆขณะทำาความสะอาดเพื่อให้สามารถเก็บสิ

่

งกีดขวางที่อาจเกิดขึ้นได้ทันเวลา

ห้ามดูดวัตถุที่เป็นของแข็งเช่นก้อนหินลูกเหล็กและชิ

้

นส่วนของเล่นหร ือของมีคมเช่นขยะก่อสร้างเศษแก้วและตะปูมิฉะนั

้

นอาจทำาให้พื้นเป็นรอยได้

108

1. ว�งแท่นและเชื่อมต่อกับเต้�รับไฟฟ้�

วางแท่นในตำาแหน่งที่เปิดกว้างที่สุดเท่าที่จะเป็นไปได้ซึ่งมีสัญญาณ

Wi-Fiที่ดีเว้นพื้นที่ว่างไว้เพียงพอตามที่แสดงในภาพและนำาวัตถุใดๆ

ออกจากบร ิเวณที่แรเงาเสียบสายไฟเข้ากับแท่นแล้วเสียบเข้ากับเต้ารับ

ก่อนใช้ง�น

หม�ยเหตุ:

ตรวจสอบให้แน่ใจว่าไม่มีวัตถุใดขวางกั

้

นพื้นที่รับส่งสัญญาณ

เพื่อป้องกันไม่ให้มีคราบนาบนพื้นไม้หร ือไม่ให้พรมเปียกแนะนำาให้วางแท่นบนพื้น

กระเบื้องหร ือพื้นหินอ่อน

เสียบสายไฟด้านบนให้แน่น

จนกระทั

่

งไฟแสดงสถานะ

สว่างขึ้น

＞1 m

＞5 cm

Washboard Filter

2. ติดตั

้

งแผ่นท�งล�ด

หม�ยเหตุ: ตรวจสอบให้แน่ใจว่าได้ติดตั

้

งตัวกรองกระดานล้างเข้าที่แล้ว

ตัวกรองกระดานล้าง

109

3. ถอดแผ่นป้องกันหุ่นยนต์และติดตั

้

งชุดถูพื้น 4.เชื่อมต่อหุ่นยนต์เข้�กับแท่น

กดปุ่มเปิด/ปิดบนหุ่นยนต์ค้างไว้3วินาทีเพื่อเปิดหุ่นยนต์วางหุ่นยนต์ลงบนแท่นโดย

ให้ชุดถูพื้นหันไปทางกระดานล้างจากนั

้

นคุณจะได้ยินเสียงการแจ้งเตือนเมื่อ

หุ่นยนต์เชื่อมต่อกับแท่นได้สำาเร ็จหลังจากชาร์จหุ่นยนต์เต็มแล้วไฟแสดงสถานะ

บนหุ่นยนต์และแท่นจะติดสว่างเป็นเวลา10นาทีจากนั

้

นจะหร ี่ลง

ก่อนใช้ง�น

หม�ยเหตุ:ขอแนะนำาให้ชาร์จหุ่นยนต์ให้เต็มก่อนที่จะเร ิ

่

มใช้งานเป็นครั

้

งแรกเมื่อแบตเตอร ี่

หมดและไม่สามารถใช้งานหุ่นยนต์ได้โปรดเชื่อมต่อหุ่นยนต์กับแท่นด้วยตนเองเพื่อชาร์จ

แบตเตอร ี่

②

①

110

6. เติมน�ลงในถังเก็บน�สะอ�ด

นำาถังเก็บนาสะอาดออกจากแท่นและเติมนาสะอาดลงในถังจากนั

้

นติดตั

้

งกลับ

เข้าไปในแท่น

หม�ยเหตุ: ห้ามเติมนาร้อนลงในถังเก็บนาเพราะอาจทำาให้ถังเก็บนาเสียรูปทรงได้

ก่อนใช้ง�น

5. เติมน�ย�ทำ�คว�มสะอ�ด

(1)ถอดฝาปิดถังเก็บฝุ่นออกและดึงช่องเติมนายาทำาความสะอาดอัตโนมัติออก

(2)เปิดฝาด้านบนของช่องแล้วเติมนายาทำาความสะอาด

(3)ปิดฝาช่องใส่กลับเข้าไปในแท่นจากนั

้

นติดตั

้

งฝาปิดถังเก็บฝุ่นกลับเข้าไปใหม่

นายาทำาความสะอาดจะถูกเติมโดยอัตโนมัติในขณะทำางาน

หม�ยเหตุ:

ช่องเติมนายาทำาความสะอาดอัตโนมัติสามารถเติมนายาทำาความสะอาดเพื่อใช้งานได้

อย่าเติมของเหลวอื่นใดนอกเหนือจากนายาทำาความสะอาดที่ได้รับการรับรองอย่าง

เป็นทางการเพื่อช่วยป้องกันไม่ให้ทำางานผิดพลาด

ติดตั

้

งช่องเติมนายาทำาความสะอาดอัตโนมัติจนกระทั

่

งคลิกเข้าที่

①

②

①

②

111

2. เพิ

่

มอุปกรณ์

ก�รเชื่อมต่อกับแอป Dreamehome

1. ด�วน์โหลดแอป Dreamehome

ไฟแสดงสถานะWi-Fi

กะพร ิบช้าๆ:

กำาลังรอการเชื่อมต่อ

กะพร ิบอย่างรวดเร ็ว:

กำาลังเชื่อมต่อ

เปิด:เชื่อมต่อแล้ว

หม�ยเหตุ:

รองรับWi-Fi2.4GHzเท่านั

้

น

เนื่องจากการอัปเกรดในซอฟต์แวร์แอปการดำาเนินการจร ิงอาจแตกต่าง

จากคำาแนะนำาในคู่มือนี้โปรดทำาตามคำาแนะนำาของแอปเวอร์ชันปัจจุบัน

สแกนคิวอาร์โค้ดบนหุ่นยนต์หร ือค้นหา"Dreamehome"ในAppStore

เพื่อดาวน์โหลดและติดตั

้

งแอป

เปิดแอปDreamehomeแตะ"สแกนคิวอาร์โค้ดเพื่อเชื่อมต่อ"และสแกน

คิวอาร์โค้ดเดียวกันบนหุ่นยนต์อีกครั

้

งเพื่อเพิ

่

มอุปกรณ์โปรดปฏิบัติตาม

คำาแนะนำาเพื่อสิ

้

นสุดการเชื่อมต่อWi-Fi

คิวอาร์โค้ด

หม�ยเหตุ:

หากต้องการร ีเซ็ตWi-Fiให้ทำาซาขั

้

นตอนที่2จากนั

้

นทำาตามคำาแนะนำาเพื่อ

สิ

้

นสุดการเชื่อมต่อWi-Fi

หากต้องการตัดการเชื่อมต่ออุปกรณ์จากเคร ือข่ายWi-Fiให้กดปุ่มร ีเซ็ตบนหุ่นยนต์ค้างไว้3

วินาที

112

วิธีก�รใช้ง�น

หากแบตเตอร ี่เหลือน้อยเกินไปหุ่นยนต์จะกลับไปที่แท่นโดยอัตโนมัติเพื่อทำาการชาร์จ

หลังจากชาร์จถึงระดับแบตเตอร ี่ที่เหมาะสมแล้วหุ่นยนต์จะกลับมาทำาความสะอาดต่อ

หม�ยเหตุ:หากต้องการใช้ฟังก์ชันนี้โปรดเปิดในแอป

เปิด/ปิด

ก�รสร้�งแผนที่แบบรวดเร ็ว

โหมดห้�มรบกวน (Do Not Disturb : DND)

ก�รทำ�คว�มสะอ�ดเฉพ�ะจุด

ก�รร ีสต�ร์ทหุ่นยนต์

ทำ�คว�มสะอ�ดต่ออัตโนมัติ

หยุดชั

่

วคร�ว/พักเคร ื่อง

กดปุ่มเปิด/ปิดค้างไว้3วินาทีเพื่อเปิดหุ่นยนต์ไฟแสดงสถานะพลังงานจะยังคงสว่

างอยู่หร ือวางหุ่นยนต์บนแท่นโดยวางหน้าสัมผัสการชาร์จของหุ่นยนต์ให้ตรงกับแท่น

จากนั

้

นหุ่นยนต์จะเปิดโดยอัตโนมัติและเร ิ

่

มการชาร์จหากต้องการปิดหุ่นยนต์

ให้นำาหุ่นยนต์ออกจากสถานีแท่นแล้วกดปุ่มเปิด/ปิดค้างไว้3วินาที

เมื่อหุ่นยนต์ถูกตั

้

งค่าเป็นโหมดห้ามรบกวน(DoNotDisturb:DND)หุ่นยนต์จะถูก

ป้องกันไม่ให้กลับมาทำาความสะอาดต่อโหมดDNDจะถูกปิดใช้งานตามค่าเร ิ

่

มต้น

จากโรงงานคุณสามารถใช้แอปเพื่อเปิดใช้งานโหมดDNDหร ือแก้ไขช่วงเวลาของ

โหมดDNDได้ตามค่าเร ิ

่

มต้นช่วงเวลาDNDคือ22:00–8:00น.

หม�ยเหตุ:

แผนทำาความสะอาดตามกำาหนดเวลาจะดำาเนินไปตามปกติในช่วงระยะเวลาDND

หุ่นยนต์จะดำาเนินการทำาความสะอาดต่อจากที่ค้างไว้หลังจากช่วงเวลาDNDสิ

้

นสุดลง

เมื่อหุ่นยนต์กำาลังรอให้กดปุ่ม สั

้

นๆเพื่อเปิดใช้งานโหมดทำาความสะอาดเฉพาะจุด

ในโหมดนี้หุ่นยนต์จะทำาความสะอาดพื้นที่รูปทรงสี่เหลี่ยมจัตุรัสขนาด1.5x1.5เมตร

บร ิเวณโดยรอบของหุ่นยนต์และกลับสู่จุดเร ิ

่

มต้นเมื่อการทำาความสะอาดเฉพาะจุดเส

ร ็จ ส ิ

้

นแล้ว

หากหุ่นยนต์หยุดตอบสนองหร ือไม่สามารถปิดได้ให้กดปุ่มเปิด/ปิดค้างไว้

10วินาทีเพื่อบังคับให้หุ่นยนต์ปิดการทำางานจากนั

้

นกดปุ่มเปิด/ปิดค้างไว้3

วินาทีเพื่อเปิดหุ่นยนต์

หลังจากกำาหนดค่าเคร ือข่ายในครั

้

งแรกให้ทำาตามคำาแนะนำาในแอปเพื่อสร้าง

แผนที่อย่างรวดเร ็วหุ่นยนต์จะเร ิ

่

มทำาแผนที่โดยไม่ทำาความสะอาดเมื่อหุ่นยนต์

กลับไปที่แท่นกระบวนการสร้างแผนที่จะเสร ็จสมบูรณ์และแผนที่จะถูก

บันทึกโดยอัตโนมัติ

เมื่อหุ่นยนต์กำาลังทำางานให้กดปุ่มใดก็ได้เพื่อหยุดชั

่

วคราวหากหุ่นยนต์

หยุดชั

่

วคราวนานกว่า10นาทีหุ่นยนต์จะเข้าสู่โหมดพักเคร ื่องโดยอัตโนมัติ

ไฟแสดงสถานะทั

้

งหมดบนหุ่นยนต์จะปิดลงกดปุ่มใดก็ได้บนหุ่นยนต์หร ือ

ใช้แอปเพื่อเปิดใช้งานหุ่นยนต์

หม�ยเหตุ:หากหุ่นยนต์หยุดทำางานชั

่

วคราวและวางลงบนแท่นกระบวนการทำา

ความสะอาดในปัจจุบันจะสิ

้

นสุดลง

113

หม�ยเหตุ:

เพื่อให้แน่ใจว่าหุ่นยนต์สามารถกลับไปยังแท่นได้อย่างง่ายดายหลังจากทำาความสะอาด

ขอแนะนำาให้เร ิ

่

มต้นหุ่นยนต์จากแท่น

ผ้าถูพื้นจะถูกทำาความสะอาดก่อนที่หุ่นยนต์จะเริ

่

มถูโปรดรอสักครู่

ห้ามเคลื่อนย้ายแท่นถังเก็บนาสะอาดถังเก็บนาทิ

้

งหร ือตัวกรองกระดานล้างในระหว่าง

การทำางาน

งานทำาความสะอาดผ้าถูพื้นสามารถเปิดใช้งานการทำาความสะอาดด้วยนาร้อนจาก

ในแอปได้ซึ่งใช้ได้กับทุกโหมดเพื่อป้องกันน�ร้อนลวก ห้�มสัมผัสช่องระบ�ย

น�เมื่อเปิดฟังก์ชันนี้

วิธีก�รใช้ง�น

หม�ยเหตุ:เมื่อใช้ชุดถูพื้นเป็นครั

้

งแรกหุ่นยนต์จะทำางาน"ดูดฝุ่นและถูพื้น"ตามค่าเร ิ

่

มต้น

1.เร ิ

่

มต้นการทำาความสะอาด

กดปุ่มเปิด/ปิดบนหุ่นยนต์หร ือใช้แอปเพื่อให้หุ่นยนต์เร ิ

่

มทำางานตั

้

งแต่สถานีแท่น

จากนั

้

นหุ่นยนต์จะวางแผนเส้นทางการทำาความสะอาดที่เหมาะสมที่สุดและดำาเนินการ

ทำาความสะอาดตามแผนที่ที่สร้างขึ้น

2.ล้างผ้าถูพื้นอัตโนมัติ

เมื่อทำาความสะอาดหุ่นยนต์จะกลับไปที่แท่นโดยอัตโนมัติเพื่อล้างผ้าถูพื้นตามความ

ถี่ในการทำาความสะอาดผ้าถูพื้นที่ระบุไว้ในแอปแท่นจะเติมถังนาของหุ่นยนต์โดย

อัตโนมัติและหุ่นยนต์จะดำาเนินการทำาความสะอาดต่อ

ดูดฝุ่นและถูพื้น

114

วิธีก�รใช้ง�น

4.การทำาความสะอาดถังเก็บนาทิ

้

ง

หลังจากหุ่นยนต์ทำางานเสร ็จแล้วโปรดทำาความสะอาดถังเก็บนาทิ

้

งเพื่อป้องกัน

กลิ

่

นไม่พึงประสงค์

หม�ยเหตุ:

หากปิดฟังก์ชันทำาความสะอาดอัตโนมัติในแอปแท่นจะไม่ล้างกล่องเก็บฝุ่นโดยอัตโนมัติ

แท่นจะล้างกล่องเก็บฝุ่นตามการตั

้

งค่าที่กำาหนดไว้ในแอป

เปิดใช้งานฟังก์ชันดูดฝุ่นเท่านั

้

นในแอปและหุ่นยนต์จะถอดชุดถูพื้นบนแท่นโดย

อัตโนมัติและเร ิ

่

มดูดฝุ่น

เปิดใช้งานฟังก์ชันถูพื้นหลังจากดูดฝุ่นในแอปและหุ่นยนต์จะถอดชุดถูพื้นออกจาก

แท่นโดยอัตโนมัติเพื่อดูดฝุ่นบนพื้นหลังจากการดูดฝุ่นเสร ็จสิ

้

นหุ่นยนต์จะกลับ

ไปที่แท่นเพื่อติดตั

้

งชุดถูพื้นและแท่นจะเทกล่องเก็บฝุ่นโดยอัตโนมัติจากนั

้

น

หุ่นยนต์จะเร ิ

่

มถูพื้นหลังจากยกแปรงด้านข้างขึ้น

เปิดใช้งานฟังก์ชันถูพื้นในแอปแล้วหุ่นยนต์จะตรวจสอบโดยอัตโนมัติว่ามีการ

ติดตั

้

งชุดถูพื้นบนแท่นหร ือไม่หากไม่หุ่นยนต์จะติดตั

้

งชุดถูพื้นและเร ิ

่

มถูพื้นหลังจาก

ยกแปรงหลักและแปรงด้านข้างขึ้นหากไม่หุ่นยนต์จะติดตั

้

งชุดถูพื้นและ

เร ิ

่

มถูพื้นหลังจากยกแปรงด้านข้างขึ้น

ดูดฝุ่นเท่�นั

้

น

ถูพื้นหลังจ�กดูดฝุ่น

ถูพื้นเท่�นั

้

น

3.ล้างกล่องเก็บฝุ่นโดยอัตโนมัติและล้างผ้าถูพื้นให้แห้ง

หลังจากหุ่นยนต์ทำาความสะอาดเสร ็จและกลับไปที่แท่นเพื่อชาร์จ

แท่นจะทิ

้

งฝุ่นจากกล่องเก็บฝุ่นโดยอัตโนมัติจากนั

้

นจึงซักและทำาให้ผ้าถูพื้นแห้ง

115

ก�รบำ�รุงรักษ�ต�มรอบปกติ

ชิ

้

นส่วน

ชิ

้

นส่วน คว�มถี่ในก�รบำ�รุงรักษ� ระยะเวล�ก�รเปลี่ยน

ถังเก็บนาทิ

้

ง หลังการใช้งานแต่ละครั

้

ง

ถังเก็บนาสะอาด

ทุก 2 สัปดาห์

แปรงหลัก ทุก 6 ถึง 12 เดือน

ตัวกรองของกล่องเก็บฝุ่น

ทุก 3 ถึง 6 เดือน

แปรงด้านข้าง

ที่ยึดผ้าถูพื้น /

ตัวกรองกระดานล้าง ทุก 1 ถึง 2 เดือน

พื้นที่รับส่งสัญญาณของแท่น

เดือนละครั

้

ง

หน้าสัมผัสการชาร์จ

ช่องทิ

้

งฝุ่นอัตโนมัติ

ล้อแบบหมุนรอบทิศทาง

เซ็นเซอร์ตรวจจับขอบ

เซ็นเซอร์เลเซอร์วัดระยะ (LDS)

เซ็นเซอร์เลเซอร์แบบเส้นสามมิติ

เซ็นเซอร์ตรวจจับพรม

เซ็นเซอร์ป้องกันการตกหล่น

ชิ

้

นส่วน ความถี่ในการบำารุงรักษา ระยะเวลาการเปลี่ยน

หน้าต่างกันชน

เดือนละครั

้

ง

กันชน

ท่อเติมนาเข้าอัตโนมัติของหุ่นยนต์

ด้านล่างของหุ่นยนต์

กล่องเก็บฝุ่น

ทำาความสะอาดเท่าที่จำาเป็นล้อหลัก

ล้อปีนเสร ิม

ถุงเก็บฝุ่น

ทุก2ถึง4เดือน

ผ้าถูพื้น ทุก1ถึง3เดือน

สารป้องกันตะกรัน ทุก18ถึง36เดือน

หม�ยเหตุ:ความถี่ของการบำารุงรักษาและเปลี่ยนใหม่ขึ้นอยู่กับการใช้งานจร ิง

หากมีข้อยกเว้นเกิดขึ้นเนื่องจากสถานการณ์พิเศษขอแนะนำาให้บำารุงรักษาหร ือเปลี่ยนใหม่ทันที

เพื่อให้หุ่นยนต์อยู่ในสภาพดีขอแนะนำาให้อ้างอิงถึงการใช้อุปกรณ์เสร ิมในแอปหร ือตารางต่อไปนี้สำาหรับการบำารุงรักษาตามปกติ

116

ก�รบำ�รุงรักษ�ต�มรอบปกติ

ตัวกรองกระด�นล้�ง

1.นำาหุ่นยนต์ออกและถอดตัวกรองกระดานล้างออกหลังจากการทำาความ

สะอาดผ้าถูพื้นเสร ็จสิ

้

น

2.ล้างตัวกรองกระดานล้างด้วยนาสะอาดเช็ดให้สะอาดแล้วจึงติดตั

้

งกลับ

เข้าไปในกระดานล้าง

3.ใช้แอปหร ือกดปุ่ม เพื่อส่งหุ่นยนต์กลับไปที่แท่นหร ือวางหุ่นยนต์กลับเข้า

ที่ด้วยตนเอง

117

ก�รบำ�รุงรักษ�ต�มรอบปกติ

ถุงเก็บฝุ่น

1.ถอดฝาปิดถังเก็บฝุ่นออกและทิ

้

งถุงเก็บฝุ่น 3.ติดตั

้

งถุงเก็บฝุ่นอันใหม่

4.ติดตั

้

งฝาปิดถังเก็บฝุ่นกลับเข้าที่2.นำาฝุ่นและเศษผงออกจากตัวกรองด้วยผ้าขนหนูแห้ง

หม�ยเหตุ:การดึงด้ามจับขึ้นด้านบนจะเป็นการปิดปากถุงเพื่อ

ป้องกันไม่ให้ฝุ่นและเศษขยะหลุดออกมาโดยไม่ตั

้

งใจ

118

3.เสียบที่ใส่แปรงหลักเข้าไปในช่องโดยให้เอียงลงโดยให้ลูกศรหันขึ้นด้านบน

4.จัดตำาแหน่งปลายด้านหน้าของที่ครอบแปรงหลักให้ตรงกับช่องจากนั

้

นใส่ลง

ในลักษณะเอียงแล้วกดให้เข้าที่

ก�รบำ�รุงรักษ�ต�มรอบปกติ

Click

แปรงหลัก

2.ดึงแปรงออกตามที่แสดงในรูป

ใช้แปรงปัดฝุ่นที่ให้มาเพื่อกำาจัดขนที่พันกันในแปรงหลังจากทำาความสะอาดแล้ว

ให้ดันแปรงเข้าไปในช่องใส่แปรงหลักให้แน่นจนกระทั

่

งเข้าที่

คลิก

1.กดคลิปตัวป้องกันแปรงเข้าด้านในเพื่อถอดที่ครอบแปรงหลักออกและ

จากนั

้

นยกแปรงออกจากหุ่นยนต์

หม�ยเหตุ:ควรระมัดระวังในการดึงแปรงหลักออกเพื่อป้องกันการบาดเจ็บ

119

แปรงด้�นข้�ง

ถอดแปรงด้านข้างออกด้วยไขควงทำาความสะอาดเส้นผมที่อยู่บนแปรงจากนั

้

น

ขันสกรูกลับเข้าไป

ล้อแบบหมุนรอบทิศท�ง

หม�ยเหตุ:

ใช้เคร ื่องมือเช่นไขควงขนาดเล็กเพื่อแยกเพลาและยางของล้อแบบหมุนรอบทิศทาง

โปรดระมัดระวังอย่าออกแรงมากเกินไป

ล้างล้อแบบหมุนรอบทิศทางด้วยนาสะอาดแล้วใส่กลับเข้าไปใหม่หลังจากที่ทำาให้แห้งสนิทแล้ว

ที่ยึดผ้�ถูพื้น

ถอดและทำาความสะอาดที่ยึดผ้าถูพื้น

ก�รบำ�รุงรักษ�ต�มรอบปกติ

120

1. หมุนล้อปีนเสร ิมจนกว่�ลูกศร "OUT" จะหันขึ้นด้�นบน จ�กนั

้

นดึงล้อออก 3.หลังจากทำาความสะอาดแล้ว

ให้หมุนล้อหลักเพื่อจัดตำาแหน่งลูกศรทั

้

งสอง(ดูรูปที่

①

)จากนั

้

นโดยให้ลูกศร"IN"

หันลงให้ใส่ล้อปีนเสร ิมด้านซ้ายและขวาตามลำาดับจนกระทั

่

งเข้าที่(ดูรูปที่

②

)

2. ใช้เคร ื่องมือที่เหม�ะสมในก�รทำ�คว�มสะอ�ดเส้นผมที่พันกันในล้อหลักและ

ล้อปีนเสร ิม

ล้อปีนเสร ิมและล้อหลัก

OUT

R L

OUT

Click

ก�รบำ�รุงรักษ�ต�มรอบปกติ

121

3.ค่อยๆเขย่าตัวกรองเพื่อขจัดสิ

่

งสกปรก

4.ล้างกล่องเก็บฝุ่นและตัวกรองด้วยนาสะอาดแล้วเช็ดให้แห้งก่อนติดตั

้

งใหม่

หมายเหตุ:อย่าพยายามทำาความสะอาดตัวกรองด้วยแปรงนิ

้

วมือหร ือของมีคม

เพื่อป้องกันการเกิดความเสียหาย

24h

หมายเหตุ:

ล้างกล่องเก็บฝุ่นและตัวกรองด้วยนาสะอาดเท่านั

้

นห้ามใช้ผงซักฟอกทุกประเภท

ใช้กล่องเก็บฝุ่นและตัวกรองก็ต่อเมื่ออุปกรณ์เหล่านี้แห้งสนิทแล้วเท่านั

้

น

ตัวกรองและกล่องเก็บฝุ่น

1.เปิดฝาปิ ดหุ่นยนต์และกดคลิปกล่องเก็บฝุ่ นเพื

่

อถอดกล่องเก็บฝุ่นออกมา

2.ถอดตัวกรองกล่องเก็บฝุ่นออกแล้วจึงเทฝุ่นออกจากกล่องเก็บฝุ่น

ก�รบำ�รุงรักษ�ต�มรอบปกติ

122

หน้�สัมผัสก�รช�ร์จและพื้นที่รับส่งสัญญ�ณ

ทำาความสะอาดหน้าสัมผัสการชาร์จและพื้นที่รับส่งสัญญาณด้วยผ้าขนหนูแห้ง

หมายเหตุ:ผ้าเปียกสามารถสร้างความเสียหายให้แก่ส่วนประกอบที่ละเอียดอ่อนภายในหุ่นยนต์

และแท่นได้โปรดใช้ผ้าขนหนูแห้งในการทำาความสะอาด

เซ็นเซอร์ตรวจจับพรม

เซ็นเซอร์ป้องกันการตกหล่น

เซ็นเซอร์ตรวจจับขอบ

หน้าต่างกันชน

กันชน

เซ็นเซอร์เลเซอร์วัดระยะ(LDS)

เซ็นเซอร์หุ่นยนต์

เช็ดเซ็นเซอร์ของหุ่นยนต์โดยใชผ้าขนหนูแห้งดังภาพตัวอย่าง:

ก�รบำ�รุงรักษ�ต�มรอบปกติ

ทำาความสะอาดช่องเทฝุ่นอัตโนมัติของหุ่นยนต์และแท่นด้วยผ้าขนหนูแห้ง

ช่องทิ

้

งฝุ่นอัตโนมัติ

123

ผ้�ถูพื้น

ถอดผ้าถูพื้นออกจากที่ยึดผ้าถูพื้นเพื่อเปลี่ยนใหม่

หุ่นยนต์มีชุดแบตเตอร ี่ลิเทียมไอออนประสิทธิภาพสูงบรรจุอยู่ภายในตรวจสอบ

ให้แน่ใจว่าแบตเตอร ี่ยังคงชาร์จไว้อย่างดีสำาหรับการใช้งานทุกวันเพื่อรักษา

ประสิทธิภาพแบตเตอร ี่ที่ดีที่สุดหากไม่ได้ใช้งานหุ่นยนต์เป็นระยะเวลานานให้ปิดและ

นำาไปเก็บเพื่อป้องกันความเสียหายจากการคายประจุมากเกินไปโปรดชาร์จ

หุ่นยนต์อย่างน้อยทุกๆสามเดือน

แบตเตอร ี่

ก�รบำ�รุงรักษ�ต�มรอบปกติ

ถังเก็บน�ที่ใช้แล้ว

1.ถอดถังเก็บนาทิ

้

งเปิดฝาปิดแล้วเทนาทิ

้

งออก

2.ล้างถังเก็บนาทิ

้

งด้วยนาสะอาดและใช้แปรงปัดฝุ่นที่ให้มาทำาความ

สะอาดผนังด้านในของถังเก็บนาทิ

้

ง

หมายเหตุ:ลูกลอยในถังเก็บนาทิ

้

งเป็นส่วนที่สามารถถอดออกได้อย่าใช้แรง

มากเกินไปเมื่อทำาความสะอาดเพื่อหลีกเลี่ยงการเกิดความเสียหาย

124

นำาไปเก็บเพื่อป้องกันความเสียหายจากการคายประจุมากเกินไปโปรดชาร์จ

หุ่นยนต์อย่างน้อยทุกๆสามเดือน

ก�รแก้ไขปัญห�

ปัญหา วิธีการแก้ไข

ไม่สามารถเปิดใช้งาน

หุ่นยนต์ได้

แบตเตอร ี่ตาชาร์จหุ่นยนต์บนแท่นจากนั

้

นลองอีกครั

้

ง

อุณหภูมิของแบตเตอร ี่ตาหร ือสูงเกินไปขอแนะนำาให้ใช้งานหุ่นยนต์ที่อุณหภูมิระหว่าง0

℃

(32

℉

)ถึง40

℃

(104

℉

)

ไม่สามารถชาร์จหุ่นยนต์ได้

แท่นไม่ได้เชื่อมต่อกับแหล่งจ่ายไฟโปรดตรวจสอบให้แน่ใจว่าได้เสียบปลายสายไฟทั

้

งสองด้านอย่างถูกต้องแล้ว

จุดเชื่อมต่อระหว่างจุดเชื่อมต่อการชาร์จบนแท่นและหุ่นยนต์ไม่ดีโปรดทำาความสะอาดหน้าจุดเชื่อมต่อการชาร์จ

ตรวจสอบว่ามีสิ

่

งแปลกปลอมอยู่ที่ขั

้

วต่อของหุ่นยนต์หร ือไม่และนำาวัตถุแปลกปลอมออกถ้ามี

หุ่นยนต์เชื่อมต่อกับWi-Fi

ล้มเหลว

รหัสผ่านเคร ือข่ายWi-Fiไม่ถูกต้องตรวจสอบให้แน่ใจว่ารหัสผ่านที่ใช้เชื่อมต่อกับเคร ือข่ายWi-Fiของคุณถูกต้อง

หุ่นยนต์ไม่รองรับการเชื่อมต่อWi-Fi5GHzตรวจสอบให้แน่ใจว่าหุ่นยนต์เชื่อมต่อกับการเชื่อมต่อWi-Fi2.4GHz

สัญญาณWi-Fiไม่เสถียรตรวจสอบให้แน่ใจว่าหุ่นยนต์อยู่ในพื้นที่ที่มีสัญญาณWi-Fiเสถียรและราบร ื่น

หุ่นยนต์อาจไม่พร้อมสำาหรับการการตั

้

งค่าโปรดออกและเข้าแอปใหม่จากนั

้

นลองอีกครั

้

งตามคำาแนะนำา

หุ่นยนต์ไม่สามารถค้นหาและ

กลับไปที่แท่นได้

แท่นถูกตัดการเชื่อมต่อจากไฟฟ้าหร ือถูกเคลื่อนย้ายเมื่อหุ่นยนต์ไม่ได้อยู่บนแท่นแล้วโปรดเชื่อมต่อแท่นกับแหล่งจ่ายไฟหร ือวาง

หุ่นยนต์บนแท่นเพื่อทำาการชาร์จ

มีสิ

่

งกีดขวางรอบๆแท่นมากเกินไปโปรดวางแท่นในพื้นที่โล่ง

การเคลื่อนย้ายหุ่นยนต์อาจทำาให้หุ่นยนต์เปลี่ยนตำาแหน่งตัวเองและจะสร้างแผนที่ใหม่หากการวางตำาแหน่งใหม่ล้มเหลว

หากหุ่นยนต์อยู่ห่างจากแท่นมากเกินไปหุ่นยนต์อาจไม่สามารถกลับมาได้เองโดยอัตโนมัติซึ่งในกรณีนี้

คุณต้องวางหุ่นยนต์ลงบนแท่นด้วยตนเอง

เช็ดพื้นที่รับส่งสัญญาณบนแท่นเพื่อขจัดฝุ่นหร ือสิ

่

งสกปรก

125

ก�รแก้ไขปัญห�

ปัญหา วิธีการแก้ไข

หุ่นยนต์ติดอยู่หน้าแท่นและ

ไม่สามารถกลับเข้าแท่นได้

ตรวจสอบว่ามีพื้นที่เพียงพอทั

้

งด้านข้างและด้านหน้าของแท่นเพื่อป้องกันไม่ให้หุ่นยนต์ถูกขวาง

เส้นทางสำาหรับการกลับสู่การชาร์จถูกปิดกั

้

นเช่นประตูถูกปิดอยู่

หุ่นยนต์อาจลื่นไถลได้หากพื้นด้านหน้าแท่นเปียกมากเกินไปหากเป็นเช่นนั

้

นให้เช็ดคราบนาออกก่อนแล้วลองอีกครั

้

ง

ขอแนะนำาให้ย้ายแท่นไปที่อื่นแล้วลองอีกครั

้

ง

ตรวจสอบให้แน่ใจว่าแผ่นทางลาดได้รับการติดตั

้

งอย่างถูกวิธี

หุ่นยนต์ไม่ยอมปิดเคร ื่อง

ไม่สามารถปิดหุ่นยนต์ในขณะที่กำาลังชาร์จขอแนะนำาให้ย้ายหุ่นยนต์ออกจากสถานีแท่นจากนั

้

นกดปุ่มเปิด/ปิดค้างไว้เป็นเวลา3

วินาทีเพื่อปิดหุ่นยนต์

หากไม่สามารถปิดหุ่นยนต์ตามขั

้

นตอนที่1ได้ให้กดปุ่มเปิด/ปิดค้างไว้10วินาทีเพื่อบังคับปิดหุ่นยนต์หากยังคงพบปัญหา

โปรดติดต่อฝ่ายบร ิการหลังการขาย

ชาร์จช้า

เมื่อแบตเตอร ี่เหลือน้อยจะใช้เวลาประมาณ3.5ชั

่

วโมงในการชาร์จหุ่นยนต์จนเต็ม

หากคุณใช้งานหุ่นยนต์ที่อุณหภูมินอกเหนือจากช่วงที่กำาหนดความเร ็วในการชาร์จจะช้าลงโดยอัตโนมัติเพื่อยืดอายุการ

ใช้งานแบตเตอร ี่

หน้าสัมผัสการชาร์จของทั

้

งหุ่นยนต์และแท่นอาจสกปรกโปรดเช็ดด้วยผ้าแห้ง

เกิดเสียงดังในขณะที่หุ่นยนต์

กำาลังทำางาน

ตรวจสอบว่าตัวกรองกล่องเก็บฝุ่นอุดตันหร ือไม่หากใช่โปรดทำาความสะอาดหร ือเปลี่ยนใหม่

วัตถุที่เป็นของแข็งอาจติดอยู่ในแปรงหลักหร ือกล่องเก็บฝุ่นตรวจสอบและนำาวัตถุแข็งออก

แปรงหลักหร ือแปรงด้านข้างอาจพันกันได้ตรวจสอบและนำาวัตถุแปลกปลอมออก

เปลี่ยนโหมดการดูดเป็นมาตรฐานหร ือเงียบ

หุ่นยนต์ไม่เคลื่อนที่ตาม

เส้นทางที่กำาหนดไว้

ควรเก็บวัตถุต่างๆเช่นสายไฟและรองเท้าแตะก่อนใช้งานหุ่นยนต์

การทำางานบนพื้นผิวที่เปียกลื่นอาจทำาให้ล้อหลักลื่นไถลได้ขอแนะนำาให้เช็ดบร ิเวณที่เปียกชื้นให้แห้งก่อนใช้งานหุ่นยนต์

เช็ดหน้าต่างกันชนบนหุ่นยนต์ด้วยผ้าขนหนูเพื่อรักษาความสะอาดและป้องกันการอุดตัน

126

ปัญหา วิธีการแก้ไข

หุ่นยนต์ไม่ทำาความสะอาด

ห้องที่กำาหนดไว้

ตรวจสอบให้แน่ใจว่าประตูห้องที่จะทำาความสะอาดเปิดอยู่

บร ิเวณหน้าห้องที่จะทำาความสะอาดอาจเปียกและลื่นทำาให้หุ่นยนต์ลื่นไถลและทำางานผิดปกติได้โปรดเช็ดพื้นให้แห้งก่อนใช้งานหุ่นยนต์

หุ่นยนต์ไม่ทำาความสะอาด

ต่อหลังชาร์จแบตเตอร ี่

ตรวจสอบให้แน่ใจว่าไม่ได้ตั

้

งค่าหุ่นยนต์เป็นโหมดห้ามรบกวน(DoNotDisturb:DND)ซึ่งจะทำาให้ไม่สามารถทำาความสะอาดต่อได้

หุ่นยนต์จะไม่กลับมาทำาความสะอาดหลังจากที่คุณวางหุ่นยนต์ด้วยตนเองบนแท่นหร ือส่งหุ่นยนต์ไปชาร์จผ่านแอปหร ือปุ่ม

แท่นไม่สามารถล้างกล่อง

เก็บฝุ่นได้โดยอัตโนมัติ

ตรวจสอบว่าถุงเก็บฝุ่นในถังเก็บฝุ่นเต็มหร ือไม่

หากถุงเก็บฝุ่นไม่เต็มให้ตรวจสอบว่ามีสิ

่

งกีดขวางที่ช่องเทฝุ่นอัตโนมัติของหุ่นยนต์แท่นหร ือกล่องเก็บฝุ่นหร ือไม่หากมีให้เก็บ

สิ

่

งกีดขวางออก

ระดับนาในกระดานล้าง

ผิดปกติ

ตรวจสอบว่าซีลบนถังเก็บนาทิ

้

งหลวมหร ือติดตั

้

งไม่ถูกต้องหร ือไม่หากเป็นเช่นนั

้

นให้ร ีเซ็ตด้วยตนเองหากยังคงพบปัญหา

โปรดติดต่อทีมบร ิการหลังการขาย

กดถังเก็บนาทิ

้

งเบาๆเพื่อให้แน่ใจว่าติดตั

้

งถูกต้อง

นำาตัวกรองกระดานล้างออกและตรวจสอบว่าท่อระบายนาเสียอุดตันหร ือไม่และทำาความสะอาด

ตรวจสอบนายาทำาความสะอาดห้ามเติมของเหลวอื่นใดนอกเหนือจากนายาทำาความสะอาดที่ได้รับการรับรองอย่างเป็นทางการ

ที่ยึดผ้าถูพื้นยกขึ้นอย่าง

ผิดปกติ

โปรดถอดที่ยึดผ้าถูพื้นออกเพื่อตรวจสอบว่ามีสิ

่

งแปลกปลอมติดอยู่หร ือไม่และลองร ีสตาร์ทหุ่นยนต์หากยังคงพบปัญหา

โปรดติดต่อทีมบร ิการหลังการขาย

มีนาอยู่ใต้ถังเก็บนาสะอาด

หร ือบร ิเวณซีล

เมื่อนำาถังเก็บนาสะอาดออกมาแล้วอาจมีนาในท่อบางส่วนเหลืออยู่ใต้ถังหร ือรอบๆซีลนี่เป็นเร ื่องปกติโปรดใช้ผ้าแห้งเช็ด

สำาหรับการสนับสนุนเพิ

่

มเติมโปรดติดต่อเราทางhttps://global.dreametech.com

ก�รแก้ไขปัญห�

127

รุ่น RCLE0305

อัตราอินพุต 220-240V 50-60Hz

อัตราเอาต์พุต 20V 2A

อัตรากำาลังไฟ(ระหว่างการเทฝุ่น) 700W

กำาลังไฟ(ระหว่างการทำาความ

สะอาดด้วยนาร้อน)

1160W

อัตรากำาลังไฟ(ระหว่างการชาร์จและอบแห้ง) 87W

ข้อมูลจำ�เพ�ะ

หุ่นยนต์

แท่น/แท่นช�ร์จไฟ

หุ่นยนต์และแท่น/แท่นช�ร์จไฟ

แท่น

รุ่น RLL22SE

เวลาในการชาร์จ ประมาณ3.5ชั

่

วโมง

แรงดันไฟฟ้า 14.4V

กำาลังไฟ 75W

ความถี่ในการทำางาน 2400-2483.5MHz

กำาลังเอาต์พุตสูงสุด

＜

20dBm

หมายเหตุ:

กำาลังไฟ(ระหว่างการทำาความสะอาดด้วยนาร้อน)ถูกกำาหนดโดยค่าพลังงาน

ในช่วงดำาเนินการ(อุณหภูมิของนา25°C)

อัตรากำาลังไฟ(ระหว่างการชาร์จและอบแห้ง)ถูกกำาหนดโดยค่ากำาลังไฟฟ้า

ในช่วงที่โหลดเต็ม

ภายใต้สภาพการใช้งานปกติอุปกรณ์นี้ควรอยู่ห่างจากเสาอากาศและร่างกายของ

ผู้ใช้งานอย่างน้อย20ซม.

การใช้พลังงานในโหมดสแตนด์บาย:≤0.5W(ภายใน15

นาทีหลังจากที่หุ่นยนต์ออกจากสถานีแท่น/แท่นชาร์จไฟ)

อุปกรณ์ไม่มีโหมดสแตนด์บายหร ือสถานะอื่นๆที่เทียบเท่าในแง่ของข้อกำาหนดการส

แตนด์บายฟังก์ชันการจัดการพลังงานหร ือความสามารถในการปิดการใช้งานการเชื่อ

มต่อเคร ือข่ายไร้สายเนื่องจากความต้องการการบำารุงรักษาแบตเตอร ี่การใช้พลังงานข

องอุปกรณ์มีแนวโน้มว่าจะสูงกว่าอุปกรณ์รุ่นอื่นๆที่ตอบสนองความต้องการของฟังก

์ชันเหล่านี้

รุ่น

R2412-4S2P-MMBK/R2412-4S2P-KLYEV

แรงดันไฟฟ้าที่กำาหนด

14.4 V

อัตราความจุ

4.8Ah

ความจุโดยทั

่

วไป

5.2Ah 74.88Wh

ชุดแบตเตอร ี่ลิเธียมไอออนแบบช�ร์จไฟได้

128

ผลิตภัณฑ์ทั

้

งหมดที่มีสัญลักษณ์นี้เป็นขยะอิเล็กทรอนิกส์(WEEEตามข้อบังคับที่2012/19/EU)ซึ่งไม่ควรปะปนกับขยะในครัวเร ือนที่ไม่ได้แยกประเภท

คุณควรปกป้องสุขภาพของมนุษย์และสิ

่

งแวดล้อมด้วยการนำาอุปกรณ์ของคุณไปยังจุดรวบรวมขยะอิเล็กทรอนิกส์ที่กำาหนดซึ่งตั

้

งโดยรัฐบาลหร ือหน่วยงานท้องถิ

่

น

การกำาจัดและการร ีไซเคิลที่ถูกต้องจะช่วยป้องกันผลเสียที่อาจเกิดขึ้นกับสิ

่

งแวดล้อมและสุขภาพของมนุษย์โปรดติดต่อผู้ติดตั

้

งหร ือเจ้าหน้าที่ท้องถิ

่

นเพื่อขอข้อมูล

เพิ

่

มเติมเกี่ยวกับสถานที่ตลอดจนข้อกำาหนดและเงื่อนไขของจุดรวบรวมดังกล่าว

ข้อมูลWEEE

ก�รทิ

้

งและก�รถอดแบตเตอร ี่

ข้อควรระวัง:

คู่มือก�รถอด:

ภายในแบตเตอร ี่ลิเทียมไอออนมีสารที่เป็นอันตรายต่อสิ

่

งแวดล้อมก่อนทิ

้

งแบตเตอร ี่ตรวจสอบให้แน่ใจว่าช่างผู้ชำานาญการได้ถอดแบตเตอร ี่ออกแล้วนำาไปทิ

้

งที่โรงงาน

ร ีไซเคิลที่เหมาะสม

–ต้องถอดแบตเตอร ี่ออกจากเคร ื่องก่อนที่จะทิ

้

ง

–ต้องถอดอุปกรณ์ออกจากแหล่งจ่ายไฟหลักเมื่อถอดแบตเตอร ี่ออก

–ควรทิ

้

งแบตเตอร ี่อย่างปลอดภัย

ก่อนถอดแบตเตอร ี่ให้ถอดสายไฟออกและปล่อยให้แบตเตอร ี่หมดให้มากที่สุด

ควรทิ

้

งแบตเตอร ี่ที่ไม่ต้องการที่โรงงานร ีไซเคิลที่เหมาะสม

อย่าให้อยู่ในสภาพแวดล้อมที่มีอุณหภูมิสูงเพื่อหลีกเลี่ยงความเสี่ยงจากการระเบิด

ภายใต้สภาวะที่ไม่เหมาะสมของเหลวอาจรั

่

วไหลออกมาจากแบตเตอร ี่หากมีการสัมผัสเกิดขึ้นให้ล้างออกด้วยนาสะอาดและขอความช่วยเหลือจากแพทย์

1.พลิกหุ่นยนต์ใช้เคร ื่องมือที่เหมาะสมเพื่อถอดสกรูที่ด้านหลังของหุ่นยนต์จากนั

้

นถอดฝาปิดออก

2.ถอดขั

้

วระหว่างแบตเตอร ี่และบอร์ดPCBเพื่อถอดแบตเตอร ี่ออก

129

Batasan

Penggunaan

Informasi Keamanan

Sebaiknya produk ini tidak digunakan oleh anak-anak di bawah umur 8 tahun

atau orang yang mengidap kelainan fisik, indra, intelektual, atau kurangnya

pengalaman atau pengetahuan tanpa pengawasan dari orang tua atau wali

untuk memastikan pengoperasian yang aman dan menghindari risiko apa

pun. Pembersihan atau perawatan sebaiknya tidak dilakukan oleh anak-anak

tanpa pengawasan.

Hanya gunakan alat dengan unit catu daya yang tersedia dengan alat.

Alat ini berisi baterai yang hanya dapat diganti oleh orang yang ahli.

Pastikan area yang ingin dibersihkan aman. Anak-anak tidak boleh bermain

dengan alat ini. Pastikan anak-anak dan hewan peliharaan berada dalam

jarak yang aman saat robot beroperasi.

Jangan memasang, mengisi daya, atau menggunakan alat di kamar mandi

atau di sekitar kolam.

Produk ini digunakan khusus untuk membersihkan lantai di lingkungan rumah.

Jangan digunakan di luar ruangan, atau di permukaan yang bukan lantai, atau

di lingkungan industri atau komersial.

Pastikan alat beroperasi dengan benar di lingkungan yang tepat. Jika tidak,

jangan gunakan alat ini.

Kabel daya yang rusak harus diganti dengan kabel atau rakitan khusus yang

tersedia dari produsen atau agen layanan.

Jangan gunakan robot di area yang digantung di atas permukaan tanah tanpa

penghalang sebagai pengaman.

Untuk menghindari sengatan listrik, kebakaran, atau cedera yang disebabkan oleh penggunaan alat yang tidak sesuai, baca

panduan pengguna dengan cermat sebelum menggunakan alat dan gunakan sebagai referensi untuk masa mendatang.

130

Batasan

Penggunaan

Informasi Keamanan

Jangan letakkan robot secara terbalik. Jangan gunakan penutup LDS, penutup

robot, atau bumper sebagai pegangan robot.

Gunakan robot di lingkungan dengan suhu sekitar di atas 0 °C dan di bawah

40 °C. Pastikan tidak ada benda lengket atau cair di lantai.

Untuk mencegah kerusakan atau bahaya yang disebabkan dari alat yang

menyeret, bersihkan benda yang kendur dari lantai, dan lepaskan kabel atau

kabel daya di jalur pembersihan sebelum mengoperasikan alat.

Pindahkan barang yang mudah pecah dan barang kecil dari lantai agar robot

tidak menabraknya dan mengakibatkan kerusakan.

Jauhkan rambut, jari, dan bagian tubuh lainnya dari lubang penyedot pada

robot.

Jauhkan alat pembersih dari jangkauan anak-anak.

Jangan operasikan alat di ruangan tempat bayi atau anak-anak tidur.

Jangan letakkan anak-anak, hewan peliharaan, atau barang apa pun di atas

robot, baik saat robot sedang diam maupun bergerak.

Hanya air bersih dan larutan pembersih yang disetujui secara resmi yang

boleh dimasukkan ke dalam tangki air bersih. Jangan tambahkan cairan lain

apa pun seperti alkohol atau disinfektan. Rasio larutan pembersih dengan air

bersih dapat dilihat di botol larutan pembersih. Jauhkan larutan pembersih

dari jangkauan anak-anak.

Jangan gunakan robot untuk membersihkan benda yang terbakar. Jangan

gunakan robot untuk mengambil cairan yang mudah terbakar, gas korosif,

atau asam pelarut murni.

131

Informasi Keamanan

Baterai dan

Pengisian Daya

Jangan gunakan baterai atau dok pengisian daya pihak ketiga. Robot hanya

dapat digunakan dengan dok pengisian daya model RCLE0305.

Jangan mencoba membongkar, memperbaiki, atau mengubah baterai atau

dok pengisian daya dengan tangan Anda sendiri.

Jangan letakkan dok pengisian daya di dekat sumber panas.

Jangan gunakan kain basah atau tangan basah untuk menyeka atau

membersihkan kontak dok pengisian daya.

Jangan buang baterai lama dengan cara yang tidak sesuai aturan. Baterai

yang tidak diperlukan harus dibuang di fasilitas daur ulang yang sesuai.

Jika kabel daya rusak, segera hentikan penggunaan dan hubungi layanan

purnajual.

Batasan

Penggunaan

Jangan menyedot objek yang keras atau tajam. Jangan menggunakan alat

untuk mengambil objek seperti batu, lembaran kertas yang besar, atau barang

apa pun yang dapat menyumbat alat.

Steker harus dilepas dari stopkontak sebelum membersihkan atau melakukan

perawatan pada alat.

Jangan seka robot atau dok pengisian daya dengan kain basah atau membilas

dengan cairan apa pun. Setelah membersihkan bagian yang dapat dicuci,

keringkan sepenuhnya sebelum memasang kembali dan menggunakannya.

Gunakan produk ini sesuai dengan petunjuk di Panduan Pengguna.

Pengguna bertanggung jawab atas kerusakan atau kerugian yang timbul dari

penggunaan produk ini yang tidak sesuai.

132

Sensor laser dalam produk ini memenuhi Standar IEC 60825-1:2014/EN 60825-

1:2014/A11:2021 untuk produk laser Kelas 1. Hindari kontak mata langsung

dengan laser ini selama penggunaan.

PRODUK LASER KELAS 1

PRODUK LASER KONSUMEN

EN 50689:2021

Baterai dan

Pengisian Daya

Informasi

Keamanan Laser

Informasi Keamanan

Dengan ini, Dreame Trading (Tianjin) Co., Ltd. menyatakan bahwa perlengkapan radio jenis RLL22SE memenuhi Pedoman 2014/53/EU.

Teks lengkap deklarasi kesesuaian Uni Eropa tersedia di alamat internet berikut: https://global.dreametech.com

Untuk perincian panduan elektroniknya, buka https://global.dreametech.com/pages/user-manuals-and-faqs

Hanya untuk penggunaan dalam ruangan

Baca panduan operator

Pastikan robot dimatikan saat diangkut dan dimasukkan di kemasan aslinya

jika memungkinkan.

Jika robot tidak akan digunakan dalam waktu lama, isi dayanya hingga penuh,

lalu nonaktifkan dan simpan di tempat yang sejuk serta kering. Isi ulang daya

robot setidaknya sekali setiap 3 bulan untuk menghindari pelepasan daya

baterai yang berlebihan.

133

Aksesori Lainnya

Ikhtisar Produk

Kain Pel × 2

(sudah

terpasang)

Robot

Dok Pengisian

Daya

Penjepit Kain

Pel × 2

Kabel Daya

Alat

Pembersih

Kantong Debu × 2

(1 sudah

terpasang)

Pelat Ekstensi

Undakan Dok

Pengisian Daya

Panduan

Pengguna

Isi Paket

Filter Papan

Pencucian

(sudah terpasang)

Larutan Pembersih

Kompartemen

Detergen Otomatis

(sudah terpasang)

5ml

10ml

15ml

20ml

134

Ikhtisar Produk

Robot

Tombol Pembersihan Spot

· Tekan untuk memulai pembersihan spot

Tombol Daya/Bersihkan

· Tekan dan tahan selama 3 detik untuk menyalakan atau

mematikan

· Tekan untuk memulai pembersihan setelah robot dinyalakan

Tombol Dok

· Tekan untuk mengirim robot kembali ke dok pengisian daya

· Tekan dan tahan selama 3 detik untuk menonaktifkan Kunci Anak

Indikator Status

· Putih Menyala: Pembersihan selesai

· Putih Bernapas: Mengisi daya (baterai belum lemah)

· Oranye Menyala: Robot sedang dalam mode menunggu atau

terjeda saat baterai lemah

· Oranye Bernapas: Mengisi daya (baterai lemah)

· Oranye Berkedip: Kesalahan

Catatan:

· Tekan tombol mana saja pada robot untuk menjeda saat robot

sedang melakukan pembersihan atau mengembalikan ke

pengisian daya.

· Kunci Anak dapat diaktifkan/dinonaktifkan melalui Aplikasi

Dreamehome.

135

Robot dan Sensor

Penutup LDS

Laser Sensor Jarak (LDS)

Jendela Bumper

Bumper

Konektor

Sensor Laser Garis 3D

Ikhtisar Produk

Penutup

Kontak Pengisian

Daya

Ventilasi

Pengosongan

Otomatis

Saluran isi Ulang

Air Otomatis

Tombol Atur Ulang

· Tekan dan tahan

selama 3 detik

untuk memulihkan

ke pengaturan

pabrik

Indikator Wi-Fi

Sensor Tepi

136

Robot dan Sensor

Sensor Antijatuh

Roda Utama

Roda Tanjakan Bantuan

Sikat Utama

Roda Segala Arah

Pelindung Sikat

Roda Utama

Roda Tanjakan Bantuan

Lubang Pemasangan Penjepit Kain Pel

Rakitan Ekstensi Sikat Samping

Sensor Karpet

Rakitan Pel

Area Pemasangan

Kain Pel

Penjepit Kain Pel Kain Pel

Rakitan MopExtend

Klip Pelindung Sikat

Kotak Debu

Filter

Ventilasi Pengosongan

Otomatis

Klip Kotak Debu

Klip Filter

Ikhtisar Produk

Tombol Atur Ulang

137

Filter

Papan pencucian

Filter Papan Pencucian

Pelat Ekstensi Undakan

Penutup

Tangki Air Kotor

Tangki Air Bersih

Klip Tangki Air

Bola Pelampung

Pipa Air

Penutup Penampung Debu

Inhibitor Kerak

Alat Pengambang

Dok Pengisian Daya Tangki Air Kotor

Tangki Air Bersih

Ikhtisar Produk

138

Dok Pengisian Daya

Slot Tambahan untuk

Menyambungkan Kit Saluran

Air untuk Pengisian Ulang dan

Pengurasan Otomatis

Slot Penyimpanan Kabel Daya

Stopkontak

Catatan: Kit penyaluran air untuk pengisian ulang dan pengurasan otomatis

dijual terpisah. (Hanya tersedia di wilayah tertentu)

Indikator Status

Putih Menyala: Dok

pengisian daya terhubung

ke listrik

Oranye Menyala: Terjadi

kesalahan pada dok

pengisian daya

Ikhtisar Produk

Filter

Slot Kantong

Debu

Ventilasi Kosong

Otomatis

Area Pemancar Sinyal

Kompartemen

Detergen Otomatis

Kontak Pengisian

Daya

Saluran Keluar

Penambahan Air

Otomatis

139

Menyiapkan Rumah Anda

Sebelum pembersihan, singkirkan barang yang mudah jatuh, rapuh,

berharga, atau berbahaya, dan rapikan kabel, pakaian, mainan, benda

keras, dan benda tajam di permukaan lantai agar tidak tersangkut, tergores,

atau terjatuh karena robot sehingga menyebabkan kerugian.

Buka pintu ruangan yang akan dibersihkan, dan letakkan perabot sesuai

tempatnya untuk memberikan ruang yang lebih luas.

Agar robot tidak melewatkan area yang perlu dibersihkan, jangan berdiri di

depan robot, depan pintu, lorong, atau ruangan sempit.

Sebelum membersihkan, letakkan penghalang sik di sudut tangga untuk

memastikan robot beroperasi dengan lancar dan aman.

Catatan:

Saat mengoperasikan robot untuk pertama kali, ikuti robot saat membersihkan untuk menyingkirkan rintangan tepat waktu.

Jangan menyedot benda yang keras seperti batu, bola baja, dan komponen mainan, ataupun benda tajam seperti sampah konstruksi, pecahan kaca, dan kuku

karena dapat menyebabkan permukaan lantai tergores.

140

1. Letakkan Dok Pengisian Daya dan Sambungkan ke

Stopkontak

Letakkan dok pengisian daya di lokasi terbuka dengan sinyal Wi-

Fi yang bagus. Sisakan ruang yang cukup seperti yang ditunjukkan

pada gambar dan singkirkan objek apa pun di area yang diarsir.

Masukkan kabel daya ke dok pengisian daya dan tancapkan ke

stopkontak.

Sebelum Digunakan

Catatan:

Pastikan tidak ada objek yang mungkin menghalangi area pemancar sinyal.

Untuk mencegah noda air mengotori lantai kayu atau karpet, disarankan untuk

meletakkan dok pengisian daya di lantai keramik atau marmer.

Masukkan kabel daya dengan

rapat ke atas hingga indikator

menyala.

＞1 m

＞5 cm

Washboard Filter

2. Pasang Pelat Ekstensi Undakan

Catatan: Pastikan filter papan pencucian dipasang pada tempatnya.

Filter Papan

Pencucian

141

3. Lepas Pelindung Robot dan Pasang Rakitan Pel 4. Sambungkan Robot ke Dok Pengisian Daya

Tekan dan tahan tombol daya pada robot selama 3 detik untuk

menyalakannya. Letakkan robot pada dok pengisian daya dengan

posisi rakitan pel mengarah ke papan pencucian. Kemudian, Anda

akan mendengar notikasi suara saat robot berhasil terhubung

ke dok pengisian daya. Setelah daya robot terisi penuh, indikator

status pada robot dan dok pengisian daya akan tetap menyala

selama 10 menit, lalu meredup.

Sebelum Digunakan

Catatan: Sebaiknya isi penuh daya robot sebelum digunakan untuk pertama

kali. Saat robot tidak dapat dinyalakan setelah baterai habis, sambungkan

robot ke dok pengisian daya secara manual untuk mengisi daya.

②

①

142

6. Masukkan Air ke Tangki Air Bersih

Keluarkan tangki air bersih dari dok pengisian daya dan isi tangki

dengan air bersih. Kemudian, pasang kembali pada dok pengisian

daya.

Catatan: Jangan masukkan air panas ke dalam tangki air karena dapat

menyebabkan tangki air berubah bentuk.

Sebelum Digunakan

5. Tambahkan Larutan Pembersih

(1) Lepas penutup penampung debu dan tarik kompartemen

detergen otomatis.

(2) Buka tutup atas kompartemen dan tambahkan larutan

pembersih.

(3) Tutup penutup kompartemen, kembalikan ke dok pengisian

daya, lalu pasang kembali penutup penampung debu. Larutan

pembersih akan ditambahkan secara otomatis selagi berfungsi.

Catatan:

Kompartemen detergen otomatis dapat diisi dengan larutan pembersih

untuk digunakan. Jangan menambahkan larutan apa pun kecuali larutan

pembersih yang sudah disetujui secara resmi agar tidak terjadi malafungsi.

Pasang kompartemen detergen otomatis pada tempatnya sampai

terdengar bunyi klik.

①

②

①

②

143

2. Tambahkan Perangkat

Menghubungkan dengan Aplikasi Dreamehome

1. Unduh Aplikasi Dreamehome

Indikator Wi-Fi

Berkedip pelan:

Akan dihubungkan

Berkedip

cepat: Sedang

menghubungkan

Aktif: Terhubung

Catatan:

Hanya mendukung Wi-Fi 2,4 GHz.

Adanya peningkatan pada perangkat lunak aplikasi, pengoperasian

sebenarnya mungkin berbeda dengan arahan dalam manual ini. Harap

ikuti petunjuk berdasarkan versi aplikasi saat ini.

Pindai kode QR pada robot, atau telusuri "Dreamehome" di toko

aplikasi untuk mengunduh dan menginstal aplikasi.

Buka aplikasi Dreamehome, ketuk "Pindai kode QR untuk

menghubungkan", dan pindai lagi kode QR yang sama pada

robot untuk menambahkan perangkat. Harap ikuti arahan untuk

menyelesaikan penyambungan Wi-Fi.

Kode QR

Catatan:

Untuk mengatur ulang Wi-Fi, ulangi langkah 2, kemudian ikuti arahan

untuk menyelesaikan penyambungan Wi-Fi.

Untuk memutuskan sambungan perangkat dari jaringan Wi-Fi, tekan dan

tahan tombol Atur Ulang pada robot selama 3 detik.

144

Cara Menggunakan

Jika baterai terlalu rendah, robot akan secara otomatis kembali ke

dok pengisian daya untuk mengisi daya. Pembersihan yang belum

selesai akan dilanjutkan setelah mengisi daya hingga level baterai

yang sesuai.

Catatan: Untuk menggunakan fungsi ini, harap aktifkan di aplikasi.

Menyalakan/Mematikan

Pemetaan Cepat

Mode Jangan Ganggu (DND)

Pembersihan Spot

Memulai Ulang Robot

Melanjutkan Pembersihan Otomatis

Jeda/Tidur

Tekan dan tahan tombol daya selama 3 detik untuk menyalakan

robot. Indikator daya akan tetap menyala. Atau, letakkan robot

pada dok pengisian daya dengan menyelaraskan kontak pengisian

daya robot dengan yang ada di dok pengisian daya, lalu robot

akan otomatis menyala dan mulai mengisi daya. Untuk mematikan

robot, jauhkan robot dari dok pengisian daya, lalu tekan dan tahan

tombol daya selama 3 detik.

Saat robot diatur ke mode Jangan Ganggu (DND), robot tidak akan melanjutkan

pembersihan. Mode DND dinonaktifkan secara default pada pengaturan pabrik. Anda

dapat menggunakan aplikasi untuk mengaktifkan mode DND atau mengubah periode

DND. Periode DND adalah pukul 22:00-8:00 secara default.

Catatan:

Pembersihan terjadwal akan dijalankan seperti biasa selama periode DND.

Robot akan melanjutkan pembersihan yang belum selesai setelah periode DND

berakhir.

Saat robot sedang dalam mode menunggu, tekan sebentar tombol

untuk mengaktifkan mode pembersihan spot. Dalam mode ini,

robot membersihkan area berbentuk persegi seluas 1,5 x 1,5 meter

di sekitarnya, lalu kembali ke titik awal setelah pembersihan spot

selesai.

Jika robot berhenti merespons atau tidak dapat dimatikan, tekan

dan tahan tombol daya selama 10 detik untuk mematikannya

secara paksa. Setelah itu, tekan dan tahan tombol daya selama 3

detik untuk menyalakan robot.

Setelah mengongurasi jaringan untuk pertama kali, ikuti instruksi

di aplikasi untuk membuat peta dengan cepat. Robot akan mulai

memetakan tanpa membersihkan. Saat robot kembali ke dok

pengisian daya, proses pemetaan telah selesai dan peta akan

disimpan secara otomatis.

Saat robot bekerja, tekan tombol apa pun untuk menjeda.

Jika robot dijeda selama lebih dari 10 menit, robot akan otomatis

memasuki mode tidur. Semua indikator pada robot akan mati.

Tekan tombol apa pun pada robot, atau gunakan aplikasi untuk

membangunkan robot.

Catatan: Jika robot dijeda dan diletakkan pada dok pengisian daya, proses

pembersihan saat ini akan berakhir.

145

Catatan:

Untuk memastikan robot kembali ke dok pengisian daya dengan mudah

setelah melakukan pembersihan, sebaiknya mulai jalankan robot dari dok

pengisian daya.

Kain pel akan dibersihkan sebelum robot mulai mengepel, harap tunggu

dengan sabar.

Jangan pindahkan dok pengisian daya, tangki air bersih, tangki air kotor,

atau filter papan pencucian selama mesin berjalan.

Pembersihan air panas dapat diaktifkan di aplikasi untuk pembersihan

kain pel, dan ini berlaku untuk semua mode. Untuk mencegah luka bakar,

jangan sentuh saluran keluar air saat sedang digunakan.

Cara Menggunakan

Catatan: Saat pertama kali menggunakan rakitan pel, robot akan

menjalankan tugas "Penyedot Debu dan Pel" secara default.

1. Memulai pembersihan

Tekan tombol daya di robot, atau gunakan aplikasi untuk mulai

menjalankan robot dari dok pengisian daya. Setelah itu, robot

akan membuat rute pembersihan optimal dan menjalankan tugas

pembersihan sesuai peta yang telah dibuat.

2. Cuci pel secara otomatis

Saat membersihkan, robot akan otomatis kembali ke dok pengisian

daya untuk mencuci kain pel sesuai dengan frekuensi pembersihan

kain pel yang telah ditentukan dalam aplikasi. Dok pengisian daya

akan otomatis mengisi ulang tangki air robot, lalu robot akan

melanjutkan pembersihan.

Penyedotan Debu dan Pengepelan

146

Cara Menggunakan

4. Bersihkan tangki air kotor

Setelah robot selesai membersihkan, harap bersihkan tangki air

kotor untuk mencegah bau apa pun.

Catatan:

Jika fungsi kosong otomatis dimatikan di aplikasi, dok pengisian daya tidak

akan otomatis mengosongkan kotak debu.

Dok pengisian daya akan mengosongkan kotak debu sesuai pengaturan

dalam aplikasi.

Setelah mengaktifkan fungsi menyedot debu di aplikasi, robot akan

otomatis melepas rakitan pel di dok pengisian daya dan mulai

menyedot debu.

Setelah mengaktifkan fungsi mengepel setelah menyedot debu di

aplikasi, robot akan otomatis melepas rakitan pel di dok pengisian

daya untuk menyedot debu di lantai. Jika proses menyedot

debu selesai, robot akan kembali ke dok pengisian daya untuk

memasang rakitan pel dan dok pengisian daya akan otomatis

mengosongkan kotak debu. Kemudian, robot akan mulai mengepel

setelah sikat samping diangkat.

Setelah mengaktifkan fungsi mengepel di aplikasi, robot akan

otomatis mengecek apakah rakitan pel sudah terpasang saat tiba di

dok pengisian daya. Jika belum terpasang, robot akan memasang

rakitan pel dan mulai mengepel setelah sikat sampingnya diangkat.

Hanya Menyedot Debu

Mengepel Setelah Menyedot Debu

Hanya Mengepel

3. Kosongkan kotak debu secara otomatis serta cuci dan

keringkan kain pel

Setelah robot selesai menjalankan tugas pembersihan dan kembali

ke dok pengisian daya untuk mengisi daya, dok pengisian daya

akan otomatis mengosongkan kotak debu, lalu membersihkan dan

mengeringkan kain pel.

147

Perawatan Rutin

Bagian-Bagian

Bagian Frekuensi Perawatan Periode Penggantian

Tangki air kotor

Setelah setiap kali

penggunaan

Tangki air bersih

Setiap 2 minggu sekali

Sikat utama

Setiap 6 sampai 12

bulan

Filter kotak debu

Setiap 3 sampai 6

bulan

Sikat samping

Penjepit kain pel /

Filter papan pencucian Setiap 1 sampai 2 bulan

Area pemancar sinyal

dok pengisian daya

Sekali setiap bulan

Kontak pengisian daya

Ventilasi Kosong

Otomatis

Roda segala arah

Sensor tepi

Laser Sensor Jarak

(LDS)

Sensor Laser Garis 3D

Sensor karpet

Sensor antijatuh

Bagian Frekuensi Perawatan Periode Penggantian

Jendela bumper

Sekali setiap bulan

Bumper

Saluran isi ulang air

otomatis robot

Bagian bawah robot

Kotak debu

Bersihkan sesuai

kebutuhan

Roda utama

Roda tanjakan

bantuan

Kantong debu

Setiap 2 sampai 4

bulan

Kain pel

Setiap 1 sampai 3

bulan

Inhibitor kerak

Setiap 18 sampai 36

bulan

Catatan: Frekuensi pemeliharaan dan penggantian tergantung penggunaan

sebenarnya. Jika kerusakan terjadi karena keadaan tertentu, sebaiknya

segera lakukan pemeliharaan atau penggantian.

Agar robot tetap dalam kondisi baik, sebaiknya lihat panduan penggunaan aksesori di aplikasi atau tabel berikut untuk perawatan rutin.

148

Perawatan Rutin

Filter Papan Pencucian

1. Keluarkan robot dan lepaskan lter papan pencucian setelah

pembersihan kain pel selesai.

2. Bilas lter papan pencucian dengan air bersih, seka hingga

bersih, lalu pasang kembali ke dalam papan pencucian.

3. Gunakan aplikasi atau tekan tombol untuk mengembalikan

robot ke dok pengisian daya, atau taruh robot kembali secara

manual.

149

Perawatan Rutin

Kantong Debu

1. Lepas penutup penampung debu, lalu buang kantong debu. 3. Pasang kantong debu baru.

4. Pasang ulang penutup penampung debu.2. Bersihkan debu dan kotoran dalam filter menggunakan kain

kering.

Catatan: Menarik pegangan ke atas akan menyegel kantong untuk

mencegah debu dan kotoran jatuh secara tidak sengaja.

150

3. Dengan panah tercetak menghadap ke atas, masukkan penjepit

sikat utama pada slot menghadap bawah secara miring.

4. Selaraskan ujung depan pelindung sikat dengan slot, masukkan

menghadap bawah secara miring, lalu tekan pada tempatnya.

Perawatan Rutin

Click

Sikat Utama

2. Tarik sikat seperti yang ditunjukkan pada gambar. Gunakan

alat pembersih yang disediakan untuk membuang rambut yang

tersangkut di sikat. Setelah membersihkan, tekan sikat dengan

keras ke penjepit sikat utama sampai terdengar bunyi "klik".

Klik

1. Tekan klip pelindung sikat ke dalam untuk melepas pelindung

sikat, lalu keluarkan sikat dari robot.

Catatan: Berhati-hatilah saat menarik sikat utama untuk mencegah cedera.

151

Sikat Samping

Lepas sekrup sikat samping dengan obeng, buang rambut yang

tersangkut di sikat, lalu pasang kembali sekrupnya.

Roda Segala Arah

Catatan:

Gunakan alat semacam obeng kecil untuk melepaskan poros dan roda

segala arah. Jangan terlalu keras saat melepaskannya.

Bilas roda segala arah dengan air mengalir dan pasang kembali setelah

benar-benar kering.

Penjepit Kain Pel

Lepaskan dan bersihkan penjepit kain pel.

Perawatan Rutin

152

1. Putar roda tanjakan bantuan sampai panah "OUT" menghadap

ke atas, lalu tarik keluar rodanya.

3. Setelah membersihkan, putar roda utama untuk menyelaraskan

dua panah (lihat Gambar ① ). Setelah itu, dengan panah "IN"

menghadap ke bawah, masukkan roda tanjakan bantuan kiri dan

kanan dengan sesuai sampai terdengar bunyi klik pada tempatnya.

(lihat Gambar ② ).

2. Gunakan alat yang tepat untuk membersihkan rambut yang

membelit di roda utama dan roda tanjakan bantuan.

Roda Tanjakan Bantuan dan Roda Utama

OUT

R L

OUT

Click

Perawatan Rutin

153

3. Ketuk pelan wadah lter untuk menghilangkan kotoran.

4. Bilas kotak debu dan lter dengan air, lalu keringkan keduanya

sampai benar-benar kering sebelum dipasang kembali.

Catatan: Jangan bersihkan filter dengan sikat, jari, atau benda tajam untuk

mencegah kerusakan.

24h

Catatan:

· Bilas kotak debu dan filter menggunakan air bersih saja. Jangan gunakan

detergen apa pun.

· Gunakan kotak debu dan filter saat keduanya benar-benar kering.

Kotak Debu dan Filter

1. Buka penutup robot dan tekan klip kotak debu untuk mencopot

kotak debu.

2. Lepas lter kotak debu, lalu kosongkan kotak debu.

Perawatan Rutin

154

Kontak Pengisian Daya dan Area Pemancar Sinyal

Bersihkan kontak pengisian daya dan area pemancar sinyal

menggunakan kain yang lembut dan kering.

Catatan: Kain yang basah dapat merusak elemen sensitif yang ada di dalam

robot dan dok pengisian daya. Bersihkan menggunakan kain kering.

Sensor Karpet

Sensor Antijatuh

Sensor Tepi

Jendela Bumper

Bumper

Laser Sensor

Jarak (LDS)

Sensor Robot

Usap sensor robot menggunakan kain lembut dan kering, seperti

yang ditunjukkan pada gambar di bawah ini:

Perawatan Rutin

Bersihkan ventilasi pengosongan otomatis robot dan dok pengisian

daya menggunakan kain yang lembut dan kering.

Ventilasi Kosong Otomatis

155

Kain Pel

Lepaskan kain pel dari penjepit kain pel untuk menggantinya.

Robot menggunakan paket baterai litium-ion berkinerja tinggi.

Pastikan baterai terisi daya dengan cukup untuk penggunaan

sehari hari agar kinerja baterai tetap optimal. Jika robot tidak

akan digunakan dalam waktu lama, matikan dan simpan. Untuk

mencegah kerusakan akibat pelepasan daya berlebih, isi daya

robot setidaknya tiga bulan sekali.

Baterai

Perawatan Rutin

Tangki Air Kotor

1. Lepas tangki air kotor, buka penutupnya, dan buang air kotor.

2. Bilas tangki air kotor dengan air bersih, dan gunakan alat

pembersih yang disediakan untuk membersihkan sisi bagian dalam

tangki air kotor.

Catatan:

Bola pelampung dalam tangki air kotor adalah bagian yang

dapat digerakkan. Jangan terlalu keras saat membersihkannya agar bola

pelampung tidak rusak.

156

Masalah Solusi

Robot tidak menyala.

Baterai lemah. Isi daya robot di dok pengisian daya dan coba sekali lagi.

Suhu baterai terlalu rendah atau tinggi. Sebaiknya, gunakan alat ini pada suhu antara 0 ℃ (32 ℉ ) dan 40 ℃

(104 ℉ ).

Robot tidak mengisi

daya.

Dok pengisian daya tidak terhubung ke sumber listrik, pastikan kedua ujung kabel daya menancap dengan

benar.

Kontak antara kontak pengisian daya pada dok pengisian daya dan robot kotor, bersihkan kontak pengisian

daya.

Periksa apakah ada benda asing di konektor robot dan bersihkan jika ada.

Robot gagal terhubung

ke Wi-Fi.

Kata sandi jaringan Wi-Fi salah. Pastikan kata sandi yang digunakan untuk terhubung ke jaringan Wi-Fi

Anda benar.

Robot tidak mendukung koneksi Wi-Fi 5 GHz. Pastikan robot terhubung ke koneksi Wi-Fi 2,4 GHz.

Sinyal Wi-Fi lemah. Pastikan robot berada di area dengan cakupan Wi-Fi yang baik.

Robot mungkin belum siap untuk dikongurasi. Keluar dan masuk kembali ke aplikasi, lalu coba kembali

sesuai instruksi.

Robot tidak dapat

menemukan dan

kembali ke dok

pengisian daya.

Dok pengisian daya terputus dari sumber listrik atau dipindahkan saat robot tidak ada di dalamnya.

Sambungkan dok pengisian daya ke catu daya atau letakkan robot ke dalam dok pengisian daya untuk

mengisi daya.

Ada terlalu banyak halangan di sekitar dok pengisian daya. Letakkan dok pengisian daya di tempat yang

lebih terbuka.

Memindahkan robot akan membuat robot memosisikan ulang dirinya sendiri dan akan membuat kembali

peta jika proses tersebut gagal. Jika robot berada terlalu jauh dari dok pengisian daya, robot tidak akan bisa

kembali ke dalam dok secara otomatis, dalam hal ini Anda harus mengembalikan robot ke dok pengisian

daya secara manual.

Seka area pemancar sinyal pada dok pengisian daya untuk menghilangkan debu atau serpihan.

Penyelesaian Masalah

157

Penyelesaian Masalah

Masalah Solusi

Robot macet di depan

dok pengisian daya dan

tidak dapat kembali.

Periksa apakah ada cukup ruang di kedua sisi atau depan dok pengisian daya agar robot tidak terhalang.

Rute kembali untuk mengisi daya terhalang, misalnya pintu tertutup.

Robot mungkin selip jika lantai di depan dok pengisian daya terlalu basah. Jika demikian, keringkan lantai

sebelum mencoba kembali.

Sebaiknya, pindahkan dok pengisian daya ke tempat lain dan coba kembali.

Pastikan pelat ekstensi undakan dipasang dengan benar.

Robot tetap menyala.

Robot tidak bisa dimatikan saat sedang mengisi daya. Sebaiknya keluarkan robot dari dok pengisian daya,

lalu tekan dan tahan tombol daya selama 3 detik untuk mematikannya.

Jika langkah 1 tidak berhasil, tekan dan tahan tombol daya selama 10 detik untuk mematikan robot secara

paksa. Jika masih belum berhasil, hubungi layanan purnajual.

Laju pengisian daya

lambat.

Saat baterai lemah, pengisian daya robot membutuhkan waktu sekitar 3,5 jam hingga penuh.

Jika menggunakan robot pada suhu di luar rentang yang ditentukan, laju pengisian daya akan otomatis

melambat guna memperpanjang masa pakai baterai.

Kontak pengisian daya baik pada robot dan dok pengisian daya mungkin kotor, bersihkan dengan kain

kering.

Suara yang dihasilkan

robot saat beroperasi

makin bising.

Periksa apakah lter kotak debu tersumbat. Jika tersumbat, bersihkan atau ganti dengan yang baru.

Benda tajam mungkin tersangkut di sikat utama atau kotak debu. Periksa dan singkirkan benda tajam yang

ada.

Sikat utama atau sikat samping mungkin kusut. Periksa dan singkirkan benda asing yang ada.

Alihkan mode isap ke Standar atau Senyap.

Robot bergerak tanpa

mengikuti rute yang

telah ditentukan.

Benda seperti kabel daya dan sandal harus dirapikan sebelum menggunakan robot.

Pengoperasian di permukaan yang basah dan licin menyebabkan selip pada roda utama. Sebaiknya,

keringkan tempat yang basah sebelum menggunakan robot.

Seka jendela bumper pada robot dengan kain bersih, lembut, dan kering agar tetap bersih dan tidak

terhalang.

158

Masalah Solusi

Robot melewatkan

ruangan yang

seharusnya

dibersihkan.

Pastikan pintu ruangan yang akan dibersihkan terbuka.

Area di depan ruangan yang akan dibersihkan mungkin basah dan licin, sehingga robot selip dan bekerja

tidak normal. Coba keringkan lantai sebelum menggunakan robot.

Robot tidak

melanjutkan

pembersihan setelah

mengisi daya.

Pastikan robot tidak sedang dalam mode Jangan Ganggu (DND), yang mana akan mencegah robot

melanjutkan pembersihan.

Robot tidak akan melanjutkan pembersihan setelah Anda meletakkan robot secara manual ke dok pengisian

daya atau mengirim robot untuk mengisi daya melalui aplikasi atau tombol .

Dok pengisian

daya tidak dapat

membersihkan kotak

debu secara otomatis.

Periksa apakah kantong debu di dalam penampung debu penuh.

Jika kantong debu belum penuh, periksa apakah ada penghalang di ventilasi pengosongan otomatis pada

robot, dok pengisian daya, atau kotak debu. Jika ada yang menghalangi, bersihkan segera.

Level air di papan

pencucian tidak

normal.

Periksa apakah segel pada tangki air kotor kendur atau tidak terpasang dengan benar dan atur ulang

secara manual jika demikian. Jika masalah berlanjut, hubungi tim layanan purnajual.

Tekan perlahan tangki air kotor untuk memastikan tangki terpasang dengan benar.

Lepaskan lter papan pencucian dan periksa apakah saluran pembuangan limbah tersumbat, lalu

bersihkan.

Periksa larutan pembersih. Jangan menambahkan larutan apa pun kecuali larutan pembersih yang resmi

disetujui.

Penjepit kain pel

terangkat secara tidak

normal.

Copot penjepit kain pel untuk memeriksa apakah ada objek asing tersangkut di dalam, lalu coba memulai

ulang robot. Jika masalah berlanjut, hubungi tim layanan purnajual.

Ada air di bawah tangki

air bersih atau sekitar

segel.

Saat mengeluarkan tangki air bersih, air di pipa mungkin masih ada di bawah tangki atau sekitar segel. Ini

wajar. Tolong seka dengan kain kering.

Untuk dukungan lebih lanjut, hubungi kami melalui https://global.dreametech.com

Penyelesaian Masalah

159

Model RCLE0305

Input Terukur 220-240 V 50-60 Hz

Output Terukur 20 V 2 A

Daya Terukur (selama pengosongan

debu)

700 W

Daya Terukur (selama pembersihan air

panas)

1.160 W

Daya Terukur (selama pengisian daya

dan pengeringan)

87 W

Spesikasi

Robot Dok Pengisian Daya

Model RLL22SE

Waktu Pengisian Daya Sekitar 3,5 jam

Tegangan Terukur 14,4 V

Daya Terukur 75 W

Frekuensi Pengoperasian 2.400-2.483,5 MHz

Daya Output Maksimum < 20 dBm

Catatan:

Daya Terukur (saat pembersihan air panas) ditentukan oleh nilai

daya selama periode representatif (suhu air 25 °C).

Daya Terukur (saat pengisian daya dan pengeringan) ditentukan

oleh nilai daya selama periode muatan penuh.

Dalam kondisi penggunaan normal, alat ini harus berada dalam

jarak minimal 20 cm antara antena dan badan pengguna.

Konsumsi daya dalam mode siaga: ≤ 0,5 W (dalam waktu 15 menit

setelah robot meninggalkan dok pengisian daya)

Peralatan ini tidak memiliki mode siaga atau status lainnya yang

setara dalam segi persyaratan siaga, fungsi manajemen daya, atau

kemampuan untuk menonaktifkan koneksi jaringan nirkabel karena

kebutuhan pemeliharaan baterai. Konsumsi daya pada peralatan

ini mungkin akan lebih tinggi dibandingkan model peralatan lain

yang memenuhi persyaratan fungsional ini.

Dok Pengisian Daya

Robot & Dok Pengisian Daya

Model

R2412-4S2P-MMBK/R2412-4S2P-KLYEV

Tegangan Nominal

14,4 V

Kapasitas Terukur

4,8Ah

Kapasitas Tipikal

5,2Ah 74,88Wh

Unit Baterai Litium-ion yang Dapat Diisi Daya

160

Semua produk dengan simbol ini adalah limbah peralatan listrik dan elektronik (WEEE sesuai pedoman 2012/19/EU) yang mana

tidak boleh dicampur dengan sampah rumah tangga yang tidak tersortir. Anda harus melindungi kesehatan manusia dan

lingkungan dengan cara menyerahkan limbah peralatan ke titik pengumpulan yang ditugaskan untuk mendaur ulang limbah

peralatan listrik dan elektronik, yang ditunjuk oleh pemerintah atau otoritas setempat. Pembuangan dan daur ulang yang tepat

akan membantu mencegah potensi konsekuensi negatif terhadap lingkungan dan kesehatan manusia. Hubungi otoritas setempat

untuk informasi lebih lanjut tentang lokasi serta syarat dan ketentuan tempat pengumpulan tersebut.

Informasi WEEE

Pembuangan dan Pelepasan Baterai

PERHATIAN:

Panduan Pelepasan:

Baterai litium-ion bawaan mengandung unsur yang membahayakan lingkungan. Sebelum membuang baterai, pastikan baterai dilepas

oleh teknisi yang memenuhi syarat dan dibuang di fasilitas daur ulang yang sesuai.

– baterai harus dilepaskan dari alat sebelum dibuang;

– alat harus terputus dari sumber listrik saat melepas baterai;

– baterai harus dibuang dengan aman.

Sebelum melepaskan baterai, putus sambungan listrik dan kosongkan baterai hingga sehabis mungkin.

Baterai yang tidak diperlukan harus dibuang di fasilitas daur ulang yang sesuai.

Jangan buang baterai di tempat bersuhu tinggi untuk mencegah terjadinya ledakan.

Dalam kondisi buruk, baterai dapat mengeluarkan cairan. Jika terjadi kontak, siram dengan air dan dapatkan bantuan medis.

1. Balik robot, gunakan obeng untuk melepas baut yang ada di belakang robot, lalu buka penutupnya.

2. Cabut terminal antara baterai dengan papan PCB untuk melepas baterai.

161

Warranty

Garanti

1. Dreame is liable to the consumer for any lack of conformity in material or workmanship not detectable at the time of the purchase.

2. Warranty period: please refer to the customer service oce for more information. If the territory where the consumer is located has dierent regulations, local

regulations prevail.

3. The warranty will not be applicable in the following cases:

a) Issues due to carelessness, use, or installation that does not comply with the instructions provided by Dreame.

b) Tampering and/or modications of the product by entities or individuals not expressly authorized by Dreame.

c) Damage due to accidental causes and/or negligence on the part of the consumer, with particular reference to external parts.

d) Parts subject to wear that do not have manufacturing defects.

e) No valid purchasing document (receipt, invoice, or other) is provided to certify the date the product was purchased.

f) The model and/or numbers of the product on the purchase certicate is not consistent with the model and/or numbers shown on the product.

4. Please scan the QR code to get after-sales contact information.

5. The after-sales service (including quality warranty) in diverse regions is solely applicable to the local version of Dreame products. Please contact the after-sales

service in the region where your product version originates for support.

1. Dreame, satın alım sırasında tespit edilemeyen malzeme ve isçilik kusurlarından tüketiciye karsı sorumludur.

2. Garanti süresi: daha fazla bilgi için lütfen müsteri hizmetleri ile iletisime geçin. Tüketicinin bulundugu bölgede farklı düzenlemeler oldugu takdirde yerel

düzenlemeler geçerlidir.

3. Asagıdaki durumlarda garanti geçerli degildir:

a) Dreame tarafından saglanan talimatlara uygun olmayan kullanım, kurulum veya dikkatsizlik nedeniyle ortaya çıkan sorunlar.

b) Dreame tarafından açıkça yetki verilmemis kuruluslar veya kisiler tarafından ürün üzerinde onaysız degisiklikler yapılması ve/veya ürünün modiye edilmesi.

c) Belirli harici parçalar önde olmak üzere, kaza nedenlerinden ve/veya tüketici ihmalkarlıgından dogan hasarlar gerçeklestiginde.

d) Imalat kusurlarına sahip olmayıp yıpranmaya tabi olan parçalar.

e) Ürünün satın alındıgı tarihi belgelemek için hiçbir geçerli satın alma belgesinin (makbuz, fatura ve diger) saglanmaması.

f) Satın alma belgesi üzerindeki ürün modeli ve/veya numaralarının ürün üzerinde gösterilen model ve/veya numaralarla tutarlı olmaması.

4. Satış sonrası hizmet iletişim bilgilerine ulaşmak için lütfen QR kodunu taratın.

5. Farklı bölgelerdeki satıs sonrası hizmetler (kalite garantisi dâhil) yalnızca Dreame ürünlerinin yerel sürümü için geçerlidir. Destek için lütfen ürün sürümünüzün

ilk satın alındıgı bölgedeki satıs sonrası hizmetler ile iletisime geçin.

162

Bảo hành

การรับประกัน

1. Dreame tuyên bố chịu trách nhiệm với khách hàng về vật liệu chưa đạt tiêu chuẩn hoặc lỗi lắp ráp mà không thể phát hiện tại thời điểm mua hàng.

2. Thời hạn bảo hành: vui lòng tham khảo phòng dịch vụ khách hàng để biết thêm chi tiết. Nếu tại quốc gia người tiêu dùng sinh sống có quy định khác, vui lòng ưu tiên áp

dụng quy định của quốc gia đó.

3. Không áp dụng bảo hành trong các trường hợp sau:

a) Các sự cố do bất cẩn, sử dụng hoặc cài đặt không đúng theo hướng dẫn do Dreame cung cấp.

b) Giả mạo và/hoặc sửa đổi sản phẩm bởi các tổ chức hoặc cá nhân không được Dreame ủy quyền rõ ràng.

c) Hư hỏng do nguyên nhân ngẫu nhiên và/hoặc sơ suất của người tiêu dùng, đặc biệt liên quan đến các bộ phận bên ngoài.

d) Những bộ phận bị mài mòn không do lỗi sản xuất.

e) Không cung cấp được chứng từ mua hàng hợp lệ (biên nhận, hóa đơn hoặc chứng từ khác) để xác nhận ngày sản phẩm được mua.

f) Mẫu và/hoặc mã số của sản phẩm trên giấy chứng nhận mua hàng không khớp với mẫu và/hoặc mã số được thể hiện trên sản phẩm.

4. Vui lòng quét mã QR để biết thông tin liên hệ sau bán hàng.

5. Dịch vụ sau bán hàng (bao gồm bảo hành chất lượng) ở các khu vực khác nhau chỉ áp dụng cho phiên bản sản phẩm Dreame tại địa phương. Vui lòng liên hệ với dịch vụ

sau bán hàng tại khu vực có phiên bản sản phẩm của bạn để được hỗ trợ.

1. Dreame รับผิดชอบต่อผู้บริโภคในกรณีที

่

วัสดุหรือการผลิตไม่เป็นไปตามมาตรฐานที

่

ไม่สามารถตรวจพบได้ในขณะซื

้

อ

2. ระยะเวลาการรับประกัน: โปรดดูข้อมูลเพิ

่

มเติมที

่

สำานักงานบริการลูกค้า หากเขตแดนที

่

ผู้บริโภคตั

้

งอยู่มีข้อบังคับที

่

ต่างกัน ให้ถือตามข้อบังคับท้องถิ

่

น

3. ไม่สามารถใช้การรับประกันได้ในกรณีต่อไปนี

้

a) ปั ญหาที

่

เกิดจากความประมาท การใช้งาน หรือการติดตั

้

งที

่

ไม่เป็ นไปตามคำาแนะนำาของ Dreame

b) การดัดแปลงและ/หรือการแก้ไขผลิตภัณฑ์โดยหน่วยงานหรือบุคคลที

่

ไม่ได้รับอนุญาตอย่างชัดแจ้งจาก Dreame

c) ความเสียหายอันเกิดจากอุบัติเหตุและ/หรือความประมาทเลินเล่อของผู้บริโภค โดยเฉพาะอย่างยิ

่

งกับชิ

้

นส่วนภายนอก

d) ชิ

้

นส่วนที

่

เกิดการสึกหรอซึ

่

งไม่ได้บกพร่องจากการผลิต

e) ไม่มีเอกสารการจัดซื

้

อที

่

ถูกต้อง (ใบเสร็จรับเงิน ใบแจ้งหนี

้

หรืออื

่

น ๆ) เพื

่

อใช้ยืนยันวันที

่

ซื

้

อผลิตภัณฑ์

f) รุ่นและ/หรือหมายเลขของผลิตภัณฑ์ในใบสั

่

งซื

้

อไม่ตรงกับรุ่นและ/หรือหมายเลขที

่

แสดงบนผลิตภัณฑ์

4.โปรดสแกนคิวอาร์โค้ดเพื

่

อรับข้อมูลติดต่อหลังการขาย

5. บริการหลังการขาย (รวมถึงการรับประกันคุณภาพ) ในภูมิภาคต่างๆ ใช้ได้เฉพาะกับผลิตภัณฑ์ Dreame เวอร์ชันท้องถิ

่

นเท่านั

้

น โปรดติดต่อฝ่ ายบริการหลังการขายในภูมิภาคที

่

คุณซื

้

อผลิตภัณฑ์รุ่นขอ

งคุณเพื

่

อรับการสนับสนุน

163

Garansi

1. Dreame bertanggung jawab kepada konsumen atas setiap kurangnya kesesuaian pada bahan atau pengerjaan yang tidak terdeteksi pada waktu pembelian.

2. Masa garansi: harap kunjungi kantor layanan pelanggan untuk mendapatkan informasi selengkapnya. Jika di wilayah tempat konsumen tinggal memiliki

regulasi yang berbeda, regulasi setempatlah yang berlaku.

3. Garansi tidak akan berlaku pada kasus berikut:

a) Bermasalah karena kecerobohan, penggunaan, atau pemasangan yang tidak mematuhi petunjuk yang diberikan oleh Dreame.

b) Mengubah dan/atau modikasi produk oleh entitas atau individu yang secara tidak jelas diizinkan oleh Dreame.

c) Kerusakan karena penyebab yang tidak disengaja dan/atau kelalaian yang sebagian disebabkan oleh pelanggan, khususnya pada komponen eksternal.

d) Komponen yang dapat aus yang tidak memiliki kecatatan produksi.

e) Tidak memiliki dokumen pembelian yang valid (tanda terima, faktur, atau lainnya) untuk mengonrmasi tanggal pembelian produk.

f) Model dan/atau nomor produk pada sertikat pembelian tidak sama dengan model dan/atau nomor yang tertera di produk.

4. Pindai kode QR untuk memperoleh informasi kontak purnajual.

5. Layanan purnajual (termasuk garansi kualitas) di berbagai wilayah hanya berlaku ke produk Dreame versi lokal. Harap menghubungi layanan purnajual di

wilayah tempat versi produk berasal untuk mendapatkan bantuan.

https://global.dreametech.com

Website:

EU-A01

For more support, contact us via https://global.dreametech.com

Manufactured by: Dreame Trading (Tianjin) Co., Ltd.

Made in China

Theword"dreame"istheabbreviationofDreameTechnologyCo.,Ltd.andits subsidiaries inChina.Itisthetransliterationofthecompany's

Chinesename" 追觅 ", which meansstrivingforexcellenceineveryendeavorandreectsthecompany's visionofcontinuouspursuit,

explorationand searchintechnology.

Dreame L40S ULTRA Robot Vacuums

Product's Documents

User manual

Specifications

Dreame L40S ULTRA Questions and Answers

Related Products

Dreame D20 Robot Vacuums

Dreame L50S ULTRA Robot Vacuums

Dreame X50S ULTRA Robot Vacuums

Dreame D20 PLUS Robot Vacuums

Dreame D20 PRO Robot Vacuums

Dreame L50 ULTRA Robot Vacuums
