X50s Series
Robot Vacuum and Mop with
Auto-Empty and Mop Self-Cleaning
User Manual
1
Usage Restrictions
Safety Information
·
This product should not be used by children younger than 8 years old nor
persons with physical, sensory, intellectual deficiencies, or limited experience
or knowledge without the supervision of a parent or guardian to ensure safe
operation and to avoid any risks. Cleaning and maintenance shall not be
performed by children without supervision.
·
The appliance is only to be used with the power supply unit provided with the
appliance.
·
This appliance contains batteries that are only replaceable by skilled persons.
·
Clear the area to be cleaned. Children shall not play with the appliance.
Ensure children and pets are kept at a safe distance from the robot while it is
operating.
·
Do not install, charge or use the appliance in the bathrooms or around the
pools.
·
This product is for floor cleaning in a home environment only. Do not use it
outdoors, on non-floor surfaces, or in a commercial or industrial setting.
·
Ensure that the appliance operates correctly in a proper environment.
Otherwise, do not use the appliance.
·
If the power cord is damaged, it must be replaced by a special cord or
assembly available from the manufacturer or its service agent.
To avoid electric shock, re or injury caused by improper use of the appliance, please read the user manual carefully before
using the appliance and keep it for future reference.
2 3
Usage Restrictions
Safety Information
·
Do not use the robot in an area suspended above ground level without a
protective barrier.
·
Do not place the robot upside down. Do not use the LDS cover, robot cover, or
bumper as a handle for the robot.
·
Use the robot in environments with an ambient temperature above 0°C and
below 40°C. Make sure there is no liquid or sticky substance on the floor.
·
To prevent damage or harm from dragging, clear any loose objects from the
floor, and remove cables or power cords on the cleaning path before operating
the appliance.
·
Remove fragile or small items from the floor to prevent the robot from bumping
into and damaging them.
·
Keep hair, fingers, and other body parts away from the suction opening of the
robot.
·
Keep the cleaning tool out of reach of children.
·
Do not operate the appliance in a room where an infant or child is sleeping.
·
Do not place children, pets, or any item on top of the robot regardless of
whether it is stationary or moving.
·
Only clean water and the officially-approved cleaning solution can be added
to the clean water tank. Do not add any other liquid such as alcohol or
disinfectant. The ratio of the cleaning solution to clean water can be checked
on the cleaning solution bottle. Keep the cleaning solution out of reach of
children.
Safety Information
Batteries and
Charging
·
Do not use any third-party battery or base station. The robot can only be used
with the model RCXE0704 base station.
·
Do not attempt to disassemble, repair, or modify the battery or the base station
on your own.
·
Do not place the base station near a heat source.
·
Do not use a wet cloth or wet hands to wipe or clean the base station's
charging contacts.
·
Do not use the robot to clean any burning objects. Do not use the robot to pick
up flammable or combustible liquids, corrosive gases, or undiluted acids or
solvents.
·
Do not vacuum hard or sharp objects. Do not use the appliance to pick up
objects such as stones, large pieces of paper or any item that may clog the
appliance.
·
Plug must be removed from the socket-outlet before cleaning or maintaining
the appliance.
·
Do not wipe the robot or the base station with a wet cloth or rinse them with
any liquid. After cleaning washable parts, fully dry the parts before reinstalling
and using them.
·
Please use this product in accordance with the instructions in the User Manual.
Users are responsible for any loss or damage that arise from improper use of
this product.
Usage Restrictions
4 5
Circular Status Indicator
·
Solid Blue: Cleaning (needs to be enabled in
the App) or cleanup completed
·
Solid Green: Charging
·
Blinking Orange: Error
Button Status Indicator
·
Solid White: Cleaning or cleanup completed
·
Breathing White: Charging (not low battery)
·
Solid Orange: Awaiting at low battery or
paused at low battery
·
Breathing Orange: Charging (low battery)
·
Blinking Orange: Error
Dock Button
·
Press to send the robot back to
the base station
·
Press and hold for 3 seconds to
disable Child Lock
Power / Clean Button
·
Press and hold for 3 seconds to
turn on or off
·
Press to start cleaning after the
robot is turned on
Note:
·
Press any button on the robot to pause while the robot is cleaning or returning to charge.
·
Child Lock can be enabled/disabled through the Dreamehome App.
·
The VersaLift sensor will be lowered when the robot is awaiting, charging on the base
station, or cleaning low-clearance areas. In the case of cleaning low-clearance areas, do
not move the robot as it may affect its positioning.

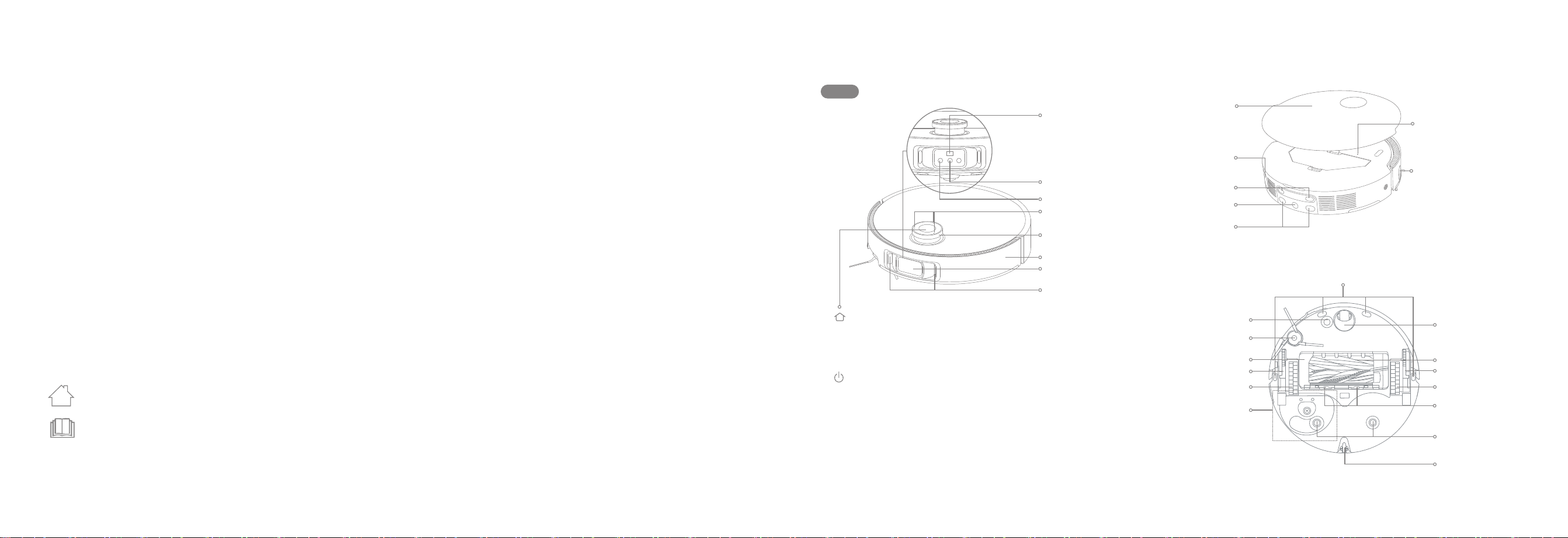

Robot
Product Overview
Cli Sensors
Main Wheel
Main Brushes
Retractable Leg
Retractable Leg
Omnidirectional Wheel
Brush Guard
Main Wheel
Caster Wheel
Mop Pad Holder
Mounting Holes
Side Brush Extension
Assembly
Carpet Sensor
Microphones
VersaLift Sensor
Bumper Window
Bumper
3D Dual-Line Laser Sensors
AI HD Camera
AI IR Camera
Cover
Charging Contacts
Connectors
Automatic Water
Relling Inlet
Reset Button/Wi-Fi Indicator
·
Press and hold for 3 seconds
to restore to factory settings
Edge Sensor
Auto-Empty Vent
MopExtend
Assembly
LED Auxiliary Light
Brush Guard Clips
·
The laser sensor in this product meets the IEC 60825-1:2014/EN 60825-1:2014/
A11:2021 Standard for Class 1 laser products. Please avoid direct eye contact
with it during use.
CLASS 1 LASER PRODUCT
CONSUMER LASER PRODUCT
EN 50689:2021
Batteries and
Charging
Laser Safety
Information
Safety Information
Hereby, Dreame Trading (Tianjin) Co., Ltd. declares that the radio equipment type RLX83LE/RLX84LE is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: https://global.dreametech.com
For detailed e-manual, please go to https://global.dreametech.com/pages/user-manuals-and-faqs
·
Do not improperly dispose of old batteries. Unneeded batteries should be
discarded at an appropriate recycling facility.
·
If the power cord becomes damaged or broken, stop using it immediately and
contact after-sales service.
·
Make sure the robot is turned off when being transported and kept in its
original packaging if possible.
·
If the robot will not be used for an extended period of time, fully charge it, then
turn it off and store it in a cool, dry place. Recharge the robot at least once
every 3 months to avoid over-discharging the battery.
For indoor use only
Read operator's manual
6 7

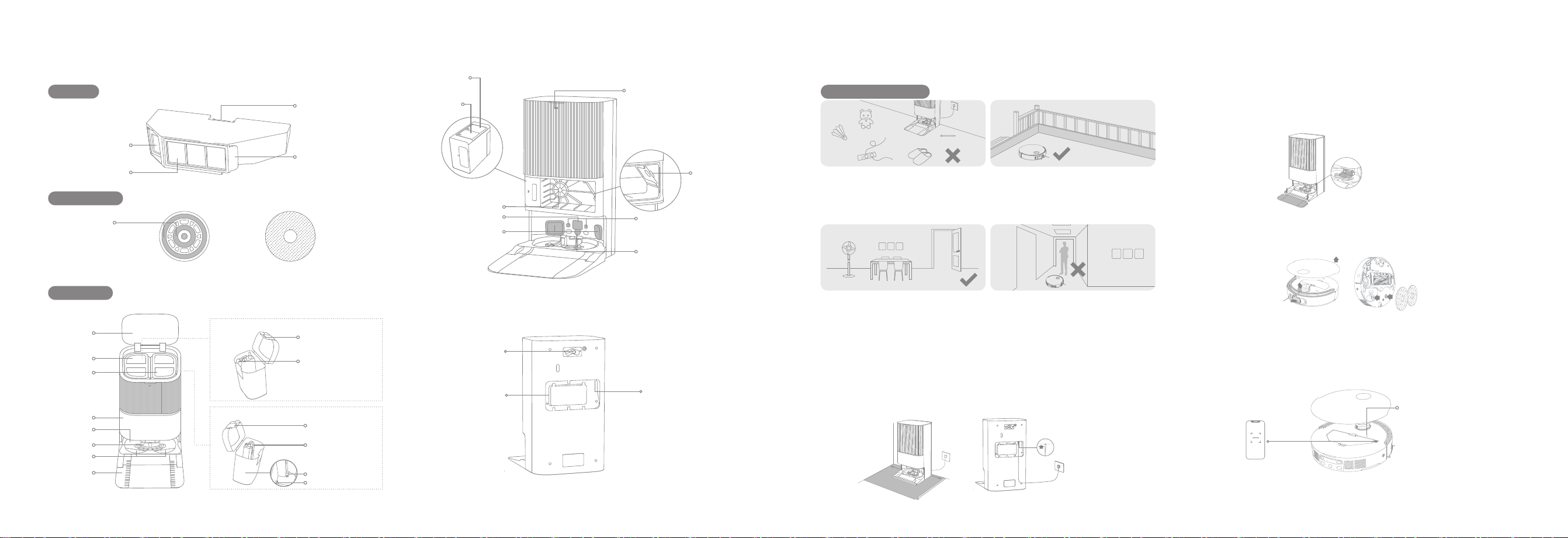

Dust Box
Mop Assembly
Base Station
Mop Pad
Attachment Area
Mop Pad Holder Mop Pad
Filter
Auto-Empty Vent
Dust Box Clip
Filter Clip
Washboard
Washboard Filter
Ramp Extension
Plate
Used Water Tank
Cover
Clean Water Tank
Water Tank Clip
Water Tank Clip
Float Ball
Water Pipe
Used Water Tank
Clean Water Tank
Dust Tank Cover
Filter
Floater
Filter
Auto Solution Dispenser
Module - Dual Compartment
Compartment A for
Cleaning Solution
Compartment B for
Multifunctional Solution
Dust Bag Slot
Reserved Slot for
Connecting the Water
Hookup Kit for Auto
Relling and Draining
Power Cord Storage Slot
Power Port
Auto-Empty Vents
Signaling Area
Charging Contacts
Automatic Water Adding Outlet
Note: The water hookup kit for auto refilling and draining needs to be purchased
separately. (Only available in specific regions)
Note: The module can be replaced with a single-compartment version to accommodate
a larger capacity of cleaning solution. If needed, it can be purchased through official
channels.
Status Indicator
·
Solid White: The base station is
connected to power
·
Solid Orange: The base station
has an error
·
Solid Blue: UV light is working
Heating Module
Before cleaning, please move away unstable,
fragile, valuable or dangerous items, and clean
up cables, cloths, toys, hard objects and sharp
objects on the ground to avoid being entangled,
scratched or knocked over by the robot and
causing losses.
Open the door of the room to be cleaned, and
put the furniture in its proper place to leave
more space.
To prevent the robot from missing areas that
need to be cleaned, do not stand in front of the
robot, threshold, hallway, or narrow places.
Before cleaning, place a physical barrier at
the edge of the stairs to ensure the secure and
smooth operations of the robot.
Note:
·
When operating the robot for the first time, follow it around while cleaning to remove any potential
obstacles in time.
·
The LED auxiliary light will provide auxiliary lighting in dimly lit environments.
·
Do not vacuum hard objects like stones, steel balls and toy parts, or sharp objects like construction waste,
broken glass and nails, otherwise the ground may be scratched.
1. Place the Base Station and Connect to an Electrical Outlet
Place the base station in a location that is as open as possible with a good Wi-Fi signal.
Leave enough space as shown in the gure and remove any objects in the shaded area.
Insert the power cord into the base station and plug it into the socket.
3. Remove Robot Protections and Install the Mop Assembly
Before Use
Firmly insert the power cord
upwards until the indicator
turns on.
＞ 5 cm
＞ 5 cm
＞ 1 m
③
②
①
2. Install the Ramp Extension Plate
Washboard Filter
Note:
·
Ensure that the washboard filter is installed into place before use.
·
The washboard filter can be removed for cleaning during routine maintenance.
Note:
·
Make sure that no objects might block the signaling area.
·
To prevent water stains from wetting wood floors or carpets, placing the base station on
tile floors or marble floors is recommended.
Important Information
4. Connect with the Dreamehome App
（1）Press and hold the power button on the robot for 3 seconds to turn it on. Remove the
robot cover and scan the QR code on the robot, or search "Dreamehome" in the app store
to download and install the app.
（2）Open the Dreamehome App, tap "Scan QR code to connect", and scan the same QR
code on the robot again to add the device. Please follow the prompts to nish the Wi-Fi
connection.
Note:
·
Only 2.4 GHz Wi-Fi is supported.
·
To reset Wi-Fi, repeat step (2) and then follow the prompts to finish the Wi-Fi connection.
·
Due to upgrades in the app software, the actual operations may differ from the directions in this manual.
Please follow the instructions based on the current app version.
·
To disconnect the device from Wi-Fi network, press and hold the Reset button on the robot for 3 seconds.
Wi-Fi Indicator
·
Blinking slowly: To be
connected
·
Blinking quickly: Connecting
·
On: Connected
QR Code
Product Overview
8 9

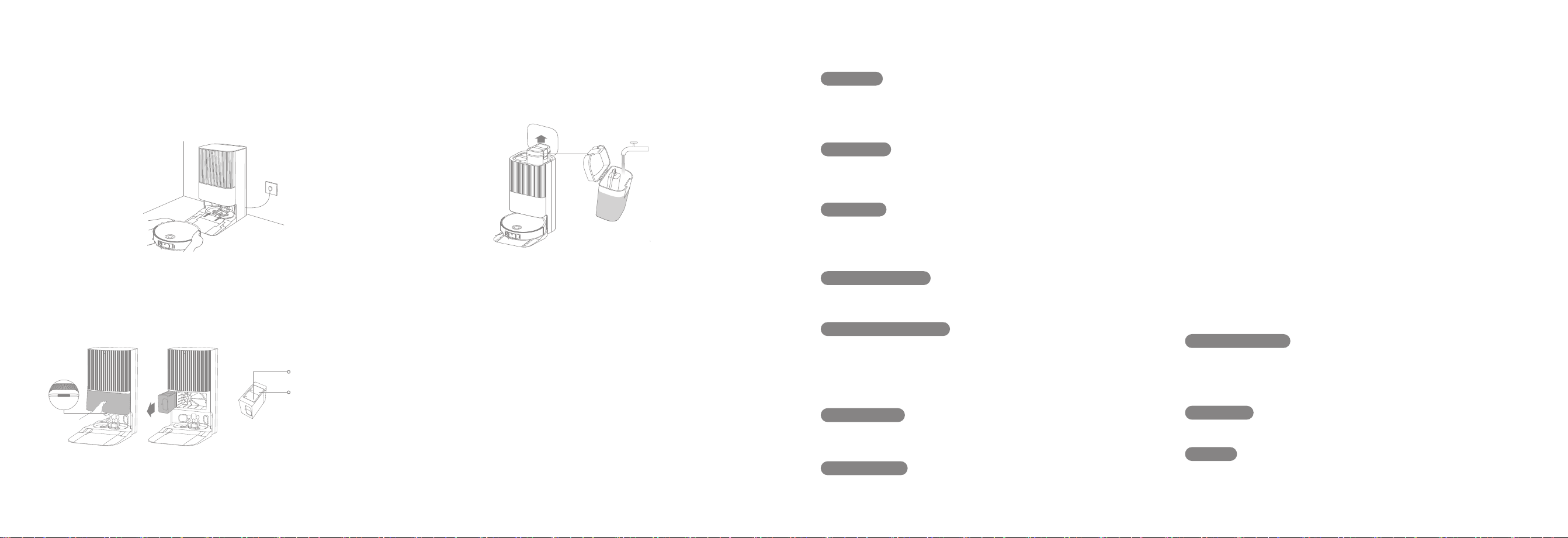

5. Connect the Robot to the Base Station
Place the robot onto the base station with the mop assembly facing toward the
washboard. Then you will hear a voice notication when the robot successfully connects to
the base station. After the robot is fully charged, the status indicators on the robot and the
base station will remain lit for 10 minutes and then dim.
Before Use
Note: It is recommended to fully charge the robot before its first use. When the robot cannot be turned on
after the battery is depleted, manually connect the robot with the station to charge it.
6. Add the Cleaning Solution and Pet Odor Solution
（1）Remove the dust tank cover and pull out the auto solution dispenser module.
（2）Open the upper lids of the module. Add the cleaning solution to compartment A and
pet odor solution to compartment B.
（3）Close the lids of the module, put it back into the base station, and then reinstall the
dust tank cover. The solutions will be added automatically while working.
Note:
·
Do not mix or interchange the solutions for both compartments to prevent malfunction.
·
The auto solution dispenser module can be filled up for use. Do not add any liquids that are not officially-
approved to prevent malfunction.
·
Install the auto solution dispenser module until it clicks into place.
7. Add Water to the Clean Water Tank
Take out the clean water tank from the base station and ll up the tank with clean water.
Then install it back into the base station.
Note: Do not add hot water into the water tank, as this may cause the tank to become deformed.
Compartment A:
Cleaning Solution
Compartment B:
Pet Odor Solution
How to Use
Press and hold the power button for 3 seconds to turn on the robot. The power indicator
will remain lit. Or, place the robot onto the base station by aligning the charging contacts
of the robot with those of the base station, and then the robot will turn on automatically
and begin charging. To turn o the robot, move the robot away from the base station and
press and hold the power button for 3 seconds.
Turn On/O
1. Start cleaning
Press the power button on the robot, or use the app to make the robot start from the base
station. Then the robot will plan the optimal cleaning route and perform the cleaning task
based on the created map.
Note: After installing the mop assembly, the robot will operate in "Vacuum and Mop" mode by default during
its rst use.
Vacuum and Mop
When the robot is running, press any button to pause it.
If the robot is paused for more than 10 minutes, it automatically enters sleep mode. All
indicators on the robot will turn o. Press any button on the robot, or use the app to wake
up the robot.
Note: If the robot is paused and placed onto the base station, the current cleaning process will end.
Pause/Sleep
After conguring the network for the rst time, follow the instructions in the app to quickly
create a map. The robot will start mapping without cleaning. When the robot returns to
the base station, the mapping process has been completed and the map will be saved
automatically.
Fast Mapping
If the battery is too low, the robot will automatically return to the base station to charge.
After charging to the appropriate battery level, it will resume unfinished cleaning tasks.
Note: To use this function, please enable it in the app.
Auto Resume Cleaning
If the robot stops responding or cannot be turned o, press and hold the power button for
10 seconds to forcefully turn it o. Then, press and hold the power button for 3 seconds to
turn the robot on.
Robot Restarting
When the robot is set to the Do Not Disturb (DND) mode, the robot will be prevented from
resuming cleaning. The DND mode is disabled by default at the factory. You can use the
app to enable the DND mode or modify the DND period. The DND period is 22:00-8:00 by
default.
Do Not Disturb (DND) Mode
Note:
·
The scheduled cleaning tasks will be performed as usual during the DND period.
·
The robot will resume cleanup where it left off after the DND period expires.
4. Clean the used water tank
After the robot has completed its task, please clean the used water tank to prevent any
odor.
2. Auto mop washing
When cleaning, the robot will automatically return to the base station to wash mop pads
based on the mop pad cleaning frequency specied in the app. The base station will
automatically rell the robot's water tank and the robot will resume cleanup.
Mop after Vacuuming
Enable the mopping after vacuuming function in the app, and the robot will automatically
remove the mop assembly on the base station to vacuum the oor. After vacuuming is
completed, the robot will return to the base station to install the mop assembly and the
base station will automatically empty the dust box. And then, the robot will start mopping
after the main brushes and side brush are raised.
Vacuum Only
Enable the vacuuming function in the app, and the robot will automatically remove the
mop assembly on the base station and start vacuuming.
Mop Only
Enable the mopping function in the app, and the robot will automatically check if the mop
assembly is installed on the base station. If not, the robot will install the mop assembly
and start mopping after the main brushes and side brush are raised.
Note:
·
To ensure the robot easily returns to the base station after cleaning, it is recommended
to make the robot start from the base station.
·
The mop pads will be cleaned before the robot starts mopping, please wait patiently.
·
Do not move the base station, the clean water tank, the used water tank, or the
washboard filter during operation.
·
To prevent scalding, do not touch the water outlet or heating module while the base
station is operating.
3. Automatically empty the dust box and wash and dry the mop pads
After the robot nishes a cleaning task and returns to the base station to charge, the base
station will automatically empty the dust box and then wash and dry the mop pads.
Note:
·
If the auto-empty function is turned off in the app, the base station will not automatically empty the dust
box.
·
The base station will empty the dust box according to the setting in the app.
10 11

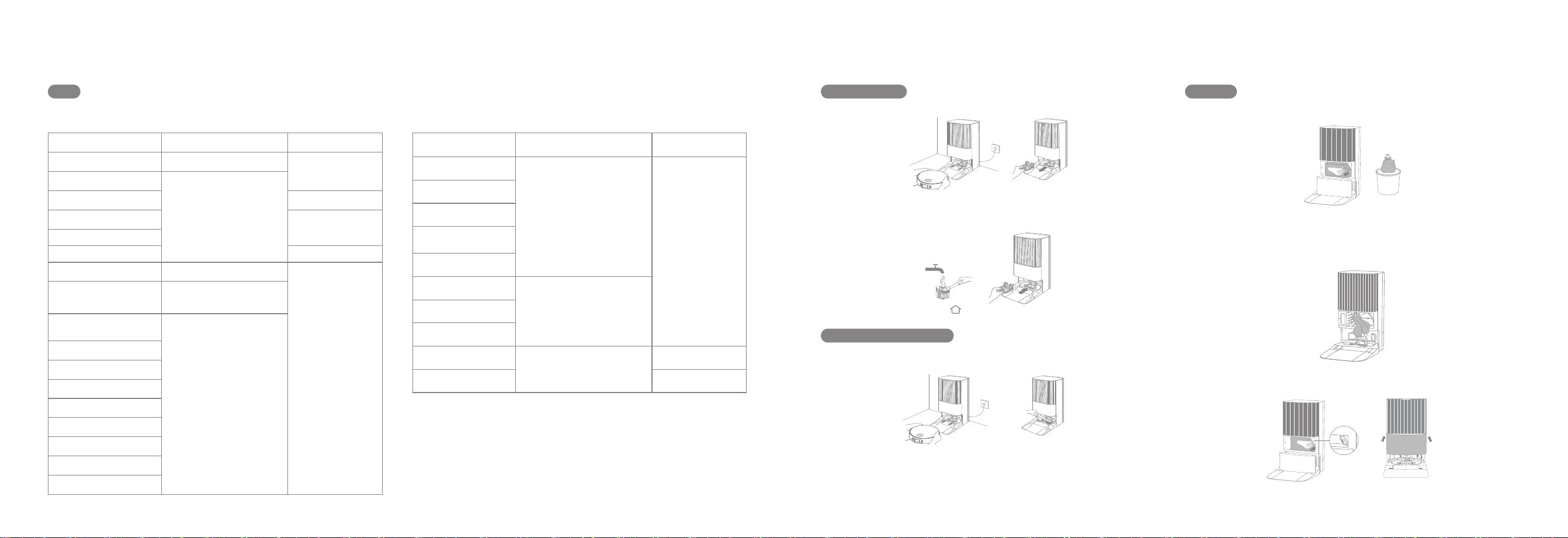

Parts
Routine Maintenance
Part Maintenance Frequency Replacement Period
Used water tank After each use
/
Clean water tank
Once every 2 weeks
Main brushes 6 - 12 个月
Dust box's lter
3 - 6 个月
Side brush
Mop pad holders /
Washboard lter Once every 1 to 2 months
/
Washboard heating
module
Once every 6 months
Base station's signaling
area
Once every month
Charging contacts
Auto-empty vents
Omnidirectional wheel
Caster wheel
Edge sensor
VersaLift sensor
3D dual-line laser sensors
Carpet sensor
Part Maintenance Frequency Replacement Period
Cli sensors
Once every month
/
Bumper window
Bumper
Robot's automatic
water relling inlet
Bottom of the robot
Dust box
Clean it as neededMain wheels
Retractable legs
Dust bag
/
Every 2 to 4 months
Mop pads Every 1 to 3 months
Note: The frequency of maintenance and replacement depends on actual usage. If an exception occurs due
to special circumstances, prompt maintenance or replacement is recommended.
To keep the robot in good condition, it is recommended to refer to the accessory usage in the app or the following table for routine maintenance.
Routine Maintenance

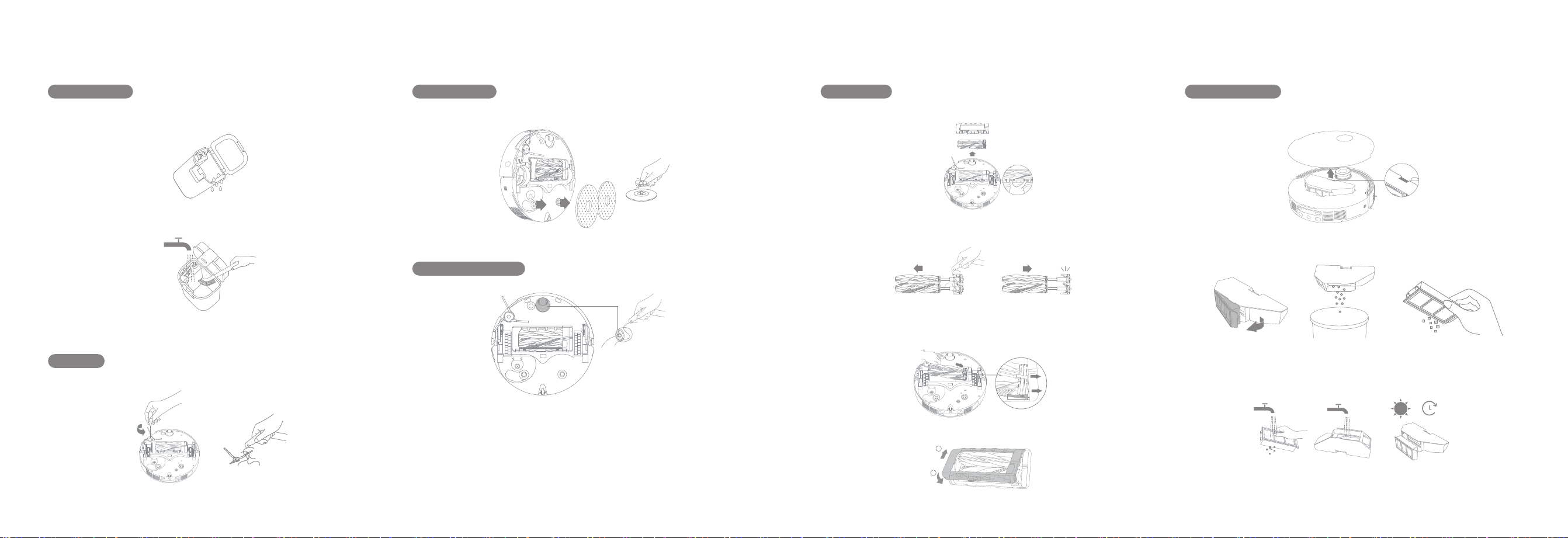

1. Take out the robot and remove the washboard lter after the mop pad cleaning is
complete.
2. Rinse the washboard lter with clean water, wipe it clean, and then reinstall it in the
washboard.
During use, the washboard heating module may develop scale. To remove it, take out the
robot, pour a small amount of white vinegar (5% acetic acid) on the surface of the heating
module and clean it with a proper tool.
3. Use the app or press the button to return the robot to the base station, or manually
put the robot back.
1. Remove the dust tank cover and discard the dust bag.
3. Install a new dust bag and reinstall the dust tank cover.
2. Remove the dust and debris from the lter with a dry cloth.
Note: Pulling upwards on the handle will seal the bag to prevent the dust and debris from accidentally
falling out.
Washboard Filter
Washboard Heating Module
Dust Bag
Note: The washboard heating module may retain residual heat. To prevent scalding, be careful when
removing the washboard filter.
Note:
·
To prevent scalding, wait until the surface of the heating module cools down to room temperature before
cleaning.
·
An appropriate descaler can also be used in accordance with the instructions it provides.
·
Do not add white vinegar or descaler directly into the clean water tank to help prevent malfunction.
·
Do not use sharp tools or corrosive liquids such as hydrochloric acid to clean the heating module.
12 13
Routine Maintenance
Note:
·
Use a tool such as a small screwdriver to separate the axle and tire of the omnidirectional wheel. Do not
use excessive force.
·
Rinse the omnidirectional wheel under the running water and put it back after drying it completely.
Remove and clean the mop pad holders.
Unscrew the side brush with a screwdriver, clean the hair from the brush, and then screw it
back on.
Side Brush
Mop Pad Holders
Omnidirectional Wheel
Note: The float ball in the used water tank is a movable part. Do not apply too much force when cleaning it
to avoid damaging it.
2. Rinse the used water tank with clean water, and use a proper tool to clean the inner wall
of the used water tank.
1. Remove the used water tank, open its cover and pour out the used water.
Used Water Tank
Routine Maintenance
Click
Note: Be careful while pulling out the main brushes to prevent injury.
2. Pull out the brushes as shown in the figure. Use a proper tool to remove any hair
tangled in the brushes. After cleaning, push the brushes rmly into the main brush holder
until they click into place.
1. Press the brush guard clips inwards to remove the brush guard, and then lift the brushes
out of the robot.
3. With the screen-printed arrows facing upwards, insert the main brush holder into the
slots downwards in an inclined way.
4. Align the front end of the brush guard with the slot, insert it downwards in an inclined
way, and then press it into place.
1
2
1. Remove the robot cover and press the dust box clip to remove the dust box.
2. Remove the dust box lter, and then empty the dust box. Gently tap the basket of the
lter to remove the dirt.
Note: Do not attempt to clean the filter with a brush, a finger or sharp objects to prevent damage.
3. Rinse the dust box and lter with water and dry them completely before reinstalling.
24h
Note:
·
Rinse the dust box and filter with clean water only. Do not use any detergent.
·
Use the dust box and filter only when they are completely dry.
Main Brushes Dust Box and Filter
14 15

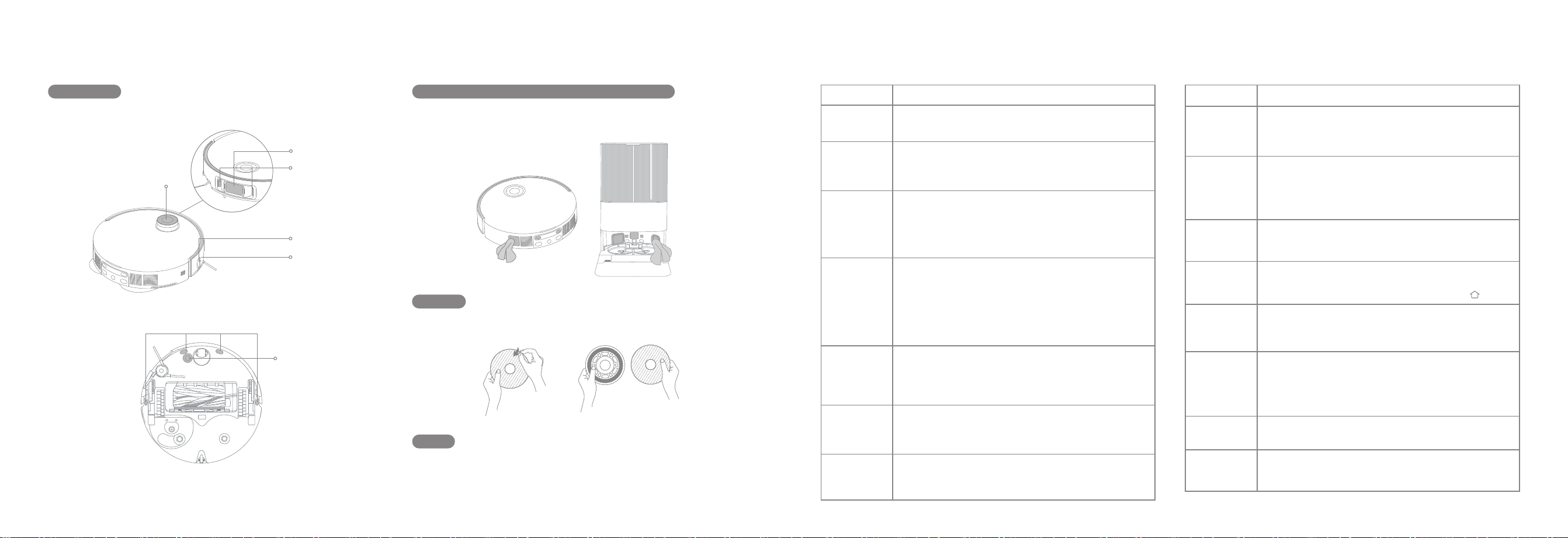

Clean the auto-empty vents, charging contacts and the signaling area with a soft and dry
cloth.
Remove the mop pads from the mop pad holders to replace them.
The robot contains a high-performance lithium-ion battery pack. Make sure that the
battery remains well-charged for daily use to maintain optimal battery performance. If
the robot is not used for an extended period of time, turn it o and put it away. To prevent
damage from over-discharging, charge the robot at least once every three months.
Auto-Empty Vents, Charging Contacts and Signaling Area
Mop Pads
Battery
Note: A wet cloth can damage sensitive elements within the robot and the base station. Please use a dry
cloth for cleaning.
Carpet Sensor
Cli Sensors
Edge Sensor
Bumper Window
3D Dual-Line Laser
Sensors
Bumper
VersaLift Sensor
Wipe the robot sensors by using a soft and dry cloth, as shown in the below gure:
Robot Sensors
Routine Maintenance
Problem Solution
The robot will
not turn on.
·
The battery is low. Recharge the robot on the base station and try again.
·
The temperature of the battery is too low or too high. It is recommended to use
the robot in environments with an ambient temperature above 0°C (32℉) and
below 40°C (104℉).
The robot will
not charge.
·
The base station is not connected to power, please make sure both ends of its
power cord are correctly plugged in.
·
The contact between the charging contacts on the base station and the robot is
poor, please clean the charging contacts.
·
Check whether there is any foreign object at the connectors of the robot and
remove the foreign object if any.
The robot fails
to connect to
Wi-Fi.
·
The Wi-Fi network password is incorrect. Make sure the password used to connect
to your Wi-Fi network is correct.
·
The robot does not support a 5 GHz Wi-Fi connection. Make sure the robot is
connected to a 2.4 GHz Wi-Fi connection.
·
The Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi
coverage.
·
The robot may not be ready to be configured. Please exit and re-enter the app,
and then try again as instructed.
The robot
cannot find
and return
to the base
station.
·
The route for returning to charge is blocked, e.g. the door is closed.
·
The base station is disconnected from power or moved when the robot is not on
it. Please connect the base station to the power supply or place the robot onto
the base station to charge.
·
There are too many obstructions around the base station. Place the base station
in a more open area.
·
Moving the robot may cause it to re-position itself, and it will recreate a map if re-
positioning fails. If the robot is too far from the base station, it might not be able
to automatically return on its own, in which case you will need to manually place
the robot onto the base station.
·
Wipe the signaling area on the base station to remove dust or debris.
The robot gets
stuck in front
of the base
station and
cannot return
to it.
·
Check whether there is enough space on both sides or in front of the base station
to prevent the robot from being blocked.
·
The robot may slip if the floor in front of the base station is overly wet. If so, clean
the excess water before trying again.
·
It is recommended to move the base station to a different place and try again.
·
Make sure the ramp extension plate is installed properly.
The robot will
not turn off.
·
The robot cannot be turned off when it is charging. It is recommended to move
the robot from the base station, and then press and hold the power button for 3
seconds to turn it off.
·
If the robot cannot be turned off by performing step 1, press and hold the power
button for 10 seconds to forcibly turn off the robot. If the problem persists, please
contact after-sales service.
The charging
speed is slow.
·
It takes about 4.5 hours to fully charge the robot when its battery is low.
·
If you operate the robot at temperatures outside of the specified range, the
charging speed will automatically slow down to extend the battery life.
·
The charging contacts on both the robot and the base station may be dirty,
please wipe them with a dry cloth.
Troubleshooting
Problem Solution
The noise
increases
while the
robot is
operating.
·
Check whether the dust box filter is clogged. If so, clean it or replace it.
·
A hard object may be caught in the main brushes or the dust box. Check and
remove any hard object.
·
The main brushes or the side brush may become tangled. Check and remove any
foreign objects.
·
Switch the suction mode to Standard or Quiet.
The robot
moves without
following the
set route.
·
Objects such as power cords and slippers should be organized before using the
robot.
·
Working on wet slippery surfaces causes the main wheel to slip. It is
recommended to dry the wet places before using the robot.
·
Wipe the bumper window and 3D dual-line laser sensors on the robot with a
clean, soft cloth to keep them clean and unobstructed.
The robot
misses the
rooms to be
cleaned.
·
Make sure that the doors of the rooms to be cleaned are open.
·
The place in front of the room to be cleaned may be wet and slippery, causing
the robot to slip and work abnormally. Please try drying the floor before using the
robot.
The robot will
not resume
cleaning after
charging.
·
Make sure that the robot is not set to the Do Not Disturb (DND) mode, which will
prevent it from resuming cleaning.
·
The robot will not resume cleaning after you manually place the robot on the
base station or send the robot to charge via the app or the button .
The station
cannot
automatically
empty the
dust box.
·
Check whether the dust bag in the dust tank is full.
·
If the dust bag is not full, check whether there is any obstruction at the auto-
empty vents of the robot, the base station, or the dust box. If any, clean the
blocked part in time.
The water
level in the
washboard is
abnormal.
·
Check whether the seal on the used water tank is loose or not correctly installed,
and manually reset it if so. If the problem persists, please contact the after-sales
service team.
·
Gently press down on the used water tank to make sure it is installed correctly.
·
Remove the washboard filter and check whether the sewage drain outlet is
blocked and clean it.
·
Check the cleaning solution. Do not add any liquid other than the officially-
approved cleaning solution.
The mop
pad holder
is raised
abnormally.
·
Please remove the mop pad holder to check if there is any foreign object stuck in
it, and try to restart the robot. If the problem persists, please contact the after-
sales service team.
There is water
under the
clean water
tank or around
the seal.
·
When taking out the clean water tank, some water in the pipe may be left under
the tank or around the seal. This is normal. Please wipe with a dry cloth.
For more support, contact us via https://global.dreametech.com
16 17
Note:
· Rated Power (during hot water cleaning) is determined by the power value during the representative
period (water temperature 25℃ ).
· Rated Power (during charging and drying) is determined by the power value during full load period
(ambient temperature 23℃ ± 2℃ ).
Model RCXE0704
Rated Input 220-240 V 50-60 Hz
Rated Output 20 V 2 A
Rated Power (during dust
emptying)
700 W
Rated Power (during hot
water cleaning)
640 W
Rated Power (during
charging and drying)
103 W
Specications
主机
Model RLX83LE/RLX84LE
Charging Time Approx. 4.5 hours
Rated Voltage 14.4V
Rated Power 75 W
Operation
Frequency
2400-2483.5 MHz
Maximum
Output Power
＜ 20 dBm
Robot Base Station
Under normal use of condition, this equipment should be kept a separation distance of at
least 20 cm between the antenna and the body of the user.
All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should
not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing
over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment,
appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative
consequences to the environment and human health. Please contact the installer or local authorities for more information
about the location as well as terms and conditions of such collection points.
WEEE Information
Battery Disposal and Removal
CAUTION:
Removal Guide:
The built-in lithium-ion battery contains substances that are hazardous to the environment. Before disposing of the battery, make sure the battery is removed
by qualied technicians and discarded at an appropriate recycling facility.
– the battery must be removed from the appliance before it is scrapped;
– the appliance must be disconnected from the supply mains when removing the battery;
– the battery is to be disposed of safely.
Before removing the battery, disconnect the power and run out the battery as much as possible.
Unneeded batteries should be discarded at an appropriate recycling facility.
Do not expose to high temperature environment to avoid risks of explosion.
Under abusive conditions, liquid may be ejected from the battery. If contact occurs, ush with water and seek medical help.
1. Turn over the robot, use a proper tool to remove the screws on the back of the robot, and then remove the cover.
2. Unplug the terminals between the battery and PCB board to remove the battery.
