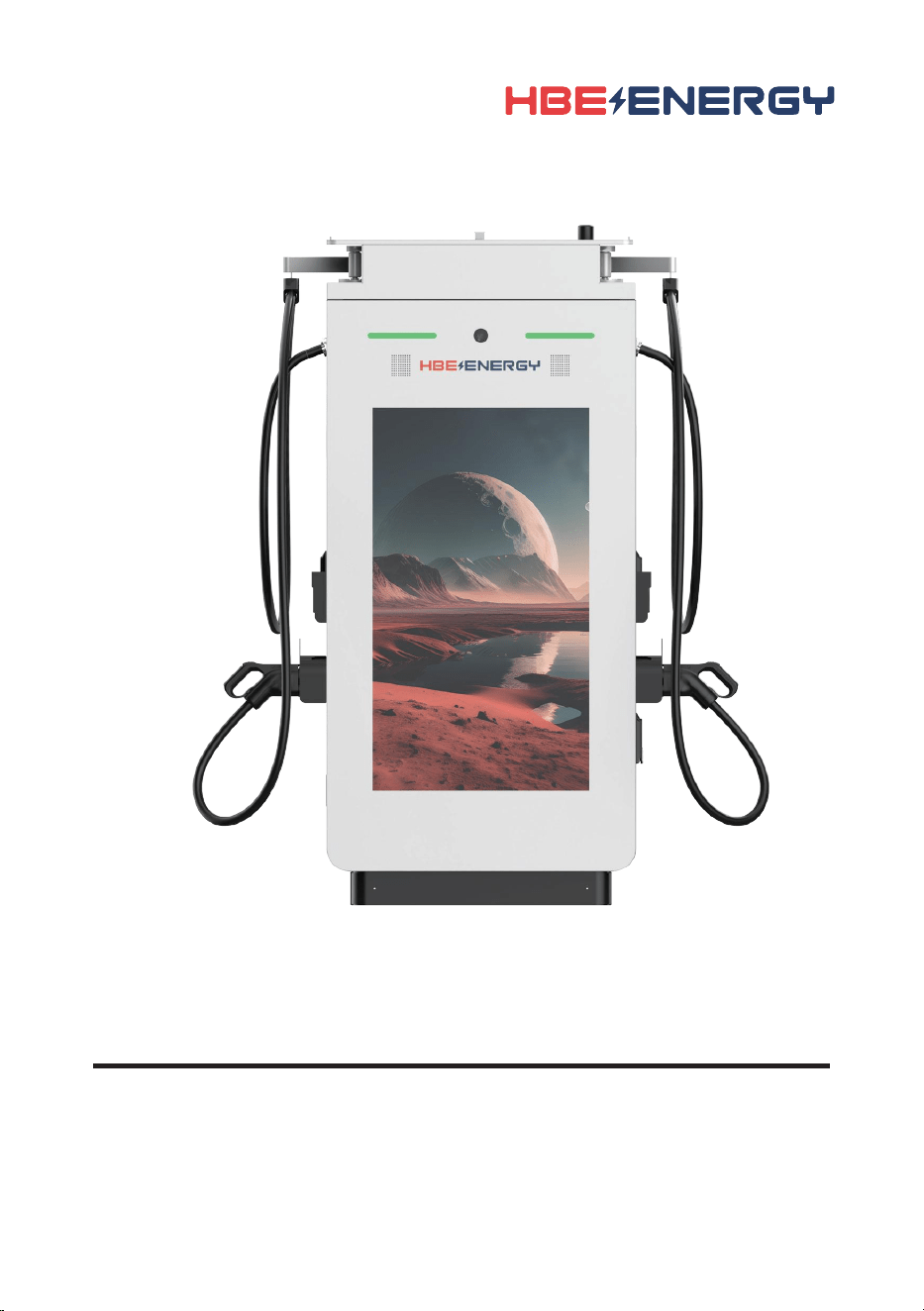

HBE-DC480KW-U-E155NW4GGX
Liquid-Cooled Charger User Manual
EV DC Charger

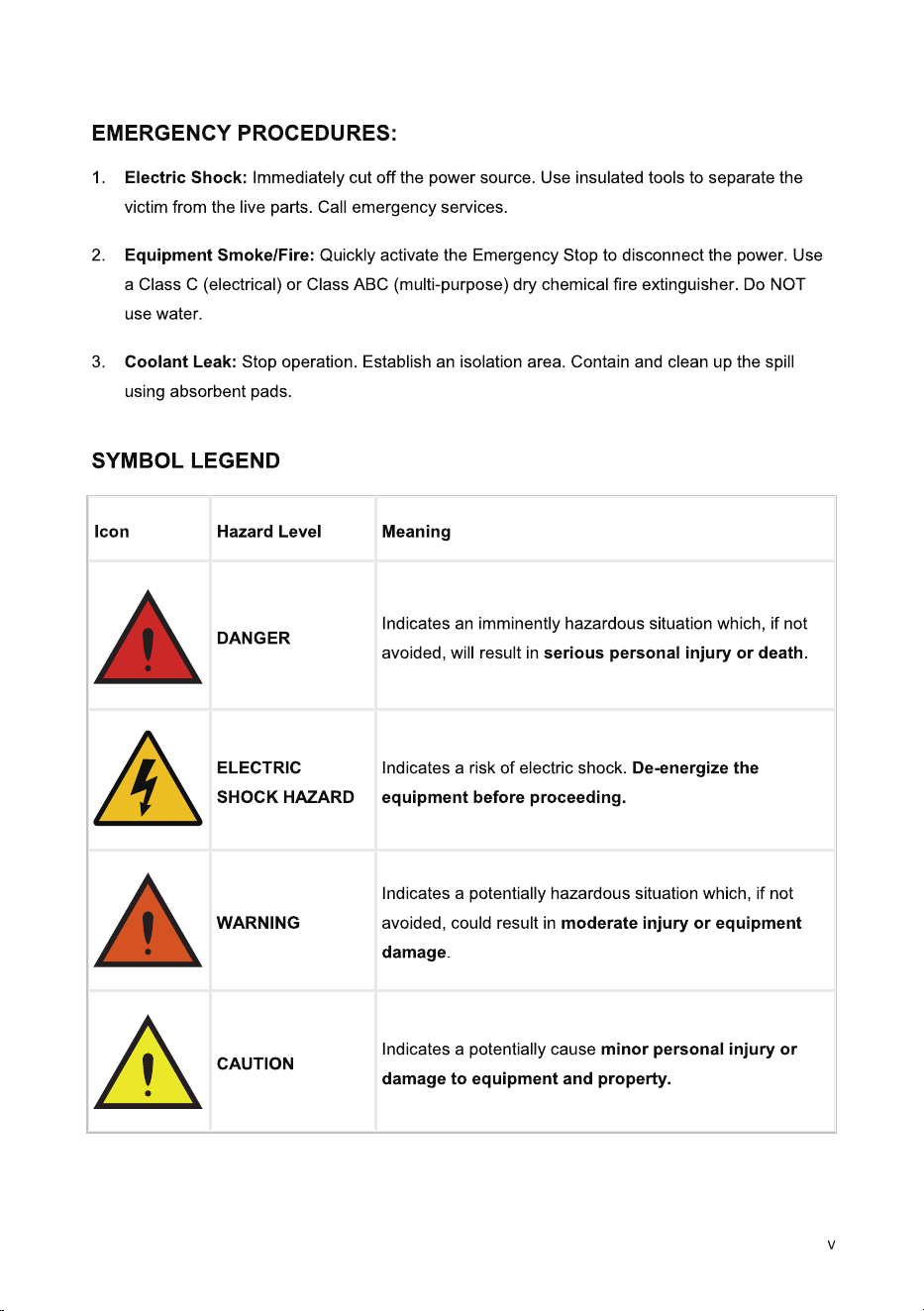

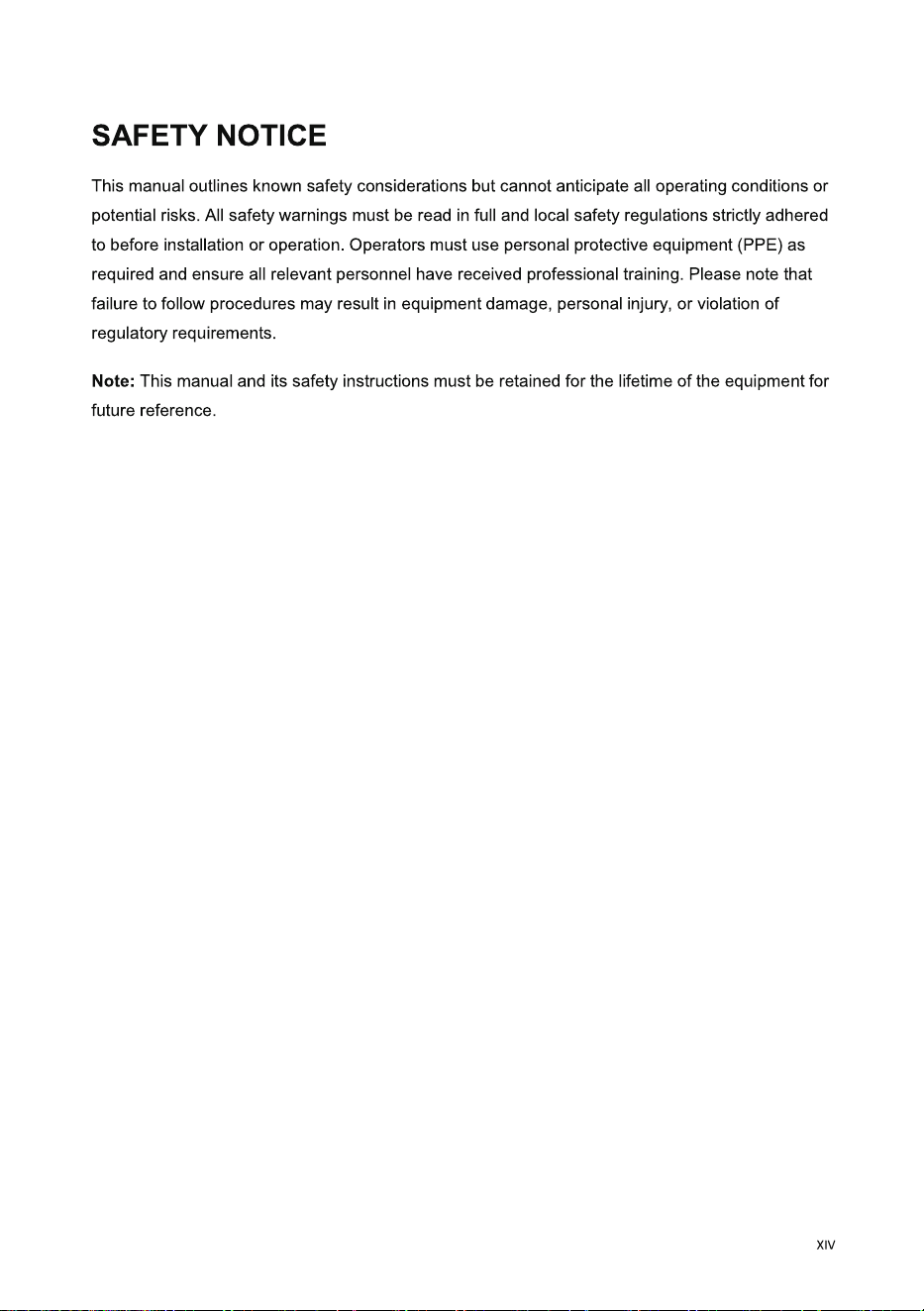

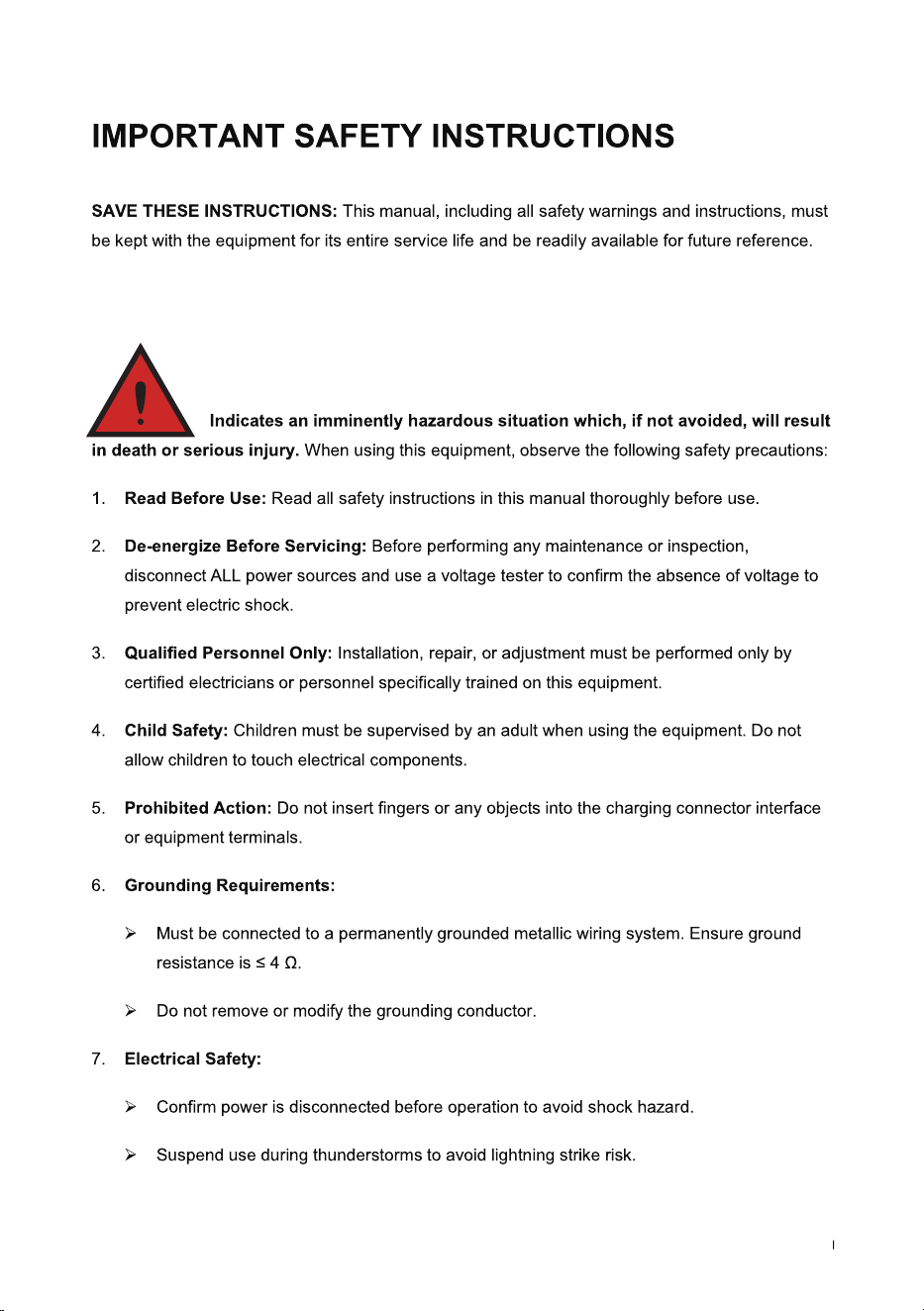

DANGER
WARNING
CAUTION
DANGER
DANGER
WARNING

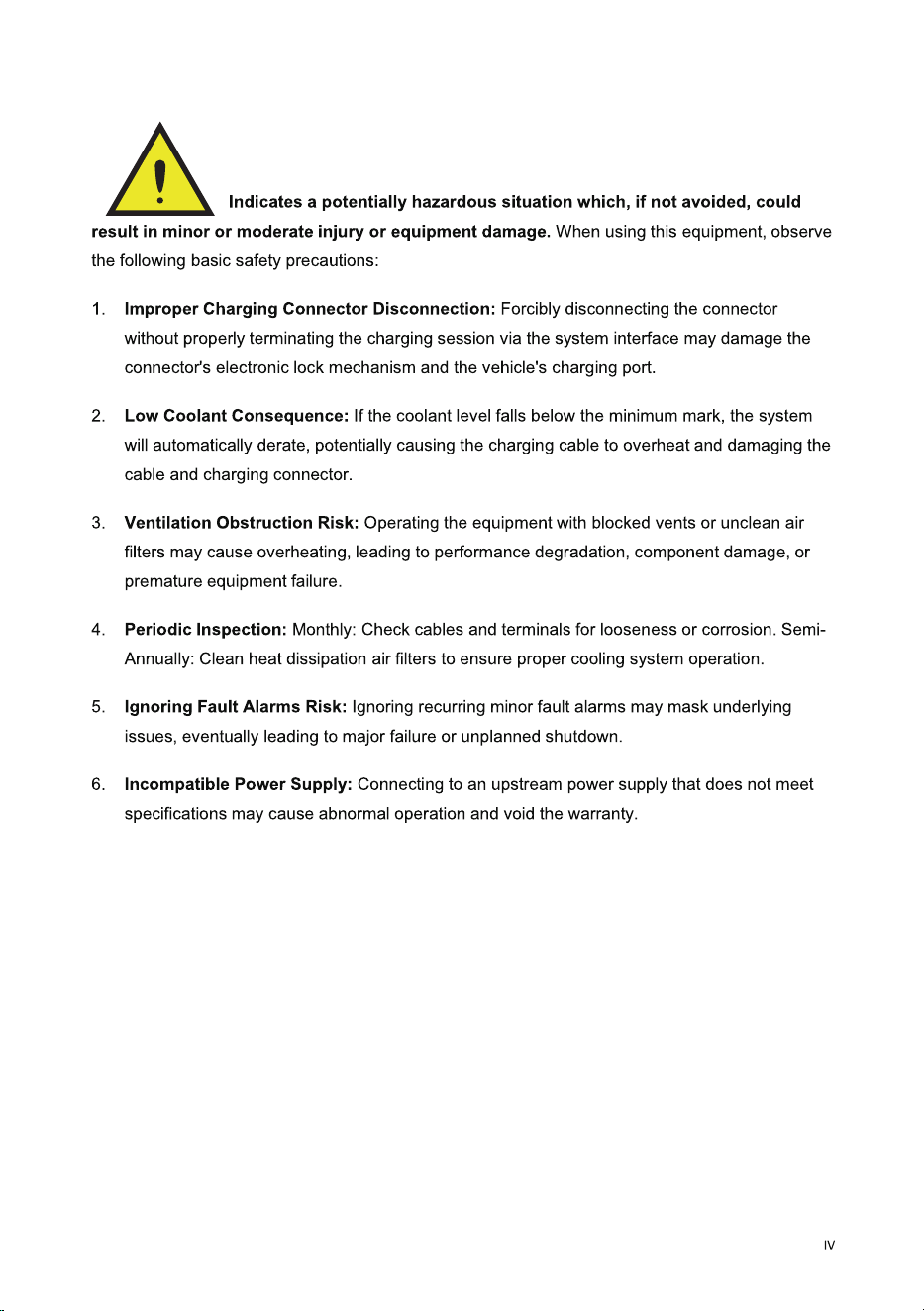

CAUTION

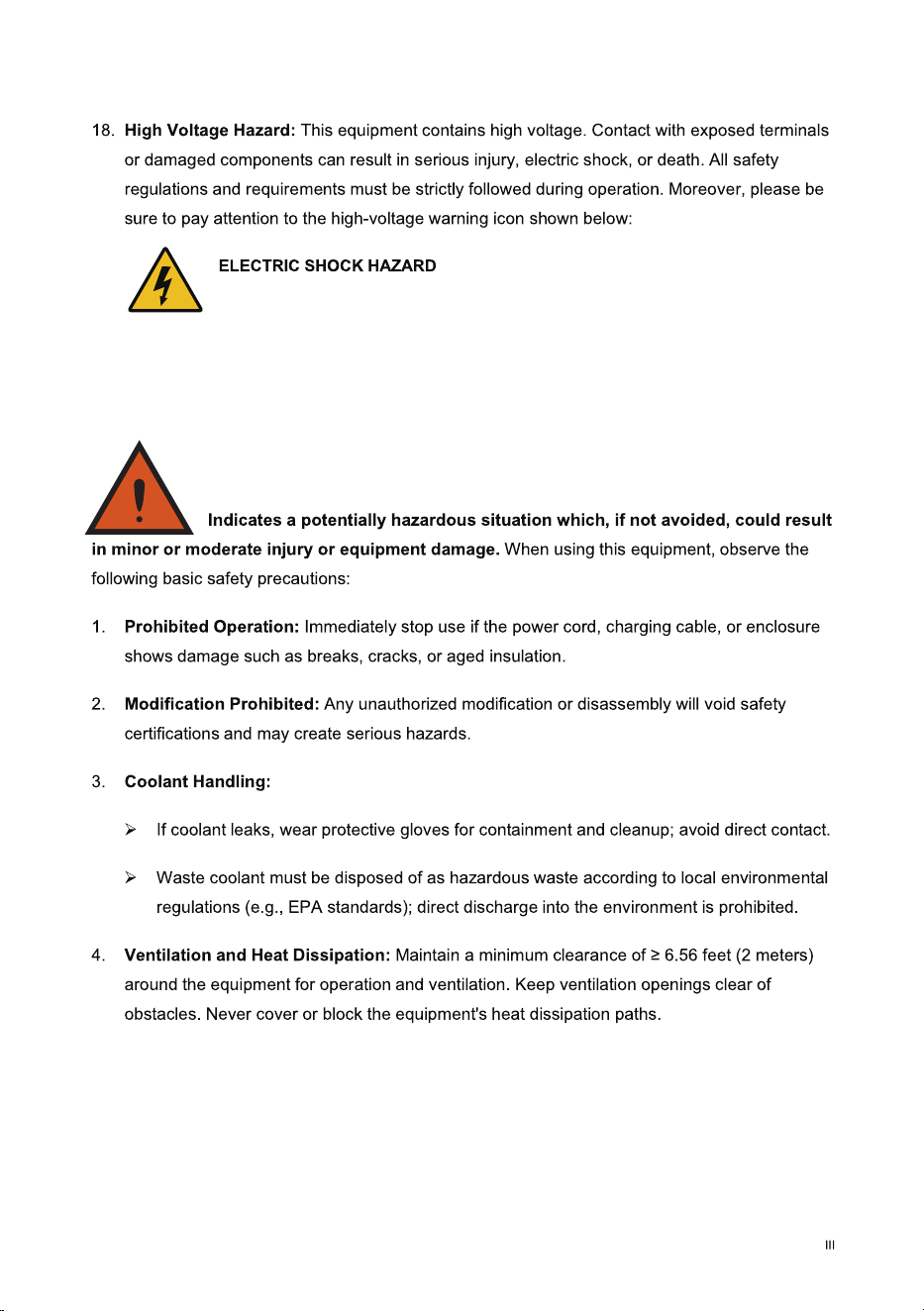

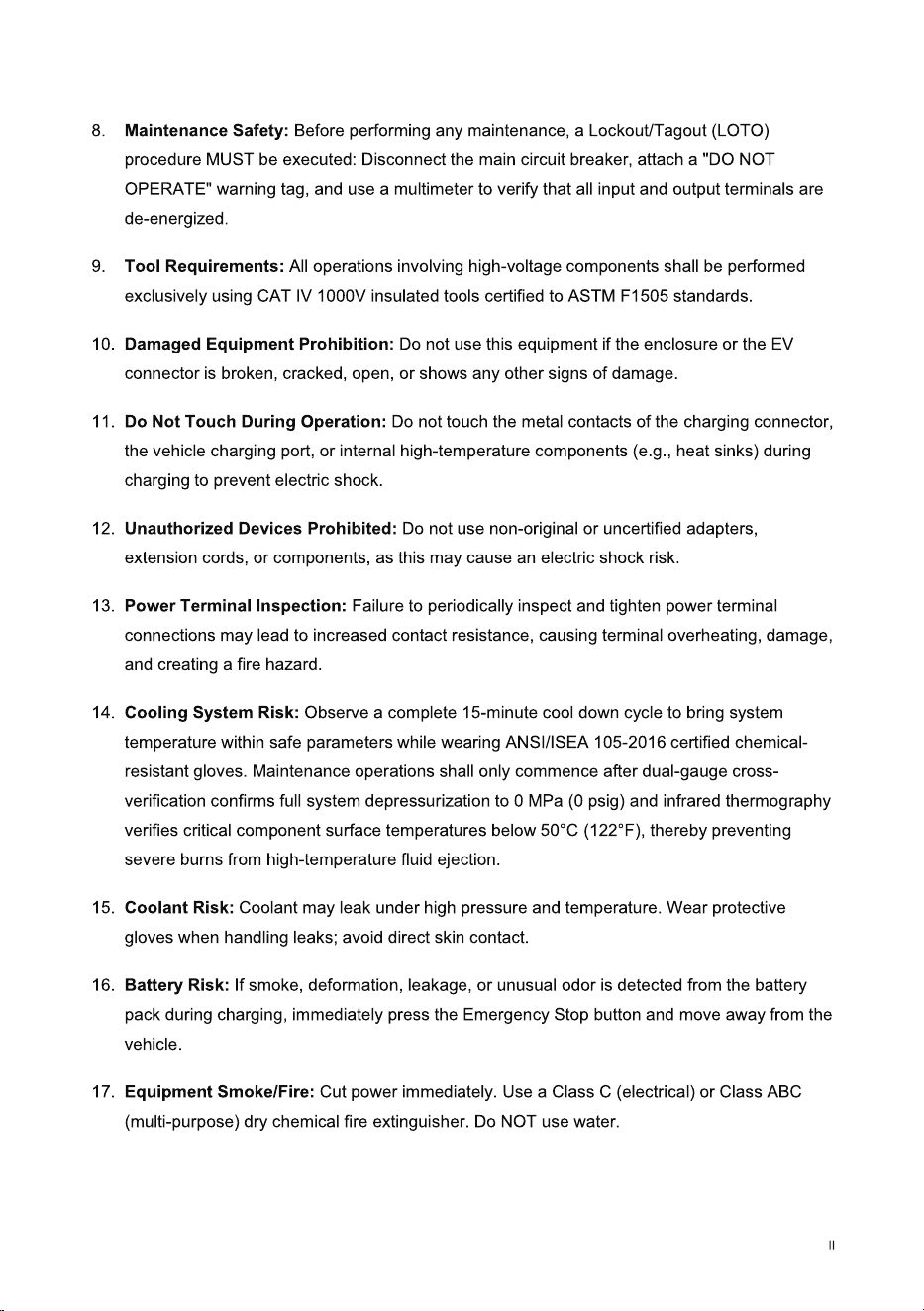

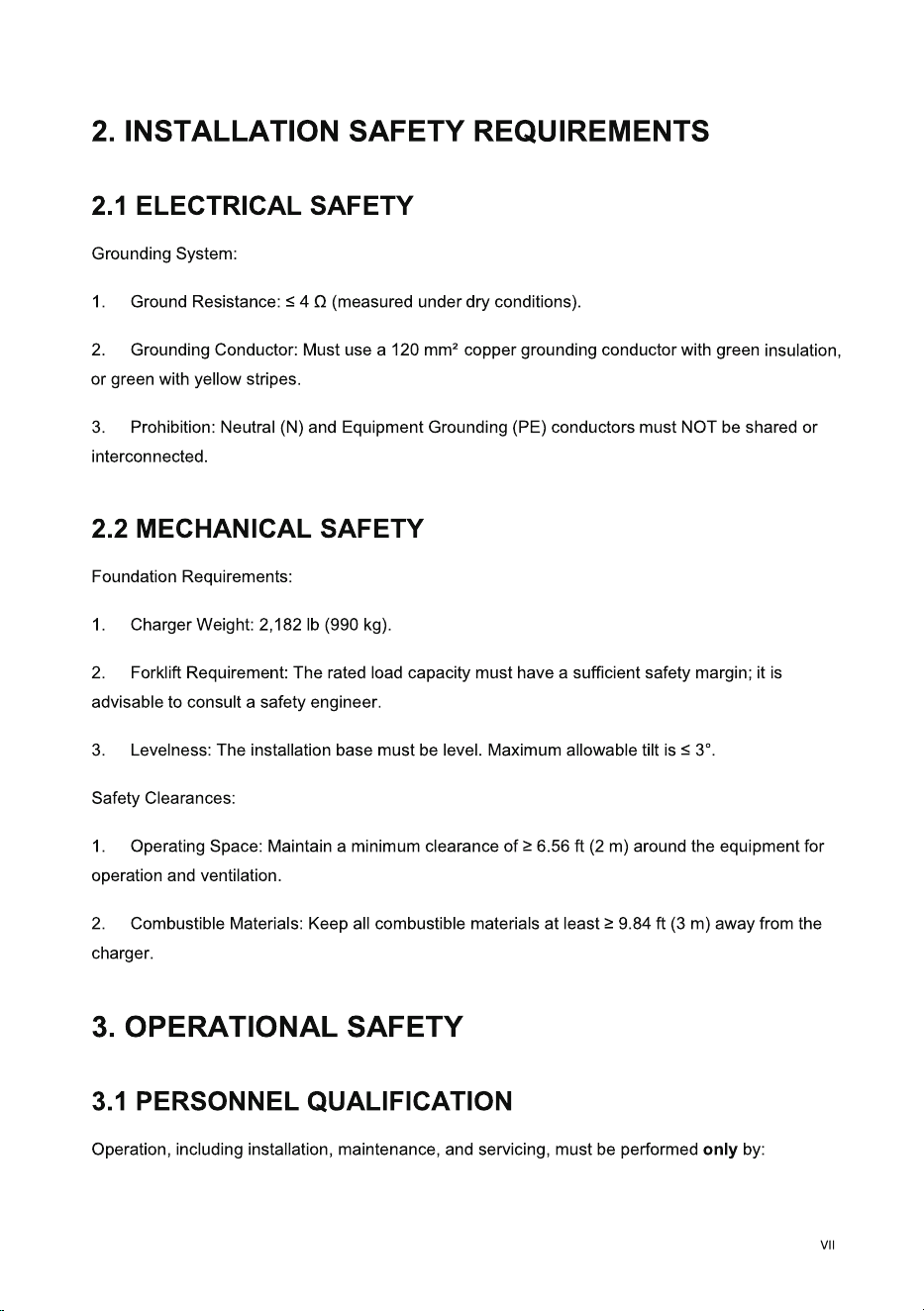

ELECTRIC SHOCK HAZARD
Failure to follow these safety instructions may result in personal
injury or death.
Failure to follow these safety instructions may result in moderate
injury or equipment damage.
Failure to follow these safety instructions may result in minor personal
injury or damage to equipment/property.
Failure to follow these safety instructions may result in
serious injury, electric shock, or death.
SERVICE AND SUPPORT— HBE LLC
Address : Zhengdaan Industrial Park, Yanluo Town, Baoan District, Shenzhen City, China
TEL: 0086-0755-29683009
Website: www.hbe-tech.com
Email: [email protected]
2026.02
The HBE-DC480KW-U-E155NW4GGX is an intelligent liquid-cooled DC ultra-charging equipment
specifically designed for extreme fast charging of electric vehicles. It integrates extreme fast
charging, intelligent interaction, and business expansion capabilities, redefining the commercial
charging experience. Its breakthrough 480kW liquid-cooled ultra-charging architecture, combined
with dual-connector dynamic power allocation technology (Dual-connector mode: single connector
120-360kW / Single-connector mode: up to 480kW), significantly reduces user waiting time and
markedly enhances station operational efficiency.
The charging cable of equipment adopts a liquid-cooling thermal design, supports stable operation
across a wide temperature range, and ensures the sustainability and reliability of high-power
output. Its front panel integrates a 55-inch dynamic advertising screen, creating additional revenue
streams for operators. The side-mounted two 10.1-inch high-definition touchscreens offer various
start methods including RFID, scan-to-pay, and POS terminal (optional). Moreover, compatible
with the OCPP 2.0.1 protocol, it supports remote OTA updates and real-time monitoring.

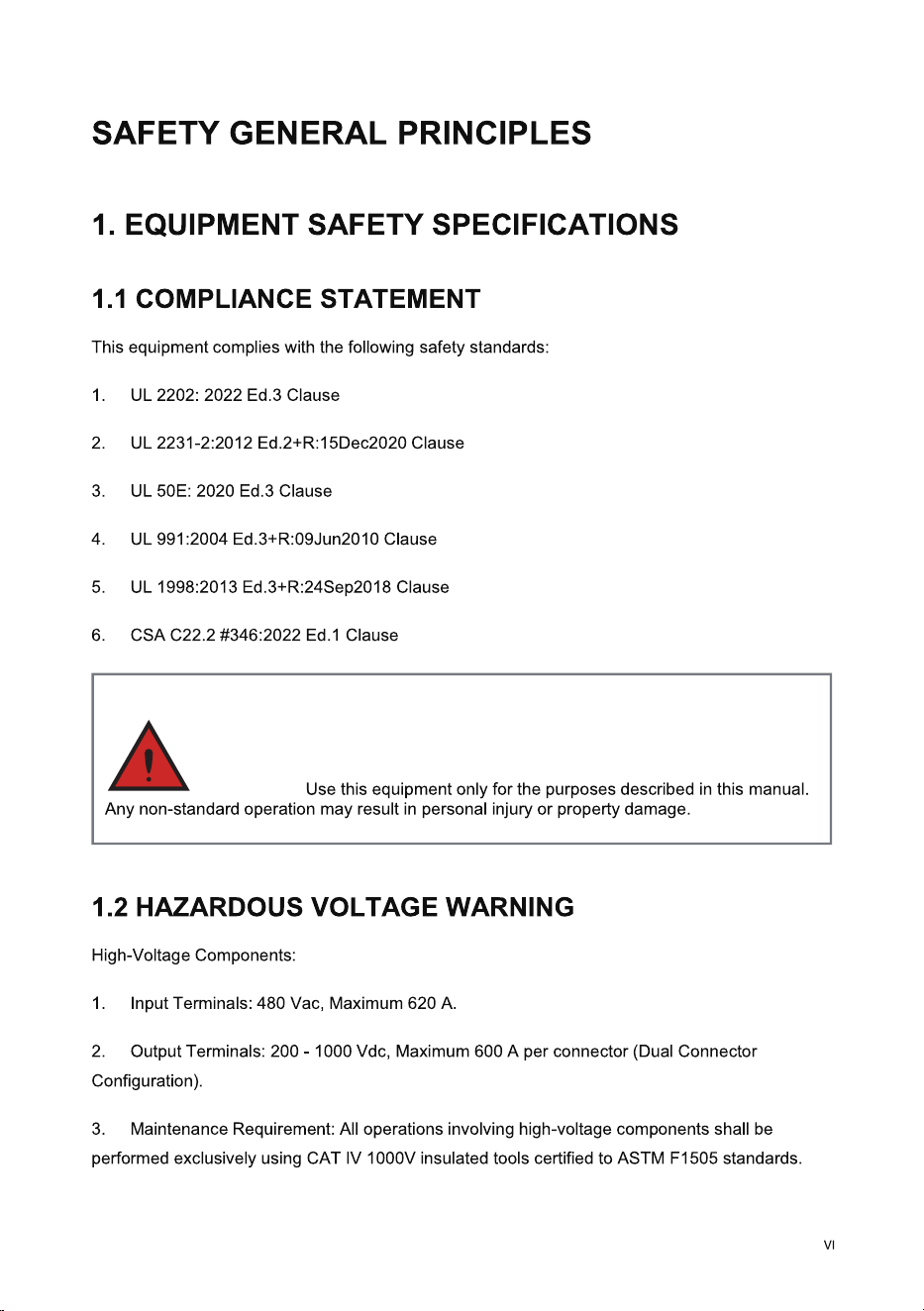

Regarding safety, this equipment strictly adheres to international safety standards such as UL
2202 and UL 2231. It features multiple electrical protections including over-voltage, under-voltage,
surge, and insulation anomaly protection. An integrated emergency stop button, electronic door
lock, along with reliable structural designs like front door limiters and right-angle power terminals,
comprehensively ensure the safety of personnel and equipment.

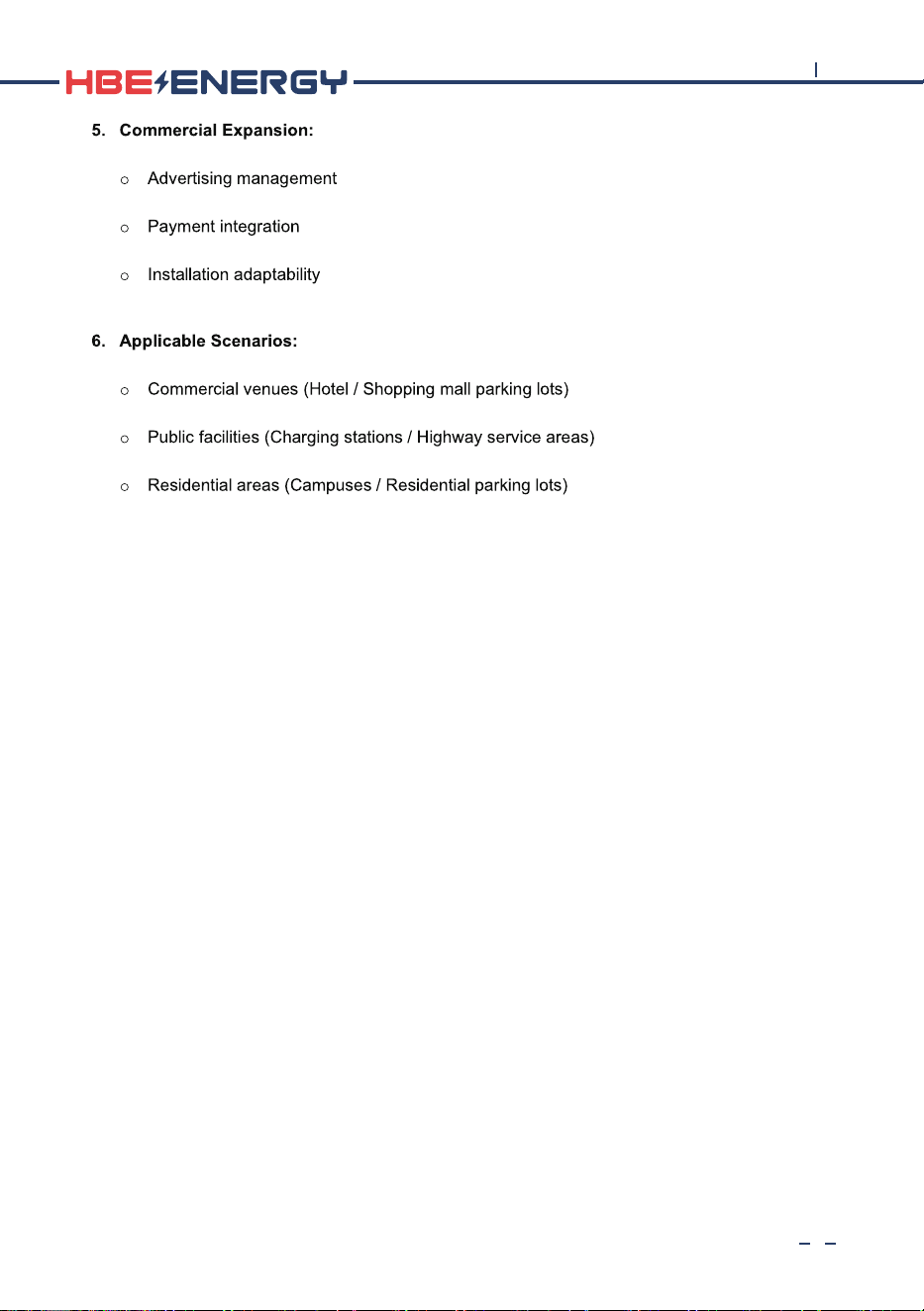

Suited for diverse scenarios such as highway service areas, commercial complexes, public
chargers, and community campuses, the HBE-DC480KW-U-E155NW4GGX is not merely a
charging device, but also a future-oriented green energy infrastructure and business solution.
1.1 Product Overview
Chapter 1 Product Introduction vA0
HBE © 2025
HV DANGER - Power Off Before Servicing
1

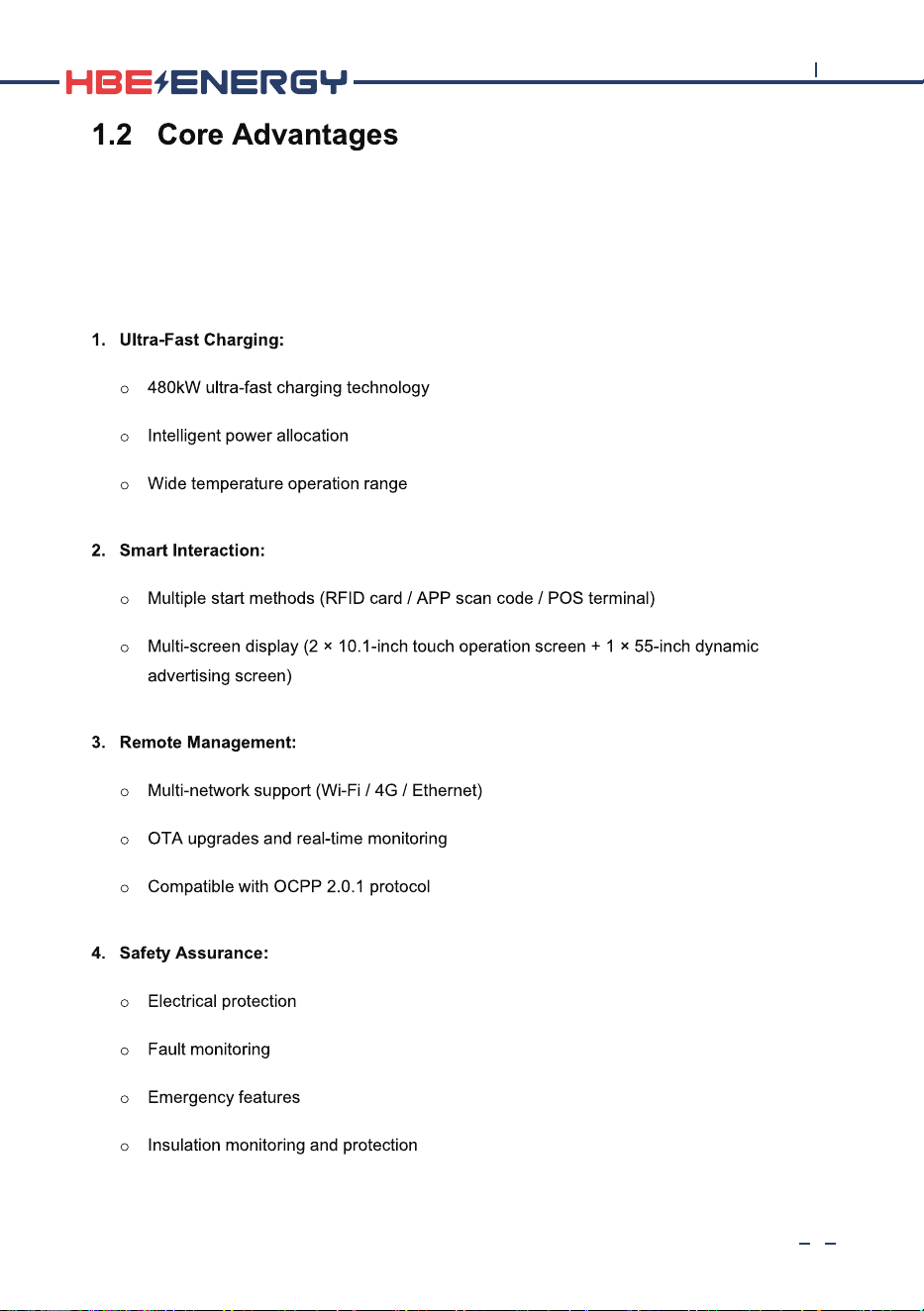

The HBE-DC480KW-U-E155NW4GGX centers around 480kW ultra-fast liquid-cooled charging,
integrating intelligent interaction, multi-layered safety protection, and support for commercial
expansion. It meets diverse scenario demands, providing efficient and convenient charging
services. Key advantages include:
Chapter 1 Product Introduction vA0
HBE © 2025
HV DANGER - Power Off Before Servicing
2
Chapter 1 Product Introduction vA0
HBE © 2025
HV DANGER - Power Off Before Servicing
3

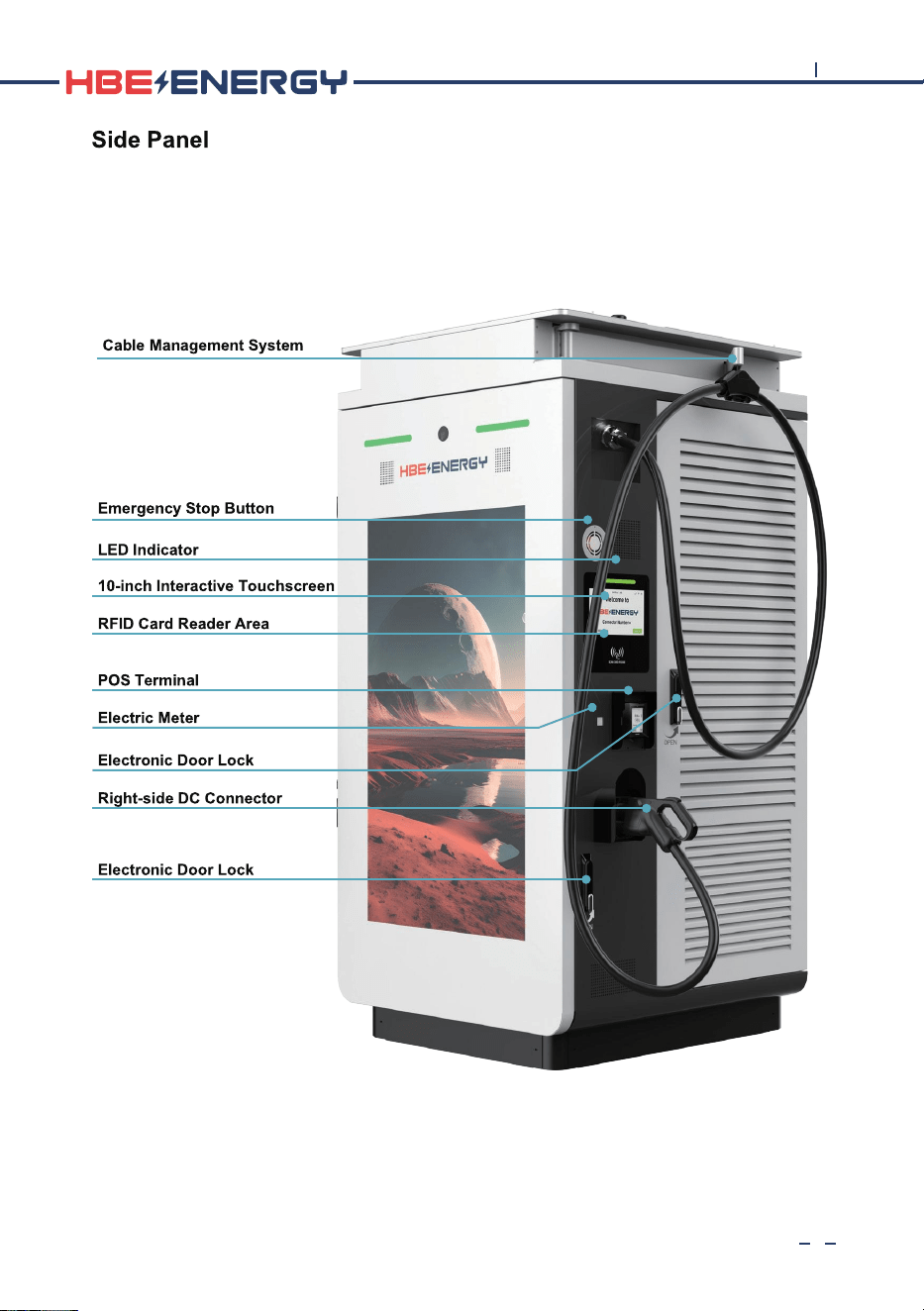

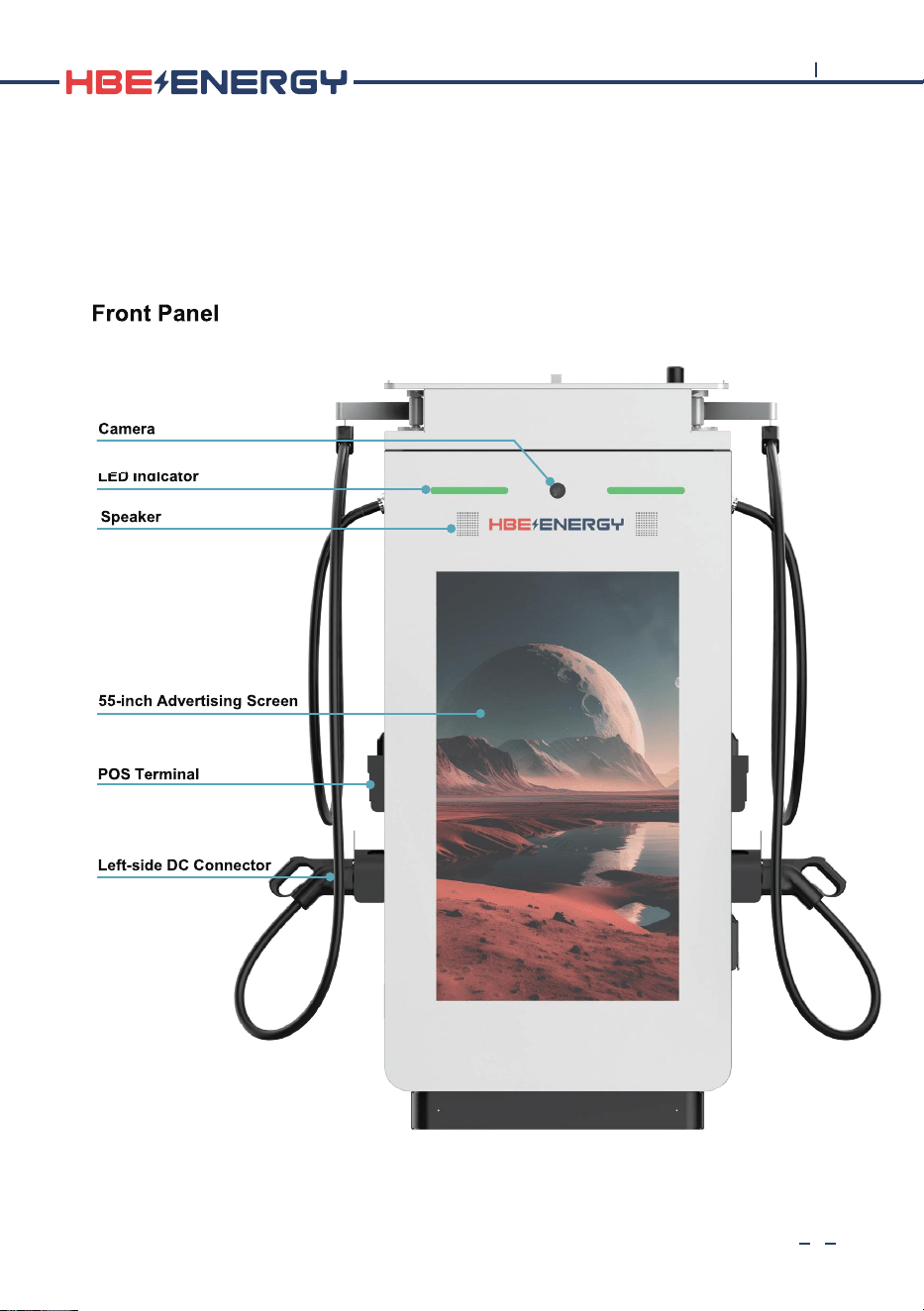

The HBE-DC480KW-U-E155NW4GGX features a 55-inch advertisement screen and status indicators
on the front panel, with two touchscreens and an emergency stop button on the side panel,
achieving an optimal balance between aesthetics and practicality.
1.3 Interface Layout
Chapter 1 Product Introduction vA0
HBE © 2025
HV DANGER - Power Off Before Servicing
4
Chapter 1 Product Introduction vA0
HBE © 2025
HV DANGER - Power Off Before Servicing
5

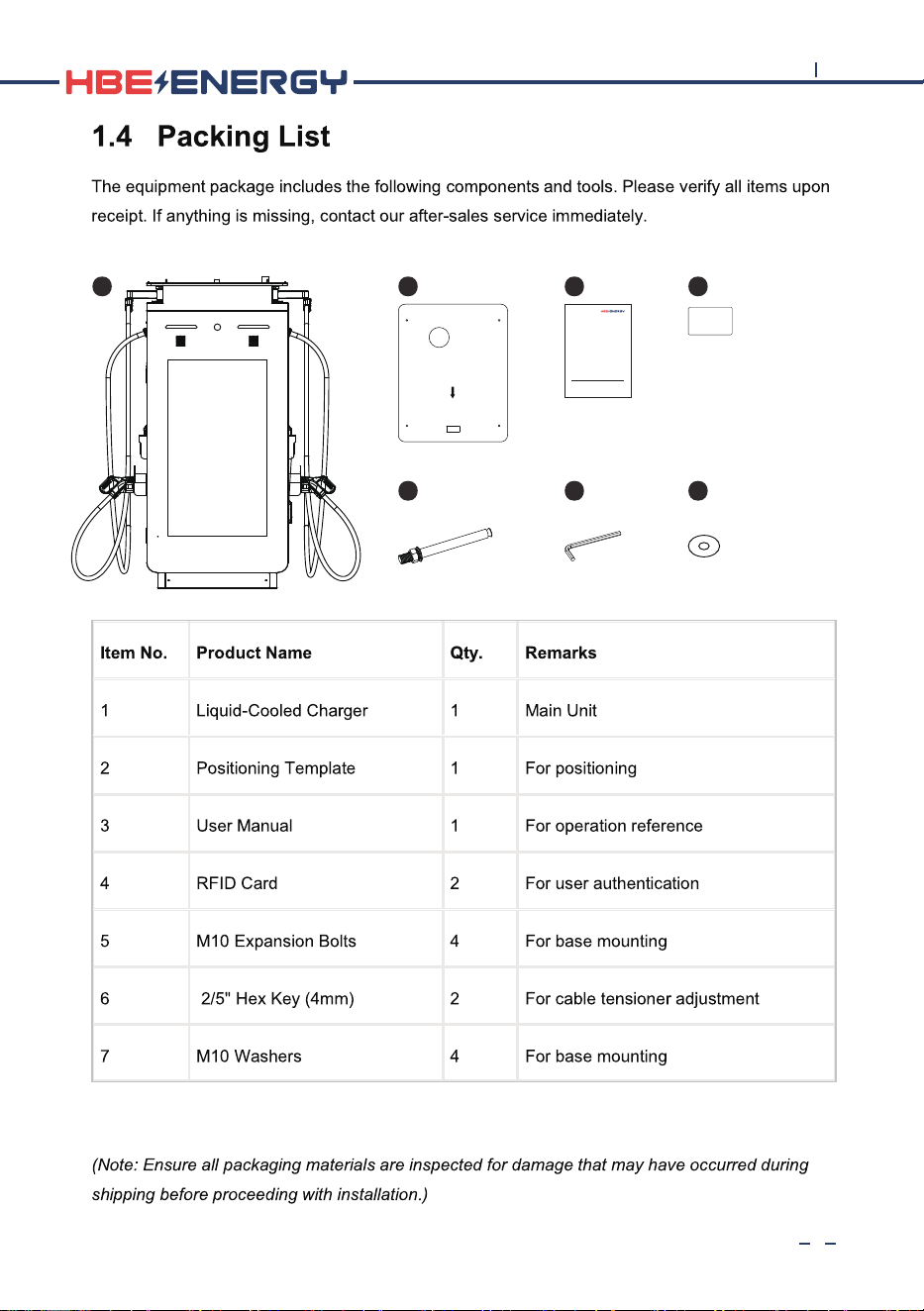

5
1
7
2
55 " screen facing
TEMPLATE
4
CARD ID:
6
3
HBE-DC480KW-U-E155NW4GGX
Liquid-Cooled Charger User Manual
EV DC Charger
Chapter 1 Product Introduction vA0
HBE © 2025
HV DANGER - Power Off Before Servicing
6

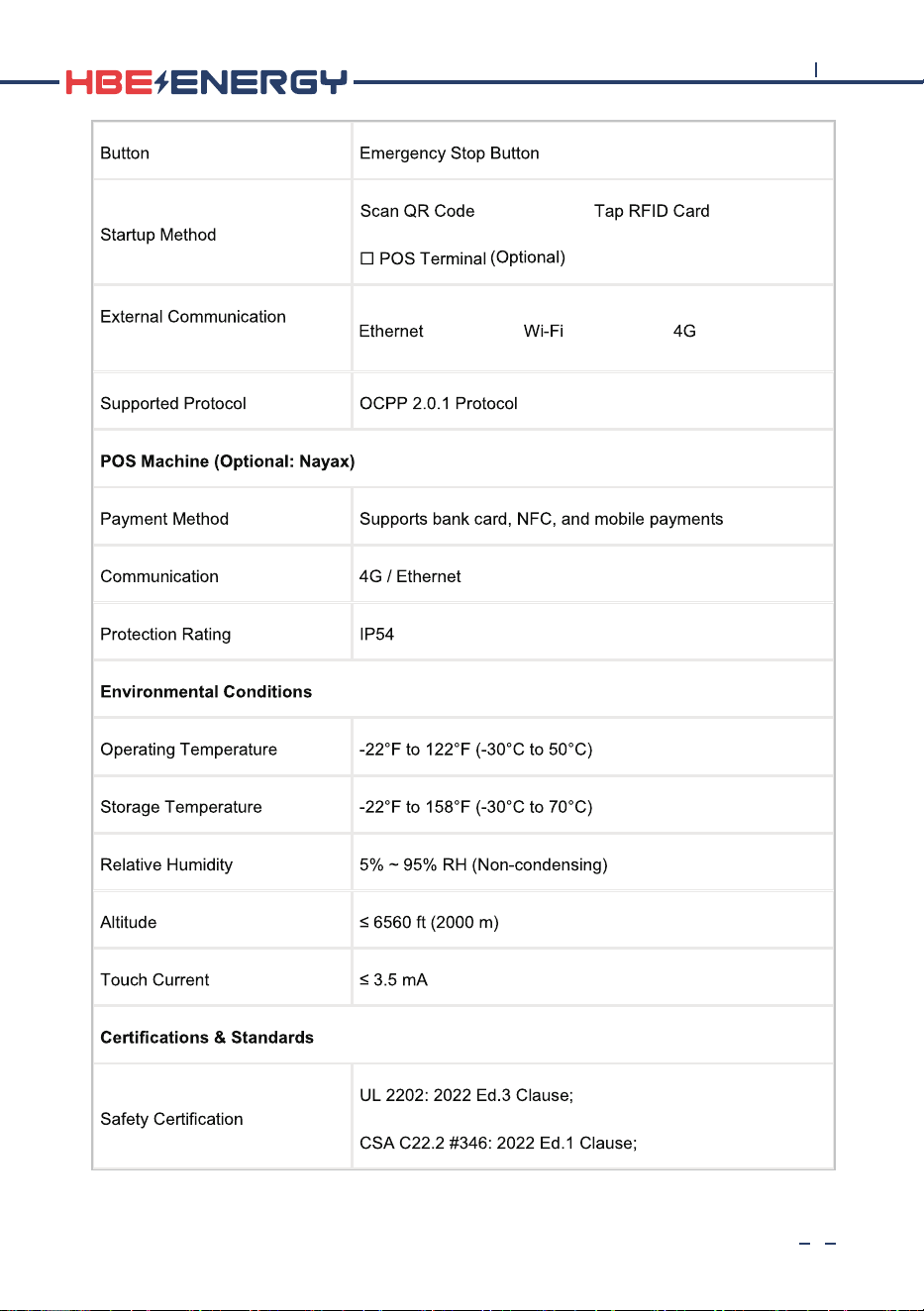

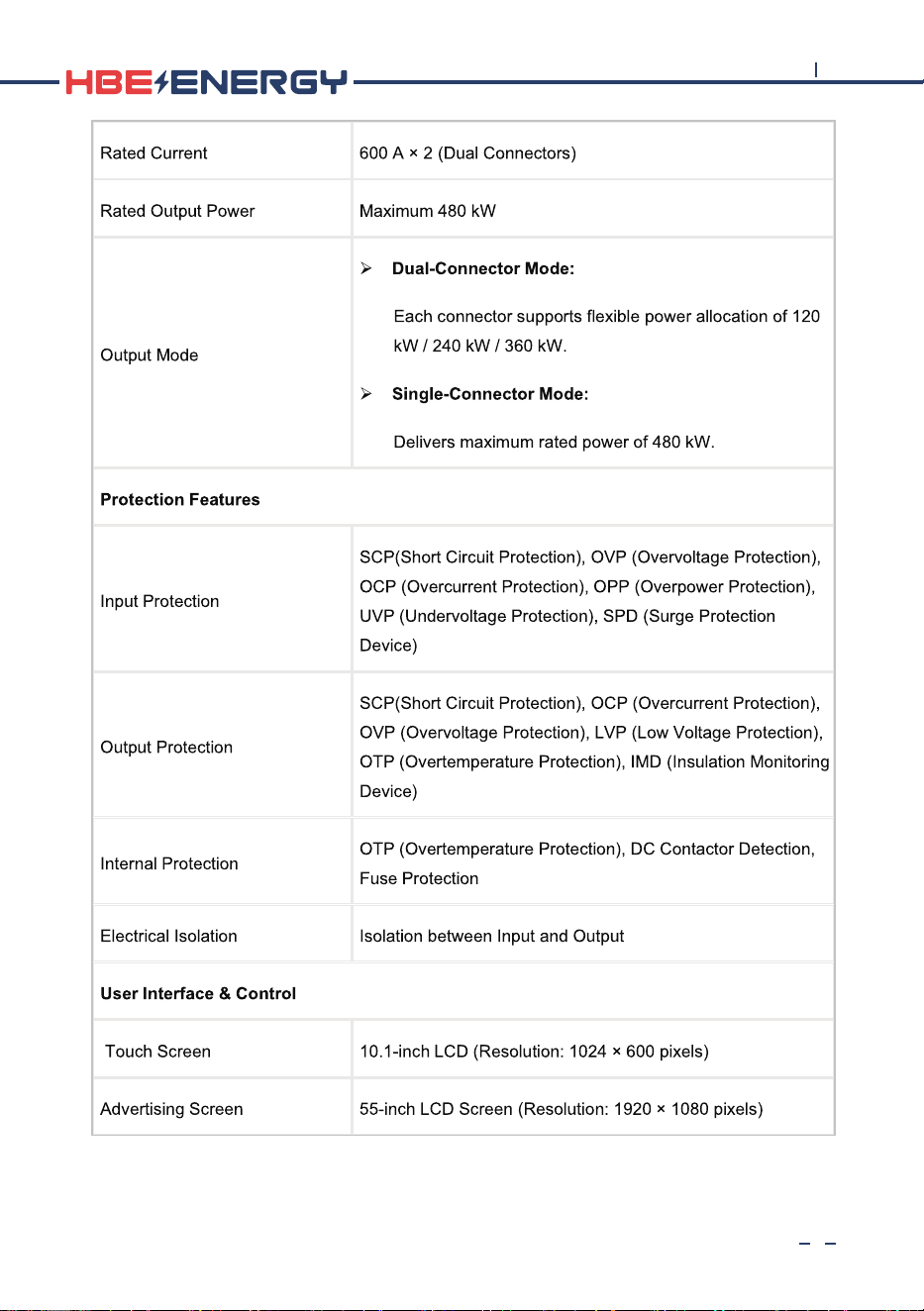

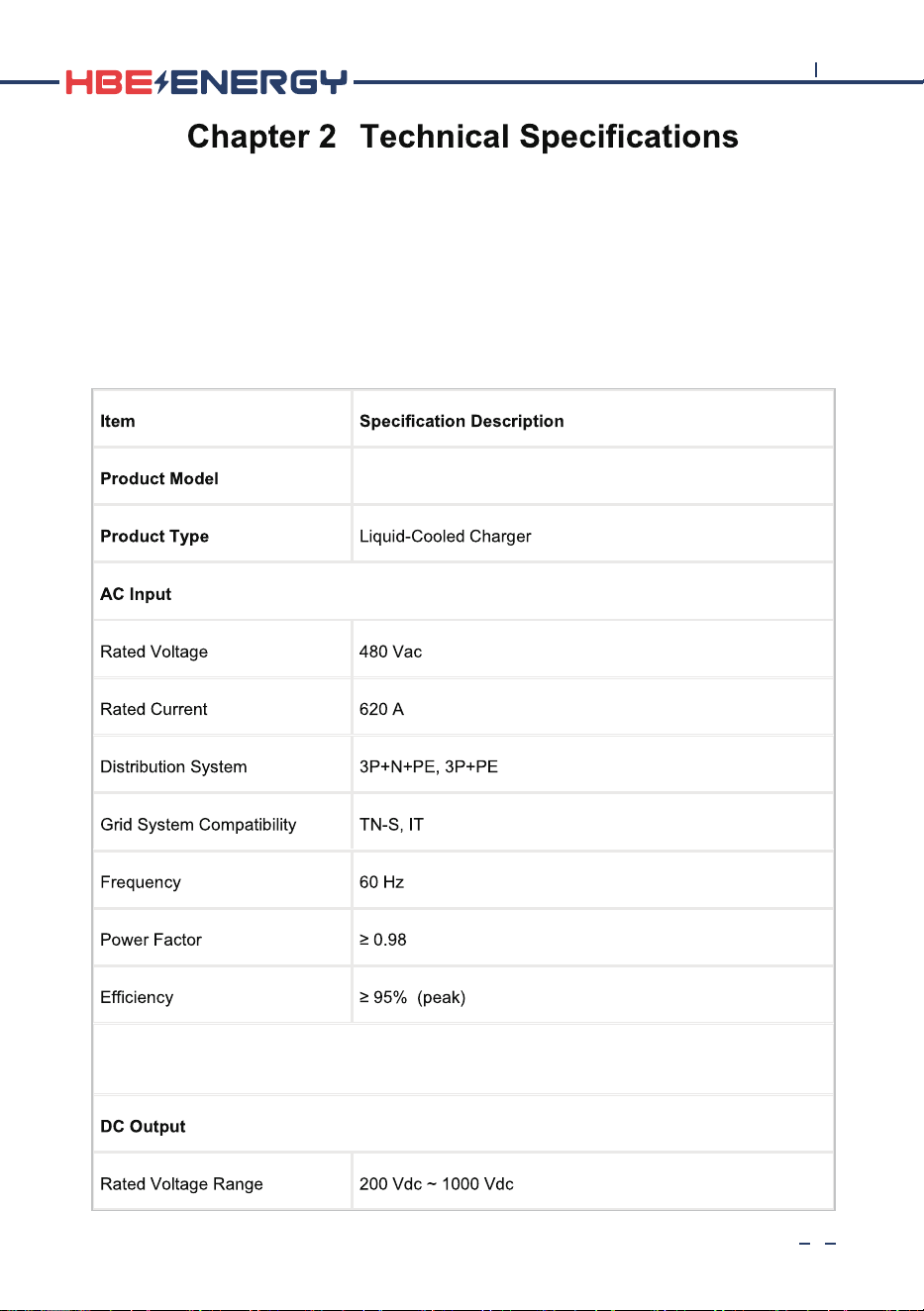

2.1 Technical Parameters
The design of the HBE-DC480KW-U-E155NW4GGX strictly complies with regional grid requirements
and is compatible with mainstream electric vehicle (EV) models. Users are advised to carefully
review the technical parameters below before use to ensure compatibility with local grid
conditions and the vehicle's charging system.
HBE-DC480KW-U-E155NW4GGX
1. 3P+N+PE: If the socket (125V) is required, the neutral N line of the 480V Y/277V system
must be connected.
2. 3P+PE: If the socket (125V) is not required, the N line does not need to be connected.
Chapter 2 Product Introduction vA0
HBE © 2025
HV DANGER - Power Off Before Servicing
7
Chapter 2 Product Introduction vA0
HBE © 2025
HV DANGER - Power Off Before Servicing
8
Chapter 2 Product Introduction vA0
HBE © 2025
HV DANGER - Power Off Before Servicing
9

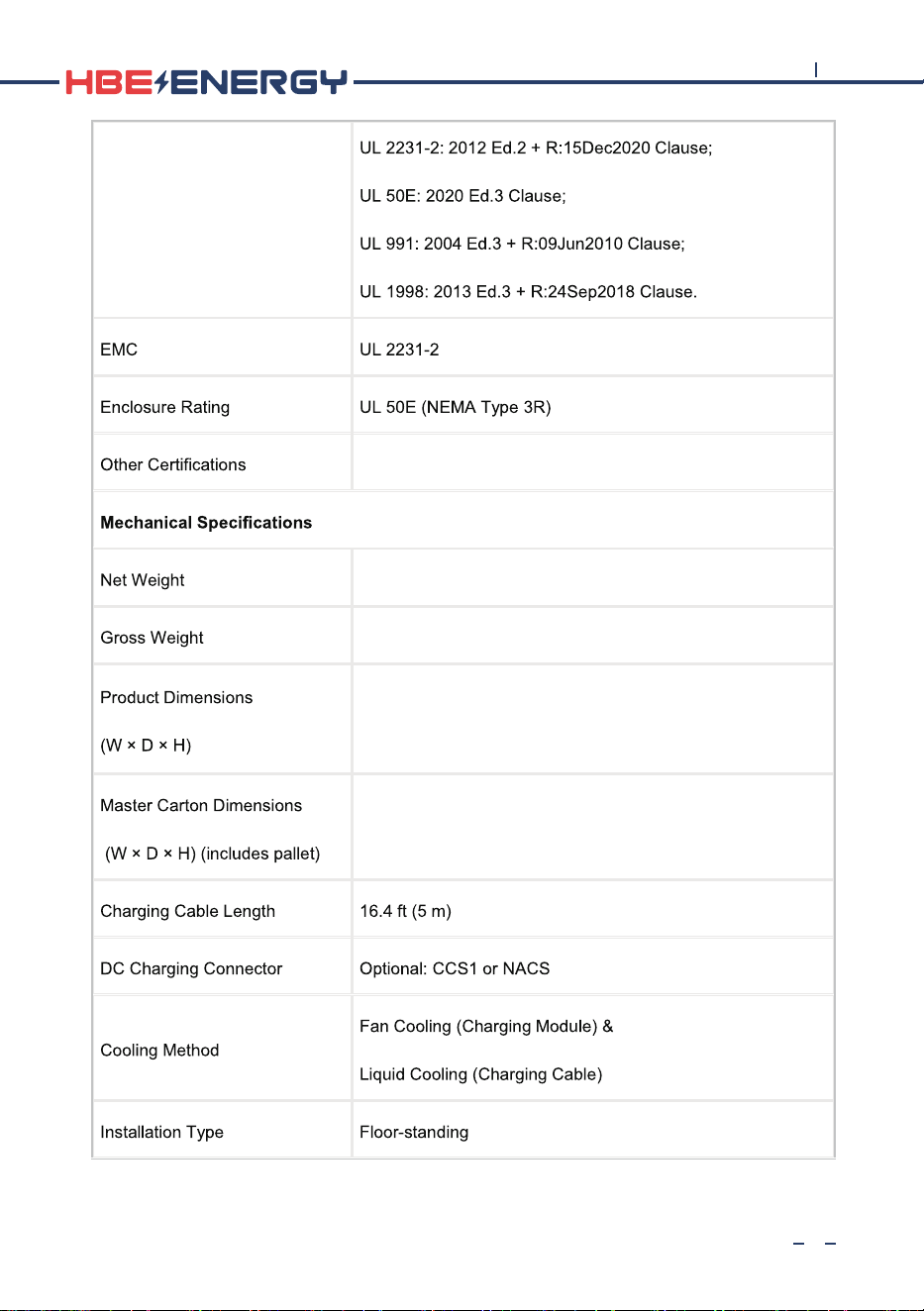

45.3" × 42.5" × 85" (1151mm × 1080mm × 2159mm)
51.2" × 44.9" × 91.1" (1300mm × 1140mm × 2315mm)
ETL, Energy Star, FCC&IC
Approx. 2,315 lb (1050 kg, including two charging connectors)
Approx. 2,645 lb (1200 kg)
Note:The width of 1151mm includes the connector holder
Chapter 2 Product Introduction vA0
HBE © 2025
HV DANGER - Power Off Before Servicing
10

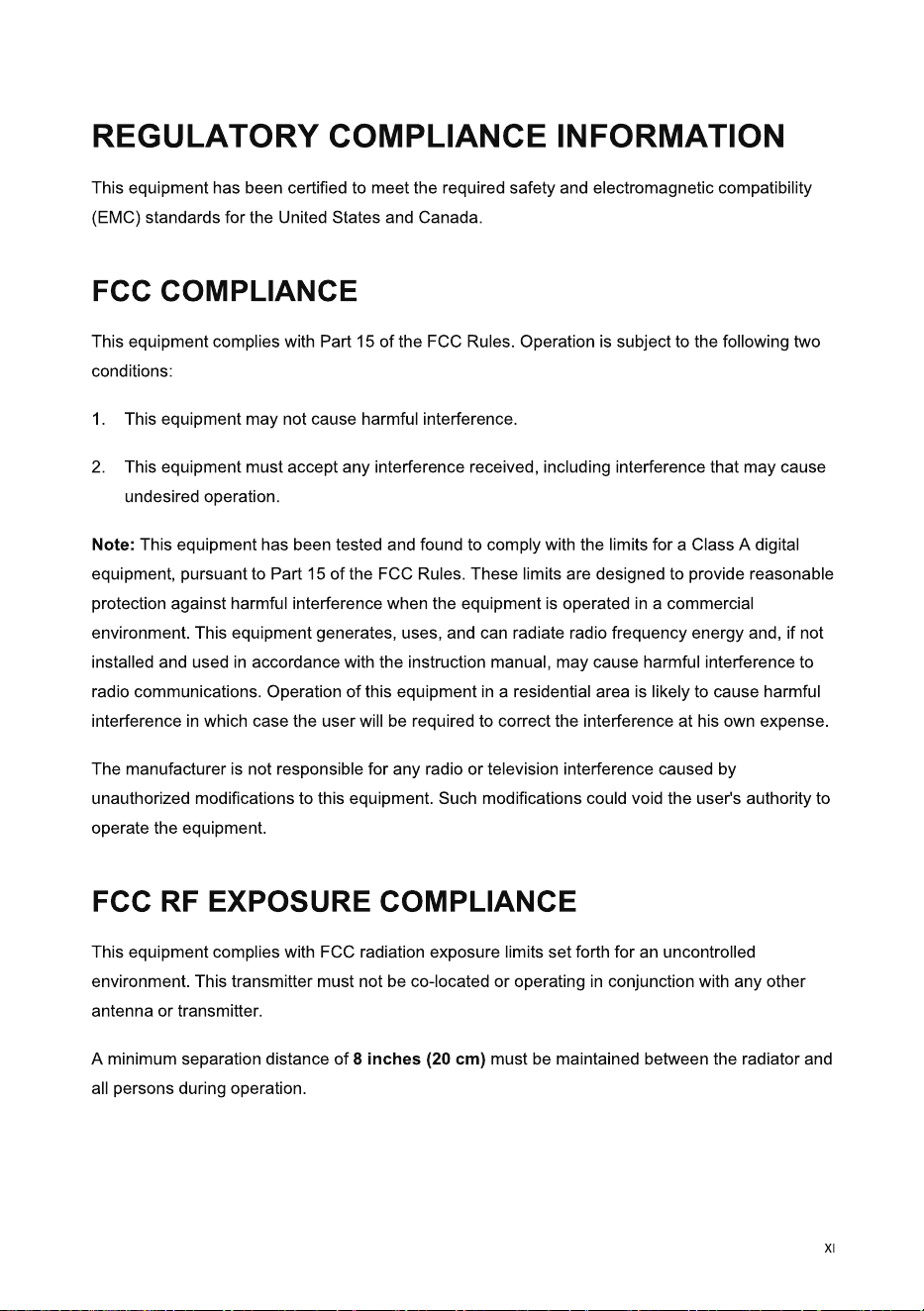

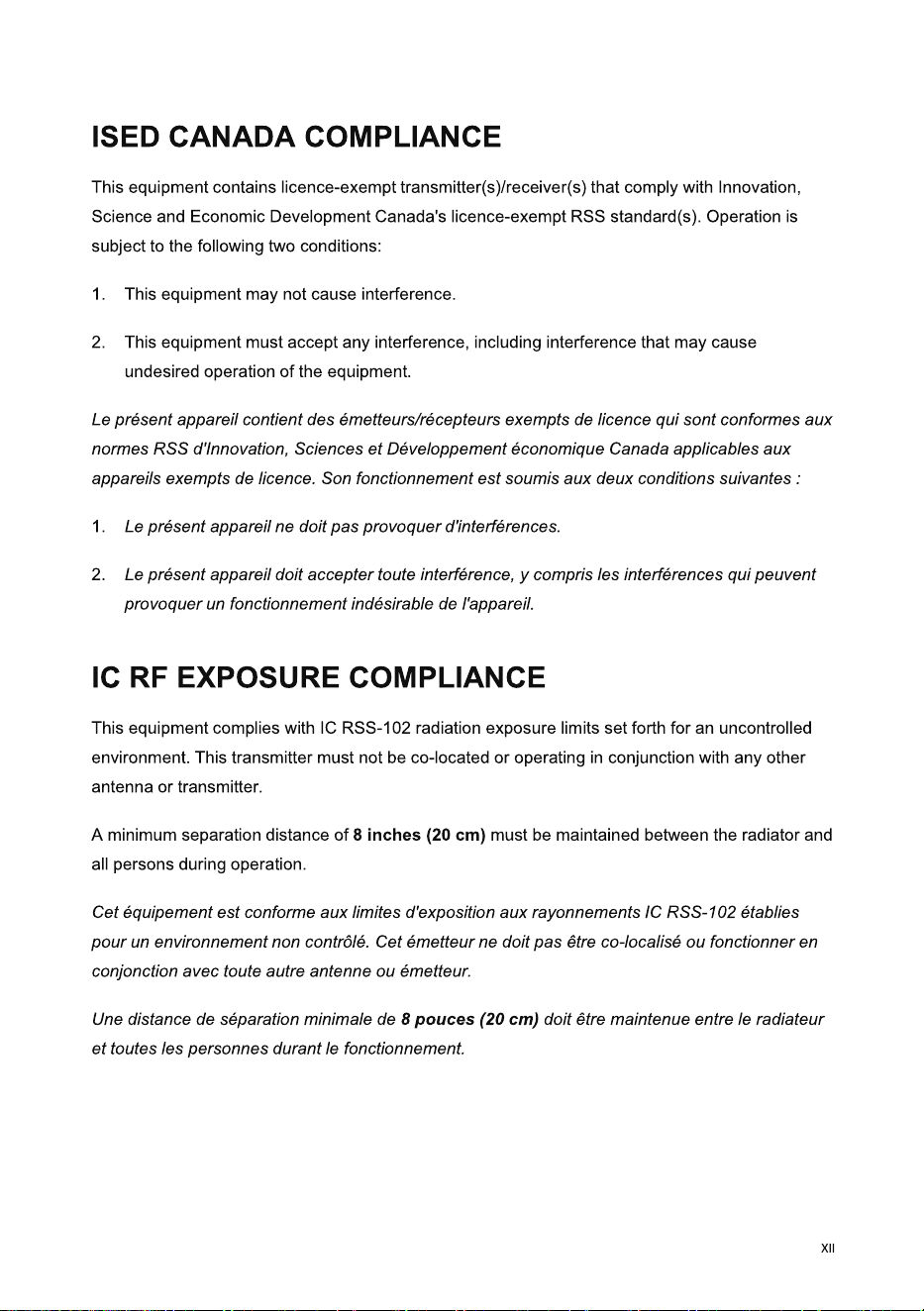

ISED Statement
English: This device complies with Industry Canada license‐exempt RSS standard(s).
Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This d
evice must accept any interference, including interference that may cause undesired operation of the device.
The digital apparatus complies with Canadian CAN ICES‐3 (B)/NMB‐3(B).
‐ French: Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas p
roduire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi
le brouillageest susceptible d'encompromettre le fonctionnement.
This radio transmitter (ISED certification number: IC:32422-DC480KW02STX
) has been approved by Industry Canada
to operate with the antenna types listed with the maximum permissible gain indicated. Antenna types not
included in this list, having a gain greater than the maximum gain indicated for that type, are strictly
prohibited for use with this device.
Le présent émetteur radio (ISED certification number: IC:32422-DC480KW02STX
) a été approuvé par Industrie Canada
pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal. Les
types d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué, sont
strictement interdits pour l'exploitation de l'émetteur.
Radiation Exposure Statement
This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your
body.
Déclaration d'exposition aux radiations
Cet équipement est conforme Canada limites d'exposition aux radiations dans un environnement non
contrôlé. Cet équipement doit être installé et utilisé à distance minimum de 20cm entre le radiateur et votre
corps.
