OPUS A3
Operating Manual
Hardware Description
Seite II von 32
Versions
Example
OPUSA3EL1CANB000
OPUSA3 model
E E=ECO; S= Standard
L L= Landscape; P= Portrait; N= Neutral
1 1. Generation
CAN CAN=Projektor; CDS=CODESYS©; ISO=ISO-UT
B B=Basic F= Full
000 customer specific identification
All product names cited in this operating manual are
trademarks or registered trademarks of the respective
companies.
Operating Manual OPUS A3
Order number: OPUSBA00A3
Topcon Electronics GmbH & Co KG
Industriestraße 7, 65366 Geisenheim,
+49 6722 / 6722 4026-888
Supplements or a special operator manual may be required for
customer-specific devices.
Version 5.0, September 2019
All rights reserved, including translation.
No part of this operating manual may be reproduced, in any
form, (print, photocopy, microfilm, or a different process), nor
may it be processed, duplicated, or distributed using electronic
systems, without written permission from Topcon Electronics
GmbH & Co KG, Geisenheim.
All content is subject to change without notice. All previous
versions are rendered obsolete with publication of this manual.
All information contained herein is subject to correction,
manufacturer is not liable for any errors in this material.
Errors and technical changes excepted.
Table of contents
Seite III von 32
Table of contents
1 Preliminary Notes ............................................................................................... 1
1.1 Used Instructions Types ........................................................................................................1
2 Safety instructions, guarantee and liability ..................................................... 2
2.1 Common ..................................................................................................................................2
2.2 Qualified Personnel ................................................................................................................2
2.3 Power Supply ..........................................................................................................................3
2.4 Interventions in the device ....................................................................................................3
2.5 Safety Instructions for the OPUS A3 ....................................................................................4
3 Intended Use ....................................................................................................... 6

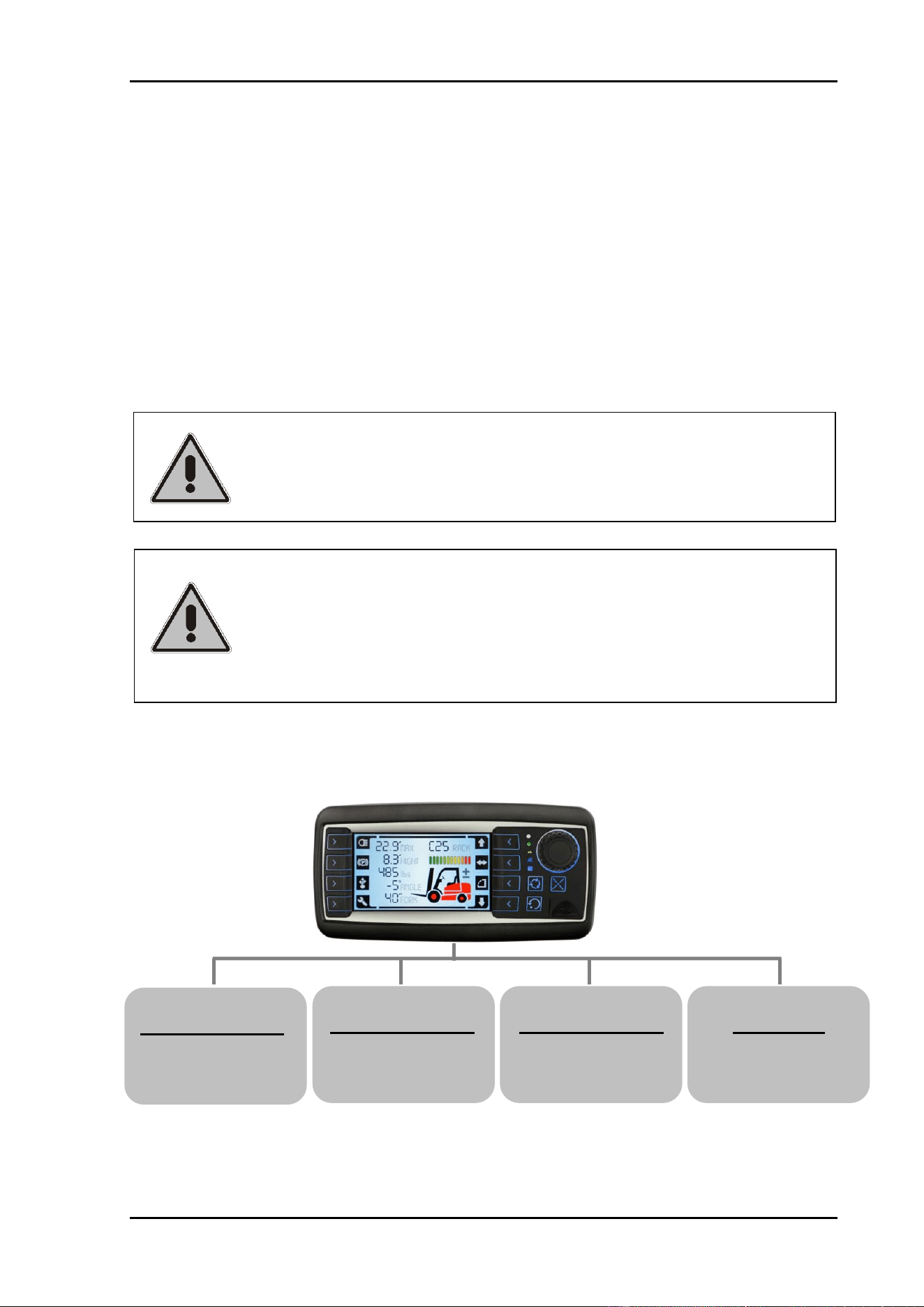

3.1 Example of Use .......................................................................................................................6

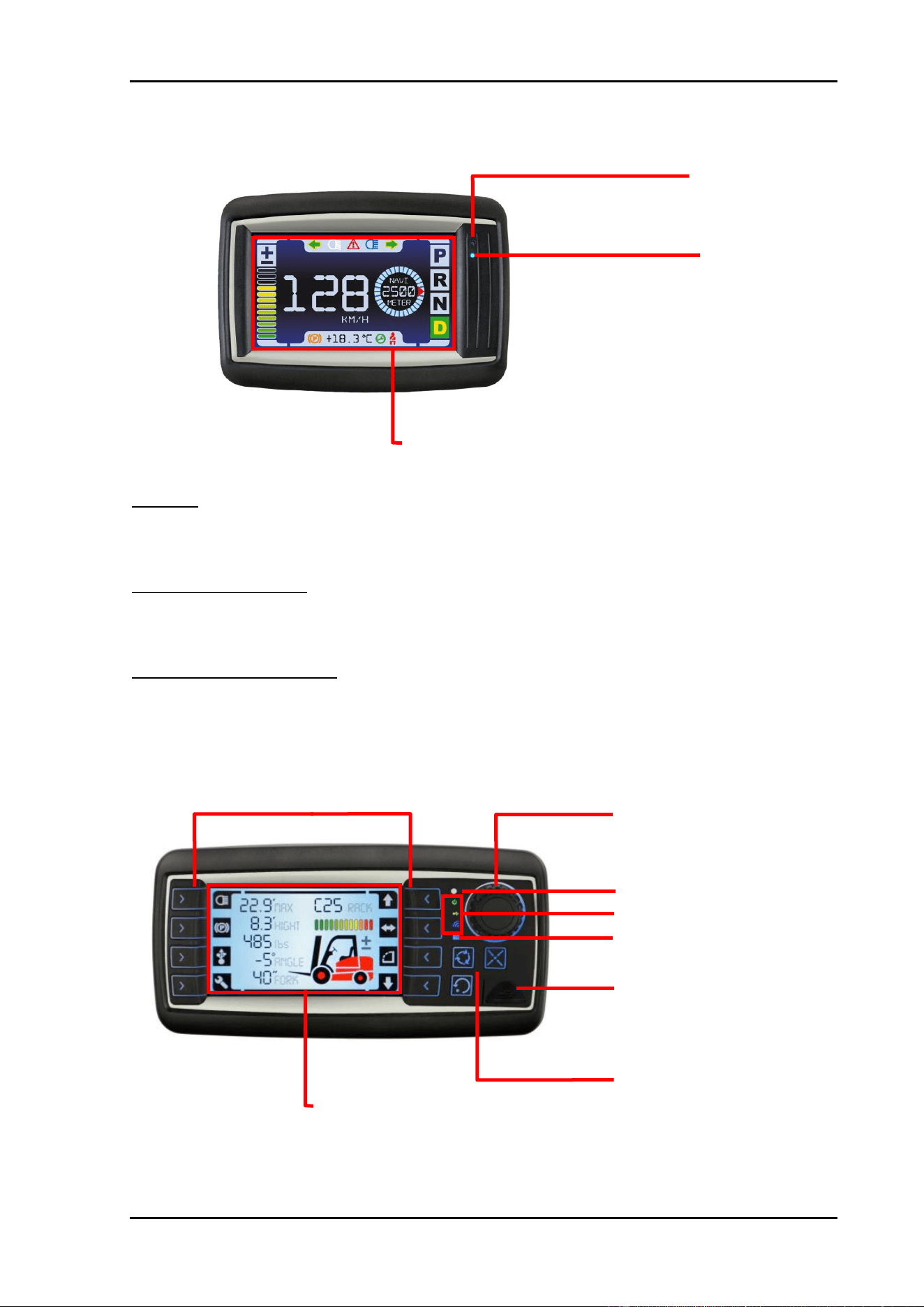

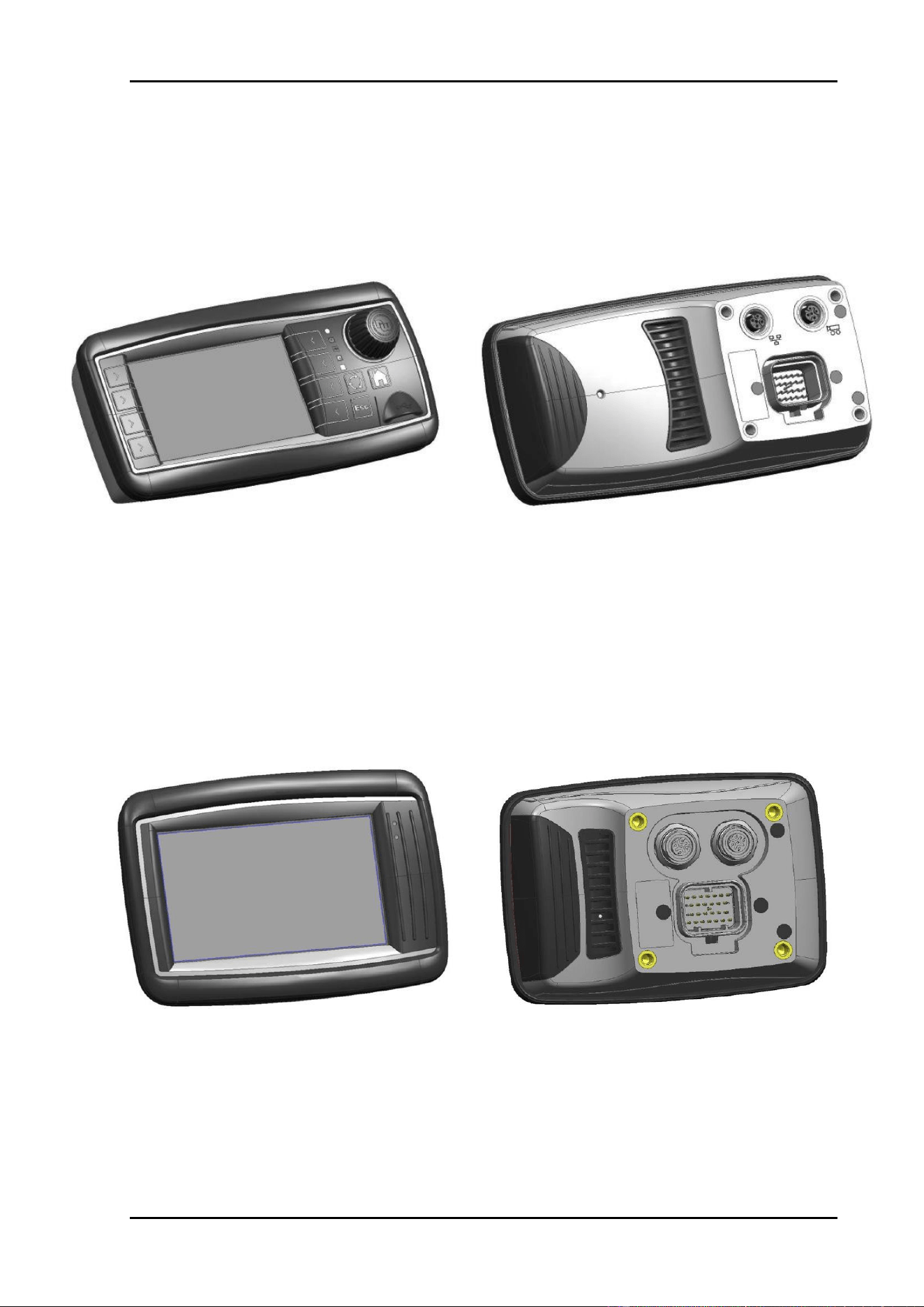

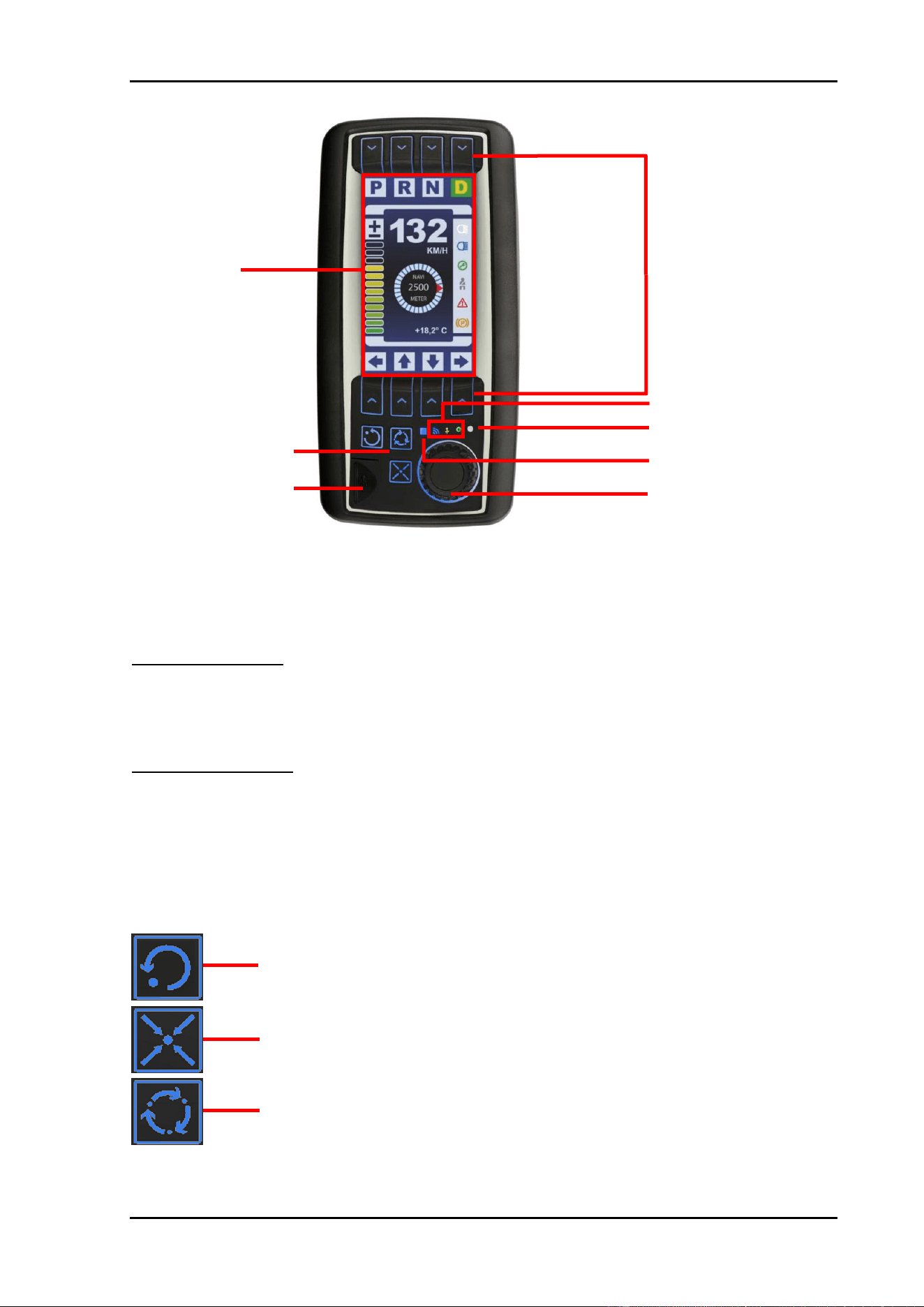

3.2 Device Description .................................................................................................................6
3.2.1 OPUS A3 ECO .....................................................................................................................7
3.2.2 OPUS A3 STANDARD .........................................................................................................7

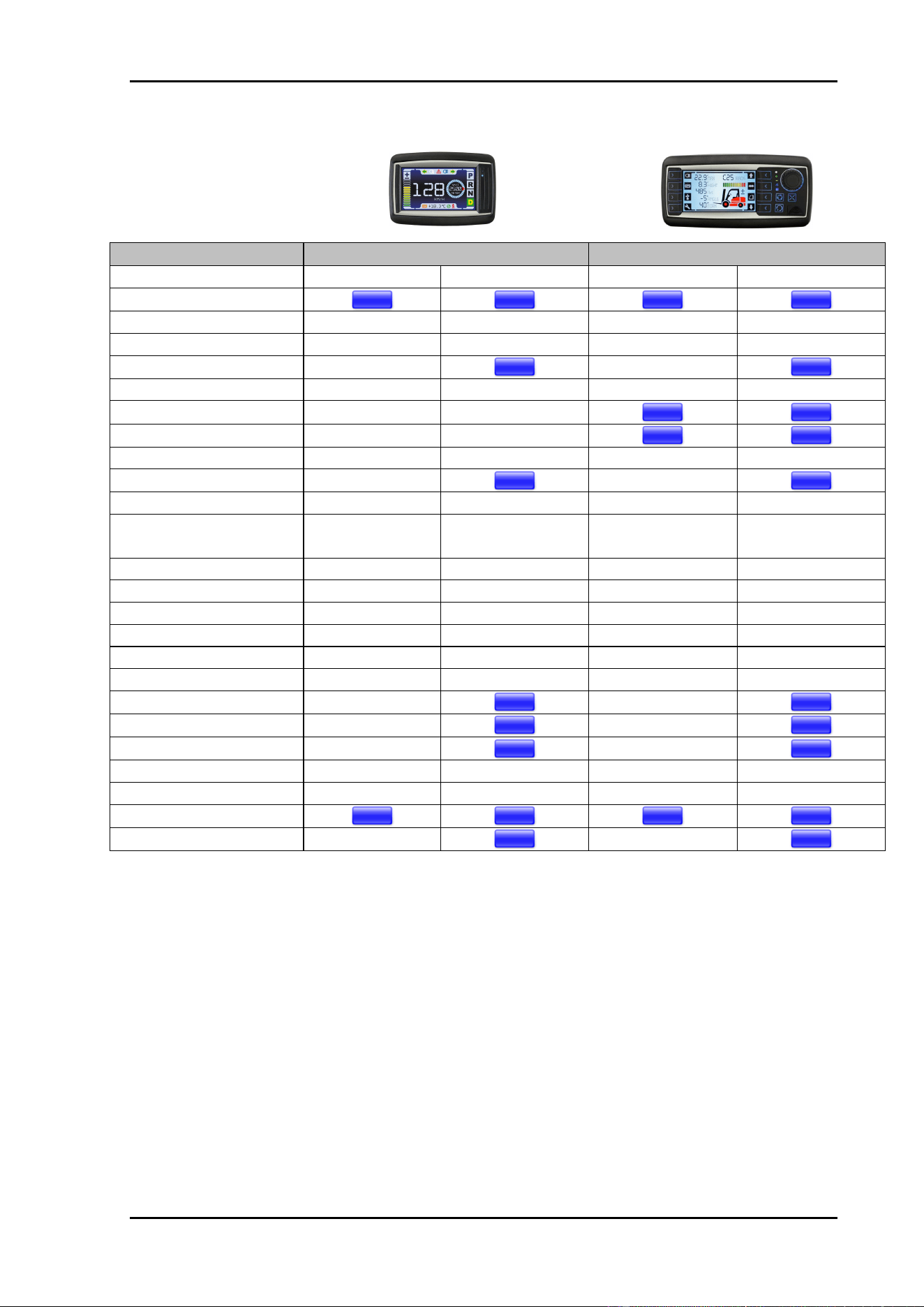

3.2 Features Overview for OPUS A3 .........................................................................................10
3.3 Application Development ....................................................................................................11
3.4 Development Kit ...................................................................................................................12
4 Getting Started ................................................................................................. 14
4.1 Check the delivered parts ....................................................................................................14
4.2 Mounting ...............................................................................................................................14
For mounting please follow the instruction provided in the following dimension drawing. .14

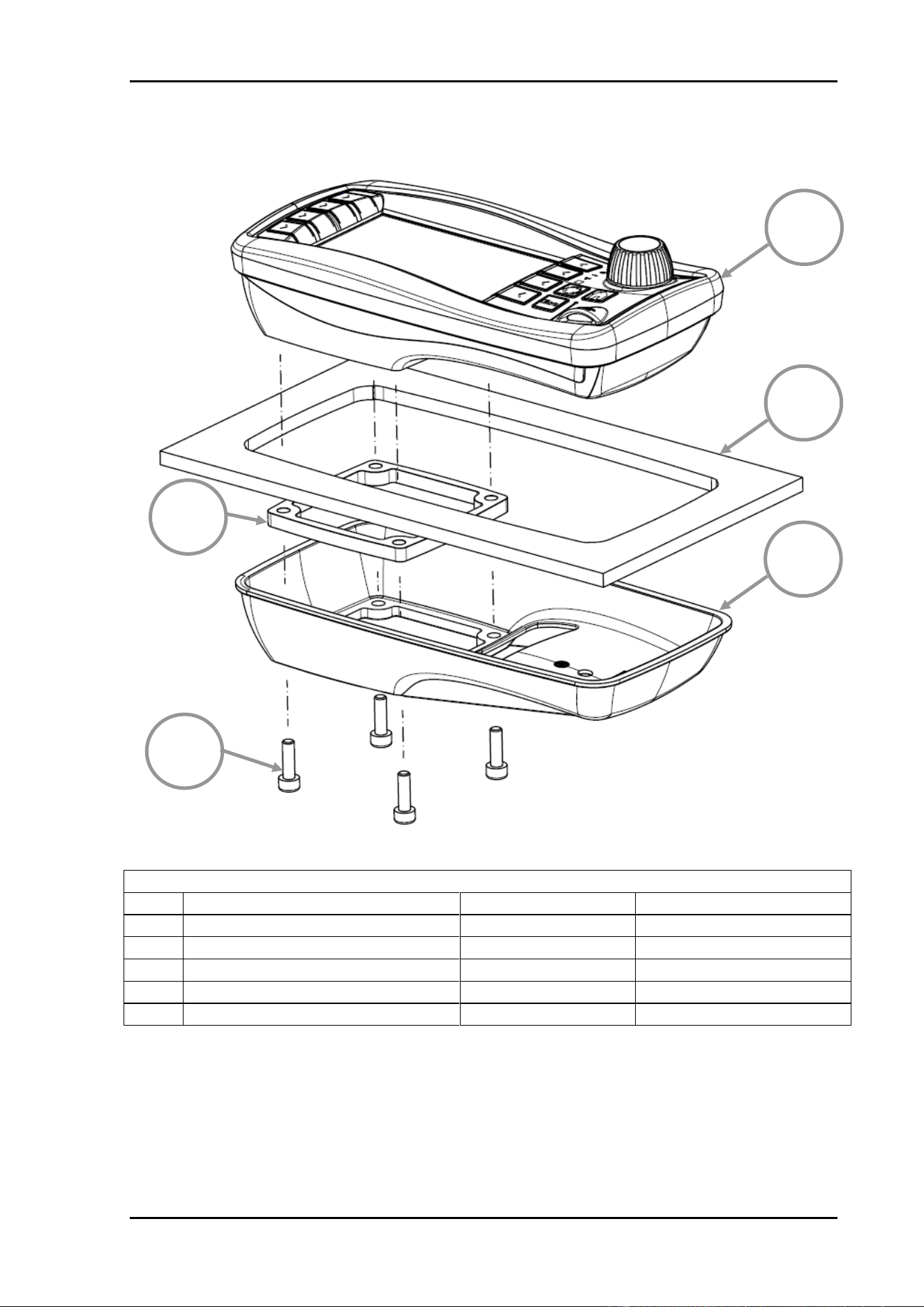

4.2.1 Dashboard Mounting Instruction for OPUS A3 STANDARD ........................................15

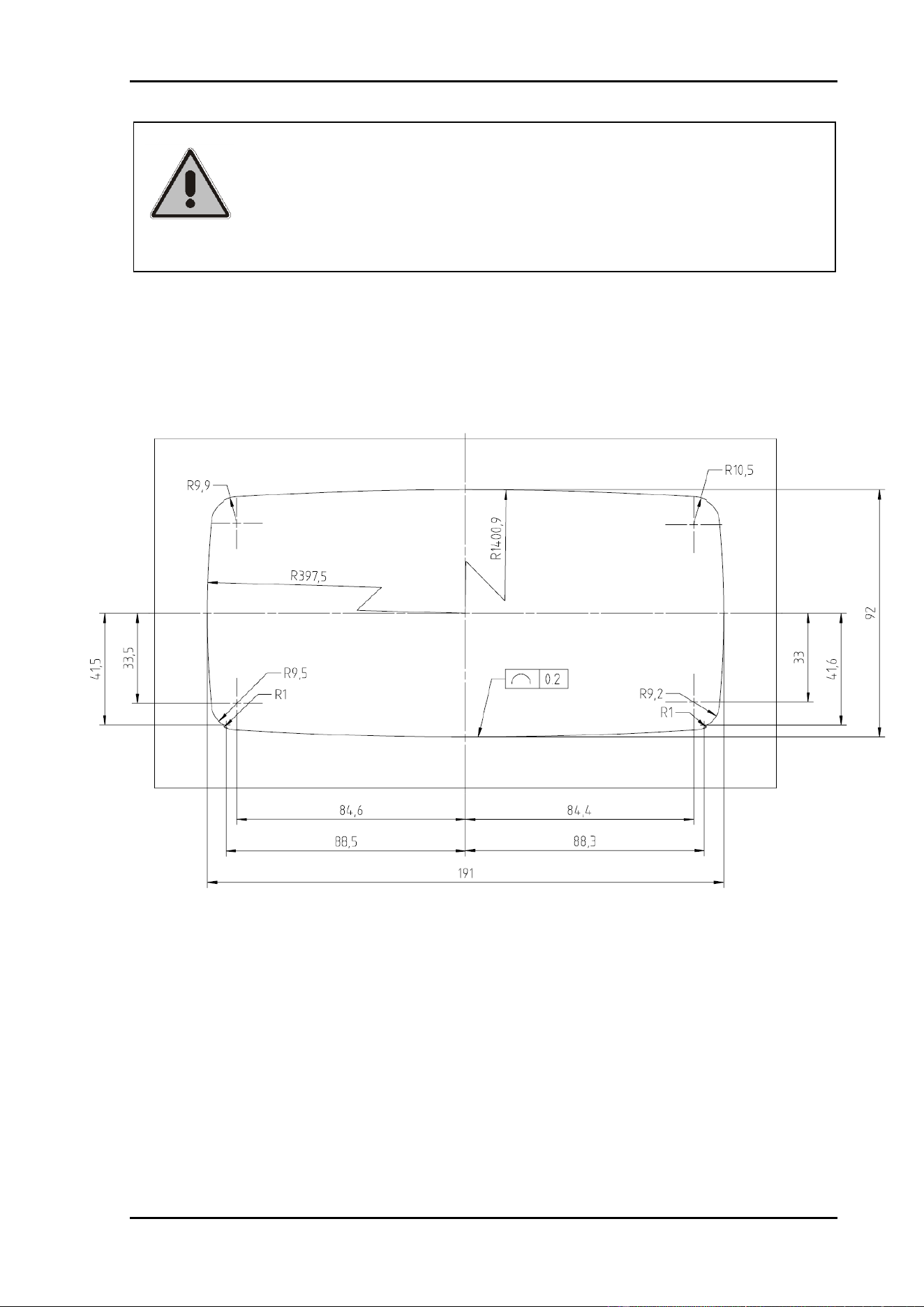

4.2.2 Cut-out Dashboard ...........................................................................................................16

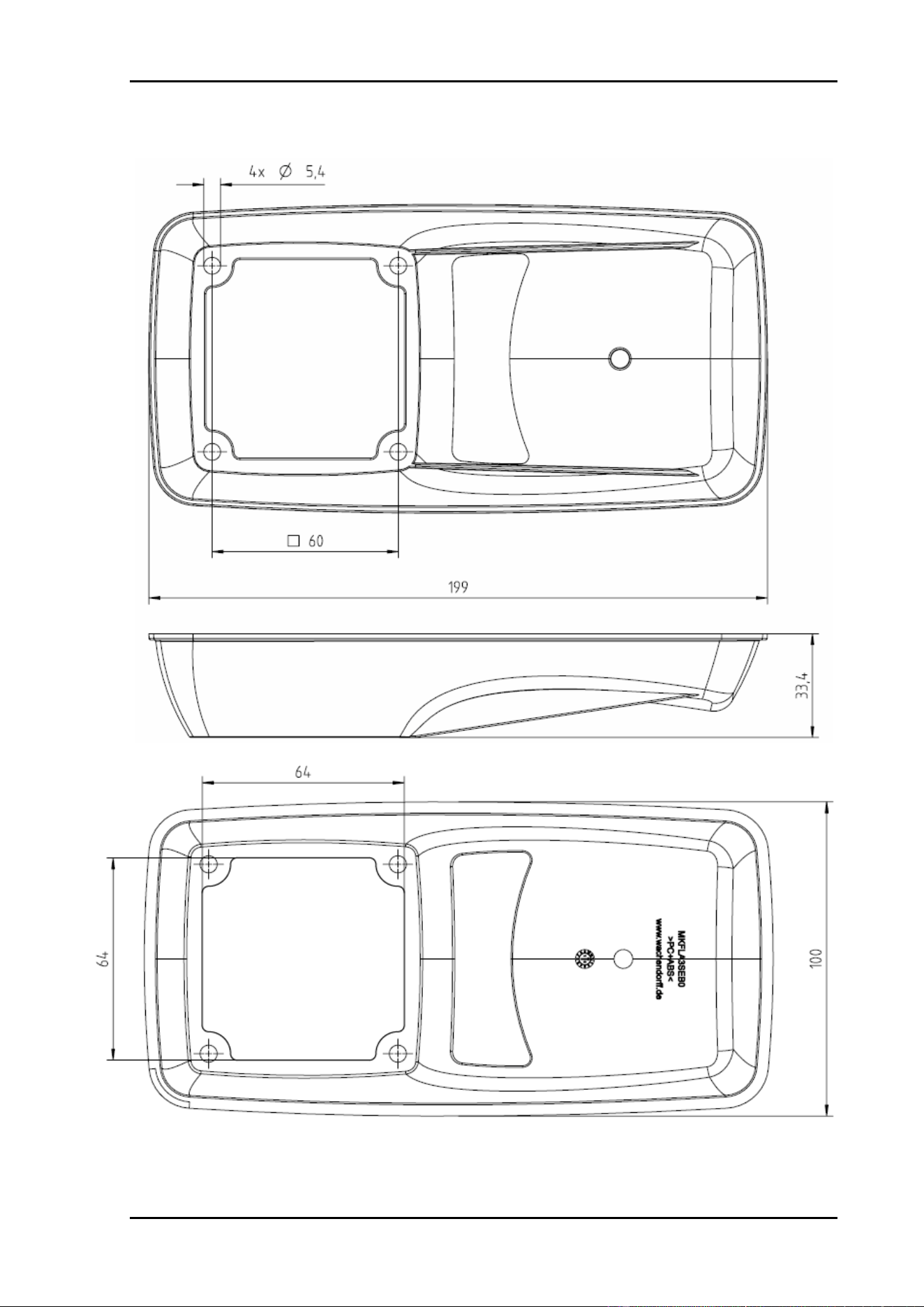

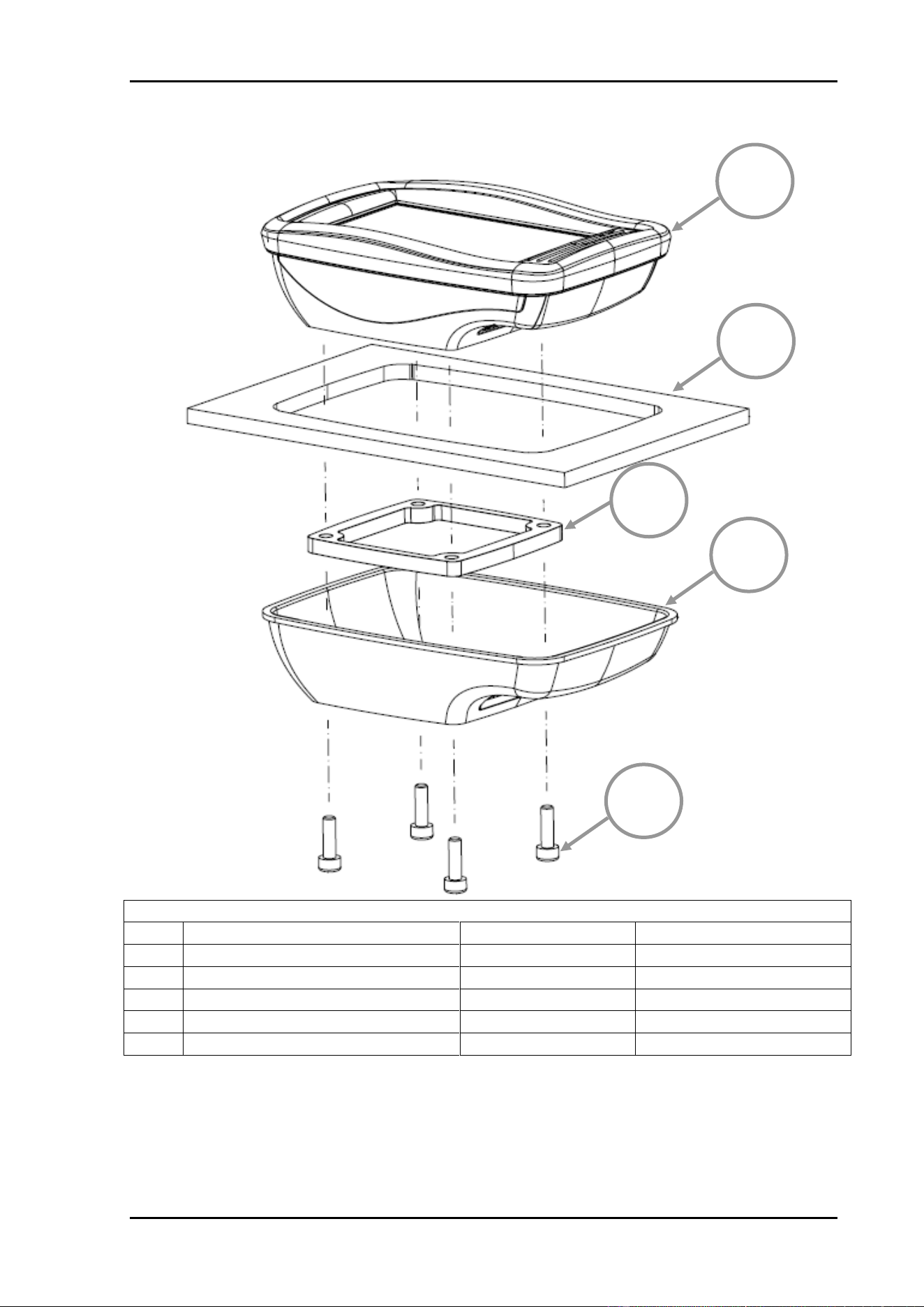

4.2.3 Mounting Cover for OPUS A3 STANDARD .....................................................................17
4.2.4 Dashboard Mounting Instruction - OPUS A3 ECO ........................................................18

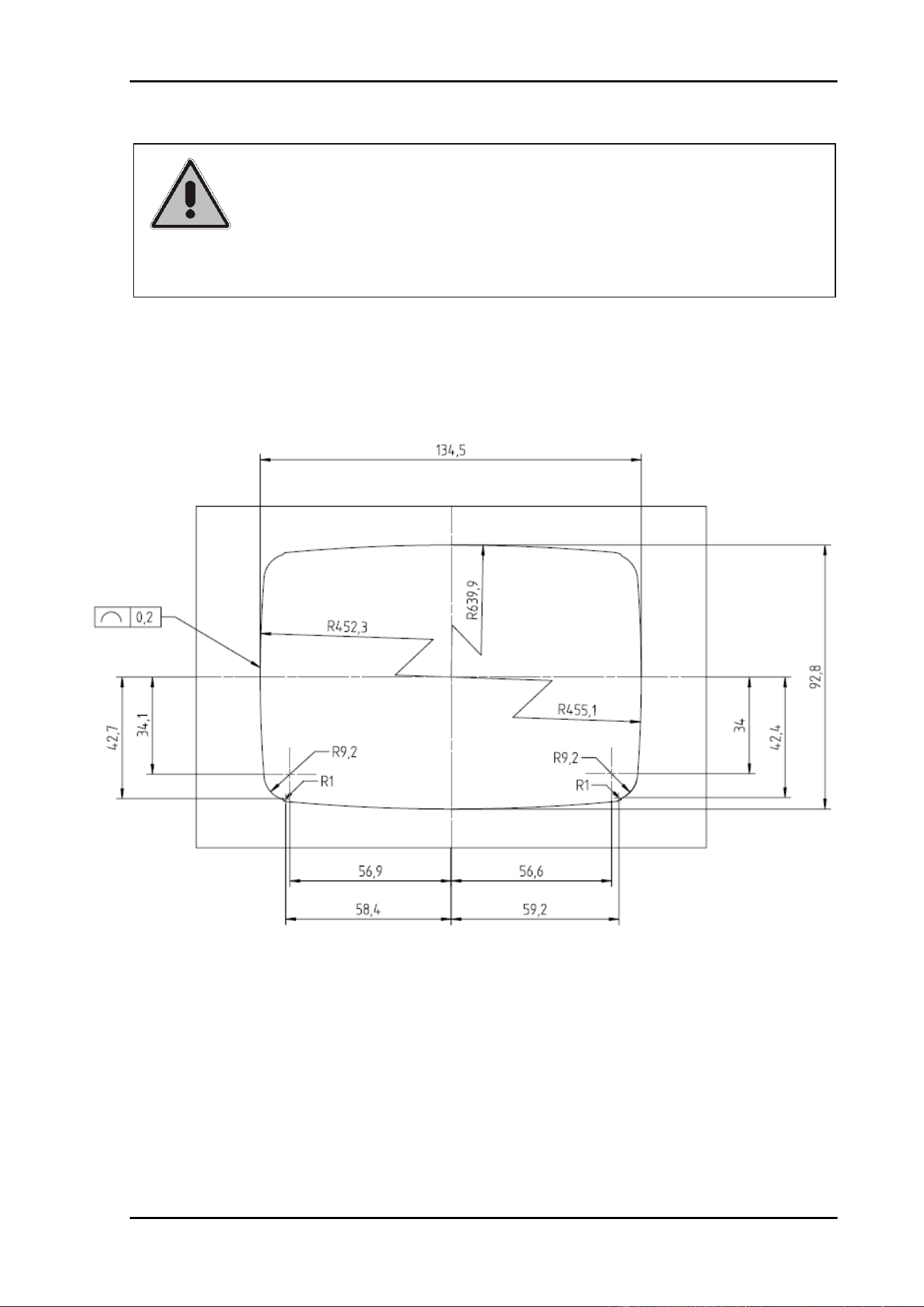

4.2.5 Cut-out Dashboard ...........................................................................................................19

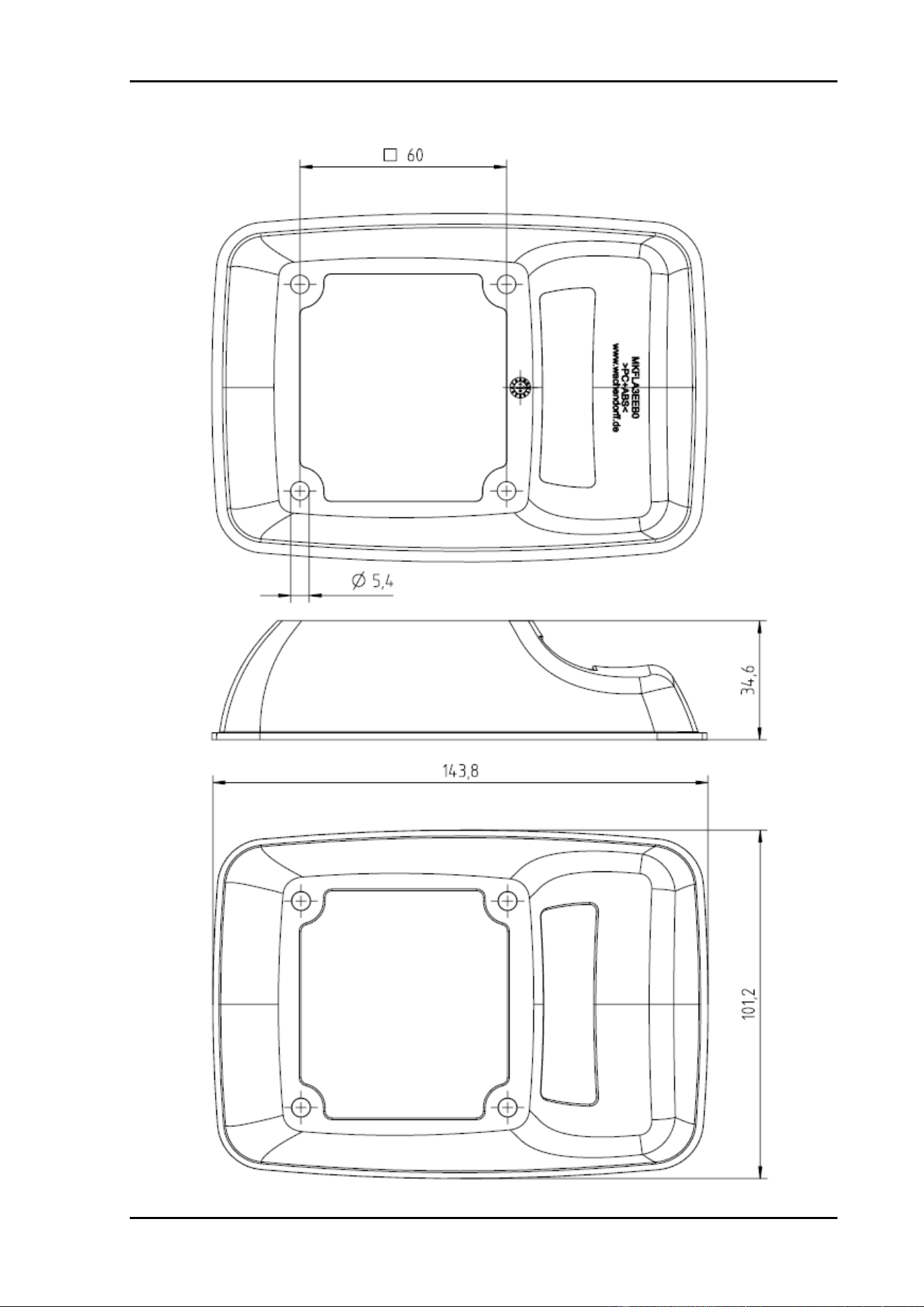

4.2.6 Mounting Cover ................................................................................................................20

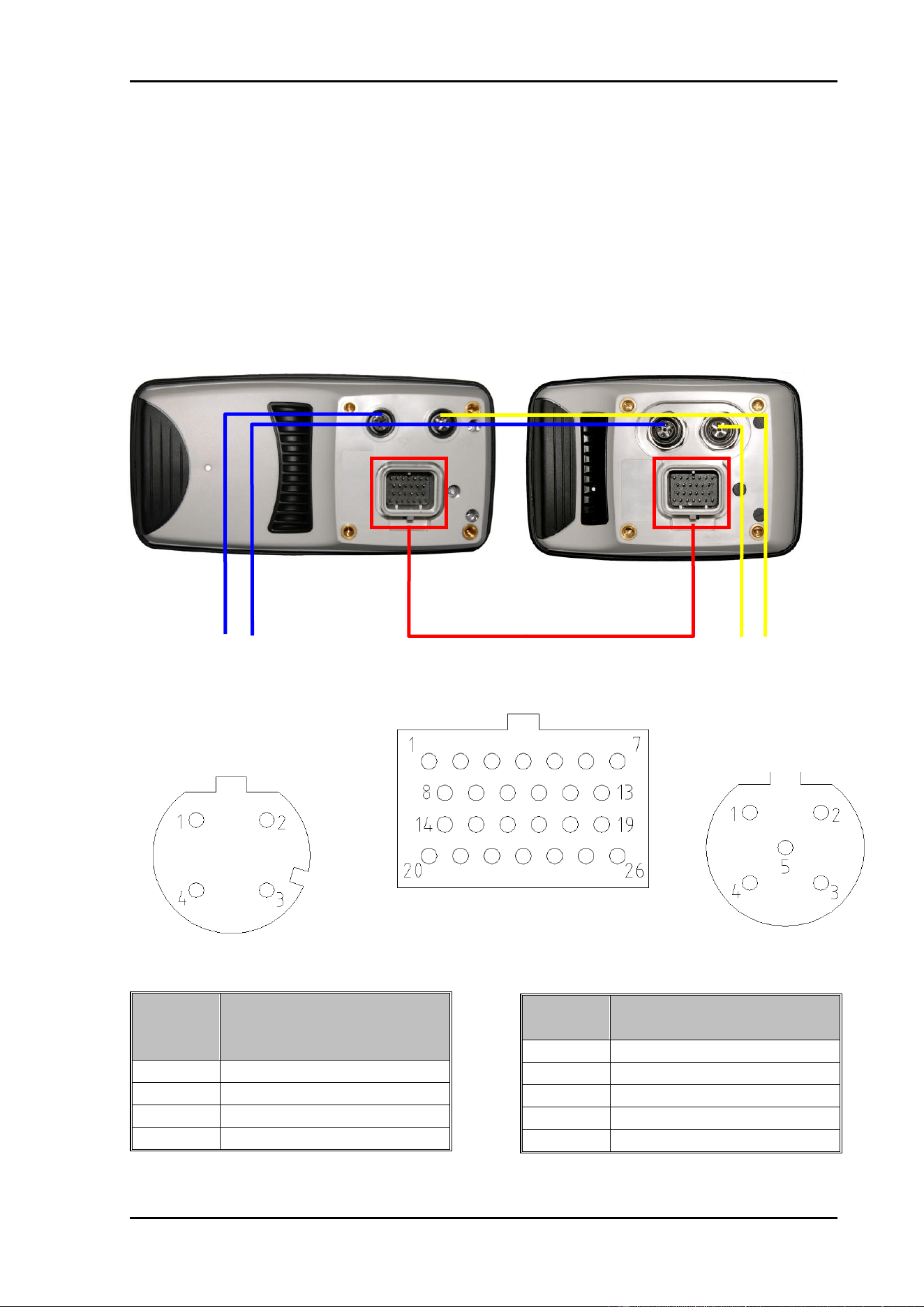

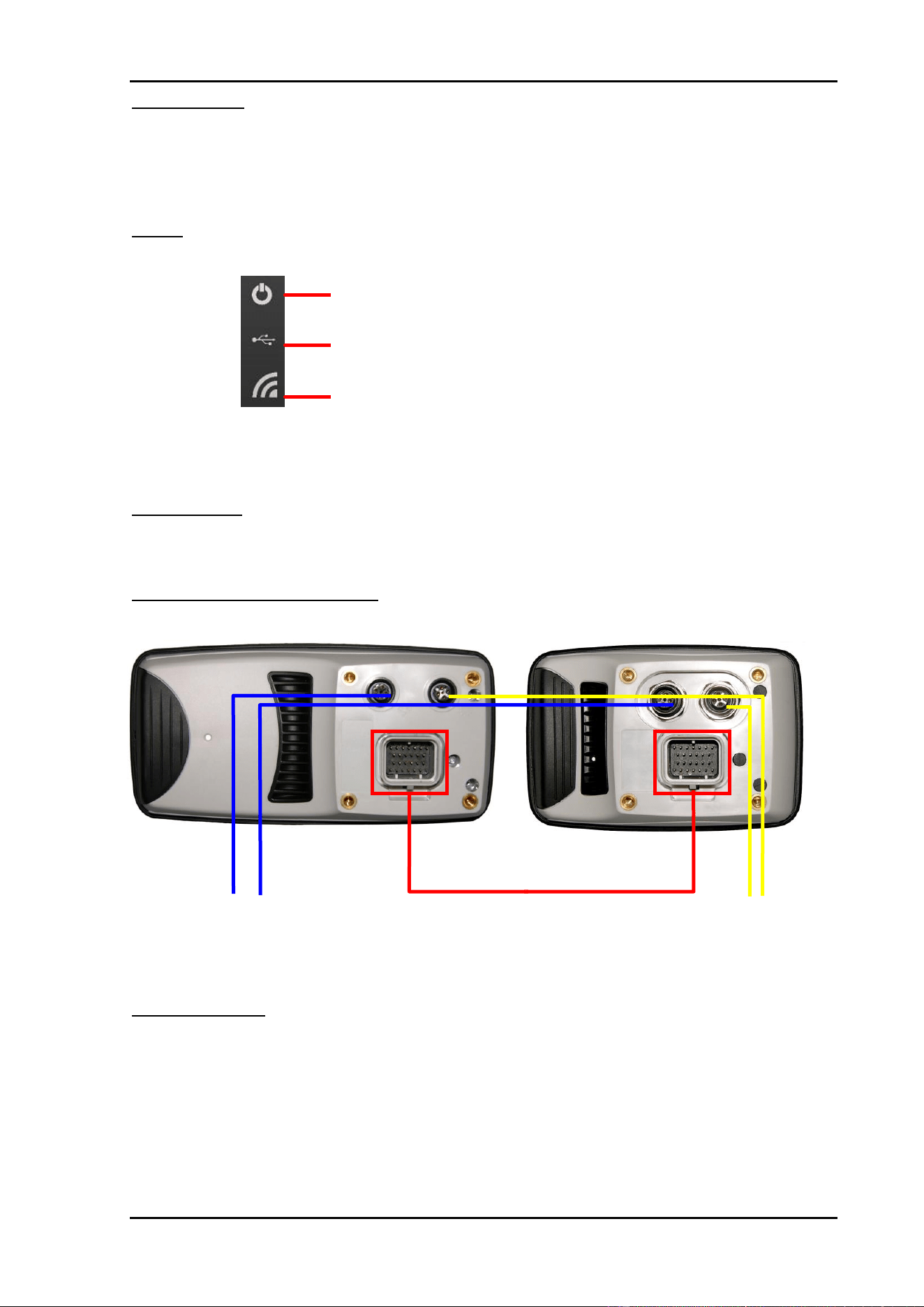

4.3 Electrical installation OPUS A3 ...........................................................................................21
Seite IV von 32
4.3.1 Unused plugs ....................................................................................................................23
4.3.2 Power Supply ....................................................................................................................23
4.4 First steps .............................................................................................................................23
4.5 Cleaning/ service / maintenance .........................................................................................24
4.6 Disposal .................................................................................................................................24
5 Technical Documentation................................................................................ 25

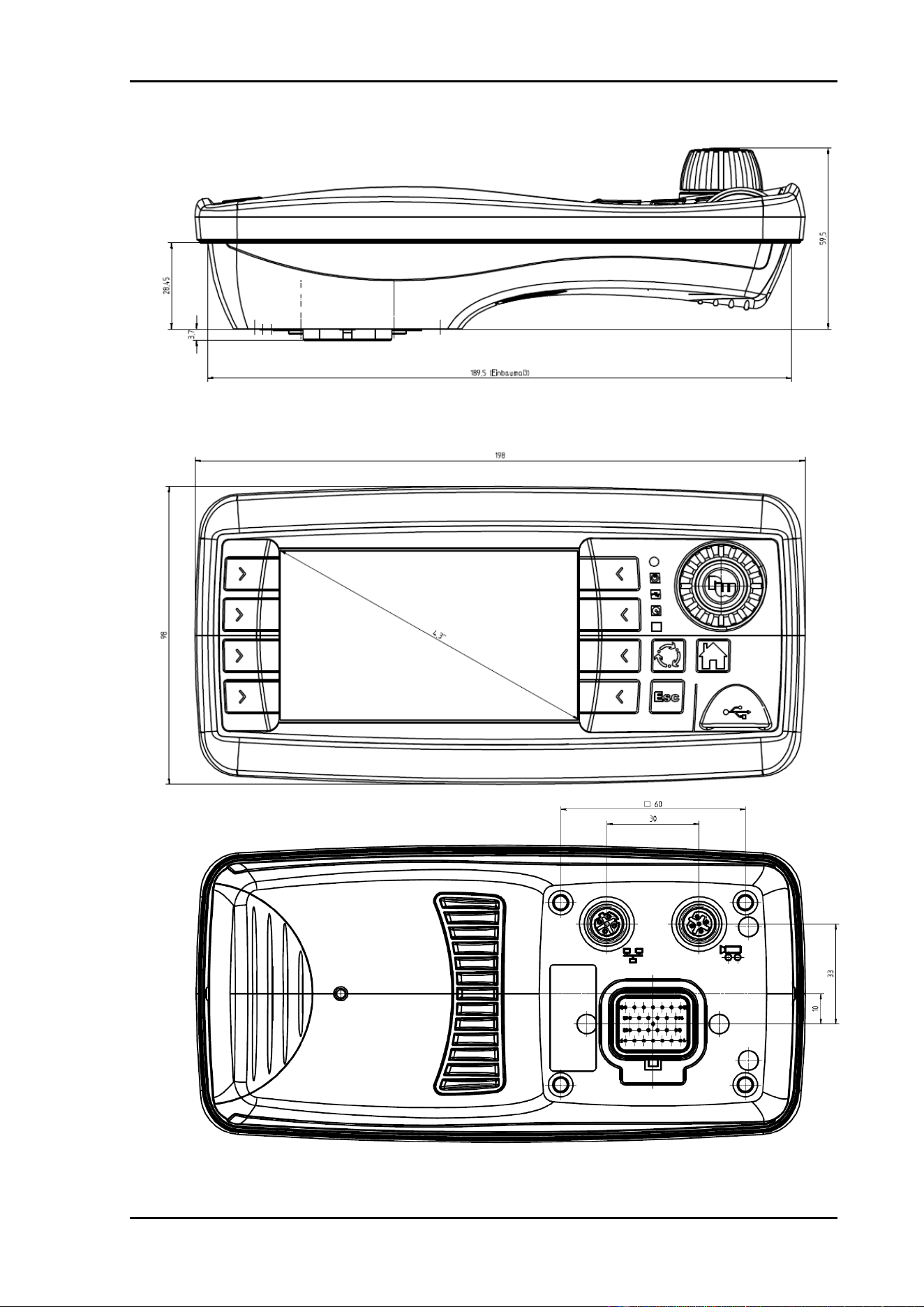

5.1 Dimension Drawings - OPUS A3 STANDARD ....................................................................26

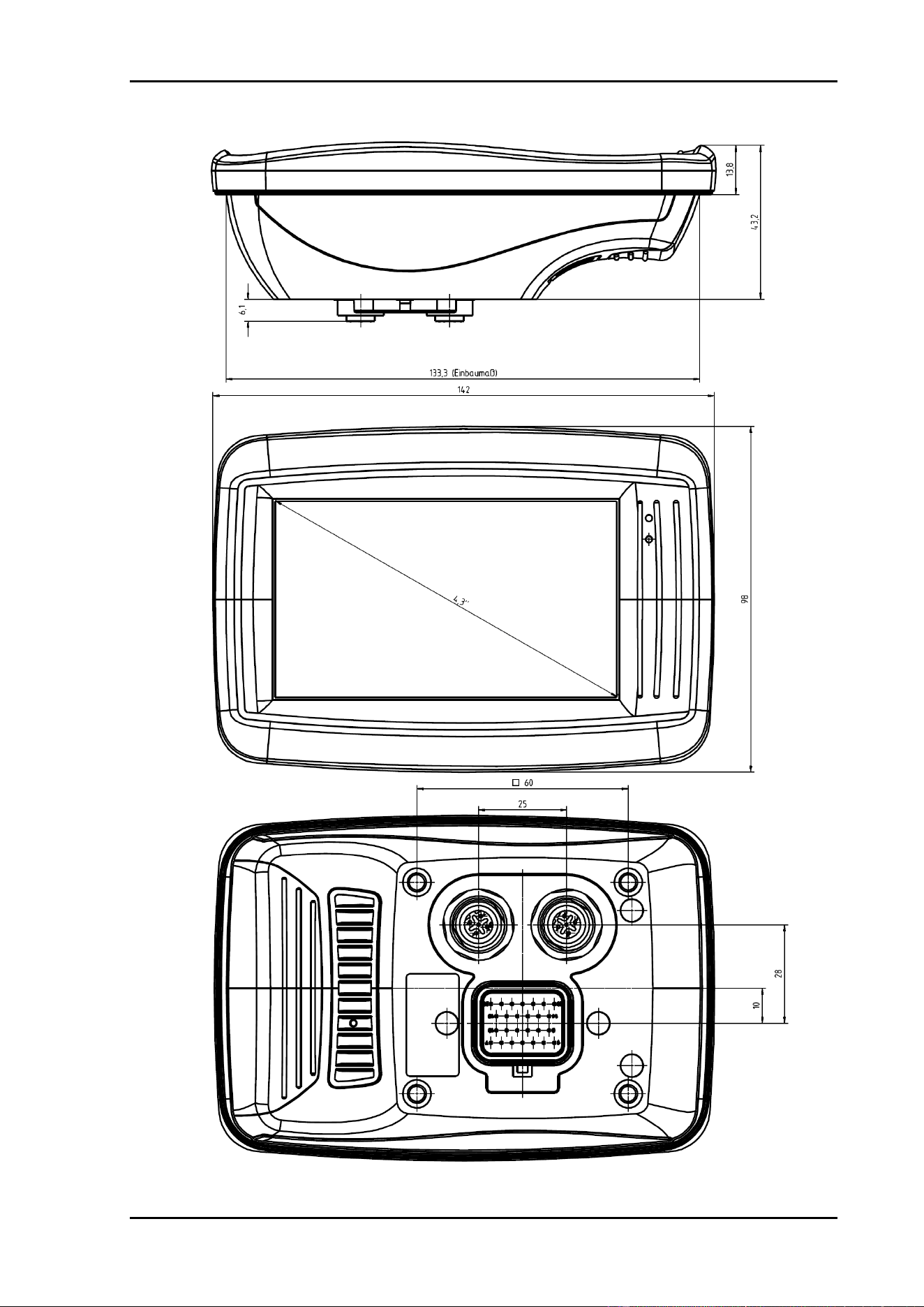

5.2 Dimension Drawings - OPUS A3 ECO ................................................................................27
5.3 Specification .........................................................................................................................28
5.4 Environmental compatibility ...............................................................................................29
5.4.1 CE-Compliance .................................................................................................................29
5.4.2 e1 - Type approval ............................................................................................................29
5.4.3 Protection Level (IP Code) ...............................................................................................29
5.4.4 Electrical Capability ..........................................................................................................29
5.4.5 Mechanical Capability ......................................................................................................29
5.4.6 Climate Capability.............................................................................................................30
5.4.7 Chemical Capability..........................................................................................................30
5.5 Declaration of Conformity ...................................................................................................31

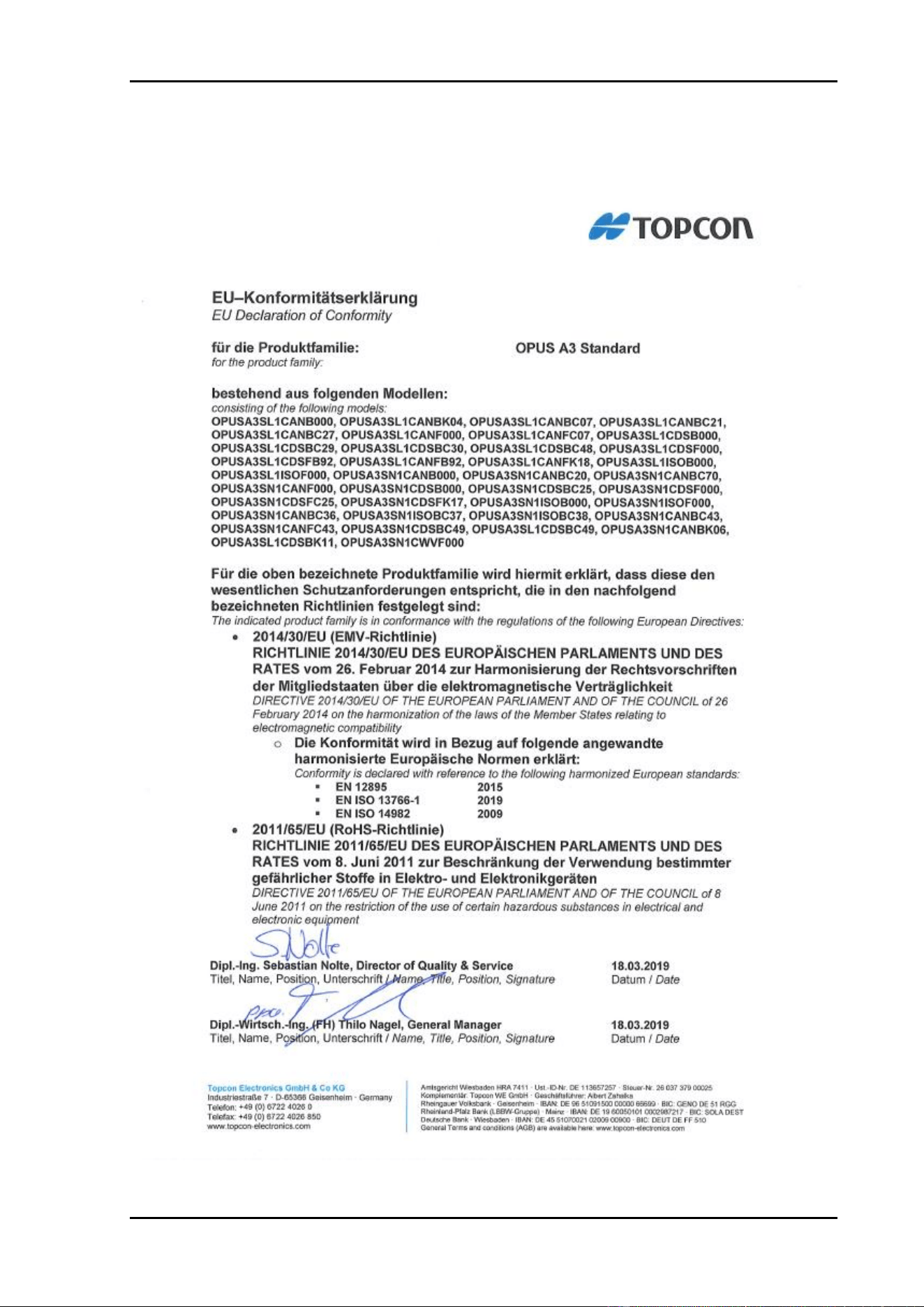

5.5.1 Declaration of Conformity for OPUS A3 ECO ................................................................31
5.5.2 Declaration of Conformity for OPUS A3 STANDARD ....................................................32
Preliminary Notes
Seite 1 von 32
1 Preliminary Notes
This document is valid for the following OPUS A3 version:
• OPUSA3E “ECO”
• OPUSA3S “Standard”
This document is directed to the qualified personnel and contains all the important
information to the correct use of the OPUS A3.
Please read this document before the first use and keep it during the operation.
In order to provide a better overview, this operating manual cannot present all details
for handling the OPUS A3 in all conceivable application cases. Neither can all
conceivable methods of setting up the device, operating the device, and servicing the
device be discussed in this manual. In case more information or support is required
please contact manufacturer technical support department.
1.1 Used Instructions Types
This operating manual contains instructions that must be complied with for your
personal safety and in order to avoid damage to property.
The instructions are presented as follows listed by degree of hazard:
Hazard!
Very Important information
Malfunction or Failure possible if non-compliance
Caution!
Severe bodily injury or property damage can occur if the
respective precautionary measures are not taken
Note
Additional information about the product, the handling of the
product or the respective part of the operating manual to which
particular attention should be paid.
Safety instructions, guarantee and liability
Seite 2 von 32
2 Safety instructions, guarantee and liability
2.1 Common
Read this operating manual before commissioning the OPUS A3. Keep this
operating manual where it is accessible to all users at anytime. Every person who is
assigned to commission or operate the OPUS A3 must have read and understood
the operating manual and the safety instructions in particular!
This operating manual contains instructions that must be complied with for your
personal safety and in order to avoid damage to property. Failure to follow these
safety instructions could result in fire, electric shock, or other injury or damage to
OPUS A3 or other property.
2.2 Qualified Personnel
This operating manual is intended for technically qualified personnel, who have the
appropriate skills in the area of measurement, control, and regulating technology.
Precise knowledge of all safety instructions and warnings contained in this operating
manual, as well as problem-free technical implementation of these instructions and
warnings are the prerequisites for hazard-free installation, commissioning, safe
operation, and maintenance, of the operator panel. Consequently, it is strictly
required that all measures be performed by qualified personnel.
Qualified personnel, in accordance with the safety and warning instructions
contained in this operating manual are personnel, who
• are familiar with CANbus systems, related protocols and network designs that
fulfill all legal requirements of the intended application, so that they are able to
program the OPUS operator panel accordingly
• have gained knowledge of the programming related concepts by education or
trainings. Using the Projektor Tool a Projektor Tool training by Topcon needs
to be attended. Using CODESYS© a CODESYS© training needs to be
attended, either held by Topcon or 3S.
• are familiar with the safety concepts of automation technology, either as
project design personnel
• or operating personnel who have been instructed in how to handle the
automation technology, and who are familiar with the section of this manual
which deals with operation.
• or who, as commissioning, and service personnel have been trained to repair
this type of automation technology, or who are authorized to commission,
ground, and label electrical circuits and devices, or systems, in accordance
with technical safety standards.
All persons who are involved in project planning, installation and operating the OPUS
A3 must be familiar with automation technology safety concepts, and they must be
qualified in accordance with the guidelines listed above.
Serious bodily injury and property damage can occur in the event of unqualified
Safety instructions, guarantee and liability
Seite 3 von 32
interventions in the device, or the system, or failure to heed the warning instructions
specified in this operating manual.
Consequently, only personnel who are appropriately qualified may undertake
interventions on this device, or on the associated system.
2.3 Power Supply
OPUS A3 is designed for 12 V and for 24 Volt battery systems. The operating
voltage range is 9-36 VDC, overvoltage resistance 48V for 2 minutes, inverse-
polarity protection up to -48 VDC.
CarGND (pin no. 4 on main connector) has to be connected to the chassis by a
conductor as short as possible. Even if there is no conductive chassis available (eg.
in E-vehicles) the pin has to be connected to the negative pole of the battery.
Otherwise there will be no protection against over voltage, short cut or ESD.
2.4 Interventions in the device
The OPUS A3 has been developed, manufactured, and tested in compliance with
applicable standards. When the handling guidelines and safety-related instructions
described here are complied with for project design, mounting, intended use, and
maintenance, normally the product poses no hazards relative to property damage or
to personal health. Nevertheless, the device can cause residual hazards if it is used
or operated improperly by personnel who have not been trained.
In case of malfunctions or lacks please get in contact with the manufacturer. Any
interventions in the device are able to cause serious interferences of the security for
people and machines. They are not allowed and lead to disclaimer of liability and
guarantee exclusion.
TOPCON is not liable for damage that occurs due to improper
misuse of the delivered components, or through failure to heed
the instructions in the operating manual, including the safety
instructions.
TOPCON is not liable for damage that occurs due to unintended
or intended changes of the TOPCON board support package or
any other parts of the operating system.
TOPCON is not liable for injuries to third party licenses for the
content used on OPUS panel by the end customer.
Safety instructions, guarantee and liability
Seite 4 von 32
Moreover, we expressly declare that all obligations on the part of Topcon are
exclusively derived from the respective purchase contract, in which the guarantee is
conclusively stipulated.
2.5 Safety Instructions for the OPUS A3
Dangerous high-voltage
Never attempt to repair or modify OPUS A3 yourself.
Disassembling OPUS A3 may cause damage that is not covered
under the warranty and cause hazardous conditions by the
high-voltage components inside of the unit.
OPUS A3 does not contain any user-serviceable parts. Service
should only be provided by a Topcon Eektronics GmbH & Co
KG.
Hazardous situations due to device failure
Do not use the OPUS A3 as the sole means of preventing
hazardous conditions on vehicles, machines and equipment.
Vehicles, machines and equipment must be constructed in
such a manner that defective conditions associated with the
OPUS A3 cannot cause a hazardous situation for operating
personnel.
Ensure that incorrect inputs via the OPUS A3, its malfunction,
or its failure cannot lead to major property damage, or to a
hazard for operating personnel.
Missing safety devices if used improperly
Precautions for the safety of a system should not be rendered
inoperable through the use of the OPUS A3.
Emergency-Stop devices must remain effective in all operating
modes.
TOPCON is not liable for damage or malfunctions occurs using
pirated or illegal software on the OPUS operator panel.
TOPCON is not liable for damage that occurs due to
improper programming and/or testing of the created
application that runs on the OPUS operator panels.
Safety instructions, guarantee and liability
Seite 5 von 32
Unintentional operation
Operating states can be called due to unintentional operation of
the OPUS A3 that are not appropriate for the situation.
OPUS A3 devices should be installed in such a manner that the
possibility of unintentional operation is adequately excluded.
If a further usage of the OPUS A3 will cause danger, the device
and if necessary the system needs to be switched off and be
secured against unintented activation. This particularly applies:
• If the device shows visible signs of damage
• If the device is no longer functional
• If parts of the device are disconnected or loose
• if the connection lines show visible damage
Undefined operating states
Undefined operating states can cause personal injury or
property damage.
To prevent supply line and signal line interruptions from
causing undefined or hazardous operating conditions,
appropriate hardware and software safety precautions must be
maintained.
Supply lines and signal lines must be installed in such a
manner that noise (such as inductive or capacitive interference)
cannot impair OPUS A3 function.
Using Connectors and Ports:
Never force a connector into a port. Check for mechanical
obstructions on the port. If the connector and port don’t join
with reasonable ease, they probably do not match. Make sure
that the connector matches the port and that you have
positioned the connector correctly in relation to the port.
Intended Use
Seite 6 von 32
3 Intended Use
The operator panel OPUS A3 is a programmable graphical display used to operate
and monitor vehicles and working machines.
The communication with other system components, as for example decentralised I/O
module, occurs over the CAN interfaces with the supported protocols: CANopen,
J1939 and CANfreestyle (layer 2).
For service purposes additional interfaces like Ethernet, RS232, USB and
analog/digital inputs/outputs (optional) are available. Together with Embedded Linux
operating system they form a universal platform for the communication with other
CAN devices, networks or PCs.
3.1 Example of Use
Control Unit 1
Controlling of the
actuation
Control Unit 2
Data logging from
sensors & switches
Control Unit 3
Controlling of
movement
Sensor 1
Sensor for
CAN-Bus
The operator panel OPUS A3 is not admitted for security-
relevant duties for personal protection purposes.
Vehicles, machines, and equipment surrounding the OPUS A3
must be combined in such a manner that the OPUS A3 will be
warmed up equally from all sides.
Increased warming of the OPUS from the back side may cause
temporary fogging of the front glass or touch screen.
Intended Use
Seite 7 von 32
3.2 Device Description
3.2.1 OPUS A3 ECO
Fig. 3.1: Schematic diagram of the OPUS A3 ECO
Display:
4.3” (480 x 272 px) TFT colour graphic LCD display with (optional) analogue resistive
touch.
Light sensor (option):
Light sensor embedded in keypad for automatic adoption of display-backlight and
key-backlight to ambient light intensity.
Multicolour LED (option):
Multicolour-LED is embedded in keypad and can be free programmable. This LED is
able to show PWM-controlled RGB colours, 16 bit each.
3.2.2 OPUS A3 STANDARD
Fig. 3.2: Schematic diagram of the OPUS A3 STANDARD Landscape
Display
Light sensor
Multicolor LED
Light sensor (optional)
Softkeys F1 – F8
Encoder
USB Slot behind
flap (optional)
Function Keys
Display
3 Status LEDs
Multicolor LED
Intended Use
Seite 8 von 32
Fig. 3.3: Schematic diagram of the OPUS A3 STANDARD Portrait
For display, light sensor and multicolor LED please see the description for the OPUS
A3 ECO.
Softkeys F1 to F8:
All softkeys can be assigned to the function defined in the customer specific
application. Please see the Operational Manual of the application tools for more
information.
The Function Keys:
The function keys serve as global keys and do not change the function with a screen
change.
Using CODESYS© these keys are free programmable.
Using Projektor Tool the functions for these keys are fixed:
3 Status LEDs
Softkeys F1 – F8
Display
Encoder
Function Keys
Light sensor (optional)
Multicolor LED
USB Slot behind
flap (optional)
ESC is used to deselect the selected value, to cancel the entered
value or to acknowledge the raised alarm
SET key is reserved for window management
HOME is used to change the display page to the start page of the
application
Intended Use
Seite 9 von 32
The Encoder:
Encoder is used for the navigation between the objects in customer specific
application. It is possible to select graphical objects on the screen and change there
value rotating the encoder. An entry function can be generated directly on rotating or
by pressing the encoder.
LEDs:
There are 3 different status LEDs available on the unit:
Multicolor LED (option) is embedded in keypad and can be free programmable. This
LED is able to show PWM-controlled RGB colours, 16 bit each.
Light Sensor:
The light sensor offers the possibility for an automatic adaption of display-backlight
and key-backlight to the ambient light intensity.
USB slot on the front (option):
The high speed USB interface can be used for updating and data exchange.
Fig. 3.4: Schematic diagram of both OPUS A3 types backside
Main connector:
There are following interfaces available of the main connector:
• Power supply and ignition input
• 2 x CAN-Interfaces according to ISO/DIS 11898
• RS232-Interface
• USB
• 4 analogue/digital inputs (optional)
• 3 digital outputs (optional)
green light will be on in operational mode
red light during the Wireless read/write
yellow light during the data transfer over the USB interface
Ethernet connector
(optional)
Main connector
Video connector
(optional)
Intended Use
Seite 10 von 32
Video (optional):
This interface is used for the analog Video-Input included protected camera power
supply.
Ethernet (optional):
There is an Ethernet interface (10/100 Mbit/s Base) available on the unit. This
interface may only used for the data transfer.
Power-on/off Behavior:
The OPUS A3 does not have a separate on/off key. As soon as the device is
supplied with the necessary voltage via terminal 30 (battery plus), terminal 31
(battery GND) and terminal 15 (ignition), it will start to boot. In order to decrease boot
time the device supports power modes with which you can put the device in a sleep
mode before it powers down.
When ignition voltage is removed, the device will switch to low-power-mode (see
C/C++ Developer Guide). After a time frame that can be configured (default time is
60 sec) the device will move one more step down to sleep-mode. After another 60
seconds (default time) the unit will fully switch off. As soon as terminal 15 is switched
on again the unit will go back to on-mode in full operation.
Power Mode
current at 13.5 V DC
current at 27 V
On
430 mA
240 mA
Low-power
160 mA
90 mA
Sleep
90 mA
55 mA
Off
< 3 mA
< 3 mA
For more information please refer to the C/C++ Developer Guide.
3.2 Features Overview for OPUS A3
• Encapsulated plastic housing to be mounted in landscape or portrait mode
standalone or in dash
• 4.3” TFT color display for automotive with resolution 480 x 272 pixel
• Touch (optional)
• Programmable keys with backlight on STANDARD variant
• 32bit processor with embedded linux operating system
• Two CAN interface (ISO 11898) using CANopen® and SAE J1939 protocols.
Layer II is also supported
• Four analog / digital inputs (selectable via software) and three digital outputs
(optional)
• Beeper and Light sensor
• RS232 interface for serial console and Full-Speed USB on main connector
Do not unplug terminal 30 from power supply on running unit.
Power supply interruption on terminal 30 may cause data
corruption and loss.
Intended Use
Seite 11 von 32
• High speed USB on the front (optional)
The OPUS A3 is particularly characterized by its robust construction, and it has been
developed especially for harsh use conditions in mobile work machines.
3.3 Application Development
There are three possible ways to program the OPUS A3 and make it an integrated
part of its application.
1. Projektor-Tool:
This powerful development environment provided by Topcon Electronic GmbH & Co
KG enables the quick and effective creation of an application for the OPUS A3
operator terminal. Use the Projektor to conveniently design the user interface on the
computer, which can be easily displayed on the device. In addition, this tool includes
features to work with CANopen
®
, J1939 and CANfreestyle protocols for CAN
communication. For further information please refers to the Operator Manual
Projektor Tool III.
2. CODESYS© 3.x:
CODESYS© is a programming tool and system developed by the German company
3S. It supports different means of programming such as FUB or Structured Text. It
can be used to program the OPUS A3 and CODESYS© compatible ECUs.
CODESYS© includes the functionality to configure the CANopen
®
protocol for
communication over CAN bus. For further information please refer to the
BAOPUSA3CDS.
3. C-Programming:
OPUS A3 with its embedded Linux as operational system can be fully programmed
using C or C++ as programming language. For further information and function-call
list please refer to the C/C++ Developer Guide.
4. ISO-UT:
OPUS A3 can be used as a ISO-UT slave. According to the ISO-11783 standard and
DLG conformity.
5. Topcon Board Support Package (BSP):
Based on the operationally system Topcon Boards Support Package provides all the
necessary interfaces to control the internal functionality of the unit (e.g. activation of
the backlight display, processing key activation, etc.).
This software is ready installed on all OPUS A3 delivered together with the operation
system. For further information please refer to the C/C++ Developer Guide.
6. Universal Downloader:
To download software from the PC to the terminal the Universal Downloader 4 is
provided. It supports a download via USB stick and Ethernet. The Universal
Downloader 4 also stores the software, installs it and restarts the application on the
terminal. It is part of the Topcon Toolchain and documented in the Operator Manual
Projektor Tool III.
Intended Use
Seite 12 von 32
Please notice the following recommendation and prerequisites for the computer used
to the application design and /or programming:
- Using Projektor Tool and CODESYS© for the development it is recommended
to use the PC with Windows XP operational system (for CODESYS© it may
by younger), at least 2 GB free hard disk capacity and 2 GB RAM. Serial port
is recommended.
- Programming with C/C++ Linux operational system is prerequisite.
3.4 Development Kit
To be support programming the graphical user interface for the OPUS A3 terminal
the different development kits referred to the using tools are provided.
Topcon Toolchain with Projektor Tool
Order number: OPEP00A3CAN
Description
Order Number
Qty
Main connecting cable
OPKAA3CAN15
1
Ethernet cable
1
CD with WE Toolchain:
- Projektor Tool
- PClient
- Documentation
1
Basic Projektor-Tool training at a
Topcon facility
1
Projektor Tool license
2
12 month technical support
1
CODESYS© 3.x
Order number: OPEP00A3CDS
Description
Order Number
Qty
Main connecting cable
OPKAA3CAN15
1
Ethernet cable
1
CD with CODESYS© Software:
- Development Tool
- Application
- Target files
- Documentation
1
Basic CODESYS© training at a
Topcon facility
1
The operator panel OPUS A3 may only be handled due to the
according operation manual.
Intended Use
Seite 13 von 32
12 month technical support
1
ISO-UT with Projektor Tool
Order number: OPEP00A3ISO
Description
Order Number
Qty
Main connecting cable
OPKAA3CAN15
1
Ethernet cable
1
CD with ISO-UT:
- Projektor Tool
- PClient
- ISO-UT
- Documentation
1
Basic Projektor-Tool training at a
Topcon facility
1
Projektor Tool license
2
12 month technical support
1
Accessories not part of the Developer’s kit:
Description
Order Number
Qty
Video Cable OPUS A3
OPKAA3VID010
1
Etherner-to-USB adapter
1
Getting Started
Seite 14 von 32
4 Getting Started
4.1 Check the delivered parts
Please check whether all parts described in the scope of delivery have been
delivered correctly. For question or reclamation please contact the support team of
Topcon Electronics GmbH & Co KG (opus[email protected]m).
4.2 Mounting
The unit is delivered without mounting accessories.
Depending on mounting type the following mounting accessories are available.
Description
Order Number
In dash mounting cover OPUS A3 STANDARD
OPUSA3ZBEB001
In dash mounting cover OPUS A3 ECO
OPUSA3ZBEB002
Stand alone RAM-adapter OPUS A3 (both)
OPUSA3ZBAH001
The back side of the unit is ready prepared for both in dash and standalone
mounting.
Both portrait and landscape positions are supported for mounting.
For mounting please follow the instruction provided in the following dimension
drawing.
Getting Started
Seite 15 von 32
4.2.1 Dashboard Mounting Instruction for OPUS A3 STANDARD
Parts List
Pos.
Description
Order number
Supplier
1
OPUS A3 Standard
OPUSA3SXXXXX
Topcon Electronics
2
Dashboard
-
Customer
3
Spacer or washer
-
Customer
4
Mounting Cover
OPUSA3ZBEB001
Topcon Electronics
5
M5 Screw* (DIN EN ISO 4762)
-
Customer
*Assignment of the screw length depends on dashboard thickness (thickness/length):
1mm – 3mm / M5 x 12
4mm – 6mm / M5 x 16
7mm – 10mm / M5 x 20
1
2
3
4
5
Getting Started
Seite 16 von 32
4.2.2 Cut-out Dashboard
Maximum thickness for mounting OPUS A3 STANDARD is 10mm
Attention!
Using too long screws can damage the unit!
Accepted mounting torque with mounting cover is 2,5 ± 0,2 Nm.
Please secure the screws with the thread locker medium
strength (e.g. Loctite 243).
Getting Started
Seite 17 von 32
4.2.3 Mounting Cover for OPUS A3 STANDARD
Getting Started
Seite 18 von 32
4.2.4 Dashboard Mounting Instruction - OPUS A3 ECO
Parts List
Pos.
Description
Order number
Supplier
1
OPUS A3 Eco
OPUSA3EXXXXX
Topcon Electronics
2
Dashboard
-
Customer
3
Spacer or washer
-
Customer
4
Mounting Cover
OPUSA3ZBEB002
Topcon Electronics
5
M5 Screw* (DIN EN ISO 4762)
-
Customer
*Assignment of the screw length depends on dashboard thickness (thickness/length):
1mm – 3mm / M5 x 12
4mm – 6mm / M5 x 16
7mm – 10mm / M5 x 20
1
2
4
3
5
Getting Started
Seite 19 von 32
4.2.5 Cut-out Dashboard
Maximum thickness for mounting OPUS A3 Eco: 10mm
Attention!
Using too long screws can damage the unit!
Accepted mounting torque with mounting cover is 2,5 ± 0,2 Nm.
Please secure the screws with the thread locker medium
strength (e.g. Loctite 243)
Getting Started
Seite 20 von 32
4.2.6 Mounting Cover
Getting Started
Seite 21 von 32
4.3 Electrical installation OPUS A3
Below you find the pin out diagram of the OPUS A3. The connectors are drawn as
seen from the back side of the unit.
Please be aware that the existing pins and connectors depend on the hardware
option you ordered.
Please note that the OPUS A3 only represents one part of the entire CAN network.
Set-up and dimensioning of the network must be executed by specialized personnel,
and the information in this regard cannot be a component of this operating manual.
Ethernet
Round Connector,
4 pins, M12,
acc. To IEC 61076-2-101
1
TD+
2
RD+
3
TD-
4
RD-
Video
Round Connector, 5
pins, M12
1
VidSig+
2
Mirror
3
Camera+
4
Camera -
5
VidSig GND
Video connector pinout
Ethernet Connector,
M12, female, 4 pins,
d-coded
Video- Connector,
M12, female, 5 pins,
b-coded
Main Connector
Ethernet connector pinout
Getting Started
Seite 22 von 32
Main connector pinout (in full option)
Pin no.
Assignment
Description
1
VCC
supply voltage +; terminal 30
2
Ignition Input
ignition input; terminal 15
3
GND
supply voltage - ;terminal 31
4
CarGND
car ground; has to be connected, otherwise there will
be no protection against overvoltage, shortcut or
ESD
5
n. c.
not connected
6
n. c.
not connected
7
n. c.
not connected
8
CAN1H
CAN bus 1 high signal
9
CAN1L
CAN bus 1 low signal
10
CAN2H
CAN bus 2 high signal
11
CAN2L
CAN bus 2 low signal
12
USB_VCC
full speed USB, + 5 V DC
13
USB_GND
full speed USB, 0 V
14
USB_D-
full speed USB, data line (-)
15
USB_ D+
full speed USB, data line (+)
16
RS232: RxD
RS232: RxD
17
RS232: TxD
RS232: TxD
18
RS232: GND
RS232: GND
19
A/DI3
analog/digital input 3
20
A/DI1
analog/digital input 1
21
A/DI2
analog/digital input 2
22
A/DI4
analog/digital input 4
23
SERV_EN
service enable; to be connected while power-on for
updating
24
DO3
digital output 3
25
DO1
digital output 1
26
DO2
digital output 2
Please observe the following guidelines for set-up:
• Power supply lines should only be laid as pairs, as close together as possible.
• Sensitive signal lines should be shielded to achieve highest possible damping,
and under this shielding they should be still be laid out twisted.
• Metal plug connections should be used for shielded lines.
• Cable bundles should be distributed in accordance with their purpose (e.g.
HF, LG, and power supply); the groups thus formed should not be routed
parallel to the extent possible, and they should be routed with clearance.
The OPUS A3 relies on a connection to an ECU that controls the functions and
features of the target vehicle/machine.
Getting Started
Seite 23 von 32
Please keep all the connectors separated. All connection should be done on the
shortest distance to the unit.
4.3.1 Unused plugs
ACHTUN
4.3.2 Power Supply
The unit may be used with the 12 V and for 24 Volt battery systems, operating
voltage range of 8-36 VDC. The overvoltage resistance is about 48V for 2 minutes.
Inverse-polarity protection is up to -48 V DC.
Car ground (pin no. 4 on main connector) has to be connected to the chassis by a
conductor as short as possible. Even if there is no conductive chassis available (eg.
in E-vehicles) the pin has to be connected to the negative pole of the battery.
Otherwise there will be no protection against over voltage, shot cut or ESD.
4.4 First steps
Plug the main connector into the OPUS A3. Then connect the pins 15 and 30 for the
plus voltage, as well as pins for GND and CarGND for the ground. Switch on the
Power supply.
On start the boot-logo image will be displayed on the screen. This may be
exchanged with the customer specific image (please refer to C/C++ Developer
Guide for more information).
The boot up takes about 3 minutes and will call the application according to the start
scripts on the unit (start scripts for Projektor Tool and CODESYS© application
already installed by delivery).
Penetrating humidity by unused and unprotected plugs may
cause damage of the unit. Please protect unused plugs with the
special blind inserts that have been supplied with the units.
Th Wrong connection may cause damage of the unit.
The ECU must be the component in charge of all safety related
functions.
Getting Started
Seite 24 von 32
The application displays the information to the version of the application software
required. CODESYS© application also contains a simple function test. Each new
downloaded application will replace the old one automatically.
4.5 Cleaning/ service / maintenance
Cleaning agents which have an abrasive or dissolving effect on the coated glass
pane, the foil of the touch screen or the plastic of the encoder or the housing should
not be used to clean OPUS A3 operator panels. Only use soft clothes with a little
soap and water or mild dish washing liquid.
The OPUS A3 does not have any parts that require service by the user.
Repairs can only be performed by Topcon Electronics GmbH & Co KG.
4.6 Disposal
Dispose of the device in accordance with the national environmental regulations
Technical Documentation
Seite 25 von 32
5 Technical Documentation
The OPUS A3 is currently available in two variants:
OPUS A3 STANDARD:
OPUS A3 ECO:
Technical Documentation
Seite 26 von 32
5.1 Dimension Drawings - OPUS A3 STANDARD
Technical Documentation
Seite 27 von 32
5.2 Dimension Drawings - OPUS A3 ECO
Technical Documentation
Seite 28 von 32
5.3 Specification
OPUS A3 ECO
OPUS A3 STANDARD
Basic
Full option
Basic
Full option
Dashboard Mount
Dimensions (mm)
B130xH97xT56
B130xH97xT56
B198xH97xT56
B198xH97xT56
Display size
480x272 pixels
480x272 pixels
480x272 pixels
480x272 pixels
Touchscreen
Keys Soft / Hard
8 / 3
8 / 3
Keys with backlight
Encoder with Click
Optical Signal
1
1
4
4
Beeper
Processor Size
32KByte
32KByte
32KByte
32KByte
Processor Speed
532 MHz
I.MX35
532 MHz,
I.MX35
532 MHz
I.MX35
532 MHz,
I.MX35
RAM
128 MB DDR2
256 MB DDR2
128 MB DDR2
256 MB DDR2
Mass Storage
512 MB
1 GB
512 MB
1 GB
EEPROM
32 kB serial
32 kB serial
32 kB serial
32 kB serial
CAN bus
2
2
2
2
RS232
1
1
1
1
USB 2.0 full speed
1
1
1
1
USB 2.0 high speed
Ethernet
Video in
Analog/digital input
4
4
Digital Output
3
3
Real time clock
Light Sensor
Technical Documentation
Seite 29 von 32
5.4 Environmental compatibility
5.4.1 CE-Compliance
EU Directive 2014/30/EU (EMC) according to
• EN 12895: Industrial Trucks – Electromagnetic compatibility
• EN 13309: Construction machinery – Electromagnetic compatibility of
machines with internal electrical power supply
• EN ISO 14982: Agricultural and forestry machinery - Electromagnetic
compatibility - Test methods and acceptance criteria
5.4.2 e1 - Type approval
EU Directive 72/245/EWG including changes up to 2009/19/EG
5.4.3 Protection Level (IP Code)
IP 6k5 and 6k7 according to ISO 20653: Road Vehicles – Degrees of protection (IP-
Code) – Protection of electrical equipment against foreign objects, water and access
5.4.4 Electrical Capability
12 and 24V-Systems according to:
• ISO 16750-2: Road Vehicles – Environmental conditions and testing for
electrical and electronic equipment – Electrical loads
• ISO 15003: Agricultural Engineering – Electrical and electronic equipment –
Testing resistance to environmental conditions
5.4.5 Mechanical Capability
According to ISO 16750-3: Road Vehicles – Environmental conditions and testing for
electrical and electronic equipment – Mechanical loads, Code L
ISO 15003: Agricultural Engineering – Electrical and electronic equipment – Testing
resistance to environmental conditions
- Mechanical Shock: Level 2
- Random Vibration: Level 2
- Sinusoidal Vibration: Level 2
Technical Documentation
Seite 30 von 32
5.4.6 Climate Capability
• According to ISO 16750-4: Road Vehicles – Environmental conditions and
testing for electrical and electronic equipment – Climatic Loads
- Operating Temperature Range: Code E: -30 … +65°C
- Storage Temperature Range: -40 … +85°C
- Climatic Loads: Code C
• ISO 15003: Agricultural Engineering – Electrical and electronic equipment –
Testing resistance to environmental conditions
5.4.7 Chemical Capability
• According to ISO 16750-5: Road Vehicles – Environmental conditions and
testing for electrical and electronic equipment – Chemical Loads
Mounting Location: B
• ISO 15003: Agricultural Engineering – Electrical and electronic equipment –
Testing resistance to environmental conditions
Technical Documentation
Seite 31 von 32
5.5 Declaration of Conformity
5.5.1 Declaration of Conformity for OPUS A3 ECO
Technical Documentation
Seite 32 von 32
5.5.2 Declaration of Conformity for OPUS A3 STANDARD
