ONE Moto
SmartMotorcycleDiagnostic Tool User Manual

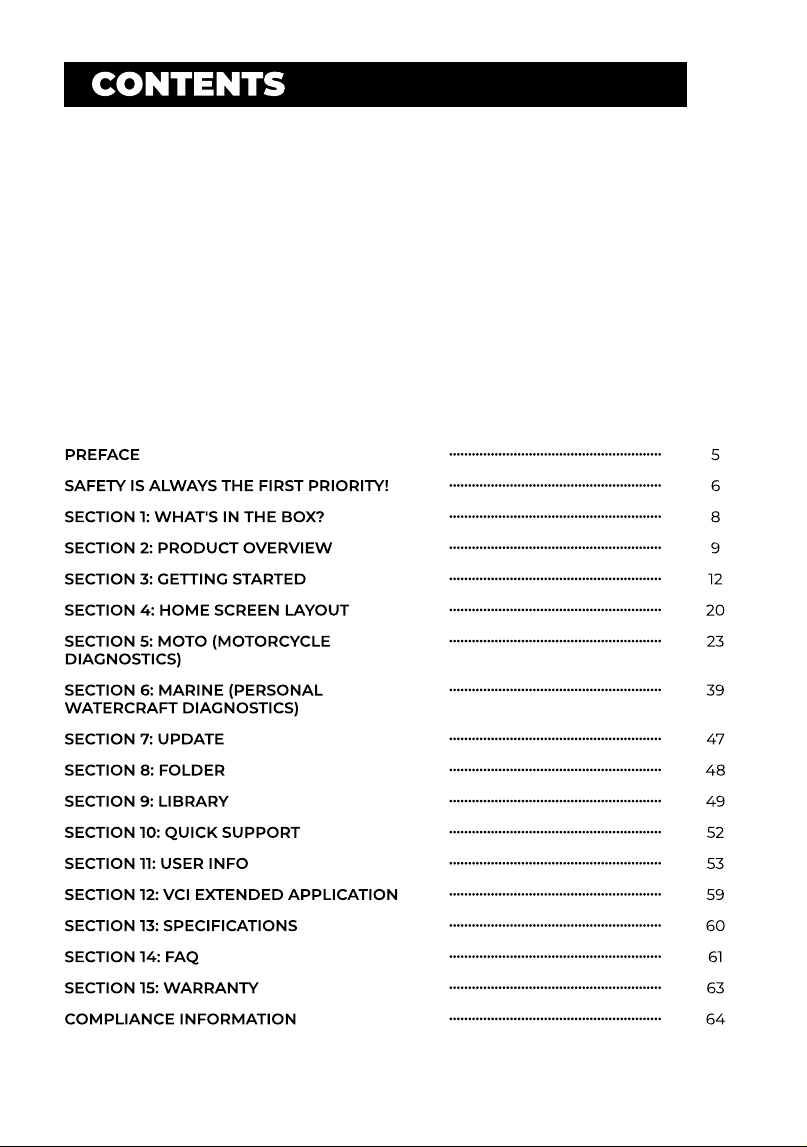

CONTENTS
PREFAC
SAFETY IS ALWAYS THE FIRST PRIORITY
SECTION 1: WHAT'S IN THE BOX
SECTION 2: PRODUCT OVERVIE
SECTION 3: GETTING STARTE

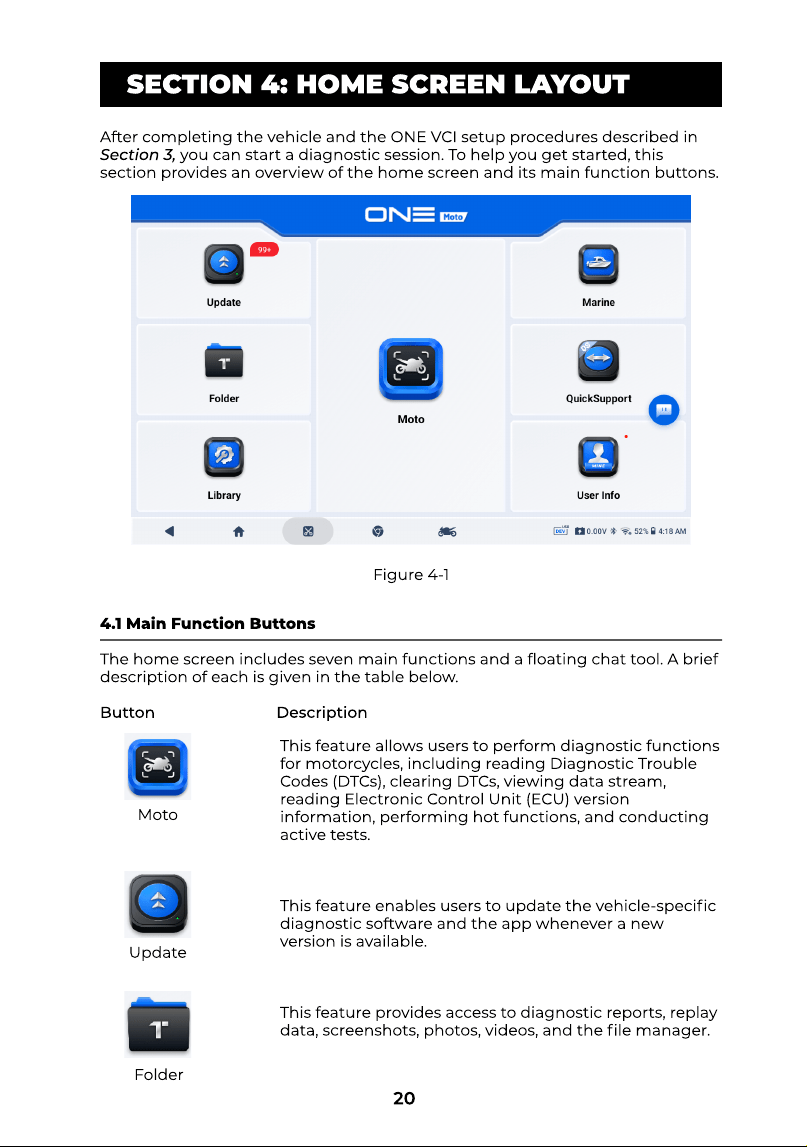

SECTION 4: HOME SCREEN LAYOU

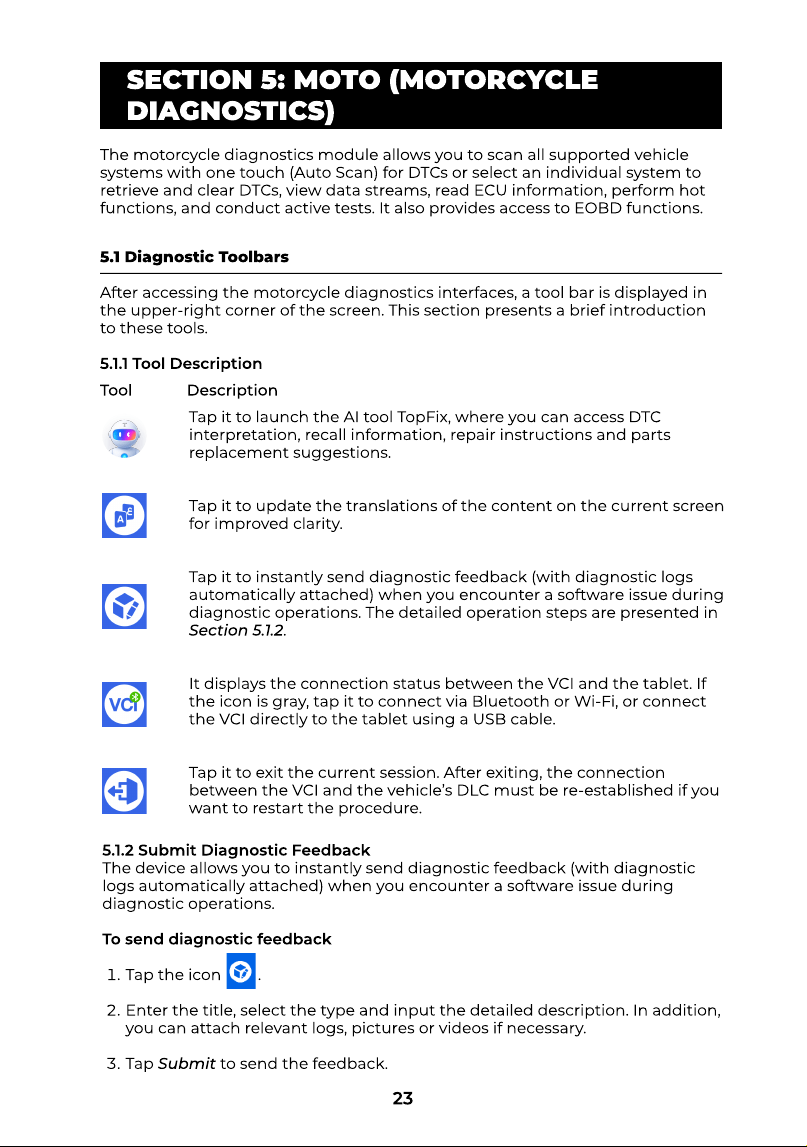

SECTION 5: MOTO (MOTORCYCLE
DIAGNOSTICS

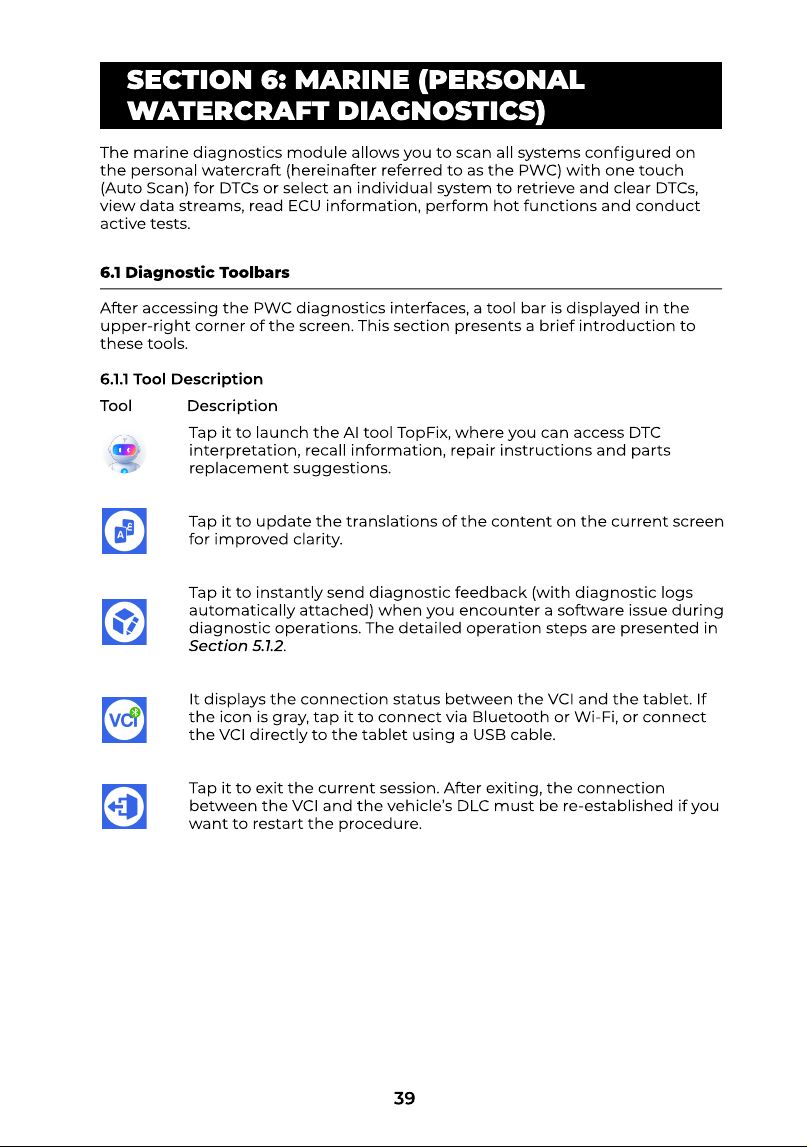

SECTION 6: MARINE (PERSONAL
WATERCRAFT DIAGNOSTICS
SECTION 7: UPDAT
SECTION 8: FOLDE

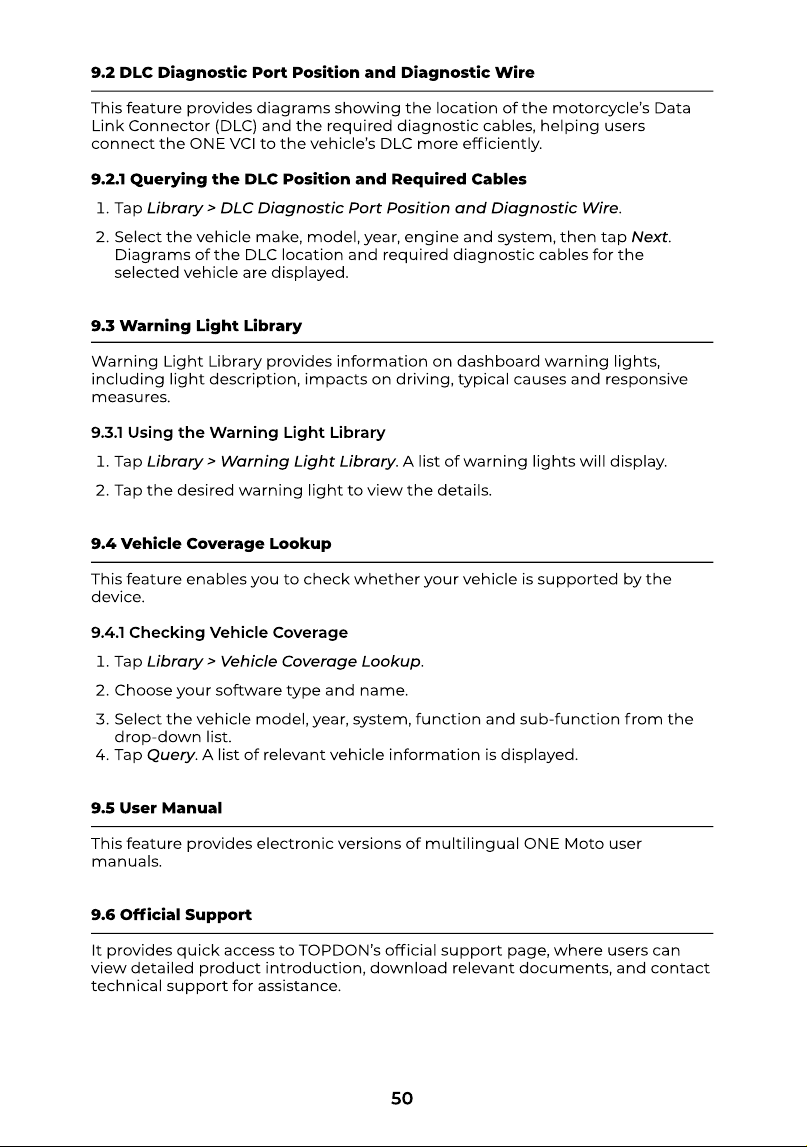

SECTION 9: LIBRAR
SECTION 10: QUICK SUPPOR
SECTION 11: USER INF
SECTION 12: VCI EXTENDED APPLICATIO

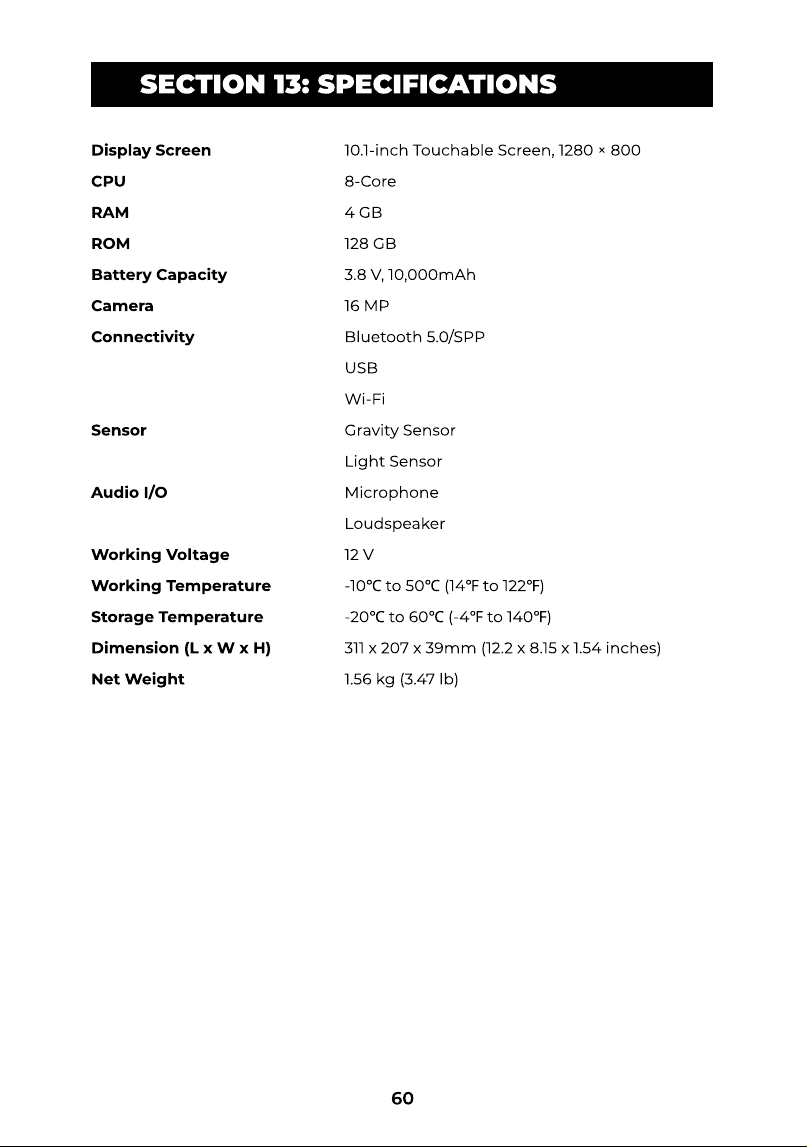

SECTION 13: SPECIFICATION
SECTION 14: FA
SECTION 15: WARRANT
COMPLIANCE INFORMATION
.......................................................
.......................................................
.......................................................
.......................................................
.......................................................
.......................................................
.......................................................
.......................................................
.......................................................
.......................................................
.......................................................
.......................................................
.......................................................
.......................................................
.......................................................
.......................................................
.......................................................
........................................................
1
2
2
3
4
4
4
5
5
5
6
6
6
64
ENGLISH

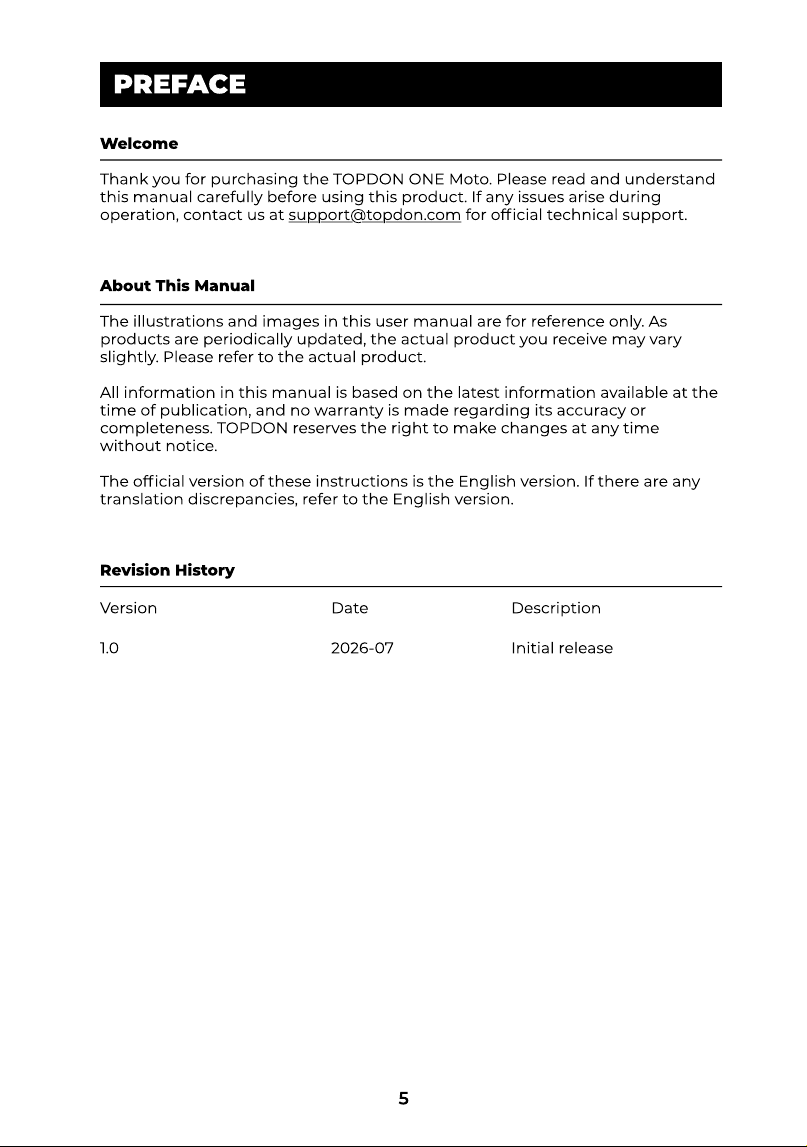

PREFACE
Welcom
Thank you for purchasing the TOPDON ONE Moto. Please read and understand
this manual carefully before using this product. If any issues arise during
operation, contact us at support@topdon.comfor ofcial technical support
About This Manua
The illustrations and images in this user manual are for reference only. As
products are periodically updated, the actual product you receive may vary
slightly. Please refer to the actual product
All information in this manual is based on the latest information available at the
time of publication, and no warranty is made regarding its accuracy or
completeness. TOPDON reserves the right to make changes at any time
without notice
The ofcial version of these instructions is the English version. If there are any
translation discrepancies, refer to the English version
Revision History
Versio
1.0
Dat
2026-07
Descriptio
Initial release
5

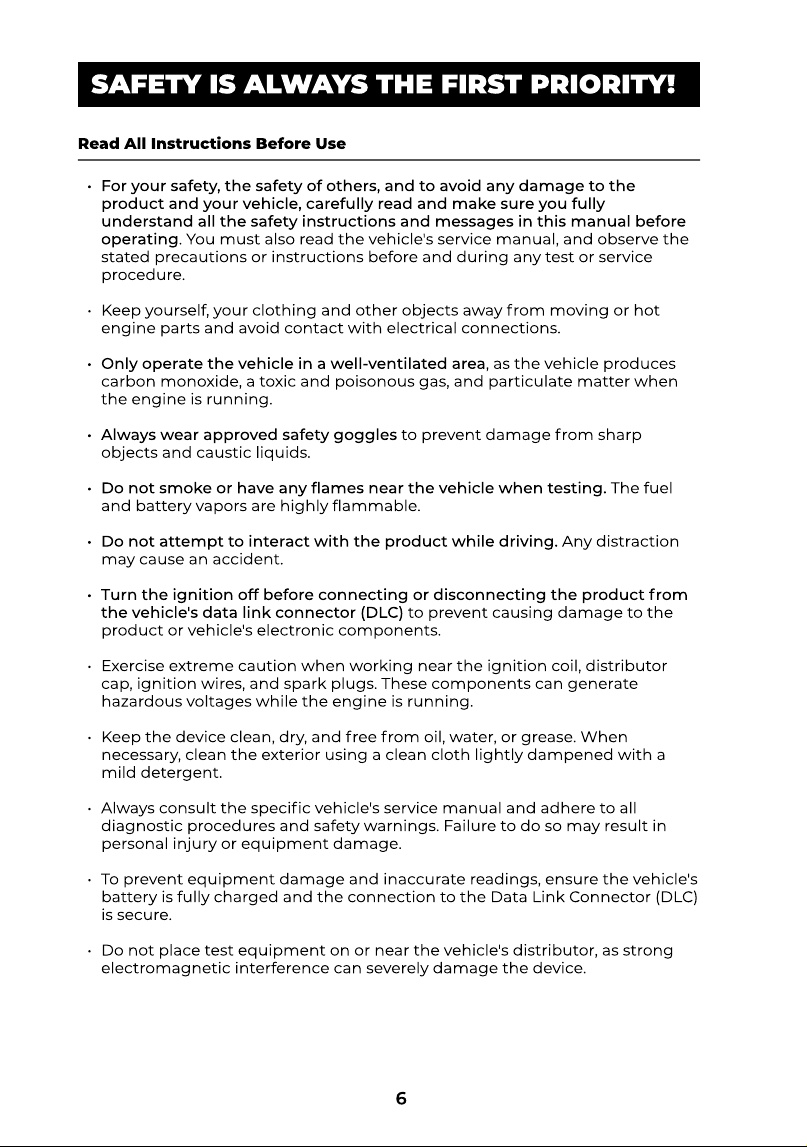

SAFETY IS ALWAYS THE FIRST PRIORITY!
Read All Instructions Before Use
For your safety, the safety of others, and to avoid any damage to the
product and your vehicle, carefully read and make sure you fully
understand all the safety instructions and messages in this manual before
operating. You must also read the vehicle's service manual, and observe the
stated precautions or instructions before and during any test or service
procedure
Keep yourself, your clothing and other objects away from moving or hot
engine parts and avoid contact with electrical connections
Only operate the vehicle in a well-ventilated area, as the vehicle produces
carbon monoxide, a toxic and poisonous gas, and particulate matter when
the engine is running
Always wear approved safety goggles to prevent damage from sharp
objects and caustic liquids
Do not smoke or have any ames near the vehicle when testing. The fuel
and battery vapors are highly ammable
Do not attempt to interact with the product while driving. Any distraction
may cause an accident
Turn the ignition off before connecting or disconnecting the product from
the vehicle's data link connector (DLC) to prevent causing damage to the
product or vehicle's electronic components
Exercise extreme caution when working near the ignition coil, distributor
cap, ignition wires, and spark plugs. These components can generate
hazardous voltages while the engine is running
Keep the device clean, dry, and free from oil, water, or grease. When
necessary, clean the exterior using a clean cloth lightly dampened with a
mild detergent
Always consult the specic vehicle's service manual and adhere to all
diagnostic procedures and safety warnings. Failure to do so may result in
personal injury or equipment damage
To prevent equipment damage and inaccurate readings, ensure the vehicle's
battery is fully charged and the connection to the Data Link Connector (DLC)
is secure
Do not place test equipment on or near the vehicle's distributor, as strong
electromagnetic interference can severely damage the device.
6

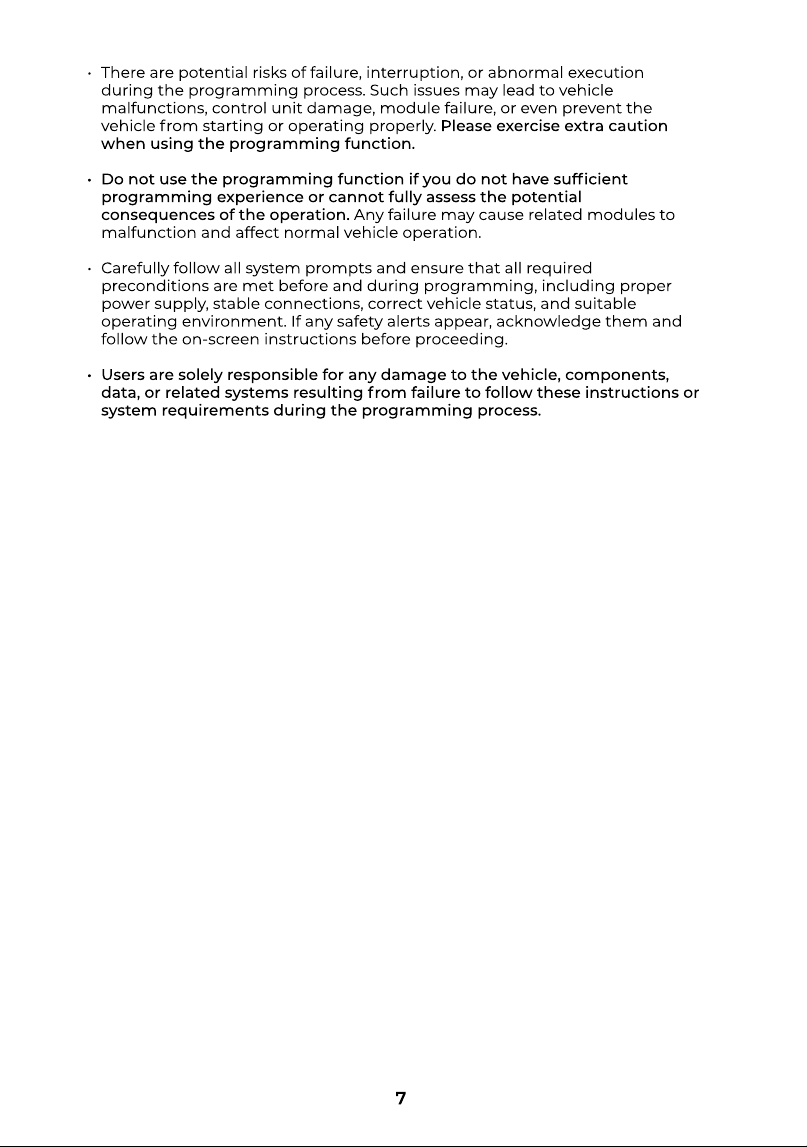

There are potential risks of failure, interruption, or abnormal execution
during the programming process. Such issues may lead to vehicle
malfunctions, control unit damage, module failure, or even prevent the
vehicle from starting or operating properly. Please exercise extra caution
when using the programming function.
Do not use the programming function if you do not have sufcient
programming experience or cannot fully assess the potential
consequences of the operation. Any failure may cause related modules to
malfunction and affect normal vehicle operation
Carefully follow all system prompts and ensure that all required
preconditions are met before and during programming, including proper
power supply, stable connections, correct vehicle status, and suitable
operating environment. If any safety alerts appear, acknowledge them and
follow the on-screen instructions before proceeding
Users are solely responsible for any damage to the vehicle, components,
data, or related systems resulting from failure to follow these instructions or
system requirements during the programming process.
7
SECTION 1: WHAT'S IN THE BOX?
·Table
·ONE VC
·Power Adapte
·USB Cable (USB-C to USB-C
·USB Cable (USB-A to USB-C
·Packing Lis
·Quick User Guid
·Carrying Case ×
·Diagnostic Cables × 36
8

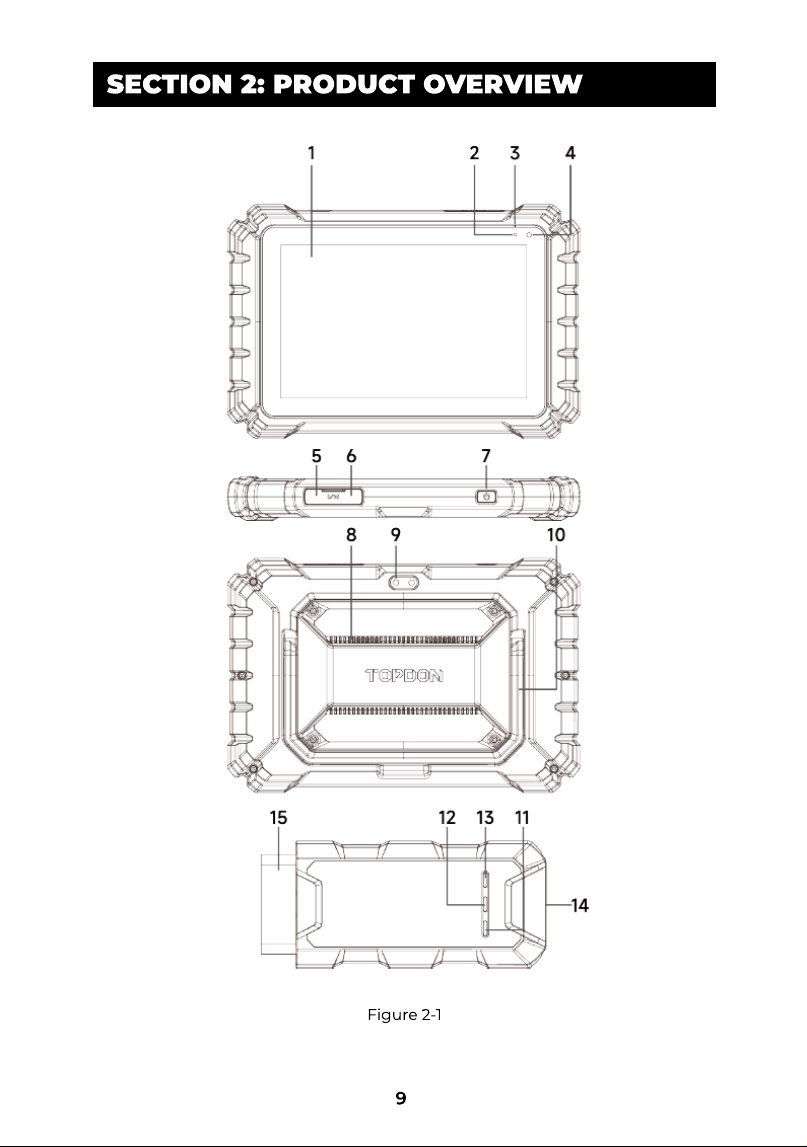

SECTION 2: PRODUCT OVERVIEW
Figure 2-1
9

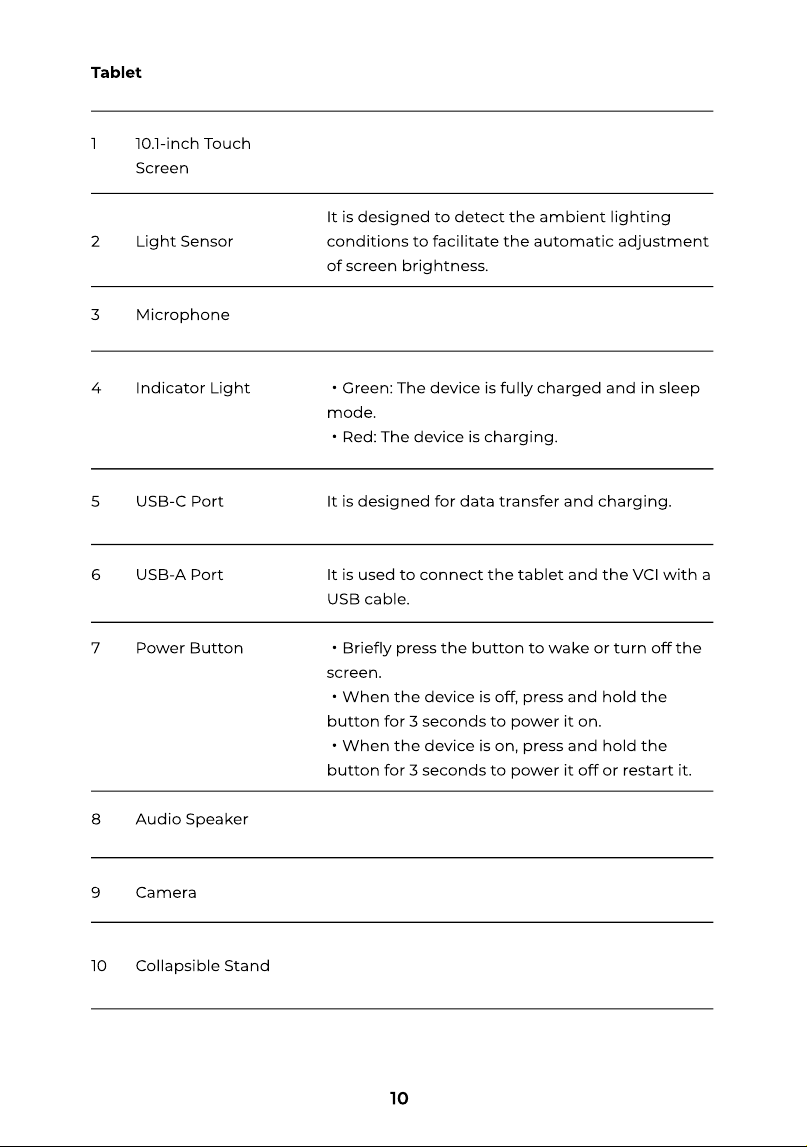

Tablet
It is designed to detect the ambient lighting
conditions to facilitate the automatic adjustment
of screen brightness
・Green: The device is fully charged and in sleep
mode
・Red: The device is charging.
It is designed for data transfer and charging
It is used to connect the tablet and the VCI with a
USB cable
・Briey press the button to wake or turn off the
screen
・When the device is off, press and hold the
button for 3 seconds to power it on
・When the device is on, press and hold the
button for 3 seconds to power it off or restart it
10.1-inch Touch
Scree
Light Senso
Microphon
Indicator Ligh
10
USB-C Por
USB-A Por
Power Butto
Audio Speake
Camer
Collapsible Stan
10

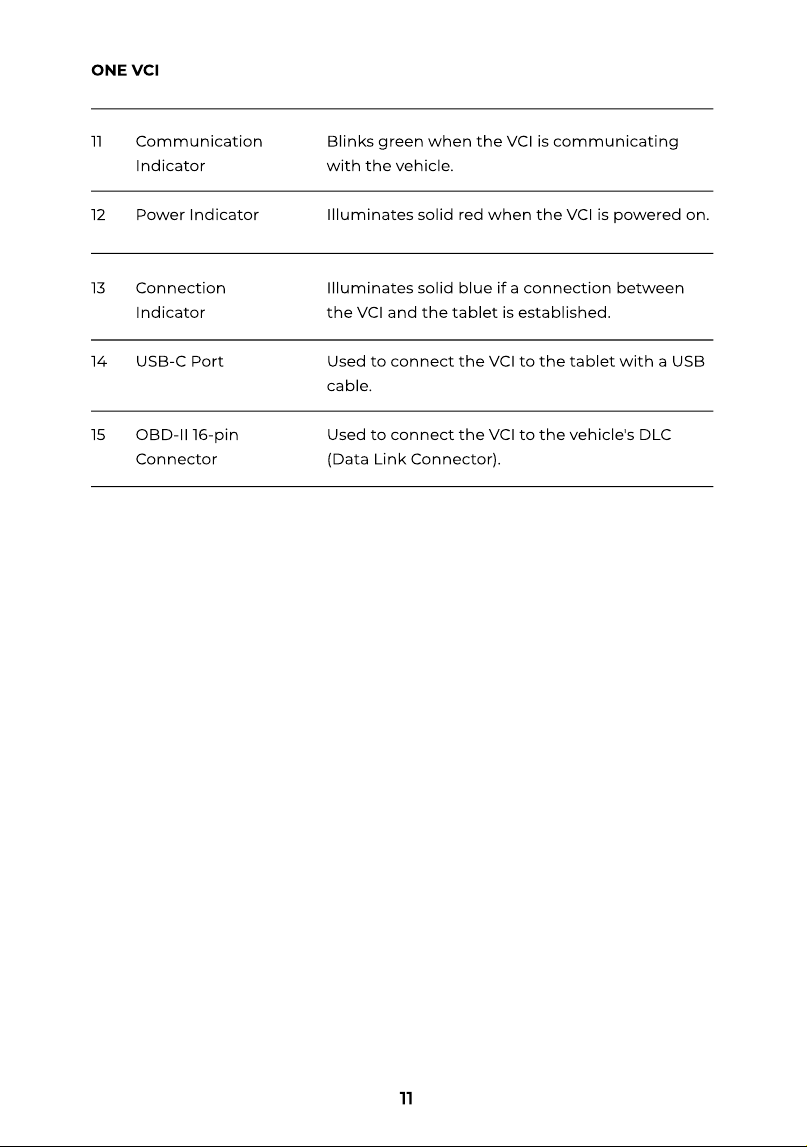

ONE VCI
Blinks green when the VCI is communicating
with the vehicle
Illuminates solid red when the VCI is powered on
Illuminates solid blue if a connection between
the VCI and the tablet is established
Used to connect the VCI to the tablet with a USB
cable
Used to connect the VCI to the vehicle's DLC
(Data Link Connector).
1
1
1
1
1
Communication
Indicato
Power Indicato
Connection
Indicato
USB-C Por
OBD-II 16-pin
Connector
11
SECTION 3: GETTING STARTED

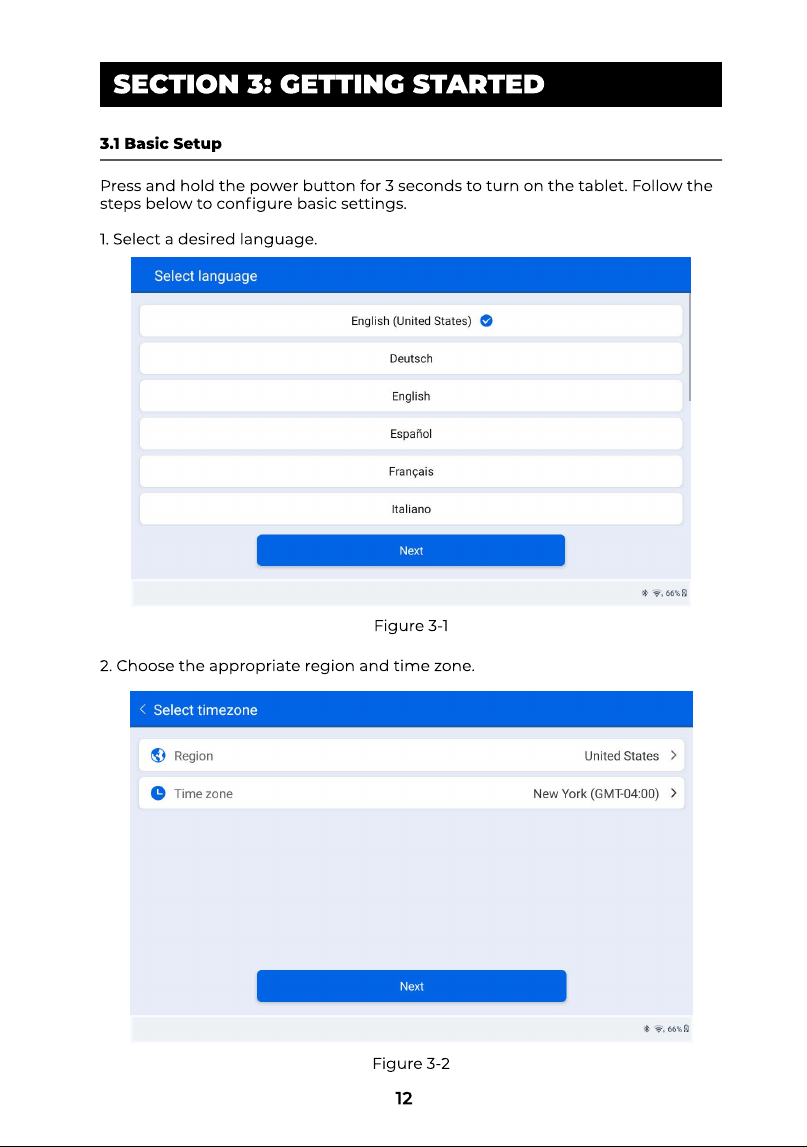

3.1 Basic Setup
Press and hold the power button for 3 seconds to turn on the tablet. Follow the
steps below to congure basic settings
1.Select a desired language
2.Choose the appropriate region and time zone.
Figure 3-1
Figure 3-2
12

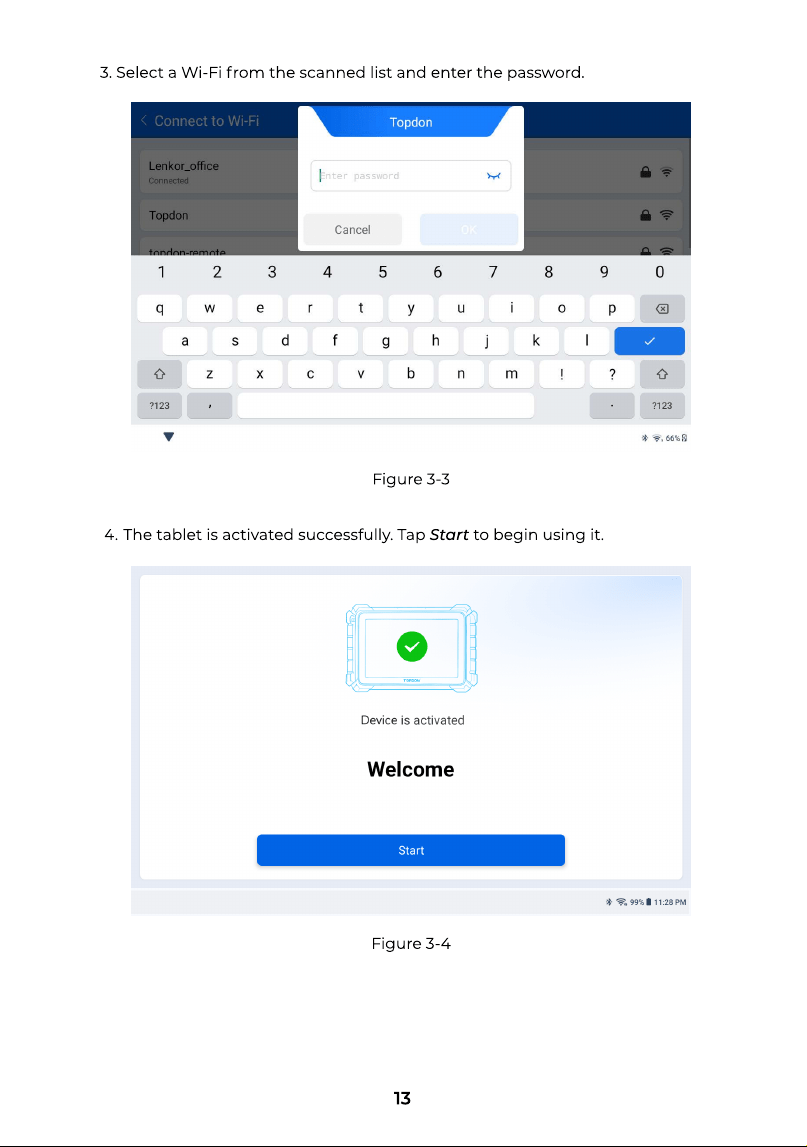

3.Select a Wi-Fi from the scanned list and enter the password
The tablet is activated successfully. Tap Startto begin using it.
Figure 3-3
Figure 3-4
13

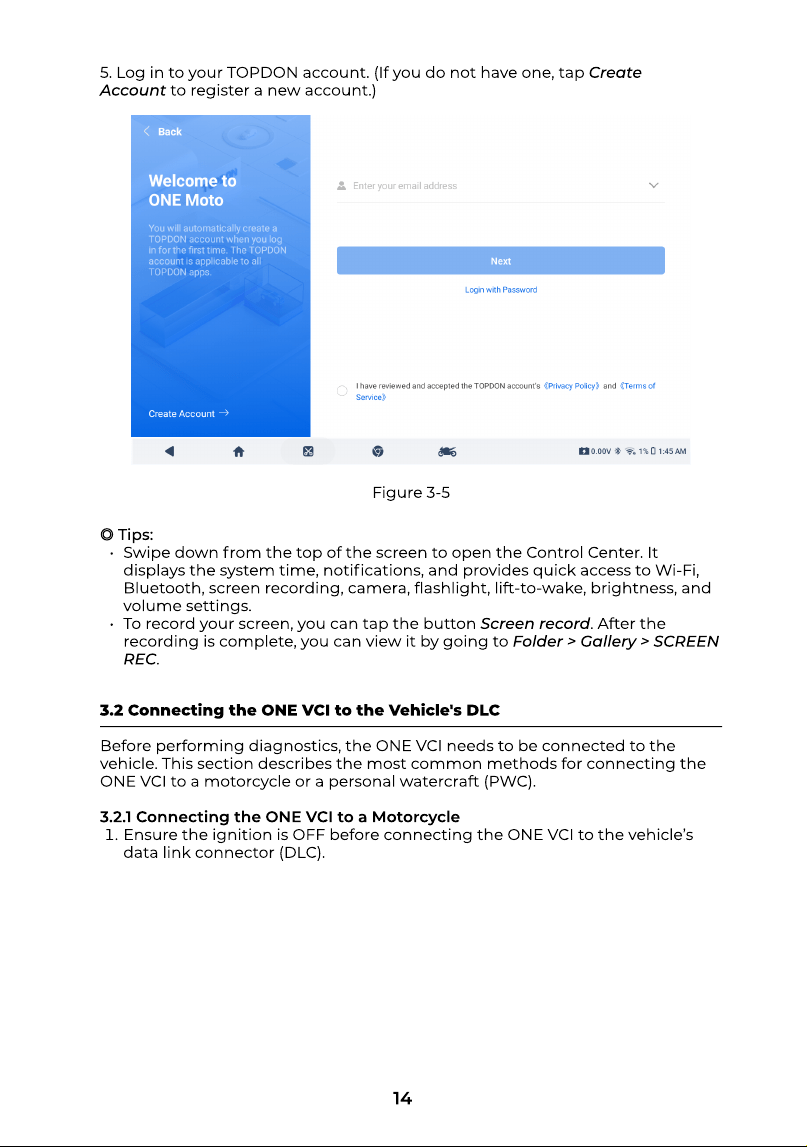

5.Log in to your TOPDON account. (If you do not have one, tap Create
Accountto register a new account.
◎ Tips
Swipe down from the top of the screen to open the Control Center. It
displays the system time, notications, and provides quick access to Wi-Fi,
Bluetooth, screen recording, camera, ashlight, lift-to-wake, brightness, and
volume settings
To record your screen, you can tap the button Screen record. After the
recording is complete, you can view it by going to Folder > Gallery > SCREEN
REC.
Figure 3-5
3.2 Connecting the ONE VCI to the Vehicle's DL
Before performing diagnostics, the ONE VCI needs to be connected to the
vehicle. This section describes the most common methods for connecting the
ONE VCI to a motorcycle or a personal watercraft (PWC)
3.2.1 Connecting the ONE VCI to a Motorcycl
Ensure the ignition is OFF before connecting the ONE VCI to the vehicle’s
data link connector (DLC)
14

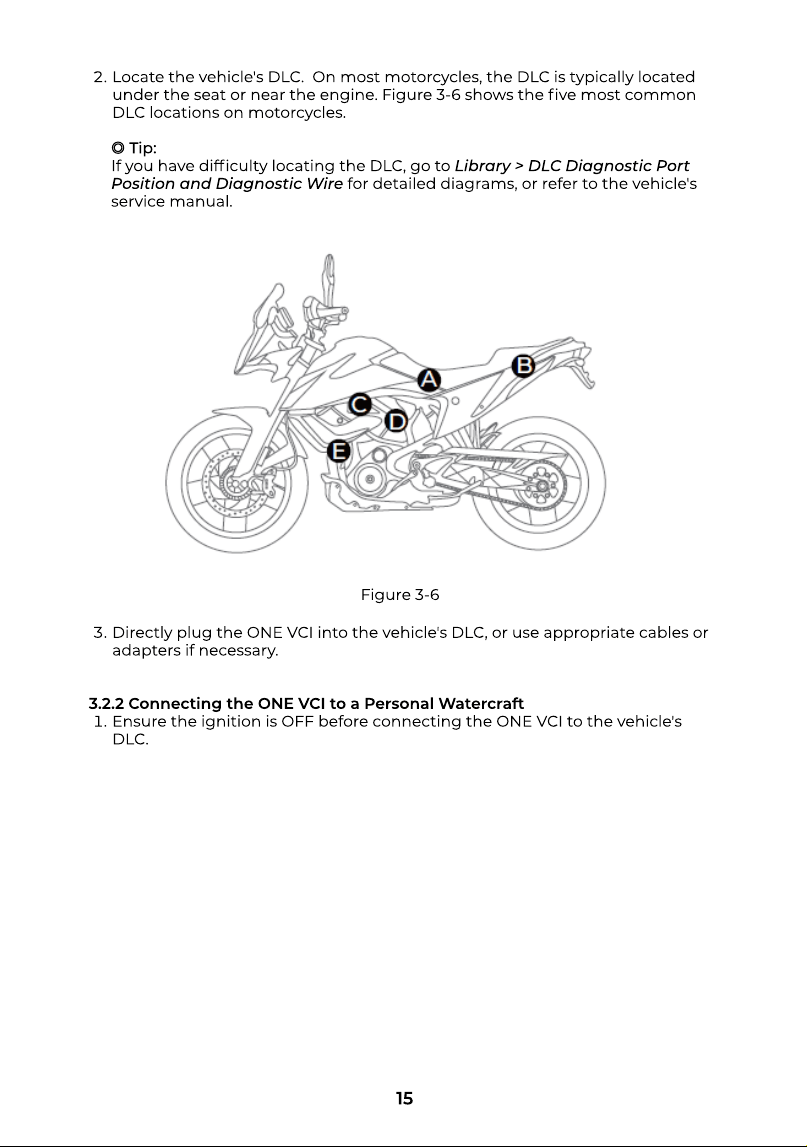

Locate the vehicle's DLC. On most motorcycles, the DLC is typically located
under the seat or near the engine. Figure 3-6 shows the ve most common
DLC locations on motorcycles.
◎ Tip
If you have difculty locating the DLC, go to Library > DLC Diagnostic Port
Position and Diagnostic Wirefor detailed diagrams, or refer to the vehicle's
service manual
Figure 3-6
Directly plug the ONE VCI into the vehicle's DLC, or use appropriate cables or
adapters if necessary
3.2.2 Connecting the ONE VCI to a Personal Watercraf
Ensure the ignition is OFF before connecting the ONE VCI to the vehicle's
DLC
15

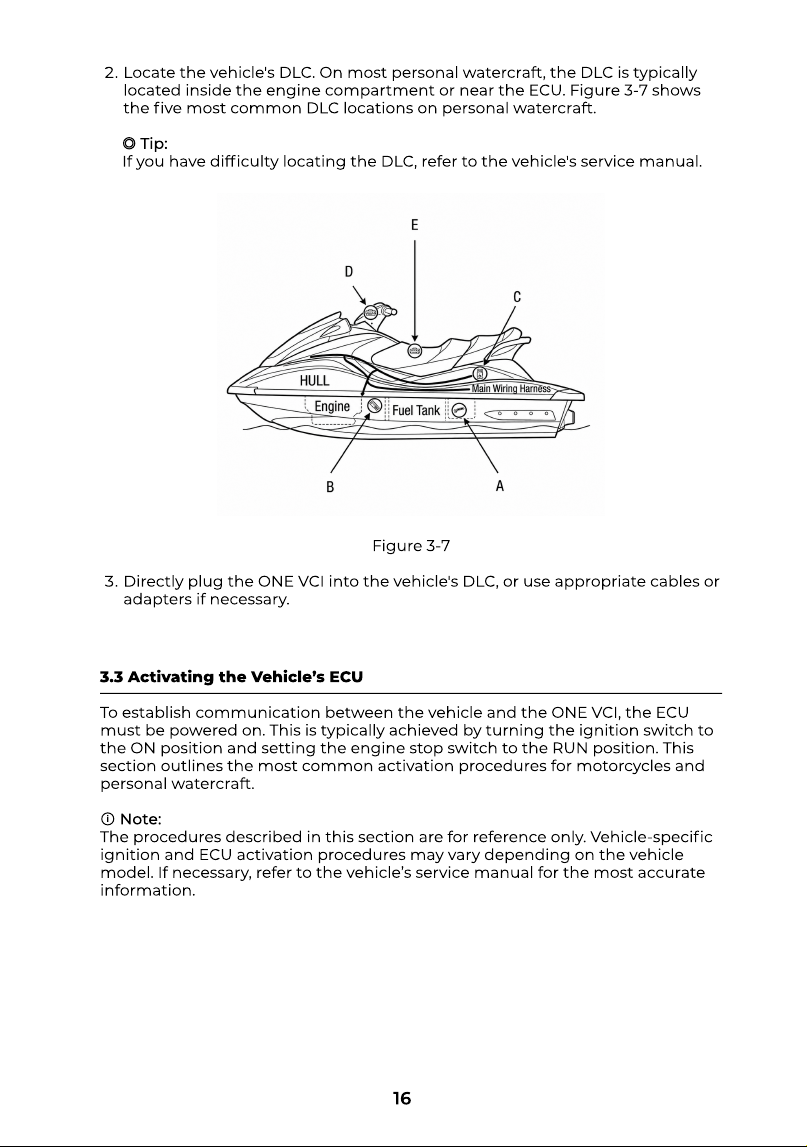

Locate the vehicle's DLC. On most personal watercraft, the DLC is typically
located inside the engine compartment or near the ECU. Figure 3-7 shows
the ve most common DLC locations on personal watercraft
◎ Tip
If you have difculty locating the DLC, refer to the vehicle's service manual
Figure 3-7
Directly plug the ONE VCI into the vehicle's DLC, or use appropriate cables or
adapters if necessary
3.3 Activating the Vehicle’s EC
To establish communication between the vehicle and the ONE VCI, the ECU
must be powered on. This is typically achieved by turning the ignition switch to
the ON position and setting the engine stop switch to the RUN position. This
section outlines the most common activation procedures for motorcycles and
personal watercraft
ⓘ Note
The procedures described in this section are for reference only. Vehicle-specic
ignition and ECU activation procedures may vary depending on the vehicle
model. If necessary, refer to the vehicle’s service manual for the most accurate
information
16

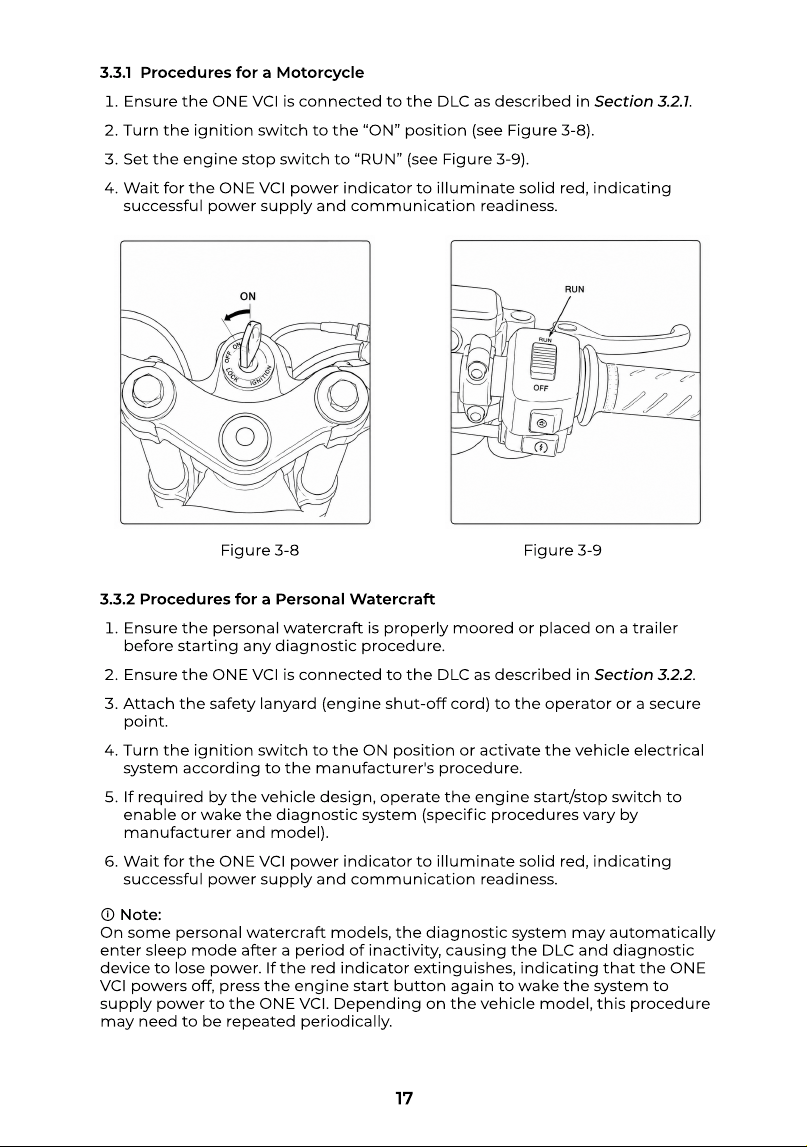

3.3.1 Procedures for a Motorcycl
Ensure the ONE VCI is connected to the DLC as described in Section 3.2.1
Turn the ignition switch to the “ON” position (see Figure 3-8)
Set the engine stop switch to “RUN” (see Figure 3-9)
Wait for the ONE VCI power indicator to illuminate solid red, indicating
successful power supply and communication readiness
Figure 3-8 Figure 3-9
3.3.2 Procedures for a Personal Watercraf
Ensure the personal watercraft is properly moored or placed on a trailer
before starting any diagnostic procedure
Ensure the ONE VCI is connected to the DLC as described in Section 3.2.2
Attach the safety lanyard (engine shut-off cord) to the operator or a secure
point
Turn the ignition switch to the ON position or activate the vehicle electrical
system according to the manufacturer's procedure
If required by the vehicle design, operate the engine start/stop switch to
enable or wake the diagnostic system (specic procedures vary by
manufacturer and model)
Wait for the ONE VCI power indicator to illuminate solid red, indicating
successful power supply and communication readiness
ⓘ Note
On some personal watercraft models, the diagnostic system may automatically
enter sleep mode after a period of inactivity, causing the DLC and diagnostic
device to lose power. If the red indicator extinguishes, indicating that the ONE
VCI powers off, press the engine start button again to wake the system to
supply power to the ONE VCI. Depending on the vehicle model, this procedure
may need to be repeated periodically.
17
3.4 Pairing the ONE VCI with the Table
To enable communication between the tablet and the vehicle, the ONE VCI
must rst be paired with the tablet either wirelessly (via Bluetooth or Wi-Fi) or
through a wired USB connection
3.4.1 Wireless VCI Connectio
Two wireless connection methods are available for pairing the ONE VCI with the
tablet: Bluetooth or Wi-Fi

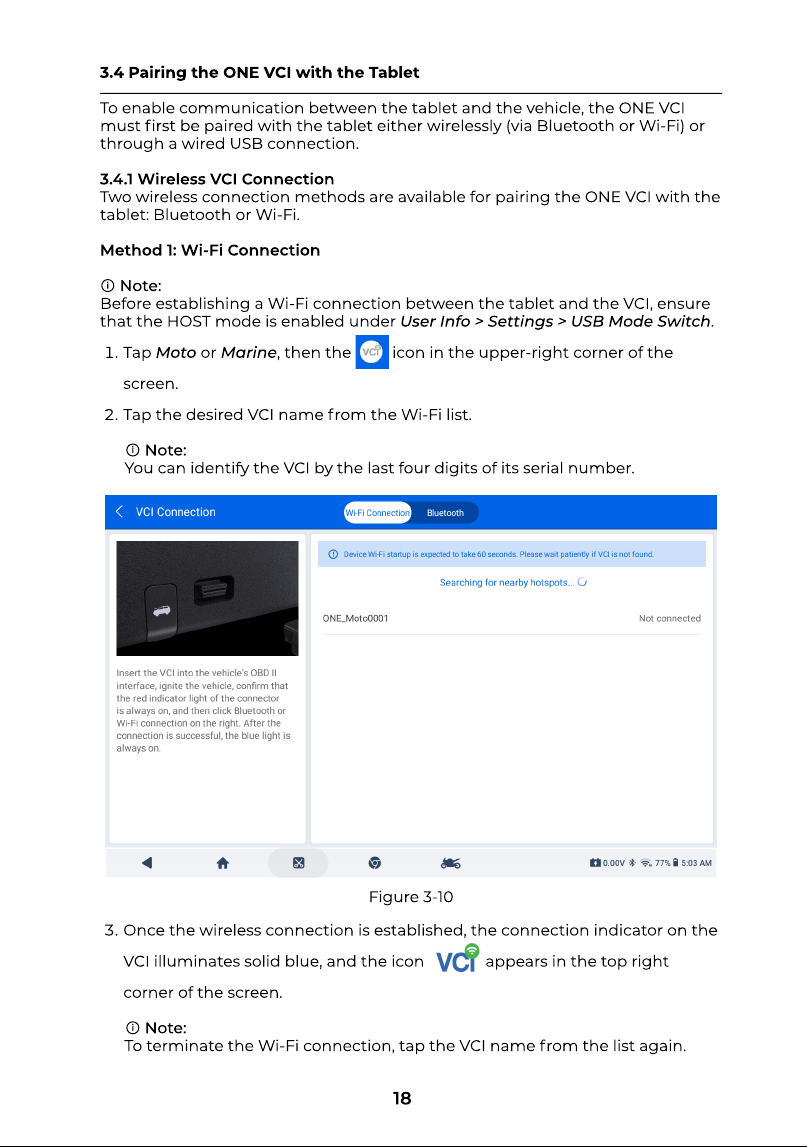

Method 1: Wi-Fi Connectio
ⓘ Note
Before establishing a Wi-Fi connection between the tablet and the VCI, ensure
that the HOST mode is enabled under User Info > Settings > USB Mode Switch
Tap Moto or Marine, then the icon in the upper-right corner of the
screen
Tap the desired VCI name from the Wi-Fi list
ⓘ Note
You can identify the VCI by the last four digits of its serial number
Figure 3-10
Once the wireless connection is established, the connection indicator on the
VCI illuminates solid blue, and the icon appears in the top right
corner of the screen
ⓘ Note
To terminate the Wi-Fi connection, tap the VCI name from the list again.
18
Method 2: Bluetooth Connectio
Tap Moto or Marine, then the icon in the top right corner of the screen
Tap the desired VCI name from the Bluetooth list
Once the wireless connection is established, the connection indicator on the
VCI illuminates solid blue, and the icon appears in the top right corner
of the screen
ⓘ Note
To disconnect, tap the VCI name from the list again
3.4.2 Wired VCI Connectio
The wired connection is established via a USB cable linking the VCI and the
tablet
ⓘ Note
Before establishing a wired connection between the tablet and the VCI, ensure
that the HOST mode is enabled under User Info > Settings > USB Mode Switch
Use the USB cable (USB-A to USB-C) to connect the VCI to the tablet
Once the wired connection is established, the connection indicator on the
VCI illuminates solid blue, and the icon appears in the upper-right
corner on the screen
◎ Tips
Under normal conditions, when the ONE VCI is connected to the vehicle’s
DLC, the ECU is powered on, and the VCI is paired with the tablet, the
communication indicator on the ONE VCI will blink green, indicating
successful communication
To switch to a different VCI, tap the VCI icon in the upper-right corner of the
screen and select the desired device from the list. The system will switch
automatically.
19
SECTION 4: HOME SCREEN LAYOUT
After completing the vehicle and the ONE VCI setup procedures described in
Section 3, you can start a diagnostic session. To help you get started, this
section provides an overview of the home screen and its main function buttons.
Figure 4-1
4.1 Main Function Button
The home screen includes seven main functions and a oating chat tool. A brief
description of each is given in the table below.
Button Description
This feature allows users to perform diagnostic functions
for motorcycles, including reading Diagnostic Trouble
Codes (DTCs), clearing DTCs, viewing data stream,
reading Electronic Control Unit (ECU) version
information, performing hot functions, and conducting
active tests
This feature enables users to update the vehicle-specic
diagnostic software and the app whenever a new
version is available
This feature provides access to diagnostic reports, replay
data, screenshots, photos, videos, and the le manager
Moto
Update
Folder
20
Library
Marine
Quick Support
User Info
Online Chat

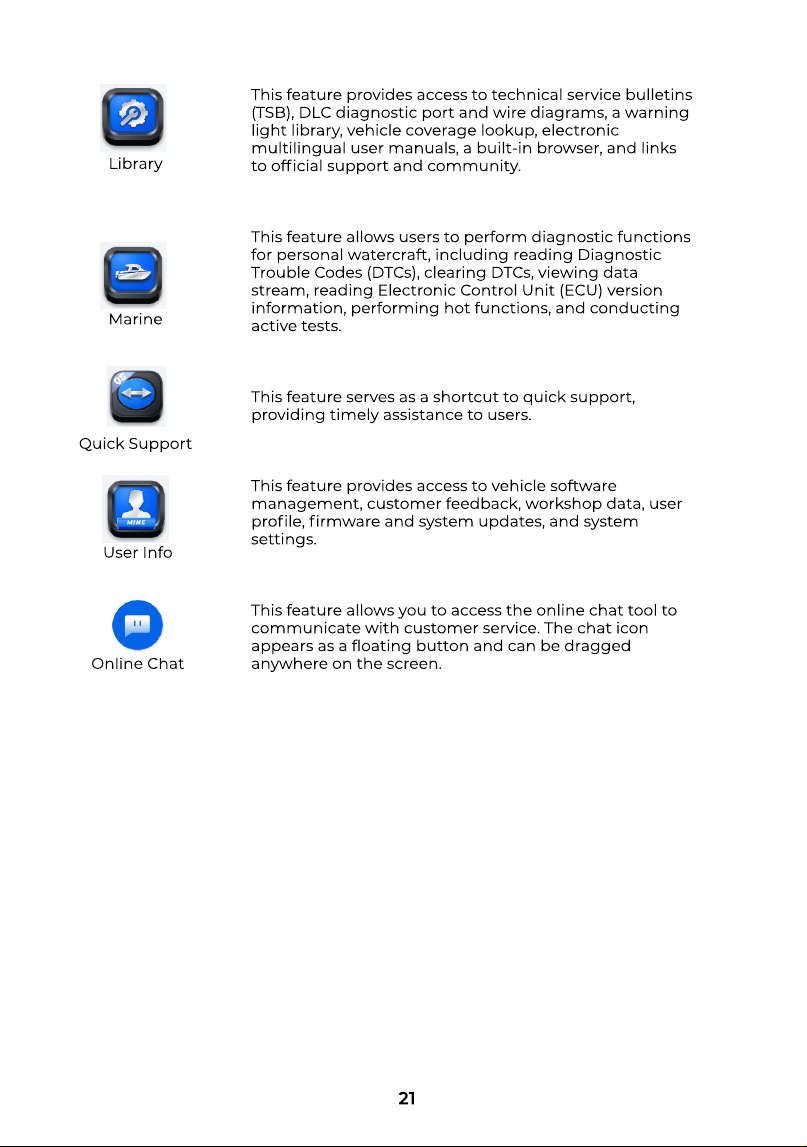

This feature provides access to technical service bulletins
(TSB), DLC diagnostic port and wire diagrams, a warning
light library, vehicle coverage lookup, electronic
multilingual user manuals, a built-in browser, and links
to ofcial support and community
This feature allows users to perform diagnostic functions
for personal watercraft, including reading Diagnostic
Trouble Codes (DTCs), clearing DTCs, viewing data
stream, reading Electronic Control Unit (ECU) version
information, performing hot functions, and conducting
active tests
This feature serves as a shortcut to quick support,
providing timely assistance to users
This feature provides access to vehicle software
management, customer feedback, workshop data, user
prole, rmware and system updates, and system
settings
This feature allows you to access the online chat tool to
communicate with customer service. The chat icon
appears as a oating button and can be dragged
anywhere on the screen.
21

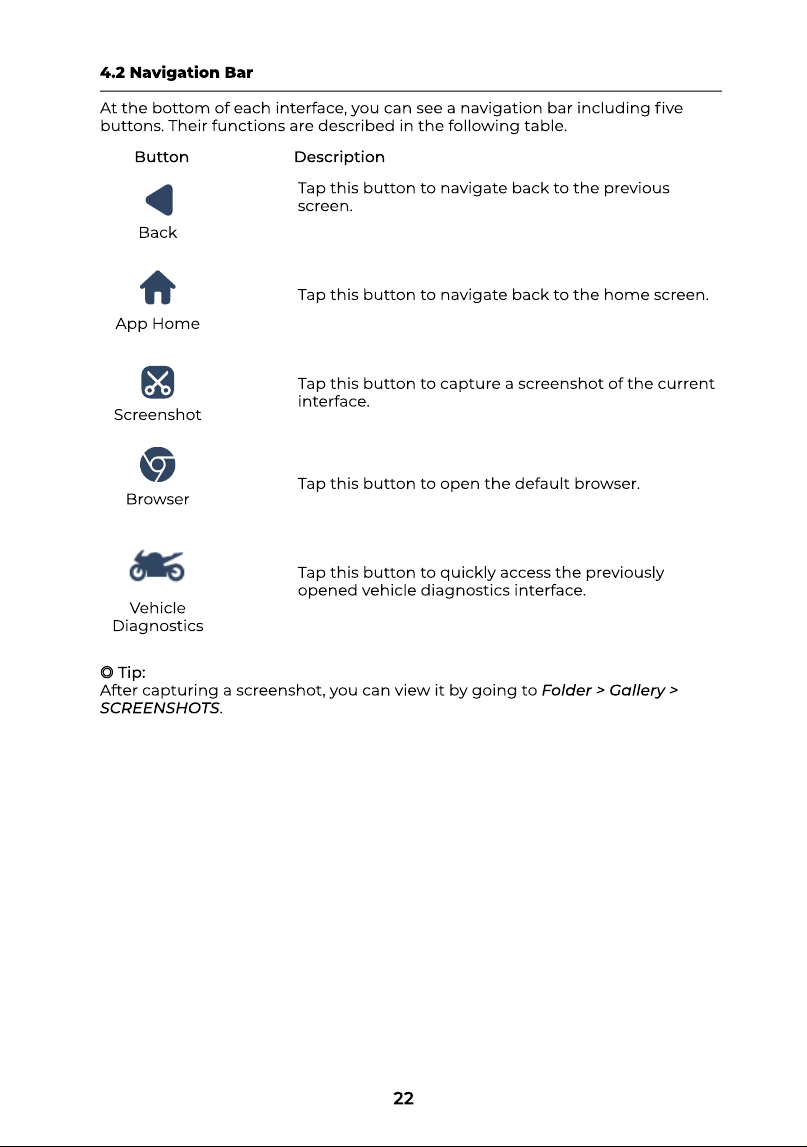

4.2 Navigation Ba
At the bottom of each interface, you can see a navigation bar including ve
buttons. Their functions are described in the following table.
Button Description
Back
App Home
Screenshot
Tap this button to navigate back to the previous
screen
Tap this button to navigate back to the home screen
Tap this button to capture a screenshot of the current
interface
Browser
Vehicle
Diagnostics
Tap this button to open the default browser
Tap this button to quickly access the previously
opened vehicle diagnostics interface
◎ Tip
After capturing a screenshot, you can view it by going to Folder > Gallery >
SCREENSHOTS.
22
SECTION 5: MOTO (MOTORCYCLE
DIAGNOSTICS)
The motorcycle diagnosticsmodule allows you to scan all supported vehicle
systems with one touch (Auto Scan) for DTCs or select an individual system to
retrieve and clear DTCs, view data streams, read ECU information, perform hot
functions, and conduct active tests. It also provides access to EOBD functions.
5.1 Diagnostic Toolbar
After accessing the motorcycle diagnostics interfaces, a tool bar is displayed in
the upper-right corner of the screen. This section presents a brief introduction
to these tools
5.1.1 Tool Description
Tool Description
Tap it to launch the AI tool TopFix, where you can access DTC
interpretation, recall information, repair instructions and parts
replacement suggestions
Tap it to update the translations of the content on the current screen
for improved clarity
Tap it to instantly send diagnostic feedback (with diagnostic logs
automatically attached) when you encounter a software issue during
diagnostic operations. The detailed operation steps are presented in
Section 5.1.2
It displays the connection status between the VCI and the tablet. If
the icon is gray, tap it to connect via Bluetooth or Wi-Fi, or connect
the VCI directly to the tablet using a USB cable
Tap it to exit the current session. After exiting, the connection
between the VCI and the vehicle’s DLC must be re-established if you
want to restart the procedure.
5.1.2 Submit Diagnostic Feedbac
The device allows you to instantly send diagnostic feedback (with diagnostic
logs automatically attached) when you encounter a software issue during
diagnostic operations
To send diagnostic feedbac
Tap the icon
Enter the title, select the type and input the detailed description. In addition,
you can attach relevant logs, pictures or videos if necessary
Tap
Submit
to send the feedback.
23
5.2 Identifying the Vehicl
The main diagnostic workow is as follows: identify the vehicle > select the
desired function from the main menu > follow the on-screen instructions to
perform the required operations > complete the diagnostics and exit the
session. This section describes the vehicle identication process
ⓘ Note
The diagnostics interfaces may vary slightly depending on the selected vehicle-
specic diagnostic software. Please refer to the actual product and interface for
accurate information.
Ensure that the vehicle-specic software matching the actual vehicle make
has been downloaded via Update > Moto

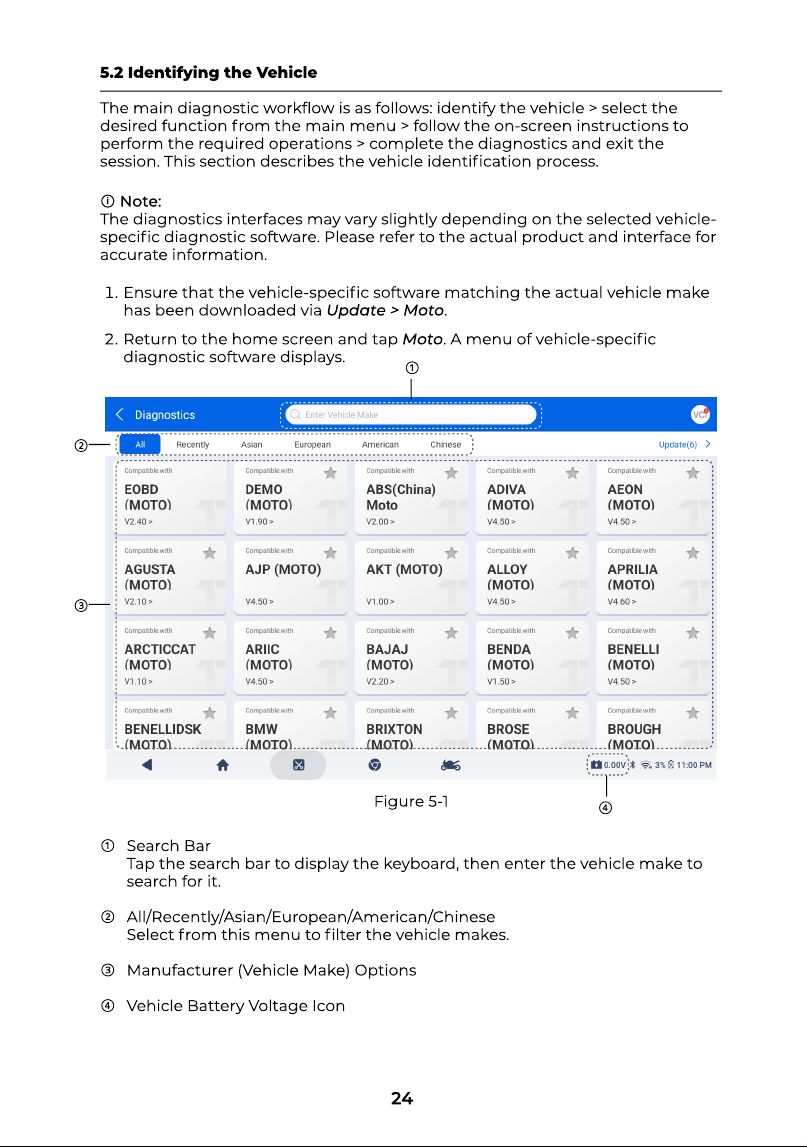

Return to the home screen and tap Moto. A menu of vehicle-specic
diagnostic software displays.
①
②
③
Figure 5-1
④
④
Search Ba
Tap the search bar to display the keyboard, then enter the vehicle make to
search for it
All/Recently/Asian/European/American/Chines
Select from this menu to lter the vehicle makes
Manufacturer (Vehicle Make) Option
Vehicle Battery Voltage Icon
24

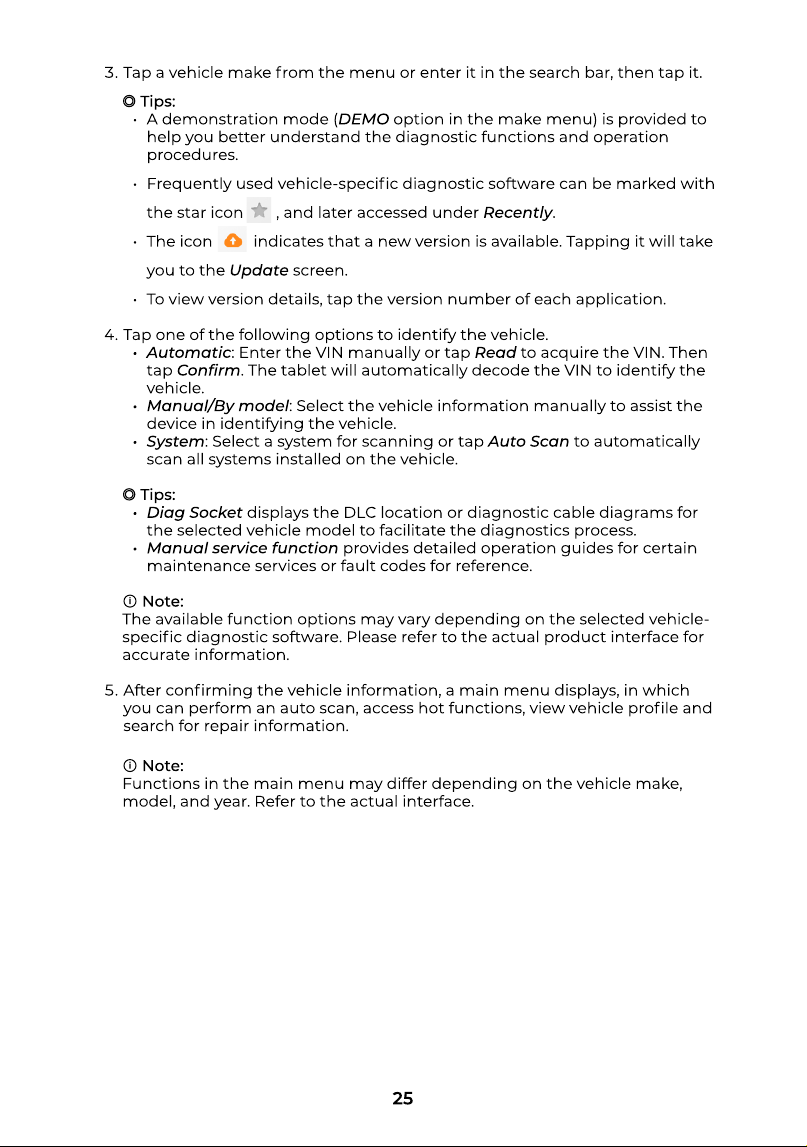

Tap a vehicle make from the menu or enter it in the search bar, then tap it
◎ Tips
A demonstration mode (DEMOoption in the make menu) is provided to
help you better understand the diagnostic functions and operation
procedures
Frequently used vehicle-specic diagnostic software can be marked with
the star icon , and later accessed under Recently
The icon indicates that a new version is available. Tapping it will take
you to the Update screen
To view version details, tap the version number of each application

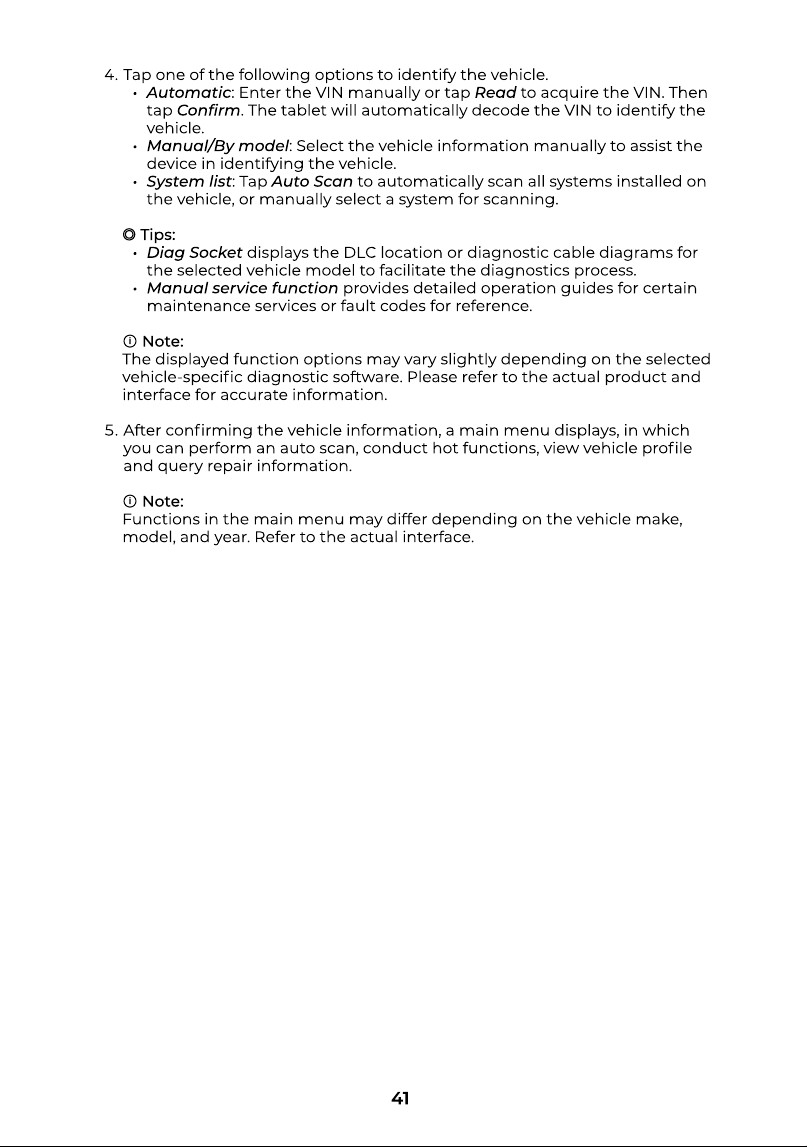

Tap one of the following options to identify the vehicle
Automatic: Enter the VIN manually or tap Readto acquire the VIN. Then
tap Conrm. The tablet will automatically decode the VIN to identify the
vehicle
Manual/By model: Select the vehicle information manually to assist the
device in identifying the vehicle
System: Select a system for scanning or tap Auto Scan to automatically
scan all systems installed on the vehicle
◎ Tips
Diag Socket displays the DLC location or diagnostic cable diagrams for
the selected vehicle model to facilitate the diagnostics process
Manual service function provides detailed operation guides for certain
maintenance services or fault codes for reference
ⓘ Note
The available function options may vary depending on the selected vehicle
specic diagnostic software. Please refer to the actual product interface for
accurate information
After conrming the vehicle information, a main menu displays, in which
you can perform an auto scan, access hot functions, view vehicle prole and
search for repair information.
ⓘ Note
Functions in the main menu may differ depending on the vehicle make,
model, and year. Refer to the actual interface.
25
5.3 Auto Sca
A
fter the device identies your vehicle,
Aut
o
Sc
a
n
enables the device to
automatically detect all supported systems and retrieve DTCs, providing a
comprehensive vehicle health check.
Y
ou can also select an individual system
for scanning.
P
erforming an auto scan before and after repairs helps with
troubleshooting and validating repairs.
P
re
-
and post
-
scan reports allow you to
record and compare the vehicle condition before and after repairs
5.3.1 Automatically Scanning All Supported System
Af
ter the vehicle is identi
ed as described in
Section 5.2,
conrm the vehicle
information and follow the on
-
screen instructions until the
M
a
in
Menu
is
displayed
Tap
Auto scan f
rom the main menu
O
n the
System List
screen
,
tap
Auto Scan
at the bottom o
f
the screen
.
The tablet scans all supported systems and automatically retrieves DTCs
The results can be viewed in a list (see Figure 5-2). The List displays all
systems congured on the vehicle. Systems with DTCs detected are marked
with a red triangle and the number of DTCs, while systems without DTCs are
labeled Normal | No DTCs.

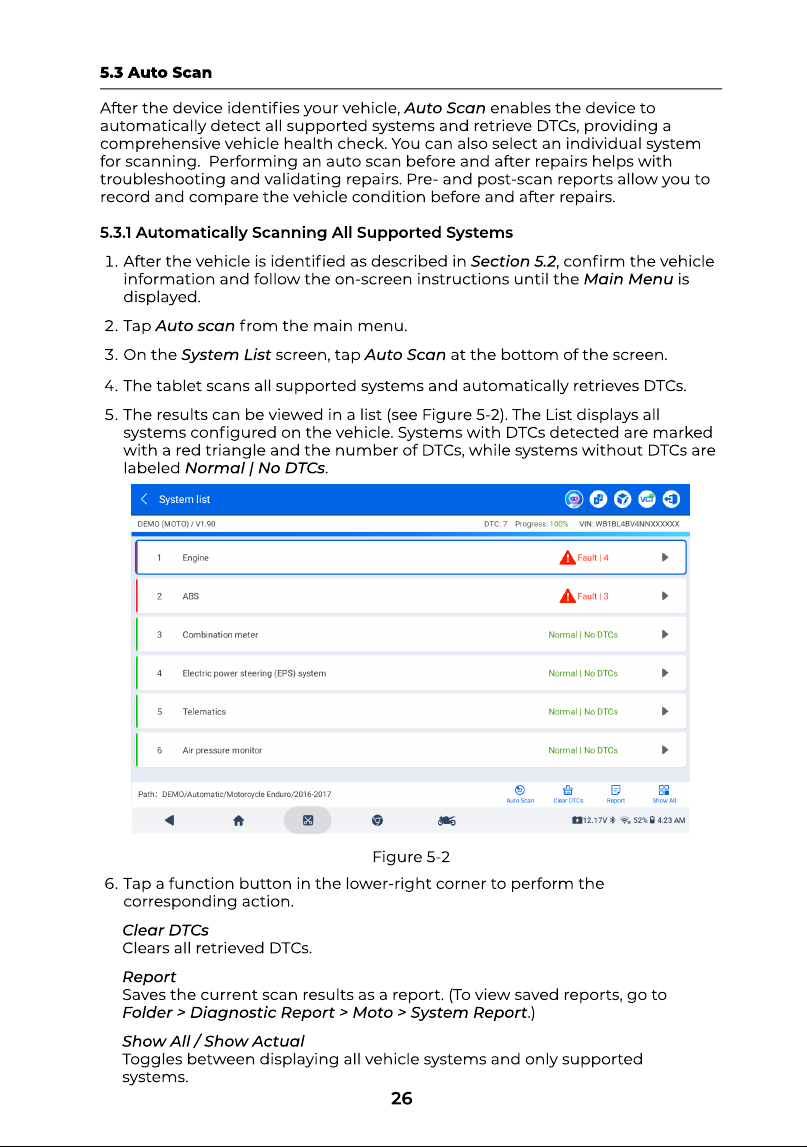

Figure 5-2
Tap a function button in the lower-right corner to perform the
corresponding action
Clear DTC
Clears all retrieved DTCs
Report
Saves the current scan results as a report. (To view saved reports, go to
Folder > Diagnostic Report > Moto > System Report.
Show All / Show Actua
Toggles between displaying all vehicle systems and only supported
systems.
26

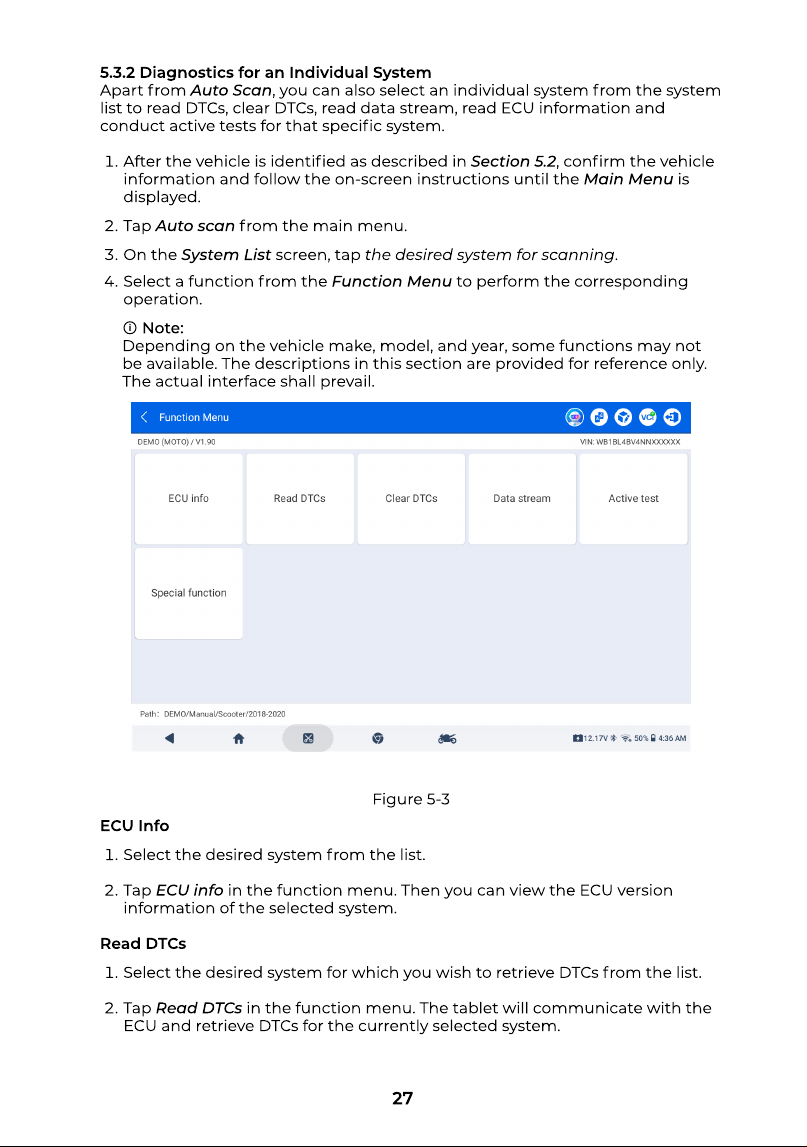

5.3.2 Diagnostics for an Individual Syste
A
part from
Auto Scan,
y
ou can also select an indi
v
idual s
y
stem from the s
y
stem
list to read
DTC
s
,
clear
DTC
s
,
read data stream
,
read
ECU
information and
conduct acti
v
e tests for that speci
c s
y
stem
A
fter the
v
ehicle is identi
ed as descri
b
ed in
Section 5.2,
con
rm the
v
ehicle
information and follo
w
the on-screen instructions until the
Main Menu
is
displa
y
ed
Tap Auto scan from the main menu
On the System List screen, tap the desired system for scanning.
Select a function from the Function Menu to perform the corresponding
operation
ⓘ Note
Depending on the vehicle make, model, and year, some functions may not
be available. The descriptions in this section are provided for reference only.
The actual interface shall prevail.
Figure 5-3
ECU Inf
Select the desired system from the list
Tap ECU infoin the function menu. Then you can view the ECU version
information of the selected system
Read DTC
Select the desired system for which you wish to retrieve DTCs from the list
Tap Read DTCsin the function menu. The tablet will communicate with the
ECU and retrieve DTCs for the currently selected system.
27

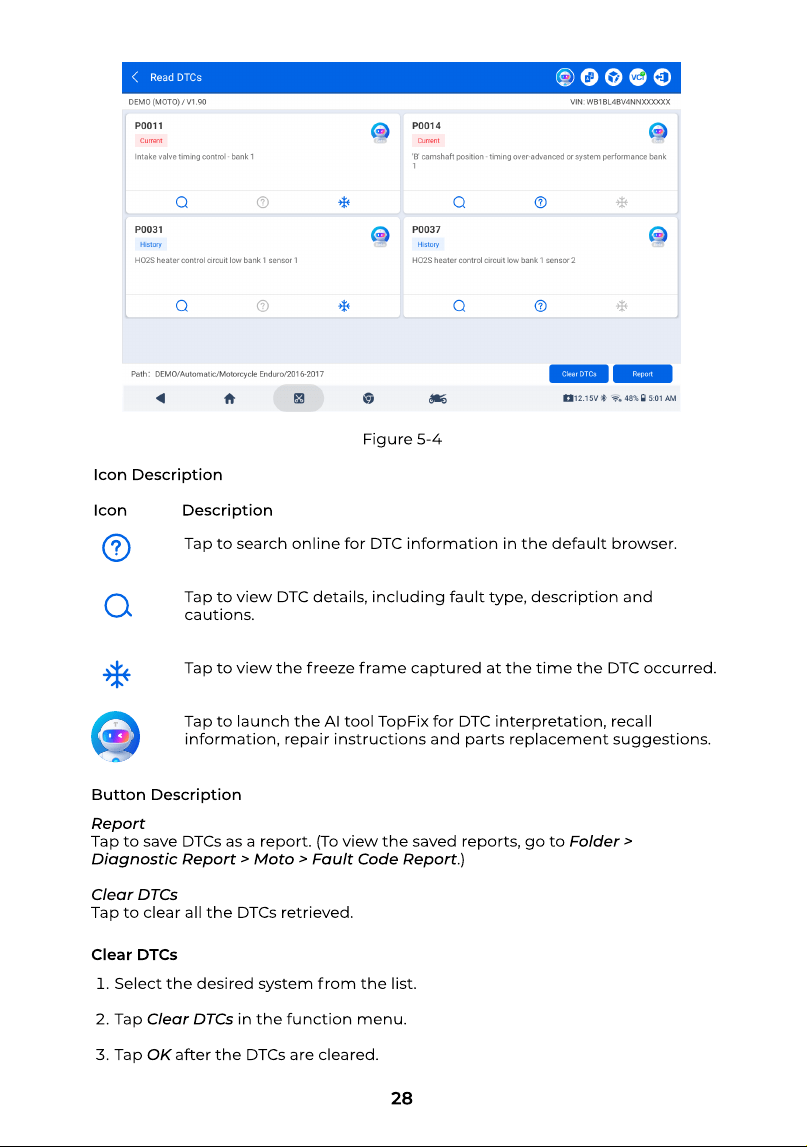

Figure 5-4
Icon Descriptio
Icon Description
Tap to search online for DTC information in the default browser
Tap to view DTC details, including fault type, description and
cautions
Tap to view the freeze frame captured at the time the DTC occurred
Tap to launch the AI tool TopFix for DTC interpretation, recall
information, repair instructions and parts replacement suggestions.
Button Descriptio
Repor
Tap to save DTCs as a report. (To view the saved reports, go to Folder >
Diagnostic Report > Moto > Fault Code Report.
Clear DTC
Tap to clear all the DTCs retrieved
Clear DTC
Select the desired system from the list
Tap Clear DTCsin the function menu
Tap OKafter the DTCs are cleared.
28
ⓘ Notes
The procedure of clearing DTCs should be performed after the required
repair has been carried out. Once conrmed, DTCs and freeze data stored in
the ECU will be cleared
Do not start up the engine while clearing DTCs

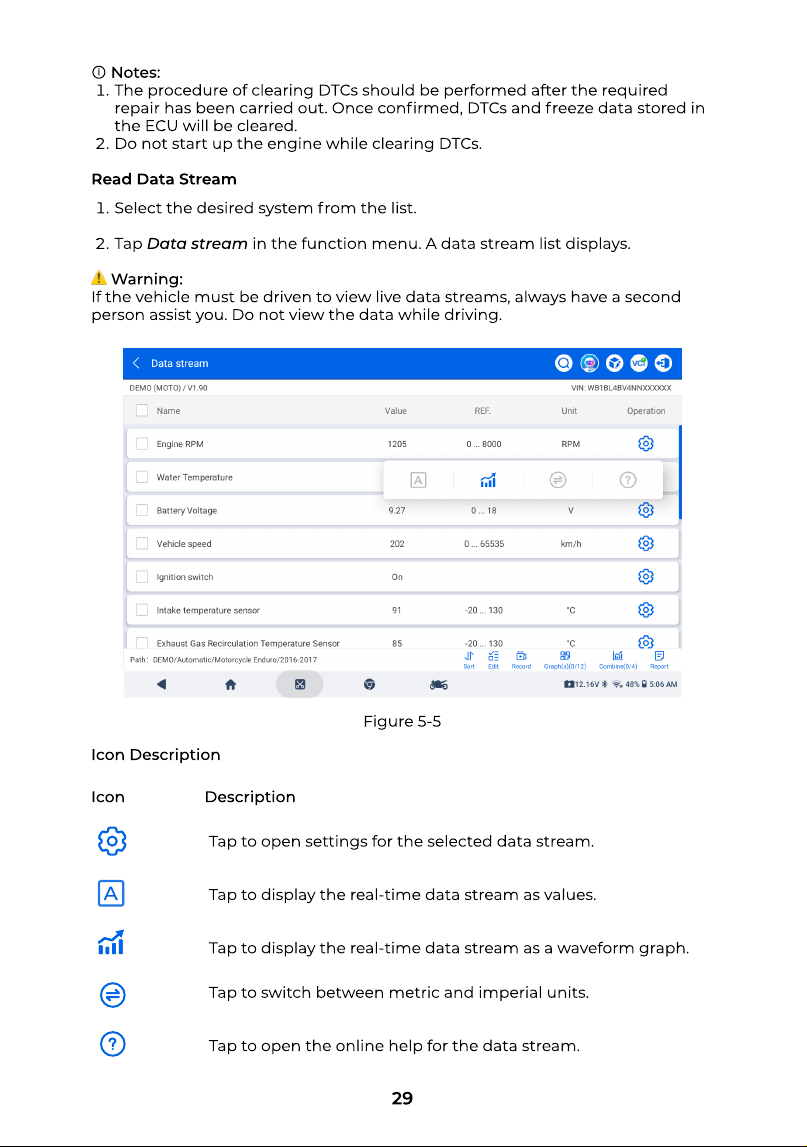

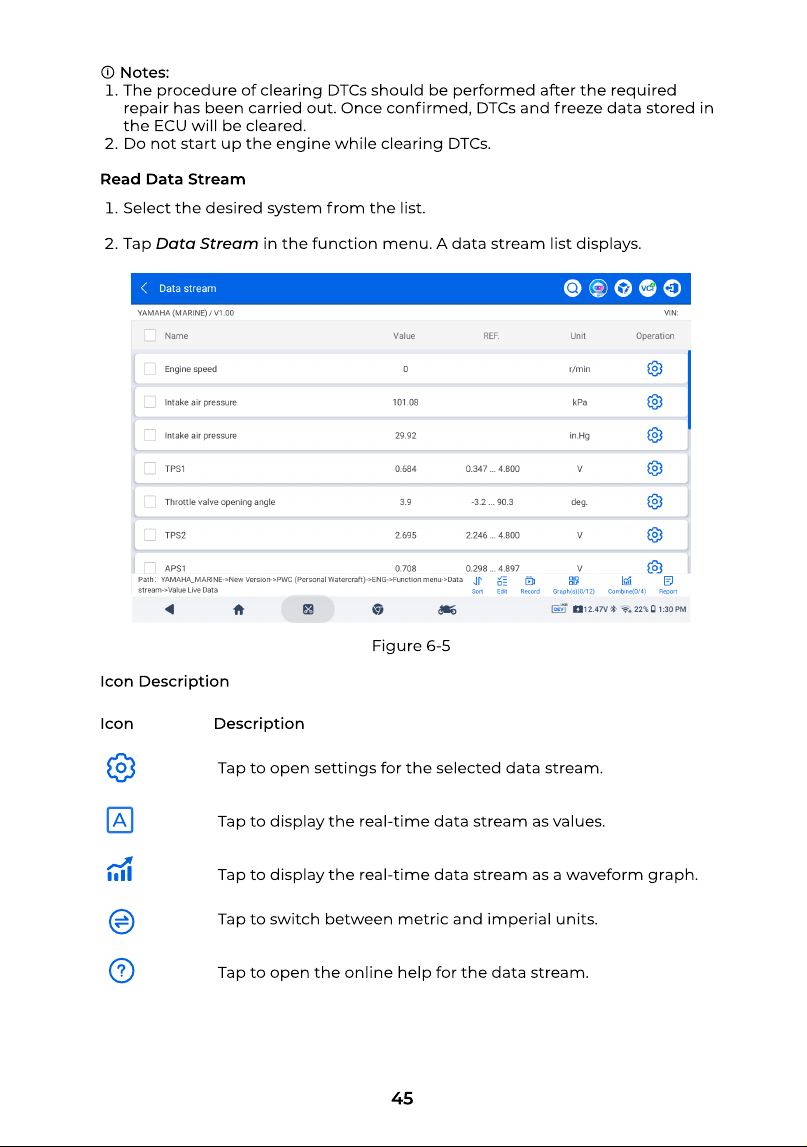

Read Data Strea
Select the desired system from the list
Tap Data streamin the function menu. A data stream list displays
⚠︎ Warning
If the vehicle must be driven to view live data streams, always have a second
person assist you. Do not view the data while driving
Figure 5-5
Icon Description
Icon Description
Tap to open settings for the selected data stream
Tap to display the real-time data stream as values
Tap to display the real-time data stream as a waveform graph
Tap to switch between metric and imperial units
Tap to open the online help for the data stream.
29

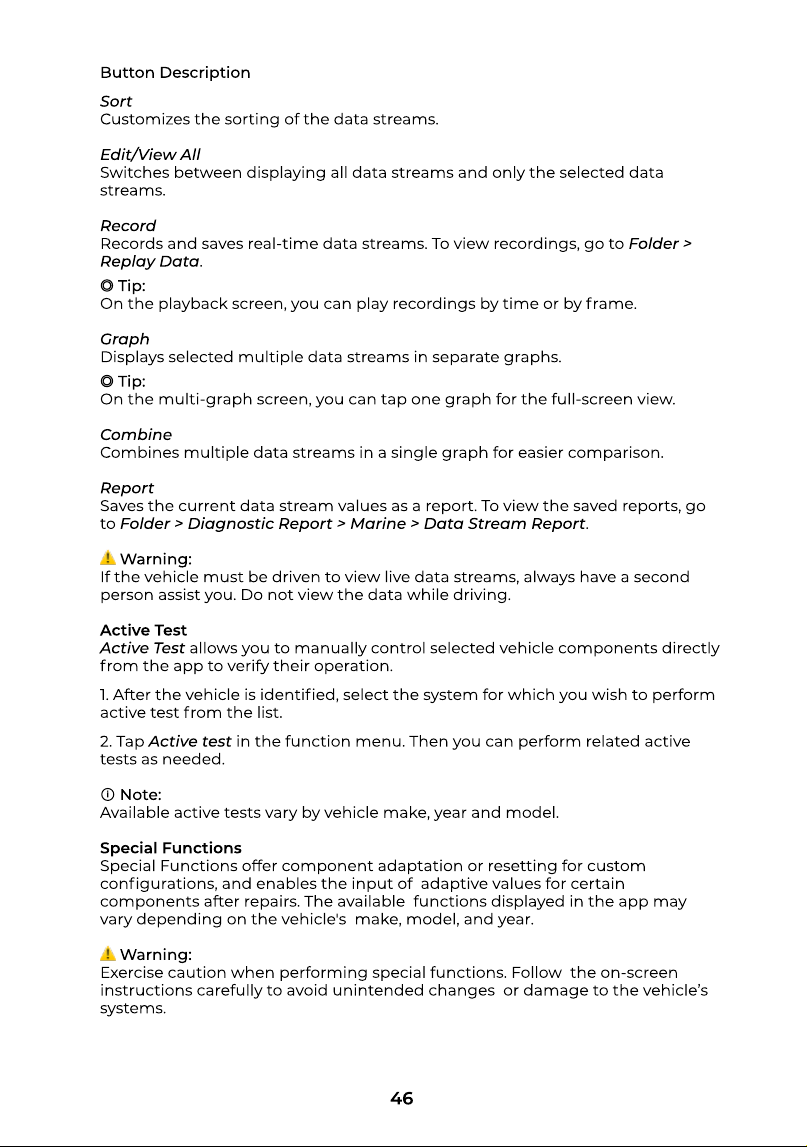

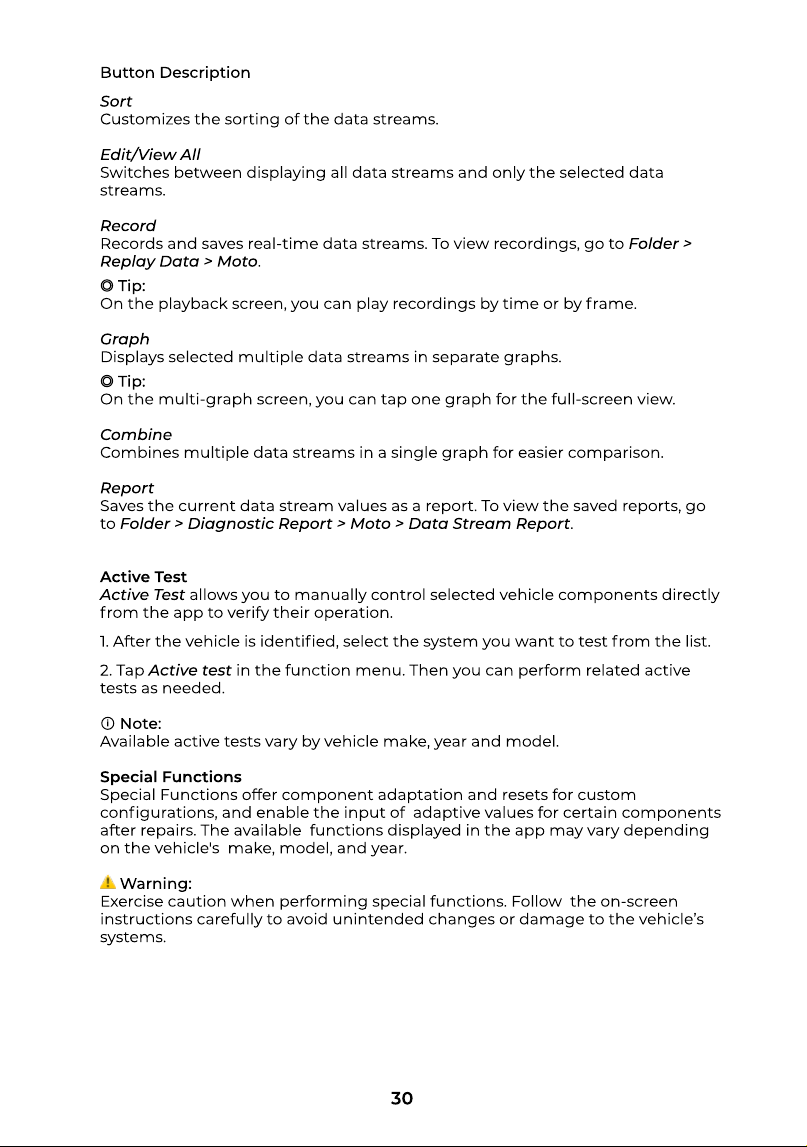

Button Descriptio
Sor
Customizes the sorting of the data streams
Edit/View Al
Switches between displaying all data streams and only the selected data
streams
Recor
Records and saves real-time data streams. To view recordings, go to Folder >
Replay Data > Moto
◎ Tip
On the playback screen, you can play recordings by time or by frame
Grap
Displays selected multiple data streams in separate graphs
◎ Tip
On the multi-graph screen, you can tap one graph for the full-screen view
Combin
Combines multiple data streams in a single graph for easier comparison
Repor
Saves the current data stream values as a report. To view the saved reports, go
to Folder > Diagnostic Report > Moto > Data Stream Report
Active Tes
Active Testallows you to manually control selected vehicle components directly
from the app to verify their operation
1.After the vehicle is identied, select the system you want to test from the list
2.Tap Active testin the function menu. Then you can perform related active
tests as needed
ⓘ Note
Available active tests vary by vehicle make, year and model
Special Function
Special Functions offer component adaptation and resets for custom
congurations, and enable the input of adaptive values for certain components
after repairs. The available functions displayed in the app may vary depending
on the vehicle's make, model, and year
⚠︎ Warning
Exercise caution when performing special functions. Follow the on-screen
instructions carefully to avoid unintended changes or damage to the vehicle’s
systems.
30

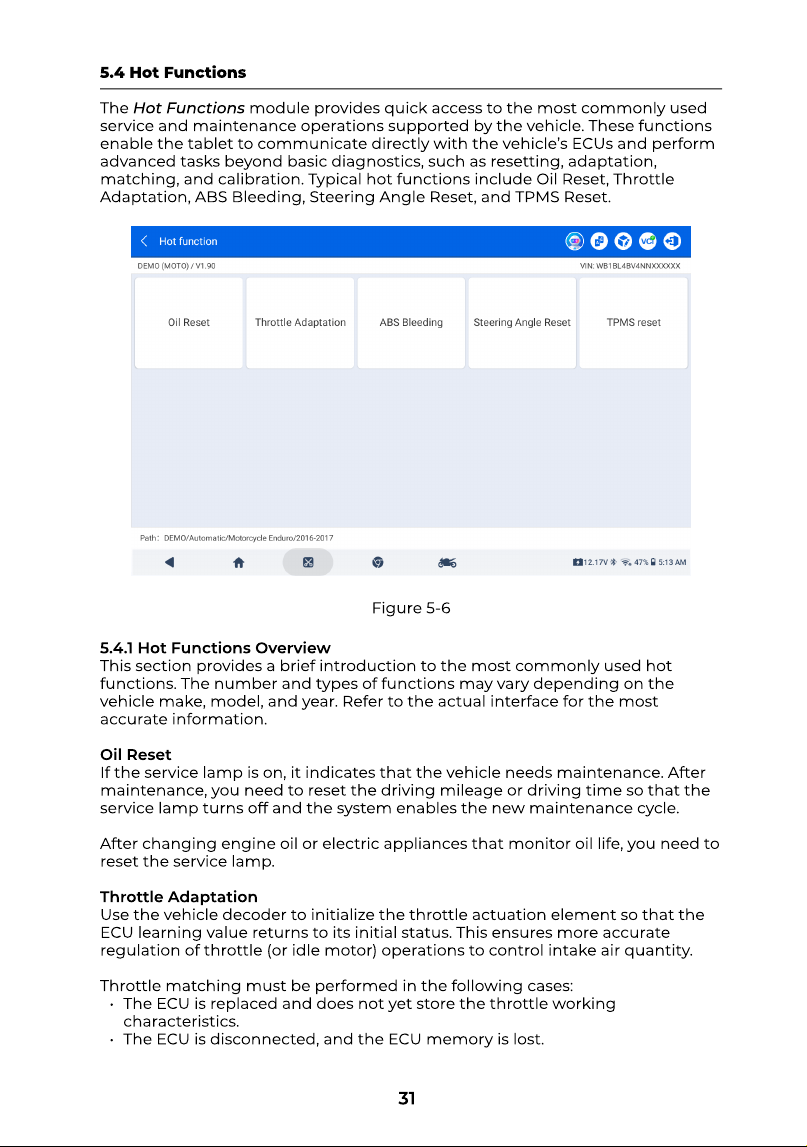

5.4 Hot Function
The Hot Functionsmodule provides quick access to the most commonly used
service and maintenance operations supported by the vehicle. These functions
enable the tablet to communicate directly with the vehicle’s ECUs and perform
advanced tasks beyond basic diagnostics, such as resetting, adaptation,
matching, and calibration. Typical hot functions include Oil Reset, Throttle
Adaptation, ABS Bleeding, Steering Angle Reset, and TPMS Reset.
Figure 5-6
5.4.1 Hot Functions Overvie
This section provides a brief introduction to the most commonly used hot
functions. The number and types of functions may vary depending on the
vehicle make, model, and year. Refer to the actual interface for the most
accurate information
Oil Rese
If the service lamp is on, it indicates that the vehicle needs maintenance. After
maintenance, you need to reset the driving mileage or driving time so that the
service lamp turns off and the system enables the new maintenance cycle
After changing engine oil or electric appliances that monitor oil life, you need to
reset the service lamp
Throttle Adaptatio
Use the vehicle decoder to initialize the throttle actuation element so that the
ECU learning value returns to its initial status. This ensures more accurate
regulation of throttle (or idle motor) operations to control intake air quantity.
Throttle matching must be performed in the following cases:
The ECU is replaced and does not yet store the throttle working
characteristics.
The ECU is disconnected, and the ECU memory is lost.
31
The throttle assembly is replaced.
The intake passage is replaced or removed, affecting idle speed control by
the ECU and throttle body.
The throttle is cleaned. Although the idle throttle potentiometer
characteristics remain unchanged, the intake quantity has changed with the
same throttle opening, altering the idle speed control characteristics

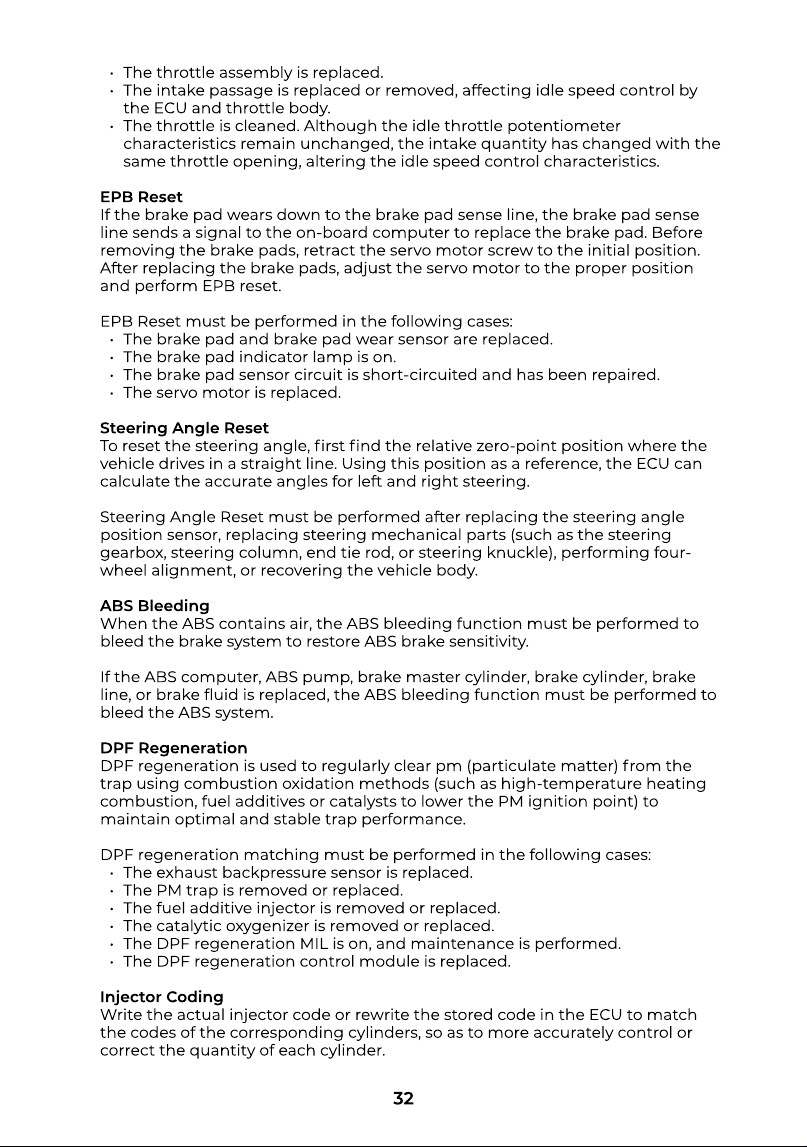

EPB Rese
If the brake pad wears down to the brake pad sense line, the brake pad sense
line sends a signal to the on-board computer to replace the brake pad.Before
removing the brake pads, retract the servo motor screw to the initial position.
After replacing the brake pads, adjust the servo motor to the proper position
and perform EPB reset.
EPB Reset must be performed in the following cases:
The brake pad and brake pad wear sensor are replaced.
The brake pad indicator lamp is on.
The brake pad sensor circuit is short-circuited and has been repaired.
The servo motor is replaced
Steering Angle Rese
To reset the steering angle, rst nd the relative zero-point position where the
vehicle drives in a straight line. Using this position as a reference, the ECU can
calculate the accurate angles for left and right steering.
Steering Angle Reset must be performed after replacing the steering angle
position sensor, replacing steering mechanical parts (such as the steering
gearbox, steering column, end tie rod, or steering knuckle), performing four-
wheel alignment, or recovering the vehicle body
ABS Bleedin
When the ABS contains air, the ABS bleeding function must be performed to
bleed the brake system to restore ABS brake sensitivity.
If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake
line, or brake uid is replaced, the ABS bleeding function must be performed to
bleed the ABS system
DPF Regeneratio
DPF regeneration is used to regularly clear pm (particulate matter) from the
trap using combustion oxidation methods (such as high-temperature heating
combustion, fuel additives or catalysts to lower the PM ignition point) to
maintain optimal and stable trap performance.
DPF regeneration matching must be performed in the following cases:
The exhaust backpressure sensor is replaced.
The PM trap is removed or replaced.
The fuel additive injector is removed or replaced.
The catalytic oxygenizer is removed or replaced.
The DPF regeneration MIL is on, and maintenance is performed.
The DPF regeneration control module is replaced
Injector Codin
Write the actual injector code or rewrite the stored code in the ECU to match
the codes of the corresponding cylinders, so as to more accurately control or
correct the quantity of each cylinder.
32
After the ECU or injector is replaced, the injector code of each cylinder must be
conrmed or re-coded so that the cylinder can better identify the injectors to
accurately control fuel injection

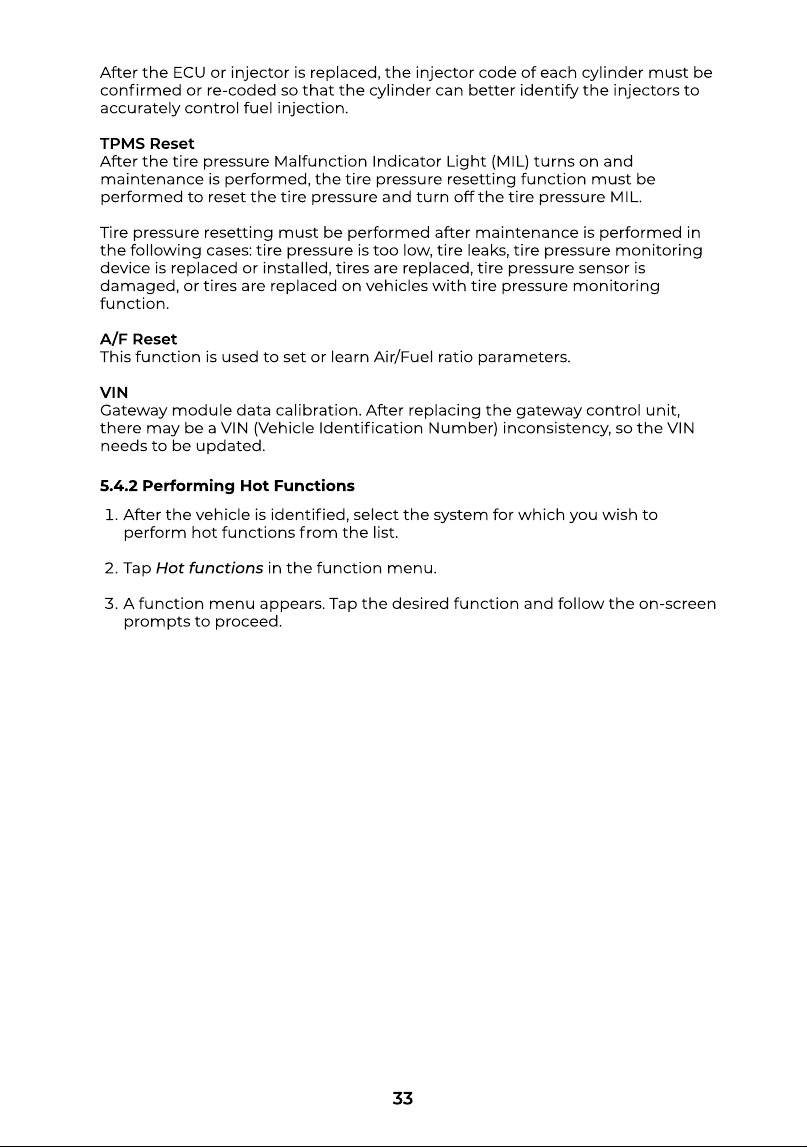

TPMS Rese
After the tire pressure Malfunction Indicator Light (MIL) turns on and
maintenance is performed, the tire pressure resetting function must be
performed to reset the tire pressure and turn off the tire pressure MIL.
Tire pressure resetting must be performed after maintenance is performed in
the following cases: tire pressure is too low, tire leaks, tire pressure monitoring
device is replaced or installed, tires are replaced, tire pressure sensor is
damaged, or tires are replaced on vehicles with tire pressure monitoring
function
A/F Rese
This function is used to set or learn Air/Fuel ratio parameters
VI
Gateway module data calibration. After replacing the gateway control unit,
there may be a VIN (Vehicle Identication Number) inconsistency, so the VIN
needs to be updated.
5.4.2 Performing Hot Function
After the vehicle is identied, select the system for which you wish to
perform hot functions from the list
Tap Hot functionsin the function menu
A function menu appears. Tap the desired function and follow the on-screen
prompts to proceed
33

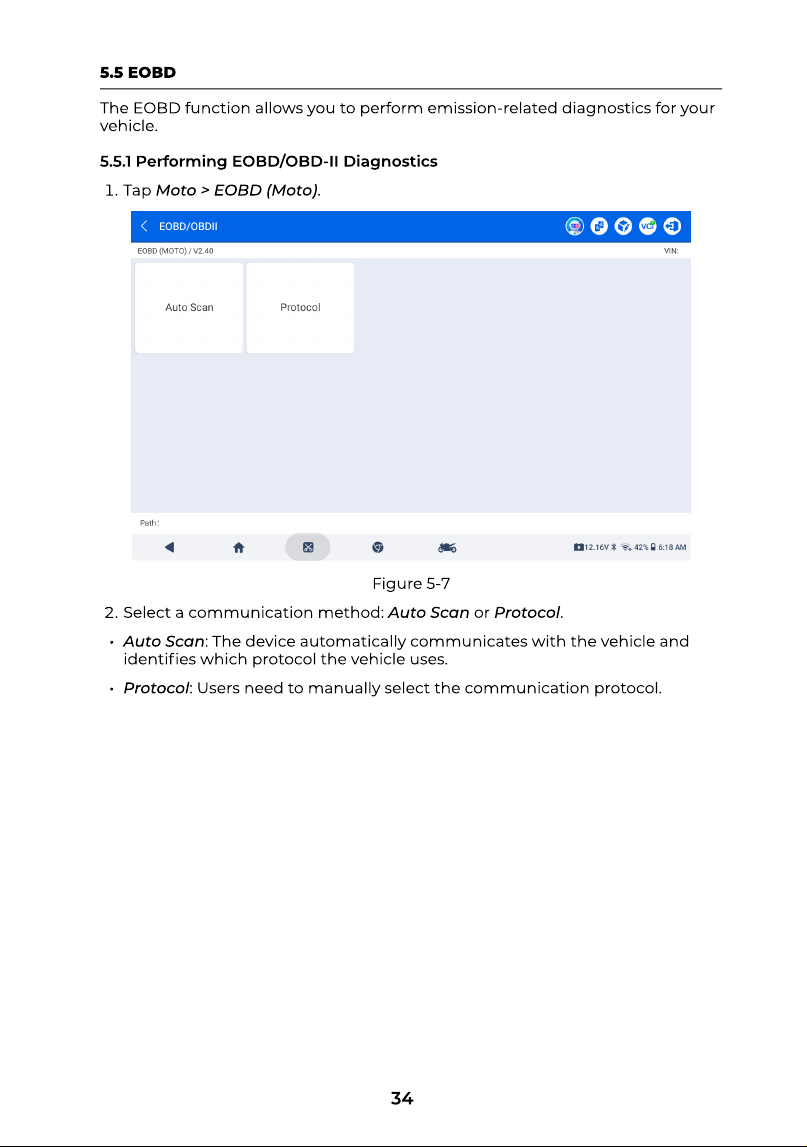

5.5 EOB
The EOBD function allows you to perform emission-related diagnostics for your
vehicle
5.5.1 Performing EOBD/OBD-II Diagnostic
Tap Moto > EOBD (Moto).
Figure 5-7
Select a communication method: Auto Scanor Protocol
Auto Scan: The device automatically communicates with the vehicle and
identies which protocol the vehicle uses
Protocol: Users need to manually select the communication protocol.
34

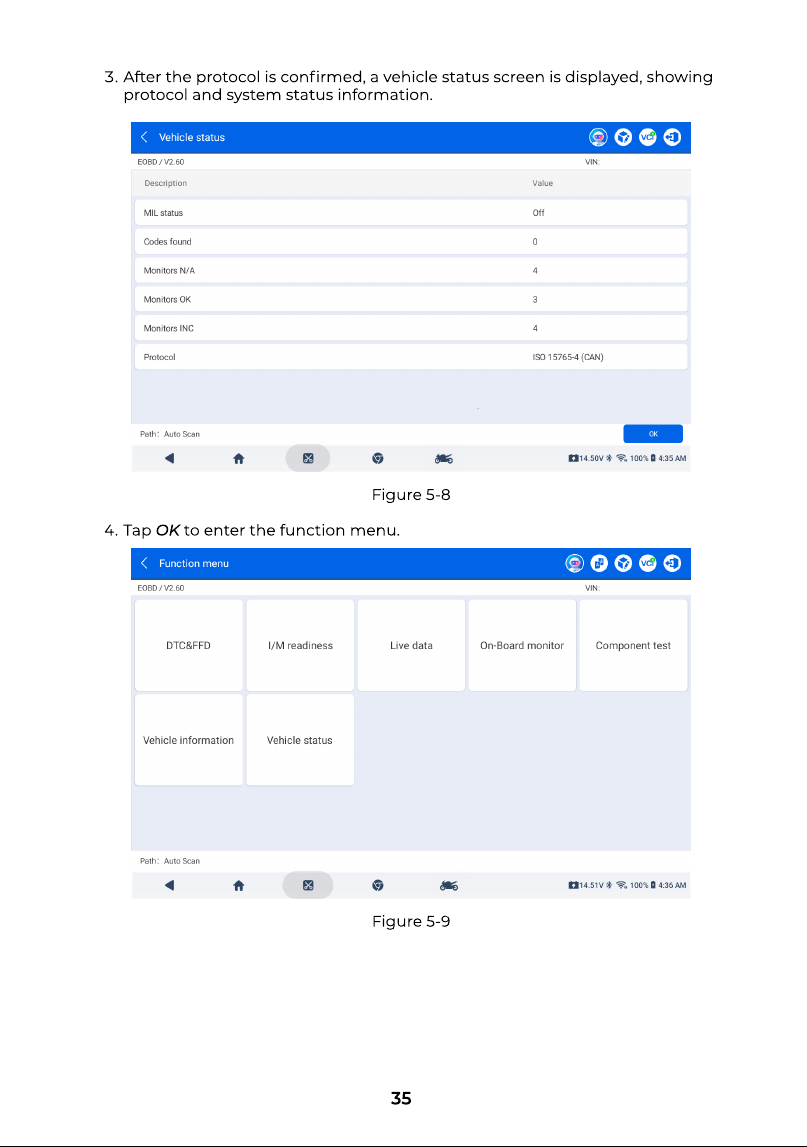

After the protocol is conrmed, a vehicle status screen is displayed, showing
protocol and system status information.
Figure 5-8
Tap OKto enter the function menu
Figure 5-9
35
Select a function to continue. Available functions may include: DTC&FFD, I/M
readiness, Live data, On-Board monitor, Component test, Vehicle information
and Vehicle status
ⓘ Note
Available functions may vary depending on the vehicle make, model, and year

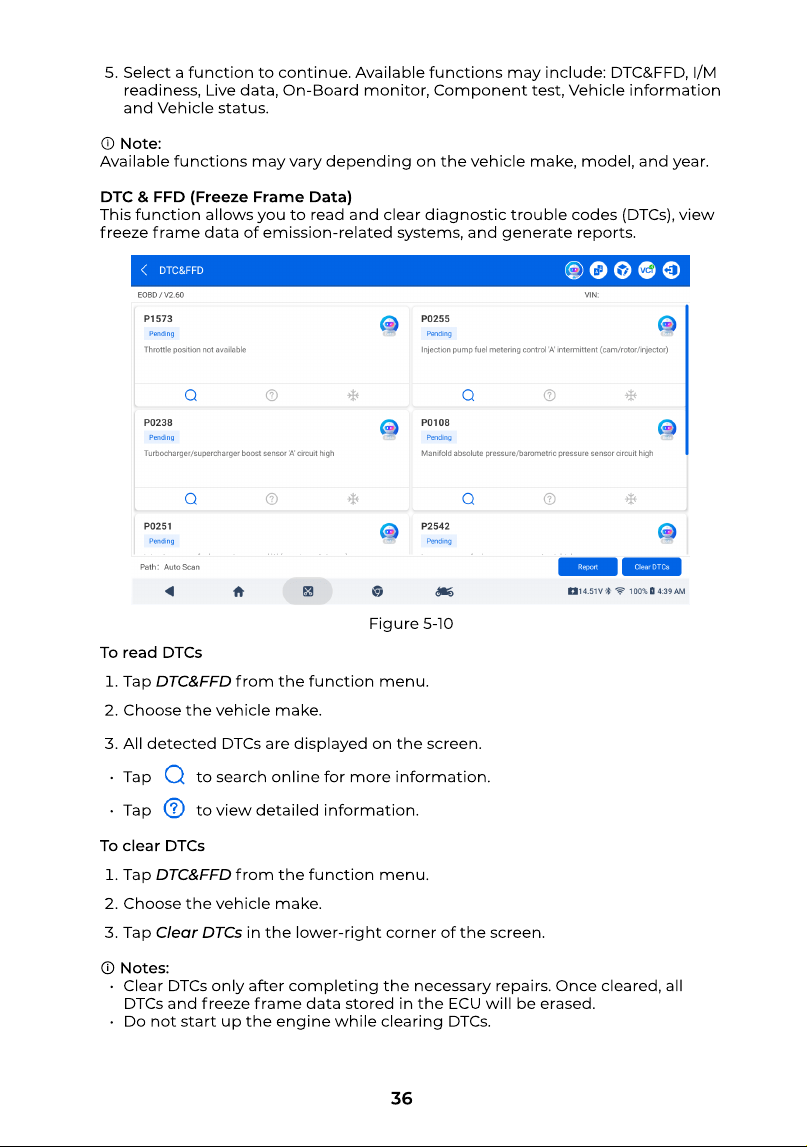

DTC & FFD (Freeze Frame Data
This function allows you to read and clear diagnostic trouble codes (DTCs), view
freeze frame data of emission-related systems, and generate reports.
Figure 5-10
To read DTC
Tap DTC&FFDfrom the function menu
Choose the vehicle make
All detected DTCs are displayed on the screen
Tap to search online for more information
Tap to view detailed information
To clear DTC
Tap DTC&FFDfrom the function menu
Choose the vehicle make
Tap Clear DTCsin the lower-right corner of the screen
ⓘ Notes
Clear DTCs only after completing the necessary repairs. Once cleared, all
DTCs and freeze frame data stored in the ECU will be erased
Do not start up the engine while clearing DTCs.
36

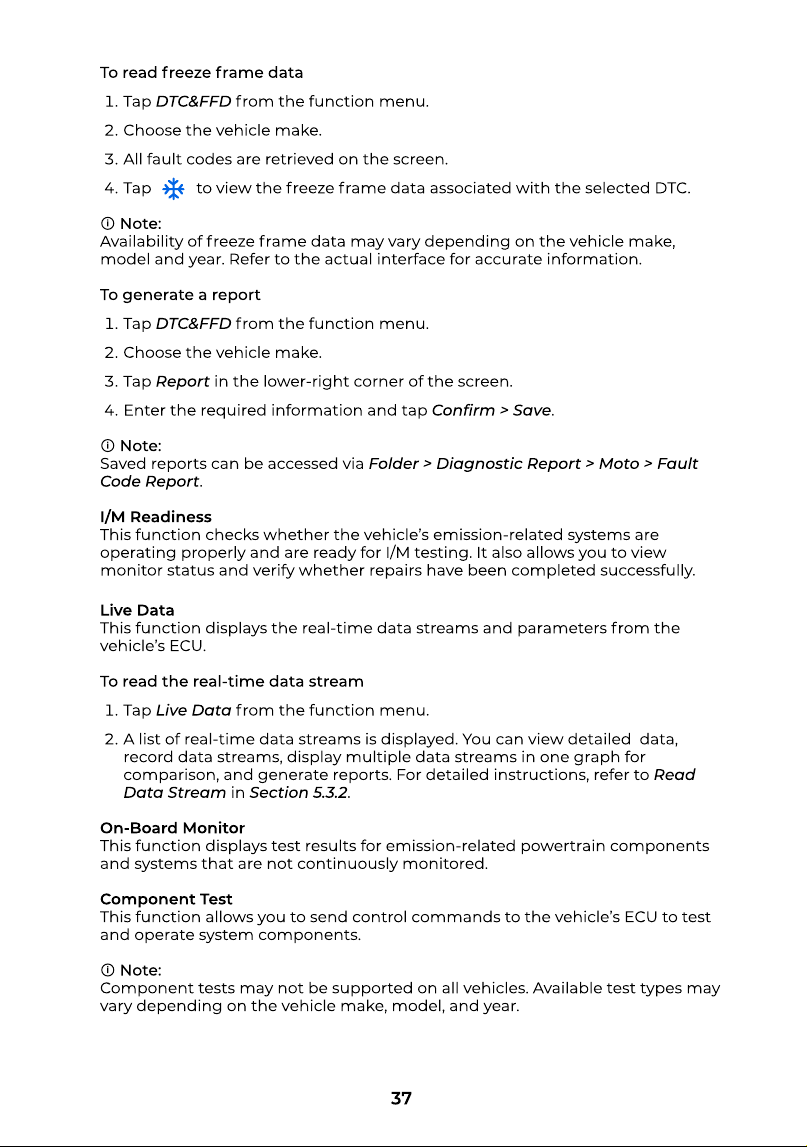

To read freeze frame dat
Tap DTC&FFDfrom the function menu
Choose the vehicle make
All fault codes are retrieved on the screen.
Tap to view the freeze frame data associated with the selected DTC
ⓘ Note
Availability of freeze frame data may vary depending on the vehicle make,
model and year. Refer to the actual interface for accurate information
To generate a repor
Tap DTC&FFDfrom the function menu
Choose the vehicle make
Tap Reportin the lower-right corner of the screen
Enter the required information and tap Conrm > Save
ⓘ Note
Saved reports can be accessed via Folder > Diagnostic Report > Moto > Fault
Code Report
I/M Readines
This function checks whether the vehicle’s emission-related systems are
operating properly and are ready for I/M testing. It also allows you to view
monitor status and verify whether repairs have been completed successfully.
Live Dat
This function displays the real-time data streams and parameters from the
vehicle’s
ECU
To read the real-time data strea
Tap Live Datafrom the function menu
A list of real-time data streams is displayed. You can view detailed data,
record data streams, display multiple data streams in one graph for
comparison, and generate reports.
F
or detailed instructions, refer to
Read
Data Stream
in
Section 5.3.2
On-Board Monito
This function displays test results for emission-related powertrain components
and systems that are not continuously monitored
Component Tes
This function allows you to send control commands to the vehicle’s
ECU
to test
and operate system components
ⓘ Note
C
omponent tests may not be supported on all vehicles. Available test types may
vary depending on the vehicle make, model, and year.
37

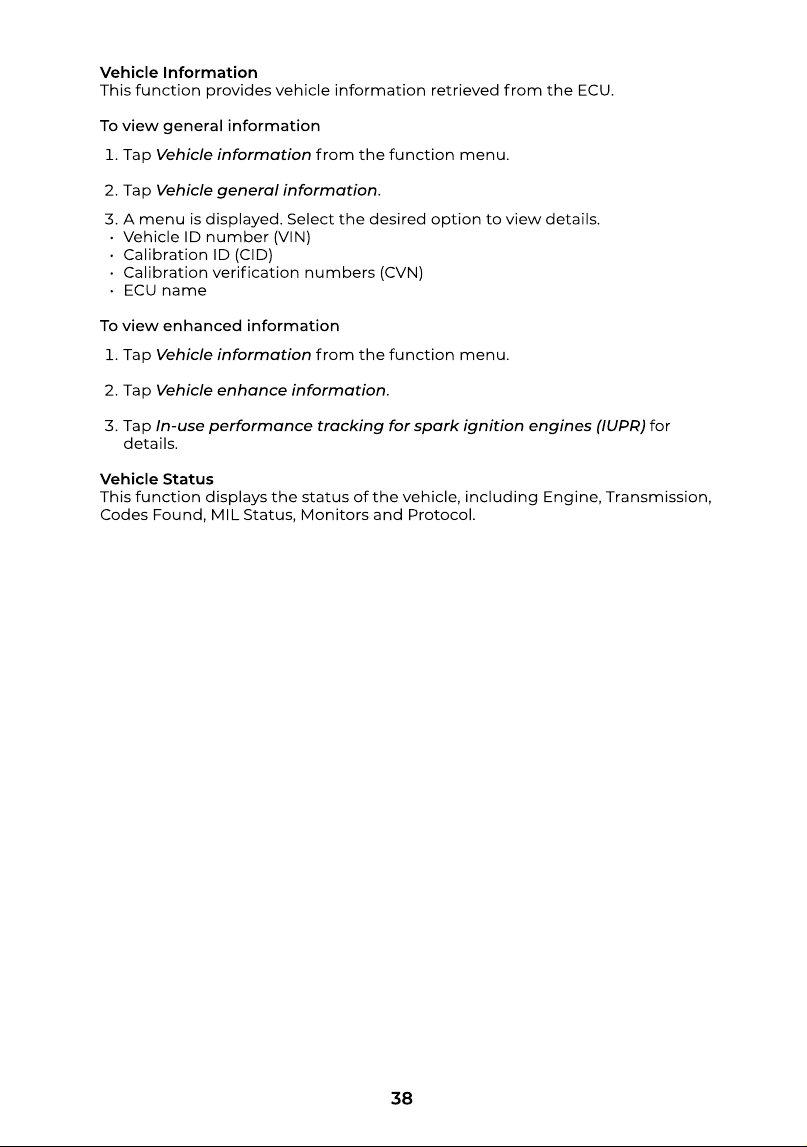

Vehicle Informatio
This function provides vehicle information retrieved from the ECU
To view general informatio
Tap Vehicle informationfrom the function menu
Tap Vehicle general information
A menu is displayed. Select the desired option to view details
Vehicle ID number (VIN
Calibration ID (CID
Calibration verication numbers (CVN
ECU nam
To view enhanced informatio
Tap Vehicle informationfrom the function menu
Tap Vehicle enhance information
Tap In-use performance tracking for spark ignition engines (IUPR)for
details
Vehicle Statu
This function displays the status of the vehicle, including Engine, Transmission,
Codes Found, MIL Status, Monitors and Protocol.
38
SECTION 6: MARINE (PERSONAL
WATERCRAFT DIAGNOSTICS)
The marine diagnosticsmodule allows you to scan all systems congured on
the personal watercraft (hereinafter referred to as the PWC) with one touch
(Auto Scan) for DTCs or select an individual system to retrieve and clear DTCs,
view data streams, read ECU information, perform hot functions and conduct
active tests.
6.1 Diagnostic Toolbar
After accessing the PWC diagnostics interfaces, a tool bar is displayed in the
upper-right corner of the screen. This section presents a brief introduction to
these tools
6.1.1 Tool Description
Tool Description
Tap it to launch the AI tool TopFix, where you can access DTC
interpretation, recall information, repair instructions and parts
replacement suggestions
Tap it to update the translations of the content on the current screen
for improved clarity
Tap it to instantly send diagnostic feedback (with diagnostic logs
automatically attached) when you encounter a software issue during
diagnostic operations. The detailed operation steps are presented in
Section 5.1.2
It displays the connection status between the VCI and the tablet. If
the icon is gray, tap it to connect via Bluetooth or Wi-Fi, or connect
the VCI directly to the tablet using a USB cable
Tap it to exit the current session. After exiting, the connection
between the VCI and the vehicle’s DLC must be re-established if you
want to restart the procedure.
39

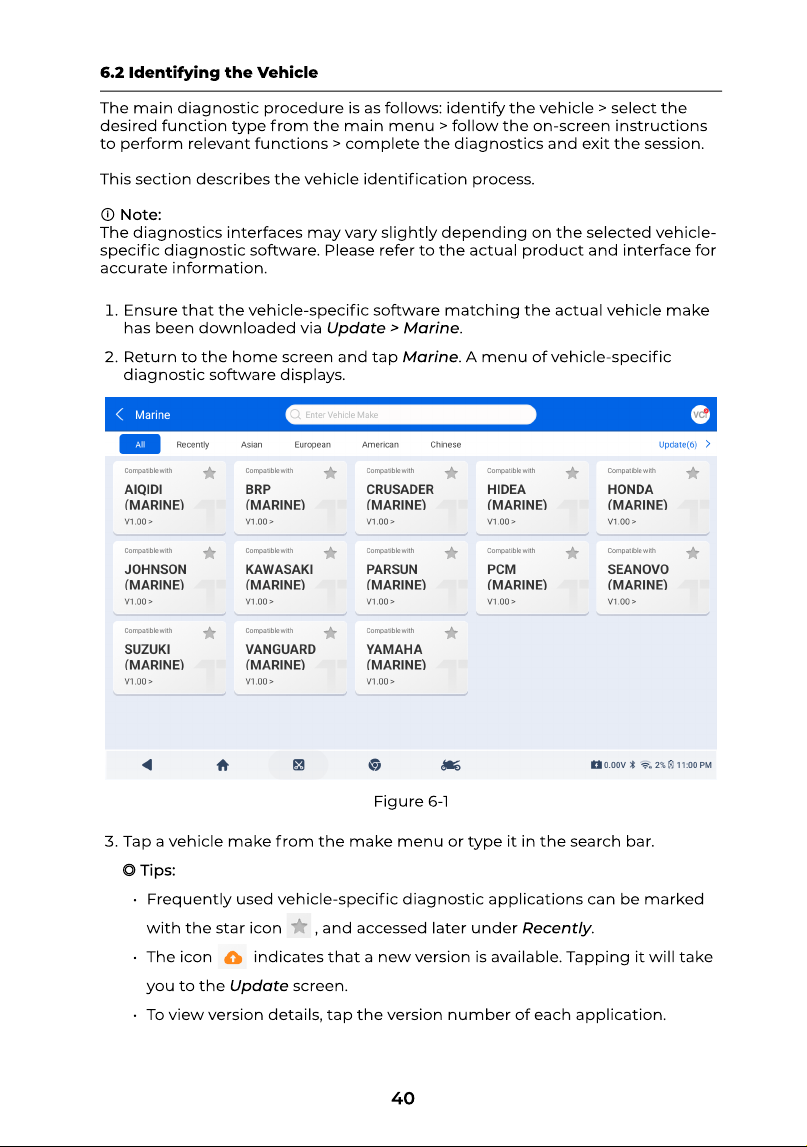

6.2 Identifying the Vehicl
The main diagnostic procedure is as follows: identify the vehicle > select the
desired function type from the main menu > follow the on-screen instructions
to perform relevant functions > complete the diagnostics and exit the session
This section describes the vehicle identication process
ⓘ Note
The diagnostics interfaces may vary slightly depending on the selected vehicle-
specic diagnostic software. Please refer to the actual product and interface for
accurate information.
Ensure that the vehicle-specic software matching the actual vehicle make
has been downloaded via Update > Marine
Return to the home screen and tap Marine. A menu of vehicle-specic
diagnostic software displays.
Figure 6-1
Tap a vehicle ma
k
e from the ma
k
e menu or type it in the search bar
◎ Tips
Frequently used vehicle-specic diagnostic applications can be marked
with the star icon , and accessed later under Recently
The icon indicates that a new version is available. Tapping it will take
you to the Update screen
To view version details, tap the version number of each application.
40
Tap one of the following options to identify the vehicle
Automatic: Enter the VIN manually or tap Readto acquire the VIN. Then
tap Conrm. The tablet will automatically decode the VIN to identify the
vehicle
Manual/By model: Select the vehicle information manually to assist the
device in identifying the vehicle
System list: Tap Auto Scan to automatically scan all systems installed on
the vehicle, or manually select a system for scanning
◎ Tips
Diag Socket displays the DLC location or diagnostic cable diagrams for
the selected vehicle model to facilitate the diagnostics process
Manual service function provides detailed operation guides for certain
maintenance services or fault codes for reference
ⓘ Note
The displayed function options may vary slightly depending on the selected
vehicle-specic diagnostic software. Please refer to the actual product and
interface for accurate information
After conrming the vehicle information, a main menu displays, in which
you can perform an auto scan, conduct hot functions, view vehicle prole
and query repair information.
ⓘ Note
Functions in the main menu may differ depending on the vehicle make,
model, and year. Refer to the actual interface.
41
6.3 Auto Sca
A
fter the device identies your vehicle,
Aut
o
Sc
a
n
enables the device to
automatically detect all supported systems and retrieve DTCs, providing a
comprehensive vehicle health check.
Y
ou can also select an individual system
for scanning.
P
erforming an
A
uto Scan before and after repairs helps with
troubleshooting and validating repairs.
P
re
-
and post
-
scan reports allow you to
record and compare the vehicle condition before and after repairs
6.3.1 Automatically Scanning All Supported System
After the vehicle is identied as described in Section 6.2, conrm the vehicle
information and follow the on-screen instructions until the Main Menu is
displayed
Tap
Auto scan f
rom the main menu
O
n the
System List
screen
,
tap
Auto Scan
at the bottom o
f
the screen
.
The tablet scans all supported systems and automatically retrieves DTCs
The results can be viewed in a list (see Figure 6-2). The List displays all
systems congured on the vehicle. Systems with DTCs detected are marked
with a red triangle and the number of DTCs, while systems without DTCs are
labeled Normal | No DTCs.
Figure 6-2
42

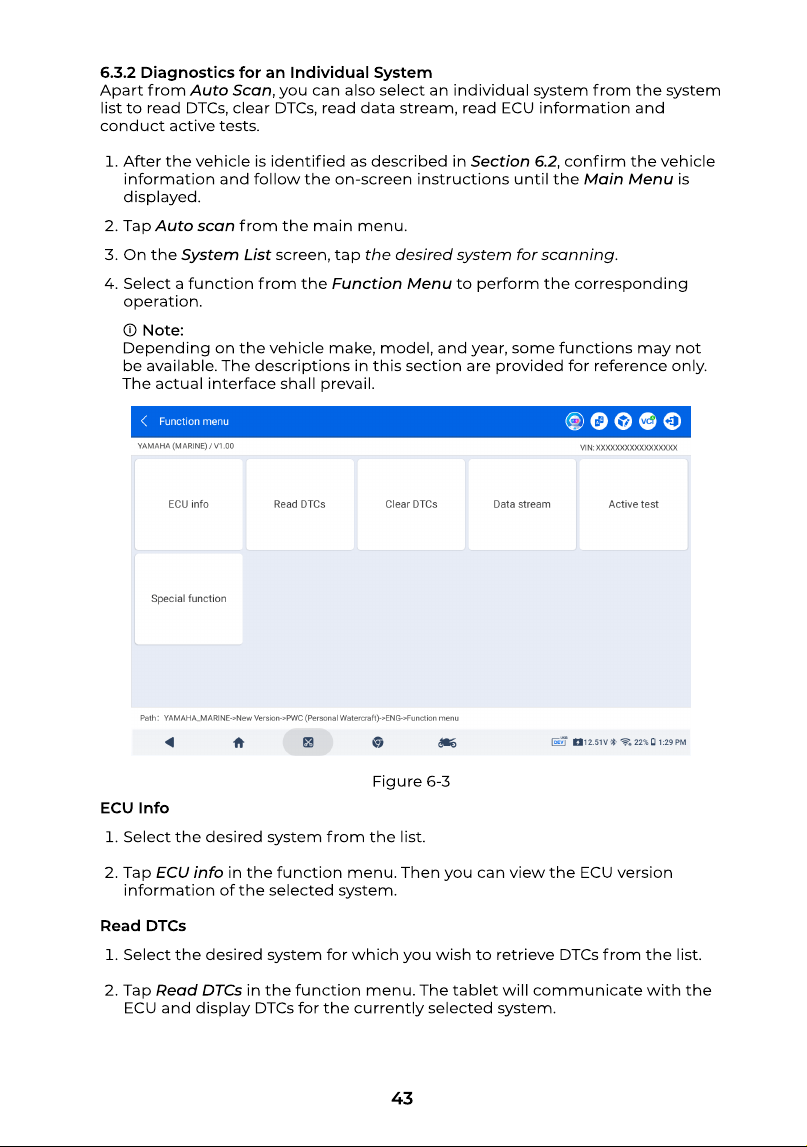

6.3.2 Diagnostics for an Individual Syste
A
part from
Auto Scan,
y
ou can also select an indi
v
idual s
y
stem from the s
y
stem
list to read
DTC
s
,
clear
DTC
s
,
read data stream
,
read
ECU
information and
conduct acti
v
e tests
A
fter the
v
ehicle is identi
ed as descri
b
ed in
Section 6.2,
con
rm the
v
ehicle
information and follo
w
the on-screen instructions until the
Main Menu
is
displa
y
ed
Tap Auto scan from the main menu
On the System List screen, tap the desired system for scanning.
Select a function from the Function Menu to perform the corresponding
operation
ⓘ Note
Depending on the vehicle make, model, and year, some functions may not
be available. The descriptions in this section are provided for reference only.
The actual interface shall prevail.
Figure 6-3
ECU Inf
Select the desired system from the list
Tap ECU infoin the function menu. Then you can view the ECU version
information of the selected system
Read DTC
Select the desired system for which you wish to retrieve DTCs from the list
Tap Read DTCsin the function menu. The tablet will communicate with the
ECU and display DTCs for the currently selected system.
43

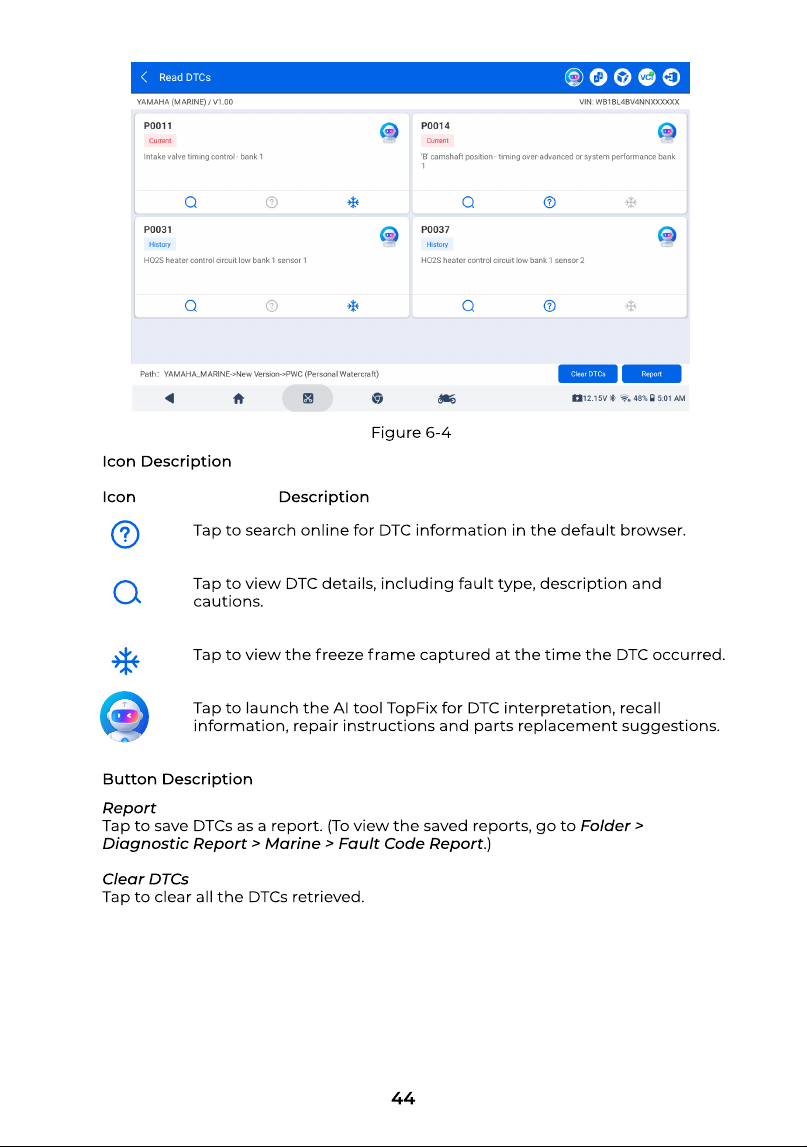

Figure 6-4
Icon Descriptio
Icon Description
Tap to search online for DTC information in the default browser
Tap to view DTC details, including fault type, description and
cautions
Tap to view the freeze frame captured at the time the DTC occurred
Tap to launch the AI tool TopFix for DTC interpretation, recall
information, repair instructions and parts replacement suggestions.
Button Descriptio
Repor
Tap to save DTCs as a report. (To view the saved reports, go to Folder >
Diagnostic Report > Marine > Fault Code Report.
Clear DTC
Tap to clear all the DTCs retrieved
44
ⓘ Notes
The procedure of clearing DTCs should be performed after the required
repair has been carried out. Once conrmed, DTCs and freeze data stored in
the ECU will be cleared
Do not start up the engine while clearing DTCs
Read Data Strea
Select the desired system from the list
Tap Data Streamin the function menu. A data stream list displays.
Figure 6-5
Icon Description
Icon Description
Tap to open settings for the selected data stream
Tap to display the real-time data stream as values
Tap to display the real-time data stream as a waveform graph
Tap to switch between metric and imperial units
Tap to open the online help for the data stream.
45
Button Descriptio
Sor
Customizes the sorting of the data streams
Edit/View Al
Switches between displaying all data streams and only the selected data
streams
Recor
Records and saves real-time data streams. To view recordings, go to Folder >
Replay Data
◎ Tip
On the playback screen, you can play recordings by time or by frame
Grap
Displays selected multiple data streams in separate graphs
◎ Tip
On the multi-graph screen, you can tap one graph for the full-screen view
Combin
Combines multiple data streams in a single graph for easier comparison
Repor
Saves the current data stream values as a report. To view the saved reports, go
to Folder > Diagnostic Report > Marine > Data Stream Report
⚠︎ Warning
If the vehicle must be driven to view live data streams, always have a second
person assist you. Do not view the data while driving
Active Tes
Active Testallows you to manually control selected vehicle components directly
from the app to verify their operation
1.After the vehicle is identied, select the system for which you wish to perform
active test from the list
2.Tap Active testin the function menu. Then you can perform related active
tests as needed
ⓘ Note
Available active tests vary by vehicle make, year and model
Special Function
Special Functions offer component adaptation or resetting for custom
congurations, and enables the input of adaptive values for certain
components after repairs. The available functions displayed in the app may
vary depending on the vehicle's make, model, and year
⚠︎ Warning
Exercise caution when performing special functions. Follow the on-screen
instructions carefully to avoid unintended changes or damage to the vehicle’s
systems.
46

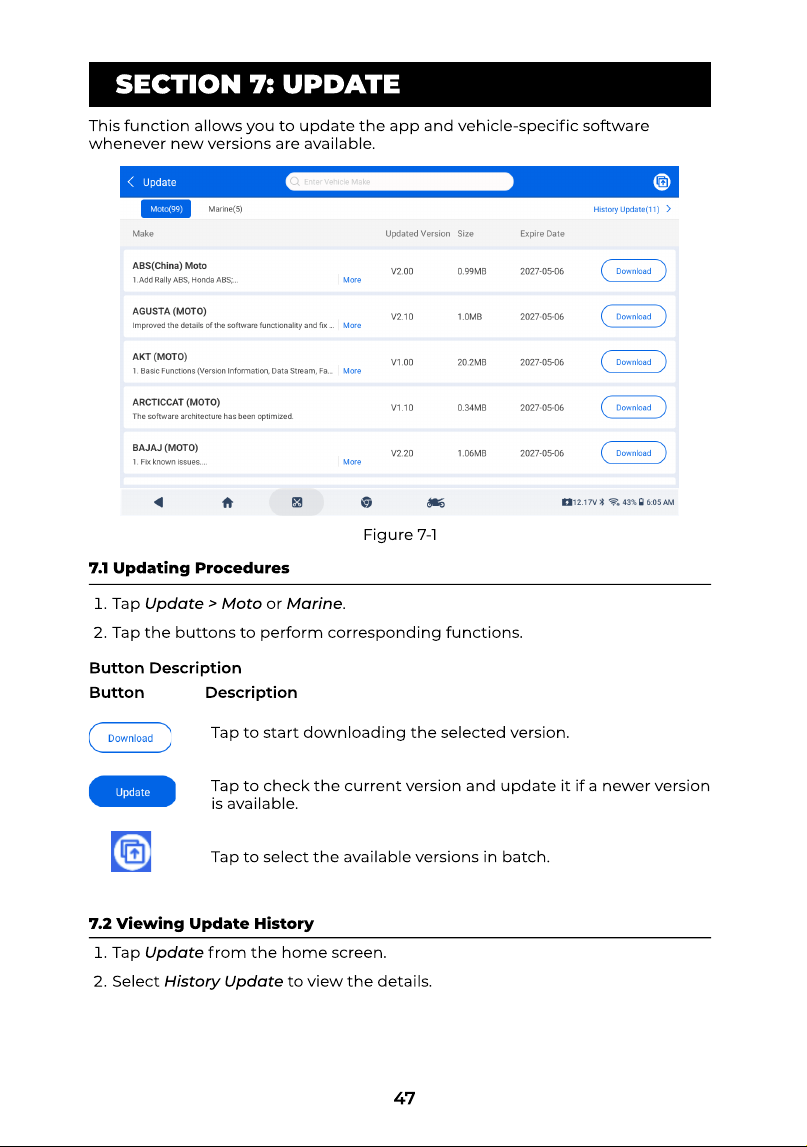

SECTION 7: UPDATE
This function allows you to update the app and vehicle-specic software
whenever new versions are available.
Figure 7-1
7.1 Updating Procedure
Tap Update > Moto or Marine
Tap the buttons to perform corresponding functions.
Tap to start downloading the selected version
Tap to check the current version and update it if a newer version
is available
Tap to select the available versions in batch.
7.2 Viewing Update Histor
Tap Updatefrom the home screen
Select History Updateto view the details.
47
Button Description
Button Description

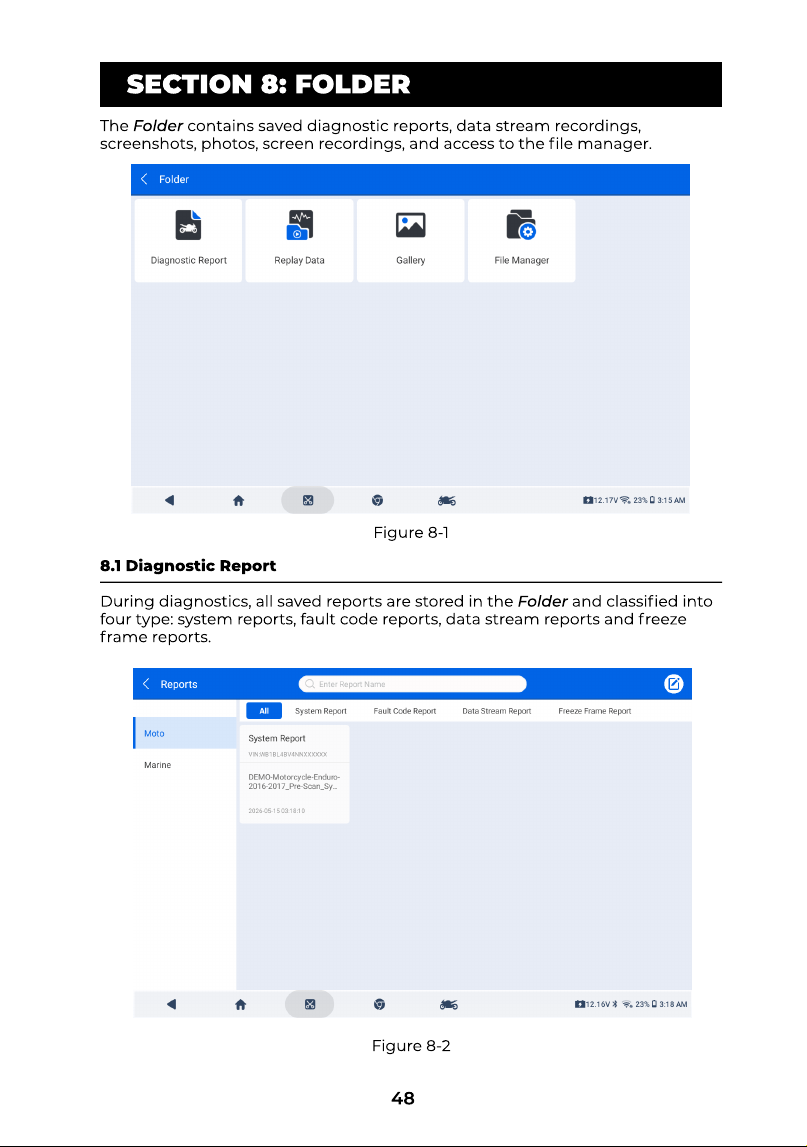

SECTION 8: FOLDER
The Folder contains saved diagnostic reports, data stream recordings,
screenshots, photos, screen recordings, and access to the le manager.
Figure 8-1
8.1 Diagnostic Repor
During diagnostics, all saved reports are stored in the Folder and classied into
four type: system reports, fault code reports, data stream reports and freeze
frame reports.
Figure 8-2
48
SECTION 9: LIBRARY
The library includes technical service bulletins, DLC diagnostic port locations
and diagnostic cable diagrams, a warning light library, vehicle coverage lookup,
a favorites folder, and electronic multilingual user manuals for ONE Moto. It also
provides quick access to the default browser, ofcial technical support, and the
TOPDON ofcial community.
Figure 9-1
9.1 TSB (Technical Service Bulletins
TSB provides access to manufacturer-issued technical bulletins that describe
known vehicle issues, repair procedures, and service recommendations. This
helps technicians identify and resolve problems more efciently
9.1.1 Viewing technical service bulletin
Tap Library > TSB
Select the vehicle make, model, year, system and subsystem, and tap Next. A
list of OEM technical service bulletins issued for the selected vehicle will be
displayed
Tap the desired bulletin to view the full content.
49
9.2 DLC Diagnostic Port Position and Diagnostic Wir
This feature provides diagrams showing the location of the motorcycle’s Data
Link Connector (DLC) and the required diagnostic cables, helping users
connect the ONE VCI to the vehicle’s DLC more efciently
9.2.1 Querying the DLC Position and Required Cable
Tap Library > DLC Diagnostic Port Position and Diagnostic Wire
Select the vehicle make, model, year, engine and system, then tap Next
.
Diagrams of the DLC location and required diagnostic cables for the
selected vehicle are displayed
9.3 Warning Light Librar
Warning Light Library provides information on dashboard warning lights,
including light description, impacts on driving, typical causes and responsive
measures
9.3.1 Using the Warning Light Librar
Tap Library > Warning Light Library. A list of warning lights will display
Tap the desired warning light to view the details
9.4 Vehicle Coverage Looku
This feature enables you to check whether your vehicle is supported by the
device
9.4.1 Checking Vehicle Coverag
Tap Library > Vehicle Coverage Lookup
Choose your software type and name
Select the vehicle model, year, system, function and sub-function from the
drop-down list.
Tap Query. A list of relevant vehicle information is displayed
9.5 User Manua
This feature provides electronic versions of multilingual ONE Moto user
manuals
9.6 Ofcial Suppor
It provides quick access to TOPDON’s ofcial support page, where users can
view detailed product introduction, download relevant documents, and contact
technical support for assistance
50
9.6.1 Obtaining Ofcial Suppor
Tap Library > Ofcial Support
The app displays the ofcial website of the product
Tap the desired function button to perform the related operation
9.7 Communit
It provides access to TOPDON’s ofcial user community, where users can view
ofcial announcements, share diagnostic experiences, and discuss product-
related topics
9.7.1 Accessing the Ofcial Communit
Tap Library > Community
Tap the icon and log in with your TOPDON account
After a successful login, the app redirects you to the homepage of the
TOPDON community
9.8 Favorite
This feature allows you to collect and manage frequently used websites by
saving URLs as shortcuts
9.8.1 Add Websites to Favorite
Tap Library > Favorites
Tap Add to Favorites or the + icon
Tap the icon to set a symbol, then enter the name and URL
Tap Conrm
9.8.2 Deleting Favorite Item
Tap Library > Favorites
Tap the icon in the upper-right corner of the screen
Choose the desired items or by checking the boxes, or tap Select All to select
all items
Tap Delete > Conrm
ⓘ Note:
Exercise caution when deleting favorite items, as deleted data cannot be
recovered.
51
SECTION 10: QUICK SUPPORT
Quick Support enables you to receive prompt assistance by allowing an
authorized user to remotely control your diagnostic tablet. This section explains
how to grant remote access to get the help you need.
Figure 10-1
10.1 Using Quick Suppor
Make sure the tablet is connected to the Internet
Tap QuickSupport on the home screen
Carefully read the onboarding guide, then tap Continue > Let’s get started
An ID will be generated and displayed automatically. Choose one of the
following methods to start a remote session
Share the ID with the remote party and wait for them to initiate the
session
Tap Join session, obtain the session code from the remote party, enter
the code, and then tap Connect
Wait for the connection to be established, and remain in contact with the
remote party throughout the session
Exit the support session when assistance is no longer required.
52
SECTION 11: USER INFO
The User Infofunction allows you to access a range of options, including Vehicle
Software Management, Customer Feedback, Workshop Data Management,
User Info, Firmware Update, System Update and Settings.
Figure 11-1
11.1 Vehicle Software Managemen
This function allows users to uninstall previously installed vehicle software, hide
infrequently used software from the make menu, and manage update
reminders for favorite vehicle software
11.1.1 Uninstalling Vehicle Softwar
Tap User Info > Vehicle Software Management > Uninstall Vehicle Software
Conrm VCI serial number, select the function type from the drop-down list,
or manually enter the vehicle make to search.
53
Figure 11-2
Choose the desired software from the list and tap Delete
11.1.2 Hiding Vehicle Softwar
Tap User Info > Vehicle Software Management > Hide Vehicle Software
Toggle the switch for the corresponding vehicle-specic software
ⓘ Note
Hidden software will no longer appear in the vehicle make menu, and update
notications for that software will also be disabled. To restore it, toggle the
switch again
Figure 11-3
54
11.1.3 Managing Update Reminders for Favorite Softwar
Tap User Info > Vehicle Software Management
Enable or disable the Favorited Model Upgrade Reminder option
ⓘ Note
After enabling this feature, when an update is available for favorited (star-
marked) software, a notication will be displayed. The update count displayed
in the upper-right corner of the update center will show only the number of
available updates for favorited vehicle-specic software
Figure 11-4
11.2 Customer Feedbac
This feature enables users to submit feedback on our products and services
11.2.1 Submitting Feedbac
Tap User Info > Customer Feedback
Manually input the title, choose the feedback type and enter the problem
description. In addition, you can attach relevant logs and pictures or videos if
necessary
Tap Submit
11.3 Workshop Data Managemen
This function enables you to save and edit the information of workshops,
technicians and customers
55
11.4 User Inf
This function allows you to view your ID and email address, update avatar and
nickname, change password, delete account and log out
⚠︎ Warning
Account deletion is irreversible and cannot be undone. Once the account is
deleted, all data stored in the account will be cleared
11.5 Firmware Updat
This function helps you to update the rmware if a new version is available
11.6 System Updat
This function enables users to update the device system if a new version is
available
ⓘ Note
The system cannot be updated when the battery is low.
11.7 Setting
This feature allows you to access system settings, view storage information,
congure the auto-lock interval, change the language and unit settings,
transfer the device to another account, switch device modes, view product and
service information, and log out of the account.
Figure 11-5
56
11.7.1 System Setting
It includes options for conguring Wi-Fi, date and time, and battery settings
Conguring System Setting
Tap User Info > Settings > System Settings
Tap the desired option to congure the corresponding settings
11.7.2 Storag
This feature allows you to view storage details, clear cache and perform factory
reset
Viewing Storage Detail
Tap User Info > Settings > Storage
View the storage usage details displayed on the screen
Performing a Factory Rese
Tap User Info > Settings > Storage > Factory Reset
Choose the desired option
⚠︎ Warning
Factory reset is irreversible and cannot be undone. Once the action is
performed, all data stored in the account will be cleared
11.7.3 Auto-Loc
This feature allows users to set the device auto-lock interval
Setting the Auto-Lock Interva
Tap User Info > Settings > Auto-Lock
Choose the desired interval
11.7.4 Language
This feature helps you switch the device language
Changing the Device Languag
Tap User Info > Settings > Language
Choose the desired language and tap Conrm
11.7.5 Uni
This feature allows users to change the measurement unit
Changing the Uni
Tap User Info > Settings > Unit
Select Metric or Imperial
57
11.7.6 Transfer Devic
This function allows you to transfer the device from your account to others
Transferring a Devic
Tap User Info > Settings > Transfer Device
Tap Start
Enter the TOPDON ID of the recipient and the verication code. Verify the
device model and serial number, then tap Transfer to conrm
11.7.7 USB Mode Switc
The tablet provides two USB operation modes: HOST Mode and Device Mode. In
HOST Mode, the tablet functions as a host to connect and control external USB
devices. In Device Mode, it operates as a peripheral for data exchange with a
computer. Users can choose a mode based on application requirements
ⓘ Note
Host Mode must be enabled before connecting the tablet to the VCI via USB
cable or Wi-Fi
Switching the Mod
Tap User Info > Settings > USB Mode Switch
Choose the desired mode
11.7.8 Abou
This feature enables users to check for updates, view version history, access the
Terms of Service and Privacy Policy, and revoke privacy consent
11.7.9 ONE Mot
This feature displays detailed information about the device, including the
device name, product model, Android version, system version, IP address, app
version, tablet serial number, registration code, VCI rmware version, Bluetooth
address, total storage capacity, and remaining storage capacity
11.7.10 Logou
This feature enables you to log out of the current account
Logging ou
Tap User Info > Settings > Logout
Tap Conrm.
58
SECTION 12: VCI EXTENDED APPLICATION
Apart from being used in combination with the tablet, the ONE VCI can also
function as a standalone J2534 interface, working with the RLink Platform to
communicate with OEM diagnostic software. For more information on
downloading the RLink Platform and using the ONE VCI with it, please visit the
website at: https://www.topdon.com/pages/pro-down?fuzzy=RLink%20J2534
59
SECTION 5 SPECIFICATIONSSECTION 13: SPECIFICATIONS
Display Scree
CP
RA
RO
Battery Capacit
Camer
Connectivit
Senso
Audio I/
Working Voltag
Working Temperatur
Storage Temperatur
Dimension (L x W x H
Net Weight
10.1-inch Touchable Screen, 1280 × 80
8-Cor
4 G
128 G
3.8 V, 10,000mA
16 M
Bluetooth 5.0/SP
US
Wi-F
Gravity Senso
Light Senso
Microphon
Loudspeake
12
-10℃ to 50℃ (14℉ to 122℉
-20℃ to 60℃ (-4℉ to 140℉
311 x 207 x 39mm (12.2 x 8.15 x 1.54 inches
1.56 kg (3.47 lb)
60
SECTION 5 SPECIFICATIONSSECTION 14: FAQ
Do I need to update the rmware before using the product for the
rst time
Yes. Firmware will automatically update to the latest version once
the ONE VCI is connected with yourtablet. You can also tap User
Info > Firmware Updateto update the rmware manually
Why does the tablet screen ash when the engine is running
That is a normal occurrence caused by electromagnetic interference
How does the ONE VCI work as a J2534 Pass-Thru device?
To use ONE VCI as a J2534 Pass-Thru device
Download and install RLink Platform from the ofcial TOPDON
website.
Launch the RLink Platform and log in with the same TOPDON
account used on the tablet
Connect the ONE VCI to a Windows-based computer with the
RLink Platform installed using a USB cable, and connect it to the
vehicle’s DLC using the OBD-II diagnostics cable
Click Bind and Activate to link your ONE VCI to the RLink
Platform
Click Driver > Driver Download to download and install the
corresponding OEM driver.
Additional steps may vary depending on the vehicle make,
model, and year. For detailed instructions, go to User Guidance >
Quick Guidance > ONE VCI to view guidance for supported
vehicle makes
ⓘ Note
Before performing diagnostics, you must download and install
the required OEM diagnostic software on your computer. If
you encounter any issues during installation, log in to the
RLink Platform and navigate to User Guidance > Install OEM
Software to view installation instructions for major
manufacturers
This diagnostic tool does not include any OEM diagnostic
software. You need to subscribe to the required software from
the corresponding manufacturer’s ofcial website.
Which vehicle makes are supported by the ONE VCI under the J2534
protocol
Vehicle makes supported by the ONE VCI under the J2534 protocol
are continuously updated. Currently, the supported makes include:
GM, Chrysler, Ford, Honda, Hyundai, Kia, Land Rover, Mazda,
Mitsubishi, Nissan, Subaru, Toyota, Volvo, and Volkswagen.
61
SECTION 5 SPECIFICATIONS
Can the device still be used after the free software update expires
Yes. After the free software update expires, core diagnostic functions
remain available, including EOBD, DTC reading and clearing, data
streaming, active tests, and maintenance services
Which advanced features will no longer be available after the
software expires
Some advanced features will no longer be accessible, such as vehicle
software updates, ECU coding, programming, and TopFix AI
What should I do if a communication error occurs
Follow the steps below for troubleshooting
Check if the ignition is ON
Check if the ONE VCI is securely plugged into the vehicle’s DLC
Turn the ignition off. Then, turn it on again after 10 seconds and
continue the operation
Check if the vehicle’s control module is defective
If the problem persists, contact TOPDON customer service or the
vehicle manufacturer
62
SECTION 15: WARRANTY
TOPDON's One-Year Limited Warrant
TOPDON warrants to its original purchaser that the company's products will be
free from defects in material and workmanship for 12 months from the date of
purchase (Warranty Period).
For the defects reported during the Warranty Period, TOPDON will either repair
or replace the defective part or product according to its technical support
analysis and conrmation
TOPDON shall not be liable for any incidental or consequential damages arising
from the device's use, misuse, or mounting.
If there is any conict between the TOPDON warranty policy and local laws, the
local laws shall prevail
This limited warranty is void under the following conditions
• Misused, disassembled, altered or repaired by unauthorized stores or
technicians
• Careless handling and/or improper operation
Notice: All information in this manual is based on the latest information
available at the time of publication and no warranty can be made for its
accuracy or completeness. TOPDON reserves the right to make changes at any
time without notice.
63
COMPLIANCE INFORMATION
Regulatory Complianc
Table
FCC ID: 2AVYW-TDON
IC: 32511-TDON
HVIN: ONE Mot
VC
FCC ID: 2AVYW-TDONEVC
IC: 32511-TDONEVC
HVIN: ONE VC
FCC & ISED Statemen
This device complies with Part 15 of the FCC Rules [and contains license-exempt
transmitter(s)/receiver(s) that comply with Innovation, Science and Economic
Development Canada’s licence-exempt RSS standard(s)]
Operation is subject to the following two conditions
(1) This device may not cause harmful interference, an
(2) This device must accept any interference received, including interference
that may cause undesired operation of the device
L’émetteur/récepteur exempt de licence contenu dans le présent appareil est
conforme aux CNR d’Innovation, Sciences et Développement économique
Canada applicables aux appareils radio exempts de licence
L'exploitation est autorisée aux deux conditions suivantes
(1) l'appareil ne doit pas produire de brouillage, e
(2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement
Changes or modications not expressly approved by the party responsible for
compliance could void your authority to operate the equipment
FCC VO
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures
-- Reorient or relocate the receiving antenna
-- Increase the separation between the equipment and receiver
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
-- Consult the dealer or an experienced radio/TV technician for help
In case this equipment has to subject to FCC/IC SAR (Specic Absorption Rate)
exposure test, this equipment is designed to meet the requirements for
exposure to radio waves established by the FCC and ISED. These requirements
set a SAR limit of 1.6 W/kg averaged over one gram of tissue. The highest SAR
value reported under this standard during product certication for use when
properly worn on the body is within regulatory limits
64
FCC Cautio
The device for operation in the band 5150-5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite
systems
IC Cautio
1.The device for operation in the band 5150-5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite
systems
2.For devices with detachable antenna(s), the maximum antenna gain
permitted for devices in the band 5725-5850 MHz shall be such that the
equipment still complies with the e.i.r.p. limits specied for point-to-point and
non-point-to-point operation as appropriate
3.les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés
uniquement pour une utilisation à l’intérieur an de réduire les risques de
brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes
canaux
4.le gain maximal d’antenne permis (pour les dispositifs utilisant la bande
5725-5850 MHz) doit se conformer à la limite de p.i.r.e. spéciée pour
l’exploitation point à point et non point à point, selon le cas.
65
+86-755-21612590 (China
+1-833-629-4832 (North America
+34 930 523 149 (Europe)
+44 20 3996 2815 (United Kingdom
+61 7 5625 3501 (Australia)
SUPPORT@TOPDON.COM WWW.TOPDON.COM
@TOPDON_OFFICIAL @TOPDONOFFICIAL
