Sauna Room User Manual
FCC ID: 2BWZH-QDCP2
This controller is specially designed for electrical control of light wave sauna rooms,
featuring:
●Temperature Control
●Timing Function
●Lighting Control
●Color Light Therapy
●USB Function
●FM Function
●Bluetooth Function
●Power-off Memory
●High-temperature Alarm
Technical Parameters
●Working Voltage: AC 90-265V 50Hz/60Hz
●Maximum Heating Current: 20A
●12V Output Power: 10A
●Timing Range: 1-99 Minutes
●Temperature Control Range: 30℃-65℃ (86℉-150℉)

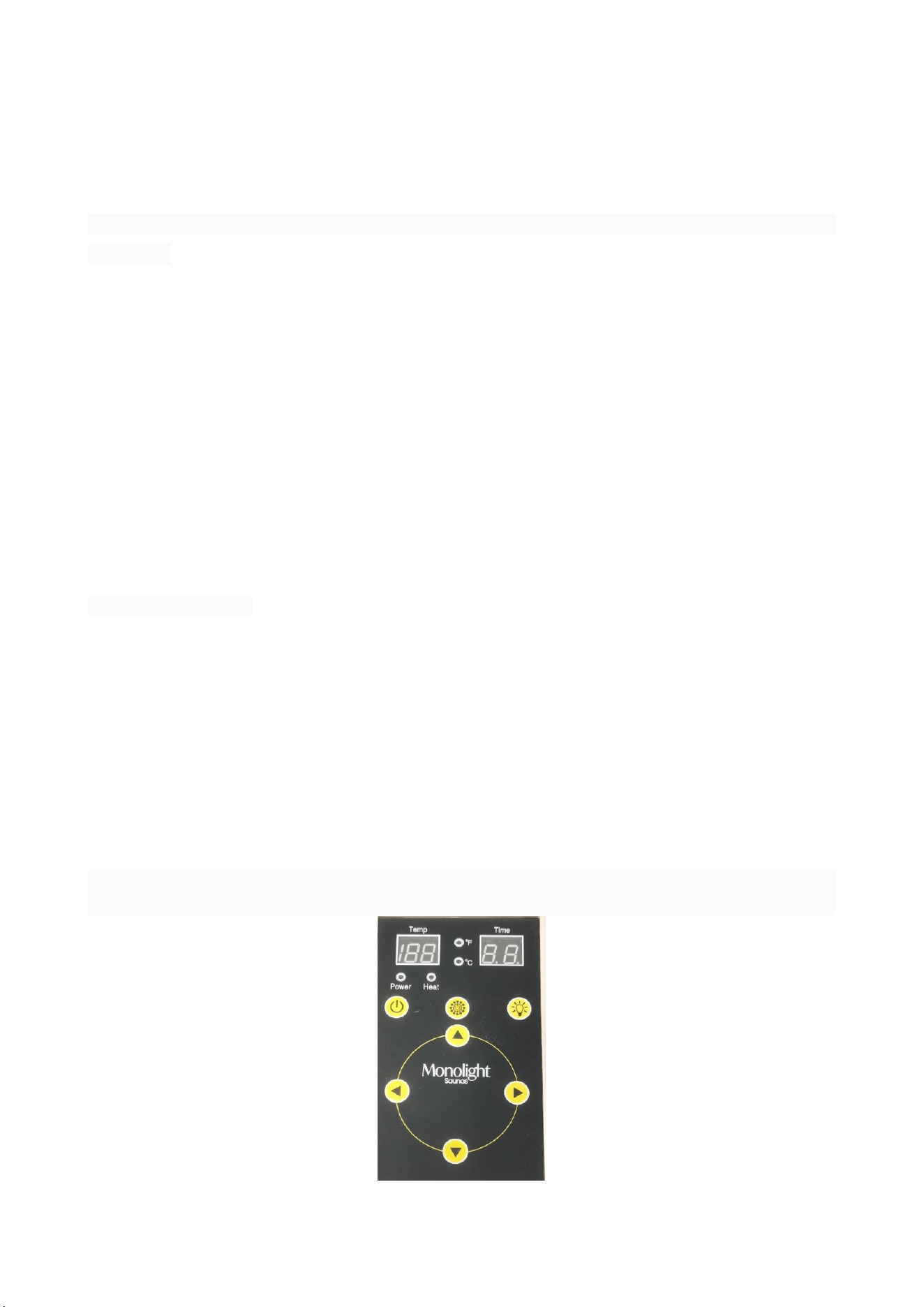

Display Operation Panel
1、Two digital tube display windows：
Left 188-segment digital tube: Displays the internal temperature of the cabinet.
Right 88-segment digital tube: Displays the remaining timing time.
2、three LED indicators in total：
Power Indicator;Heating Indicator：Lights up when heating is activated; turns off when
heating is deactivated.F Indicator ： On indicates the displayed temperature is in
Fahrenheit.
3、seven buttons
1） ：Press once to turn the power on/off.
2） :Lighting Switch Operation,Press once: Interior light ON, exterior light OFF.Press
once more:Interior OFF, exterior light ON.Press again in order to fully open - fully close
3） ：Power On/Off Operation.Long-press the color light button: The temperature digital
tube will display "LX" (X ranges from 1 to 9), with "X" flashing.Subsequent presses on
the color light button: Change the LED color and dynamic state.
4)
Temperature Adjustment Buttons ("+" and "-")
：
Temperature
adjustment: Press and hold the temperature button, the temperature will change rapidly.
5)
Time Adjustment Buttons ("+" and "-"):Timing adjustment: Press and hold the time "+"
or "-" button, the timing duration will change rapidly.
6)
Simultaneously press the temperature "+" and "-" buttons to switch
between Fahrenheit (℉) and Celsius (℃).
Error Codes:
1）Temperature sensor malfunction: The temperature digital display shows "EE."
2）High-temperature Protection When the temperature is ≥75℃, the temperature digital tube will display "H".
Data Cable
1、7-core Wire Connect to the display board.
2、3-core Wire Connect to the display board.
3、Long 2-core Red-Black Wire Connect to 12V internal light (with XH-2A plug).
4、Short 2-core Red-Black Wire Connect to 12V external light (with XH-2A plug).
5、White 4-core Wire Connect to phototherapy lights or light strips (optional).
6、White 5-core Wire Connect to phototherapy lights (optional).
7、2-core Red (+)/Black Wire +12VDC output, can connect to CD players, etc
