1/2 TON JACK TRANSMISSION
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE
PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM
(OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
OWNER’S MANUAL AND SAFETY INSTRUCTIONS
ITEM: 56027
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 4900 MON-FRI 9AM TO 3PM PST
1
IMPORTANT SAFETY INFORMATION
GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and instructions may
result in electric shock, re and/or serious injury. Save all warnings and instructions for future
reference.
SAFETY
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense and
caution are factors which cannot be built into this product, but must be supplied by the operator. Read
carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure
to follow the safety rules and other basic safety precautions may result in serious personal injury.
Stay alert, watch what you are doing, and use common sense when operating the tool. DO NOT use the
tool while you are tired or under the inuence of drugs, alcohol, or medication.
Dress properly. DO NOT wear loose clothing, dangling objects, or jewellery. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewellery, or long hair can be caught in moving parts.
Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant safety
goggles (not safety glasses) with side shields, or when needed, a face shield.
DO NOT overreach. Keep proper footing and balance at all times.
Read and understand all instructions. Failure to follow all instructions may result in serious injury or
property damage.
DO NOT allow persons to operate or assemble the product until they have read this manual and have
developed a thorough understanding of how it works.
Store idle equiptment. When not in use, tools must be stored in a dry location to inhibit rust. ALWAYS lock
up tools and keep out of the reach of children.
Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit. Cluttered,
wet, or dark work areas can result in injury. Using the product in conned work areas may put you
dangerously close to cutting tools and rotating parts.
Keep children and bystanders away from the work area while operating the tool. DO NOT allow
children to handle the product.
Check for damaged parts before each use. Carefully check that the product will operate properly and
perform its intended function. Replace damaged or worn parts immediately. Never operate the product
with a damaged part.
Maintain tools with care. Keep tools sharp and clean for better performance. Follow instructions for
lubricating and changing accessories. The handles must be kept clean, dry and free of oil and grease.
Use the right tool for the job. DO NOT attempt to force a small tool to do the work of a larger tool. DO
NOT modify this tool or use the tool for a purpose it was not intended.
DO NOT operate the tool if under the inuence of drugs or alcohol. read the warning labels to determine
if your judgement. If there is any doubt, DO NOT operate the tool.
2
IMPORTANT SAFETY INFORMATION
SAVE THESE WARNINGS
When servicing, use only identical replacement parts.
DO NOT overload this equipment. Know the weight of the item being lifted.
Place the jack correctly. Only use this tool on a surface that is stable, level, clean and dry and capable of
sustaining the load.
Stabilize the load. Ensure that the load remains stable at all times. DO NOT move the load while it is on
the jack.
When lifting a vehicle, apply the emergency break and block all the wheels.
Stabilize the load. Ensure that the load remains stable at all times. DO NOT move the load while it is on
the jack.
Observe work area conditions. DO NOT use machines or power tools in damp or wet locations.
DO NOT force the tool. It will do the job better and safer at the rate for which it was intended. DO NOT use
innapropriate attachments in an attempt to exceed the tools capacity.
3

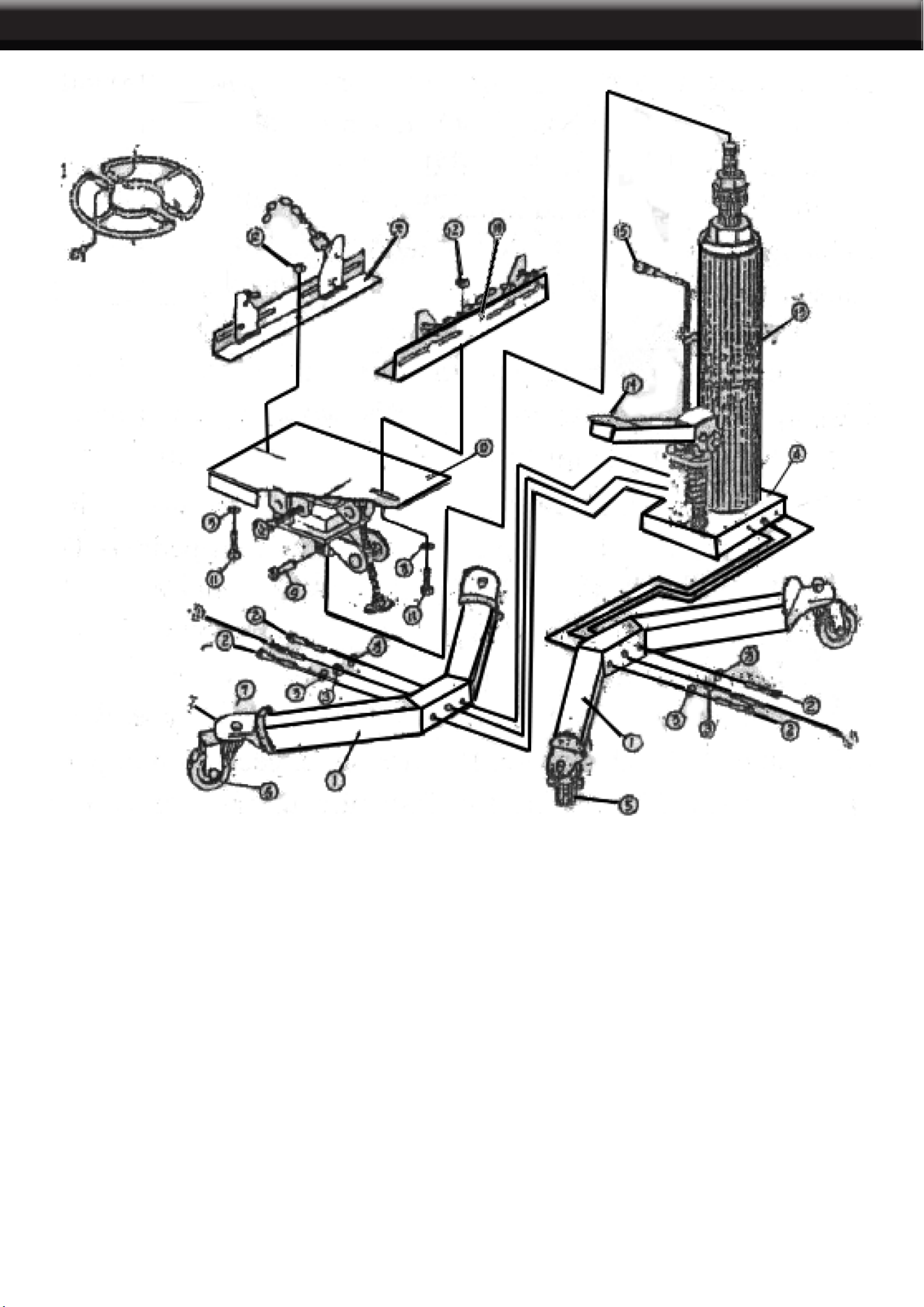

PARTS DIAGRAM
6. Washer x4 12. Bolt (M10*25) x6
1. Wheel Stand x2 7. Nut M12 x4 13. Nut (M10) x6
2. Bolt (12*65) x6 8. Aadle Unit x1 14. Air Vent Valve x1
3. Washer x6 9. Round Handle Assy x1 15. Foot Pedal x1
4. Power Unit x1 10. Bolt (M8*16) x1 16. Release Handle x1
5. Castor Wheel x4 11. Cramp x2 17. Washer x6
PARTS LIST
4
ASSEMBLY AND OPERATION
For transportation, the jack is separated into three components. When used for the rst time,
assemble according to the NO. l drawing.
PARTS LIST
1. Wheel stand: Connect the two wheel stands CD with the power unit by inserting the in
six-angled bole (2) (Ml2:X70) . and washer into the proper hole on the power unit and tighten
the screw. Assembling four castor wheels together with spring washer on the four feet of the
wheel stand CD and tighten the nuts.
2. Make the rst part of piston onto the hole of the saddle unit at the proper position tighten
the Screw (M8)
3. Fasten the two cramps with bolt (ll) (Ml2x25) and washer to the Nut (12) (Ml2) on the
saddle unit and colsen the screw, the distance between the two cramps can be adjusted if
needed.
4. Change the air vent valve (13) with a hole in the centre instead of the one without a bole.
1. Raising the saddle
Tighten the release valve handle (15) by turning in a clockwise direction and operate the
foot pedal (14) if by hand, place the handle in the foot operated handle sleeve, operate the
handle up and town.
2. Lowering the saddle
For safety, turn the release valve handle very slowly in counter-clockwise. Be sure not
exceed 25 mm per second. If it lowers too fast, turn the release valve handle clockwise.
OPERATION
TAKE NOTE
1. Be sure not exceed the rated capacity 0.5T.
2. Be sure to load rmly on centre of the Transmission jack. If not, adjust the handle to close
it.
3. After. putting the load on it, use safety chain.
4. When lifting the load t, use saety chain.
5. There must be enough oil in the cylinder so that the cylinder can operated regularly.
6. When remove the transmission jack, the saddle must be at the lowest position.
7. Keep the removal parts oiled, to avoid rusted.
5
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
PLEASE READ THE FOLLOWING CAREFULLY
DISCLAIMER
PRODUCT MADE IN CHINA
