OWNER’S MANUAL AND SAFETY INSTRUCTIONS
2PC HYDRAULIC WHEEL DOLLY’S
ITEM # 25999
SAVE THIS MANUAL. KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATION, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S
SERIAL NUMBER ON THE BACK OF THE MANUAL, OR THE MONTH AND YEAR OF PURCHASE IF
PRODUCT HAS NO SERIAL NUMBER
FOR QUESTIONS, PLEASE CALL CUSTOMER SERVICE: 909.628.4900
SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and
instructions may result in injury and/or property damage. Save all warnings and
instructions for future reference.
The warning and safety instructions in this manual are not meant to cover all possible conditions
and situations that may occur. Common sense, caution and care must be exercised when
operating or cleaning tools and equipment. Always contact your dealer, distributor, service agent
or manufacturer about problems or conditions you do not understand before operating the
product.
SAVE THESE WARNINGS.
1
• DO NOT operate Jack on inclined surfaces. Jack must be used on level surfaces only.
Unanticipated motion will occur as soon as Jack lifts tire from surface.
• DO NOT overload Jack’s beyond the load rating (1500lbs per unit).
• DO NOT start the vehicle’s engine, or drive with Jack in use. Jacks are designed for hand
maneuvering of vehicles only.
• DO NOT use Jack to lift tires wider than 12 inches.
• DO NOT attempt to push Jack over obstacles. They are designed to be used on level and
reasonable smooth surfaces only.
• After lifting, be sure always lock the pin in place before operating. Pull the pin out after finishing work
and then release the value.
SAFETY WARNINGS OPERATION
SAVE THESE WARNINGS.
1
2
1. Place Jack on loor and press down on pedal to release pedal lock. Pull out the lock
pin from frame.
2. Before operating, open release valve by turning hand-wheel counterclockwise.
Expand Jack by hand-wheel enough to place around tire and position so both rollers now
contact the tire tread. To obtain the best control of Jack while expanding around tire,
place your left hand and on top of the left side axle and your right hand at the center of
the pedal. Close release valve by turning hand-wheel clockwise to a snug-tight position,
Jack may now be used.
3. Install Jack so that the unit is parallel to the sidewall of the tire to be lifted. Leave
approx-imately 3/4” of clearance between tire and Jack. This is especially important. If
unit is mis-aligned, it is possible that the tire will be forced to hit the axle of the Jack
and not the rollers, this may damage the Jack.
4. To lift tire, lip directional lever up and place foot on pedal depressing with smooth,
even strokes. Cycle pedal until tire is lifted from surface once inch or less. After lifting, the
lower the tire is to the ground the more stable Jack will be. After lifting, be sure always
lock the pin in place before operating. Repeat process on the other tires and maneuver
the vehicle as re-quired.
5. To release Jack, pull the pin out from frame and open valve by turning hand-wheel
counter-clockwise slowly. Jack may be removed when rollers disengage from tire.

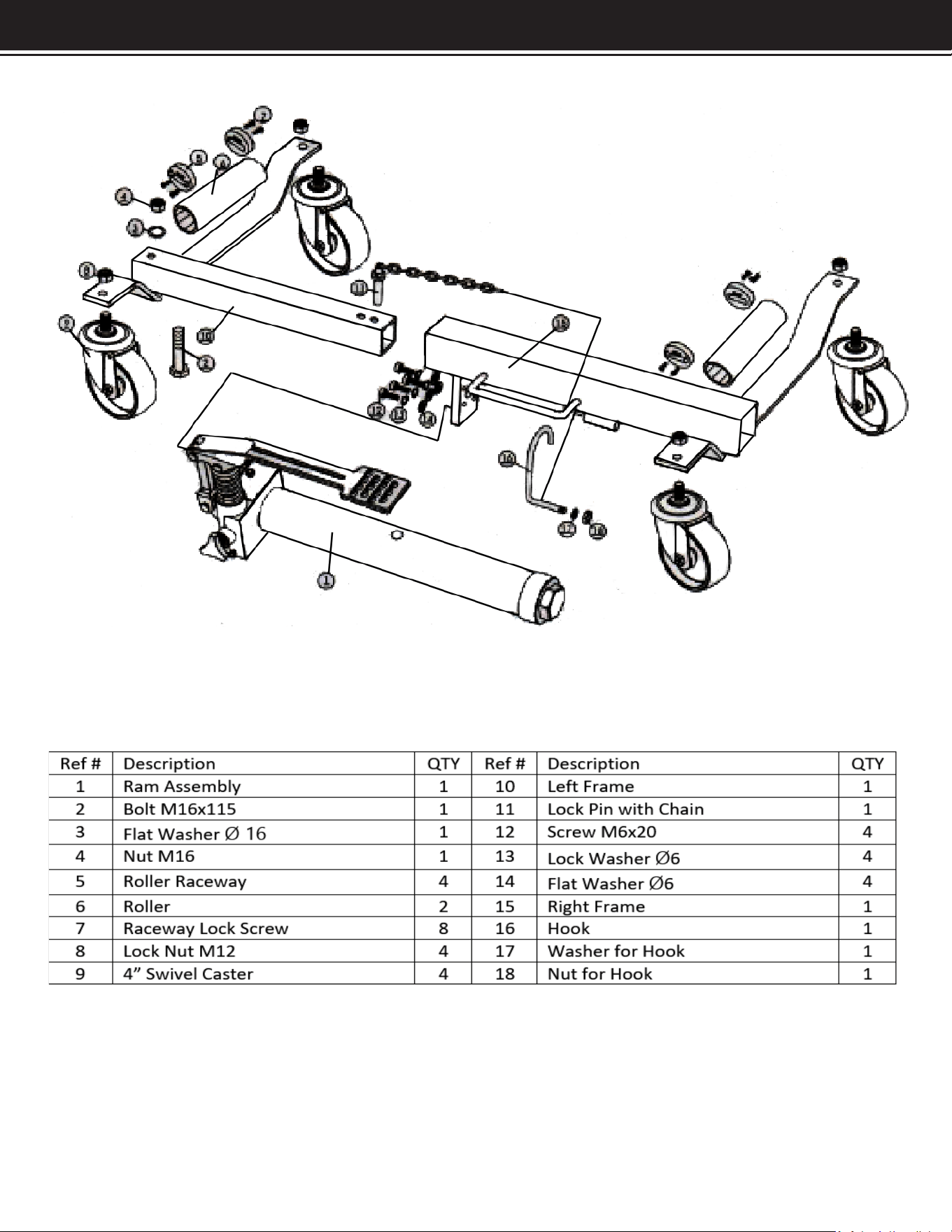

PARTS INFORMATION
3

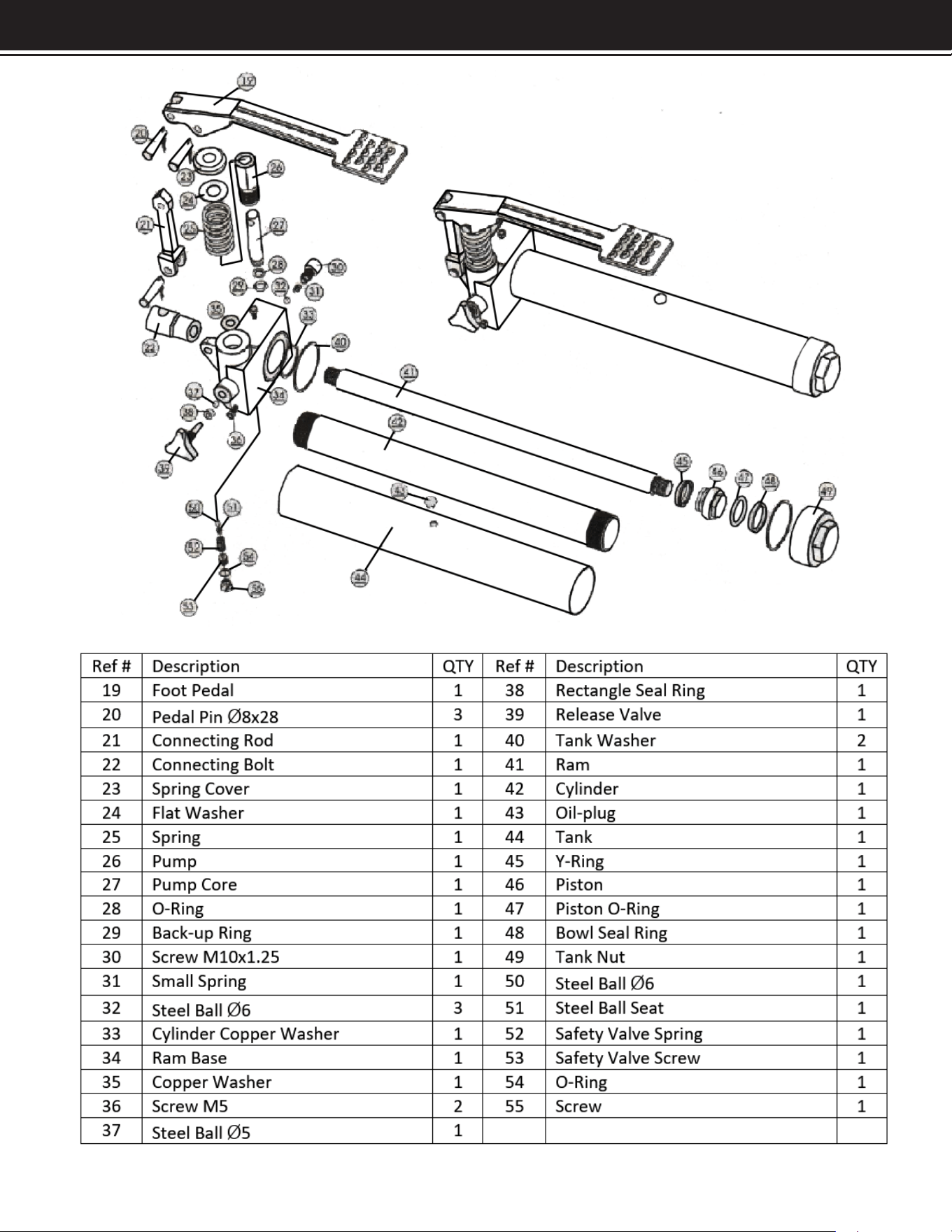

PARTS INFORMATION
PARTS INFORMATION
4
DISCLAIMER
5
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN
BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES
ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR
REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT
PARTS THERETO.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
