OWNER’S MANUAL AND SAFETY INSTRUCTIONS
PORTABLE POWER HYDRAULIC JACK BODY
FRAME REPAIR KIT
ITEM: 56010 (10 Ton), 56011 (4 Ton)
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 4900 MON-FRI 9AM TO 3PM PST
1
IMPORTANT SAFETY INFORMATION
GENERAL SAFETY WARNINGS
Read all safety warnings and instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury. Save all warnings and instructions for future
reference.
SAFETY
The warnings, precautions, and instructions discussed in this instruction manual cannot cover
all possible conditions and situations that may occur. It must be understood by the operator that
common sense and caution are factors which cannot be built into this product, but must be supplied
by the operator. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS
before operating. Failure to follow the safety rules and other basic safety precautions may result in
serious personal injury.
Read and understand all instructions. Failure to follow all instructions may result in serious injury
or property damage.
DO
NOT allow persons to operate or assemble the product until they have read this manual and
have developed a thorough understanding of how it works.
RAM LOAD: NEVER lift a load that exceeds the capacity of the ram. DO NOT over extend the ram,
because it is possible to force the plunger out of the top of the ram.
DUST CAPS: When coupler valves are disconnected screw in dust cap to keep the oil line clean.
OFF-CENTER LOADS: Be careful when load is not centered on ram plunger. Pump carefully- IF
YOU FEEL THAT YOU HAVE TO PUMP UNUSUALLY HARD-STOP. Adjust set-up to the off center
load is reduced.
PROTECT YOUR HOSE: DO NOT drop heavy objects on your hose and avoid sharp kinks.
Provide proper clearance to avoid damage to the hose and couplers.
HEAT AND FIRE: ALWAYS keep your equipment away from excessive heat or fire.
SAVE THESE SAFETY WARNINGS!
2

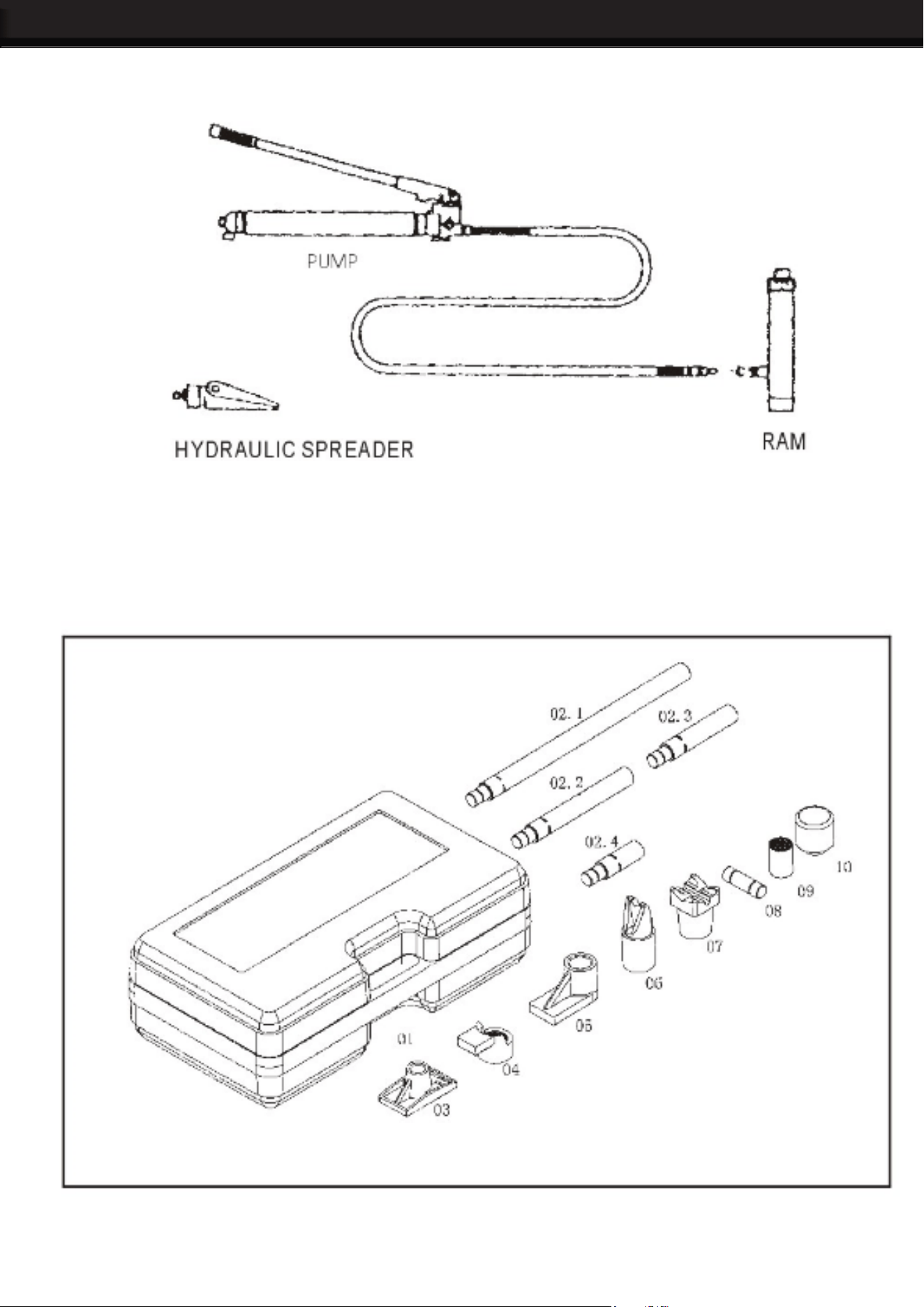

PARTS DIAGRAM
POWER-KIT

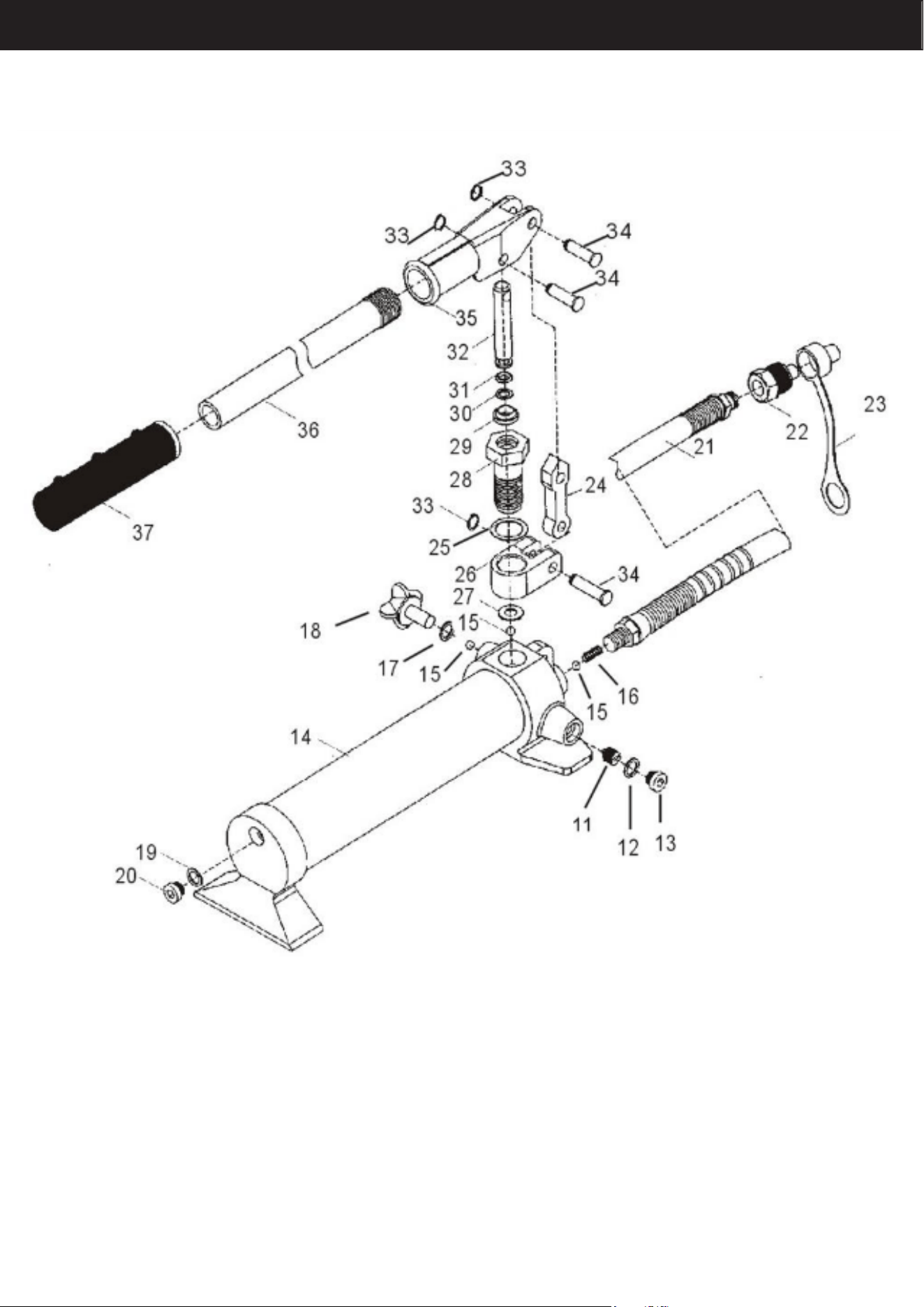

PARTS DIAGRAM
HYDRAULIC BODY/FRAME PUMP
3

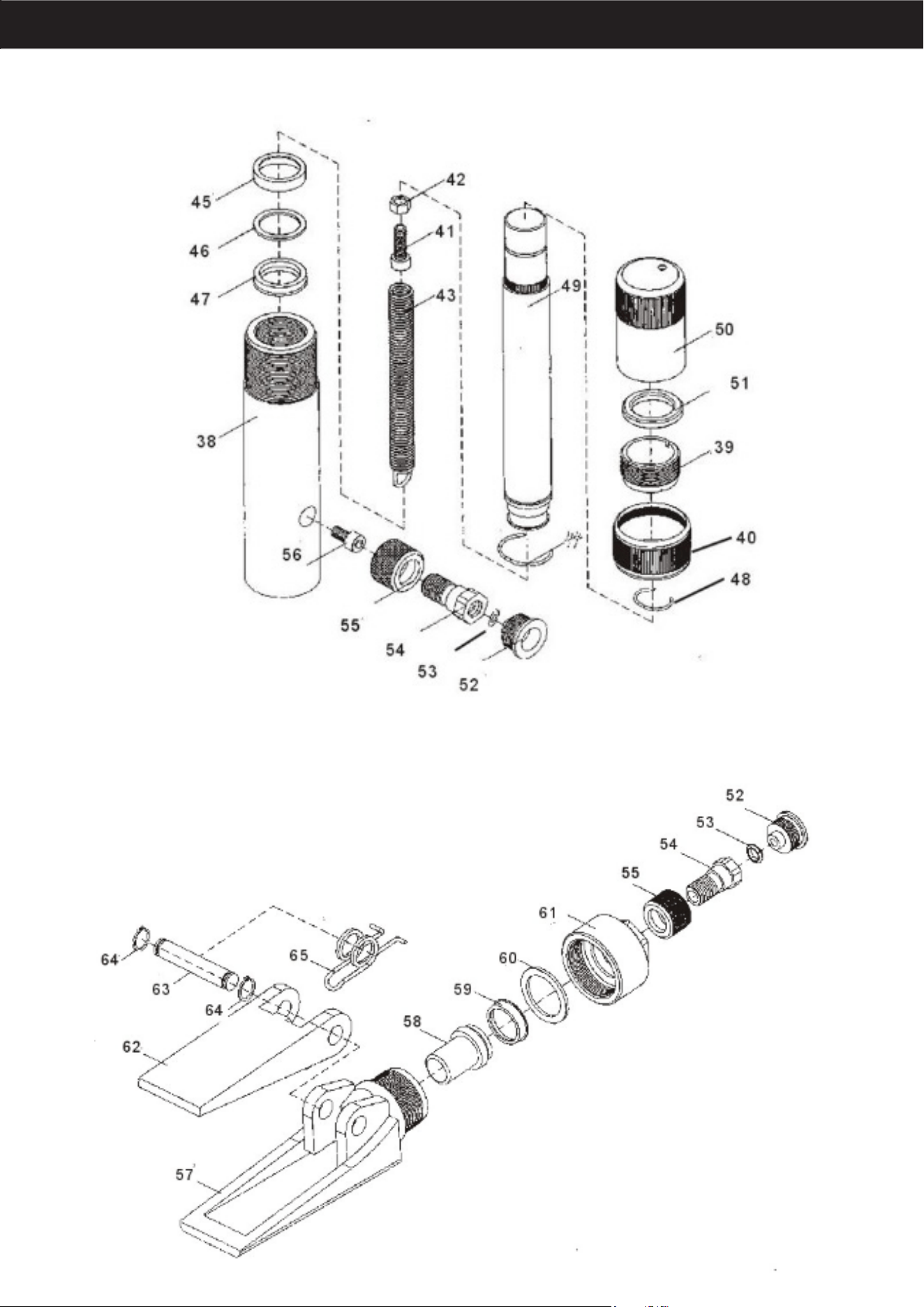

PARTS DIAGRAM
HYDRUALIC RAM
HYDRAULIC SPREADER
4

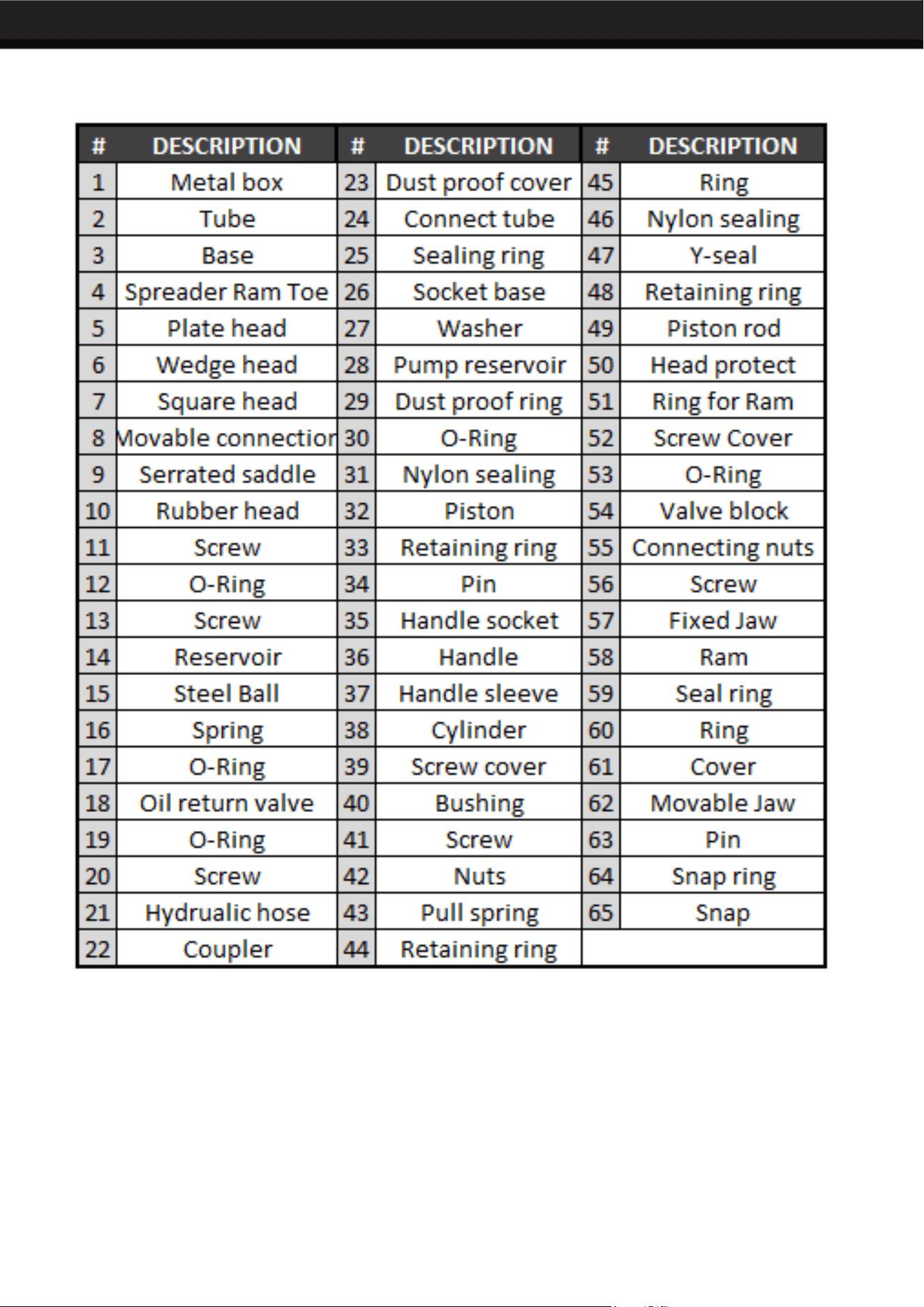

PARTS LIST
5
PARTS LIST
6
OPERATION and MAINTENANCE
OPERATION
1. Turn the control knob of the valve clockwise. Pull and push the handle. For ease of use, you can put it in
any position, from horizontal to vertical but the tube must face downwards. If necessary, the components can
be combined with the body. When you want to release the jack, turn the control knob of the valve counter-
clockwise.
MAINTENANCE
FOR LOAD:
Maximum load cannot exceed the rated capacity.
The load n the spreader ram cannot exceed 1/2 ton.
The load cannot exceed the half of the capacity when all tubes are used.
The extension of the piston cannot exceed the stroke.
FOR SAFETY:
Working oil #10
Check the oil level, if not sufcient, add more hydraulic oil.
After use, close the valve with the cover to keep the oil free from dirt and dust.
Before lifting, adjust the jack slowly to make the load coaxial with respect to the jack.

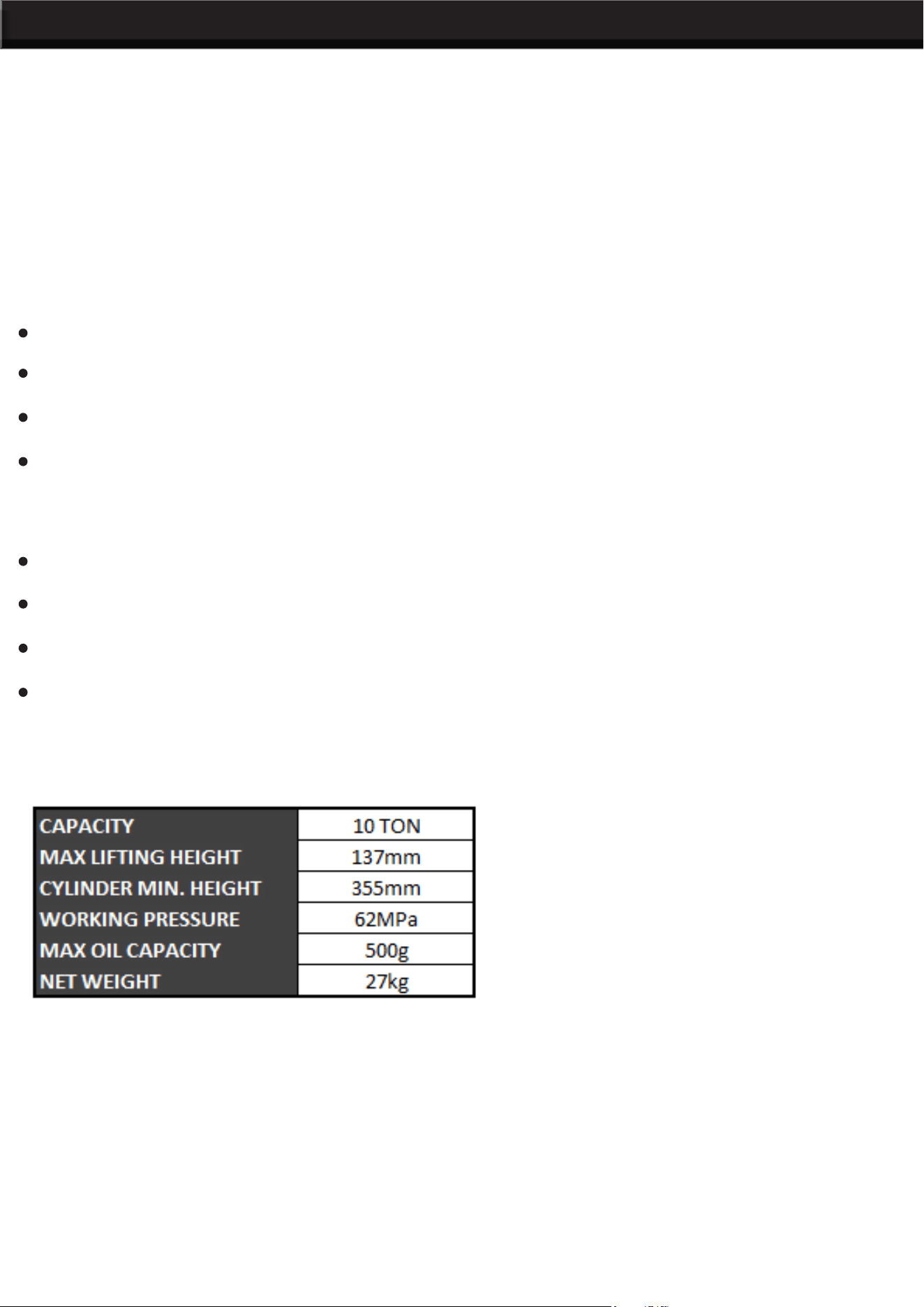

SPECIFICATIONS:
7
R
ecord Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only and are not available
individually as replacement parts.
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY
DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS
QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR
DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE
UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER
ASSUMES ALL RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION
OF REPLACEMENT PARTS THERETO.
