MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005

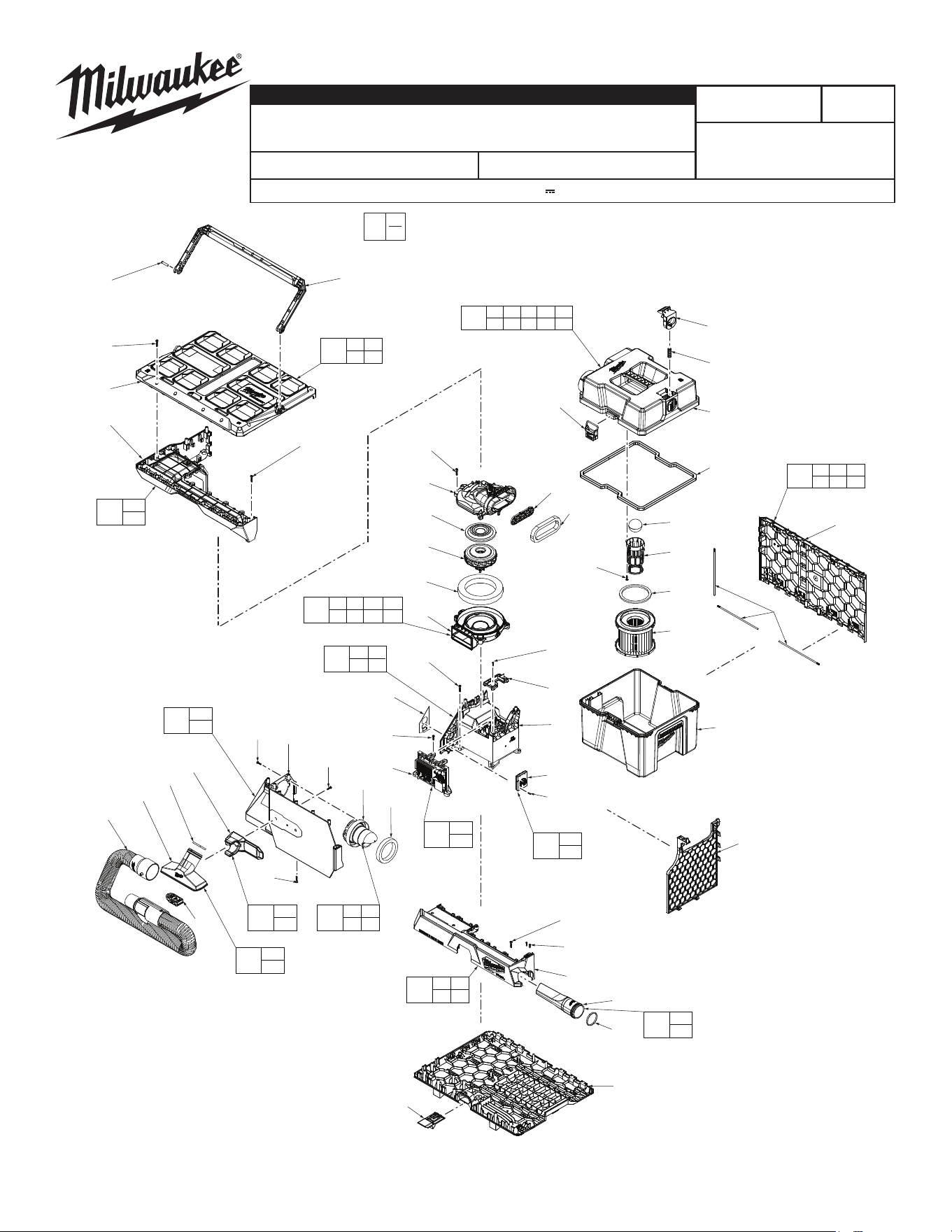

Drwg. 1
SERVICE PARTS LIST
BULLETIN NO.
PN0013986
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
REVISED BULLETIN
DATE
July 2026
M18 FUEL™ 4 Gallon Wet/Dry Vacuum W/
PACKOUT™ Compatibility and VACLINK™

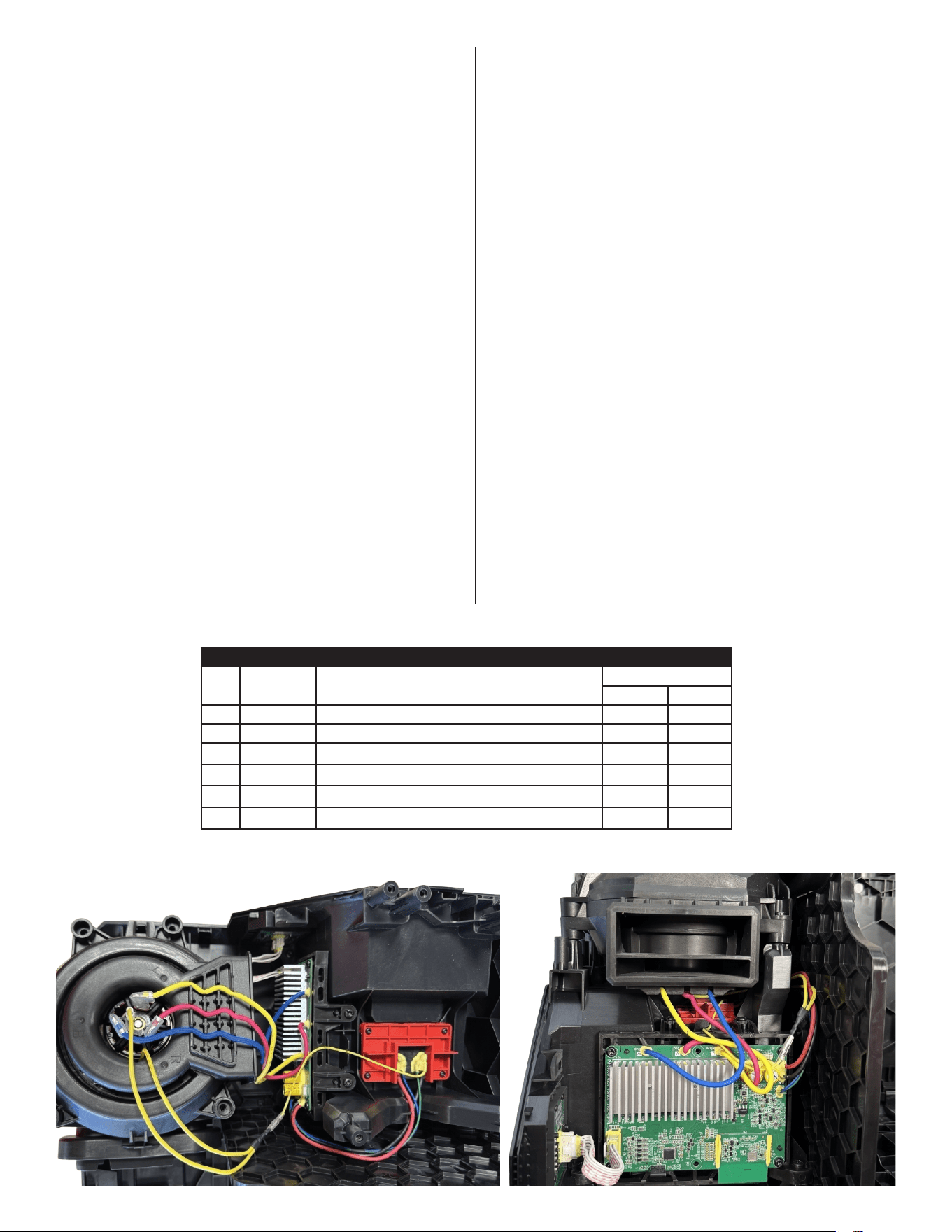

WIRING INSTRUCTION
See Page 2
CATALOG NO. 0971-20 SERIAL NO. S03A
NAMEPLATE SPECIFICATIONS: 18 V FCC ID: P36-0971 IC ID: 25187-0971
13
(2x)
12
(18x)
12
(4x)
14
26
11
10
9
8
7
6
(4x)
12
(10x)
40
15
5
1
2
34
37
4
(2x)
4
(2x)
39
46
42
44
31
29
4
(3x)
12
(9x)
30
3
12
(8x)
6
(2x)
47
43
44
45
32
33
12
(4x)
16
17
18
24
19
(2x)
36
38
(4x)
20
21
22
23
25
4
(2x)
6 12
30
60
4 27
28
62
12
26
64
4
31
61
12
29
63
28
27
12 13
14 15
65
7 8 10 11
12 39 40
66
1 2 32
33 37 48
67
3 12
47 49
69
36
38
70
4 16 17 18 19
20 21 22 24 25
71
42
44
72
43
44
73
4
34
68
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
FIG. NOTES
47, 48, 49 A clean, dry surface is essential for proper performance
for any adhesive system. The area intended for application
of any adhesive label or nameplate must be prepared by
cleaning with isopropyl alcohol. The solvent is to be applied
with a clean, lint free applicator and the surface allowed to
dry before applying the label or nameplate.
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- Wall Cleat (1)
2 06-65-0004 Wall Cleat Pin (3)
3 --------------- Battery Box (1)
4 06-82-9220 M4 x 16mm PH T-20 Screw (9)
5 22-56-0002 Terminal Block Cover (1)
6 06-83-1001 M3 x 12mm PH T-10 Screw (6)
7 --------------- Motor Housing (1)
8 58-10-1059 Sound Foam (1)
9 31-50-9000 Motor (1)
10 43-44-0039 Lower Isolator (1)
11 --------------- Flow Path (1)
12 05-78-0006 M5 x 22mm PH T-20 Screw (53)
13 --------------- PACKOUT Handle Pin (2)
14 --------------- PACKOUT Top Plate (1)
15 --------------- Handle (1)
16 --------------- Tank Locker (1)
17 --------------- PACKOUT Latch Spring (1)
18 --------------- Tank Lid Assembly (1)
19 44-20-1015 Latch (2)
20 31-01-0008 Ball Float Assembly (1)
21 31-01-0032 Ball Float Gauge (1)
22 43-44-0006 Seal Filter (1)
23 49-90-1900 Hepa Filter (Accessory) (1)
24 43-44-0009 Tank Lid Gasket (1)
25 --------------- Tank (1)
26 --------------- Outer Housing Top Plate (1)
27 43-44-0023 Inlet Gasket (1)
28 --------------- Tank Inlet (1)
29 --------------- Outer Housing Side Plate (1)
30 --------------- Outer Housing Bottom Plate (1)
31 --------------- Crevice Tool Holder (1)
32 44-20-0004 PACKOUT Latch (1)
33 --------------- PACKOUT Bottom Cleat (1)
34 --------------- PCBA (1)
36 --------------- UI Board (1)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
37 --------------- Divider Plate (1)
38 06-82-0151 M3 x 9mm PH T-8 Screw (4)
39 43-44-0034 Seal (1)
40 31-01-0033 Flow Path Grate (1)
41 66-50-0001 Wire Assembly (not shown) (1)
42 --------------- Utility Tool (1)
43 --------------- Crevice Tool (1)
44 --------------- Color Ring (2)
45 0952-20 Wireless Dust Control Remote (Accessory) (1)
46 49-90-1976 Expandable Hose Assembly 8' (Accessory) (1)
47 10-22-1714 UI Label (1)
48 12-20-0289 Service Nameplate (not shown) (1)
49 10-22-1991 Warning Label (not shown) (1)
60 14-46-0390 Outer Housing Bottom Plate Kit (1)
61 14-46-0414 Crevice Tool Holder Kit (1)
62 14-46-0416 Inlet Gasket Kit (1)
63 14-46-0604 Outer Housing Side Plate Kit (1)
64 14-46-0618 Outer Housing Top Plate Kit (1)
65 14-36-0619 Handle and Top Plate Assembly (1)
66 14-46-0645 Motor Housing Kit (1)
67 14-46-0646 Outer Housing Back Kit (1)
68 14-46-0647 PCBA Kit (1)
69 14-46-0649 Battery Box Kit (1)
70 14-46-0648 UI Kit (1)
71 45-66-0001 Tank Assembly (1)
72 49-90-2011 Utility Tool Kit (1)
73 49-90-1988 Crevice Tool Kit (1)
SCREW TORQUE SPECIFICATIONS
FIG. PART NO. WHERE USED
SEAT TORQUE
kgf-cm lb-in
4 06-82-9220 PCBA/Side Plate 8-10 7-9
6 06-83-1001 Terminal Block Cover 4-6 4-5
6 06-83-1001 Outer Housing Bottom Plate 2.5-4.5 2-4
12 05-78-0006 Flow Path/Top Plates/Side Plate/Bottom Plate 17-19 15-17
12 05-78-0006 Battery Box 12-14 10-12
38 06-82-0151 UI Board 3-5 3-4
