Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
1 / 35
SOLUM
Newton Core Plus 4-Color (BWRY)
Electronic Shelf Label Datasheet
18/06/2025
Summary
This datasheet presents the general performance and specifications of Newton Core Plus 4-Color
(BWRY) Label for SOLUM Electronic Shelf Label (ESL) System.
© SOLUM. All rights reserved
The names of actual companies and products mentioned
herein may be the trademarks of their respective owners.
No part of this document may be reproduced, stored in a
retrieval system, or transmitted in any form or by any means
without the express written consent of SOLUM
This document is subject to change without notice.
This datasheet is a draft version provided for sample purposes only. Please note that specifications
and details are subject to change in final production.
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
2 / 35
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS MANUAL ARE SUBJECT
TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS
MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY
PRODUCTS.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE ACCOMPANYING PRODUCT ARE SET
FORTH IN THE INFORMATION PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED
HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE SOFTWARE LICENSE OR LIMITED
WARRANTY, CONTACT YOUR SOLUM REPRESENTATIVE FOR A COPY.
NOTWITHSTANDING ANY OTHER WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE OF
THESE SUPPLIERS ARE PROVIDED “AS IS" WITH ALL FAULTS.SOLUM AND THE ABOVE-NAMED
SUPPLIERS DISCLAIM ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION,
THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT OR
ARISING FROM A COURSE OF DEALING, USAGE, OR TRADE PRACTICE.
IN NO EVENT SHALL SOLUM OR ITS SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL,
CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR
LOSS OR DAMAGE TO DATA ARISING OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF
SOLUM OR ITS SUPPLIERS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES
Any Internet Protocol (IP) addresses and phone numbers used in this document are not intended to be actual
addresses and phone numbers. Any examples, command display output, network topology diagrams, and other
figures included in the document are shown for illustrative purposes only. Any use of actual IP addresses or phone
numbers in illustrative content is unintentional and coincidental.
SOLUM and the SOLUM logo are trademarks or registered trademarks of SOLUM and/or its affiliates in the
KOREA and other countries. Third-party trademarks mentioned are the property of their respective owners. The
use of the word partner does not imply a partnership relationship between SOLUM and any other company.
©
2016-2025 SOLUM Co. Ltd, Inc. All rights reserved.
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
3 / 35
Table of Contents
1. Preface ............................................................................................................................................ 6
1.1. About This Guide ................................................................................................................... 6
1.2. Audience ................................................................................................................................ 6
1.3. Abbreviations and Acronyms ................................................................................................. 6
2. Overview ......................................................................................................................................... 7
3. Specification ................................................................................................................................... 8
3.1. Product Specification ............................................................................................................. 8
3.2. Radio (RF) Specification ..................................................................................................... 10
3.3. NFC Specification ................................................................................................................ 10
3.4. Features ...............................................................................................................................11

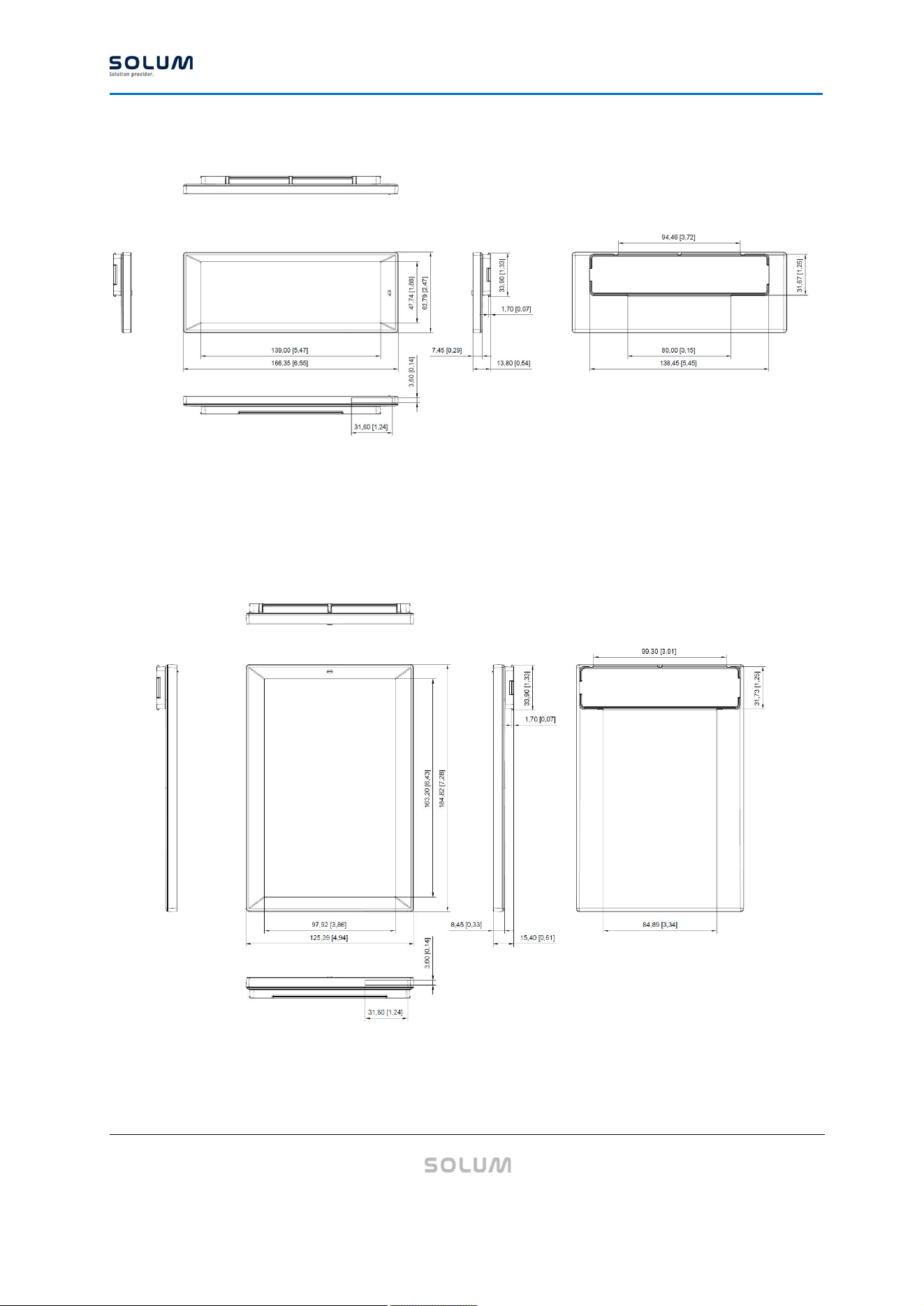

3.5. Mechanical Drawing ............................................................................................................ 12
3.5.1. 1.6” ......................................................................................................................... 12
3.5.2. 2.1” ......................................................................................................................... 12
3.5.3. 2.5” ......................................................................................................................... 13
3.5.4. 2.8” ......................................................................................................................... 13
3.5.5. 3.5” ......................................................................................................................... 14
3.5.6. 4.2” ......................................................................................................................... 14
3.5.7. 5.8” ......................................................................................................................... 15
3.5.8. 7.5” ......................................................................................................................... 15
3.6. Label Marking ...................................................................................................................... 16
3.7. Initial Display Image ............................................................................................................ 17
3.8. Certifications ........................................................................................................................ 19
3.8.1. FCC........................................................................................................................ 19
3.8.2. CE .......................................................................................................................... 20
3.8.3. IC ........................................................................................................................... 20

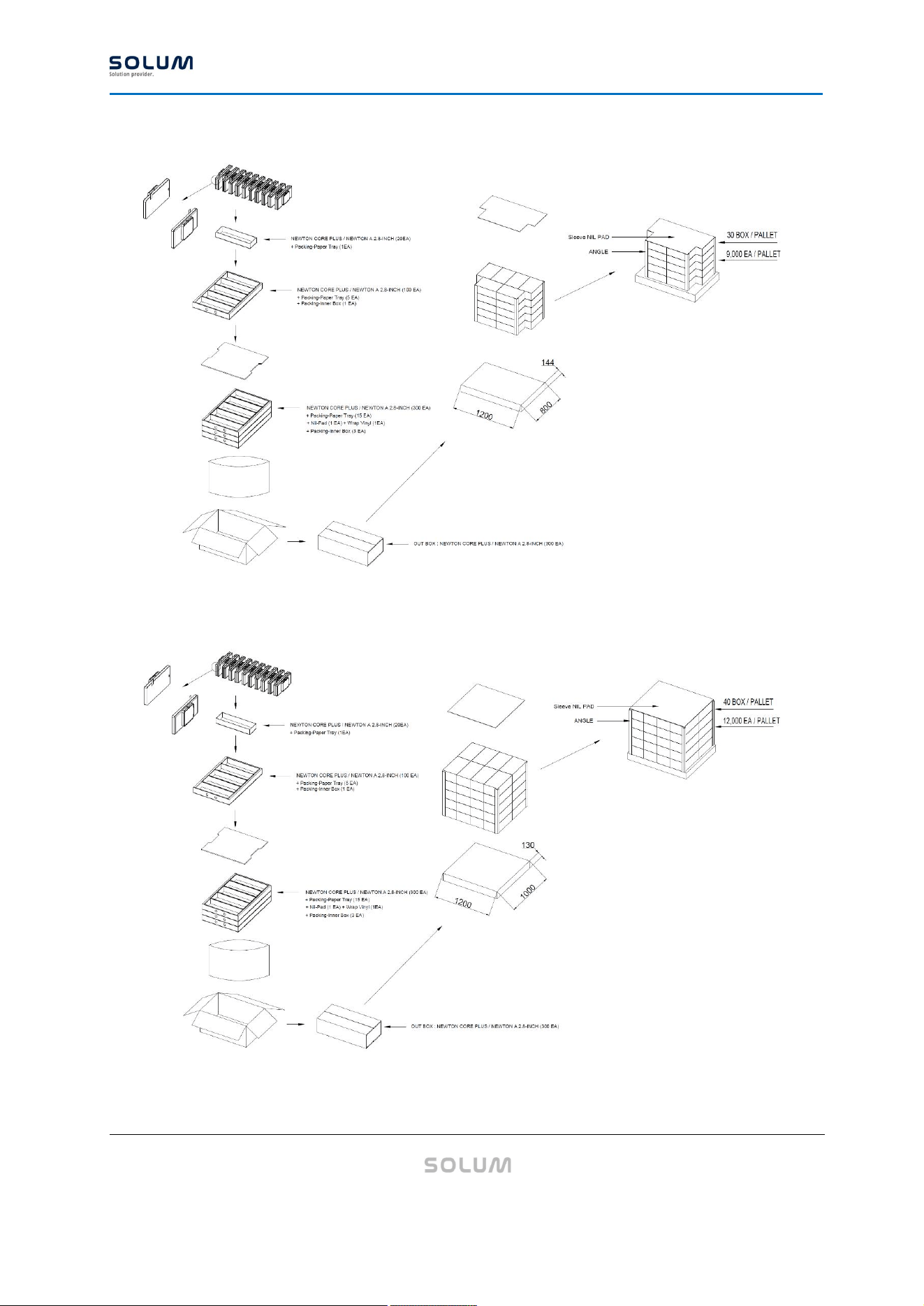

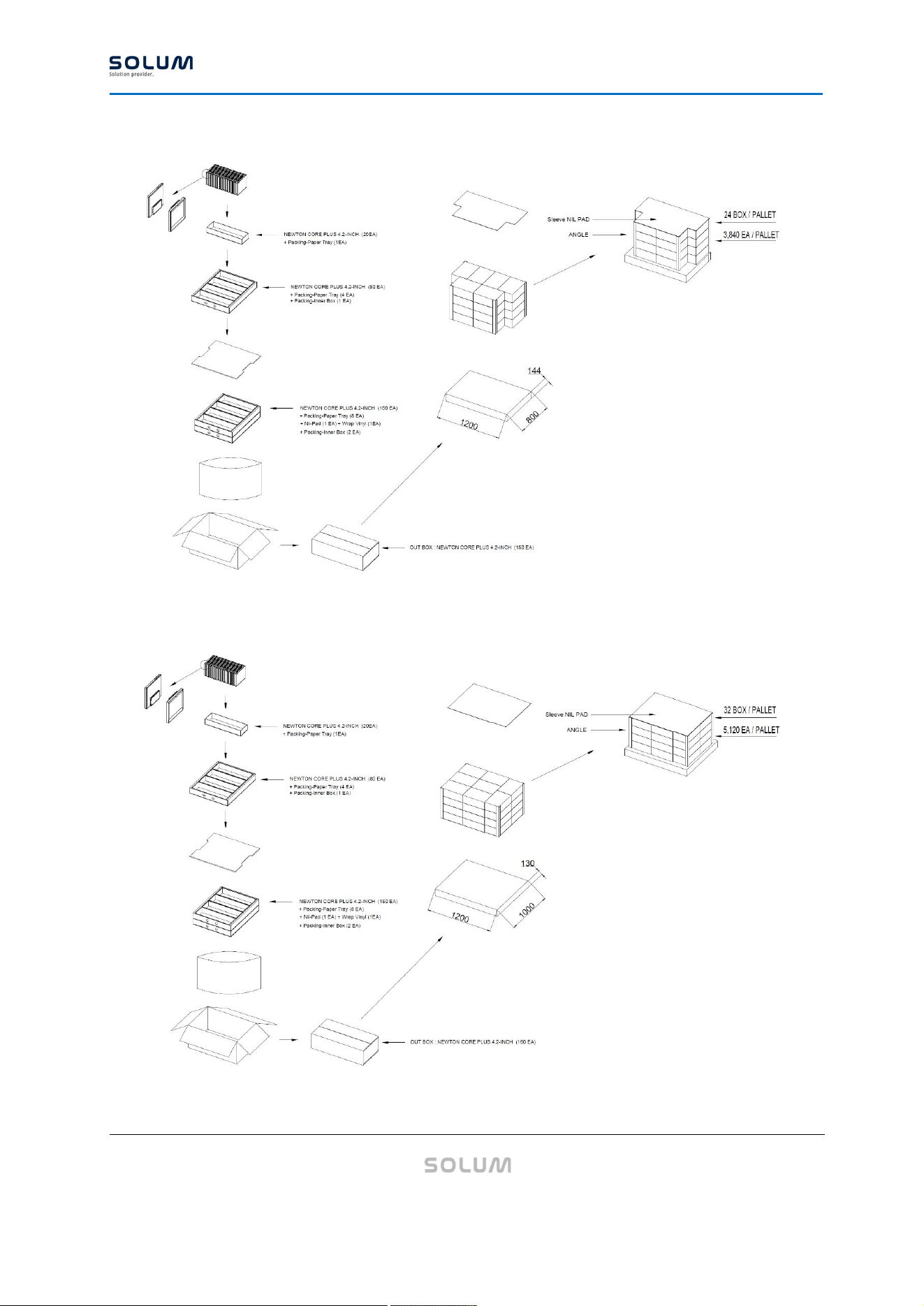

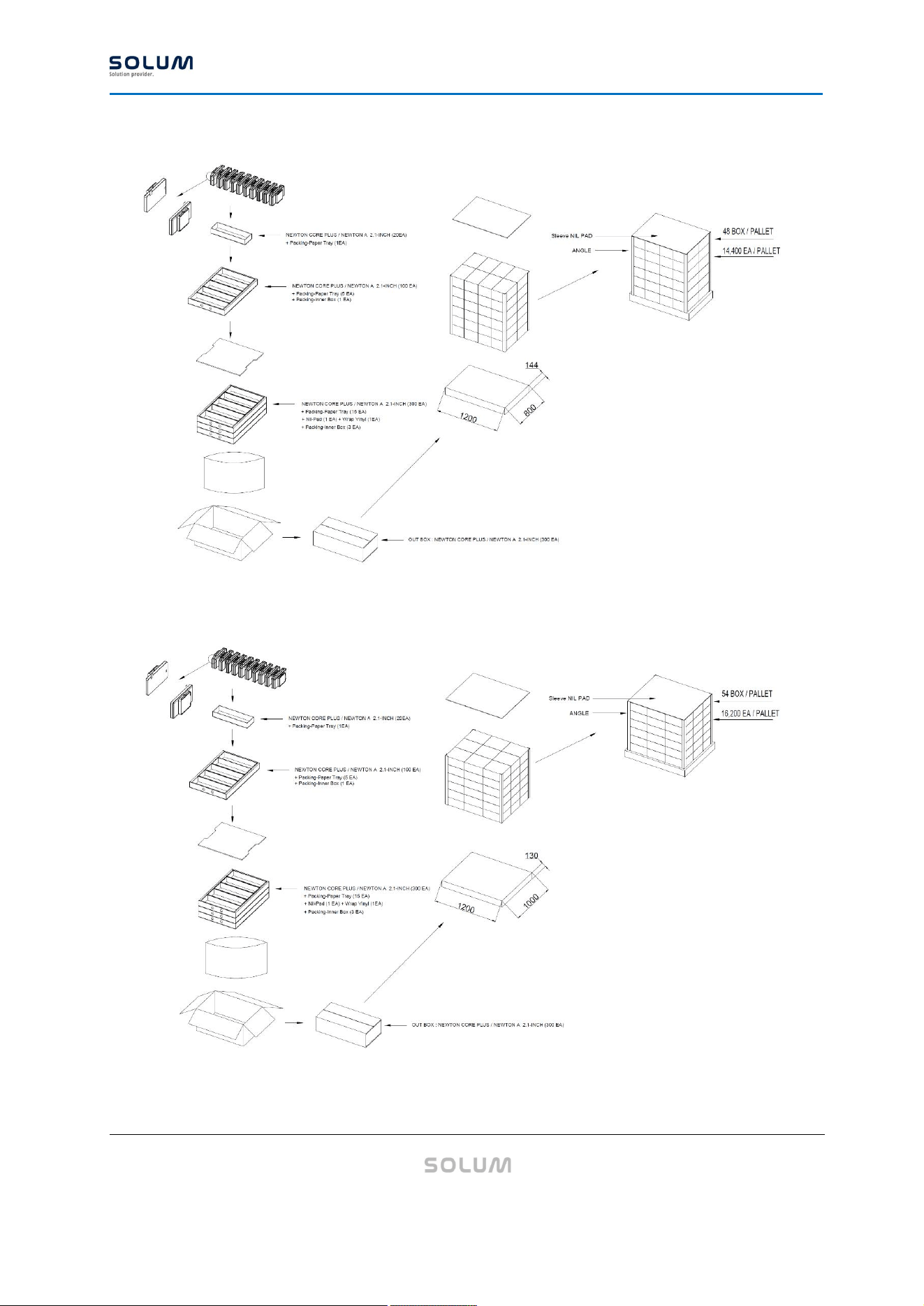

4. Packaging ..................................................................................................................................... 22
4.1. 1.6” ...................................................................................................................................... 22
4.2. 2.1” ...................................................................................................................................... 23
4.3. 2.5” ...................................................................................................................................... 24
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
4 / 35
4.4. 2.8” ...................................................................................................................................... 25
4.5. 3.5” ...................................................................................................................................... 26
4.6. 4.2” ...................................................................................................................................... 27
4.7. 5.8” ...................................................................................................................................... 28
4.8. 7.5” ...................................................................................................................................... 29
5. Reliability Test .............................................................................................................................. 30
6. Product Handling Precautions ................................................................................................... 31
6.1. Usage Environment ............................................................................................................. 31
6.2. Storage and Use.................................................................................................................. 31
6.3. Product Cleaning ................................................................................................................. 32
6.3.1. For Spray Cleaning: ............................................................................................... 32
6.3.2. For Wet Tissue Cleaning: ...................................................................................... 33
6.4. Battery Replacement ........................................................................................................... 33
7. Battery Handling Guide ............................................................................................................... 35

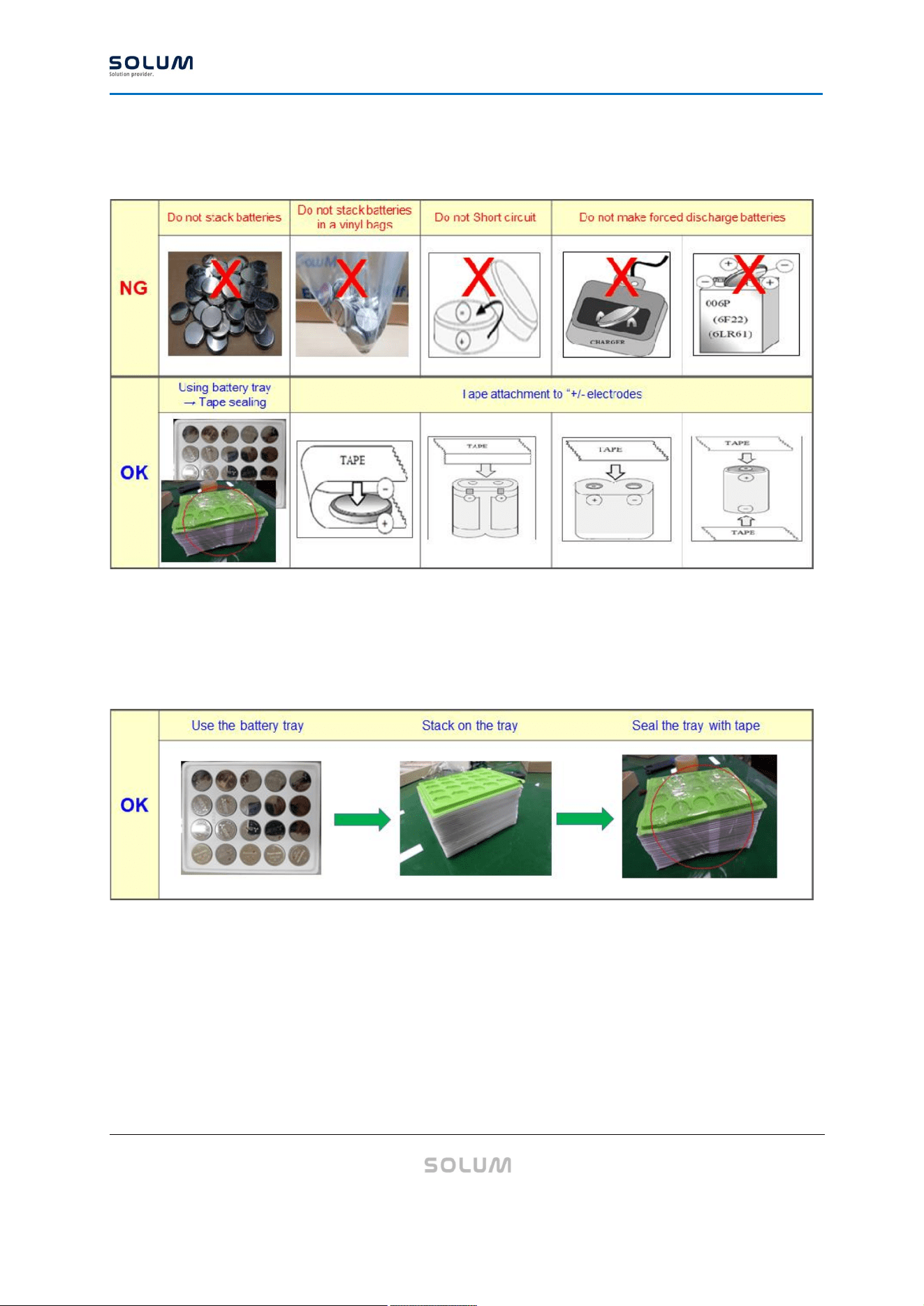

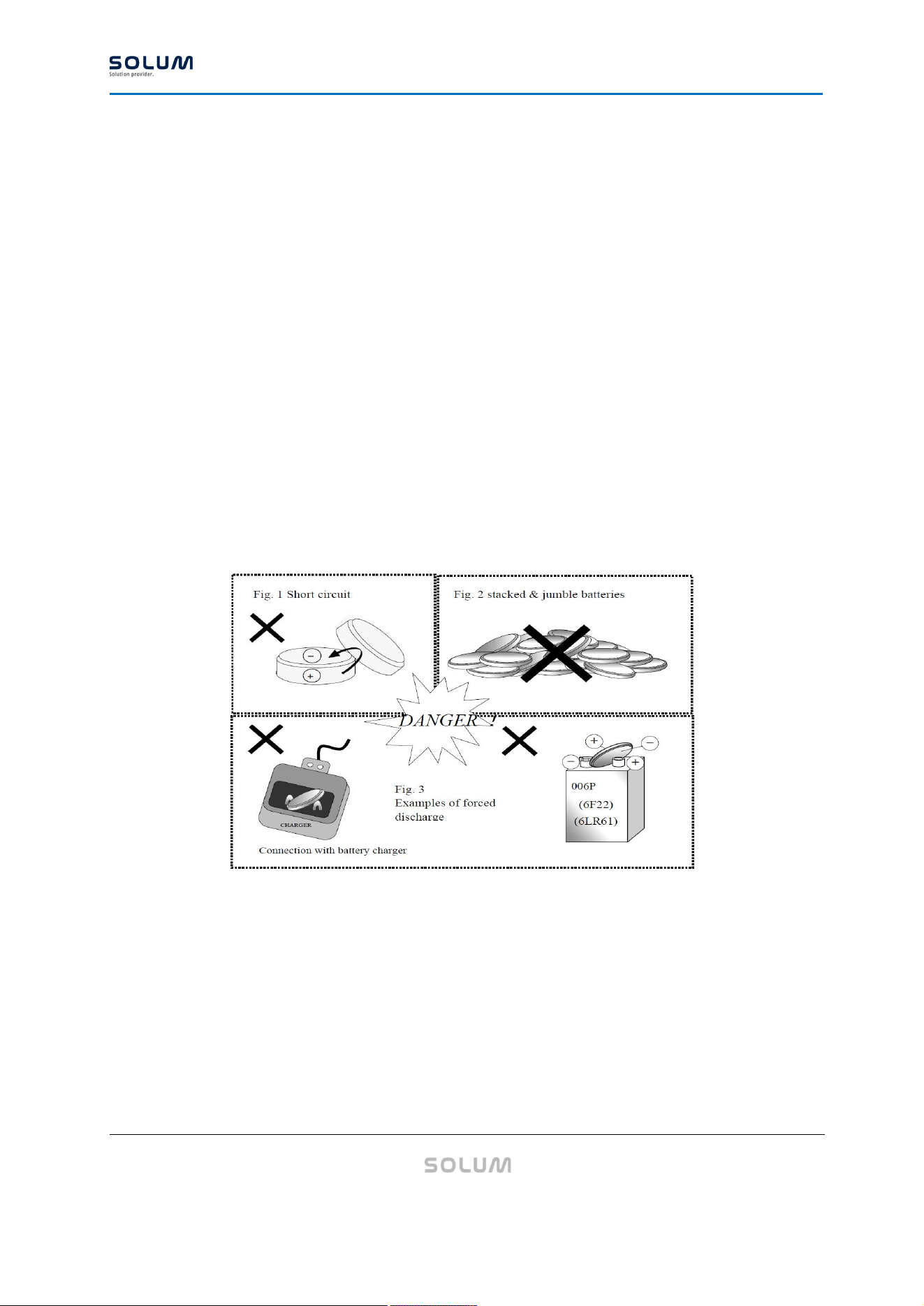

7.1. Avoiding hazards in lithium battery handling ....................................................................... 35
7.2. Proper Storing and Disposing of Lithium Batteries ............................................................. 37
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
5 / 35
Document History
Rev.
Date
Revision History
Page
v0.1
22/05/2025
Draft
-
v0.1-PRE
18/06/2025
Preliminary Release
-
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
6 / 35
1. Preface
1.1. About This Guide
This datasheet presents the specification and general performance of SOLUM’s Newton Core Plus 4-
Color (BWRY) Electronic Shelf Labels (ESLs) lineup.
1.2. Audience
This manual is intended for any user (IT, operations, store managers, installers, etc.) authorized to
operate and install SOLUM ESLs.
1.3. Abbreviations and Acronyms
Terminology/Abbreviation
Description
GW
Gateway
ESL
Electronic Shelf Label
RF
Radio Frequency
IT
Information Technology
PoE
Power over Ethernet
TBD
To Be Decided
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
7 / 35
2. Overview
SOLUM Newton Core Plus 4-Color (BWRY) Electronic Shelf Labels (ESLs) are components to a total
SOLUM’s ESL System. The SOLUM’s ESL System consists of the ESLs, Gateway(s), and Server and
is used to electronically display key information such as price and product information, that are
traditionally printed or written on paper in environments like supermarkets, warehouses, and factories.
Offered at an exceptionally competitive price, Newton Core Plus 4-Color (BWRY) ESLs encompass
essential features while incorporating a range of core functionalities that meet modern demands.
SOLUM’s Newton Core Plus 4-Color (BWRY) Electronic Shelf Labels (ESLs) are the industry leading
solutions that provide the longest battery life, fastest update speed, built in LEDs, multiple pages per
ESL, and more to take the operation beyond just displaying information on the ESLs.
Newton Core Plus 4-Color (BWRY) Electronic Shelf Labels (ESLs) come in various useful sizes (1.6”,
2.1”, 2.5”, 2.8”, 3.5”, 4.2”, 5.8”, 7.5”) and colors to meet all customer use cases.

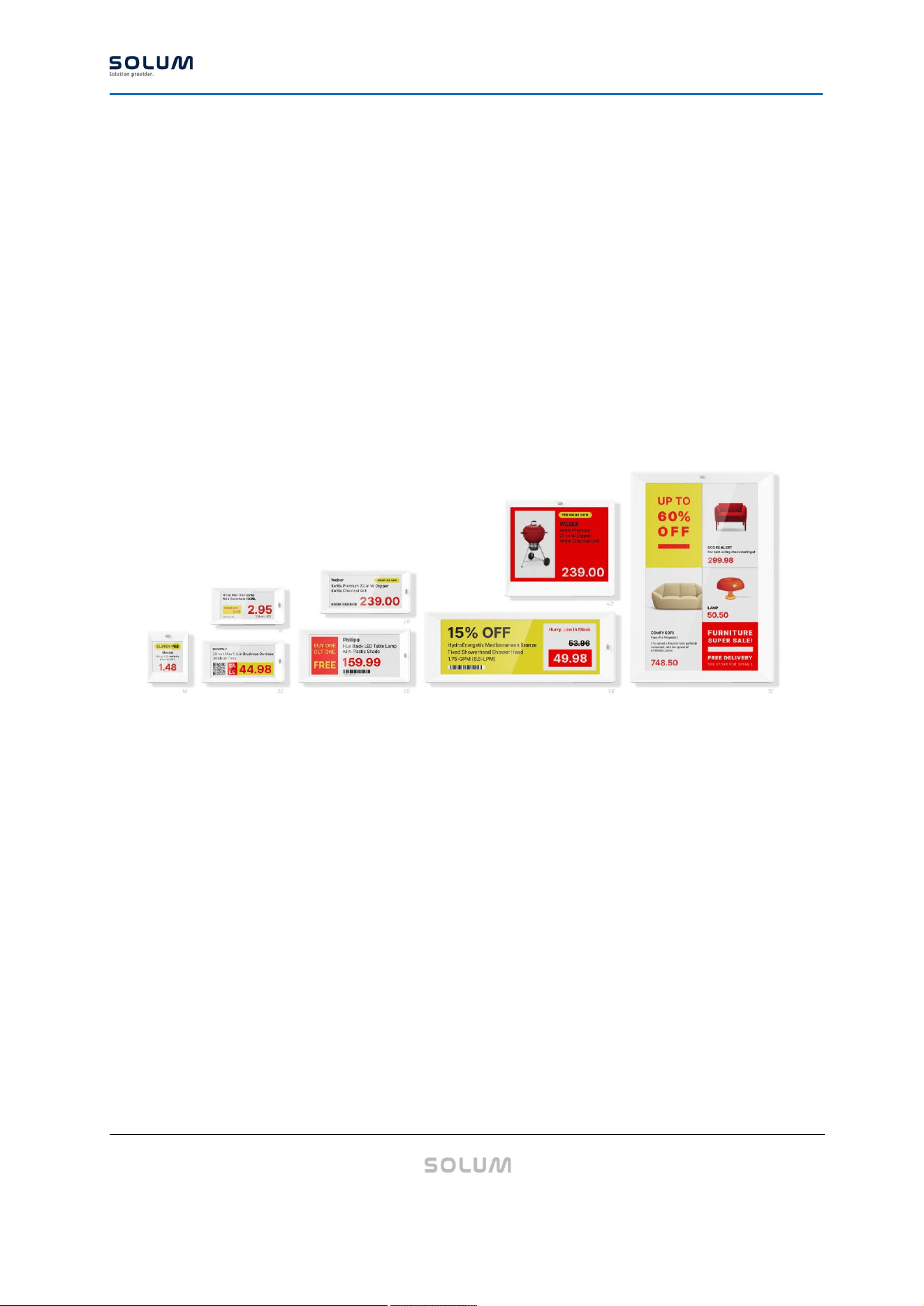

Figure 1. PRODUCT LINE-UP
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
8 / 35
3. Specification
This section details specifications of each ESL by size. ESLs are identified by the diagonal
measurement of the display in inches. For example, a 2.8” ESL is referring to an ESL with the diagonal
display dimension of 2.8”.
3.1. Product Specification
Item
Description
Label Dimensions
(W x H x D)
1.6”: 36.87 x 45.57 x 10.45 mm / 1.45 x 1.79 x 0.41 in
2.1”: 64.86 x 34.00 x 10.45 mm / 2.55 x 1.34 x 0.41 in
2.5”: 72.77 x 37.82 x 10.45 mm / 2.86 x 1.49 x 0.41 in
2.8”: 79.65 x 38.77 x 10.45 mm / 3.14 x 1.53 x 0.41 in
3.5”: 98.32 x 47.91 x 10.55 mm / 3.87 x 1.89 x 0.42 in
4.2”: 95.99 x 84.65 x 11.80 mm / 3.78 x 3.33 x 0.46 in
5.8”: 166.35 x 62.79 x 13.80 mm / 6.55 x 2.47 x 0.54 in
7.5”: 125.39 x 184.82 x 15.40 mm / 4.94 x 7.28 x 0.61 in
Display Dimensions
(W x H)
1.6”: 27.00 x 27.00 mm / 1.06 x 1.06 in
2.1”: 46.75 x 24.13 mm / 1.84 x 0.95 in
2.5”: 56.44 x 28.32 mm / 2.22 x 1.11 in
2.8”: 63.58 x 29.27 mm / 2.50 x 1.15 in
3.5”: 79.49 x 37.09 mm / 3.13 x 1.46 in
4.2”: 84.80 x 63.60 mm / 3.34 x 2.50 in
5.8”: 139.00 x 47.74 mm / 5.47 x 1.88 in
7.5”: 97.92 x 163.20 mm / 3.86 x 6.43 in
Display Resolution
1.6”: 200 x 200 pixels (188 dpi)
2.1”: 248 x 128 pixels (135 dpi)
2.5”: 296 x 152 pixels (134 dpi)
2.8”: 296 x 128 pixels (118 dpi)
3.5”: 480 x 224 pixels (155 dpi)
4.2”: 400 x 300 pixels (120 dpi)
5.8”: 792 x 272 pixels (144 dpi)
7.5”: 480 x 800 pixels (126 dpi)
Label Weight
1.6”: 18.50 g / 0.65 oz
2.1”: 28.60 g / 1.00 oz
2.5”: 31.40 g / 1.10 oz
2.8”: 34.00 g / 1.20 oz
3.5”: 45.00 g / 1.58 oz
4.2”: 78.60 g / 2.77 oz
5.8”: 125.00 g / 4.41 oz
7.5”: 250.00 g / 8.82 oz
Viewing Angle
Nearly 180°
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
9 / 35
Display Colors
BWRY (Black, White, Red, Yellow)
Battery
1.6”: Coin Battery (CR2450) X 1
2.1”: Coin Battery (CR2450) X 2
2.5”: Coin Battery (CR2450) X 2
2.8”: Coin Battery (CR2450) X 2
3.5”: Coin Battery (CR2450) X 2
4.2”: Coin Battery (CR2450) X 2
5.8”: Battery Pack (CR2450 X 4)
7.5”: Battery Pack (CR2450 X 4)
Wireless
Communication
2.4 GHz Unlicensed ISM band for BLE physical layer with SOLUM
Proprietary Protocol
Communication
Distance
98 feet (30m) radius Line of Sight
Security
128-bit AES Encryption
Compliance
FCC, IC, CE, UKCA, MIC, KC, RoHS, WEEE
Operating
Temperature
32°F ~ 104°F (0°C ~ 40°C) @45~70% RH
Storage
Temperature
32°F ~ 104°F (0°C ~ 40°C) @45~70% RH
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
10 / 35
3.2. Radio (RF) Specification
Item
Parameter
Specification
Unit
Condition
Min
Typ
Max
Tx
Tx Power
-
4
-
dBm
[Carrier Frequency Offset and Drift]
-75
0
75
kHz
Tx Current
-
-
10
mA
Total current at max Tx Power
Rx
Receiver Sensitivity
-85
-
-
dBm
PER < 5%
3.3. NFC Specification
Item
Parameter
Specification
Unit
Condition
Min
Typ
Max
NFC
Read Distance
-
0.7
-
in
-
20
-
mm

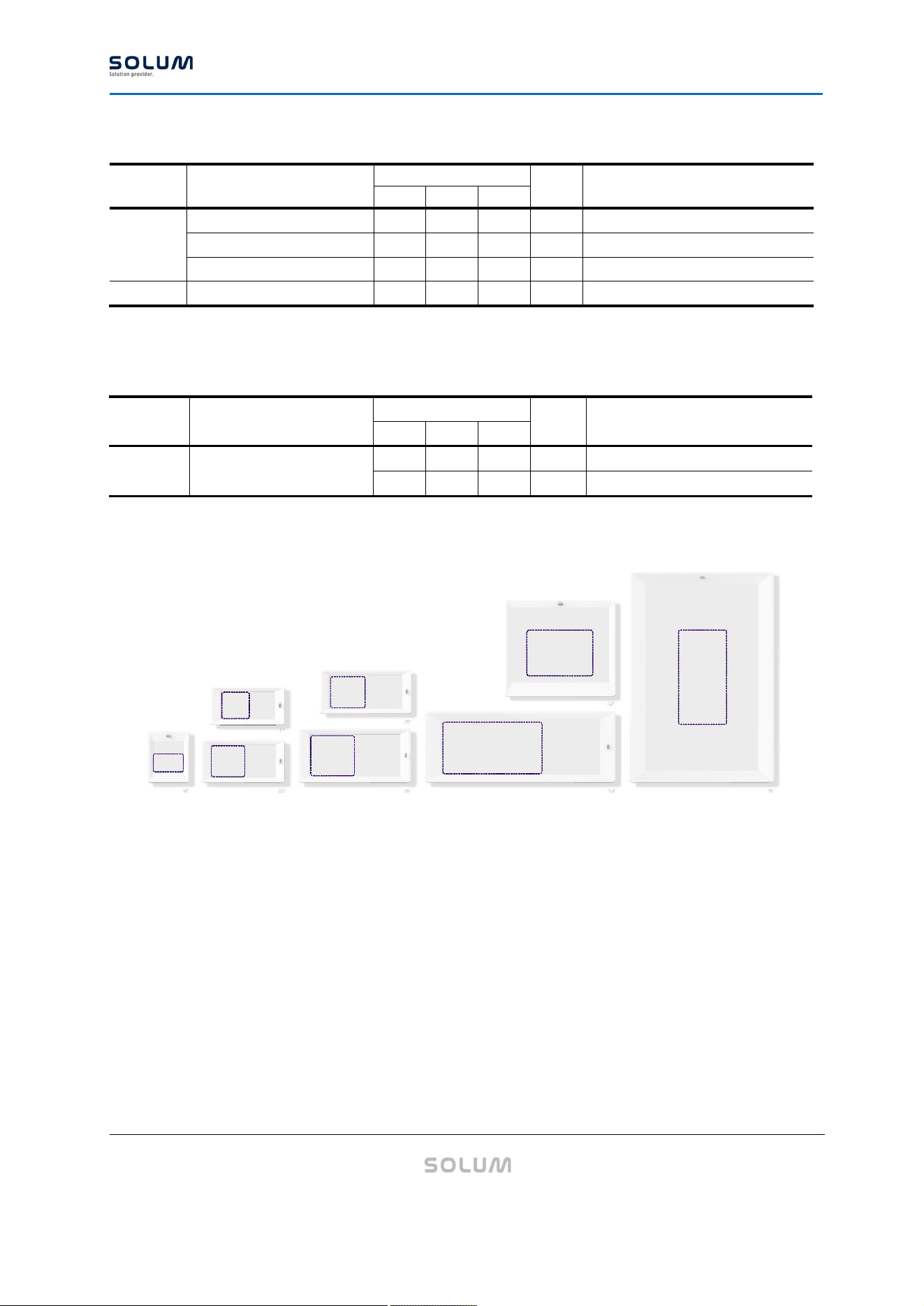

NFC antenna location shown for each ESL size.
Figure 2. NFC LOCATION
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
11 / 35
3.4. Features
Some of the features of SOLUM ESL.
- Low power consumption
- ‘Real time’ update speed
- SOLUM Proprietary Protocol communication with SOLUM Gateway for added security
Item
Description
LED
7 colors (Red, Green, Blue, Yellow, Cyan, Magenta, White)
Usable Pages
Up to 7 pages*
NFC
Built-in Felica NFC Forum Type 3
Housing Bezel Color
Black, White, Gray
*Optional NFC Remote Controller is Required
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
12 / 35

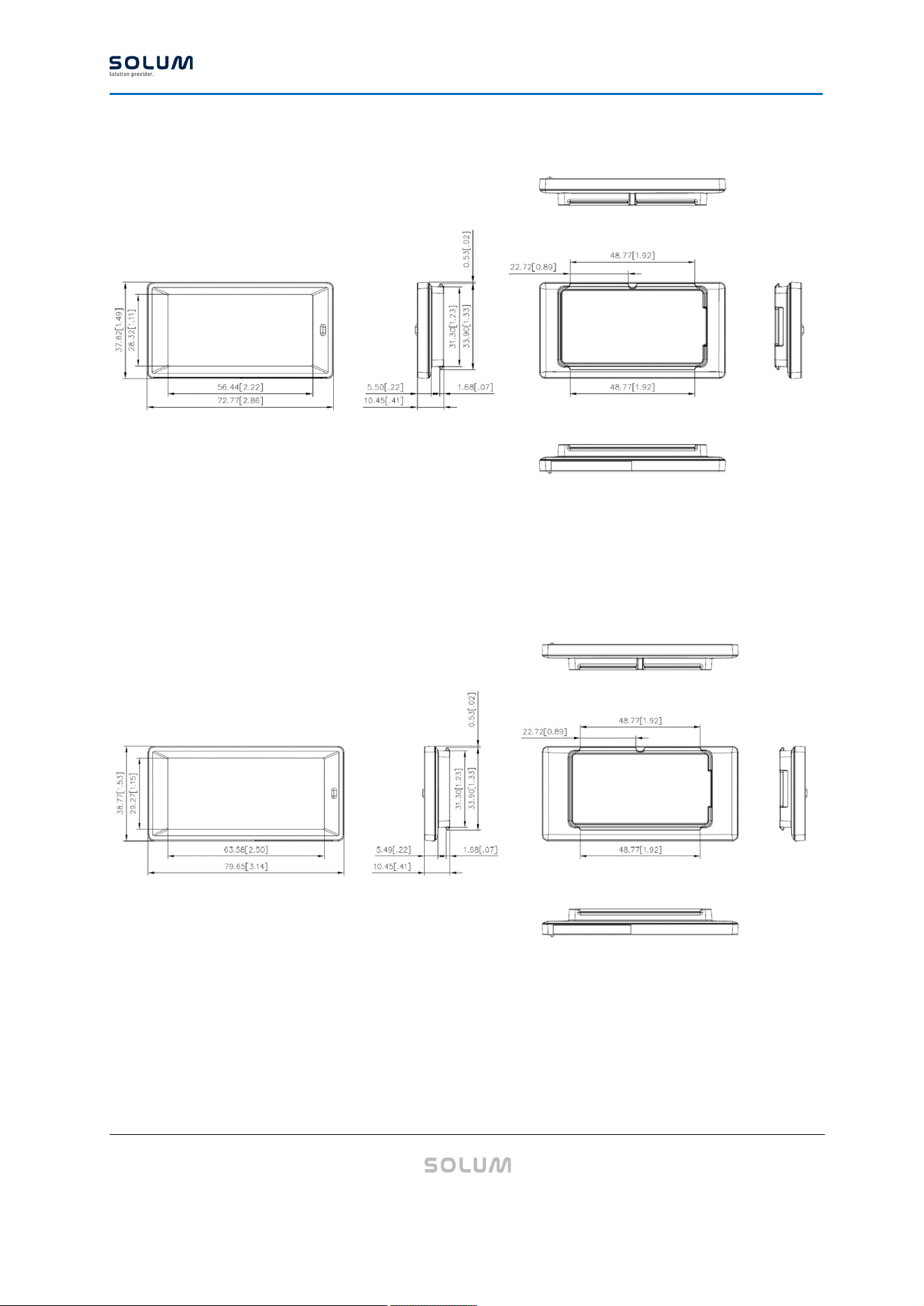

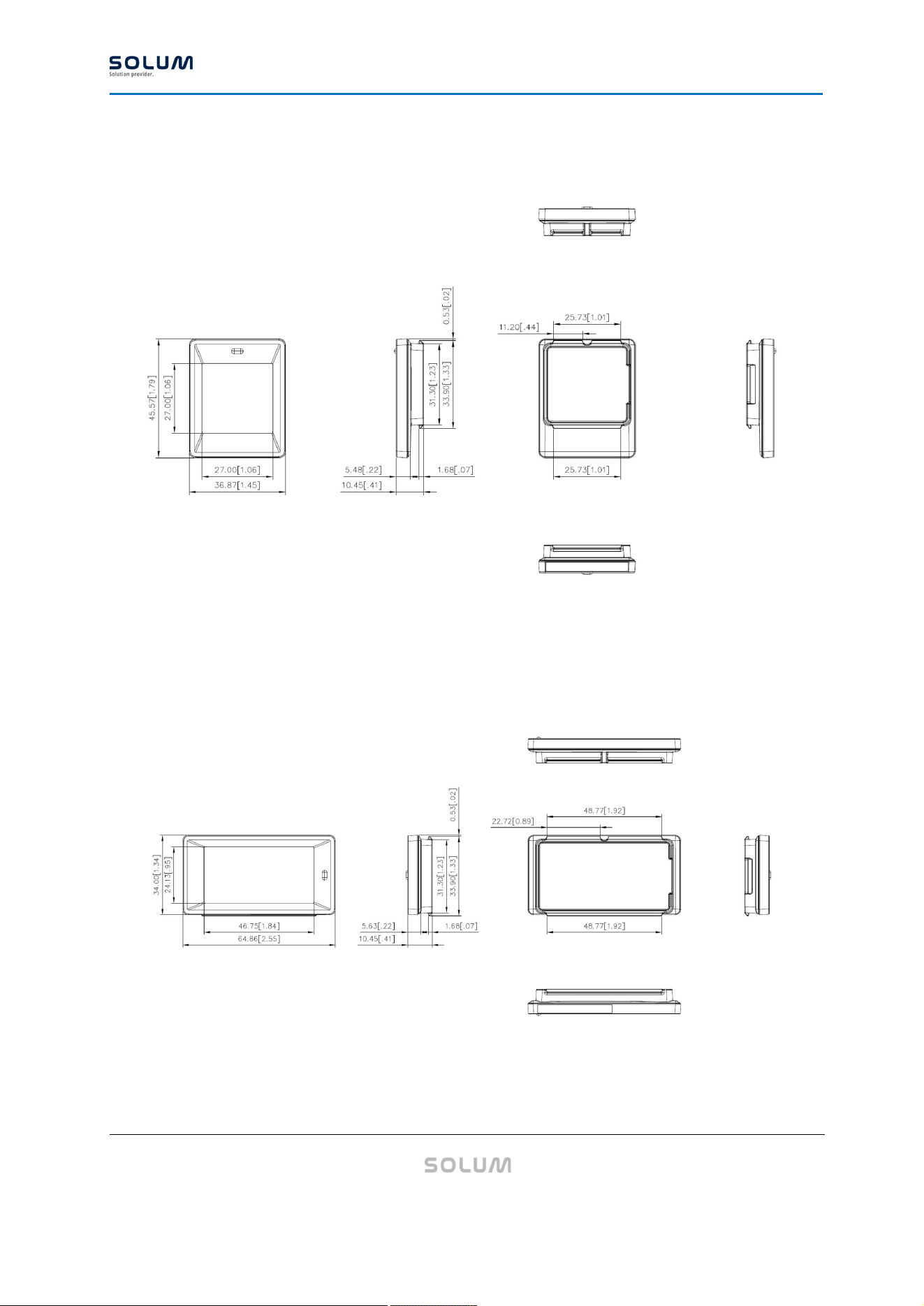

3.5. Mechanical Drawing
3.5.1. 1.6”
(Unit: mm)
Figure 3. 1.6” MECHANICAL DIMENSION
3.5.2. 2.1”
(Unit: mm)
Figure 4. 2.1” MECHANICAL DIMENSION
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
13 / 35
3.5.3. 2.5”
(Unit: mm)
Figure 5. 2.5” MECHANICAL DIMENSION
3.5.4. 2.8”
(Unit: mm)
Figure 6. 2.8” MECHANICAL DIMENSION
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
14 / 35
3.5.5. 3.5”
(Unit: mm)
Figure 7. 3.5” MECHANICAL DIMENSION
3.5.6. 4.2”
(Unit: mm)
Figure 8. 4.2” MECHANICAL DIMENSION
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
15 / 35
3.5.7. 5.8”
(Unit: mm)
Figure 9. 7.5” MECHANICAL DIMENSION
3.5.8. 7.5”
(Unit: mm)
Figure 10. 7.5” MECHANICAL DIMENSION
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
16 / 35
3.6. Label Marking

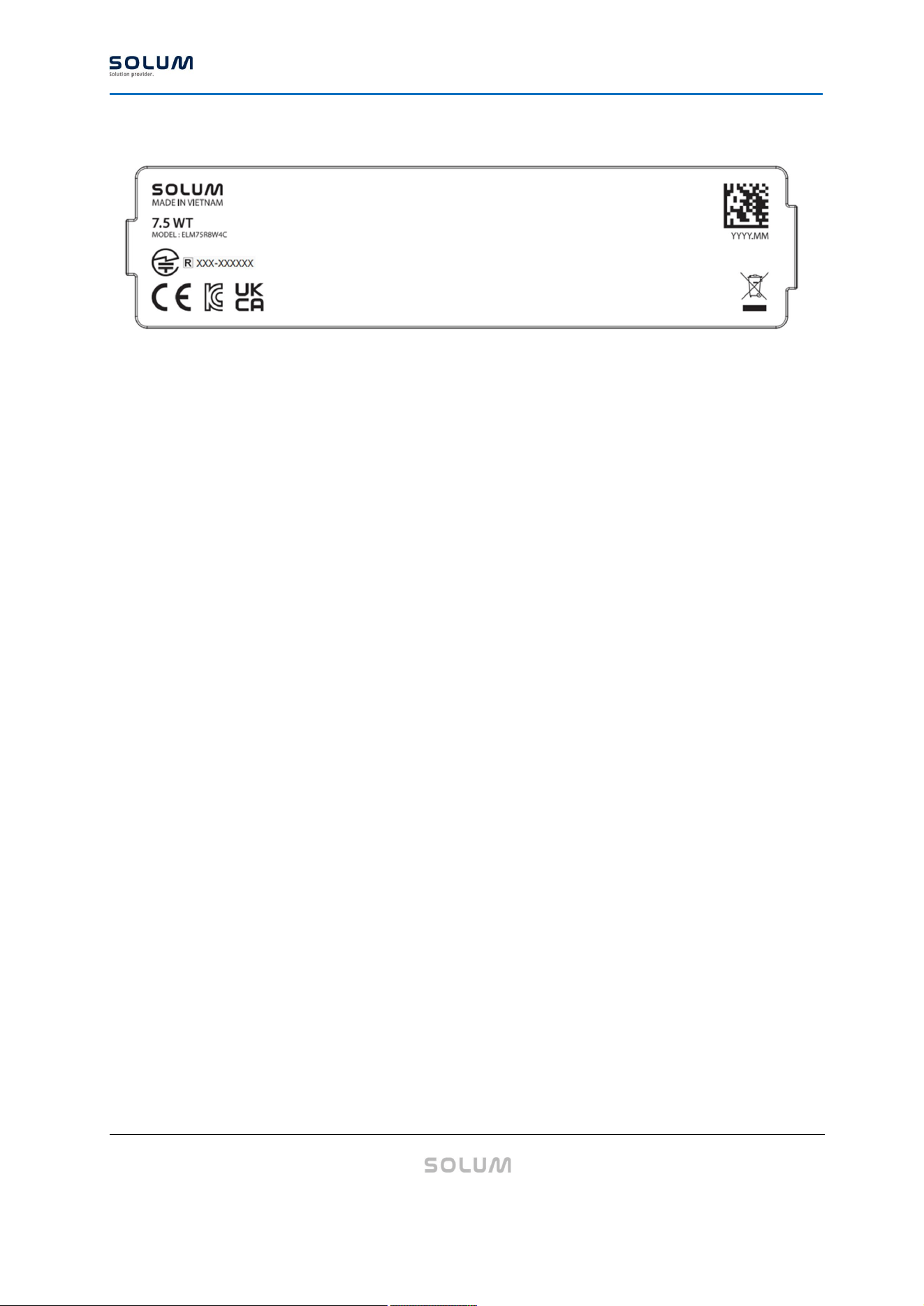

Figure 11. ESL LABELS (PRODUCT)
ESL specific information can be found laser-marked on the back of the ESL. The information displayed
is not limited to: Model, Certifications, Manufacturing Information.
- Model: EL①②③④8⑤4C (i.e. ELM75R8W4C)
· ①②③: ESL Display Size
ü 016= 1.6”
ü 021= 2.1”
ü 025= 2.5”
ü 028= 2.8”
ü M35= 3.5”
ü 042= 4.2”
ü 058= 5.8”
ü M75= 7.5”
· ④: Main IC Maker
ü L= TI
ü R= Realtek
· ⑤: Housing Color
ü B= Black
ü W= White
ü C= Gray
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
17 / 35
Size
Model Name
Black
White
Gray
1.6”
EL016L8B4C
EL016L8W4C
EL016L8C4C
2.1”
EL016R8B4C
EL016R8W4C
EL016R8C4C
2.5”
EL025R8B4C
EL025R8W4C
EL025R8C4C
2.8”
EL028R8B4C
EL028R8W4C
EL028R8C4C
3.5”
ELM35R8B4C
ELM35R8W4C
ELM35R8C4C
4.2”
EL042R8B4C
EL042R8W4C
EL042R8C4C
5.8”
EL058R8B4C
EL058R8W4C
EL058R8C4C
7.5”
ELM75R8B4C
ELM75R8W4C
ELM75R8C4C
- MFD (Manufacturing Date): [YYYY.MM]

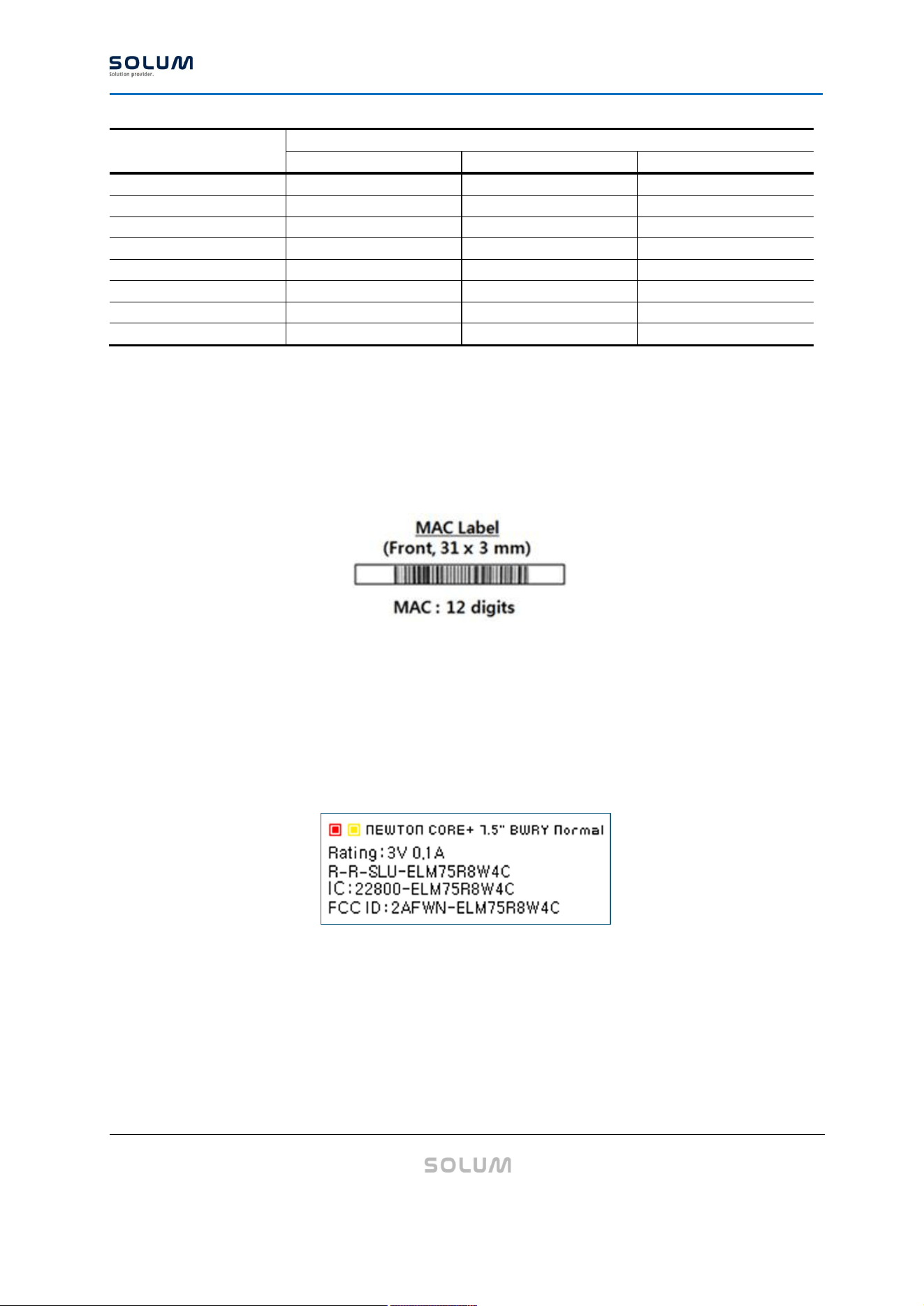

MAC Label stickers can be found in multiple areas of the ESL. They are to be scanned for operation. If
the ESL is not assigned to a product, the MAC barcode and 12-digits code will be shown on the
display. Dimensions can be found in the image below.
Figure 12. ESL LABELS (MAC)
3.7. Initial Display Image
ESL specific information can be found in the image of the ESL. The information displayed is not limited
to : IC, FCC ID, Model, ESL Media Access and Control (MAC) Address. Information can be found in
the image below.
Figure 13. ESL INITIAL DISPLAY IMAGE
[Accessed by the user]
- Step1 : Open the battery cover and remove the battery.
- Step2 : Insert the battery again and the screen will blink and reboot and then E-LABEL will be shown
during 1 minute on the display.
[E-Labeling 접근방법]
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
18 / 35
- -1 단계 : 배터리 커버를 열고 배터리를 제거합니다.
- -2 단계 : 배터리를 다시 삽입하면 스크린이 깜빡거리며 리부팅됩니다. 그 후 1 분동안 E-
Label 이 화면에 나타납니다.
-
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
19 / 35
-
3.8. Certifications
Each ESL has the following certifications and should be noted for your region.
Size
Model
FCC
IC
CE*
UKCA
MIC
KC
RoHS
WEEE
1.6”
EL016L8W4C
O
O
O
O
O
O
O
O
2.1”
EL016R8W4C
O
O
O
O
O
O
O
O
2.5”
EL025R8W4C
O
O
O
O
O
O
O
O
2.8”
EL028R8W4C
O
O
O
O
O
O
O
O
3.5”
ELM35R8W4C
O
O
O
O
O
O
O
O
4.2”
EL042R8W4C
O
O
O
O
O
O
O
O
5.8”
EL058R8W4C
O
O
O
O
O
O
O
O
7.5”
ELM75R8W4C
O
O
O
O
O
O
O
O
IEC 62471 standard (Photobiological Safety of Lamps and Lamp Systems) compliant
*CE: RF/EMC/LVD/RoHS2
3.8.1. FCC
FCC ID : 2AFWN-ELM75R8W4C
FCC Information to User
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Caution
THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE.
SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.
IMPORTANT NOTE : FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between
the radiator and your body. This transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
20 / 35
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation of the device.
3.8.2. CE
We hereby declare under our sole responsibility that the electrical product above is in compliance with
the essential requirements of the Radio Equipment Directive (2014/53/EU) by application of
EN 300 328 V2.2.2
EN 300 330 V2.1.1
EN 62479: 2010
EN 301 489-1 V2.2.3
EN 301 489-3 V2.3.2
EN 301 489-17 V 3.2.4
EN IEC 62368-1:2020+A11:2020
and the Directive (2011/65/EU) on the restriction of the use of certain hazardous substances in
electrical and electronic equipment by application of EN 62321 Series.
Manufacturer : SOLUM CO., LTD.
Address : 2354, Yonggu-daero, Giheung-gu, Yongin-si, Gyeonggi-do, Republic of Korea
Contact : +82-
3.8.3. IC
IC : 22800-ELM75R8W4C
ISED Information to User
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :(1) l’appareil ne doit
pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement.
Attention: Tout changement ou modification non expressément approuvé par le fabricant peut annuler
le droit de l'utilisateur à utiliser l'équipement.
exposition aux rayonnements radiofréquences. Pour se conformer aux exigences de conformité de
l'exposition IC RF, une distance de séparation d'au moins 20 cm doit être maintenue entre l'antenne
de cet appareil et toutes les personnes.
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
21 / 35
This device complies with Industry Canada NRCs applicable to licence-exempt radio devices. The
operation is authorized under the following two conditions: (1) the device shall not cause interference,
and (2) the user of the device shall accept any radio interference suffered, even if the interference is
likely to compromise its operation.
Caution: Any change or modification not expressly approved by the manufacturer may void the user's
right to use the equipment.
exposure to radiofrequency radiation. To comply with the ICRF exposure compliance requirements, a
separation distance of at least 20 cm must be maintained between the antenna of this device and all
persons.
-PMN(Product Marking Name) : ESL Label
-FVIN(Firmware Version Identity Number) : V44
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
22 / 35

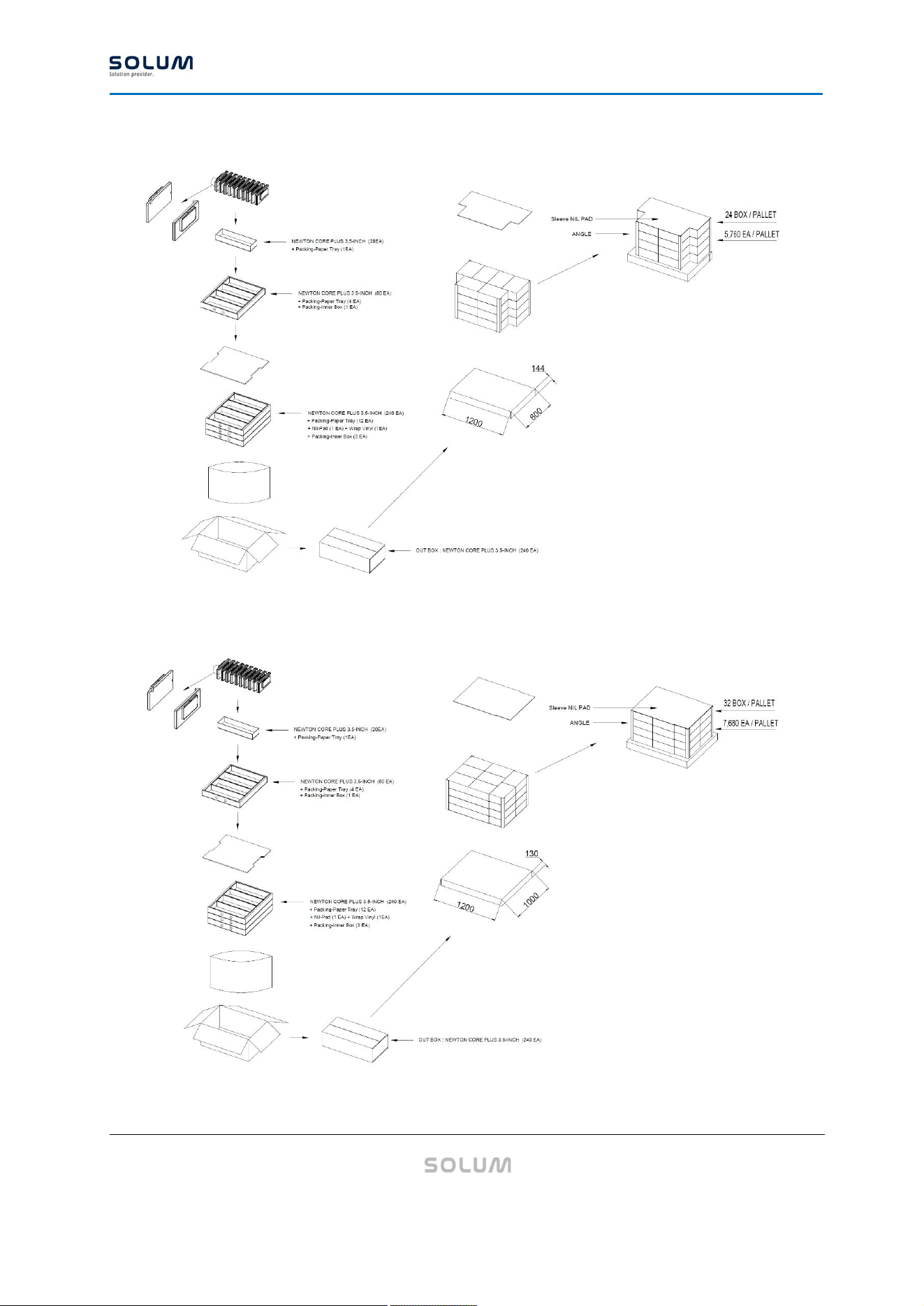

4. Packaging
4.1. 1.6”

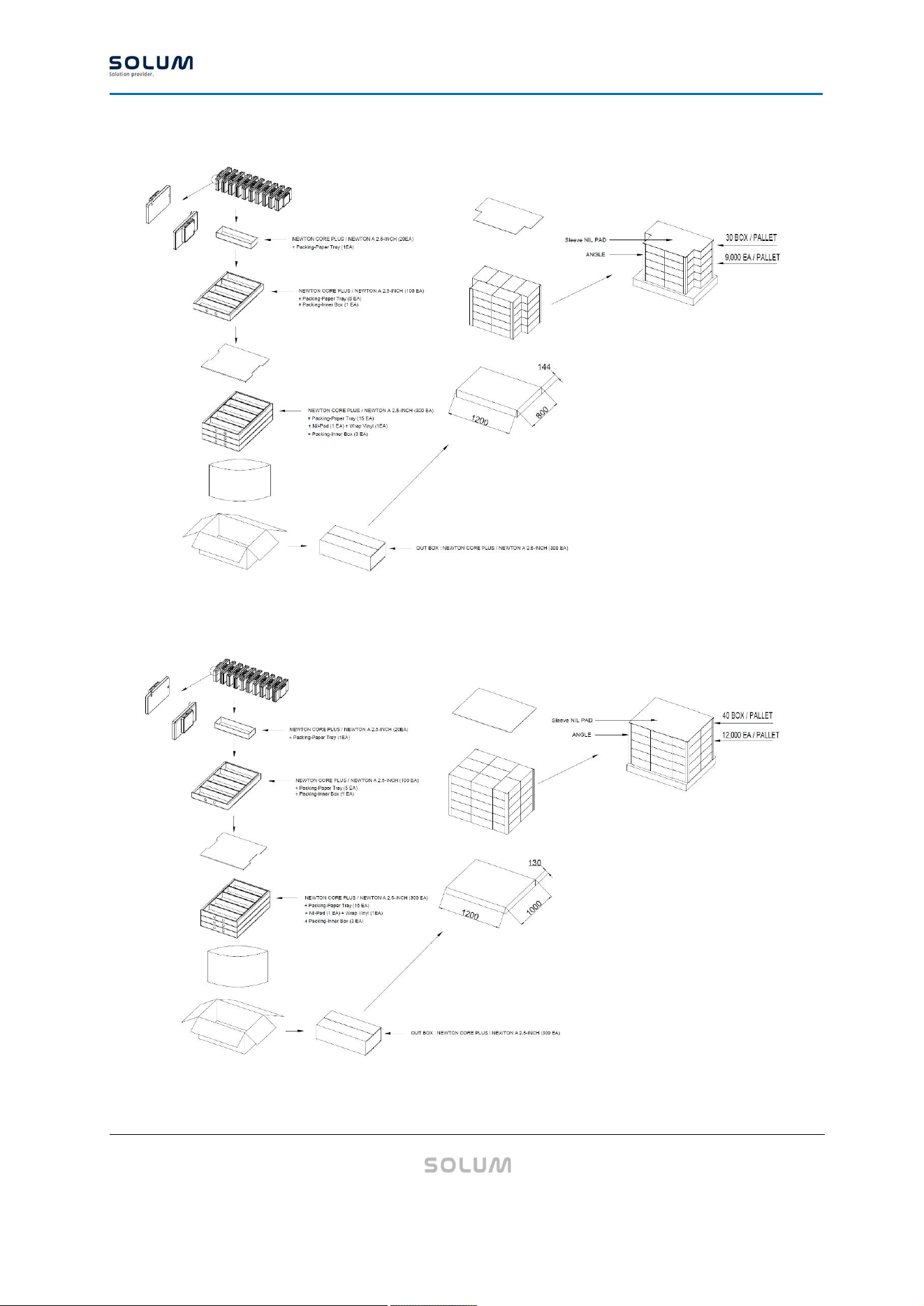

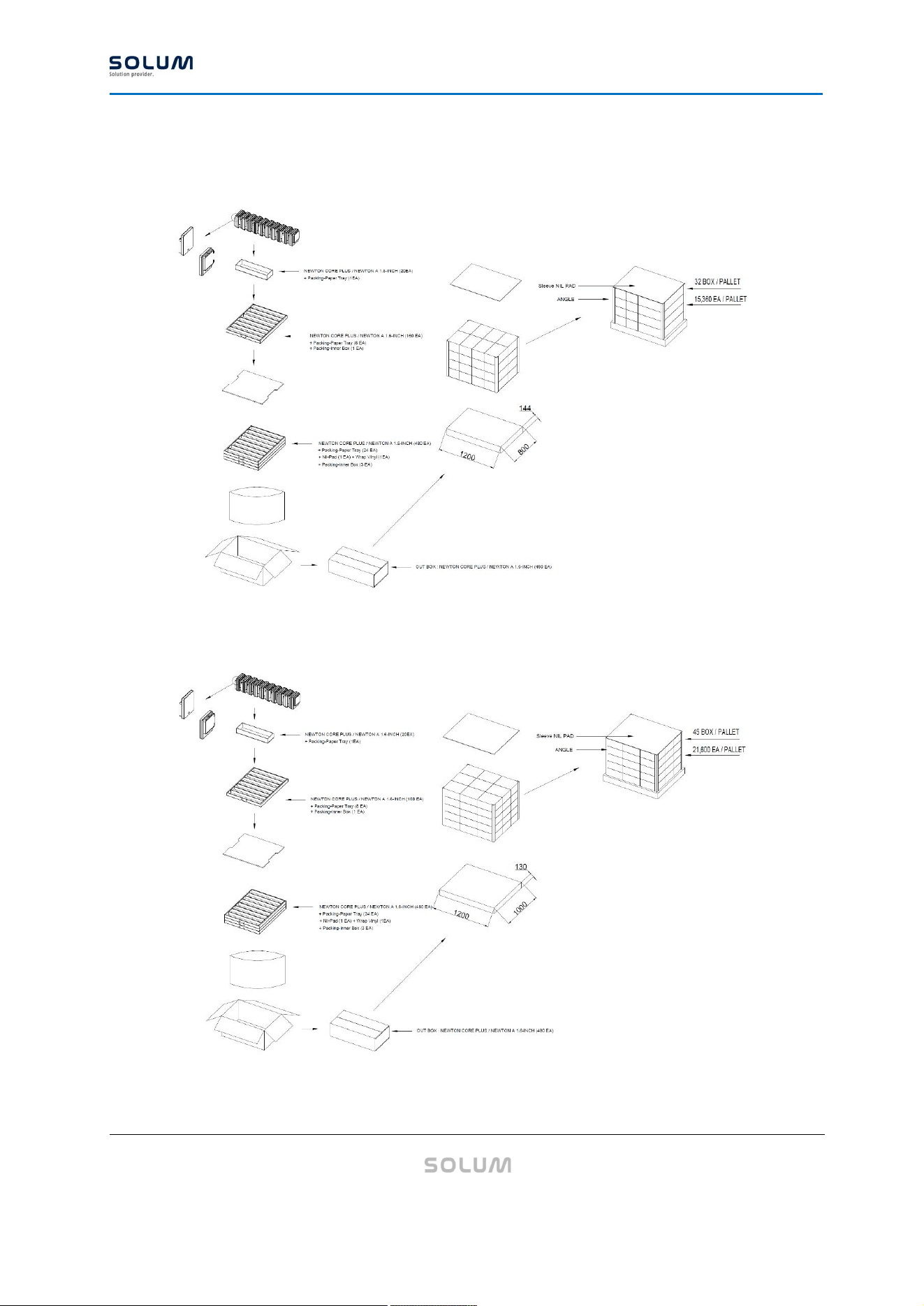

Figure 14. 1.6” PACKING-DIAGRAM (1,200 X 800)
Figure 15. 1.6" PACKING-DIAGRAM (1,200 X 1,000)
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
23 / 35
4.2. 2.1”
Figure 16. 2.1” PACKING-DIAGRAM (1,200 X 800)
Figure 17. 2.1” PACKING-DIAGRAM (1,200 X 1,000)
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
24 / 35
4.3. 2.5”
Figure 18. 2.5” PACKING-DIAGRAM (1,200 X 800)
Figure 19. 2.5” PACKING-DIAGRAM (1,200 X 1,000)
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
25 / 35
4.4. 2.8”
Figure 20. 2.8” PACKING-DIAGRAM (1,200 X 800)
Figure 21. 2.8” PACKING-DIAGRAM (1,200 X 1,000)
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
26 / 35
4.5. 3.5”
Figure 22. 3.5” PACKING-DIAGRAM (1,200 X 800)
Figure 23. 3.5” PACKING-DIAGRAM (1,200 X 1,000)
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
27 / 35
4.6. 4.2”
Figure 24. 4.2” PACKING-DIAGRAM (1,200 X 800)
Figure 25. 4.2” PACKING-DIAGRAM (1,200 X 1,000)
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
28 / 35
4.7. 5.8”

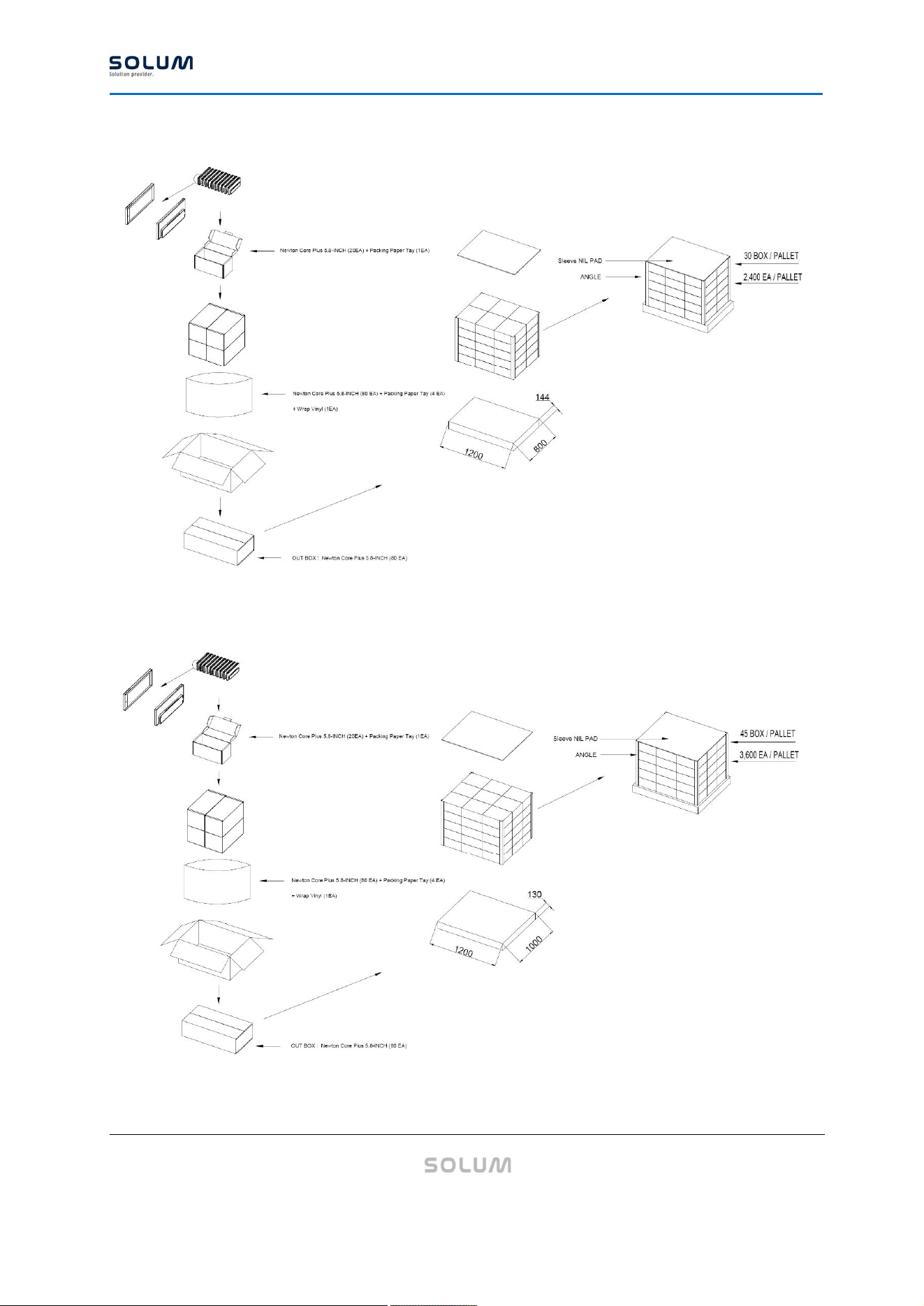

Figure 26. 5.8” PACKING-DIAGRAM (1,200 X 800)
Figure 27. 5.8” PACKING-DIAGRAM (1,200 X 1,000)
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
29 / 35
4.8. 7.5”

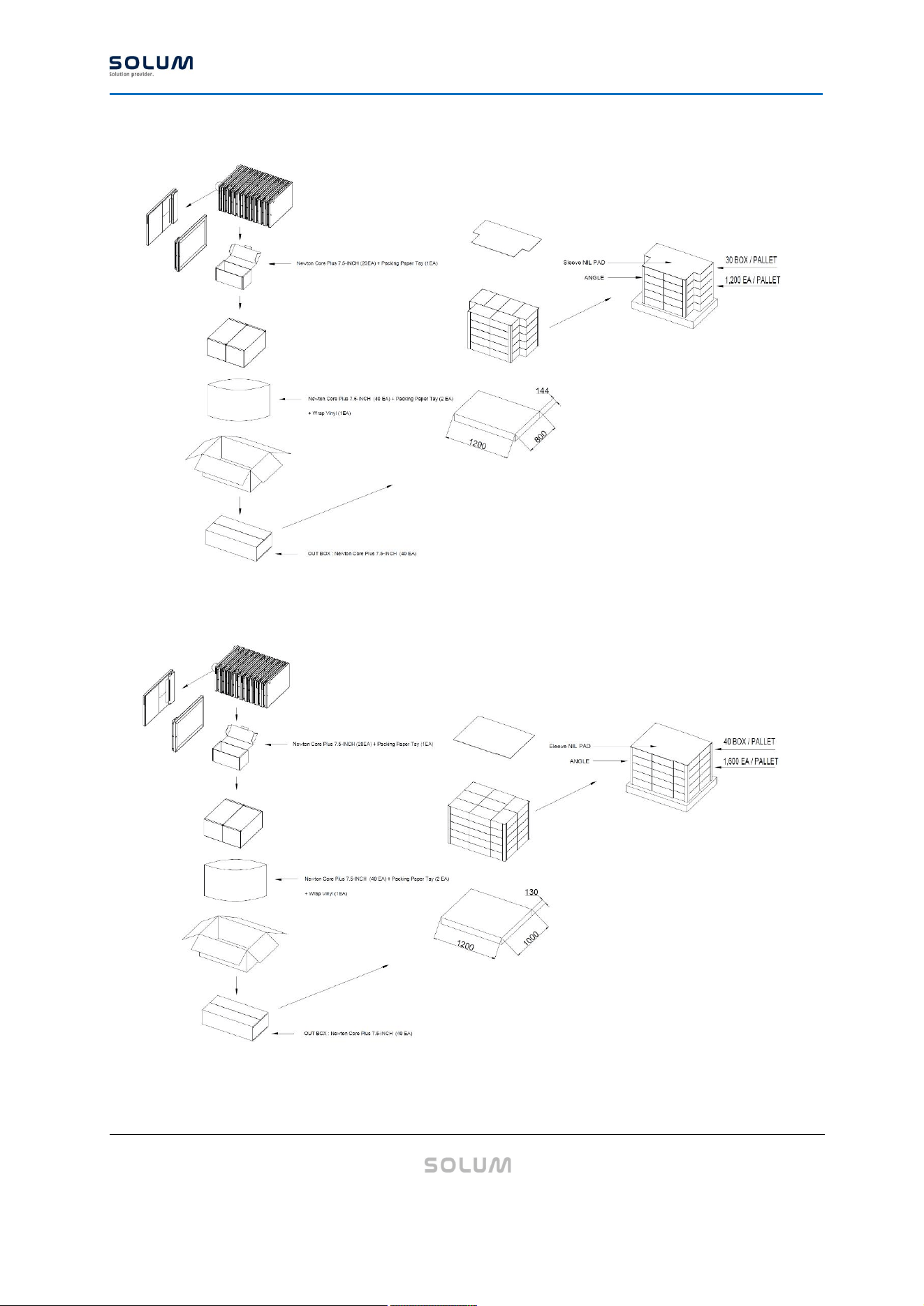

Figure 28. 7.5” PACKING-DIAGRAM (1,200 X 800)
Figure 29. 7.5” PACKING-DIAGRAM (1,200 X 1,000)
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
30 / 35
5. Reliability Test
- High Temperature Operation
- Low Temperature Operation
- High Temperature/Humidity Operation
- High Temperature Storage
- Temperature Shock (Storage)
- ESD
- Package Drop Test
- Package Random Vibration Test
Test Item
Test Condition
Pass Criteria
High Temp Resistance
60℃ / 35% (240hrs)
Normal
operation after
test
High Temp Operation
40℃ / 35% (240hrs)
Thermal Shock
-25℃ (for 30mins) ~ 60℃ (for 30mins) for 240 cycles
High Temp &
Humidity Operation
40℃ / 70% (240hrs)
Low Temp Operation
0℃ (240hrs)
ESD Test
TYP. Air ±10KV, 150pF, 330Ω, 10 times/Point
RF Sensitivity
(Communication
Distance)
Gateway <-> Tag distance: 100 meters
Tag receives RF
signal from
Gateway
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
31 / 35
6. Product Handling Precautions
Provisions should be made to protect against any damage to the product caused by improper
handling. The purchaser assumes any responsibility for damage to the product caused by improper
handling.
Product should be stored in 32 °F ~ 104 °F (0°C ~ 40°C) @45~70% RH environment and should be
installed within 90 days of receipt.
6.1. Usage Environment
Take extra caution when using this RF device in the vicinity of other electronic devices and appliances.
Most electronic devices and appliances use electromagnetic waves. Electromagnetic waves emitted
by this RF device can affect other electronic devices and appliances.
If using the device in an explosion hazard area, follow all safety regulations, instructions, and signals.
6.2. Storage and Use
- The product is shipped in sleep mode (displaying a white screen) and can be activated by
pressing the button, using an NFC remote control, or via the mobile app.
- Moisture and liquids can damage internal parts and circuit boards if allowed to enter into the
device itself.
- Do not place or store the product on a sloped surface. The product may slide and fall off the
surface and become damaged.
- Use the product in temperatures ranges of 0℃~40℃/32℉~104℉(BWRY). Parts and circuits may
be damaged if operated or stored in extreme temperature.
- The display panel needs extra care during handling.
· Do not apply any impacts on the e-Paper display as it is fragile.
· Continuous exposure to excessive moisture (over 70% RH) or UV shortens display lifetime.
· Ghosting image may appear in temperature conditions of less than 15℃/59℉ for normal
tags. (If ΔL* >2, we call it ghosting phenomenon)
- Avoid areas with strong magnetism or subject to magnetism. Contact between the device and a
magnetic object can lead to malfunctions.
- Do not place the product near heat-producing kitchen appliances like a stove or a microwave or in
the vicinity of highly pressurized containers.
- External impact to the product, such as from being dropped, can damage the product.
- Twisting and bending the product can damage the exterior casing and the internal components.

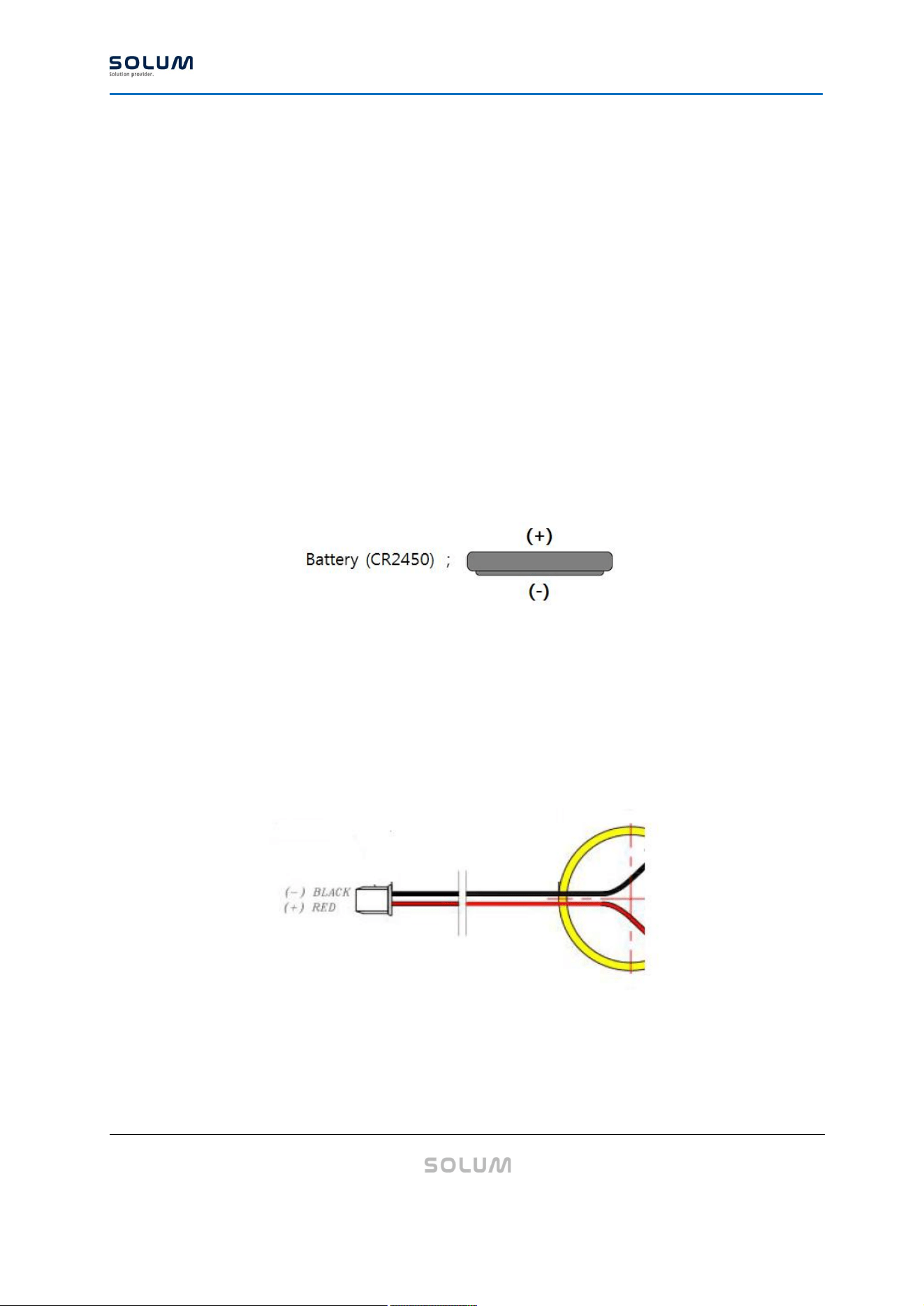

- If this product operates abnormally while removing battery or replacing battery, it needs to be
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
32 / 35
discharged by contacting the battery terminals (+) and (-) in the product.
- This product uses the 2.4GHz frequency band for the wireless communication network. Radio
communications can be limited or affected by other applications that share the same frequency
band, such as Wi-Fi, Bluetooth, Zigbee, etc.
- A prior investigation into the radio environment is strongly required for efficient and smooth
installation.
- Frequent communications, updates and screen renewals may reduce battery lifetime.
- Low temperature environments may reduce battery life.
- FIFO (First in First Out)
6.3. Product Cleaning

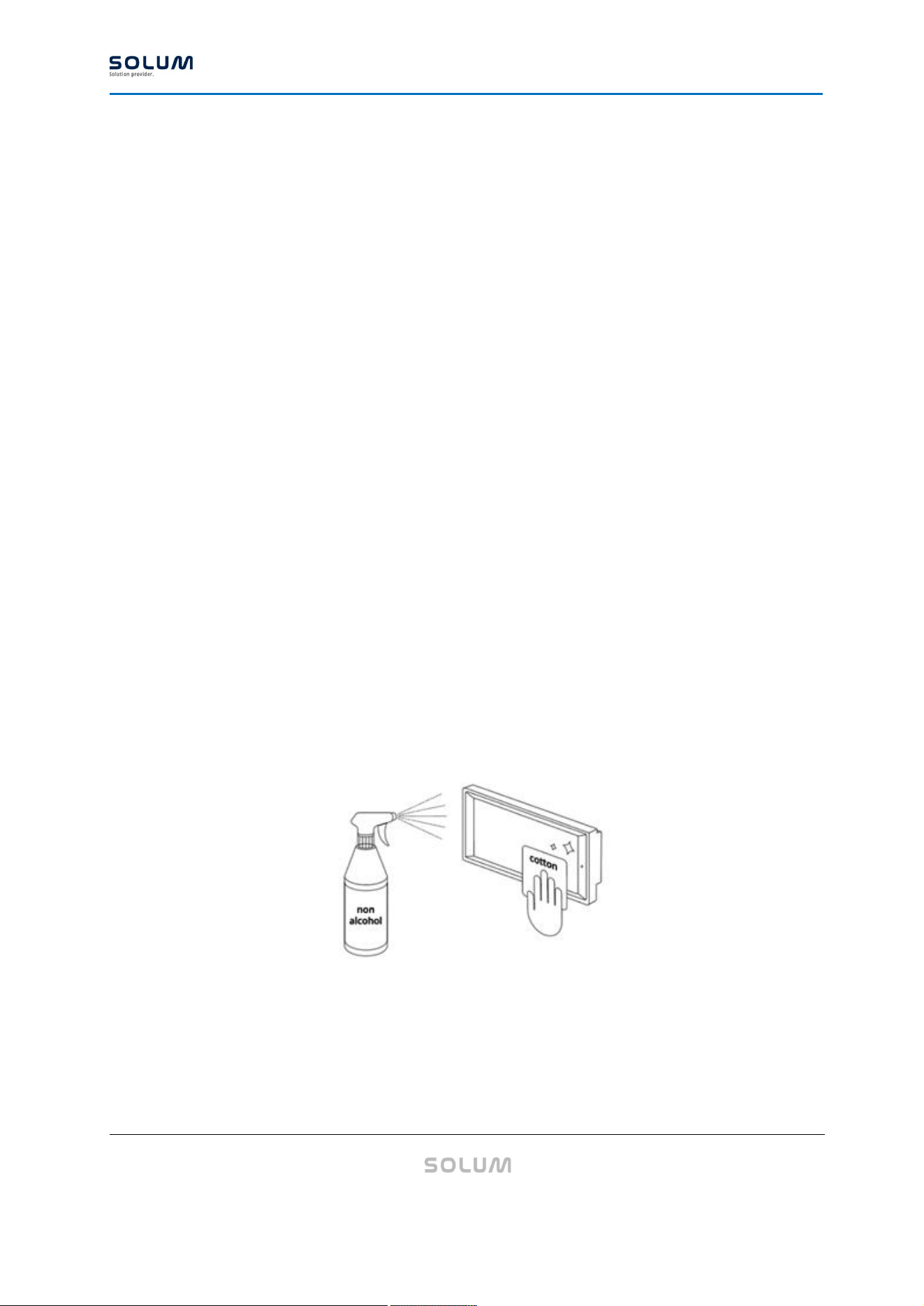

6.3.1. For Spray Cleaning:
Steps
(1) Lightly spray all surfaces and wait a few seconds.
(2) Gently wipe clean using a cloth or tissue.
(3) Let the labels dry.
Notes
- Use mild, non-alcoholic detergents or glass cleaner.
- Recommend non-abrasive cloths: Microfiber, Cotton T-shirt, Cotton handkerchief, Cotton tea towel
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
33 / 35

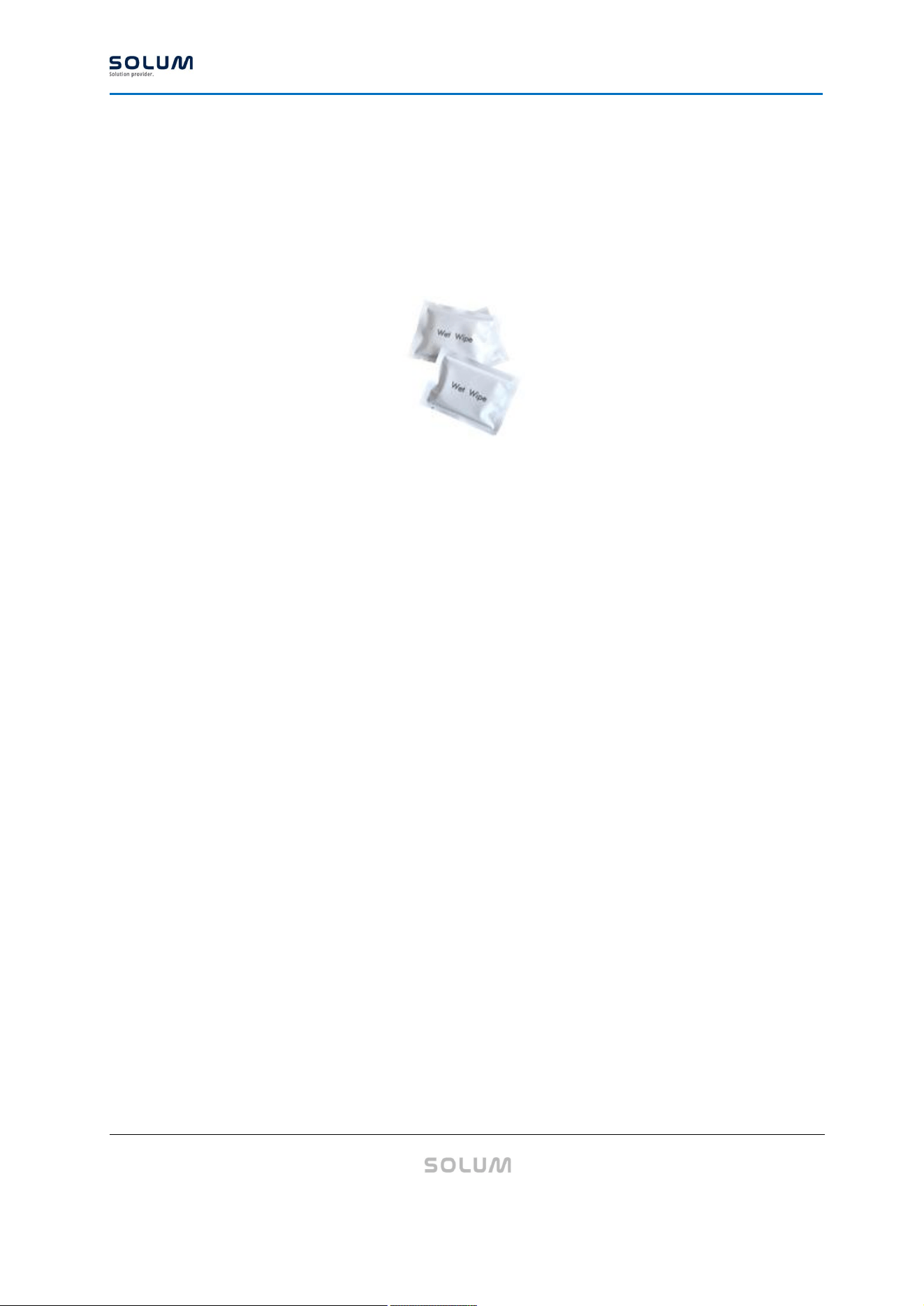

6.3.2. For Wet Tissue Cleaning:
Steps
(1) Stand or lay down the labels.
(2) Wipe using wet tissues.
(3) Let the labels dry.
6.4. Battery Replacement
Audience
- Authorized personnel with the following knowledge are allowed to replace the battery: Battery /
Electronic assemblies (e.g. circuit board) / Compliance with the instruction
※ Note: Warranty is voided if battery is replaced by unauthorized personnel. (When batteries require
replacement, please contact the authorized personnel)
Instructions
- Risk of short circuit if battery is incorrectly installed/stored.
- Check that hands are dry before and at all times during the replacement Process.
- Keep batteries away from children and infants.
- Do not heat, charge, bend, drop, short-circuit and/or disassemble battery.
- Do not mix together used and new batteries or different battery types.
※ Note: Battery rarely has minor stain or leak.
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
34 / 35
Steps
(1) Open the battery cover.
(2) Take out the batteries.
(3) Put in the new batteries.
(4) Check the batteries direction.
(5) Put back in the battery cover.
Battery Direction
- Battery
· Top: (+) Positive
· Bottom: (-) Negative
Figure 30. COIN BATTERY DIRECTION
- Battery Pack
· Red Wire: (+) Positive
· Black Wire: (-) Negative
Figure 31. BATTERY PACK DIRECTION
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
35 / 35
7. Battery Handling Guide
7.1. Avoiding hazards in lithium battery handling
1. Do not short circuit (Fig. 1)
· Direct connection of plus (+) and minus (-) poles may result in leakage, heat generation,
explosion and/or fire.
· Do not store and/or carry batteries with metallic items, such as a necklace.
2. Do not stack and/or jumble batteries (Fig. 2)
· Stacked and/or jumbled batteries may cause a short circuit and/or forced discharge from
contact with other batteries.
· This may result in leakage, heat generation, explosion and/or fire.
3. Do not make forced discharge batteries (Fig. 3)
· On a forced discharge by an external power source, the battery voltage goes to negative and
this causes gas generation in inside of the battery.
· This may result in leakage, heat generation, explosion and/or fire.
4. Do not dispose of batteries in fire
· Disposal of batteries in fire is extremely dangerous with a risk of explosion and violent flaring.
5. Do not heat batteries
· Heating batteries above 100℃/212°F may damage the resin in crimping, separator and other
parts, potentially causing an electrolyte leak, internal short circuit, fire and/or explosion.
6. Do not solder directly onto batteries
· Direct soldering onto batteries may damage the resin in crimping, separator and other parts,
potentially causing an electrolyte leak, internal short circuit, fire and/or explosion.
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
36 / 35
7. Do not recharge batteries
· Recharging of batteries may result in internal gas generation, causing electrolyte leak, battery
swelling, fire and explosion.
8. Do not disassemble batteries
· Disassembly of batteries may generate gas that may irritate your throat.
· Lithium may also react with moisture to generate heat and fire.
9. Do not deform batteries
· Applying extreme pressure to batteries may cause deformation of the crimping and internal
short circuit, causing electrolyte leak, battery swelling, fire and explosion.
10. Do not mix different type batteries
· For some applications, mixing different types of batteries or new and old batteries, can cause
an over discharge due to differences in voltage and discharge capacities.
· This may lead to the risk of swelling and/or explosion.
11. Do not insert batteries with opposite polarity
· For some applications, battery insertion with opposite polarity (reverse insertion of plus and
minus) may result in leakage, heat generation, explosion and/or fire.
※ Please ensure the above precautions are strictly observed by related divisions including
Production, warehouse, Product technology, sales, quality, customer stores, S/I companies,
part-time workers, and external service companies.
Newton Core Plus 4-Color (BWRY) ESL Datasheet
v0.1-PRE
37 / 35
7.2. Proper Storing and Disposing of Lithium Batteries
- To minimize risk of fire and explosion of batteries, be sure to follow the instructions below.
- Proper use of battery tray is outlined below.
With batteries properly placed into each tray slot → stack the trays in the same orientation → use an
empty tray on the top stack → tape the stack together to avoid falling apart.
- Follow local regulations for proper battery disposal guidelines.
