E S L + C A M E R A S O L U T I O N I N T E G R A T I O N

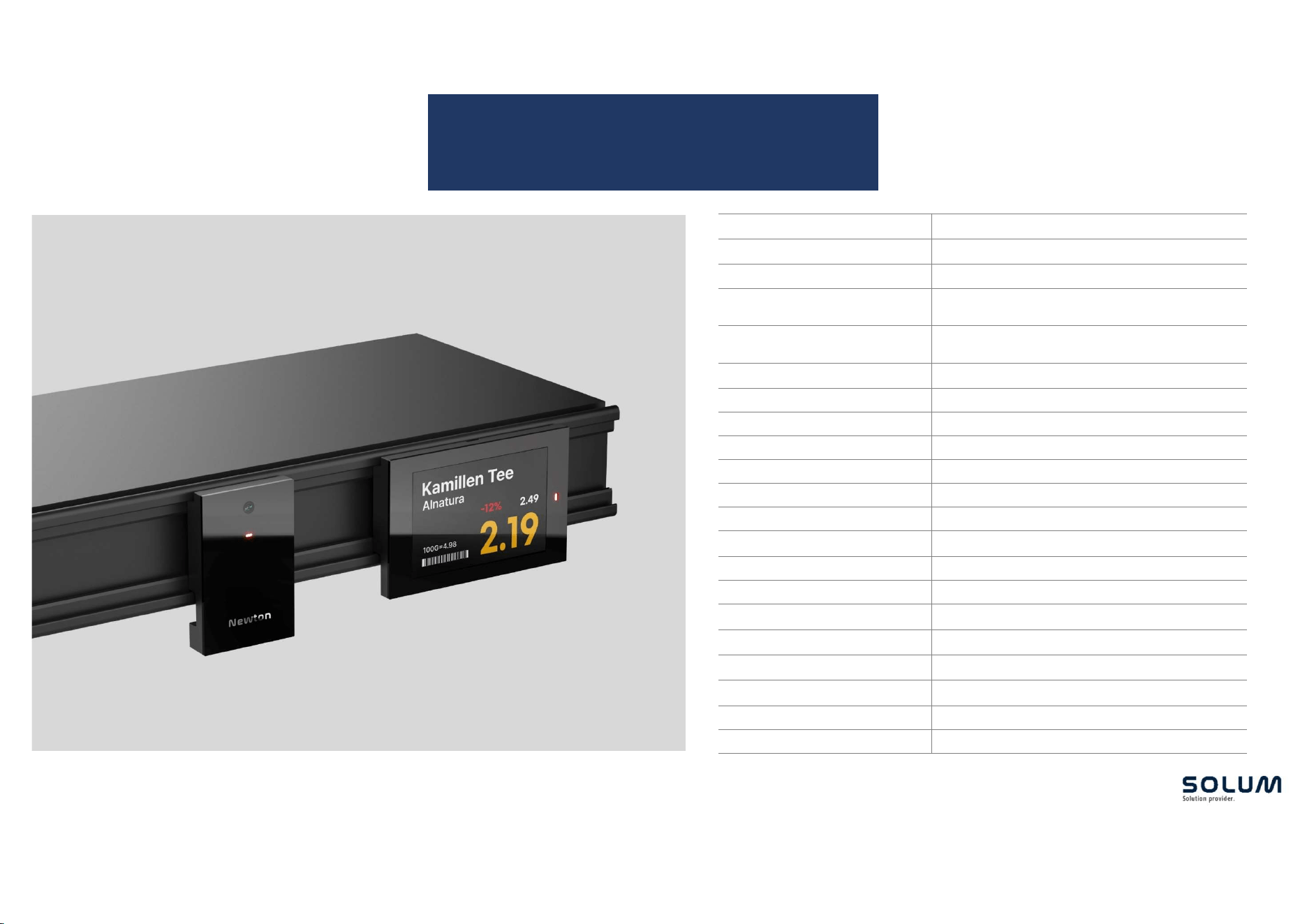

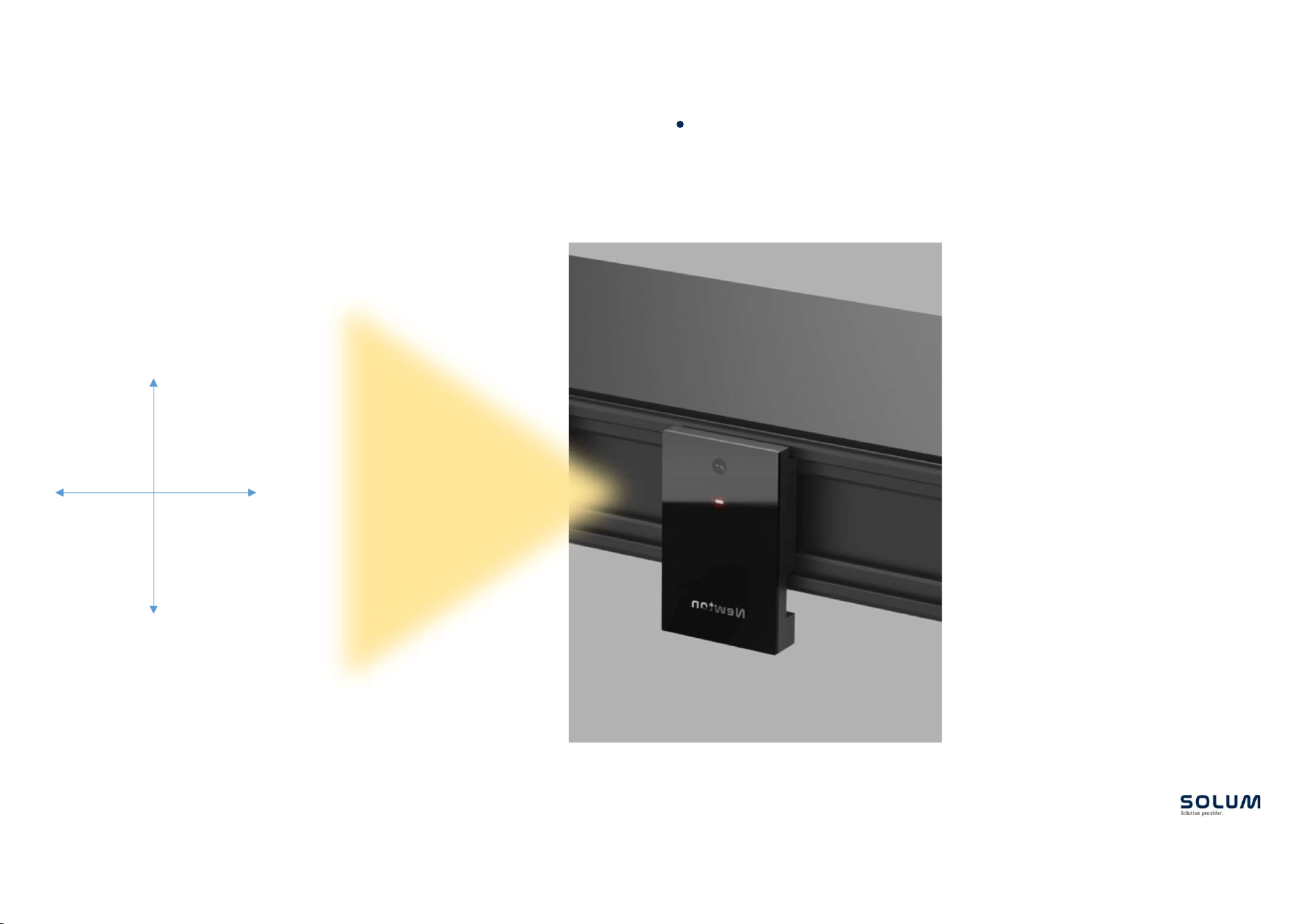

NEWTON EYE
※ This specification May varies depending on the installation environment and user scenario.
EC120THWXC/WWWMODEL
(External) 128MbitFLASH MEMORY
512KB / 768kBRAM / ROM
IEEE 802.11 a/b/g/n compatible
+ 2.4 / 5GHz GHz SOLUM Proprietary Protocol on BLE
Wireless communications
SRD 2.4GHz 1Mbps : 80CH
WiFi: 14CH + 24CH
CHANNELS
2.4 / 5 GHzTRANSMIT FREQUENCY
2.4 / 5 GHzRECEIVE FREQUENCY
FF 5M Pixel(2592*1944) resolution for JPEG encodingRESOLUTION
Max 120ºANGLE OF VIEW
Min 80cmFOCAL LENGTH
0.8M ~ 3MPreferred Focal Length
2.5M / 1.87M (W / H)Coverage(Range)
FeliCa NFC Forum Type 3NFC
35.16 mm * 55.16 mm * 10.45 mmDIMENSION
External 5V from USB C-ConnectorPOWER SOURCE
UP to 25mCOVERAGE (INDOOR IN RADIUS)
USB type CINTERFACE
0°C to +40°COPERATING TEMPERATURE
15.8gWEIGHT
Plastic (PC)ENCLOSURES
Built-in face masking with AI engineETC

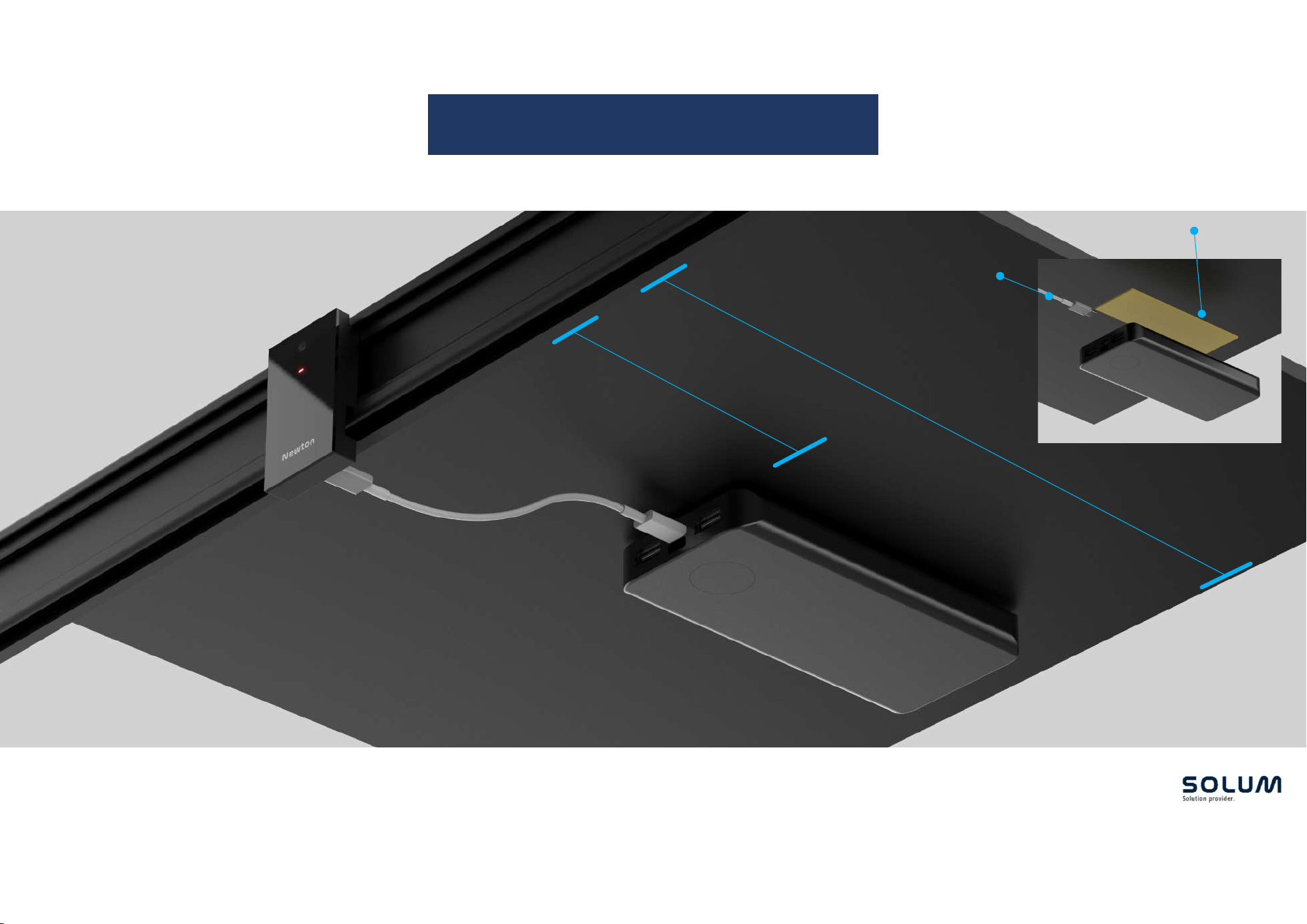

PowerBank / C to C cable
14cm
32cm
C to C Cable
Rubber Magnetic Pad + Adhesive Tape
S O L U M C A M E R A S O L U T I O N N e w t o n E y e
W: 2.5m
H: 1.87m
Angle
64.3ºC ~ 80ºC
Distance
1.2m~2.0m
S O L U M C A M E R A S O L U T I O N N e w t o n E y e

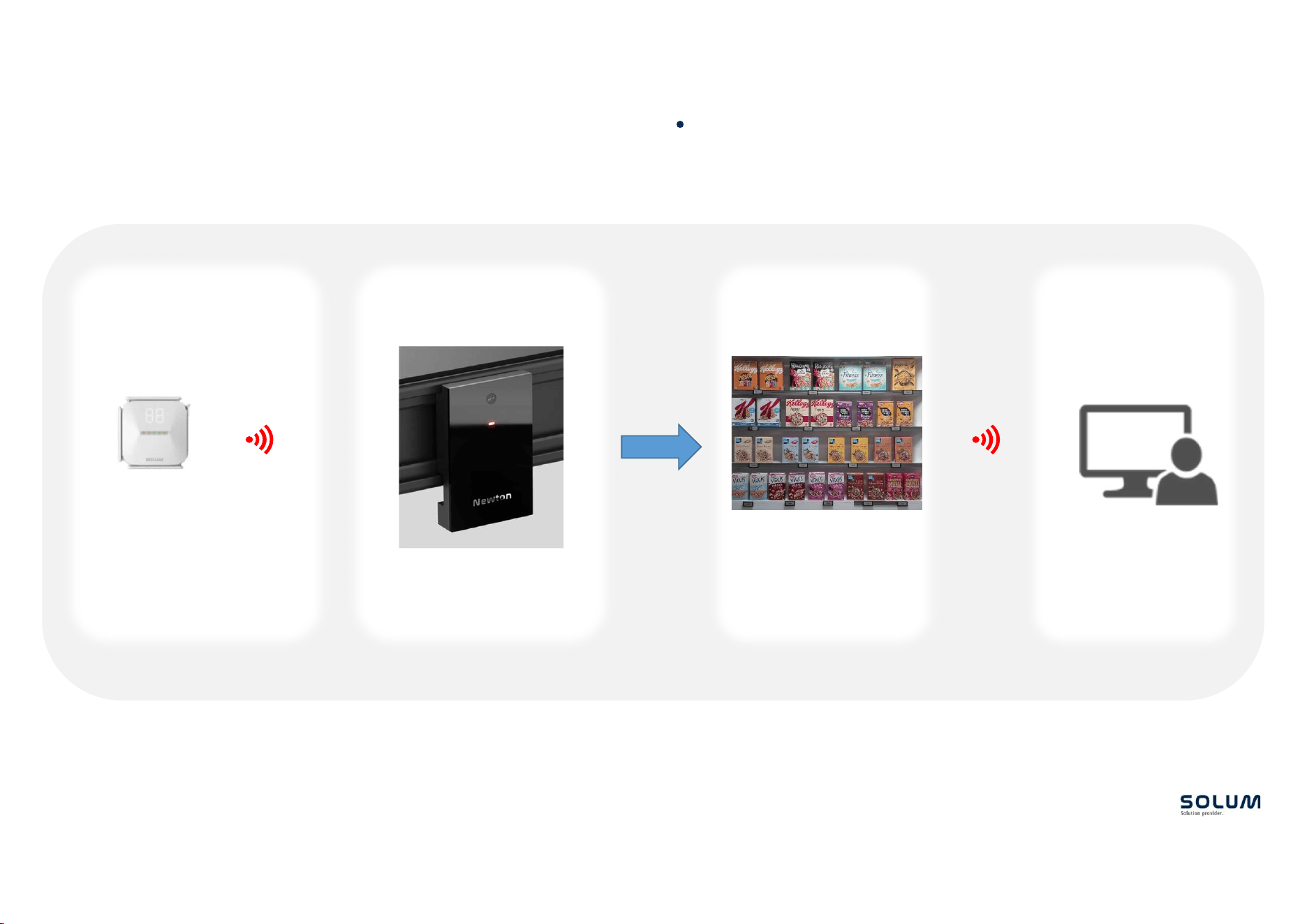

SOLUM Proprietary WiFi
S O L U M C A M E R A S O L U T I O N S O L U T I O N D E T A I L S D A S H B O A R D E X A M P L E
Report / monthly
Report / weekly
Camera soluon
Dashboard
OOS
13
Misplacement
3
Mapping
error
2
Detecng error
0
POG
Camera soluon
ROG
creaon
Mapping
Secon
Soum
USER1
18
Sectio
n
Error Result Time
A OOS
Error : 2022-08-18, 13:23:33
Completed : 2022-08-18, 13:35:58
B MP On going
Error : 2022-08-18, 13:23:33
Completed : 2022-08-18, 13:35:58
C Error
Completed
Error : 2022-08-18, 13:23:33
Completed : 2022-08-18, 13:35:58
Completed
Manageme
nt
staff
Community
Report
Seng
3. ALERT MESSAGE TO STAFF 2. SOLUM NEWTON TRAM DASHBOARD 1. DETECTING MISPLACEMENT
04:19
04:16
DISPLAY ERROR
04:19
04:16
MisplacementMisplacement
B-3 , 2nd shelf
RITZ-Crackers
B-3 , 2nd shelf
RITZ-Crackers
Misplacement
B-3 , 2nd shelf
RITZ-Crackers
MisplacementMisplacement
F-8 , 1st shelf
Low fat milk 500ml
F-8 , 1st shelf
Low fat milk 500ml
Misplacement
F-8 , 1st shelf
Low fat milk 500ml
MisplacementMisplacement
H-1 , 2nd shelf
Herb tea box, 150ea
H-1 , 2nd shelf
Herb tea box, 150ea
Misplacement
H-1 , 2nd shelf
Herb tea box, 150ea
CORRECT DISPLAY
04:19
04:16
03:16
Planogram
Camera detection
Camera detection

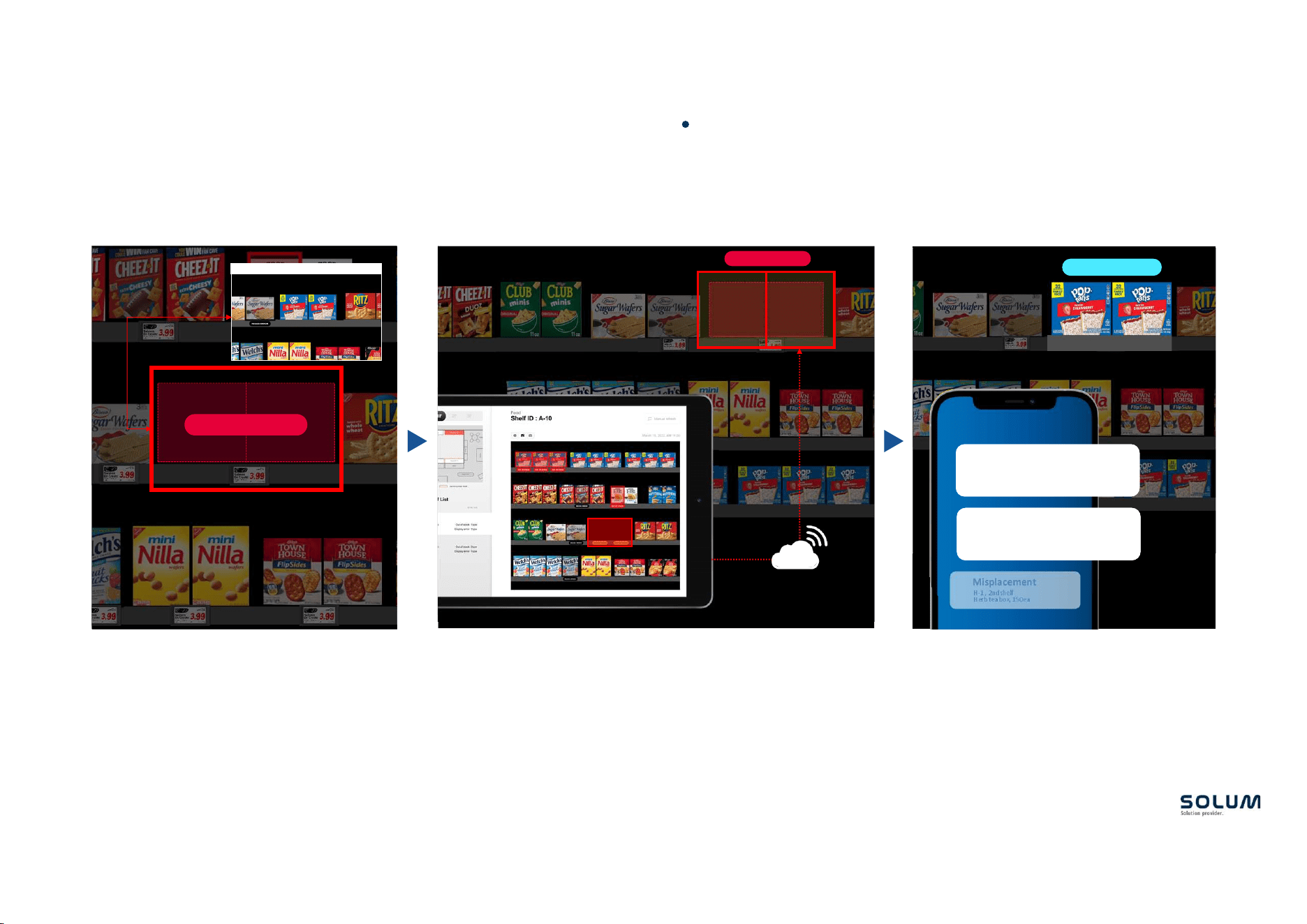

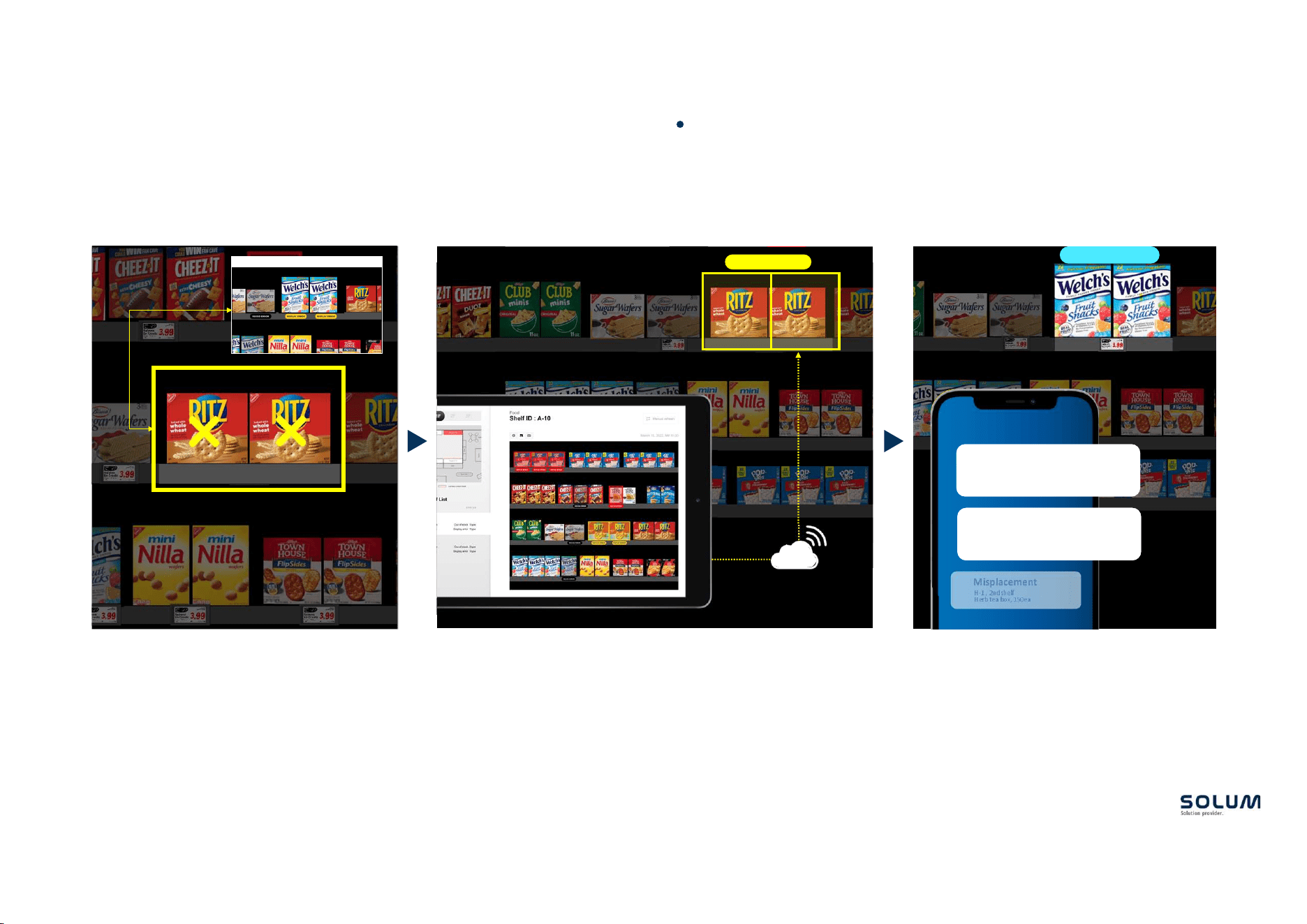

In case of product misplacement by shoppers,
Camera solution can capture the scene
The captured scene sent to the dashboard right away and
analyzed which products with misplacement issue based on
planogram
Push the alert to staff to notify the current
issue in order to solve misplacement issue
S O L U M C A M E R A S O L U T I O N S O L U T I O N D E T A I L S M I S P L A C E D S O L U T I O N
S O L U M C A M E R A S O L U T I O N S O L U T I O N D E T A I L S O U T - O F - S T O C K S O L U T I O N
3. ALERT MESSAGE TO STAFF 2. SOLUM CAMERA SOLUTION DASHBOARD 1. OUT OF STOCK
OUT OF STOCK
04:19
04:16
04:19
04:16
Out of stockOut of stock
H-1 , 3rd shelf
POP tarts-frosted strawberry
H-1 , 3rd shelf
POP tarts-frosted strawberry
Out of stock
H-1 , 3rd shelf
POP tarts-frosted strawberry
MisplacementMisplacement
F-8 , 4th shelf
Low fat milk 500ml
F-8 , 4th shelf
Low fat milk 500ml
Misplacement
F-8 , 4th shelf
Low fat milk 500ml
MisplacementMisplacement
H-1 , 2nd shelf
Herb tea box, 150ea
H-1 , 2nd shelf
Herb tea box, 150ea
Misplacement
H-1 , 2nd shelf
Herb tea box, 150ea
04:19
04:16
OUT OF STOCK
Planogram
Camera detection
Camera detection
REPLENISHMENT
1) STOCK REPLENISHMENT BY STAFF
2) SMART ORDERING
In case there is no available stock in the
store,
staff requests for the delivery order to
warehouse
The captured scene sent to the dashboard right away and
analyzed
which products with low stock or out of stock
In case of out of stock products, camera
solution can capture the scene
S O L U M C A M E R A S O L U T I O N S O L U T I O N D E T A I L S A U T O - A S S I G N S O L U T I O N

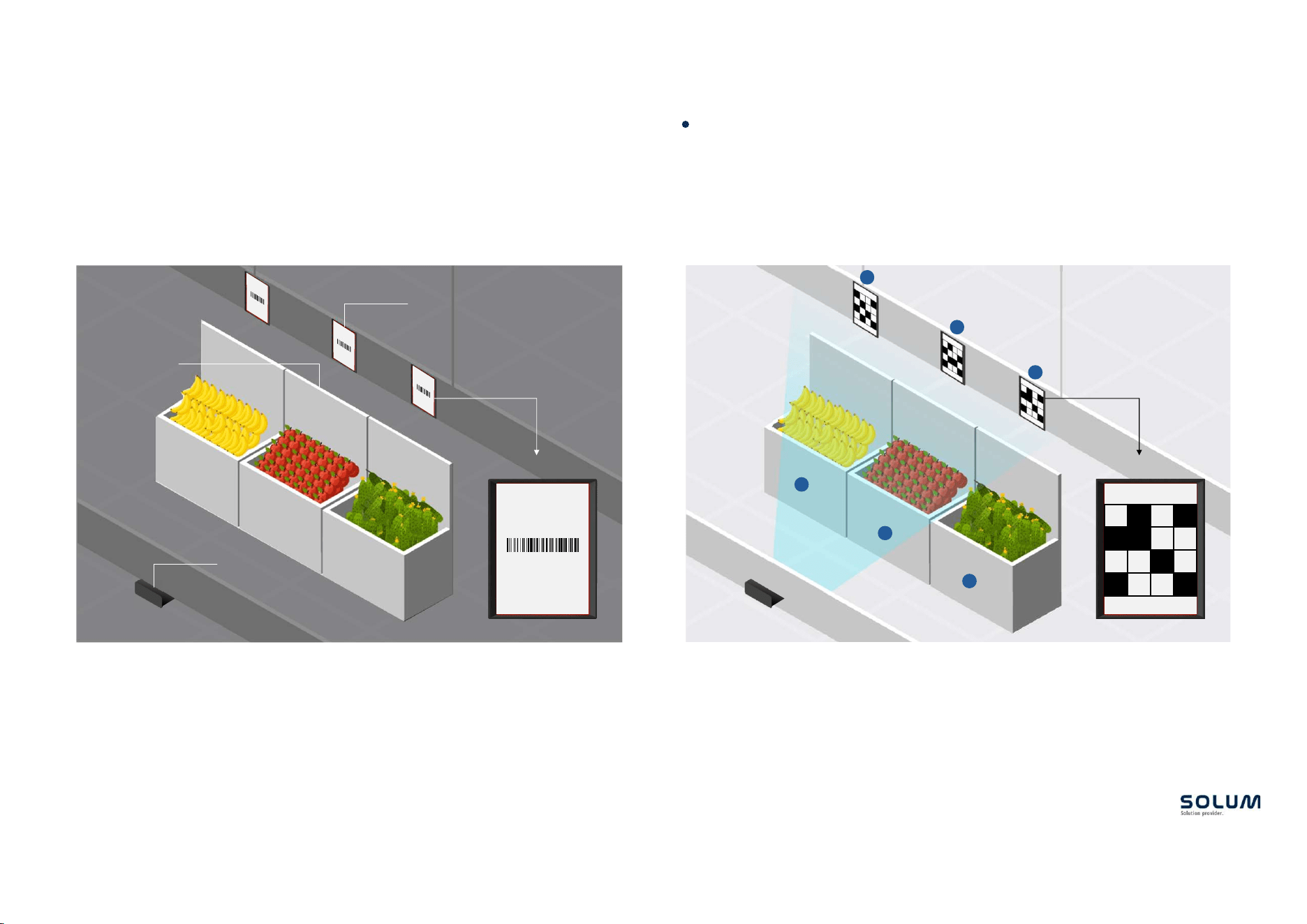

1. Auto-assign solution will help to automatically update ESL label pricing
information from that of real product based on POG
2. There are camera under promotion board and, 9.7” ESL product on the other
side displaying ID pattern helping to identify which ESL has to connect to the real
product
039B24C8C197
ESL 9.7inch
PROMOTION
SHELF
SOLUM
CAMERA
1. START SCREEN 2. ID PATTERN
1
2
3
A
B
C
S O L U M C A M E R A S O L U T I O N S O L U T I O N D E T A I L S L B S S E R V I C E S O L U T I O N
TO-BE : BENEFITS WITH NEWTON EYE AS-IS : TRADITIONAL WAY IN STORES
HELPERS FOR BOTH CUSTOMERS AND STAFF
DIFFICULTY OF RESPONSE IN REAL-TIME
When customers and staff face with planogram issues, it is difficult to solve
them right away because customers need to find staff first and then staff
can help them out to meet their needs. After all, it takes time to take action
for it
In case of planogram issues such as out of stock and misplacement product,
both customers and staff can search and find the product on their mobile
device(which shows where it is located on) thanks to the tag assigned to the
product. Therefore, customers don’t need to ask the assistance and staff can
replenish products, and replace items to the right place
SNACK
NONFOOD SECIALS
SHELVING
NONFOOD SECIALS
SNACK
SHELVING
RRODUCT
RRODUCT
SHELVING
found it!
B-3 , 2nd shelf
B-3 ,
3nd shelf
1F
2F
3F
4F
5F
11
P O C off e r i n g
S O L U M C A M E R A S O L U T I O N P O C o ff e r i n g
Option #2. In case VIP customer;
FOC POC available
- Max 100pcs camera / store
- 6 months
Option #1.
Minimum Cost POC
- $30 / camera
- 6 months
Common Condition
- SaaS user customer based
- Cooperation of Camera solution with
SOLUM
- Sharing usage and the feedback of
Newton Eye
- Update the camera solution status every
month
- Suggestion future usage
* Purchase the camera after POC(in case to
roll out)
** Charges SaaS & GPU Machine usage cost
S O L U M C A M E R A S O L U T I O N C a m e r a S c h e d u l e
Customer POC
Phase 1
(Out of Stock)
– Aug
Customer POC
Phase 2
(Misplacement)
– Oct
AIMS customer
POC
– Jan, 24

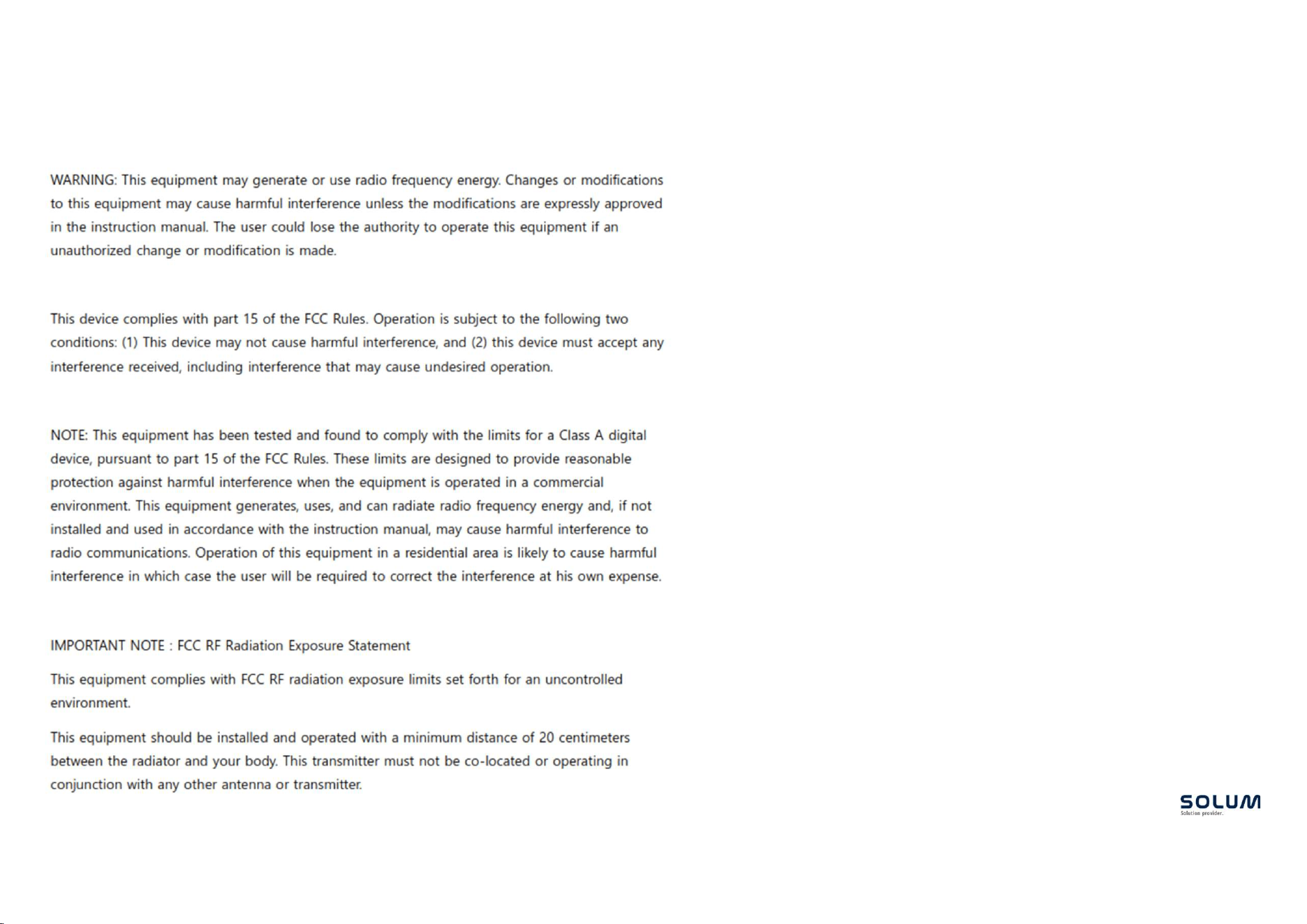

S O L U M C A M E R A S O L U T I O N
S O L U M C A M E R A S O L U T I O N
