Sealey CMX125 550W Cement Mixer 125L User Manual

CEMENT MIXER 125L

MODEL NO: CMX125

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,

and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE

THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR

PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETY

1.1. ELECTRICAL SAFETY

 WARNING! It is the user’s responsibility to check the following:

Check all electrical equipment and appliances to ensure that they are safe before using.

Inspect power supply leads, plugs and all electrical connections for wear and damage.

Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.

8 DO NOT use worn or damaged cables, plugs or connectors.

9  Ensurethatanyfaultyitemisrepairedorisreplacedimmediatelybyaqualiedelectrician.

9  Ifthecableorplugisdamagedduringuse,switcho󰀨theelectricitysupplyandremovefromuse.

 Ensurethatrepairsarecarriedoutbyaqualiedelectrician.

9  SealeyrecommendthatanRCD(ResidualCurrentDevice)isusedwithallelectricalproducts.

Important:Ensurethatthevoltageratingontheappliancesuitsthepowersupplytobeusedandthattheplugisttedwiththe 

correct fuse.

8 DO NOT pull or carry the appliance by the power cable.

8 DO NOT pull the plug from the socket by the cable.

1.1.1.  AvoidElectricShock:

9  Checkthattheelectriccircuitisadequatelyprotectedandthatitcorrespondswiththepower,voltageandfrequencyofthemotor.

8 DO NOT plug or unplug the motor while standing in or around damp or wet ground. DO NOT use the mixer in wet or damp areas or

expose it to rain.

9  Preventbodycontactwithgroundedsurfaces:pipes,radiators,ranges,andrefrigeratorenclosures.

9  Afterinstallation,thedegreeofprotectionoftheBSIapprovedplugandsocketcombinationshallbeIP44Datleast.

9  Extensioncordsmustbenolongerthan50metersinlength.Thewiresectionmustbe1.5mm²on230Vtoallowsu󰀩cientcurrentow

 tothemotor.Improperuseofextensioncordsmaycauseine󰀩cientoperationofthemixerwhichcanresultinoverheatingandmotor

damage.

1.2. GENERAL SAFETY

9 Trained users only to use this product.

1.2.1. UNDERSTAND THE PRODUCT:

9  Readandunderstandtheowner’smanualandlabelsa󰀩xedtothemixer.

9  Learnitsapplicationandlimitationsaswellasthespecicpotentialhazardspeculiartoit.

9 Become familiar with the controls before operating this mixer.

1.2.2. STAY ALERT:

8 DO NOToperatethemixerwhileundertheinuenceofdrugs,alcohol,oranymedicationthatcoulda󰀨ectyourabilitytouseit 

properly.

CMX125 Issue:1 12/05/25

Original Language Version

WARNING!

Electricity

Wear a mask

appropriate to the

materials being

mixed

8 DO NOT use this mixer when you are tired or distracted from the job at hand. Watch what you are doing at all times. Use common

sense.

1.2.3. AVOID DANGEROUS SITUATIONS:

9 Make sure there is adequate surrounding workspace.

9  Keepyourworkareacleanandwelllit.Clutteredareasinviteinjuries.Keepareaaroundthemixerclearofobstructions,grease,oil,

 trashandotherdebriswhichcouldcausepersonstofallontomovingparts.

9  Onlyuseoroperatethemixeronsolid,at,levelgroundthatiscapabletosupporttheweightofthemixeranditsloadtopreventthe

 mixerfromtippingover.

8 DO NOTattempttomovethemixerwhenitisloadedand/orinoperation.

9  Thismixerisintendedfortheproductionofconcrete,mortarandplaster.Itisnotsuitableforthemixingofammableorexplosive

substances.

8 DO NOTuseitinareaswherefumesfrompaint,solventsorammableliquidsposeapotentialhazard.

1.2.4. INSPECT YOUR MIXER:

8 Check your mixer before turning it on. Keep guards in place and in working order. DO NOTplugintomainssupplywithmotorcover

open.

9  Checkallbolts,nuts,andscrewsfortightnessbeforeeachuse,especiallythosesecuringguardsanddrivemechanisms.Vibration

during mixing may cause these to loosen.

9  Formahabitofcheckingtoseethatalltools,shovels,handtrowelsandothertools/equipmentsareremovedfrommixerareabefore

turning it on.

9 Replace damaged, missing or failed parts before using it.

9 Warning labels carry important information. Replace any missing or damaged warning labels.

1.2.5. DRESS PROPERLY:

8 DO NOTwearlooseclothing,gloves,necktiesorjewellery(rings,wristwatches).Theycanbecaughtinmovingparts.

9  Protectiveelectricallynon-conductiveglovesandnon-skidfootweararerecommendedwhenworking.Wearprotectivehaircovering

 tocontainlonghair,preventingitfromgettingcaughtinmachinery.

9  Wearafaceordustmaskiftheoperationisdusty.Beawareofthesafetyadviceforworkingwithcement.Refertomanufacturer’s

 adviceontheproduct,thatisbeingused.

9 Alwayswearsafetygogglesand/orfaceshields.Everydayeyeglasseshaveonlyimpactresistantlenses.Theyarenotsafetyglasses.

1.2.6. Keep people away:

9  Keepunauthorizedpersonsawayfromthemixer.

8 DO NOT allow children to handle or climb on or in the mixer.

1.2.7. DO NOT OVERREACH:

9 Keep proper footing and balance at all times when loading or unloading the mixer.

8  Neverstandonmixer.Seriousinjurycouldoccurifthemixeristippedorifthemovingpartsareunintentionallycontacted.

8 DO NOTstoreanythingaboveornearthemixerwhereanyonemightstandonthemixertoreachthem.

1.2.8. AVOID INJURY FROM UNEXPECTED ACCIDENTS:

9 Keephandsoutofthewayofallmovingparts.DO NOTplaceanypartofyourbodyoranytool,likeshovelinthedrumduring 

operation. When operating, DO NOT pass hands through the clearance between frame and support leg or the one between the drum

and support leg.

1.2.9. DO NOT FORCE TOOL:

9 It will do a better and safer job at its designed rate. Always work within the rated capacity.

8 DO NOT start the motor if the drum is fully loaded. DO NOT turnmixero󰀨whilefullofconcrete.

8 DO NOT use the mixer for a purpose for which it was not intended.

8  Themixerisnottobetowedbyanyvehicle.

1.2.10. NEVER LEAVE MIXER RUNNING UNATTENDED:

8 DO NOTleavemixeruntilithascometoacompletestop.

1.2.11. DISCONNECT POWER:

8  Neveropenthemotorcoverbeforeunpluggingthemixer.

9  Disconnectfrompowersupplywhennotinuse,beforemoving,makingadjustments,changingparts,cleaning,orworkingon 

the mixer.

9  Consulttechnicalmanualbeforeservicing.

1.2.12. MAINTAIN YOUR MIXER WITH CARE:

9 Clean the mixer immediately after use. Keep the mixer clean for best and safest performance.

9 When maintaining this mixer, only the manufacturer’s original replacement parts may be used.

1.2.13. PROTECT THE ENVIRONMENT:

9  Takeleftovermaterialstoanauthorizedcollectionpointorfollowthestipulationsinthecountrywherethemixerisused.

8 DO NOT discharge into drains, soil or water.

1.2.14. STORE IDLE EQUIPMENT:

9  Whennotinuse,themixershouldbestoredinadrylocationtoinhibitrust.Keepthemixerawayfromchildrenandothersnotqualied

to use it.

1.2.15. FIRE FIGHTING: Refer to MSDS.

8 DO NOT to reach into the drum interior to the rotating blades.

2. INTRODUCTION

Powerful550Winsulatedmotorforcontinuousmixing.125LDrumwith79Lmixingcapacity.Easilyattachorremovelegsforstorageor

transportation. Large Ø200mm wheels for easy portability. Features folding legs for ease of transportation and storage.

Original Language Version

CMX125 Issue:1 12/05/25

3. FEATURES

4. SPECIFICATION

Model No: ................................................................CMX125

Drum Capacity: .............................................................. 125L

IP Rating: ..................................................................... IP45D

Mixing Capacity: ...............................................................79L

Drum Speed: .............................................................26.6rpm

Drum Mouth: .............................................................. 385mm

Motor Power:.................................................................550W

NoiseLevelEmpty: ........................................................97dB

Weight: ...........................................................................52kg

Plug Type: ......................................................................3-Pin

Power Supply: ...................................................... 230V50Hz

5. CONTENTS

Refer to Parts List for descriptions.

Fixings:LettersrefertospecicAssemblyoperations.See

diagrams below.

Drum Tipping Wheel:

Pull wheel to release from

locking mechanism to tip

Transport Handle

On/O󰀨

Type of Distribution: ...........................................................TT

Short Circuit Rating for Incoming Power Supply: ............9.6A

Full Load Current for Incoming Power Supply: ................2.4A

Not Exceeding 13A

PermissibleEnvironmentalConditions: ...............-40°to40°C

SoundPowerLevel: ..................................................91dB(A)

Original Language Version

CMX125 Issue:1 12/05/25

6. ASSEMBLY

NOTE: Two persons required to Assemble. Numbers in brackets refer to Parts List.

STEP 1: THE STAND

With a split pin inserted into the inner holes in each stub

 axle,placeaatwasher,thenawheelfollowedbyanother

 atwasher.Insertanothersplitpinintotheaxleholes

 outsideeachatwasher.Bendeachsideof the pins

outward so they do not fall out.

STEP 2: BOTTOM DRUM STEP 3: MIXING BLADES

Slide the bearing block on the shaft. Hold it in place

 withcirclip(42).

Carefully, and with two people, set the bottom drum

with support arm onto the side supports of the stand

as shown, so that the bearing blocks slot into the

 channelsprovidedbythesidesupports.Thelarger

diameter shaft should be at the leg end of the stand.

At each side, line up the holes in the side support with

those in the bearing block and insert a M8X65 hex bolt

 fromoneside,thenaatwasher,lockwasherandnut

from the other side. Tighten with a wrench.

With the frame lying on its side, attach the support leg as

shown. Insert two M8X70 hex bolts through the holes from one

side,thenatwashers,lockwashersandnutsfromtheother

side.Tightenxings.

Turntheframeoverandattachtheaxlebracketwithwheelsinthesamemanner.

Make sure all bolts and nuts are tightened.

Original Language Version

Mount the mixing blades inside the bottom drum loosely as

shown-Twoholesareprovidedatthebaseof 

the drum into which a M8X20 bolt may be inserted from

theoutside.Aplasticwasher,atwasher,lockwasher 

and a nut should be threaded on loosely on the inside.

The plastic washer should be placed under the blade

down against the drum.

NOTE: Two arrows are labelled on upper drum and

bottom drum to make their position relation.

Ifyouhaveanydi󰀩cultyincorrectlypositioningthemixing

blades, it is helpful if you temporarily mount the upper drum

on the top of the bottom drum, rotating it so that the two

arrows line up.

CMX125 Issue:1 12/05/25

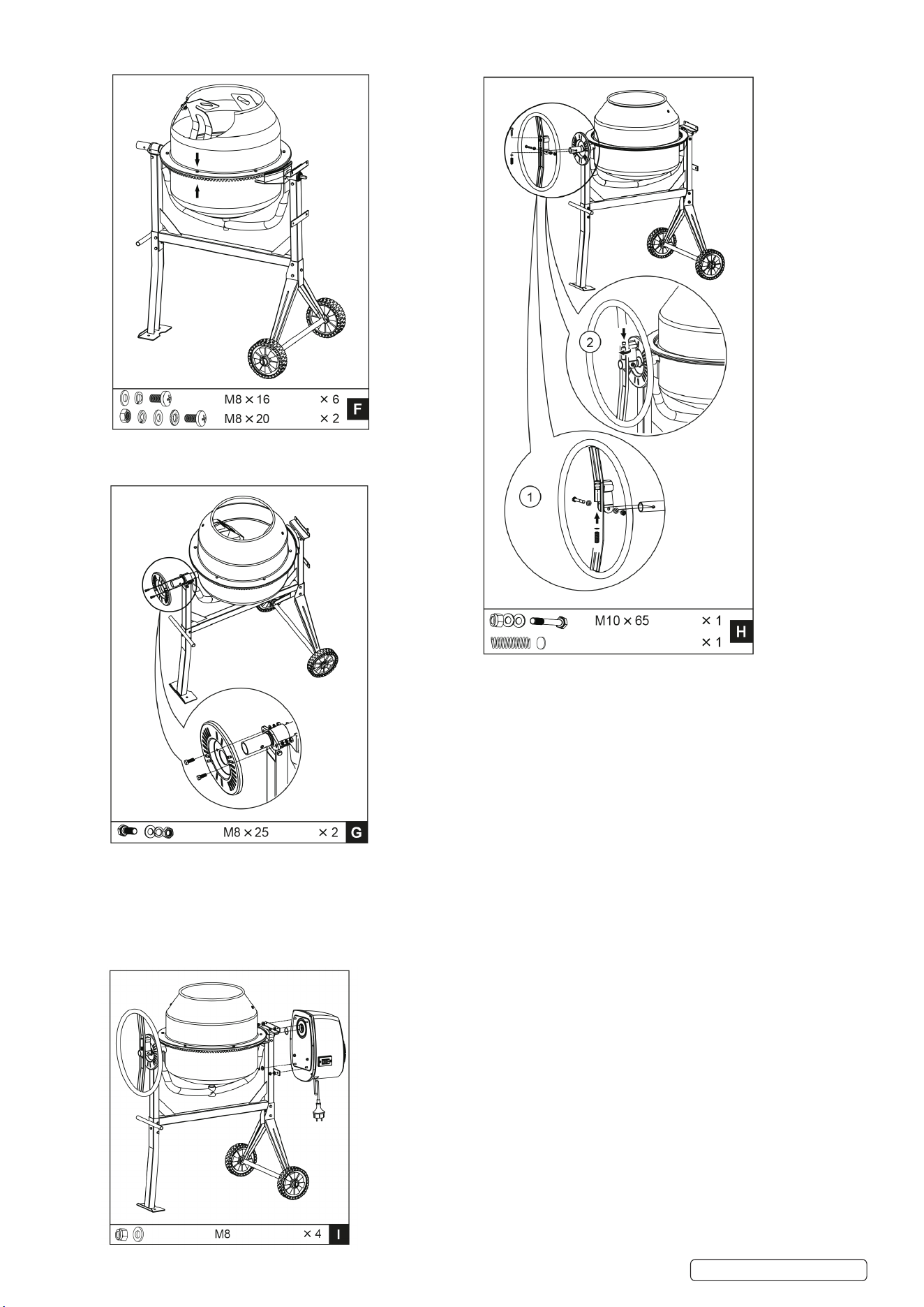

STEP 4: UPPER DRUM

 Positiontheupperdrumonbottomdrumovertherim, 

making sure the mounting holes align in both as well as

the labelled arrows.

STEP 5: TRANSMISSION CASE

Slidethelockingplateoverthelargediametershaftat

the leg end of the frame with the rim facing inwards as

shown. Secure with two M8X25 bolts, each with a nut,

lockandatwashers.

Original Language Version

Insertthespringwiththewasheronthetopintothesleeve

Onthetippingwheel.Slidethewheeloverthelarger 

diameter shaft until the holes in the bracket line up with the

drilledhole.InsertaM10X65hexboltwithaatwasherand

screwonanutwithaatwasherfromtheotherside.Screw

thenutupagainstthebracketrmly,butnotsotightlysoas

topreventthewheelfrompivotingaboutthebolt.Tightenthe

M10X30socketheadcapscrewonthesleevetoadjustthe

Spring tension.

NOTE:Thewheelmustbeallowedtopivotabouttheboltso

that the lugs on the bracket can be engaged or disengaged

From the slots in the locking plate.

Line up the keyways, slide the

transmissioncaseoverthe 

pinion shaft.

Secure the case to the frame with four

M8nutsandatwashers.

CMX125 Issue:1 12/05/25

Original Language Version

7. OPERATION

 WARNING! DO NOToperatewiththemotorcoveropen.

7.1. Check that mixer is standing securely and that there is

enough area around it to work safely.

7.2. Connect to mains supply.

7.3.  Switchmixeron(switchislocatedonsideofmotorcover).

7.4. DRUM TILTING

 Thespring-loadedtippingwheelwithlockinglugs,provides

 aneasypositivecontrolofthedrumwhichcanbelockedin

the mix, discharge and stored positions.

 Thedrumislockedinpositionbylugsontheself-locating

tipping wheel which engage into the locking plate on the

mixer frame. To tilt the drum, withdraw the tipping wheel to

 dis-engagethelockinglugs.Thisthenallowsthetipping

wheel and drum to be turned in the same direction.

To retain the drum in position, aligning the lugs with the slots,

release the tipping wheel a little while retaining the drum.

Rotate the tipping wheel until the locking lugs engage into

the locking plate on the mixer frame.

7.5. LOADING

Always start the mixer before loading the drum.

Load the drum with drum rotating.

8 DO NOTthrowmaterialintothemixertoavoiditsticking

 tothebackofthedrum.Trickleitsteadilyovertherim.

For best results, proceed as follows:

 1.Addtherequiredamountofgravelintothedrum.

2. Add the required amount of cement into the drum.

2. Add the required amount of sand into the drum.

 4.Pourtherequiredamountofwaterintothedrum.

7.6. EMPTYING

8 DO NOTturnmixero󰀨whilstitstillhasaload.

Empt the drum with drum rotating.

NOTE:Abuilt-inthermalprotectorisarrangedinthemotor

 topreventitfromoverheating.Thethermalprotectorrestores

automatically when the motor cools down.

7.7. IN EVENT OF BREAKDOWN /EMERGENCY STOP:

Switchmixero󰀨(ifitissafetodoso)orifnotdisconnect

 frommainssupply.Investigatefault.

7.8. CLEANING

 WARNING!Neverputhandsinsidethedrumwithdrum

rotating.

Thoroughly clean the mixer at the end of each day’s

operation. Keep your mixer clean. The slightest trace of

material left in the drum will harden and attract more each

time you use it until the machine is useless.

Dried cement should be scraped out of the drum.

8 DO NOT throw bricks into mixer drum to clean it out.

8 DO NOT beatonthedrumwithashovel,ahammeror

other tools to break up accumulations of dried cement mix,

as damage to the mixer may result. The drum may be

 scouredforapproximate2minutes,using1”graveland

water mixture.

 Thendischargethegravel/watermixtureandhosedownthe

 drumassemblyinsideandout.TheIP45Dprotectionclass

construction of the concrete mixer enables you to

hose down the drum assembly safely.

8 DO NOTpourorspraywaterdirectlyoverthemotorcover,

8 especially the openings.

 Wipeo󰀨anyexternalmaterialonthemotorcover.

8 DO NOT use petrol, turpentine, lacquer or paint thinner,

 drycleaninguidsorsimilarproducts.Theuseofchemical

 productsorsolventsmaya󰀨ectthepropertiesofthecover

which is made of high density PET.

8. MAINTENANCE

 WARNING!Removefrommainspowersupplybefore

 performingMaintenanceorifthemotorcoveristobe

 removed.

8.1. Maintenance is only to be performed by correctly instructed

persons.

8.2. Before each use check integrity of: tipping mechanism and

 thatxingsaretight.

8.3.  Thedrivebeltisunderconstanteventensionbyaspring

loaded jockey. No adjustment is required apart from a touch

of grease on the spindle.

8.4. The bearings are sealed for life.

9. END OF LIFE

9.1.  Dismantlemixer(performreverseofassemblysection).

9.2. Recycle according to regulations in force.

ENVIRONMENT PROTECTION

Recycle unwanted materials instead of disposing of them

as waste. All tools, accessories and packaging should be

sorted, taken to a recycling centre and disposed of in a

mannerwhichiscompatiblewiththeenvironment.When

theproductbecomescompletelyunserviceableandrequires

disposal,drainanyfluids (ifapplicable)intoapproved

containers and dispose of the product and fluids according

to local regulations.

WEEE REGULATIONS

Dispose of this product at the end of its working life in

compliancewiththeEUDirectiveonWasteElectricaland

ElectronicEquipment(WEEE).Whentheproductisno

longerrequired,itmustbedisposedofinanenvironmentally

protectiveway.Contactyourlocalsolidwasteauthorityfor

recycling information.

Note:Itisourpolicytocontinuallyimproveproductsandassuchwe

reservetherighttoalterdata,specificationsandcomponentparts

without prior notice.

Important: No Liability is accepted for incorrect use of this product.

Warranty: Guarantee is 12 months from purchase date, proof of which

is required for any claim.

PURCHASE HERE

CMX125 Issue:1 12/05/25

Sealey CMX125 550W Cement Mixer 125L

Product's Documents

Instructions

Specifications

Sealey CMX125 Questions and Answers
