G26
Instruction Manual
SMART CORDLESS
SELF-STANDING
VACUUM CLEANER
Please carefully read and fully understand
this Manual before using this product,
and keep this Manual properly for further
reference.
Official website: www.dibea.com
Customer support: us-suppor[email protected]
Disclaimer
Thank you for choosing our G26 cordless vacuum cleaner. The information in this user
manual affects your safety and your legal rights and responsibilities. Read this entire
manual carefully to ensure proper configuration before use. Failure to read and follow
instructions and warning in this document may result in serious injuries or death to
yourself or others, damage to the product, or damage to other objects in the vicinity.
By using this product, you hereby signify that you have read this entire user manual
carefully and that you understand and agree to abide by the terms and conditions herein.
You agree that you are solely responsible for your own conduct while using this product,
and any consequences thereof. You agree to use this product only for purposes that are
proper and in accordance with all applicable laws, rules, and regulations, and all terms,
precautions, practices, policies, and guidelines Suzhou DIBEA Electrical Technology Co., Ltd.
has made and may make available.
Suzhou DIBEA Electrical Technology Co., Ltd. accepts no liability for damage, injury or any
legal responsibility incurred directly or indirectly from the use of this product. The user
shall observe usage and lawful practices including, but not limited to, those set forth in
this documents. If your vacuum cleaner is damaged due to abuse, negligence, incorrect
use or failure to configure original accessories, you will lose the right of after-sales service,
and all warranty applications submitted to the DIBEA Brand Suzhou Service Center will be
rejected.
This manual contains the latest information as of printing, and we reserve the right at any
time, in our sole discretion, to make enhancements to, replace, modify, discontinue or add
to the products, including revisions to any and all specifications for the Products. We will
use reasonable commercial efforts to provide you notice of any material changes. For up-
to-date product information, visit www.dibea.com.
Without the permission and authorization of the Company, this publication shall be stored
in the retrieval system and no one can copy or disseminate it in any form.
Content
IMPORTANT SAFEGUARDS
…………………………………………………………
1-3
Product View
…………………………………………………………………………………………………… 4
Use guide
…………………………………………………………………………………………………………… 5-7
①
Assembly
…………………………………………………………………………………………………… 5
②
Operation
…………………………………………………………………………………………………… 5
③
Charging
……………………………………………………………………………………………………… 6
④
Replace the battery
………………………………………………………………………………… 7
Cleaning and Maintenance
………………………………………………………………………… 8-12
①
Take out the HEPA filter
………………………………………………………………………… 8
②
Take off the cyclone filter
……………………………………………………………………… 8
③
Disassemble the motorized floor nozzle
………………………………………… 9
④
Cleaning
……………………………………………………………………………………………………… 10
Storage and Disposal
…………………………………………………………………………………… 13
①
Storage
………………………………………………………………………………………………………… 13
②
Dispose the battery
………………………………………………………………………………… 13
Trouble-shooting
…………………………………………………………………………………………… 14
Specifications
…………………………………………………………………………………………………… 15
1-Year Limited Warranty
……………………………………………………………………………… 16
1
1.
KEEP AWAY FROM WATER.
2. Keep the product away from hot objects or any heat sources.
3. To avoid excessive heat and damage to the unit or battery, the vacuum cleaner will not
operate while charging.
4. Do not operate the vacuum cleaner or charger if it has been damaged in any way.
1.
THIS IS NOT A TOY.
Close attention is necessary when used by or near children.
2. Children under 10 years old and persons with physical or mental disabilities must be
supervised when using;
3. Plastic film can be dangerous.To avoid danger of suffocation,keep away from babies and
children.
4. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving
parts.
5. Do not put any object into openings. Do not use with any openings blocked; keep free
of dust, lint, hair and anything that may reduce air flow.
6. Use extra care when cleaning stairs.
7. Have servicing performed by a qualified repair person using only identical replacement
parts.
8. Do not touch nozzle when the vacuum cleaner is on.
9. Use only as described in this manual. Use only DIBEA or DIBEA-authorized attachments.
10. Do not pick up hard or sharp objects such as glass, nails, screws, coins,etc.
11. Do not use without filters in place.
IMPORTANT SAFEGUARDS
When using an electrical appliance, basic precautions should always be followed,
including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER
Failure to follow the warnings and instructions may result in electric shock,fire and/or
serious injury.
Personal Safety:
Electrical Safety:
2
5. Do not operate the vacuum cleaner if it is not working as it should, has been dropped,
damaged, left outdoors, or dropped into water.
6. Do not operate the vacuum cleaner while charging.
7. Do not use the vacuum cleaner in a non-household environment.
8. Do not unplug by pulling on the cable. To unplug,grasp the plug,not the cable. The use
of an extension cable is not recommended.
9. Keep the cable away from sharp objects.
10. This charger is not intended for use by travelers.
11. Do not use extension cords or outlets with inadequate current carrying capacity for the
charger.
12. When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from
one terminal to another. Shorting the battery terminals together may cause burns or a fire.
13. Do not intend to modify the battery. Do not use a battery pack or appliance that is
damaged or modified.
14. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot
ashes.
15. Do not pick up anything that is wet, moisture, not dry or use in areas where they may
be present.
16. Do not pick up any dangerous chemicals or use in areas where they may be present.
17. Always turn 'OFF 'the appliance before connecting or disconnecting the motorized
brush bar.
18. Unplug when not in use for extended periods and before maintenance or servicing.
19. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause irritation or burns.
20. Please dispose the battery properly according to local regulations.
21. Please do not use the vacuum cleaner on any rough surfaces, such as cement pavement
and asphalt pavement.
22. Please do not turn the machine upside down when replacing the filter to prevent
liquid or dust from falling into the motor and causing malfunction and danger.
IMPORTANT SAFEGUARDS
3
IMPORTANT SAFEGUARDS
SAVE THESE INSTRUCTIONS FOR FURTHER USE.
1. KEEP AWAY FROM WATER.
2. KEEP AWAY FROM HEAT SOURCES.
3. This DIBEA appliance is intended for household use
only.
4. If there’s anything wrong with this vacuum cleaner,
stop operating and contact DIBEA customer service for
help.
Warning:
4
Product View
ON/OFF trigger
Battery pack
Dust cup release
Wand
Motorized
floor nozzle
LED display
Dust cup
Wand release
Motorized floor nozzle
release
Charger
Cleaning
tool
Mattress
tool
2-in-1
upholstery tool
Crevice tool
5
1. Slide wand onto hand vacuum until it clicks.1. Slide wand onto hand vacuum until it clicks.
2. Push wand into the nozzle until it clicks.2. Push wand into the nozzle until it clicks.
3. To remove the wand/nozzle, click the red release button and pull it off.3. To remove the wand/nozzle, click the red release button and pull it off.
1. Click power button once to start/turn OFF the vacuum cleaner. 1. Click power button once to start/turn OFF the vacuum cleaner.
Vacuum starts at STANDARD speed.Vacuum starts at STANDARD speed.
Assembly
Operation
Use guide
ON/OFF Trigger Press the ON/OFF trigger to start.
Click
Click
6
2. Click the fingerprint icon in the center of the LED display to adjust desired suction 2. Click the fingerprint icon in the center of the LED display to adjust desired suction
modes.modes.
3. Press the ON/OFF trigger for the second time to stop working.3. Press the ON/OFF trigger for the second time to stop working.
Step 1. When the power indicator number is less than 10%, the battery power is low and Step 1. When the power indicator number is less than 10%, the battery power is low and
needs to needs to be charged. be charged.
Step 2. Connect the charger to the power outlet and the charging port on the battery, a Step 2. Connect the charger to the power outlet and the charging port on the battery, a
blinking blue light on the battery indicates that charging is in progress.blinking blue light on the battery indicates that charging is in progress.
Charging
Use guide
Tangle
warning
ECO
Speed
Speed +/-
Battery indicating lights
LED 1 flashing Charging/Low-battery
Led 3
Led 2
Led 1
All lights ON Fully charged
LED 1 & 2 on, LED 3
flashes
Charging
MAX
Speed
Standard
Speed
Power
Indicator
Full Dust Cup
Warning
Suction
Mode Ring
7
Use guide
Tips:
1. Please fully charge the battery when the package arrives, and charge it at least once a
month even the machine is not in use.
2. According to different requirements, there are two charging methods:
a. The charger is connected to the charging port on the battery to charge.
b. Install the wall-mount to the wall using expansion screws, connect the charger and the wall-
mount, and place the vacuum cleaner on the wall-mount to charge.
Step 1. Click the battery release button on side of the battery.
Step 2. Pull out the battery.
Step 3. Insert the battery forward.
Wall-mount
charging port
Battery
charging port
Replace the battery
8
Cleaning and Maintenance

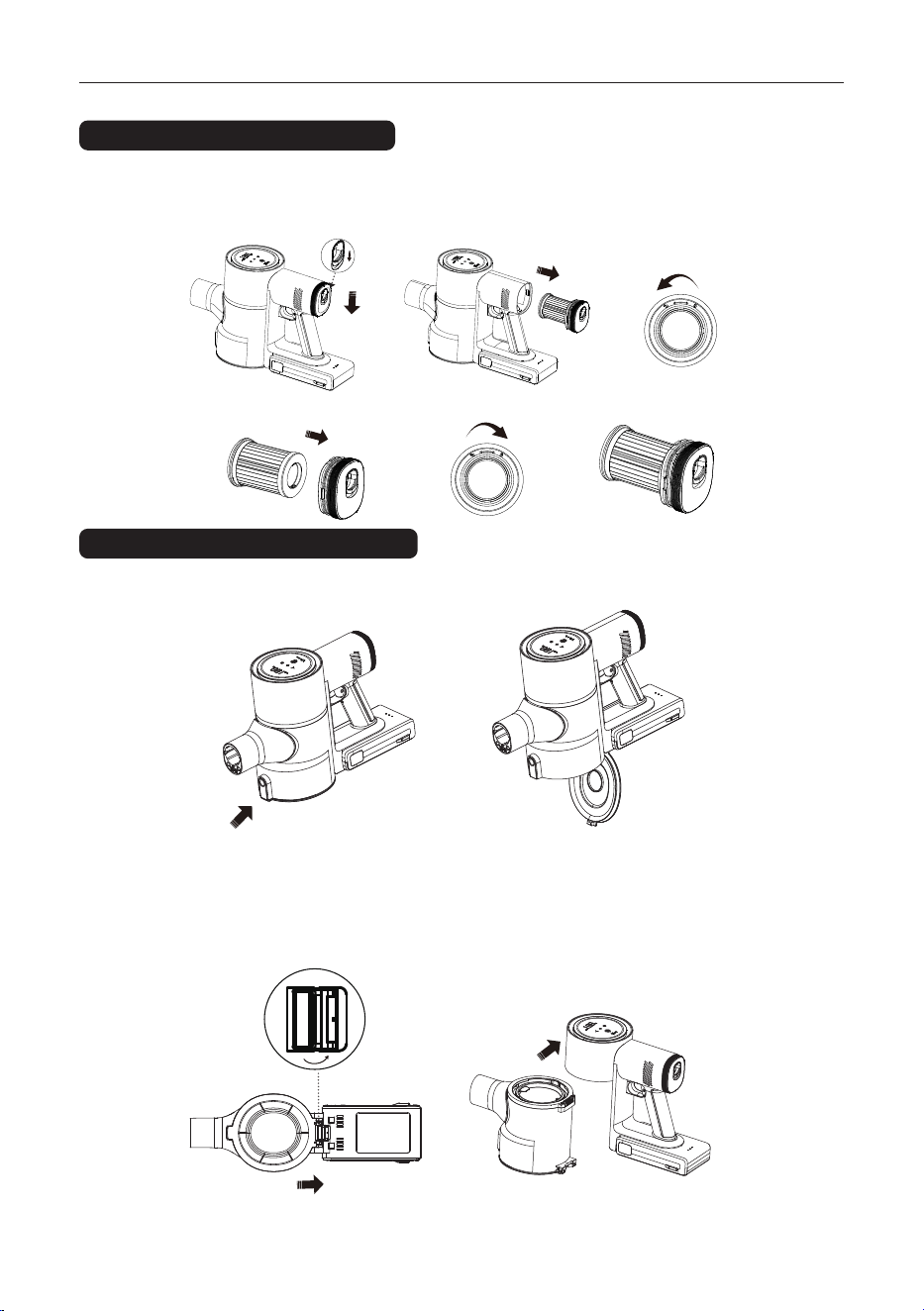

Step 1. Press the HEPA release button down, and pull it out.
Step 2. Gently twist counterclockwise the HEPA filter and take it down.
Step 1. Click the dust cup release button on bottom of the dust cup, release the dust inside.
Step 2. Push the dust cup release buckle in between of the dust cup bottom and the battery in
the direction of the battery, gently pull out the dust cup.
Take out the HEPA filter
Take off the cyclone filter
Dust cup release
lock
lock
unlock
unlock
9
Cleaning and Maintenance
Disassemble the motorized floor nozzle

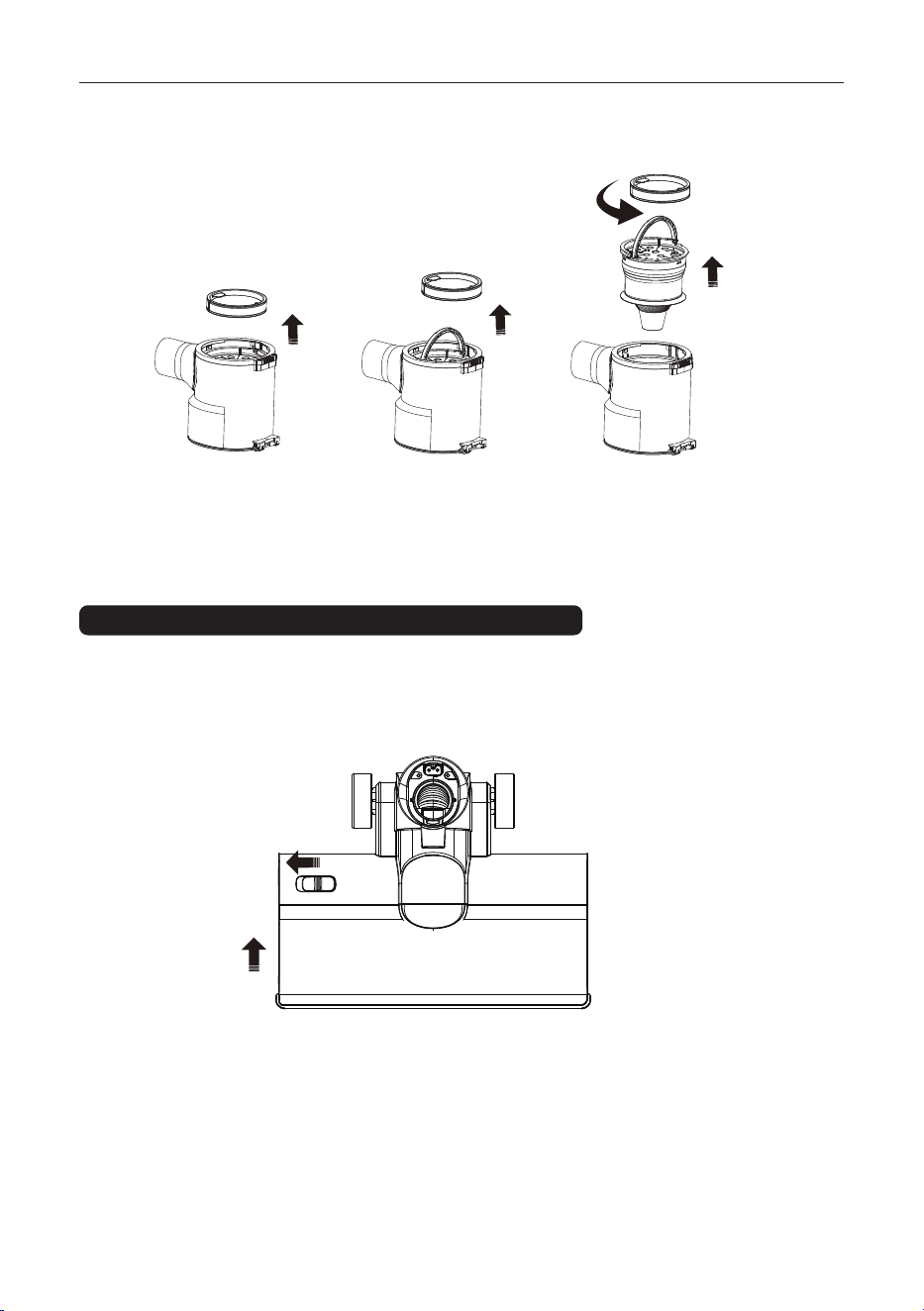

Step 3. Pick up the handle at the top of the cyclone filter, rotate counterclockwise to unlock the
cyclone filter, and pull it out.

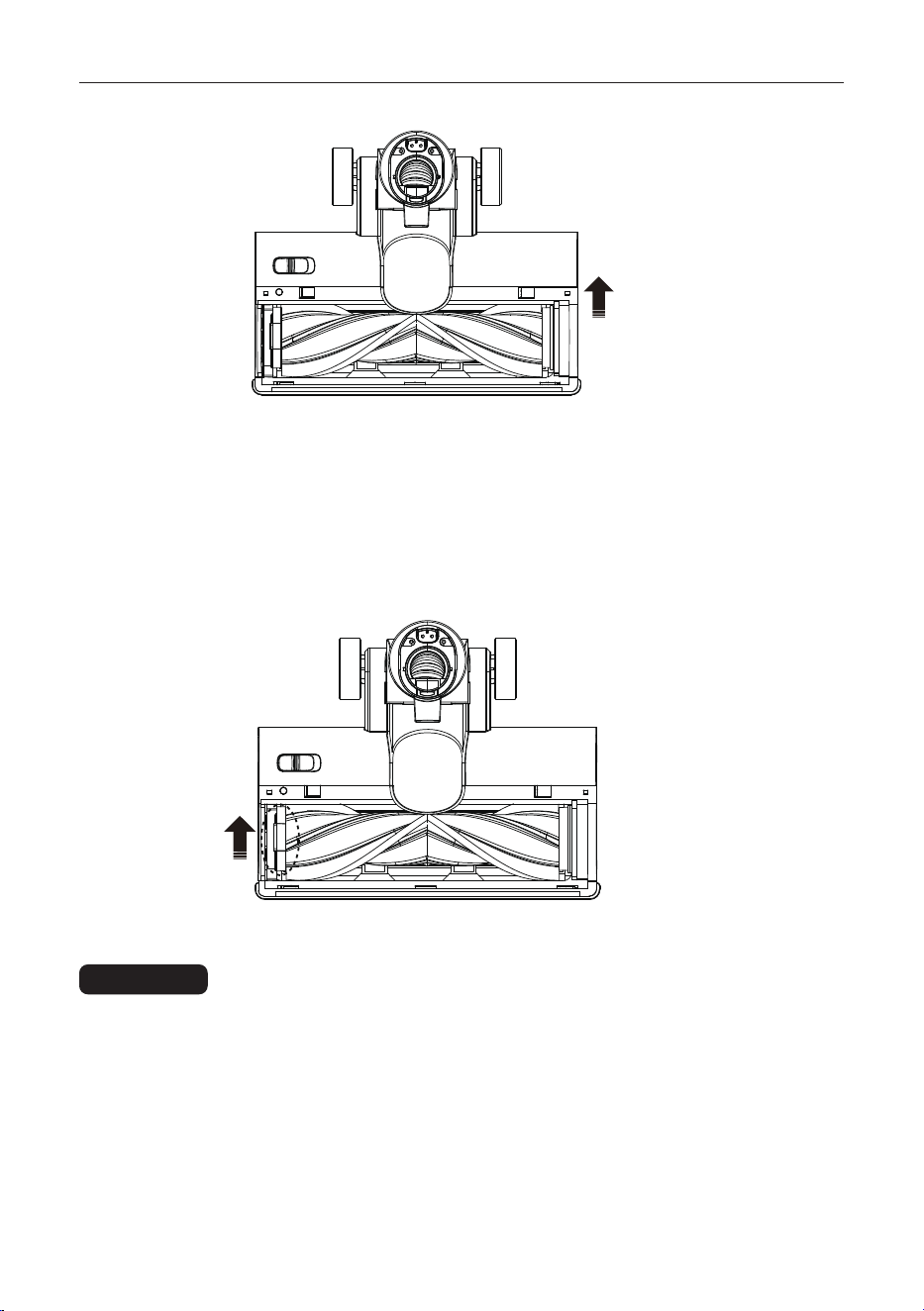

1. Pull the red toggle on top of the motorized floor nozzle to the left, and fixing it on the left
position with one hand.
2. Lift the cover up to remove it with the other hand.
3. Lift up the white handle on the left side of the brush-roll to take it off.
Take out the
cotton filter.
Pick up the handle
at the top of the
cyclone filter.
Rotate counterclockwise
to unlock the cyclone
filter, and pull it out.
1. Turn left
2.Pull up
10

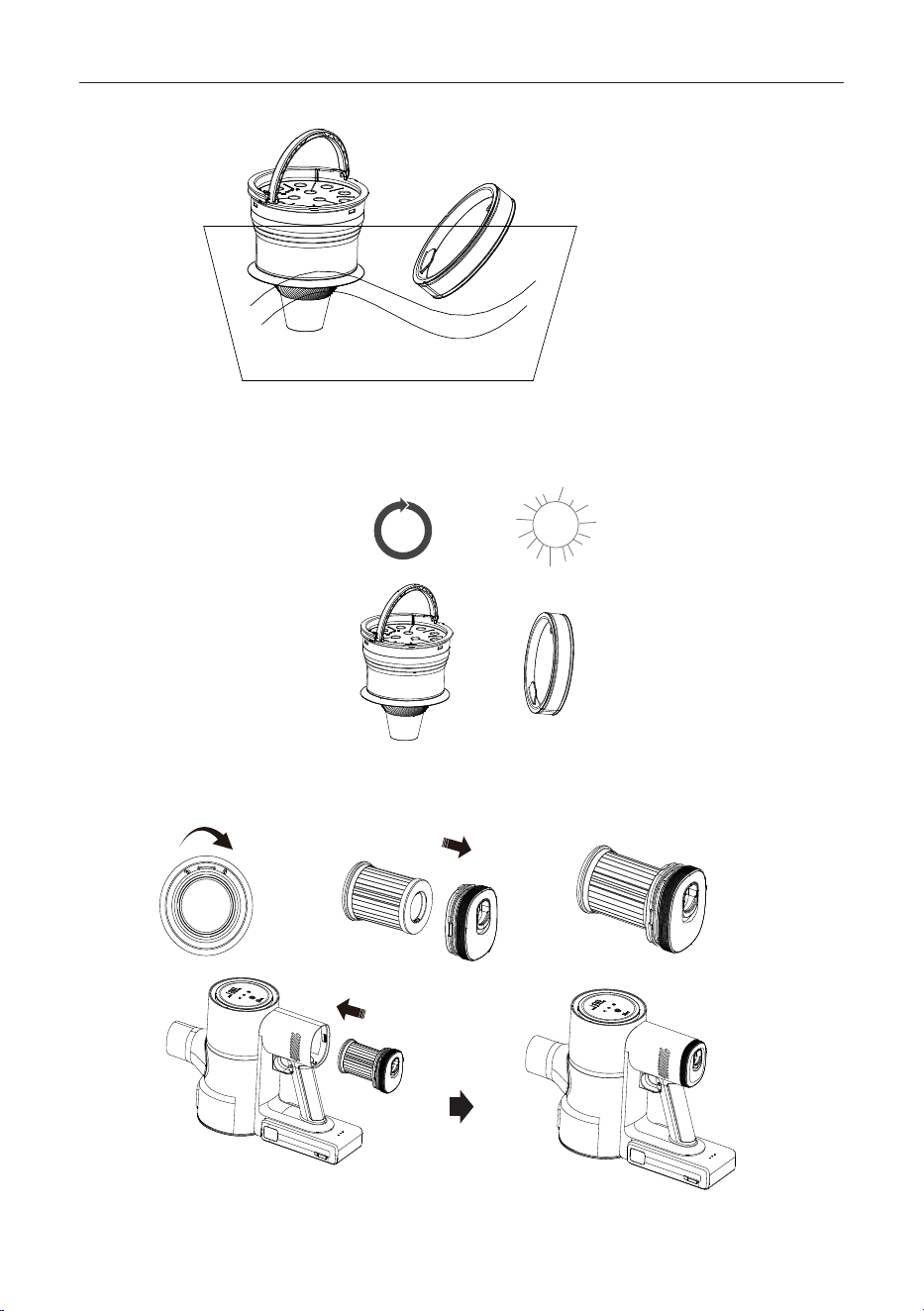

Cleaning and Maintenance
Cleaning
Step 1. Wash the HEPA filter, cyclone filter, cotton filter, brush-roll and dust cup with cool tap
water
Note: Please wash the filter at least ONCE A month, and replace it every three to six months to
remain its powerful suction.
4. When installing the brush-roll, align the right side of the brush-roll with the snap of the
motorized floor nozzle for installation, and then press the left end of the brush-roll down into
the groove, and the brush-roll is installed successfully.
11
Cleaning and Maintenance
Step 3. Make sure all the parts are DRY, and install the HEPA filter back as shown.
Step 2. Let the HEPA filter, cyclone filter, cotton filter, brush-roll and dust cup
DRY COMPLETELY.
24
hrs
12
6
11
10 2
8
4
9 3
1
7
5
Cool clean tap water
lockunlock
12

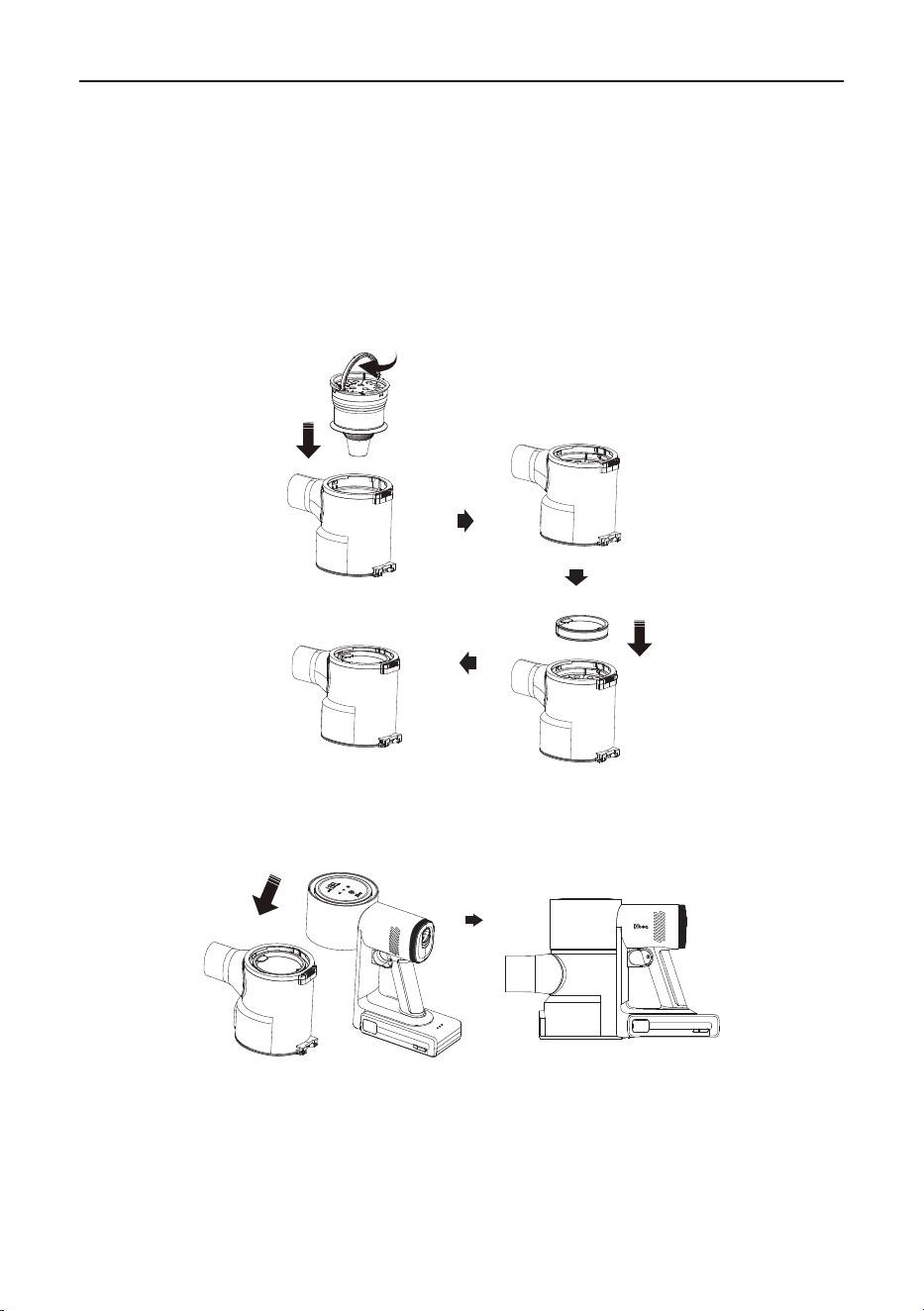

Cleaning and Maintenance
Step 6. Put the motor down on the dust cup, rotate the dust cup as shown.
Step 4. Put the cyclone filter into the dust cup, rotate it clockwise until the “0” mark on the
cyclone filter is at the middle of the dust cup hole. Press the cyclone filter down and lower the
handle.
Please note: If the handle cannot be fully laid down, the cyclone filter is not installed right,
please try it again.
Step 5. Place the cotton filter in the dust cup.
13
Storage and Disposal
1. Please store the machine in a cool dry household place, and keep it away from all heat
sources, moisture or water.
2. Please fully charge the battery when the package arrives, and charge it at least once a
month even it is not in use.
3. Please wash the filters every three times of use, and change the HEPA filter and cotton filter
after 3 months of daily use.
1. This battery is NOT removable or serviceable by the user. If the Li-ion battery becomes
damaged, contact the battery or device manufacturer for specific handling information. Even
used batteries can have enough energy to injure or start fires.
2. Please do not dispose the lithium-ion batteries in household garbage or recycling bins.
3. Lithium-ion batteries SHOULD be taken to separate recycling or household hazardous waste
collection points. Find a recycling location near you to properly dispose of Li-ion batteries.
4. To prevent fires, place each battery or device containing a battery in a separate plastic bag.
Place non-conductive tape (e.g., electrical tape) over the battery’s terminals.
5. Check if your local community has a battery recycling program. Many cities and towns
offer free battery recycling services at designated drop-off locations. This is often the most
environmentally-friendly option for disposing of batteries.
6. Take the battery to a designated drop-off location for proper disposal. Check with your local
waste management agency to find out where to dispose of household lithium-Ion batteries.
7. Avoid disposing of batteries in public places. Throwing batteries in public places can be
dangerous, as children or animals can accidentally ingest them. In some areas, it is illegal to
dispose of batteries this way.
8. Wash your hands after handling the battery. If your skin comes into contact with a battery
leak, wash immediately with warm soapy water and contact your local hospital or clinic for
medical advice.
Storage
Dispose the battery
14
Trouble-shooting
Poor suction
1.Clean up the dust cup, filters, and brush-roll.
2.Check if the suction port of the dust cup or the wand is
blocked.
3.Change the HEPA filter or the cotton filter.
1.Charge the battery.
2.Clean up the dust cup, filters, and brush-roll. Make sure
there is not tangle or blockage.
Please contact DIBEA customer service when all the check-ups and clean-ups are finished and
the problem still exists.
Customer service: us-suppor[email protected]
1.Make sure the charger is connected.
2.Check if the power socket is working.
3.Check if the charger is broken.
Clean up the brush-roll. Remove the tanglement.
Stop working
Non-chargeable
Brush-roll not working
Note:
15
Specifications
Rated voltage
Rated power
Battery capacity
Charging time
Input voltage
Output voltage
Dust cup capacity
25.9 V
500 W
2500 mAh
3-4 h
100-240 V
30 V
680 ml
16
If a claim is received within one year of receipt and the product is found to have failed
under the warranty we shall, at our option:
repair the product,
exchange the product with a product that is new or which has been manufactured
from new or serviceable used parts and is at least functionally equivalent to the original
product.
Please note: Easily damaged accessories including filters, brush heads, non-slip strips, etc.
are not covered by our warranty, but if the product accessories are damaged within one
year, you can contact us via amazon message for related accessories, we will offer you with
discounts .
The warranty gives you specific rights and you may also have other rights, which vary in
different states and countries. Our company warrants to the original consumer purchaser
that this product is free of defects in materials and workmanship for 1 year from the
purchase date. This warranty does not cover (a) normal wear and tear (including, without
limitation, wear and tear of batteries, if applicable), (b) defects caused by rough or
inappropriate handling or use or damage caused by accident, misuse, neglect, fire, water,
lightning or other acts of nature, (c) if the product contains a battery and the fact that the
battery has been short-circuited, if the seals of the battery enclosure or the cells are broken
or show evidence of tampering or if the battery has been used in equipment other than
those for which it has been specified, (d) non-compliance with the product instructions, (e)
willful or deliberate damage, neglect or negligence, (f) use of spare parts, an unauthorized
cleaning solution if applicable, or other replacement items (including consumables) which
are not provided or recommended by us, (g) any alteration or modification to the product
which has been carried out by you or a third party not authorized by us, (h) any failure
to adequately package the product for transportation, (i) extreme or external causes
beyond our reasonable control including, but not limited to, breakdowns, fluctuations, or
interruptions in electric power, ISP (internet service provider) service, or wireless networks,
(j) weak and/or inconsistent wireless signal strength in your home, (k) any product(s)
purchased from unauthorized sellers/dealers/resellers. Some jurisdictions may not
allow limitations on how long an implied warranty lasts or the exclusion or limitation of
incidental or consequential damages, so the above exclusions or limitations may not apply
to you.
After-Sale Service: [email protected]
1-Year Limited Warranty
1-Year Limited Warranty
Address: No.19 Fuli Road, Wuzhong District, Suzhou, Jiangsu, China
Suzhou Dibea Electrical Technology Co., Ltd.
