OPTICAL ELECTRIC MOTORIZED TABLE
MODEL:WZ-3A
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: WZ-3A
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
OPTICAL ELECTRIC
MOTORIZED TABLE
- 2 -
Warning - To reduce the risk of injury, the user must read the instructions
manual carefully.
SAFETY INSTRUCTIONS
1. General safety information for the use of electrical devices:
To avoid injury from or electric shock, please ensure compliance with safety
instructions when using this device. Please read the instruction carefully and make
sure that you have understood it well. Keep the manual near the equipment to be
able to read it at any time.
Always use current sources connected to the ground and provide the necessary
voltage (indicated on the label on the device). If you have any doubts, let an
electrician check that the unit is properly grounded. Never use a damaged power
cable.
2. When operating the lifting platform, pay attention to safety protection to avoid
hands, feet and clothes being squeezed.
3. The lifting platform must be placed on a flat and solid ground to avoid
overturning.
4. When placing items, the center of gravity should be placed on the center of
gravity of the table, pay attention to not overload.
WARNING:
Changes or modifications to this product not expressly approved by the
party.responsible for compliance could void the user's authority to operate the
product.
- 3 -
FCC Information
CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment!
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This product may cause harmful interference.
2)This product must accept any interference received, including interference that
may cause undesired operation.
WARNING: Changes or modifications to this product not expressly approved by
the party.responsible for compliance could void the user's authority to operate the
product.
Note: This product has been tested and found to comply with the limits for a Class
B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to
provide reasonable protection against harmful interference in a residential
installation.
This product generates, uses and can radiate radio frequency energy, and if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this product does cause
harmful interference to radio or television reception,which can be determined by
turning the product off and on, the user is encouraged to try to correct the
interference by one or more of the following measures.
· Reorient or relocate the receiving antenna.
· Increase the distance between the product and receiver.
· Connect the product to an outlet on a circuit different from that to which the
receiver is connected.
· Consult the dealer or an experienced radio/TV technician for assistance.
- 4 -
MODEL AND PARAMETERS
Model
WZ-3A
Input
AC 120V 60Hz
Power
120W
Max. Capacity
55kg
Adjustable Height
630-810mm
Tabletop Size
580*400mm(A16) / 480*400mm(D16)
Materials
Steel+Density board

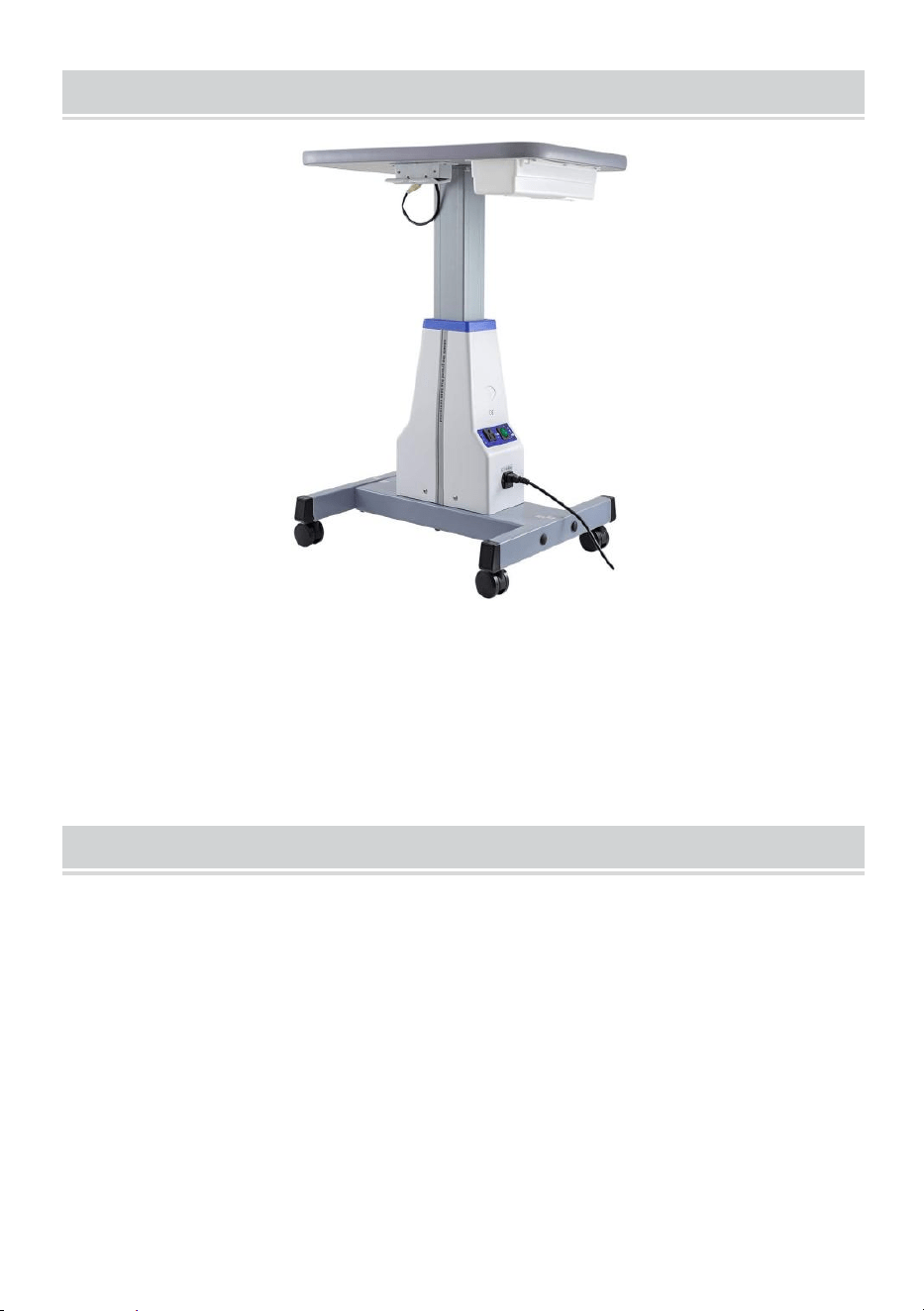

STRUCTURE DIAGRAM

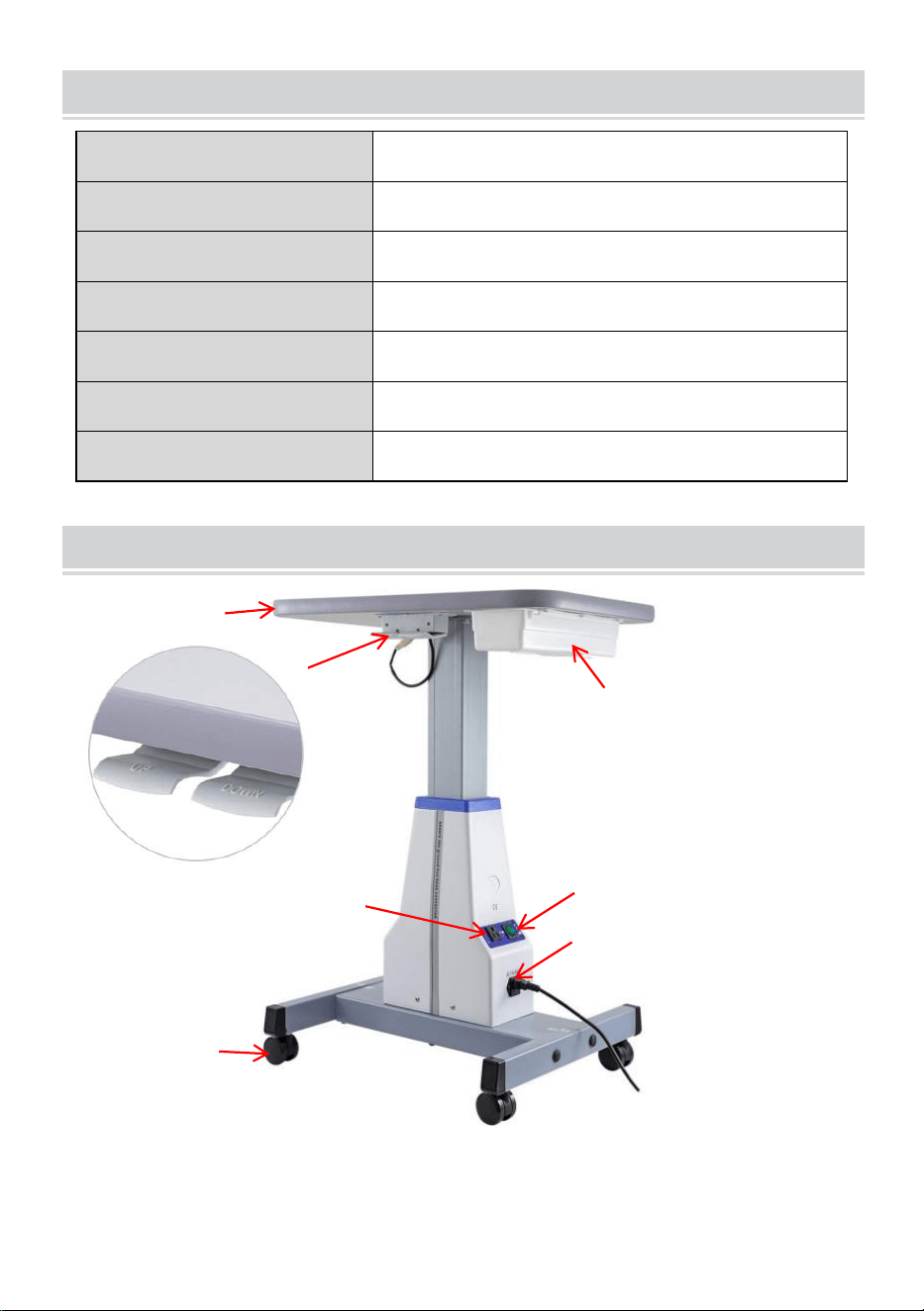

1.Table top 2.Switch(UP/DOWN) 3.Bottom drawer 4.Switch
5.External power socket(≤500W) 6.Power Socket(Built-in fuse)
7.Caster Wheel
1
3
4
2
5
6
7
- 5 -

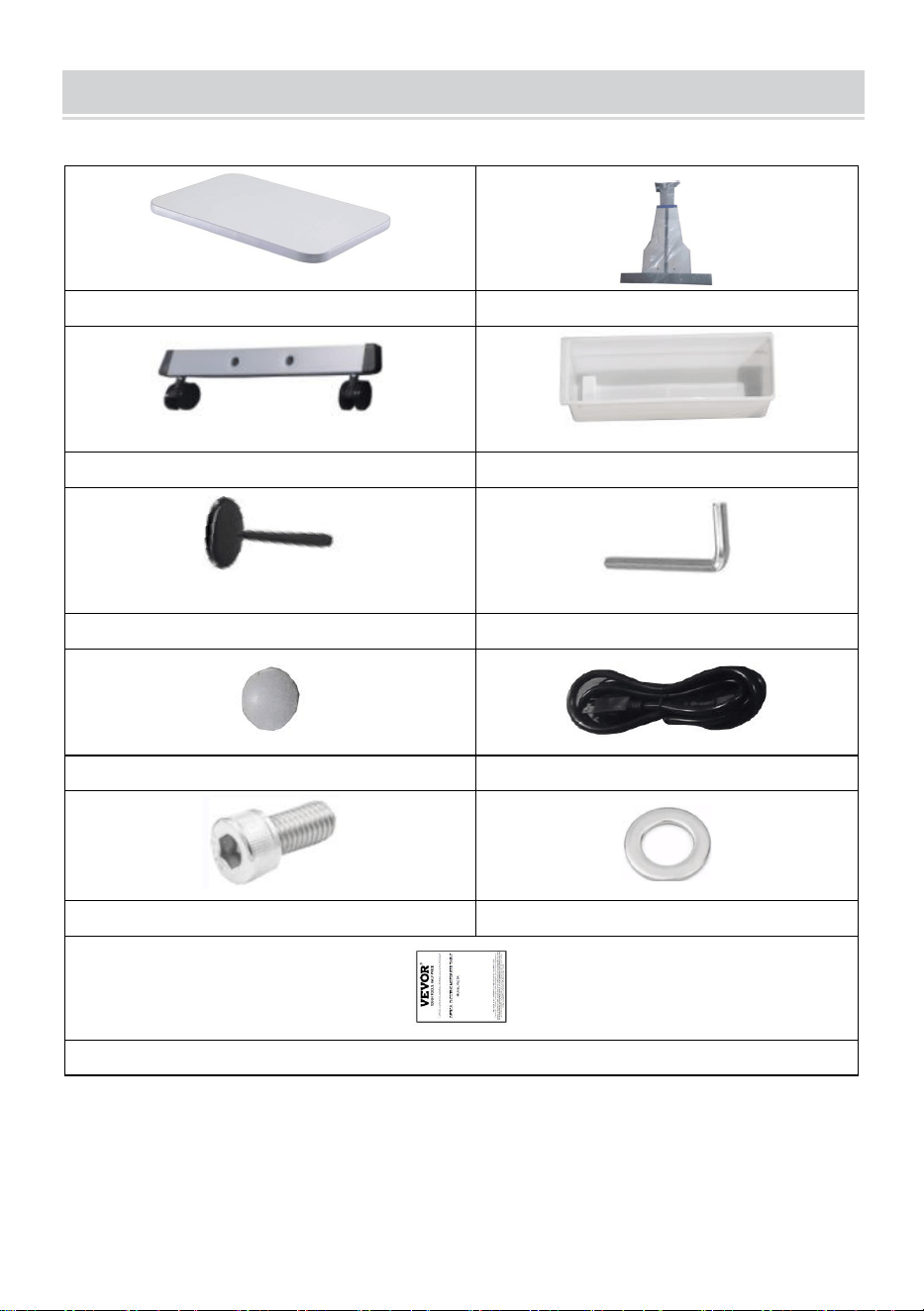

PARTS LIST
NOTE: Please check you have all the parts as shown in the part list.
Table Plate x1
Column Assembly x1
Square
＆
wheel Assembly x2
Bottom Drawer x1
Eye Mask x1
Hex Key x1
Plastic End Plug x4
Power Cord x1
Screw x8
Washer x4
User Manual x1
- 6 -
INSTALLATION
A. Install the two tripods with casters in the boxes on the both sides of the
elevator base respectively and tightening them.
B. Tight the table plate with four M8(With the washer) inside Hexagon
screw on the support board.
C. Plug the plug of the elevator into the socket in place by the same
direction.
FAULT REPAIR
①Around the foot platform is not parallel.
a) It can be used wrench to adjust up and down, respectively, the two
casters.
b) Such as the lifting platform of the feet have posted signs RL. Loosen the
screws of the RL wire and tighten the screws after the whole installation is
complete.
②The platform can not take-off and landing.
a) Check the power switch whether or not light up.
b) Check whether the plug inserted in place.
c) Check the power socket on the fuse is blown.
- 7 -
d) Inspection machines and table control switch plug is inserted in place.
③Slow rise and fall. (You are advised to contact professional
maintenance personnel.)
a) Check that the voltage used is correct - if the voltage is normal, the
starting capacitor can be replaced with a 10-12UF capacitor according to
the motor parameters.
MAINTENANCE
1. Wipe the table top regularly with a soft cloth and neutral cleaner, and be
careful not to use cleaners containing acidic and alkaline ingredients.
2. Electrical cords and sockets need to be checked regularly.
