FIRE PIT FLAME GUARD
MODEL:VV-FPWG-Y-17*6/VV-FPWG-Y-23*8/VV-FPWG-Y-26*6/
VV-FWG-FX1515/VV-FWG-FX248/VV-FWG-FX3810.5
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:VV-FPWG-Y-17*6/VV-FPWG-Y-23*8/VV-FPWG-Y-26*6/
VV-FWG-FX1515/VV-FWG-FX248/VV-FWG-FX3810.5
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
FIRE PIT FLAME GUARD
- 2 -
IMPORTANT SAFEGUARDS
WARNING: Read and understand this entire manual before
operating or servicing this product. Failure to follow these
warnings and instructions can cause personal injury or
damage to valuable property.
• Avoid children using boat trailer guides. And this product is not a toy. Do
not allow children to play.
• Keep away from sharp points,blades and other items.
• Assembly precautions.
1.Assemble only according to these instructions. Improper assembly can
create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during
assembly.
3.Keep assembly area clean and well-lit.
4.Keep bystanders out of the area during assembly.
5.Do not assemble when tired or when under the influence of alcohol,
drugs or medication.
6.Product capabilities apply to properly and completely assembled product
only.
7. For additional information regarding the parts listed in the following
pages, please refer to the Assembly Diagram of this manual. Unwrap and
separate all parts in a clean work area. Please keep small spare parts out
of children's reach.
SAVE THESE INSTRUCTIONS
PRODUCT INTRODUCTION
• Tempered glass wind guard fence is made of tempered heat resistant
glass.Aluminum linking clips offer firm connection and steady support.
• Fit around your fire table and assist to block breeze to compromise your
fire and enjoy a steady flame! A must-have fire pit supply to blend in your
patio and garden.
- 3 -
PRODUCT PAREMETERS
Model
Shape
Dimensions
LxWxH(mm)
board
thickness
(mm)
VV-FPWG-Y-17*6
round
435*435*170
6
VV-FPWG-Y-23*8
590*590*215
VV-FPWG-Y-26*6
660*665*165
VV-FWG-FX1515
square
380*380*180
8
VV-FWG-FX248
rectang
le
595*190*165
8
VV-FWG-FX3810.
5
965*270*150
PACKAGE INCLUDE
Model:VV-FPWG-Y-17*6/VV-FPWG-Y-23*8/VV-FPWG-Y-26*6
NO.
PIC
DESC
QTY
A
Glass Panel
4 pcs
B
Glass Top Holder
4 pcs
C
Glass Bottom Holder
4 pcs
- 4 -
D
Screwdriver
1 pcs
Model:VV-FWG-FX1515
NO.
PIC
DESC
QTY
A
Glass Panel
4 pcs
B
Glass Top Holder
4 pcs
C
Glass Bottom Holder
4 pcs
D
Screwdriver
1 pcs
Model:VV-FWG-FX248/VV-FWG-FX3810.5
NO.
PIC
DESC
QTY
A
Long Glass Panel
2 pcs
B
Short Glass Panel
2 pcs
C
Glass Top Holder
4 pcs
D
Glass Bottom Holder
4 pcs
E
Screwdriver
1 pcs
- 5 -
ASSEMBLY INSTRUCTIONS
Thanks for purchasing this quality product. Be sure to check all packing
materials carefully for small parts, which may have come loose inside the
carton during shipment. Identify and count all parts and compare with the
Hardware List above.
Easy to install, with several pieces of glass and corresponding fasteners
Please keep the glass inserted into the firmware at the correct angle
Properly tighten the screw to the glass can not shake can not be too tight to
cause damage to the glass
The assembly procedures of the three shape products are similar. Here we
take the round one and the rectangular one as an example. You can follow
the same steps of the rectangular one to finish the assembly for the square
one.
Model:VV-FPWG-Y-17*6/VV-FPWG-Y-23*8/VV-FPWG-Y-26*6
Step 1: Place the glass panels(Part A) on a clean and soft surface as a
blanket or carpet. Assemble the glass top holder(Part B) to 2 glass panels
by bolts and loosely tighten with screwdriver (Part D).
- 6 -

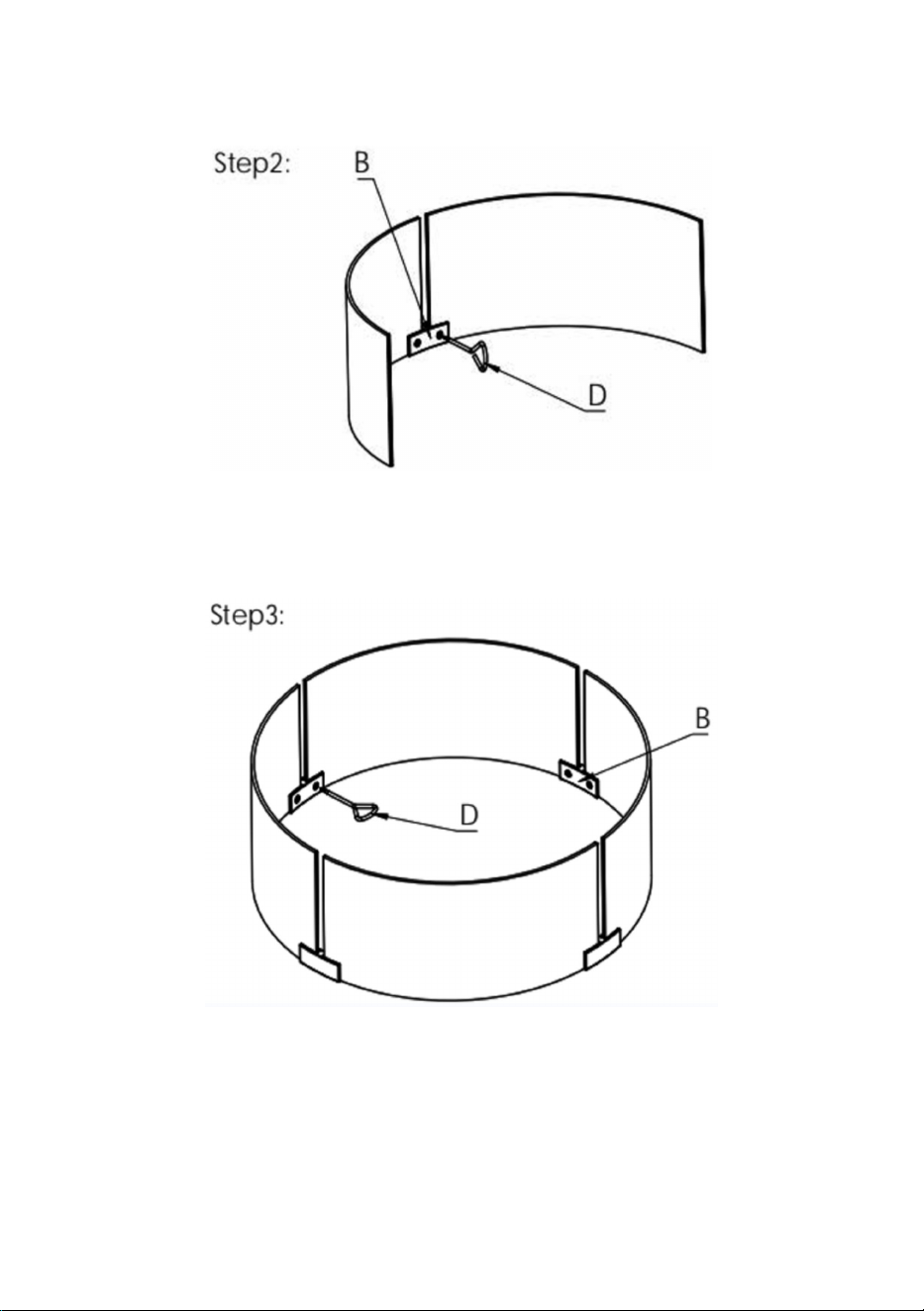

Step 2: Assemble the glass top holder(Part B) to the remaining 2 glass
panels by bolts and loosely tighten with screwdriver (Part D).
Step 3: Assemble 4 glass panels together by bolts and tighten with
screwdriver (Part D).

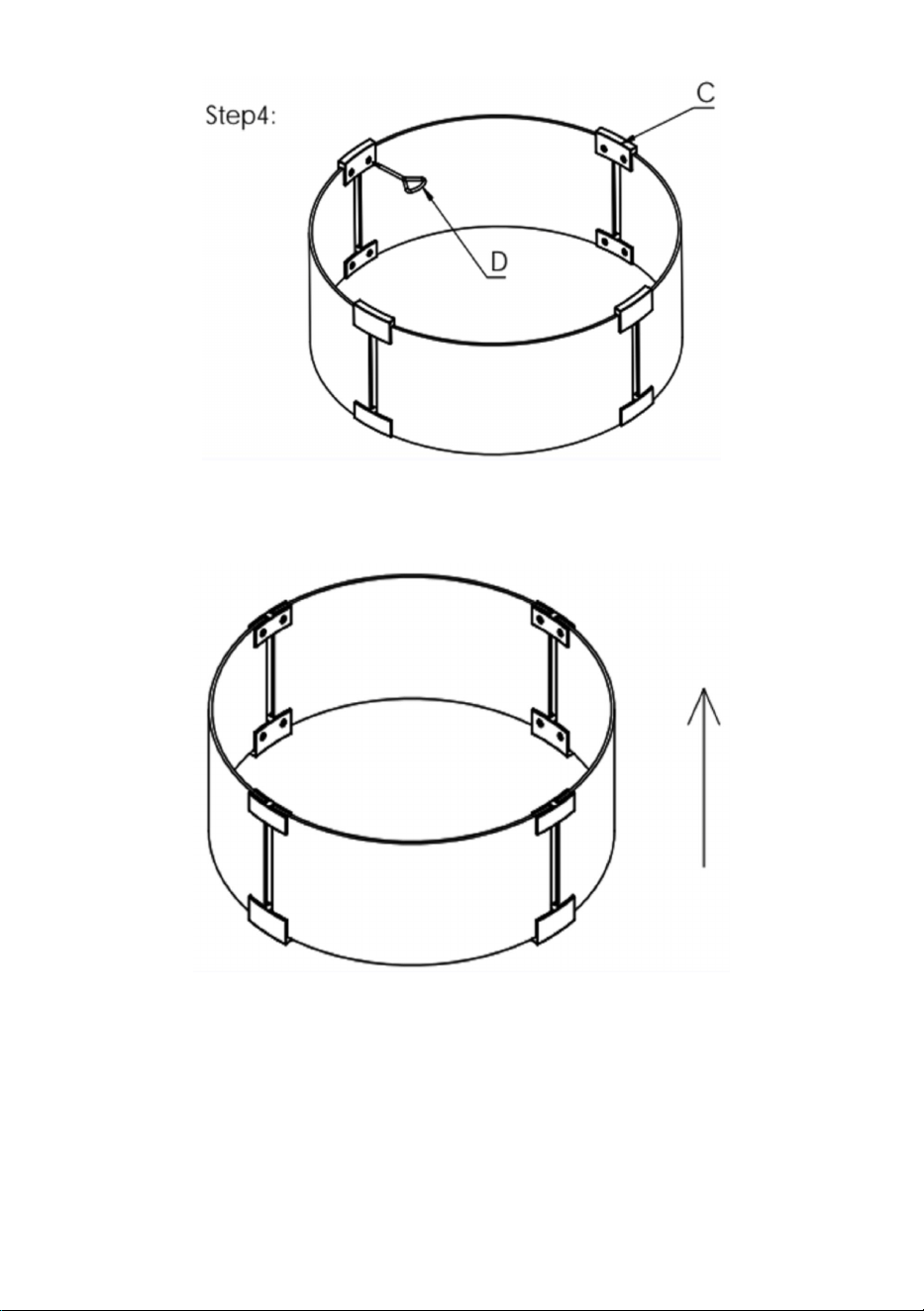

Step 4: Assemble the glass bottom holders(Part C) to the glass panels by
bolts and tighten with screwdriver (Part D).
- 7 -
Step 5: After tightening all bolts, your product is ready for use.
Model:VV-FWG-FX248/VV-FWG-FX3810.5

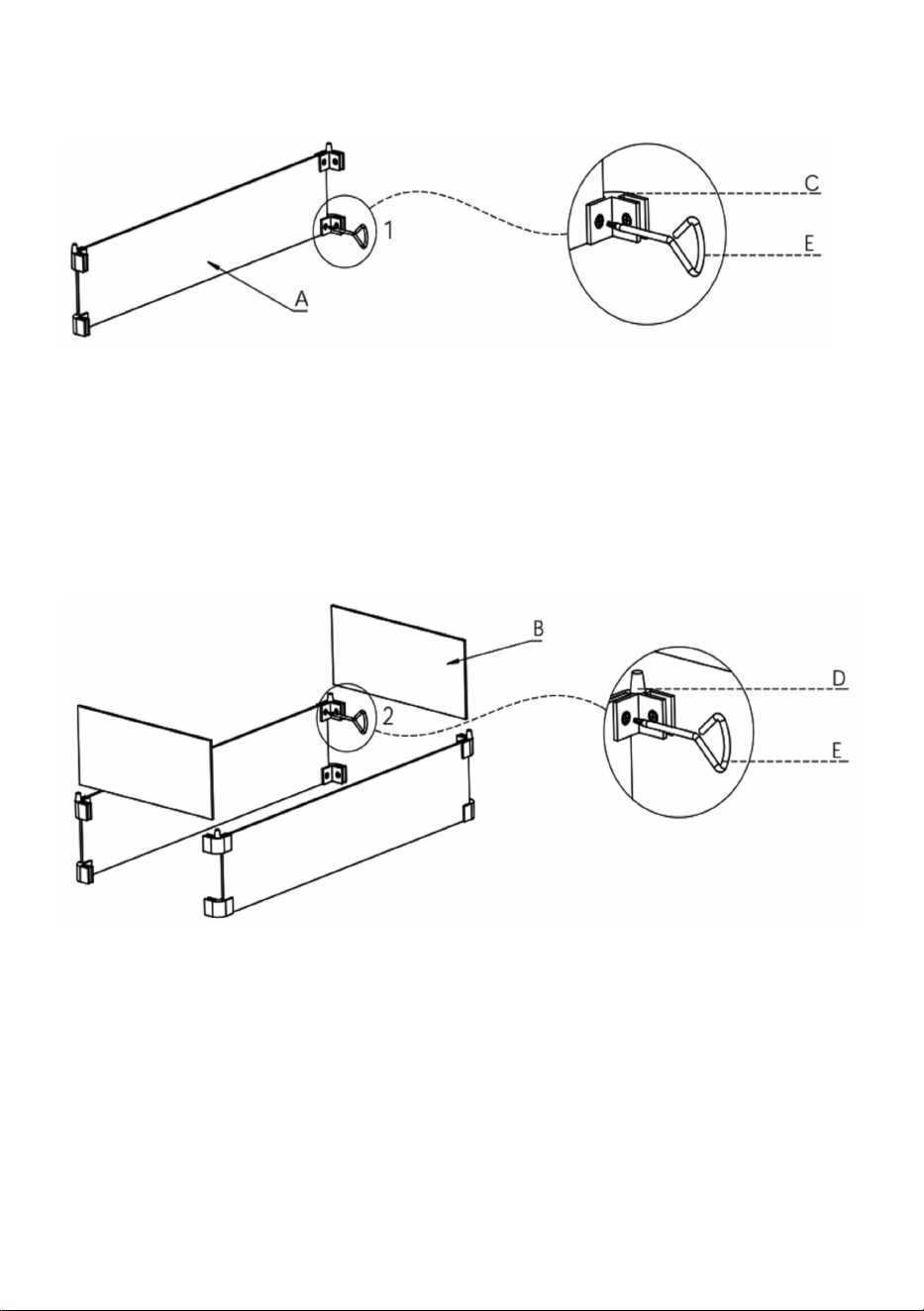

Step 1: Place the long glass panels(Part A) on a clean and soft surface as
a blanket or carpet. Assemble 2 class bottom Holders(Part D)and 2 glass
top holders(Part C)to long glass panels(Part A) by bolts and loosely tighten
- 8 -
with Screwdriver (Part E).
Step 2: Assemble the short glass panels(Part B) to long glass panels by
bolts and tighten with screwdriver (Part E).

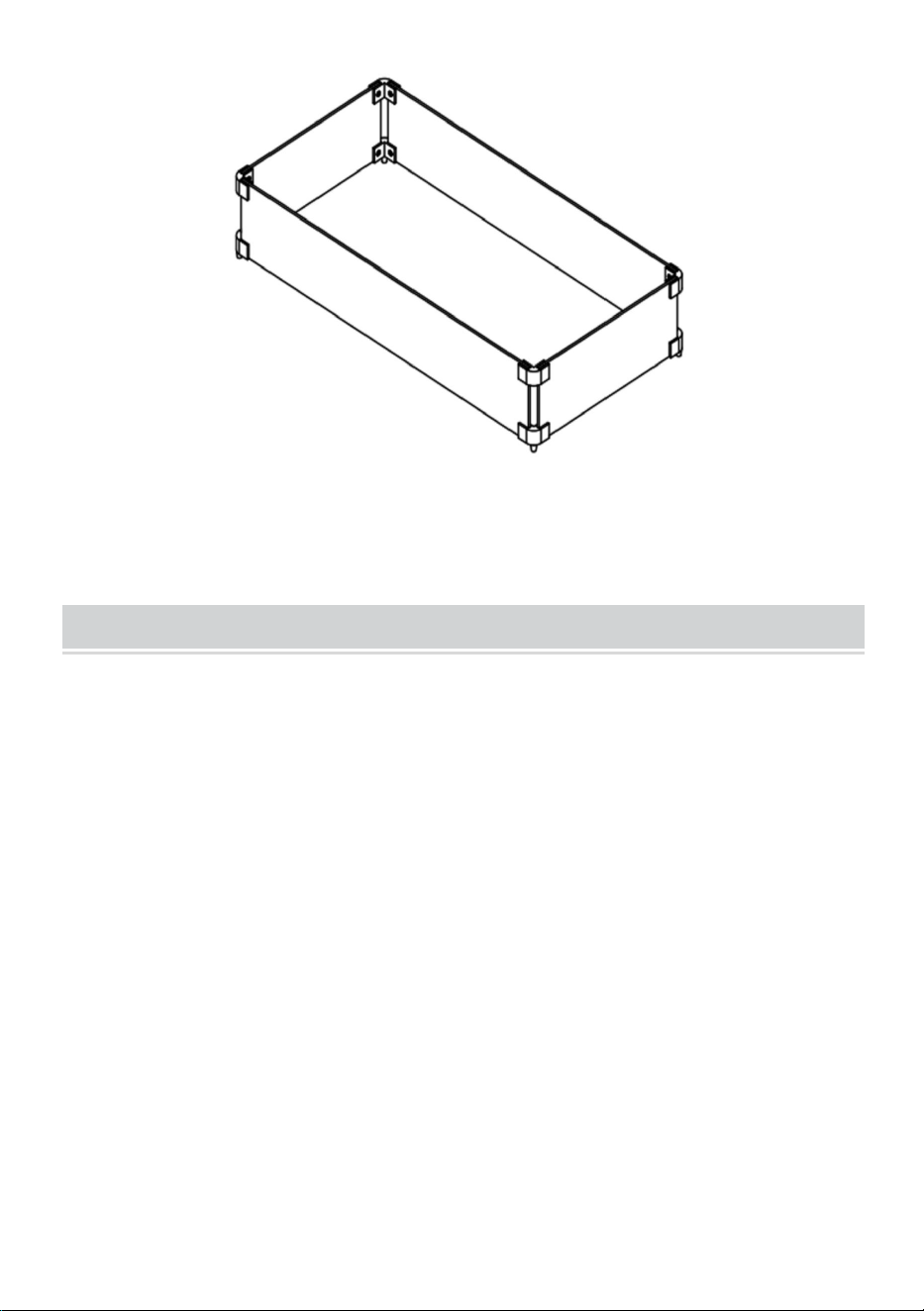

Step 3: After tightening all bolts, your product is ready for use.
- 9 -
CARE INSTRUCTIONS
Don't put the Flame Guard on an uneven surface.
Don’t cover with flammable materials.
Don’t touch during use to prevent burns.
Periodically check and make sure all bolts are fully tightened.
