BILT HARD BAC-0113 36V 105AH LiFePO4 Golf Cart Battery, 4032Wh Bluetooth Lithium Battery wLCD Display & Charger

Product's Documents

Below are documents related to this product, you can read online or download:
Main documentSpecificationQuestions and answersRelateds Products
BAC-0113 photo

Manual Golf Cart Battery

This is the main product document for model BAC-0113. Additionally, the document applies to other BILT HARD models: 756594925143

The file format is pdf, 16 pages, you can download this manual here .

background
♦38.4V105Ah♦
background
05
07
08
09
background
01
background
02
38.4
background
03
43.8V(3.65V/Cell)
32.4V(2.7V/Cell)
105Ah@ 0.5C discharge
4032Wh
7680Wh
25A
105A
200A(Peak 400A 35S)
81.6LBS(37KG)
38.4V(3.2V/Cell)
38.4V/105Ah
LiFePO4 Battery
Nominal Capacity
Energy
Max Load / Inverter Power
Recommend Charge Current
Max Continuous Discharging
Current
Dimension
Weight
Charge Voltage
Discharge Cut-off Voltage
Nominal Voltage
12
Max Continuous Charging
Current
433x333x230mm
17x13.11x9.05inch
5
background
04

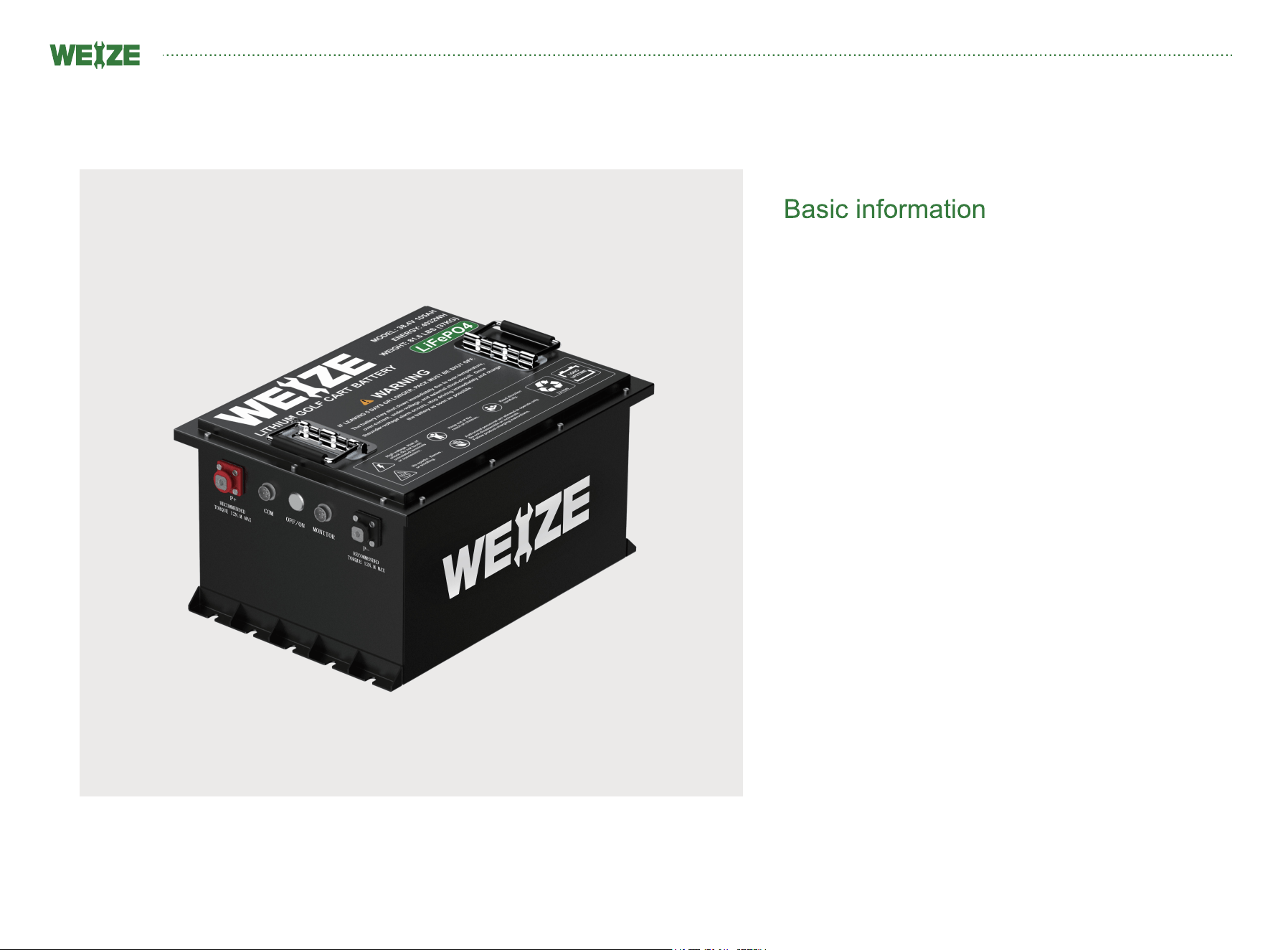

38.4V105Ah
Warranty: 10 Year
Cycle Life: ≥4000 Cycles
Nominal Voltage: 38.4V
Rated Capacity: 105Ah
Energy: 4032Wh
Max. Expansion (Parallel & Series) N/A
Internal Resistance: <40mΩ
Certifications MsDs, UN38.3
BMS 200A
Max. Continuous Output Power 7680W
Max. Continuous Charge Current 105A
Max. Continuous Discharge Current 200A (Peak 400A 35S)
Max. Discharge Current Peak 600A/ 3S
Charge Method: CC/CV
Charge Voltage: 43.8V
Recommend Charge Current: 25A
Operating Temperature Range:
Charge: 0°C to 45°C (32°F to 113°F)
Discharge: -20°C to 60°C (-4°F to 131°F)
Storage: -10°C to 50°C (-14°F to 122°F)
Low temp cut off protection (Charge): 0°C ± 4°C (32°F ± 7.2°F)
Safety Features: BMS, Over Charge/Discharge, Low/High
Temp Cut-off, Over Current, Short Circuit
background
05
38.4V105Ah
In:110V9A/220V4.5A
Out:max 43.8V25A
M16/6 cores/Plug/
20AWG Length
4000mm
M16/4
cores/Plug/20AWG
Length 2500mm
485(Display)
Communication
Cable
CAN(Charging)
Communication
Cable
485(Display)
Communication Cable
CAN(Charging)
Communication Cable
background
06
background
07
485(Display) CommunicationCAN(Charging)communication
Battery Switch
background
08

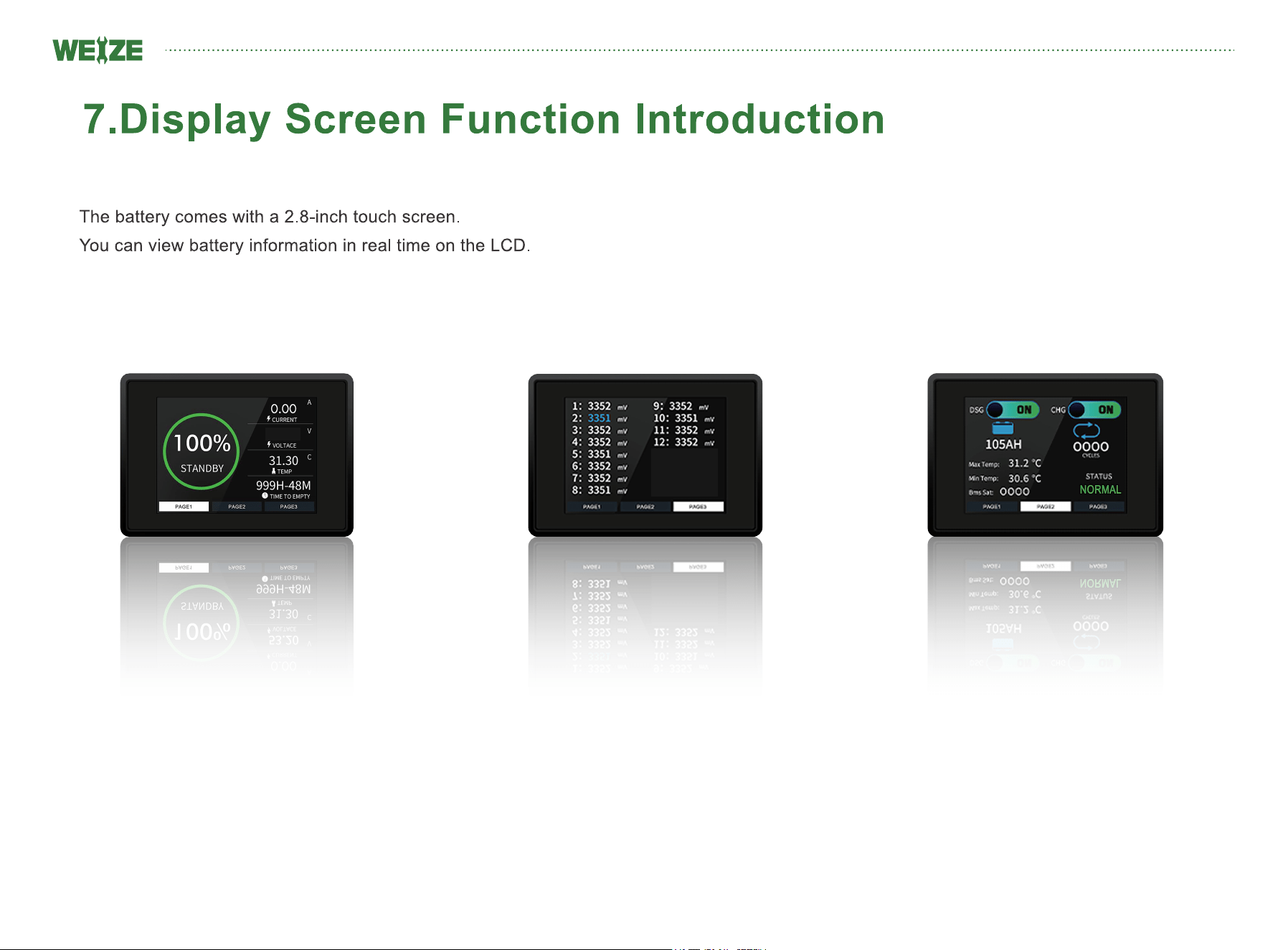

1~12 Voltage of each cell
39.9
31.30°C Temperature
39.9V Total Voltage
0000 Cycle Index Counter
NORMAL Protection State
105AH Surplus Capacity
31.2
°C /30.6°C Temperature
100%Capacity/SOC
0.00A Charge/Discharge Current
DSG Discharge State
CHG charge State
background
09
background
10
background
11
Please note that it is not
advisable to increase the
overcurrent protection
value of charge and
discharge.Should you
require further informa-
tion, please consult with
a member of our sales
team.
background
12
background
13

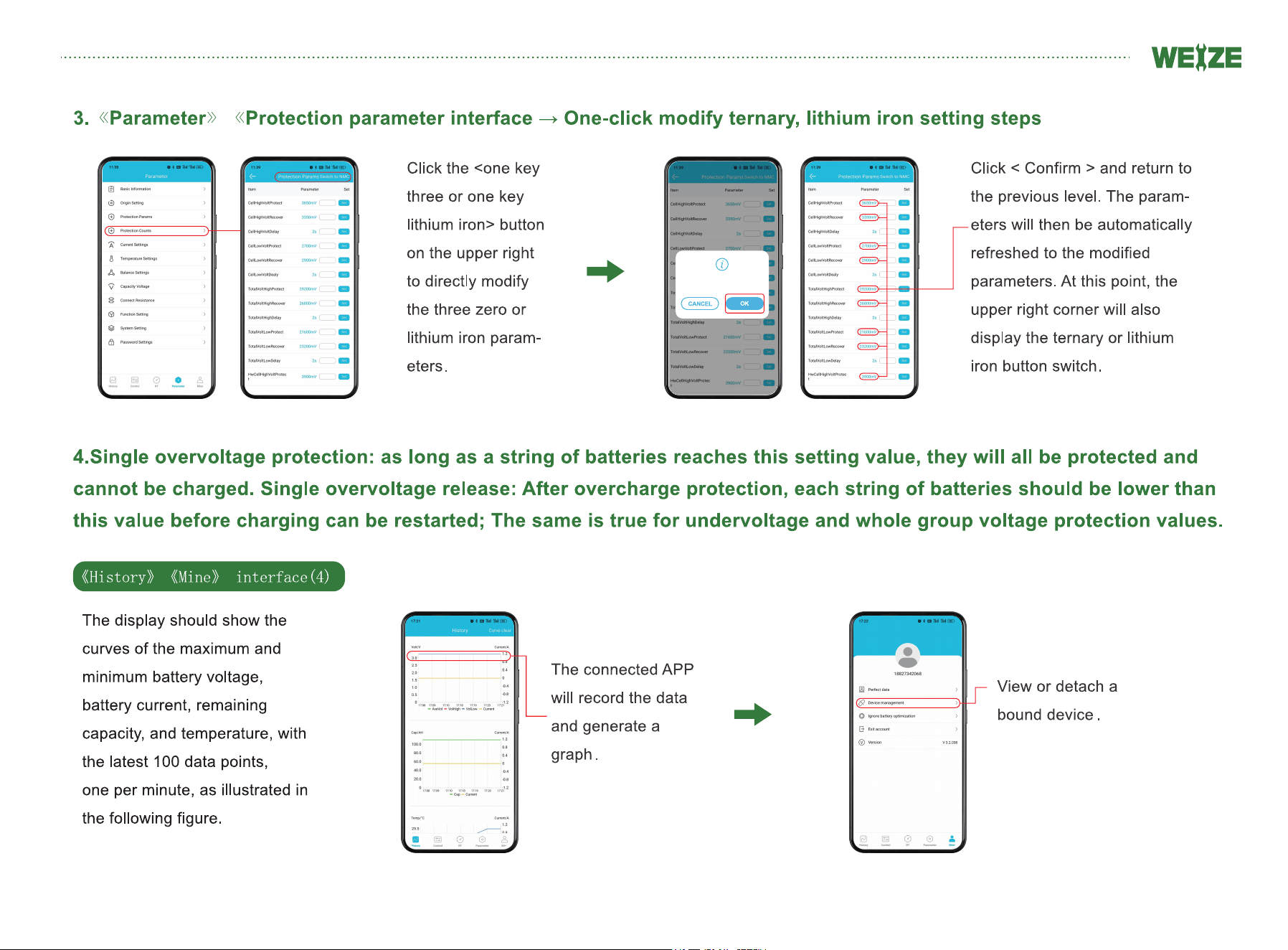

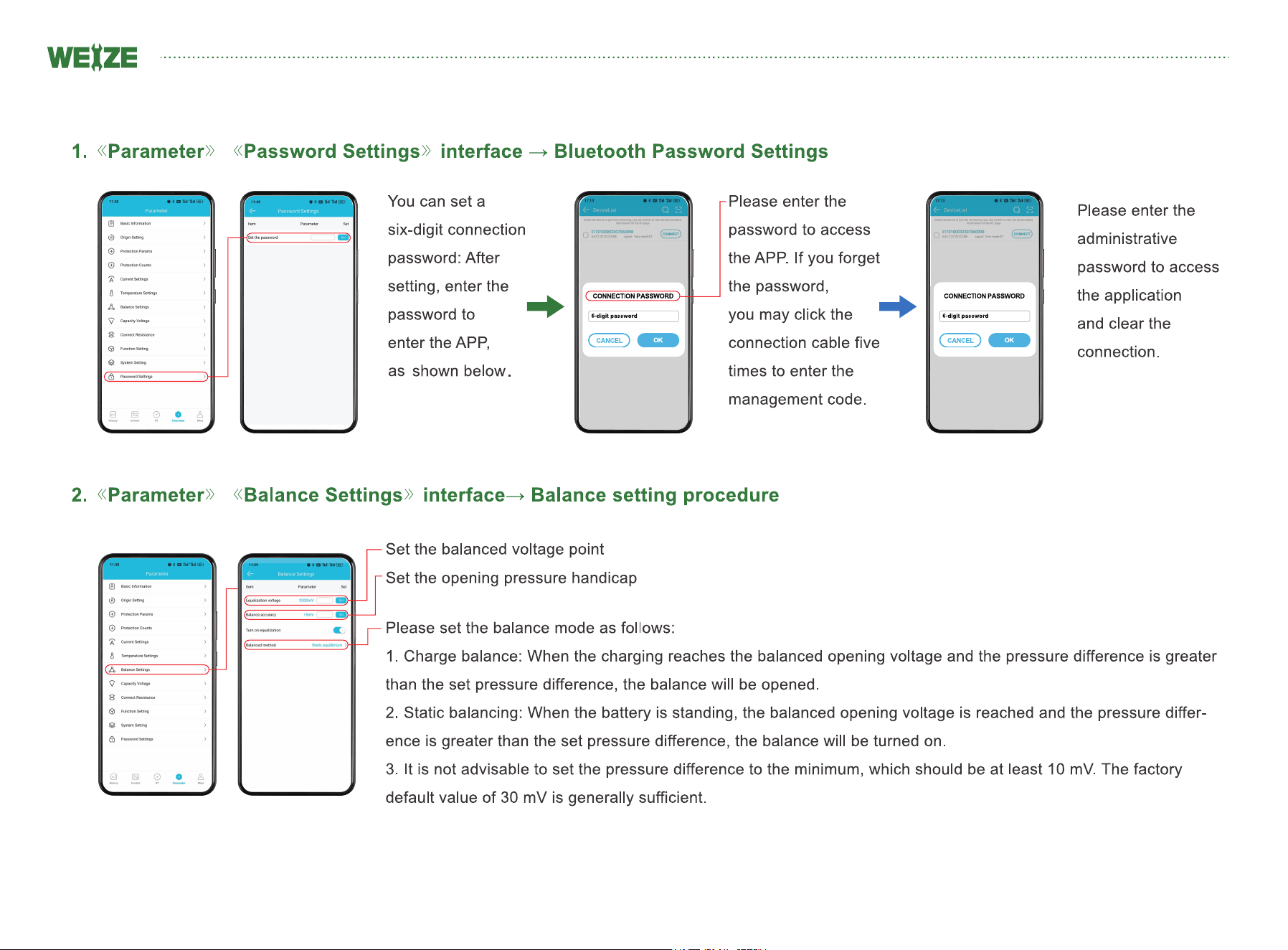

Set as a ternary parameter?
Click to confirm
background
https://www.weizeus.com
[email protected] (562) 456-0507
