05
07
08
09
01
02
03
58.4V(3.65V/Cell)
43.2V(2.7V/Cell)
105Ah@ 0.5C discharge
5376Wh
10240Wh
20A
105A
200A(Peak 400A 35S)
108.03LBS(49KG)
51.2V(3.2V/Cell)
51.2V/105Ah
LiFePO4 Battery
Nominal Capacity
Energy
Max Load / Inverter Power
Recommend Charge Current
Max Continuous Discharging
Current
Dimension
Weight
Charge Voltage
Discharge Cut-off Voltage
Nominal Voltage
12
Max Continuous Charging
Current
509x333x230mm
20.04x13.11x9.05inch
5
04

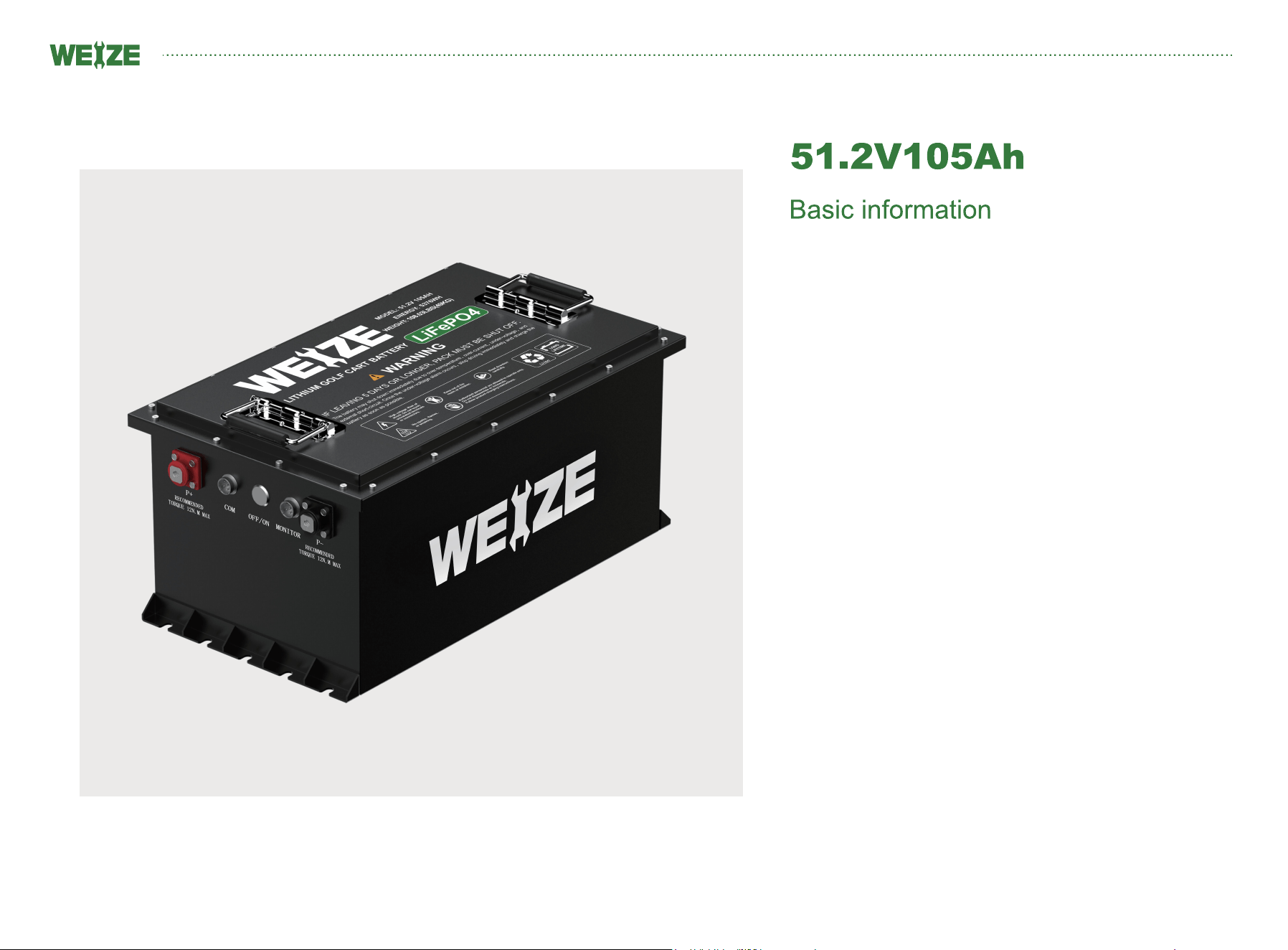

Warranty: 10 Year
Cycle Life: ≥4000 Cycles
Nominal Voltage: 51.2V
Rated Capacity: 105Ah
Energy: 5376Wh
Max. Expansion (Parallel & Series) N/A
Internal Resistance: <40mΩ
Certifications MsDs, UN38.3
BMS 200A
Max. Continuous Output Power 10240W
Max. Continuous Charge Current 105A
Max. Continuous Discharge Current 200A (Peak 400A 35S)
Max. Discharge Current Peak 600A/ 3S
Charge Method: CC/CV
Charge Voltage: 58.4V
Recommend Charge Current: 20A
Operating Temperature Range:
Charge: 0°C to 45°C (32°F to 113°F)
Discharge: -20°C to 60°C (-4°F to 131°F)
Storage: -10°C to 50°C (-14°F to 122°F)
Low temp cut off protection (Charge): 0°C ± 4°C (32°F ± 7.2°F)
Safety Features: BMS, Over Charge/Discharge, Low/High
Temp Cut-off, Over Current, Short Circuit
05
In:110V10A/220V5A
Out:max 58.4V20A
M16/6 cores/Plug/
20AWG Length
4000mm
M16/4
cores/Plug/20AWG
Length 2500mm
485(Display)
Communication
Cable
CAN(Charging)
Communication
Cable
485(Display)
Communication Cable
CAN(Charging)
Communication Cable
06
07
485(Display) CommunicationCAN(Charging)communication
Battery Switch
08

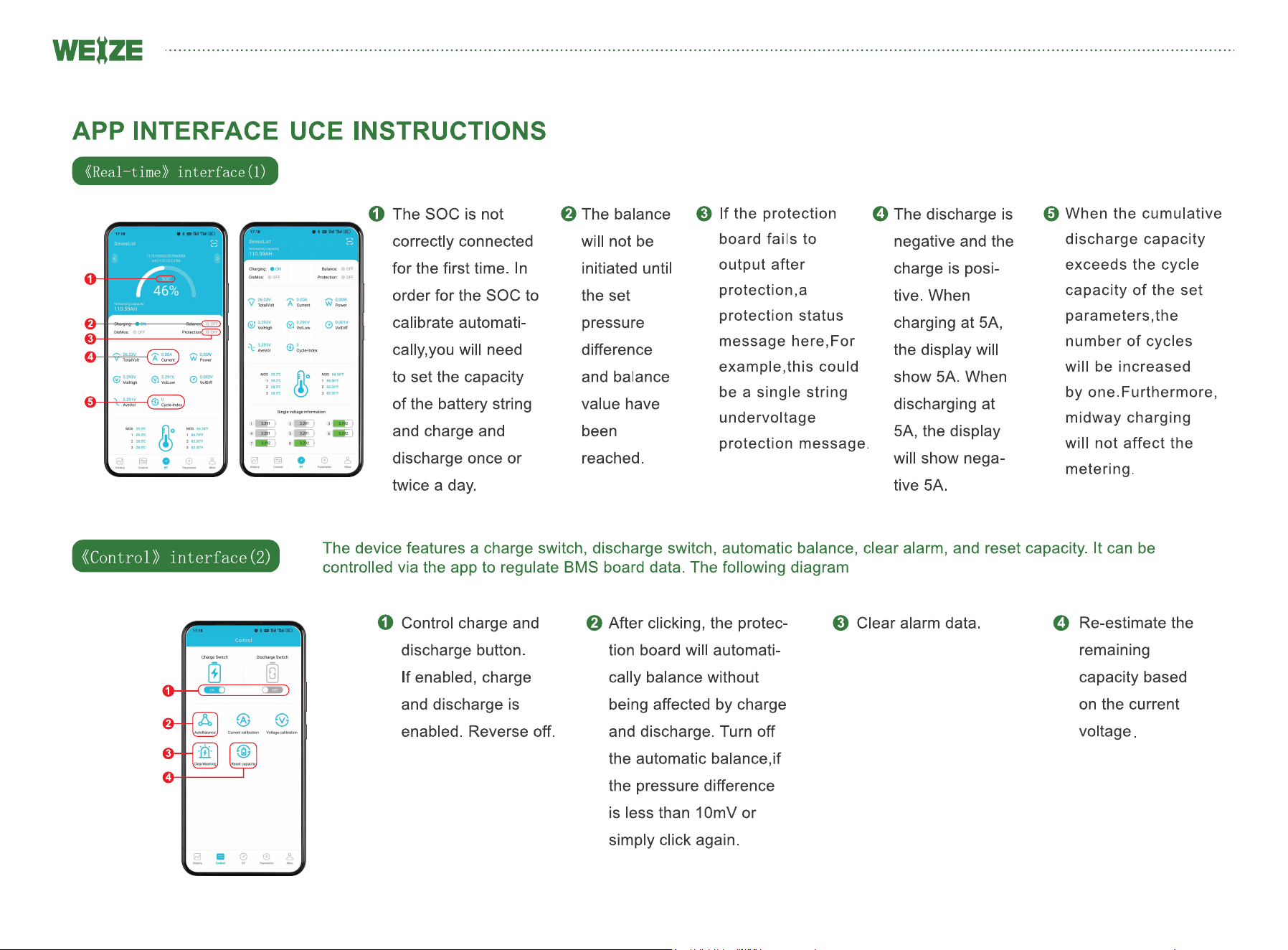

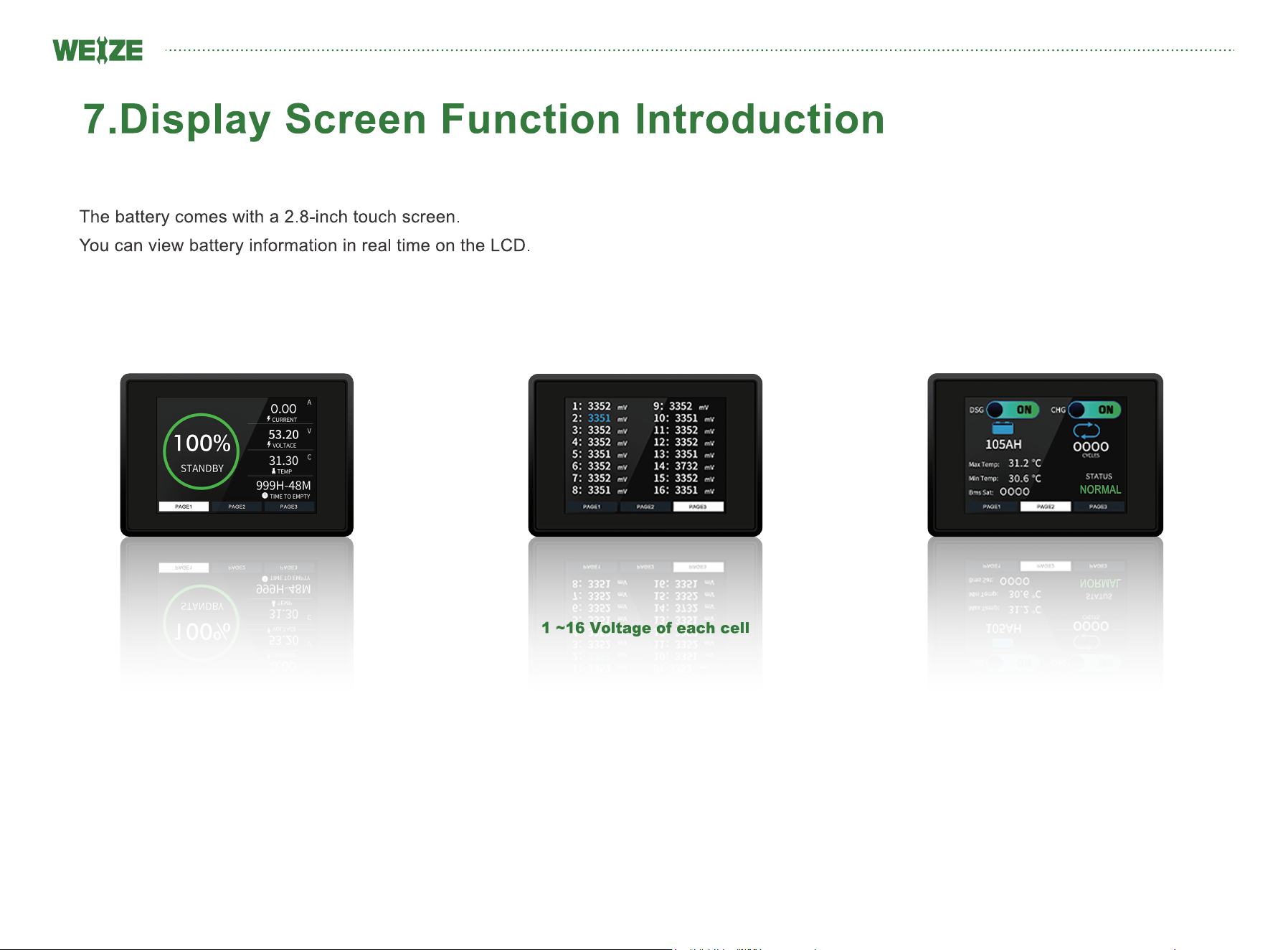

31.30°C Temperature
53.2V Total Voltage
0000 Cycle Index Counter
NORMAL Protection State
105AH Surplus Capacity
31.2
°C/30.6°C Temperature
100%Capacity/SOC
0.00A Charge/Discharge Current
DSG Discharge State
CHG charge State
09
10
11
Please note that it is not
advisable to increase the
overcurrent protection
value of charge and
discharge.Should you
require further informa-
tion, please consult with
a member of our sales
team.
12
13

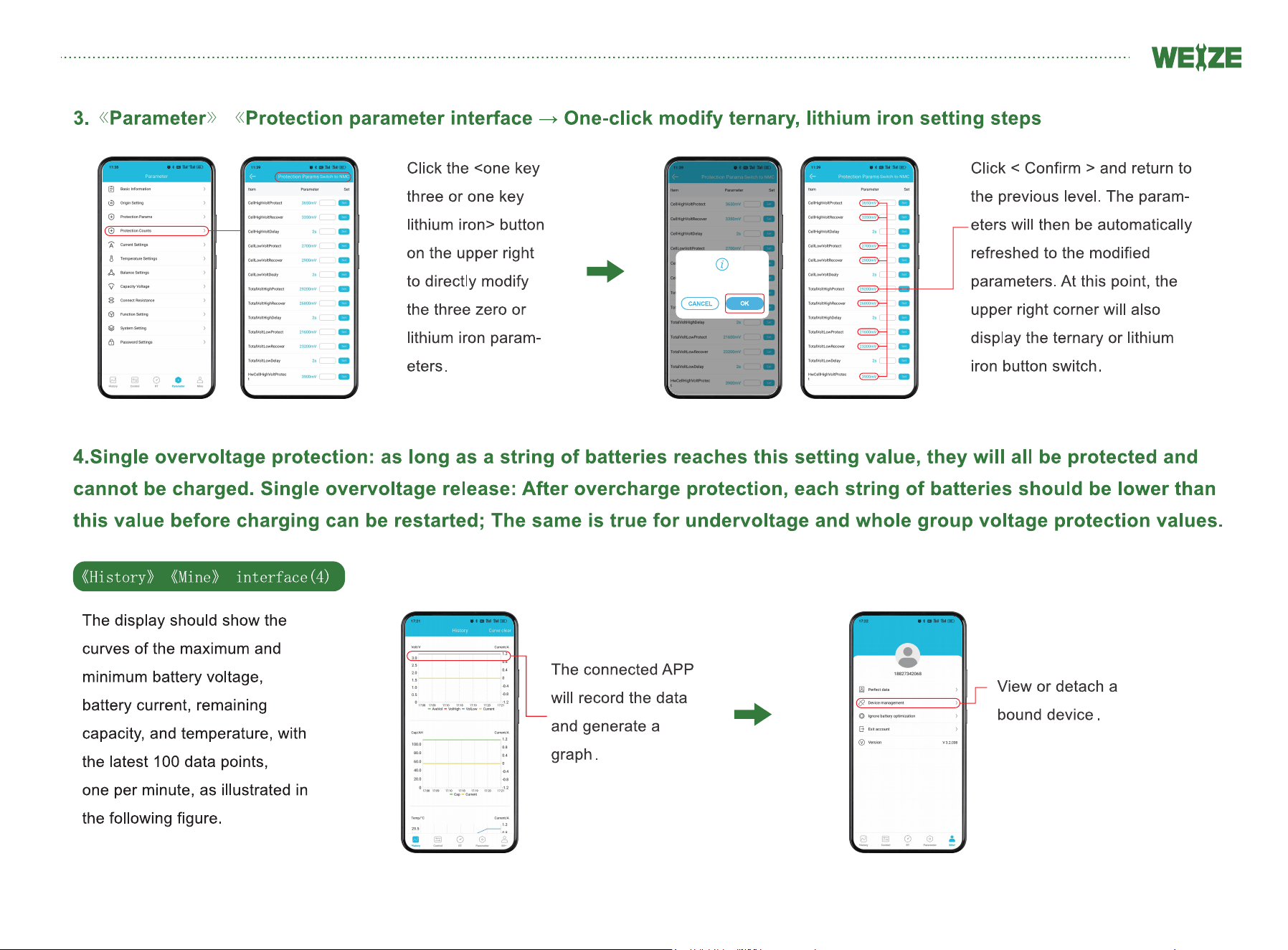

Set as a ternary parameter?
Click to confirm
