MICROWAVE DRAWER
SMD2489ESC, SMD2479KSC
OPERATION MANUAL
MODEL
SMD2489ESC, SMD2479KSC
STAINLESS STEEL
CUSTOMER ASSISTANCE ......................................... 2
LIMITED WARRANTY .............................................. 3
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY ............................................. 4
IMPORTANT SAFETY INSTRUCTIONS ..........................5-6
INFORMATION YOU NEED TO KNOW ........................... 7-9

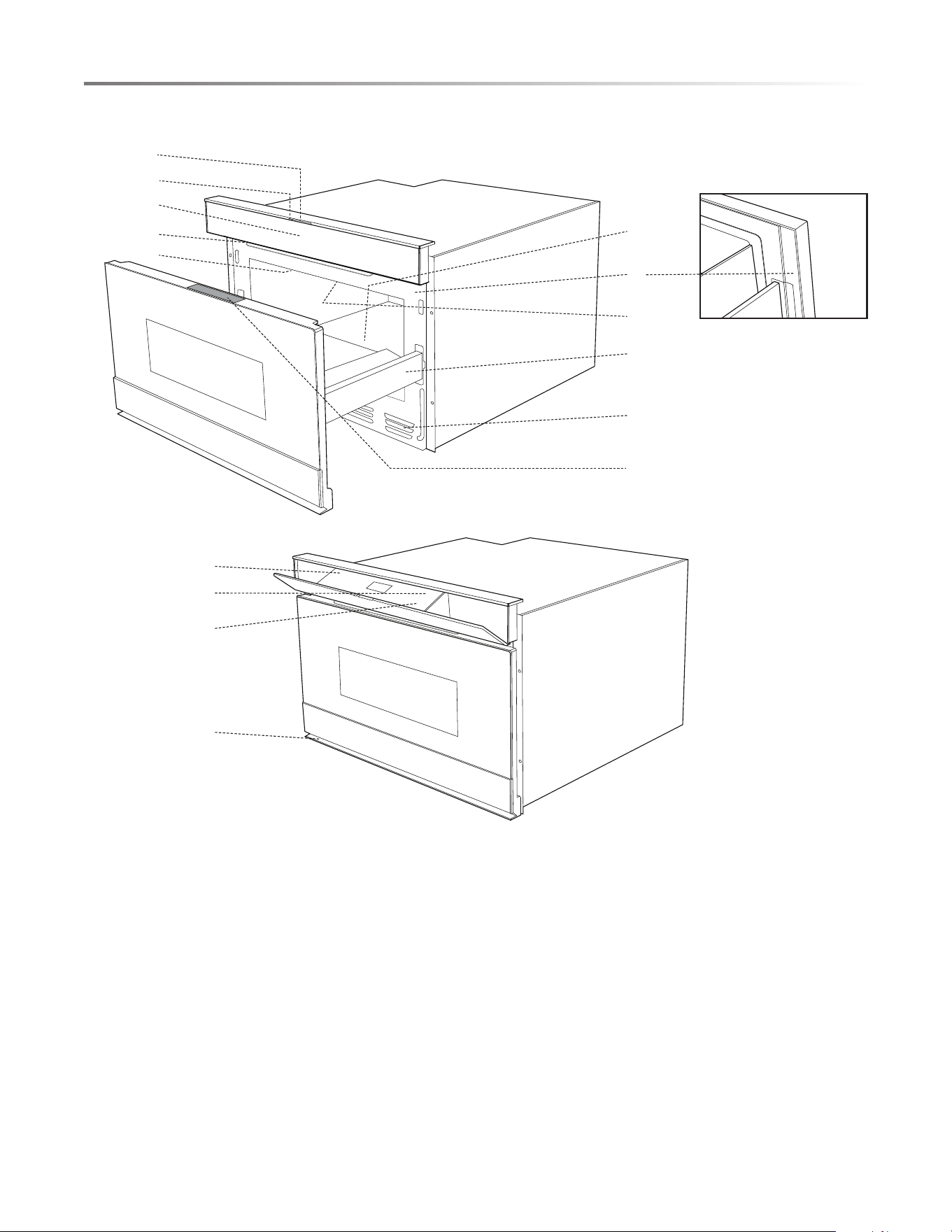

PART NAMES..... ............................................. 10-11
BEFORE OPERATING ..............................................12
CONNECTING YOUR APPLIANCE ................................13
MICROWAVE DRAWER
™
COOKING ..........................14-19
OTHER FEATURES ............................................20-21
CLEANING AND CARE ............................................22
BEFORE YOU CALL FOR SERVICE ............................... 23
AUTO-TOUCH GUIDE .......................................... 24-25
TINSKB276MRR1
CUSTOMER ASSISTANCE
CANADA ONLY
To aid in answering questions if you call for service or for reporting loss or theft,
please use the space below to record the model and serial number located on the
back side of the unit.
Model Number:
Serial Number:
Date of Purchase:
Dealer Name:
Address:
City:
Province:
Postal Code:
Telephone:
PRODUCT SUPPORT
If you have questions about the setup or operation of your product, please refer to
the corresponding section within this manual.
Additionally, visit http://sharp.ca/support-home.aspx to access exclusive content
about your product including:
Æ Find a Dealer
Æ Find Service Locations
Æ Downloads including the Installation Guide, Spec Sheet, and Owner
’s Manual
CONTACT US
If at any time you have questions or comments concerning your SHARP product,
please contact the SHARP Customer Assistance Center. We are available to
assist you through multiple contact methods for your convenience:
http://sharp.ca/contact-emailus.aspx CA | sharp.ca/support-home.aspx Contact a Sharp Advisor on the phone
CALL US
CA 877-278-6709
Mon-Fri: 7am-7pm CST
EMAIL
Available 24/7
See the Contact Us
section on our site.
SUPPORT SITE
Product Downloads,
Service Locater, Where
to Buy, Toner Recycling
Program and more.
2
Revision: 03/21/2016
LIMITED WARRANTY
Consumer Electronics Products
Congratulations on your purchase!
Shar
p Electronics of Canada Ltd. (“Sharp”) warrants to the first purchaser for this Sharp brand product (“Product”), when shipped in its original container
and sold or distributed in Canada by Sharp or by an authorized Sharp dealer, and Product was not sold “as is” or “sales final” that the
Product will during
the applicable warranty period, be free from defects in material and workmanship, and will within the applicable warranty period, either repair the defective
Product or provide the first purchaser a replacement of the defective Product.
Conditions: This limited warranty shall not apply to:
(a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or inappropriate use as outlined
in the owner’s manual or other applicable Product documentation.
(b) Any defects caused or repairs required as a result of any Product that has been tampered with, modified, adjusted or repaired by any person other
than Sharp, a Sharp authorized service centre or a Sharp authorized servicing dealer.
(c) Any defects caused or repairs required as a result of the use of the Product with items not specified or approved by Sharp, including but not limited
to chemical cleaning agents.
(d) Any replacement of accessories required through normal use of the Product, including but not limited to, remote controls, AC adapters, batteries,
temperature probe, trays, filters, belts, ribbons, cables and paper.
(e) Any cosmetic damage to the Product surface or exterior that has been defaced or caused by normal wear and tear.
(f) Any defects caused or repairs required as a result of damage caused by any external or environmental conditions, including but not limited to,
transmission line/power line voltage or liquid spillage or acts of God.
(g) If the serial number or model number affixed to Product has been removed, defaced, changed, altered or tampered with.
(h) This limited warranty will not apply if the Product has been used or is being used in a commercial setting or application; this warranty is meant solely
for the non-commercial, household use of the Product by consumers in their home or residence.
(i) Any installation, delivery, setup and/or programming charges
(j) The removal and reinstallation of Over-The-Range Microwave, Microwave Drawer or Steam Oven if it is installed in an inaccessible location or
requiring removal of cupboards, handles or other cosmetic parts, or is not installed in accordance with installation instructions included with Product.
How to get service
: Warranty service may be obtained upon delivery of the Product, together with proof of purchase (including date of purchase) and a
copy of this limited warranty statement, to an authorized Sharp service centre or an authorized Sharp servicing dealer. In home warranty service
will be
carried out to locations accessible by on-road service vehicle and within 50 km of an authorized Sharp service centre on any Over-The-Range M
icrowave
Oven, Microwave Drawer Oven or Steam Oven. The servicer may if necessary take the unit for repair at the servicer's facility.
No other person (including
any Sharp dealer or service centre) is authorized to extend, enlarge or transfer this warranty on behalf of Sharp.
The purchaser will be responsible for any
and all removal, reinstallation, transportation and insurance costs incurred with exception for Over-The-Range Microwave Oven, Microwave Drawer
Oven
or Steam Oven whereby Sharp will be responsible for the removal and reinstallation.
The express warranties in this limited warranty are, except for consumer purchasers domiciled in Quebec, in lieu of and, except to the extent prohibited
by applicable law, Sharp disclaims all other warranties and conditions, express or implied, whether arising by law, statute, by course of dealing or usage
of trade, including, without limitation, implied warranties or conditions of merchantability and/or quality, fitness for a particular use or purpose, and/or non-
infringement. Limitations (not applicable to consumer purchasers domiciled in Quebec to the extent prohibited under Quebec law)
: (a) Sharp shall not be
liable for any incidental, special, consequential, economic, exemplary or indirect damages of any kind or nature (including lost profits or damages for loss
of time or loss of use or loss of data) arising from or in any connection
with the use or performance of a Product or a failure of a Product, even if Sharp is
aware of or has been advised of the possibility of such damages;
(b) the remedies described in this limited warranty constitute complete fulfillment of all
obligations and responsibilities of Sharp to the purchaser with respect to the Product and shall constitute full satisfaction of all claims, whether based on
contract, negligence, strict liability or otherwise. Some provinces may not allow the exclusion or limitation of
certain damages, or limits on the duration or
voiding of implied warranties or conditions; in such provinces, the exclusions and limits herein may not apply. This limited warranty is, except for consumer
purchasers domiciled in Quebec, governed by the laws of the Province in Canada in which the purchaser has purchased the Product. For consumer
purchasers domiciled in Quebec this limited warranty is governed by the laws of Quebec.
WARRANTY PERIODS (calculated from the date of original purchase): Parts & Labour (exceptions noted)
Microwave Oven 1 year
(
magnetron - 4 additional years)
Steam Oven 1 year
Small Kitchen Appliances 1 year
Air Purifiers 1 year
To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, or for more information on this Limi
ted Warranty, Sharp
Extended Warranty Offers, Sharp Canada Products or Accessory Sales, please contact Sharp:
THIS LIMITED WARRANTY IS VALID ONLY IN CANADA
By writing to Sharp Electronics Of Canada Ltd. at 335 Britannia Road East Mississauga, Ontario L4Z 1W9
Calling: at 905-568-7140
Visiting our Web site: www.sharp.ca
3
4
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful
exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and
that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals
and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualied service personnel.
E5
IMPORTANT SAFETY INSTRUCTIONS
CAUTION FOR WIRELESS LAN
CAUTION FOR USAGE ABOUT WI-FI
• If you are using in the following areas, the operation cannot
be guaranteed: near Bluetooth
®
wireless communications
devices using the same frequency (2.4 GHz) as this product
or specied low power wireless devices. There may also be
issues in locations with devices, such as microwave ovens,
that emit a magnetic eld; as well as in areas with static
electricity or radio disturbance, all of which can interfere
with the Wi-Fi signal.
• Wireless connection and performance cannot be guaranteed
for all routers or housing environments. In the following
places, it is possible the Wi-Fi cannot reach or is disconnected:
inside of a building made with concrete, reinforced metal, near
an obstruction (e.g., a wall) or near a wireless communications
device using the same frequency.
• Wireless LAN of this product corresponds to channels 1-13.
It is not available to communicate with routers set up to other
channels.
CAUTION FOR PERSONAL INFORMATION
(RELATED TO SECURITY)
• Using a wireless LAN device has the possibility of
interception when using Wi-Fi, regardless of password setting.
• Depending on the location where you are connecting your
oven, ensure you have the right/authority to connect the
appliance to the available Wi-Fi network.
• If disposing of unit, giving or selling to a third party, be sure
to Reset Wi-Fi Settings as described in this manual. The
wireless LAN function of the unit should be initialized (reset)
in case of handover to a third party to avoid illegal access
from unauthorized parties.
MINIMUM REQUIREMENTS FOR WI-FI/ROUTER
SPECIFICATIONS:
• IEEE 802.11 b/g/n compatible WLAN
• 72.2Mbps receive and transmit PHY rate using 20MHz
bandwidth
• 150Mbps receive and transmit PHY rate using 40MHz
bandwidth
• 802.11i (WPA, WPA2). Open, shared key, and pair-wise key
authentication services
• Wi-Fi WPS support
IMPORTANT REGULATORY
INFORMATION
CAUTION
Any changes or modications to the appliance
not expressly approved by the party responsible for compliance
could void the user’s authority to operate the appliance.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential instal-
lation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
SHARP HOME USE MICROWAVE DRAWER
MODEL # SMD2489ESC, SMD2479KSC
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must
accept an
y interference received, including interference that
may cause undesired operation.
• Contains FCC: RX3-B01
• Contains IC: 2878F-B01
Responsible Party:
SHARP ELECTRONICS OF CANADA LTD
335 Britannia Road East
Mississauga, Ontario L4Z 1W9
(905) 568-7140
www.sharp.ca
6E
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING
When using the appliance, basic safety precautions should
be followed, including the following:
WARNING
To reduce the risk of burns, electric shock, re,
injury to persons or exposure to excessive microwave energy:
1 Read all instructions before using the appliance.
2 Read and follow the specic “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” on page 4.

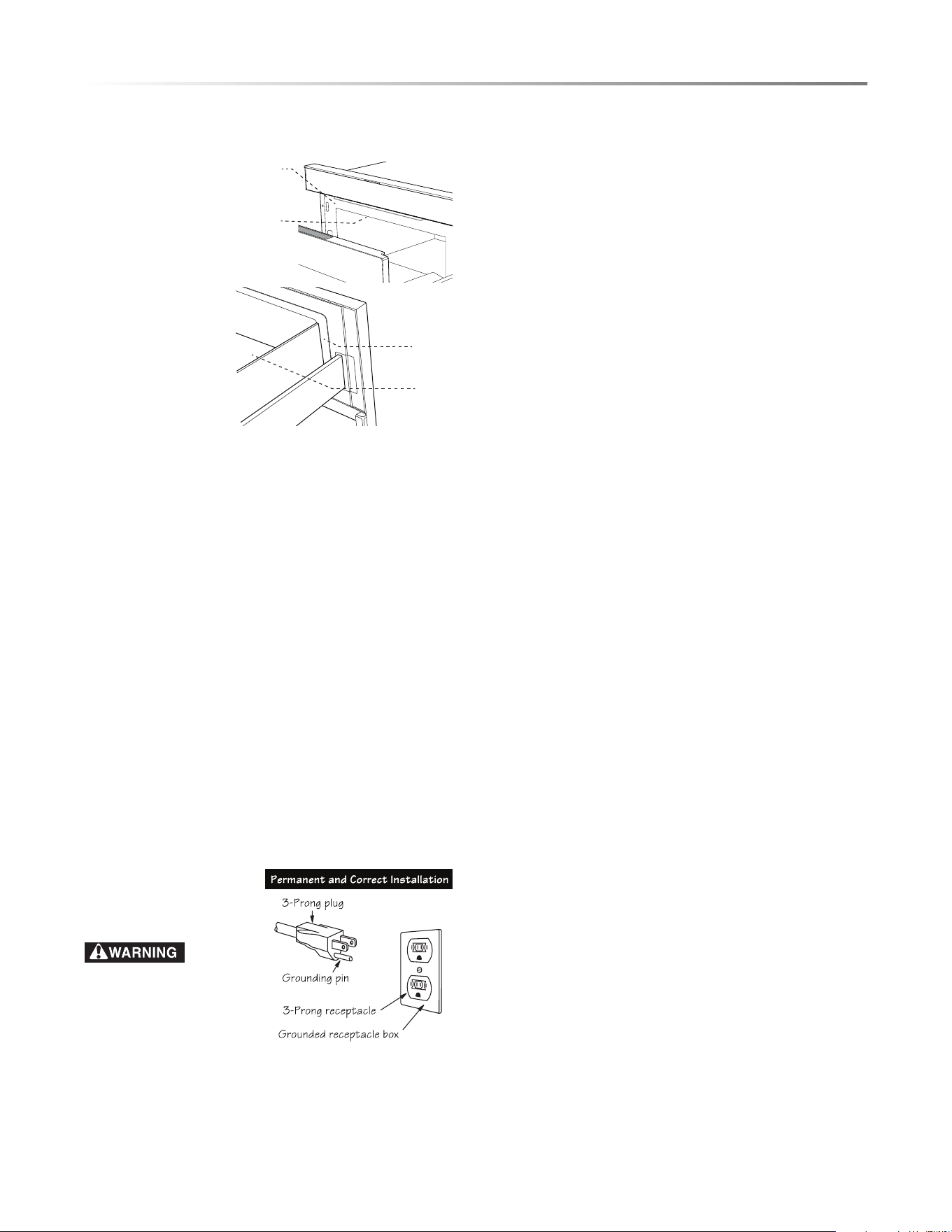

3 This appliance must be properly grounded. See page 7
for grounding instructions.
4 Install or locate this appliance only in accordance with
the provided Installation Manual.
5 Some products such as whole eggs in shell and sealed
containers—for example, closed glass jars—are able to
rupture and should not be heated in the appliance.
6 Use this appliance only for its intended use as described
in this manual. Do not use corrosive chemicals or vapors
in this appliance. This appliance is specically designed
to heat, cook or dry food. It is not designed for industrial
or laboratory use.
7 HOT CONTENTS CAN CAUSE SEVERE BURNS.
DO NOT ALLOW CHILDREN TO USE THE
MICROWAVE OVEN. Use caution when removing hot
items.
8 Do not operate this appliance if it has a damaged cord
or plug, if it is not working properly or if it has been
damaged or dropped.
9 This appliance should be serviced only by qualied
service personnel. Contact nearest Sharp Authorized
Servicer for examination, repair or adjustment.
10 Do not cover or block any openings on the appliance.
11 Do not store or use this appliance outdoors. Do not use
this product near water—for example, near a kitchen
sink, in a wet basement, near a swimming pool or similar
locations.
12 Do not immerse cord or plug in water.
13 Keep cord away from heated surfaces.
14 Do not climb or sit on the appliance.
15 Be sure that ngers or other objects or materials are
not around the appliance opening when the appliance
is closed.
16 Do not put ngers or clothes around the drawer guides
when the appliance is opened or closed. They could be
caught in the guides when the appliance is closed.
17 Be sure that the food and container are shorter than the
drawer before closing it. You can refer to the height of
the side walls of the drawer.
18 When cleaning appliance sealing surfaces that
come together on closing the drawer, use only mild,
nonabrasive soaps or detergents applied with a sponge
or soft cloth. See cleaning instructions on page 22.
19 To reduce the risk of re in the appliance cavity:
a Do not overcook food. Carefully attend appliance
when paper, plastic or other combustible materials
are placed inside the appliance to facilitate cooking.
b Remove wire twist-ties from paper or plastic bags
before placing bag in appliance.
c If materials inside the appliance ignite, keep
appliance door closed, turn microwave off and shut
off power at the fuse or circuit breaker panel.
d Do not use the appliance for storage purposes. Do
not leave paper products, cooking utensils, or food
in the appliance when not in use.
20 Liquids, such as water, coffee or tea are able to be
overheated beyond the boiling point without appearing
to be boiling due to surface tension of the liquid. Visible
bubbling or boiling when the container is removed from
the appliance is not always present. THIS COULD
RESULT IN VERY HOT LIQUIDS SUDDENLY
BOILING OVER WHEN A SPOON OR OTHER
UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
a Do not overheat the liquid.
b Stir the liquid both before and halfway through
heating it.
c Do not use straight-sided containers with narrow
necks. Use a wide-mouthed container.
d After heating, allow the container to stand in the
appliance at least for 20 seconds before removing
the container.
e Use extreme care when inserting a spoon or other
utensil into the container.
21 If the appliance light fails, consult a SHARP
AUTHORIZED SERVICER.
SAVE THESE INSTRUCTIONS
E7
ABOUT UNPACKING AND EXAMINING
YOUR MICROWAVE DRAWER
1 Remove all packing
materials from inside
t h e M i c r o w a v e
Drawer. DO NOT
R E M O V E T H E
WAVEGUIDE
COVER, which is
located on the top
of the Microwave
Drawer.
2 Remove the feature
sticker, if there is one.
Check the drawer for
any damage, such as
misaligned or bent
drawer, damaged
drawer seals and sealing surfaces, broken or loose drawer
guides and dents inside the cavity or on the front side of the
drawer. If there is any damage, do not operate the Microwave
Drawer and contact your dealer or a SHARP AUTHORIZED
SERVICER.
RADIO OR TV INTERFERENCE
Should there be any interference caused by the Microwave
Drawer to your radio or TV, check that the Microwave Drawer
is on a different electrical circuit, relocate the radio or TV as far
away from the drawer as feasible or check position and signal
of receiving antenna.
GROUNDING
INSTRUCTIONS
This appliance must be grounded. The Microwave Drawer is
equipped with a cord having a grounding wire with a grounding
plug. It must be plugged into a wall receptacle that is properly
installed and grounded in accordance with the National Elec-
trical Code and local codes and ordinances. In the event of
an electrical short circuit,
grounding reduces risk of
electric shock by provid-
ing an escape wire for the
electric current.
– Improper
use of the grounding plug
can result in a risk of electric
shock. Do not use an
extension cord. If the power
supply cord is too short,
have a qualied electrician
or serviceperson install an outlet near the appliance.
If you have any questions about the grounding or electrical
instructions, consult a qualied electrician or serviceperson.
ABOUT YOUR MICROWAVE DRAWER
A LWAYS have food in the Microwave Drawer when it is on to
absorb the microwave energy.
The vent under the Microwave Drawer must not be blocked.
During microwaving, steam may come from the left side lower
vent (when facing the product).
When using the Microwave Drawer at power levels below 100%,
you may hear the magnetron cycling on and off. It is normal for
the exterior of the Microwave Drawer to be warm to the touch
when cooking or reheating.
Condensation is a normal part of microwave cooking and the
amount being vented is directly related to the moisture content
of the food and room humidity. A cooler room will produce
more condensation. Attention should be paid to the vented area
after each use of the product and wiped down if needed.
The Microwave Drawer is for food preparation only. It should
not be used to dry clothes or newspapers.
In using recipes or package directions, check food a minute or
two before the minimum time and add time accordingly.
When opening or closing the Microwave Drawer quickly, food
in the Microwave Drawer may be spilled. To clean, please refer
to the Cleaning and Care section on page 22.
A good microwave cookbook is a valuable asset. Check it for
microwave cooking principles, techniques, hints and recipes.
ABOUT MICROWAVE COOKING
• Arrange food carefully. Place thickest areas toward
outside of dish.
• Watch cooking time. Cook for the shortest amount of time
indicated and add more as needed. Food severely overcooked
can smoke or ignite.
• Cover foods while cooking. Check recipe or cookbook for
suggestions: paper towels, wax paper, microwave plastic wrap
or a lid. Covers prevent spattering and help foods to cook
even ly.
• Stir foods from outside to center of dish once or twice during
cooking, if possible.
• Turn foods over once during microwaving to speed cooking
of such foods as chicken and hamburgers. Large items like
roasts must be turned over at least once.
• Rearrange foods such as meatballs halfway through cooking
both from top to bottom and from right to left.
• Add standing time. Remove food from Microwave Drawer
and stir, if possible. Cover for standing time which allows
the food to nish cooking without overcooking.
• Check for doneness. Look for signs indicating that cooking
temperatures have been reached.
Doneness signs include:
- Food steams throughout, not just at edge.
- Center bottom of dish is very hot to the touch.
Waveguide
Cover
Sealing
Surface
Oven
Cavity
Sealing
Surface
INFORMATION YOU NEED TO KNOW
8E
- Poultry thigh joints move easily.
- Meat and poultry show no pinkness.
- Fish is opaque and akes easily with a fork.
ABOUT UTENSILS AND COVERINGS
It is not necessary to buy all new cookware. Many pieces already
in your kitchen can be used successfully in your new Microwave
Drawer. Make sure the utensil does not touch the interior walls
during cooking.
Use these utensils for safe microwave cooking and reheating:
• glass ceramic (Pyroceram
®
), such as Corningware
®
• heat-resistant glass (Pyrex
®
)
• microwave safe plastics
• microwave safe paper plates
• microwave safe pottery, stoneware and porcelain
• browning dish (Do not exceed recommended preheating
time. Follow manufacturer’s directions.)
These items can be used for short time reheating of foods that
have little fat or sugar in them:
• wood, straw, wicker
DO NOT USE
• metal pans and bakeware
• dishes with metallic trim
• non-heat-resistant glass
• non-microwave safe plastics (margarine tubs)
• recycled paper products
• brown paper bags
• food storage bags
• metal twist-ties
• aluminum foil
Should you wish to check if a dish is safe for microwaving,
place the empty dish in the oven and microwave on HIGH for
30 seconds. A dish which becomes very hot should not be used.
The following coverings are ideal:
• Paper towels are good for covering foods for reheating and
absorbing fat while cooking bacon.
• Wax paper can be used for cooking and reheating.
• Plastic wrap that is specially marked for microwave use can
be used for cooking and reheating. DO NOT allow plastic
wrap to touch food. Vent so steam can escape.
• Lids that are microwave safe are a good choice because heat
is kept near the food to hasten cooking.
• Oven cooking bags are good for large meats or foods that
need tenderizing. DO NOT use metal twist-ties. Remember
to slit bag so steam can escape.
ACCESSORIES There are many microwave accessories
available for purchase. Evaluate carefully before you purchase
so that they meet your needs. A microwave safe thermometer
will assist you in determining correct doneness and assure you
that foods have been cooked to safe temperatures. Sharp is not
responsible for any damage to the Microwave Drawer when
accessories are used.
ABOUT CHILDREN AND THE
MICROWAVE
Children below the age of 7 should use the Microwave Drawer
with a supervising person very near to them. Between the ages of
7 and 12, the supervising person should be in the same room. The
child must be able to reach the Microwave Drawer comfortably.
At no time should anyone be allowed to lean or swing on the
Microwave Drawer.
Children should be taught all safety precautions: use potholders,
remove coverings carefully, pay special attention to packages
that crisp food because they may be extra hot.
Donʼt assume that because a child has mastered one cooking
skill he/she can cook everything.
Children need to learn that the Microwave Drawer is not a toy.
See page 21 for Control Lock feature.
ABOUT SAFETY
• Check foods to see that they are cooked to the United States
Department of Agricultureʼs recommended temperatures.
145˚F - Fish.
160˚F - Pork, ground beef/veal/lamb, egg dishes
165˚F - For leftover, ready-to-reheat refrigerated, and deli
and carry-out “fresh” food. Whole, pieces and
ground turkey/chicken/duck.
To test for doneness, insert a meat thermometer in a thick
or dense area away from fat or bone. NEVER leave the
thermometer in the food during cooking, unless it is approved
for microwave use.
• ALWAYS use potholders to prevent burns when handling
utensils that are in contact with hot food. Enough heat from
the food can transfer through utensils to cause skin burns.
• Avoid steam burns by directing steam away from the face and
hands. Slowly lift the farthest edge of a dish’s covering and
carefully open popcorn and oven cooking bags away from
the face.
• Stay near the Microwave Drawer while it’s in use and check
cooking progress frequently so that there is no chance of
overcooking food.
• NEVER use the Microwave Drawer for storing cookbooks
or other items.
• Select, store and handle food carefully to preserve its high
quality and minimize the spread of foodborne bacteria.
• Keep waveguide cover clean. Food residue can cause arcing
and/or res. See page 22.
INFORMATION YOU NEED TO KNOW
E9
INFORMATION YOU NEED TO KNOW
ABOUT FOODS
FOOD DO DON’T
Eggs, sausages,
fruits & vegetables
• Puncture egg yolks before cooking to prevent
bursting.
• Pierce skins of potatoes, apples, squash, hot dogs
and sausages so that steam escapes.
• Cook eggs in shells.
• REHEAT whole eggs.
• Dry nuts or seeds in shells.
Popcorn • Use specially bagged popcorn for the microwave.
• Listen while popping corn for the popping to slow
to 1 or 2 seconds or use special POPCORN pad.
• Pop popcorn in regular brown bags or glass bowls.
• Exceed maximum time on popcorn package.
Baby food • Transfer baby food to small dish and heat
carefully, stirring often. Check temperature
before serving.
• Put nipples on bottles after heating and shake
thoroughly. “Wrist” test before feeding.
• Heat disposable bottles.
• Heat bottles with nipples on.
• Heat baby food in original jars.
General • Cut baked goods with lling after heating to
release steam and avoid burns.
• Stir liquids briskly before and after heating to
avoid “eruption”.
• Use deep bowl, when cooking liquids or cereals,
to prevent boilovers.
• Food should be shorter than the Microwave
Drawer. Please refer to the height of side walls
of the drawer.
• Heat or cook in closed glass jars or airtight containers.
• Can in the microwave as harmful bacteria may not be
destroyed.
• Deep fat fry.
• Dry wood, gourds, herbs or wet papers.
10E
PART NAMES
MICROWAVE DRAWER
5
3
4
1
2
15
13
14
12
6
8
7
10
11
9
1 Easy Wave Open indicator
2 Wi-Fi indicator
3 Hidden control panel door
4 Easy Wave Open sensor
5 Waveguide cover DO NOT REMOVE
6 Nameplate: open the Microwave Drawer fully.
The label is beyond the back wall of the microwave
cavity facing up from the at surface.
7 Drawer sealing surfaces
8 Drawer light
9 Microwave Drawer guides
10 Vent
11 Menu label
12 Glass touch control
13 Easy Wave Open button
14 Wi-Fi Connect button
15 Built-In ush mount
The glass touch control is hidden behind the control panel door on the top front face of the unit. To open, push in on the control panel.
The panel will release and gently oat to open. To close, push the panel upward to the closed position. The panel will be secured by
magnetic latches in both open and closed positions.
E11

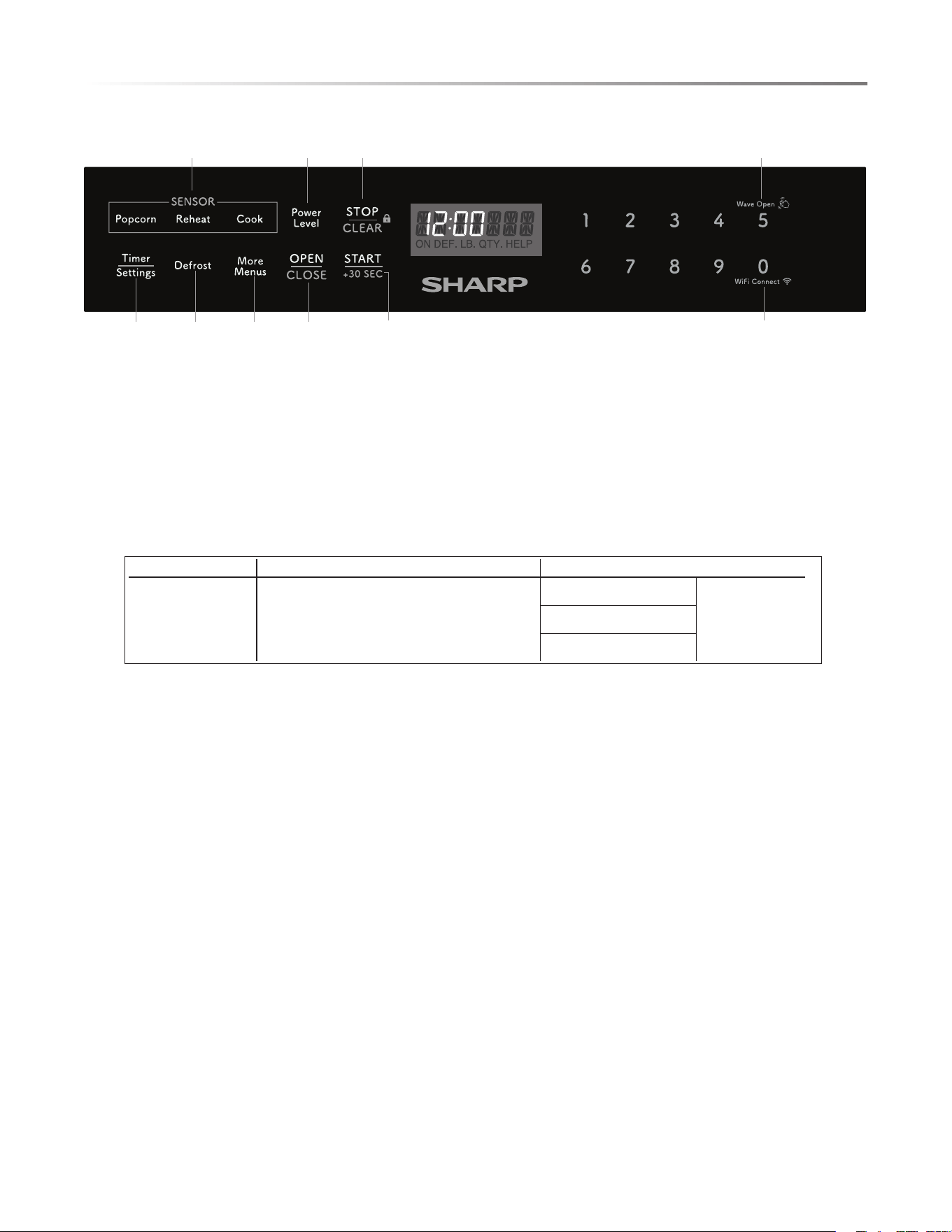

GLASS TOUCH CONTROL
MENU LABEL
Numbers next to the glass touch control illustration indicate pages on
which there are feature descriptions and usage information.
14-16
20 1320 18-1917 12
14 12 12
PART NAMES
DEFROST SENSOR COOK MORE MENUS
TLAB-B136MRR0
1 Ground Meat
2 Steaks/Chops
3 Boneless Poultry
4 Bone-in Poultry
5 Roast
6 Casserole or Soup
1 Baked Potatoes
2 Sweet Potatoes
3 Fish/Seafood
4 Brown Rice
5 White Rice
6 Quick Fresh Vegetables
7 Longer Fresh Vegetables
8 Steamer Bag
9 Frozen Vegetables
10 Ground Meat
11 Frozen Entrees
Melt
1 Butter
2 Chocolate
7 Beverage Reheat
8 Hot Water
9 Hot Cereal
Soften
3 Ice Cream
4 Cream Cheese
Warm
5 Syrup
6 Dessert Topping
12E
BEFORE OPERATING
Before operating your new Microwave Drawer, make sure you
read and understand this operation manual completely.
• Before the Microwave Drawer can be used, follow these steps:
1 Plug in the Microwave Drawer.
ENJOY
YOUR
MICRO-
WAVE
TOUCH
CLEAR
will appear.
2 Touch the STOP/CLEAR pad.
:
will appear.
3 Set clock.
TO SET THE CLOCK
1 Touch TIMER/SETTINGS pad once. The display shows
TO SET
CLOCK
ENTER
.
2 Touch number pads for correct time of day, press START/+30
SEC.
This is a 12 hour clock. If you attempt to enter an incorrect clock
time,
ERROR
will appear in the display. Touch the STOP/
CLEAR pad and re-enter the time.
• If the electrical power supply to your Microwave Drawer
should be interrupted, the display will intermittently show
ENJOY
YOUR
MICRO-
WAVE
TOUCH
CLEAR
after the
power is reinstated. If this occurs during cooking, the program
will be erased. The time of day will also be erased. Simply touch
STOP/CLEAR pad and reset the clock for the correct time of
day.
Note:
• The Microwave Drawer can be programmed with the
drawer open except for START/+30 SEC.
STOP/CLEAR
Touch the STOP/CLEAR pad to:
1 Erase if you make a mistake during programming.
2 Cancel timer.
3 Stop the Microwave Drawer temporarily during timed
cooking.
4 Return the time of day to the display.
5 Cancel a program during cooking, touch twice for timed
cooking.
OPEN OR CLOSE MICROWAVE DRAWER
Press the OPEN/CLOSE pad on the glass touch control or wave
twice on top left side of the drawer to open the microwave. The
Easy Wave Open only works to open the microwave, not close.
The Microwave Drawer also can be closed by gently pushing
on the drawer. Do not pull the drawer by hand, except in the
case of emergency, such as a power failure. If necessary, push
or pull slowly.
EASY WAVE OPEN ON/OFF
Easy Wave Open's default setting is OFF when plugged in. The
white light on the center of the panel will illuminate once Easy
Wave Open has been activated. When Control Lock is activated,
the Easy Wave Open function is off.
To use the Easy Wave Open function, simply wave your hand
in front of the sensor twice in consecutive motions. This can be
either up and down or side to side motions.
EASY WAVE OPEN ON
• Hold Number 5 on the glass touch control for 3 seconds. The
display shows
EASY
WAVE
OPEN
ON
.
EASY WAVE OPEN OFF
• Hold Number 5 on the glass touch control for 3 seconds. The
display shows
EASY
WAVE
OPEN
OFF
.
E13
CONNECTING YOUR APPLIANCE
The Microwave Drawer combines the technological enhance-
ments of smart home connectivity with Sharp’s innovative
Microwave Drawer design:
• Wi-Fi Connectivity
• Mobile App and Voice Control
Your Microwave Drawer may be operated remotely through a
mobile device using the Sharp Kitchen app in addition to con-
ventional operation in a non-connected capacity using the Glass
Touch Control on the oven door. To use the app, the appliance
must be connected to your home network.
WI-FI CONNECT
Your Microwave Drawer is equipped with Wi-Fi connectivity.
For instructions and how-to-pair video please visit: http://www.
sharpusa.com/support. The oven's Wi-Fi will need to be turned
ON in order to complete the Pairing process.
TURN OVEN'S WI-FI ON
• Press the Number 0 pad and hold for 3 seconds.
TURN OVEN'S WI-FI OFF
• Press the Number 0 pad and hold for 3 seconds.
FAVORITES:
The Sharp Kitchen app lets you select and store your Favorite
Smart Cook items in your FAVORITES section. Click on the
heart icon to add your most frequently prepared dishes.
REMOTE START SAFETY INFORMATION
In order to operate the Microwave Drawer with the Sharp
Kitchen app, you must enable the Remote Start feature. The oven
is preset to Remote Start OFF. It must be turned ON to utilize.
• Press the TIMER/SETTINGS pad 3 times to access the
Remote Start function.
When using mobile device operation to control the appliance
remotely, be sure to follow all safety procedures and guidelines
as instructed in the Operation Manual. Failure to do so may result
in personal injury, death or damage to property.
IMPORTANT NOTE:
There is a 3-minute window, after opening and closing the
drawer, in which you may operate the oven remotely with the
app. After 3 minutes of inactivity, you must operate the oven
manually at the control panel or open and close the drawer again
to operate remotely.
• If you activate the appliance remotely, your oven will remain
ON and in cooking mode even if your mobile device or home
Wi-Fi become disabled.
ALWAYS ensure the oven cavity is prepared for cooking when
operating the oven remotely with the app. Risk of oven damage
or re could occur. NEVER use the oven interior as a storage
device for unrelated items or cook using the app remotely if
the cavity is not properly prepared. ALWAYS have food in the
Microwave Drawer when it is on to absorb the microwave energy.
PAIRING
Pairing may be used to pair a new mobile device to the oven
after the oven has already been connected to your home network.
For instructions and how-to-pair video please visit: http://www.
sharpusa.com/support.
• Press the TIMER/SETTINGS pad 4 times to access the
Pairing function.
WI-FI INFORMATION
Wi-Fi Information provides your oven’s MAC address on your
home network. This information may be requested if you contact
SHARP Customer Assistance.
• Press the TIMER/SETTINGS pad 5 times to access the
Wi-Fi Information function.
WI-FI FIRMWARE UPDATES
From time to time, updates to the oven’s software will be
released. Notications will be sent via the Sharp Kitchen app
for these updates. The rmware updates will be available on the
product support page. Please visit: www.sharpusa.com/support
for more information.
• Press the TIMER/SETTINGS pad 6 times to access the
Wi-Fi Firmware Update function.
WI-FI RESET
Your oven’s Wi-Fi settings may be cleared by using the Wi-Fi
Reset function. Clearing of settings may need to be performed
when a new router or Wireless LAN is installed in the home or
if transferring ownership of the oven. See also CAUTION FOR
PERSONAL INFORMATION (RELATED TO SECURITY)
on page 5 for further information.
• Press the TIMER/SETTINGS pad 7 times to access the
Wi-Fi Reset function.
14E
TIME COOKING
Your Microwave Drawer can be programmed for 99 minutes
99 seconds (99.99). Always enter the seconds after the minutes,
even if they are both zeros.
• Suppose you want to cook for 5 minutes at 100%.
1 Enter cooking time 5 0 0.
5.00
TOUCH
START
OR
TOUCH
POWER
LEVEL
2 To cook at 100% power (High), touch START/+30 SEC pad.
TO SET POWER LEVEL
There are eleven preset power levels.
Using lower power levels increases the cooking time, which
is recommended for foods such as cheese, milk and long slow
cooking of meats. Consult a microwave cookbook or recipes for
specic recommendations.
• Suppose you want to defrost for 5 minutes at 30%.
1 Enter defrost time 5 0 0.
5.00
2 Touch POWER LEVEL pad 8 times.
3 Touch START/+30 SEC pad.
TOUCH POWER
LEVEL PAD NUM-
BER OF TIMES FOR
DESIRED POWER
APPROXIMATE
PERCENTAGE OF
POWER
COMMON
WORDS
FOR POWER
LEVELS
POWER LEVEL x 1 100% High
POWER LEVEL x 2 90%
POWER LEVEL x 3 80%
POWER LEVEL x 4 70% Medium High
POWER LEVEL x 5 60%
POWER LEVEL x 6 50% Medium
POWER LEVEL x 7 40%
POWER LEVEL x 8 30% Med Low/Defrost
POWER LEVEL x 9 20%
POWER LEVEL x 10 10% Low
POWER LEVEL x 11 0%

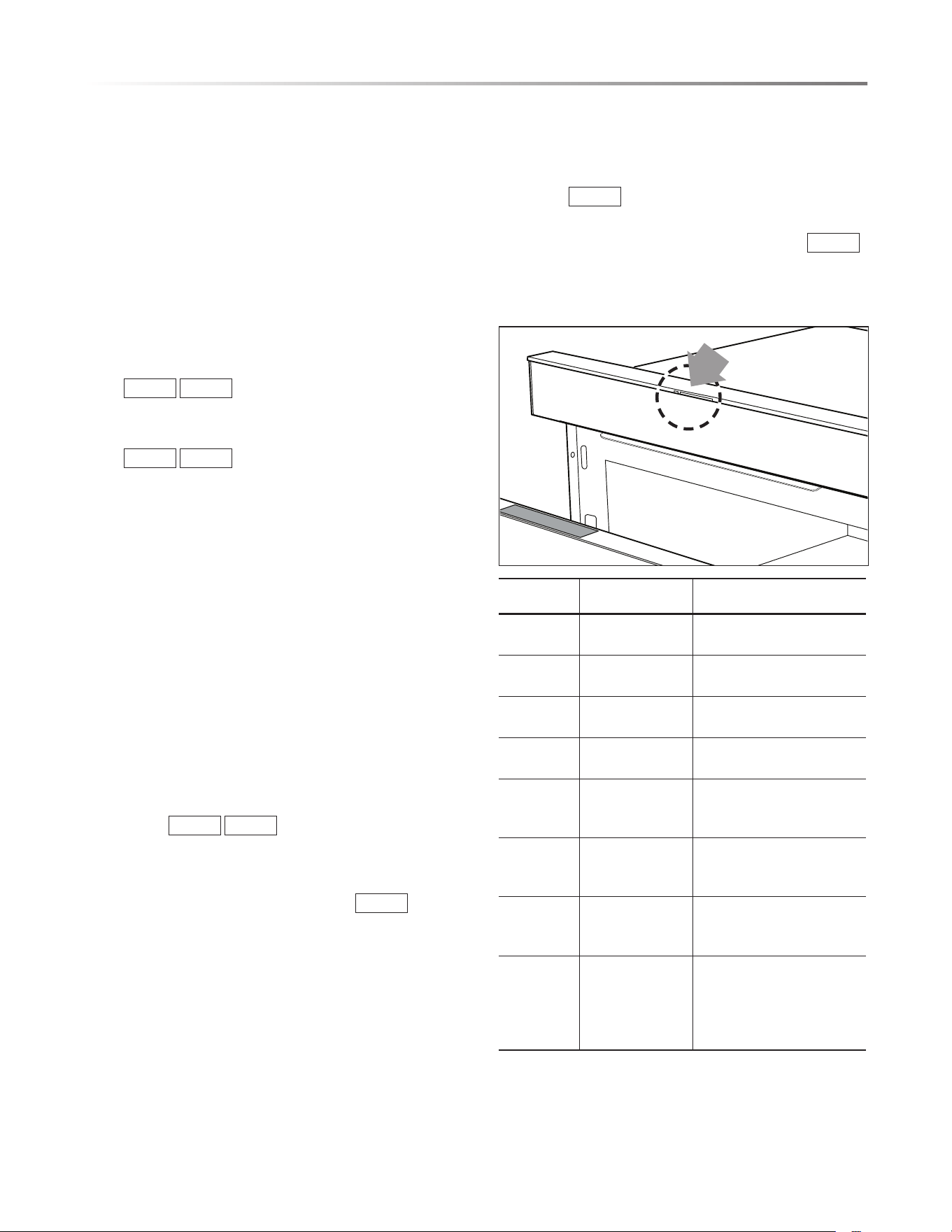

SENSOR SETTINGS
Sharp's Sensor is a semi-conductor device that detects the vapor
(moisture and humidity) emitted from the food as it heats. The
sensor adjusts the cooking times and power levels for various
foods and quantities.
USING SENSOR SETTINGS:
1 After the Microwave Drawer is plugged in, wait 2 minutes
before using any sensor setting.
2 Be sure the exterior of the cooking container and the interior
of the Microwave Drawer are dry. Wipe off any moisture with
a dry cloth or paper towel.
3 The sensor works with foods at normal storage temperature.
For example, popcorn would be at room temperature.
4 Any sensor selection can be programmed with More or Less
Time Adjustment. See page 21.
5 More or less food than the quantity listed in the charts
should be cooked following the guidelines in any microwave
cookbook.
6 During the rst part of sensor use, the food name will appear
on the display. Do not open the Microwave Drawer or touch
STOP/CLEAR during this part of the cycle. The measure-
ment of vapor will be interrupted. If this occurs, an error
message will appear. To continue cooking, touch the STOP/
CLEAR pad and cook manually.
When the sensor detects the vapor emitted from the food,
the remainder of cooking/reheating time will appear. The
Microwave Drawer may be opened when the remaining time
appears on the display. At this time, you may stir or season
food, as desired.
7 Except for Popcorn, if the sensor does not detect vapor prop-
erly when cooking other foods,
ERROR
will be displayed,
and the microwave will turn off.
8 Check food temperature after cooking. If additional time is
needed, continue to cook manually.
9 Each food has a cooking hint. Touch the TIMER/
SETTINGS pad when the HELP indicator is lighted in the
display.
MICROWAVE DRAWER COOKING
E15
COVERING FOODS:
Some foods work best when covered. Use the cover recommended
in the charts for these foods. See charts beginning at the bottom
of this page and continuing on the following pages. You may
refer to the hints by touching the TIMER/SETTINGS pad.
1 Casserole lid.
2 Plastic wrap: Use plastic wrap recommended for
microwave cooking. Cover dish loosely; allow
approximately
1
/2 inch to remain uncovered to allow
steam to escape. Plastic wrap should not touch food.
3 Wax paper: Cover dish completely; fold excess wrap
under dish to secure. If dish is wider than paper, overlap
two pieces at least one inch to cover.
Be careful when removing any covering to allow steam to
escape away from you.
POPCORN, REHEAT CHART
FOOD AMOUNT PROCEDURE
POPCORN Only 1 package at a time Only cook one microwave popcorn package at a time with the appropriate side facing
up. After cooking, remove and open carefully to allow steam to escape.
2.85 - 3.5 oz.
(Regular / Regular light)
Touch POPCORN pad once.
1.2 - 1.75 oz.
(Mini / Snack)
Touch POPCORN pad twice.
REHEAT 4 - 36 oz. Use microwave safe cookware and cover with lid, plastic wrap or wax paper. NOTE:
The tighter the cover, the hotter the food will be; however, it is necessary to leave a
small vent for the steam/moisture to escape from the food as it heats. After reheating,
stir well, if possible. Re-cover and allow to stand 2 to 3 minutes.
MICROWAVE DRAWER COOKING
SENSOR
POPCORN, REHEAT, COOK
You can cook or reheat many foods and don’t need to calculate
cooking time or power level.
• Suppose you want to cook baked potatoes.
1
Touch COOK pad once.
SEE
LABEL
SELECT
FOOD
NUMBER
.
2 See Menu Label. Select desired food by touching number
pad. Ex: Touch
1 for baked potatoes.
3 Touch START/+30 SEC pad.
Note:
• To heat or cook other foods or foods above or below the
quantity allowed on the chart, cook manually.
16E
MICROWAVE DRAWER COOKING
COOK CHART
FOOD AMOUNT PROCEDURE
1 Baked Potatoes
2 Sweet Potatoes
1 - 6 med
1 - 6 med
Pierce the potatoes at least 3 times each on the top, bottom and sides. Piercing allows
steam to escape. Place on paper towel in Microwave Drawer. After cooking, remove
from microwave, wrap in aluminum foil and let stand 5 to 10 minutes.
3 Fish/Seafood 0.25 - 2.0 lb. Arrange sh or seafood in ring around shallow glass dish (roll llet with edges
underneath). Cover with vented plastic wrap. After cooking, let stand, covered, for 3
minutes.
4 Brown Rice
5 White Rice
0.5 - 2.0 cups
0.5 - 2.0 cups
Place rice into a deep casserole and add double quantity of water. Cover with lid or plastic
wrap. After cooking, stir, cover and let stand 3 to 5 minutes or until all liquid has been
absorbed.
Rice Water Size of casserole
.5 cup ................... 1 cup ................... 1.5 quar ts
1 cup .................... 2 cups .................. 2 quarts
1.5 cups ................ 3 cups .................. 2.5 or 3 quarts
2 cups ................... 4 cups .................. 3 quarts or larger
6 Quick Fresh Vegetables
Broccoli
Brussels sprouts
Cabbage
Cauliower (owerets)
Cauliower (whole)
Spinach
Zucchini
Baked apples
0.25 - 2.0 lb.
0.25 - 2.0 lb.
0.25 - 2.0 lb.
0.25 - 2.0 lb.
1 med.
0.25 - 1.0 lb.
0.25 - 2.0 lb.
2 - 4 med.
Wash and place in casserole. Add no water if vegetables have just been washed. Cover
with lid for tender vegetables. Use plastic wrap for tender-crisp vegetables. After cooking,
stir, if possible. Let stand, covered, for 2 to 5 minutes.
7 Longer Fresh Vegetables
Ca rrot s, slice d
Corn on the cob
Green beans
Winter squash:
diced
halves
0.25 - 1.5 lb.
2 - 4
0.25 - 1.5 lb.
0.25 - 1.5 lb.
1 - 2
Place in casserole. Add 1 - 4 tablespoons water. Cover with lid for tender vegetables.
Use plastic wrap cover for tender-crisp vegetables. After cooking, stir, if possible. Let
stand, covered, for 2 to 5 minutes.
8 Steamer Bag 6 - 17 oz. Place bag in the microwave drawer with the appropriate side facing up. Follow instructions
on the bag. After cooking, remove and open carefully to allow steam to escape.
9 Frozen Vegetables 0.25 - 1.25 lb. Add no water. Cover with lid or plastic wrap. After cooking, stir and let stand, covered,
for 3 minutes.
10 Ground Meat 0.25 - 2.0 lb. Use this setting to cook ground beef or turkey as patties or in a casserole to be added
to other ingredients. Place patties on a microwave safe dish and cover with wax paper.
Place ground meat in a casserole dish and cover with wax paper or plastic wrap. When
microwave pauses, turn patties over or stir meat in casserole to break up large pieces. Re-
cover and touch START/+30 SEC. After cooking, let stand, covered, for 2 to 3 minutes.
11 Frozen Entrées 6 - 17 oz. Remove entrée from outer packaging and follow package directions for covering. After
cooking, let stand, covered, for 1-3 minutes.
E17
DEFROST
Use this feature to defrost the foods shown in the DEFROST
CH A RT below.
1 Touch DEFROST pad.
SEE
LABEL
SELECT
FOOD
NUMBER
2 See Menu Label. Select desired food by touching the number
pad. Ex: Touch
2 for steaks/chops.
STEAKS
CHOPS
ENTER
WEIGHT
3 Enter weight by touching number pads.
1.0
4 Touch START/+30 SEC pad.
The oven will stop so that the food can be checked.
5 After the rst stage, open the Microwave Drawer to turn steak
over. Close the Microwave Drawer. Touch START/+30 SEC
pad.
6 After each audible signal, turn food over and select
START/+30 SEC again.
7 After defrost cycle ends, cover and let stand as indicated in
the chart below.
Note:
• Defrost can be programmed with More or Less Time
Adjustment. See page 21.
• To defrost other foods or foods above or below the weights
allowed on the DEFROST CHART, see MANUAL
DEFROST below.
• Check foods when oven signals. After nal stage, small
sections may still be icy. Let stand to continue thawing.
Do not cook until all ice crystals are thawed.
DEFROST CHART
FOOD AMOUNT PROCEDURE
1 Ground Meat 0.5 - 2.0 lb After each audible signal, remove any thawed pieces and select START/+30 SEC again. After
cooking, let stand, covered, for 5 to 10 minutes.
2 Steaks/Chops 0.5 - 3.0 lb After each audible signal, turn food over and select START/+30 SEC again. After cooking, let
stand, covered, for 10 to 20 minutes.
3 Boneless Poultry 0.5 - 2.0 lb After each audible signal, turn food over and select START/+30 SEC again. After cooking, let
stand, covered, for 10 to 20 minutes.
4 Bone-in Poultry 0.5 - 3.0 lb After each audible signal, turn food over and select START/+30 SEC again. After cooking, let
stand, covered, for 10 to 20 minutes.
5 Roast 2.0 - 4.0 lb After each audible signal, turn food over and select START/+30 SEC again. After cooking, let
stand, covered, for 30 to 60 minutes.
6 Casserole
Soup
2 - 6 cups
1 - 6 cups
After each audible signal, break apart and remove any defrosted part. At end, stir well and let stand,
covered, for 5 to 10 minutes.
MICROWAVE DRAWER COOKING
MANUAL DEFROST
If the food that you wish to defrost is not listed on the DEFROST
CHART or is above or below the limits in the AMOUNT column
on the DEFROST CHART, you need to defrost manually.
You can defrost any frozen food, either raw or previously cooked,
by using POWER LEVEL at 30%. Follow the exact 3-step
procedure found under TO SET POWER LEVEL on page 14.
Estimate defrosting time and touch POWER LEVEL pad eight
times for 30% power.
For either raw or previously cooked frozen food the rule of thumb
is approximately 4 minutes per pound. For example, defrost 4
minutes for 1 pound of frozen spaghetti sauce.
Always stop the oven periodically to remove or separate the
portions that are defrosted. If food is not defrosted at the end
of the estimated defrosting time, program the oven in 1 minute
increments on POWER LEVEL 30% until totally defrosted.
When using plastic containers from the freezer, defrost only
long enough to remove from the plastic in order to place in a
microwave safe dish.
18E
MICROWAVE DRAWER COOKING
MORE MENUS
MELT / SOFTEN / WARM
These features automatically compute the correct heating time
and microwave power level for melting, softening and warming
foods shown in the chart below.
1 Touch MORE MENUS pad once.
SEE
LABEL
SELECT
FOOD
NUMBER
2 See Menu Label. Select desired food by touching number
pad. Ex: Touch
2 for chocolate.
3 Repeat touching same number pad to select quantity.
Ex: Touch
2 two more times for 1 square.
4 Touch START/+30 SEC pad.
Note:
• Melt/Soften/Warm can be programmed with More or Less
Time Adjustment. See page 21.
• To melt, soften or warm other food or foods above or below
the quantity allowed on the MELT /SOFTEN/WARM
CHART, use manual operation.
MELT/SOFTEN/WARM CHART
FOOD AMOUNT PROCEDURE
Melt Use a Pyrex measuring cup. Cover with plastic wrap.
1 Butter 2 tbsp
8 tbsp
After touching MORE MENUS, touch
1 two times for 2 tbsp.
After touching MORE MENUS, touch 1 three times for
8 tbsp
.
2 Chocolate 1 cup chips
1 square
After touching
MORE MENUS
, touch
2 two times for 1 cup chips.
After touching
MORE MENUS
, touch 2 three times for 1 square.
Soften DO NOT COVER.
3 Ice cream 1 pint
1.5 qt.
After touching MORE MENUS, touch
3 two times for 1 pint.
After touching
MORE MENUS
, touch
3 three times for 1.5 quarts.
4 Cream cheese 3 oz.
8 oz.
After touching MORE MENUS, touch
4 two times for 3 oz.
After touching MORE MENUS, touch 4 three times for 8 oz.
Warm Use a Pyrex measuring cup. DO NOT COVER.
5 Syrup 0.25 cup
0.5 cup
After touching MORE MENUS, touch
5 two times for
0.25
cup.
After touching
MORE MENUS
, touch
5 three times for
0.5
cup
.
6 Dessert Toppings 0.25 cup
0.5 cup
After touching MORE MENUS, touch
6 two times for
0.25
cup.
After touching MORE MENUS, touch
6 three times for
0.5
cup.
E19
MICROWAVE DRAWER COOKING
BEVERAGE REHEAT / HOT WATER / HOT CEREAL CHART
FOOD AMOUNT PROCEDURE
7 Beverage Reheat 0.5 - 2 cups This setting is good for restoring a cooled beverage to a better drinking temperature. Touch
number 7 pad for a 0.5 cup increase per touch. Stir after heating.
8 Hot Water 1 - 6 cups Use this setting for heating COLD TAP WATER to a temperature somewhat below the boiling
point to make instant coffee or tea. Touch number 8 pad for 1 cup increase per touch. Stir
liquid briskly before and after heating to avoid “eruption”.
9 Hot Cereal 1 - 6 servings Use individual packets or bulk cereal in your favorite variety: oatmeal, oat bran, cream of
wheat, farina or wheatena. Follow the package directions for the correct amount of water or
milk. To prevent boilovers, it is very important to choose a large container because microwave
cooking of cereal causes high boiling. Touch number 9 pad for 1 serving increase per touch.
If the oven stops, stir and touch START/+30 SEC. After cooking, stir and let stand, covered,
for 2 minutes.
BEVERAGE REHEAT / HOT WATER / HOT CEREAL
These features enable you to reheat coffee or tea to restore to a
more suitable drinking temperature or to make instant coffee,
tea or hot cereal.
• Suppose you want to make 2 cups of coffee.
1 Touch
MORE MENUS
pad once.
SEE
LABEL
SELECT
FOOD
NUMBER
2 See Menu Label. Select desired selection by touching number
pad. Ex: Touch
8 to make coffee.
3 Repeating touching same number pad to select quantity. Ex:
Touch
8 two more times for 2 cups of coffee.
4 Touch START/+30 SEC pad.
Note:
• BEVERAGE REHEAT/HOT WATER/HOT CEREAL
can be programmed with More or Less Time Adjustment.
See page 21.
• Should you attempt to enter more or less than the allowed
amount, an error message will appear in the display.
TIMER / SETTINGS
If the electrical power supply to your Microwave Drawer should
be interrupted, the display will intermittently show
ENJOY
YOUR
MICRO-
WAVE
TOUCH
CLEAR
after the power
is reinstated. If this occurs, the SETTINGS option you input
will be erased. Simply touch STOP/CLEAR pad and reset.
TIMER
1 Touch TIMER/SETTINGS pad 2 times.
2 Enter time.
3 Touch START/+30 SEC pad.
To cancel timer, touch STOP/CLEAR.
AUDIBLE SIGNAL ELIMINATION
At the end of timed cook, beeps will sound. The audible signal
can be turned off if you prefer quiet operation.
TO TURN SOUND OFF
1 Touch TIMER/SETTINGS pad 8 times.
SOUND
OFF ?
TOUCH
START
2 Touch START/+30 SEC pad. The display shows
SOUND
OFF
TO RESTORE SOUND
1 Touch TIMER/SETTINGS pad 8 times.
SOUND
ON ?
TOUCH
START
2 Touch START/+30 SEC pad. The display shows
SOUND
ON
END OF COOKING REMINDER
At end of timed cooking, the microwave will signal every 10
seconds for the rst minute; then every 3 minutes until STOP/
CLEAR pad is touched, up to one hour.
TO TURN REMINDER OFF
1 Touch TIMER/SETTINGS pad 9 times. The display shows
REMIND
SIGNAL
OFF ?
TOUCH
START
.
2 Touch START/+30 SEC pad. The display shows
REMIND
SIGNAL
OFF
.
TO TURN REMINDER SIGNAL BACK ON
1 Touch TIMER/SETTINGS pad 9 times. The display shows
REMIND
SIGNAL
ON ?
TOUCH
START
.
2 Touch START/+30 SEC pad. The display shows
REMIND
SIGNAL
ON
.
HELP
Each setting of Popcorn, Reheat, Cook, Defrost and Beverage has
a cooking hint. If you wish to check, touch TIMER/SETTINGS
whenever HELP is lighted in the Interactive Display for these
and other manual operation hints.
AUTO START
If you wish to program the Microwave Drawer to begin cooking
automatically at a designated time of day, follow this procedure.
1 Touch TIMER/SETTINGS pad 10 times. The display shows
AUTO
START
TOUCH
START
.
2 Touch START/+30 SEC pad.
ENTER
START
TIME
3 Enter start time.
4:30
TOUCH
SETTINGS
4 Touch TIMER/SETTINGS pad.
ENTER
COOKING
TIME
5 Touch the number pads to enter cooking time.
20.00
TOUCH
START
OR
TOUCH
POWER
LEVEL
.
Touch POWER LEVEL pad repeatedly until the desired power
level is reached.
TOUCH
START
6 Touch START/+30 SEC pad.
DEMONSTRATION MODE
TO SELECT DEMO MODE
1 Touch TIMER/SETTINGS pad 11 times. The display shows
DEMO
ON ?
HOLD
START
3 SEC
.
2 Hold START/+30 SEC pad for 3 seconds. The display shows
DEMO
ON
.
TO CANCEL DEMO MODE
1 Touch TIMER/SETTINGS pad 11 times. The display shows
DEMO
OFF ?
TOUCH
START
.
2 Touch START/+30 SEC pad. The display shows
DEMO
OFF
.
Note:
• Microwave Drawer doesn’t heat in Demo Mode.
• Display counts down quickly.
+30 SEC
+30 SEC allows you to cook for 30 seconds at 100% by simply
touching the +30 SEC pad. You can also extend cooking time
in multiples of 30 seconds by repeatedly touching the +30 SEC
pad during manual cooking.
Note:
•
To use +30 SEC, touch pad within 3 minutes after cooking
completion, after closing the drawer, or after touching the
STOP/CLEAR pad once.
•
If the STOP/CLEAR pad is touched twice, prior to the end
of cooking, +30 SEC cannot be activated until the drawer
has been opened and then closed.
•
+30 SEC cannot be used with Sensor settings, REHEAT or
DEFROST.
20E
OTHER FEATURES
STANDBY MODE
This microwave will go into standby mode after a period of
inactivity. The backlight of the display will automatically dim
after 3 minutes if the unit has not been in operation. If the display
is in standby mode, simply touch the control panel or open/close
the door to return the backlight to maximum brightness.
CONTROL LOCK
The Control Lock prevents unwanted drawer operation such as
by small children. The Microwave Drawer can be set so that
the control panel and the automatic drawer mechanism are
deactivated or locked.
TO LOCK
Touch STOP/CLEAR pad and hold for 3 seconds. The display
shows
LOCK
ON
.
TO UNLOCK
Touch STOP/CLEAR pad and hold for 3 seconds. The display
shows
LOCK
OFF
.
The Control Lock is canceled when the electrical power supply
to your oven is interrupted. Set the Control Lock again when power
to the oven is restored.
MULTIPLE SEQUENCE COOKING
Your Microwave Drawer can be programmed for up to 4
automatic cooking sequences, switching from one power level
setting to another automatically.
Sometimes cooking directions tell you to start on one power
level and then change to a different power level. Your Microwave
Drawer can do this automatically.
1 First enter cooking time. Then touch POWER LEVEL
pad once for 100% cooking or repeatedly touching POWER
LEVEL pad for a lower power level.
2 Enter second cooking time. Repeat touching POWER
LEVEL pad for desired level. You can follow this procedure
up to 4 times.
TOUCH
START
3 Touch START/+30 SEC pad.
Note:
• If POWER LEVEL pad is touched once,
HIGH
will be
displayed.
• If 100% is selected as the nal sequence, it is not necessary
to touch the POWER LEVEL pad.
• If you wish to know power level during cooking, simply
touch the POWER LEVEL pad. As long as your nger is
touching the POWER LEVEL pad, the power level will
be displayed.
MORE OR LESS TIME ADJUSTMENT
Should you discover that you like any of the REHEAT or
DEFROST settings slightly more done, touch the POWER
LEVEL pad once after touching your selection. The display
will show
MORE
.
For slightly less done, touch the POWER LEVEL pad twice
after touching your selection. The display will show
LESS
.
INDICATORS LENS AND
COLOR LEGEND
WI-FI
STATUS
OVEN STATUS COMMENTS
Wi-Fi Off Wave Open Off Oven on Standby (out of
the box)
Wi-Fi On -
blue light
Wave Open Off Oven on Standby -
Not Cooking
Wi-Fi Off Wave Open On -
white light
Oven on Standby -
Not Cooking
Wi-Fi On -
blue light
Wave Open On -
white light
Oven on Standby -
Not Cooking
Wi-Fi On -
blue light
Cooking -
green light
Slow Flash (1 second ON, 1
second OFF)- Sensor / On
Full - Countdown
Wi-Fi On -
blue light
Cooking -
red light
Slow Flash (1 second ON,
1 second OFF) - Stopped,
Ready to Open
Wi-Fi On -
blue light
Cooking -
yellow light
Slow Flash (1 second ON,
1 second OFF) - Time is
Paused
Wi-Fi On -
blue light
Remote Start
Active -
white light
Flash every 5 second
(5 seconds ON, 1 second
OFF) - Drawer opened,
3 minute window to remote
operate App
E21
OTHER FEATURES
EXTERIOR
The outside surface is precoated metal and glass. Clean the
outside with mild soap and water; rinse and dry with a soft cloth.
Do not use any type of household or abrasive cleaner.
STAINLESS STEEL SURFACE
The exterior should be wiped often with a soft damp cloth and
polished with a soft dry cloth to maintain its beauty. There are
also a variety of products designed especially for cleaning and
shining the stainless exterior of the oven. We recommend that
the cleaner be applied to a soft cloth and then carefully used on
the stainless exterior rather than sprayed directly on to it. Follow
package directions carefully.
FRONT SIDE OF THE DRAWER
Wipe the window on both sides with a soft damp cloth to remove
any spills or spatters. Metal parts will be easier to maintain if
wiped frequently with a soft damp cloth. Avoid the use of spray
and other harsh cleaners as they may stain, streak or dull the
drawer surface.
TOUCH CONTROL PANEL
If desired, the touch pads may be deactivated before cleaning.
See the Control Lock information on page 21 of this manual.
Wipe the panel with a cloth dampened slightly with water only.
Dry with a soft cloth. Do not scrub or use any sort of chemical
cleaners. Close drawer and follow directions on page 21 for
turning Control Lock off. Touch STOP/CLEAR.
INTERIOR
Before cleaning the Microwave Drawer, touch and hold the
STOP/CLEAR button for 3 seconds to lock the control
pad and the automatic door mechanism. The drawer can
be locked in either the open or closed position. The display
will show
LOCK ON
. This will prevent the drawer from
accidentally opening or closing during cleaning. After
cleaning, touch and hold the STOP/CLEAR button for
3 seconds to turn the lock off. The display will show
LOCK
OFF
.
Cleaning is easy because no heat is generated to the interior
surfaces; therefore, there is no baking and setting of spills or
spattering. To clean the interior surfaces, including drawer
sealing surfaces, wipe with a soft damp cloth. DO NOT USE
ABRASIVE OR HARSH CLEANERS OR SCOURING PADS.
For heavier soil, use mild soap; wipe clean with a soft damp
cloth. Do not use any chemical oven cleaners.
MICROWAVE DRAWER GUIDES
Remove the food crumbs from the Microwave Drawer guides.
Wipe with a soft dry cloth in order to keep the Microwave
Drawer opening and closing smoothly.
WAVEGUIDE COVER
ATTENTION
The waveguide cover, located on the inside
top of the Microwave Drawer area, is made from mica, so
it requires special care. Keep the waveguide cover clean to
assure good microwave performance. Carefully wipe with
a soft damp cloth any food spatters from the surface of the
cover immediately after they occur. Built-up splashes may
overheat and cause smoke or possibly catch re. Do not
remove the waveguide cover.
ODOR REMOVAL
Occasionally, a cooking odor may remain in the Microwave
Drawer. To remove odor, combine 1 cup water, grated peel and
juice of one lemon and several whole cloves in a 2-cup glass
microwave safe measuring cup. Boil for several minutes using
100% power. Leave in the Microwave Drawer until water cools.
Wipe interior with a soft cloth.
22E
CLEANING AND CARE
E23
Please check the following before calling for service. It may save you time and expense.
PROBLEM POSSIBLE CAUSE SOLUTION
1 Part or all of Micro-
wave Drawer does not
operate.
• Power cord of Microwave Drawer is not
completely connected to the electrical outlet.
• Power outage.
• Fuse/circuit breaker at home doesn’t work.
• Microwave Drawer is in Demo Mode.
• Make sure the power cord is tightly connected
to the outlet.
• Check house lights to be sure. Call your local
electric company for service.
• Replace the fuse or reset the circuit breaker.
• See page 20 for how to cancel Demo Mode.
2
Food in Microwave
Drawer is not heated.
• No power to the appliance.
• Drawer controls improperly set.
• Drawer is in Demo Mode.
• See SOLUTION for PROBLEM 1.
• Check if the controls have been properly set.
• See page 20.
3
Microwave Drawer
light does not work.
• Light bulb is loose or burned out. • Call for service.
4
Touch controls will not
operate.
• Control Lock is on. • See page 21 to unlock.
5
Display ashes.
• Power failure. • Touch Clear pad and reset the clock. If the
Microwave Drawer was in use, you must reset
the cooking function.
6
Steam from the vent.
• During microwaving, water vapor may come
from the left side of the vent (when facing the
microwave).
BEFORE YOU CALL FOR SERVICE
SET CLOCK
1
Touch TIMER/SETTINGS pad once.
2
Touch number pads for correct time of day and touch
START/+30 SEC pad.
If the electrical power supply to
your microwave drawer should
be interrupted, the display will
intermittently show:
ENJOY
YOUR
MICRO-
WAVE
TOUCH
CLEAR
TIME COOKING
High Power Cooking
1
Enter cooking time by touching
number pads. (Ex: 5 minutes)
5.00
TOUCH
START
OR
TOUCH
POWER
LEVEL
2
Touch START/+30 SEC pad.
Variable Power Cooking
1
After step 1 above, touch POWER LEVEL pad until
desired power level is in the display.
2
Touch START/+30 SEC pad.
SENSOR
Sensor automatically computes the correct time and power level
to cook foods on the Menu Label perfectly.
1
Touch COOK pad once.
SEE
LABEL
SELECT
FOOD
NUMBER
2
See Menu Label. Select desired food by touching number
pad. Ex: Touch
1 for baked potatoes.
3
Touch START/+30 SEC pad.
+30 SEC
Touch START/+30 SEC for 30 seconds at 100% microwave
power or to add 30 seconds during manual cooking. Continue
to touch for additional 30 seconds.
DEFROST
Use this feature to defrost the foods shown on the Menu Label.
1
Touch DEFROST pad.
SEE
LABEL
SELECT
FOOD
NUMBER
2
See Menu Label. Select desired
food by touching the number pad.
Ex: Touch 2 for steaks/chops.
STEAKS
CHOPS
ENTER
WEIGHT
3
Enter weight by touching number
pads.
1.0
4
Touch START/+30 SEC pad.
5
Microwave will stop to allow food to be turned over,
and/or removed. Close the Microwave Drawer. Touch
START/+30 SEC pad.
MORE MENUS
MELT / SOFTEN / WARM
Use these features to melt, soften or warm the foods shown on
the Menu Label.
1
Touch MORE MENUS pad once.
SEE
LABEL
SELECT
FOOD
NUMBER
2
See Menu Label. Select desired food
by touching the number pad.
Ex: Touch 2 for chocolate.
CHOCO-
LATE
3
Repeat touching same number pad
to select quantity. Ex: touch
2 two
more times for 1 square.
4
Touch START/+30 SEC pad.
BEVERAGE REHEAT / HOT WATER / HOT CEREAL
Use this feature for coffee, tea or hot cereal to reheat.
1
Touch MORE MENUS pad.
SEE
LABEL
SELECT
FOOD
NUMBER
2
See Menu Label. Select desired
food by touching the number pad.
Ex: Touch 8 for hot water.
HOT
WATER
3
Repeat touching same number pad
to select quantity. Ex: touch 8 two
more times for 2 cups.
2 CUPS
4
Touch START/+30 SEC pad.
E
AUTO-TOUCH GUIDE
24
For more complete information and safety precautions, refer to your Operation Manual.
MICROWAVE DRAWER
OTHER FEATURES
CONTROL LOCK
The Control Lock prevents unwanted oven/drawer operation
such as by small children. The Microwave Drawer can be set so
that the control panel is deactivated or locked.
To Lock
Touch STOP/CLEAR pad and hold for
3 seconds.
LOCK ON
To Unlock
Touch STOP/CLEAR pad and hold for
3 seconds.
LOCK OFF
TIMER/SETTINGS
See previous sections for specic details.
Touch TIMER/SETTINGS pad.
1 time for Clock.
2 times for Timer.
3 times for Remote Start.
4 times for Pairing.
5 times for Wi-Fi Information.
6 times for Wi-Fi Firmware Update.
7 times for Wi-Fi Reset.
8 times for Sound On/Off.
9 times for End of Cooking Reminder On/Off.
10 times for Auto Start.
11 times for Demo Mode On/Off.
STANDBY MODE
This microwave will go into standby mode after a period of
inactivity. Simply touch the control panel or open/close the door
to return the backlight to maximum brightness.
E
AUTO-TOUCH GUIDE
25
26
SHARP ELECTRONICS OF CANADA LTD
335 Britannia Road East • Mississauga, Ontario L4Z 1W9 • Canada
