ENGLISH ENGLISH
Notes
You may notice a slight burning smell or smoke when using the fryer for the rst time, caused
by the excess of lubricants from the manufacturing process. This does not aect the safety of
the product.
3. OPERATION
1. Place the appliance on a at and stable surface.
2. Connect the device.
3. Remove the basket carefully from the device. Use the handle to do this. Make sure the
rack is placed in the basket.
4. Put the ingredients in the basket.
Warning
Do not ll the basket beyond the Max mark.
1. Put the basket back in the device. The device has a safety system that will not allow you
to use it if the basket is not in place.
2. Press the ON/OFF icon, then select the desired programme or set the time and temperature
and press the Start/Pause icon. At this point, the device will start working.
3. If at any point during cooking, you wish to pause the process, press the Start/Pause icon.
If you wish to cancel the process, hold down the icon.
4. When you hear an alarm, it means that the preparation time has come to an end. Pull the
container out of the device.
5. Check if the ingredients are ready. If not, put the container back inside the device and set
the timer to a few more minutes.
6. To take the ingredients out of the appliance, place it on a heatproof surface. Depending on
the kind of ingredients, steam may come out.
7. Empty the food from the basket into a bowl or plate. Use tongs to remove ingredients, as
this will prevent residual cooking oil from dripping onto the dish. Be careful not to burn
yourself.
8. You can use the device again after having used it.
Control panel
ON/OFF icon (5)
- Once the basket and the rack are properly placed in the main unit housing, the ON/OFF icon
will light up.
- Press the ON/OFF icon, the device will emit a sound and the display will show 200ºC/ 15
minutes alternately.

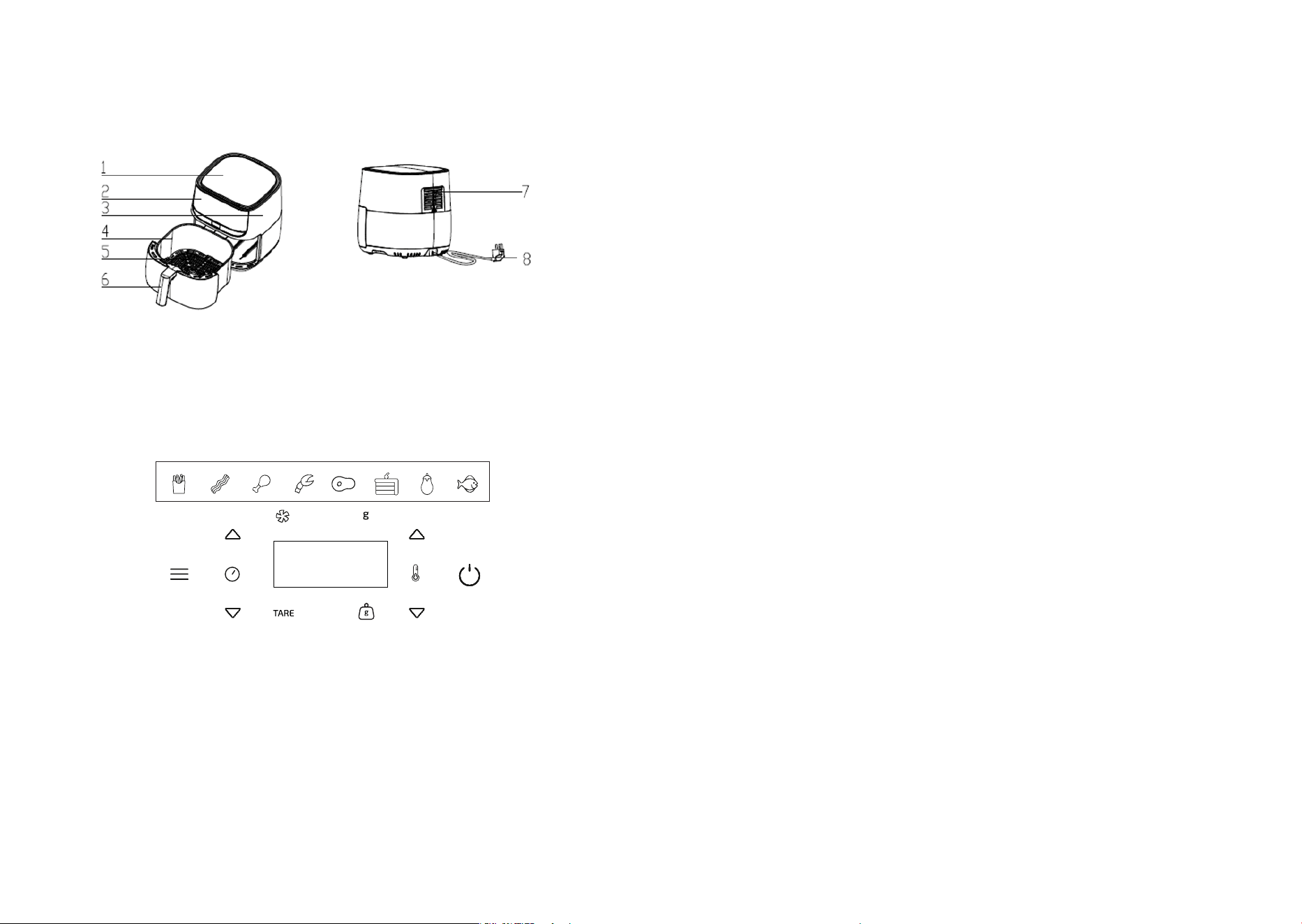

1. PARTS AND COMPONENTS
Fig. 1.
1. Scale
2. Control panel
3. Housing
4. Basket
5. Rack
6. Basket handle
7. Air outlet
8. Power cord
Control panel
Fig. 2.
1. Pre-set programmes
2. Fan indicator light
3. Scale mode light indicator
4. Increasing and decreasing the temperature
5. ON/OFF and Start/Pause
6. Default programme selection
7. Increasing and decreasing the time
8. Tare function
9. Scale function
10. Display
2. BEFORE USE
- Take the product out of the box.
- Check for any visible damage. If any is observed, contact as soon as possible the Technical
Support Service of Cecotec for advice or reparation.
- Clean the basket and rack thoroughly with hot water, washing-up liquid and a non-abrasive
sponge.
- Clean the interior and the exterior of the device with a damp cloth.
- Do not wet the heating element.
- Do not ll the device with oil or any other liquid.
- Place the device on a stable and level surface.
- Do not place the device on any surface that it is not heat-resistant.
- Place the rack in the basket properly.
CECOFRY ADVANCE PRECISIONCECOFRY ADVANCE PRECISION
4746
ENGLISH ENGLISH
*The time of the vegetable depends on the type of vegetable to be used.
*The time of the sh is predetermined according to the cooking time of an open sea bream.
Note
- Keep in mind that these are just indications. As ingredients dier in origin, size, shape and
brand, we cannot guarantee the best setting for the ingredients that you are using.
- Add approximately 1-2 minutes to the preparation time indicated in the chart if you start
frying while the device is still cold.
Tips
- Smaller ingredients require shorter preparation time than the larger ones.
- A larger quantity of ingredients only requires a slightly longer preparation time, and a
smaller quantity of ingredients only requires a slightly shorter preparation time.
- Stirring small ingredients during the frying process optimises the result and can help
preventing unevenly fried ingredients.
- Add a little oil to the natural potatoes for a crispier result.
- Do not use the device to fry greasy food (such as sausages).
- Food that can be cooked in an oven can also be cooked with the device.
- Pre-made dough requires a shorter preparation time than home-made dough.
- You can also use the device to re-heat ingredients.
Temperature/time modication (4 and 7)
To change the temperature and time of the programmes, press the increase and decrease
icons for each programme. The temperature is on the left side of the display and the time on
the right side of the display.
Stirring food
Some ingredients may require sautéing during the frying process. To sauté the ingredients,
pull the container out the appliance by the handle and shake it. Then put it back to the device.
4. CLEANING AND MAINTENANCE
Cleaning
- Clean the device after every use.
- Disconnect the appliance from the power supply and allow it to cool down before cleaning
it.
- Do not use metallic tools or abrasive products to clean the basket and rack.
- Use a soft, damp cloth to clean the device surface.
- Never immerse the appliance in water or other liquid.
- Do not use abrasive cleaners or scouring pads to clean the product.
- Pressing this icon again will cause the selected programme or manual adjustment to start.
If you press this icon again, the device will pause. If you wish to end the programme, press
and hold the icon.
Scale function (9)
Press the WEIGH icon to activate the scale, the display will show “0000”, the scale is able to
measure from 1 to 5000 grams; if the maximum weight is exceeded, the display will show E3.
To tare, press the TARE icon.
To exit the scale mode, press the WEIGH icon again.
Default programme selection (6)
To use the pre-set programmes, press the pre-set programme selection button as many times
as you need to select the desired programme and the display will show the temperature and
time for each programme.
The table below shows the temperatures and times of the pre-set programmes, the amount of
food that can be inserted and whether stirring is required.
Programme Temperature Time Quantity Stir
Chips 200 ºC 18 min 400-600 gr Yes, halfway
Bacon 180 ºC 7 min Fill only the rack
base
Not necessary
Chicken* 200 ºC 15 min Fill only the rack
base
Not necessary
Shrimp 175 ºC 10 min Fill only the rack
base
Not necessary
Meat* 180 ºC 10 min Fill only the rack
base
Not necessary
Cupcakes 170 ºC 10-12 min Fill only the rack
base
Not necessary
Vegetables* 170 ºC 20 min Fill only the rack
base
Not necessary
Fish* 180 ºC 8 min 500 g Not necessary
Nuggets 200 ºC 10 min Fill only the rack
base
Not necessary
*The time for the chicken is pre-set based on cooking chicken wings.
*The time for the meat is predetermined according to the cooking time of a hamburger.
CECOFRY ADVANCE PRECISIONCECOFRY ADVANCE PRECISION
4948
ENGLISH ENGLISH
The basket does not slide into
the device properly.
There are too many
ingredients in the basket.
Do not ll the basket beyond
the max. indication.
The basket is not placed
correctly
Push the basket down into
the appliance until you hear
a click.
White smoke comes out of
the appliance.
You are preparing greasy
ingredients.
When fatty ingredients are
cooked with the air fryer, they
produce a small amount of
oil which can cause white
smoke. This does not aect
the appliance or the result.
The pan still contains grease
residues from previous use.
White smoke is caused by
grease heating up in the
device. Make sure you clean
the device properly after each
use.
Fresh fries are fried unevenly
in the air fryer.
You did not rinse the potato
sticks properly before you
fried them.
Rinse the potato sticks
properly to remove the
starch.
Fresh fries are not crispy
when they come out of the
air fryer.
The right kind of potato is not
being used.
Make sure you dry the potato
sticks properly before adding
the oil.
Cut the potato sticks on
smaller pieces for crispier
results.
6. TECHNICAL SPECIFICATIONS
Product reference: 03214
Product: Cecofry Advance Precision
220-240 V~
50/60 Hz, 1700 W
Capacity: 5,5 litres
Temperature setting: 80ºC—200ºC
Timer: 1-60 min.
Scale: 1-5000 g
Manufactured in China | Designed in Spain
Warning
- Remove the basket to let the device cool down more quickly.
- Clean the device thoroughly with hot water, washing-up liquid and a non-abrasive sponge.
- We recommend the use of a degreasing liquid to remove any remaining dirt.
- If there is dirt stuck in the interior of the basket and the rack, we recommend lling the
basket with hot water mixed with detergent, as this will make it easier to remove the dirt.
- Clean the inside of the device with hot water and a non-abrasive sponge.
- Both the basket and the rack are dishwasher safe. Remember that frequent use of the
dishwasher causes the product to break more quickly.
- Clean the heating element with a soft cleaning brush to remove any food residue. Be
careful not to damage the heating element.
Storage
- Unplug the device and let it cool down.
- Make sure all its parts are clean and dry when you store it.
5. TROUBLESHOOTING
Problem Possible cause Solution
The air fryer does not work The appliance is not plugged
in.
Put the mains plug in an
earthed wall socket.
The basket is not placed in
the device correctly
Place the basket in its place
The ingredients fried with the
air fryer are not done.
The amount of ingredients in
the basket is too big.
Place the smaller ingredients
in the basket, or select a
higher time/temperature
The temperature used is too
low.
Increase the temperature
(See the ‘Operation’ section).
The ingredients are fried
unevenly in the air fryer.
(Fried snacks are not crispy
when they are removed from
the air fryer).
The preparation time is too
short.
Set the timer to the desired
cooking time
Some types of food need to
be stirred during the frying
process.
Ingredients that lie on top
of or across each other (e.g.
fries) need to be shaken
halfway through the
preparation time.
You used a type of food that
is meant to be prepared in a
traditional deep fryer.
Oil the food a little bit to get a
crispier result
Fig./Img./Abb./Afb./ Rys./Obr. 1
Fig./Img./Abb./Afb./ Rys./Obr. 2
1
2 3
4
56 7
8 9
10
