54-04-0331
48-59-0255
CHARGER
Jan. 2005

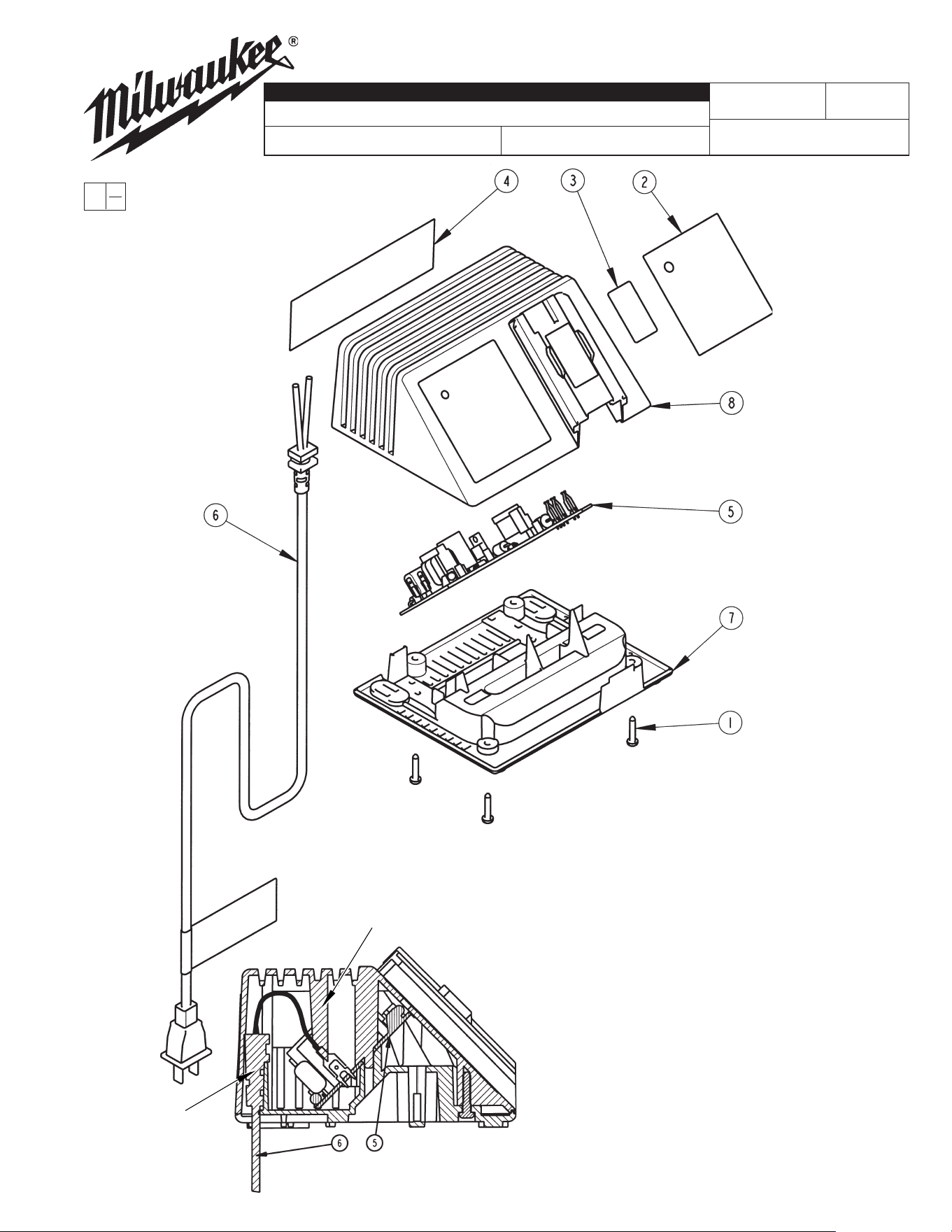

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- 6-32 x 11/16" Pan Hd. Slt. PT T-10 (4)
2 --------------- Logo Label (1)
3 --------------- Terminal Warning Label (1)
4 12-20-0610 Service Nameplate Kit (1)
5 --------------- Circuit Board Assembly (1)
6 22-64-0920 Cordset (1)
7 --------------- Bottom Housing (1)
8 --------------- Top Housing (1)
FIG. NOTES
5,8 Fully seat circuit board assembly into top housing,
aligning the bosses.
5,8 Circuit board battery clips are to be fully inserted into
battery port of top housing.
5,6 Cord set terminals are to be fully seated on mating
terminals of printed circuit board assembly and
perpendicular to printed circuit board surface.
6,8 Cord set to be free from conductor twists and cord
crossover prior to installation of strain relief into top housing.
54-04-0332
Rib of top housing is to separate
the terminals of circuit board
assembly and the cord set wires.
REVISED BULLETIN
SERVICE PARTS LIST
BULLETIN NO.
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER
MILWAUKEE ELECTRIC TOOL CORPORATION
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
0
00
A28C
Insert strain relief
as shown with the flat
side of the strain relief
positioned against the
inside wall of the
charger housing.
