Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 22j
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2022 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. Item 70603
SAFETy OpERATION MAINTENANcESETUp
Table of contents
Safety ......................................................... 2
Specifications ............................................. 4
Setup .......................................................... 4
Operation .................................................... 8
Maintenance ............................................... 9
Warranty .................................................... 12
WARNING SyMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMpORTANT SAFETy INFORMATION
Shop press Overall Safety Warnings
1. Study, understand, and follow all instructions
before operating the device.
2. Do not exceed rated capacity.
3. Keep hands, arms, feet and legs
out of the work area.
4. Wear eye protection.
5. Avoid off-center loads.
6. Failure to heed and understand these
instructions and warnings may result in
personal injury and/or property damage.
7. The press shall be installed and operated
in accordance with federal (OSHA),
state, and local safety standards.
8. Use appropriate guarding to contain any pieces
that may break or fly apart when applying force.
9. When attachments and adapters are used,
the rated capacity of the system shall be
no greater than the rated capacity of the
lowest-rated component or combination of
components that make up the system.
10. Operators and observers shall wear eye protection
that meets ANSI/ISEA Z887.1 and OSHA standards.
11. Prior to use, make sure the press
is securely anchored.
12. Verify lift cables are slack before
pressing on the bolster.
13. No alterations shall be made to this product.
14. Do not operate if workpiece tilts or
binds during compression.
15. Keep hands away from arbor plates
and press pin during use.
16. Do not move workpiece while compressed.
17. Release load before service or maintenance.
18. Keep area under arbor plates clear. If arbor
plates rest on obstruction (i.e. bolt, debris,
etc.), it creates an uneven press, causing
excess stress and possible breakage.
19. STOP and release compression if you suspect
imminent structural failure. If safe, inspect
thoroughly and reposition before proceeding.
20. Do not compress springs or other elastic
objects. They could disengage hazardously.
Page 3For technical questions, please call 1-888-866-5797.Item 70603
SAFETyOpERATIONMAINTENANcE SETUp
21. Wear ANSI-approved safety goggles,
heavy-duty work gloves, and steel-toe
work boots during set up and/or use.
22. Keep bystanders out of work area.
23. Do not stand directly in front of the
press when loaded. Do not leave the
press unattended when loaded.
24. Inspect before every use; do not use
if parts are loose or damaged.
25. Only use with accessories rated to handle the
forces exerted by this tool during operation. Other
accessories not designed for the forces generated
may break and forcefully launch pieces.
26. This product is not a toy. Keep it
out of reach of children.
27. Maintain labels and nameplates on the
Shop Press. These carry important safety
information. If unreadable or missing, contact
Harbor Freight Tools for a replacement.
28. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
Safety Warnings for Included Bottle Jack
1. Do not use as lifting device. Attach
securely to shop press before use.
2. Do not remove, unless for replacement.
3. Do not exceed 20 ton rated capacity.
4. Do not adjust safety valve.
5. Jack service must be performed only by
qualified repair personnel. Service or
maintenance performed by unqualified
personnel could result in a risk of injury.
6. When servicing a jack, use only identical
replacement parts – refer to attached, product-
specific parts list and diagram. Follow
instructions in the “User - Maintenance
Instructions” section of this manual. Use of
unauthorized parts or failure to follow maintenance
instructions may create a risk of injury.
Bottle Jack Replacement Safety Warnings
1. Rating of replacement Bottle Jack
needs to match exactly.
2. Bottle Jack must fit securely into place on both
the upper beam and the Jack Plate before use.
3. Position replacement Bottle Jack
carefully on center of Jack Plate.
4. Replace Bottle Jack only with exact
replacement part or Pittsburgh standard bottle
jack. Do not replace with an air/hydraulic
bottle jack nor a low-profile bottle jack.
SAVE THESE INSTRUcTIONS.
Page 4 For technical questions, please call 1-888-866-5797. Item 70603
SAFETy OpERATION MAINTENANcESETUp
Specifications
Maximum
Capacity
20 Tons
(40,000 pounds)
Oil Type Hydraulic Oil
Note: For additional information regarding the parts
listed in the following pages, refer to the Parts List

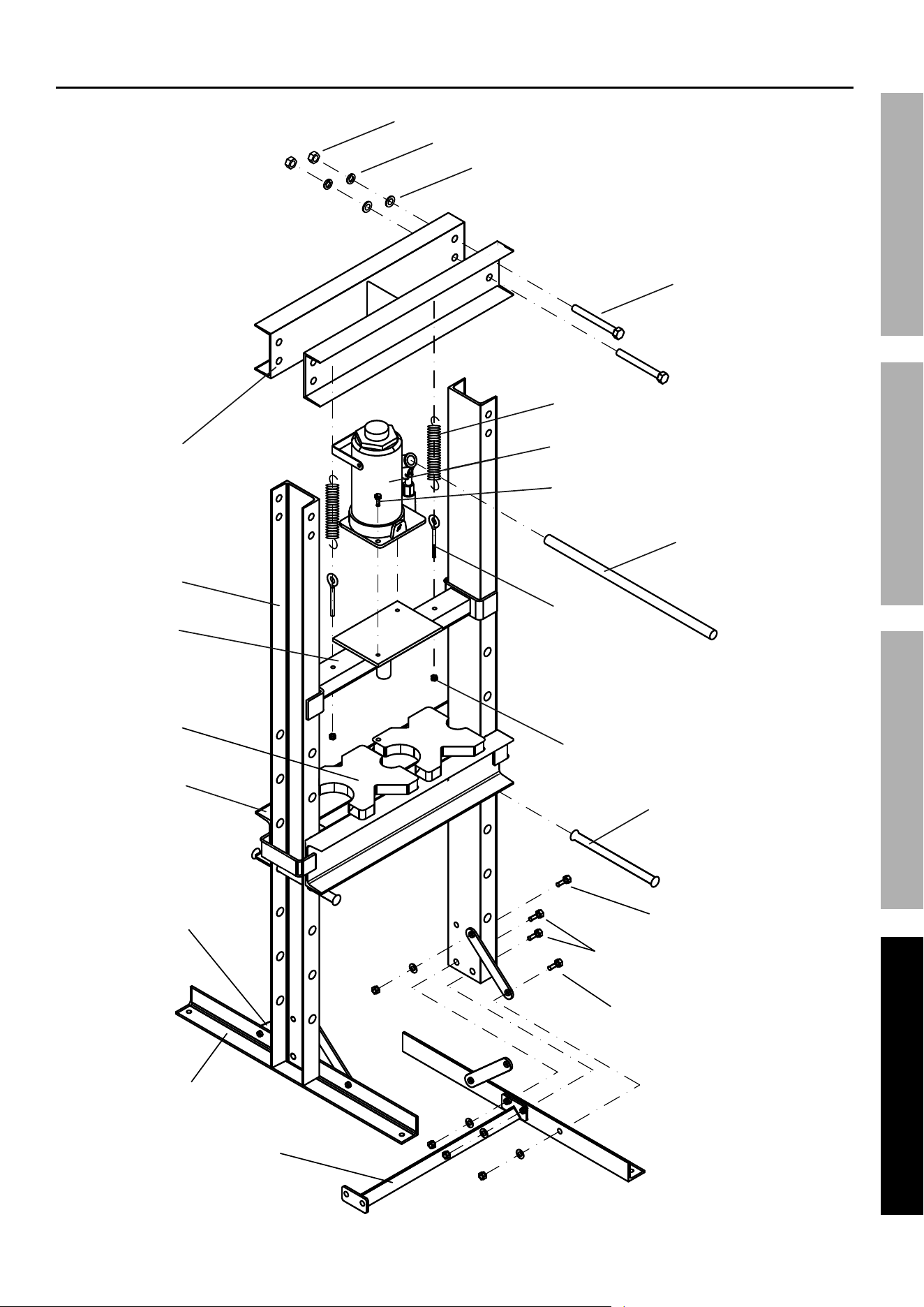

and Assembly Diagram near the end of this manual.
Setup - Before Use:
Read the ENTIRE IMpORTANT SAFETy INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
Inspect tool before use, looking for damaged, loose, and missing parts.
If any problems are found, do not use tool until repaired.
components of this Shop press are heavy. you will need a helper to safely assemble this product.
Note: For additional information regarding the parts listed in the following pages,
refer to the Assembly Diagram near the end of this manual.
Assembly

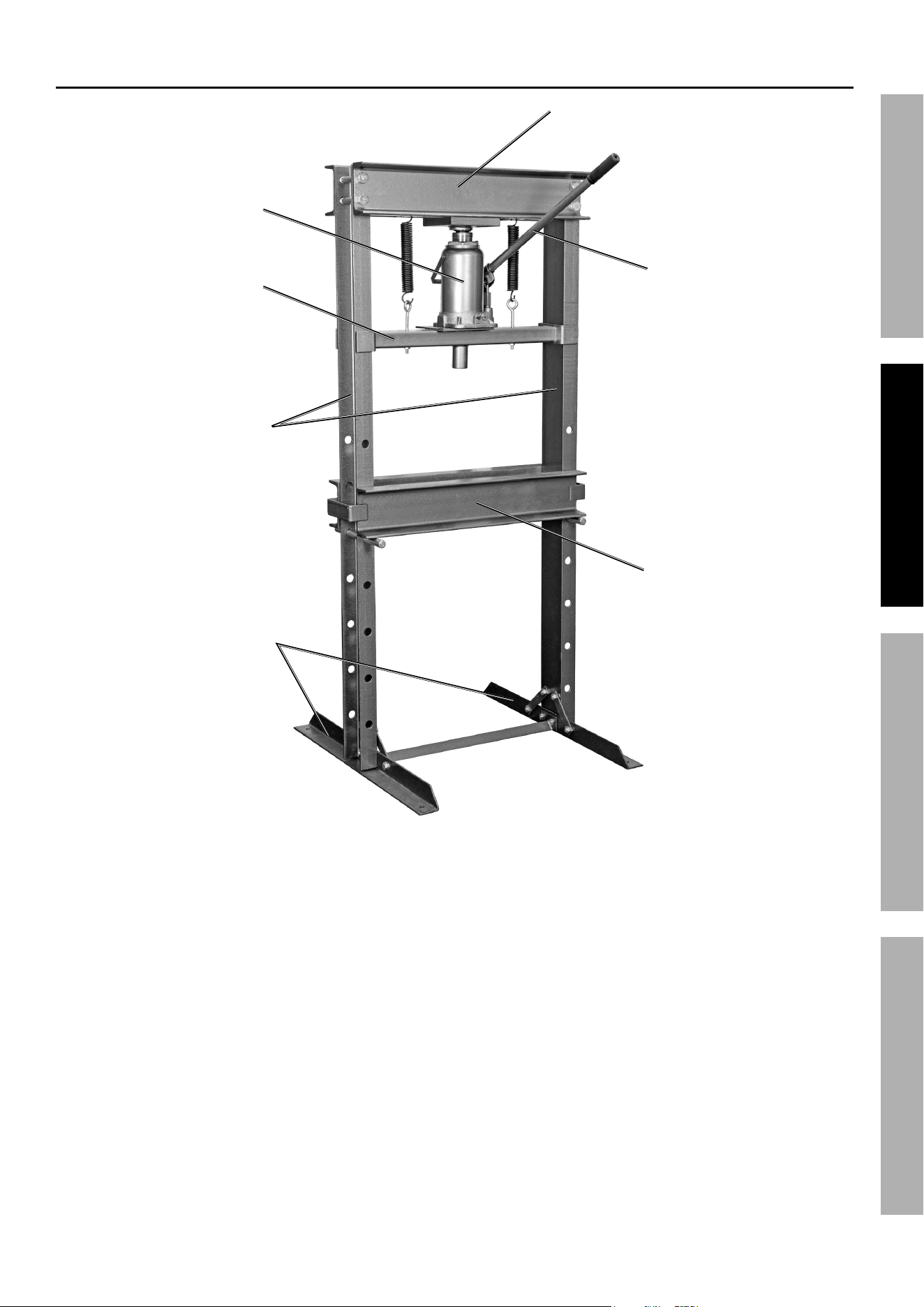

1. Using the Components photo on page 9
and the Parts List and Assembly Diagram
near the end of the manual, lay out and
identify all pieces before assembly.

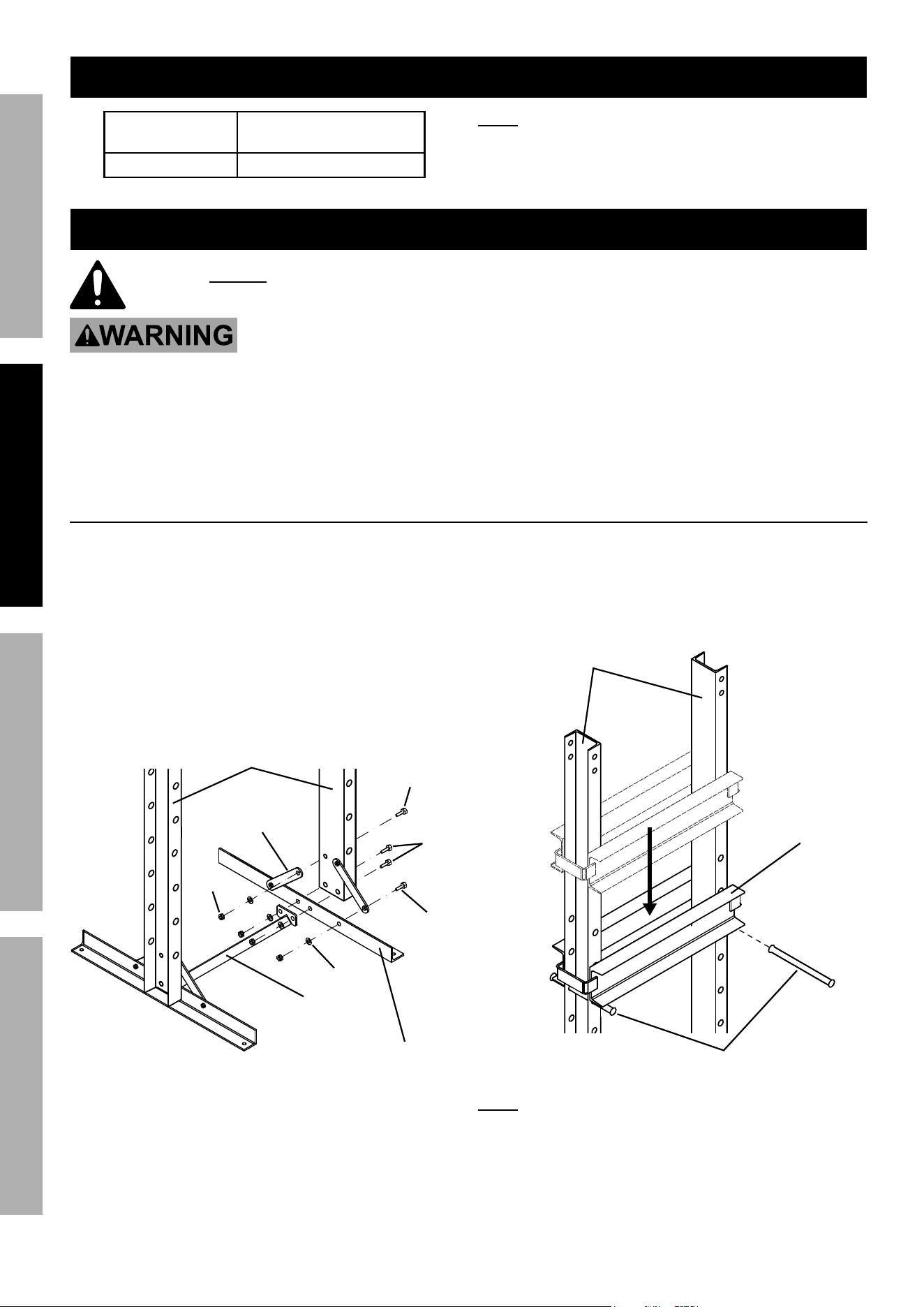

2. Slide each Base Section (21) under the Frame
Posts (16), and place the Bottom Frame
Support (22) between them. Line up the bolt holes
and insert the Bolts (14) through the Frame Posts,
Base Sections, and Bottom Frame Support, then
secure in place with the Washers (12) and Nuts (13).
Frame Post (16)
Base Section (21)
Base Section
Support (20)
Bottom Frame
Support (22)
Figure 2
Washer (12)
Bolt (11)
Bolt
(14)
Nut (13)
Bolt (11)
3. Attach the Base Section Supports (20) to the Frame
Posts and Base Sections using the Bolts (11),
Washers (12), and Nuts (13). See Figure 2.
4. Determine where the Shop Press will be located.
Check to ensure that the Frame Posts are
perpendicular to the Base Supports, then bolt to the
floor. Refer to Mounting to the Floor on page 6.
5. Slide the Support Pins (10) into the holes in the
Frame Posts (16). With assistance, lift the Press
Apron (19) to the top of the Frame Posts, then
lower into place down the Frame Posts so the Press
Apron rests on the Support Pins. See Figure 3.
Figure 3
Frame Post (16)
Support Pins (10)
Press Apron (19)
Note: For set-up, position the Support Pins at
least several holes down from the top holes in
the Frame Posts so you have room to place
the Jack Plate (17). You can re-adjust the
placement of the Press Apron after assembly.
Page 5For technical questions, please call 1-888-866-5797.Item 70603
SAFETyOpERATIONMAINTENANcE SETUp

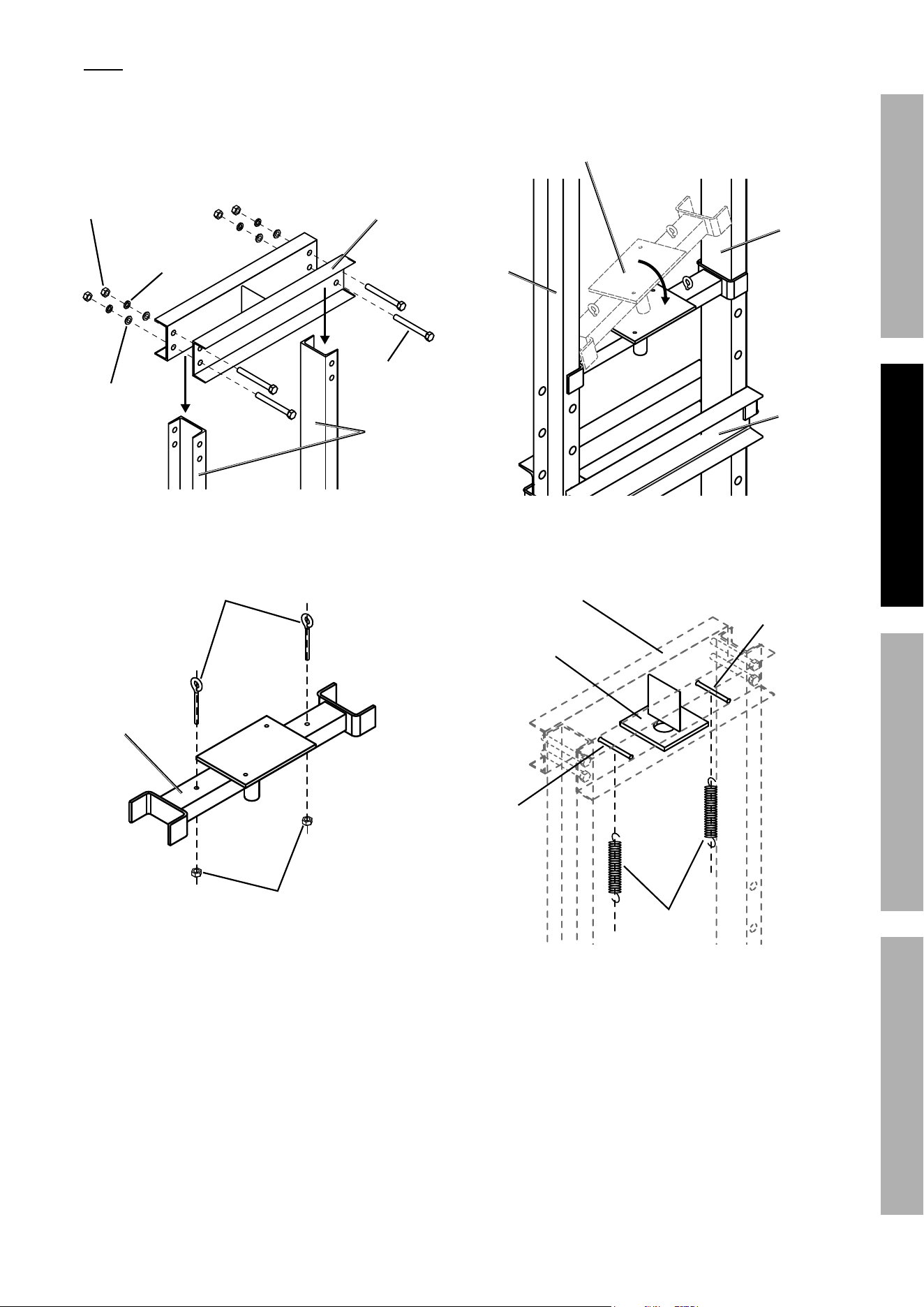

6. Align the holes on the Upper Beam (15) with
the holes in the top of the Frame Posts (16) and
secure in place with the Bolts (1), Washers (2),
Spring Washers (3), and Nuts (4). Align the
Upper Beam with the bottle jack bracket on the
bottom. Check that the assembly is square,
then finish tightening bolts. See Figure 4.
Upper Beam (15)
Washer (2)
Bolt (1)
Spring
Washer
(3)
Nut (4)
Frame Post
(16)
Figure 4
7. Insert two Eye Bolts (8) into the holes in the Jack
Plate (17) and secure in place with the Nuts (9).
Eye Bolts (8)
Jack Plate (17)
Nuts (9)
Figure 5
8. Angle the Jack Plate (17) so the rails of the Jack
Plate straddle the Frame Posts (16), then lower into
place by sliding it down the Frame Posts so it rests
temporarily on the Press Apron. See Figure 6.
Figure 6
Jack Plate (17)
Frame
Post
(16)
Frame
Post
(16)
Press
Apron
(19)
9. Bleed the Bottle Jack (6) (see Bleeding the Bottle
Jack section) and make sure it is fully collapsed.
Springs (5)
Upper Beam (15)
Figure 7
Spring Bar
Spring Bar
Bracket for
Bottle Jack
Page 6 For technical questions, please call 1-888-866-5797. Item 70603
SAFETy OpERATION MAINTENANcESETUp
Hang the Bottle Jack

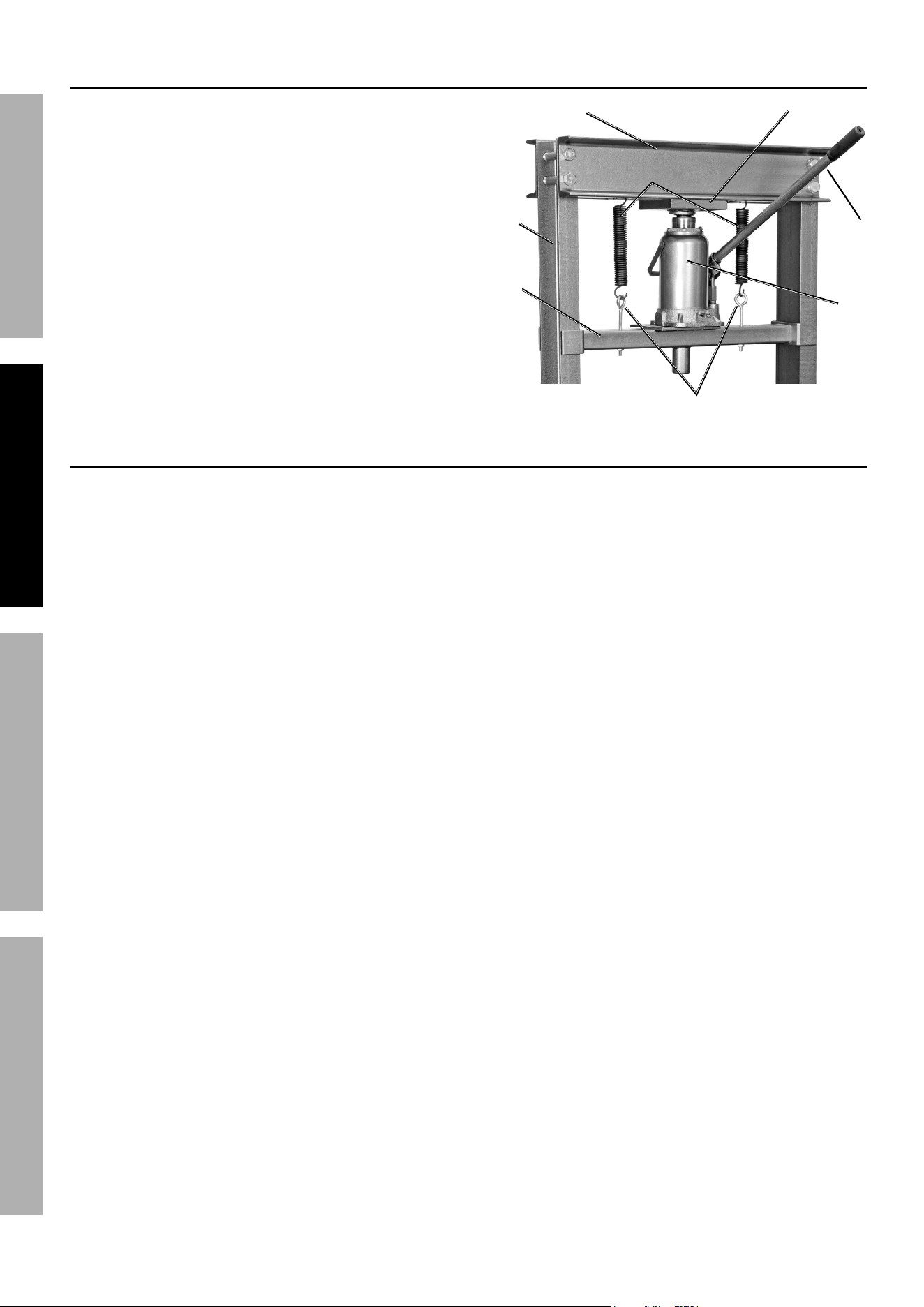

1. Hang the Springs (5) on the bars of
the Upper Beam. See Figure 8.
1. Place the Bottle Jack on the center of the Jack
Plate (17), align it with two mounting holes in
the Jack Plate and secure with two Bolts (7).
2. Slide the Jack Plate up the Frame Posts (16)
so the Bottle Jack Saddle fits in the bracket on
the center underside of the Upper Beam.
3. Hook the Springs into the Eye Bolts (8) on
the Jack Plate to secure the Bottle Jack/
Jack Plate in place. See Figure 8.
Figure 8
Upper Beam (15)
Eye Bolts (8)
Springs (5)
Jack
Handle
(23)
Jack
Plate
(17)
Bottle
Jack
(6)
Frame
Post
(16)
Bracket for Bottle Jack
Mounting to the Floor
1. With assistance, move the Shop Press to the
location where it is to be mounted. If needed, drill
four 1/2″ diameter mounting holes in the Base
Supports and use as a template to mark the spots
where four 1/2″ diameter holes will be drilled in the
concrete or wood floor. Check for any hidden wiring
or cables and adjust the location for the holes as
needed. Then, temporarily set the Shop Press aside.
2. For concrete floors use a masonry drill bit
to drill the four 1/2″ diameter holes
(about 3″– 4″ deep) into the concrete.
Make sure to blow out the concrete dust
from the drilled holes. Insert lag screw
anchors (not included) into the holes.
3. Move the Shop Press back to the location where it
is to be mounted, and align the four 1/2″ diameter
mounting holes in the Base Supports with the four
pre-drilled 1/2″ holes in the concrete or wood.
Use four minimum 3″ long, 1/2″ diameter concrete
anchor bolts or lag bolts (not included) to secure
the Shop Press to the concrete or wood floor.
Page 7For technical questions, please call 1-888-866-5797.Item 70603
SAFETyOpERATIONMAINTENANcE SETUp
components and controls
Jack Plate
Bottle Jack
Upper Beam
Press Apron
Frame Posts
Jack Handle
Base Sections
Page 8 For technical questions, please call 1-888-866-5797. Item 70603
SAFETy OpERATION MAINTENANcESETUp
Operating Instructions
Read the ENTIRE IMpORTANT SAFETy INFORMATION section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
Bleeding the Bottle Jack
IMpORTANT! Before first use, check for proper
hydraulic oil level in the Jack. Then thoroughly
test the Jack for proper operation prior to its
actual use. If the Jack appears not to be working
properly, it may be necessary to bleed its hydraulic
system of excess air. To bleed the Bottle Jack:
1. Remove the Oil Filler Plug. Insert the slot
on the lower portion of the Jack Handle over
the Valve Release Screw. Turn the Handle
counterclockwise to open the Valve Release Screw.
2. Insert the Handle into the Plunger/Fulcrum
Assembly. Apply pressure to the Saddle, and
pump the Handle quickly several times.
3. Check the Oil Fill Hole and, if necessary,
top off the Oil Fill Hole with hydraulic oil.
4. Replace the Oil Filler Plug.
5. Place the slot on the Jack Handle over
the Release Valve Screw. Turn the Handle
clockwise to close the Release Valve.
6. Test the Jack several times before putting into use.
If, after purging, the Jack still does not appear to
be working properly, do not use the Jack until it has
been repaired by a qualified service technician.
Tool Set Up
1. Use the Support Pins (10) to adjust the
height of the Press Apron (19).
2. The Press Apron should be in the highest
position possible with the workpiece as close
as possible to the ram of the Jack Plate (17).
WARNING: Keep area under Arbor Plates
clear of stray bolts or debris. Such items
create an uneven surface which can cause
the Arbor Plates to break under pressure.
Workpiece Set Up
WARNING: When pressing two items together, the items must be lined up vertically.
If not, one item may forcefully eject sideways from the unit.
General Operating Instructions
1. Place the item to press on the Arbor
Plates (18). Turn the Arbor Plates to support
the stationary part of the workpiece.
2. Using the Jack Handle (23), jack down the Jack
Plate until the ram of the Jack Plate contacts the
workpiece. When pressing two items together, make
sure that they are in vertical alignment. Continue to
operate the Jack Handle to press the work piece.
3. After the task is completed, be careful when
releasing Jack pressure. For safety, remove
the Jack Handle, then use the Handle to
slowly turn the Valve Release Screw on the
Jack, allowing the Jack Plate to rise.
4. Clean, then store the tool indoors
out of children’s reach.
WARNING! TO pREVENT SERIOUS
INJURy: During the release process the
Jack may rise quickly. Stay clear.
Page 9For technical questions, please call 1-888-866-5797.Item 70603
SAFETyOpERATIONMAINTENANcE SETUp
Maintenance and Servicing
procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO pREVENT SERIOUS INJURy FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration occurs, have the
problem corrected before further use.
cleaning, Maintenance, and Lubrication
1. BEFORE EAcH USE, inspect the general condition
of the Shop Press and Bottle Jack. Check for:
• loose hardware
• cracked, bent or broken parts
• loose or missing parts
• misalignment or binding of moving parts
• any other condition that may
affect its safe operation.
2. BEFORE EAcH USE, test the Jack for proper
operation. If the Bottle Jack appears not to
be working properly, follow instructions in
Bleeding the Bottle Jack on page .
3. AFTER USE, wipe external surfaces
of the tool with clean cloth.
Hydraulic Oil
Change the hydraulic oil at least once every
three years. To change the hydraulic oil:
1. With the Jack fully lowered, unhook the Springs (5)
from the Eye Bolts (8), remove two bolts (7), and
remove the Jack from the Jack Plate (17).
2. Remove the Oil Filler Plug.
3. Tip the Bottle Jack to allow the old hydraulic oil to
drain out of the unit completely, and dispose of the
old hydraulic oil in accordance with local regulations.
4. Completely fill the unit with a high quality
hydraulic oil (not included) until the oil just
begins to run out of the Oil Fill Hole.
5. Reinstall the Oil Filler Plug.
6. Clean with a clean cloth using a
detergent or mild solvent.
7. Replace the Bottle Jack onto the Shop Press.
Refer to Hang the Bottle Jack on page 6.
Page 10 For technical questions, please call 1-888-866-5797. Item 70603
SAFETy OpERATION MAINTENANcESETUp
Troubleshooting
TO pREVENT SERIOUS INJURy:
Use caution when troubleshooting a malfunctioning jack.
completely resolve all problems before use. If the solutions presented in the
Troubleshooting guide do not solve the problem, have a qualified technician inspect and repair the jack before use.
After the jack is repaired: Test it carefully without a load by raising it and lowering it fully, checking for
proper operation, BEFORE RETURNING THE JAcK TO OpERATION.
DO NOT USE A DAMAGED OR MALFUNcTIONING JAcK!
pOSSIBLE SyMpTOMS
pROBABLE SOLUTION
(Make certain that the jack is not supporting
a load while attempting a solution.)
Jack
will not
function
at its
weight
capacity
Saddle
lowers
under
load
Pump
stroke
feels
spongy
Saddle
will not
lift all
the way
Handle
moves
up when
jack is
under
load
Oil
leaking
from
filler
plug
X X
Check that Release Valve is closed fully.
X X X
Valves may be blocked and may not
close fully. To flush the valves:
1. Lower the Saddle and securely
close the Release Valve.
2. Manually lift the saddle several inches.
3. Open the release valve and force the
saddle down as quickly as possible.
X
X X
Jack may be low on oil. Check the
oil level and refill if needed.
Jack may require bleeding - see
instructions on page 7.
X
Unit may have too much hydraulic oil inside,
check fluid level and adjust if needed.
parts List and Assembly Diagram
parts List
part Description Qty
1 Bolt M16 x 140 4
2 Washer Ø16 4
3 Spring Washer Ø16 4
4 Nut M16 4
5 Spring 2
6 Bottle Jack 1
7 Bolt M8 x 20 2
8 Eye Bolt M8 2
9 Nut M8 2
10 Support Pin 2
11 Bolt M10 x 20 8
12 Washer Ø10 12
part Description Qty
13 Nut M10 12
14 Bolt M10 x 25 4
15 Upper Beam 1
16 Frame Post 2
17 Jack Plate 1
18 Arbor Plate 2
19 Press Apron 1
20 Base Section Support 4
21 Base Section 2
22 Bottom Frame Support 1
23 Jack Handle 1
Record product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175501592 when ordering parts.
Page 11For technical questions, please call 1-888-866-5797.Item 70603
SAFETyOpERATIONMAINTENANcE SETUp
Assembly Diagram
23
20
19
18
17
16
15
11,12,13
10
9
8
7
6
5
4
3
2
1
12,13,14
11,12,13
21
22
26677 Agoura Road • calabasas, cA 91302 • 1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
pLEASE READ THE FOLLOWING cAREFULLy
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
