Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
contact us at [email protected].
Purchase Date
ATTACH YOUR RECEIPT HERE
ADJUNTE SU RECIBO AQUÍ
welcoming • sophisticated • inspiring
ALLEN+ROTH and logo design are
trademarks or registered trademarks
of LF, LLC. All rights reserved.
Español p. 10
ITEM #5336468
MODEL #CHL5CH
PENDANT CHANDELIER
SS23531
APPROVED FOR USE
IN DAMP LOCATIONS
5005395
2
C
B
A
TABLE OF CONTENTS
Package Contents ................................................................................................................. 2
Hardware Contents ............................................................................................................... 3
Safety Information ................................................................................................................. 3
Preparation ............................................................................................................................ 5
Assembly Instructions ........................................................................................................... 5
Care and Maintenance .......................................................................................................... 9
Troubleshooting ..................................................................................................................... 9
Warranty ................................................................................................................................ 9

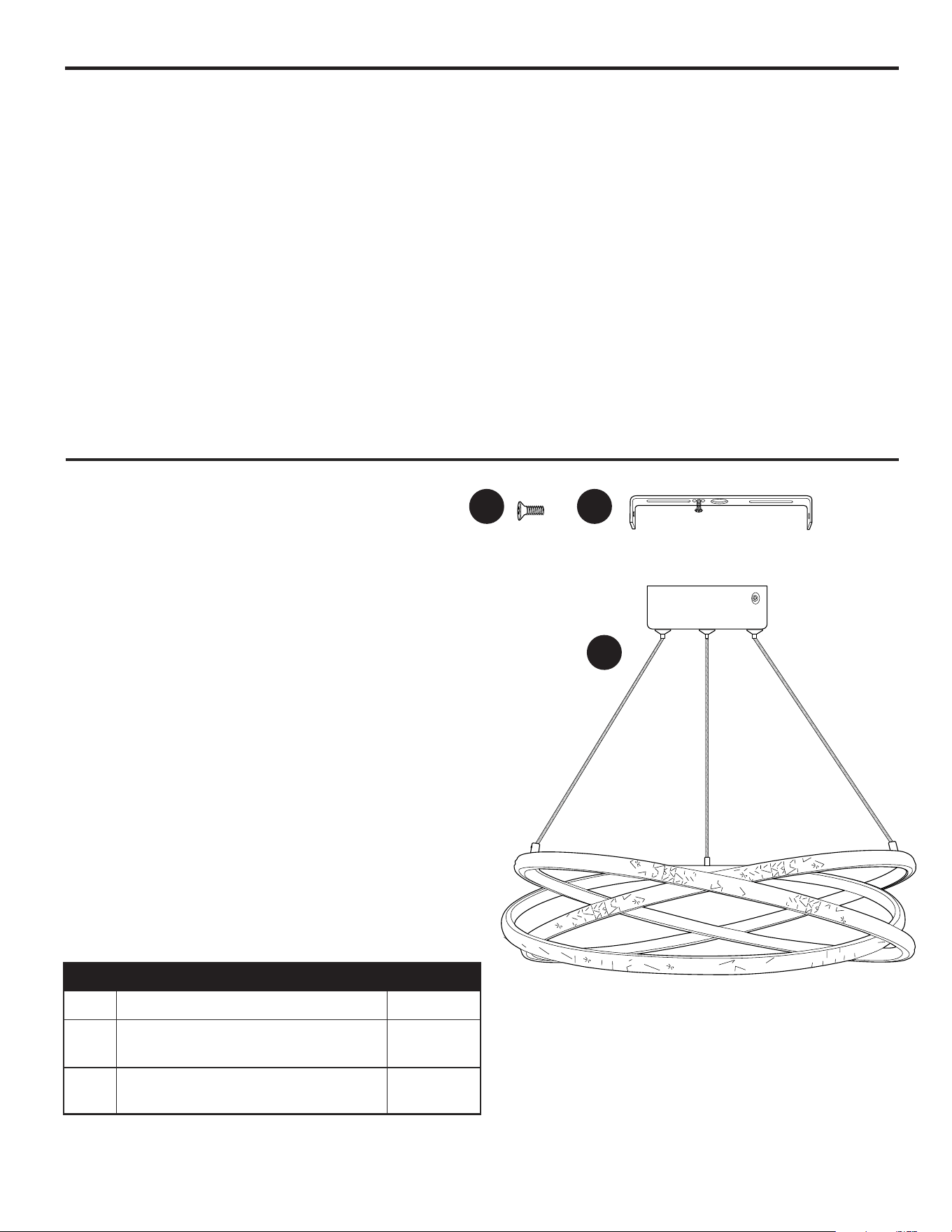

PACKAGE CONTENTS
A Fixture 1
B Mounting Strap 1
(preassembled to fixture (A))
C Mounting Strap Screw 2
(preassembled to fixture (A))
PART DESCRIPTION QUANTITY
3
READ AND SAVE THESE INSTRUCTIONS.
SAFETY INFORMATION
DANGER
• For your protection and safety, carefully read and understand the information provided in this
manual completely before attempting to assemble, install or operate this product. Failure to do so
could lead to electrical shock, fire or other injuries that could be hazardous or even fatal.
• DO NOT connect this fixture to an electrical system that does not provide a means for equipment
grounding. Never use a fixture in a two-wire system that is not grounded. Installing a fixture into an
electrical system not having a proper grounding means could cause metal parts of the fixture to
carry electrical currents if any of the fixture wires, wire connections or splices were to become
broken, cut or loose during the mounting or normal operation of the fixture. Under this condition,
anyone coming in contact with the fixture would be subject to electrical shock, which could cause
serious injury or death.
• DO NOT connect the bare or green insulation fixture ground wire to the black (HOT)
current-carrying wire or the white (NEUTRAL) house wire. Connection of the bare or green fixture
ground wire to the black or white house wires may cause metal parts of the fixture to carry electrical
currents. Under this condition anyone coming in contact with the fixture will receive electrical shock,
which could cause serious injury or death.
• DO NOT damage or cut the wire insulation (covering) during installation of fixture. DO NOT permit
wires to contact any surface having a sharp edge. To do so may damage or cut the wire insulation,
which could cause serious injury or death from electrical shock.
• All electrical connections must be in agreement with local codes and ordinances, the National
Electric Code (NEC) and ANSI/NFPA 70-1999. Contact your municipal building department to learn
about your local codes, permits and/or inspections. Risk of fire - most dwellings built before
1985 have supply wire rated for 140 °F. Consult a qualified electrician before installation.
• To avoid personal injury, the use of gloves may be necessary while handling fixture parts with sharp
edges.
• To reduce the risk of damage to the fixture, DO NOT use power tools to assemble any part of the
fixture.
• DO NOT suspend any fixture by the house wires. A fixture must always be mounted directly to an
outlet box or to a mounting strap which is first attached to the outlet box. Wire connectors will not
support the weight of a fixture. Suspending a fixture by the house wires and wire connectors will
result in the fixture falling, with the possibility of personal injury and the danger of electrical shock
or fire.
WARNING
HARDWARE CONTENTS (shown actual size)
Wire
Connector
Qty. 3
AA
BB
Machine
Screw
Qty. 2
4
SAFETY INFORMATION
• To reduce the risk of fire, electrical shock or personal injury, wire connectors provided with this light
fixture are designed to accept only one 12-gauge house wire and two lead wires from the light
fixture. If your house wire is larger than 12-gauge or there is more than one house wire to connect
to the corresponding fixture lead wires, consult an electrician for the proper size wire connectors to
use.
• TURN OFF ELECTRICITY at main fuse box (or circuit breaker box) before beginning installation by
removing the fuse (or switching the circuit breaker off).
• If you are not sure the lighting system has a grounding means, DO NOT attempt to install this
fixture. Contact a qualified, licensed electrician for information regarding the proper grounding
methods as required by the local electrical code in your area.
• All fixtures must be mounted to an outlet box that is supported by the building structure.
• If a dimmer control switch is used with this fixture, obtain professional advice to determine the
correct type to use as well as the electrical rating required.
• Before installation is complete, carefully check all screws, bolts and nuts on fixture to ensure that
they are secure.
• Do NOT tamper with or attempt to repair LED component of fixture. The light source is designed for
this specific application and should not be serviced by untrained personnel. If any servicing is
required, call our customer service department.
• The device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, (2) this device must accept any
interference received, including interference that may cause undesired operation.
• Changes or modifications not approved by the party responsible for compliance could void the
user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Distributed by: Litex Industries Inc., P.O. Box 535639, Grand Prairie, TX, 75050; 1-800-527-1292
NOTE: Dimmable to 10% with select dimmers. See Lowes.com for more information.
WARNING
CAUTION
5
ON
OFF
ON
OFF

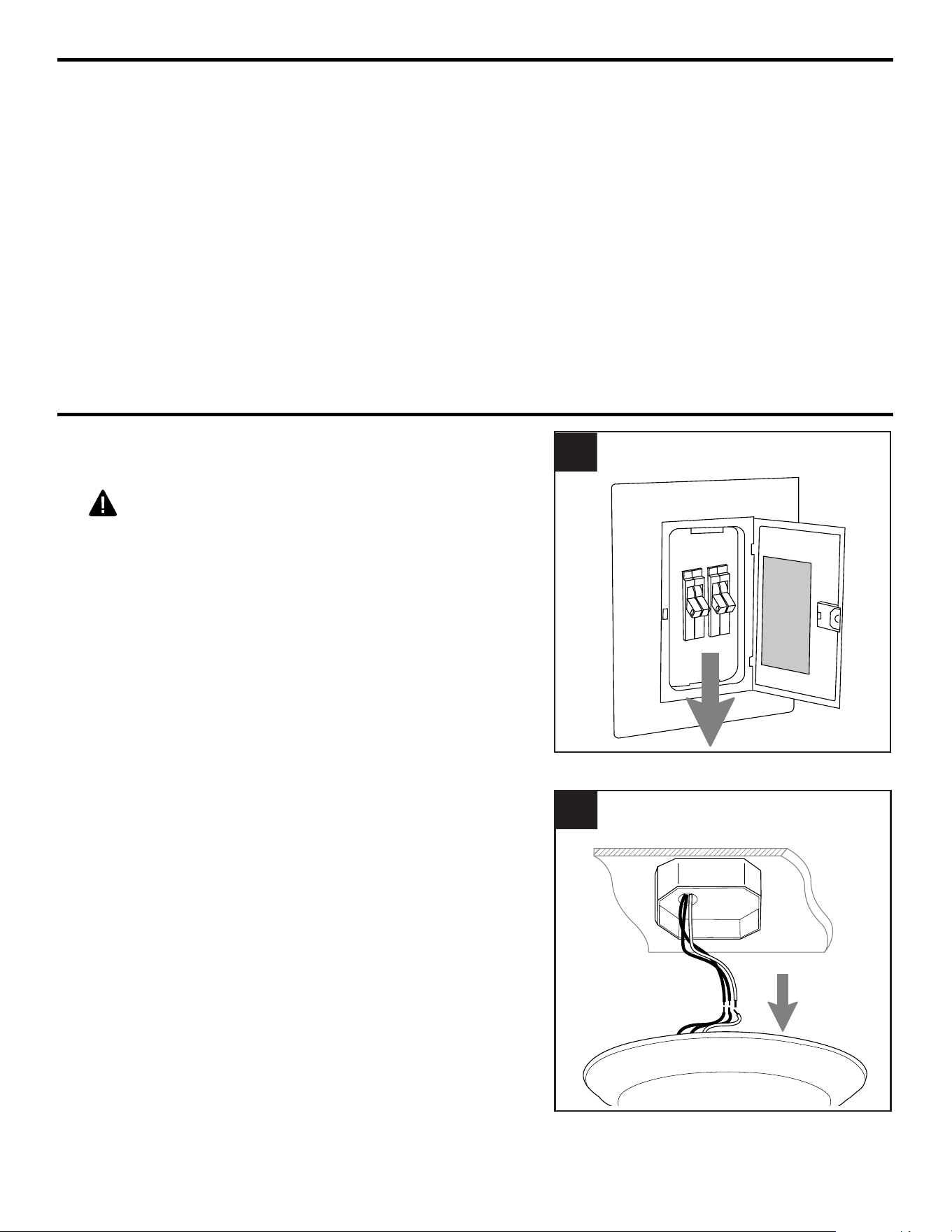

Turn off circuit breakers and wall switch to
the fixture supply line leads.
DANGER: Failure to disconnect power
supply prior to installation may result in
serious injury or death.
1
Remove existing fixture and disconnect all
electrical wiring.
1.
2.
2
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 30 minutes
Tools Required for Assembly (not included): Flathead Screwdriver, Phillips Screwdriver, Wire
Strippers, Pliers, Wire Cutters, Safety Glasses, Stepladder, Electrical Tape
Helpful Tools (not included): A/C Tester Light, Do-It-Yourself Guide, Soft Cloth
ASSEMBLY INSTRUCTIONS
Remove tie on each cord to allow cords to
extend completely.
Determine the hanging length that is best
for the fixture (A).
5.
5
6
ASSEMBLY INSTRUCTIONS

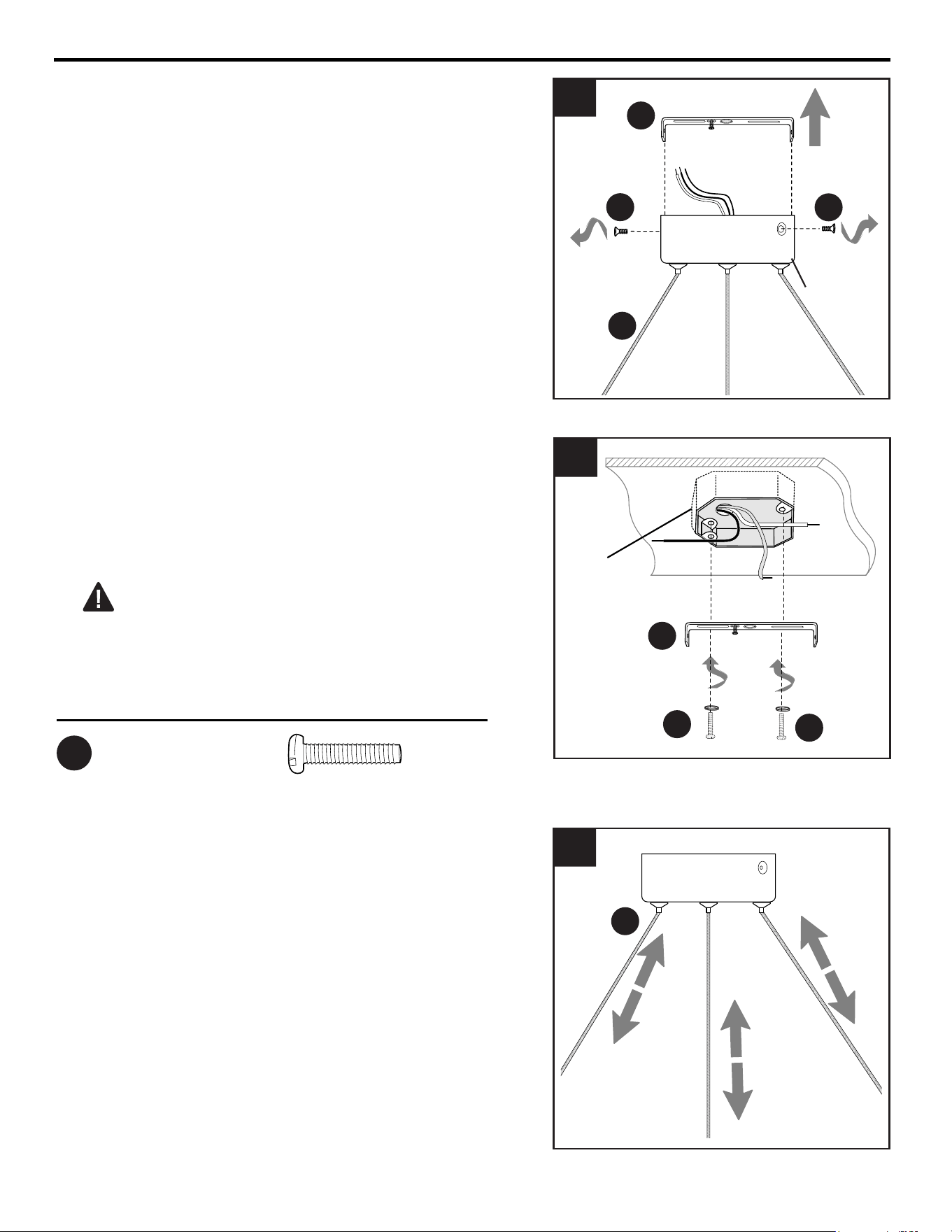

Remove mounting strap (B) from canopy at
top of fixture (A) by removing mounting
strap screws (C) from the edges of the
canopy.
Save mounting strap screws (C) for later
use.
Attach mounting strap (B) to outlet box
(not included) using existing washers and
outlet box screws or the machine screws
(BB). NOTE: If the outlet box screws
required for your outlet box are of a
different size than the machine screws
(BB), consult a licensed electrician before
proceeding. Tighten machine screws (BB)
to secure mounting strap (B).
CAUTION: Make sure the outlet box
can support 35 lbs. hanging weight. Use
metal outlet box; plastic outlet boxes are
not recommended.
3.
4.
Hardware Used
Machine Screw x 2
BB
4
B
3
C
A
Outlet Box
BB
BB
B
C
canopy
A
ASSEMBLY INSTRUCTIONS
7
7.

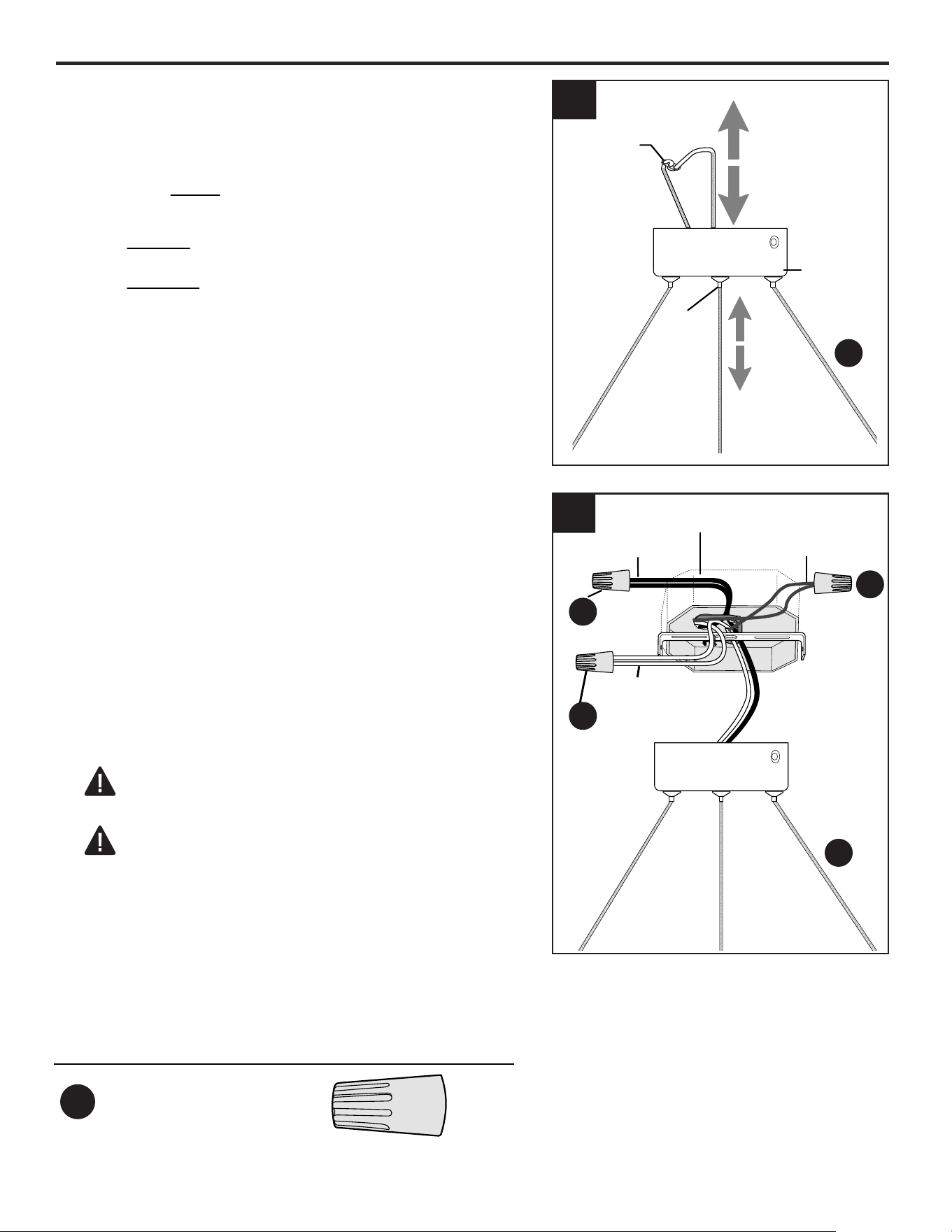

Prepare wires by stripping 3/4 in. of insulation
from wire ends using wire strippers (not
included). Connect BARE/GREEN ground wire
from outlet box to BARE ground wire from
fixture (A) with wire connector (AA). Connect
WHITE wire from fixture (A) to WHITE wire from
outlet box using existing wire connector or wire
connector (AA). Connect BLACK wire from
fixture (A) to BLACK wire from outlet box using
existing wire connector or wire connector (AA).
NOTE: Screw wire connectors (AA) on in a
clockwise direction.
WARNING: Never connect ground wire to
WHITE or BLACK power supply wires.
WARNING: To reduce the risk of fire,
electrical shock or personal injury, wire
connectors (AA) are designed to accept only
one 12-gauge house wire and two lead wires
from the light fixture. If your house wire is larger
than 12-gauge or there is more than one house
wire to connect to the corresponding fixture
lead wires, consult an electrician for the proper
size wire connectors to use.
Hardware Used
Wire Connector x 3
AA
7
A
AA
Outlet Box
BLACK
BARE/GREEN
AA
AA
WHITE
6.
Canopy
Cord
Metal
Collar
Determine the length that is best for each cord
on fixture (A).
If you wish to change cord length, loosen (but
do not remove) plastic piece preassembled on
each cord inside of canopy.
Adjust cord to desired hanging length:
─ To shorten the cord, pull cord gently up into
canopy.
─ To lengthen the cord, depress metal collar
while pulling down gently on cord. When metal
collar is released, the cord will lock into position
automatically.
Move plastic piece back over opening on inside
of canopy.
Repeat for each cord.
A
6
Plastic
Piece
8

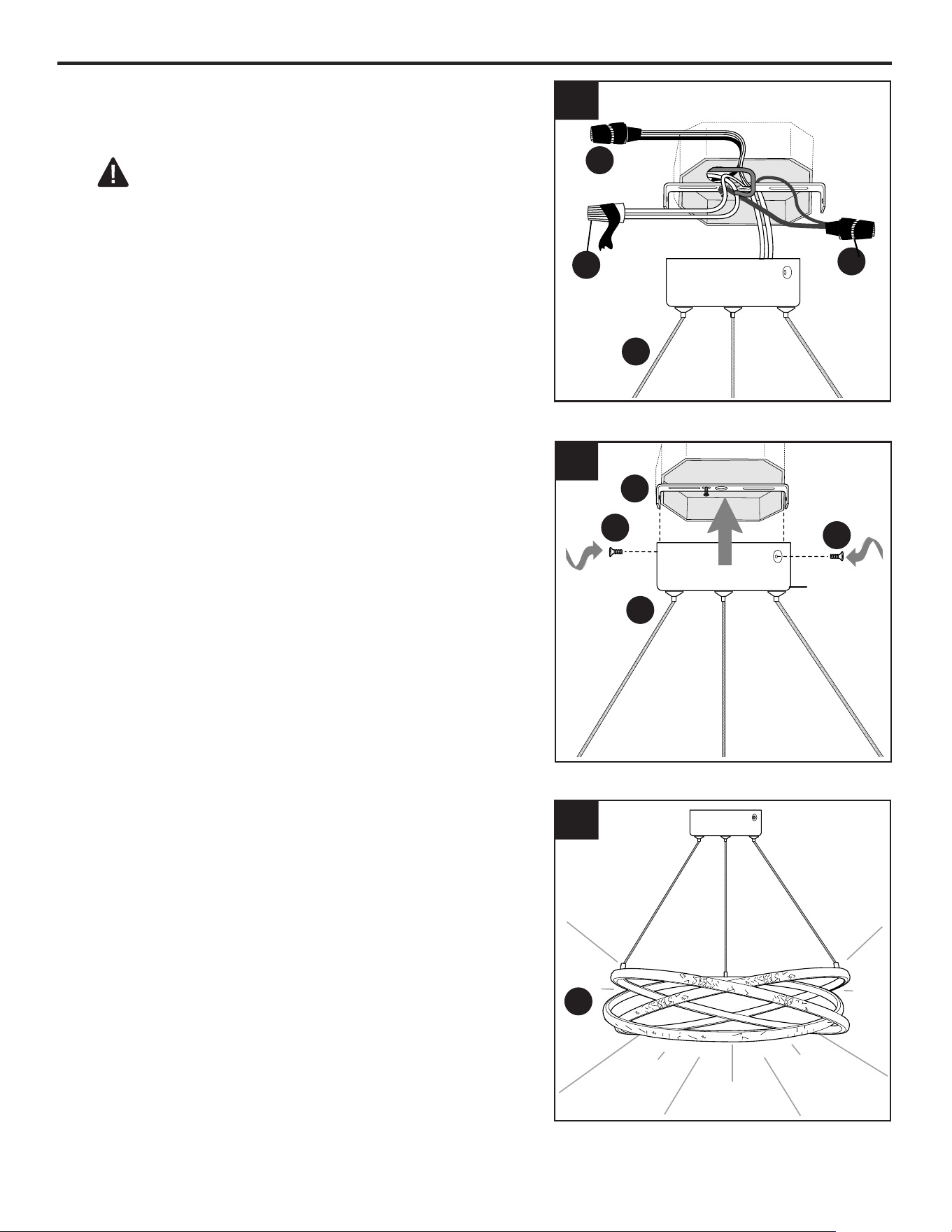

9.
Align holes in edge of canopy with screw
holes on ends of mounting strap (B).
Secure canopy to mounting strap (B)
using the mounting strap screws (C)
previously removed (Step 3, Page 6).
10.
Restore power and test fixture (A).
If light does not function, please refer to
TROUBLESHOOTING on the next page.
ASSEMBLY INSTRUCTIONS
8.
Wrap electrical tape (not included) around
each individual wire connector (AA) down
to the wire.
WARNING: Make sure no bare wire
or wire strands are visible after making
connections.
Push wire connectors (AA) gently back
into outlet box. Carefully push excess
wiring into outlet box.
Outlet Box
9
10
A
B
C
C
A
8
AA
AA
AA
A
Canopy
9
Printed in China
GGLI2306
CARE AND MAINTENANCE
WARRANTY
TROUBLESHOOTING
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
• Shut off main power supply. Wipe fixture with soft, damp cloth. Use mild cleaner to clean shade. Do
not use an abrasive cleaner on fixture.
• Total wattage for this fixture is 30 watts. Do not attempt to replace the LEDs.
Light does not come on
initially or no longer
comes on.
Fuse blows out or
circuit breaker trips.
1. Power is OFF.
2. Faulty connection.
3. LED component is not working
properly.
1. Crossed wires.
2. Power wire is grounding out.
1. Check wiring.
2. Check all connections.
1. Make sure power supply is ON.
2. Check wiring and all connections.
3. Contact Customer Service.
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The distributor warrants all of its lighting fixtures against defects in materials and workmanship for
five (5) years from the date of purchase. If within this period the product is found to be defective, take
a copy of the bill of sale as a proof of purchase and the product in its original carton to the place of
purchase. The distributor will, at its option, repair, replace or refund the purchase price to the
consumer. All costs of installation and removal of the fixture is the responsibility of the consumer. This
warranty does not cover fixtures becoming defective due to misuse, accidental damage or improper
handling and/or installation and specifically excludes liability for direct, incidental or consequential
damages, improper packaging of returned products and acts of God. As some states do not allow
exclusions of limitations on an implied warranty, the above exclusion and limitation may not apply.
This warranty gives you specific rights and you may also have other rights which may vary from state
to state.
