ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instructions.
H0307
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Turn off the power at fuse or circuit box
Installation Steps

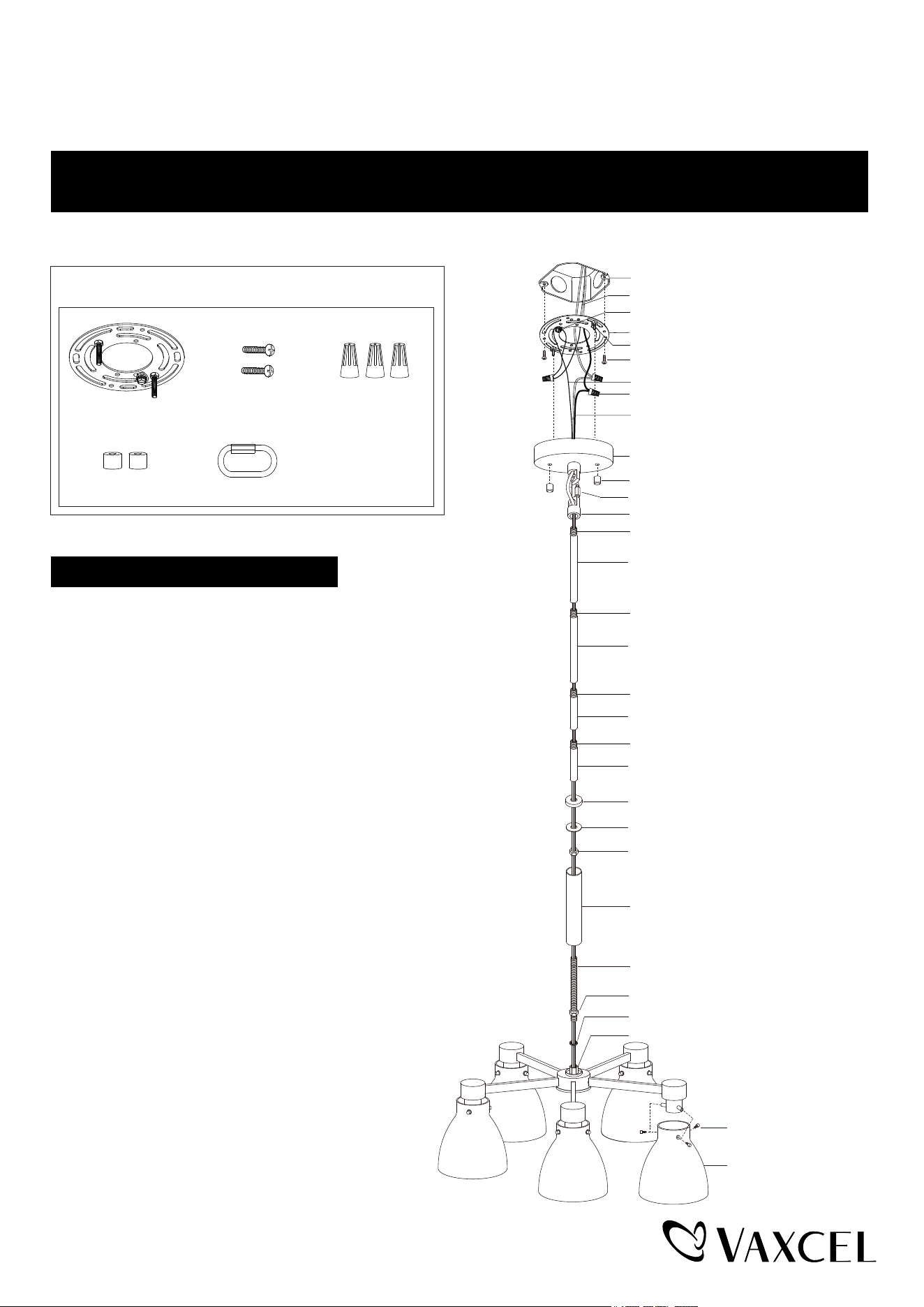

Hardware Package (included):
Wire Connector (C)
Mounting Screw (B)
Mounting Plate Unit (A)
Bolt Nut (D) Quick Link (E)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Bolt Nut (D)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Fixture Wire
Outlet Box
Fixture Loop
Canopy Unit
Quick Link (E)
Coupling
Fixture Screw
Glass Shade
Upper Rod
Middle Rod
Threaded Pipe
Threaded Pipe
Middle Rod
Threaded Pipe
Lower Rod
Threaded Pipe
Tube
Metal Pad
Hex Nut-a
Tube Cap
Threaded Pipe
Hex Nut-b
Washer
1. Unscrew the two bolt nuts (D). Remove the mounting plate unit (A)
from the canopy unit.
2. Attach the mounting plate unit (A) to outlet box with the mounting
screws (B).
3. Thread the fixture wires from the fixture through the threaded pipe,
then secure the threaded pipe tightly to the coupling with the washer
and hex nut-b. Thread the fixture wires from the fixture through the
tube, hex nut-a, metal pad, tube cap in sequence, then attach them
to the fixture. (Adjust the hex nut-a to right position against the metal
pad).
3. Rod connection:
a. Thread the fixture wires from the fixture through the lower rod,
then secure the lower rod onto the fixture using the threaded pipe.
b. Thread the fixture wires from the fixture through the middle rods,
then secure the middle rods onto the lower rod using the threaded
pipe.
c. Thread the fixture wires from the fixture through the upper rod,
then secure the upper rod onto the middle rod using the
threaded pipe.
d. Thread the fixture wires from the fixture through the fixture
loop, then secure the fixture loop onto the upper rod
using the threaded pipe.
Note: The fixture height can be adjusted to 57"
by using the rods. Use fewer rods if shorter height
is desired.
4. Thread the fixture wires through the quick link (E)
and canopy unit, then connect canopy unit and
fixture loop with quick link (E).
Page 1 / 2
240814
Turn on the power at fuse or circuit box
The following parts are available for reorder if damaged or missing.
Spare Parts List:
Mounting Hardware
6412MM (1 SET)
Wire Connector (C)Mounting Screw (B)
Mounting Plate Unit (A)
Bolt Nut (D) Quick Link (E)
Glass Shade
10266CG
6" Rod
3296RD
Fixture Screw
6425FS
12" Rod
3297RD
Vintage Bulb 60W
8072EB
B
A
5. Pull out the source wires from the outlet box, make wire connections using wire connectors(C) as follows:
--- Connect the smooth-coated (marked) wire from the fixture to the black (hot) wire from the power source.
--- Connect the ribbed-coated to the white (neutral) wire from the power source.
--- Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw, then
connect fixture ground wire to the house ground wire with a wire connector (C).
Carefully put the wires back into the outlet box.
6. Attach the canopy unit to the mounting plate unit (A), then secure
the canopy unit with two bolt nuts (D).
7. Unscrew the fixture screws from the glass holder. Attach the glass
shades to the glass holders and secure the glass shades with the
fixture screws.
Note: Please do not overtighten, breakage might occur.
8. Install 5 x 60W medium base vintage bulbs (not included).
Note: See relamping label at socket area or packaging for
maximum wattage allowed.

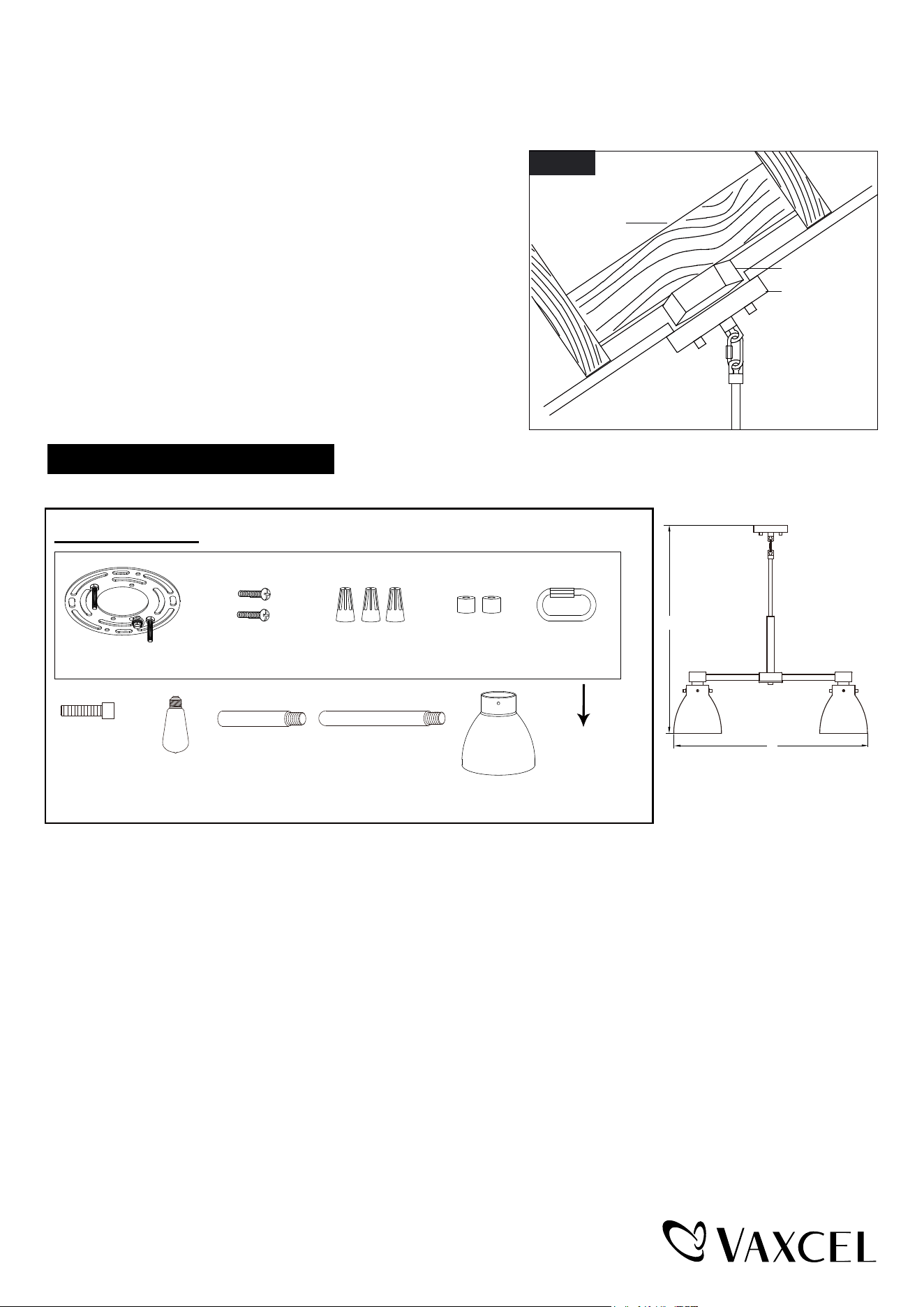

9. Angled mounting recommended for a vaulted or angled ceiling.
(See Fig.1)
A: 26"~57"
B: 27"
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
Page 2 / 2
240814
Fig. 1
Support Brace
Outlet Box
Canopy Kit
