ASSEMBLY AND INSTALLATION
INSTRUCTIONS
Canopy (D)
Collar (E)
Quick Link (F)
Quick Link (F)
Chain (G)
Installation Steps
Turn off the power at fuse or circuit box.
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.
CH35405BN / CH35405RBZ/B
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.

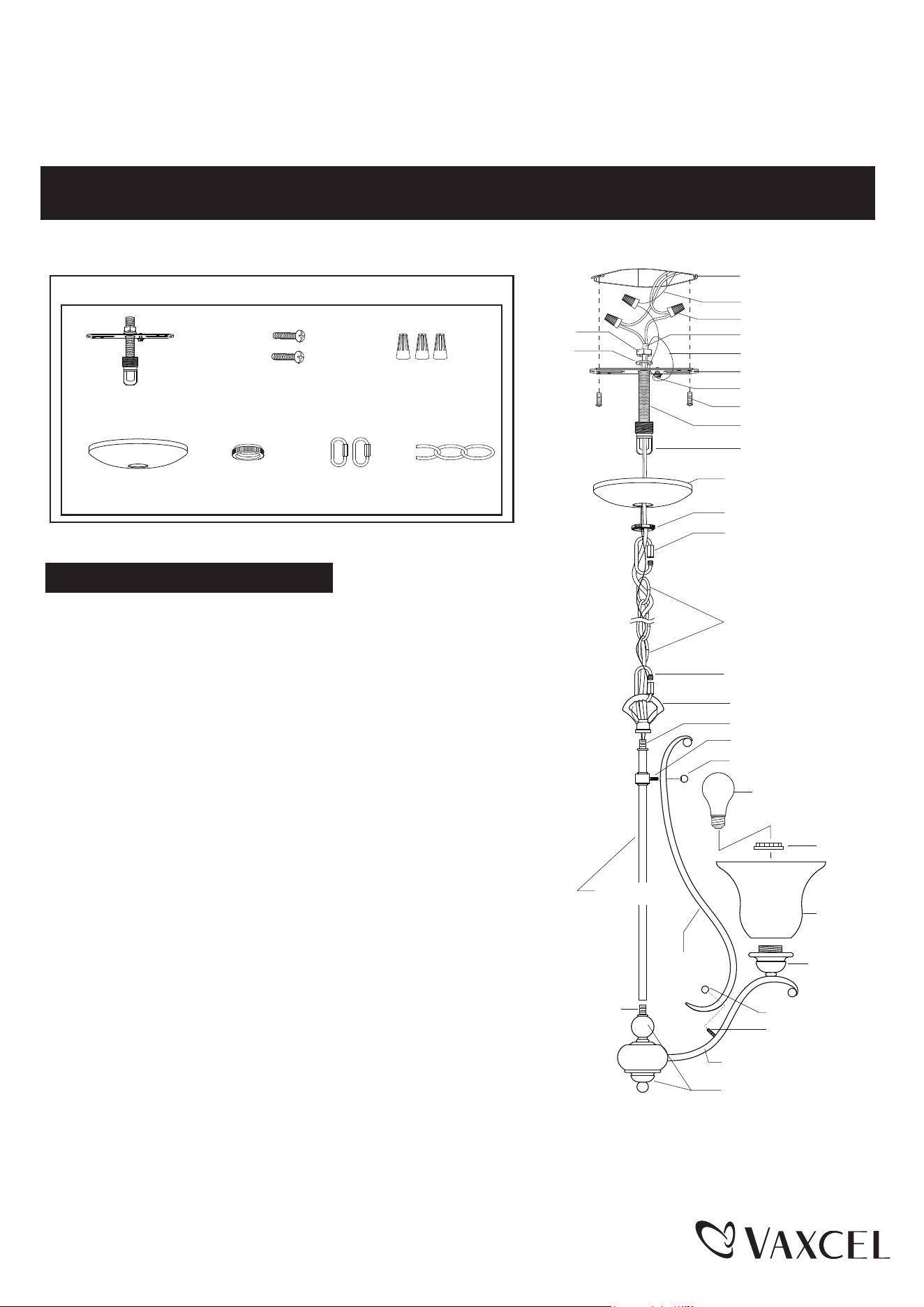

Hardware Package (included):
Mounting Strap Unit (A) Wire Connector (C)
Collar (E)
Mounting Screw (B)
Canopy (D)
Quick Link (F)
Chain (G)
Outlet Box
Housing Ground Wire
Wire Connector (C)
Fixture Wire
Fixture Ground Wire
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Threaded Pipe
Hex Nut
Washer
Top Loop
Page 1 / 2
Bulb Type A Max.100W
(not included)
Loop
Bolt Nut
Set Screw
Bolt Nut
Set Screw
Upper Arm
Glass Shade
Glass Holder
Lower Arm
Main Fixture
Stem
Stem
Upper Fixture
Socket Ring
1. Attach the mounting strap unit (A) to the outlet box using two
mounting screws (B).
2. Unscrew the bolt nuts out of the set screws.
3. Secure the upper fixture onto the main fixture.
4. Take an upper arm, attach it to the main fixture with the hole
threading by the set screw on the lower arm and another hole
threading by the set screw on the upper fixture, secure them
with bolt nuts. See illustration for correct position.
Repeat with the other upper arms.
5. Secure the loop onto the stem of the upper fixture.
6. Choose the length of the chain (F) you needed, then weave the
fixture wire and the fixture ground wire through the chain (F) ,
collar (G) and canopy (D).
7. Connect the chain (F) to the loop and the top loop on mounting
strap unit (A) with two quick links (E).
8. Thread the fixture wire and fixture ground wire through
the top loop, threaded pipe of the mounting strap unit (A).
9. Pull out the outlet wires and house ground wire from the
outlet box.
Make wire connections using the wire connectors (C):
---The smooth wire (marked) from the fixture to the black wire from the power source.
---The ribbed wire (unmarked) from the fixture to the white wire from the power source.
---Attach the fixture ground wire to the mounting strap unit (A) with the green ground screw,
then connect it to the house ground wire with a wire connector (C).
Carefully put the wires back into the outlet box.
240829
Turn on the power at fuse or circuit box.
The following parts are available for reorder if damaged or missing.
Spare Parts List:
Assembly Kit
6367MM (1 SET) for CH35405BN
6870MM (1 SET) for CH35405RBZ/B
Glass Shade
935401FS for CH35405BN
935401B for CH35405RBZ/B
Mounting Strap Unit (A) Wire Connector (C)
Collar (E)
Mounting Screw (B)
Canopy (D)
Quick Link (F)
Chain (G)
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
240829
Page 2 / 2
10. Attach the canopy (D) to the mounting strap unit (A) by inserting the top loop, then secure it with the collar (E).
11. Attach the glass shades to the glass holders, then secure them with socket rings.
12. Install the bulbs (not included). See relamping label at socket area or packaging for maximum wattage allowed.

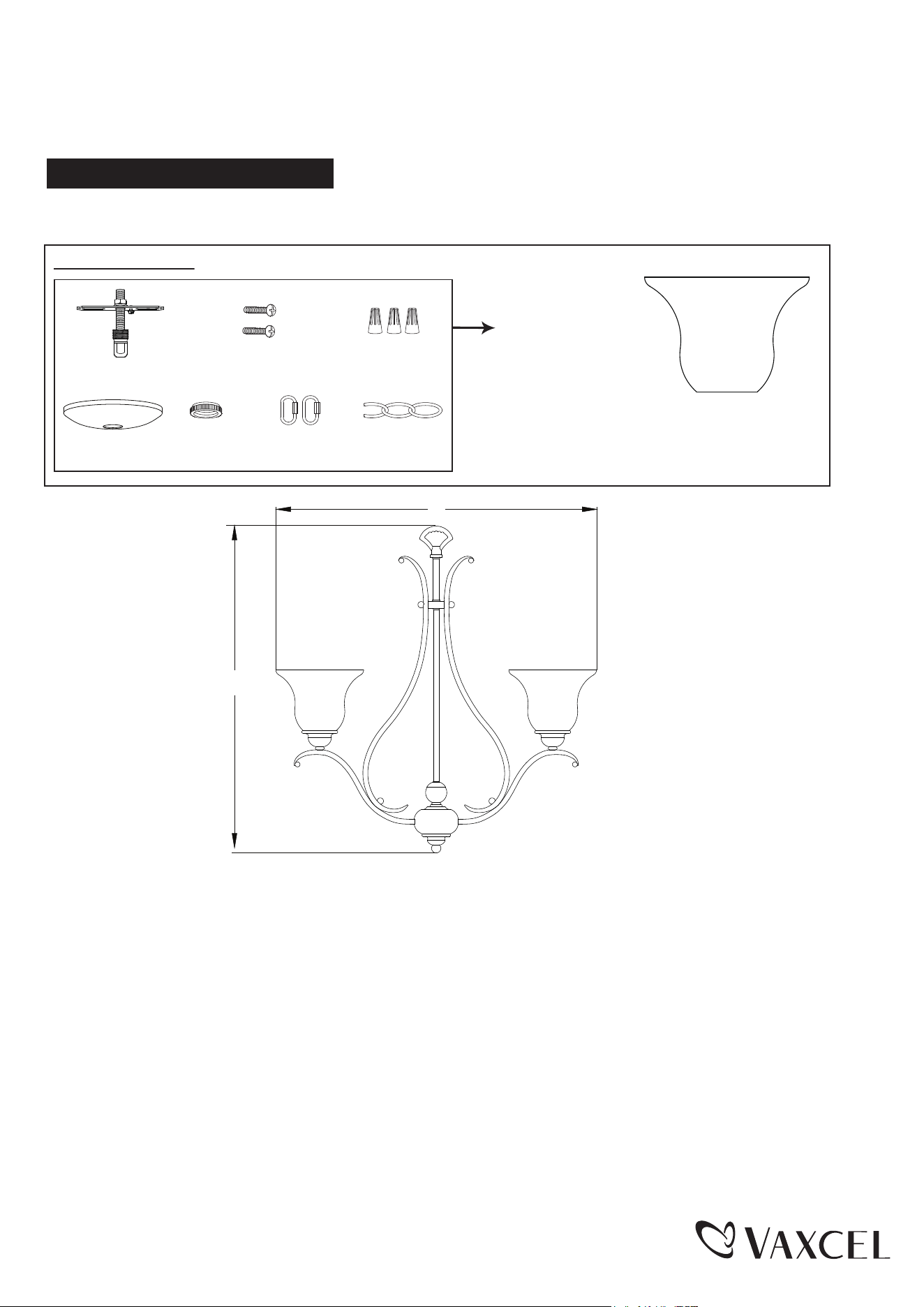

A
B
A: 25-3/4"
B: 26-1/4"
