1. Attach the mounting strap unit (A) to the outlet box by using
two mounting screws (B).
2. Choose two certain same length of the chains (F) you need,
hook one end of the chains (F) to the arms, and then weave the
fixture wire and the ground wire through one of the chains .
Then connect the other end of the chains (F) to the loops by
using the loop locks (E).
3. Thread the fixture wire and ground wire through the loop
and canopy (G) in order.
4. Make wire connections using wire connectors (C):
---The smooth wire (marked) from fixture to the
black wire from power source.
---The ridged wire (unmarked) from fixture
to the white wire from power source.
---Attach the fixture ground wire
to the mounting strap unit (A)
with the green ground screw.
Then connect it to the house
ground wire with the
wire connector (C).
Carefully tuck wires back
into the outlet box.

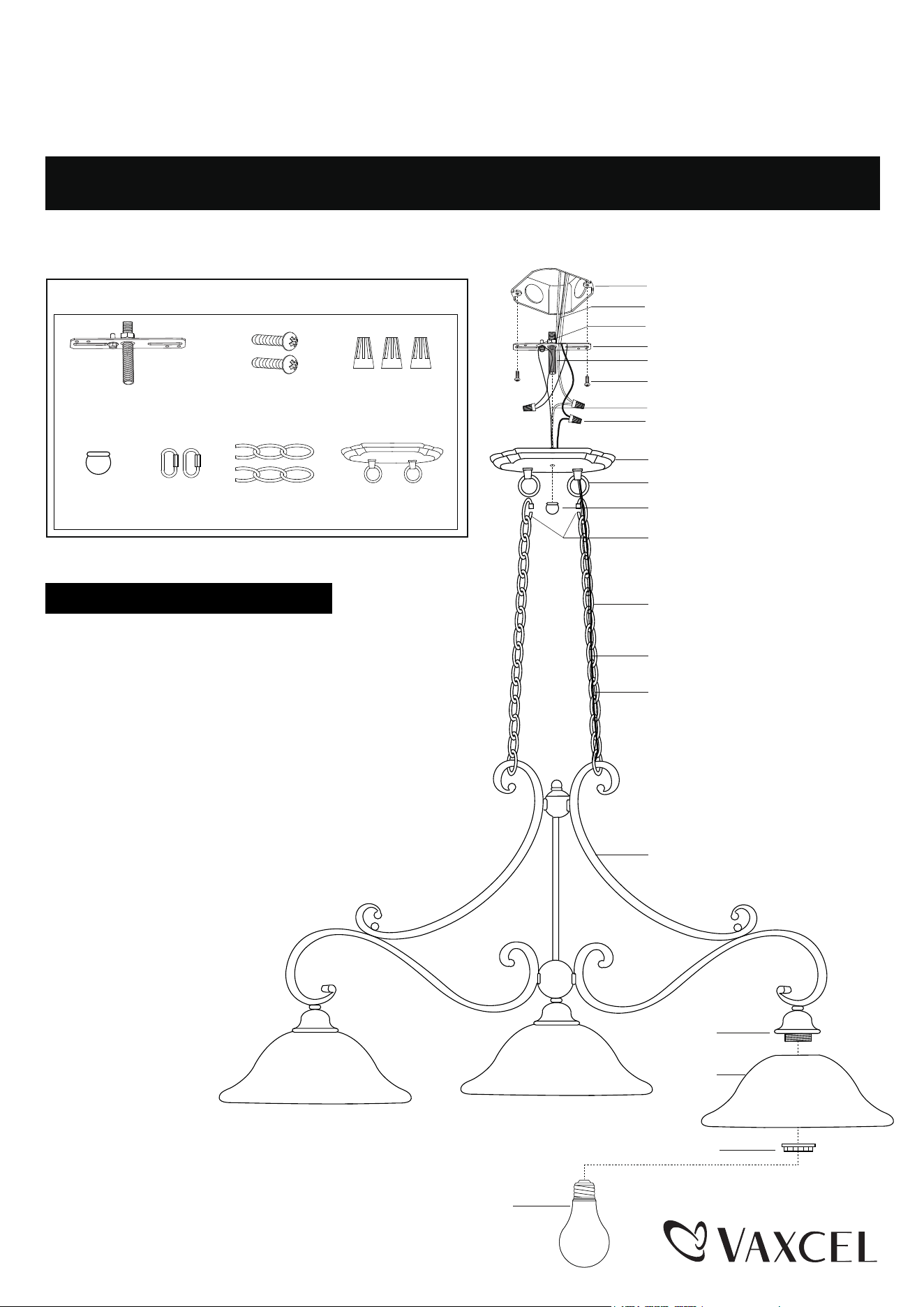

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THIS INSTRUCTION.
H0259
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Mounting Strap Unit (A) Mounting Screw (B)
Finial (D)
Wire Connector (C)
Loop Lock (E) Canopy (G)
Chain (F)
House Ground Wire
Fixture Ground Wire
Wire Connector (C)
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Canopy (G)
Loop
Finial (D)
Loop Lock (E)
Chain (F)
Fixture Ground Wire
Arm
Glass Holder
Glass Shade
Socket Ring
Fixture Wire
Threaded Pipe
Outlet Box
Medium Base Bulb
Max.100W (not included)
Page 1 / 2
240702
Turn on the power at fuse or circuit box.

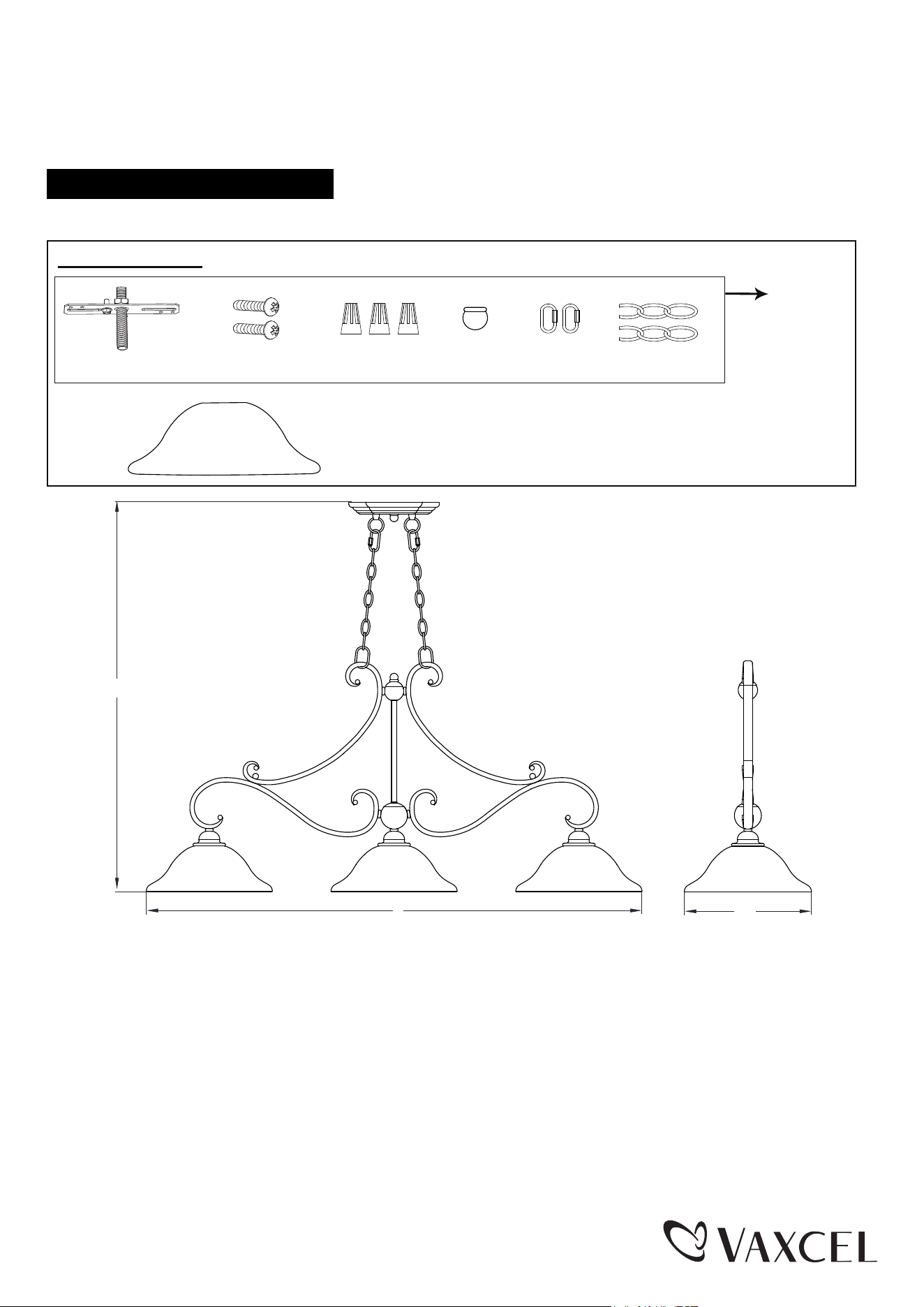

The following parts are available for re-order if damaged or missing.
Spare Parts List:
Mounting Hardware
6296MM(1 SET)
5. Attach the canopy (G) to the mounting strap unit (A) by inserting the threaded pipe, and then secure with the finial (D).
6. Attach the glass shades to the glass holders, and then secure with the socket rings.
7. Install 3 x 100W Max medium base bulbs (not included) . See relamping label at socket area or packaging for maximum wattage
allowed.
Glass Shade
10200EW
Mounting Strap Unit (A) Mounting Screw (B)
Finial (D)
Wire Connector (C)
Loop Lock (E)
Chain (F)
A: 20-1/4”~95-1/2”
B: 43-3/4”
C: 11-1/4”
A
B
C
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
