1. Attach the mounting strap unit (A) to the outlet box by using
two mounting screws (B).
Adjust the length of the
preinstalled threaded pipe if necessary.
2. Take a rod and hook one end onto the loop-2 of the
tube and hook another end onto one loop of the fixture.
Repeat with the other rod.
3. Choose two certain same length of the chains (F) you
need.
- Weave the fixture wire and fixture ground wire
through the chain(F) and the canopy kit.
- Connect the two chains (F) to the top loops and
loops-1 with four quick links (E).
Note: Length adjustable from 29-3/4" to 78-3/4".
Use fewer chains if shorter length is desired.
4. Make wire connections using wire connectors (C):
---The smooth wire (marked) from fixture to the
black wire from power source.
---The ridged wire (unmarked) from fixture
to the white wire from power source.
---Attach the fixture ground wire to the mounting
strap unit (A) with the green ground screw,
then connect it to the house ground wire with the wire connector (C).
Carefully tuck wires back into the outlet box.
5. Attach the canopy kit to the mounting strap unit (A) by inserting the threaded pipe, then secure
it with the finial (D).
6. Install 3 x 60W max. medium base bulbs (not included) . See relamping label at socket area or
packaging for maximum wattage allowed.

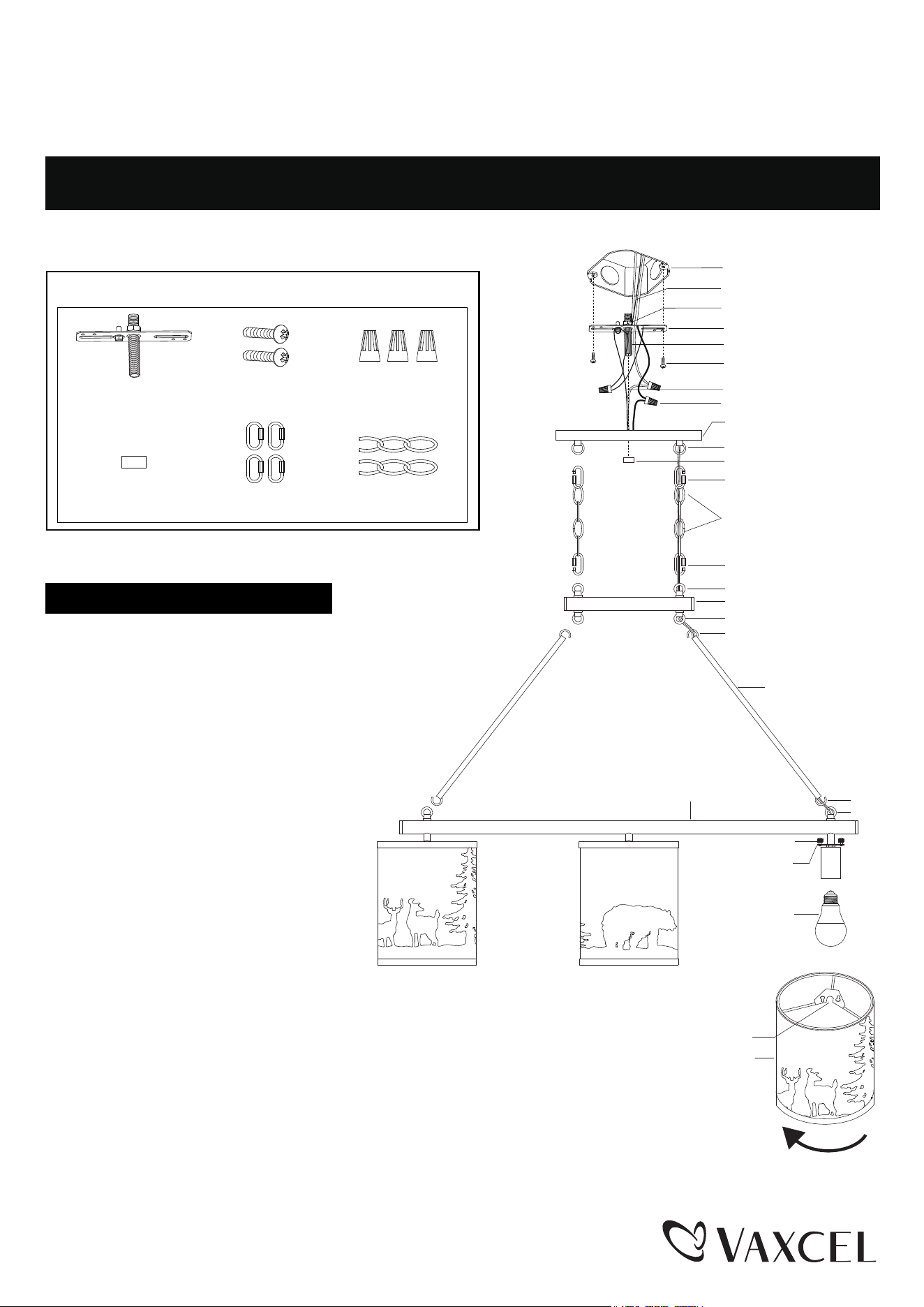

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.
H0302
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Mounting Strap Unit (A) Mounting Screw (B)
Finial (D)
Wire Connector (C)
Quick Link (E)
Chain (F)
Page 1 / 2
House Ground Wire
Fixture Ground Wire
Wire Connector (C)
Mounting Strap Unit (A)
Green Ground Screw
Mounting Screw (B)
Threaded Pipe
Outlet Box
Canopy Kit
Top Loop
Finial (D)
Quick Link (E)
Quick Link (E)
Tube
Fixture
Loop-1
Loop-2
Hook
Loop
Shade Holder
Set Screw
Hook
Rod
Chain (F)
Max. 60W Medium
Base Bulb
(not included)
Fabric Shade
Slot
240430
Turn on the power at fuse or circuit box.
The following parts are available for reorder if damaged or missing.
Spare Parts List:
Mounting Hardware
6854MM (1 SET)
Rod
3397RD
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
Page 2 / 2
240430
7. Unscrew the two set screws. Carefully place the fabric shade onto the shade holder by aligning the slot, then secure it with the two
set screws, and rotate the fabric shade until it is locked in place. Repeat for the other two fabric shades.
Noted: Please select the shade pattern you prefer before assembling the fabric shades.

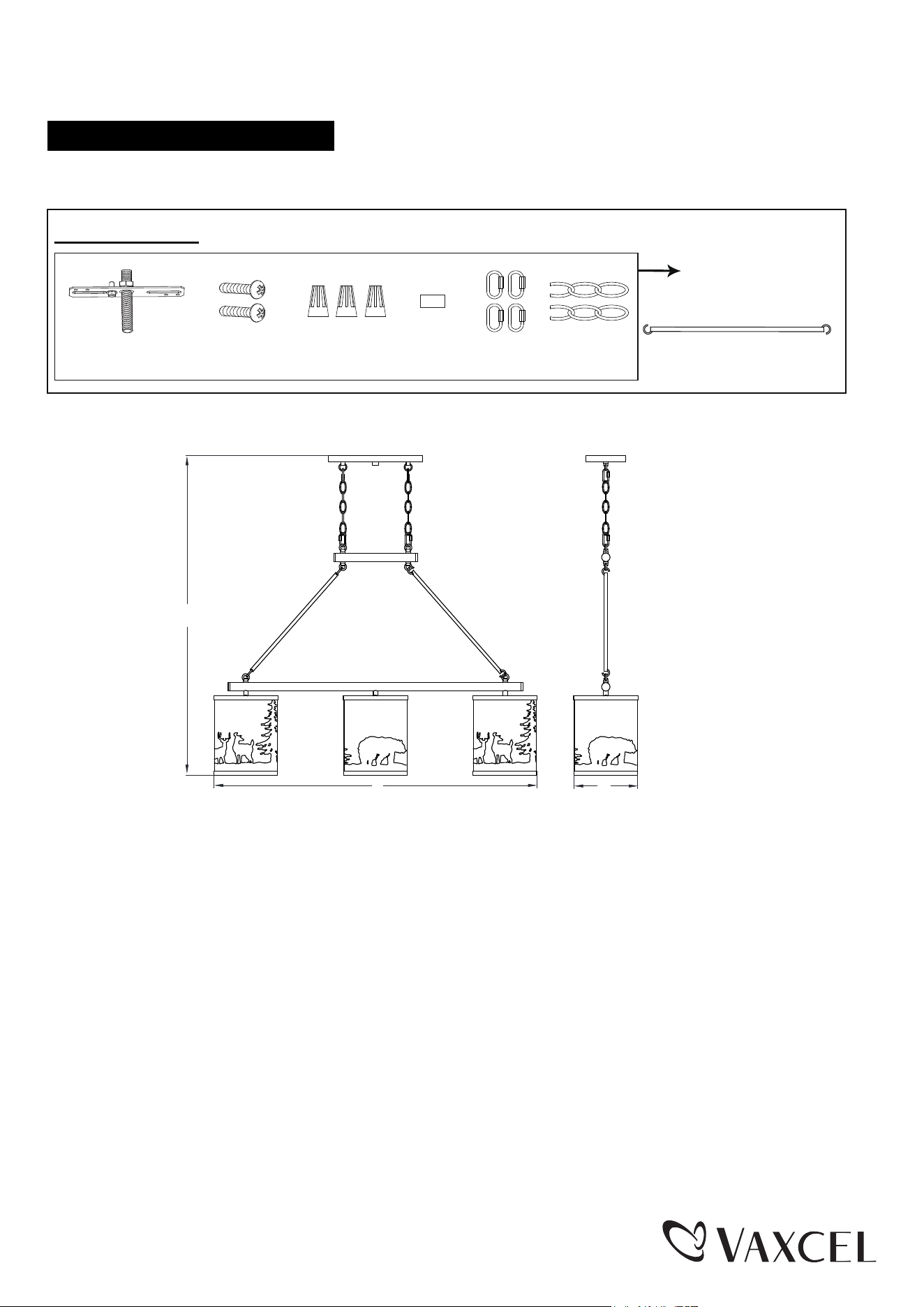

Mounting Strap Unit (A) Mounting Screw (B) Finial (D)
Wire Connector (C)
Quick Link (E)
Chain (F)
A
B
C
A: 29-3/4" ~ 78-3/4"
B: 38"
C: 7-1/2"
