Hardware Package (
included
):
Mounting Screw (B)
Wire Connector (C) Bolt Nut (D)
Mounting Plate Unit (A)
W
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save these instructions.
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
H0306
Page 1 / 2
Turn off the power at fuse or circuit box

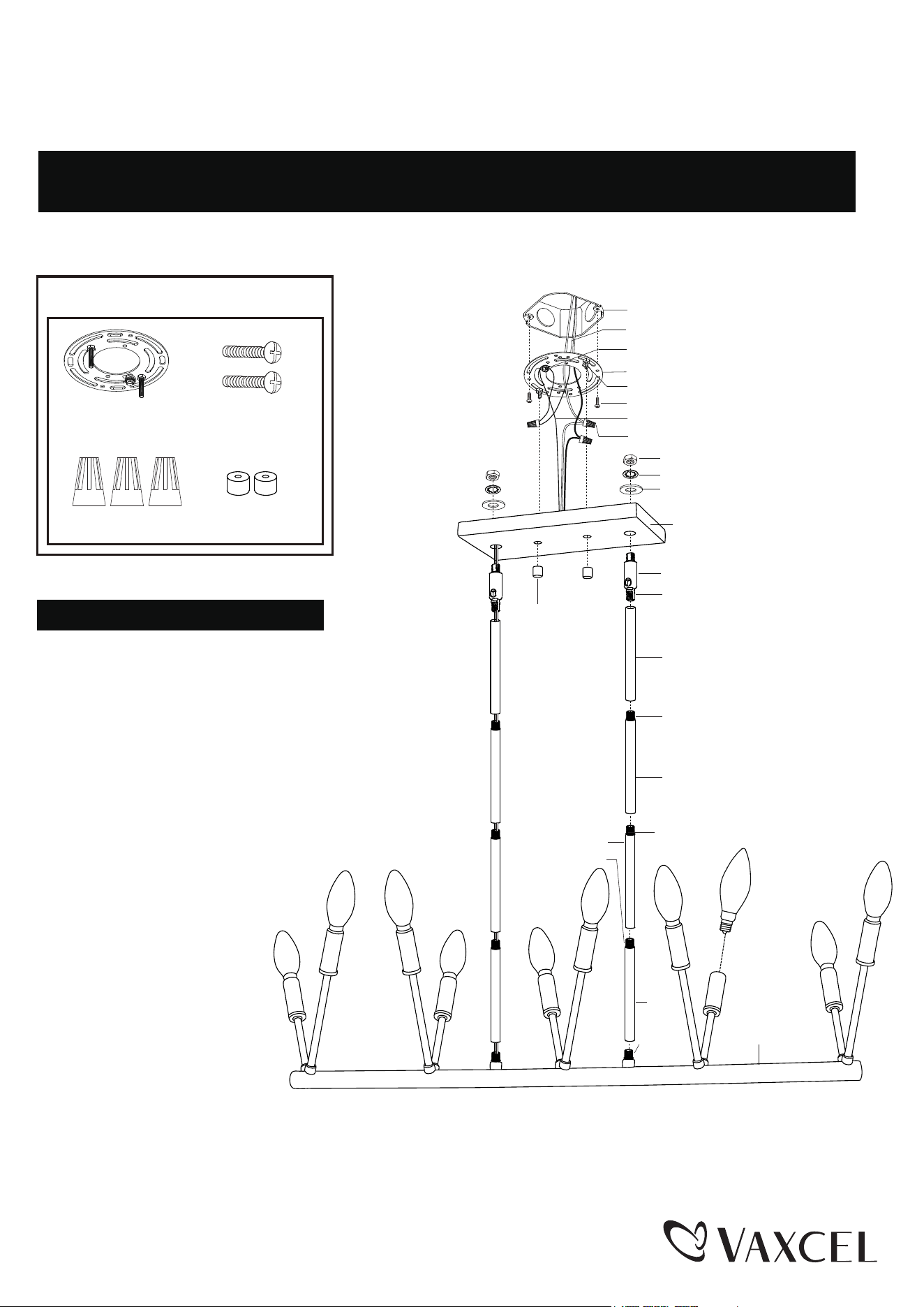

Installation Steps
1. Unscrew the two bolt nuts (D), remove the mounting plate
unit (A) from the canopy kit.
2. Attach mounting plate unit (A) to the outlet box using two
mounting screws (B). Adjust the length of the preinstalled
fixture mounting screws if necessary.
3. Rod Connections:
a. Thread the fixture wire through
the lower rod, then secure the
lower rod onto fixture using the
threaded pipe.
b. Thread the fixture wire through
the middle rod and then
secure the middle rod onto
the lower rod using the
threaded pipe.
c. Thread the fixture wire
through the upper rod, then
secure the upper rod onto the
middle rod using the threaded
pipe.
d. Thread the fixture wire through
the connection head, canopy
kit, metal pad, washer in turn,
then secure it with a hex nut.
Note: Length adjustable from 16-1/4" to 52-1/4". Use fewer rods if shorter length is desired.
Hex Nut
Washer
Metal Pad
Canopy Kit
Bolt Nut (D)
House Ground Wire
Fixture Ground Wire
Fixture Mounting Screw
Wire Connector (C)
Mounting Plate Unit (A)
Green Ground Screw
Mounting Screw (B)
Outlet Box
Max. 40W
Candelabra Bulb
(not included)
Connection Head
Threaded Pipe
Threaded Pipe
Threaded Pipe
Threaded Pipe
Fixture
Threaded
Pipe
Upper Rod
Middle Rod
Lower
Rod
Middle Rod
240801
Turn off the power at fuse or circuit box
Turn on the power at fuse or circuit box
4. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows:
• Connect the hot wire (black insulation) from the fixture to the black wire from the power source.
• Connect the neutral wire (white insulation) from the fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with the green ground screw, then
connect it to the house ground wire with the wire connector (C).
Carefully put all of the wires back into the outlet box.
5. Attach the canopy kit to the mounting plate unit (A) by aligning and inserting the two fixture mounting screws
from the mounting plate unit (A) into the open holes on the canopy kit, then secure it with the two bolt nuts (D).
6. Install 10 x 40W Max. Candelabra base bulbs (not included).
See relamping label at socket area or packaging for maximum wattage allowed.
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
Page 2 / 2

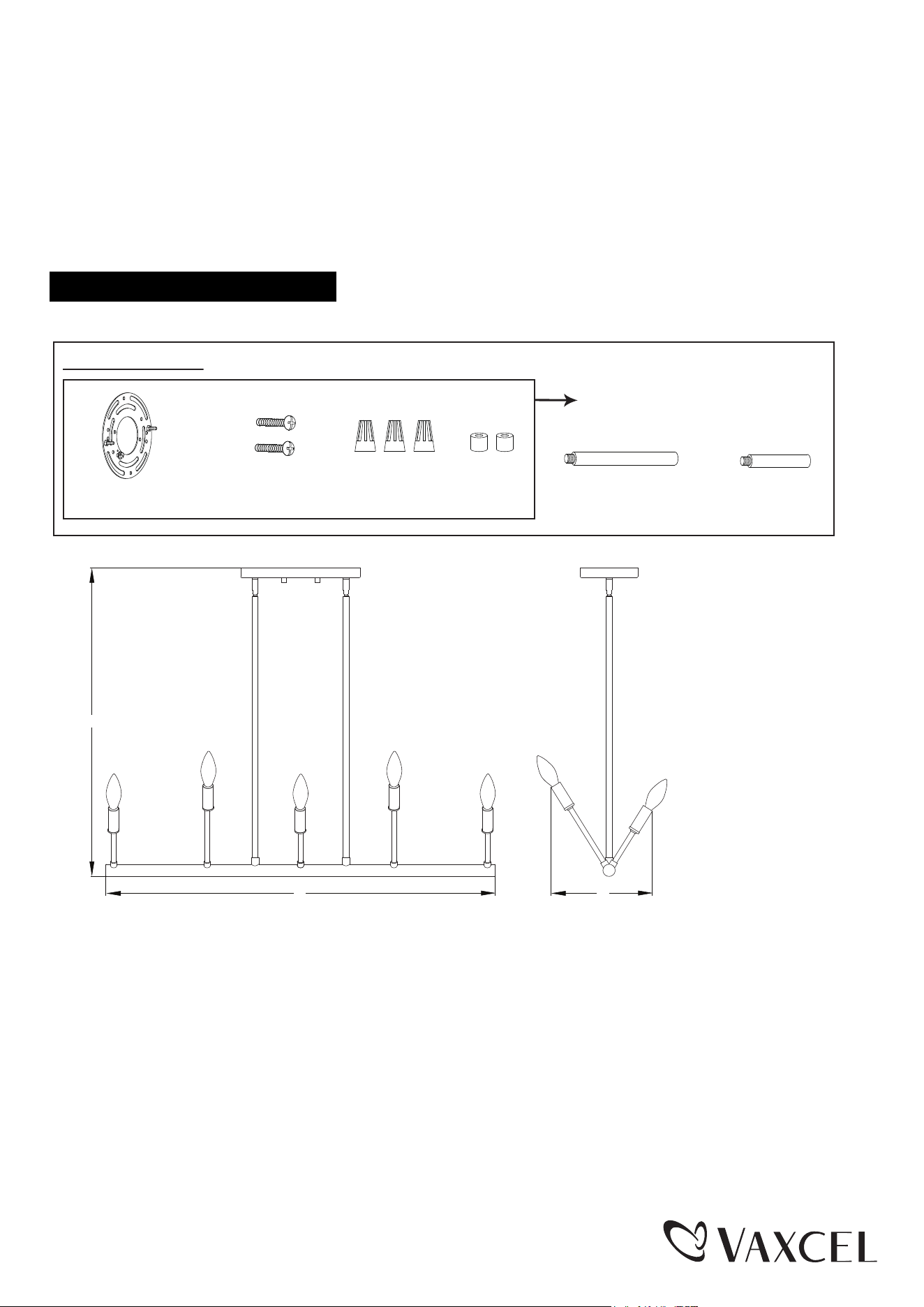

The following parts are available for reorder if damaged or missing.
Spare Parts List:
Assembly Kit
6937MM (1 SET)
Mounting Screw (B) Wire Connector (C)Mounting Plate Unit (A)
Bolt Nut (D)
A
B
C
A: 16-1/4"~52-1/4"
B: 32-1/4"
C: 8"
12" Rod
3416RD
6" Rod
3417RD
240801
