1. Attach two fixture mounting screws (C) to the mounting strap (A), and
then secure it with two lock nuts (E). Adjust the length of the fixture
mounting screws if necessary.
2. Attach the mounting strap (A) to outlet box by using two mounting
screws (B).
3. Rod Connections:
a. Thread the fixture wire through the lower rod, then secure the
lower rod onto tube using the threaded pipe.
b. Thread the fixture wire through the middle rod and then secure
the middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, then secure the
upper rod onto the middle rod using the threaded pipe.
Note: Length adjustable from 22" to 64". Use fewer rods
if shorter length is desired.
4. Thread the fixture wire through the canopy kit, then secure the
rod assembly to set threaded pipe of the canopy kit.
5. Pull out the source wires from the outlet box. Make wire connections
using wire connectors
(D)
as follows:
--- Connect the smooth-coated wire (marked) from the fixture
to the black wire from the power source.
--- Connect the ribbed-coated wire (unmarked) from the fixture
to the white wire from the power source.
--- Attach the fixture ground wire to the mounting strap
(A)
with
the green ground screw, then connect it to the house ground
wire with a wire connector
(D).
Carefully put the wires back into the outlet box.
6. Attach the canopy kit to the mounting strap
(A)
by inserting the
fixture mounting screws
(C)
, then secure it with two bolt nuts
(F)
.
7. Attach the glass shades onto the fixture, secure them with the socket rings.
8. Install bulbs (not included). See relamping label at socket area or packaging
for maximum allowed wattage.

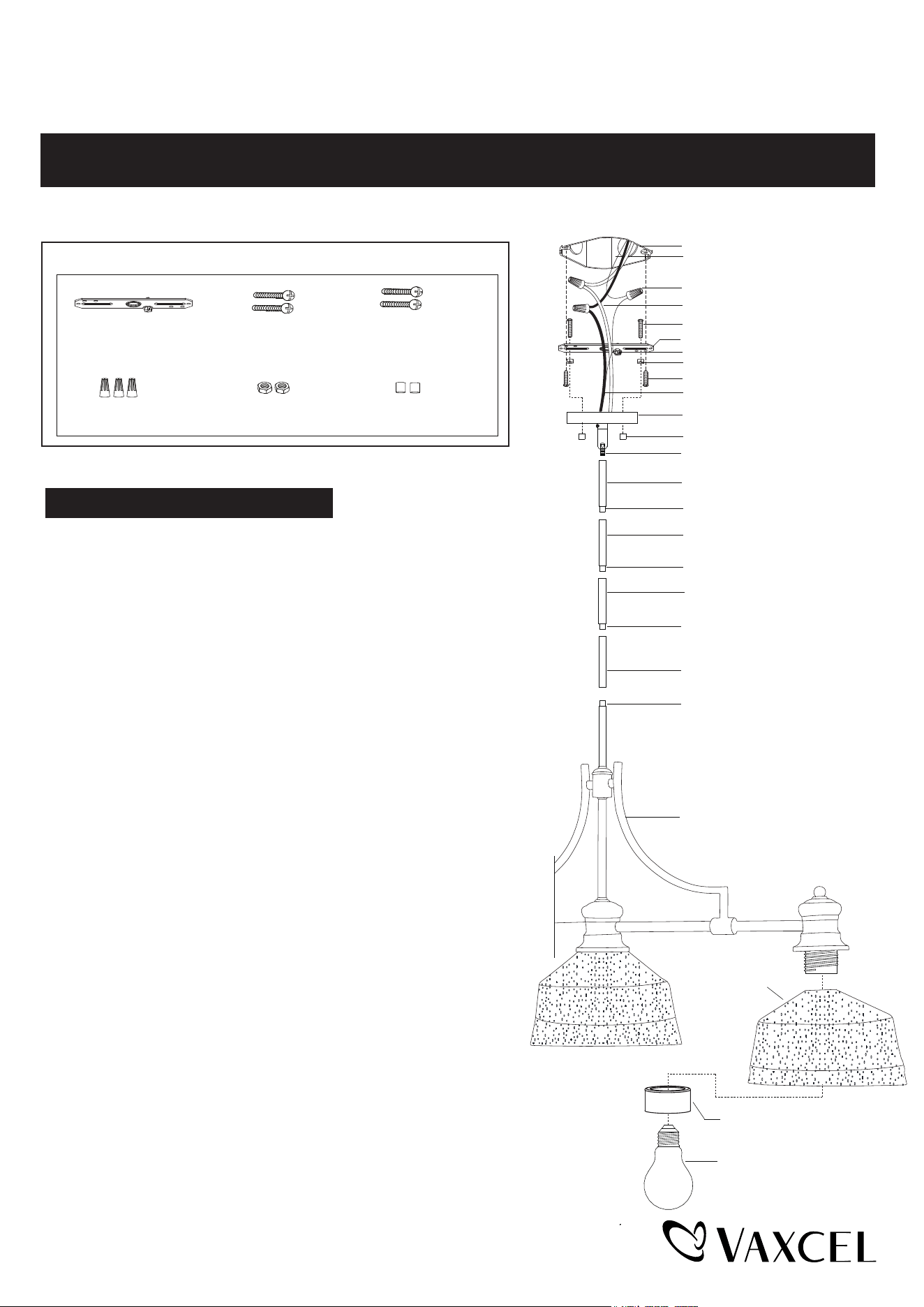

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. Read and save this instruction.
H0293 / H0221
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER WHILE INSTALLING OR SERVICING THIS FIXTURE.
Hardware Package (included):
Turn off the power at fuse or circuit box.
Installation Steps
Canopy Kit
Outlet Box
House Ground Wire
Wire Connector (D)
Lock Nut (E)
Mounting Strap (A)
Green Ground Screw
Mounting Screw (B)
Upper Rod
Upper Rod
Middle Rod
Lower Rod
Threaded Pipe
Threaded Pipe
Threaded Pipe
Fixture Wire
Fixture Mounting Screw (C)
Fixture Ground Wire
Threaded Pipe
Set Threaded Pipe
Bolt Nut (F)
Fixture
Max. 60W Type A Bulb
(not included)
Socket Ring
Glass Shade
Mounting Screw (B)
Lock Nut (E)Wire Connector (D)
Mounting Strap (A) Fixture Mounting Screw (C)
Bolt Nut (F)
Page 1 / 2
231107
Turn on the power at fuse or circuit box.

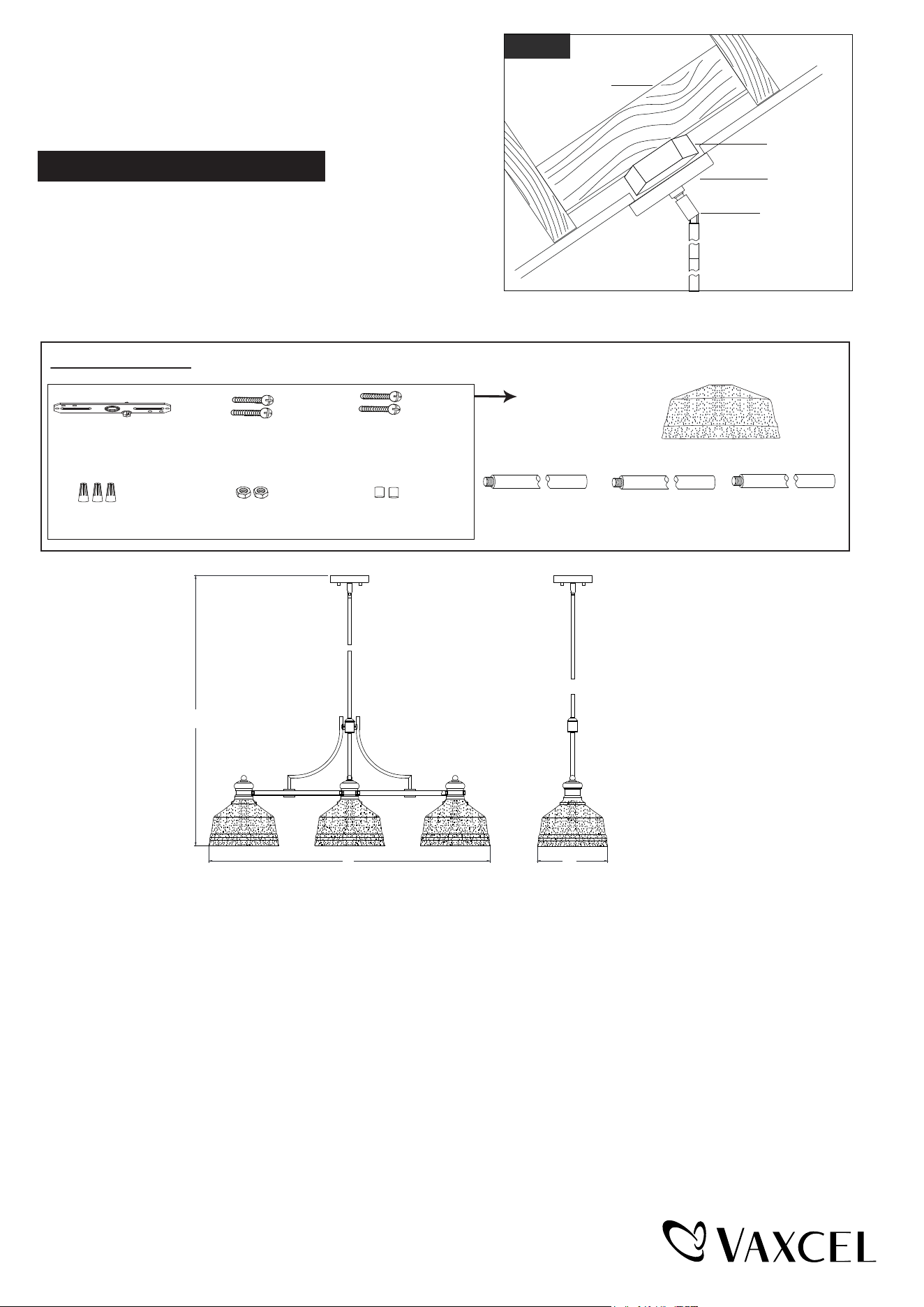

The following parts are available for reorder if damaged or missing.
Spare Parts List:
Mounting Hardware
6769MM (1 SET) for H0293
5981MM (1 SET) for H0221
Fig. 1
Outlet Box
Support Brace
Canopy
Coupling Kit
12" Rod
3336RD for H0293
3159RD for H0221
6" Rod
3337RD for H0293
3160RD for H0221
3" Rod
3338RD for H0293
3161RD for H0221
A
B
C
A: 64"
B: 36-1/2"
C: 9"
Glass
10028CS
9. Angled mounting recommended for a vaulted or angled ceiling.
(See Fig.1)
Mounting Screw (B)
Lock Nut (E)Wire Connector (D)
Mounting Strap (A) Fixture Mounting Screw (C)
Bolt Nut (F)
231107
Page 2 / 2
1 Year Warranty
How can warranty service be obtained?
1-800-482-9235
Vaxcel warrants all of our products against defects in workmanship and finishes for one year following the date of
shipment.
Exclusions: This warranty does not include the failure of products from extreme acts of nature; environmental conditions
not suited for the products intended use; operation in temperatures outside of the range specified in the instruction
manual; usage with improper power supply, power surges or dips. For coastal locations, some corrosion is considered
normal for the environment.
Vaxcel reserves the right to repair, replace or issue a credit for any properly installed product, provided it is returned per
RMA instruction. This warranty is limited to the cost of the product only and does not extend to transportation, installation
or replacement costs.
