OPERATING MANUAL
Model number:
SC01
SC02
Spot Cleaner
5824_Spot_Cleaner_manual_aw.indd 15824_Spot_Cleaner_manual_aw.indd 1 10/12/2024 14:5410/12/2024 14:54
2
IMPORTANT SAFEGUARDS:
IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
Do not use in rain or leave outdoors whilst raining.
WARNING: Basic safety precautions should always be observed when us-
ing an electrical appliance, including the following to reduce the risk of fire,
electrical shock, or injury:
Personal Safety:
• Always use responsibly. This appliance can
be used by children aged from 8 years and
above and persons with reduced physical,
sensory or mental capabilities or lack of
experience and knowledge if they have been
given supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved.
• Do not allow to be used as a toy. Do not let
children play with the appliance.
• Supervise children using or maintaining the
appliance.
• Use only manufacturer’s recommended
attachments as described in this manual;
misuse or use of any accessory or attachment
other than those recommended, may
present a risk of personal injury.
• Take extra care when cleaning stairs.
• Keep the appliance and accessories away
from hot surfaces.
• Do not block the appliances openings or
hinder air flow; keep openings free of any
objects including dust, lint, clothing, fingers
(and all parts of the body).
• Keep hair, loose clothing, fingers, and all
parts of body away from openings and
moving parts of the appliance and its
accessories.
• Particularly keep hair away from openings
and moving parts.
Electrical safety:
• Always check that the mains voltage is the
same as that marked on the rating plate on
the unit.
• Always connect to a properly earthed electrical
socket. Do not modify an earthed plug.
• Do not pull the power cord to disconnect
from a socket; grasp the plug and pull to
disconnect.
• Do not wrap the power cord around the
appliance when storing as this may damage
the cord.
• Keep the power cord away from hot surfaces
and sharp edges.
• Do not stretch or pull the power cord.
• Do not pull or carry by the power cord, use
the cord as a handle, close doors on the
cord, or pull the cord around sharp edges or
corners.
• Never operate this appliance if the
power cord or plug is damaged or if
it is not working properly. Contact the
Gtech customer care helpline for further
information.
• The power cord cannot be replaced. If the
cord is damaged the appliance should be
discarded and replaced.
• Remove the plug from the socket outlet
when not in use, and before cleaning,
maintaining, or servicing the appliance.
• Do not leave the appliance when plugged in.
• Never handle or use the appliance or plug
with wet or damp hands.
• Do not immerse the appliance in water or
any other liquids.
• Do not store outdoors. Store indoors in a dry
place out of the reach of children.
• Do not store near water or any other liquids.
• Do not expose to rain.
• Do not spray liquid towards other electrical
equipment.
Service:
• Before using the appliance and aer any
impact, check for signs of wear or damage
and repair as necessary.
• Do not use the appliance if it is not working
as it should, if any part is damaged or
defective, or has been dropped, or
immersed in water. Contact the Gtech
5824_Spot_Cleaner_manual_aw.indd 25824_Spot_Cleaner_manual_aw.indd 2 10/12/2024 14:5410/12/2024 14:54
3
customer care helpline for further
information.
• Repairs should be carried out by a service
agent or a suitably qualified person in
accordance with relevant safety regulations.
Repairs by unqualified persons could be
dangerous.
• Do not attempt to carry out any maintenance
or repairs that are not shown in this manual.
• Never modify the appliance in any way as
this may increase the risk of personal injury.
• Only use replacement parts or accessories
provided or recommended by Gtech.
Intended use:
• Use only as described in this manual. Do not
use for any purposes other than cleaning.
• This appliance has been designed for domestic
wet cleaning only, primarily for cleaning stains
and spills from small areas of carpet, rugs,
upholstery, and other so surfaces.
• It is not intended for picking up large
quantities of dry debris, such as dust,
powder, sand, stones, or other materials.
• Care should be taken not to run over loose
objects or the edges of rugs, loose weave
carpets, and floor coverings where there
are tassels or loose exposed threads. It is
advised to test on an inconspicuous area first
before use.
• Do not use outdoors in wet conditions.
• Do not use to pick up flammable or
combustible liquids, such as petroleum, or
use in areas where they may be present.
• Do not use to pick up hazardous materials
and chemicals, such as solvents, bleach,
ammonia, drain cleaner, oil, strong acid or
strong alkali solutions.
• Do not use the appliance in an enclosed
space filled with vapours given off by oil base
paint, paint thinner, some moth-proofing
substances, flammable dust, or other
explosive or toxic vapours.
• Do not pick up anything that is burning or
smoking, such as cigarettes, matches or
hot ashes.
• Do not pick up hard or sharp objects such as
glass, nails, screws, coins, etc.
• Do not place or submerge the appliance in
standing water or try to clean flooded areas.
• Do not use on concrete, tarmacadam or
other rough surfaces.
• Particularly for hard flooring, before
cleaning check the area being cleaned is
free of any hard debris or objects that could
damage the flooring if caught underneath
the product, and that the underside of the
product is free from foreign objects that
could mark the surface.
• Do not use boiling water. Use water below 40°C
• Do not use foaming detergents or cleaning
solutions, such as washing up liquid.
• Only use cleaning solution that is suitable
for the surfaces being cleaned. Test on small
inconspicuous areas prior to use.
• Do not use liquids such as bleach, ammonia,
drain cleaner, pesticides, lubricants, that may
damage the product.
WARNING:
• Do not use water, solvents, or polishes to
clean the outside of the appliance; wipe
clean with a dry cloth.
• Never immerse the unit in water.
• Do not clean the appliance or the water
tanks in a dish washer.
• Never use the appliance without both water
tanks fitted.
• Never use without the filter fitted.
• Keep the appliance on a level surface.
• If storing in very low temperature dry the water
tanks to avoid risk of damage from freezing.
FOR HOUSEHOLD USE ONLY
5824_Spot_Cleaner_manual_aw.indd 35824_Spot_Cleaner_manual_aw.indd 3 10/12/2024 14:5410/12/2024 14:54
Thank you for choosing Gtech
“Welcome to the Gtech family. I started Gtech to create sensible, easy
to use products that do a great job, and hope you get many years of
trouble-free performance from your new product.”
Nick Grey – Inventor, owner of Gtech
4
What’s in the box
2
2
1
1
3
3
4
4
Main unit
Cleaning head
(packed in water tank)
Brush holder and screw
(packed in water tank
Self cleaning cover
(fitted on cleaning
head)
Make a note of your product serial number code for future reference.
You can find this on the bottom of the product.
_ - _ _ - _ _ _ ~
_ _ _ _ _ ~
_ _ _ _ ~
_ _ ~ _ _ _ _ _ _ _
X-XX-XXX~
XXXXX~
WWYY~
00~0000000
5824_Spot_Cleaner_manual_aw.indd 45824_Spot_Cleaner_manual_aw.indd 4 10/12/2024 14:5410/12/2024 14:54

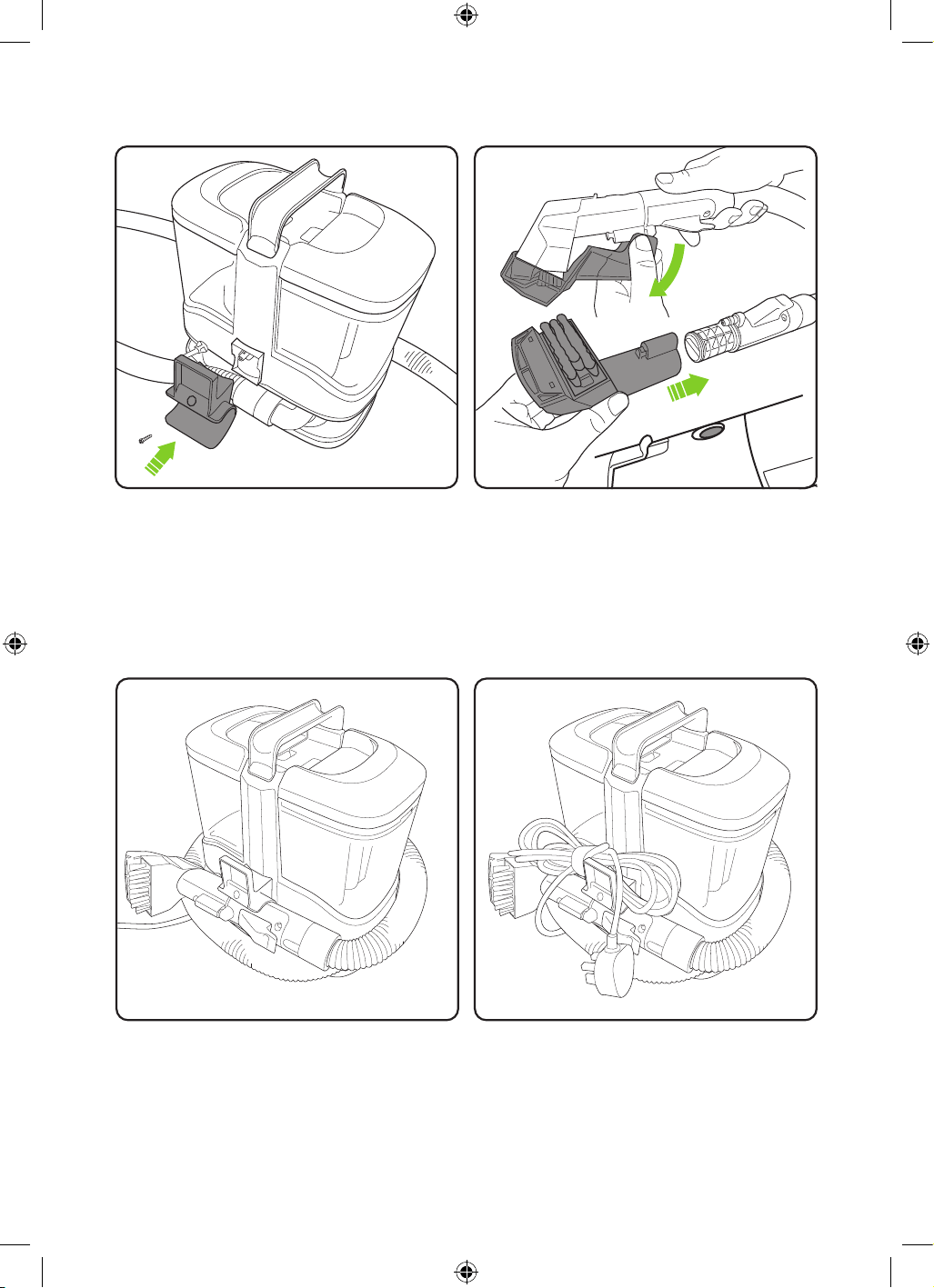

Wrap the hose around the unit and clip the
cleaning head into the holder.
The power cable can be placed around the
hook.
5
Assembly
Storage
Remove the self-cleaning cover from the
cleaning head. Push the cleaning head onto
the end of the hose until it clicks into place.
Ensure the button is engaged into the hole.
Fit the brush holder to the unit and secure with
the screw.
5824_Spot_Cleaner_manual_aw.indd 55824_Spot_Cleaner_manual_aw.indd 5 10/12/2024 14:5410/12/2024 14:54
To refit the lid locate the tab into the slot in the
tank then push the lid down until it clicks shut.

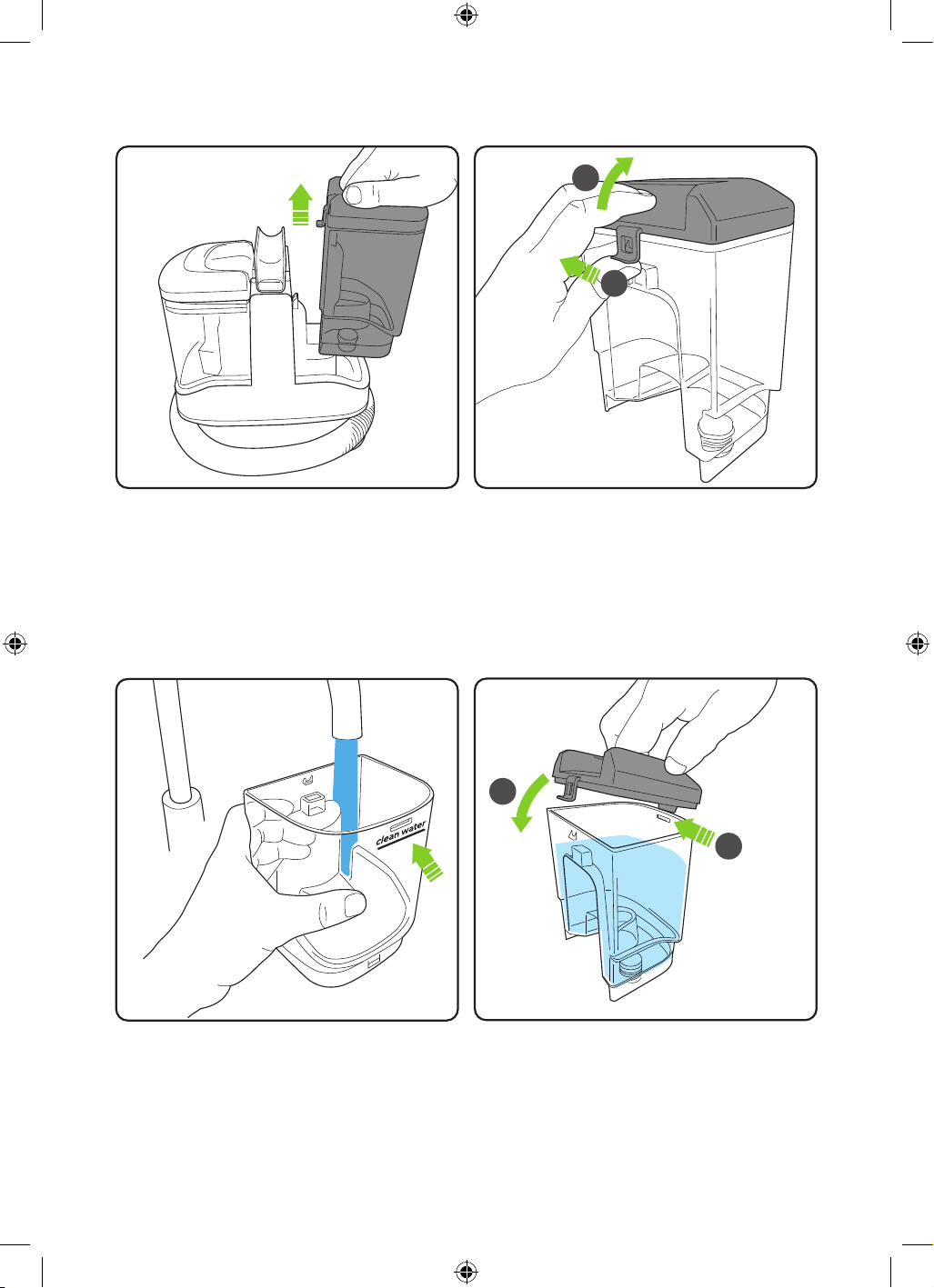

Filling clean water tank
Add clean water. Do not fill above the level
marked on the tank.
Use cold or warm water, maximum
temperature 40°C
WARNING: do not use boiling water
Only use non-foaming cleaning solution that are suitable for the surface to be cleaned.
Do not use cleaning products such as washing up liquid, bleach, or any other cleaning
substances or fluids that may damage the product.
6
1
1
2
2
Pull the latch and remove the lidPull the clean water tank upwards to remove
from the unit
5824_Spot_Cleaner_manual_aw.indd 65824_Spot_Cleaner_manual_aw.indd 6 10/12/2024 14:5410/12/2024 14:54

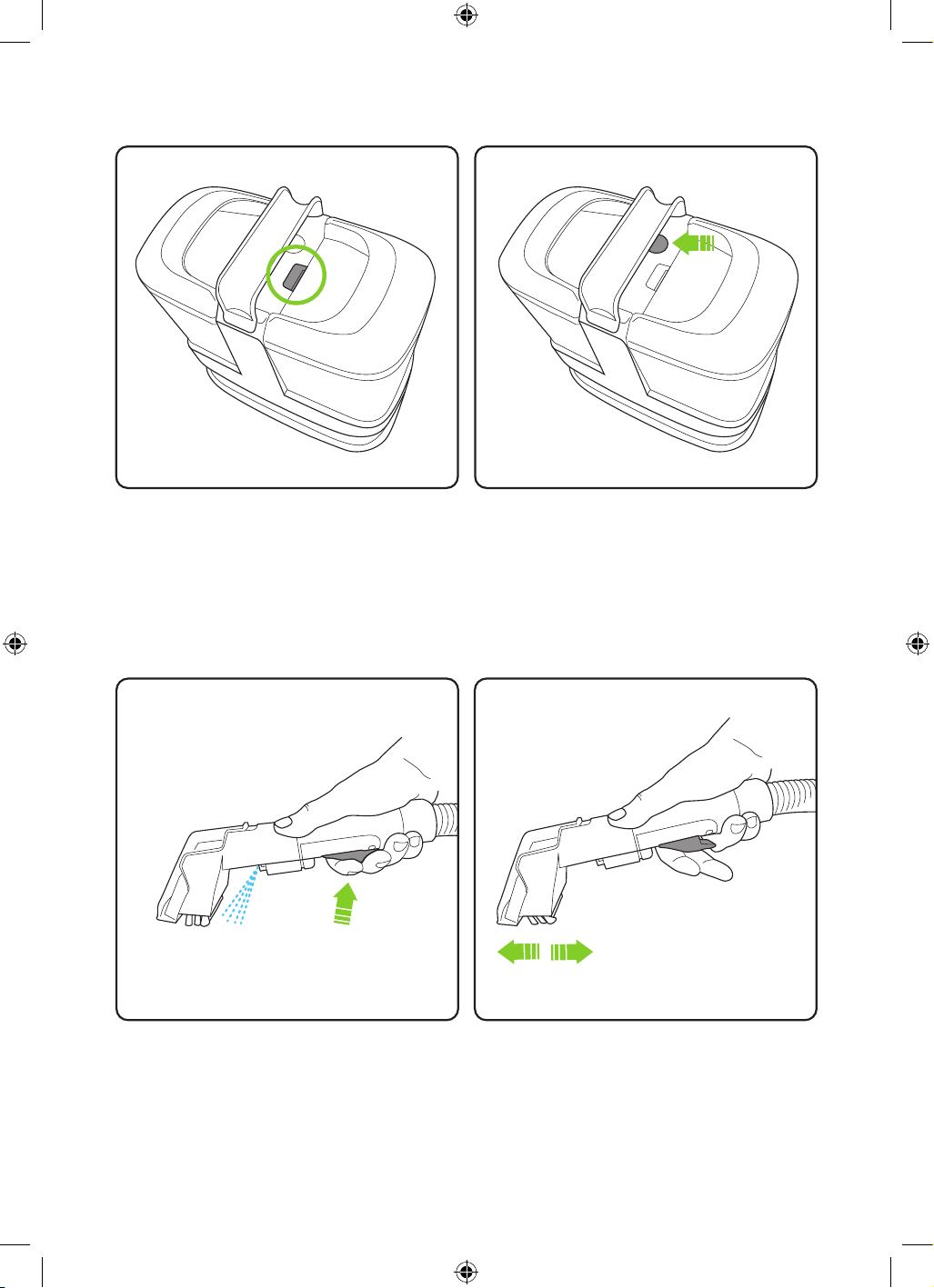

Operation
Plug the power cord into a mains supply
socket.
Press the power button to switch on.
Press the power button to switch off.
Press and hold the trigger to spray water.
Lightly spray a soiled area and let the water sink
in. Release the trigger to stop the spray.
Replace the tank into the unit.
Ensure the latch is located and the tank is
securely engaged.
WARNING: do not use without both water
tanks fitted.
Push the cleaning head backwards and
forwards to clean dirt and stains.
7
5824_Spot_Cleaner_manual_aw.indd 75824_Spot_Cleaner_manual_aw.indd 7 10/12/2024 14:5410/12/2024 14:54

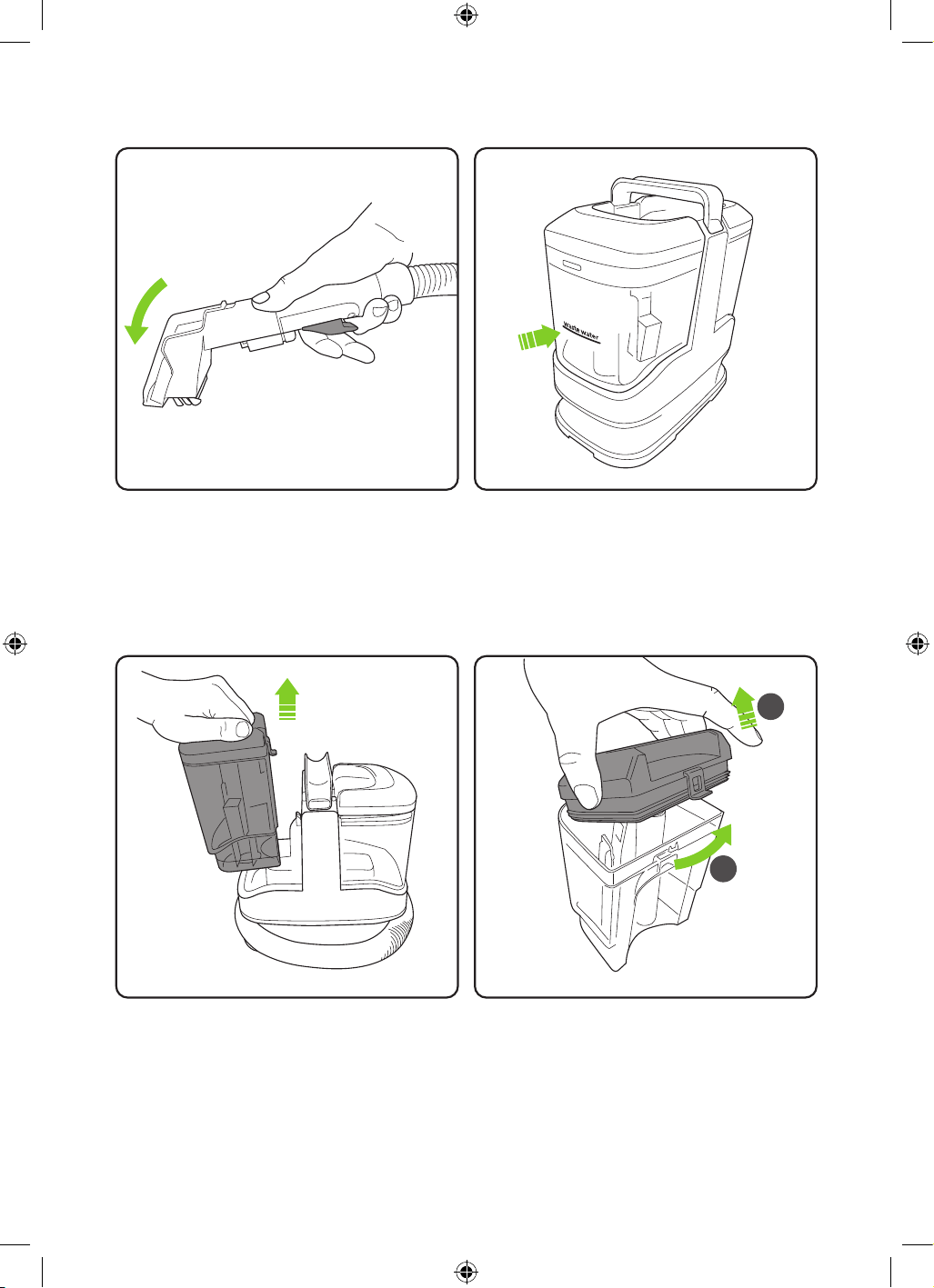

Do not collect water above the line on the
waste water tank.
Pull the latch and remove the lid.
Tilt the cleaning head forwards and push firmly
to the surface to collect excess water
Pull the waste water tank upwards to remove
from the unit
Emptying the waste water tank
8
1
2
5824_Spot_Cleaner_manual_aw.indd 85824_Spot_Cleaner_manual_aw.indd 8 10/12/2024 14:5410/12/2024 14:54

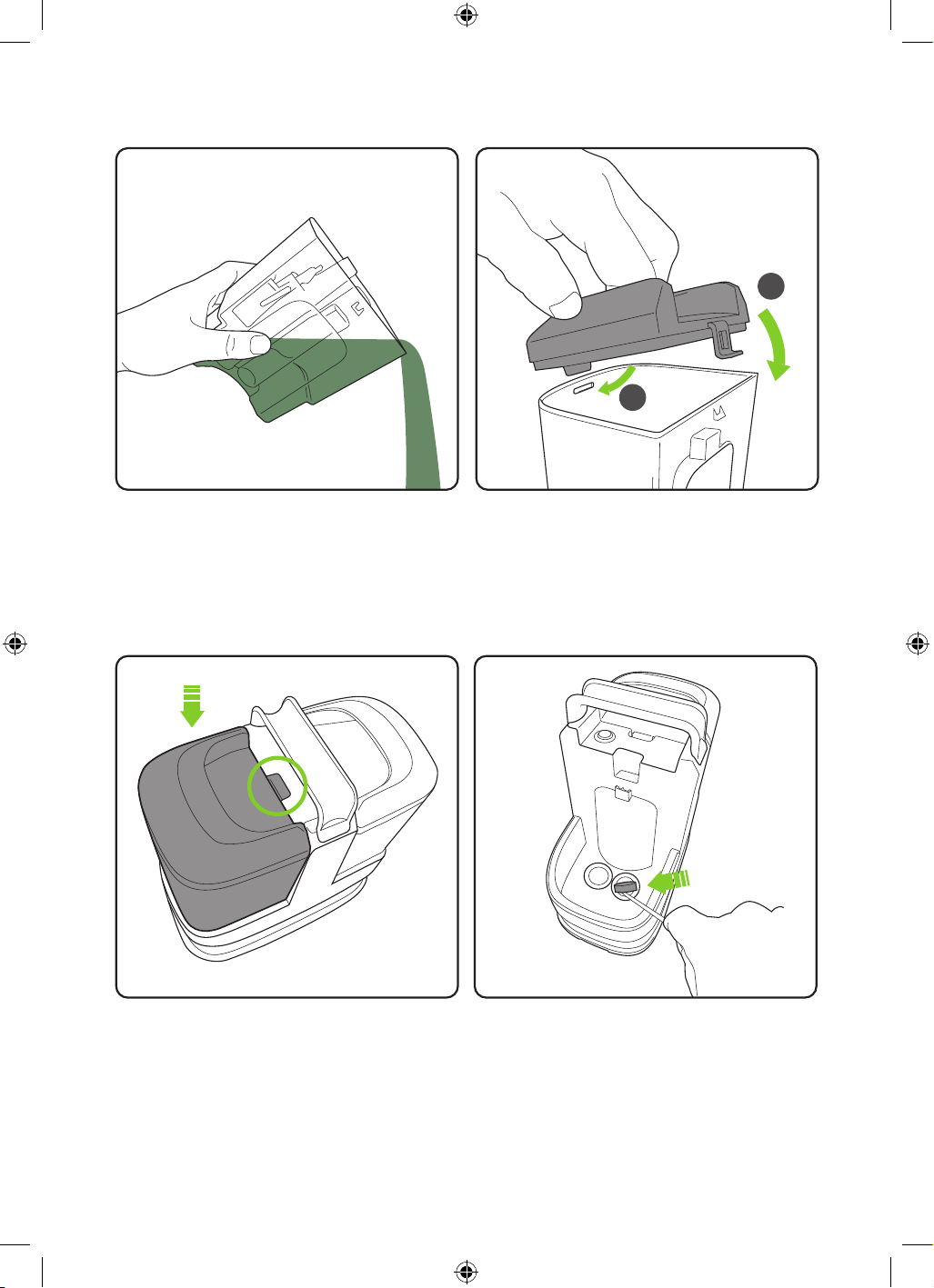

Remove the waste water tank Use a suitable
tool to carefully remove the filter from the hole.
Rinse the filter with clean cold water
Carefully push the filter back into place.
WARNING: do not remove the rubber seal.
Do not use without the filter fitted.
Replace the tank into the unit.
Ensure the latch is located and the tank is
securely engaged.
WARNING: do not use without both water
tanks fitted.
Pour away the waste water and rinse the tank
clean.
To refit the lid locate the tab into the slot in the
tank then close to the latch.
Cleaning the filter
9
1
2
5824_Spot_Cleaner_manual_aw.indd 95824_Spot_Cleaner_manual_aw.indd 9 10/12/2024 14:5410/12/2024 14:54

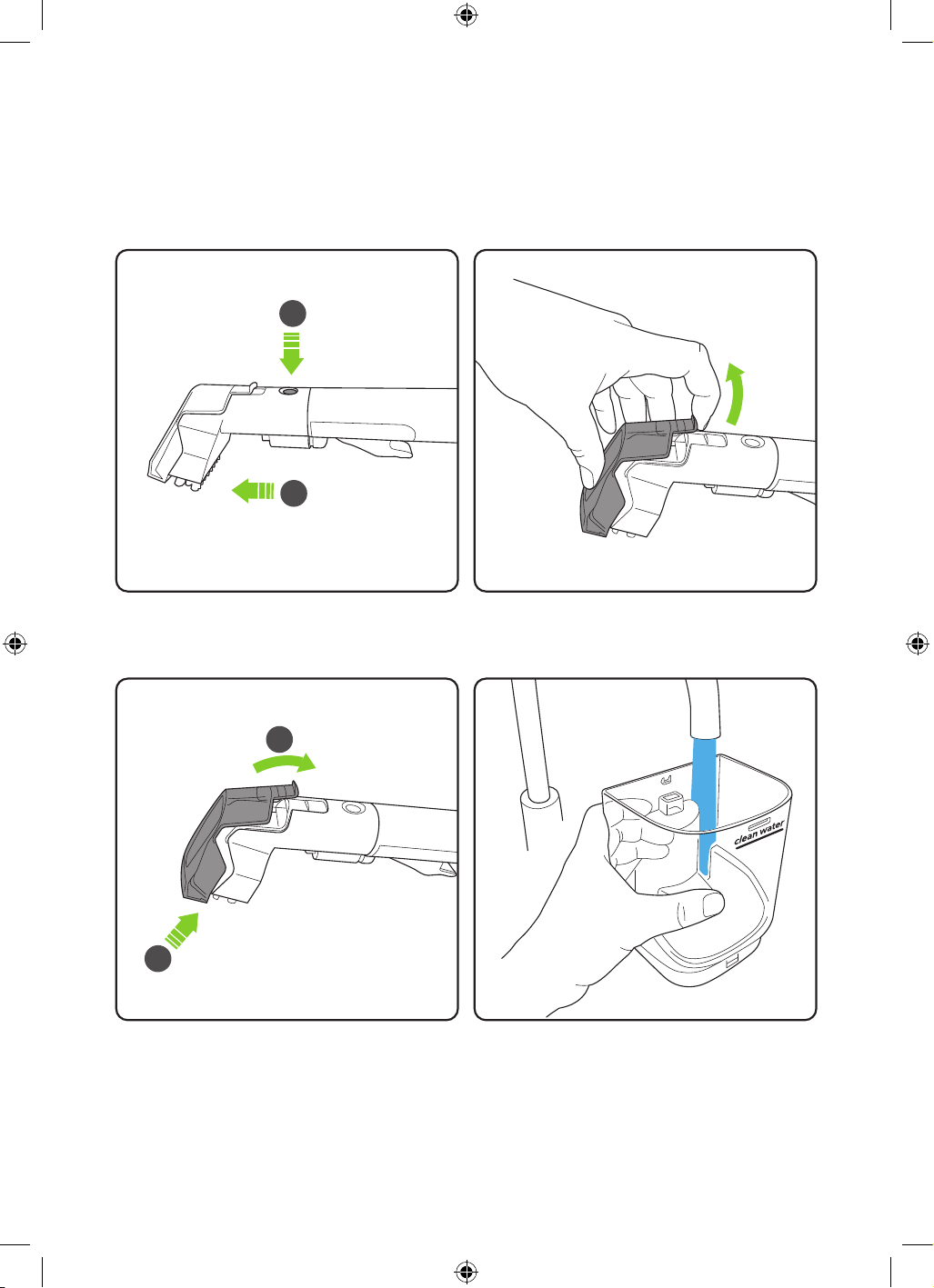

The water tanks can be rinsed with clean
water. Use cold or warm water, maximum
temperature 40°C
WARNING: do not use boiling water.
Do not clean in a dish washer.
Do not use water, solvents, or polishes to clean
the outside of the appliance; wipe clean with
a dry cloth.
Product care and maintenance
To re-fit the cover locate the bottom edge and
then clip into place.
Switch off and remove the plug from the mains power supply before any carrying out any
cleaning or maintenance.
Your product doesn’t need much maintenance: keep the filter, water tanks, and brush
clean, and wipe the outside with a dry cloth if it gets dirty, including under the water tanks.
1
1
2
2
The front cover of the cleaning head can be
removed to clean.
The cleaning head can be removed from the
hose to clean.
Push the button and pull the brush to remove.
10
5824_Spot_Cleaner_manual_aw.indd 105824_Spot_Cleaner_manual_aw.indd 10 10/12/2024 14:5410/12/2024 14:54

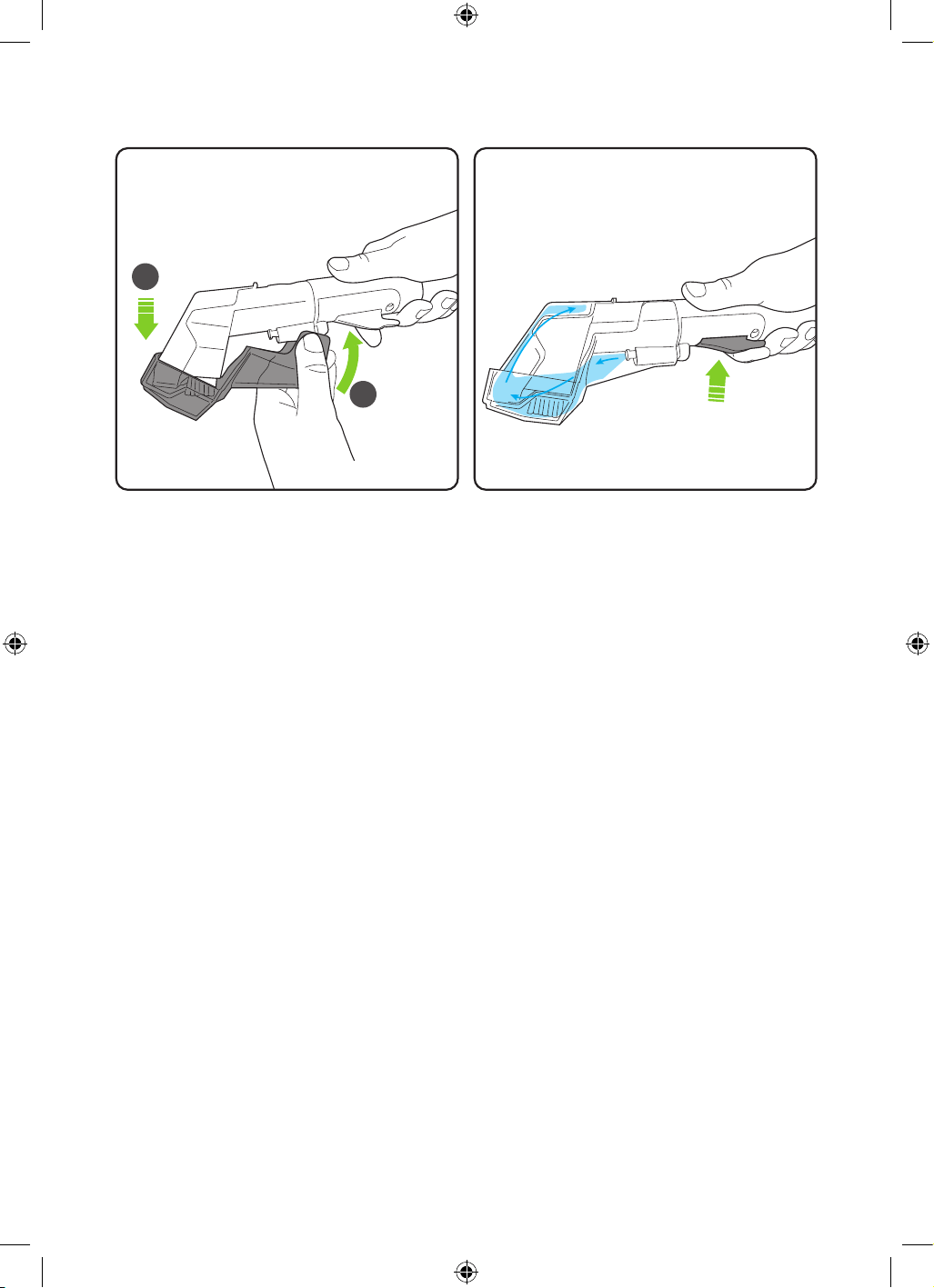

Self-cleaning attachment
1
2
Start the unit then activate the trigger to
circulate water around the cleaning head.
Release the trigger and continue to run the
unit until any excess water is cleared from the
cleaning head and hose.
To fit the self-cleaning cover, hook the front of
the cleaning head into the part then clip the
back part to the handle.
11
5824_Spot_Cleaner_manual_aw.indd 115824_Spot_Cleaner_manual_aw.indd 11 10/12/2024 14:5410/12/2024 14:54
12
support@gtech.co.ukOnline How to Videos
Product support
If these initial tips do not solve your problem we please visit our support area where
you can find troubleshooting help including online manuals, FAQs and how-to-videos,
as well as genuine spares and replacement parts compatible with your product.
Visit: www.gtech.co.uk/support
Troubleshooting
Problem Solution
Product is not cleaning
well
Check the water level in the clean water tank.
Check both water tanks are correctly fitted.
Check both water tank lids are correctly fitted.
Check for any blockages in the cleaning head or hose.
Check for any damage to the hose.
Use the self cleaning cover and/or remove and clean
the cleaning head.
No suction or low suction Empty the waste water tank. Page 8
Check waste water tank lid is correctly fitted.
Check for any blockages in the cleaning head or hose.
Check for any damage to the hose.
Check if the filter is blocked. Clean the filter – page 9
No water spray Check the water level in the clean water tank.
Check the clean water tank is correctly fitted.
Remove and clean the cleaning head.
Trigger is not working. Contact Gtech
Water pump is not working. Contact Gtech
Product has stopped or
won’t work
Check wall socket is switched on.
Try another wall socket.
Check the fuse in the plug.
Check the cord and plug for any damage.
5824_Spot_Cleaner_manual_aw.indd 125824_Spot_Cleaner_manual_aw.indd 12 10/12/2024 14:5410/12/2024 14:54
TECHNICAL SPECIFICATION
Rated voltage/frequency 220-240VAC 50/60Hz
Rated power 450W
Waterproof IPX4
FOR DOMESTIC USE ONLY
Many of the electrical items that are thrown away
can be repaired or recycled, saving natural re-
sources and helping to protect the environment.
Gtech products are marked with the symbol
indicating they can be recycled, and are covered
by legislation for Waste Electrical and Electronic
Products (2012/19/EU)
When the product has reached the end of its life it
should not be disposed of with general household
waste. The product should be disposed of at a
recognised recycling centre.
Recycling electrical products and batteries is free
at your local recycling centre.
To find your nearest centre and discover how
easy it is to recycle electrical products visit
www.recycle-more.co.uk
Alternatively contact your local council or civic
amenity site.
Product Recycling
13
5824_Spot_Cleaner_manual_aw.indd 135824_Spot_Cleaner_manual_aw.indd 13 10/12/2024 14:5410/12/2024 14:54
14
Visit www.gtech.co.uk/warrantyregistration to register your product and ensure that we have all
the information required to provide you with quick and efficient support.
You will need your product’s serial number. You can find this on the bottom of the
product.
WARRANTY – REGISTRATION
X-XX-XXX~
XXXXX~
WWYY~
00~0000000
If your product is within its warranty and has a fault that cannot be resolved from the
troubleshooting section or online support, please do the following:
• Contact our Gtech Customer Care Helpline on UK: 08000 308 794, who will go through any
troubleshooting with you to identify the fault.
• If your fault can be resolved by a replacement part, this will be sent to you free of charge.
• Following troubleshooting, if your product needs to be replaced, we will arrange collection of
your faulty product for inspection, and delivery of a replacement product free of charge.
Your product is guaranteed against material or manufacturing faults for 2 years from the date of
purchase (or the delivery date if this is later) subject to the following terms and conditions:
WHAT ISN’T COVEREDSUMMARY
The guarantee becomes effective at
the date of purchase (or the date of
delivery if this is later). If a product
is repaired or replaced during the
warranty period, the warranty period
is not started again.
• You must provide proof of delivery/
purchase before any work can be
carried out on the product. Without
this proof, any work carried out will be
chargeable. Please keep your receipt or
delivery note.
• All work will be carried out by Gtech or
its authorised agents.
• Any parts which are replaced will
become the property of Gtech.
• The repair or replacement of your
product is under guarantee and will not
extend the period of guarantee.
• The guarantee provides benefits which
are additional to and do not affect your
statutory rights as a consumer.
Gtech does not guarantee the repair or
replacement of a product as a result of:
• Normal wear and tear (e.g. cleaning fluid).
• Use of consumables
• Accidental damage, faults caused by negligent use or lack of care
and maintenance, misuse, neglect, careless operation or handling of
the product which is not in accordance with operating manual.
• Blockages. Please refer to the operating manual for details of how to
unblock your product.
• Use of the product for anything other than the normal domestic
household purposes.
• Use of parts and accessories which are not Gtech genuine
components.
• Faulty installation (except where installed by Gtech)
• If it is modified in any way.
• Repairs or alterations carried out by parties other than Gtech or its
authorised agents.
• Purchasing your product from an unofficial third party (i.e not from
Gtech or an official Gtech retailer.
• If you are in doubt as to what is covered by your guarantee, please
call the Gtech Customer Care Helpline on UK: 08000 308 794
International orders are subject to a delivery charge for both faulty and
non faulty products.
WARRANTY – TERMS AND CONDITIONS
If you purchased directly from Gtech, your details are
already registered and your 2-year warranty will start
automatically.
If you purchased from an authorised Gtech retailer, please
register your warranty within 3 months.
You will need to provide proof of purchase to support any
claim(s) against your warranty.
5824_Spot_Cleaner_manual_aw.indd 145824_Spot_Cleaner_manual_aw.indd 14 10/12/2024 14:5410/12/2024 14:54
15
Notes
5824_Spot_Cleaner_manual_aw.indd 155824_Spot_Cleaner_manual_aw.indd 15 10/12/2024 14:5410/12/2024 14:54
5824 241210
Grey Technology Limited
Brindley Road, Warndon, Worcester WR4 9FB, UK
email: support@gtech.co.uk
telephone: 08000 308 794
www.gtech.co.uk
5824_Spot_Cleaner_manual_aw.indd 165824_Spot_Cleaner_manual_aw.indd 16 10/12/2024 14:5410/12/2024 14:54
