WEN DF8000X Dual Fuel Portable Generator Electric Start, User Manual

8000W ELECTRIC START

DUAL FUEL GENERATOR

Instruction Manual

MODEL DF8000X

IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,

ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,

trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use

your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

TECHSUPPOR[email protected]1-847-429-9263 (M-F 8AM-5PM CST)

For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM

CONTENTS

WELCOME 3

Speciﬁcations ....................................................................................................3

Introduction ......................................................................................................4

SAFETY 5

Safety Information ............................................................................................5

Generator Safety Warnings ...............................................................................6

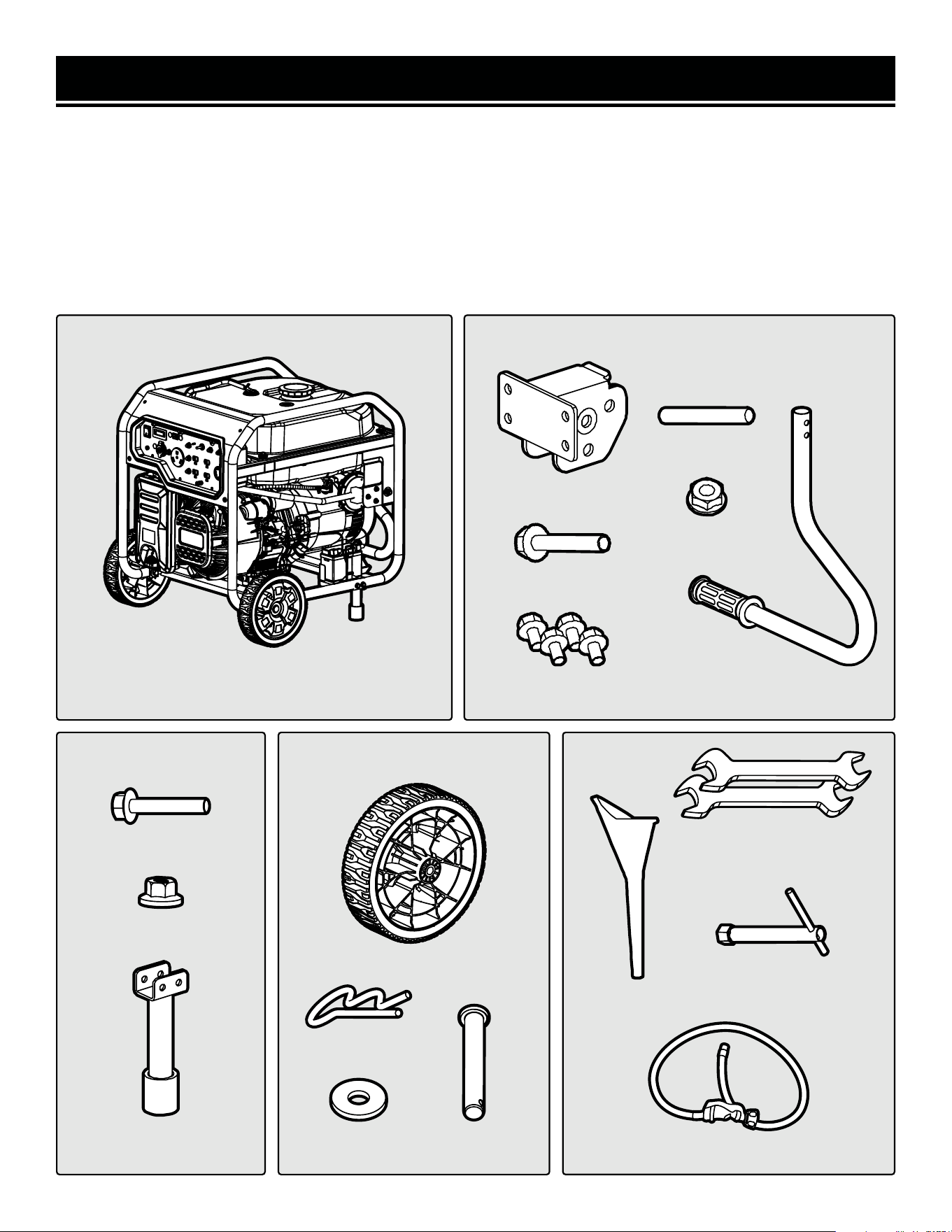

Unpacking & Packing List .................................................................................9

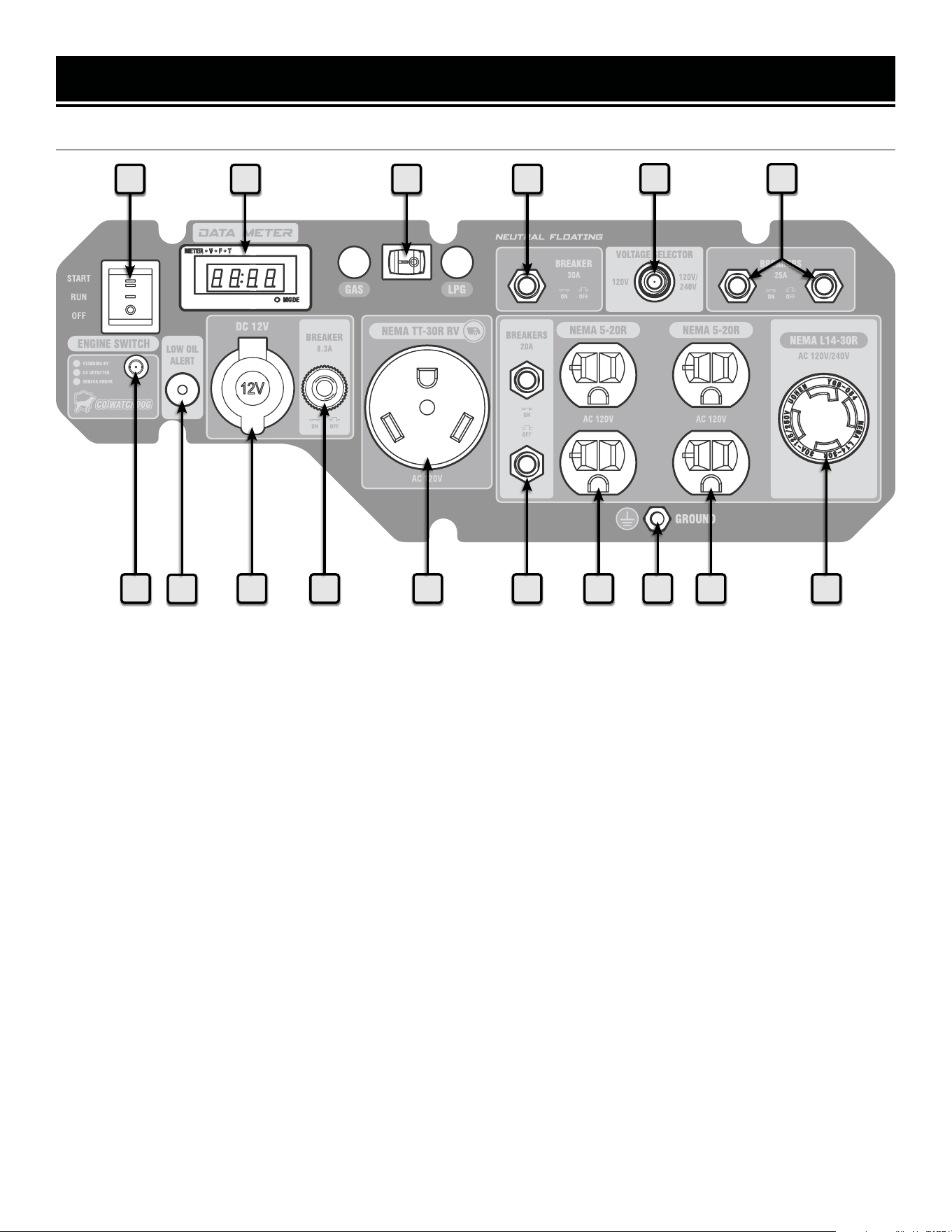

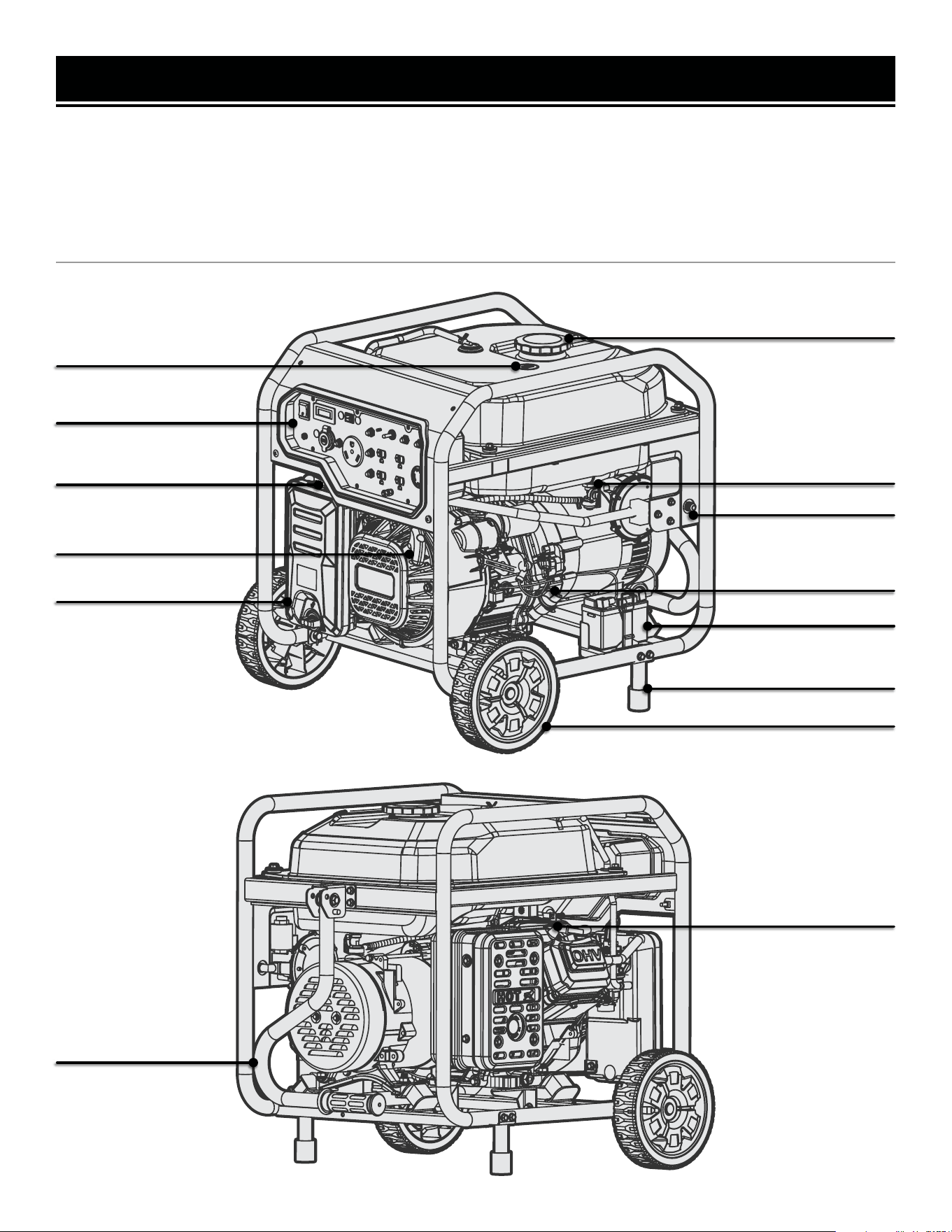

Know Your Generator ......................................................................................10

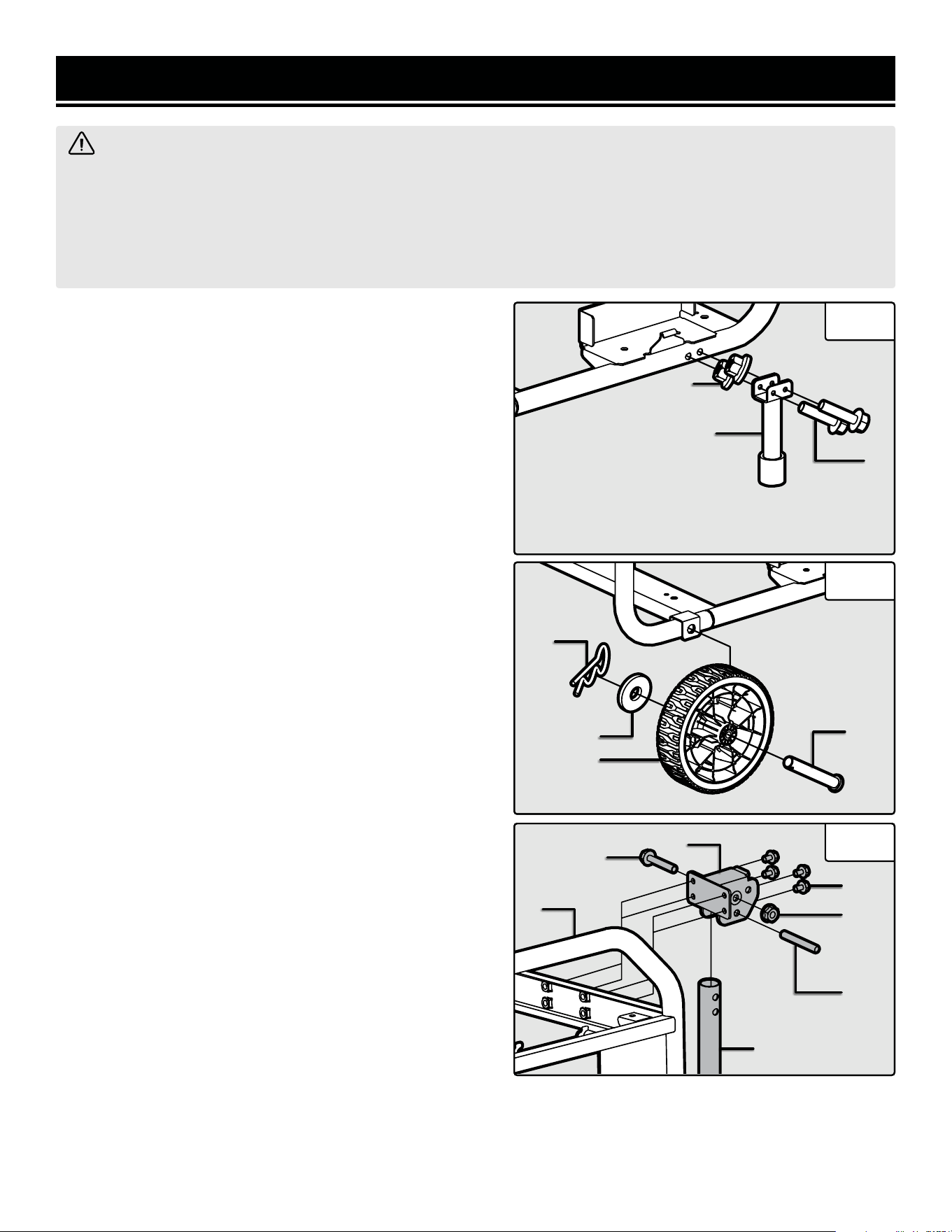

Assembly & Adjustments ................................................................................12

Generator Preparation .....................................................................................13

BEFORE OPERATING

OPERATION & MAINTENANCE 20

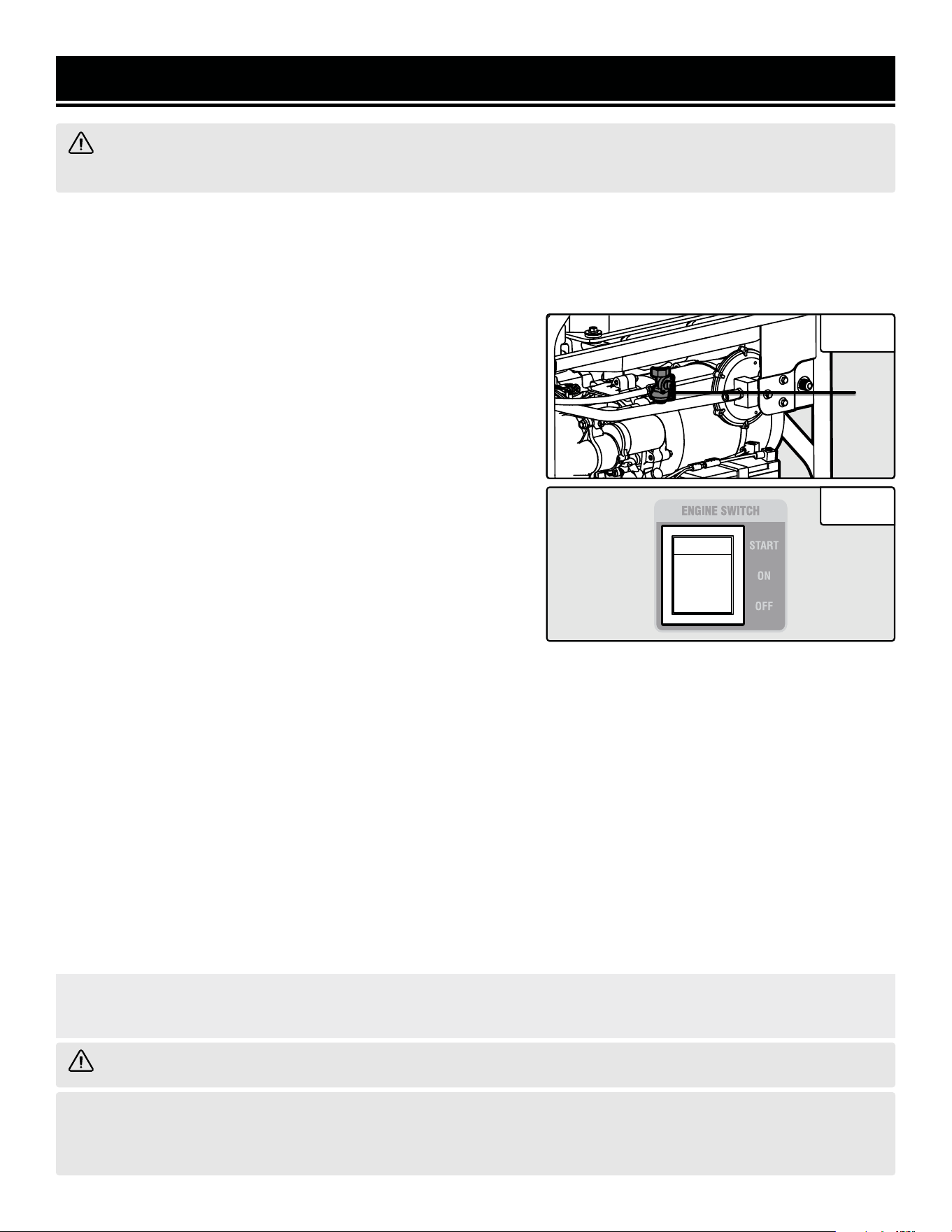

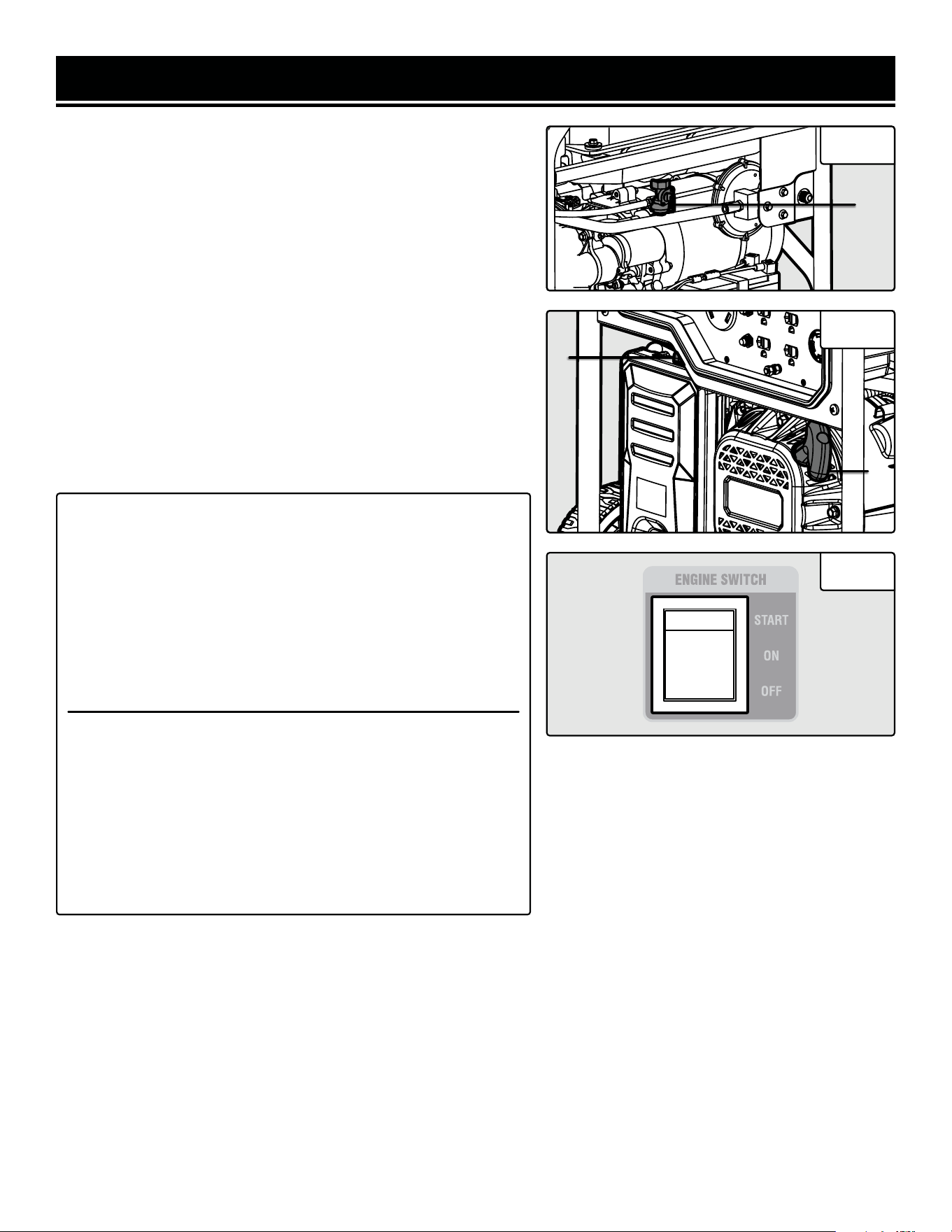

Starting Your Generator ..................................................................................20

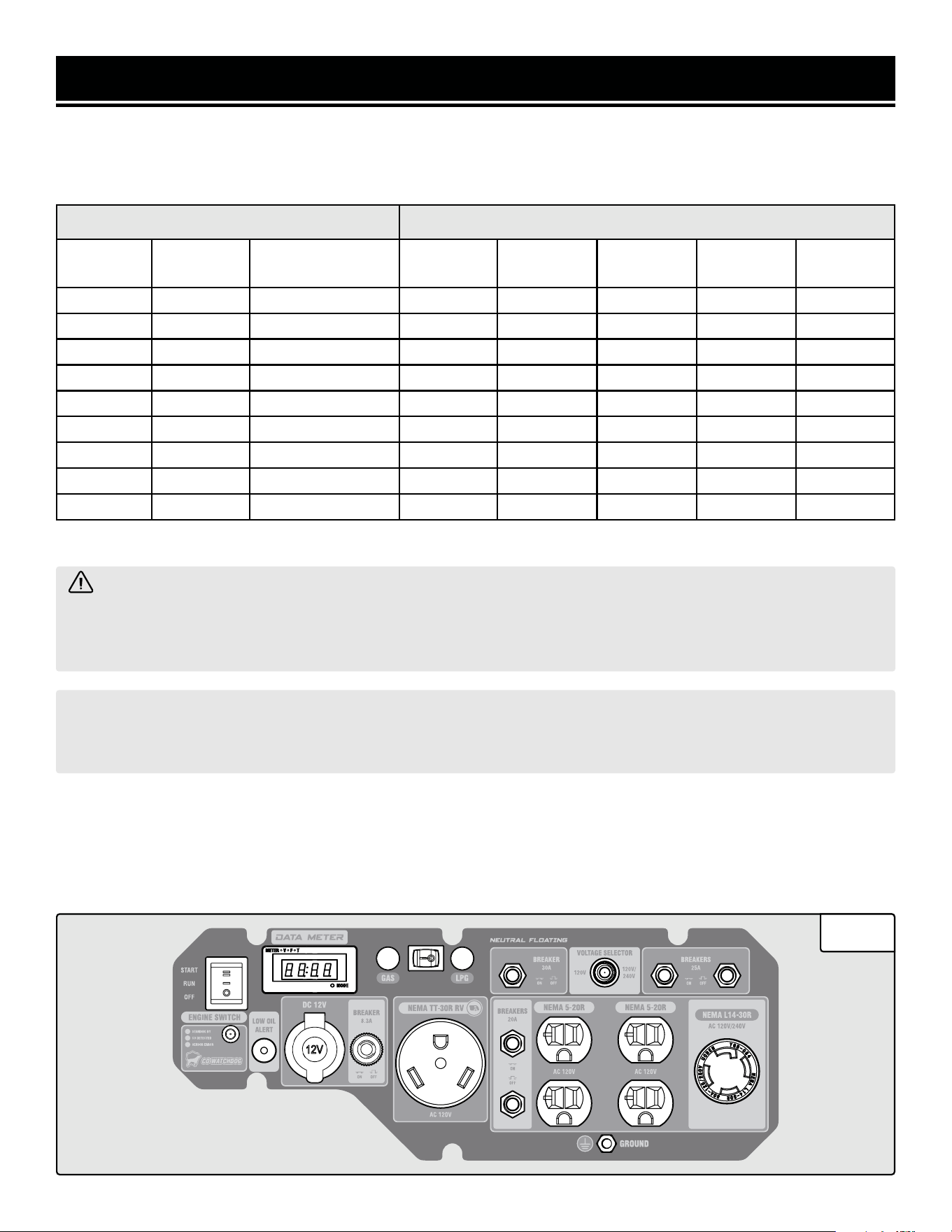

Using Your Generator ......................................................................................22

Shutting Off Your Generator ............................................................................27

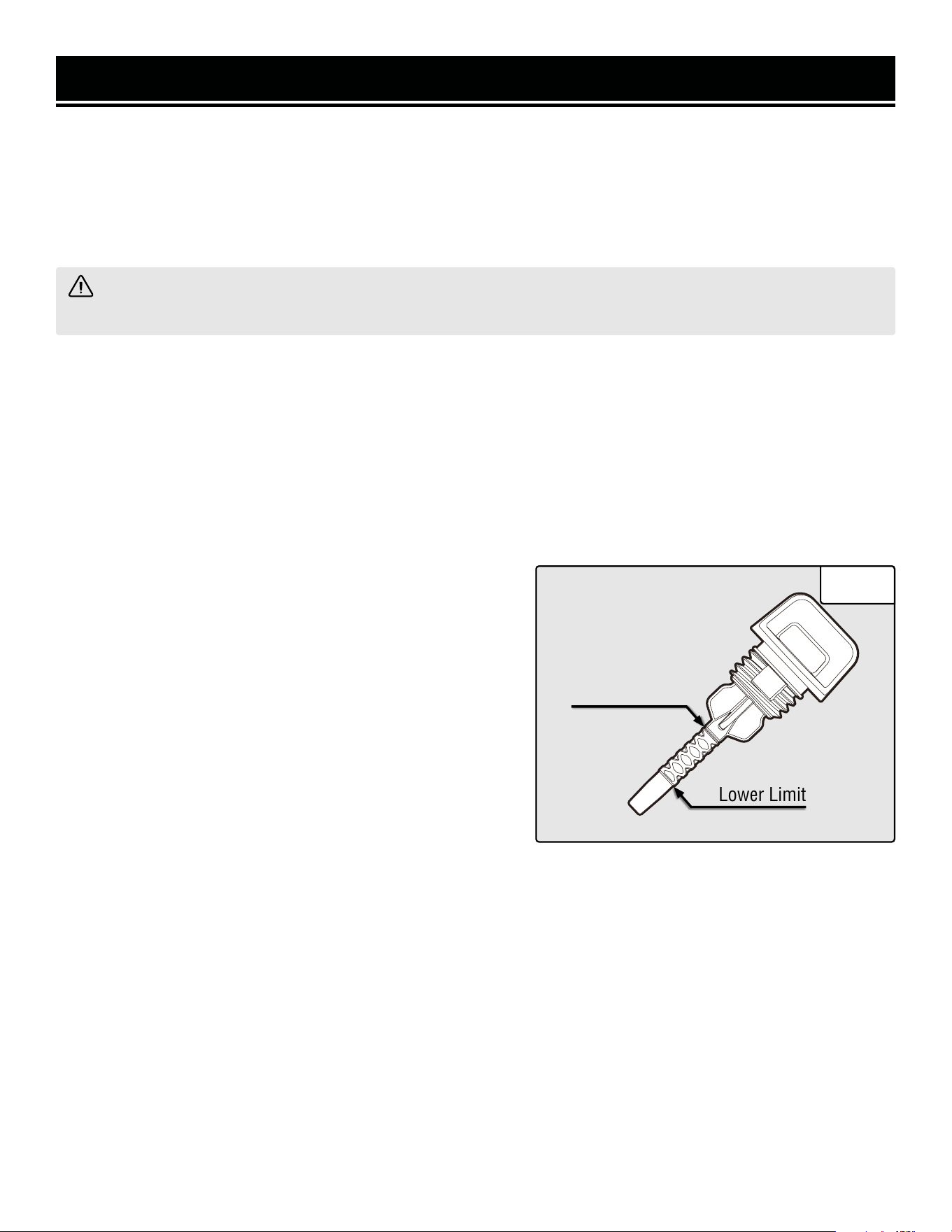

Maintenance ....................................................................................................28

Transportation & Storage ................................................................................36

Troubleshooting Guide ....................................................................................37

Wiring Diagram ...............................................................................................38

Exploded View & Parts List .............................................................................39

Warranty Statement ........................................................................................45

To purchase accessories for your tool, visit WENPRODUCTS.COM

Magnetic Oil Dipstick (Model GNA273)

Weatherproof Generator Cover, Medium (Model 56406)

High-Altitude Kit (Part DF8000X-HA36 and DF8000X-HA68)

SPECIFICATIONS

GENERATOR

ENGINE

Engine Type 4-Stroke, OHV, Single Cylinder with Forced Air Cooling System

Engine Displacement 340cc

Fuel Tank Capacity 6.70 Gallons (25.40 L), 87 Octane Minimum

Oil Capacity 30.4 ﬂ. oz. (0.90 L)

Half-Load Run Time Gasoline: 10.5 Hours

Lubrication System Splash Lubrication

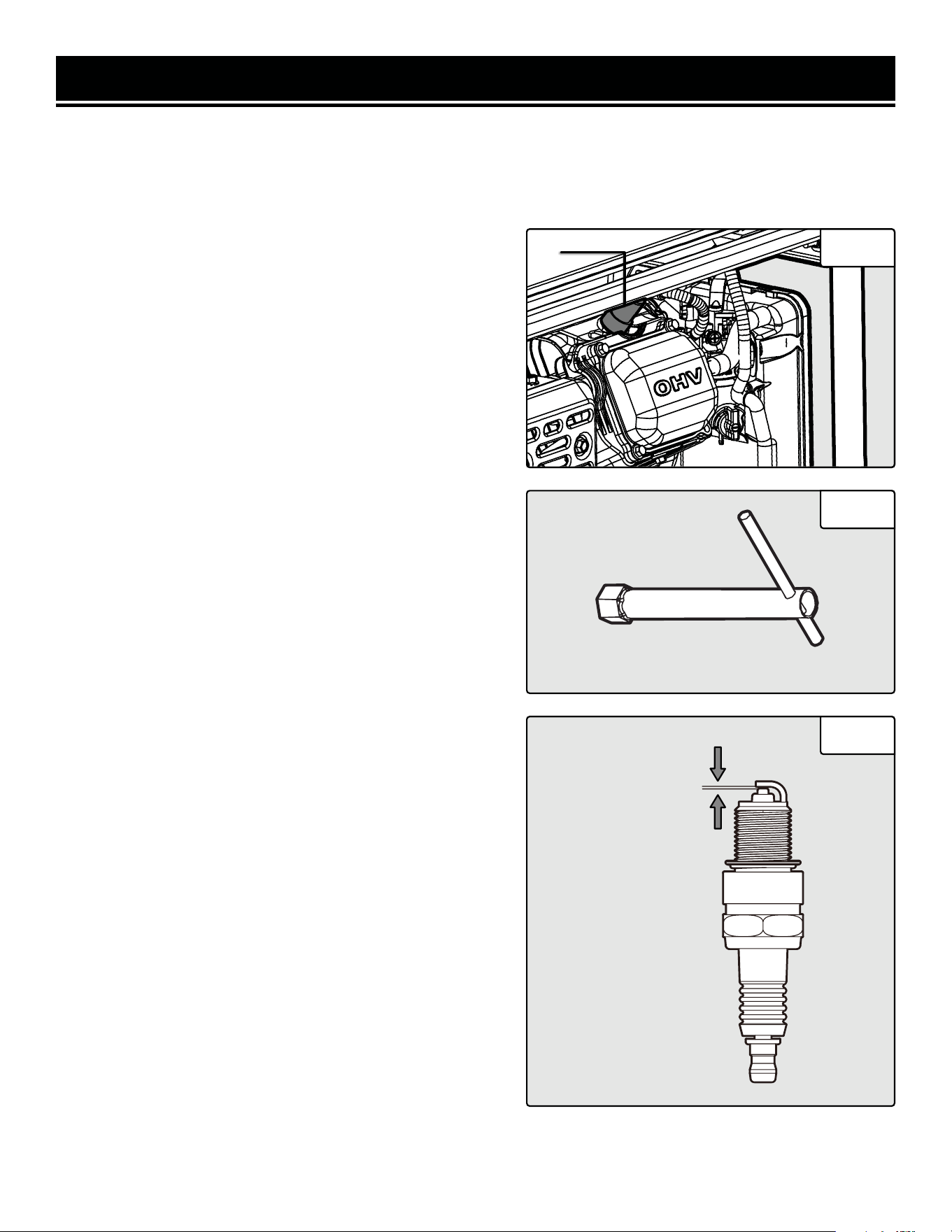

Spark Plug Type Torch F7RTC (NGK BPR7ES)

Spark Plug Gap 0.028 in. - 0.031 in. (0.7mm - 0.8mm)

Spark Plug Torque 20 - 22 ft-lbs (27 - 30 Nm)

Battery 12V, 1.6Ah, Lithium-Ion

Rated Wattage

Gasoline: 6500 Watts

LPG: 5850 Watts

Surge Wattage

Gasoline: 8000 Watts

LPG: 7200 Watts

Rated Voltage 120V / 240V

Rated Amperage 54.1A (Gasoline) / 48.7A (LPG)

Phase Single

Frequency 60 Hz

Product Dimensions

With Wheel & Handle Kit: 28.54 in. x 24.61 in. x 24.96 in.

Without Wheel & Handle Kit: 24.72 in. x 19.41 in. x 21.61 in.

Product Weight

With Wheel & Handle Kit: 138.78 Pounds

Without Wheel & Handle Kit: 132.72 Pounds

INTRODUCTION

Thanks for purchasing the WEN 8000-Watt Dual Fuel Generator. Refer to the illustration below for the location of

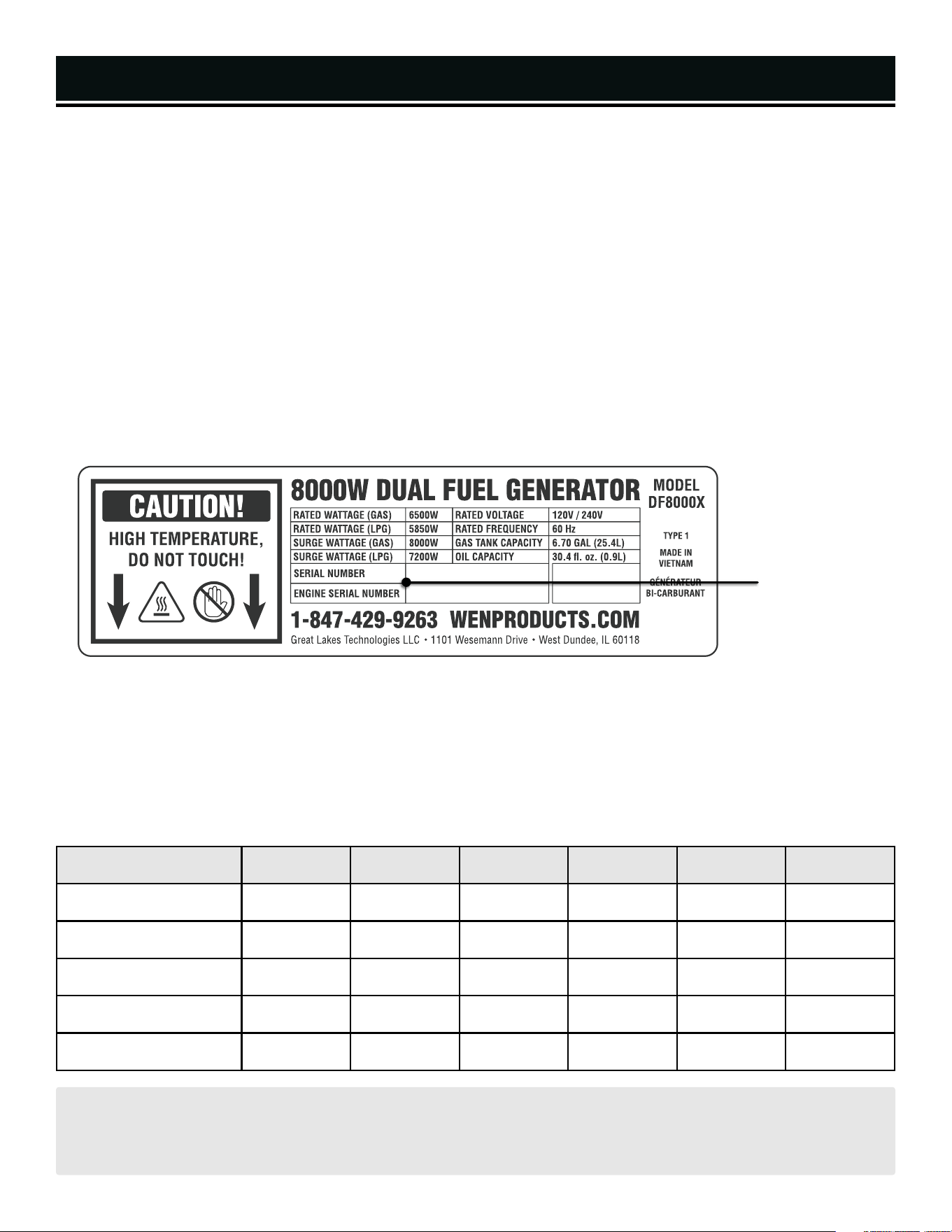

the serial number on the speciﬁcations label. Record the generator information in the spaces provided below. If as-

sistance for information or service is required, please contact customer service by calling 1-847-429-9263, M-F 8-5

CST; you will be asked to provide the following generator information when calling.

Generator Model Number: DF8000X

Date of Purchase: _______________________________________________

Purchased From: ________________________________________________

Serial Number: _________________________________________________

TO MAXIMIZE THE LIFESPAN OF YOUR GENERATOR: We recommend running your generator at least once a

month for 20 to 30 minutes. Start the generator according to the instructions and plug a small load in to make

sure the outlet is producing electricity.

SERVICE RECORD

Record the service dates of your generator in the chart below. Please perform maintenance checks and operations

according to the “Maintenance” section of the manual.

Service Record Date Date Date Date Date Date

Change Oil

Change Spark Plug

Clean Fuel Tank

Clean Air Filter

Clean Spark Arrestor

Serial NumberSerial NumberSerial Number

SAFETY INTRODUCTION

Safety is a combination of common sense, staying alert, and knowing how your tool works. This manual contains

important information regarding the generator’s potential safety concerns, as well as preparation, operation, and

maintenance instructions. Before operating this generator, be sure to read and observe all warnings and instructions

both on the generator labels and in this instruction manual. Failure to follow all instructions listed below may result

in personal injury.

NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.

WEN reserves the right to change this product and speciﬁcations at any time without prior notice.

At WEN, we are continuously improving our products. If you ﬁnd that your tool does not exactly match this manual,

please visit wenproducts.com for the most up-to-date manual or contact customer service at 1-847-429-9263, M-F

8-5 CST.

Keep this manual available to all users during the entire life of the tool and review it frequently to maximize

safety for both yourself and others.

SAVE THESE SAFETY INSTRUCTIONS.

SAFETY SYMBOLS

The purpose of following safety symbols is to attract your attention to possible dangers. The safety symbols, and

their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves

eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention

measures.

NOTICE REGARDING EMISSIONS

Engines that are certiﬁed to comply with U.S. EPA emission regulations for SORE (Small Off Road Equipment), are

certiﬁed to operate on regular unleaded gasoline, and may include the following emission control systems: (EM)

Engine Modiﬁcations and (TWC) Three-Way Catalyst (if so equipped).

QUESTIONS? PROBLEMS?

In order to answer questions and solve problems in the most efﬁcient and speedy manner, contact customer

service at 1-847-429-9263, M-F 8-5 CST or email [email protected].

WARNING! Before operating the generator, make sure to read all safety warnings and all instructions. Failure

to follow the warnings and instructions may result in electric shock, ﬁre or serious injury.

DANGER: indicates a hazard, which, if not avoided, will result in death or serious injury.

WARNING: indicates a hazard, which, if not avoided, could result in death or serious injury.

CAUTION: indicates a hazard, which, if not avoided, might result in minor or moderate injury.

CAUTION! when used without the alert symbol, indicates a situation that could result in damage to the machine.

SAFETY INFORMATION

GENERATOR SAFETY WARNINGS

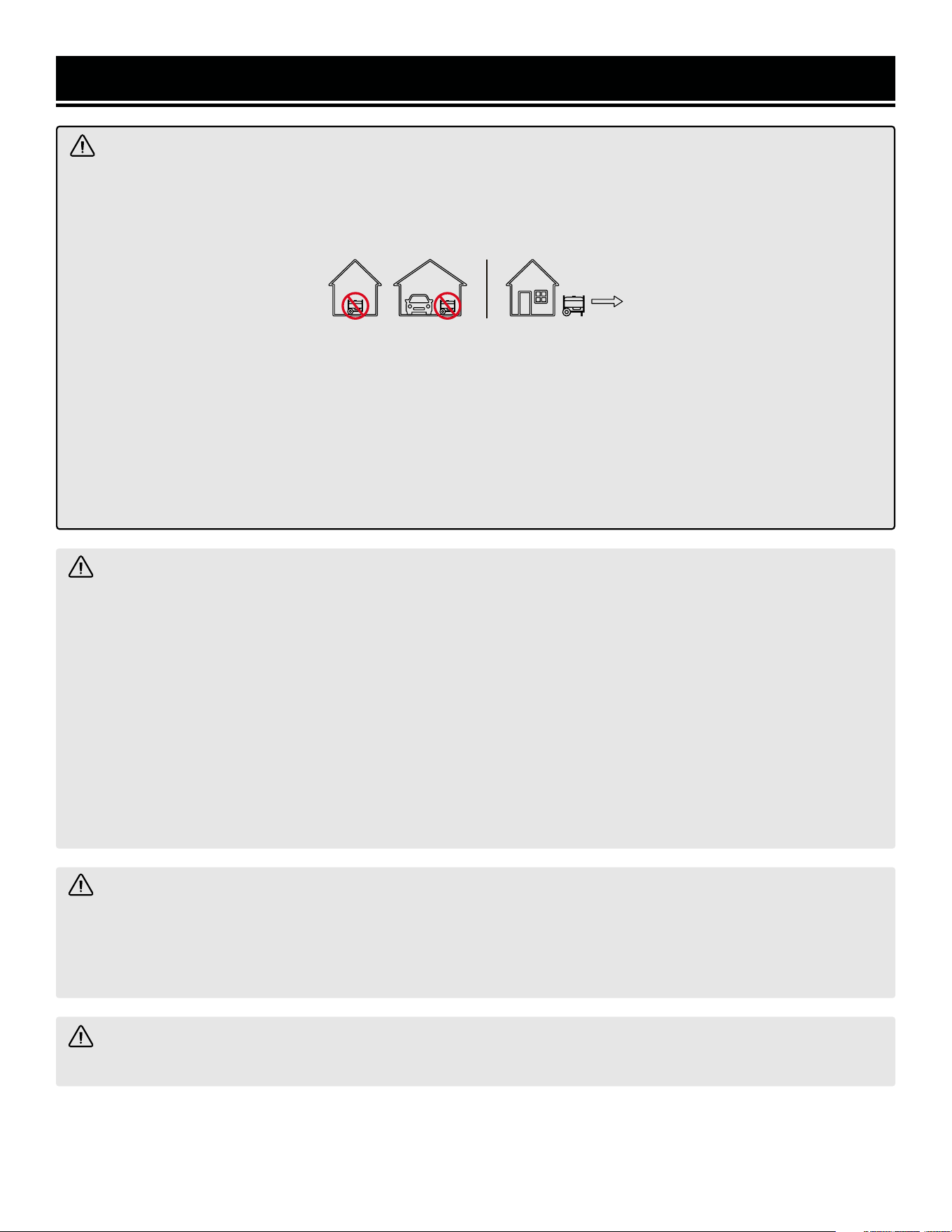

DANGER! CARBON MONOXIDE

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). This

is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even

if you cannot smell the exhaust, you could be breathing CO.

NEVER use a generator inside homes, garages, crawl spaces, or other partially enclosed areas. Deadly levels

of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply

enough fresh air. ONLY use a generator outside and far away from windows, doors, and vents. These openings

can pull in generator exhaust.

Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-

backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move

to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.

WARNING! RISK OF EXPLOSION. HIGHLY FLAMMABLE: This generator may emit highly ﬂammable and

explosive gasoline vapors, which can cause severe burns or even death, if ignited. A nearby open ﬂame can lead

to explosion even if not directly in contact with gasoline.

• Do not operate near open ﬂame, heat, or any other ignition source. Do not smoke near the generator.

• Always operate on a ﬁrm, level surface.

• Always turn generator off before refueling. Allow generator to cool for at least 2 minutes before removing

fuel cap. Loosen cap slowly to relieve pressure in tank.

• Do not overﬁll fuel tank. Gasoline may expand during operation. Do not ﬁll to the top of the tank. Allow for

expansion. Always check for spilled fuel before operating.

• If fuel spills, move the generator at least 30 feet away from the spill and wipe clean any spilled fuel before

starting the engine.

• Empty fuel tank before storing or transporting the generator.

WARNING! If this generator is used as a supply for a building’s wiring system, the generator must be in-

stalled by a qualiﬁed electrician and connected to a transfer switch as a separately derived system in accordance

with all applicable laws and electrical codes and the National Electrical Code, NFPA 70. The generator shall be

connected to a transfer switch that switches all conductors excluding the equipment grounding conductor. The

frame of the generator shall be connected to an approved grounding electrode.

CALIFORNIA PROPOSITION 65 WARNING: This product contains chemicals and produces exhaust known

to the State of California to cause cancer, birth defects and other reproductive harm.

GENERATOR SAFETY WARNINGS

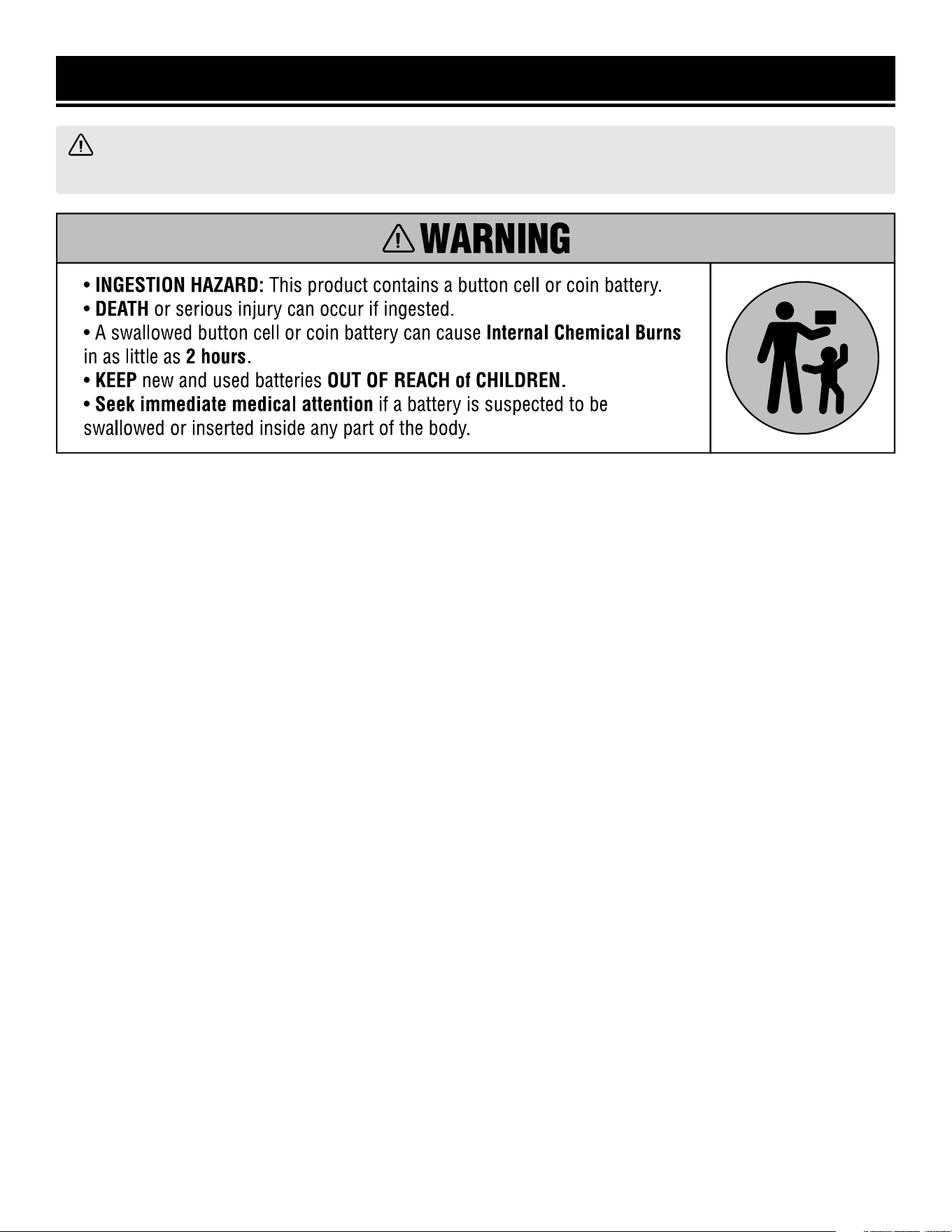

BUTTON OR COIN CELL BATTERY SAFETY

INFORMATION

PLEASE READ THE FOLLOWING CAREFULLY:

1. Remove and immediately recycle or dispose of used

batteries according to local regulations and keep away

from children. Do NOT dispose of batteries in household

trash or incinerate.

2. Even used batteries may cause severe injury or death.

3. Call a local poison control center for treatment infor-

mation.

4. The compatible battery type is CR2032 and the nomi-

nal battery voltage is 3V.

5. Non-rechargeable batteries are not to be recharged.

6. Do not force discharge, recharge, disassemble, heat

above 158ºF, or incinerate. Doing so may result in injury

due to venting, leakage or explosion resulting in chemi-

cal burns.

NOTE: THIS PRODUCT CONTAINS NON-REPLACEABLE

BATTERIES.

OPERATING ENVIRONMENT

1. Using a generator indoors can kill you in minutes.

Only use a generator outside and far away from win-

dows, doors and vents.

2. Do not smoke near the generator.

3. Do not operate near open ﬂame, heat, or ﬂammable

materials. This generator may emit highly ﬂammable

and explosive gasoline vapors, which can cause severe

burns or even death if ignited. A nearby open ﬂame can

lead to an explosion even if it isn’t directly in contact with

gasoline.

4. Do not expose the generator to rainy or wet con-

ditions; doing so signiﬁcantly increases the risk of

electrical shock. Never handle the generator, electronic

devices, or any cord while standing in water, while bare-

foot, or when hands or feet are wet.

5. Always operate the generator on a dry, ﬁrm, level

surface.

6. The generator should have at least 5 feet of clear-

ance from buildings or other equipment during opera-

tion.

7. Do not allow children or non-qualiﬁed persons to

operate the generator.

WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.

Failure to follow the safety instructions may result in serious personal injury.

GENERATOR SAFETY WARNINGS

WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.

Failure to follow the safety instructions may result in serious personal injury.

TO MAXIMIZE THE LIFESPAN OF YOUR GENERATOR: We recommend running your generator at least once a

month for 20 to 30 minutes. Start the generator according to the instructions and plug a small load in to make

sure the outlet is producing electricity. If you do not run it often, it will greatly shorten the generator’s lifespan

and void the warranty.

GENERATOR PREPARATION

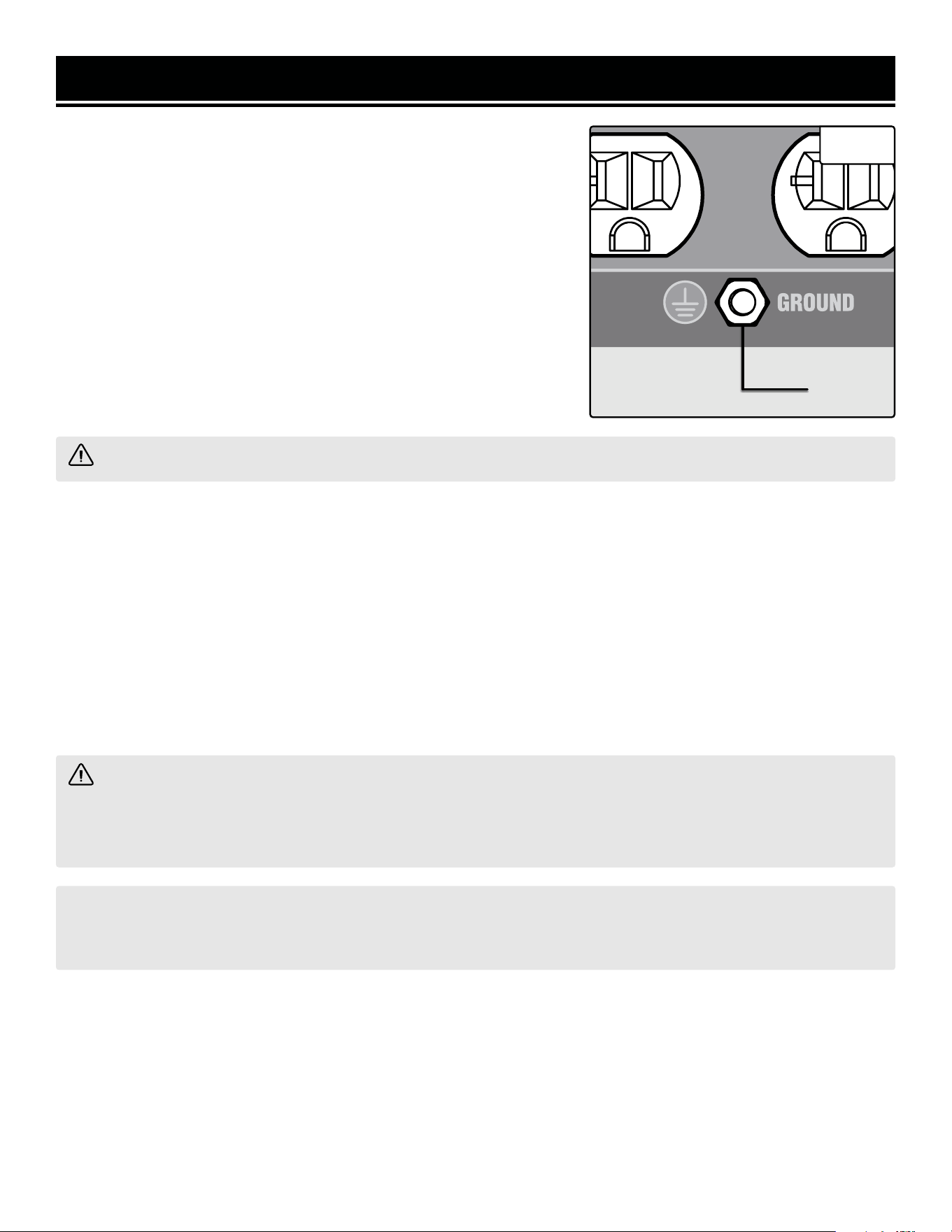

1. Always ground the generator before using it to maxi-

mize safety (see “Ground the Generator” section).

2. Do not overﬁll fuel tank, as gasoline may expand

during operation. Do not ﬁll to the very top of the tank.

Leave room for gasoline expansion. Always check for

spilled fuel before operating.

3. If any part of the generator, electrical device or pow-

er cord is broken, damaged, or defective, make sure

it is repaired or replaced before operation. Service

should only be performed by a qualiﬁed technician. Do

not use receptacles or cords that show signs of damage,

such as broken or cracked insulation.

4. Use a ground fault circuit interrupter (GFCI) in highly

conductive areas such as metal decking or steel work.

Extension cords with in-line GFCIs are recommended for

these operations to maximize safety.

5. If connecting the generator to a building’s electri-

cal system for standby power, you MUST consult a

qualiﬁed electrician and install a transfer switch. Such

connections must comply with local electrical laws and

codes. Failure to comply can create a back-feed, which

may result in serious injury or death to utility workers.

6. Never modify the generator in any way. Modifying

or using the machine for any other purpose for which it

is not designed may result in serious injuries, machine

damage and voiding of the warranty.

GENERATOR OPERATION

1. Only use the generator for its intended purposes.

Modifying or using the generator for operations for

which it was not designed may cause hazards and per-

sonal injury.

2. Do not touch bare wires or receptacles (outlets).

3. Do not turn on electrical devices until after they are

connected to the generator.

4. Do not exceed the wattage capacity of the generator

by plugging in more electrical devices than the unit

can handle. This could damage the generator and/or

connected electrical devices. Check the operating volt-

age and frequency requirements of all electrical devices

prior to plugging them into the generator.

5. Allow generator to run for several minutes before

connecting electrical devices. Do not start or stop en-

gine with electrical devices plugged in to the receptacles.

Failure to do so could damage the generator and/or con-

nected electrical devices.

6. Generators vibrate in normal use. During and after

the use of the generator, inspect both the generator as

well as extension and power supply cords for damage

resulting from vibration.

7. Do not touch hot parts. This generator produces heat

when running. Temperatures near exhaust can exceed

150ºF (65ºC). Allow generator to cool down after use be-

fore touching engine or areas of the generator that be-

come hot during use.

8. Turn off all connected electrical devices before stop-

ping the generator.

9. Always turn generator off before refueling. Allow

generator to cool for at least 2 minutes before removing

fuel cap. Loosen cap slowly to relieve pressure in tank.

10. Turn the engine switch and fuel selector knob to

“OFF” position when the engine is not running.

11. Empty fuel tank before storing or transporting the

generator. Do not store generator or gasoline near fur-

naces, water heaters, or any other appliances that pro-

duce heat or have automatic ignitions. Store the genera-

tor and fuel away from sparks, open ﬂames, pilot lights,

heat and other sources of ignition.

12. Always wash hands after handling generator.

Components Handle Assembly

UNPACKING

With the help of a friend or trustworthy foe, such as one of your in-laws, carefully remove the generator from the

packaging and place it on a sturdy, ﬂat surface. Make sure to take out all contents and accessories. Do not discard

the packaging until everything is removed. Check the packing list below to make sure you have all of the parts and

accessories. If any part is missing or broken, please contact customer service at 1-847-429-9263 (M-F 8-5 CST),

or email [email protected].

PACKING LIST

UNPACKING & PACKING LIST

Handle (1)

M8 Hex Nut (1)

Handle Pin (1)

M8x48 Hex Bolt (1)

M8x16 Hex Bolts (4)

Handle Bracket (1)

Generator

Foot Support Assembly Wheel Assembly

Wheels (2)

Axle Pins (2)

R-Clips (2)

Washer (2)

M6x40 Hex Bolt (4)

M6 Hex Nut (4)

Foot Assembly (2)

Accessories

Funnel (1)

Wrenches (2)

(8-10mm, 10-13mm)

Spark Plug

Socket (1)

LPG Regulator Hose

KNOW YOUR GENERATOR

TOOL PURPOSE

Portable generators provide you with power when and where you need it most. Refer to the following diagrams to

become familiarized with all the parts and controls of your generator. The components will be referred to later in the

manual for assembly and operation instructions.

GENERATOR

Fuel Tank Cap

Control Panel

Choke Lever

Recoil Starter

Air Filter

Fuel Valve

Oil Fill Dipstick

Battery

Wheels

Foot Supports

Fuel Gauge

Handle

Spark Plug

LPG Inlet

KNOW YOUR GENERATOR

CONTROL PANEL

1 4

1. Engine Switch

Start the engine using this switch.

2. Data Meter

Displays voltage, frequency, total runtime (HHHH), and

session runtime (HH:MM). Press the MODE button to

switch between displays.

3. Fuel Selector Switch

Easily switch between gasoline or LPG before or during

operation. See p. 24 for more information.

4. Circuit Breaker (30A)

5. Voltage Selector Switch

Switch between 120V and 240V outlets. When the

switch is set to "120V", the 120V outlets are active; when

the switch is set to "120V/240V", the L14-30R outlet is

active.

6. Circuit Breakers (25A)

7. NEMA L14-30R

AC 120V/240V split-phase. Only active when "120V/240V"

is selected.

2 3

8. AC 120V NEMA 5-20R Duplex Receptacles (20A)

Standard household outlets provide 120V 60Hz power.

9. Grounding Nut

Ground generator to reduce risk of electric shock.

10. Circuit Breakers (20A)

11. AC 120V NEMA TT-30R RV Receptacle (30A)

Standard RV connector.

12. Circuit Breaker (8.3A)

13. DC 12V Cigarette-Lighter Style Receptacle

14. Low Oil Alert

Illuminates if the oil level is too low.

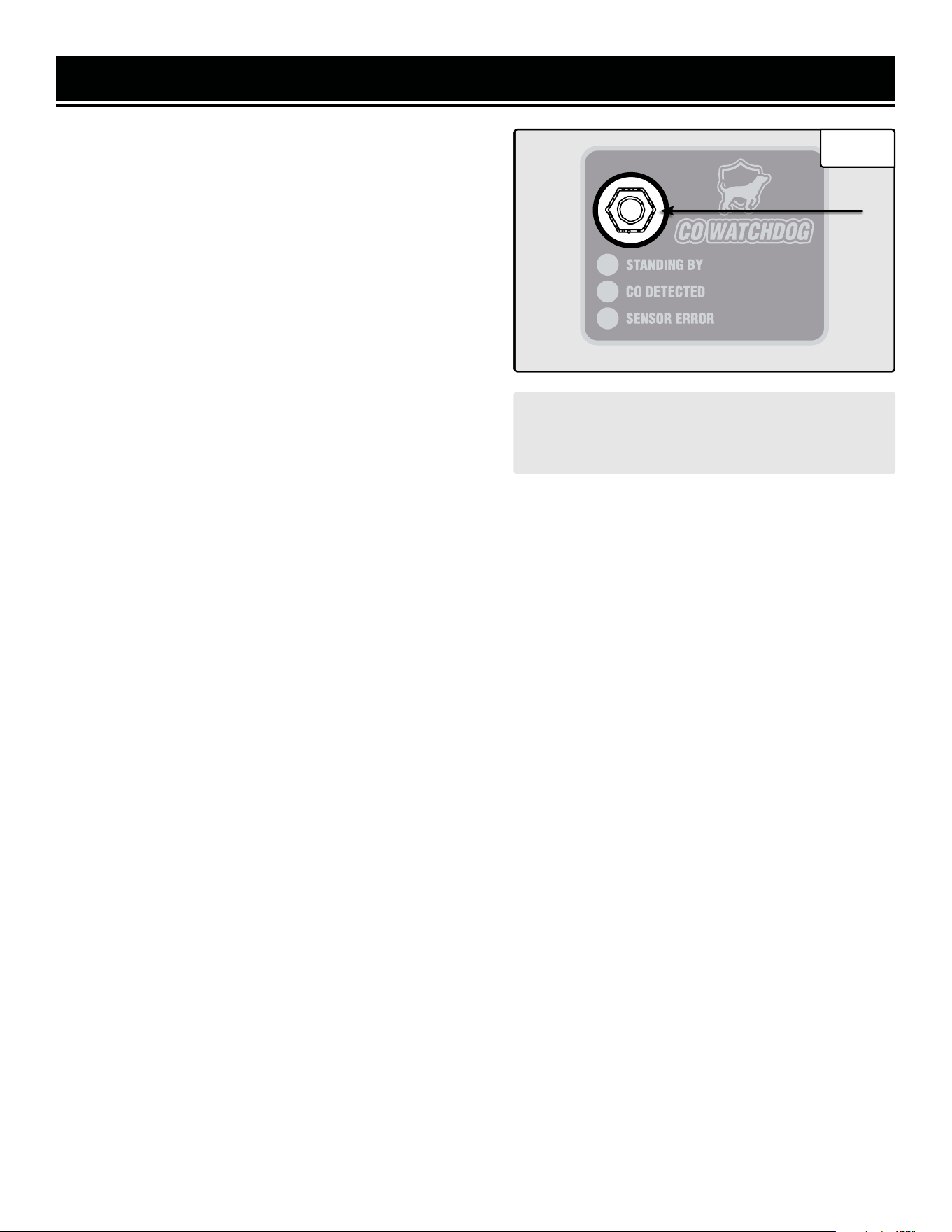

15. CO WATCHDOG Carbon Monoxide Monitor

Measures the accumulation of poisonous CO gas while

the generator is running. If the level of CO gas gets too

high, the CO Watchdog system will automatically shut

down the generator. See p. 26 for more information.

881011 91213

ASSEMBLY & ADJUSTMENTS

ASSEMBLY

Refer to the packing list on p. 9 to gather the proper parts

and tools for installing the feet, wheels, and handles.

NOTE: There are different sizes of bolts/nuts; be sure to use

the proper bolts/nuts for each assembly step.

INSTALLING THE FOOT SUPPORTS (FIG. A)

The foot supports are installed on the base of the generator,

towards the rear, opposite the control panel.

1. Prepare a set of blocks on level ground (a 4×4 block of

wood works well). Place the generator on the blocks. Have

someone help you lift the generator.

2. Align the holes on the foot bracket (Fig. A - 1) with the

holes on the generator frame. Slide two M6x40 hex bolts

(Fig. A - 2) through the foot bracket and generator frame and

secure them using two M6 hex bolts (Fig. A - 3). Tighten the

bolts using the included wrench. Repeat for the other foot

support.

INSTALLING THE WHEELS (FIG. B)

The wheels are installed on either side of the generator, to-

wards the front, beside the control panel.

1. Align the wheel (Fig. B - 1) with the hole on the genera-

tor frame. Slide the axle pin (Fig. B - 2) through the wheel,

washer (Fig. B - 3), and generator frame. Repeat for the

other wheel.

2. Insert the R-clip (Fig. B - 4) through the hole in the axle

pin and lock the wheel in place. Repeat for the other wheel.

INSTALLING THE HANDLES (FIG. C)

The handle is installed on the rear of the generator, opposite

the control panel.

1. Secure the handle bracket (Fig. C - 1) to the generator

frame (Fig. C - 2) using four M8x16 bolts (Fig. C - 3).

2. Fit the handle (Fig. C - 4) into the handle bracket. Make

sure that the holes align properly. Slide the handle pin (Fig.

C - 5) through the bottom holes of the handle and handle

bracket as shown in Fig. C.

WARNING! Do not turn the generator on until it is fully assembled according to the instructions. Read

through and become familiarized with the following procedures of handling and adjusting your generator. Failure

to follow the safety instructions may result in serious personal injury.

• Never use the handle as a lifting point to support the entire weight of the generator. Only use the handle

to pull the generator with the help of the wheels.

• Use caution when collapsing the handle. Hands and ﬁngers could get caught and pinched.

Fig. A

Fig. B

Fig. C

3. Secure the handle to the handle bracket using an M8x48 bolt (Fig. C - 6) and an M8 nut (Fig C - 7) through the

top holes of the handle and handle bracket as shown in Fig. C.

GENERATOR PREPARATION

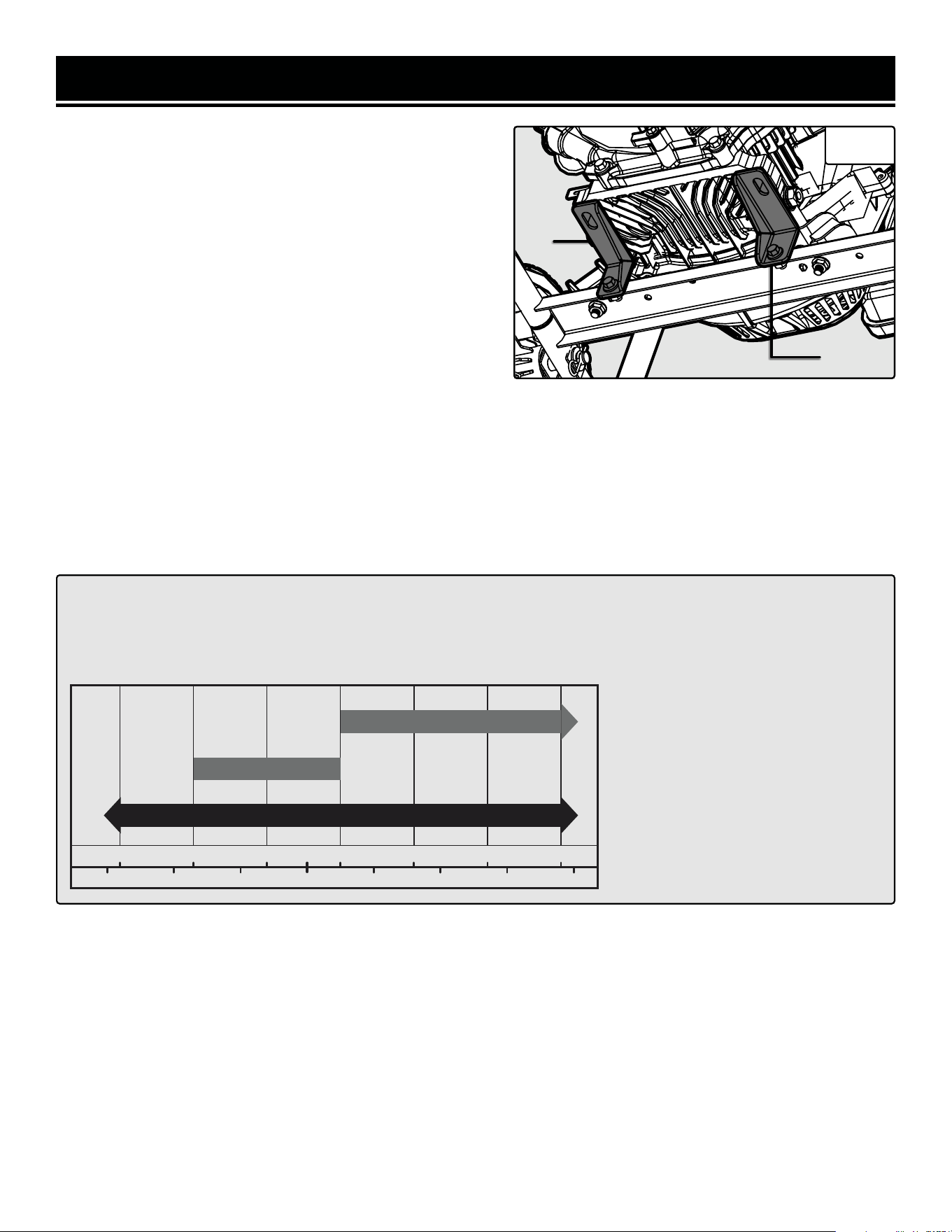

REMOVING THE SHIPPING BRACKETS

Your generator is shipped with two red shipping brackets

(Fig. D - 1) in order to prevent machine damage during ship-

ping. Make sure to remove the red shipping brackets before

operating your generator. Failure to do so could lead to en-

gine damage.

1. With the help of another person, place generator on an

elevated platform such as table or workbench. Make sure the

generator is stable. Remove the red shipping brackets. Do

not tilt the generator as there may be remaining oil inside the

crankcase from testing.

The following section describes the necessary steps to pre-

pare the generator for use. If you are unsure about how to

perform any of the steps, please call 1-847-429-9263 M-F

8-5 CST for customer service. Failure to perform these steps

properly can damage the generator or shorten its life.

Synthetic 5W-30

30W

10W-30

• 30W Engine Oil

Temperatures above 40°F

• 10W-30 Engine Oil

Temperatures between 0°F - 40°F

• Synthetic 5W-30 Engine Oil

All temperature ranges

ENGINE OIL RECOMMENDATIONS

Select good quality detergent oil bearing the American Petroleum Institute (API) service classiﬁcations SJ, SL,

or SM (synthetic oils may be used). Select the SAE viscosity grade of oil that matches the expected operating

temperature.

°F

°C

-20 0 20 32 40 60 80 100

40200

-20

-10

-30 30

Fig. D

STEP 1 - ADD / CHECK OIL

The generator is shipped without oil. User must add the proper amount of oil before operating the generator for the

ﬁrst time. The oil capacity of the engine crankcase is 30.4 ﬂ. oz. (0.90 L).

Instructions continue on the next page.

GENERATOR PREPARATION

Lower Limit

Upper Limit

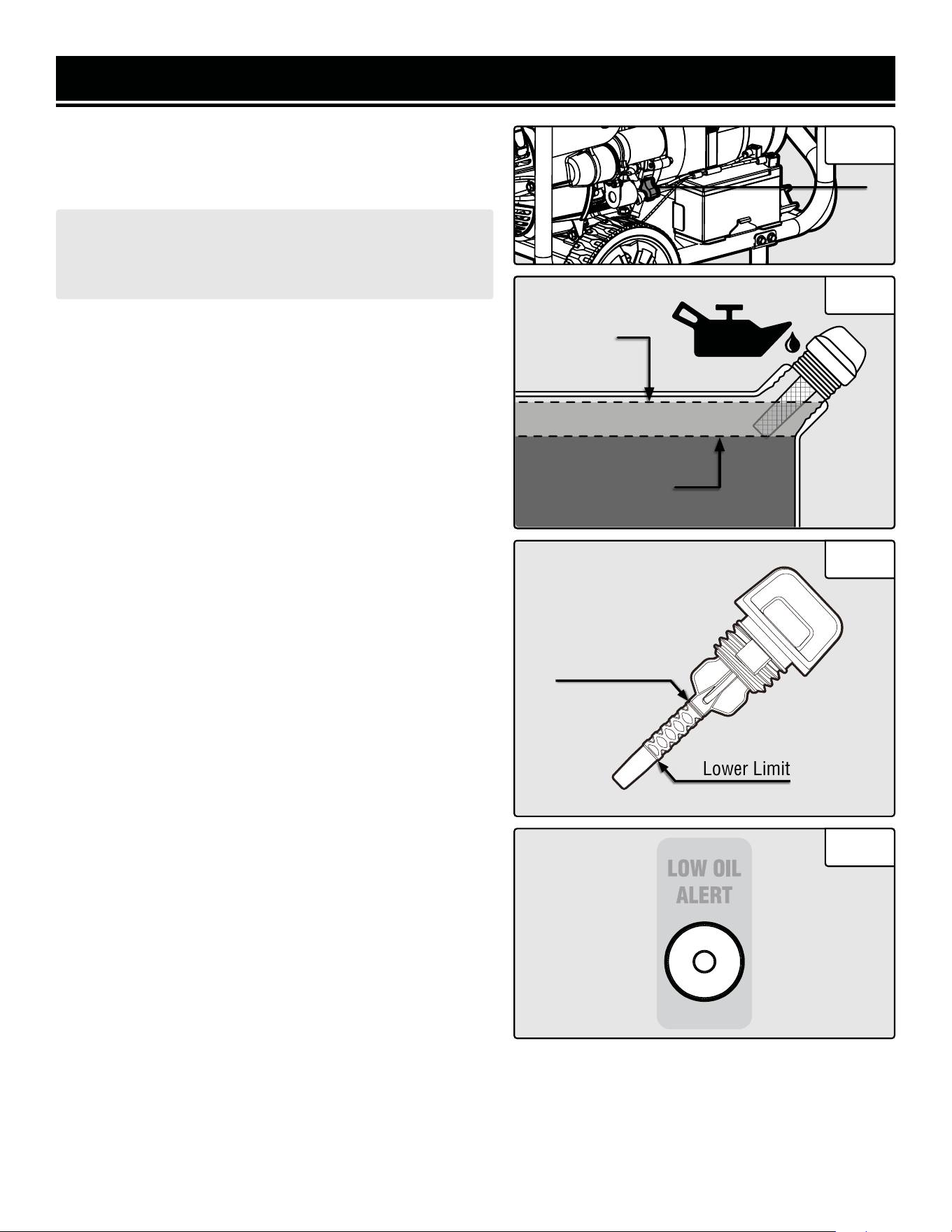

To add oil, follow these steps:

1. Place the generator on a level surface. Make sure the en-

gine is off before adding or checking oil.

CAUTION: Keep the generator level! Tilting the generator

to assist in ﬁlling will cause oil to ﬂow into the wrong

areas of the engine and cause damage.

2. Turn the dipstick (Fig. 1 - 1) counterclockwise until it is

unscrewed from the engine.

3. Using an oil funnel or appropriate dispenser, slowly add

oil into the oil ﬁll, being careful not to overﬁll the unit. Fill the

crankcase until you can see the oil coming halfway up the oil

ﬁll threads (Fig. 2).

4. Reinstall the oil dipstick and ﬁrmly tighten it. Wipe clean

any spilled oil.

STEP 1 - ADD / CHECK OIL (CONTINUED)

For subsequent operation, the oil level should be checked

before each use, or after every 8 hours of operation. The

generator is equipped with a low-oil sensor and will not start

without a sufﬁcient amount of oil.

To check oil level (before every subsequent start):

1. Place the generator on a level surface. Make sure the en-

gine is off before adding or checking oil.

2. Remove and wipe the dipstick with a clean rag.

3. Insert the dipstick into the oil ﬁll without screwing it in.

Remove the dipstick to check the oil mark (Fig. 3).

If the oil mark covers less than one half of the dipstick, slow-

ly add oil until the oil mark reaches to the top of the dipstick.

4. Wipe clean any oil leaks and ﬁrmly tighten the dipstick.

OIL LEVEL SHUTDOWN

To protect the unit from damage, the generator is equipped

with a low-oil-pressure shutoff that will automatically stop

the engine when the oil level is too low. The low oil alert light

(Fig. 4) will turn ON to remind you that the engine oil level is

low and needs to be reﬁlled.

Fig. 1

Upper Level

Fill Line

Lower LevelLower Level

Fill LineFill Line

Lower Level

Fill Line

Fig. 2

Fig. 3

Fig. 4

The oil level of the engine should be checked before each start to ensure that the engine crankcase contains suf-

ﬁcient lubricant.

TIP: Your WEN generator is compatible with the WEN GNA273 Magnetic Oil Dipstick (not included), available for

purchase at wenproducts.com. The dipstick’s industrial-strength magnetic tip will collect metal shavings from your

generator’s oil compartment to help preserve the engine and extend your generator’s lifespan.

GENERATOR PREPARATION

WARNING! RISK OF EXPLOSION. HIGHLY FLAMMABLE: This generator may emit highly ﬂammable and

explosive gasoline vapors, which can cause severe burns or even death, if ignited. A nearby open ﬂame can lead

to explosion even if not directly in contact with gasoline.

• Do not operate near open ﬂame, heat, or any other ignition source. Do not smoke near the generator.

• Always operate on a ﬁrm, level surface.

• Always turn generator off before refueling. Allow generator to cool for at least 2 minutes before removing

fuel cap. Loosen cap slowly to relieve pressure in tank.

• Do not overﬁll fuel tank. Gasoline may expand during operation. Do not ﬁll to the top of the tank. Allow for

expansion. Always check for spilled fuel before operating.

• If fuel spills, move the generator at least 30 feet away from the spill and wipe clean any spilled fuel before

starting the engine.

• Empty fuel tank before storing or transporting the generator.

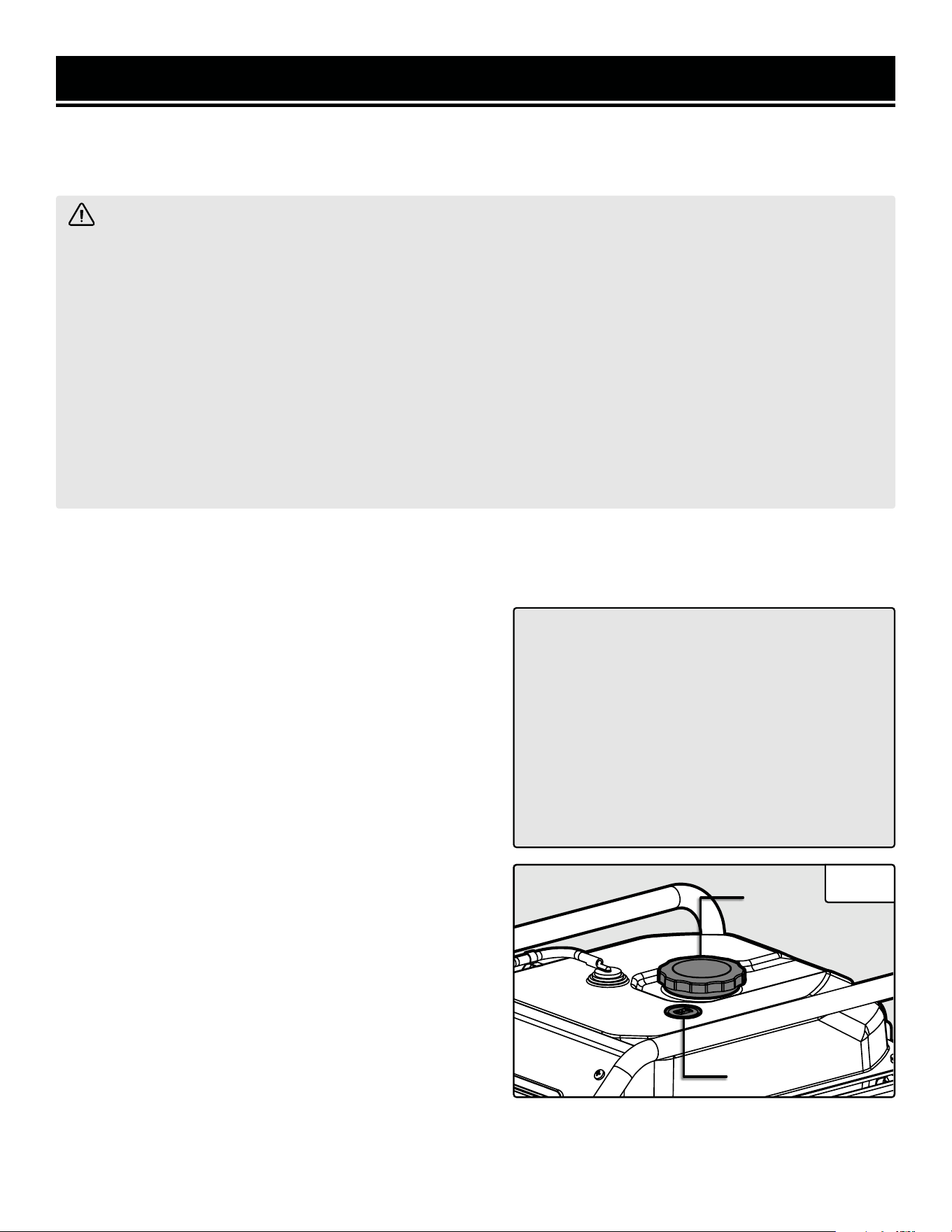

STEP 2 - ADD / CHECK FUEL

FUEL OPTION A: GASOLINE

Use ONLY fresh (within 30 days from purchase), lead-free gasoline with a minimum of 87 octane rating. The genera-

tor performs best with ethanol-free gasoline. DO NOT use gasoline with over 10% ethanol. The capacity of the fuel

tank is 6.70 US gallons (25.40 L). Do not mix oil with gasoline.

To add gasoline:

1. Make sure the generator is shut OFF and on a level surface.

Unscrew the fuel cap (Fig. 5 - 1) and set it aside. The fuel cap

may be tight and hard to unscrew.

2. Slowly add unleaded gasoline to the fuel tank. Be careful

not to overﬁll.

NOTE: Do not ﬁll the fuel tank to the very top. If you do so,

gasoline will expand and spill during use, even with the fuel

cap in place.

3. Reinstall fuel cap and wipe clean any spilled gasoline with

a dry cloth.

To check fuel level:

Check the fuel gauge (Fig. 5 - 2) on top of the fuel tank. If

the fuel level is low, reﬁll the fuel tank before starting your

generator for the next time.

IMPORTANT:

• Avoid getting dirt or water into the fuel tank.

• Keep gasoline away from sparks, open ﬂames,

pilot lights, heat, and other sources of ignition.

• Gasoline can age in the tank and make starting

difﬁcult. Never store the generator for more

than 2 months with fuel in the tank.

• Never use an oil/gasoline mixture.

• Never use old gasoline.

Fig. 5

GENERATOR PREPARATION

FUEL OPTION B: LIQUID PETROLEUM GAS (LPG)

DANGER! Explosion and ﬁre. LP vapors are extremely ﬂammable and explosive. Do not use or store LP

cylinder in a building, garage or enclosed area. Failure to do so will result in death or serious injury.

WARNING! Explosion and ﬁre. The cylinder valve should be turned OFF (closed) when generator is not in

use. Failure to do so could result in death or serious injury.

• Always keep the LPG cylinder in an upright position.

• When transporting and storing, keep cylinder secured in an upright position with cylinder valve turned off. Keep

cylinders ventilated and away from heat when in a vehicle.

• Liquid Petroleum Gas (LPG) is highly ﬂammable and explosive. Flammable gas under pressure can cause a ﬁre

or explosion if ignited.

• In any petroleum gas ﬁre, ﬂames should not be extinguished unless the fuel supply valve is turned OFF. If a ﬁre

is extinguished and a supply of fuel is not turned OFF, an explosion hazard could be created.

• RISK OF BURNS. Contact with liquid contents of cylinder will cause freeze burns to the skin. If liquid contents

contacts skin or eyes, seek immediate medical attention.

• When exchanging LPG cylinders, be sure the cylinder valve is of the same type.

FUEL OPTION B: LIQUID PETROLEUM GAS (LPG) (CONT.)

• You can use LPG tanks with Type 1, right hand Acme threads with this generator. Verify that the qualiﬁcation date

on tank has not expired. Do not use rusted or damaged cylinders.

• All new cylinders must be purged of air and moisture prior to ﬁlling. Used cylinders that have not been plugged or

kept closed must also be purged.

• The purging process should be done by the propane gas supplier. (Cylinders from an exchange supplier should

have been purged and properly ﬁlled by supplier).

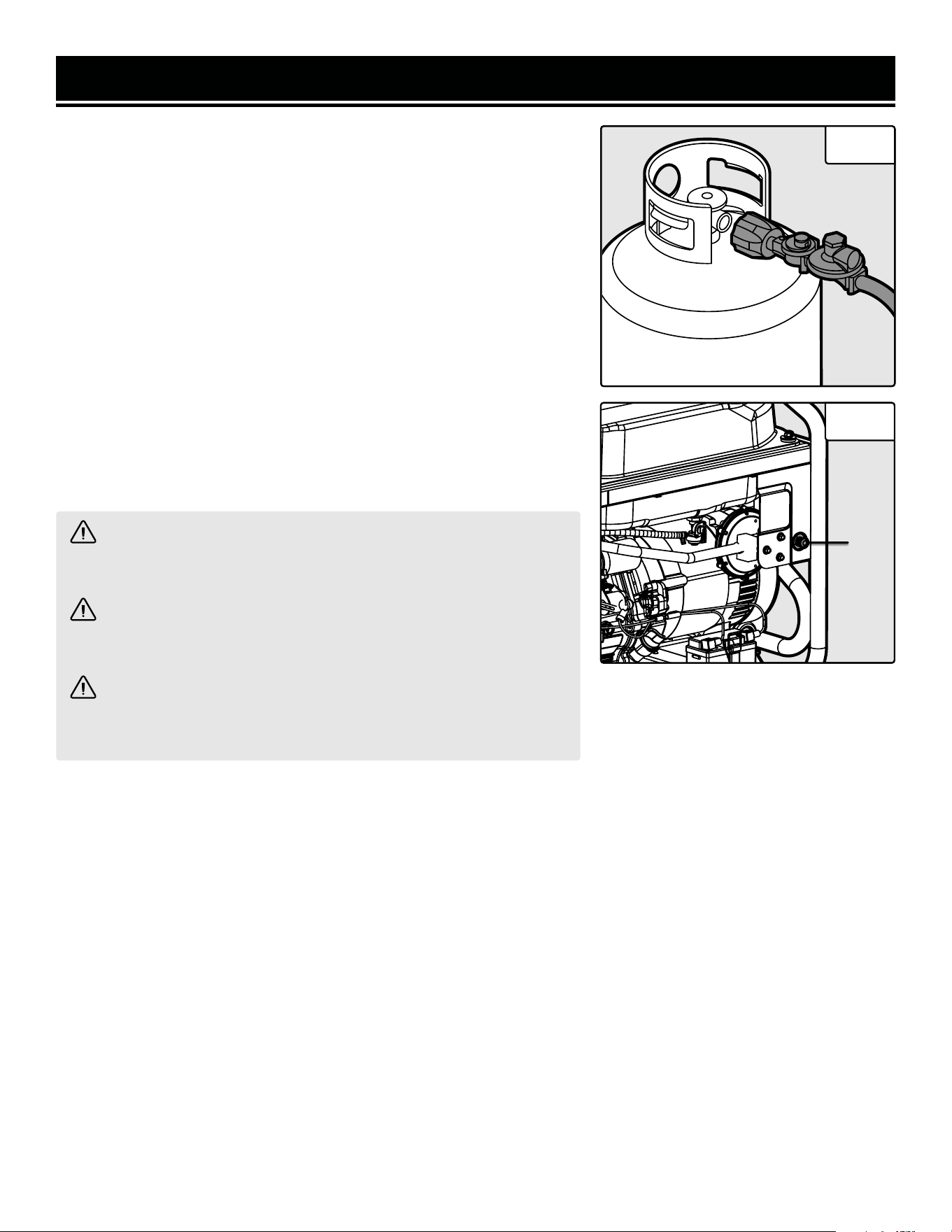

To connect your generator to an LPG cylinder:

1. Take off the safety caps from the cylinder valve, generator-mounted

regulator, and regulator connecting hose ends.

2. With the LPG tank closed, attach the ﬁrst-stage regulator to the valve.

Turn the regulator’s plastic coupling right (clockwise) to tighten the as-

sembly onto the LPG tank (Fig. 6).

3. Connect the other end of the hose to the generator’s onboard regula-

tor (Fig. 7 - 1) with a 3/4 in. (19mm) wrench (not supplied).

4. Turn the LPG tank valve ON and check for leaks by spraying soapy

water to check the connections. If bubbles appear, become larger in size,

or increase in number, a leak exists. This must be corrected before using

the generator. Contact your local Independent Authorized Service Dealer

(IASD) for assistance.

NOTE: You can use Teﬂon (or other tape) to help seal the connection

between the regulator hose and the generator.

CAUTION! Always position the LPG cylinder so the connection

between the valve and regulator won’t cause sharp bends or kinks in

hose.

WARNING! Risk of burns. Contact with liquid contents of cylinder

will cause freeze burns to the skin. If liquid contents contacts skin or

eyes, seek immediate medical attention.

WARNING! When transporting and storing, keep cylinder

secured in an upright position with cylinder valve turned off. Keep

cylinders ventilated and away from heat when in a vehicle.

GENERATOR PREPARATION

Fig. 6

Fig. 7

GENERATOR PREPARATION

ABOUT THE BATTERY

1. The lithium-ion battery supplied with your generator

is only partially charged, in order to maximize its service

life. The battery may not have enough charge to start the

engine during its ﬁrst use. If this is the case, connect the

battery according to the instructions below, and start the

generator using the recoil starter, according to the in-

structions below. The battery will receive charge when

the generator is running.

2. Lithium-ion batteries are subject to a natural aging

process. The battery must be replaced at the latest when

its capacity falls to just 80% of its capacity when new.

Weakened cells in an aged battery are no longer capable

of meeting the high power requirements needed for the

proper operation of your generator, and therefore pose a

safety risk.

3. DO NOT INCINERATE BATTERY. Do not throw the bat-

tery into an open ﬁre as this poses a risk of explosion. Do

not ignite the battery or expose it to ﬁre.

4. AVOID DAMAGE AND SHOCKS. Immediately replace

batteries that have been dropped from a height of more

than one meter (3 feet) or those that have been exposed

to violent shocks, even if the housing of the battery ap-

pears to be undamaged. The battery cells inside the bat-

tery may have suffered serious damage. In such instanc-

es, please read the waste disposal information on p. 31

for proper battery disposal.

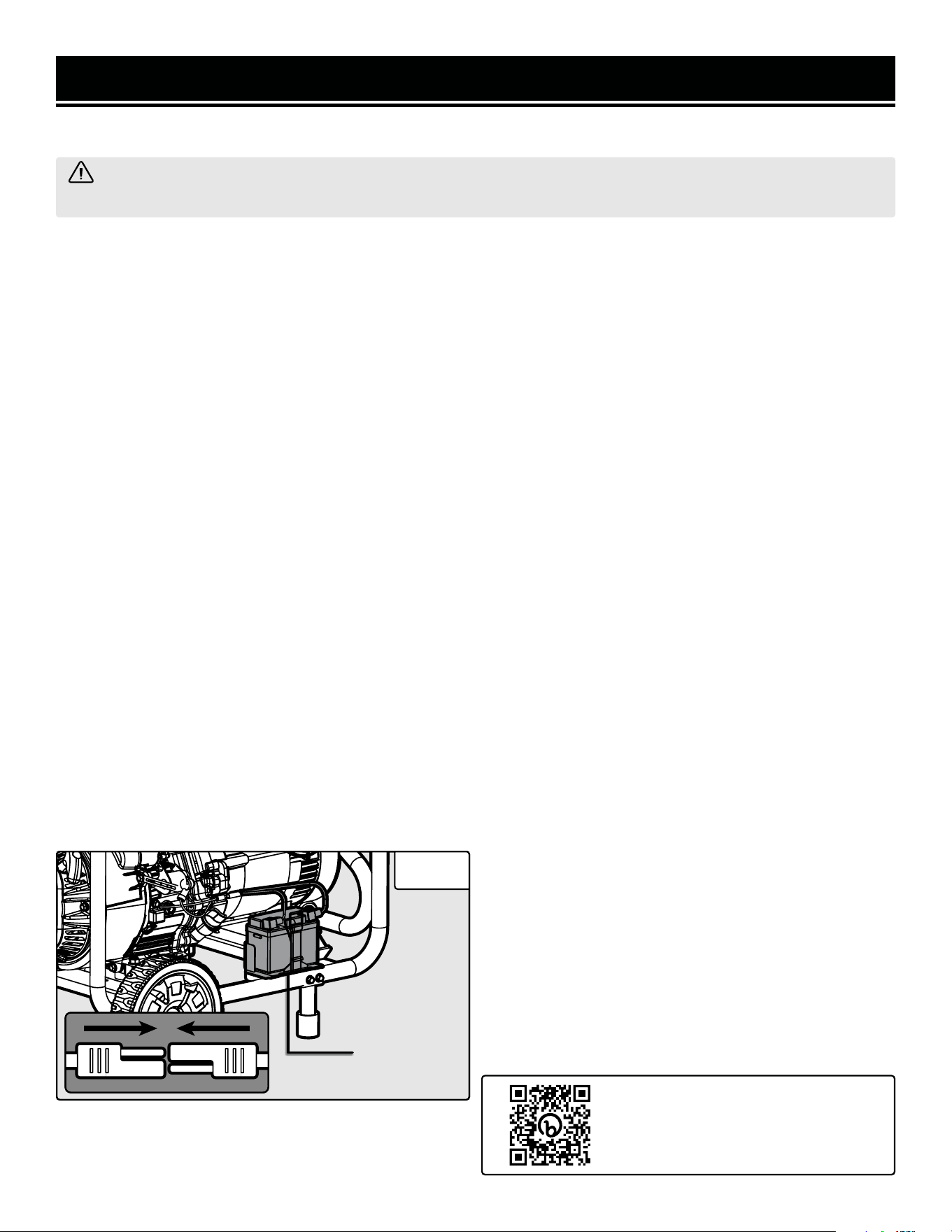

STEP 3 - CONNECTING THE BATTERY

WARNING! Use only genuine WEN batteries with your generator (part no. DF8000X-065). Use of other bat-

teries may induce premature product failure and could pose a safety risk.

To connect the battery:

1. Connect the two ends of the quick connector on the

battery (Fig. 8 - 1) to connect the battery to the genera-

tor's system. Make sure the battery is secured to the

generator frame by the battery strap.

NOTE: The generator can be run with the battery dis-

connected or with no charge using the recoil starter and

gasoline.

IMPORTANT: If you do not plan to use the generator for

an extended period of time, we recommend DISCON-

NECTING the quick-connector. This will protect the bat-

tery from losing its charge. After disconnecting the quick-

connector, cover the ends of the cable with an insulator

such as electrical tape. Alternatively, you can use a trickle

charger (not included) to maintain battery charge.

Fig. 8

For more information on your

battery quick-connectors, scan the

QR code or visit the link below:

http://bit.ly/44sb6C2

5. DO NOT CRUSH, DROP OR DAMAGE BATTERY. Do

not use the battery if it has sustained a sharp blow, been

dropped, run over or has been damaged in any way (e.g.

pierced with a nail, hit with a hammer, stepped on, etc.).

6. DO NOT DISASSEMBLE. Incorrect reassembly may

pose a serious risk of electric shock, ﬁre or exposure

to toxic battery chemicals. If the battery or charger are

damaged, call WEN customer service at 1-847-429-9263

for assistance.

7. DO NOT SHORT CIRCUIT. Batteries will short circuit

if a metal object makes a connection between the posi-

tive and negative contacts on the battery. Do not place

the battery near anything that may cause a short circuit,

such as paper clips, coins, keys, screws, nails and other

metallic objects. A short-circuited battery poses a risk of

ﬁre and severe personal injury.

NOTE: The safe temperature range for charging the bat-

tery is 25°F – 104°F. The generator is shipped with the

lithium-ion battery’s negative (-) terminal disconnected

to maximize safety. To start the generator using electric

start, the battery must be connected.

GENERATOR PREPARATION

STEP 4 - GROUND THE GENERATOR

To reduce the risk of electric shock and to maximize safety, the genera-

tor should be properly grounded.

Ground the generator by tightening the grounding nut (Fig. 9 - 1) on

the front control panel against a grounding wire. A generally acceptable

grounding wire is a No. 12 AWG (American Wire Gauge) stranded cop-

per wire.

This grounding wire should be connected at the other end to a copper,

brass, or steel grounding rod that is driven into the earth. Wire and

grounding rods are not included with the generator.

NOTE: Grounding codes can vary by location. Contact a local electrician

to check the area codes.

WARNING! Failure to properly ground the generator increases your risk of electric shock.

HIGH ALTITUDE OPERATION ABOVE 3000 FEET

The fuel system on this generator may be affected by operation at high altitudes. Proper operation can be ensured by

installing an altitude kit at altitudes higher than 3000 feet above sea level. At elevations above 8000 feet, the engine

may experience a decrease in performance, even with the proper altitude kit. Operating this generator without said

kit may increase the engine’s emissions and decrease both fuel economy and performance.

You can order the kit at wenproducts.com by searching part DF8000X-HA. There are two kits - one for altitudes

between 3000 and 6000 feet (part no. DF8000X-HA36), and the other for altitudes from 6000 to 8000 feet (part no.

DF8000X-HA68). This kit should be installed by a qualiﬁed mechanic. Refer to the instructions included with your

altitude kit for more information about installation.

NOTE: The high altitude kit must be installed for operation above 3000 feet.

WARNING! To prevent serious injury from ﬁre, follow the kit installation procedures in a well-ventilated

area away from ignition sources. If the engine is hot from use, shut the engine off and wait for it to cool before

proceeding. Do not smoke near the generator. Warranty will be void if adjustments are not made for high altitude

use.

CAUTION: Engines with the high-altitude kit installed operated at lower altitudes could cause severe engine dam-

age and affect emissions compliance. Be sure to uninstall the high altitude kit when operating at altitudes below

3000 feet.

After completing the above preparation, the generator is ready to be started.

Fig. 9

CAUTION! Disconnect all electrical loads from the generator before attempting to start.

Before starting the generator, make sure you have read and performed the steps in the “Generator Preparation”

section of this manual. If you are unsure about how to perform any of the steps in this manual please call 1-847-

429-9263 M-F 8-5 CST for customer service.

To maximize safety, ALWAYS ground the generator before using it. See section “Ground the Generator”.

Use a ground fault circuit interrupter (GFCI) in highly conductive areas such as metal decking or steel work. GFCIs

are available in-line with some extension cords.

STARTING YOUR GENERATOR

DANGER! CARBON MONOXIDE

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). This

is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even

if you cannot smell the exhaust, you could be breathing CO.

NEVER use a generator inside homes, garages, crawl spaces, or other partially enclosed areas. Deadly levels

of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply

enough fresh air. ONLY use a generator outside and far away from windows, doors, and vents. These openings

can pull in generator exhaust.

Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-

backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move

to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.

WARNING! The exhaust from this product contains chemicals known to the State of California to cause

cancer, birth defects, or other reproductive harm.

WARNING! Do not operate generator near open ﬂame or ﬂammable materials This generator may emit

highly ﬂammable and explosive gasoline vapors, which can cause severe burns or even death if ignited. A

nearby open ﬂame can lead to explosion even if it isn’t directly in contact with gasoline. Do not smoke near the

generator.

WARNING! This generator produces powerful voltage, which can result in electrocution.

WARNING! Do not use in rainy or wet conditions. Do not touch bare wires or receptacles (outlets). Do not

allow children or non-qualiﬁed persons to operate.

WARNING! Generator should only be connected to electrical devices, either directly or with an extension

cord. NEVER connect to a building electrical system without a qualiﬁed electrician and connected to a transfer

switch as a separately derived system. Such connections must comply with local electrical laws and codes.

Failure to comply can create a back-feed, which may result in serious injury or death to utility workers.

BEFORE STARTING THE GENERATOR

1. Verify that the generator is outside on a dry, level surface with at least two feet of clearance on all sides.

2. To maximize safety, check that the generator is properly grounded (see "GROUND THE GENERATOR").

3. Check that there is a sufﬁcient level of oil in the crankcase. Add oil if necessary (see "ADD / CHECK OIL").

4. Make sure that there is enough gasoline in the fuel tank (or LPG in the LPG cylinder). Add fuel if necessary (see

"ADD / CHECK FUEL").

5. Make sure that the battery is connected (see "CONNECTING THE BATTERY").

6. Make sure all electrical devices are unplugged from the generator during ignition otherwise it will be difﬁcult for

the engine to start.

STARTING YOUR GENERATOR

STARTING THE GENERATOR

1. To use gasoline, turn the fuel valve (Fig. 10 - 1) to the ON posi-

tion. To use LPG, make sure all of the LPG connectors and hoses

are well connected and sealed. Turn the fuel valve to the OFF posi-

tion, then open the LPG tank valve.

2a. Turn the fuel selector switch on the panel to the appropriate

fuel (gasoline or LPG).

2b. If using LPG, prime the engine. To do this, move the choke

lever (Fig. 11 - 1) to the CLOSED position, then gently pull the

recoil starter (Fig. 11 - 2) 1 - 3 times.

3a. If using gasoline, turn the choke lever (Fig. 11 - 1) to the

CLOSED position.

3b. If using LPG, turn the choke lever (Fig. 11 - 1) to the OPEN

position.

Option A: Electric Start

4. Push the engine switch (Fig. 12) to the START position and

hold for 2-3 seconds until the engine starts, then release.

NOTE: The battery is shipped partially charged, in order to

maximize its service life, and may not have enough charge

to start the engine during the ﬁrst use of the generator. If you

have trouble starting the generator the ﬁrst time using electric

start, use the pull start option and allow the generator to run

for a few hours to charge the battery.

Option B: Pull Start

4a. Push the engine switch (Fig. 12) to the ON position.

4b. Place one hand on the generator to hold it in place, and

pull on the recoil starter handle (Fig. 11 - 2) slowly until a

slight resistance is felt. Then pull quickly to start the engine.

Return cord gently into the machine. Never allow the cord to

snap back.

NOTE: If engine fails to start, repeat step 3.

5. Once the engine starts, turn the choke lever to OPEN.

6. Allow the generator to run for several minutes before attempt-

ing to connect any electrical devices. This allows the generator to

stabilize its speed and temperature.

NOTE: If you have repeated failed attempts to start the engine,

please consult the troubleshooting guide. If problems persist,

please call please call 1-847-429-9263 M-F 8-5 CST.

Fig. 10

Fig. 11

Fig. 12

ENGINE BREAK-IN PROCEDURE

The procedure below should be followed when

you receive your generator in order to prolong

the engine's service life. This procedure helps

to seat the piston rings properly in the cylinder,

and will reduce overall wear on the engine.

For the ﬁrst 8 hours of operation, vary the load,

but keep it at or below 50% of the generator's

rated wattage, if possible. If your generator is

equipped with an Eco-mode switch (only ap-

plicable for certain inverter generators), engage

Eco-mode periodically during the ﬁrst 8 hours.

After the ﬁrst 8 hours, change the oil, then

change it again after the ﬁrst 25 hours. You may

run the generator at full load after the 8-hour

oil change. Refer to the Recommended Main-

tenance Schedule in Table 4 for the full mainte-

nance schedule.

Table 1 - How to Calculate Wattages

Generator

Wattage

Capacity

Generator Running (Rated) Watts Generator Starting (Surge) Watts

Gasoline: 6500W Gasoline: 8000W

LPG: 5850W LPG: 7200W

What this means:

The generator can produce a maximum of

6500W/5850W on a continuous basis to sup-

ply ongoing power to your electronic devices.

NOTE: Also check the rated amperage for each

outlet and make sure not to overload the indi-

vidual outlets.

What this means:

Some devices such as box fans require short

bursts of extra power in addition to the rated

wattage listed by the device to start their mo-

tors.

The generator can produce a maximum watt-

age of 8000W/7200W for a short period of

time (seconds) to cover the extra starting

power required by your electronic devices.

Electronic

Device Wattage

Calculation

Find the wattage information of each device you plan to connect. The information should be

listed on the device or in its instruction manual.

The wattage can be calculated using this equation:

Watts = Volts x Amperes

To calculate the total running watts of your

devices:

+ Add up the running wattages of all the

device(s) you plan to connect

= The total running wattage

This wattage should NOT exceed the running

wattage of 6500W/5850W.

It is recommended to maintain a load at or

below 5850W/5265W (90% of the rated

output) to ensure steady voltage output and

to prolong the generator’s lifespan.

To calculate the total starting watts of your

devices:

+ Add up the total running wattage of all the

device(s) you plan to connect

+ Add the single highest ADDITIONAL start-

ing wattage out of the device(s) you plan to

connect

= The total surge (starting) wattage

This wattage should NOT exceed the starting

wattage of 8000W/7200W.

If any of either of the total calculated running watts or starting watts is higher than the

capacity of your generator, adjust the load until both wattage requirements are met. Other-

wise you will overload the generator, and cause damage to the engine and your electrical

device(s).

CALCULATING THE WATTAGE OF YOUR DEVICE(S)

Connect electrical devices running on AC current according to their wattage requirements. Calculate the total run-

ning wattage and starting wattage of the device(s) you wish to connect, and MAKE SURE that they are within the

capacity of your generator and the capacity of each individual outlet.

USING YOUR GENERATOR

CALCULATING THE WATTAGE OF YOUR DEVICE(S) - CONTINUED

The chart below serves as a reference for the estimated wattage requirements of common electrical devices. How-

ever, do not solely rely on this chart - all electronics and appliances are built differently. Always check the wattage

listed on the electrical device before consulting this chart.

Tool or Appliance Rated (Running) Watts Surge (Starting) Watts

Electric Water Heater (40 Gal) 4000 0

Hot Plate 2500 0

Saw - Radial Arm 2000 2000

Electric Stove (Each Element) 1500-2800 0

Saw - Circular 1500 1500

Air Compressor (1 HP) 1500 3000

Window Air Conditioner 1200 1800

Saw - Miter 1200 1200

Microwave 1000 0

Well Water Pump 1000 1000

Sump Pump 800 1200

Refrigerator Freezer 800 1200

Furnace Blower 800 1300

Computer 800 0

Electric Drill 600 900

Television 500 0

Deep Freezer 500 500

Garage Door Opener 480 0

Stereo 400 0

Box Fan 300 600

Clock Radio 300 0

Security System 180 0

Dvd Player / VCR 100 0

Common Light Bulb 75 0

Table 2 - Estimated Wattages of Common Electrical Appliances

NOTE: Become familiar with the functions and capacity of each component on the control panel before con-

necting electrical devices. See page 11 for more information about the components of the control panel. Do not

overload generator or individual panel receptacles. Do not connect 50Hz or 3-phase loads to the generator.

USING YOUR GENERATOR

CONNECTING ELECTRICAL DEVICES

When the rated wattage requirement of each electrical device has been determined, add these numbers to ﬁnd the

total rated wattage needed. If this number exceeds the rated wattage (6500W) of the generator, DO NOT connect all

these devices. Select a combination of electrical devices with a total rated wattage lower than or equal to the rated

wattage of the generator.

CAUTION! Become familiar with the markings on the control panel before connecting electrical devices. Do

not connect 3-phase or 50Hz loads to the generator.

1. Before connecting electrical devices, allow the generator to run for a few minutes to stabilize the speed and volt-

age output.

2. Make sure that all devices are turned off. Start plugging in each electric device, from the highest wattage to the

lowest. Check the power indicator light (green) to ensure the generator is producing power.

3. Do not overload the generator or individual panel receptacles. If an overload occurs, one or more circuit breakers

will trip. Unplug all electrical devices, then press the circuit breaker to reset it. If it will not reset, wait a few minutes

for it to cool down. Check the total wattage of the devices and reduce the load if it exceeds the capacity of the gen-

erator. Then, plug the loads back in one by one.

NOTE: If the reset button or circuit breaker does not reset, wait several minutes and try again. If problem still per-

sists, please call 1-847-429-9263 M-F 8-5 CST, or email [email protected].

SWITCHING FUELS

To maximize your generator's lifespan, we recommend removing

all loads from the generator before switching between gasoline

and LPG. If this is not possible, reduce loads as much as possible

in order to ensure a smooth switch. Your generator is rated to

handle a higher load when running on gasoline than on LPG, so

keep this in mind when planning your fuel usage. To switch fuels:

1. Make sure you have enough gasoline or propane. If switching

to propane, make sure the propane regulator and

hose are securely attached to the propane cylinder and the pro-

pane inlet on the generator, and that the propane cylinder

valve is turned ON.

2. Turn the fuel selector switch (Fig. 13) to the desired fuel source.

Fig. 13

USING YOUR GENERATOR

Table 3 - Power Cord Requirement Guide

SOME NOTES ABOUT POWER CORDS

Long or thin cords can drain the power provided to an electrical device by the generator. When using such cords,

allow for a slightly higher rated wattage requirement by the electrical device.

*NR = Not Recommended

Device Requirements Max. Cord Length (ft) by Wire Gauge

Amps

Watts

(120V)

Watts (240V) #8 wire #10 wire #12 wire #14 wire #16 wire

2.5 300 600 NR NR NR 375 250

5 600 1200 NR NR 300 200 125

7.5 900 1800 NR 350 200 125 100

10 1200 2400 NR 250 150 100 50

15 1800 3600 NR 150 100 65 NR

20 2400 4800 175 125 75 50 NR

25 3000 6000 150 100 60 NR NR

30 3600 7200 125 65 NR NR NR

40 4800 9600 90 NR NR NR NR

NOTE: For power outages, permanently installed, stationary generators are better suited for providing backup

power to your home. Even a properly connected portable generator can become overloaded. This may result in

overheating or stressing the machine’s components, possibly leading to generator failure.

WARNING! Generator should only be connected to electrical devices, either directly or with an extension

cord. NEVER CONNECT TO A BUILDING ELECTRICAL SYSTEM without a qualiﬁed electrician and connected to

a transfer switch as a separately derived system. Such connections must comply with local electrical laws and

codes. Failure to comply can create a back-feed, which may result in serious injury or death to utility workers.

CIRCUIT BREAKERS (FIG. 14)

The 30A circuit breaker protects the NEMA TT-30R outlet. The 20A circuit breakers protect the NEMA 5-20R outlets.

The 25A circuit breakers each protect one leg of the NEMA L14-30R outlet. The circuit breakers will activate when

the outlets exceed the indicated amperage. When the circuit breaker activates, turn off and disconnect the device

from its respective outlet and press the circuit breaker to reset.

Fig. 14

USING YOUR GENERATOR

CO SENSOR INFORMATION

The CO Watchdog carbon monoxide monitoring system (Fig.

15 - 1) measures the accumulation of poisonous CO gas

while the generator is running. If the level of CO gas gets too

high, the CO Watchdog system will automatically shut down

the generator. This system is not a substitute for an indoor

CO alarm.

Whenever the CO Watchdog system shuts down the genera-

tor, the LED on the generator control panel (Fig. 15 - 1) will

blink red for at least 5 minutes after the generator is shut

down. If you notice that the LED is blinking red, vacate the

area immediately. Go to an open, outdoor area. Ventilate

the area around the generator thoroughly before returning.

Let the generator stay shut down for a few minutes before

restarting the engine. This should allow carbon monoxide to

dissipate from the area. If you restart the generator and the

CO Watchdog detects that CO levels are still too high, it will

shut down the generator again. If CO levels are low enough,

the generator will run normally.

Ensure that the generator is located in an open outdoor area, with the exhaust pointing away from occupied struc-

tures, and pointing away from the prevailing winds, such that those winds do not blow engine exhaust towards the

sensor module. If anyone experiences dizziness, headaches, nausea, fatigue, or other symptoms of CO poisoning,

get to fresh air immediately and seek the attention of a qualiﬁed medical professional. Follow all other directions in

this manual regarding the connection and disconnection of electrical devices when starting or shutting down the

generator.

When starting the generator, the CO Watchdog LED on the panel may ﬂash. This indicates that the system is running

a self-test procedure, and does not indicate a problem.

If the CO Watchdog LED on the panel is yellow, a system error has occurred, or the CO sensor has reached the end

of its life. Contact WEN customer service (1-847-429-9263, M – F 8 – 5 CST, or [email protected])

for assistance.

When operating your generator, please note the following:

• The CO Watchdog does not discriminate in its input; any source of carbon monoxide in the area around the genera-

tor could cause it to activate. If the CO Watchdog LED is blinking red, safety measures should be taken immediately.

• Tampering with, disconnecting, or bypassing the CO sensor could cause hazardous conditions, including but not

necessarily limited to injury or death, and will void your warranty. The generator will not run with the CO sensor

disconnected or bypassed, or if the CO sensor indicates an error.

• The CO sensor has a lifetime of about 7 years, and is capable of monitoring its lifetime. If your generator shows

an error light several years after purchase, it may be time to replace the CO sensor. Contact WEN customer service

for assistance.

NOTE: if the generator is oriented so that the

engine exhaust is blown towards the CO sensor,

the generator may shut down.

Fig. 15

SHUTTING OFF YOUR GENERATOR

CAUTION! Unplugging running devices can cause damage to the generator. Never stop the engine with elec-

trical devices connected and running.

OPTION 1: AUTOMATIC FUEL SHUTOFF (GASOLINE ONLY)

Your generator is equipped with automatic fuel shutoff. This feature turns off the ﬂow of fuel, allowing for the gen-

erator to use up the remaining fuel from the carburetor before turning off. This prolongs the lifespan of the generator

by preventing build-up and blockages caused by stagnant fuel inside of a carburetor.

1. Turn off all electrical devices prior to unplugging them from

the generator. Unplugging running devices can cause damage to

the generator.

2. Allow the generator to run at no load for a few minutes to sta-

bilize the internal temperatures.

3. Turn the fuel valve (Fig. 16 - 1) to the OFF position.

4. The engine will continue to run until the majority of the fuel in

the carburetor is consumed, which takes a few minutes. It will

then shut off automatically. This feature helps to prevent the car-

buretor from being clogged by stale fuel, extending your genera-

tor’s lifespan.

6. Push the engine switch (Fig. 17) to the OFF position.

OPTION 2: MANUAL SHUTOFF

WARNING! Allow the generator to cool down before touching areas that become hot during use.

CAUTION: Allowing gasoline to sit in the fuel tank for long periods of time can make it difﬁcult to start the gen-

erator in the future. Never store the generator for extended periods of time (over 2 months) with fuel in the fuel

tank. Refer to “Storing the Generator.”

IMPORTANT: Always ensure that the fuel valve and the engine switch are in the OFF position when the genera-

tor is not in use.

In case you are in a hurry and do not want to wait for the generator to automatically shut down, the manual shutoff

feature is available. However, this method will leave stagnant fuel in the carburetor, possibly causing blockages,

a shortened lifespan, and other maintenance issues. If this approach is frequently taken, make sure to drain your

carburetor before any long storage periods.

1. Turn off all electrical devices prior to unplugging them from the generator. Unplugging running devices can cause

damage to the generator.

2. Push the engine switch to the OFF position.

OPTION 3: LPG SHUTOFF

1. Turn off all electrical devices prior to unplugging them from the generator. Unplugging running devices can cause

damage to the generator. Never start or stop the generator with electrical devices plugged in or turned on.

2. Let the engine run at no-load for several minutes to stabilize internal temperatures of the engine and generator.

3. Make sure the fuel valve is OFF and then turn the engine switch to the OFF position.

Fig. 16

Fig. 17

MAINTENANCE

Proper routine maintenance of the generator will help prolong the life of the machine. Please perform maintenance

checks and operations according to the schedule in Table 4.

CAUTION! Never perform maintenance operations while the generator is running. Before maintaining or

servicing the generator, turn OFF the generator, disconnect all devices and allow the generator to cool down.

If there are any questions about the maintenance procedures listed in this manual, please call 1-847-429-9263 M-F

8-5 CST or email [email protected].

Recommended

Maintenance Schedule

Every 8

Hours or

Daily

Every 25

Hours

Every 3

Months or

50 Hours

Every 6

Months or

100 Hours

Before

Storage

Necessary

Engine Oil

Check Level x

Replace x** x** x* x

Air Filter

Check x*

Clean x*

Spark Plug

Check/Clean/

Regap

Change x x

Fuel

Check Level x

Drain x x

Carburetor Drain x x

Spark

Arrestor

Check/Clean x

Table 4 - Recommended Maintenance Schedule* Clean/change more often under dusty conditions or operating

under heavy load.

** Change the oil after the ﬁrst 8 hours of operation, after the

ﬁrst 25 hours of operation, and every 50 hours after that.

IMPORTANT GENERATOR MAINTENANCE TIPS:

• Drain your carburetor after each use and before storage to prevent it from clogging.

• Do not store the generator with fuel inside the tank for more than 2 months - the fuel will go bad.

• Run the generator for at least 20 minutes every month to charge the battery and maximize lifespan.

CLEANING THE GENERATOR

Keep the generator clean to prevent improper operation or machine damage from dirt and debris. Inspect all venti-

lation openings on the generator. These openings must be kept clean and unobstructed. If the generator becomes

dirty, use a damp cloth to wipe exterior surfaces. Use a soft bristle brush to loosen dirt and oil and use a vacuum to

pick up loose dirt. Use low pressure air (not to exceed 25 PSI) to blow away dirt.

CAUTION! Never clean the generator when it is running! Never clean with a bucket of water or a hose. Water

can get inside the working parts of the generator and cause corrosion or a short circuit.

NOTE: Failure to properly maintain the generator will void the warranty.

MAINTENANCE

CLEANING THE GENERATOR

Keep the generator clean to prevent improper operation or machine damage from dirt and debris. Inspect all ventila-

tion openings on the generator. These openings must be kept clean and unobstructed.

If the generator becomes dirty, use a damp cloth to wipe exterior surfaces. Use a soft bristle brush to loosen dirt and

oil and use a vacuum to pick up loose dirt. Use low pressure air (not to exceed 25 PSI) to blow away dirt.

WARNING! Never clean the generator when it is running! Never clean with a bucket of water or a hose. Water

can get inside the working parts of the generator and cause corrosion or a short circuit.

CHECKING / ADDING OIL

Check the oil level before each use and every 8 hours of operation (refer to Table 4).

The oil capacity of the generator engine is 30.4 ﬂ. oz. (0.90 L). Add oil when the oil level is low. For proper type and

weight of oil refer to “add oil” portion of the “Generator Preparation” section. This is a critical step for proper engine

starting. The generator is equipped with a with low-oil shut down to protect it from running without oil.

To check the oil level and add oil:

1. Make sure the generator is on a level surface. Do not tilt the generator, as oil will ﬂow into engine areas and cause

damage. Keep generator level!

2. Remove the dipstick and wipe it with a clean rag.

3. Insert the dipstick into the oil ﬁll opening without screwing

in. Remove the dipstick to check the oil mark (Fig. 18). Add oil if

the oil mark covers less than one half of the dipstick.

4. Using a funnel or appropriate dispenser, slowly add more oil.

Repeat the step above until the oil mark reaches the top of the

dipstick. Do not over ﬁll.

5. Reinstall dipstick and wipe clean any spilled oil with a rag.

Lower Limit

Upper Limit

Fig. 18

MAINTENANCE

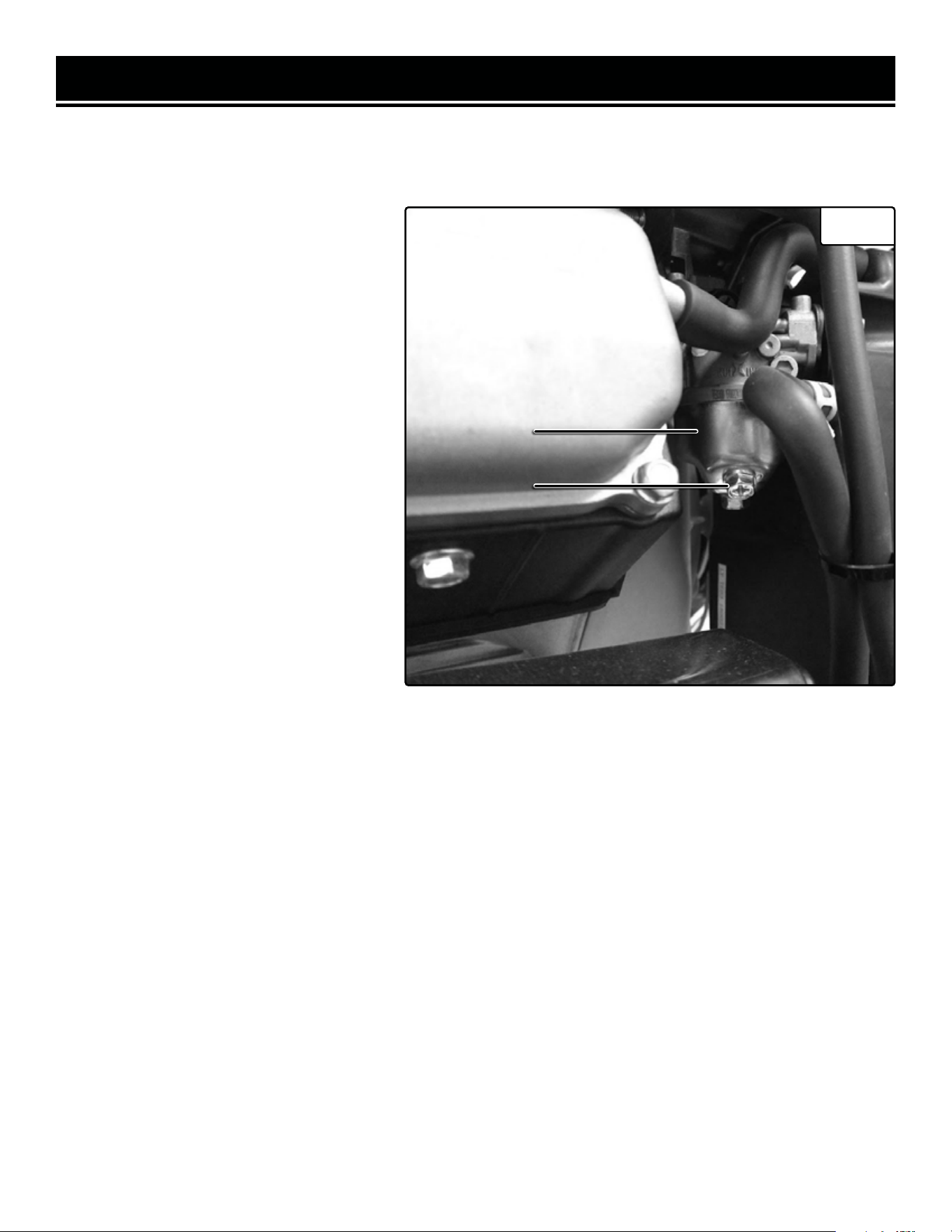

DRAINING THE CARBURETOR

We recommend draining the carburetor after every use and before storing the generator. Draining the carburetor

can prevent the fuel from clogging up the carburetor; a clogged carburetor can prevent the generator from starting.

1. With the help of another person, place the

generator on an elevated platform such as a

table or desk.

2. Make sure that the engine switch is pressed

to OFF and the fuel valve is in the OFF posi-

tion. This will allow only the fuel left inside the

carburetor to be drained out.

3. The carburetor (Fig. 19 - 1) can be ac-

cessed on the left of the generator, right be-

hind the air ﬁlter.

4. Prepare an approved gasoline-storage con-

tainer and a funnel.

5. Open up the carburetor drain screw (Fig.

17 - 2) with a Phillips-head screwdriver and

drain out any gasoline that has built up inside

the carburetor through the included funnel

into the approved gasoline-storage container.

6. Once the fuel has drained, tighten the drain

screw with the screwdriver.

NOTE: Make sure to drain your carburetor be-

fore storing the generator for long periods of

time.

222

Fig. 19

MAINTENANCE

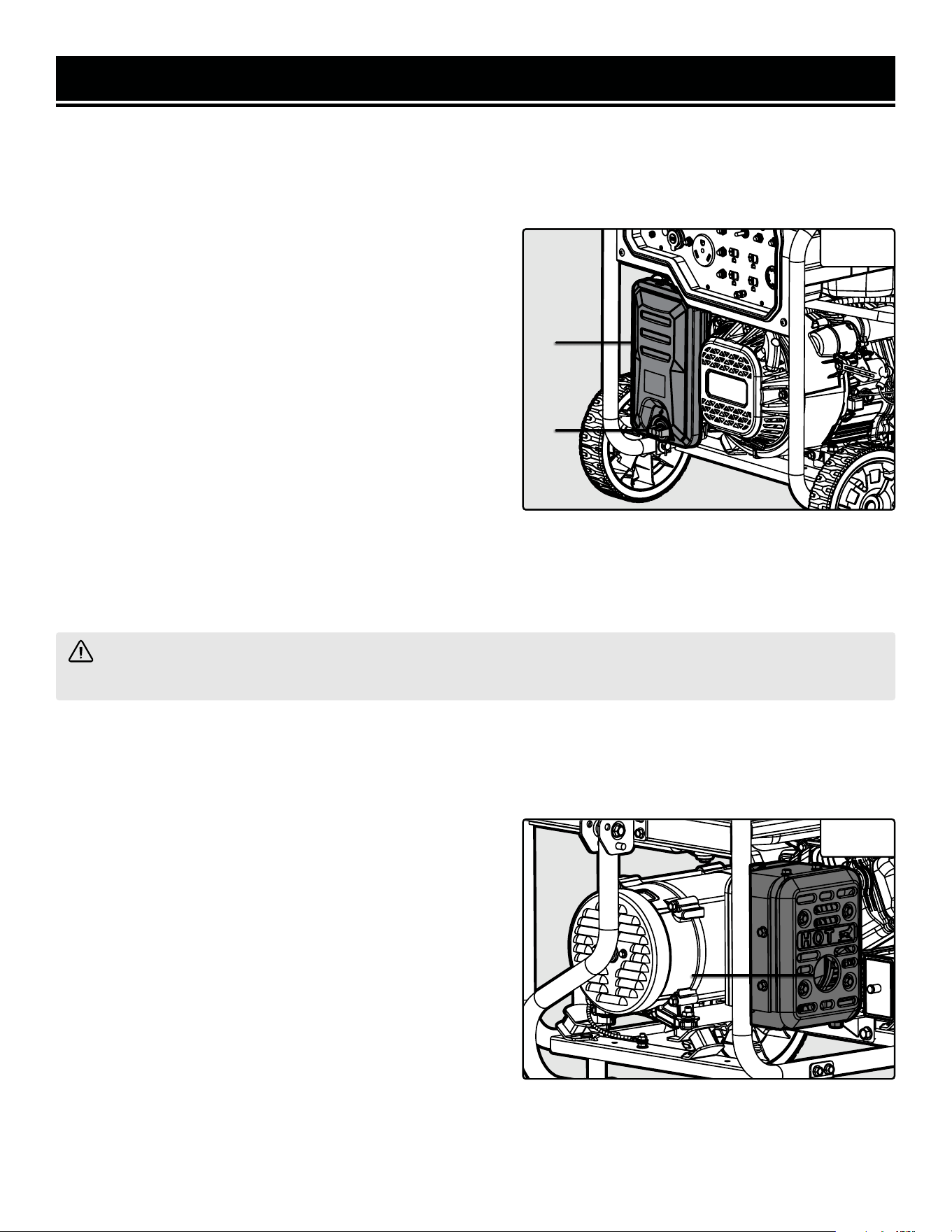

AIR FILTER MAINTENANCE

Check every 50 hours of operation (refer to Table 4 - Recommended Maintenance Schedule).

Routine maintenance of the air ﬁlter helps maintain proper airﬂow to the carburetor. Occasionally check that the air

cleaner is free of excessive dirt.

To inspect and clean the air ﬁlter:

1. Remove the air ﬁlter cover (Fig. 20 - 1) by unscrewing the

cover lock knob (Fig. 20 - 2) at the bottom of the air ﬁlter

cover.

2. Remove the foam, sponge-like air ﬁlter element from the

casing. Wipe excessive oil and any dirt from inside of the air

ﬁlter casing.

3. Check the foam, sponge-like air ﬁlter element.

a) Good elements can be washed in soapy water. Dry the

element in clean cloth (do not twist it). Add a few drops of

engine oil to the air ﬁlter element and spread it evenly. A

small amount of oil left in the element is normal and neces-

sary for the engine to work properly.

WARNING! Running the engine with a dirty, damaged or missing air ﬁlter element can result in danger to the

operator and cause the engine to wear out prematurely.

SPARK ARRESTOR MAINTENANCE

Inspect and clean the spark arrestor every 100 hours of operation. The spark arrester is located outside the mufﬂer,

which gets very hot during operation. Allow the engine to cool completely before servicing the spark arrester. To

inspect and clean the spark arrester:

1. Remove the two Phillips-head screws that secure the spark

arrestor to the mufﬂer (Fig. 21 - 1).

2. Remove the spark arrestor screen.

3. Carefully clean and remove the carbon deposits from the

spark arrestor screen with a wire brush. Replace the spark

arrestor if it is damaged (replacement spark arrestors can be

purchased from wenproducts.com by searching the part no.

DF8000X-027.1).

4. Reinstall the spark arrestor in the mufﬂer and secure it in

place with the screws.

b) Damaged elements should be replaced with a new one. Replacement air ﬁlters can be purchased from wen-

products.com by searching part number DF8000X-137.

4. Reinstall the air ﬁlter element and air ﬁlter cover.

Fig. 20

Fig. 21

MAINTENANCE

SPARK PLUG MAINTENANCE

Refer to Recommended Maintenance Schedule in Table 4 for maintaining the spark plug. The spark plug is impor-

tant for proper engine operation. Check the spark plug regularly to maintain proper engine operation. A good spark

plug should be intact, free of deposits, and properly gapped.

To inspect or replace the spark plug:

1. Gently pull on the spark plug boot (Fig. 22 - 1) to remove it.

Be careful not to tear any insulation or wire.

2. Use the included spark plug socket (Fig. 23) to unscrew and

then carefully remove the spark plug from the engine.

TIP: There is limited space for the wrench to turn. Use both

rows of holes in the spark plug wrench to gain leverage to

loosen the plug.

3. Visually inspect the spark plug. If it is cracked or chipped,

or if the electrodes are worn or burned, discard it and replace

with a new spark plug.

We recommend replacing with a Torch F7RTC (NGK BPR7ES)

spark plug (part no. DF8000X-122), available for purchase at

wenproducts.com.

4. If re-using the spark plug, use a wire brush to clean any dirt

from around the spark plug base, then re-gap the spark plug.

5. Measure the plug gap with a spark plug gap gauge. The gap

should be 0.028 in. - 0.031 in. (0.7mm - 0.8mm) (Fig. 24).

Carefully adjust the gap if necessary.

6. Screw the spark plug back into the spark plug hole using

the spark plug wrench. Do not over-tighten spark plug. Rec-

ommended tightening of spark plug is 20 - 22 ft-lbs (27 - 30

Nm).

7. Reinstall the spark plug boot, spark plug rubber cover, and

service panel.

0.7 mm - 0.8 mm

Spark Plug Socket

Fig. 22

Fig. 23

Fig. 24

MAINTENANCE

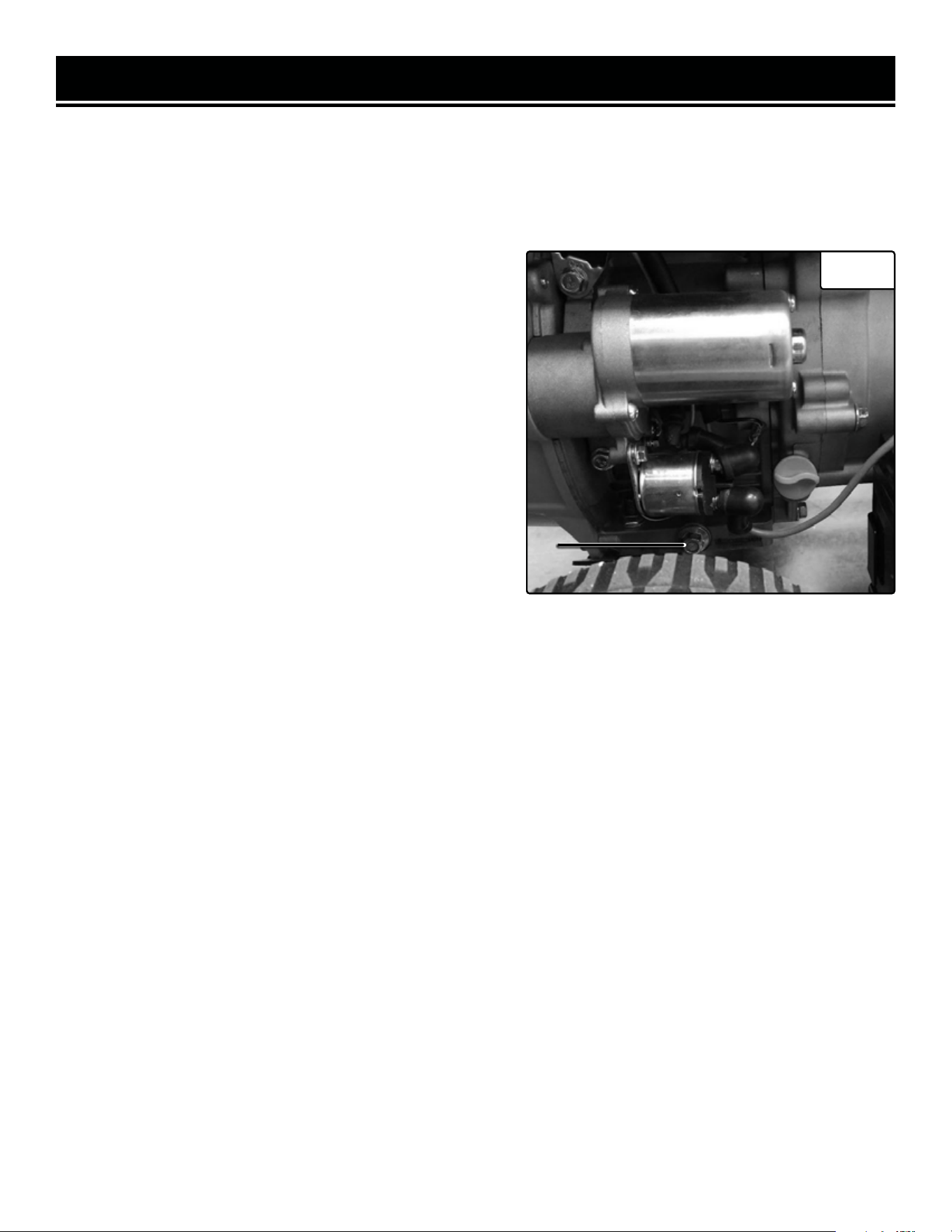

DRAINING / CHANGING OIL

Change the oil according to the Recommended Maintenance Schedule in Table 4. Change the oil MORE OFTEN if

operating under heavy load or high ambient temperatures. It is also necessary to drain the oil from the crankcase if

it has become contaminated with water or dirt. Changing the oil when the engine is warm allows for more-complete

drainage.

To change engine oil:

1. With the help of another person, place the generator on an

elevated platform such as table or workbench.

NOTE: To avoid possible gasoline spills from the carburetor

bowl, drain the carburetor before draining oil.

2. Prepare an approved oil-storage container and place it be-

low the oil drainage bolt (Fig. 25 - 1) to catch oil as it drains.

4. Use a 17mm socket to loosen and remove the oil drainage

bolt, and allow oil to drain from the engine completely.

5. Replace and tighten the oil drainage bolt after the oil has

drained.

NOTE: Never dispose of used engine oil in the trash or down

a drain. Please call a local recycling center or auto garage to

arrange proper oil disposal.

111

6. Unscrew the oil dipstick. Using a funnel or appropriate dispenser, add 30.4 ﬂ. oz. (0.90 L) of clean engine oil into

the oil ﬁll. Check the oil level periodically using the dipstick. Do not over ﬁll.

TIP: Your WEN generator is compatible with the WEN GNA273 Magnetic Oil Dipstick (not included), available for

purchase at wenproducts.com. The dipstick’s industrial-strength magnetic tip will collect metal shavings from your

generator’s oil compartment to help preserve the engine and extend your generator’s lifespan.

Fig. 25

222

MAINTENANCE

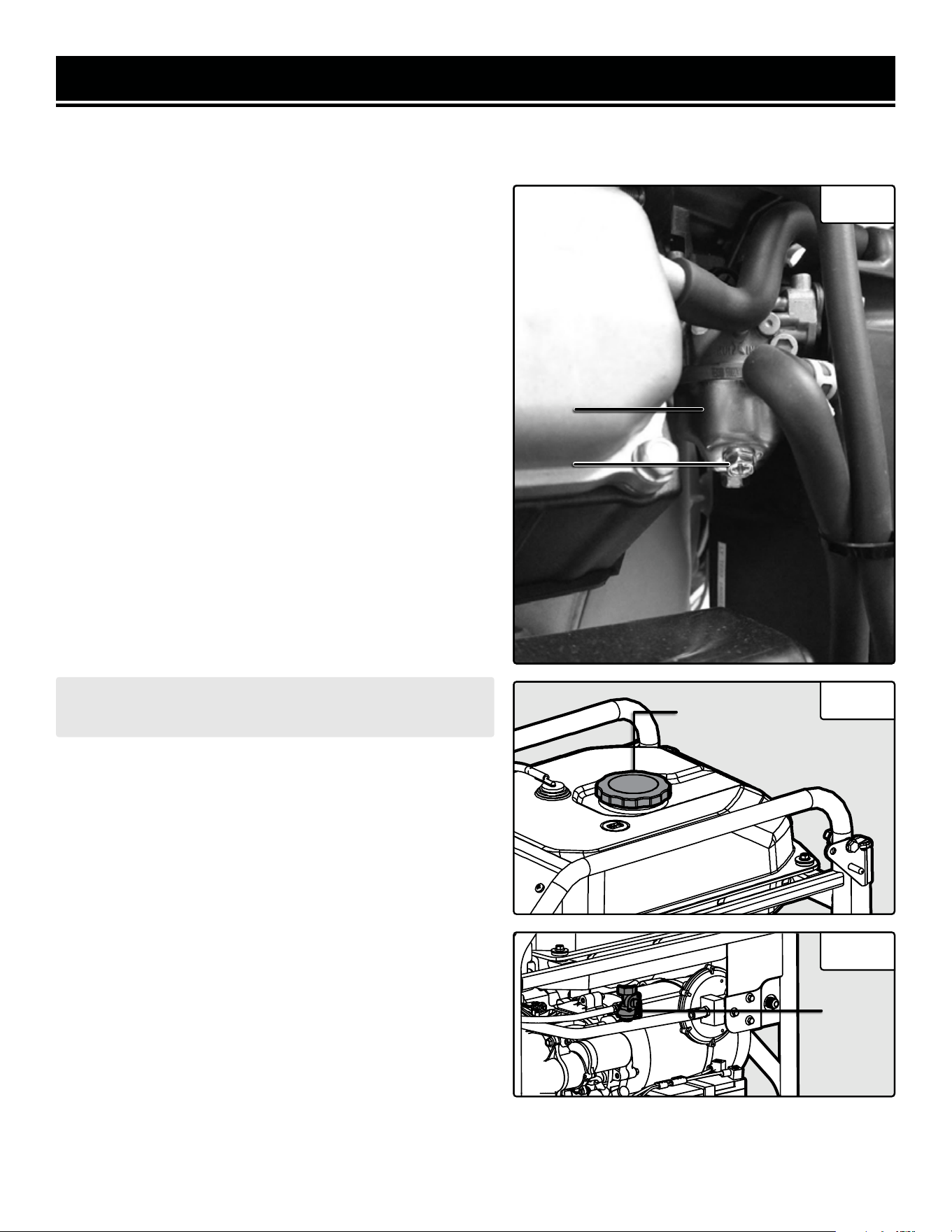

DRAINING THE FUEL TANK

Drain and clean the fuel tank each year, or before storing the generator for longer than two months.

To drain the fuel tank and carburetor:

1. Locate the carburetor (Fig. 26 - 1). It can be accessed on

the back of the generator, right beside the air ﬁlter.

2. Prepare an approved gasoline-storage container and a

funnel.

3. Remove the fuel cap (Fig. 27 - 1) and turn the fuel valve

(Fig. 28 - 1) ON.

4. Open up the carburetor drain screw (Fig. 26 - 2) with a

Phillips screwdriver. Fuel will start draining from the carbu-

retor and fuel tank through the funnel.

NOTE: The draining process may take a few hours, depend-

ing on the amount of fuel in your gas tank.

5. Once fuel is completely drained from the tank, reinstall the

fuel cap and turn the fuel valve (Fig. 28 - 1) OFF. Tighten the

drain screw with the screwdriver.

6. Start and run the generator until the fuel runs out.

7. Store the emptied gasoline in a suitable place. DO NOT

store ﬂammable materials near the gasoline.

CAUTION: Store the emptied gasoline in a suitable place.

Never store fuel for more than 2 months.

Fig. 26

Fig. 27

Fig. 28

MAINTENANCE

BATTERY MAINTENANCE/STORAGE

The battery will receive charge when the engine is running. Remember to run the generator once a month for 20-30

minutes to charge the battery. A charged battery will allow you to start the generator using the electric start switch

during your next time of need. If the battery is out of charge, you may start the generator using the recoil starter. If

the generator is not used for a long period, it is recommended to disconnect the quick-connector from the battery

to protect it from losing charge.

TIP: You can also connect the battery to an automatic trickle charger to keep the battery charged. If using a trickle-

charger, charge the battery at room temperature.

Lithium-ion batteries can be damaged or suffer a shortened lifespan if they are charged in very cold temperatures

(below freezing). If you expect to store the generator in temperatures below 25°F (-5°C), we recommend removing

the battery from the generator and storing it indoors. If using the generator in temperatures below 25°F (-5°C), we

recommend running the generator for at least 15 minutes with the battery removed, or the quick-connector cable

disconnected and covered with the rubber sheath, and then connecting the battery. This will allow the area around

the generator to warm up, and will greatly reduce the chance of damage to the battery.

To reinstall/replace the battery:

1. Unhook the battery strap from the engine frame. Remove the battery and disconnect the quick-connector.

2. Replace with an identical new battery (part no. DF8000X-065).

3. Connect the new battery by connecting the two ends of the quick connector together.

4. Secure the battery to the generator frame using the battery strap.

NOTE: Always recycle used batteries in accordance with local laws and regulations. Contact your local solid waste

collection site or recycling facility to obtain information on local recycling processes.

WARNING! It is best to store the battery indoors at room temperature. Do not store your battery outside in

the winter, where temperatures may go below 25°F (-5°C), or in any location where temperatures may exceed

104°F (40°C), such as in direct sunlight or inside a vehicle or metal building during the summer.

TRANSPORTATION & STORAGE

WARNING! Avoid direct sunlight inside a vehicle. If the generator is left in an enclosed vehicle for many

hours, the high temperature could cause the fuel to vaporize and result in a possible explosion.

WARNING! Store the generator upright in a cool and dry location, away from sources of heat, open ﬂames,

sparks or pilot lights.

TRANSPORTING THE GENERATOR

To prevent fuel spillage when transporting, be sure to perform the following:

1. Tighten the fuel cap.

2. Push the engine switch to OFF.

3. Drain the fuel tank if possible. Refer to section "DRAINING THE FUEL TANK."

4. Keep the generator upright. Never place the generator on its side or upside down - doing so could damage the

internal components of the generator and make it difﬁcult to start.

STORING THE GENERATOR

Shut off the generator and allow the unit to cool to room temperature before storing it. NEVER place any type of

storage cover on the generator while it is still hot. Do not obstruct any ventilation openings.

Follow the procedures below for properly storing your generator. We highly recommend running your generator

once a month for 20 to 30 minutes. Plug in a small load in to ensure there is proper power output.

PRODUCT DISPOSAL

Do not dispose of a used generator or parts with your household waste. This product contains electrical or elec-

tronic components that should be recycled. Please take this product to your local recycling facility for responsible

disposal to minimize its environmental impact.

Do not dispose of used oil or fuel in the trash or down a drain. Please contact your local recycling center or auto

garage to arrange proper oil/fuel disposal.

Please recycle the packaging and electronic components where facilities exist. Please contact your

local auto garage or recycling facility to properly dispose of oil/fuel.

For Short Periods (30 to 60 Days):

• Drain the carburetor.

• Disconnect the quick-connector from the battery.

• Add fuel stabilizer: Follow the suggested por-

tions and instructions of your preferred stabilizer.

Run the engine for 15 to 20 minutes, allowing the

fuel stabilizer to mix with the gasoline and circulate

through the carburetor, and then top off with fuel.

Filling the fuel tank full reduces the amount of air in

the tank and helps ﬁght deterioration of fuel.

For Extended Periods (Over 60 Days):

• Disconnect the quick-connector from the battery.

• Drain the fuel tank and carburetor (see “DRAINING

THE FUEL TANK”). Never store generator with fuel

in the tank for more than two months.

• Change the engine oil (see “CHANGING OIL”).

TROUBLESHOOTING GUIDE

WARNING! Stop using the generator immediately if any of the following problems occur or risk serious

personal injury. If you have any questions, please contact customer service at 1-847-429-9263 (M-F 8-5 CST),

or email [email protected].

PROBLEM POSSIBLE CAUSE SOLUTION

Engine will not

start.

1. Choke lever is in wrong position. 1. Set lever to CHOKE if engine is cold and RUN if engine is warm.

2. Engine switch is set to OFF. 2. Turn engine switch to START.

3. Battery is out of power.

3. Electric start will not work if battery is out of power. Start generator

using the recoil start to charge the battery.

4. Battery is too cold.

4. Electric start may be difﬁcult if the battery is too cold. Store the

generator or battery in a warmer location.

5. Oil is low. 5. Add oil.

6. Engine is out of fuel. 6. Add fuel.

7. Engine is ﬁlled with contaminated or old

fuel.

7. Drain fuel in the tank and carburetor. Replace with fresh fuel.

8. Spark plug is dirty or broken. 8. Clean or replace spark plug.

9. Carburetor is air locked.

9. Turn the fuel valve OFF. Remove bolt from bottom of the carburetor. Take

off the carburetor bowl to allow it to reset. Replace carburetor bowl and

reinstall the bolt.

10. Fuel selector switch is in wrong position. 10. Set fuel selector switch to match fuel being used.

11. Engine has not been primed (LPG only). 11. Prime the engine.

12. Spark plug boot is disconnected. 12. Replace spark plug boot on spark plug.

13. Propane tank is turned OFF. 13. Dang it, Bobby, I told you to turn that thing on!

14. Onboard propane regulator is stuck.

14. Turn OFF propane tank. Disconnect hose from propane ﬁtting.

Contact WEN customer service for assistance.

15. CO levels are too high.

15. Move the generator to an open area with fresh air. Wait a few

minutes for the CO buildup to dissipate.

16. CO sensor is disconnected. 16. Make sure CO sensor is connected.

10. Ghost in the generator. 10. Persuade ghost to leave. Consult Bill Murray if needed.

Engine runs but

there is no electri-

cal output.

1. Breaker has tripped due to wattage over-

load.

1. Turn off and unplug all electrical devices. Wait 3 minutes, and press the

activated breaker to reset. Check the total wattage of the devices and reduce

the load if it exceeds the capacity of the generator.

2. Bad connecting cord or wire.

2. Check power cords & extension cords. Do not use if any cord is damaged.

Replace damaged cords immediately.

3. Bad electrical device connected to the

generator.

3. Try connecting a different device.

4. Internal generator problem.

4. Contact WEN customer service for assistance.

Generator runs,

but does not

support all

electrical devices

connected.

1. AC or DC receptacles are overloaded;

circuit breaker has tripped.

1. Turn off and unplug all electrical devices. Wait 3 minutes, then press the

breaker to reset. Check the amperage of the devices to ensure they are within

the receptacles’ rated capacities.

2. Short circuit in one of the devices. 2. Disconnect any faulty or short-circuited electrical devices.

3. Air ﬁlter is dirty. 3. Clean or replace the air ﬁlter element.

Engine is

“hunting”

during operation

(engine RPM is

ﬂuctuating).

1. Fuel isn't running through the fuel selector

switch.

1. Make sure there is enough fuel. Make sure the CHOKE lever is turned to

RUN.

2. Fuel level is low 2. Check fuel level.

3. Air ﬁlter is dirty. 3. Clean or replace the air ﬁlter element.

4. Spark arrestor is dirty. 4. Clean the spark arrestor.

5. There is gunk in the carburetor preventing

a consistent fuel/air mixture.

5. Use carburetor cleaner spray on the carburetor bowl and jets.

WIRING DIAGRAM

Red 12AWG

White 12AWG

Brown 12AWG

Black 12AWG

20A

25A

CONTROL PANEL BLOCK

8.3A

Yellow/Green 12AWG Yellow/Green 12AWG Yellow/Green 12AWG

White

12AWG

Red 12AWG

Red 16AWG

Black 16AWG

Yellow/Green

10AWG

30A

White 12AWG

Yellow/Green 8AWG

Red 12AWG

Red 10AWG

White 12AWG

Red 12AWG

White 12AWG

Brown 12AWG

Black

12AWG

Red 12AWG

White 12AWG

Red

10AWG

White

12AWG

Red

12AWG

Red

12AWG

120V 240V

Main Winding (I)

Main Winding (II)

DC Winding

Gr 16AWG

GENERATOR BLOCK

Field Winding

Exciter

Winding

BuBu

AVR

BrBr

GrGr

Battery Charging

Module

12V/2A

Y/G

CO Indicator and Reset Switch

CO Sensor

Fuse 5A

Bl/WWR

Y/G

Battery Starter LPG

Solenoid

Gas

Solenoid

Ignition

Coil

Spark

Plug

Oil Level

Sensor

Oil Level

Switch

Low Oil

LED

WBlBl

RBl

ENGINE BLOCK

LPG LED

Gas LED

Y/G

12V 8.3A

Engine Switch Connection

Fuel Selector

Switch Connection

Multi-Meter

Voltage Selector Switch

DC Automotive

Outlet

Engine

Switch

EXPLODED VIEW & PARTS LIST

NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service at 1-847-

429-9263, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use are not covered by

the three-year warranty. Not all parts may be available for purchase.

GENERATOR

EXPLODED VIEW & PARTS LIST

NO. PART NO. DESCRIPTION QTY.

1 DF8000X-001ASM

Control Panel

Assembly

2 DF8000X-002

NEMA L14-30R

120V/240A 30A

Receptacle

3 GN5600-008

NEMA 5-20R 120V

AC 20A Duplex

Receptacle

4 GN5600-010

Grounding Lug

Assembly

5 GN5600-015 AC Breaker, 20A 2

6 GN5600-005

NEMA TT-30R 120V

AC 30A RV

Receptacle

7 DF8000X-007

12V DC Automotive

Receptacle

8 DF5600X-008 Fuel Selector Switch 1

9 DF8000X-009 DC Breaker, 8.3A 1

10 GN5600-014

Low Oil Indicator

Light

11 GN5600-004 Multi-meter 1

12 DF5600X-010 Engine Switch 1

13 DF5600X-007 Indicator LED 1

14 GN5602X-013

CO Sensor Indicator

Light

15 DF8000X-015 Panel 1

16 GN5600-003

Phillips Pan Head

Screw, M5x12

17 DF8000X-017 AC Breaker, 30A 1

18 DF8000X-018

Voltage Selector

Switch

19 DF8000X-019 AC Breaker, 25A 2

20 DF8000X-020

Control Panel Hous-

ing

21 GN5600-001

Phillips Pan Head

Screw, M6x10

22 DF8000X-022 Control Panel Cover 1

23 DF5600X-020

Pan Head Screw,

M4x18

GENERATOR

NO. PART NO. DESCRIPTION QTY.

24 GN5602X-019 CO Sensor Module 1

25 GN5600-021 Nut, M8 2

26 DF8000X-026 Mufﬂer Gasket 1

27 DF8000X-027 Mufﬂer 1

N.P. DF8000X-027.1 Spark Arrestor 1

28 GN5600-087

Flanged Hex Bolt,

M8x16

29 DF8000X-029 Frame Assembly 1

30 DF8000X-030 Fuel Hose, 9.6x440 1

31 GN5600-030 Hose Clamp, 10mm 2

32 GN5600-041 Combination Clamp 1

33 DF8000X-033 Carbon Tank Hose 1

34 GN5600-040 Protective Sleeve 1

35 GN5600-031 Breather Valve 1

36 DF8000X-036 Fuel Gauge 1

37 GN5600-034 Fuel Tank Cap 1

38 DF8000X-038 Fuel Tank Filter 1

39 GN5600-035

Flanged Hex Bolt,

M6x25

40 GN5600-036 Flat Washer, 6mm 4

41 GN5600-037

Fuel Tank Vibration

Isolation Sleeve

42 GN5600-038

Fuel Tank Vibration

Isolation Pad

43 DF8000X-043 Fuel Tank 1

44 GN5600-043 Fuel Valve 1

45 GN5600-081

Flanged Hex Bolt,

M8x48

46 GN5600M-060 Handle Bracket 1

47 GN5600M-059

Flanged Hex Bolt,

M8x16

48 GN5600-079 Nut, M8 1

49 GN5600-082 Pin 1

50 DF5600X-050 Handle Grip 1

51 GN5600M-056 Handle 1

52 DF8000X-052 Alternator Assembly 1

53 DF8000X-053 Carbon Brushes 1

54 DF8000X-054 Wiring Terminal 1

EXPLODED VIEW & PARTS LIST

GENERATOR

NO. PART NO. DESCRIPTION QTY.

55 GN5600-069

Flanged Hex Bolt,

M5x6

56 DF8000X-056 Alternator Bracket 1

57 DF8000X-057

Washer, 6mm x

10mm

58 DF8000X-058 Bolt, M6x16 4

59 DF8000X-059

Automatic Voltage

Regulator (AVR)

60 DF8000X-060 Alternator Cover 1

61 DF5600X-070

Flanged Hex Bolt,

M5x12

62 DF8000X-062 Grounding Wire 1

63 GN5600-060 Lock Washer, 6mm 1

64 GN5602X-063 Battery Strap 1

65 DF8000X-065

Battery, 12V 1.6Ah,

Li-ion

66 DF8000X-066

Battery Quick-

Connector Wiring

Harness

67 GN5600-047

Flanged Hex Bolt,

M6x40

68 GN5600M-041 Foot Support 2

69 GN5600M-042 Foot Support Pad 2

70 DF8000X-070

Secondary LPG

Regulator

71 DF5600X-072 Hose Clamp 1

72 DF8000X-072 LPG Tube 1

73 GN5600-091

Flanged Hex Nut,

NO. PART NO. DESCRIPTION QTY.

74 GN5600M-043 Axle Pin 2

75 GN5600M-044 Wheel 2

76 GN5600-051 Flat Washer 2

77 GN5600-050 Cotter Pin 2

78 GN5600-045

Flanged Hex Nut,

79 GN5600-046 Engine Mount 1

80 GN5600-056

Flanged Hex Bolt,

M8x32

81 DF8000X-081 Engine Cover 1

82 GN5600-018 Dowel Pin 2

83 DF8000X-083ASM Engine Assembly 1

84 GN5600-027 Bolt, M6x12 1

85 GN5600-087

Flanged Hex Bolt,

M8x16

86 GN5600-085

Flanged Hex Bolt,

M8x35

87 DF8000X-087

Flanged Hex Bolt,

M8x35

88 DF8000X-088 Shipping Bracket 1 1

89 DF8000X-089 Shipping Bracket 2 1

90 DF5600X-090

Primary LPG

Regulator Hose

91 DF8000X-091 Support 1

92 DF8000X-092

Flanged Hex Bolt,

M5x184

93 DF8000X-093

Flanged Hex Nut,

M10

94 DF8000X-094 Charger

95 DF8000X-095 Controller

EXPLODED VIEW & PARTS LIST

ENGINE

2116

36 36

81 82

EXPLODED VIEW & PARTS LIST

NO. PART NO. DESCRIPTION QTY.

1 DF8000X-101

Flanged Hex Bolt,

M6x20

2 DF8000X-102

Cylinder Head

Cover

3 DF8000X-103 Oil Filter 1

4 DF8000X-104

Breather Plate

Cover Gasket

5 DF8000X-105

Breather Plate

Cover

6 GN5600-106

Flanged Hex Bolt,

M5x10

7 DF8000X-107

Cylinder Head

Cover Gasket

8 DF8000X-108

Flanged Hex Bolt,

M5x10

9 DF8000X-109

Cylinder Head

Cowling

10 DF8000X-110 Rocker Arm Shaft 2

11 DF8000X-111

Rocker Arm

Assembly

12 DF8000X-112 Push Rod 2

13 DF8000X-113 Valve Lifter 2

14 DF8000X-114

Flanged Hex Bolt,

M10x80

15 GN5600-122 Stud, M8x34 2

16 DF8000X-116 Valve Rotator 2

17 DF8000X-117 Valve Lock 4

18 DF8000X-118

Valve Spring

Retainer

19 DF8000X-119 Valve Spring 2

20 DF8000X-120 Valve Stem Seal 1

21 DF8000X-121 Valve Set 1

22 DF8000X-122

Spark Plug, Torch

F7RTC (NGK

BPR7ES)

23 DF8000X-123 Cylinder Head 1

24 DF8000X-124 Stud, M6/8x102 2

25 DF8000X-125

Carburetor

Insulator Gasket

ENGINE

NO. PART NO. DESCRIPTION QTY.

26 DF8000X-126

Carburetor

Insulator

27 DF8000X-127 Carburetor Gasket 1

28 DF8000X-128 Carburetor 1

29 GN5600-129 Hose Clamp 1

30 DF8000X-130 Fuel Tube 1

31 DF8000X-131 Governor Rod 1

32 DF8000X-132

Throttle Return

Spring

33 DF8000X-133 Hose Clamp 2

34 DF8000X-134 Air Filter Gasket 1

35 DF8000X-135 Breather Tube 1

36 GN5600-136

Flanged Hex Nut,

6mm

37 DF8000X-137 Air Filter Element 1

38 DF8000X-138 Air Filter Assembly 1

39 DF8000X-139

Cylinder Head

Gasket

40 DF8000X-140

Piston Ring

Assembly

41 DF8000X-141 Piston 1

42 DF8000X-142 Piston Pin 1

43 DF8000X-143 Piston Pin Clip 2

44 DF8000X-144

Connecting Rod

Assembly

45 DF8000X-145 Dowel Pin 2

46 DF8000X-146

Flanged Hex Bolt,

M8x35

47 DF8000X-147 Oil Seal 2

48 DF8000X-148 Crankcase Cover 1

49 DF8000X-149

Oil Dipstick

Assembly

50 DF8000X-150 Governor Gear 1

51 DF8000X-151 Dowel Pin 2

52 DF8000X-152

Crankcase Cover

Gasket

53 DF8000X-153

Flanged Hex Bolt,

M6x10

54 GN5600-154 Crankshaft Cowling 1

EXPLODED VIEW & PARTS LIST

ENGINE

NO. PART NO. DESCRIPTION QTY.

55 DF8000X-155 Camshaft Assembly 1

56 DF8000X-156

Crankshaft

Assembly

57 GN5600-101

Flanged Hex Bolt,

M6x16

58 DF8000X-158 Oil Level Sensor 1

59 DF8000X-159 Governor Bracket 1

60 DF8000X-160

Governor Gear

Assembly

61 DF8000X-161 Governor Spring 1

62 DF8000X-162 Clip 1

63 DF8000X-163 Washer 1

64 DF8000X-164 Governor Arm 1

65 DF8000X-165 Crankcase 1

66 DF8000X-166 Drain Bolt, M14x15 2

67 DF8000X-167 Washer 2

68 DF8000X-168

Ignition Coil

Assembly

69 GN5600-167

Flanged Hex Bolt,

M6x25

NO. PART NO. DESCRIPTION QTY.

70 DF8000X-170 Flywheel 1

71 DF8000X-171 Fan 1

72 DF8000X-172 Starter Cup 1

73 DF8000X-173

Flanged Hex Nut,

M16-1.5

74 DF8000X-174 Fan Cover 1

75 DF8000X-175 Recoil Starter 1

76 DF8000X-176

Recoil Starter

Assembly

77 DF8000X-177 Dowel Pin 2

78 DF8000X-178

Starter Motor

Assembly

79 DF8000X-179

Flanged Hex Bolt,

M6x35

80 GN5600-175 Clip 1

81 DF5600X-178 Hose Clamp 1

82 DF8000X-182 Breather Tube 1

83 GN5600-177 Oil Alert Module 1

WARRANTY STATEMENT

WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this

commitment and our dedication to quality.

LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USELIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE

GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that this WEN consumer prod

uct will be free from defects in material or workmanship during personal use for a period of three (3) years from date

of purchase or 500 hours of use; whichever comes ﬁrst. Ninety days for all WEN products if the tool is used for profes

sional or commercial use. Purchaser has 30 days from the date of purchase to report missing or damaged parts. Parts

and labor are covered for one (1) year under this limited warranty; parts only are covered for three (3) years under this

limited warranty.

SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per

mitted by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which are

defective in material or workmanship and which have not been subjected to misuse, alteration, careless handling, mis

repair, abuse, neglect, normal wear and tear, improper maintenance, improper storage, incorrect lubricants / fuels, or

other conditions adversely affecting the Product or the component of the Product, whether by accident or intentionally,

by persons other than Seller. To make a claim under this Limited Warranty, you must make sure to keep a copy of your

proof of purchase that clearly deﬁnes the Date of Purchase (month and year) and the Place of Purchase. Place of Pur-

chase must be a direct vendor of Great Lakes Technologies, LLC. Purchasing through third party vendors, including but

not limited to garage sales, pawn shops, resale shops, or any other secondhand merchant, voids the warranty included

with this product. Contact [email protected] or 1-847-429-9263 with the following information to make

arrangements: your shipping address, phone number, serial number, required part numbers, and proof of purchase.

Damaged or defective parts and products may need to be sent to WEN before the replacements can be shipped out.

Upon the conﬁrmation of a WEN representative, your product may qualify for repairs and service work. When returning

a product for warranty service, the shipping charges must be prepaid by the purchaser. The product must be shipped

in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The product must be

fully insured with a copy of the proof of purchase enclosed. There must also be a description of the problem in order

to help our repairs department diagnose and ﬁx the issue. Repairs will be made and the product will be returned and

shipped back to the purchaser at no charge for addresses within the contiguous United States.

THIS LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,

INCLUDING FILTERS, SPARK PLUGS, VOLTAGE REGULATORS, BRUSHES, GASKETS, O-RINGS, WHEEL KITS, BAT

TERIES, RECOIL STARTERS, HIGH PRESSURE HOSES, SPRAY GUNS, ETC. ANY IMPLIED WARRANTIES SHALL BE

LIMITED IN DURATION TO THREE (3) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME

CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE

ABOVE LIMITATION MAY NOT APPLY TO YOU.

IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT

NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME

STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IN

CIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH

VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.

THIS LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA

AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT

THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER WARRANTY

SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL SHIPPING CHARGES MAY

APPLY.

NOTES

V.2024.11.21

THANKS FOR

REMEMBERING

WEN DF8000X Dual Fuel Portable Generator Electric Start, 8000 Watts, Transfer Switch and RV Ready, CO Shutdown Sensor

Product's Documents

Product manual

Specifications

WEN DF8000X Questions and Answers
