Model # 56180
1800W PORTABLE
GENERATOR
bit.ly/WENvideo
Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years
of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings,
and cautions. If you use your tool properly and for intended purpose, you will enjoy years of safe,
reliable service.
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
WENPRODUCTS.COM
(M-F 8AM-5PM CST)
TABLE OF CONTENTS
2
Generator Identification
3
3
4
4
7
8
10
12
12
13
15
19
19
20
24
25
26
Service Record
Introduction
Safety Information
Generator Components
Generator Preparation
Starting the Generator
Stopping the Generator
Subsequent Starting of the Generator
Using the Generator
Maintenance & Care
Storage & Transport
Specifications

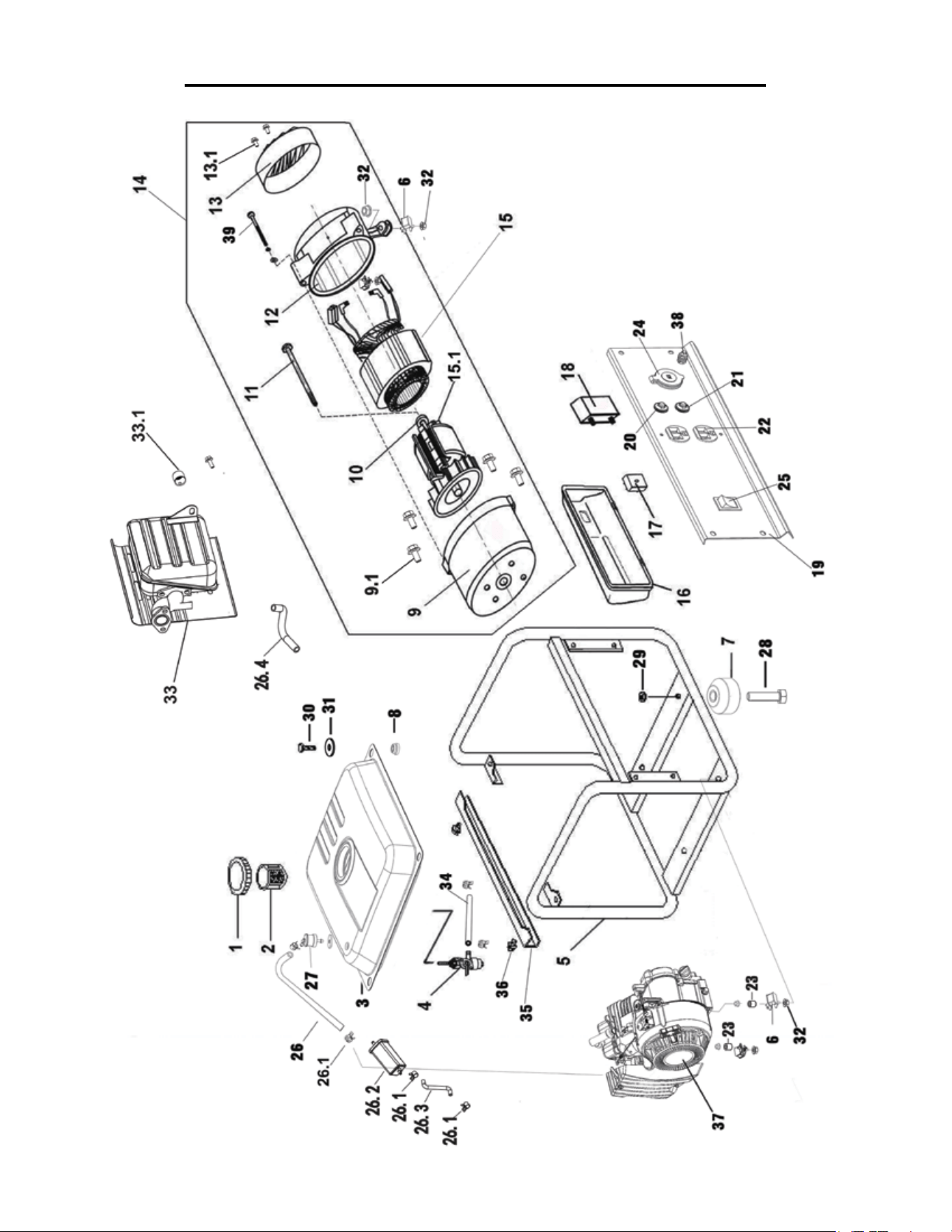

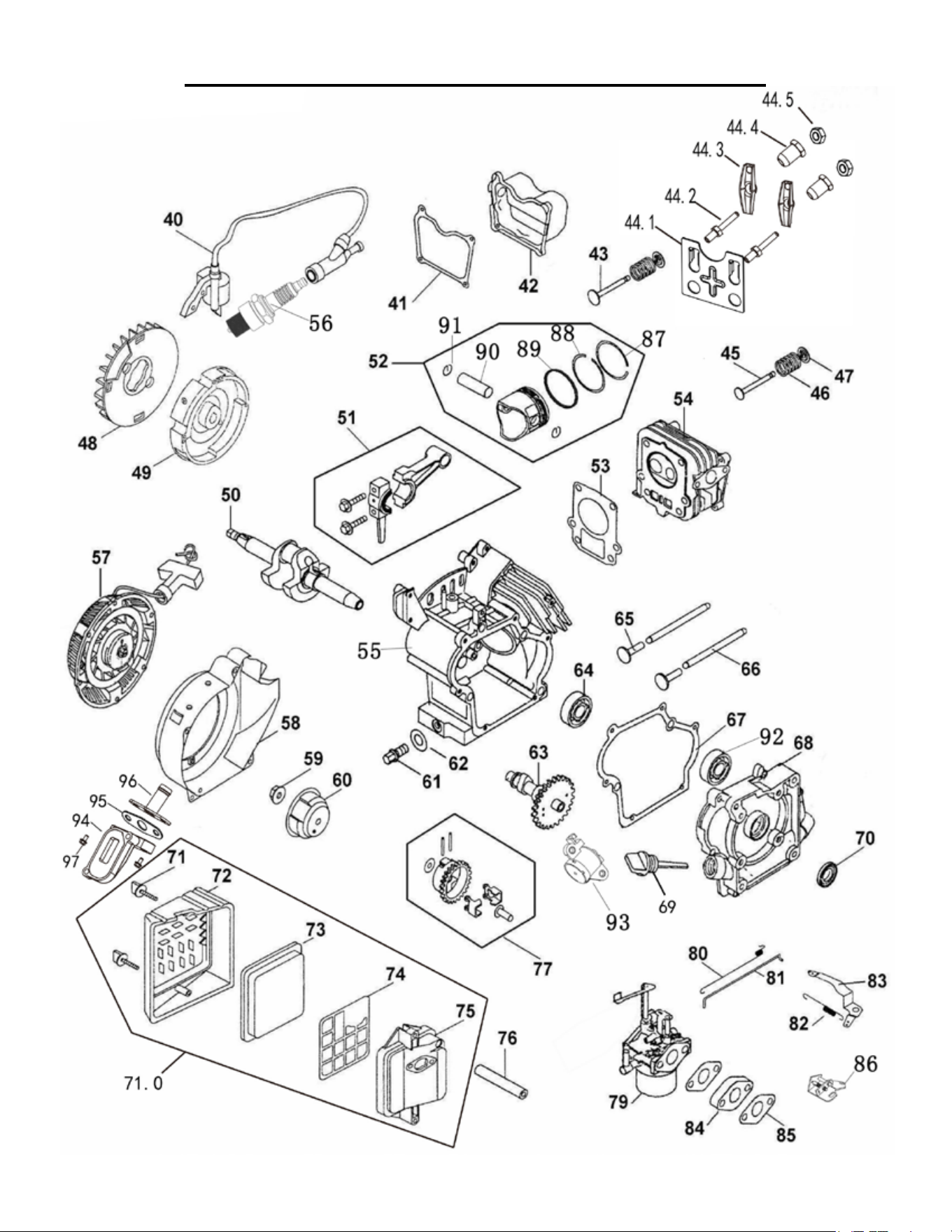

Exploded View and Parts List

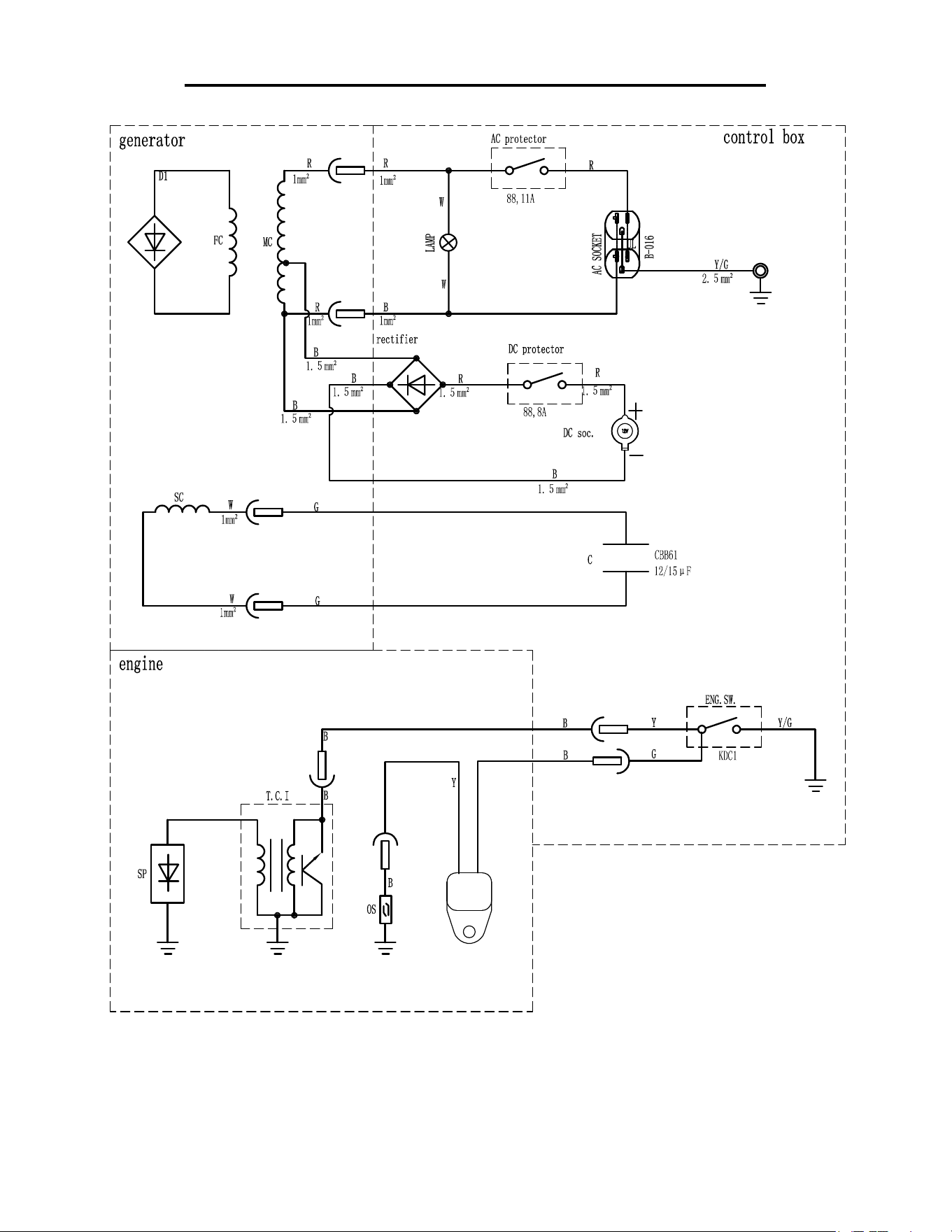

Wiring Diagram
Warranty Statement
Troubleshooting
3
GENERATOR IDENTIFICATION
If assistance for information or service is required, please contact the Customer Service Help Line by calling
800-232-1195; customer will be asked to provide generator information when calling.

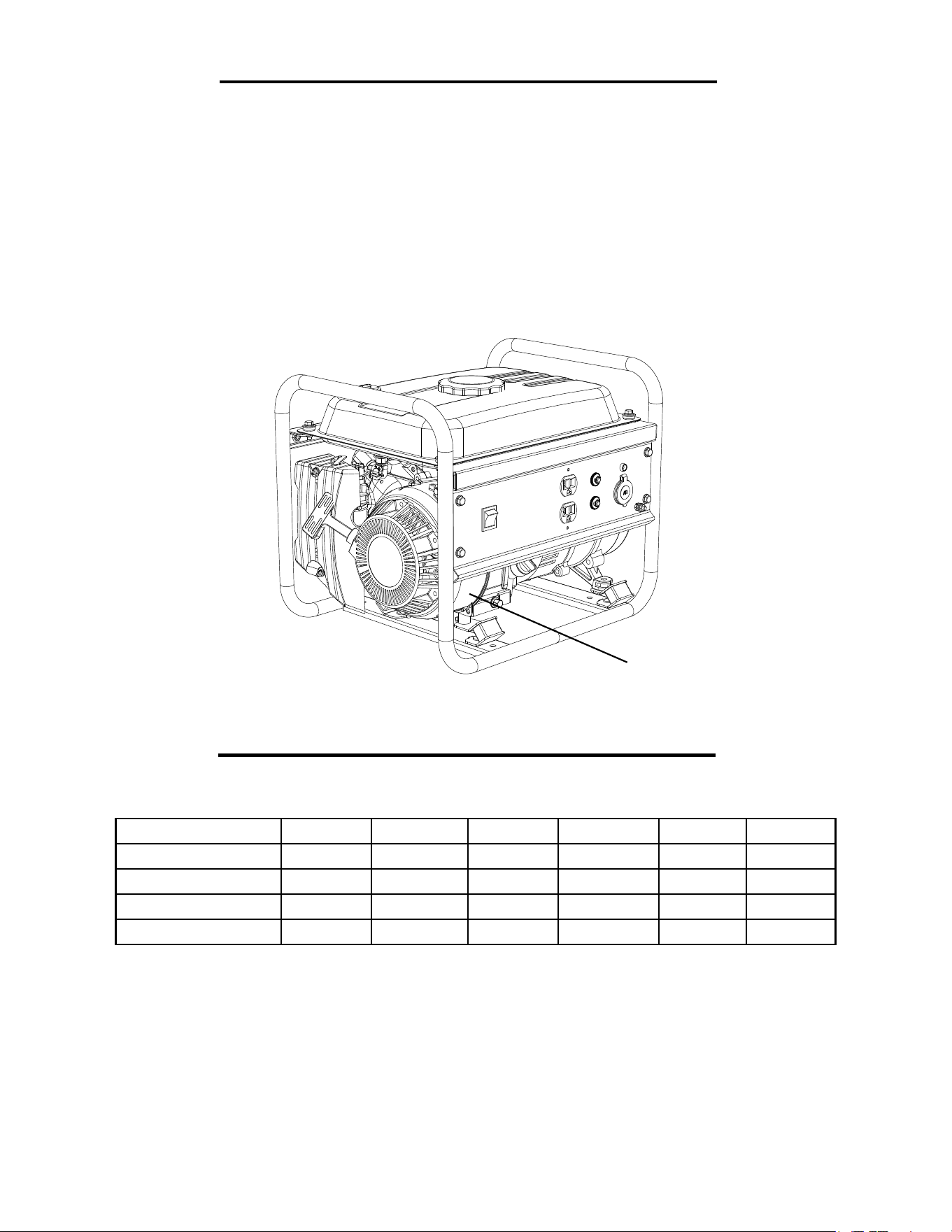

Refer to the illustration below for the location of the serial number. Record generator information in the spaces
provided below.
DATE OF PURCHASE: ______________________________________________
PURCHASED FROM: ______________________________________________
GENERATOR MODEL NUMBER: 56180
ENGINE SERIAL NUMBER: _________________________________________
SERVICE RECORD
Record Service Dates:
Date Date Date Date Date Date
Change Oil
Change Spark Plug
Clean Fuel Tank
Clean Air Filter
Serial Number
12
H
G
F
E
D
C
B
A
J
K
L
M
N
P
Q
R
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
1110987654321 13 14 15 16 17 18 19 20 21 22 23 24
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
20
KJ1500B
:
A0
SHEET 1 OF 1:1.5:1
:
: °
::
mm
:
:
: mm
4
Before operating this generator read and observe all warnings, cautions, and instructions both on the generator and
in this owner’s manual.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
This safety alert symbol is used to identify safety information about hazards that can result in personal injury.
DANGER indicates a hazard, which, if not avoided, will result in death or serious injury.
WARNING indicates a hazard, which, if not avoided, could result in death or serious injury.
CAUTION indicates a hazard, which, if not avoided, might result in minor or moderate injury.
CAUTION when used without the alert symbol, indicates a situation that could result in damage to the engine or
generator.
Thank you for purchasing a WEN Generator. This manual provides information regarding the safe operation and
maintenance of this product. Every effort has been made to ensure the accuracy of the information in this manu-
al. WEN reserves the right to change this product, manual and specifications at any time without prior notice.
Please keep this manual available to all users during the entire life of the generator.
QUESTIONS? PROBLEMS?
In order to answer questions and solve problems in the most efficient and speedy manner, contact Customer
Service at (800) 232-1195, M-F 8-5 CST
NOTICE REGARDING EMISSIONS
Engines that are certified to comply with U.S. EPA emission regulations for SORE (Small Off Road Equipment),
are certified to operate on regular unleaded gasoline, and may include the following emission control systems:
(EM) Engine Modifications and (TWC) Three-Way Catalyst (if so equipped).
INTRODUCTION
SAFETY INFORMATION
This manual contains special messages to bring attention to potential safety
concerns and generator damage as well as helpful operating and servicing
information. Please read all the information carefully to avoid injury and
machine damage.
A signal word (DANGER, WARNING, or CAUTION) is used with the alert
symbol to indicate the likelihood and the potential severity of injury. In addition,
a hazard symbol may be used to represent the type of hazard.
5
For any questions regarding the hazard and safety notices listed in this manual or on the product, please
call (800) 232-1195 M-F 8-5 CST before using the generator.
DANGER: CARBON MONOXIDE
Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monox-
ide (CO). This is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are
breathing CO. But even if you cannot smell the exhaust, you could be breathing CO.
NEVER use a generator inside homes, garages, crawl spaces, or other partially enclosed areas. Deadly
levels of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does
NOT supply enough fresh air. ONLY use a generator outside and far away from windows, doors, and
vents. These openings can pull in generator exhaust.
Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or
battery-backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been
running, move to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
WARNING: The exhaust from this product contains chemicals known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive harm.
WARNING: This generator may emit highly flammable and explosive gasoline vapors, which
can cause severe burns or even death if ignited. A nearby open flame can lead to explosion even
if it isn’t directly in contact with gasoline.
SAFETY INFORMATION
1) Do not operate near open flame.
2) Do not smoke near generator.
3) Always operate on a firm, level surface.
4) Always turn generator off before refueling. Allow
generator to cool for at least 2 minutes before re-
moving fuel cap. Loosen cap slowly to relieve pres-
sure in tank.
5) Do not overfill fuel tank. Gasoline may expand
during operation. Do not fill to the top of the tank.
Allow for expansion.
6) Always check for spilled fuel before operating.
7) Empty fuel tank before storing or transporting the
generator.
8) Do not use in rainy conditions.

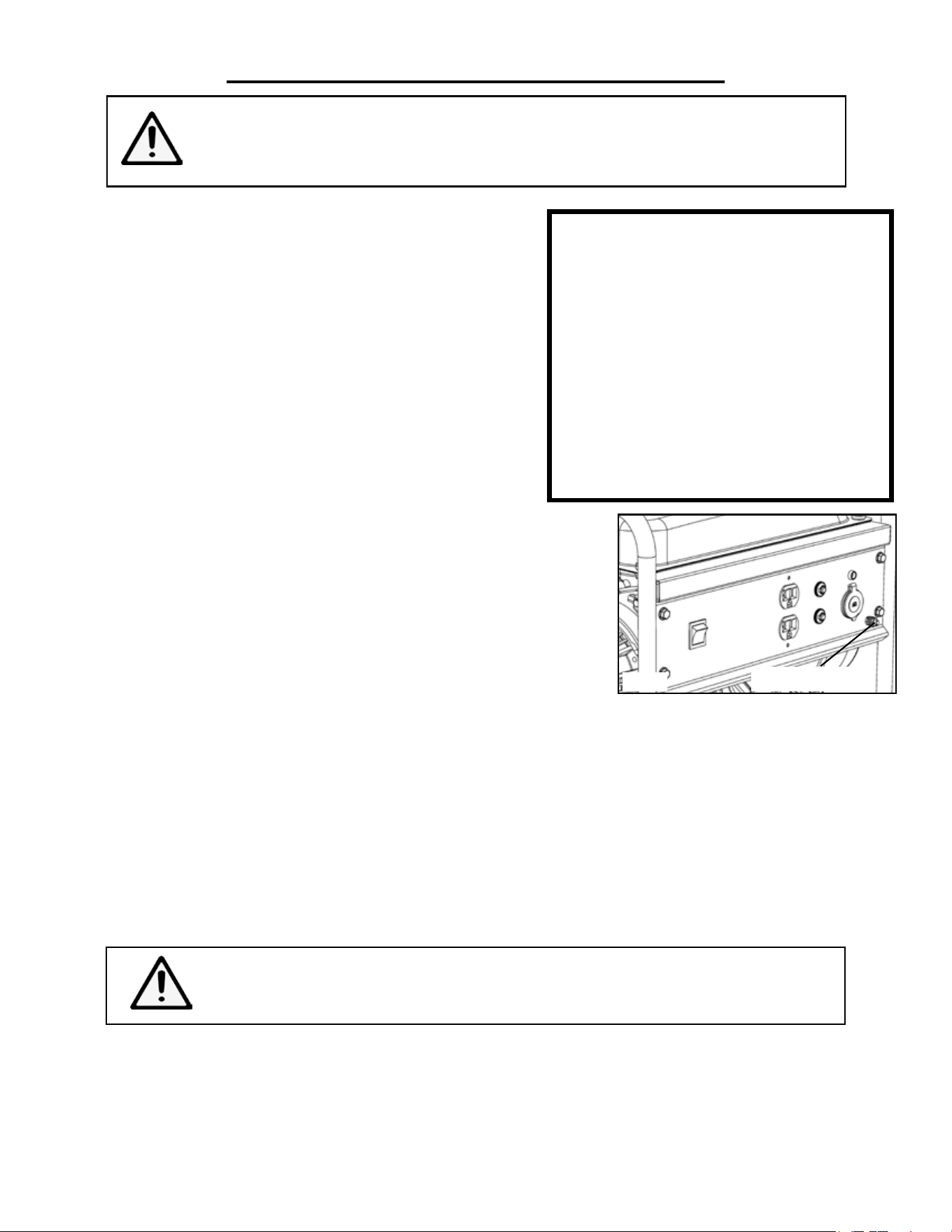

9) ALWAYS ground the generator before using it (see
the “Ground the Generator” portion of the “Genera-
tor Preparation” section).
10) Generator should only be plugged into electri-
cal devices, either directly or with an extension cord.
NEVER connect to a building’s electrical system with-
out a qualified electrician. Such connections must
comply with local electrical laws and codes. Failure to
comply can create a back-feed, which may result in
serious injury or death to utility workers.
11) Use a ground fault circuit interrupter (GFCI) in
highly conductive areas such as metal decking or steel
work. GFCIs are available in-line with some extension
cords.
12) Do not touch bare wires or receptacles (outlets).
13) Do not allow children or non-qualified persons to
operate the generator.
GENERATOR SAFETY RULES:
6
SAVE THESE INSTRUCTIONS – This manual contains important instructions for the WEN
generator that
should be followed during installation and maintenance of the generator.
Generators vibrate in normal use. During and after the use of the generator, inspect both the generator as well as
extension and power supply cords for damage resulting from vibration. Have damaged items repaired or replaced
as necessary. Do not use plugs or cords that show signs of damage such as broken or cracked insulation.
For power outages, permanently installed stationary generators are better suited for providing backup power to the
home. Even a properly connected portable generator can become overloaded. This may result in overheating or
stressing of the components, possibly leading to a generator failure.
SAFETY INFORMATION
WARNING: This generator produces heat when running. Temperatures
near exhaust can exceed 150
0
F (65
0
C).
14) Do not touch hot surfaces. Pay attention to warn-
ing labels on the generator identifying hot parts of
the machine.
15) Allow generator to cool down after use before
touching engine or areas of the generator that be-
come hot during use.
16) Only use generator for its intended purposes.
17) Operate only on dry, level surfaces.
18) Allow generator to run for several minutes be-
fore connecting electrical devices.
19) Shut off and disconnect any malfunctioning de-
vices from generator.
20) Do not exceed the wattage capacity of the generator
by plugging in more electrical devices than the unit can
handle.
21) Do not turn on electrical devices until after they are
connected to the generator.
22) Turn off all connected electrical devices before stop-
ping the generator.
23) Turn the engine switch to “OFF” position when the
engine is not running.
GENERATOR SAFETY RULES (CONTINUED):
CAUTION: Misuse of this generator can
damage it or shorten its life.
WARNING: If this generator is used as a supply for a building’s wir-
ing system, the generator must be installed by a qualified electrician and
connected to a transfer switch as a separately derived system in accor-
dance with the National Electrical Code, NFPA 70. The generator shall
be connected to a transfer switch that switches all conductors excluding
the equipment grounding conductor. The frame of the generator shall
be connected to an approved grounding electrode.
12
H
G
F
E
D
C
B
A
J
K
L
M
N
P
Q
R
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
1110987654321 13 14 15 16 17 18 19 20 21 22 23 24
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
20
KJ1500B
:
A0
SHEET 1 OF 1:1.5:1
:
: °
::
mm
:
:
: mm
7

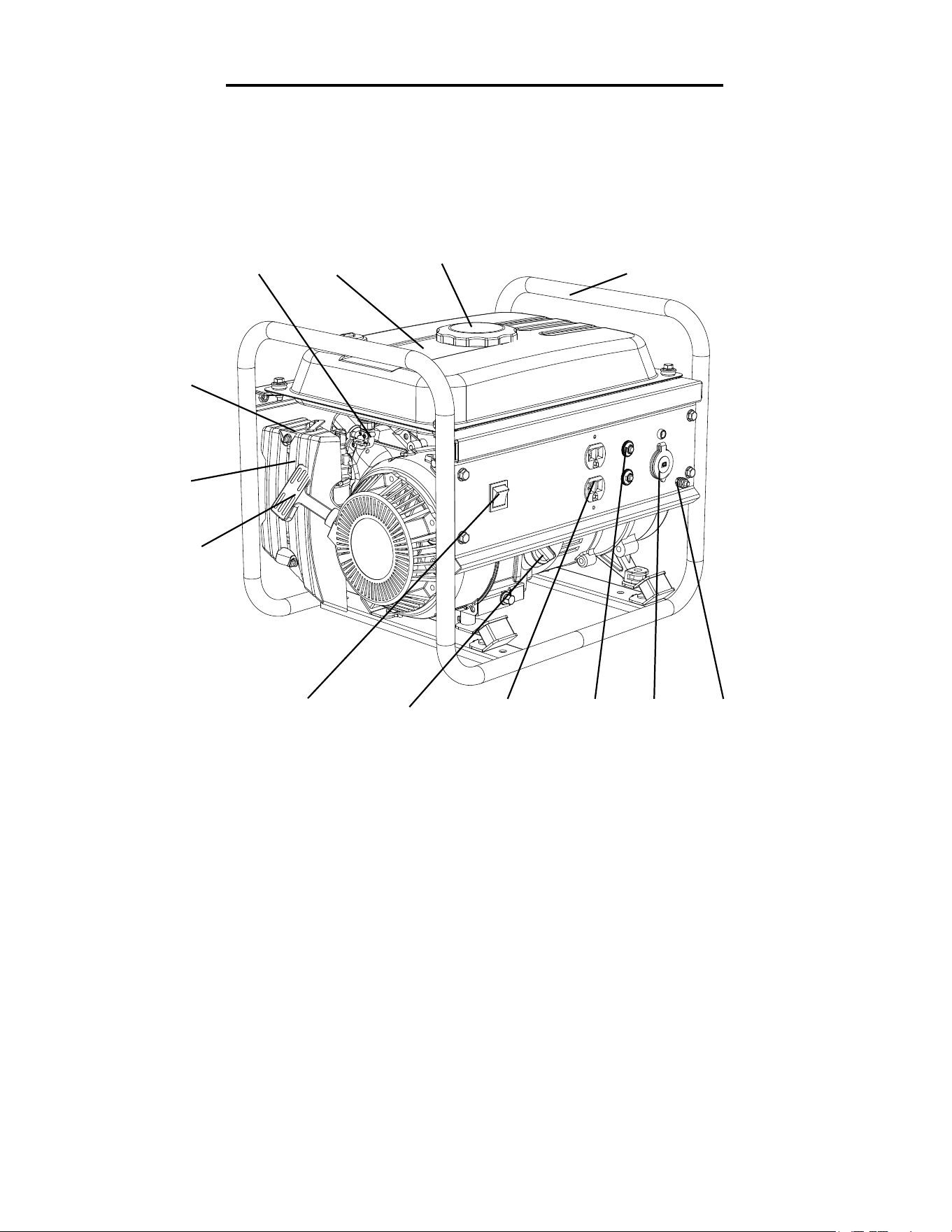

Use the illustrations below to become familiar with the locations and functions of the various components and con-
trols of this generator. Take out all accessories from the box, making sure it is completely empty before discarding
the package.
GENERATOR COMPONENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
Frame
Fuel Tank Cap
Fuel Tank
Fuel Valve Assembly
Choke Lever
Air Cleaner
Recoil Starter
8
9
10
11
12
13
ON/OFF Switch
Oil Dipstick
120V Duplex Receptacle
Circuit Breakers
12V Cigarette Lighter Style DC Receptacle
Grounding Terminal
USING THE GENERATOR FOR THE FIRST TIME
CAUTION: The following section describes the necessary steps to prepare the generator for use. If after reading
this section, you are unsure about how to perform any of the steps please call (800) 232-1195 M-F 8-5 CST for
customer service. Failure to perform these steps properly can damage the generator or shorten its life.
STEP 1 - ADD OIL
The generator is shipped without oil. User must add the proper amount of oil before operating the generator for
the first time. The oil capacity of the engine crankcase is 13.5 fl. ounces. For general use (above 40° F), we recom-
mend 30W, 4-stroke engine oil. 10W-30 synthetic oil is also acceptable.
88
Oil Dipstick
GENERATOR PREPARATION
Fig. 2 - Oil Fill Opening, Dipstick and Oil Level
To add oil, follow these steps:
Note: make sure the generator is on a level
surface. Tilting the generator to assist in
filling will cause oil to flow into the engine
areas and will cause damage. Keep the
generator level!
1. Remove the dipstick from the engine
(Fig. 2).
2. Add oil slowly, being careful not to
overfill the unit. We highly recommend
using a funnel if you have one available.
Fill the crank case to the upper fill line so
the oil lands about halfway up the dipstick
threads (Fig. 2).
3. To check the oil level, wipe the dipstick
with a clean rag. Insert the dipstick into
the oil fill opening without screwing it in.
Remove the dipstick to check the oil mark.

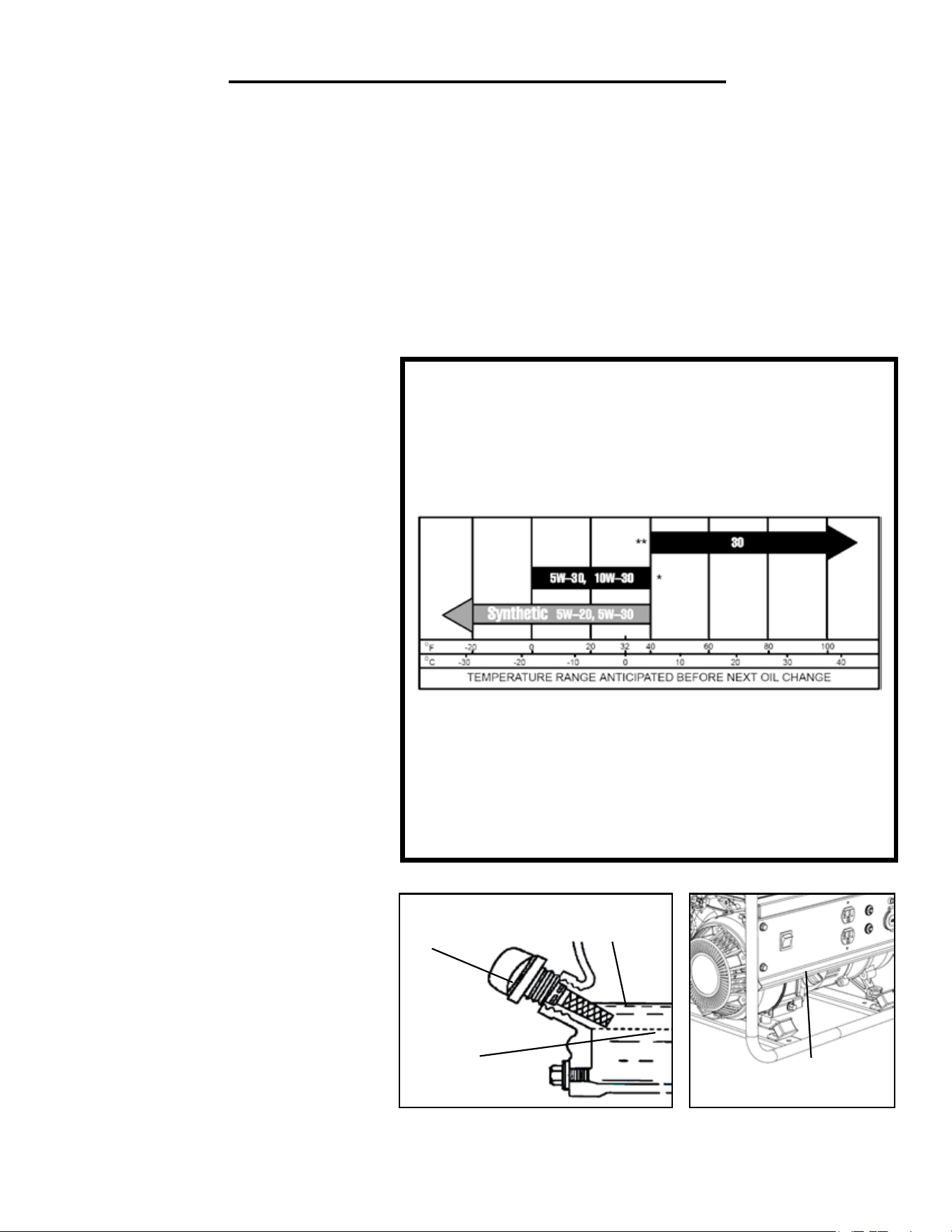

Fig. 1 - Engine Oil Temperature Recommendation
CAUTION: Air cooled engines run hotter than automotive
engines. The use of non-synthetic multi-viscosity oils (5W-30,
10W-30, etc.) in temperatures above 40° F will result in higher
than normal oil consumption. When using a multi-viscosity oil,
check the oil level more frequently than you would otherwise.
ENGINE OIL RECOMMENDATIONS
Select good quality detergent oil bearing the American Petro-
leum Institute (API) service classifications SJ, SL, or SM (syn-
thetic oils may be used). Use the ASE viscosity grade of oil from
the following chart (Fig. 1) that matches the starting temperature
anticipated before the next oil changes.
Oil
Dipstick
Lower Level
Fill Line
Upper Level
Fill Line
4. Slowly add more oil and repeat step 4
until the oil mark reaches to the top of
the dipstick, or just when the oil is visibly
coming up the bottom threads (Fig. 2). Do
not overfill the crankcase. The generator is
equipped with a low-oil sensor and will not
start without a sufficient amount of oil.
5. Check for oil leaks and firmly tighten the
dipstick.
NOTE: After completing the above preparation, the generator is ready to be started.
Step 2 - ADD GASOLINE
Use fresh (within 30 days from purchase), lead-free gasoline
with a minimum of 87 octane rating. Do not mix oil with gaso-
line.
To add gasoline, follow these steps:
1. Make sure the generator is on a level surface.
2. Unscrew fuel cap and set aside.
NOTE: The fuel cap may be tight and hard to unscrew.
WARNING: Failure to properly ground the generator increases your risk of electric
shock.
3. Slowly add unleaded gasoline to the fuel tank. Be careful not to over-
fill. The capacity of the fuel tank is 1.1 gallons.
NOTE: Do not fill the fuel tank to the very top. Gasoline will expand and
spill over during use even with the fuel cap in place.
4. Reinstall fuel cap and wipe clean any spilled gasoline with a dry cloth.
STEP 3 - GROUND THE GENERATOR
9
Grounding Nut
GENERATOR PREPARATION
Fig. 3
WARNING: This generator may emit highly flammable and explosive gasoline vapors,
which can cause severe burns or even death if ignited. A nearby open flame can lead to
explosion even if not directly in contact with gasoline.
IMPORTANT:
• Never use an oil/gasoline mixture.
• Never use old gasoline.
• Avoid getting dirt or water into the fuel
tank.
• Gasoline can age in the tank and make
starting difficult. Never store generator
for extended periods of time with fuel
in the tank.
Ground the generator by tightening the grounding nut on the front control panel against a grounding wire (Fig. 3). A
generally acceptable grounding wire is a No. 12 AWG (American Wire Gauge) stranded copper wire. This ground-
ing wire should be connected at the other end to a copper, brass, or steel-grounding rod that is driven into the earth.
Wire and grounding rods are not included with the generator.
Grounding codes can vary by location. Contact a local electrician to check the area codes.
10
ALWAYS ground the generator before using it (see the “Ground the Generator” portion of the “Generator
Preparation” section).
Generator should only be plugged into electrical devices, either directly or with an extension cord. NEVER
connect to a building electrical system without a qualified electrician. Such connections must comply with local
electrical laws and codes. Failure to comply can create a back-feed, which may result in serious injury or death to
utility workers.
Use a ground fault circuit interrupter (GFCI) in highly conductive areas such as metal decking or steel work. GF-
CIs are available in-line with some extension cords.
Do not use in rainy or wet conditions. Do not touch bare wires or receptacles (outlets). Do not allow children or
non-qualified persons to operate.
CAUTION: Disconnect all electrical loads from the generator before
attempting to start.
DANGER: CARBON MONOXIDE - USING A GENERATOR INDOORS CAN KILL
YOU IN MINUTES.
Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monox-
ide (CO). This is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are
breathing CO. But even if you cannot smell the exhaust, you could be breathing CO.
NEVER use a generator inside homes, garages, crawl spaces, or other partially enclosed areas. Deadly
levels of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does
NOT supply enough fresh air. ONLY use a generator outside and far away from windows, doors, and
vents. These openings can pull in generator exhaust.
Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or
battery-backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been
running, move to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
WARNING: The exhaust from this product contains chemicals known to the State of Califor-
nia to cause cancer, birth defects, or other reproductive harm.
WARNING: This generator may emit highly flammable and explosive gasoline vapors, which
can cause severe burns or even death if ignited. A nearby open flame can lead to explosion even
if it isn’t directly in contact with gasoline.
Before starting the generator, make sure you have read and performed the steps in the “Generator Preparation”
section of this manual. If you are unsure about how to perform any of the steps in this manual please call (800)
232-1195 M-F 8-5 CST for customer service.
STARTING THE GENERATOR
WARNING: This generator produces powerful voltage, which can
result in electrocution.
11
STARTING THE ENGINE
To start the generator, perform the following steps:
1. Unplug all electrical devices from the generator during ignition. Otherwise it will be difficult for the engine to
start.
2. To maximize safety, make sure the generator is properly grounded (Refer to “Ground the Generator”).
3. Check the oil and fuel levels.
4. Turn the fuel valve to the “ON” position (See Figure 4).
5. Move the choke lever to the “CLOSE” position (See Figure 5).
6. Set the ON/OFF Switch to the “ON” position.
7. Pull on the recoil starter handle slowly until a slight resistance is felt, then pull quickly to start the engine. Re-
turn cord gently into the recoil starter. Never allow the cord to snap back.
8. If engine fails to start, repeat step 7. NOTE: After repeated failed attempts to start the engine, please consult
the troubleshooting guide before attempting again. If problems persist please call (800) 232-1195 M-F 8-5 CST.
9. Once the engine has started, slowly return the choke lever all the way to the “OPEN” position.
10. Allow the engine to run for several minutes before attempting to connect any electrical devices. This allows
the generator to stabilize its speed and temperature.
Allow the generator to run for several minutes before attempting to connect any electrical devices. This allows
the generator to stabilize its speed and temperature.
STARTING THE GENERATOR

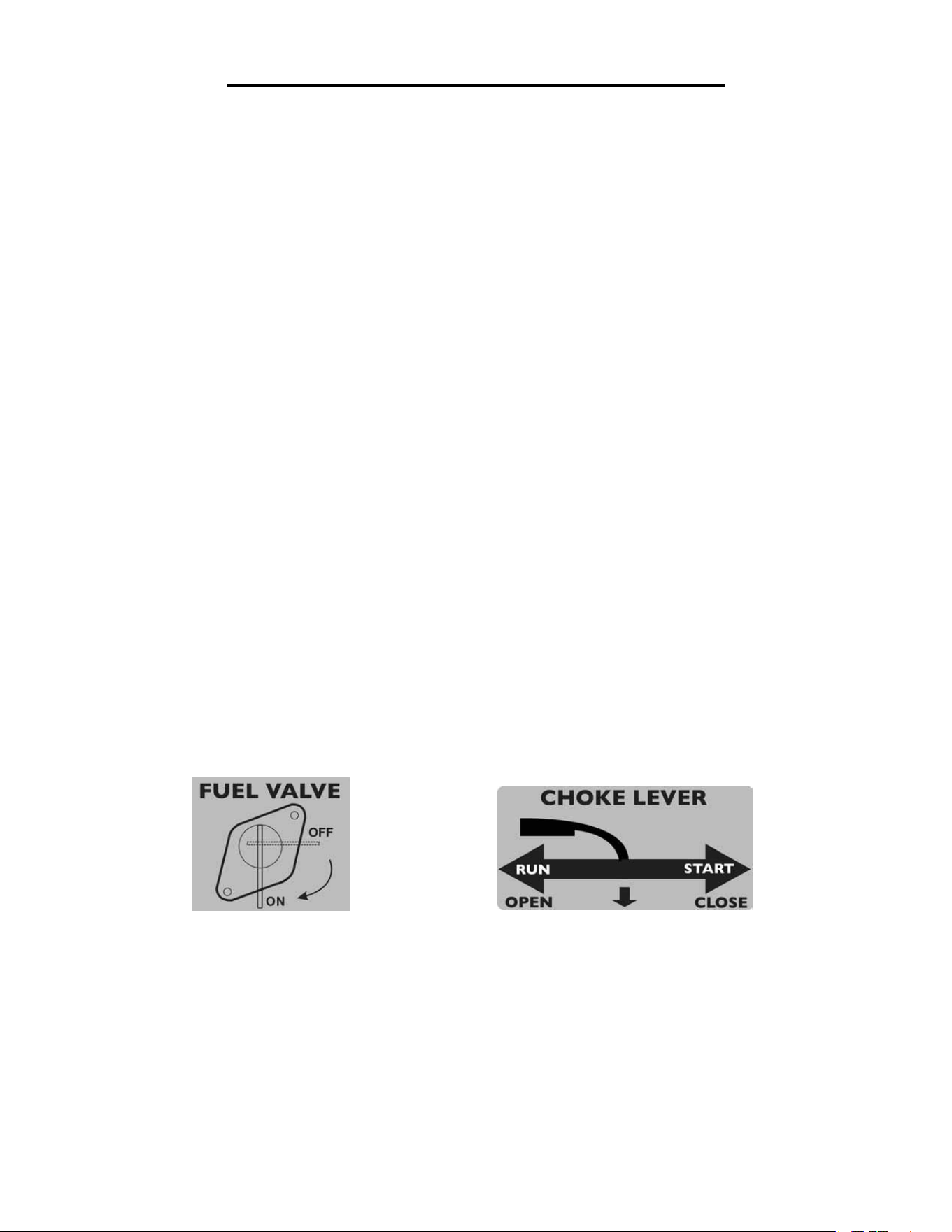

Fig. 4 - Fuel Valve Fig. 5 Choke Lever
12
STOPPING THE GENERATOR
TO STOP THE GENERATOR
1. Turn off all electrical devices prior to unplugging them from the generator. Unplugging running devices can
cause damage to the generator.
2. Turn the engine switch to the “OFF” position.
CAUTION: Allowing gasoline to sit in the fuel tank for long periods of time can make it diffi-
cult to start the generator in the future. Never store the generator for extended periods of time
(over 2 months) with fuel in the fuel tank. Refer to Generator Storage Section.
WARNING: Allow the generator to cool for several minutes before touching areas
that become hot during use.
If this is not the first time using the generator, the user should take the following steps to prepare it for operation.
Step 1 - CHECK THE OIL
Oil consumption is normal during generator use. The generator is equipped with a low oil pressure shutoff to
protect it from damage. The oil level of the engine should be checked before each use to ensure that the engine
crankcase contains sufficient lubricant.
To check or add oil, follow these steps:
1. Make sure the generator is on a level surface.
2. Remove the oil filler/dipstick cap and check the oil level.
3. If oil level is below the second thread from the lip of the oil fill opening, slowly add oil until the engine crank-
case is filled.
4. Reinstall and tighten oil cap before starting the engine.
Step 2 - CHECK THE FUEL LEVEL
Before starting the generator, check to see that there is sufficient gasoline in the fuel tank. Add additional gasoline
as necessary but leave sufficient room in the tank for expansion.
SUBSEQUENT STARTING OF THE GENERATOR
IMPORTANT:
• Use only UNLEADED gasoline.
• Do not use old gasoline.
• Never use an oil/gasoline mixture.
• Avoid getting dirt or water into the fuel tank.
IMPORTANT: At this point the user should be familiar with the procedures described in
the sections titled “Starting the Generator” and “Generator Preparation.” If the user has
not yet read these sections, go back and read them now.
13
Step 3 - GROUND THE GENERATOR
Ground the generator by tightening the grounding nut on the front control panel against a grounding wire (Fig.
3). A generally acceptable grounding wire is a No. 12 AWG (American Wire Gauge) stranded copper wire. This
grounding wire should be connected at the other end to a copper, brass, or steel-grounding rod that is driven into
the earth. Wire and grounding rod are not included in generator contents. Grounding codes can vary by location.
Contact a local electrician for area codes.
WARNING: Failure to properly ground the generator increases the chances of electric
shock.
SUBSEQUENT STARTING OF THE GENERATOR
USING THE GENERATOR
Before connecting electrical devices, allow the generator to run for a few minutes to stabilize the speed and voltage
output.
CAUTION: Become familiar with the markings on the panel before connecting electrical devices.
Connect electrical devices running on AC current according to their wattage requirements. The chart below shows
the rated and surge wattage of the generator.
The rated (running) wattage is the wattage the generator can produce on a continuous basis.
The surge wattage is the maximum amount of power the generator can produce for an extremely short period of
time (seconds). Many electrical devices such as refrigerators require short bursts of extra power in addition to the
rated wattage listed by the device to start their motors. The surge wattage ability of the generator covers this extra
power requirement.
Item Rated (Running) Wattage Surge Wattage
56180 1800 1500
The total running wattage requirement of the electrical devices connected to the generator should not exceed the
rated wattage of the generator itself. To calculate the total wattage requirement of the electrical devices you plan
to connect, find the rated (or running) wattage of each device. This number should be listed somewhere on the
device or in its instruction manual. If this wattage cannot be found, calculate it by multiplying the Voltage require-
ment by the Amperage drawn:
Watts = Volts x Amperes
14
USING THE GENERATOR
Tool or Appliance Running Watts Surge Watts
Saw - circular 1500 1500
Air compressor (1 HP) 1500 3000
Window air conditioner 1200 1800
Saw - miter 1200 1200
Microwave 1000 0
Well water pump 1000 1000
Saw - reciprocating 960 1040
Sump pump 800 1200
Refrigerator freezer 800 1200
Furnace blower 800 1300
Computer 800 0
Electric drill 600 900
Television 500 0
Deep freezer 500 500
Garage door opener 480 0
Stereo 400 0
Box fan 300 600
Clock radio 300 0
Security system 180 0
DVD player / VCR 100 0
Common light bulb 75 0
Fig. 6 - Estimated wattage requirements of common electrical devices
If the electrical specifications are not available for your electronic devices, estimate the watts requirement of the
device by using the chart in Figure 6.
When the rated wattage requirement of each electrical device has been determined, add these numbers to find
the total rated wattage needed. If this number exceeds the rated wattage of the generator, DO NOT connect all
these devices. Select a combination of electrical devices, which have a total rated wattage lower than or equal to
the rated wattage of the generator.
CAUTION: The generator can run at its surge wattage capacity for only a short time. Connect electrical devices
requiring a rated (running) wattage equal to or less than the rated wattage of the generator. Never connect devices
requiring a rated wattage equal to the surge wattage of the generator. This can trip the circuit protectors (circuit
breakers).
Note: The above wattage figures are estimates. Check the wattage listed on the electrical device before consulting
this chart. Once the electrical devices have been chosen, connect them according to the following procedure:
1. Plug in each electrical device, making sure that the device is turned off.
2. Check power indicator light. The generator may be overloaded. If so, unplug the electronics, then restart the
generator before plugging the load back in. If the reset button does not reset, wait several minutes and try again. If
the power light still does not come on, call the customer service number for further instructions.
15
USING THE GENERATOR
CAUTION: Do not connect 50Hz loads to the generator.
SOME NOTES ABOUT POWER CORDS: Long or thin cords can drain the power provided to an electrical
device by the generator. When using such cords, allow for a slightly higher rated wattage requirement by the elec-
trical device. See Figure 7 for recommended cords based on the power requirement of the electrical device.
Device Requirements
Max. Cord Length (ft) by Wire Gauge
Amps Watts (120V) #8 wire #10 wire #12 wire #14 wire #16 wire
2.5 300 NR NR NR 375 250
5 600 NR NR 300 200 125
7.5 900 NR 350 200 125 100
10 1200 NR 250 150 100 50
15 1800 NR 150 100 65 NR
*NR = Not Recommended Fig. 7 - Maximum Extension Cord Lengths by Power Requirement
MAINTENANCE/CARE
Proper routine maintenance of the generator will help prolong the life of the machine. Please perform mainte-
nance checks and operations according to the schedule in Figure 8. If there are any questions about the mainte-
nance procedures listed in this manual, please call (800) 232-1195 M-F 8-5 CST.
CAUTION: Never perform maintenance operations while the generator is running. Drain your carburetor after
every use. Do not store the generator with fuel inside the tank for more than 2 months. Run the generator for 15
minutes a month to maximize its lifespan.
Recommended
Maintenance Schedule
Each 8
hours or
daily
Every 25
hours
Every 3
months or
50 hours
Every 6
months or
100 hours
Every
year
As neces-
sary
Engine oil
Check
level
x
Replace x* x* x
Air cleaner
cartridge
Check x x
Clean x
Spark plug
Check/
clean/
regap
x
Change x x
Fuel tank
Check
level
x
Clean x
Carburetor Drain x
Fig. 8 - Recommended maintenance schedule
* Clean/change more often under dusty conditions or operating under heavy load.
If an overload occurs, shut down the generator. Unplug all electrical devices and wait five minutes. Then, start the
unit back up again to get power back.
16
MAINTENANCE
HIGH ALTITUDE OPERATION ABOVE 2000 FEET
The fuel system on this generator may be affected by operation at high altitudes. Proper operation can be ensured
by installing an altitude kit at altitudes higher than 2000 feet above sea level. At elevations above 8000 feet, the
engine may experience a decrease in performance, even with the proper altitude kit. Operating this generator
without said kit may increase the engine’s emissions and decrease both fuel economy and performance.
The kit should be installed by a qualified mechanic. Refer to the instructions included with your altitude kit for
more information about installation. You can order the kit at wenproducts.com by searching part 56180-HA27 for
2000 to 7000 feet above sea level.
CLEANING THE GENERATOR
Never clean the generator when it is running! Never clean with a bucket of water or a hose. Water can get inside
the working parts of the generator and cause corrosion or a short circuit.
Always try to use the generator in a cool, dry place. If the generator becomes dirty, clean the exterior with a damp
cloth, a soft brush, a vacuum or pressurized air.
CHECKING THE OIL
Check the oil level of the generator according to the Recommended Maintenance Schedule in Fig. 9. The genera-
tor is equipped with an automatic shutoff to protect it from running on low oil. The generator should be checked
before each use for proper oil level. This is a critical step for proper engine starting. To check the oil level:
Fig. 9
WARNING: To prevent serious injury from fire, follow the kit installation proce-
dures in a well-ventilated area away from ignition sources. If the engine is hot from
use, shut the engine off and wait for it to cool before proceeding. Do not smoke near
the generator. Warranty will be void if adjustments are not made for high altitude use.
1. Make sure the generator is on a level surface.
2. Open access panel. Clean around oil fill. Remove dipstick and wipe the
dipstick with a clean rag. Insert the dipstick into the oil fill opening without
screwing in. Remove the dipstick to check the oil mark. Add oil if the oil
mark covers less than one half of the dipstick.
3. Slowly add more oil and repeat step 2 until the oil mark reaches to the
top of dipstick (Fig. 2). Do not over fill the crankcase.
4. Reinstall oil dipstick and access panel.

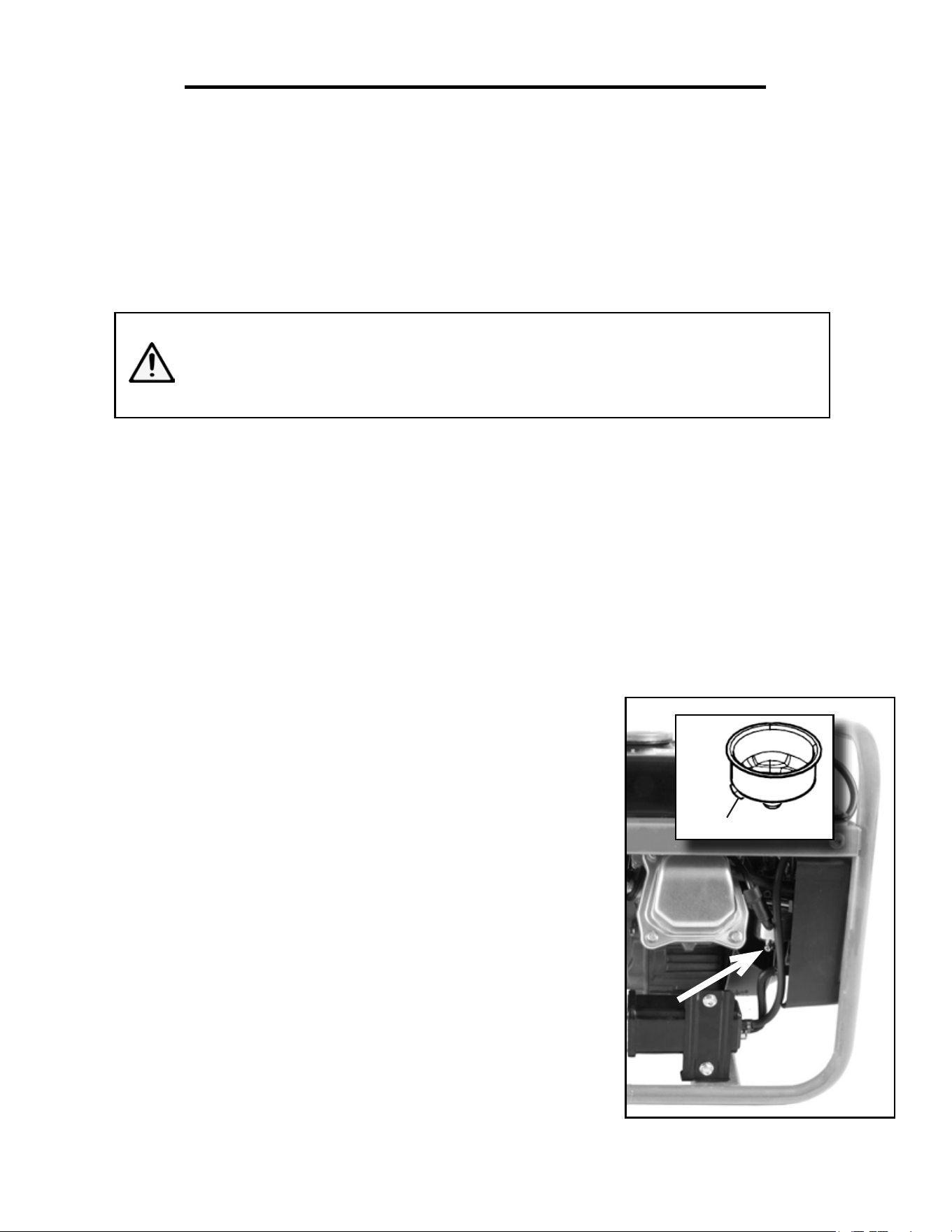

DRAINING THE CARBURETOR
The carburetor drain can be accessed from the backside of the genera-
tor between the air filter assembly and the engine (Fig. 9). After each use,
open up the carburetor drain with a screwdriver and drain out any gasoline
that has built up inside. Once the fuel has drained, close the drain back up
with the same screwdriver. It is best to do this after every use and required
before storing the generator for long periods of time.
NOTE: WE SUGGEST RUNNING YOUR GENERATOR AT LEAST ONCE A
MONTH IN ORDER TO MAXIMIZE THE LIFESPAN OF THE GENERATOR.
Carburetor
Drain
Unscrew to Drain
17
MAINTENANCE
CHANGING/ADDING OIL
Change the oil according to the Recommended Maintenance Schedule in Figure 9. Change the oil when the en-
gine is warm. This will allow for complete drainage. Change oil more often if operating under heavy load or high
ambient temperatures. It is also necessary to drain the oil from the crankcase if it has become contaminated with
water or dirt. The oil capacity of the generator engine is 13.5 fl. ounces. Add oil when the oil level is low. For
proper type and weight of oil refer to “add oil” portion of the “Generator Preparation” section.
1. Place generator on elevated platform such as table or desk. Put a container next to it to hold the used oil. Turn
the vacuum relief valve to “OFF” position.
2. Unscrew the dipstick from the engine and set aside.
3. Tilt the generator so the used oil flows from the engine into the container. Tilt some more to ensure all oil is
out of the crankcase.
4. Fill the crankcase with fresh oil and reinstall the dipstick. Clean any oil spillage..
To rell the crankcase with oil, follow these steps:
1. Make sure the generator is on a level surface. Tilting the generator to assist in filling will cause oil to flow into
engine areas and will cause damage. Keep generator level!
2. Remove the dipstick from the engine.
3. Using a funnel or appropriate dispenser, add the correct amount of oil into the crankcase. The engine is
equipped with a low oil pressure sensor and will not start if the amount of oil is insufficient.
4. Reinstall dipstick.
NOTE: Never dispose of used motor oil in the trash or down a drain. Please call a local recycling center or auto
garage to arrange oil disposal.

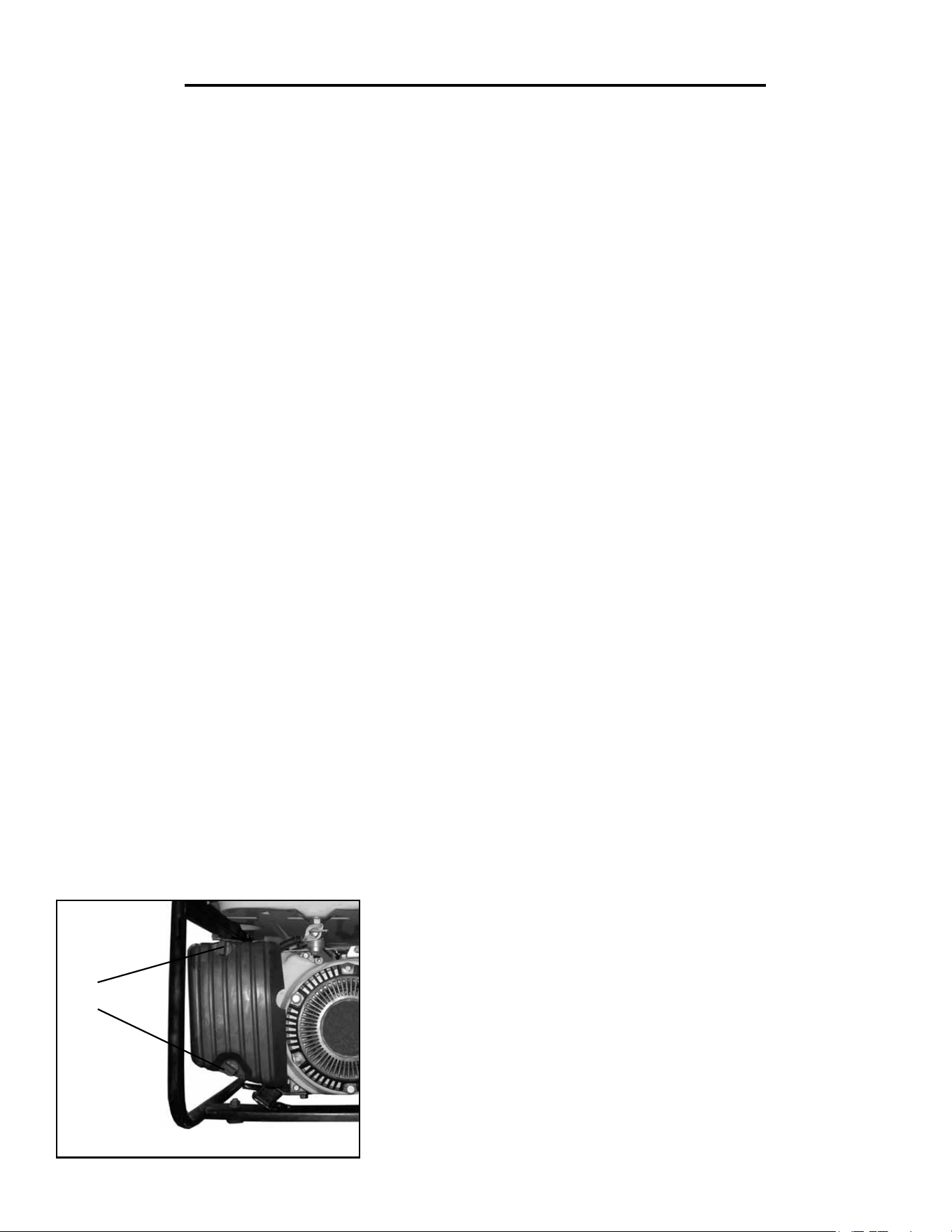

AIR CLEANER MAINTENANCE
Routine maintenance of the air cleaner helps maintain proper airflow to the carburetor. Occasionally check that
the air cleaner is free of excessive dirt. Refer to Recommended Maintenance Schedule in Figure 8.
1. Unscrew the cover bolt (Fig. 10) and remove the air cleaner cover.
Remove the air cleaner element from the casing.
2. Check and clean the foam air cleaner element. Replace with a new
one if the element is damaged. Good elements can be washed in soapy
water, dried and reused. There is no need to add oil to the element.
Wipe off excessive oil from the air cleaner case. Small amount of oil in
the element is normal and necessary for the engine to work properly.
3. Reinstall the air cleaner element and cover.
Fig. 10 - Air Cleaner
Cover Bolt
DRAINING THE FUEL TANK
Clean fuel tank each year and before storing the generator for longer than one to two months. To drain the fuel
tank and carburetor:
18
SPARK PLUG MAINTENANCE
The spark plug is important for proper engine operation. A good spark plug should be intact, free of deposits,
and properly gapped. Refer to Recommended Maintenance Schedule in Figure 9. To inspect the spark plug:
1. Remove spark plug boot. Be careful not to tear insulation or wire.
2. Unscrew the spark plug from the engine using the spark plug wrench provided. There is limited space for the
wrench to turn. Use both rows of holes in the spark plug wrench to gain leverage to loosen the plug.
3. Visually inspect the spark plug for cracks or excessive electrode wear. Replace as necessary.
4. Measure the plug gap with a wire gauge. The gap should be 0.7 to 0.8 mm (0.028-0.031 in).
5. If re-using the spark plug, use a wire brush to clean any dirt from around the spark plug base then re-gap the
spark plug.
6. Screw the spark plug back into the spark plug hole using the spark plug wrench. Do not over-tighten spark
plug. Recommended tightening of spark plug is ½ to ¾ of a turn after spark plug gasket contacts spark plug hole.
Reinstall the spark plug boot.

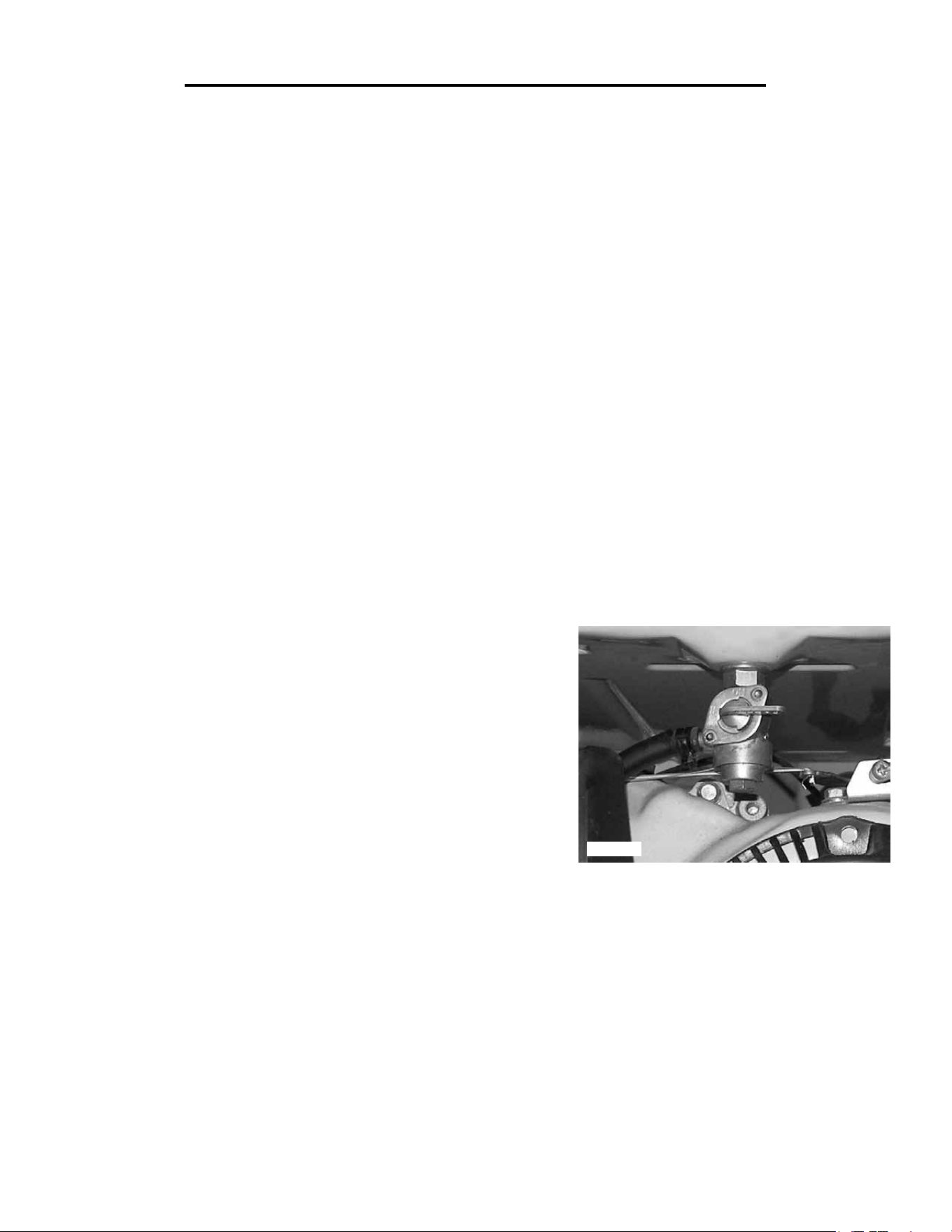

FUEL FILTER CUP CLEANING
The fuel filter cup is a small well underneath the fuel valve. It helps to trap dirt and water that may be in the fuel
tank before it can enter the engine. To clean the fuel filter cup:
1. Turn the fuel valve to the “OFF” position.
2. Unscrew the fuel filter cup from the fuel valve using a wrench. Turn the valve toward you and unscrew (Fig. 11).
3. Clean the cup of all sediments using a rag or brush.
4. Reinstall the fuel filter cup.
MAINTENANCE
Fig. 11
1. Remove the fuel cap; carefully turn the generator over to pour the
gasoline in the fuel tank to appropriate container.
2. Once fuel is drained, reinstall the fuel cap.
3. Turn on the engine and keep the engine running until it stops.
This burns out the fuel in the carburetor and fuel tank.
4. Store the emptied gasoline in a suitable place.
CAUTION: Do not store fuel for more than two months.
19
DC output
Rated Voltage 12V DC
Rated Amperage 8.3 A
Rated Wattage 100 W
AC output
Rated Wattage 1500 Watts
Surge Wattage 1800 Watts
Rated Voltage 120V
Rated Amperage 12.5 A
Frequency 60 Hz
Phase Single
Dimensions
Length: 19.90 inches
Width: 15.90 inches
Height: 17.10 inches
Weight 51 lbs
Engine
Engine type 4 stroke, OHV, single cylinder with forced air cooling system
Spark plug gap 0.7 - 0.8 mm (0.028 - 0.031 in)
Spark plug torque 1/2 - 3/4 turn after gasket contacts base or 15 ft.lb
Displacement 98 cc
Fuel tank capacity 1.1 gallon 87 octane minimum
Oil capacity 13.50 fl.oz
Lubrication system Splash lubrication
Run time on 50% load 7.5 hours
Noise rating 63 dB at 22 feet
Spark plug NGK BP7HS
SPECIFICATIONS
STORAGE & TRANSPORT PROCEDURES
CAUTION: Never place any type of storage cover on the generator while it is still hot.
If the generator is being stored for short periods of time (30 to 60 days), add stabilized fuel to the fuel tank until
full. NOTE: Filling the tank reduces the amount of air in the tank and helps fight deterioration of fuel. Run the
engine for 2 – 3 minutes allowing stabilized fuel mixture to circulate through the carburetor. Never store with fuel
in the tank for more than two months. When storing the generator for extended periods of time:
• Drain the fuel tank (see “Draining the Fuel Tank” in the “Maintenance” section).
• Drain the carburetor (see “Draining the Carburetor” in the Maintenance section).
• Change oil.
• Do not obstruct any ventilation openings.
• Keep the generator in a cool dry area.
When transporting generator:
• Drain the fuel tank if possible (see “Draining the Fuel Tank” in the “Maintenance” section).
• Keep the generator upright. Never place the generator side down. Doing so will make it difficult to start.
20
EXPLODED VIEW AND PARTS LIST
21
EXPLODED VIEW AND PARTS LIST
No. Part Number Description
1 56180-001 Fuel Cap
2 56180-002 Fuel Filter
3 56180-003 Fuel Tank
4 56180-004 Fuel Cock
5 56180-005 Frame
6 56180-006 Resilient Mount
7 56180-007 Rubber Foot
8 56180-008 Rubber Spacer
9 56180-009 Front Case
9.1 56180-009.1 Bolt M8x20
10 56180-010 Bearing 6202
11 56180-011 Bolt M8x168
12 56180-012 Motor Housing
13 56180-013 End Cover
13.1 56180-013.1 Bolt M6x12
14 56180-014 Alternator Assembly
15 56180-015 Stator
15.1 56180-015.1 Rotor
16 56180-016 Panel Rear Cover
17 56180-017 Rectifier
18 56180-018 Capacitor
19 56180-019 Control Panel
20 56180-020 AC Circuit Protector
21 56180-021 DC Circuit Protector
22 56180-022 Duplex Receptacle
No. Part Number Description
23 56180-023 Bracket
24 56180-024 12V DC Receptacle
25 56180-025 Engine Switch
26 56180-026 Fuel Hose
26.1 56180-026.1 Fuel Hose Clamp
26.2 56180-026.2 Catalyst
26.3 56180-026.3 Hose
26.4 56180-026.4 Hose
26.5 56180-26.5 Gas Line Clip
27 56180-027 One Way Valve
28 56180-028 Bolt
29 56180-029 Nut
30 56180-030 Bolt
31 56180-031 Washer
32 56180-032 Nut
N/A 56180-033.3 Muffler Gasket
33 56180-033 Muffler Assembly
33.1 56180-033.1 Spark Arrestor
33.2 56180.033.2 Muffler Bracket
34 56180-034 Fuel Hose
35 56180-035 Fuel Tank Support
36 56180-036 Blot
37 56180-037 Engine Assembly
38 56180-038 Grounding Terminal
39 56180-039 Bolt M6x96
22
EXPLODED VIEW AND PARTS LIST
23
EXPLODED VIEW AND PARTS LIST
No. Part Number Description
67 56180-067 Crankcase Gasket
68 56180-068 Crankcase Cover
69 56180-069 Dipstick
70 56180-070 Oil Seal
71.0 56180-070.0 Air Cleaner Assembly
71 56180-071 Screw
72 56180-072 Air Cleaner Housing
73 56180-073 Foam Element
74 56180-074 Support Pack
75 56180-075 Air Cleaner Cover
76 56180-076 Hose
77 56180-077 Regulator gear assembly
79 56180-079 Carburetor
80 56180-080 Carburetor Spring
81 56180-081 Link Rod
82 56180-082 Governor Spring
83 56180-083 Governor Arm
84 56180-084 Intake Insulator
85 56180-085 Intake Valve Gasket
86 56180-086 Governor Bracket
87 56180-087 Piston Ring I
88 56180-088 Piston Ring II
89 56180-089 Piston Ring III
90 56180-090 Piston Axes
91 56180-091 Piston Axes Ring
92 56180-092 Bearing
93 56180-093 Oil Alert Assembly
94 56180-094 Gulp Valve System
95 56180-095 Gulp Valve Gasket
96 56180-096 Gulp Valve Connection Plate
97 56180-097 Bolt M6X16
No. Part Number Description
40 56180-040 Ignition Coil Assembly
41 56180-041 Head Cover Gasket
42 56180-042 Cylinder Head Cover
43 56180-043 Intake Valve
44.1 56180-044.1 Push Rod Guide Plate
44.2 56180-044.2 Rocking Arm Stand
44.3 56180-044.3 Rocking Arm
44.4 56180-044.4 Adjust Nut
44.5 56180-044.5 Lock Nut
45 56180-045 Exhaust Valve
46 56180-046 Valve Spring
47 56180-047 Valve Spring Retainer
48 56180-048 Fan
49 56180-049 Flywheel
50 56180-050 Crankshaft
51 56180-051 Connecting Rod Assembly
52 56180-052 Piston Assembly
53 56180-053 Cylinder Head Assembly
54 56180-054 Cylinder Head
55 56180-055 Crankcase
56 56180-056 Spark Plug
57 56180-057 Recoil Starter
58 56180-058 Fan Cover
59 56180-059 Flange Nut M12x1.25
60 56180-060 Starting Cup
61 56180-061 Drain Bolt
62 56180-062 Washer
63 56180-063 Camshaft Assembly
64 56180-064 Bearing
65 56180-065 Valve Lifter
66 56180-066 Push Rod
N/A 56180-098 Power Light Indicator
24
WIRING DIAGRAM
25
TROUBLESHOOTING
IMPORTANT: If trouble persists, please call our customer help line at (800) 232-1195 M-F 8-5 Central Time.
PROBLEM CAUSE SOLUTION
Engine will not start. Engine switch is set to OFF. Set engine switch to ON.
Fuel valve is turned to OFF. Turn fuel valve to ON position.
Choke is open. Close the choke.
Engine is out of gas. Add gas.
Engine is filled with contaminated
or old gas.
Change the gas in the tank.
Spark plug is dirty. Clean the spark plug.
Spark plug is broken. Replace spark plug.
Generator is not on a level surface. Move the generator to a level surface to pre-
vent low oil shutdown from triggering.
Oil is low. Add or replace oil.
Carburetor is air locked. Shut off the gas valve and remove the screw
from the bottom of the carburetor to allow it
to reset.
Engine runs but there is
no electrical output.
Circuit reset button is off. Wait for two minutes and push the circuit
reset button to the ON position.
Bad connecting wires/cables. If you are using an extension cord, use a dif-
ferent one.
Bad electrical device connected to
the generator.
Try connecting a different device.
Generator runs but does
not support all electrical
devices connected.
Generator is overloaded. Perform these steps:
1. Turn off all electrical devices.
2. Unplug all electrical devices.
3. Turn off generator.
4. Wait several minutes.
5. Restart generator.
6. Try connecting few electrical loads to the
generator.
Short in one of the devices. Try disconnecting any faulty or short-circuited
electrical loads.
Air cleaner is dirty. Clean or replace air cleaner.
DC No Power Power cord plug not securely in
place.
Twist and push the power cord plug into re-
ceptacle until contact is made with bottom of
the receptacle.
Protective fuse is blown. Contact our customer service help line at
800-232-1195.
26
WARRANTY STATEMENT
Remember to save the receipt and to accurately fill out and mail the product registration card. Proof of purchase
is required for all warranty work.
WEN® Generators are under warranty to be free from defects in materials and workmanship for a period of two
(2) years from date of original purchase. Generators used for Commercial or Rental use have a warranty period of
90 days from date of original purchase. Keep purchase receipt and mail in the product registration card for proof
of purchase.
WEN® will repair or replace, at its discretion, any part that is proven to be defective in materials or workman-
ship under normal use during the two (2) years warranty period. Warranty repairs or replacements will be made
without charge for parts or labor. Parts replaced during warranty repairs will be considered as part of the original
product and will have the same warranty period as the original product.
To exercise the warranty, DO NOT RETURN TO RETAILER. Instead, call the toll free Customer Service
number at (800) 232-1195 and you will be instructed on where to take the generator for warranty service. Take
the generator and proof of purchase (the receipt) to the repair facility recommended by the Customer Service
Representative. To make a claim under this Limited Warranty, you must make sure to keep a copy of your proof
of purchase that clearly defines the Date of Purchase (month and year) and the Place of Purchase. Place of pur-
chase must be a direct vendor of Great Lakes Technologies, LLC. Third party vendors such as garage sales, pawn
shops, resale shops, or any other secondhand merchant void the warranty included with this product. Contact
[email protected] or 1-800-232-1195 to make arrangements for repairs and transportation.
When returning a product for warranty service, the shipping charges must be prepaid by the purchaser. The prod-
uct must be shipped in its original container (or an equivalent), properly packed to withstand the hazards of ship-
ment. The product must be fully insured with a copy of the warranty card and/or the proof of purchase enclosed.
There must also be a description of the problem in order to help our repairs department diagnose and fix the
issue. Repairs will be made and the product will be returned and shipped back to the purchaser at no charge.
THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS THAT WEAR OUT FROM
REGULAR USAGE OVER TIME INCLUDING BELTS, BRUSHES, BLADES, ETC.
The warranty does not extend to generators damaged or affected by fuel contamination, accidents, neglect, mis-
use, unauthorized alterations, use in an application for which the product was not designed and any other modifi-
cations or abuse. Labor for warranty parts is only covered for the contiguous United States (48 states).
WEN® is not liable for any indirect, incidental or consequential damages from the sale or use of this product.
Any implied warranties are limited to two (2) years as stated in this written limited warranty. Some states do not al-
low the exclusion or limitation of incidental or consequential damages. Some states do not allow limitation on the
length of an implied warranty. This warranty gives you specific legal rights, and you may have other rights that vary
from state to state.
