5600-WATT
PORTABLE GENERATOR
Instruction Manual
MODEL GN5600
IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
TECHSUPPOR[email protected]1-847-429-9263 (M-F 8AM-5PM CST)
For replacement parts and the most up-to-date instruction manuals, visit WENPRODUCTS.COM
CONTENTS
WELCOME 3
Specifications ................................................................................................... 3
Introduction ..................................................................................................... 4
SAFETY 5
Safety Information ........................................................................................... 5
Generator Safety Warnings .............................................................................. 6
9

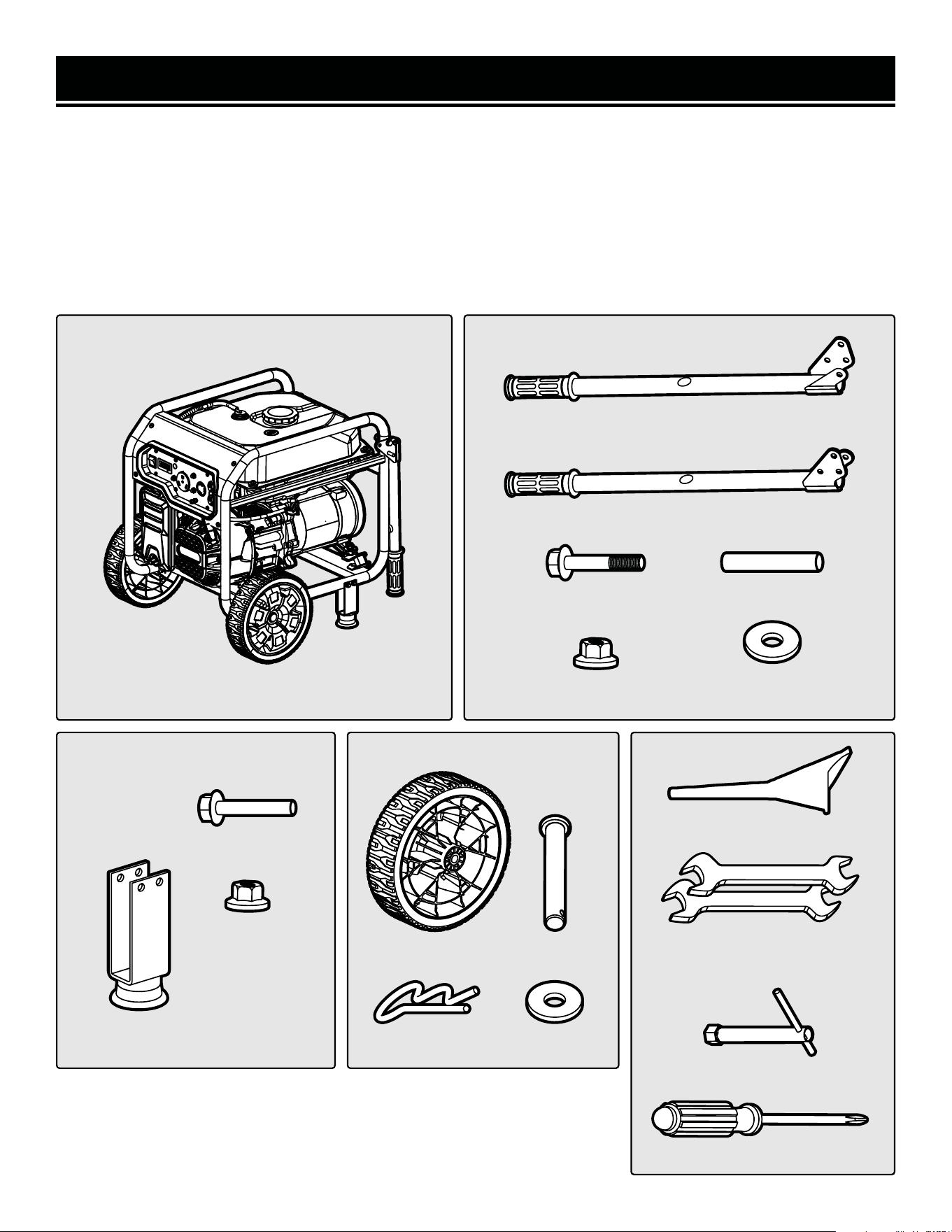

Unpacking & Packing List ................................................................................ 9

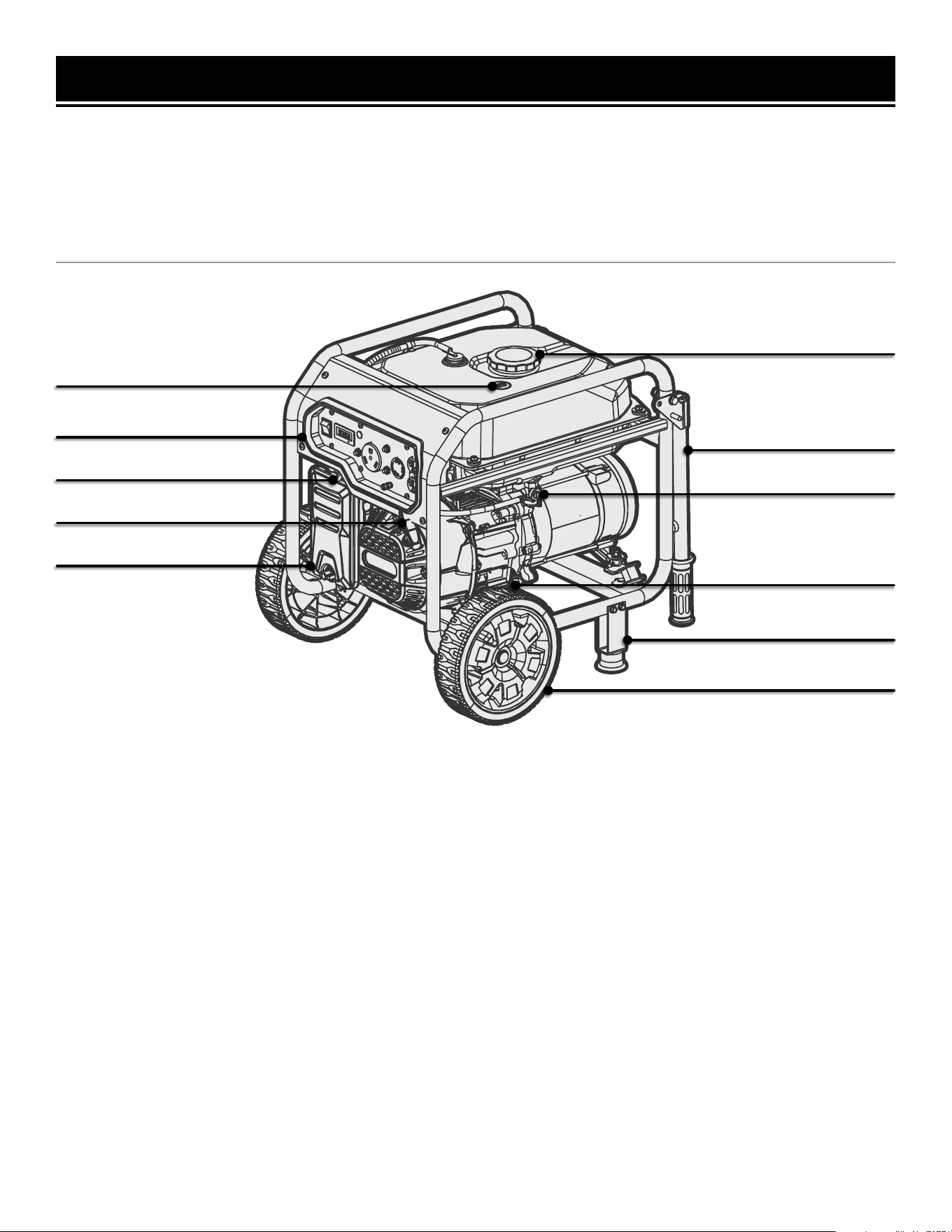

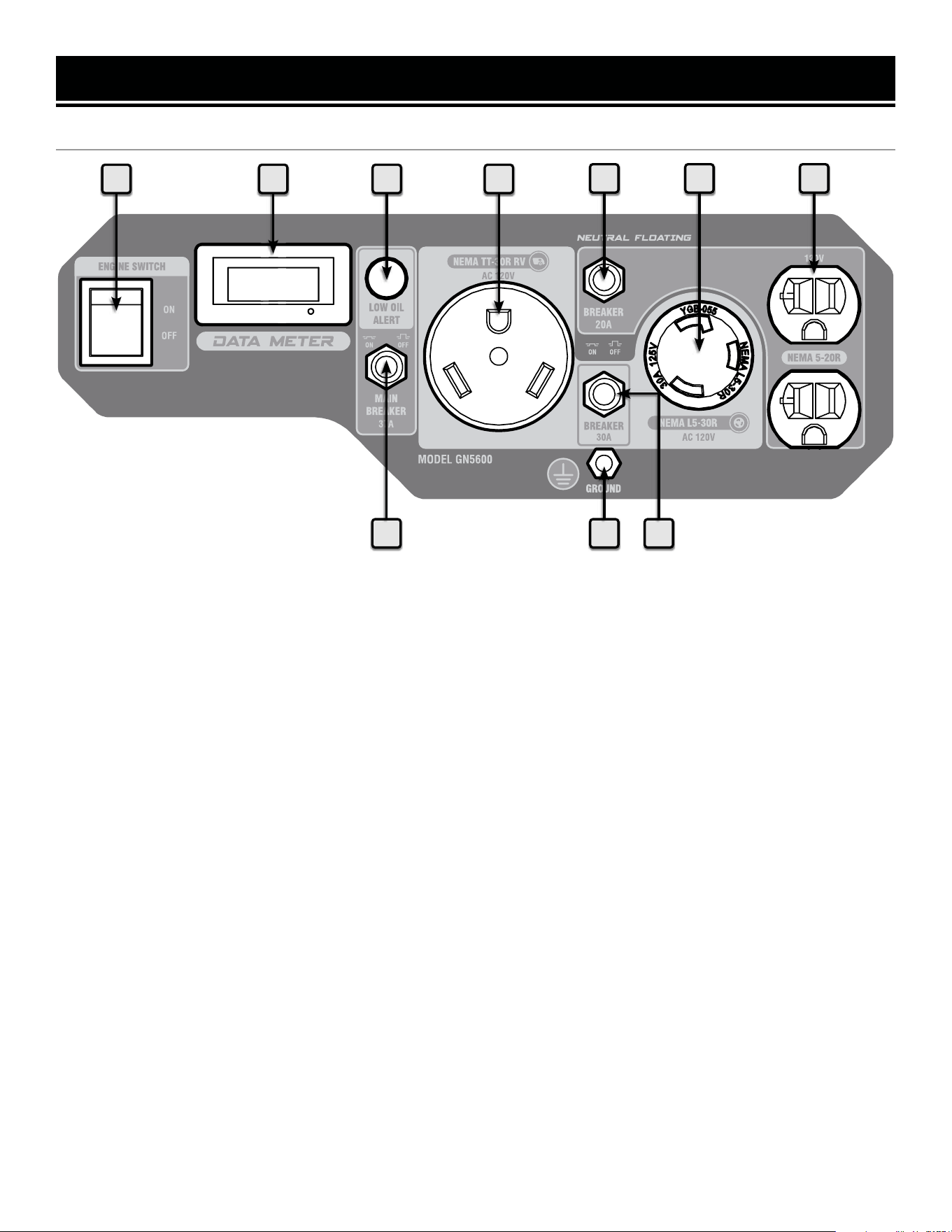

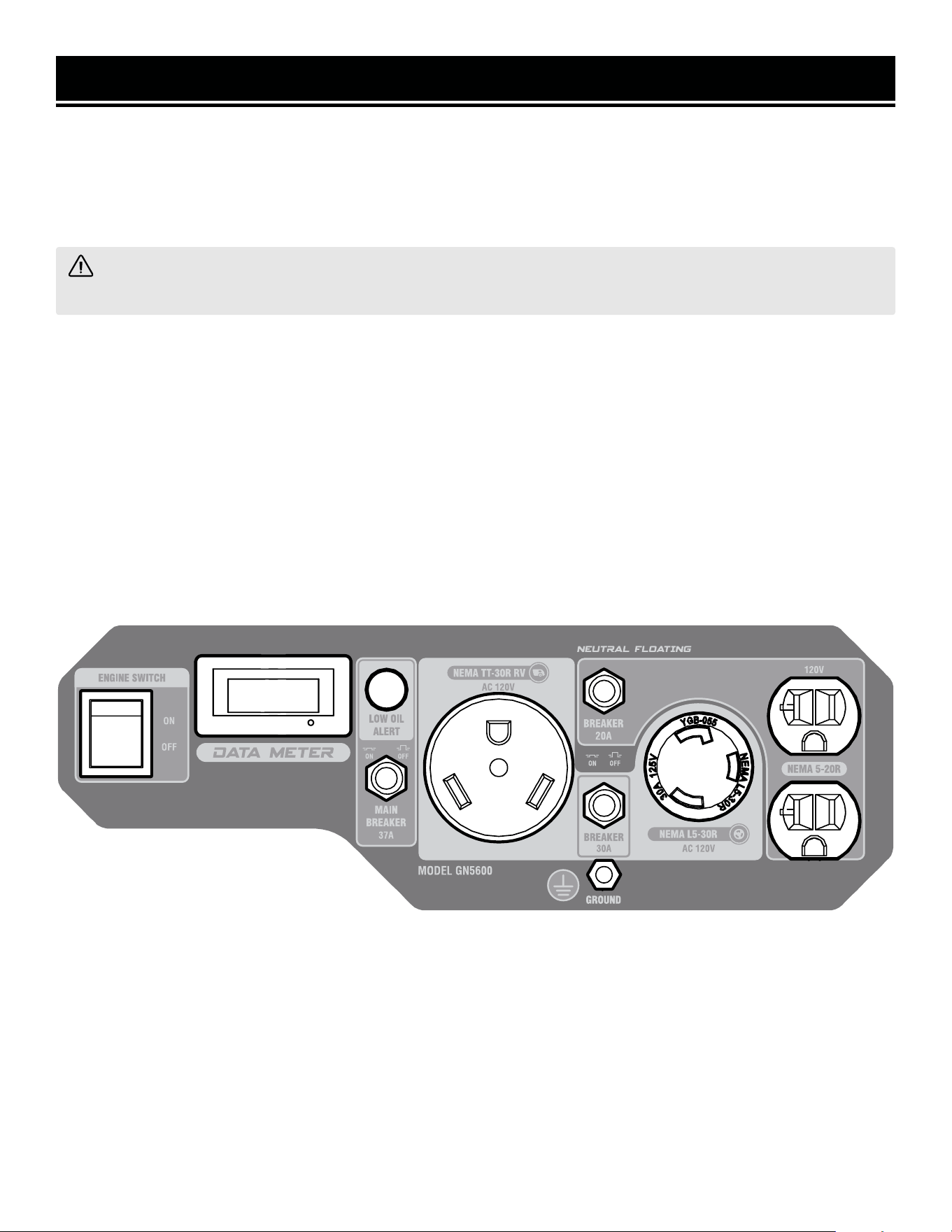

Know Your Generator ..................................................................................... 10

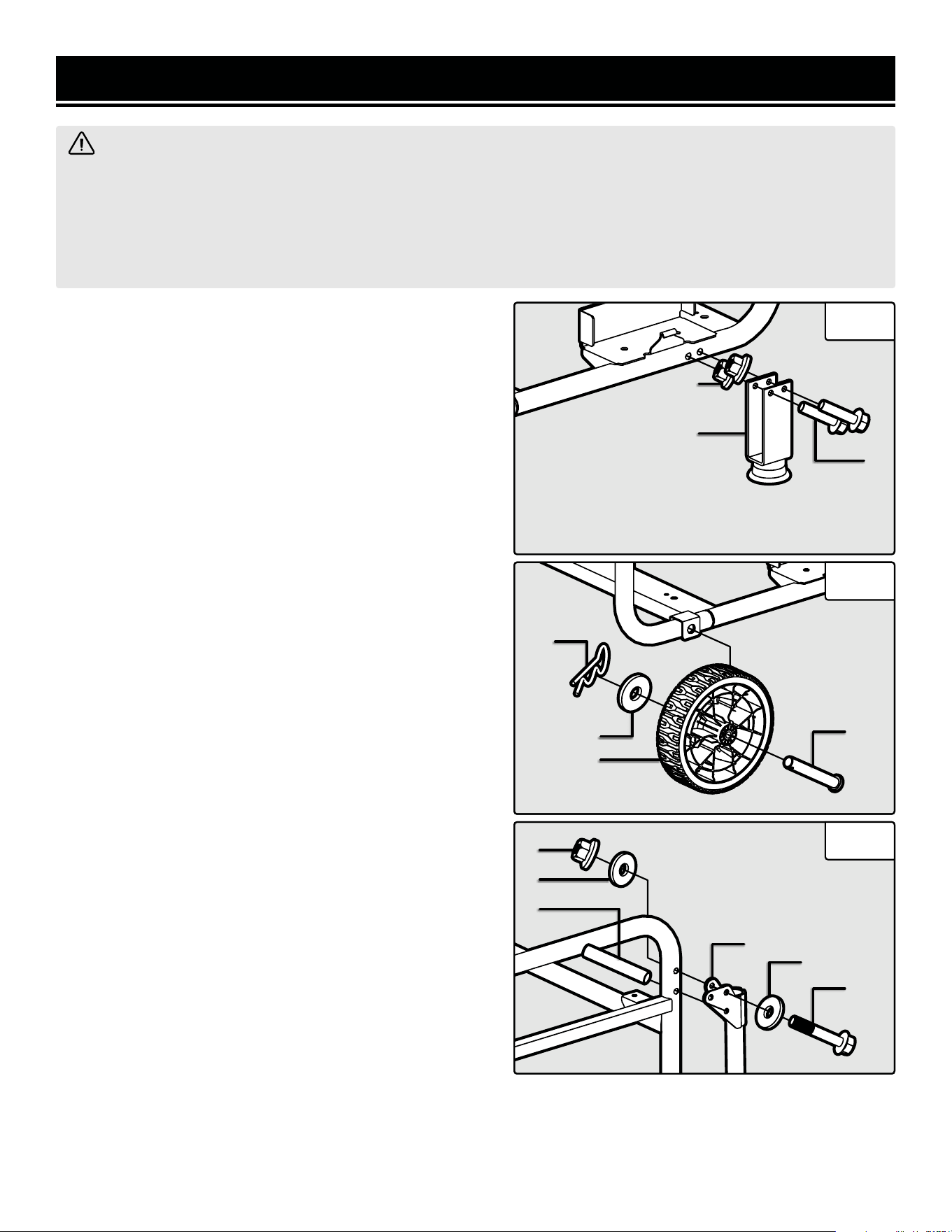

Assembly & Adjustments ............................................................................... 12
Generator Preparation .................................................................................... 13
BEFORE OPERATING
OPERATION & MAINTENANCE 17

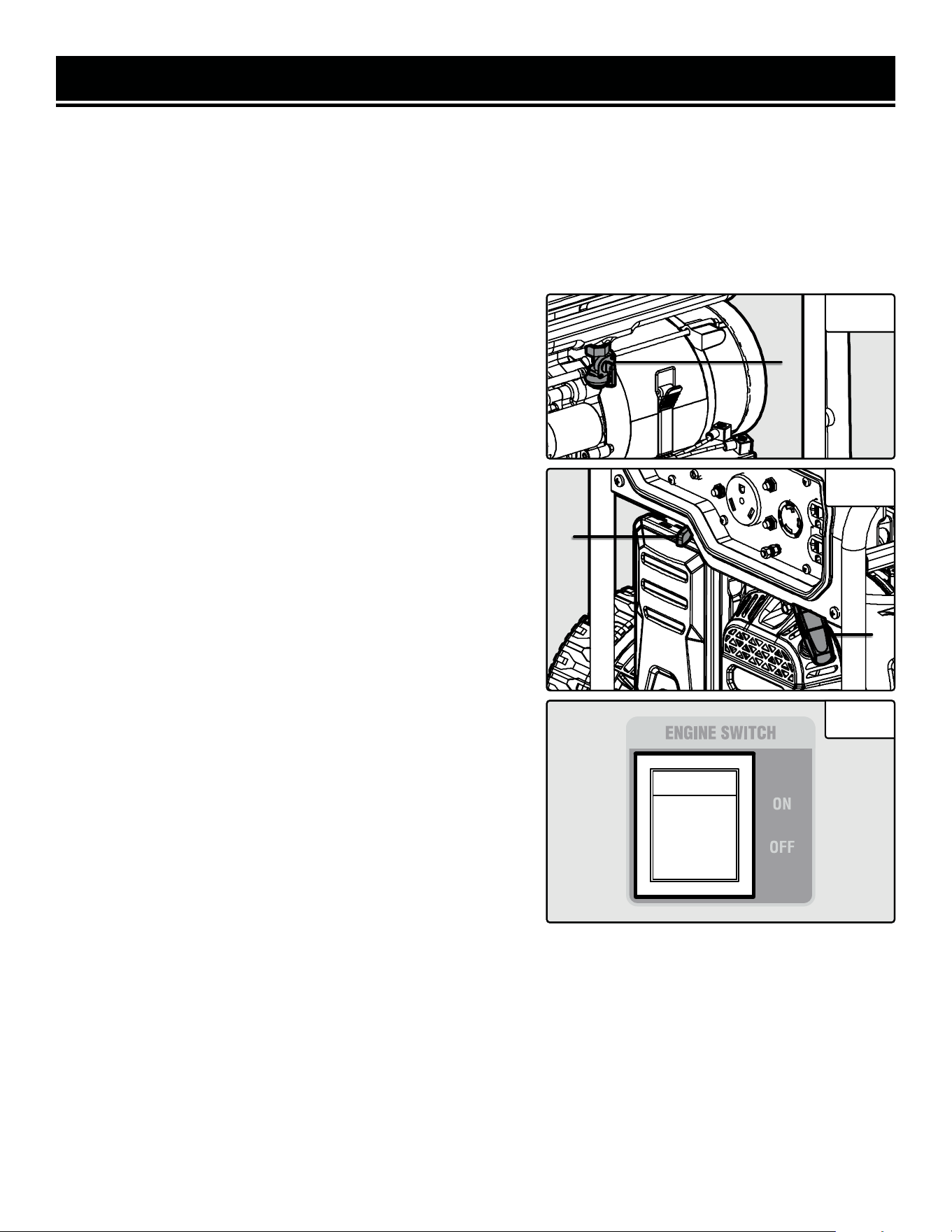

Starting Your Generator ................................................................................. 17

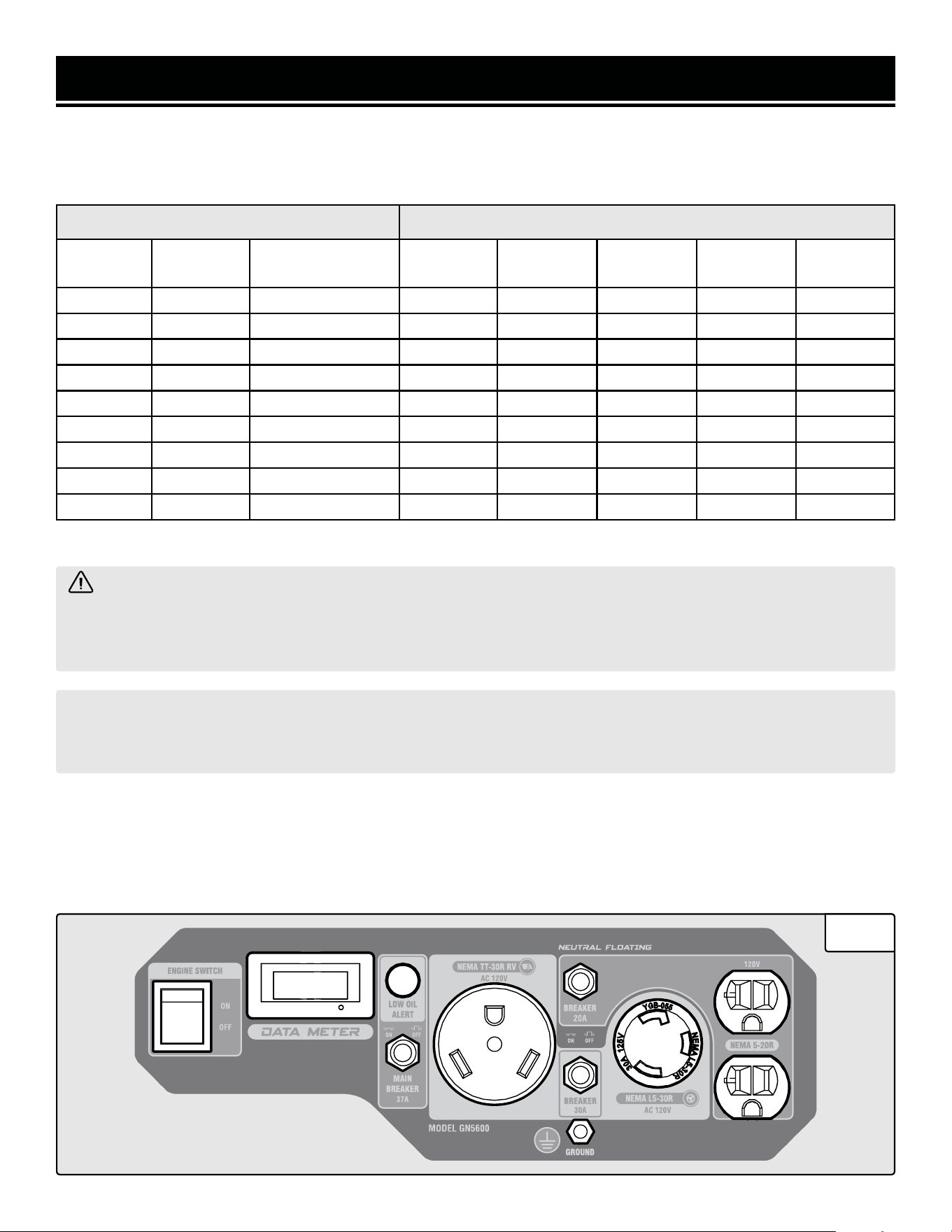

Using Your Generator ..................................................................................... 29

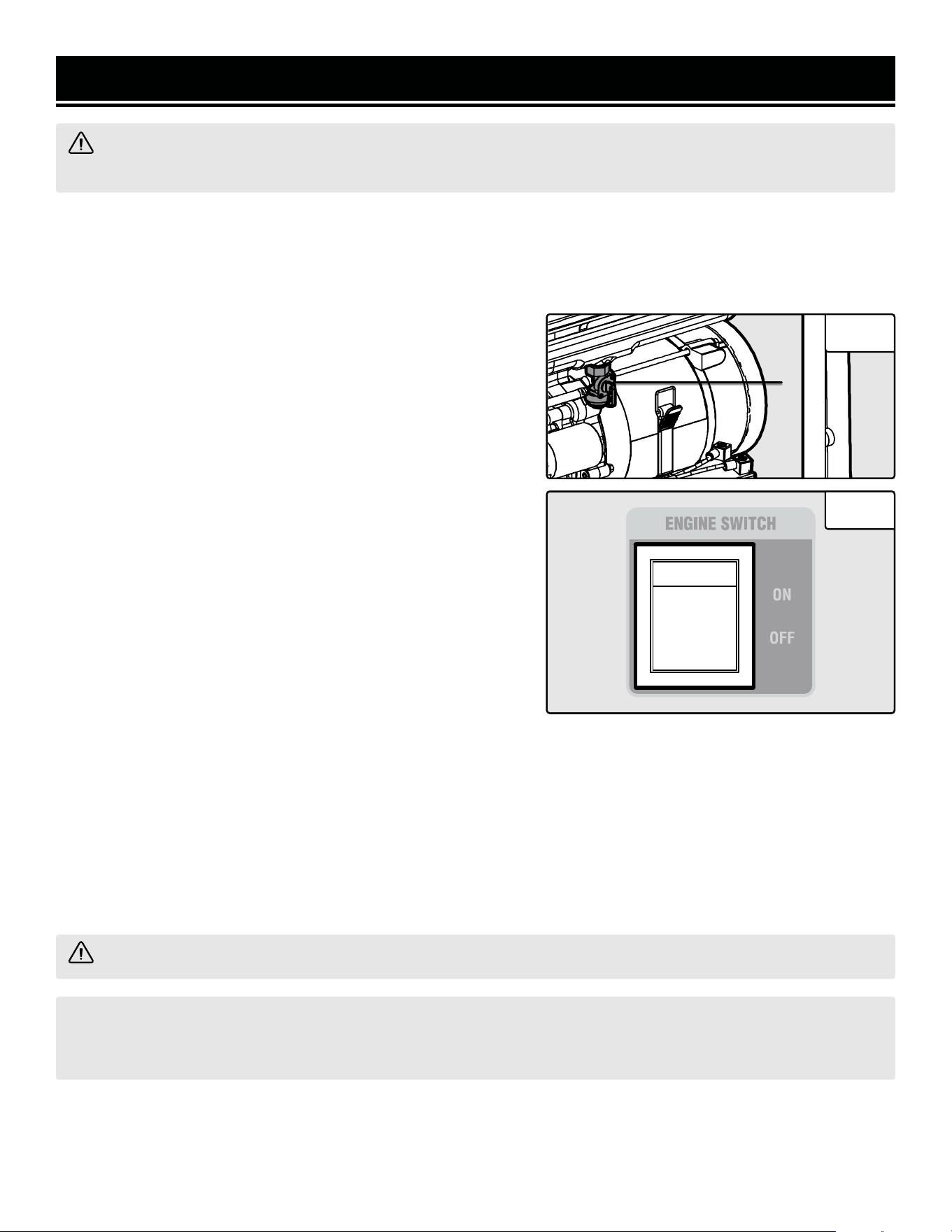

Shutting Off Your Generator ........................................................................... 23

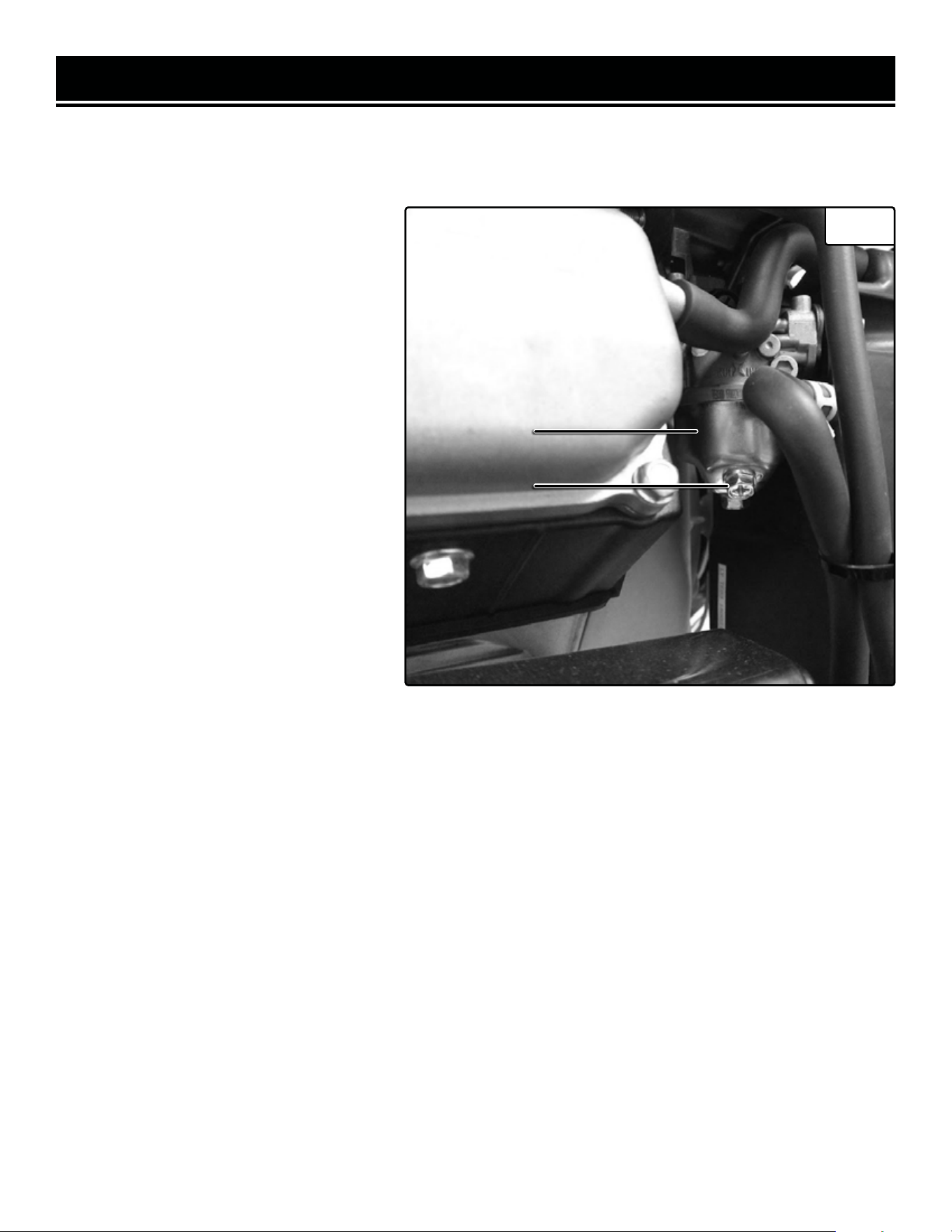

Maintenance ................................................................................................... 24
Transportation & Storage ............................................................................... 31
Troubleshooting Guide ................................................................................... 32

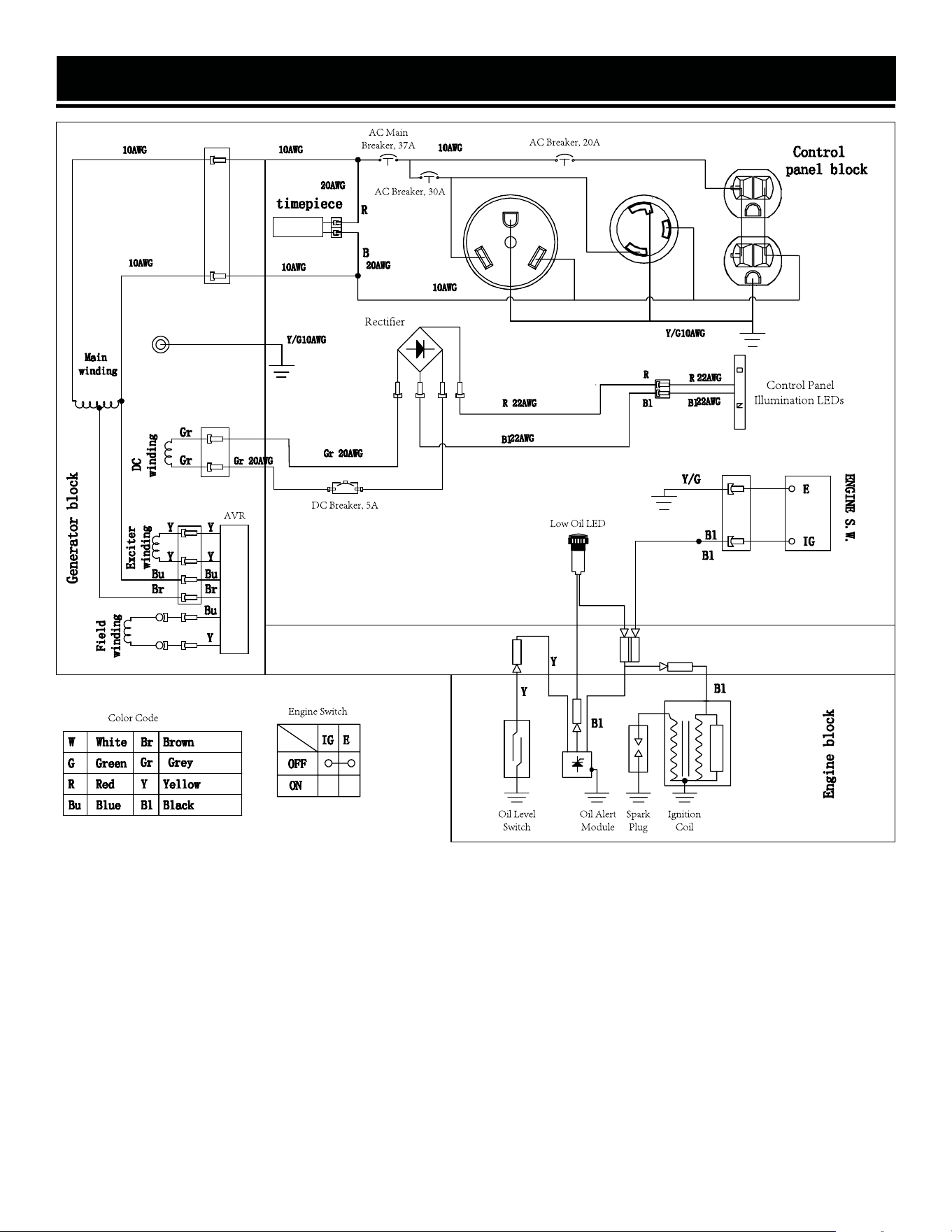

Wiring Diagram .............................................................................................. 33

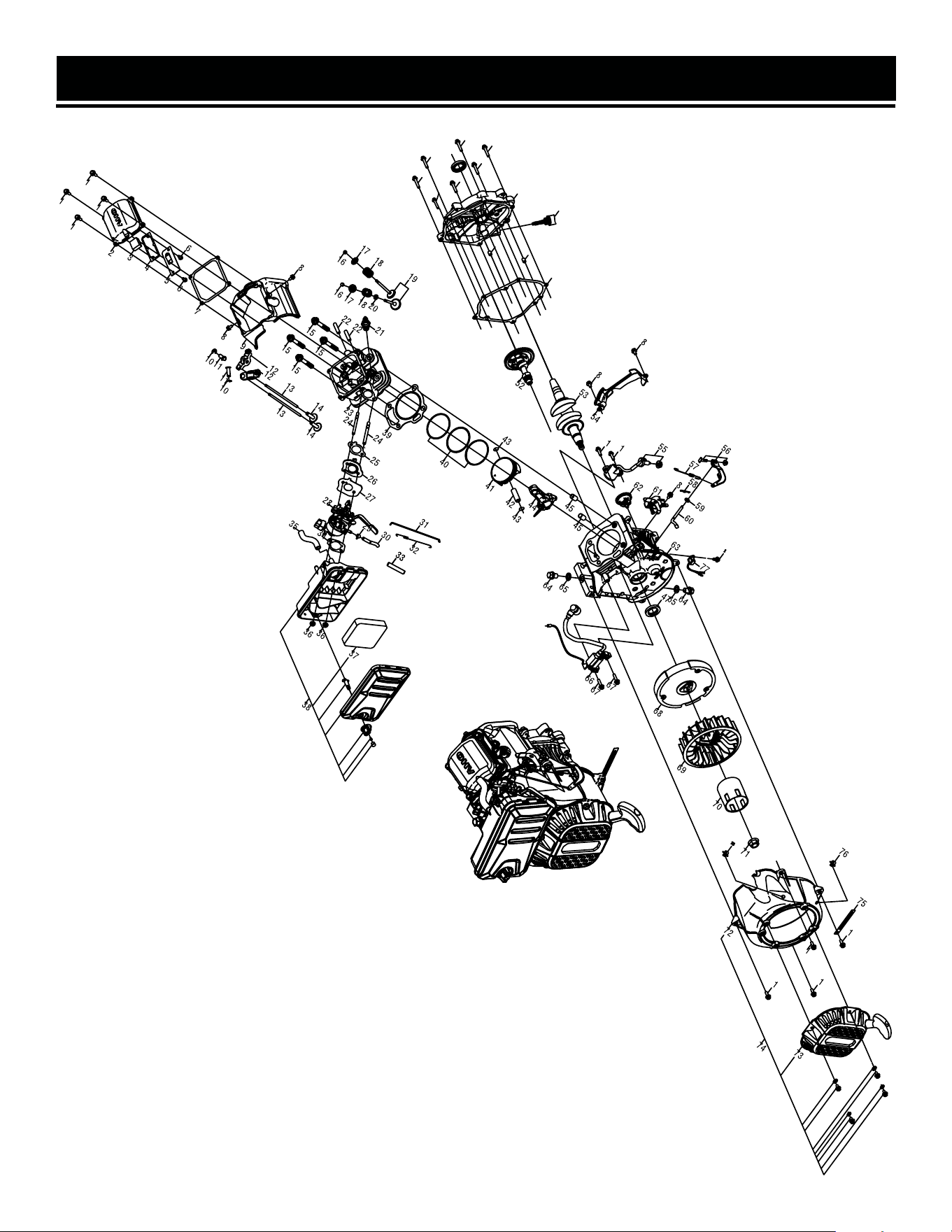

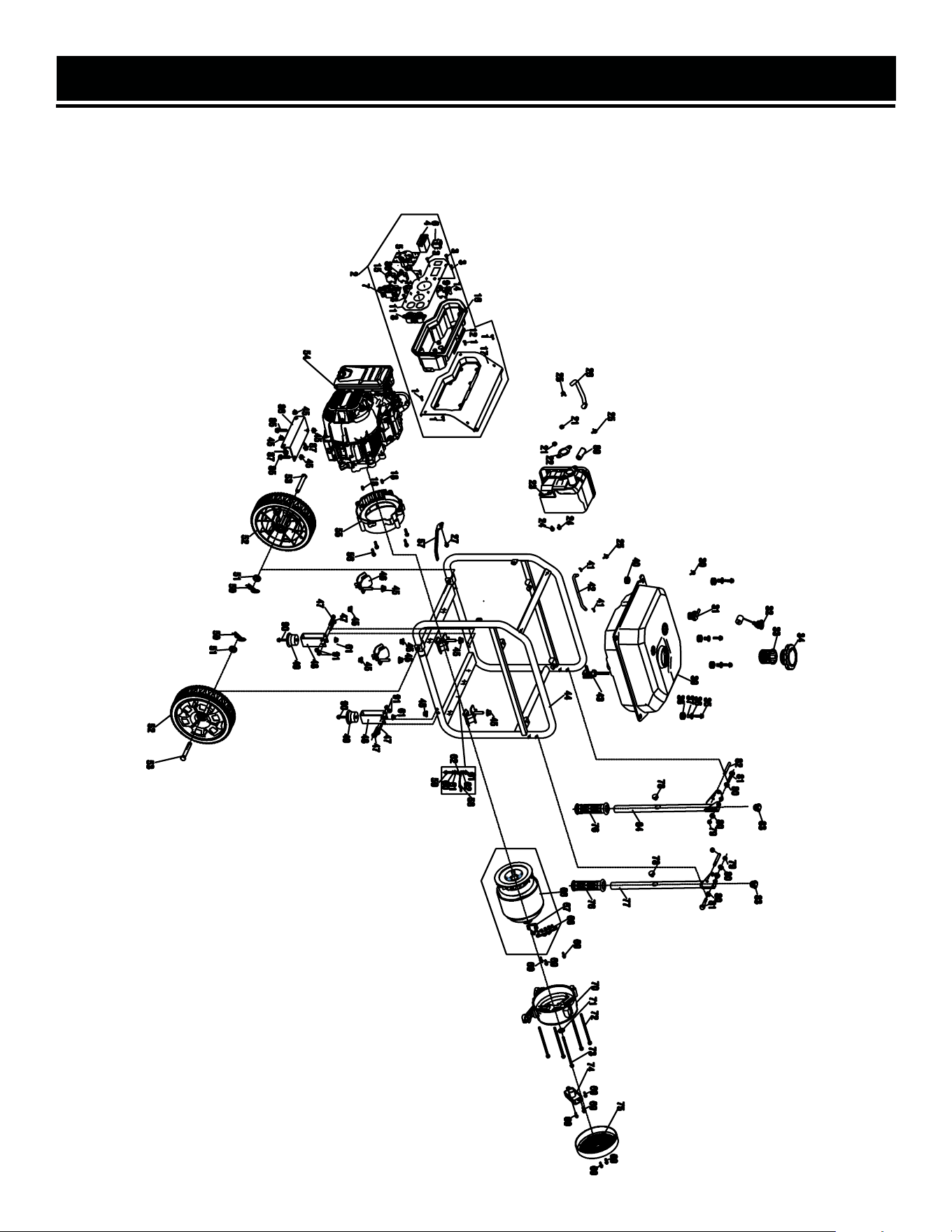

Exploded View & Parts List ............................................................................ 34
Warranty Statement ....................................................................................... 40
To purchase accessories for your tool, visit WENPRODUCTS.COM
2

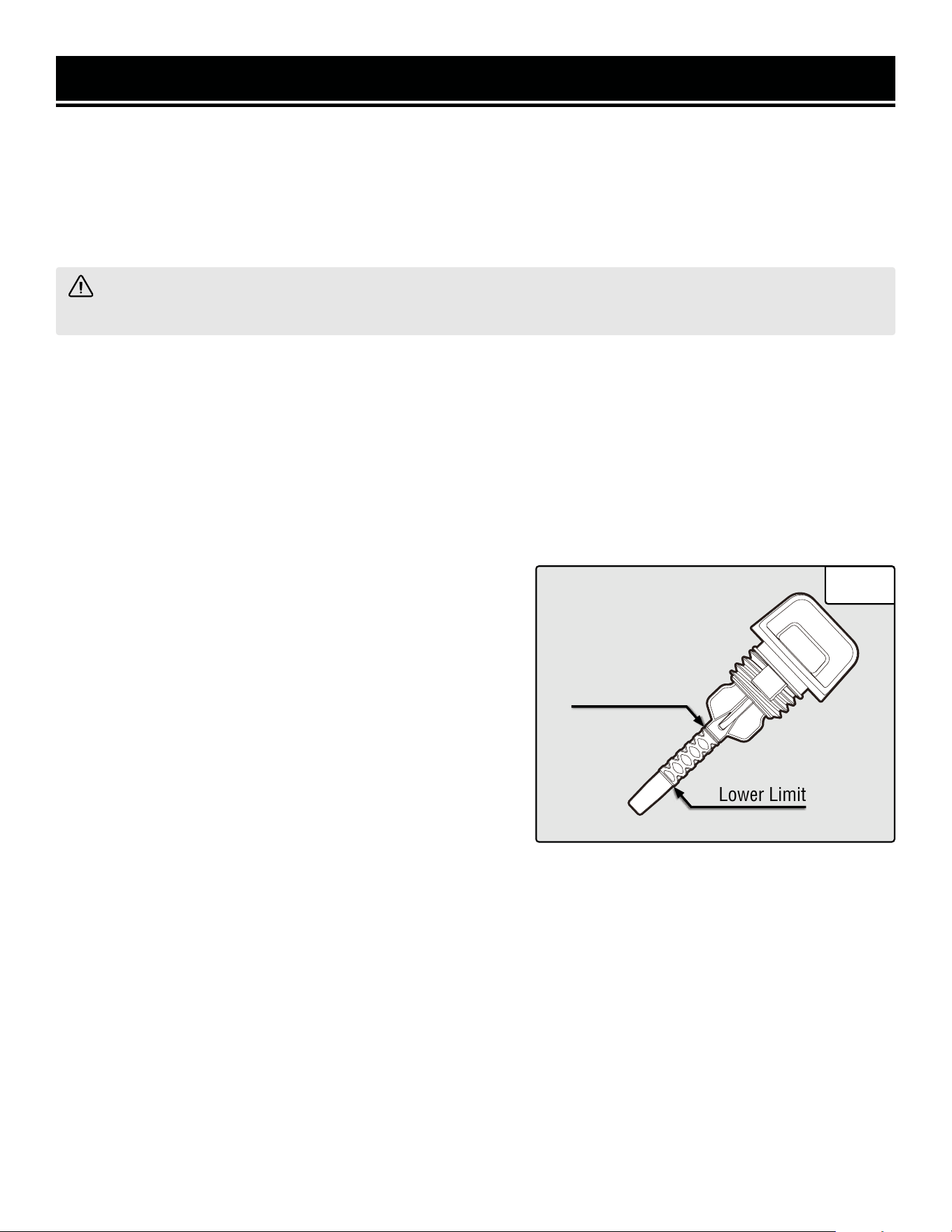

Magnetic Oil Dipstick (Model 55201)
Weatherproof Generator Cover, Medium (Model 56406)
High-Altitude Kit (Part GN5600-HA36 and GN5600-HA68)
SPECIFICATIONS
Rated Wattage 4500 Watts
Surge Wattage 5600 Watts
Rated Voltage 120V AC
Rated Amperage 37.5A
Phase Single
Frequency 60 Hz
Product Dimensions
With Wheel & Handle Kit: 22.8 in. x 23.6 in. x 23.0 in.
Without Wheel & Handle Kit: 22.4 in. x 16.9 in. x 18.7 in.
Product Weight
With Wheel & Handle Kit: 103.6 Pounds
Without Wheel & Handle Kit: 95.9 Pounds
GENERATOR
ENGINE
Engine Type 4-Stroke, OHV, Single Cylinder with Forced Air Cooling System
Engine Displacement 224cc
Fuel Tank Capacity 4.36 Gallons (16.50 L), 87 Octane Minimum
Oil Capacity 20 fl. oz. (0.60 L)
Half-Load Run Time 12.5 Hours
Lubrication System Splash Lubrication

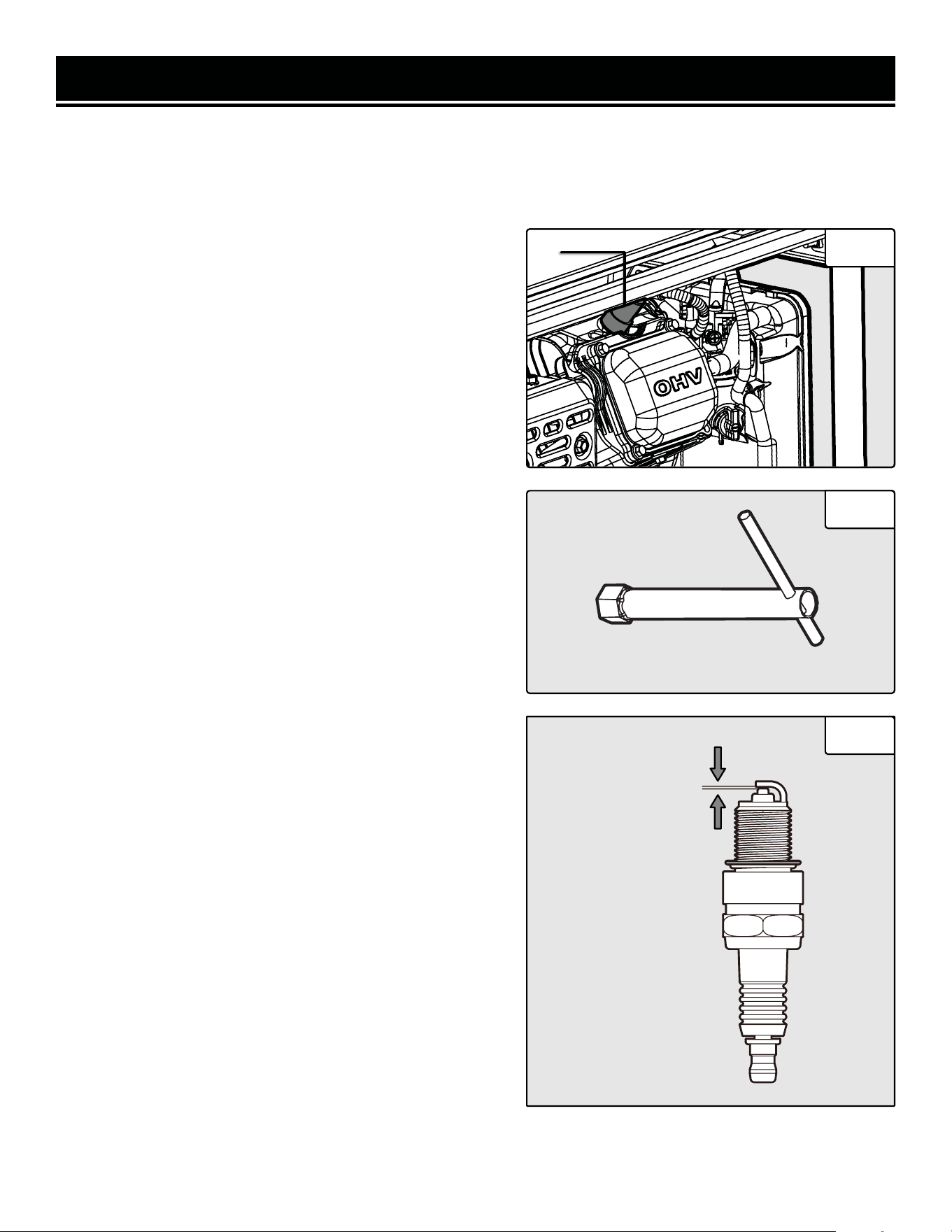

Spark Plug Type Torch F7TC (NGK BP7ES)
Spark Plug Gap 0.028 in. - 0.031 in. (0.7mm - 0.8mm)
Spark Plug Torque 20 - 22 ft-lbs (27 - 30 Nm)
3

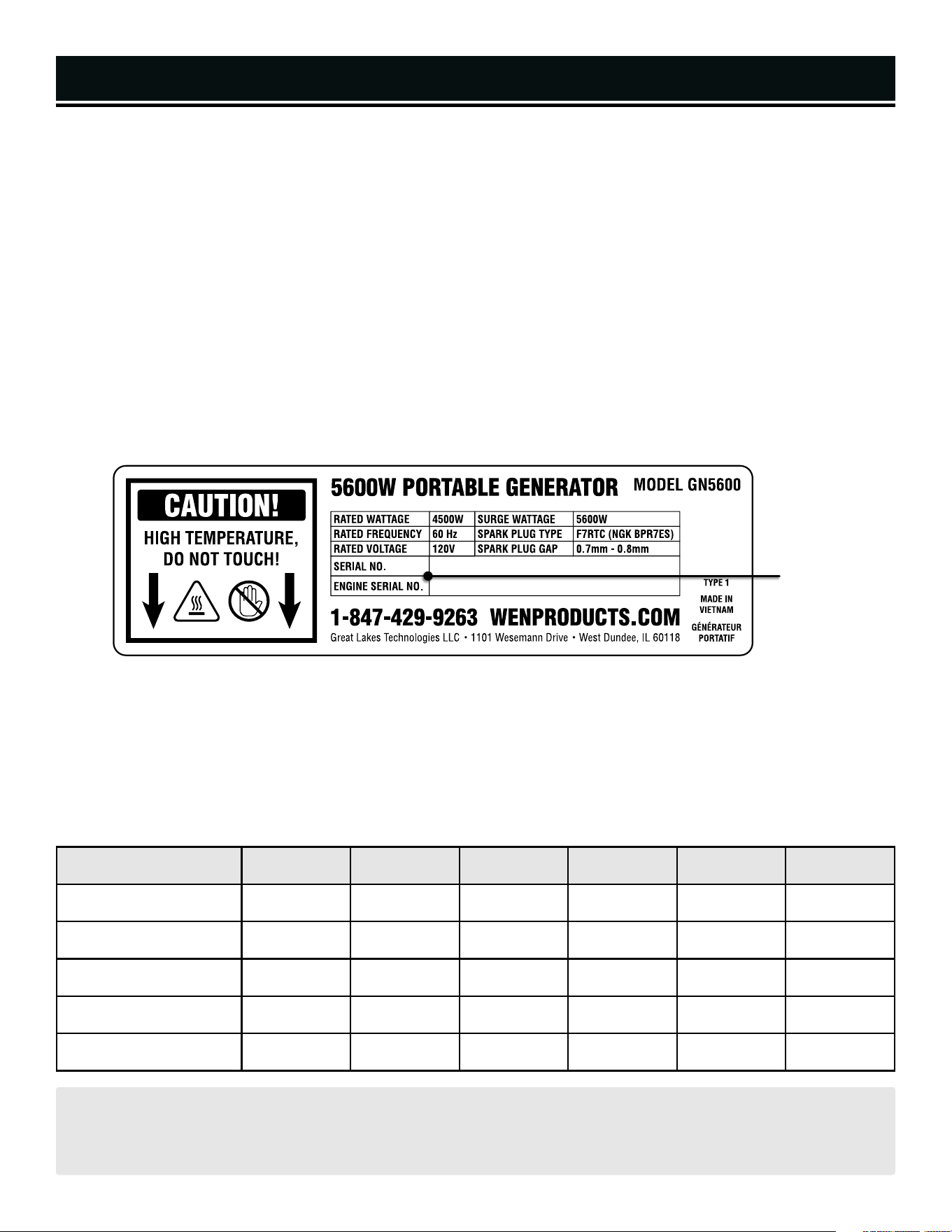

INTRODUCTION
Thanks for purchasing the WEN 5600-Watt Portable Generator. Refer to the illustration below for the location of the
serial number on the specifications label. Record the generator information in the spaces provided below. If assis-
tance for information or service is required, please contact customer service by calling 1-847-429-9263, M-F 8-5
CST; you will be asked to provide the following generator information when calling.
Generator Model Number: GN5600
Date of Purchase: _______________________________________________
Purchased From: ________________________________________________
Serial Number: _________________________________________________
TO MAXIMIZE THE LIFESPAN OF YOUR GENERATOR: We recommend running your generator at least once a
month for 20 to 30 minutes. Start the generator according to the instructions and plug a small load in to make
sure the outlet is producing electricity.
SERVICE RECORD
Record the service dates of your generator in the chart below. Please perform maintenance checks and operations
according to the “Maintenance” section of the manual.
Service Record Date Date Date Date Date Date
Change Oil
Change Spark Plug
Clean Fuel Tank
Clean Air Filter
Clean Spark Arrestor
4
Serial NumberSerial NumberSerial Number
5
SAFETY INTRODUCTION
Safety is a combination of common sense, staying alert, and knowing how your tool works. This manual contains
important information regarding the generator’s potential safety concerns, as well as preparation, operation, and
maintenance instructions. Before operating this generator, be sure to read and observe all warnings and instructions
both on the generator labels and in this instruction manual. Failure to follow all instructions listed below may result
in personal injury.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact customer service at 1-847-429-9263, M-F
8-5 CST.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
SAVE THESE SAFETY INSTRUCTIONS.
SAFETY SYMBOLS
The purpose of following safety symbols is to attract your attention to possible dangers. The safety symbols, and
their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves
eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention
measures.
NOTICE REGARDING EMISSIONS
Engines that are certified to comply with U.S. EPA emission regulations for SORE (Small Off Road Equipment), are
certified to operate on regular unleaded gasoline, and may include the following emission control systems: (EM)
Engine Modifications and (TWC) Three-Way Catalyst (if so equipped).
QUESTIONS? PROBLEMS?
In order to answer questions and solve problems in the most efficient and speedy manner, contact customer
service at 1-847-429-9263, M-F 8-5 CST or email [email protected].
DANGER: indicates a hazard, which, if not avoided, will result in death or serious injury.
WARNING: indicates a hazard, which, if not avoided, could result in death or serious injury.
CAUTION: indicates a hazard, which, if not avoided, might result in minor or moderate injury.
CAUTION! when used without the alert symbol, indicates a situation that could result in damage to the machine.
WARNING! Before operating the generator, make sure to read all safety warnings and all instructions. Failure
to follow the warnings and instructions may result in electric shock, fire or serious injury.
SAFETY INFORMATION
6

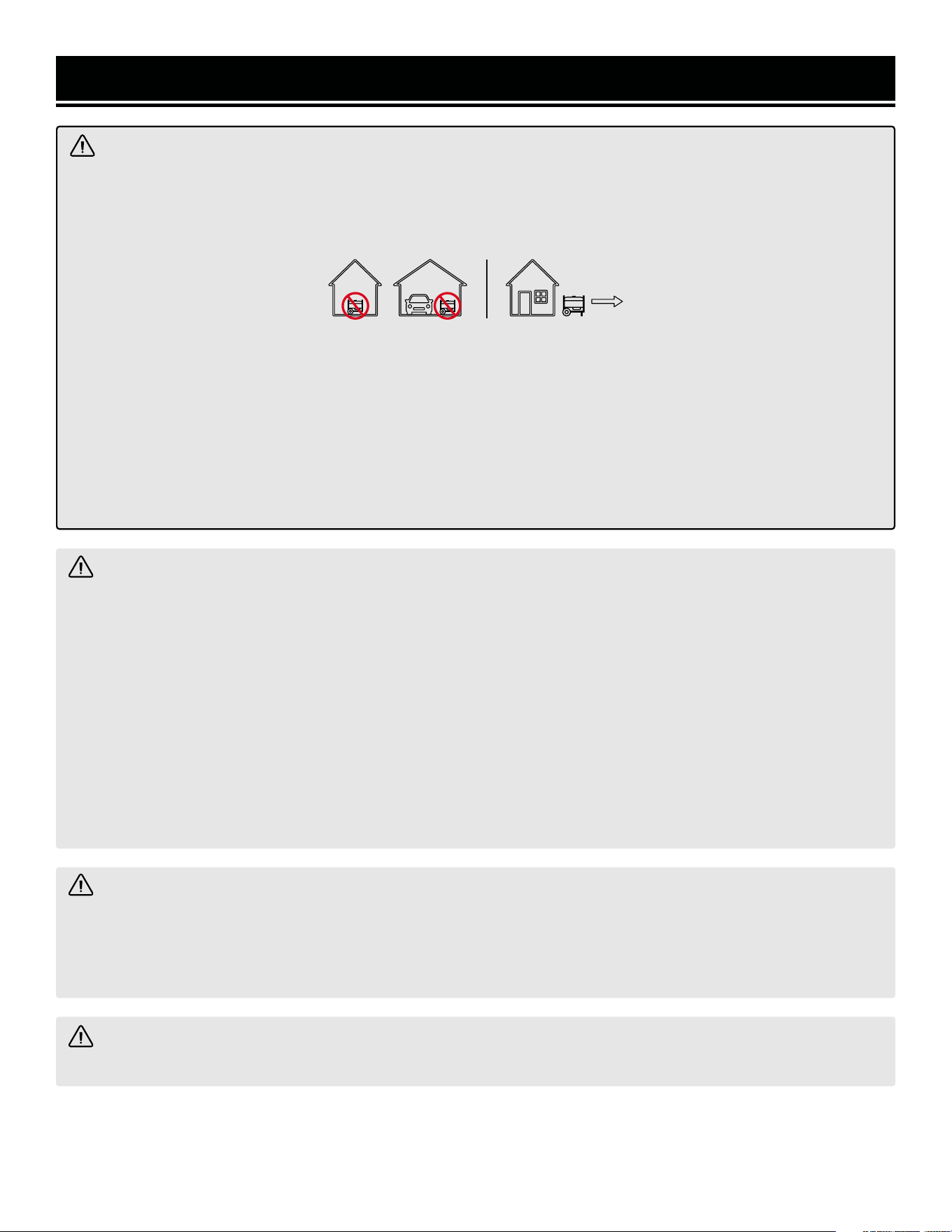

GENERATOR SAFETY WARNINGS
DANGER! CARBON MONOXIDE
Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). This
is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even
if you cannot smell the exhaust, you could be breathing CO.
NEVER use a generator inside homes, garages, crawl spaces, or other partially enclosed areas. Deadly levels
of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply
enough fresh air. ONLY use a generator outside and far away from windows, doors, and vents. These openings
can pull in generator exhaust.
Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-
backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move
to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
WARNING! RISK OF EXPLOSION. HIGHLY FLAMMABLE: This generator may emit highly flammable and
explosive gasoline vapors, which can cause severe burns or even death, if ignited. A nearby open flame can lead
to explosion even if not directly in contact with gasoline.
• Do not operate near open flame, heat, or any other ignition source. Do not smoke near the generator.
• Always operate on a firm, level surface.
• Always turn generator off before refueling. Allow generator to cool for at least 2 minutes before removing
fuel cap. Loosen cap slowly to relieve pressure in tank.
• Do not overfill fuel tank. Gasoline may expand during operation. Do not fill to the top of the tank. Allow for
expansion. Always check for spilled fuel before operating.
• If fuel spills, move the generator at least 30 feet away from the spill and wipe clean any spilled fuel before
starting the engine.
• Empty fuel tank before storing or transporting the generator.
WARNING! If this generator is used as a supply for a building’s wiring system, the generator must be in-
stalled by a qualified electrician and connected to a transfer switch as a separately derived system in accordance
with all applicable laws and electrical codes and the National Electrical Code, NFPA 70. The generator shall be
connected to a transfer switch that switches all conductors excluding the equipment grounding conductor. The
frame of the generator shall be connected to an approved grounding electrode.
CALIFORNIA PROPOSITION 65 WARNING: This product contains chemicals and produces exhaust known
to the State of California to cause cancer, birth defects and other reproductive harm.
7
GENERATOR SAFETY WARNINGS
OPERATING ENVIRONMENT
1. Using a generator indoors can kill you in minutes.
Only use a generator outside and far away from win-
dows, doors and vents.
2. Do not smoke near the generator.
3. Do not operate near open flame, heat, or flammable
materials. This generator may emit highly flammable
and explosive gasoline vapors, which can cause severe
burns or even death if ignited. A nearby open flame can
lead to an explosion even if it isn’t directly in contact with
gasoline.
4. Do not expose the generator to rainy or wet con-
ditions; doing so significantly increases the risk of
electrical shock. Never handle the generator, electronic
devices, or any cord while standing in water, while bare-
foot, or when hands or feet are wet.
5. Always operate the generator on a dry, firm, level
surface.
6. The generator should have at least 5 feet of clear-
ance from buildings or other equipment during opera-
tion.
7. Do not allow children or non-qualified persons to
operate the generator.
GENERATOR PREPARATION

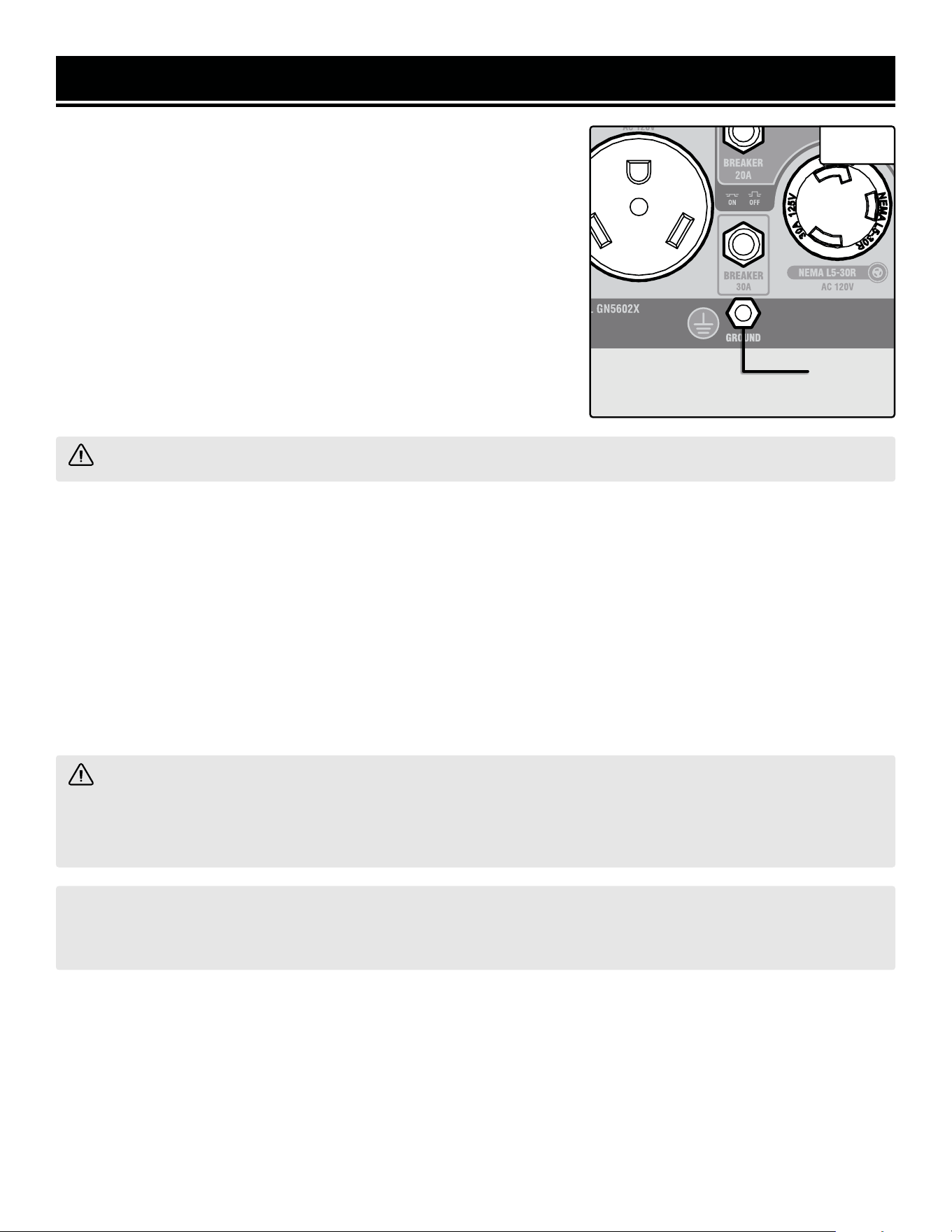

1. Always ground the generator before using it to maxi-
mize safety (see “Ground the Generator” section).
2. Do not overfill fuel tank, as gasoline may expand
during operation. Do not fill to the very top of the tank.
Leave room for gasoline expansion. Always check for
spilled fuel before operating.
3. If any part of the generator, electrical device or pow-
er cord is broken, damaged, or defective, make sure
it is repaired or replaced before operation. Service
should only be performed by a qualified technician. Do
not use receptacles or cords that show signs of damage,
such as broken or cracked insulation.
4. Use a ground fault circuit interrupter (GFCI) in highly
conductive areas such as metal decking or steel work.
Extension cords with in-line GFCIs are recommended for
these operations to maximize safety.
5. If connecting the generator to a building’s electri-
cal system for standby power, you MUST consult a
qualified electrician and install a transfer switch. Such
connections must comply with local electrical laws and
codes. Failure to comply can create a back-feed, which
may result in serious injury or death to utility workers.
6. Never modify the generator in any way. Modifying
or using the machine for any other purpose for which it
is not designed may result in serious injuries, machine
damage and voiding of the warranty.
GENERATOR OPERATION
1. Only use the generator for its intended purposes.
Modifying or using the generator for operations for
which it was not designed may cause hazards and per-
sonal injury.
2. Do not touch bare wires or receptacles (outlets).
3. Do not exceed the wattage capacity of the generator
by plugging in more electrical devices than the unit
can handle. This could damage the generator and/or
connected electrical devices. Check the operating volt-
age and frequency requirements of all electrical devices
prior to plugging them into the generator.
Generator safety warnings continue on the next page.
WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.
Failure to follow the safety instructions may result in serious personal injury.
8
GENERATOR SAFETY WARNINGS
WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.
Failure to follow the safety instructions may result in serious personal injury.
4. Allow generator to run for several minutes before
connecting electrical devices. Do not start or stop en-
gine with electrical devices plugged in to the receptacles.
Failure to do so could damage the generator and/or con-
nected electrical devices.
5. Do not turn on electrical devices until after they are
connected to the generator.
6. Generators vibrate in normal use. During and after
the use of the generator, inspect both the generator as
well as extension and power supply cords for damage
resulting from vibration.
7. Do not touch hot parts. This generator produces heat
when running. Temperatures near exhaust can exceed
150ºF (65ºC). Allow generator to cool down after use be-
fore touching engine or areas of the generator that be-
come hot during use.
8. Turn off all connected electrical devices before stop-
ping the generator.
9. Always turn generator off before refueling. Allow
generator to cool for at least 2 minutes before removing
fuel cap. Loosen cap slowly to relieve pressure in tank.
10. Turn the engine switch and fuel selector knob to
“OFF” position when the engine is not running.
11. Empty fuel tank before storing or transporting the
generator. Do not store generator or gasoline near fur-
naces, water heaters, or any other appliances that pro-
duce heat or have automatic ignitions. Store the genera-
tor and fuel away from sparks, open flames, pilot lights,
heat and other sources of ignition.
12. Always wash hands after handling generator.
CAUTION: Misuse of this generator can damage it or
shorten its lifespan.
TO MAXIMIZE THE LIFESPAN OF YOUR GENERATOR: We recommend running your generator at least once a
month for 20 to 30 minutes. Start the generator according to the instructions and plug a small load in to make
sure the outlet is producing electricity. If you do not run it often, it will greatly shorten the generator’s lifespan
and void the warranty.
Handle Assembly
Foot Support Assembly
UNPACKING
With the help of a friend or trustworthy foe, such as one of your in-laws, carefully remove the generator from the
packaging and place it on a sturdy, flat surface. Make sure to take out all contents and accessories. Do not discard
the packaging until everything is removed. Check the packing list below to make sure you have all of the parts and
accessories. If any part is missing or broken, please contact customer service at 1-847-429-9263 (M-F 8-5 CST),
or email [email protected].
PACKING LIST
UNPACKING & PACKING LIST
Components
9
Wheel Assembly
Axle Pins (2)Wheels (2)
R-Clips (2) Washer (2)
Accessories
Wrenches (2)
(8-10mm, 10-13mm)
Screwdriver (1)
Funnel (1)
Spark Plug Socket (1)
Right Handle (1)
Left Handle (1)
Generator
M6x40 Hex Bolt (4)
M6 Hex Nut (4)
Foot Assembly (2)
M8 Hex Nut (2)
M8x48 Hex Bolt (2)
8mm Washer (4)
Pin (2)
KNOW YOUR GENERATOR
TOOL PURPOSE
Portable generators provide you with power when and where you need it most. Refer to the following diagrams to
become familiarized with all the parts and controls of your generator. The components will be referred to later in the
manual for assembly and operation instructions.
GENERATOR
Fuel Tank Cap
Control Panel
10
Choke Lever
Recoil Starter
Air Filter
Fuel Valve
Oil Fill Dipstick
Handles
Wheels
Foot Supports
Fuel Gauge
KNOW YOUR GENERATOR
CONTROL PANEL
1 4
1. Engine Switch
Start the engine using this switch.
2. Data Meter
Displays voltage, frequency, total runtime (HHHH), and
session runtime (HH:MM). Press the MODE button to
switch between displays.
3. Low Oil Alert
Illuminates if the oil level is too low.
4. AC 120V NEMA TT-30R RV Receptacle (30A)
Standard RV connector.
11
2 3
5
5. Circuit Breaker (20A)
6. AC 120V NEMA L5-30R Receptacle (30A)
Multipurpose outlet.
7. AC 120V NEMA 5-20R Duplex Receptacles (20A)
Standard household outlets provide 120V 60Hz power.
8. Circuit Breaker (30A)
9. Grounding Nut
Ground generator to reduce risk of electric shock.
10. Main Breaker (37A)
910
6 7
8
1
3
2
12
ASSEMBLY & ADJUSTMENTS
ASSEMBLY
Refer to the packing list on p. 9 to gather the proper parts
and tools for installing the feet, wheels, and handles.
NOTE: There are different sizes of bolts/nuts; be sure to use
the proper bolts/nuts for each assembly step.
INSTALLING THE FOOT SUPPORTS (FIG. A)
The foot assemblies are installed on the base of the genera-
tor, towards the rear, opposite the control panel.
1. Prepare a set of blocks on level ground (a 4×4 block of
wood works well). Place the generator on the blocks. Have
someone help you lift the generator.
2. Align the holes on the foot bracket (Fig. A - 1) with the
holes on the generator frame. Slide two M6x40 hex bolts
(Fig. A - 2) through the foot bracket and generator frame and
secure them using two M6 hex bolts (Fig. A - 3). Tighten the
bolts using the included wrench. Repeat for the other foot
support.
INSTALLING THE WHEELS (FIG. B)
The wheels are installed on either side of the generator, to-
wards the front, beside the control panel.
1. Align the wheel (Fig. B - 1) with the hole on the genera-
tor frame. Slide the axle pin (Fig. B - 2) through the wheel,
washer (Fig. B - 3), and generator frame. Repeat for the
other wheel.
2. Insert the R-clip (Fig. B - 4) through the hole in the axle
pin and lock the wheel in place. Repeat for the other wheel.
INSTALLING THE HANDLES (FIG. C)
The handles are installed on the rear of the generator, op-
posite the control panel.
1. Slide a M8x48 hex bolt (Fig. C - 1) and an 8mm washer
(Fig. C - 2) through the upper holes on the handle (Fig. C - 3)
and the upper holes on the generator frame. Secure on the
other side with an 8mm washer and M8 hex nut (Fig. C - 4).
Repeat for the other handle.
2. Slide a pin (Fig. C - 5) through the lower hole on the han-
dle and the lower holes on the generator frame. Repeat for
the other handle.
WARNING! Do not turn on the generator until it is fully assembled according to the instructions. Read
through and become familiarized with the following procedures of handling and adjusting your tool. Failure to
follow the safety instructions may result in serious personal injury.
• Never use the handle as a lifting point to support the entire weight of the generator. Only use the handle
to pull the generator with the help of the wheels.
• Use caution when collapsing the handle. Hands and fingers could get caught and pinched.
Fig. A
Fig. B
1
2
3
4
1
2
3
4
2
5
Fig. C
GENERATOR PREPARATION
13

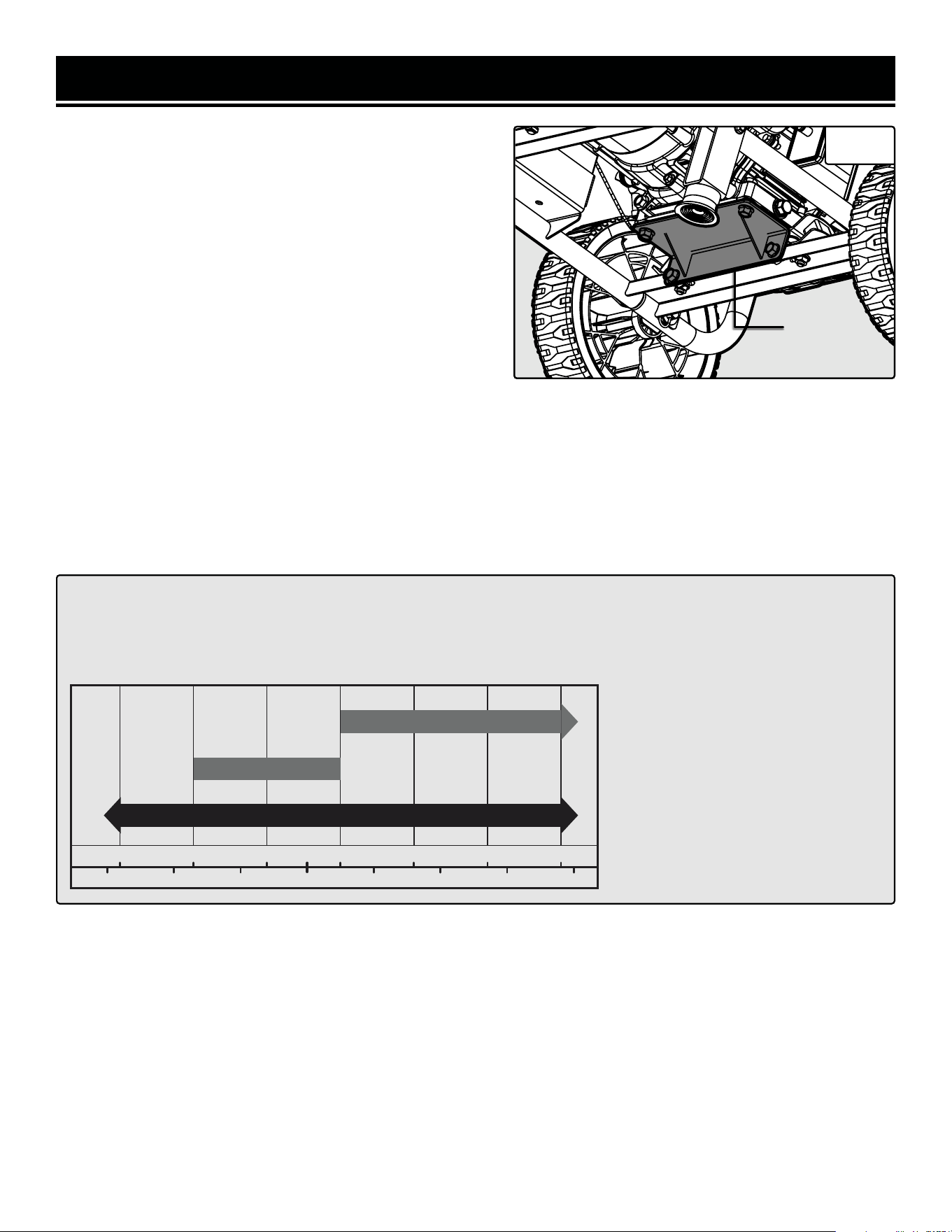

REMOVING THE SHIPPING BRACKET
Your generator is shipped with a red shipping bracket (Fig.
D - 1) in order to prevent machine damage during shipping.
Make sure to remove the red shipping bracket before oper-
ating your generator. Failure to do so could lead to engine
damage.
1. With the help of another person, place generator on an
elevated platform such as table or workbench. Make sure the
generator is stable. Remove the red shipping bracket. Do not
tilt the generator as there may be remaining oil inside the
crankcase from testing.
The following section describes the necessary steps to pre-
pare the generator for use. If you are unsure about how to
perform any of the steps, please call 1-847-429-9263 M-F
8-5 CST for customer service. Failure to perform these steps
properly can damage the generator or shorten its life.
Synthetic 5W-30
30W
10W-30
• 30W Engine Oil
Temperatures above 40°F
• 10W-30 Engine Oil
Temperatures between 0°F - 40°F
• Synthetic 5W-30 Engine Oil
All temperature ranges
ENGINE OIL RECOMMENDATIONS
Select good quality detergent oil bearing the American Petroleum Institute (API) service classifications SJ, SL,
or SM (synthetic oils may be used). Select the SAE viscosity grade of oil that matches the expected operating
temperature.
°F
°C
-20 0 20 32 40 60 80 100
40200
-20
-10
10
-30 30
Fig. D
STEP 1 - ADD / CHECK OIL
The generator is shipped without oil. User must add the proper amount of oil before operating the generator for the
first time. The oil capacity of the engine crankcase is 20 fl. oz. (0.60 L).
1
Instructions continue on the next page.
GENERATOR PREPARATION
Low Oil Alert
14
Lower Limit
Upper Limit

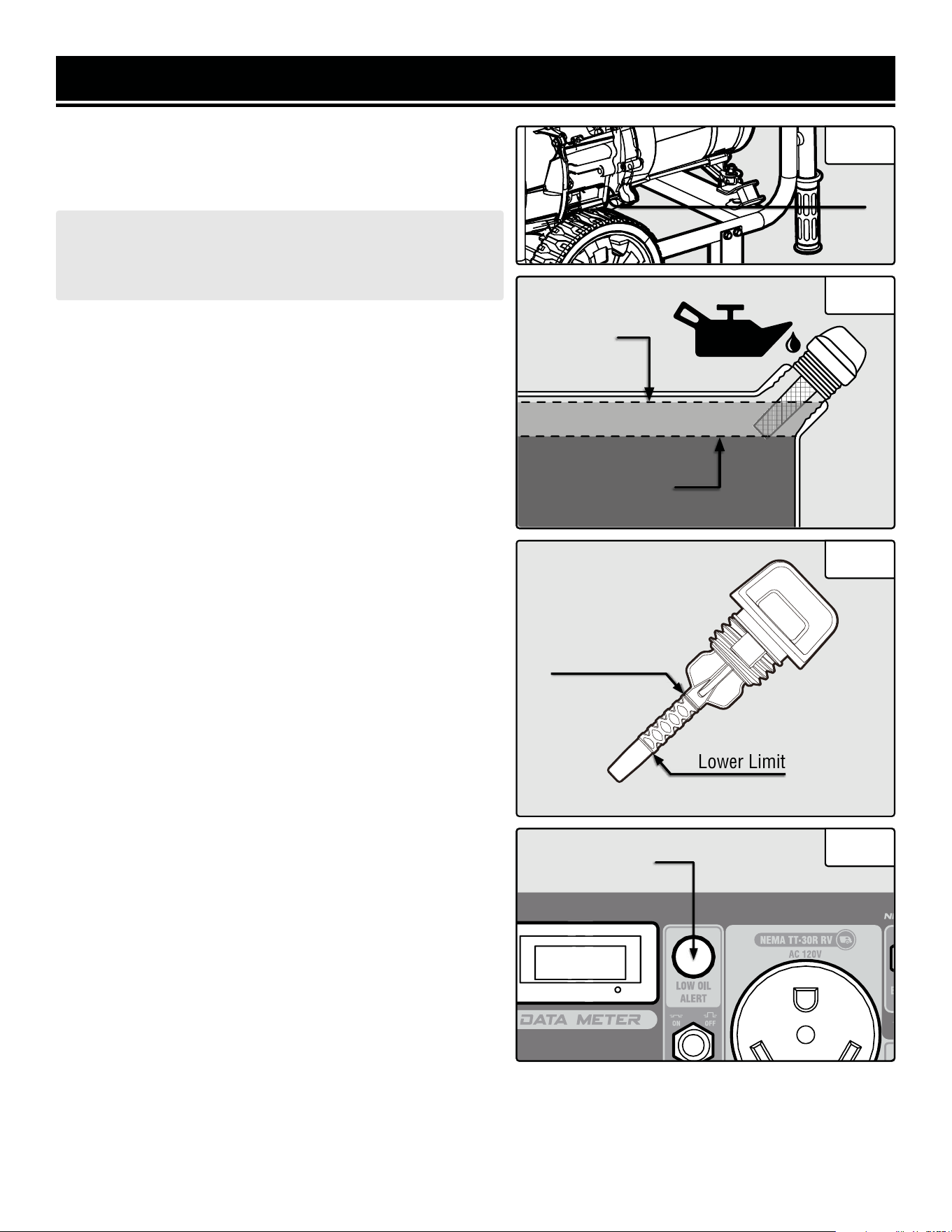

To add oil, follow these steps:
1. Place the generator on a level surface. Make sure the en-
gine is off before adding or checking oil.
CAUTION: Keep the generator level! Tilting the generator
to assist in filling will cause oil to flow into the wrong ar-
eas of the engine and cause damage.
2. Turn the dipstick (Fig. 1 - 1) counterclockwise until it is
unscrewed from the engine.
3. Using an oil funnel or appropriate dispenser, slowly add
oil into the oil fill, being careful not to overfill the unit. Fill the
crankcase until you can see the oil coming halfway up the oil
fill threads (Fig. 2).
4. Reinstall the oil dipstick and firmly tighten it. Wipe clean
any spilled oil.
For subsequent operation, the oil level should be checked be-
fore each use, or after every 8 hours of operation. The genera-
tor is equipped with a low-oil sensor and will not start without
a sufficient amount of oil.
To check oil level (before every subsequent start):
1. Place the generator on a level surface. Make sure the en-
gine is off before adding or checking oil.
2. Remove and wipe the dipstick with a clean rag.
3. Insert the dipstick into the oil fill without screwing it in.
Remove the dipstick to check the oil mark (Fig. 3).
If the oil mark covers less than one half of the dipstick, slowly
add oil until the oil mark reaches to the top of the dipstick.
4. Wipe clean any oil leaks and firmly tighten the dipstick.
OIL LEVEL SHUTDOWN
To protect the unit from damage, the generator is equipped
with a low-oil-pressure shutoff that will automatically stop the
engine when the oil level is too low. The low oil alert light (Fig.
4) will turn ON to remind you that the engine oil level is low
and needs to be refilled.
The oil level of the engine should be checked before each start
to ensure that the engine crankcase contains sufficient lubri-
cant.
TIP: Your WEN generator is compatible with the WEN 55201 Magnetic Oil Dipstick (not included), available for
purchase at wenproducts.com. The dipstick’s industrial-strength magnetic tip will collect metal shavings from your
generator’s oil compartment to help preserve the engine and extend your generator’s lifespan.
Upper Level
Fill Line
Lower LevelLower Level
Fill LineFill Line
Lower Level
Fill Line
Fig. 4
Fig. 1
1
Fig. 2
Fig. 3
GENERATOR PREPARATION
WARNING! RISK OF EXPLOSION. HIGHLY FLAMMABLE: This generator may emit highly flammable and
explosive gasoline vapors, which can cause severe burns or even death, if ignited. A nearby open flame can lead
to explosion even if not directly in contact with gasoline.
• Do not operate near open flame, heat, or any other ignition source. Do not smoke near the generator.
• Always operate on a firm, level surface.
• Always turn generator off before refueling. Allow generator to cool for at least 2 minutes before removing
fuel cap. Loosen cap slowly to relieve pressure in tank.
• Do not overfill fuel tank. Gasoline may expand during operation. Do not fill to the top of the tank. Allow for
expansion. Always check for spilled fuel before operating.
• If fuel spills, move the generator at least 30 feet away from the spill and wipe clean any spilled fuel before
starting the engine.
• Empty fuel tank before storing or transporting the generator.

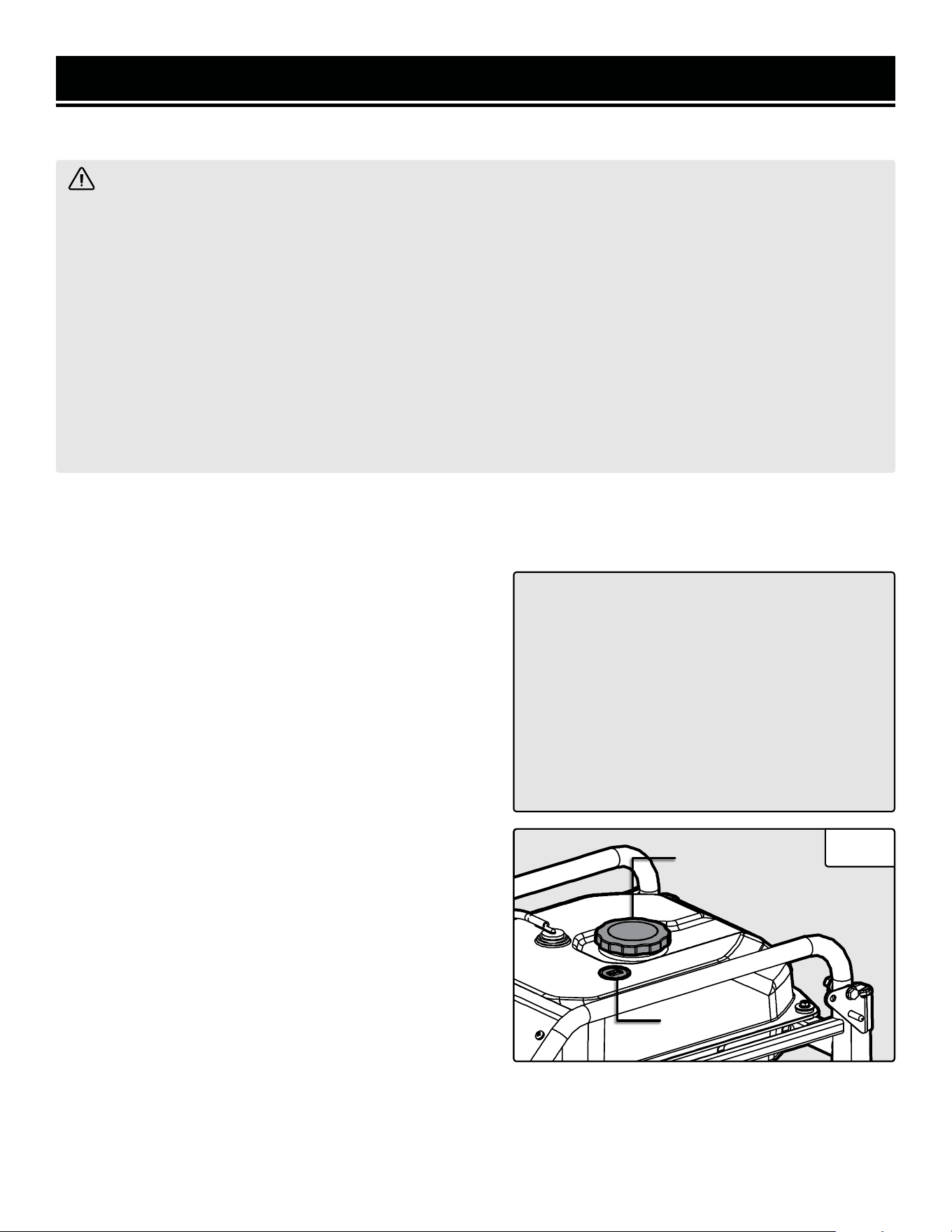

STEP 2 - ADD / CHECK FUEL
Use ONLY fresh (within 30 days from purchase), lead-free gasoline with a minimum of 87 octane rating. The genera-
tor performs best with ethanol-free gasoline. DO NOT use gasoline with over 10% ethanol. The capacity of the fuel
tank is 4.36 US gallons (16.50 L). Do not mix oil with gasoline.
To add gasoline:
1. Make sure the generator is shut OFF and on a level surface.
Unscrew the fuel cap (Fig. 5 - 1) and set it aside. The fuel cap
may be tight and hard to unscrew.
2. Slowly add unleaded gasoline to the fuel tank. Be careful
not to overfill.
NOTE: Do not fill the fuel tank to the very top. If you do so,
gasoline will expand and spill during use, even with the fuel
cap in place.
3. Reinstall fuel cap and wipe clean any spilled gasoline with
a dry cloth.
To check fuel level:
Check the fuel gauge (Fig. 5 - 2) on top of the fuel tank. If
the fuel level is low, refill the fuel tank before starting your
generator for the next time.
IMPORTANT:
• Avoid getting dirt or water into the fuel tank.
• Keep gasoline away from sparks, open flames,
pilot lights, heat, and other sources of ignition.
• Gasoline can age in the tank and make starting
difficult. Never store the generator for more
than 2 months with fuel in the tank.
• Never use an oil/gasoline mixture.
• Never use old gasoline.
Fig. 5
15
1
2
GENERATOR PREPARATION
STEP 3 - GROUND THE GENERATOR
To reduce the risk of electric shock and to maximize safety, the genera-
tor should be properly grounded.
Ground the generator by tightening the grounding nut (Fig. 6 - 1) on
the front control panel against a grounding wire. A generally acceptable
grounding wire is a No. 12 AWG (American Wire Gauge) stranded cop-
per wire.
This grounding wire should be connected at the other end to a copper,
brass, or steel grounding rod that is driven into the earth. Wire and
grounding rods are not included with the generator.
NOTE: Grounding codes can vary by location. Contact a local electrician
to check the area codes.
WARNING! Failure to properly ground the generator increases your risk of electric shock.
HIGH ALTITUDE OPERATION ABOVE 3000 FEET
The fuel system on this generator may be affected by operation at high altitudes. Proper operation can be ensured by
installing an altitude kit at altitudes higher than 3000 feet above sea level. At elevations above 8000 feet, the engine
may experience a decrease in performance, even with the proper altitude kit. Operating this generator without said
kit may increase the engine’s emissions and decrease both fuel economy and performance.
You can order the kit at wenproducts.com by searching part GN5600-HA. There are two kits - one for altitudes
between 3000 and 6000 feet (part no. GN5600-HA36), and the other for altitudes from 6000 to 8000 feet (part no.
GN5600-HA68). This kit should be installed by a qualified mechanic. Refer to the instructions included with your
altitude kit for more information about installation.
NOTE: The high altitude kit must be installed for operation above 3000 feet.
WARNING! To prevent serious injury from fire, follow the kit installation procedures in a well-ventilated
area away from ignition sources. If the engine is hot from use, shut the engine off and wait for it to cool before
proceeding. Do not smoke near the generator. Warranty will be void if adjustments are not made for high altitude
use.
CAUTION: Engines with the high-altitude kit installed operated at lower altitudes could cause severe engine dam-
age and affect emissions compliance. Be sure to uninstall the high altitude kit when operating at altitudes below
3000 feet.
After completing the above preparation, the generator is ready to be started.
1
Fig. 6
16
CAUTION!
Disconnect all electrical loads from the generator before attempting to start.
Before starting the generator, make sure you have read and performed the steps in the “Generator Preparation”
section of this manual. If you are unsure about how to perform any of the steps in this manual please call 1-847-
429-9263 M-F 8-5 CST for customer service.
To maximize safety, ALWAYS ground the generator before using it. See section “Ground the Generator”.
Use a ground fault circuit interrupter (GFCI) in highly conductive areas such as metal decking or steel work. GFCIs
are available in-line with some extension cords.
STARTING YOUR GENERATOR
Follow the instructions on the next page to start your generator.
DANGER! CARBON MONOXIDE
Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). This
is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even
if you cannot smell the exhaust, you could be breathing CO.
NEVER use a generator inside homes, garages, crawl spaces, or other partially enclosed areas. Deadly levels
of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply
enough fresh air. ONLY use a generator outside and far away from windows, doors, and vents. These openings
can pull in generator exhaust.
Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-
backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move
to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
WARNING! The exhaust from this product contains chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
WARNING! Do not operate generator near open flame or flammable materials This generator may emit
highly flammable and explosive gasoline vapors, which can cause severe burns or even death if ignited. A
nearby open flame can lead to explosion even if it isn’t directly in contact with gasoline. Do not smoke near the
generator.
WARNING! This generator produces powerful voltage, which can result in electrocution.
WARNING! Do not use in rainy or wet conditions. Do not touch bare wires or receptacles (outlets). Do not
allow children or non-qualified persons to operate.
WARNING! Generator should only be connected to electrical devices, either directly or with an extension
cord. NEVER connect to a building electrical system without a qualified electrician and connected to a transfer
switch as a separately derived system. Such connections must comply with local electrical laws and codes.
Failure to comply can create a back-feed, which may result in serious injury or death to utility workers.
17
STARTING YOUR GENERATOR
BEFORE STARTING THE GENERATOR
1. Verify that the generator is outside on a dry, level surface with at least two feet of clearance on all sides.
2. To maximize safety, check that the generator is properly grounded (see "GROUND THE GENERATOR").
3. Check that there is a sufficient level of oil in the crankcase. Add oil if necessary (see "ADD / CHECK OIL").
4. Make sure that there is enough gasoline in the fuel tank. Add fuel if necessary (see "ADD / CHECK FUEL").
5. Make sure all electrical devices are unplugged from the generator during ignition otherwise it will be difficult for
the engine to start.
STARTING THE GENERATOR
1. Turn the fuel valve (Fig. 7 - 1) to the ON position.
2. Turn the choke lever (Fig. 8 - 1) to the CLOSED position.
3. Push the engine switch (Fig. 9) to the ON position.
4. Place one hand on the generator to hold it in place, and pull on
the recoil starter handle (Fig. 8 - 2) slowly until a slight resistance
is felt. Then pull quickly to start the engine. Return cord gently
into the machine. Never allow the cord to snap back.
NOTE: If engine fails to start, repeat step 3.
5. Once the engine starts, turn the choke lever to OPEN.
6. Allow the generator to run for several minutes before attempt-
ing to connect any electrical devices. This allows the generator to
stabilize its speed and temperature.
NOTE: If you have repeated failed attempts to start the engine,
please consult the troubleshooting guide. If problems persist,
please call please call 1-847-429-9263 M-F 8-5 CST.
ENGINE BREAK-IN PROCEDURE
The procedure below should be followed when you receive your
generator in order to prolong the engine's service life. This pro-
cedure helps to seat the piston rings properly in the cylinder, and
will reduce overall wear on the engine.
For the first 8 hours of operation, vary the load, but keep it at or
below 50% of the generator's rated wattage, if possible. If your
generator is equipped with an Eco-mode switch (only applicable
for certain inverter generators), engage Eco-mode periodically
during the first 8 hours. After the first 8 hours, change the oil,
then change it again after the first 25 hours. You may run the
generator at full load after the 8-hour oil change. Refer to the
Recommended Maintenance Schedule in Table 4 for the full main-
tenance schedule.
Fig. 7
Fig. 8
Fig. 9
1
1
2
18
USING YOUR GENERATOR
CALCULATING THE WATTAGE OF YOUR DEVICE(S)
Connect electrical devices running on AC current according to their wattage requirements. Calculate the total run-
ning wattage and starting wattage of the device(s) you wish to connect, and MAKE SURE that they are within the
capacity of your generator and the capacity of each individual outlet.
Generator
Wattage
Capacity
GENERATOR RUNNING (RATED) WATTS GENERATOR STARTING (SURGE) WATTS
4500W 5600W
What this means:
The generator can produce a maximum of
4500W on a continuous basis to supply on-
going power to your electronic devices.
NOTE: Also check the rated amperage for
each outlet and make sure not to overload
the individual outlets.
What this means:
Some devices such as box fans require short
bursts of extra power in addition to the rated
wattage listed by the device to start their mo-
tors.
The generator can produce a maximum watt-
age of 5600W for a short period of time
(seconds) to cover the extra starting power
required by your electronic devices.
Electronic
Device
Wattage
Calculation
Find the wattage information of each device you plan to connect. The information should be
listed on the device or in its instruction manual, or you may refer to Table 2.
The wattage can be calculated using this equation: Watts = Volts x Amperes
To calculate the total running watts of your
devices:
+ Add up the running wattages of all the
device(s) you plan to connect.
= The total running (rated) wattage.
This wattage should NOT exceed the run-
ning wattage of 4500W.
It is recommended to maintain a load at or
below 4050W (90% of the rated output) to
ensure steady voltage output and to prolong
the generator’s lifespan.
To calculate the total starting watts of your
devices:
+ Add up the total running wattage of all the
device(s) you plan to connect.
+ Add the single highest ADDITIONAL start-
ing wattage out of the device(s) you plan to
connect.
= The total starting (surge) wattage.
This wattage should NOT exceed the starting
wattage of 5600W.
If any of either of the total calculated running watts or starting watts is higher than the capac-
ity of your generator, adjust the load until both wattage requirements are met. Otherwise you
will overload the generator, and cause damage to the engine and your electrical device(s).
Table 1 - How to Calculate Wattages
19
USING YOUR GENERATOR
CALCULATING THE WATTAGE OF YOUR DEVICE(S) - CONTINUED
The chart below serves as a reference for the estimated wattage requirements of common electrical devices. How-
ever, do not solely rely on this chart - all electronics and appliances are built differently. Always check the wattage
listed on the electrical device before consulting this chart.
Tool or Appliance Rated (Running) Watts Surge (Starting) Watts
Electric Water Heater (40 Gal) 4000 0
Hot Plate 2500 0
Saw - Radial Arm 2000 2000
Electric Stove (Each Element) 1500-2800 0
Saw - Circular 1500 1500
Air Compressor (1 HP) 1500 3000
Window Air Conditioner 1200 1800
Saw - Miter 1200 1200
Microwave 1000 0
Well Water Pump 1000 1000
Sump Pump 800 1200
Refrigerator Freezer 800 1200
Furnace Blower 800 1300
Computer 800 0
Electric Drill 600 900
Television 500 0
Deep Freezer 500 500
Garage Door Opener 480 0
Stereo 400 0
Box Fan 300 600
Clock Radio 300 0
Security System 180 0
Dvd Player / VCR 100 0
Common Light Bulb 75 0
Table 2 - Estimated Wattages of Common Electrical Appliances
NOTE: Become familiar with the functions and capacity of each component on the control panel before con-
necting electrical devices. See page 11 for more information about the components of the control panel. Do not
overload generator or individual panel receptacles. Do not connect 50Hz or 3-phase loads to the generator.
20
USING YOUR GENERATOR
CONNECTING ELECTRICAL DEVICES
When the rated wattage requirement of each electrical device has been determined, add these numbers to find the
total rated wattage needed. If this number exceeds the rated wattage (4500W) of the generator, DO NOT connect all
these devices. Select a combination of electrical devices with a total rated wattage lower than or equal to the rated
wattage of the generator.
CAUTION! Become familiar with the markings on the control panel before connecting electrical devices. Do
not connect 3-phase or 50Hz loads to the generator.
1. Before connecting electrical devices, allow the generator to run for a few minutes to stabilize the speed and volt-
age output.
2. Make sure that all devices are turned off. Start plugging in each electric device, from the highest wattage to the
lowest. Check the power indicator light (green) to ensure the generator is producing power.
3. Do not overload the generator or individual panel receptacles. If an overload occurs, one or more circuit breakers
will trip. Unplug all electrical devices, then press the circuit breaker to reset it. If it will not reset, wait a few minutes
for it to cool down. Check the total wattage of the devices and reduce the load if it exceeds the capacity of the gen-
erator. Then, plug the loads back in one by one.
NOTE: If the reset button or circuit breaker does not reset, wait several minutes and try again. If problem still per-
sists, please call 1-847-429-9263 M-F 8-5 CST, or email [email protected].
21
USING YOUR GENERATOR
Table 3 - Power Cord Requirement Guide
SOME NOTES ABOUT POWER CORDS
Long or thin cords can drain the power provided to an electrical device by the generator. When using such cords,
allow for a slightly higher rated wattage requirement by the electrical device.
*NR = Not Recommended
Device Requirements Max. Cord Length (ft) by Wire Gauge
Amps
Watts
(120V)
Watts (240V) #8 wire #10 wire #12 wire #14 wire #16 wire
2.5 300 600 NR NR NR 375 250
5 600 1200 NR NR 300 200 125
7.5 900 1800 NR 350 200 125 100
10 1200 2400 NR 250 150 100 50
15 1800 3600 NR 150 100 65 NR
20 2400 4800 175 125 75 50 NR
25 3000 6000 150 100 60 NR NR
30 3600 7200 125 65 NR NR NR
40 4800 9600 90 NR NR NR NR
NOTE: For power outages, permanently installed, stationary generators are better suited for providing backup
power to your home. Even a properly connected portable generator can become overloaded. This may result in
overheating or stressing the machine’s components, possibly leading to generator failure.
WARNING! Generator should only be connected to electrical devices, either directly or with an extension
cord. NEVER CONNECT TO A BUILDING ELECTRICAL SYSTEM without a qualified electrician and connected to
a transfer switch as a separately derived system. Such connections must comply with local electrical laws and
codes. Failure to comply can create a back-feed, which may result in serious injury or death to utility workers.
CIRCUIT BREAKERS (FIG. 10)
The 30A circuit breaker protects the NEMA TT-30R outlet and the NEMA L5-30R outlet. The 20A circuit breaker
protects the NEMA 5-20R outlets. The 37A main circuit breaker protects the entire panel. The circuit breakers will
activate when the outlets exceed the indicated amperage. When the circuit breaker activates, turn off and disconnect
the device from its respective outlet and press the circuit breaker to reset.
Fig. 10
22
1
SHUTTING OFF YOUR GENERATOR
CAUTION! Unplugging running devices can cause damage to the generator. Never stop the engine with elec-
trical devices connected and running.
OPTION 1: AUTOMATIC FUEL SHUTOFF
Your generator is equipped with automatic fuel shutoff. This feature turns off the flow of fuel, allowing for the gen-
erator to use up the remaining fuel from the carburetor before turning off. This prolongs the lifespan of the generator
by preventing build-up and blockages caused by stagnant fuel inside of a carburetor.
1. Turn off all electrical devices prior to unplugging them from
the generator. Unplugging running devices can cause damage to
the generator.
2. Allow generator to run at no load for a few minutes to stabilize
internal temperatures.
3. Turn the fuel valve (Fig. 11 - 1) to the OFF position.
4. The engine will continue to run until the majority of the fuel in
the carburetor is consumed, which takes a few minutes. It will
then shut off automatically. This feature helps to prevent the car-
buretor from being clogged by stale fuel, extending your genera-
tor’s lifespan.
5. Push the engine switch (Fig. 12) to the OFF position.
OPTION 2: MANUAL SHUTOFF
In case you are in a hurry and do not want to wait for the gen-
erator to automatically shut down, the manual shutoff feature is
available. However, this method will leave stagnant fuel in the
carburetor, possibly causing blockages, a shortened lifespan,
and other maintenance issues. If this approach is frequently tak-
en, make sure to drain your carburetor before any long storage
periods.
1. Turn off all electrical devices prior to unplugging them from
the generator. Unplugging running devices can cause damage to
the generator.
2. Push the engine switch to the OFF position.
Fig. 11
Fig. 12
WARNING! Allow the generator to cool down before touching areas that become hot during use.
CAUTION: Allowing gasoline to sit in the fuel tank for long periods of time can make it difficult to start the gen-
erator in the future. Never store the generator for extended periods of time (over 2 months) with fuel in the fuel
tank. Refer to “Storing the Generator.”
23
MAINTENANCE
Proper routine maintenance of the generator will help prolong the life of the machine. Please perform maintenance
checks and operations according to the schedule in Table 4.
CAUTION! Never perform maintenance operations while the generator is running. Before maintaining or
servicing the generator, turn OFF the generator, disconnect all devices and allow the generator to cool down.
If there are any questions about the maintenance procedures listed in this manual, please call 1-847-429-9263 M-F
8-5 CST or email [email protected].
Recommended
Maintenance Schedule
Every 8
Hours or
Daily
Every 25
Hours
Every 3
Months or
50 Hours
Every 6
Months or
100 Hours
Before
Storage
As
Necessary
Engine Oil
Check Level x
Replace x** x** x* x
Air Filter
Check x*
Clean x*
Spark Plug
Check/Clean/
Regap
x
Change x x
Fuel
Check Level x
Drain x x
Carburetor Drain x x
Spark
Arrestor
Check/Clean x
Table 4 - Recommended Maintenance Schedule* Clean/change more often under dusty conditions or operating
under heavy load.
** Change the oil after the first 8 hours of operation, after the
first 25 hours of operation, and every 50 hours after that.
IMPORTANT GENERATOR MAINTENANCE TIPS:
• Drain your carburetor after each use and before storage to prevent it from clogging.
• Do not store the generator with fuel inside the tank for more than 2 months - the fuel will go bad.
• Run the generator for at least 20 minutes every month to maximize lifespan.
CLEANING THE GENERATOR
Keep the generator clean to prevent improper operation or machine damage from dirt and debris. Inspect all venti-
lation openings on the generator. These openings must be kept clean and unobstructed. If the generator becomes
dirty, use a damp cloth to wipe exterior surfaces. Use a soft bristle brush to loosen dirt and oil and use a vacuum to
pick up loose dirt. Use low pressure air (not to exceed 25 PSI) to blow away dirt.
CAUTION! Never clean the generator when it is running! Never clean with a bucket of water or a hose. Water
can get inside the working parts of the generator and cause corrosion or a short circuit.
NOTE: Failure to properly maintain the generator will void the warranty.
24
MAINTENANCE
CLEANING THE GENERATOR
Keep the generator clean to prevent improper operation or machine damage from dirt and debris. Inspect all ventila-
tion openings on the generator. These openings must be kept clean and unobstructed.
If the generator becomes dirty, use a damp cloth to wipe exterior surfaces. Use a soft bristle brush to loosen dirt and
oil and use a vacuum to pick up loose dirt. Use low pressure air (not to exceed 25 PSI) to blow away dirt.
WARNING! Never clean the generator when it is running! Never clean with a bucket of water or a hose. Water
can get inside the working parts of the generator and cause corrosion or a short circuit.
CHECKING / ADDING OIL
Check the oil level before each use and every 8 hours of operation (refer to Table 4).
The oil capacity of the generator engine is 20.0 fl. ounces. Add oil when the oil level is low. For proper type and
weight of oil refer to “add oil” portion of the “Generator Preparation” section. This is a critical step for proper engine
starting. The generator is equipped with a with low-oil shut down to protect it from running without oil.
To check the oil level and add oil:
1. Make sure the generator is on a level surface. Do not tilt the generator, as oil will flow into engine areas and cause
damage. Keep generator level!
2. Remove the dipstick and wipe it with a clean rag.
3. Insert the dipstick into the oil fill opening without screwing
in. Remove the dipstick to check the oil mark (Fig. 13). Add oil if
the oil mark covers less than one half of the dipstick.
4. Using a funnel or appropriate dispenser, slowly add more oil.
Repeat the step above until the oil mark reaches the top of the
dipstick. Do not over fill.
5. Reinstall dipstick and wipe clean any spilled oil with a rag.
Fig. 13
25
Lower Limit
Upper Limit
MAINTENANCE

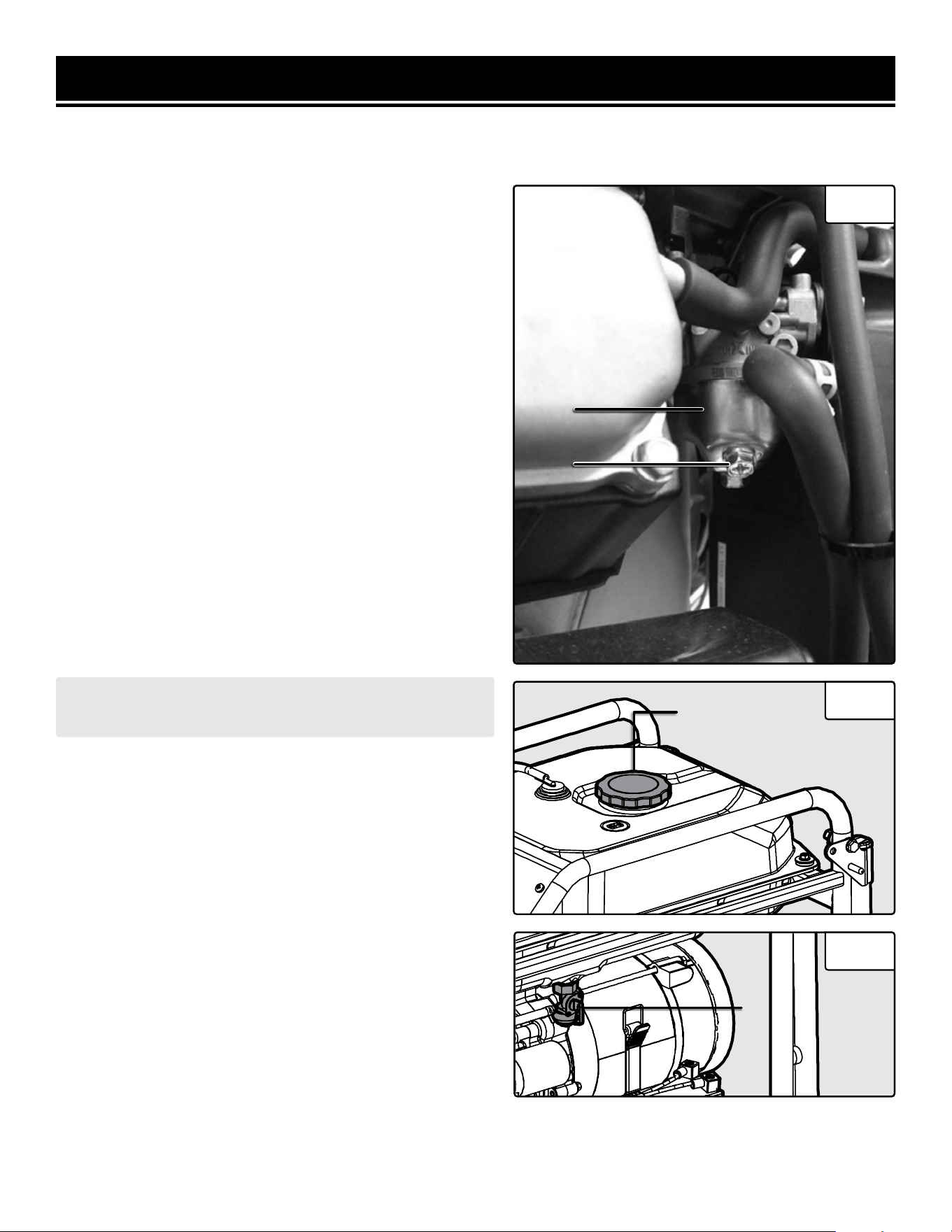

DRAINING THE CARBURETOR
We recommend draining the carburetor after every use and before storing the generator. Draining the carburetor
can prevent the fuel from clogging up the carburetor; a clogged carburetor can prevent the generator from starting.
1. With the help of another person, place the
generator on an elevated platform such as a
table or desk.
2. Make sure that the engine switch is pressed
to OFF and the fuel valve is in the OFF posi-
tion. This will allow only the fuel left inside the
carburetor will be drained out.
3. The carburetor (Fig. 14 - 1) can be ac-
cessed on the left of the generator, right be-
hind the air filter.
4. Prepare an approved gasoline-storage con-
tainer and a funnel.
5. Open up the carburetor drain screw (Fig.
16 - 2) with a Phillips-head screwdriver and
drain out any gasoline that has built up inside
the carburetor through the included funnel
into the approved gasoline-storage container.
6. Once the fuel has drained, tighten the drain
screw with the screwdriver.
NOTE: Make sure to drain your carburetor be-
fore storing the generator for long periods of
time.

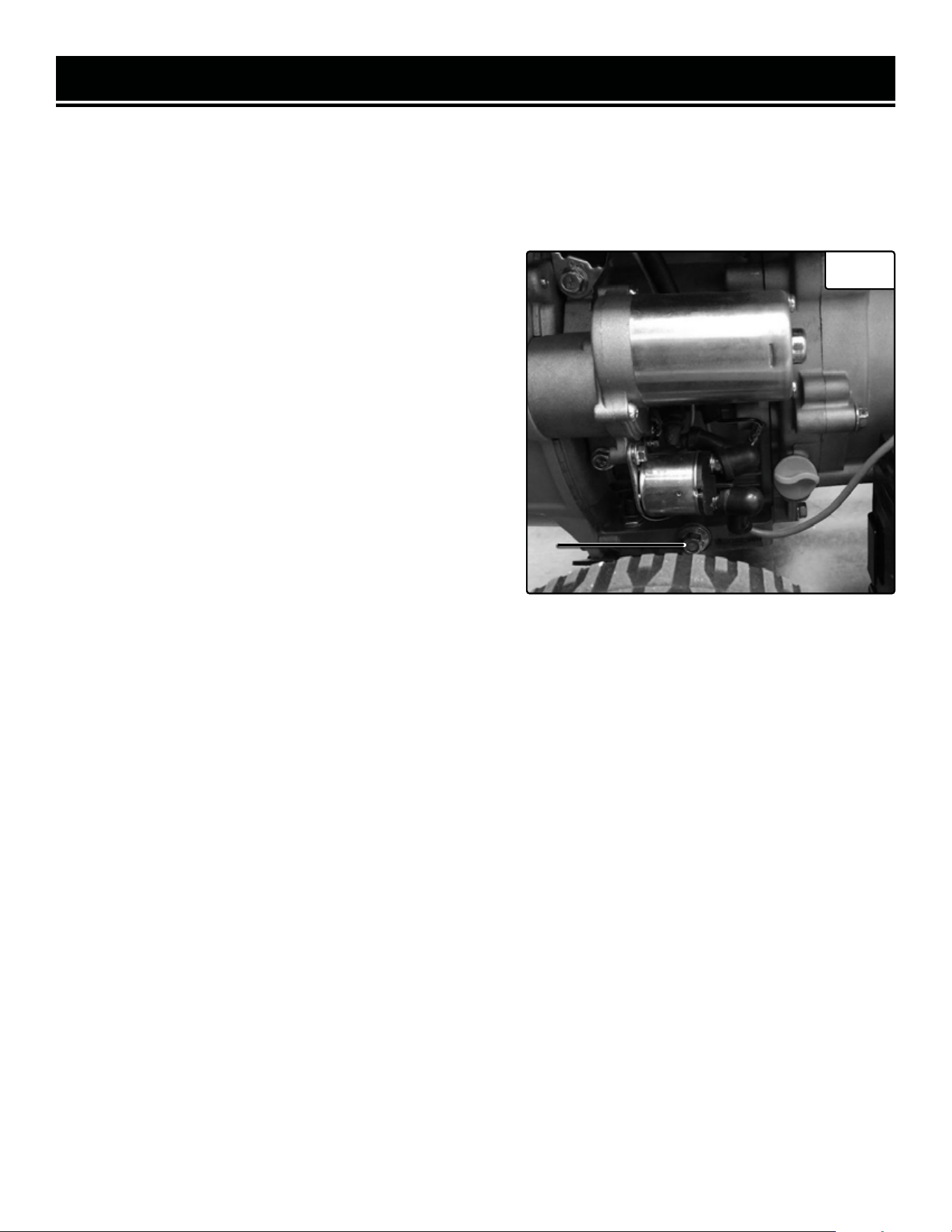

Fig. 14
11
222
1
26
MAINTENANCE

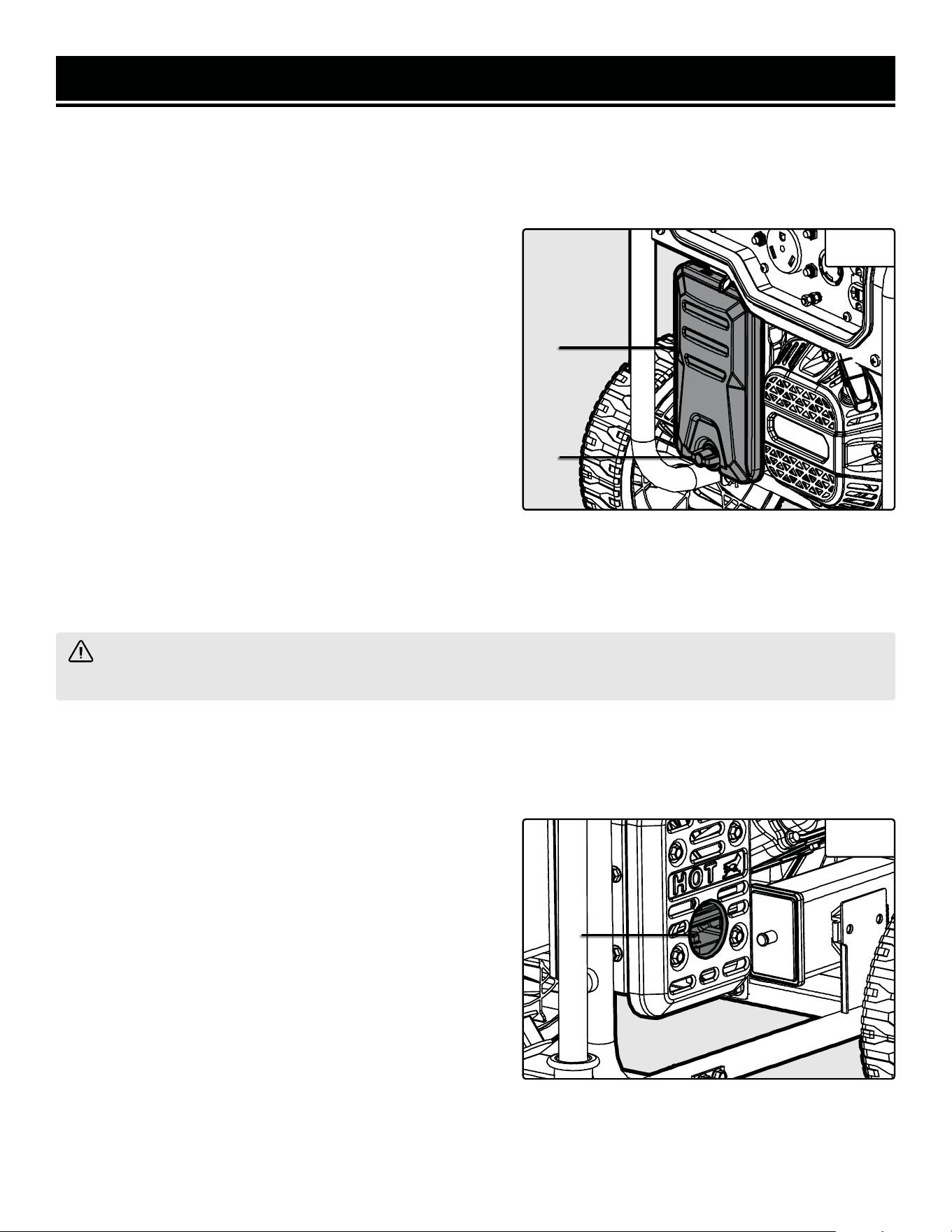

AIR FILTER MAINTENANCE
Check every 50 hours of operation (refer to Table 4 - Recommended Maintenance Schedule).
Routine maintenance of the air filter helps maintain proper airflow to the carburetor. Occasionally check that the air
cleaner is free of excessive dirt.
To inspect and clean the air filter:
1. Remove the air filter cover (Fig. 15 - 1) by unscrewing the
cover lock knob (Fig. 15 - 2) at the bottom of the air filter
cover.
2. Remove the foam, sponge-like air filter element from the
casing. Wipe excessive oil and any dirt from inside of the air
filter casing.
3. Check the foam, sponge-like air filter element.
a) Good elements can be washed in soapy water. Dry the
element in clean cloth (do not twist it). Add a few drops of
engine oil to the air filter element and spread it evenly. A
small amount of oil left in the element is normal and neces-
sary for the engine to work properly.
WARNING! Running the engine with a dirty, damaged or missing air filter element can result in danger to the
operator and cause the engine to wear out prematurely.
SPARK ARRESTOR MAINTENANCE
Inspect and clean the spark arrestor every 100 hours of operation. The spark arrester is located outside the muffler,
which gets very hot during operation. Allow the engine to cool completely before servicing the spark arrester. To
inspect and clean the spark arrester:
1. Remove the two Phillips-head screws that secure the spark
arrestor to the muffler (Fig. 16 - 1).
2. Remove the spark arrestor screen.
3. Carefully clean and remove the carbon deposits from the
spark arrestor screen with a wire brush. Replace the spark
arrestor if it is damaged (replacement spark arrestors can be
purchased from wenproducts.com by searching the part no.
GN5600-089).
4. Reinstall the spark arrestor in the muffler and secure it in
place with the screws.
Fig. 15
Fig. 16
b) Damaged elements should be replaced with a new one. Replacement air filters can be purchased from wen-
products.com by searching part number GN5600-137.
4. Reinstall the air filter element and air filter cover.
1
1
2
27
MAINTENANCE
SPARK PLUG MAINTENANCE
Refer to Recommended Maintenance Schedule in Table 4 for maintaining the spark plug. The spark plug is impor-
tant for proper engine operation. Check the spark plug regularly to maintain proper engine operation. A good spark
plug should be intact, free of deposits, and properly gapped.
To inspect or replace the spark plug:
1. Gently pull on the spark plug boot (Fig. 17 - 1) to remove it.
Be careful not to tear any insulation or wire.
2. Use the included spark plug socket (Fig. 18) to unscrew and
then carefully remove the spark plug from the engine.
TIP: There is limited space for the wrench to turn. Use both
rows of holes in the spark plug wrench to gain leverage to
loosen the plug.
3. Visually inspect the spark plug. If it is cracked or chipped,
or if the electrodes are worn or burned, discard it and replace
with a new spark plug.
We recommend replacing with a Torch F7TC (NGK BP7ES)
spark plug (part no. GN5600-121), available for purchase at
wenproducts.com.
4. If re-using the spark plug, use a wire brush to clean any dirt
from around the spark plug base, then re-gap the spark plug.
5. Measure the plug gap with a spark plug gap gauge. The gap
should be 0.028 in. - 0.031 in. (0.7mm - 0.8mm) (Fig. 19).
Carefully adjust the gap if necessary.
6. Screw the spark plug back into the spark plug hole using
the spark plug wrench. Do not over-tighten spark plug. Rec-
ommended tightening of spark plug is 20 - 22 ft-lbs (27 - 30
Nm).
7. Reinstall the spark plug boot, spark plug rubber cover, and
service panel.
0.7 mm - 0.8 mm
Fig. 17
Fig. 18
Fig. 19
1
Spark Plug Socket
28
MAINTENANCE
DRAINING / CHANGING OIL
Change the oil according to the Recommended Maintenance Schedule in Table 4. Change the oil MORE OFTEN if
operating under heavy load or high ambient temperatures. It is also necessary to drain the oil from the crankcase if
it has become contaminated with water or dirt. Changing the oil when the engine is warm allows for more-complete
drainage.
To change engine oil:
1. With the help of another person, place the generator on an
elevated platform such as table or workbench.
NOTE: To avoid possible gasoline spills from the carburetor
bowl, drain the carburetor before draining oil.
2. Prepare an approved oil-storage container and place it be-
low the oil drainage bolt (Fig. 20 - 1) to catch oil as it drains.
4. Use a 10mm socket to loosen and remove the oil drainage
bolt, and allow oil to drain from the engine completely.
5. Replace and tighten the oil drainage bolt after the oil has
drained.
NOTE: Never dispose of used engine oil in the trash or down
a drain. Please call a local recycling center or auto garage to
arrange proper oil disposal.
Fig. 20
111
29
6. Unscrew the oil dipstick. Using a funnel or appropriate dispenser, add 20 fl. oz. (0.60 L) of clean engine oil into
the oil fill. Check the oil level periodically using the dipstick. Do not over fill.
TIP: Your WEN generator is compatible with the WEN 55201 Magnetic Oil Dipstick (not included), available for
purchase at wenproducts.com. The dipstick’s industrial-strength magnetic tip will collect metal shavings from your
generator’s oil compartment to help preserve the engine and extend your generator’s lifespan.
11
222
1
MAINTENANCE
DRAINING THE FUEL TANK
Drain and clean the fuel tank each year, or before storing the generator for longer than two months.
To drain the fuel tank and carburetor:
1. Locate the carburetor (Fig. 21 - 1). It can be accessed on
the back of the generator, right beside the air filter.
2. Prepare an approved gasoline-storage container and a
funnel.
3. Remove the fuel cap (Fig. 22 - 1) and turn the fuel valve
(Fig. 23 - 1) ON.
4. Open up the carburetor drain screw (Fig. 21 - 2) with a
Phillips screwdriver. Fuel will start draining from the carbu-
retor and fuel tank through the funnel.
NOTE: The draining process may take a few hours, depend-
ing on the amount of fuel in your gas tank.
5. Once fuel is completely drained from the tank, reinstall the
fuel cap and turn the fuel valve OFF. Tighten the drain screw
with the screwdriver.
6. Start and run the generator until the fuel runs out.
7. Store the emptied gasoline in a suitable place. DO NOT
store flammable materials near the gasoline.
CAUTION: Store the emptied gasoline in a suitable place.
Never store fuel for more than 2 months.
Fig. 21
Fig. 22
1
Fig. 23
1
30
TRANSPORTATION & STORAGE
WARNING! Avoid direct sunlight inside a vehicle. If the generator is left in an enclosed vehicle for many
hours, the high temperature could cause the fuel to vaporize and result in a possible explosion.
WARNING! Store the generator upright in a cool and dry location, away from sources of heat, open flames,
sparks or pilot lights.
TRANSPORTING THE GENERATOR
To prevent fuel spillage when transporting, be sure to perform the following:
1. Tighten the fuel cap.
2. Push the engine switch to OFF.
3. Drain the fuel tank if possible. Refer to section "DRAINING THE FUEL TANK."
4. Keep the generator upright. Never place the generator on its side or upside down - doing so could damage the
internal components of the generator and make it difficult to start.
STORING THE GENERATOR
Shut off the generator and allow the unit to cool to room temperature before storing it. NEVER place any type of
storage cover on the generator while it is still hot. Do not obstruct any ventilation openings.
Follow the procedures below for properly storing your generator. We highly recommend running your generator
once a month for 20 to 30 minutes. Plug in a small load in to ensure there is proper power output.
PRODUCT DISPOSAL
Do not dispose of a used generator or parts with your household waste. This product contains electrical or elec-
tronic components that should be recycled. Please take this product to your local recycling facility for responsible
disposal to minimize its environmental impact.
Do not dispose of used oil or fuel in the trash or down a drain. Please contact your local recycling center or auto
garage to arrange proper oil/fuel disposal.
Please recycle the packaging and electronic components where facilities exist. Please contact your
local auto garage or recycling facility to properly dispose of oil/fuel.
For Short Periods (30 to 60 Days):
• Drain the carburetor.
• Add fuel stabilizer: Follow the suggested por-
tions and instructions of your preferred stabilizer.
Run the engine for 15 to 20 minutes, allowing the
fuel stabilizer to mix with the gasoline and circulate
through the carburetor, and then top off with fuel.
Filling the fuel tank full reduces the amount of air in
the tank and helps fight deterioration of fuel.
For Extended Periods (Over 60 Days):
• Drain the fuel tank and carburetor (see “DRAINING
THE FUEL TANK”). Never store generator with fuel
in the tank for more than two months.
• Change the engine oil (see “CHANGING OIL”).
31
TROUBLESHOOTING GUIDE
WARNING! Stop using the generator immediately if any of the following problems occur or risk serious
personal injury. If you have any questions, please contact customer service at 1-847-429-9263 (M-F 8-5 CST),
or email [email protected].
PROBLEM POSSIBLE CAUSE SOLUTION
Engine will not
start.
1. CHOKE lever is in wrong position. 1. Set switch to CHOKE if engine is cold and RUN if engine is warm.
2. Engine switch is set to OFF. 2. Turn engine switch to ON.
3. Oil is low. 3. Add oil.
4. Engine is out of fuel. 4. Add fuel.
5. Engine is filled with contaminated or old
fuel.
5. Drain fuel in the tank and carburetor. Replace with fresh fuel.
6. Spark plug is dirty or broken. 6. Clean or replace spark plug.
7. Carburetor is air locked.
7. Turn the fuel valve OFF. Remove bolt from bottom of the carburetor. Take
off the carburetor bowl to allow it to reset. Replace carburetor bowl and
reinstall the bolt.
8. Ghost in the generator. 8. Persuade ghost to leave. Consult Bill Murray if needed.
Engine runs but
there is no electri-
cal output.
1. Breaker has tripped due to wattage over-
load.
1. Turn off and unplug all electrical devices. Wait 3 minutes, and press the
activated breaker to reset. Check the total wattage of the devices and reduce
the load if it exceeds the capacity of the generator.
2. Bad connecting cord or wire.
2. Check power cords & extension cords. Do not use if any cord is damaged.
Replace damaged cords immediately.
3. Bad electrical device connected to the
generator.
3. Try connecting a different device.
Generator runs,
but does not
support all
electrical devices
connected.
1. AC or DC receptacles are overloaded;
circuit breaker has tripped.
1. Turn off and unplug all electrical devices. Wait 3 minutes, then press the
breaker to reset. Check the amperage of the devices to ensure they are within
the receptacles’ rated capacities.
2. Short circuit in one of the devices. 2. Disconnect any faulty or short-circuited electrical devices.
3. Air filter is dirty. 3. Clean or replace the air filter element.
Engine is
“hunting”
during operation
(engine RPM is
fluctuating).
1. Gasoline is not running through fuel valve.
1. Make sure there is enough fuel. Make sure the CHOKE lever is turned to
RUN.
2. Air filter is dirty. 2. Clean or replace the air filter element.
3. Spark arrestor is dirty. 3. Clean the spark arrestor.
4. There is gunk in the carburetor preventing
a consistent fuel/air mixture.
4. Use carburetor cleaner spray on the carburetor bowl and jets.
IMPORTANT: Repairs and replacements should only be performed by an authorized technician. Parts and acces-
sories that wear down over the course of normal use are not covered by the three-year warranty.
32
WIRING DIAGRAM
33
EXPLODED VIEW & PARTS LIST
NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service at 1-847-
429-9263, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use are not covered by
the three-year warranty. Not all parts may be available for purchase.
GENERATOR
34
EXPLODED VIEW & PARTS LIST
NO. PART NO. DESCRIPTION QTY.
1 GN5600-001
Phillips Pan Head
Screw, M6x10
4
2 GN5600-002ASM
Control Panel
Assembly
1
3 GN5600-003
Phillips Pan Head
Screw, M5x12
6
4 GN5600-004 Multi-meter 1
5 GN5600-005
NEMA TT-30R 120V
AC 30A RV
Receptacle
1
6 GN5600-006 Engine Switch 1
7 GN5600-007
NEMA L5-30R 120V
AC 30A Receptacle
1
8 GN5600-008
NEMA 5-20R 120V
AC 20A Duplex
Receptacle
1
9 GN5600-009 AC Breaker, 37A 1
10 GN5600-010
Grounding Lug
Assembly
1
11 GN5600-011 Panel 1
12 GN5600-012 Foam Strip 1
14 GN5600-014
Low Oil Indicator
Light
1
15 GN5600-015 AC Breaker, 20A 1
16 GN5600-016
Control Panel
Housing
1
17 GN5600-017 Control Panel Cover 1
18 GN5600-018 Dowel Pin 2
21 GN5600-021 Nut, M8 2
22 GN5600-022 Muffler Gasket 1
23 GN5600-023 Muffler 1
24 GN5600-024 Bolt, M6x16 2
25 GN5600-025 Clamp Hose, ∅12 3
26 GN5600-026 Carbon Tank Hose 1 1
27 GN5600-027 Bolt, M6x12 2
30 GN5600-030 Hose Clamp, 10mm 1
31 GN5600-031 Breather Valve 1
32 GN5600-032 Fuel Gauge 1
33 GN5600-033 Fuel Tank Filter 1
GENERATOR
NO. PART NO. DESCRIPTION QTY.
34 GN5600-034 Fuel Tank Cap 1
35 GN5600-035
Flanged Hex Bolt,
M6x25
6
36 GN5600-036 Flat Washer, 6mm 4
37 GN5600-037
Fuel Tank Vibration
Isolation Sleeve
4
38 GN5600-038
Fuel Tank Vibration
Isolation Pad
4
39 GN5600-039 Fuel Tank 1
40 GN5600-040 Protective Sleeve 1
41 GN5600-041 Combination Clamp 2
42 GN5600-042 Fuel Hose, 9.6x440 1
43 GN5600-043 Fuel Valve 1
44 GN5600-044 Frame 1
45 GN5600-045
Flanged Hex Nut,
M8
12
46 GN5600-046 Engine Mount 1
47 GN5600-047
Flanged Hex Bolt,
M6x40
4
48 GN5600-048ASM Foot Bracket 2
49 GN5600-049 Foot Pad 2
50 GN5600-050 Cotter Pin 2
51 GN5600-051 Flat Washer 2
52 GN5600-052 Wheel 2
53 GN5600-053 Wheel Axle 2
54 GN5600-054ASM Engine Assembly 1
55 GN5600-055
Alternator Front
Cover
1
56 GN5600-056
Flanged Hex Bolt,
M8x32
4
57 GN5600-057 Air Filter Bracket 1
58 GN5600-058 Grounding Wire 1
59 GN5600-059
Flanged Hex Bolt,
M6x20
1
60 GN5600-060 Lock Washer, 6mm 1
61 GN5600-061
Flanged Hex Nut,
M6
4
62 GN5600-062 Flat Washer, 6mm 2
35
EXPLODED VIEW & PARTS LIST
GENERATOR
NO. PART NO. DESCRIPTION QTY.
66 GN5600-066 Alternator Assembly 1
67 GN5600-067
Carbon Brush
Assembly
1
68 GN5600-068 Terminal Block 1
69 GN5600-069
Flanged Hex Bolt,
M5x6
8
70 GN5600-070 Alternator Bracket 1
71 GN5600-071 Flat Washer, 8.5mm 1
72 GN5600-072
Flanged Hex Bolt,
M5x160
4
73 GN5600-073 Hex Bolt, M8x215 1
74 GN5600-074 Voltage Regulator 1
75 GN5600-075 Alternator Cover 1
76 GN5600-076 Handle Grips 2
77 GN5600-077ASM
Left Handle
Assembly
1
78 GN5600-078
Handle Vibration
Isolation Pad
2
79 GN5600-079 Nut, M8 2
NO. PART NO. DESCRIPTION QTY.
80 GN5600-080 Flat Washer, 8mm 4
81 GN5600-081
Flanged Hex Bolt,
M8x48
2
82 GN5600-082 Pin 2
83 GN5600-083 Plug 2
84 GN5600-084ASM
Right Handle
Assembly
1
85 GN5600-085
Flanged Hex Bolt,
M8x35
2
86 GN5600-086 Shipping Bracket 1
87 GN5600-087
Flanged Hex Bolt,
M8x16
2
88 GN5600-088 AC Breaker, 30A 1
89 GN5600-089 Spark Arrestor 1
90 GN5600-090
Flanged Hex Bolt,
M6x28
2
91 GN5600-091
Flanged Hex Nut,
M6
4
36
EXPLODED VIEW & PARTS LIST
ENGINE
37
46
46
46
46
46
46
47
48
49
50
50
51
46
EXPLODED VIEW & PARTS LIST
NO. PART NO. DESCRIPTION QTY.
1 GN5600-101
Flanged Hex Bolt,
M6x16
11
2 GN5600-102
Cylinder Head
Cover
1
3 GN5600-103 Oil Filter Block 1
4 GN5600-104
Breather Cover
Plate Gasket
1
5 GN5600-105
Breather Cover
Plate
1
6 GN5600-106
Flanged Hex Bolt,
M5x10
2
7 GN5600-107
Cylinder Head
Cover Gasket
1
8 GN5600-108
Flanged Hex Bolt,
M6x10
5
9 GN5600-109
Cylinder Head
Cowling
1
10 GN5600-110 Lock Washer, 7mm 2
11 GN5600-111
Rocker Arm Shaft
Assembly
2
12 GN5600-112
Rocker Arm
Assembly
2
13 GN5600-113 Push Rod 2
14 GN5600-114 Valve Lifter 2
15 GN5600-115
Flanged Hex Bolt,
M10-1.25x65
4
16 GN5600-116 Valve Rotator 2
17 GN5600-117
Valve Spring
Retainer
2
18 GN5600-118 Valve Spring 2
19 GN5600-119 Valve Set 1
20 GN5600-120 Valve Stem Seal 1
21 GN5600-121
Spark Plug, Torch
F7TC (NGK BP7ES)
1
22 GN5600-122 Stud 2
23 GN5600-123 Cylinder Head 1
24 GN5600-124 Stud 2
25 GN5600-125
Carburetor
Insulator Gasket
1
ENGINE
NO. PART NO. DESCRIPTION QTY.
26 GN5600-126
Carburetor
Insulator
1
27 GN5600-127 Carburetor Gasket 1
28 GN5600-128
Carburetor
Assembly
1
29 GN5600-129 Hose Clamp 1
30 GN5600-130 Fuel Tube 1
31 GN5600-131 Governor Rod 1
32 GN5600-132
Throttle Return
Spring
1
33 GN5600-133 Fuel Tube Sleeve 1
34 GN5600-134 Air Filter Gasket 1
35 GN5600-135 Breather Tube 1
36 GN5600-136
Flanged Hex Nut,
6mm
2
37 GN5600-137 Air Filter Element 1
38 GN5600-138ASM Air Filter Assembly 1
39 GN5600-139
Cylinder Head
Gasket
1
40 GN5600-140 Piston Ring Set 1
41 GN5600-141 Piston 1
42 GN5600-142 Piston Pin 1
43 GN5600-143 Piston Pin Clip 2
44 GN5600-144
Connecting Rod
Assembly
1
45 GN5600-145 Dowel Pin 2
46 GN5600-146
Flanged Hex Bolt,
M8x32
7
47 GN5600-147 Oil Seal 2
48 GN5600-148 Crankcase Cover 1
49 GN5600-149
Oil Dipstick
Assembly
1
50 GN5600-150 Dowel Pin 2
51 GN5600-151
Crankcase Cover
Gasket
1
52 GN5600-152 Camshaft Assembly 1
53 GN5600-153
Crankshaft
Assembly
1
54 GN5600-154 Crankshaft Cowling 1
38
EXPLODED VIEW & PARTS LIST
ENGINE
NO. PART NO. DESCRIPTION QTY.
55 GN5600-155 Oil Level Sensor 1
56 GN5600-156 Governor Arm 1
57 GN5600-157 Governor Spring 1
58 GN5600-158 Clip 1
59 GN5600-159 Washer 1
60 GN5600-160 Governor Pivot Arm 1
61 GN5600-161
Control Arm
Assembly
1
62 GN5600-162 Governor Gear 1
63 GN5600-163 Crankcase 1
64 GN5600-164
Drain Bolt,
M12-1.5x15
2
65 GN5600-165 Washer, 12mm 2
66 GN5600-166 Ignition Coil 1
NO. PART NO. DESCRIPTION QTY.
67 GN5600-167
Flanged Hex Bolt,
M6x25
2
68 GN5600-168 Flywheel 1
69 GN5600-169 Fan 1
70 GN5600-170 Starter Cup 1
71 GN5600-171
Flanged Hex Nut,
M14-1.5
1
72 GN5600-172 Housing 1
73 GN5600-173 Recoil Starter 1
74 GN5600-174ASM
Recoil Starter
Assembly
1
75 GN5600-175 Clip 1
76 GN5600-176 Cable Clip 2
77 GN5600-177 Oil Alert Module 1
39
WARRANTY STATEMENT
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to quality.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USELIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that this WEN consumer prod
-
uct will be free from defects in material or workmanship during personal use for a period of three (3) years from date
of purchase or 500 hours of use; whichever comes first. Ninety days for all WEN products if the tool is used for profes
-
sional or commercial use. Purchaser has 30 days from the date of purchase to report missing or damaged parts. Parts
and labor are covered for one (1) year under this limited warranty; parts only are covered for three (3) years under this
limited warranty.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per
-
mitted by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which are
defective in material or workmanship and which have not been subjected to misuse, alteration, careless handling, mis
-
repair, abuse, neglect, normal wear and tear, improper maintenance, improper storage, incorrect lubricants / fuels, or
other conditions adversely affecting the Product or the component of the Product, whether by accident or intentionally,
by persons other than Seller. To make a claim under this Limited Warranty, you must make sure to keep a copy of your
proof of purchase that clearly defines the Date of Purchase (month and year) and the Place of Purchase. Place of Pur-
chase must be a direct vendor of Great Lakes Technologies, LLC. Purchasing through third party vendors, including but
not limited to garage sales, pawn shops, resale shops, or any other secondhand merchant, voids the warranty included
with this product. Contact [email protected] or 1-847-429-9263 with the following information to make
arrangements: your shipping address, phone number, serial number, required part numbers, and proof of purchase.
Damaged or defective parts and products may need to be sent to WEN before the replacements can be shipped out.
Upon the confirmation of a WEN representative, your product may qualify for repairs and service work. When returning
a product for warranty service, the shipping charges must be prepaid by the purchaser. The product must be shipped
in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The product must be
fully insured with a copy of the proof of purchase enclosed. There must also be a description of the problem in order
to help our repairs department diagnose and fix the issue. Repairs will be made and the product will be returned and
shipped back to the purchaser at no charge for addresses within the contiguous United States.
THIS LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,
INCLUDING FILTERS, SPARK PLUGS, VOLTAGE REGULATORS, BRUSHES, GASKETS, O-RINGS, WHEEL KITS, BAT
-
TERIES, RECOIL STARTERS, HIGH PRESSURE HOSES, SPRAY GUNS, ETC. ANY IMPLIED WARRANTIES SHALL BE
LIMITED IN DURATION TO THREE (3) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME
CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMITATION MAY NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT
NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME
STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IN
-
CIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH
VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.
THIS LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA
AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT
THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER WARRANTY
SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL SHIPPING CHARGES MAY
APPLY.
V. 2024.02.12
40
