2500W DUAL FUEL
INVERTER GENERATOR
Instruction Manual
MODEL DF250iX
CONTENTS
WELCOME 3
Specifications ................................................................................................... 3
Introduction ..................................................................................................... 4
SAFETY 5
Safety Information ........................................................................................... 5
Generator Safety Warnings .............................................................................. 6
9
Unpacking & Packing List ................................................................................ 9

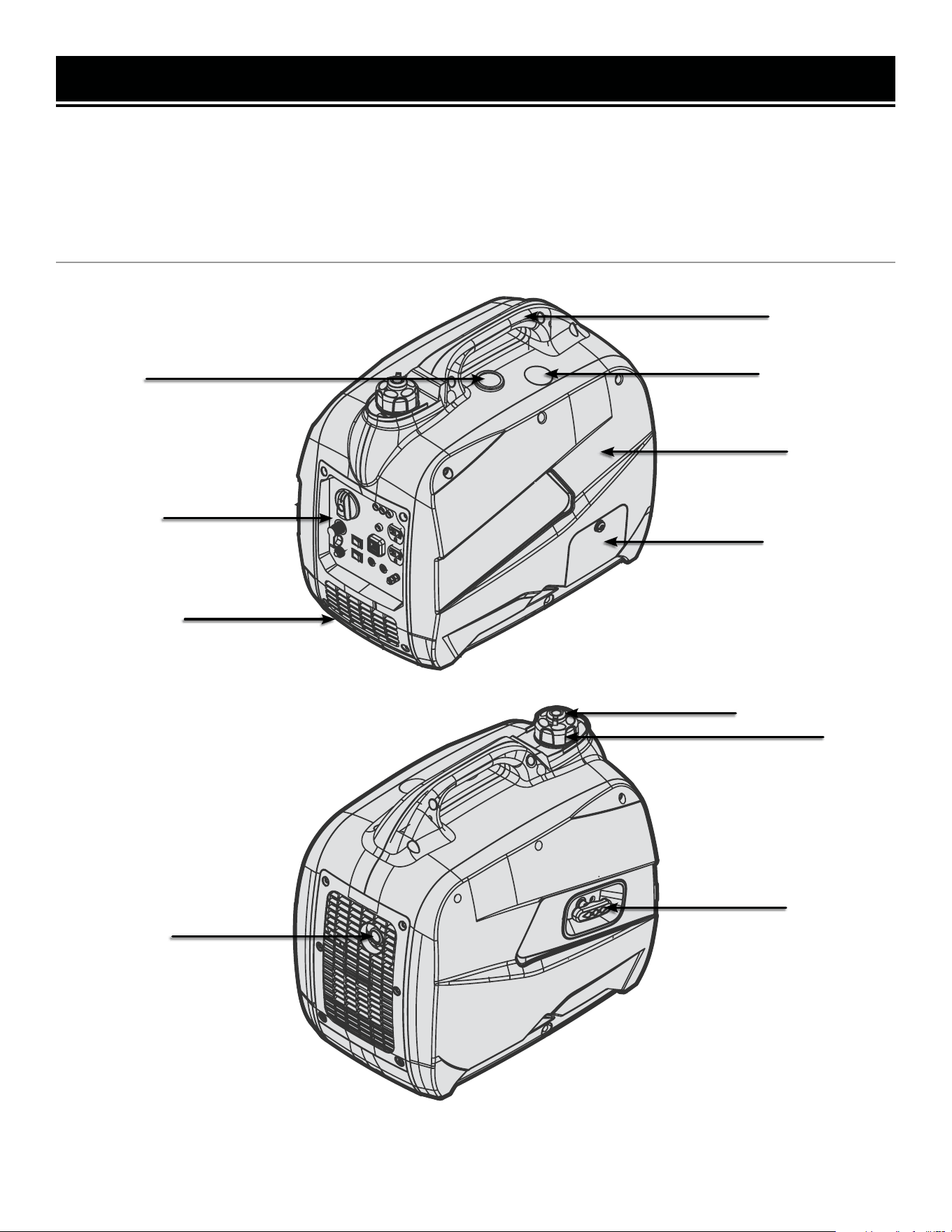

Know Your Inverter Generator ........................................................................ 10
Generator Preparation .................................................................................... 12
BEFORE OPERATING
OPERATION & MAINTENANCE 18
Starting Your Generator ................................................................................. 18
Using Your Generator ..................................................................................... 21
Shutting Off Your Generator ........................................................................... 27
Maintenance ................................................................................................... 29
Transportation & Storage ............................................................................... 36
Troubleshooting Guide ................................................................................... 37

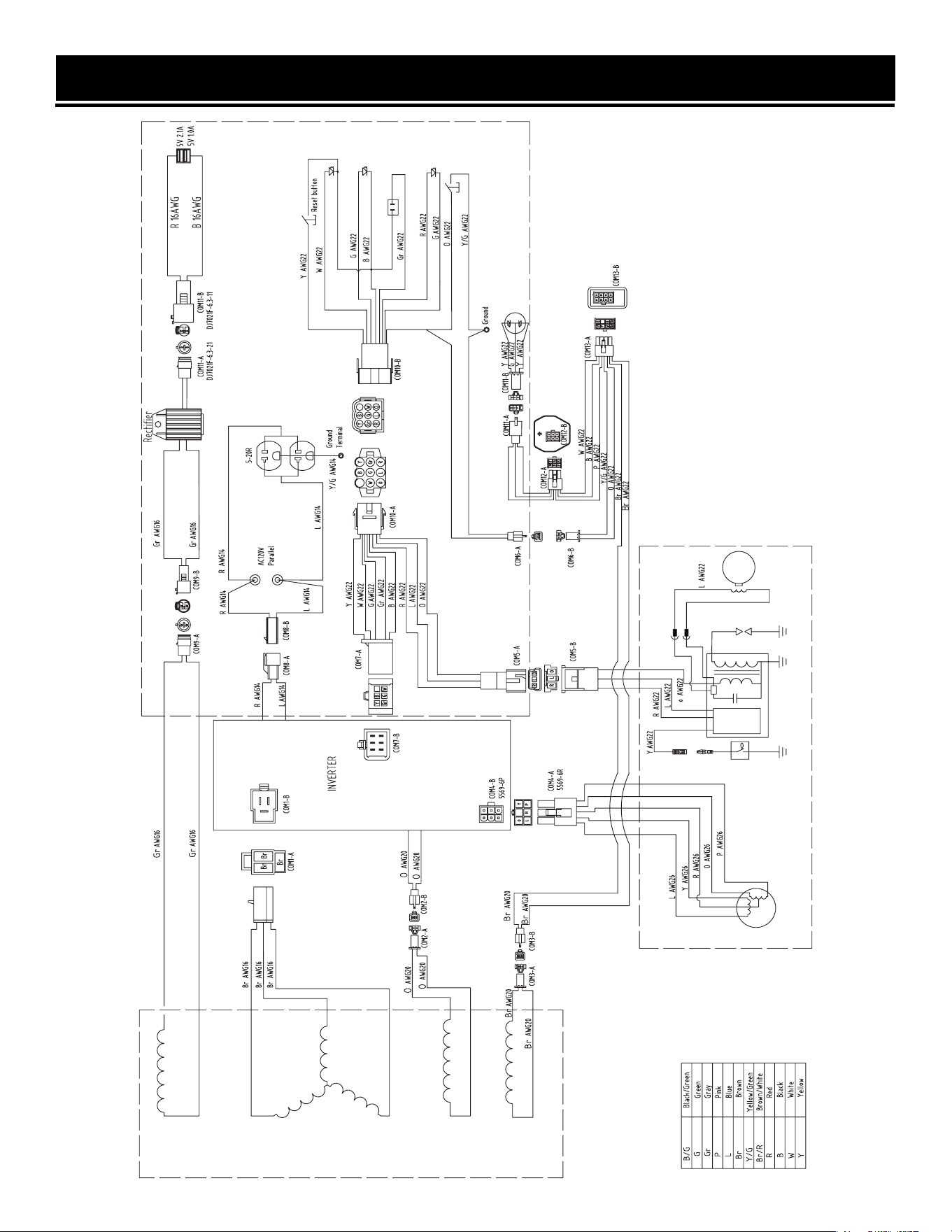

Wiring Diagram .............................................................................................. 38

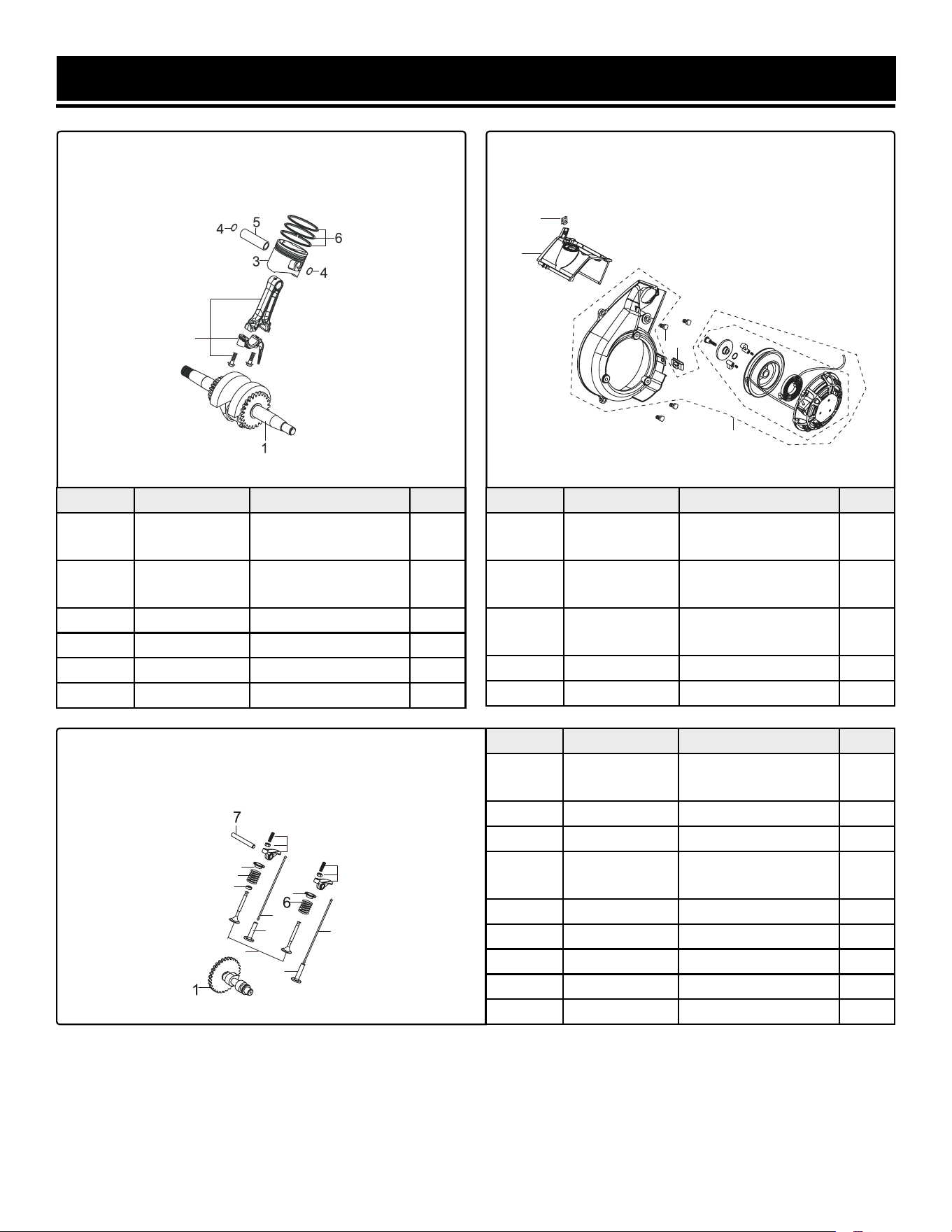

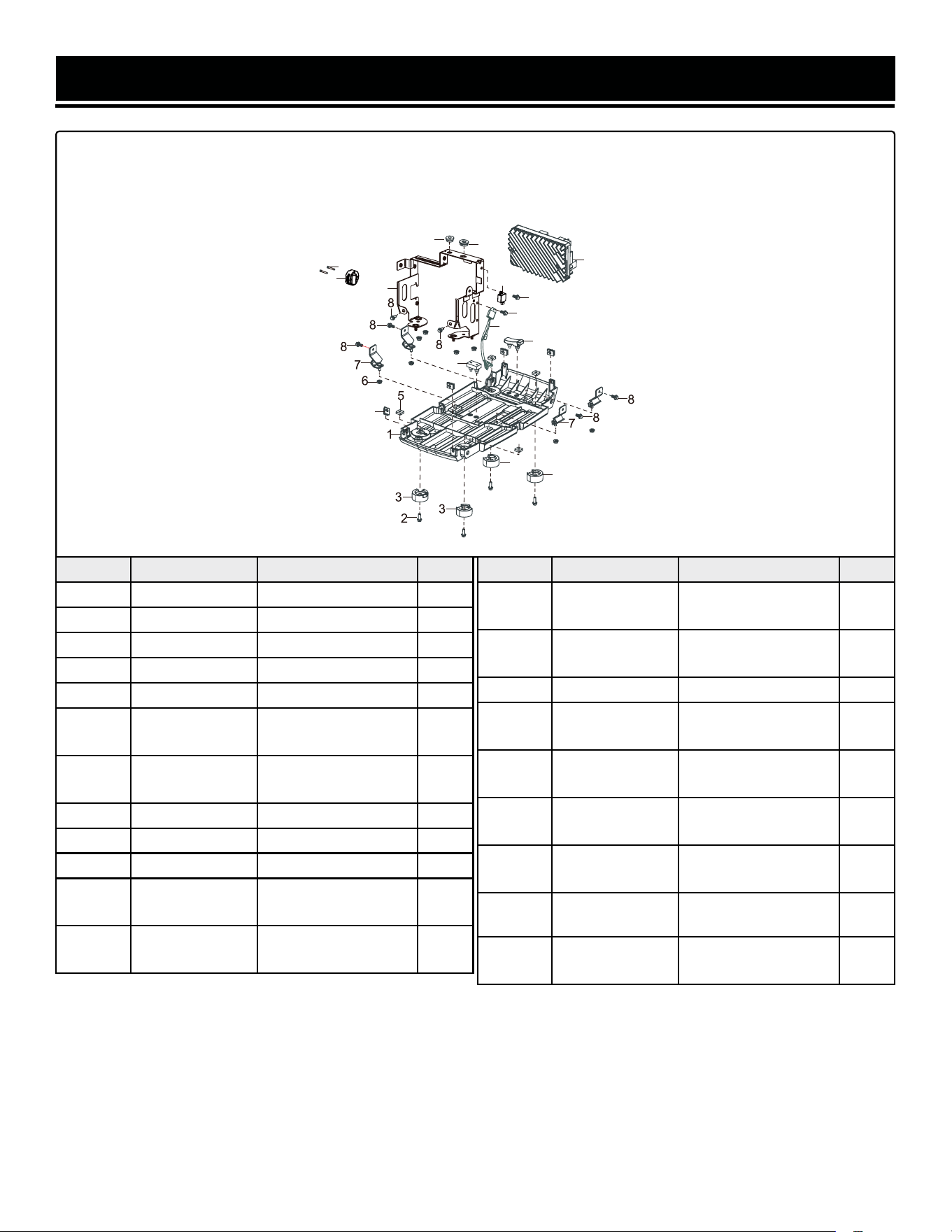

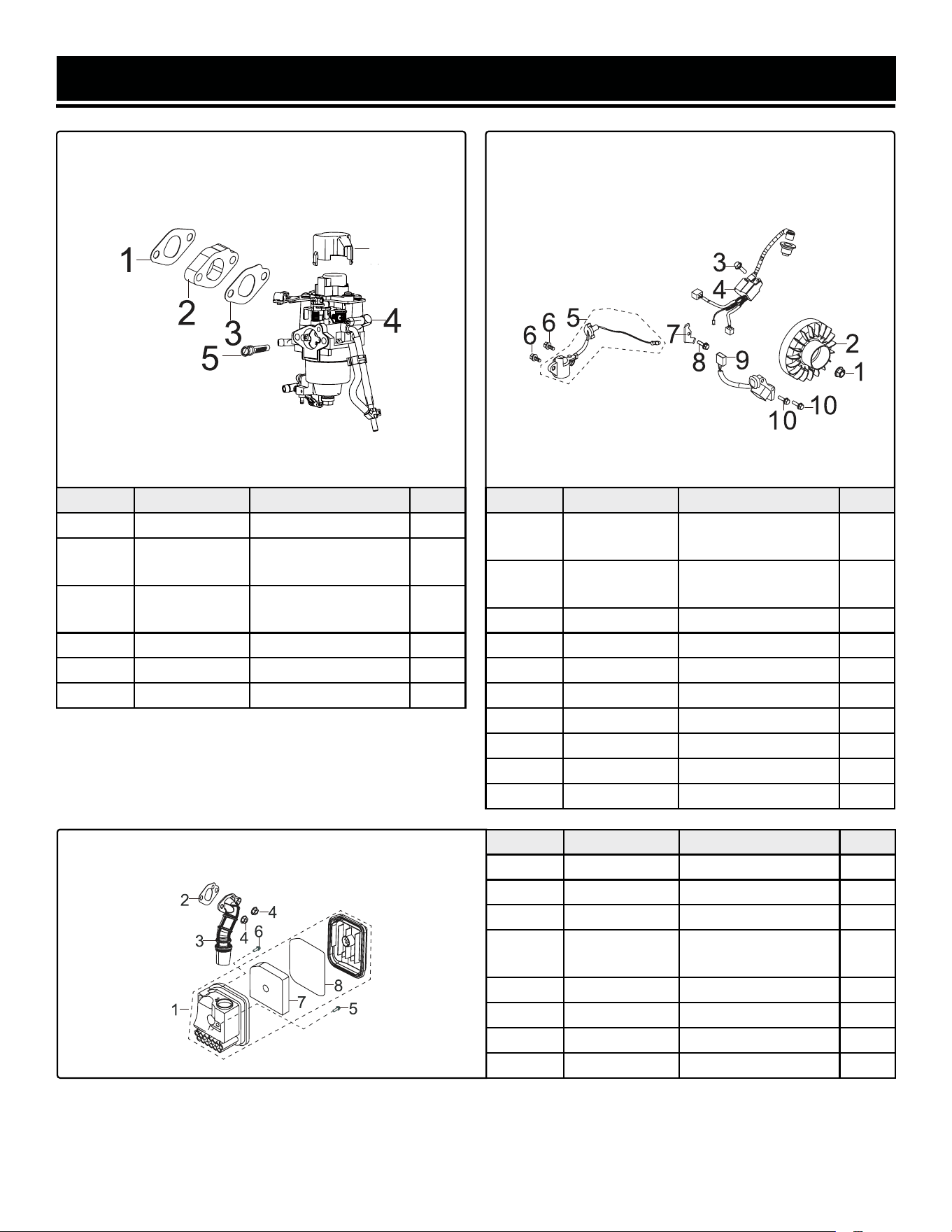

Exploded View & Parts List ............................................................................ 39
Warranty Statement ....................................................................................... 48
2
To purchase accessories for your tool, visit WENPRODUCTS.COM
Parallel Connection Kit

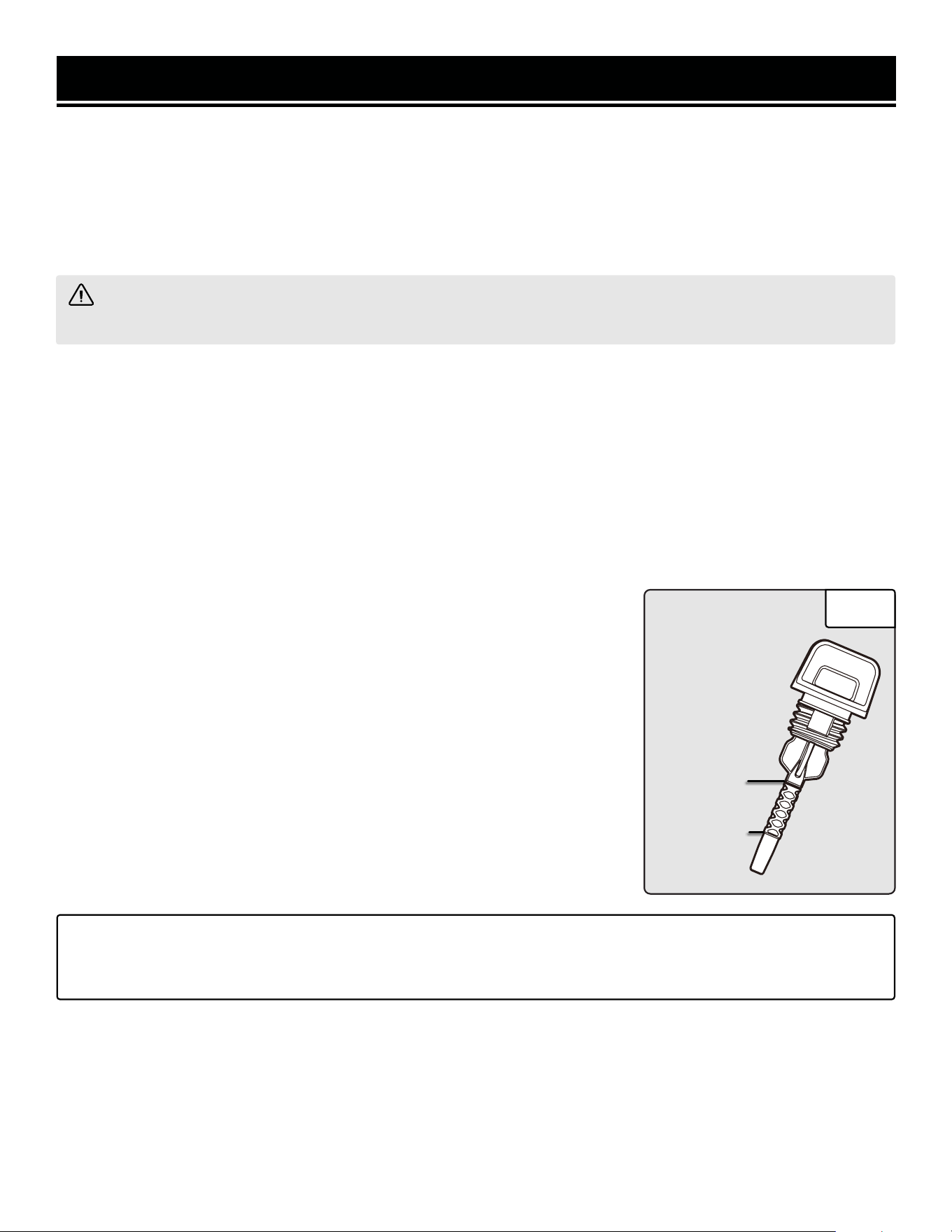

Magnetic Oil Dipstick (Model Number 55201)
SPECIFICATIONS
Rated Wattage Gasoline: 2000 Watts; LPG: 1800 Watts
Surge Wattage Gasoline: 2500 Watts; LPG: 2250 Watts
Rated Voltage
AC: 120V
DC: 5V
Rated Amperage
AC: 16.6A (Gasoline), 15A (LPG)
DC: 1A (Top), 2.1A (Bottom)
Phase Single
Frequency 60 Hz
Decibel Rating 52 dBA (No Load)
Product Dimensions
Length: 19 Inches
Width: 11.5 Inches
Height: 18.2 Inches
Product Net Weight 48.5 Pounds
GENERATOR
ENGINE
Engine Type 4-Stroke, OHV, Single Cylinder with Forced Air Cooling System
Engine Displacement 80cc
Fuel Tank Capacity 1.19 US Gallons (4.50 L), 87 Octane Minimum
Oil Capacity 11.8 fl. oz. (0.35 L)
Half-Load Run Time 6 Hours
Lubrication System Splash Lubrication
Spark Plug Type Torch A5RTC (NGK CR5HS)
Spark Plug Gap 0.7 - 0.8 mm (0.028 - 0.031 in.)
Spark Plug Torque 1/2 - 3/4 turn after gasket contacts base or 15 ft-lbs
3
INTRODUCTION
Thanks for purchasing the WEN 2500-Watt Dual-Fuel Inverter Generator. Refer to the illustration below for the loca-
tion of the serial number on the side of the engine. Record the generator information in the spaces provided below.
If assistance for information or service is required, please contact customer service by calling 1-800-232-1195, M-F
8-5 CST; you will be asked to provide the following generator information when calling.
Generator Model Number: DF250iX
Date of Purchase: _______________________________________________
Purchased From: ________________________________________________
Serial Number: _________________________________________________
TO MAXIMIZE THE LIFESPAN OF YOUR GENERATOR: We recommend running your generator at least once a
month for 20 to 30 minutes. Start the generator according to the instructions and plug a small load in to make
sure the outlet is producing electricity.

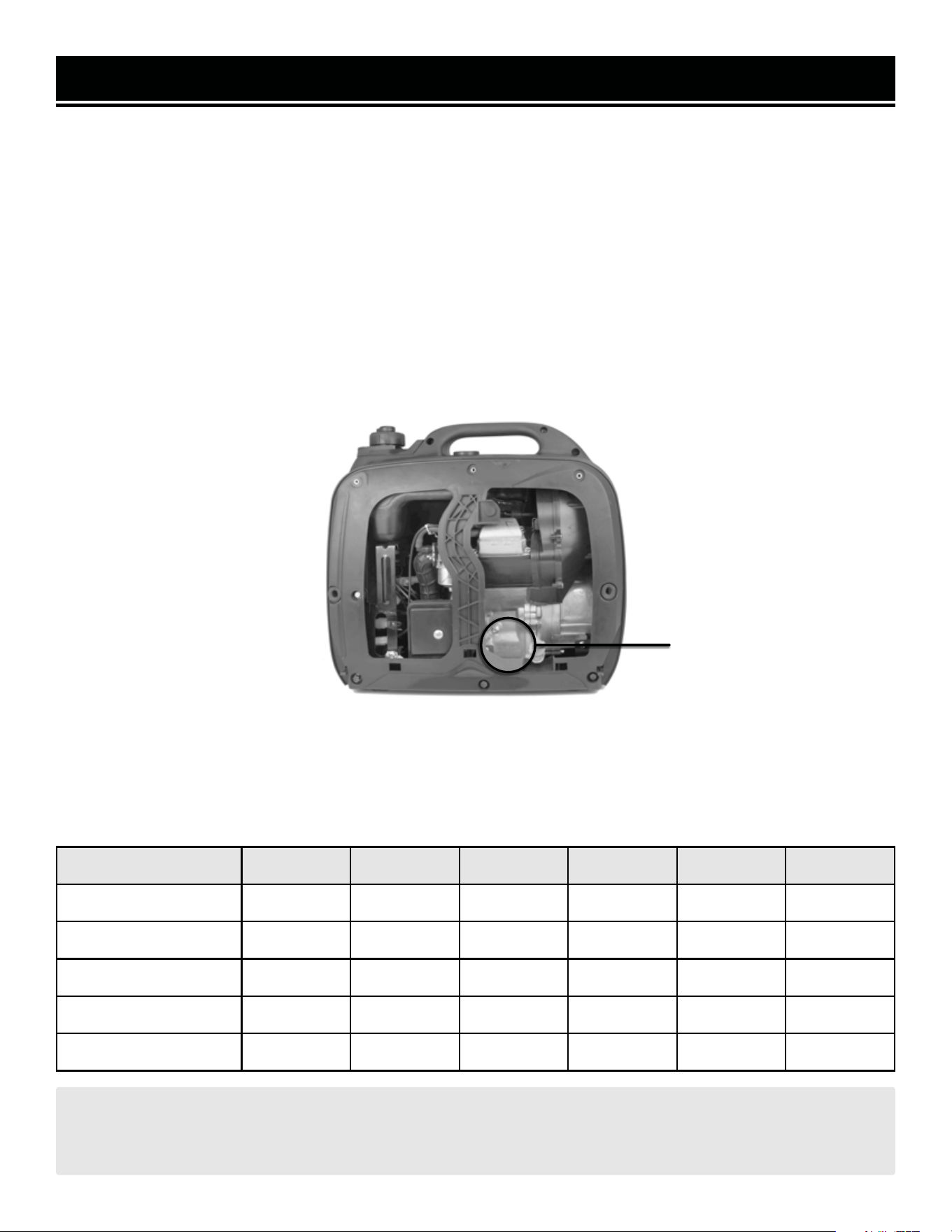

SERVICE RECORD
Record the service dates of your generator in the chart below. Please perform maintenance checks and operations
according to the “Maintenance” section of the manual.
Service Record Date Date Date Date Date Date
Change Oil
Change Spark Plug
Clean Fuel Tank
Clean Air Cleaner
Clean Spark Arrestor
4
SERIAL NUMBER
SAFETY INFORMATION
SAFETY INTRODUCTION
Safety is a combination of common sense, staying alert, and knowing how your tool works. This manual contains
important information regarding the generator’s potential safety concerns, as well as preparation, operation, and
maintenance instructions. Before operating this generator, be sure to read and observe all warnings and instructions
both on the generator labels and in this instruction manual. Failure to follow all instructions listed below may result
in personal injury.
NOTE: The following safety information is not meant to cover all possible conditions and situations that may occur.
WEN reserves the right to change this product and specifications at any time without prior notice.
At WEN, we are continuously improving our products. If you find that your tool does not exactly match this manual,
please visit wenproducts.com for the most up-to-date manual or contact customer service at 1-800-232-1195, M-F
8-5 CST.
Keep this manual available to all users during the entire life of the tool and review it frequently to maximize
safety for both yourself and others.
SAVE THESE SAFETY INSTRUCTIONS.
SAFETY SYMBOLS
The purpose of following safety symbols is to attract your attention to possible dangers. The safety symbols, and
their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves
eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention
measures.
NOTICE REGARDING EMISSIONS
Engines that are certified to comply with U.S. EPA emission regulations for SORE (Small Off Road Equipment), are
certified to operate on regular unleaded gasoline, and may include the following emission control systems: (EM)
Engine Modifications and (TWC) Three-Way Catalyst (if so equipped).
QUESTIONS? PROBLEMS?
In order to answer questions and solve problems in the most efficient and speedy manner, contact customer
service at 1-800-232-1195, M-F 8-5 CST or email [email protected].
DANGER: indicates a hazard, which, if not avoided, will result in death or serious injury.
WARNING: indicates a hazard, which, if not avoided, could result in death or serious injury.
CAUTION: indicates a hazard, which, if not avoided, might result in minor or moderate injury.
CAUTION! when used without the alert symbol, indicates a situation that could result in damage to the machine.
WARNING! Before operating the generator, make sure to read all safety warnings and all instructions. Failure
to follow the warnings and instructions may result in electric shock, fire or serious injury.
5
GENERATOR SAFETY WARNINGS
DANGER! CARBON MONOXIDE
Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). This
is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even
if you cannot smell the exhaust, you could be breathing CO.
NEVER use a generator inside homes, garages, crawl spaces, or other partially enclosed areas. Deadly levels
of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply
enough fresh air. ONLY use a generator outside and far away from windows, doors, and vents. These openings
can pull in generator exhaust.
Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-
backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move
to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
WARNING! RISK OF EXPLOSION. HIGHLY FLAMMABLE: This generator may emit highly flammable and
explosive gasoline vapors, which can cause severe burns or even death, if ignited. A nearby open flame can lead
to explosion even if not directly in contact with gasoline.
• Do not operate near open flame, heat, or any other ignition source. Do not smoke near the generator.
• Always operate on a firm, level surface.
• Always turn generator off before refueling. Allow generator to cool for at least 2 minutes before removing
fuel cap. Loosen cap slowly to relieve pressure in tank.
• Do not overfill fuel tank. Gasoline may expand during operation. Do not fill to the top of the tank. Allow for
expansion. Always check for spilled fuel before operating.
• If fuel spills, move the generator at least 30 feet away from the spill and wipe clean any spilled fuel before
starting the engine.
• Empty fuel tank before storing or transporting the generator.
WARNING! If this generator is used as a supply for a building’s wiring system, the generator must be in-
stalled by a qualified electrician and connected to a transfer switch as a separately derived system in accordance
with all applicable laws and electrical codes and the National Electrical Code, NFPA 70. The generator shall be
connected to a transfer switch that switches all conductors excluding the equipment grounding conductor. The
frame of the generator shall be connected to an approved grounding electrode.
CALIFORNIA PROPOSITION 65 WARNING: This product contains chemicals and produces exhaust known
to the State of California to cause cancer, birth defects and other reproductive harm.
6
GENERATOR SAFETY WARNINGS
OPERATING ENVIRONMENT
1. Using a generator indoors can kill you in minutes.
Only use a generator outside and far away from win-
dows, doors and vents.
2. Do not smoke near the generator.
3. Do not operate near open flame, heat, or flammable
materials. This generator may emit highly flammable
and explosive gasoline vapors, which can cause severe
burns or even death if ignited. A nearby open flame can
lead to an explosion even if it isn’t directly in contact with
gasoline.
4. Do not expose the generator to rainy or wet con-
ditions; doing so significantly increases the risk of
electrical shock. Never handle the generator, electronic
devices, or any cord while standing in water, while bare-
foot, or when hands or feet are wet.
5. Always operate the generator on a dry, firm, level
surface.
6. The generator should have at least 5 feet of clear-
ance from buildings or other equipment during opera-
tion.
7. Do not allow children or non-qualified persons to
operate the generator.
GENERATOR PREPARATION
1. Always ground the generator before using it to maxi-
mize safety (see “Ground the Generator” section).
2. Do not overfill fuel tank, as gasoline may expand
during operation. Do not fill to the very top of the tank.
Leave room for gasoline expansion. Always check for
spilled fuel before operating.
3. If any part of the generator, electrical device or pow-
er cord is broken, damaged, or defective, make sure
it is repaired or replaced before operation. Service
should only be performed by a qualified technician. Do
not use receptacles or cords that show signs of damage,
such as broken or cracked insulation.
4. Use a ground fault circuit interrupter (GFCI) in highly
conductive areas such as metal decking or steel work.
Extension cords with in-line GFCIs are recommended for
these operations to maximize safety.
5. If connecting the generator to a building’s electri-
cal system for standby power, you MUST consult a
qualified electrician and install a transfer switch. Such
connections must comply with local electrical laws and
codes. Failure to comply can create a back-feed, which
may result in serious injury or death to utility workers.
6. Never modify the generator in any way. Modifying
or using the machine for any other purpose for which it
is not designed may result in serious injuries, machine
damage and voiding of the warranty.
GENERATOR OPERATION
1. Only use the generator for its intended purposes.
Modifying or using the generator for operations for
which it was not designed may cause hazards and per-
sonal injury.
2. Do not touch bare wires or receptacles (outlets).
3. Do not exceed the wattage capacity of the generator
by plugging in more electrical devices than the unit
can handle. This could damage the generator and/or
connected electrical devices. Check the operating volt-
age and frequency requirements of all electrical devices
prior to plugging them into the generator.
Generator safety warnings continue on the next page.
WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.
Failure to follow the safety instructions may result in serious personal injury.
7
GENERATOR SAFETY WARNINGS
WARNING! Do not let comfort or familiarity with the product replace strict adherence to product safety rules.
Failure to follow the safety instructions may result in serious personal injury.
4. Allow generator to run for several minutes before
connecting electrical devices. Do not start or stop en-
gine with electrical devices plugged in to the receptacles.
Failure to do so could damage the generator and/or con-
nected electrical devices.
5. Do not turn on electrical devices until after they are
connected to the generator.
6. Generators vibrate in normal use. During and after
the use of the generator, inspect both the generator as
well as extension and power supply cords for damage
resulting from vibration.
7. Do not touch hot parts. This generator produces heat
when running. Temperatures near exhaust can exceed
150ºF (65ºC). Allow generator to cool down after use be-
fore touching engine or areas of the generator that be-
come hot during use.
8. Turn off all connected electrical devices before stop-
ping the generator.
9. Always turn generator off before refueling. Allow
generator to cool for at least 2 minutes before removing
fuel cap. Loosen cap slowly to relieve pressure in tank.
10. Turn the engine switch to “OFF” position when the
engine is not running.
11. Empty fuel tank before storing or transporting the
generator. Do not store generator or gasoline near fur-
naces, water heaters, or any other appliances that pro-
duce heat or have automatic ignitions. Store the genera-
tor and fuel away from sparks, open flames, pilot lights,
heat and other sources of ignition.
12. Always wash hands after handling generator.
CAUTION: Misuse of this generator can damage it or
shorten its lifespan.
TO MAXIMIZE THE LIFESPAN OF YOUR GENERATOR: We recommend running your generator at least once a
month for 20 to 30 minutes. Start the generator according to the instructions and plug a small load in to make
sure the outlet is producing electricity. If you do not run it often, it will greatly shorten the generator’s lifespan
and void the warranty.
8
Tools & Accessories
Spark Arrestor Tools
UNPACKING
With the help of a friend or trustworthy foe, such as one of your in-laws, carefully remove the generator from the
packaging and place it on a sturdy, flat surface. Make sure to take out all contents and accessories. Do not discard
the packaging until everything is removed. Check the packing list below to make sure you have all of the parts and
accessories. If any part is missing or broken, please contact customer service at 1-800-232-1195 (M-F 8-5 CST),
or email [email protected].

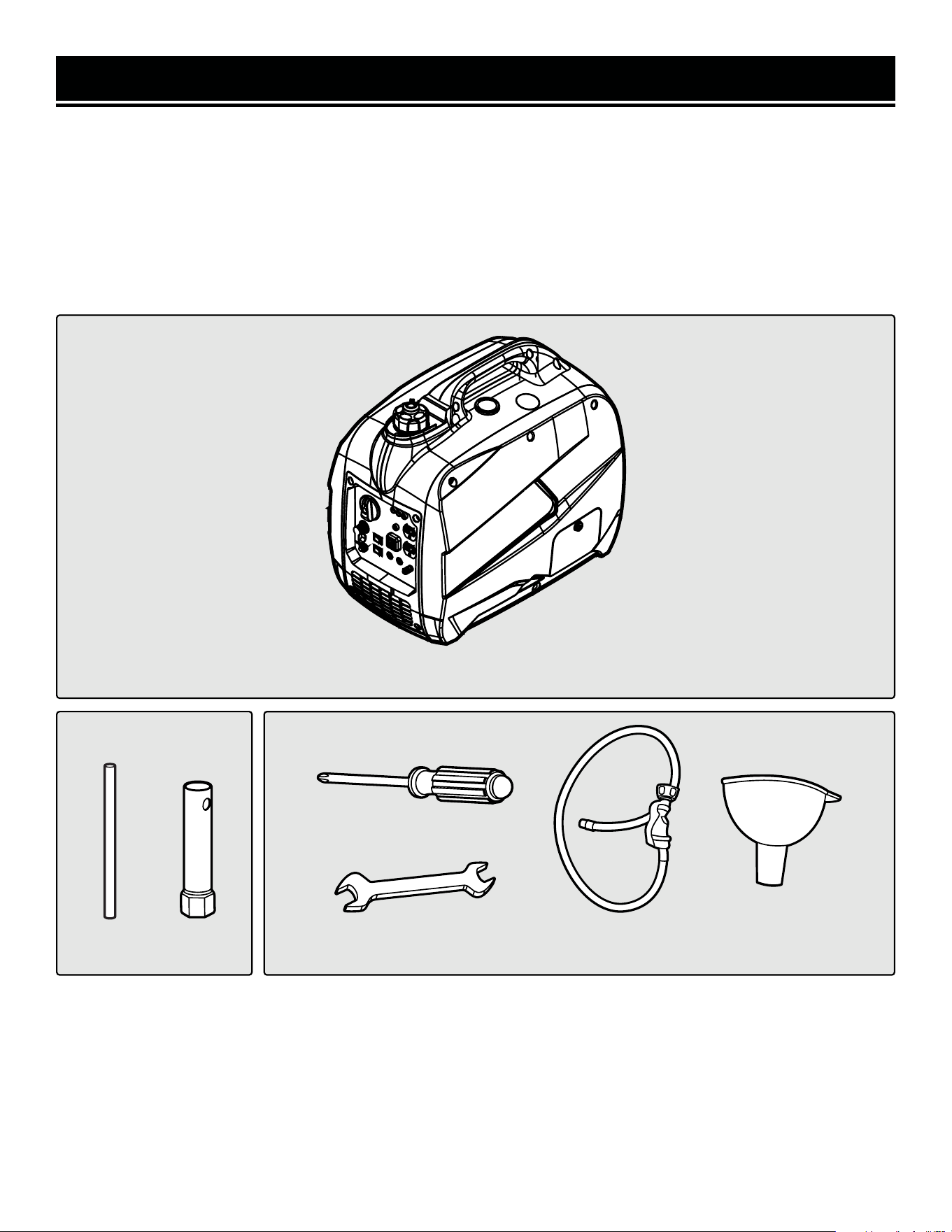

PACKING LIST
UNPACKING & PACKING LIST
Components
9
Screwdriver
8mm / 10mm
Wrench
WrenchHandle
Funnel
Regulator
Hose Assembly
Generator
KNOW YOUR INVERTER GENERATOR
TOOL PURPOSE
Inverter Generators provide you with clean and quiet power, when and where you need it most. Refer to the fol-
lowing diagrams to become familiarized with all the parts and controls of your Generator. The components will be
referred to later in the manual for assembly and operation instructions.
GENERATOR
10
Carrying Handle
Spark Plug Cover
Service Panel
Oil Access Cover
Ventilation Slots
Control Panel
Fuel Gauge
Recoil Starter
Fuel Cap
Vacuum Relief Valve
Spark Arrestor
KNOW YOUR INVERTER GENERATOR

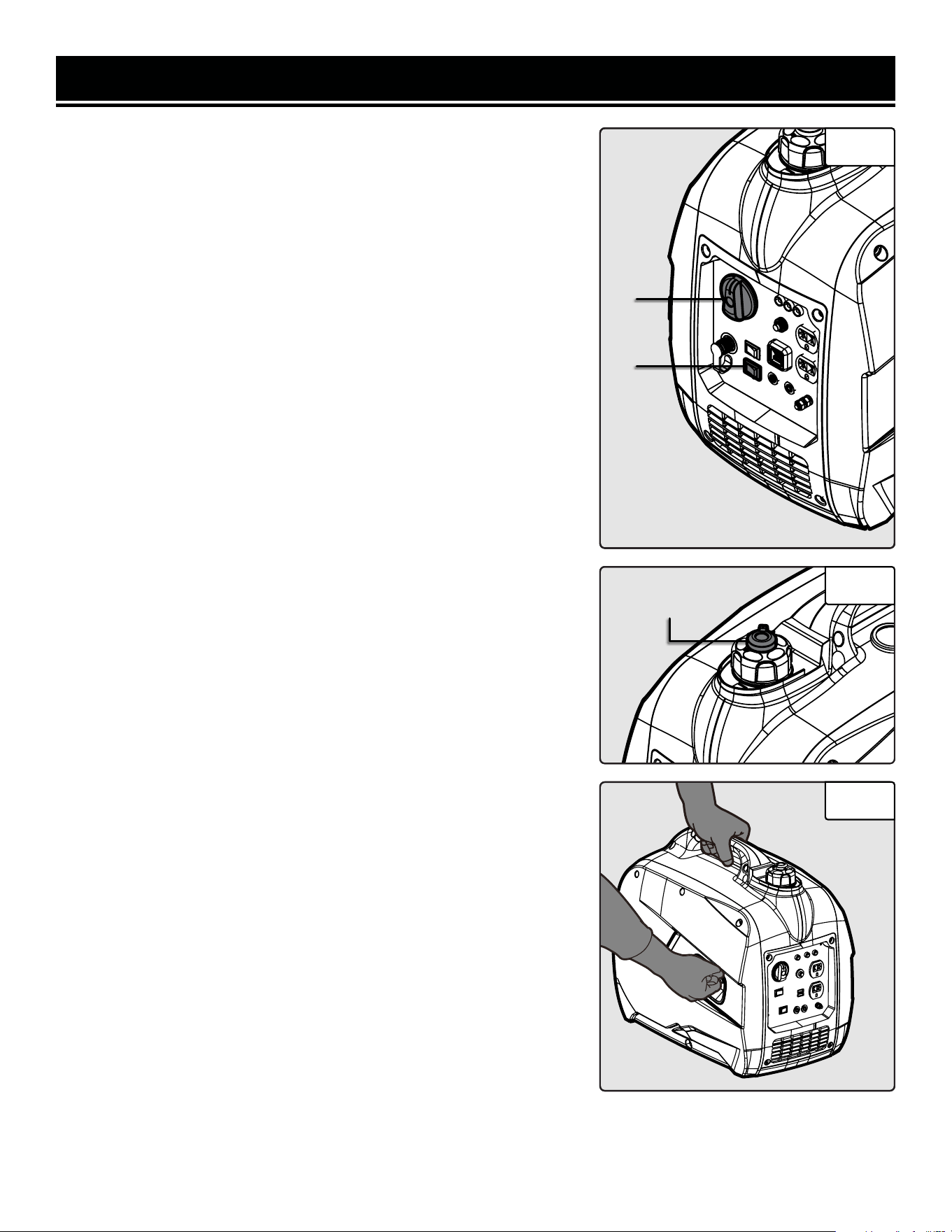

CONTROL PANEL
1
3
4
5
11
11
2
7 689

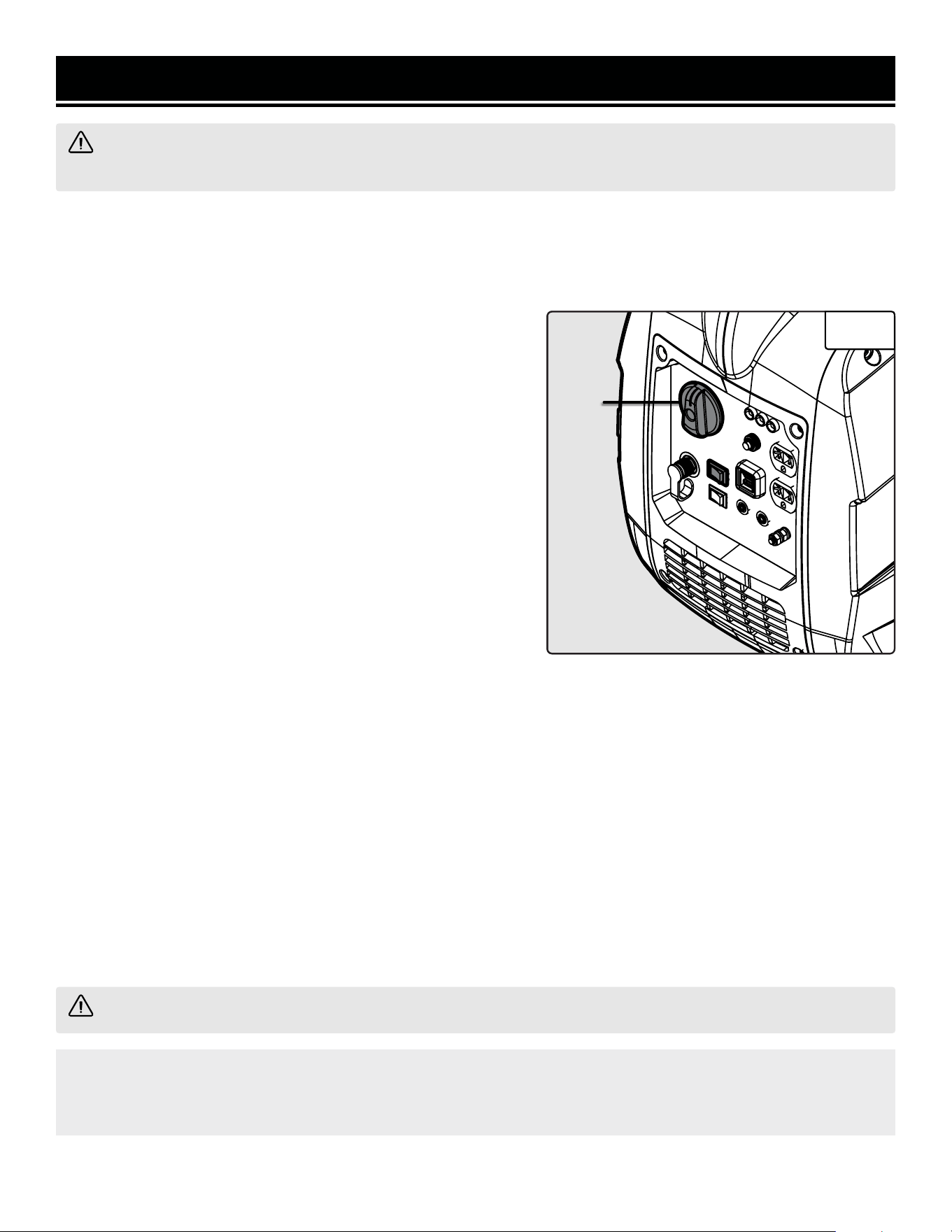

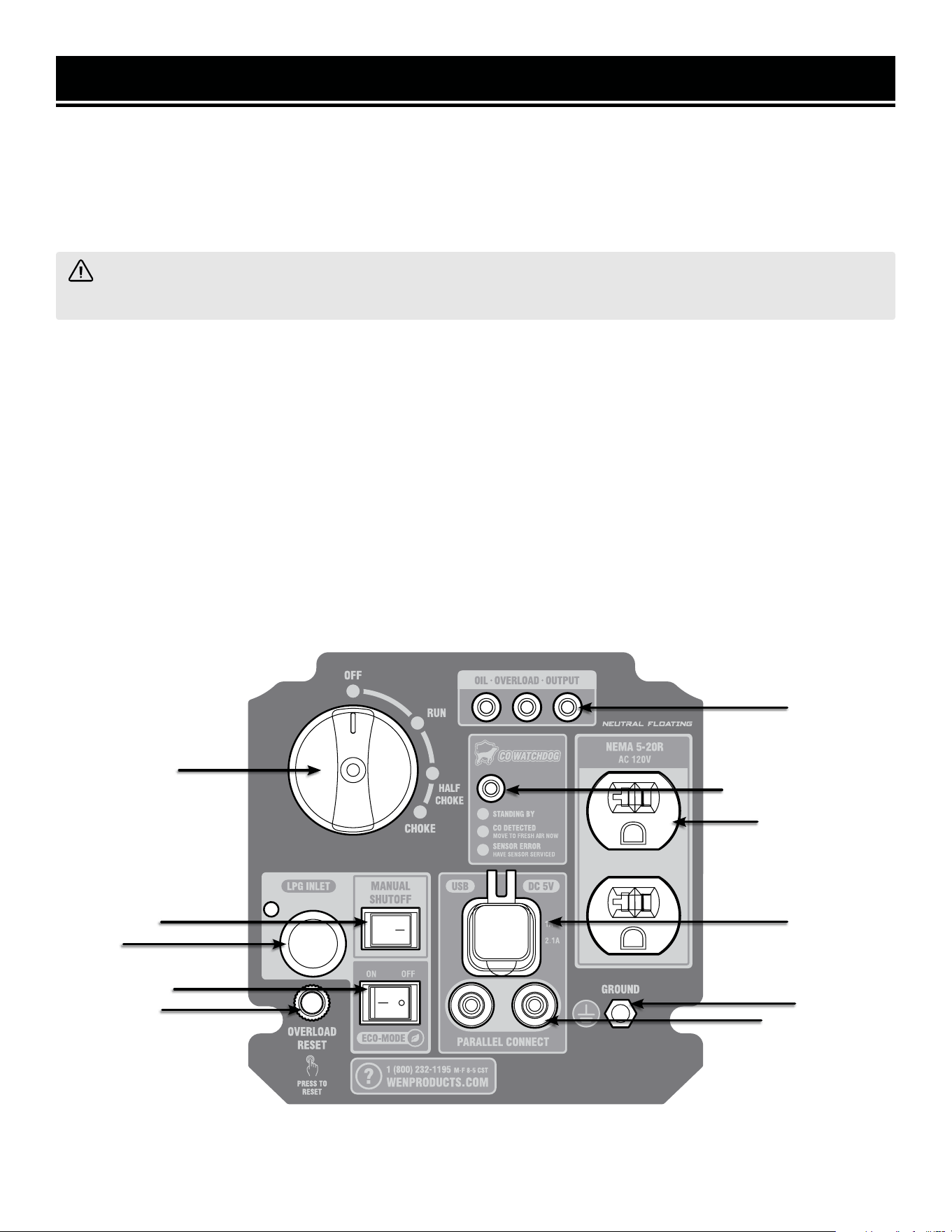

1. 3-In-1 Dial Switch
Off, Run, Half-Choke, Choke.
2. Indication Lights
Low Oil (Yellow), Overload (Red), & Output (Green).

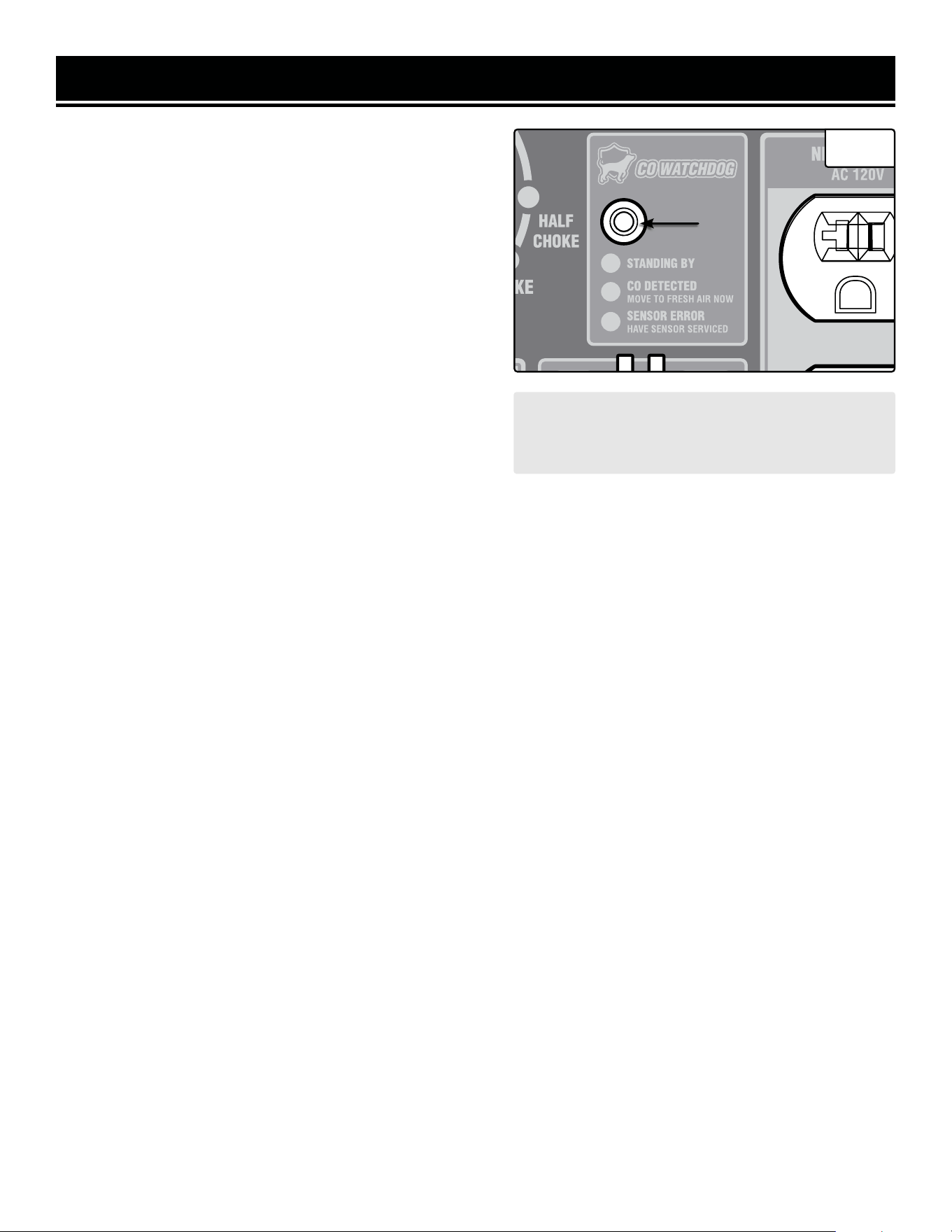

3. CO WATCHDOG Carbon Monoxide Monitor
Measures the accumulation of poisonous CO gas while
the generator is running. If the level of CO gas gets too
high, the CO Watchdog system will automatically shut
down the generator. See p. 25 for more information.
4. AC 120V Duplex NEMA 5-20R
Standard household outlets provide 120V 60Hz power.
5. Grounding Nut
Ground the generator to reduce the risk of electric shock.
Refer to “Ground the Generator” section.
6. DC 5V USB Port
1A & 2.1A for charging various electronic devices.
7. Parallel Connection
Connect to share wattage between inverter generators
8. Eco-Mode Switch
Maximizes fuel economy & run time.
9. Overload Reset
If the overload light is ON, press this button to reset.
10. LPG Inlet
Connect LPG regulator hose assembly here.
11. Manual Shutoff
Quickly shut down your generator to refuel or relocate.
10
Synthetic 5W-30
30W
10W-30
• 30W Engine Oil
Temperatures above 40°F
• 10W-30 Engine Oil
Temperatures between 0°F - 40°F
• Synthetic 5W-30 Engine Oil
All temperature ranges

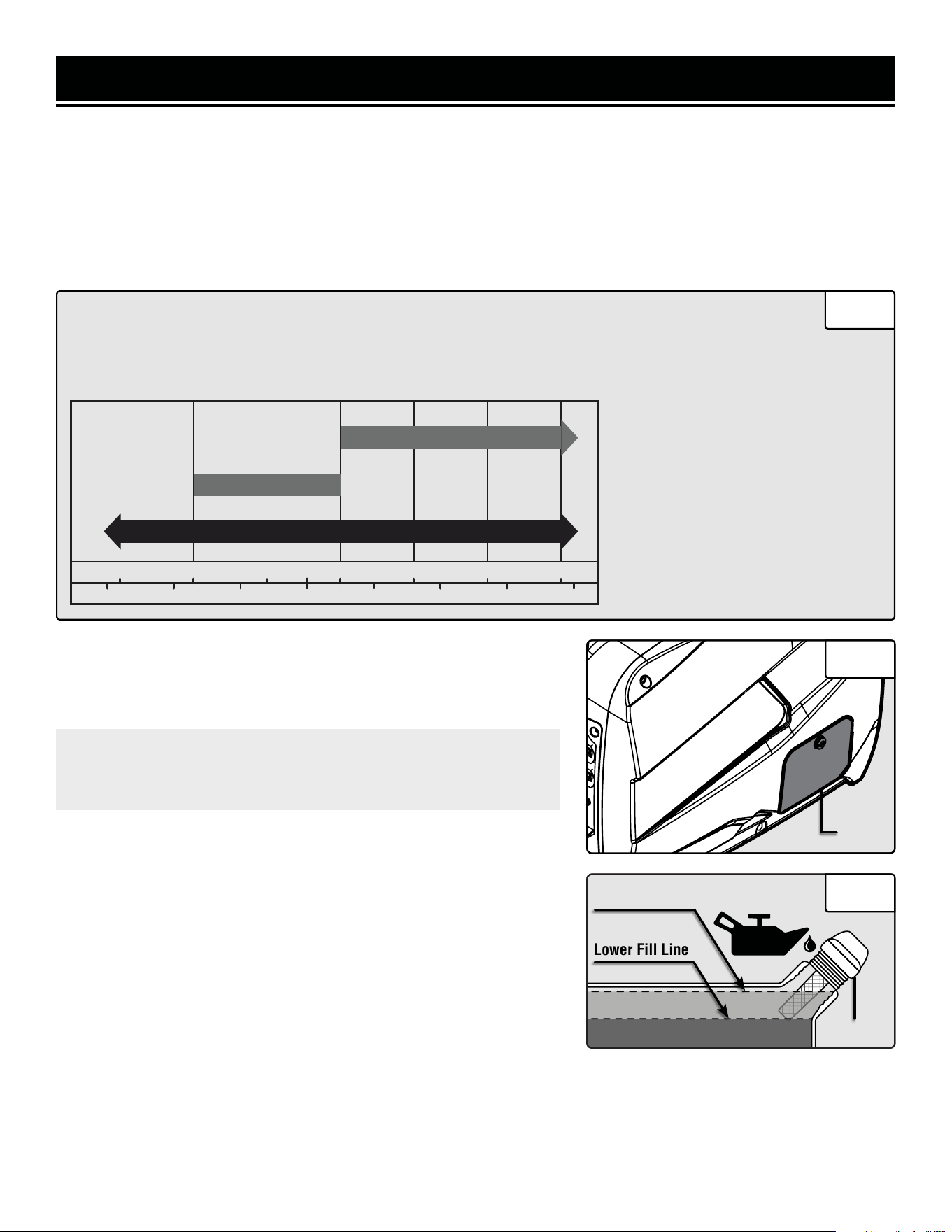

ENGINE OIL RECOMMENDATIONS
Select good quality detergent oil bearing the American Petroleum Institute (API) service classifications
SJ, SL, or SM (synthetic oils may be used). Select the SAE viscosity grade of oil that matches the
expected operating temperature.
°F
°C
-20 0 20 32 40 60 80 100
40200
-20
-10
10
-30 30
12
GENERATOR PREPARATION
The following section describes the necessary steps to prepare the generator for use. If you are unsure about how to
perform any of the steps please call 1-(800) 232-1195 M-F 8-5 CST for customer service. Failure to perform these
steps properly can damage the generator or shorten its life.
STEP 1 - ADD / CHECK OIL
The generator is shipped without oil. User must add the proper amount of oil before operating the generator for the
first time. The oil capacity of the engine crankcase is 11.8 fl. oz (0.35 L).
Fig. 1
To add oil, follow these steps:
1. Place the generator on a level surface. Make sure the engine is OFF
before adding or checking oil.
2. Using a coin, turn the oil access cover screw 1/4 turn clockwise,
then remove the access cover (Fig. 2 - 1) from the service panel.
Then, unscrew the oil dipstick from the engine.
3. Using an oil funnel or appropriate dispenser, slowly add oil into the
oil fill, being careful not to overfill the unit. Fill the crank case to the
upper fill line so you can visually see the oil coming halfway up the oil
fill threads (Fig. 3).
4. Reinstall the oil dipstick and firmly tighten it. Wipe clean any spilled
oil.
5. Reinstall the oil access cover. Using a coin, turn the screw 1/4 turn
counterclockwise to secure it in place.
CAUTION! Keep the generator level! Tilting the generator to as-
sist in filling will cause oil to flow into the engine areas and will
cause damage.
Dipstick
1
Fig. 2
Fig. 3
Lower Fill Line
Upper Fill Line
13
For subsequent operation, the oil level should be checked before each use, or after every 8 hours of operation. The
generator is equipped with a low-oil sensor and will NOT start without a sufficient amount of oil.
Low Oil
Indicator

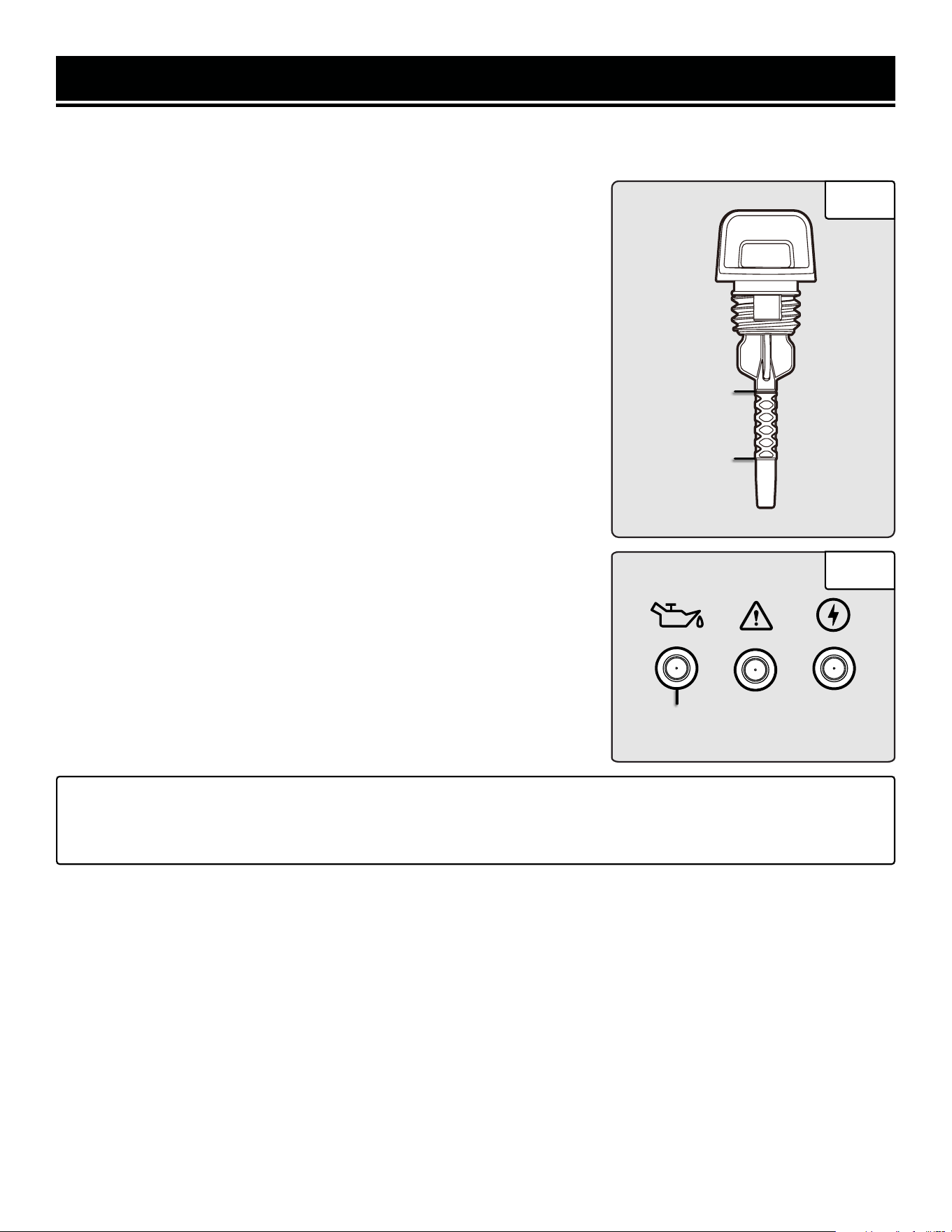

To check oil level (before every subsequent start):
1. Place the generator on a level surface. Make sure the engine is OFF
before adding or checking oil.
2. Open the oil access cover. Remove and wipe the dipstick with a clean
rag.
3. Insert the dipstick into the oil fill without screwing it in. Remove the
dipstick to check the oil mark (Fig. 4).
If the oil mark covers less than one half of the dipstick, slowly add oil until
the oil mark reaches to the top of the dipstick (or when you can see the oil
coming halfway up the oil fill threads).
4. Wipe clean any oil leaks and firmly tighten the dipstick. Reinstall the oil
access cover.
OIL LEVEL SHUTDOWN
To protect the unit from damage, the generator is equipped with a low-oil-
pressure shutoff that will automatically stop the engine when the oil level
is too low. The low oil indication light (yellow) will turn on to remind you
that the engine oil level is low and need to be refilled.
The oil level of the engine should be checked before each start to ensure
that the engine crankcase contains sufficient lubricant.
TIP: Your WEN generator is compatible with the WEN 55201 Magnetic Oil Dipstick (not included), available
for purchase at wenproducts.com. The dipstick’s industrial-strength magnetic tip will collect metal shavings
from your generator’s oil tank to help preserve the engine and extend your generator’s lifespan.
Upper Limit
Lower Limit
GENERATOR PREPARATION
Fig. 4
Fig. 5
14
FUEL OPTION A: GASOLINE
GENERATOR PREPARATION
WARNING! RISK OF EXPLOSION. HIGHLY FLAMMABLE: This generator may emit highly flammable and
explosive gasoline vapors, which can cause severe burns or even death, if ignited. A nearby open flame can lead
to explosion even if not directly in contact with gasoline.
• Do not operate near open flame, heat, or any other ignition source. Do not smoke near the generator.
• Always operate on a firm, level surface.
• Always turn generator off before refueling. Allow generator to cool for at least 2 minutes before removing
fuel cap. Loosen cap slowly to relieve pressure in tank.
• Do not overfill fuel tank. Gasoline may expand during operation. Do not fill to the top of the tank. Allow for
expansion. Always check for spilled fuel before operating.
• If fuel spills, move the generator at least 30 feet away from the spill and wipe clean any spilled fuel before
starting the engine.
• Empty fuel tank before storing or transporting the generator.

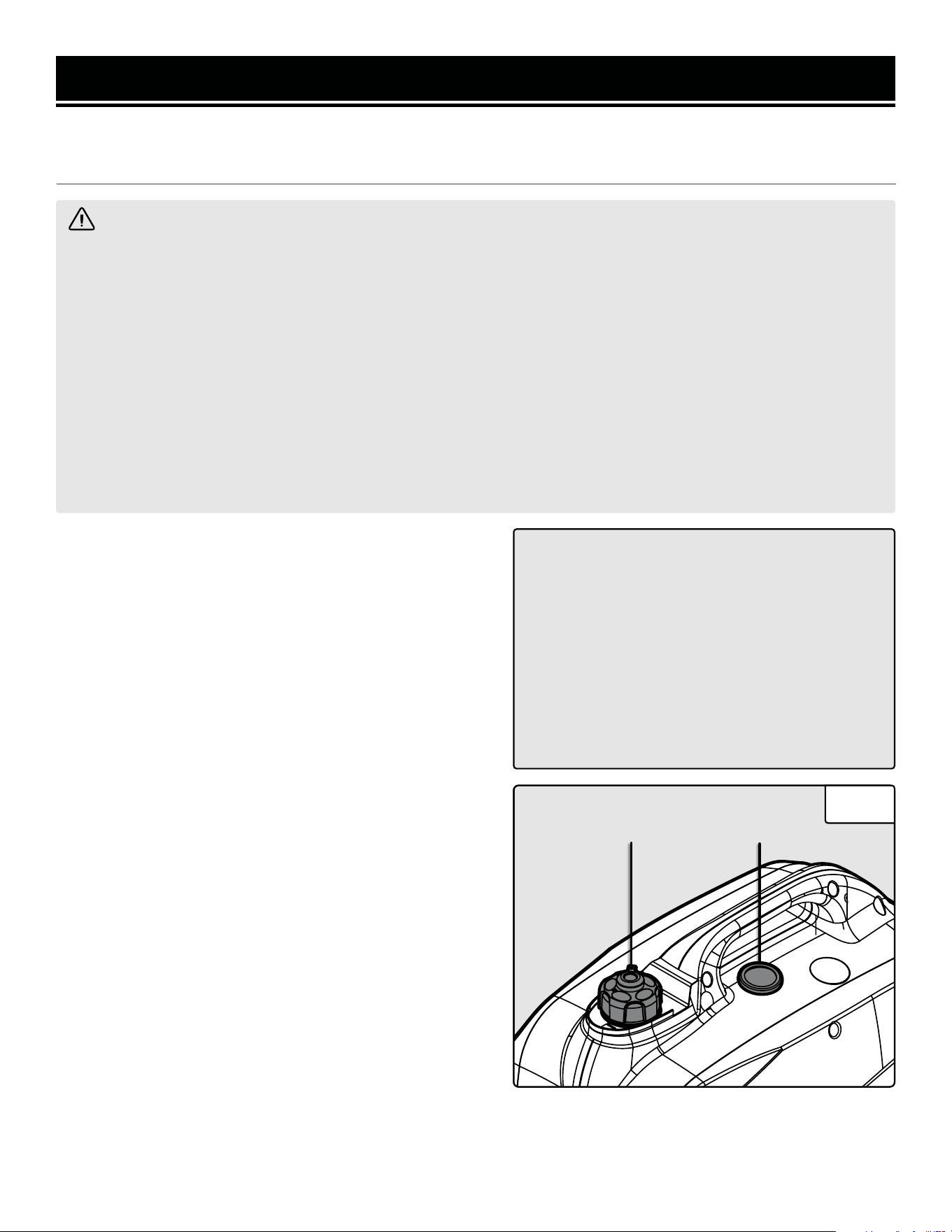

STEP 2 - ADD / CHECK FUEL
ONLY use fresh (within 30 days from purchase), lead-free
gasoline with a minimum of 87 octane rating. The genera-
tor performs best with ethanol-free gasoline. DO NOT use
gasoline with over 10% ethanol.
The capacity of the fuel tank is 1.19 gallons (4.50 L). Do
not mix oil with gasoline.
To add gasoline, follow these steps:
1. Make sure the generator is shut OFF and on a level sur-
face. Unscrew the fuel cap (Fig. 6) and set it aside. The fuel
cap may be tight and hard to unscrew.
2. Slowly add unleaded gasoline to the fuel tank. Be careful
not to overfill.
NOTE: Do not fill the fuel tank to the very top. If you do so,
gasoline will expand and spill during use, even with the fuel
cap in place.
3. Reinstall fuel cap and wipe clean any spilled gasoline with
a dry cloth.
To check fuel level (before every subsequent start):
Before starting the generator, check the fuel gauge to see if
there is sufficient fuel inside the tank. “E” indicates Empty
and “F” indicates Full. Refill the fuel tank as necessary.
IMPORTANT:
• Avoid getting dirt or water into the fuel tank.
• Keep gasoline away from sparks, open flames,
pilot lights, heat, and other sources of ignition.
• Gasoline can age in the tank and make starting
difficult. Never store the generator for more
than 2 months with fuel in the tank.
• Never use an oil/gasoline mixture.
• Never use old gasoline.
Fuel GaugeFuel Cap
Fig. 6
15
GENERATOR PREPARATION
STEP 2 - ADD / CHECK FUEL (CONTINUED)
FUEL OPTION B: LIQUID PETROLEUM GAS (LPG)
To connect your generator to an LPG cylinder:

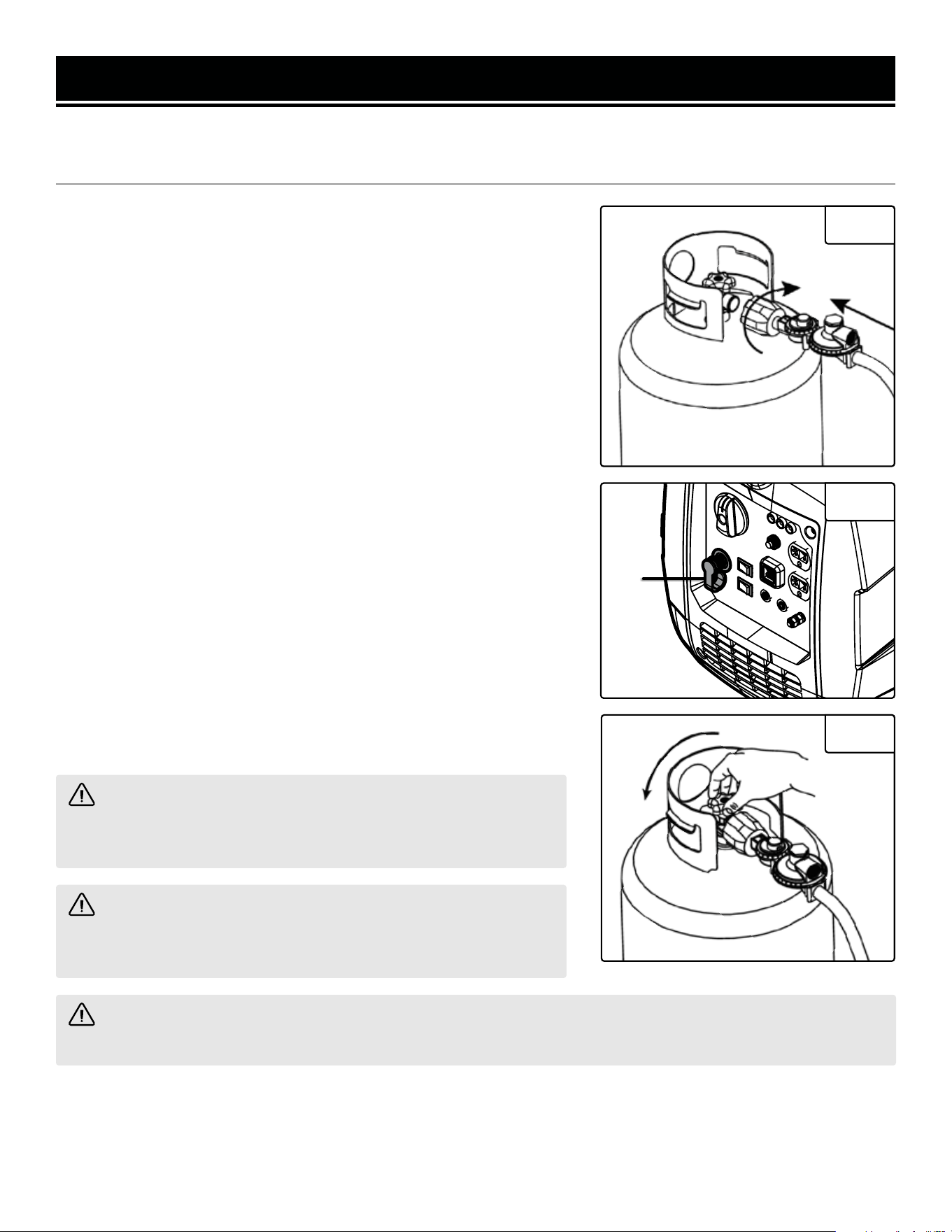

1. Take off the safety caps from the cylinder valve, generator mounted
regulator, and regulator connecting hose ends.
2. With the LPG tank valve closed, attach the LPG regulator connecting
hose to the valve. Turn the plastic coupling from the hose right (clock-
wise) to tighten hose assembly onto the LPG tank (Fig. 7).
3. Remove the protective rubber cover from the LPG inlet (Fig. 8 - 1)
on the generator panel. Connect the nut on the other end of the regula-
tor connecting hose to the LPG inlet. Tighten the nut using a 19mm or
adjustable wrench (not included).
4. Turn the LPG tank valve ON (Fig. 9) and check for leaks by spraying
soapy water to check connections. If bubbles appear, become larger
in size, or increase in number, a leak exists. This MUST be corrected
before using generator. Contact WEN customer service at 1-800-232-
1195, M-F 8-5 CST, or email [email protected] for as-
sistance.
NOTE: You can use Teflon (or other tape) to secure the connection of
the LPG hose to your generator.
NOTE: If you would like to purchase other accessories for your dual-
fuel generator, consult your local dealer of propane and propane ac-
cessories, I tell you what.
CAUTION! Always position the LPG cylinder so the connection
between the tank and LPG inlet won’t cause sharp bends or kinks
in the hose.
WARNING! Risk of burns. Contact with liquid contents of cyl-
inder will cause freeze burns to the skin. If liquid contents contacts
skin or eyes, seek immediate medical attention.
WARNING! When transporting and storing, keep cylinder secured in an upright position with cylinder valve
turned off. Keep cylinders ventilated and away from heat when in a vehicle.
Fig. 7
Fig. 8
Fig. 9
1
16
AUTO FUEL SELECTION
Your generator is equipped with Auto Fuel Selection Technology. What this means is that the generator will auto-
matically select the fuel source (LPG or gasoline) depending on availability. LPG is prioritized; this means that if a
propane tank with enough LPG is connected, the generator will automatically use LPG. If no propane tank is con-
nected, or if there is no LPG remaining in the tank, the generator will use gasoline (if there is gasoline in the fuel
tank). Refer to the chart below for information on how to set up your generator for a particular fuel.
GENERATOR PREPARATION
Propane Tank Valve 3-in-1 Dial on Generator
I want to use gasoline. Closed Run
I want to use LPG. Open Run* or Off
Auto Fuel Selection® chart.*It is ideal to run the generator on LPG with the fuel valve closed (OFF), but if it stays
open (RUN), the generator will still run properly.
NOTE: Make sure the generator can handle the load(s) you plan to connect. The generator can provide more power
when running on gasoline than on LPG. Consult the specifications table on p. 3, as well as the “Calculating the Watt-
age of Your Device(s)” table) to ensure that your load(s) will not exceed the rated wattage for a particular fuel. See
also "Switching Fuels" for more information.
17
Grounding Nut
After completing the above preparation, the generator is ready to be started.
STEP 3 - GROUND THE GENERATOR
To reduce the risk of electric shock and to maximize safety, the genera-
tor should be properly grounded.
Ground the generator by tightening the grounding nut on the front con-
trol panel (Fig. 10) against a grounding wire. A generally acceptable
grounding wire is a No. 12 AWG (American Wire Gauge) stranded
copper wire.
This grounding wire should be connected at the other end to a copper,
brass, or steel-grounding rod that is driven into the earth. Wire and
grounding rods are not included with the generator.
NOTE: Grounding codes can vary by location. Contact a local electrician
to check the area codes.
HIGH ALTITUDE OPERATION ABOVE 3000 FEET
The fuel system on this generator may be affected by operation at high altitudes. Proper operation can be ensured by
installing an altitude kit at altitudes higher than 3000 feet above sea level. At elevations above 8000 feet, the engine
may experience a decrease in performance, even with the proper altitude kit. Operating this generator without said
kit may increase the engine’s emissions and decrease both fuel economy and performance.
This kit should be installed by a qualified mechanic. You can order the kit at wenproducts.com by searching part
DF250i-HA36 for 3000 to 6000 feet above sea level or DF250i-HA68 for 6000 to 8000 feet above sea level. Refer to
the instructions included with your altitude kit for more information about installation.
CAUTION: Engines with the high-altitude kit installed operated at lower altitudes could cause severe engine
damage and affect emissions compliance. Be sure to UNINSTALL the high altitude kit when operating at alti-
tudes below 3000 feet.
GENERATOR PREPARATION
Fig. 10
WARNING! Failure to properly ground the generator increases your risk of electric shock.
WARNING! To prevent serious injury from fire, follow the kit installation procedures in a well-ventilated
area away from ignition sources. If the engine is hot from use, shut the engine off and wait for it to cool before
proceeding. Do not smoke near the generator. Warranty will be void if adjustments are not made for high altitude
use.
18
CAUTION!
Disconnect all electrical loads from the generator before attempting to start.
Before starting the generator, make sure you have read and performed the steps in the “Generator Preparation”
section of this manual. If you are unsure about how to perform any of the steps in this manual please call 1-(800)
232-1195 M-F 8-5 CST for customer service.
To maximize safety, ALWAYS ground the generator before using it. See section “Ground the Generator”.
Use a ground fault circuit interrupter (GFCI) in highly conductive areas such as metal decking or steel work. GFCIs
are available in-line with some extension cords.
STARTING YOUR GENERATOR
DANGER! CARBON MONOXIDE
Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide (CO). This
is a poison gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even
if you cannot smell the exhaust, you could be breathing CO.
NEVER use a generator inside homes, garages, crawl spaces, or other partially enclosed areas. Deadly levels
of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply
enough fresh air. ONLY use a generator outside and far away from windows, doors, and vents. These openings
can pull in generator exhaust.
Even if you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-
backup CO alarm in the home. If you start to feel sick, dizzy, or weak after the generator has been running, move
to fresh air RIGHT AWAY. See a doctor. You may have carbon monoxide poisoning.
WARNING! The exhaust from this product contains chemicals known to the State of California to cause
cancer, birth defects, or other reproductive harm.
WARNING! Do not operate generator near open flame or flammable materials This generator may emit
highly flammable and explosive gasoline vapors, which can cause severe burns or even death if ignited. A
nearby open flame can lead to explosion even if it isn’t directly in contact with gasoline. Do not smoke near the
generator.
WARNING! This generator produces powerful voltage, which can result in electrocution.
WARNING! Do not use in rainy or wet conditions. Do not touch bare wires or receptacles (outlets). Do not
allow children or non-qualified persons to operate.
WARNING! Generator should only be connected to electrical devices, either directly or with an extension
cord. NEVER connect to a building electrical system without a qualified electrician and connected to a transfer
switch as a separately derived system. Such connections must comply with local electrical laws and codes.
Failure to comply can create a back-feed, which may result in serious injury or death to utility workers.
Follow the instructions on the next page to start your generator.
19
Before starting the generator, check the following:
1. Place the generator outside on a dry, level surface. Allow at least two
feet of clearance on all sides of the generator.
2. Make sure all electrical devices are unplugged from the generator
during ignition. Otherwise it will be difficult for the engine to start.
3. To maximize safety, check that the generator is properly grounded
(see “GROUND THE GENERATOR” section).
4. Check there is sufficient level of oil in the crankcase. Add oil if neces-
sary (refer to “ADD / CHECK OIL” section).
5. Make sure there is sufficient level of gasoline in the fuel tank. Add
fuel if necessary (refer to “ADD / CHECK FUEL” section). If using LPG,
make sure there is enough propane in the tank, and that the tank and
regulator hose are properly connected.
To start the generator, perform the following steps:

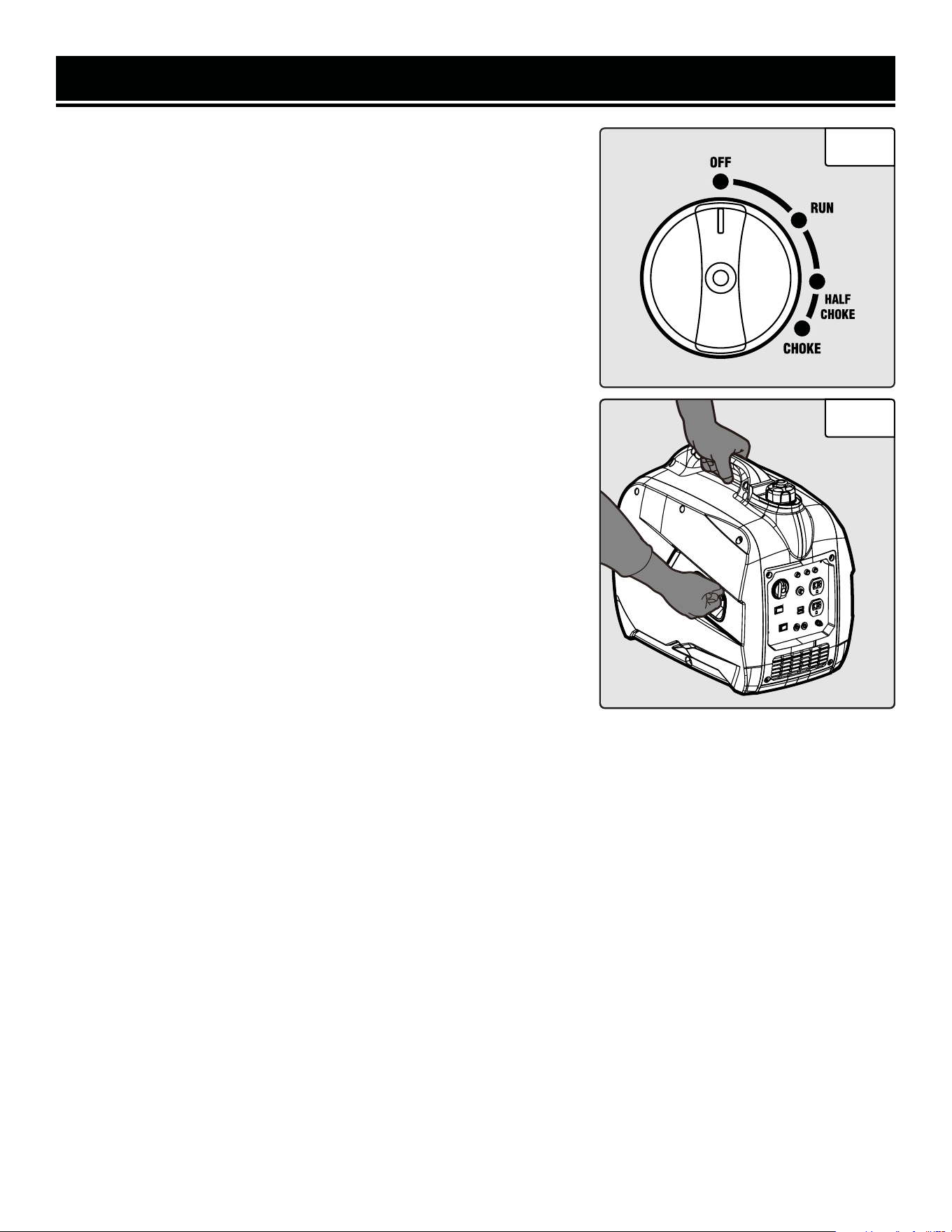

1. Turn the ECO-MODE (Fig. 11 - 1) switch to “OFF” during starting.
2. Open the vacuum relief valve (Fig. 12) on top of fuel cap by rotating
it clockwise to the “ON” position. This will allow fuel to flow.
3. Turn the 3-in-1 dial switch (Fig. 11 - 2) to the “CHOKE” position.
3.1. If starting the generator using LPG, gently pull the recoil starter
handle 1 - 3 times to prime the engine. Then turn the 3-in-1 dial switch
to the "RUN" position. Pull the recoil starter to start the engine.
4. Place one hand on the generator to hold it in place, and pull on the
recoil starter handle slowly until a slight resistance is felt (Fig. 13).
Then pull quickly to start the engine. Return cord gently into the ma-
chine. Never allow the cord to snap back.
5. If engine fails to start, repeat step 4.
NOTE: After repeated failed attempts to start the engine, please consult
the troubleshooting guide before attempting again. If problems persist
please call 1-(800) 232-1195 M-F 8-5 CST.
6. After the engine has started, turn the 3-in-1 switch (Fig. 11 - 2) to the
“RUN” position. The output indicator (green) will light up.
7. Allow the generator to run for several minutes before attempting to
connect any electrical devices. This allows the generator to stabilize its
speed and temperature.
STARTING YOUR GENERATOR
2
Vacuum
Relief Valve
Fig. 11
Fig. 12
Fig. 13
1
When starting your generator in low temperatures (below 32º F):
1. Turn the 3-in-1 switch to the "Choke" position (Fig. A).
2. Use the recoil starter handle to start the generator (Fig. B).
3. Turn the 3-in-1 switch to the "Half Choke" position for about 15 sec-
onds. This allows the generator to run stably, and the engine to warm
up. NOTE: This is only required if you are operating in low temperatures
below freezing (32º F).
4. Turn the 3-in-1 switch to the "Run" position (Fig. A).
STARTING YOUR GENERATOR
Fig A
Fig B
20
USING YOUR GENERATOR
CALCULATING THE WATTAGE OF YOUR DEVICE(S)
Connect electrical devices running on AC current according to their wattage requirements. Calculate the total run-
ning wattage and starting wattage of the device(s) you wish to connect, and MAKE SURE that they are within the
capacity of your generator and the capacity of each individual outlet.
Generator
Wattage
Capacity
GENERATOR RUNNING (RATED) WATTS GENERATOR STARTING (SURGE) WATTS
Gasoline: 2000W Gasoline: 2500W
LPG: 1800W LPG: 2250W
What this means:
The generator can produce a maximum of
2000W / 1800W on a continuous basis to
supply ongoing power to your electronic de-
vices.
NOTE: Also check the rated amperage for
each outlet and make sure not to overload
the individual outlets.
What this means:
Some devices such as box fans require short
bursts of extra power in addition to the rated
wattage listed by the device to start their mo-
tors.
The generator can produce a maximum watt-
age of 2500W / 2250W for a short period of
time (seconds) to cover the extra starting
power required by your electronic devices.
Electronic
Device
Wattage
Calculation
Find the wattage information of each device you plan to connect. The information should be
listed on the device or in its instruction manual, or you may refer to page Table 2.
The wattage can be calculated using this equation: Watts = Volts x Amperes
To calculate the total running watts of your
devices:
+ Add up the running wattages of all the
device(s) you plan to connect.
= The total running (rated) wattage.
This wattage should NOT exceed the run-
ning wattage of 2000W / 1800W.
It is recommended to maintain a load at or
below 1800W / 1620W (90% of the rated
output) to ensure steady voltage output and
to prolong the generator’s lifespan.
To calculate the total starting watts of your
devices:
+ Add up the total running wattage of all the
device(s) you plan to connect.
+ Add the single highest ADDITIONAL start-
ing wattage out of the device(s) you plan to
connect.
= The total starting (surge) wattage.
This wattage should NOT exceed the starting
wattage of 2500W / 2250W.
If any of either of the total calculated running watts or starting watts is higher than the capac-
ity of your generator, adjust the load until both wattage requirements are met. Otherwise you
will overload the generator, and cause damage to the engine and your electrical device(s).
Table 1 - How to Calculated Wattages
21
CALCULATING THE WATTAGE OF YOUR DEVICE(S) - CONTINUED
The chart below serves as a reference for the estimated wattage requirements of common electrical devices. How-
ever, do not solely rely on this chart - all electronics and appliances are built differently. Always check the wattage
listed on the electrical device before consulting this chart.
Tool or Appliance Rated (Running) Watts Surge (Starting) Watts
Electric Water Heater (40 Gal) 4000 0
Hot Plate 2500 0
Saw - Radial Arm 2000 2000
Electric Stove (Each Element) 1500-2800 0
Saw - Circular 1500 1500
Air Compressor (1 HP) 1500 3000
Window Air Conditioner 1200 1800
Saw - Miter 1200 1200
Microwave 1000 0
Well Water Pump 1000 1000
Sump Pump 800 1200
Refrigerator Freezer 800 1200
Furnace Blower 800 1300
Computer 800 0
Electric Drill 600 900
Television 500 0
Deep Freezer 500 500
Garage Door Opener 480 0
Stereo 400 0
Box Fan 300 600
Clock Radio 300 0
Security System 180 0
Dvd Player / VCR 100 0
Common Light Bulb 75 0
Table 2 - Estimated Wattages of Common Electrical Appliances
NOTE: Become familiar with the functions and capacity of each component on the control panel before con-
necting electrical devices. See page 11 for more information about the components of the control panel. Do not
overload generator or individual panel receptacles. Do not connect 50Hz or 3-phase loads to the generator.
USING YOUR GENERATOR
22
CONNECTING ELECTRICAL DEVICES
When the rated wattage requirement of each electrical device has been determined, add these numbers to find the
total rated wattage needed. If this number exceeds the rated wattage (2000W gasoline, 1800W LPG) of the genera-
tor, DO NOT connect all these devices. Select a combination of electrical devices with a total rated wattage lower
than or equal to the rated wattage of the generator.
CAUTION! Become familiar with the markings on the control panel (Fig. 11) before connecting electrical
devices. Do not connect 50Hz loads to the generator.
1. Before connecting electrical devices, allow the generator to run for a few minutes to stabilize the speed and volt-
age output.
2. Make sure that all devices are turned off. Start plugging in each electric device, from the highest wattage to the
lowest. Check the power indicator light (green) to ensure the generator is producing power.
3. Do not overload the generator or individual panel receptacles. If an overload occurs, the overload indication light
(red) will activate. If it is flashing, turn off and unplug one load. If it is solid (not flashing), the generator will cut off
power to protect itself. Unplug all electrical devices and then press the reset button to reset the entire circuit. Check
the total wattage of the devices and reduce the load if it exceeds the capacity of the generator. Then, plug the loads
back in one by one.
NOTE: If the reset button or circuit breaker does not reset, wait several minutes and try again. If problem still per-
sists, please call 1-(800) 232-1195 M-F 8-5 CST.
NOTE: The NEMA 5-20 receptacles are capable of connecting devices up to 20A only when two generators are
parallel connected. When operating a single generator, do not exceed 15A (1800 running watts) on this receptacle.
USING YOUR GENERATOR
3-in-1 Dial Switch
LPG Inlet
Manual Shutoff
Eco-Mode Switch
Indicator Lights
Carbon Monoxide Monitor
NEMA 5-20R Outlets
DC 5V USB Port
Grounding Nut
Parallel Connection
Overload Reset
23
ECO-MODE SWITCH
This generator is equipped with an Eco-Mode Idle Control Switch. Engaging this switch allows the system to regu-
late the engine speed and automatically adjust its fuel consumption to match the required load. When the electrical
load changes, the generator engine will automatically speed up and slow down as needed. This reduces fuel con-
sumption and noise levels, while extending runtime and engine’s lifespan.
Keep this switch engaged ONLY when the power load requirement is LESS THAN 1500W / 1350W (75% of the rated
watts). Do not engage the Eco-Mode Switch when the total load is more than 1500W / 1350W. The generator engine
must run at full speed to supply power for anything over 1500W / 1350W.
PARALLEL OPERATION
The parallel connection ports allow you to connect two WEN generators to increase the total available electrical
power. The WEN Parallel Connection Kit can be purchased from wenproducts.com. Follow the instructions in-
cluded with your parallel connection kit for proper installation and operation.
IN CASE OF OVERLOAD
If your generator becomes overloaded from too much drawn wattage, the overload indicator (red) on the control
panel will light up, and the overload reset button on your control panel may activate and cut off the output. When
an overload occurs, reduce the load by turning off and unplugging your electronic device(s), then press the reset
button to reset your generator. If no power is produced after resetting, restart your generator.
• 4% to 10% over rated watts: overload light will flash to indicate overload
• 10% to 18% over rated watts: overload light will stay on for 16 seconds, output will be cut off.
• More than 18% over rated watts: overload light will stay on for 3 seconds, output will be cut off.
USING YOUR GENERATOR
24
Table 3 - Power Cord Requirement Guide
SOME NOTES ABOUT POWER CORDS
Long or thin cords can drain the power provided to an electrical device by the generator. When using such cords,
allow for a slightly higher rated wattage requirement by the electrical device.
*NR = Not Recommended
Device Requirements Max. Cord Length (ft) by Wire Gauge
Amps
Watts
(120V)
Watts (240V) #8 Wire #10 Wire #12 Wire #14 Wire #16 Wire
2.5 300 600 NR NR NR 375 250
5 600 1200 NR NR 300 200 125
7.5 900 1800 NR 350 200 125 100
10 1200 2400 NR 250 150 100 50
15 1800 3600 NR 150 100 65 NR
20 2400 4800 175 125 75 50 NR
25 3000 6000 150 100 60 NR NR
30 3600 7200 125 65 NR NR NR
40 4800 9600 90 NR NR NR NR
WARNING! Generator should only be connected to electrical devices, either directly or with an extension
cord. NEVER CONNECT TO A BUILDING ELECTRICAL SYSTEM without a qualified electrician and connected to
a transfer switch as a separately derived system. Such connections must comply with local electrical laws and
codes. Failure to comply can create a back-feed, which may result in serious injury or death to utility workers.
NOTE: For power outages, permanently installed, stationary generators are better suited for providing backup
power to your home. Even a properly connected portable generator can become overloaded. This may result in
overheating or stressing the machine’s components, possibly leading to generator failure.
USING YOUR GENERATOR
25
USING YOUR GENERATOR
CO SENSOR INFORMATION
The CO Watchdog carbon monoxide monitoring system (Fig.
14 - 1) measures the accumulation of poisonous CO gas
while the generator is running. If the level of CO gas gets too
high, the CO Watchdog system will automatically shut down
the generator. This system is not a substitute for an indoor
CO alarm.
Whenever the CO Watchdog system shuts down the genera-
tor, the LED on the generator control panel (Fig. 14 - 1) will
blink red for at least 5 minutes after the generator is shut
down. If you notice that the LED is blinking red, vacate the
area immediately. Go to an open, outdoor area. Ventilate
the area around the generator thoroughly before returning.
Let the generator stay shut down for a few minutes before
restarting the engine. This should allow carbon monoxide to
dissipate from the area. If you restart the generator and the
CO Watchdog detects that CO levels are still too high, it will
shut down the generator again. If CO levels are low enough,
the generator will run normally.
1
Ensure that the generator is located in an open outdoor area, with the exhaust pointing away from occupied struc-
tures, and pointing away from the prevailing winds, such that those winds do not blow engine exhaust towards the
sensor module. If anyone experiences dizziness, headaches, nausea, fatigue, or other symptoms of CO poisoning,
get to fresh air immediately and seek the attention of a qualified medical professional. Follow all other directions in
this manual regarding the connection and disconnection of electrical devices when starting or shutting down the
generator.
When starting the generator, the CO Watchdog LED on the panel may flash. This indicates that the system is running
a self-test procedure, and does not indicate a problem.
If the CO Watchdog LED on the panel is yellow, a system error has occurred, or the CO sensor has reached the end
of its life. Contact WEN customer service (1-800-232-1195, M – F 8 – 5 CST, or [email protected])
for assistance.
When operating your generator, please note the following:
• The CO Watchdog does not discriminate in its input; any source of carbon monoxide in the area around the genera-
tor could cause it to activate. If the CO Watchdog LED is blinking red, safety measures should be taken immediately.
• Tampering with, disconnecting, or bypassing the CO sensor could cause hazardous conditions, including but not
necessarily limited to injury or death, and will void your warranty. The generator will not run with the CO sensor
disconnected or bypassed, or if the CO sensor indicates an error.
• The CO sensor has a lifetime of about 7 years, and is capable of monitoring its lifetime. If your generator shows
an error light several years after purchase, it may be time to replace the CO sensor. Contact WEN customer service
for assistance.
NOTE: if the generator is oriented so that the
engine exhaust is blown towards the CO sensor,
the generator may shut down.
Fig. 14
26
OPTION 1A: AUTOMATIC FUEL SHUTOFF (RECOMMENDED – GASOLINE ONLY)
The WEN 2500W Inverter Generator is equipped with automatic fuel shutoff. This feature turns off the flow of fuel,
allowing for the generator to use up the remaining fuel from the carburetor before turning off. This prolongs the
lifespan of the generator by preventing build-up and blockages caused by stagnant fuel inside of a carburetor.
CAUTION: Allowing gasoline to sit in the fuel tank for long periods of time can make it difficult to start the gen-
erator in the future. Never store the generator for extended periods of time (over 2 months) with fuel in the fuel
tank. Refer to “TRANSPORTATION & STORAGE”.
1. Turn off all electrical devices prior to unplugging them from
the generator. Unplugging running devices can cause damage to
the generator.
2. Allow the generator to run at no load for a few minutes to
stabilize internal temperatures.

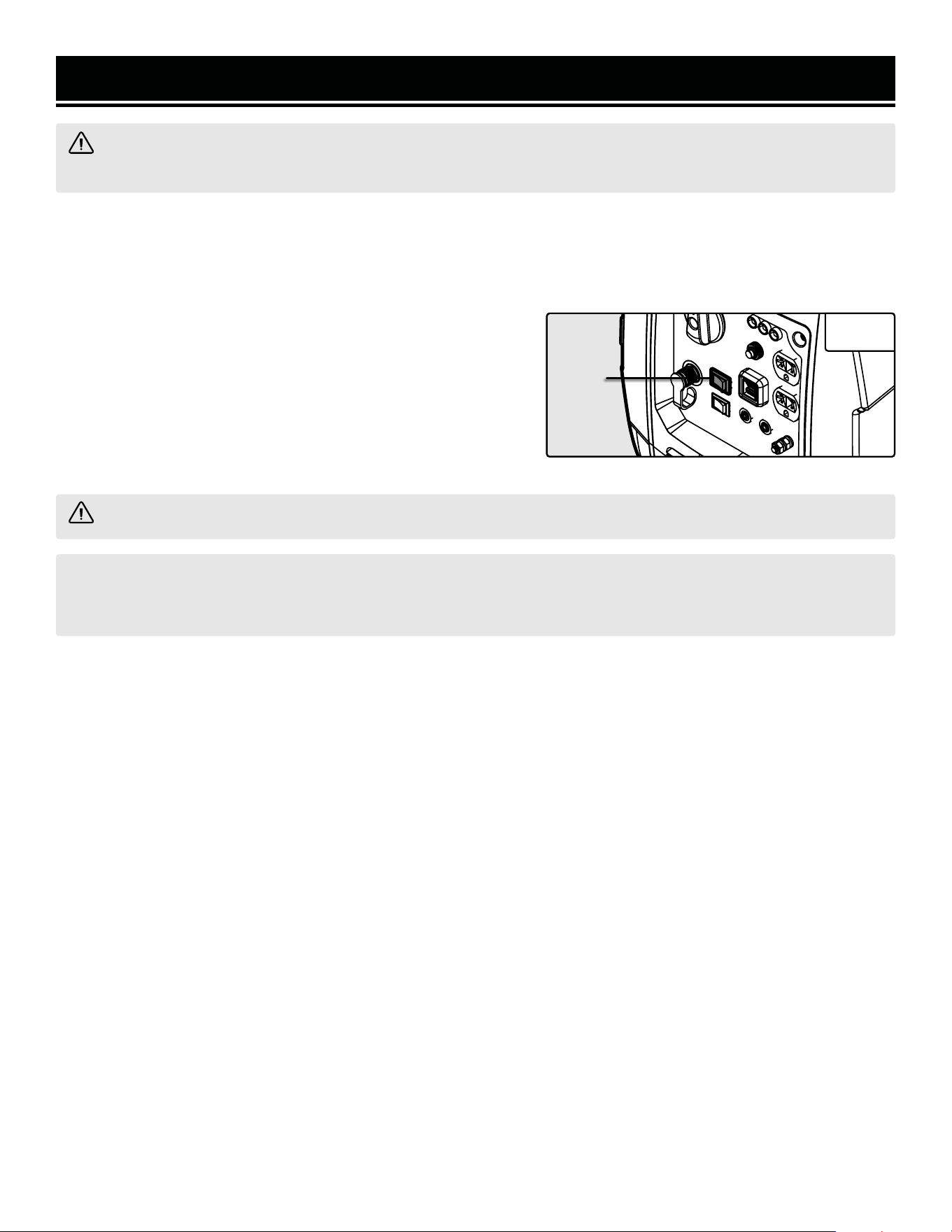

3. Turn the 3-in-1 switch to the “OFF” position (Fig. 15 - 1).
4. Close the vacuum relief valve on the top of the fuel cap by
rotating it counterclockwise to the “OFF” position.
5. The engine will continue to run until the majority of the fuel in
the carburetor is consumed. The engine will then shut off auto-
matically. This helps prevent the carburetor from being clogged
by stale fuel, extending your generator’s lifespan.
SHUTTING OFF YOUR GENERATOR
Fig. 15
CAUTION! Unplugging running devices can cause damage to the generator. Never stop the engine with elec-
trical devices connected and running.
OPTION 1B: AUTOMATIC FUEL SHUTOFF (RECOMMENDED – LPG ONLY)
Although LPG is not prone to degradation the way gasoline is, it is still a good idea to turn the LPG tank OFF before
disconnecting the regulator hose from the generator, so that LPG does not leak from the hose.
1. Turn off all devices prior to unplugging them. Unplugging running devices can cause damage to generator.
2. Allow generator to run at no load for a few minutes to stabilize internal temperatures.
3. Turn the 3-in-1 dial switch to the OFF position (Fig. 15 - 1), if it is not in the OFF position already.
4. Turn the propane tank valve to the OFF position (if the propane regulator hose is connected to the generator). The
engine will continue to run until propane in the carburetor is consumed, which will be nearly immediately. It will then
shut down automatically.
NOTE: If there is gasoline in the fuel tank, and any gasoline has made it into the carburetor for some reason, the
generator may continue to run for a few minutes until the gasoline has been consumed.
WARNING! Allow generator to cool down before touching areas that become hot during use.
1
27
WARNING! Allow the generator to cool down before touching areas that become hot during use.
CAUTION: Allowing gasoline to sit in the fuel tank for long periods of time can make it difficult to start the gen-
erator in the future. Never store the generator for extended periods of time (over 2 months) with fuel in the fuel
tank. Refer to “Storing the Generator.”
SHUTTING OFF THE GENERATOR
CAUTION! Unplugging running devices can cause damage to the generator. Never stop the engine with elec-
trical devices connected and running.
OPTION 2: MANUAL SHUTOFF
In case you are in a hurry and do not want to wait for the generator to automatically shut down, the manual shutoff
feature is available. However, this method will leave stagnant fuel in the carburetor, possibly causing blockages,
a shortened lifespan, and other maintenance issues. If this approach is frequently taken, make sure to drain your
carburetor before any long storage periods.
1. Turn off all electrical devices prior to unplugging them from
the generator. Unplugging running devices can cause damage to
the generator.

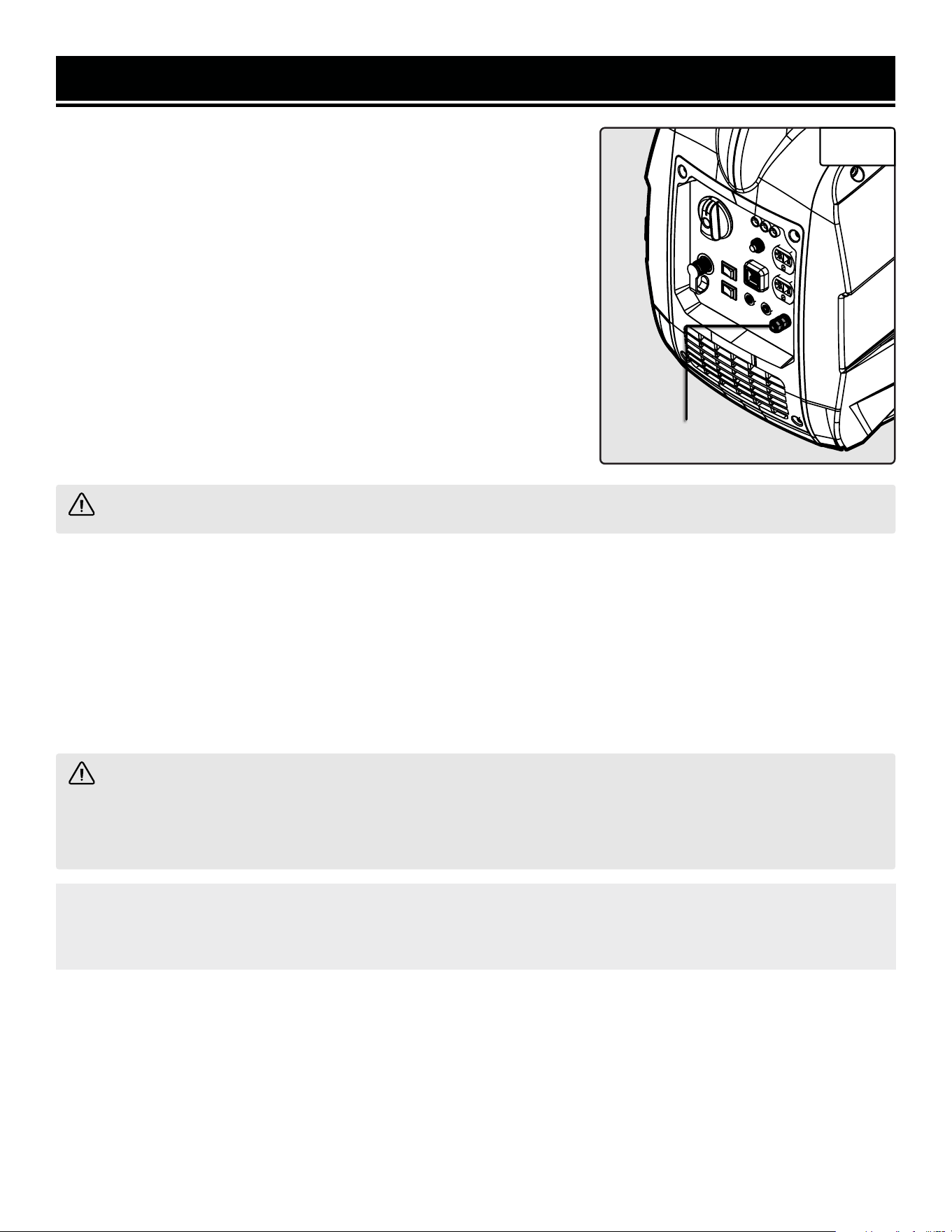

2. Turn the engine switch to the OFF (0) position (Fig. 16 - 1).
Hold the engine switch in the OFF (0) position for about six sec-
onds until the engine shuts off.
Fig. 16
1
28
Proper routine maintenance of the generator will help prolong the life of the machine. Please perform maintenance
checks and operations according to the schedule in Table 4.
CAUTION! Never perform maintenance operations while the generator is running. Before maintaining or
servicing the generator, turn OFF the generator, disconnect all devices and allow the generator to cool down.
If there are any questions about the maintenance procedures listed in this manual, please call 1-(800) 232-1195 M-F
8-5 CST or email [email protected].
Recommended
Maintenance Schedule
Every 8
Hours or
Daily
Every 25
Hours
Every 3
Months or
50 Hours
Every 6
Months or
100 Hours
Before
Storage
As
Necessary
Engine Oil
Check Level x
Replace x* x
Air Filter
Check x*
Clean x*
Spark Plug
Check/Clean/
Regap
x
Change x x
Fuel
Check Level x
Drain x x
Carburetor Drain x x
Spark
Arrestor
Check/Clean x
Table 4 - Recommended Maintenance Schedule* Clean/change more often under dusty conditions
or operating under heavy load.
IMPORTANT GENERATOR MAINTENANCE TIPS:
• Drain your carburetor after each use and before storage to prevent it from clogging.
• Do not store the generator with fuel inside the tank for more than 2 months - the fuel will go bad.
• Run the generator for at least 15 minutes every month to maximize its lifespan.
CLEANING THE GENERATOR
Keep the generator clean to prevent improper operation or machine damage from dirt and debris. Inspect all venti-
lation openings on the generator. These openings must be kept clean and unobstructed. If the generator becomes
dirty, use a damp cloth to wipe exterior surfaces. Use a soft bristle brush to loosen dirt and oil and use a vacuum to
pick up loose dirt. Use low pressure air (not to exceed 25 PSI) to blow away dirt.
CAUTION! Never clean the generator when it is running! Never clean with a bucket of water or a hose. Water
can get inside the working parts of the generator and cause corrosion or a short circuit.
NOTE: Failure to properly maintain the generator will void the warranty.
MAINTENANCE
29

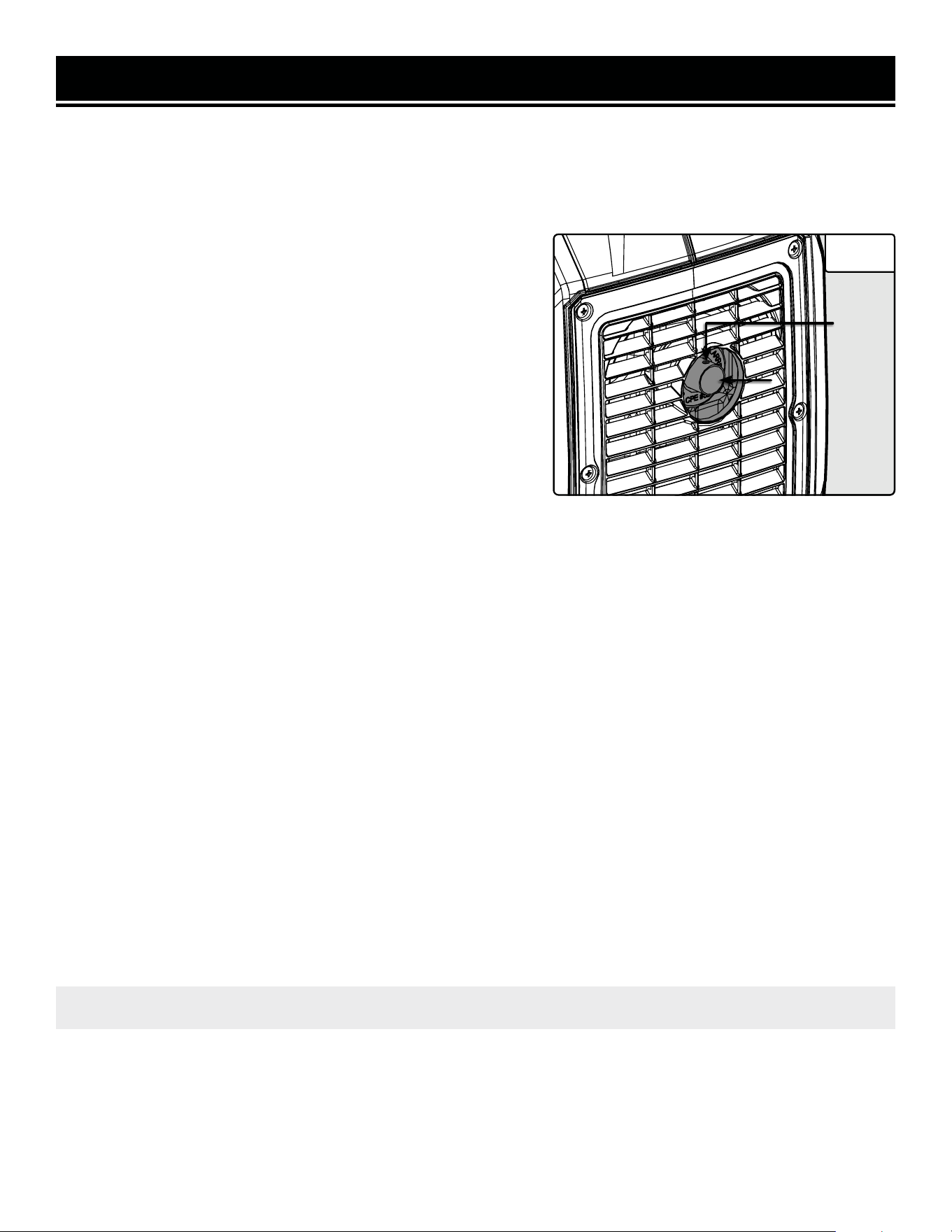

2. Using a coin, turn the oil access cover screw 1/4 turn clockwise, then
remove the access cover from the service panel. Clean around the oil fill.
Remove the dipstick and wipe the it with a clean rag.
3. Insert the dipstick into the oil fill opening without screwing in. Remove the
dipstick to check the oil mark (Fig. 17). Add oil if the oil mark covers less than
one half of the dipstick.
4. Using a funnel or appropriate dispenser, slowly add more oil. Repeat step
2 until the oil mark reaches the top of the dipstick (you can see oil coming up
the threads of the oil fill). Do not over fill.
5. Reinstall dipstick and wipe clean any spilled oil with a rag. Reinstall the oil
access cover.
TIP: Your WEN generator is compatible with the WEN 55201 Magnetic Oil Dipstick (not included), available
for purchase at wenproducts.com. The dipstick’s industrial-strength magnetic tip will collect metal shavings
from your generator’s oil tank to help preserve the engine and extend your generator’s lifespan.
CLEANING THE GENERATOR
Keep the generator clean to prevent improper operation or machine damage from dirt and debris. Inspect all venti-
lation openings on the generator. These openings must be kept clean and unobstructed.
If the generator becomes dirty, use a damp cloth to wipe exterior surfaces. Use a soft bristle brush to loosen dirt
and oil and use a vacuum to pick up loose dirt. Use low pressure air (not to exceed 25 PSI) to blow away dirt.
CHECKING/ADDING OIL
Check the oil level before each use and every 8 hours of operation (refer to Table 4).
The oil capacity of the generator engine is 11.8 fl. oz. (0.35 L). Add oil when the oil level is low. For proper type
and weight of oil refer to “ADD OIL” portion of the “GENERATOR PREPARATION” section. This is a critical step for
proper engine starting. The generator is equipped with an automatic shutoff to protect it from running on low oil.
To check the oil level and add oil:
1. Make sure the generator is on a level surface. Do not tilt the generator, as oil will flow into engine areas and cause
damage. Keep generator level!
MAINTENANCE
Upper Limit
Lower Limit
Fig. 17
WARNING! Never clean generator when it is running! Never clean with a bucket of water or a hose. Water
can get inside working parts of the generator and cause corrosion or a short circuit.
30
1
2

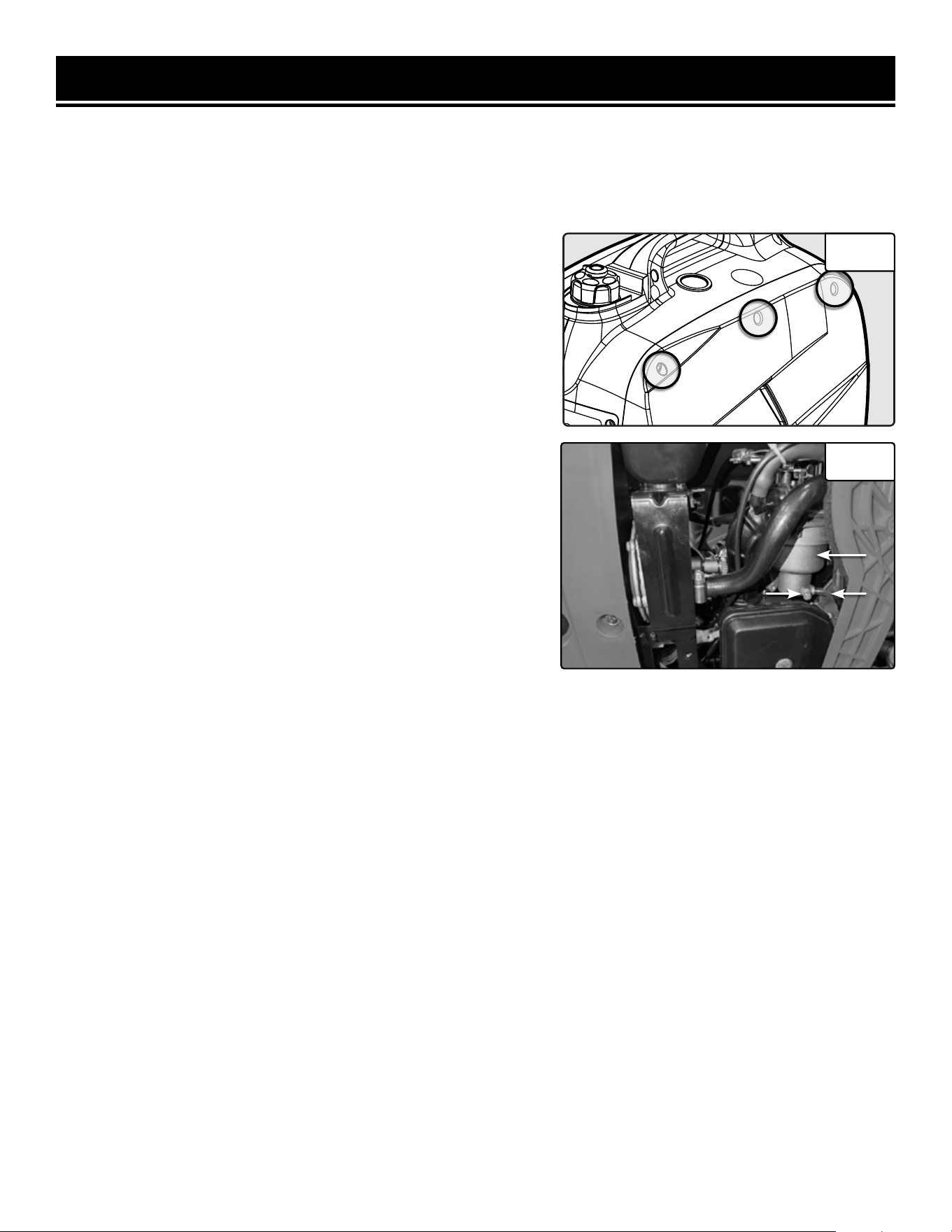

1. Place generator on elevated platform such as table or desk.
2. Using a Phillips-head screwdriver (not included), remove the
service panel by unscrewing the three Phillips-head screws (Fig.
18) along the upper edge.
3. The carburetor (Fig. 19 - 1) can be accessed from the backside
of the generator between the engine and the air filter. Locate the
transparent tube (Fig. 19 - 2) from the carburetor that extends
down through the bottom of the generator.
4. Prepare an approved gasoline-storage container and direct the
end of the drain tube into the container.
5. Open up the carburetor drain screw (Fig. 19 - 3) with a flat-
head screwdriver (not included) and drain out any gasoline that
has built up inside the carburetor through the drain tube into the
approved gasoline-storage container.
6. Once the fuel has drained, tighten the drain screw with the
screwdriver.
NOTE: Make sure to drain your carburetor before storing the gen-
erator for long periods of time.
7. Reinstall the service panel.
DRAINING THE CARBURETOR
We recommended draining the carburetor after every use (not necessary if the generator is shut off using the
“FUEL OFF” option), and before storing the generator. Draining the carburetor can prevent the fuel from clogging
up the carburetor and preventing the generator from starting.
MAINTENANCE
Fig. 18
Fig. 19
3
31

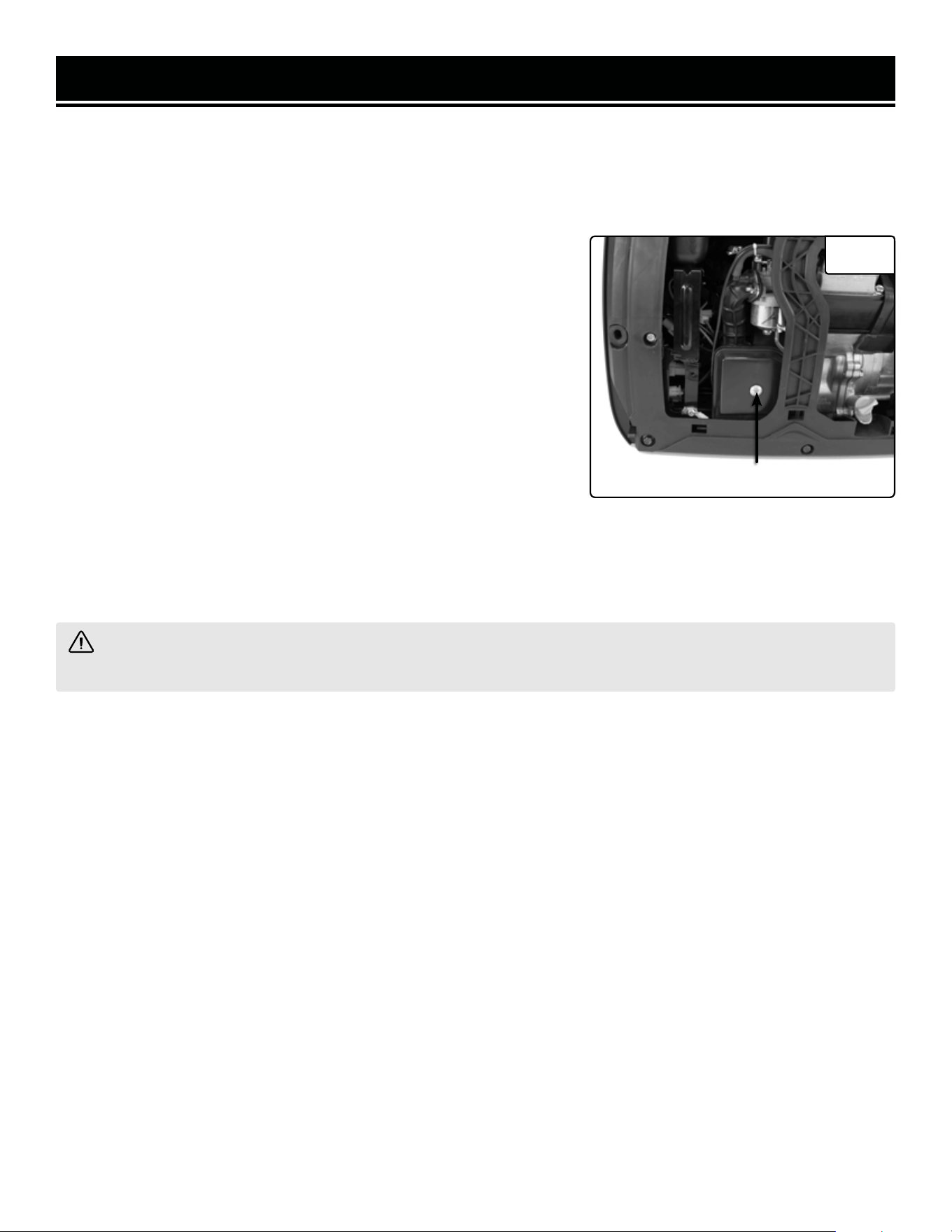

Air Cleaner Cover
MAINTENANCE
AIR FILTER MAINTENANCE
Check every 50 hours of operation (refer to Table 4 - Recommended Maintenance Schedule).
Routine maintenance of the air filter helps maintain proper airflow to the carburetor. Occasionally check that the
air cleaner is free of excessive dirt.
To inspect and clean the air filter:
1. Using a Phillips-head screwdriver (not included), remove the ser-
vice panel by unscrewing the three Phillips-head screws (Fig. 18)
along the upper edge.
2. Take the cover off of the air cleaner assembly by unscrewing the
middle screw (Fig. 20). Remove the air filter element. Wipe excessive
oil and any dirt from inside of the air filter casing.
3. Check and clean the foam air cleaner element. Good elements can
be washed in soapy water, dried and reused. A small amount of oil in
the element is normal and necessary for the engine to work properly.
If the air filter element has been damaged, replace it with a new one. Replacement air filters can be ordered from
wenproducts.com by searching part no. 56200-1407B.
4. Reinstall the air cleaner element, air cleaner cover and service panel.
Fig. 20
WARNING! Running the engine with a dirty, damaged or missing air filter element can result in danger to the
operator and cause the engine to wear out prematurely.
32
DRAINING/CHANGING OIL
Change the oil according to the Recommended Maintenance Schedule in Table 4.
Change the oil MORE OFTEN if operating under heavy load or high ambient temperatures. It is also necessary to
drain the oil from the crankcase if it has become contaminated with water or dirt. Changing the oil when the engine
is warm allows for complete drainage.
1. Close the gas cap and vacuum relief valve.
2. Place generator on elevated platform such as table or workbench Prepare a gasoline-approved container to catch
the oil as it drains.
NOTE: To avoid possible oil spills from the carburetor bowl, drain the carburetor before draining oil.
3. Using a coin, turn the oil access cover screw 1/4 turn clockwise, then remove the access cover from the service
panel. Remove the dipstick and tilt the generator towards you and allow the oil to drain from the engine completely.
NOTE: Never dispose of used motor oil in the trash or down a drain. Please call a local recycling center or auto
garage to arrange proper oil disposal.
4. Using a funnel or appropriate dispenser, add 11.8 oz of clean engine oil until you can see oil coming up the
threads of the oil fill. Do not over fill.
5. Reinstall the oil dipstick and tighten it securely. Wipe clean any oil spillage and reinstall the oil access cover.
MAINTENANCE
33
Fig. 1
MAINTENANCE

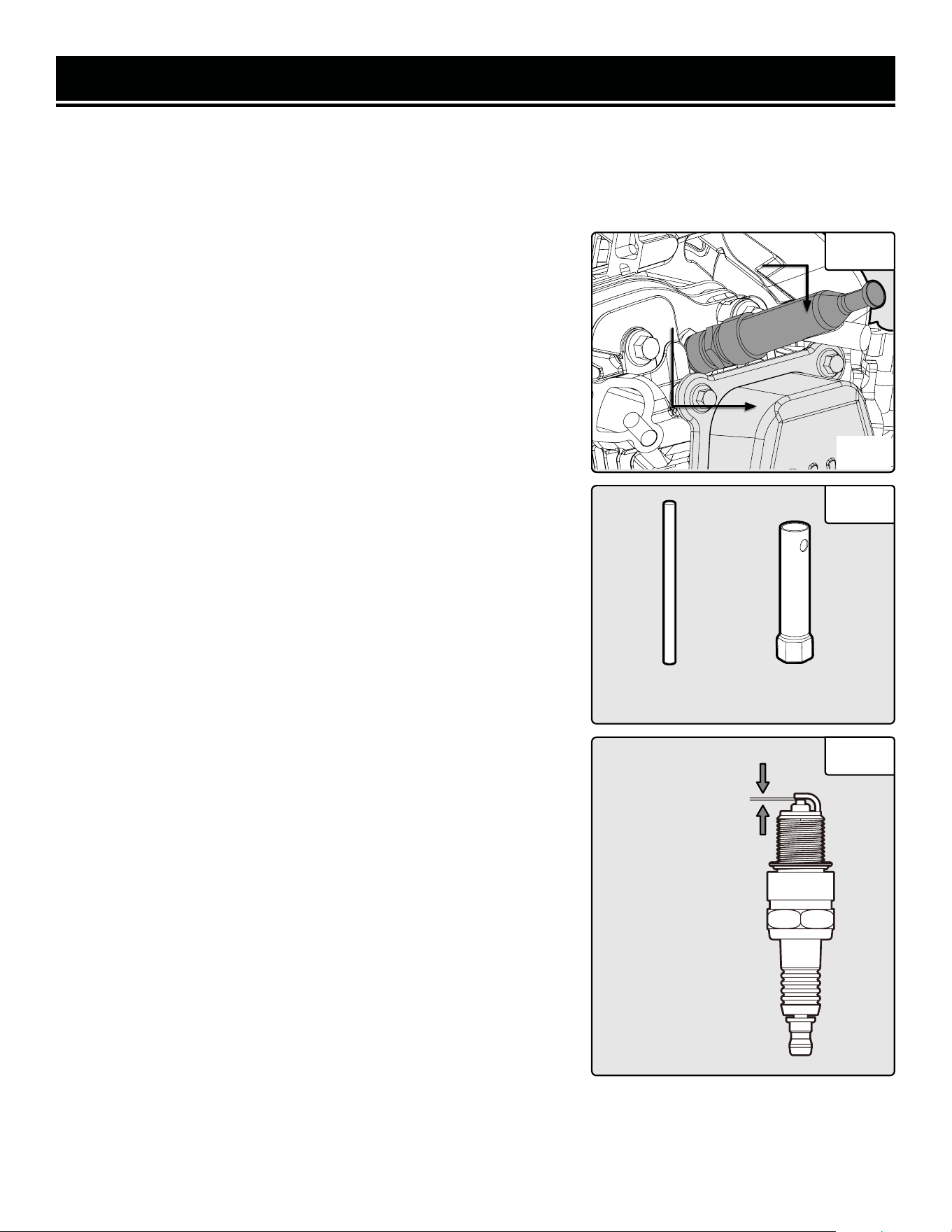

SPARK PLUG MAINTENANCE
Refer to Recommended Maintenance Schedule in Table 4 for maintaining the spark plug.
The spark plug is important for proper engine operation. Check the spark plug regularly to maintain proper engine
operation. A good spark plug should be intact, free of deposits, and properly gapped.
To inspect or replace the spark plug:
1. Using a Phillips-head screwdriver (not included), remove the ser-
vice panel by unscrewing the three Phillips-head screws along the
upper edge.
2. Pull on the spark plug boot (Fig. 21) to remove it. Be careful not to
tear any insulation or wire.
3. Remove the spark plug rubber cover on the top of the generator
next to the fuel gauge. Insert the included spark plug wrench through
the spark plug access hole to unscrew and then carefully remove the
spark plug from the engine (Fig. 22).
TIP: There is limited space for the wrench to turn. Use both rows of
holes in the spark plug wrench to gain leverage to loosen the plug.
4. Visually inspect the spark plug. If it is cracked or chipped, or if the
electrodes are worn or burned, discard it and replace
with a new spark plug.
We recommend replacing with a NGK CR5HS/Torch A5RTC spark
plug (part no. 56200-0806), available for purchase at
wenproducts.com.
5. If re-using the spark plug, use a wire brush to clean any dirt from
around the spark plug base, then re-gap the spark plug.
6. Measure the plug gap with a spark plug gap gauge. The gap should
be 0.7mm - 0.8mm (0.028 in. - 0.031 in.) (Fig. 23). Carefully adjust
the gap if necessary.
7. Screw the spark plug back into the spark plug hole using the spark
plug wrench. Do not over-tighten spark plug. Recommended tighten-
ing of spark plug is ½ to ¾ of a turn (15 ft-lb torque/20.33 Nm) after
spark plug gasket contacts spark plug hole.
8. Reinstall the spark plug boot, spark plug rubber cover, and service
panel.
Spark Plug BootSpark Plug BootSpark Plug Boot
Cylinder AssemblyCylinder AssemblyCylinder Assembly
Fig. 21
Spark Plug
Wrench
Spark Plug
Handle
Fig. 22
0.7 mm - 0.8 mm
Fig. 23
34
DRAINING THE FUEL TANK
Drain and clean the fuel tank each year, or before storing the generator for longer than two months.
To drain the fuel tank and carburetor:
1. Using a Phillips-head screwdriver (not included), remove the service panel by unscrewing the three Phillips-head
screws (Fig. 18) along the upper edge.
2. Locate the carburetor (Fig. 19 - 1) and the transparent drain tube (Fig. 19 - 2) from the carburetor that extends
down through the bottom of the generator.
3. Prepare an approved gasoline-storage container and direct the end of the transparent tube into the container.
4. Remove the fuel cap and turn the 3-in-1 switch to the “RUN” position. Fuel will start draining from the carburetor
and fuel tank through the drain tube.
NOTE: The draining process may take a few hours, depending on the amount of fuel in your gas tank.
5. Once fuel is completely drained, reinstall the fuel cap and turn the 3-in-1 switch to “OFF” position. Tighten the
drain screw with the screwdriver and reinstall the service panel.
6. Store emptied gasoline in a suitable place. DO NOT store flammable materials near the gasoline.
CAUTION: Store emptied gasoline in a suitable place. Never store fuel for more than 2 months.
SPARK ARRESTOR MAINTENANCE
Inspect and clean the spark arrestor every 100 hours of operation.
The spark arrester is located outside the muffler, which gets very hot during operation. Allow the engine to cool
completely before servicing the spark arrester. To inspect and clean the spark arrester:
1. Remove the screw that secures the spark arrestor to the muffler.
2. Remove the spark arrestor screen (Fig. 24).
3. Carefully clean and remove the carbon deposits from the spark
arrestor screen with a wire brush. Replace the spark arrestor if it
is damaged (replacement spark arrestors can be purchased from
wenproducts.com by searching the part no. 56225i-1509).
4. Reinstall the spark arrestor in the muffler and secure it in place
with the screw.
MAINTENANCE
ScrewScrewScrew
Spark ArrestorSpark ArrestorSpark Arrestor
Fig. 24
35
TRANSPORTATION & STORAGE
TRANSPORTING THE GENERATOR
To prevent fuel spillage when transporting, be sure to perform the following:
1. Tighten the fuel cap and turn the vacuum relief valve to “OFF”.
2. Set the engine switch to “OFF”.
3. Drain the fuel tank if possible (see “DRAINING THE FUEL TANK”).
4. Keep the generator upright. Never place the generator on its side or upside down - doing so will make it difficult
to start.
STORING THE GENERATOR
Shut off the generator and allow the unit to cool to room temperature before storing it. NEVER place any type of
storage cover on the generator while it is still hot. Do not obstruct any ventilation openings.
Follow the procedures below for properly storing your generator. We highly recommend running your generator
once a month for 15 to 30 minutes. Plug in a small load in to ensure there is proper power
output.
For Short Periods (30 to 60 Days):
• Drain the carburetor. Refer to, “Draining the Carburetor.”
• Add fuel stabilizer: Follow the suggested portions and
instructions of your preferred stabilizer. Run the engine for
15 to 20 minutes, allowing the fuel stabilizer to mix with the
gasoline and circulate through the carburetor, and then top
off with fuel. Filling the fuel tank full reduces the amount of
air in the tank and helps fight deterioration of fuel.
For Extended Periods (Over 60 Days):
• Drain the fuel tank and carburetor. Refer
to, “Draining the Fuel Tank”. Never store
generator with fuel in the tank for more
than two months.
• Change the engine oil. Refer to,
“Changing Oil”.
PRODUCT DISPOSAL
Do not dispose of a used generator or parts with your household waste. This product contains electrical or elec-
tronic components that should be recycled. Please take this product to your local recycling facility for responsible
disposal to minimize its environmental impact.
Do not dispose of used oil or fuel in the trash or down a drain. Please contact your local recycling center or auto
garage to arrange proper oil/fuel disposal.
Please recycle the packaging and electronic components where facilities exist. Please contact your
local auto garage or recycling facility to properly dispose of oil / fuel.
WARNING! Avoid direct sunlight inside a vehicle. If generator is left in an enclosed vehicle for many hours,
the high temp could cause the fuel to vaporize and result in a possible explosion.
WARNING! Store the generator upright in a cool and dry location, away from sources of heat, open flames,
sparks or pilot lights.
36
PROBLEM POSSIBLE CAUSE SOLUTION
Engine will not start.
1. 2-in-1 dial switch is in wrong
position.
1. Set switch to CHOKE if engine is cold and RUN if engine is warm.
2. Engine switch is set to OFF (0).
2. Turn engine switch to ON (I) if using recoil start, or START (II) if
using electric start.
3. Engine has not been primed (LPG
only).
3. Prime engine.
4. Battery is out of power.
4. Electric start will not work if battery is out of power. Start generator
using the recoil start to charge the battery.
5. Battery is too cold.
5. Electric start may be difficult if the battery is too cold. Store the
generator or battery in a warmer location.
6. Oil is low. 6. Add oil.
7. Engine is out of fuel. 7. Add fuel.
8. Engine is filled with contaminated
or old fuel.
8. Drain fuel in the tank and carburetor. Replace with fresh fuel.
9. Spark plug is dirty or broken. 9. Clean or replace spark plug.
10. Propane tank is turned OFF. 10. Dang it, Bobby, I told you to turn that thing on!
11. Carburetor is air locked.
11. Turn the 2-in-1 switch to OFF. Remove bolt from bottom of the
carburetor. Take off the carburetor bowl to allow it to reset. Replace
carburetor bowl and reinstall the bolt.
12. Regulator is stuck.
12. Turn OFF propane tank. Disconnect hose from propane fitting.
Contact WEN customer service for assistance.
13. Ghost in the generator. 13. Persuade ghost to leave. Consult Bill Murray if needed.
Engine runs but there
is no
electrical output.
1. Circuit breaker has been tripped
due to overload.
1. Turn off and unplug all electrical devices. Wait 5 minutes, then press
the circuit breaker to reset. Check the total wattage of the devices and
reduce the load if it exceeds the capacity of the generator. Then plug
the loads back in one by one.
2. Bad connecting cords/wires.
2. Check the power cords and extension cords. Do not use if any cord
is damaged. Replace damaged cords immediately.
3. Bad electrical device connected to
the generator.
3. Try connecting a different device.
Generator runs but
does not support
all electrical
devices connected.
1. Generator is overloaded.
1. Turn off and unplug all electrical devices. Wait 5 minutes, then
press the circuit breaker to reset. Reduce load as necessary, then plug
devices back in one by one.
2. Short circuit in one of the devices. 2. Try disconnecting any faulty or short-circuited electrical loads.
3. Air filter is dirty. 3. Clean or replace the air filter element.
Engine is
“Hunting” during
Operation
(Engine RPM is fluc-
tuating).
1. The fuel isn’t running through the
fuel valve.
2. The air filter is clogged.
3. The muffler or spark arrester is
blocked
4. There is gunk in the carbure-
tor preventing a consistent fuel/air
mixture.
Turn off the generator and wait for it to cool down. Perform the follow-
ing steps:
1. Check if the fuel is properly and consistently going through the fuel
valve
2. Check for any blockage in the air filter. Check and clean the air filter
as necessary.
3. Check if the spark arrester is blocked. Clean with metal brush as
necessary.
4. Use “gunk remover” spray on the carburetor jets.
TROUBLESHOOTING GUIDE
WARNING! Stop using the generator immediately if any of the following problems occur or risk serious
personal injury. If you have any questions, please contact our customer service at 1-(800) 232-1195, M-F 8-5
CST or email us at [email protected].
37
WIRING DIAGRAM
USB
Overload
LED
Power
LED
Eco-Mode
Switch
Oil
LED
Engine
Switch
Stepper Motor
(Throttle)
Oil Sensor Igniter
Spark
Plug
Ignition
Coil
DC Winding
Main
Winding
Control
Winding
Power
Winding
Red LED
Yellow LED
CO Sensor Engine
Control Module
CO Sensor
38

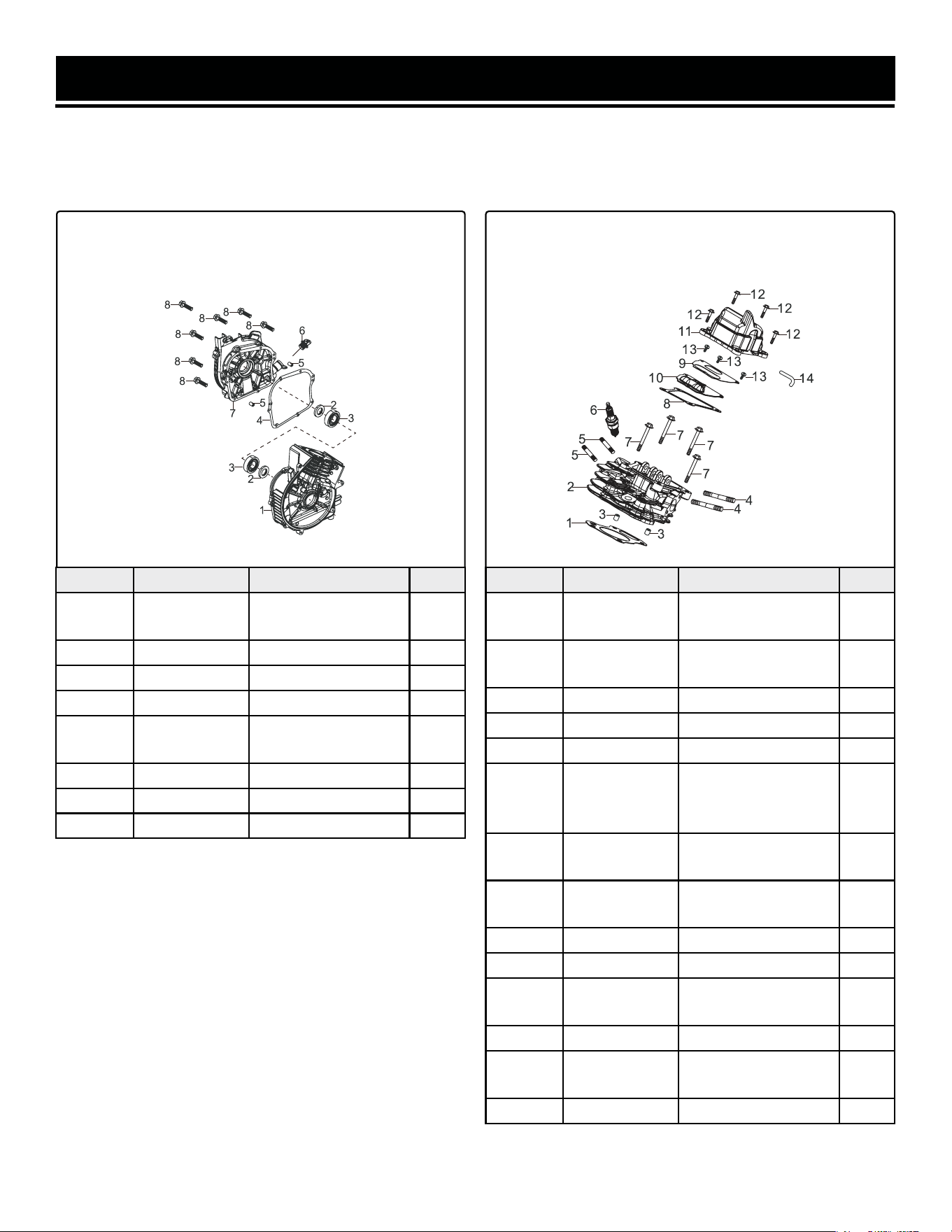

No. Part No. Description Qty.
1-1 56200-0901
Crankcase
Subassembly
1
1-2 56200-0902 Oil Seal 2
1-3 56200-0903 Ball Bearing, 6204 2
1-4 56200-0904 Crankcase Gasket 1
1-5 56200-0905
Positioning Pin,
Type A
2
1-6 56200-0906 Oil Dipstick 1
1-7 DF250i-0117 Crankcase Cover 1
1-8 56200-0908 Bolt, M6x22 7
EXPLODED VIEW & PARTS LIST
NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service at 1-(800)
232-1195, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use are not covered by
the three-year warranty. Not all parts may be available for purchase.
FIG. 1 - CRANKCASE &
COVER SUBASSEMBLIES
No. Part No. Description Qty.
2-1 56200-0801
Cylinder Head
Gasket
1
2-2 DF250i-0201
Cylinder Head
Subassembly
1
2-3 56200-0803 Positioning Pin 2
2-4 56200-0804 Stud Bolt (M6) 2
2-5 56200-0805 Stud Bolt (M6) 2
2-6 56200-0806
Spark Plug (Torch
A5RTC / NGK
CR5HS)
1
2-7 56200-0807
Cylinder Head Bolt,
M6x50
4
2-8 56200-0808
Cylinder Head
Cover Gasket
1
2-9 56200-0809 Breather Plate 1
2-10 56200-0810 Breather Gasket 1
2-11 56200-0811
Cylinder Head Cover
Subassembly
1
2-12 56200-0812 Bolt, M6x16 4
2-13 56200-0813
Phillips Head
Screw, M6x8
3
2-14 56200-0814 Breather Tube 1
FIG. 2 - CYLINDER HEAD
SUBASSEMBLY & SPARK PLUG
39
No. Part No. Description Qty.
3-1 56200-1001
Crankshaft
Subassembly
1
3-2 56200-1002
Connecting Rod
Subassembly
1
3-3 56200-1003 Piston 1
3-4 56200-1004 Piston Pin Clip 2
3-5 56200-1005 Piston Pin 1
3-6 56200-1007 Piston Ring Set 1
EXPLODED VIEW & PARTS LIST
FIG. 3 - RING SET, PISTON, &
CONNECTING ROD SUBASSEMBLIES
No. Part No. Description Qty.
4-1 56225i-1101
Camshaft
Subassembly
1
4-2 56200-1103 Valve Tappet 2
4-3 56200-1104 Valve Set 1
4-4 56200-1105
Valve Rocker Sub-
assembly
2
4-5 56200-1106 Valve Spring 2
4-6 56200-1107 Valve Spring Seat 2
4-7 56200-1112 Valve Rocker Shaft 1
4-8 56200-1113 Seal Guide 1
4-9 56200-1114 Valve Lifter 2
FIG. 4 - VALVE TRAIN &
CAMSHAFT SUBASSEMBLY
No. Part No. Description Qty.
5-1 DF250i-0501
Recoil Starter
Subassembly
1
5-2 56200-1203 Bolt, M6x16 4
5-3 56200-1208
Cylinder Head
Shroud
1
5-4 56200-1209B Detent Insert 1
5-5 56200-1210 Nut Clip 1
FIG. 5 - RECOIL STARTER
SUBASSEMBLY
40
2
4
3
1
2
5
8
5
6
9
4
4
9
2
3
2
EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
6-1 56200-1301 Carburetor Gasket 1
6-2 56200-1302
Carburetor Insulator
Plate
1
6-3 56200-1303
Carburetor Insulator
Gasket
1
6-4 DF250i-0604 Carburetor 1
6-5 56200-1305 Fuel Filter 1
6-6 56200-1306B Cap 1
FIG. 6 - CARBURETOR
SUBASSEMBLY
No. Part No. Description Qty.
7-1 56200-1601
Flywheel Nut,
M12-12.5
1
7-2 DF250i-0702
Flywheel
Subassembly
1
7-3 56200-1603 Bolt, M6x20 1
7-4 56225i-1604 Ignitor 1
7-5 56200-1605 Engine Oil Sensor 1
7-6 56200-1606 Bolt, M6x12 2
7-7 56200-1607 Clamp 1
7-8 56200-1608 Bolt, M6x12 1
7-9 56225i-1609 Ignition Coil 1
7-10 56200-1610 Bolt, M6x20 2
FIG. 7 - FLYWHEEL, IMPELLER,
STARTER PULLEY, IGNITION COIL
No. Part No. Description Qty.
8-1 56200-1401 Air Filter Assembly 1
8-2 56200-1402 Air Filter Gasket 1
8-3 56200-1403 Air Filter Duct 1
8-4 56200-1404
Flanged Hex Nut,
M6
2
8-5 56200-1405 Bolt, M5x20 1
8-6 56200-1406 Bolt, M6x20 1
8-7 56200-1407B Air Filter Element 1
8-8 56200-1408B Seal Ring 1
FIG. 8 - AIR FILTER SUBASSEMBLY
41
6

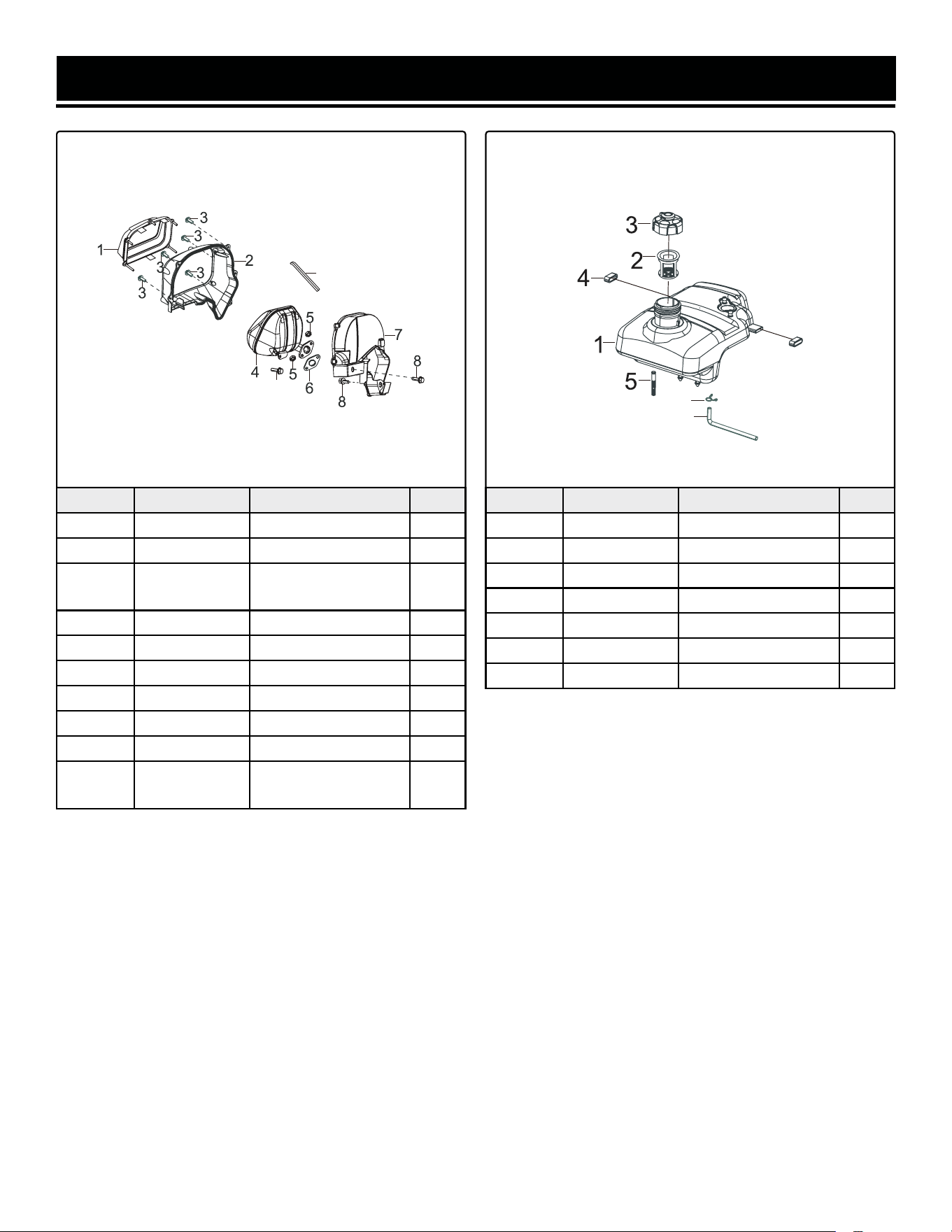

EXPLODED VIEW & PARTS LIST
No. Part No. Description Qty.
9-1 56200-1501 Muffler Side Cover 1
9-2 56200-1502 Muffler Shroud 1
9-3 56200-1503
Self-Tapping Screw,
ST4.8x16
5
9-4 56200-1504 Muffler Assembly 1
9-5 56200-1505 Hex Nut, M6 2
9-6 56200-1506 Muffler Gasket 1
9-7 56200-1507 Muffler Cover 1
9-8 56200-1508B Bolt, M6x16 2
9-9 DF250i-0909 Shroud Seal 1
9-10 DF250i-0910
Flanged Hex Bolt,
M6x12
1
FIG. 9 - MUFFLER SUBASSEMBLY
No. Part No. Description Qty.
10-1 56200-0201 Fuel Tank 1
10-2 56200-0202 Fuel Filter 1
10-3 56200-0203 Fuel Tank Cap 1
10-4 56200-0206 Bushing 2
10-5 56200-0207 Strainer Element 1
10-6 56200-0208 Fuel Tube 1
10-7 56200-0210 Collar 1
FIG. 10 - FUEL TANK SUBASSEMBLY
42
9
10
6
8
EXPLODED VIEW & PARTS LIST

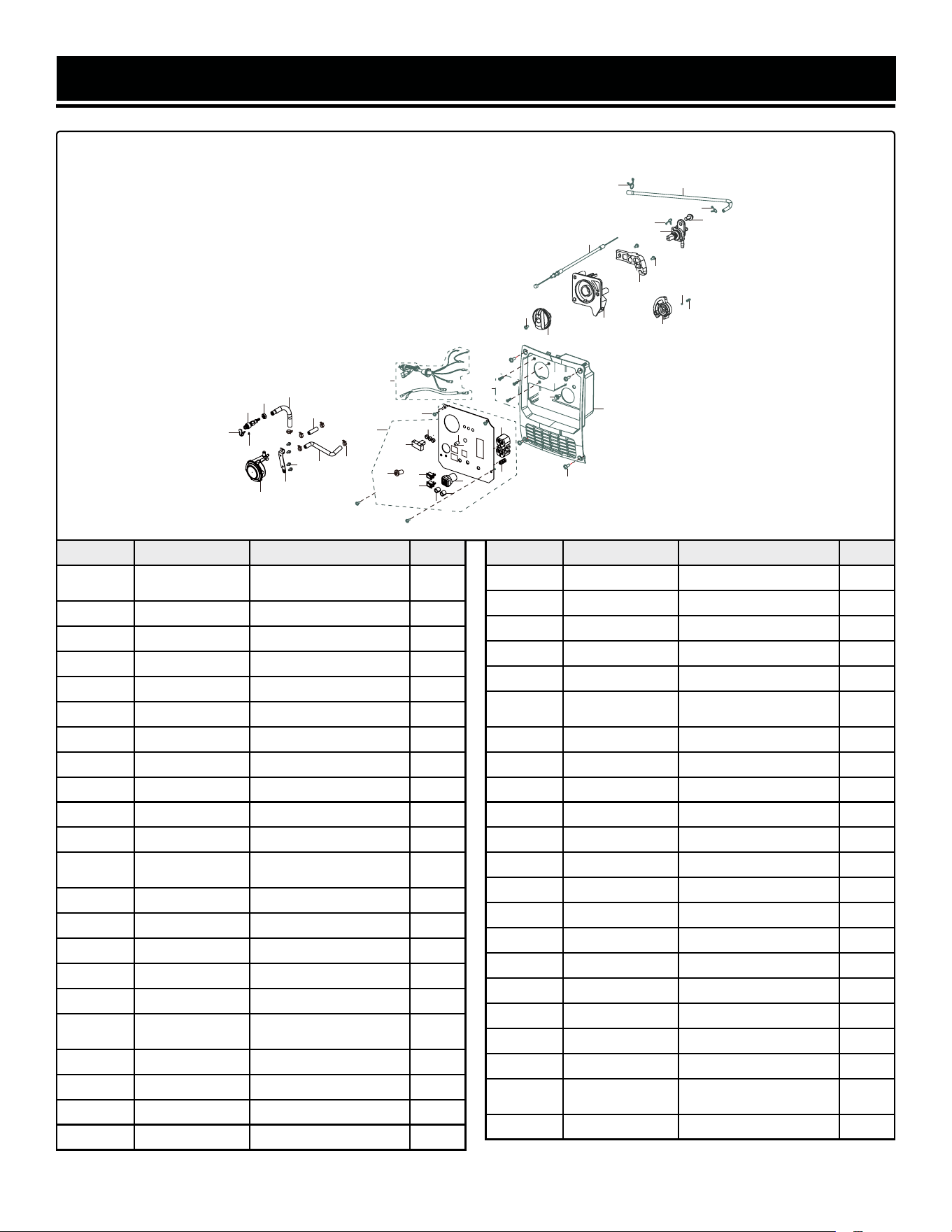

FIG. 11 - CONTROL PANEL SUBASSEMBLY
No. Part No. Description Qty.
11-1 DF250iX-1101
Control Panel
Subassembly
1
11-2 56200-0601B Self-Tapping Screw, ST4x13 4
11-3 56200-0614 Panel Seat 1
11-4 56225i-0612 Screw with Washer, M5x16 4
11-5 56225i-0618 Phillips Head Screw, M4x16 1
11-6 56225i-0619 Knob 1
11-7 56225i-0617 Control Box 1
11-8 56200-0621B Cover Plate 1
11-9 56200-0623 Steel Ball 1
11-10 56200-0624B Stopper Adjusting Spring 1
11-11 56200-0620 Choke 1
11-12 56200-0628
Fuel Valve
Subassembly
1
11-13 56200-0629 Flanged Hex Bolt, M6x14 1
11-14 56200-0632 Collar 2
11-15 56200-0631 Fuel Tube 1
11-16 56200-0634 Collar 1
11-17 56225i-0609 Control Panel Wiring Harness 1
11-18 56200-0615
Countersunk Self-Tapping
Screw, ST4x16
3
11-19 56200-0607B Indicator Light Seat 3
11-20 56200-0606B Indicator Light 1
11-21 DF250i-1121 Manual Shut-down Switch 1
11-22 56225i-0603 Eco-Mode Switch 1
No. Part No. Description Qty.
11-23 DF1200X-1607 CO Indicator Light 1
11-24 DF250iX-1124 USB Socket 1
11-25 56200-0640 Red Parallel Socket 1
11-26 56200-0641 Black Parallel Socket 1
11-27 56200-0604 Grounding Lug 1
11-28 56200-0605
NEMA 5-20R 120V AC Duplex
Outlet
1
11-29 56200-0617 Flanged Hex Bolt, M6x12 1
11-30 DF250i-1130 Fuel Valve Bracket 1
11-31 56225i-0627 Self-Tapping Screw, ST4.2x16 2
11-32 DF250i-1132 Thin Hex Nut, M14-1.5 1
11-33 DF250i-1133 LPG Hose 1 1
11-34 DF250i-1134 LPG Hose 2 1
11-35 DF250i-1135 LPG Hose 3 1
11-36 DF250i-1136 Hose Clamp 5
11-37 DF250i-1137 Phillips Head Screw, M4x8 1
11-38 DF250i-1138 Secondary LPG Regulator 1
11-39 DF400i-1437 Inlet Cap 1
11-40 DF400i-1436 LPG Inlet 1
11-41 DF250i-1141 Valve Mounting Bracket 1
11-42 56200-0617 Flanged Hex Bolt, M6x12 4
11-43 DF250iX-1143
CO Indicator Light Mounting
Base
1
11-44 DF250i-1123 Reset Button 1
43
16
15
14
13
12
7
10
9
8
11
6
5
4
18
17
2
1
3
19
20
21
22
23
24
25
26
27
28
29
30
31
14
39
40
32
33
34
35
36
37
38
41
42
43
44
EXPLODED VIEW & PARTS LIST

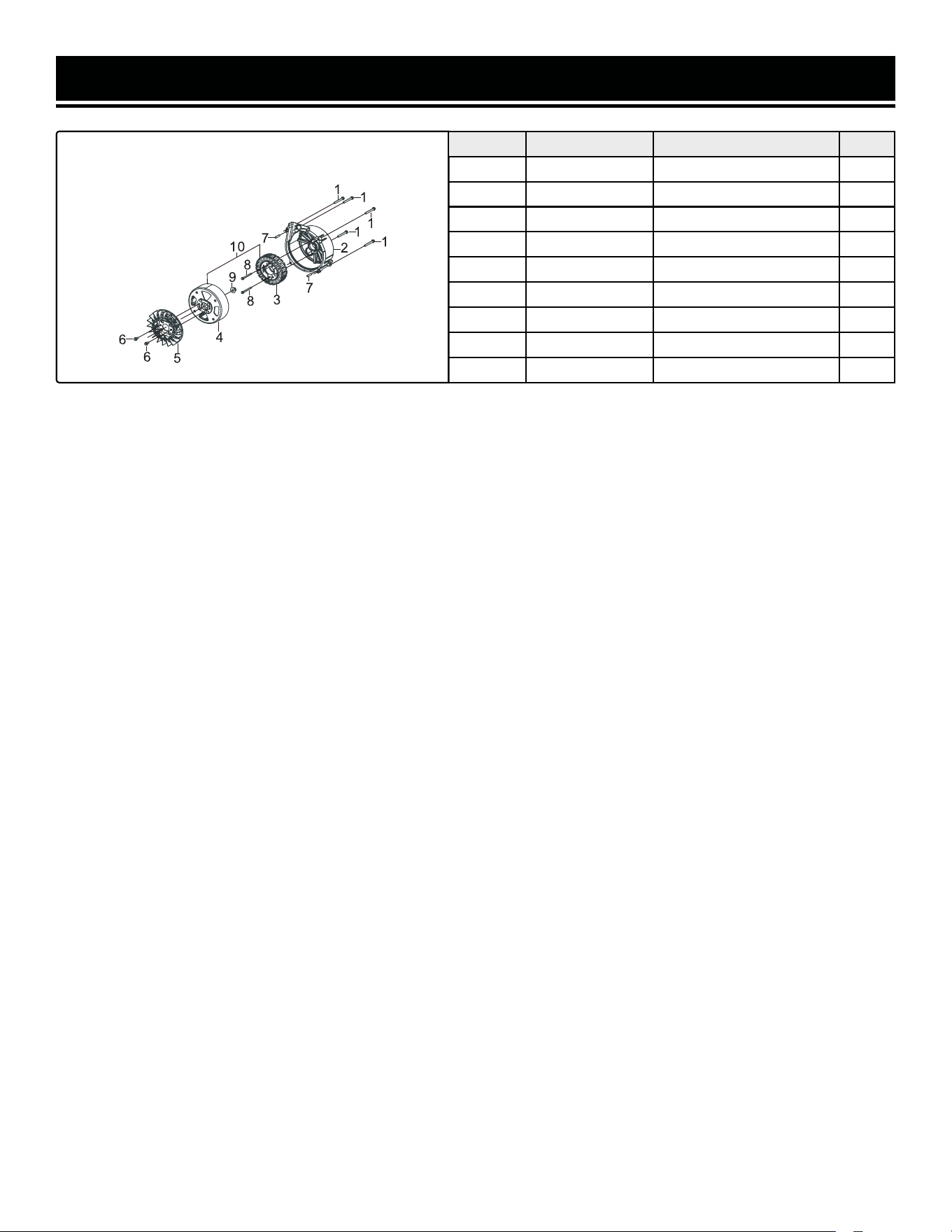

FIG. 12 - ROTOR & STATOR
No. Part No. Description Qty.
12-1
56200-0701 Bolt, M6x30 5
12-2 DF250i-1202 Alternator Shroud 1
12-3 DF250iX-1203 Stator Subassembly 1
12-4 DF250i-1204 Rotor Subassembly 1
12-5 56200-0705 Impeller 1
12-6 56200-0706 Bolt, M6x10 2
12-7 56200-0707 Position Pin, Type A 2
12-8 56200-0708 Bolt, M5x35 2
12-9 56200-0709 Flanged Hex Nut, M12 1
44

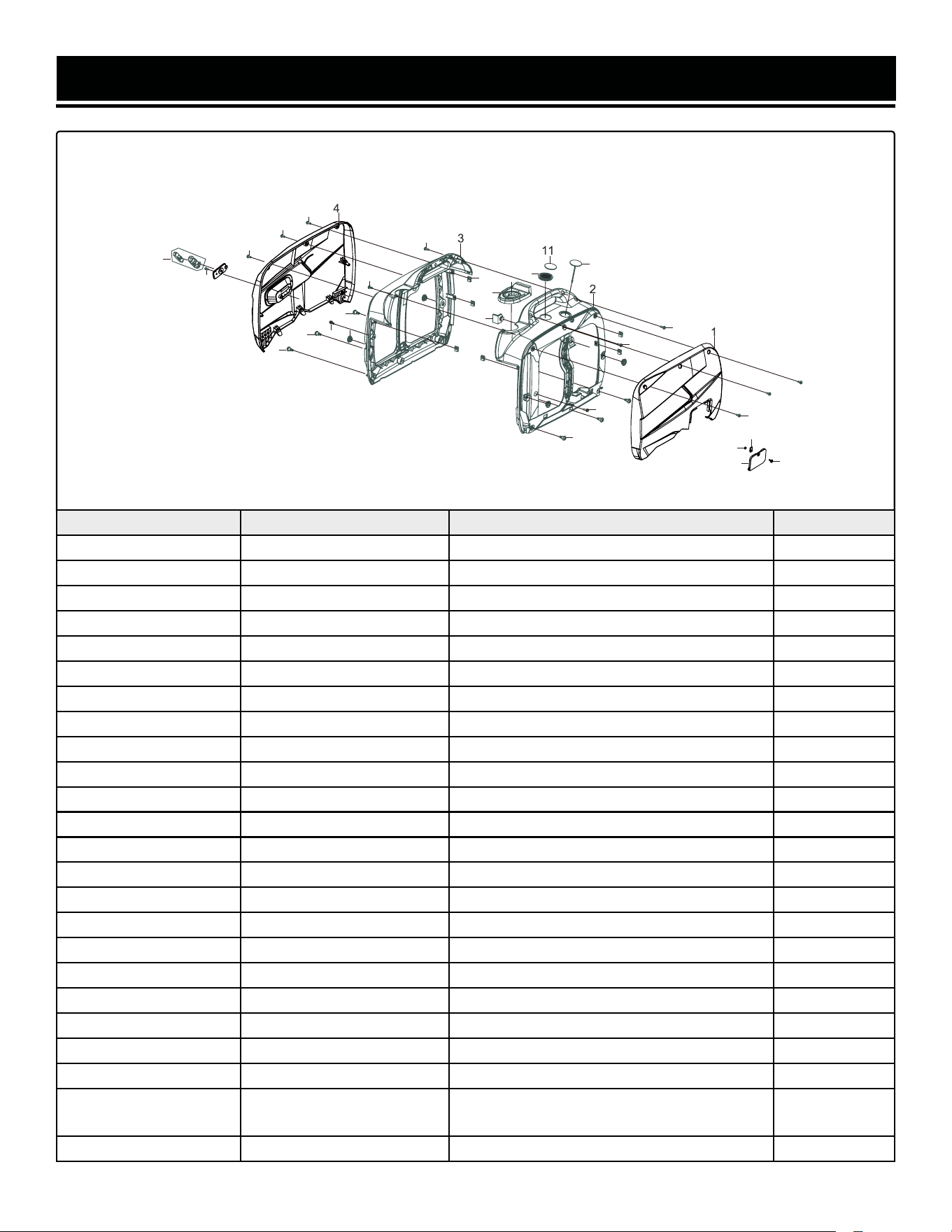

FIG. 13 - HOUSING
No. Part No. Description Qty.
13-1
DF250iX-1301 Right Side Panel 1
13-2 56200-0402 Right Shell 1
13-3 56200-0403 Left Shell 1
13-4 56200-0404B Left Side Panel 1
13-5 56200-0406 Step Bolt, M5x12 6
13-6 56200-0407 Step Bolt, M6x19 6
13-7 56200-0409 Fuel Tank Rubber Sleeve 4
13-8 56200-0410 Rubber Cushion 1
13-9 56200-0411 Gas Tank Opening Sleeve 1
13-10 56200-0412 Rubber Jacket 1
13-11 56200-0413 Gas Tank Opening 1
13-12 56200-0414 Rubber Jacket 2
13-13 56200-0416B Recoil Starter Guide 1
13-14 DF250i-1314 Countersunk Phillips Head Screw, M5x12 1
13-15 56200-0420 Recoil Starter Handle 1
13-16 DF250i-1316 Countersunk Phillips Head Screw, M4x16 1
13-17 56200-0422 Bolt, M6x12 2
13-18 56200-0423 Clip Nut 6
13-19 56200-0426B Panel Lock 1
13-20 56200-0424B Oil Access Panel 1
13-21 56200-0427B Nylon Nut, M5 1
13-22 56200-0425B Step Bolt, M5x16 1
13-23 DF250i-1323
Phillips Head Screw with Flat & Lock
Washer, M5x16
3
N.P. DF400i-1332 Primary LPG Regulator Hose Assembly 1
EXPLODED VIEW & PARTS LIST
45
5
5
5
13
15
14
6
6
6
16
7
17
12
18
9
8
10
5
23
6
17
19
20
21
22
23
23
EXPLODED VIEW & PARTS LIST
FIG. 14 - BOTTOM PLATE,
FRAME, & INVERTER
No. Part No. Description Qty.
14-1 56200-0501 Bottom Plate 1
14-2 56200-0502 Bolt, M6x14 4
14-3 56200-0503 Frame Seat 2
14-4 56200-0504 Frame Seat 2
14-5 56200-0505 Square Nut, M6 4
14-6 56200-1404
Flanged Hex Nut,
M6
8
14-7 56200-0507
Engine Frame
Cushion
4
14-8 56200-0617 Bolt, M6x12 6
14-9 DF250i-1409 Inverter 1
14-10 56225i-0519 Voltage Regulator 1
14-11 56200-0510
Cushioning Rubber
Bracket
1
14-12 56200-0509
Cushioning Rubber
Bracket
1
No. Part No. Description Qty.
14-13 56200-0409
Fuel Tank Rubber
Sleeve
1
14-14 56200-0516
Fuel Tank Rubber
Sleeve
1
14-15 56200-1210 Clip Nut 4
14-16 DF250iX-1416
Inverter Mounting
Bracket
1
14-17 56200-0629
Flanged Hex Bolt,
M6x14
1
14-18 DF250iX-1418
Flanged Hex Bolt,
M6x16
1
14-19 DF250iX-1419
CO Sensor Engine
Control Module
1
14-20 DF1200X-1620 CO Sensor Module 1
14-21 DF250iX-1421
Security Torx Head
Screw, M4
2
46
14
13
15
4
4
9
10
11
12
16
17
18
19
20
21

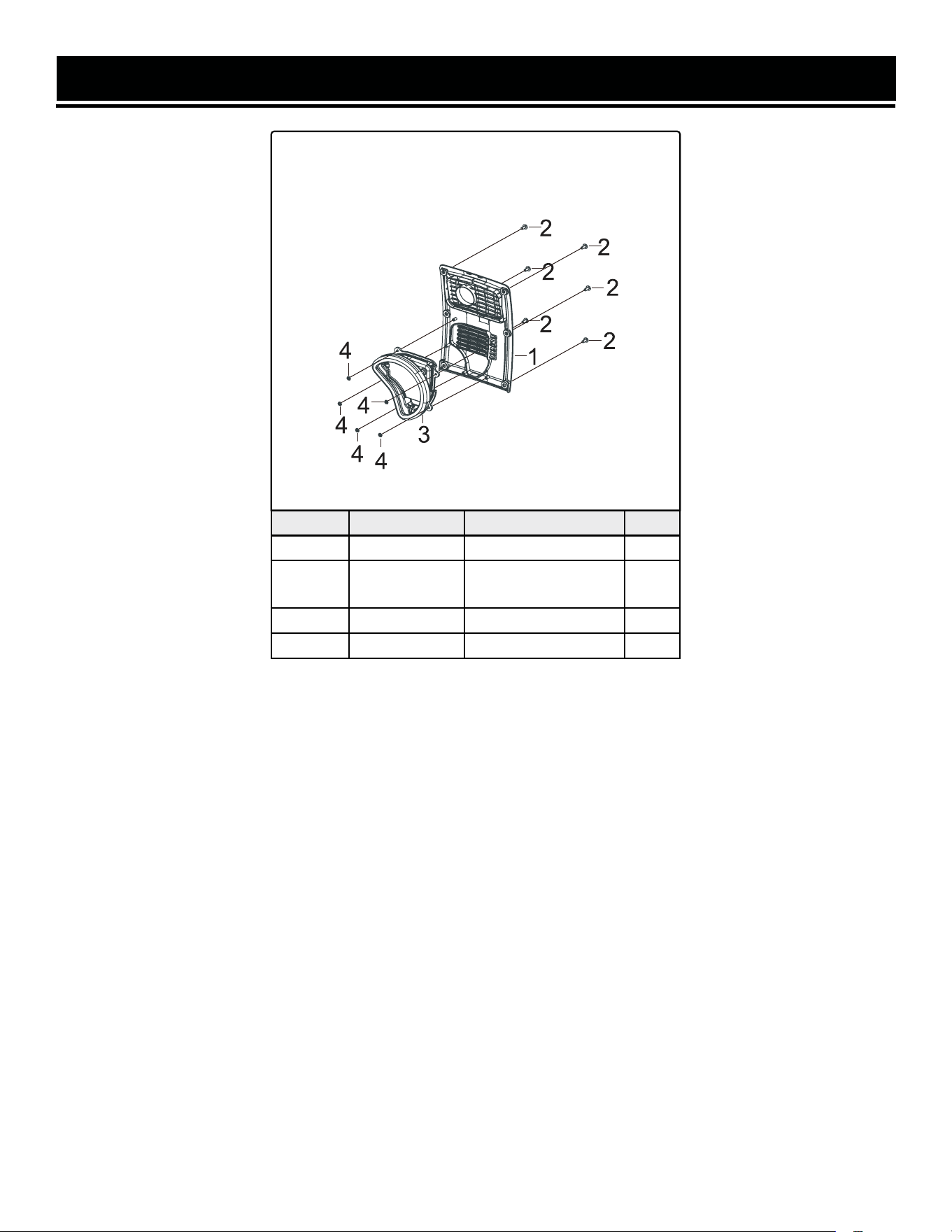

FIG. 15 - MUFFLER SIDE COVER
No. Part No. Description Qty.
15-1
DF250i-1501 Muffler Side Cover 1
15-2 56200-0302
Washer and Screw,
M5x16
6
15-3 56200-0303 Cover Cushion 1
15-4 56200-0304 Spring Clip 5
EXPLODED VIEW & PARTS LIST
47
WARRANTY STATEMENT
WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this
commitment and our dedication to quality.
LIMITED WARRANTY OF WEN PRODUCTS FOR HOME USELIMITED WARRANTY OF WEN PRODUCTS FOR HOME USE
GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that this WEN consumer prod
-
uct will be free from defects in material or workmanship during personal use for a period of three (3) years from date
of purchase or 500 hours of use; whichever comes first. Ninety days for all WEN products if the tool is used for profes
-
sional or commercial use. Purchaser has 30 days from the date of purchase to report missing or damaged parts. Parts
and labor are covered for one (1) year under this limited warranty; parts only are covered for three (3) years under this
limited warranty.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent per
-
mitted by law, any warranty or condition implied by law, shall be the replacement of parts, without charge, which are
defective in material or workmanship and which have not been subjected to misuse, alteration, careless handling, mis
-
repair, abuse, neglect, normal wear and tear, improper maintenance, improper storage, incorrect lubricants / fuels, or
other conditions adversely affecting the Product or the component of the Product, whether by accident or intentionally,
by persons other than Seller. To make a claim under this Limited Warranty, you must make sure to keep a copy of your
proof of purchase that clearly defines the Date of Purchase (month and year) and the Place of Purchase. Place of Pur-
chase must be a direct vendor of Great Lakes Technologies, LLC. Purchasing through third party vendors, including but
not limited to garage sales, pawn shops, resale shops, or any other secondhand merchant, voids the warranty included
with this product. Contact [email protected] or 1-800-232-1195 with the following information to make
arrangements: your shipping address, phone number, serial number, required part numbers, and proof of purchase.
Damaged or defective parts and products may need to be sent to WEN before the replacements can be shipped out.
Upon the confirmation of a WEN representative, your product may qualify for repairs and service work. When returning
a product for warranty service, the shipping charges must be prepaid by the purchaser. The product must be shipped
in its original container (or an equivalent), properly packed to withstand the hazards of shipment. The product must be
fully insured with a copy of the proof of purchase enclosed. There must also be a description of the problem in order
to help our repairs department diagnose and fix the issue. Repairs will be made and the product will be returned and
shipped back to the purchaser at no charge for addresses within the contiguous United States.
THIS LIMITED WARRANTY DOES NOT APPLY TO ITEMS THAT WEAR OUT FROM REGULAR USAGE OVER TIME,
INCLUDING FILTERS, SPARK PLUGS, VOLTAGE REGULATORS, BRUSHES, GASKETS, O-RINGS, WHEEL KITS, BAT
-
TERIES, RECOIL STARTERS, HIGH PRESSURE HOSES, SPRAY GUNS, ETC. ANY IMPLIED WARRANTIES SHALL BE
LIMITED IN DURATION TO THREE (3) YEARS FROM DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME
CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMITATION MAY NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT
NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME
STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF IN
-
CIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH
VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.
THIS LIMITED WARRANTY APPLIES ONLY TO ITEMS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA
AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT
THE WEN CUSTOMER SUPPORT LINE. FOR WARRANTY PARTS OR PRODUCTS REPAIRED UNDER WARRANTY
SHIPPING TO ADDRESSES OUTSIDE OF THE CONTIGUOUS UNITED STATES, ADDITIONAL SHIPPING CHARGES MAY
APPLY.
V. 2022.01.19
48
