Support and E-Warranty Certificate www.vevor.com/support
FOOD CHOPPER
INSTRUCTION MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL: XZ-7C XZ-15C
Have product questions? Need technical support? Please feel free to
contact us:
Technical Support and E-Warranty Certificate
www.vevor.com/support
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
FOOD CHOPPER
- 2 -
This manual covers a variety of specifications, please users according to
the actual corresponding product description and use.
IMPORTANT ASSURANCE
WARNING: Before operating this device, please read this instruction
manual completely and keep it handy for future reference. Always follow
basic safety precautions when using these devices. These include:
1.Before using, check that the voltage power corresponds to the one shown on
the appliance nameplate.Ensure that the voltage set on the machine corresponds
the supply of electricity in your country.
2.Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Return appliance
to the nearest authorized service facility for examination, repair or adjustment.
3.If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
4.Do not use the product to chop anything which is very stiffen,if not,the blade will
easily damaged.
5.Never put your hand into the bucket from the hole when machine start to
work,this hole is only for put food material if there’s any emergency when
machine is working.
6.Children are not allowed to operate this product for safety concern.
7.Do not use appliance for other than intended use.
8.Except the material hopper,do not immerse the machine motor base into water
as it might cause damage(please use a rag to clean the machine base).
9.To protect against fire, electric shock, or personal injury, do not immerse cords,
electric plugs, or appliances in water or other liquids.
10.The use of accessories, which the appliance manufacturer does not
recommend, may result in fire, electric shock, or personal injury.
11.This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved.
12.Close supervision is necessary when any appliance is used by or near
- 3 -
children. Children shall not use the appliance. Cleaning and user maintenance
shall not be made by children.
13.Do not use an extension cord with this product.
14.The power cord should lie flat on a table or counter surface, and may not hang
over the edge. Keep it away from hot surfaces and water.
15.For optimal operation and service life of the device, please follow the
instructions.
16.Food acids will corrode the metal. Always clean this food preparation
equipment immediately after every use. To maintain the appearance and increase
the service life, clean it daily.
17.The use of accessories or modifications not provided by the manufacturer may
cause hazards. This product must only be used for its intended purpose and in
the manner indicated in the instructions. All other types of use shall be
considered inappropriate and hazardous. The manufacturer shall not be
responsible for any improper or incorrect use and installation damage.
18.The temperature range of the glass bowl is 0°C--50°C. Can not put the glass
bowl into the microwave for heating or put the food which beyond the temperature
range in the glass bowl.
19.Before put into the ingredients, confirm that the blade is in position or not. If
the blade can not running or running slowly, pull out the plug, and check whether
there is any obstacle.Take out the obstacle if there is.
20.Blade is very sharp.Please do not touch the blade directly with your hand, and
hold the arbor on the blade when you remove it.
21.Never run more than 30 seconds continuously. After work for 30 seconds, rest
2minutes for a break. Work for 30 seconds interval of 2 minutes for a cycle,
continuous work 3 cycles must be stopped by 15 minutes, wait for the motor cool
down before work again.
22.After finish, only can disassemble the accessory after the motor stop
completely.
23.The blade is sharp. TAKE CARE.
SAVE THESE INSTRUCTIONS
- 4 -
SCHEMATIC DIAGRAM&CONFIGURATION

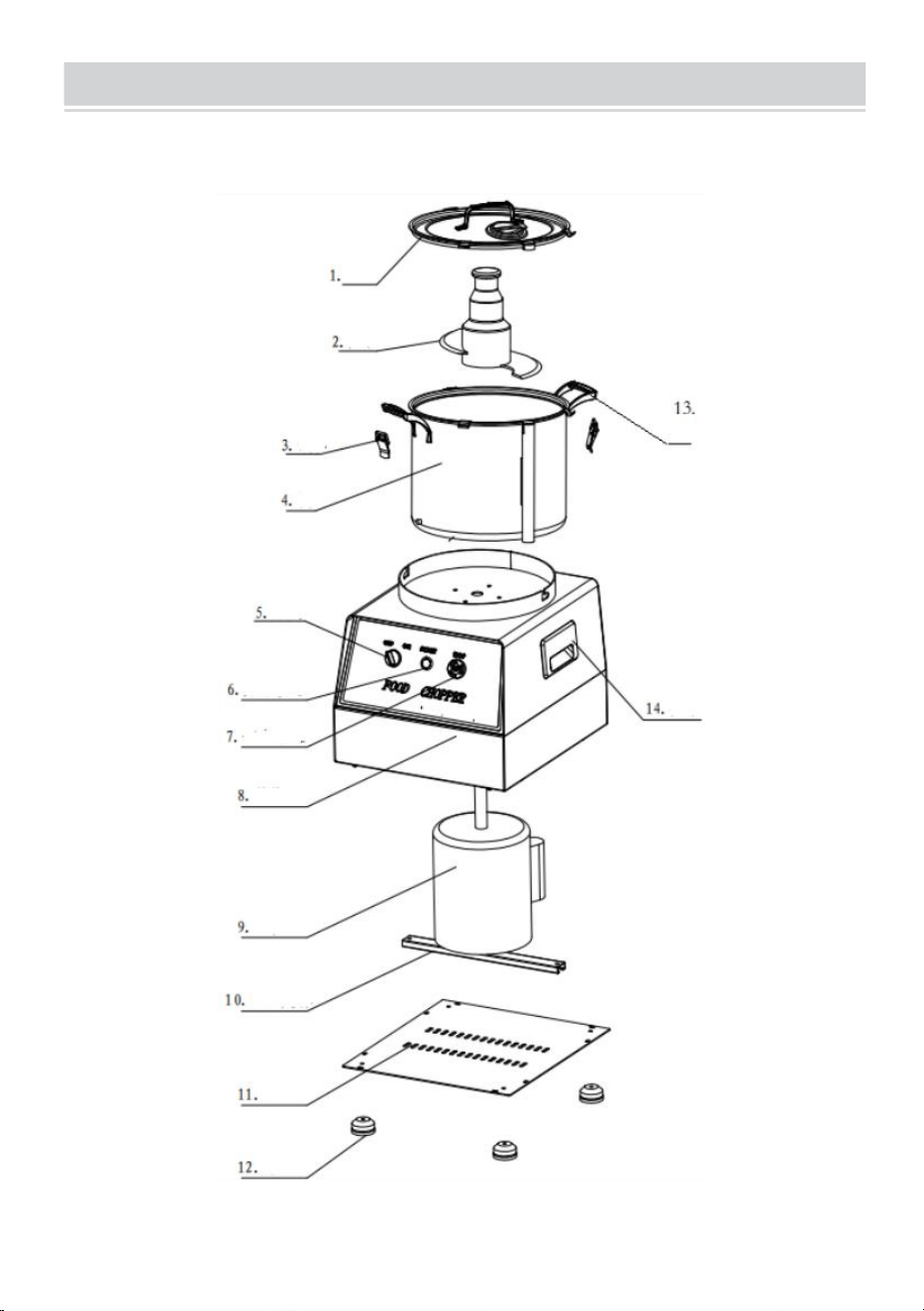

Schematic Diagram
- 5 -
Parts list
1. Cover 2.Blade set 3. Latch 4. Bowl 5. Power switch 6.Start button
7. Emergency stop button 8.Host 9. Motor 10.Motor bracket
11.Bottom panel 12.Steel feet 13.Bowl handle 14.Host handle
Accessories
Blade set(Extra)*1 Steel brush*1 Dust cloth *1 Gloves*10
CONFIGURATION:
Model
Capacity
Voltage
Power
Xz-7c
7L
120V-60Hz/
220-240V,50-60HZ
750W
Xz-15c
15L
120V-60Hz/
220-240V,50-60HZ
1400W
OPERATION INSTRUCTIONS
Installation
1. Place the blade on the bowl axis.
2. Put in the ingredients. (Do not exceed the max filling level mark on the bowl).
3. Put in the cover.
4. Press the button to start running.
Disassembly
After chopping the material, catch the handle of the bucket, turn it clockwise, and
lift it up with force.
Attention: Please do not take out the blade separately. Keep it still in the bucket, lift
up the bucket, and the blade will also loosen. After that, you will take out the blade
more easily.
- 6 -
Operation
1.Before use, clean the bowl, blade and top cover.
2.Put the ingredients in the bowl.
3.Insert the plug, and switch on the power.
Cutting time reference for some material
It is just for reference. The cutting time is according to the material. If you want to
cut it smaller, it will take a little longer time. If you need a bigger size, cutting time
will be shorter.
Type
Meat
Ginger,Garlic
Spice
Grain
Vegetable
Cutting time
13S
35S
15S
30S
15S
TROUBLESHOOTING
Potential
Problem
Probable Cause
Solution
The machine
does not operate
after power on
The top cover is locked in
place or not
Put in the top cover good
- 7 -
The machine stop
during use
1 Voltage is too low
2 The motor works for a
long time or overloaded,
power supply will cut off
automatically
1.Check power supply for
compliance with rated
voltage
2.Pull out plug of power
supply wait for the motor to
cool (about or 30 min), use
again.
There is smell at
the first use
Normally situation for new
machine
After the motor works for
some periods, it still have
smell, please send back to
us for check
The machine is
Unusually
vibrating or noisy
1 .The blade not put in place
2. The machine not put or
stable place
3 Voltage is too high
4 The ingredients is exceed
over the max filling level
1 Take out all the
ingredients,and put blade in
place
2.Put the machine on stable
place
3.Check power supply for
compliance with rated
voltage
4.Remove the power plug
from he power outlet then
take out the extra ingredients
CLEAN AND MAINTENANCE
1. After use, please remove the power plug from the power outlet in time.
2. For safety, please wear gloves to disassemble the blade as per the picture.
3. Please assemble the blade with the knife set after cleaning and make it dry. The
blades are very sharp, please take care.
4. All accessories can be washed in soapy water or in a dishwashing liquid. To
- 8 -
protect against scratches on the machine, do not use a steel wire ball.
5. Never immerse the motor unit or put it under running water. Simply wipe it clean
with a damp sponge.
6. If not used for a long time, please store this machine in a dry and well-ventilated
place so as to prevent the motor from being damped and moldy.
